Chungear Co CE10325 Ceiling Fan Remote Controller (Transmitter) User Manual 207A

Chungear Industrial Co Ltd Ceiling Fan Remote Controller (Transmitter) 207A

Contents

207A

WALL TRANSMITTER
OPERATION AND INSTALLATION INSTRUCTIONS
(Please keep this instruction pamphlet.)
IMPORTANT POINTS TO REMEMBER:
1. Read and save these instructions.
2. Please note that all fixed wiring appliances should be installed by a qualified electrician.
3. The supply to the remote control receiver should be connected through a mains switch, i.e. existing wall switch.
4. Disconnect from power supply at wall switch before working on remote control receiver or ceiling fan.
5. Install receiver into the ceiling fan canopy of the fan to ensure proper protection.
6. This unit is to be used for the control of ceiling fan and in an AC110/120V 60Hz power supply only.
7. Do not install in wee locations or immerse in water.
8. Do not pull on or cut leads shorter.
9. Do not drop or bump the unit.
10. PLEASE NOTE: The battery will weaken with age and should be replaced before leaking takes place
as this will damage the transmitter. Dispose of used battery properly, keep the battery out of reach of
children.
11. CAUTION: To reduce the risk of fire or injury, do not use this product in conjunction with any variable (rheostat)
wall control.

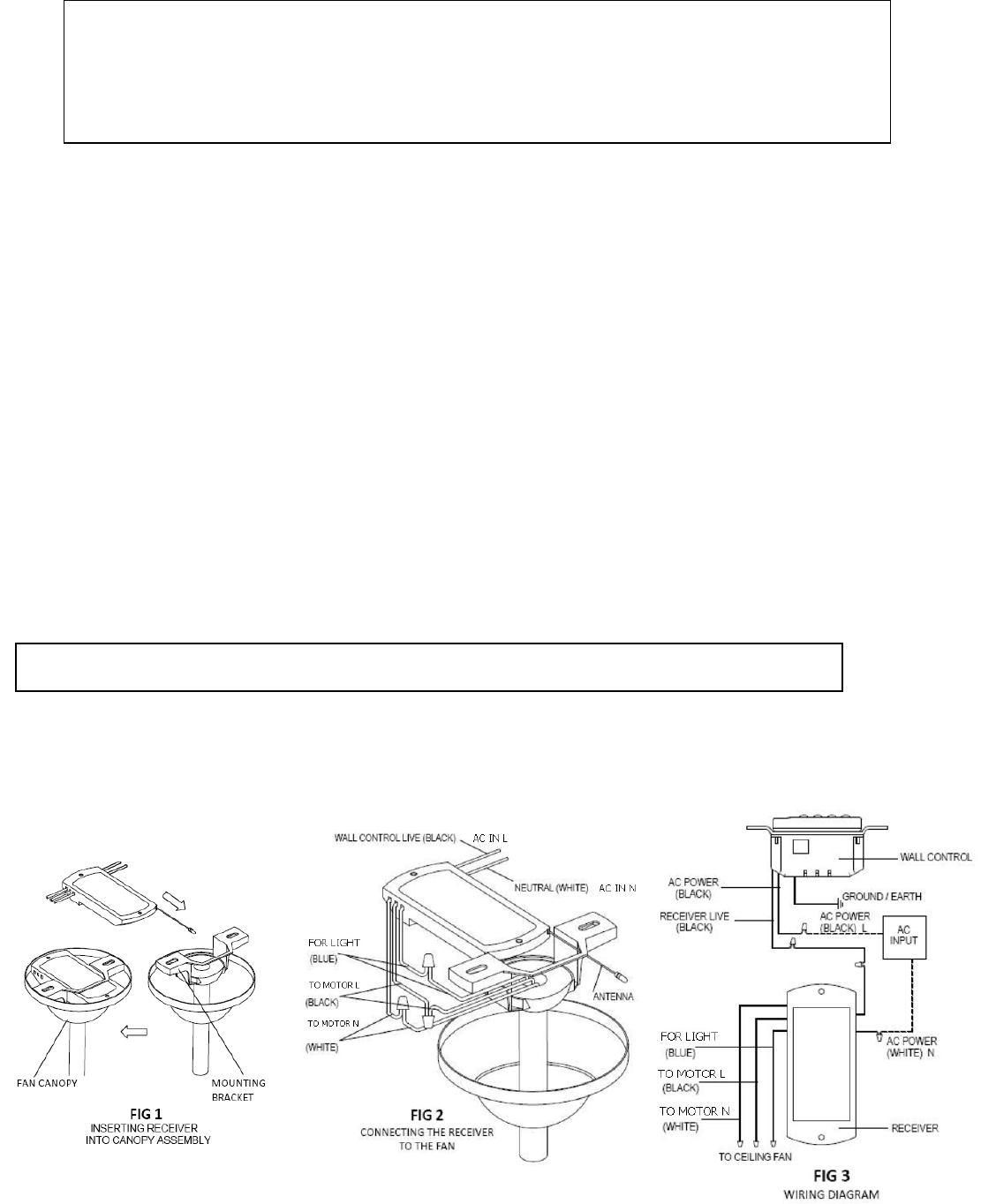

INSTALLATION INSTRUCTIONS
1.Ceiling fan must be set at HIGH speed after installation.
2.Once the connection has been made, the receiver inserts into the drop rod hanging bracket. The canopy comes up to cover the
receiver and bracket.
CAUTION: INCORRECT WIRE CONNECTION WOULD DAMAGE THIS RECEIVER.
IMPORTANT
YOU MUST SET CEILING FAN MANUAL SWITCH TO HIGH SPEED LIGHT KIT ON
POSTION BEFORE OPERATING REMOTE CONTROL.

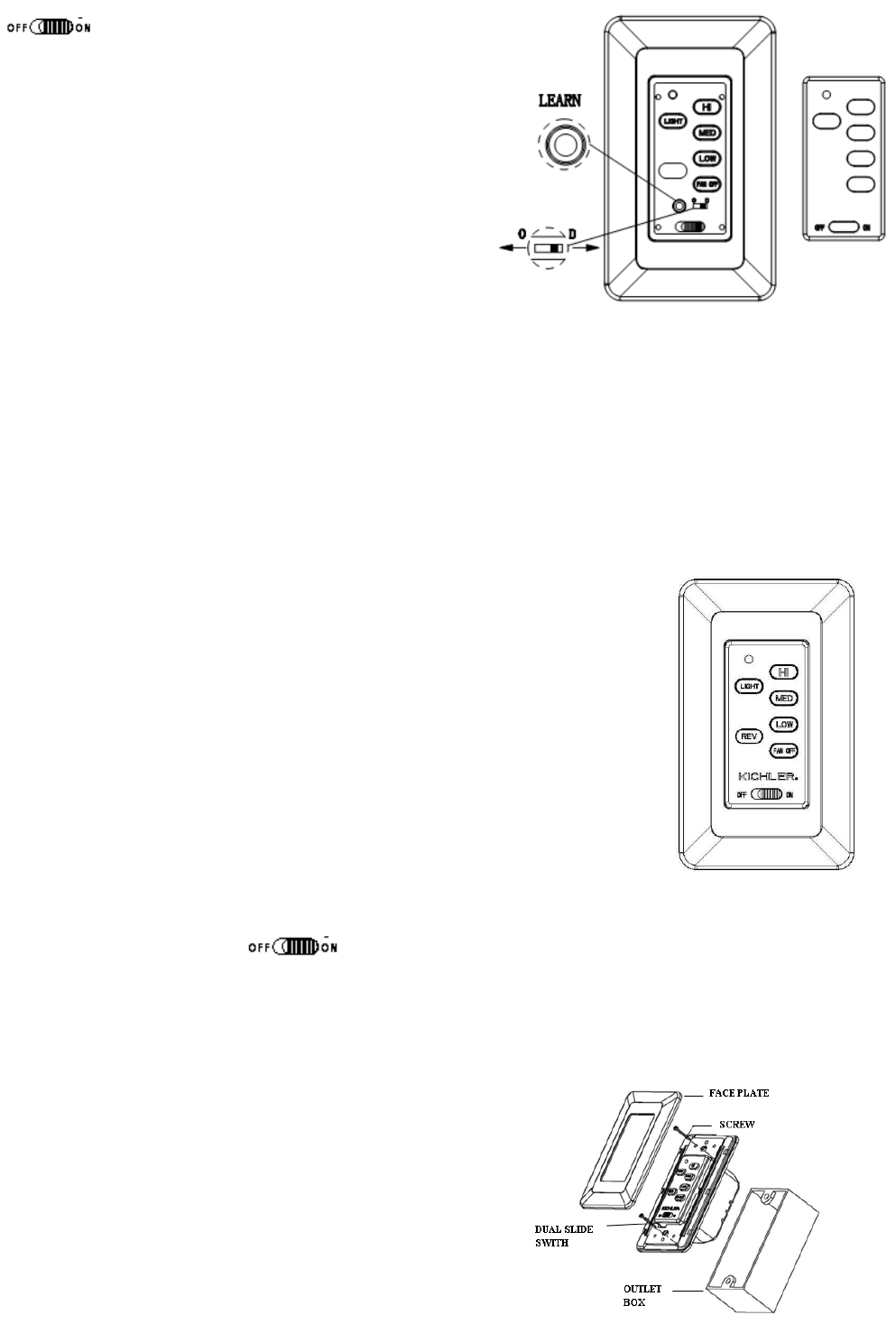

ACTIVATING THE LEARNING PROCESS
1. After installation is complete, AC power is turned on
and SWITCH is at ON position within 30
seconds, press and hold the LEARN button for 3
seconds. Fan will turn on at medium speed and light
(if installed) will turn on. This confirms that the SMART
SYNC setting is active and ok. (FIG. 4)
2. If user cannot finish the setting within the 30 seconds
time frame, the main power must be turned off and
re-started again. This will reset the unit. Repeat step 1
until the LEARNING feature is activated as indicated.
LIGHT FUNCTION SELECT SWITCH
1. If installed energy light onto ceiling fan, please slide the “light function select switch” to “
O
”
position. If installed tungsten light onto ceiling fan, please slide the “light function select
switch” to “D” position.
2. Light load: 190W (Max.) If overload, the receiver will cut off light power automatically. Please
change the light load.
WALL TRANSMITTER OPERATION (FIG. 5)
FAN OFF :Turn off the ceiling fan.
HI : Turn on the fan at high speed.
MED : Turn on the fan at medium speed.
LOW : Turn on the fan at low speed.
LIGHT : ON/OFF-Turn the light on or off.
DIMMER-Press and hold to dim or
brighten light to the desired level and release.
(Tungsten only and light function select switch on “D” position.)
REV :Press this button for forward/reverse airflow
of ceiling fan. FIG. 5
AC POWER ON/OFF SWITCH( ): Before installing
wall control, slide to “OFF” position. After installed well, slide to “ON” position and could remote.
Installing Wall Control (TRANSMITTER):
Remove wall plate, disconnect and remove the toggle switch
from wall junction box. Using the wire connectors,
make the electrical connections to the wall control
(transmitter) unit. Carefully push all connected wires
inside wall switch box. Secure wall control unit with
2 screws previously removed. Face plate could be clicked
onto the transmitter.
FIG. 4
TR206A
TR207A
To assure continued FCC compliance:
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
--Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult
the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to
operate the equipment.
FCC ID：KUJCE10325
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
