Chungear Co CE10405 CEILING FAN REMOTE CONTROLLER (TRANSMITTER) User Manual
Chungear Industrial Co Ltd CEILING FAN REMOTE CONTROLLER (TRANSMITTER)
User Manual
WALL TRANSMITTER
OPERATION AND INSTALLATION INSTRUCTIONS
(Please keep this instruction pamphlet.)
IMPORTANT POINTS TO REMEMBER:
1. Read and save these instructions.
2. Please note that all fixed wiring appliances should be installed by a qualified electrician.
3. The supply to the remote control receiver should be connected through a mains switch, i.e. existing wall
switch.
4. Disconnect from power supply at wall switch before working on remote control receiver or ceiling fan.
5. Install receiver into the ceiling fan canopy of the fan to ensure proper protection.
6. This unit is to be used for the control of ceiling fan and in an AC110/120V 60Hz power supply only.
7. Do not install in wee locations or immerse in water.
8. Do not pull on or cut leads shorter.
9. Do not drop or bump the unit.
10. AC 110/120V 60HZ power for transmitter.
11. CAUTION: To reduce the risk of fire or injury, do not use this product in conjunction with any variable
(rheostat) wall control.

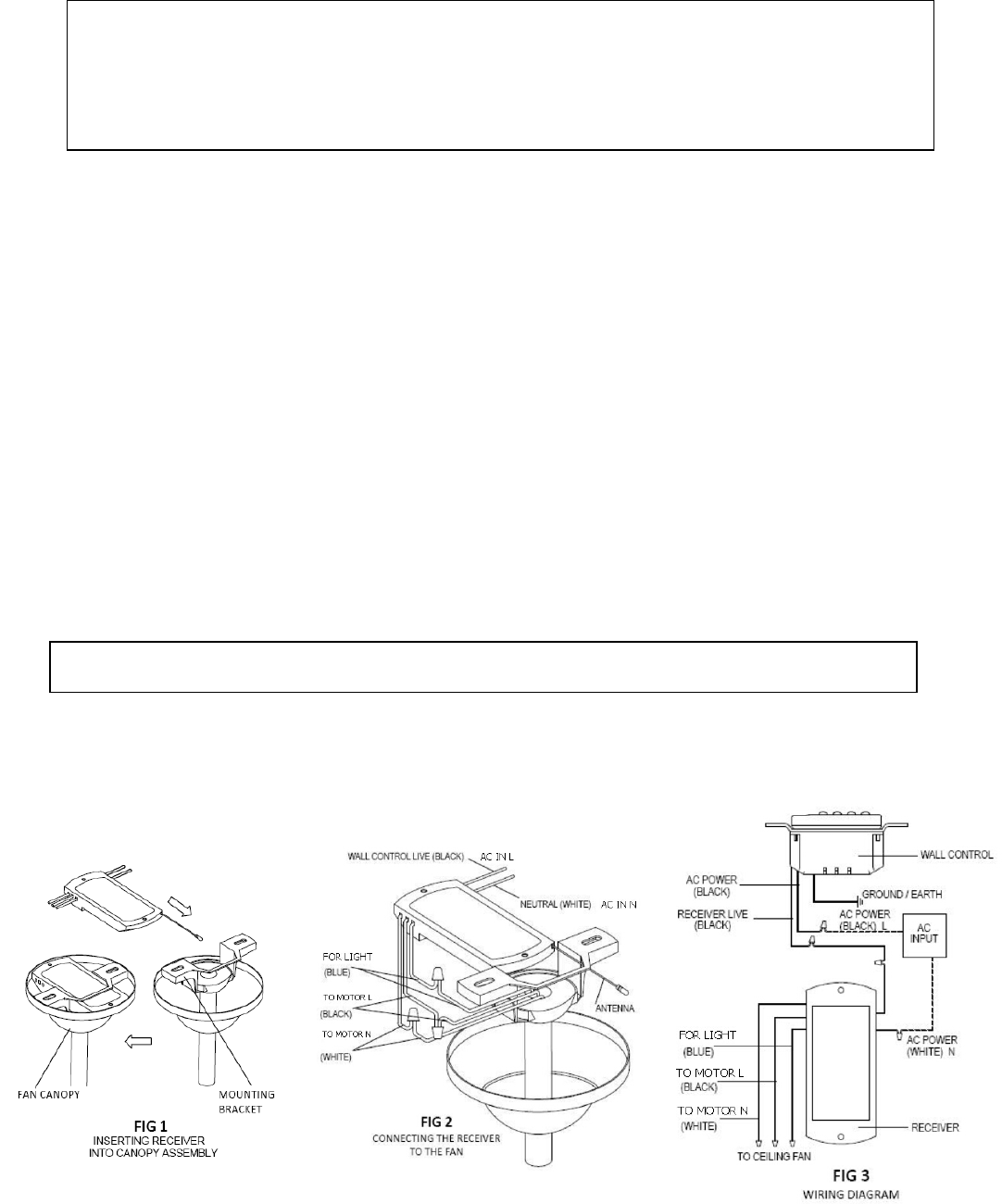

INSTALLATION INSTRUCTIONS
1. Ceiling fan must be set at HIGH speed after installation.
2. Once the connection has been made, the receiver inserts into the drop rod hanging bracket. The canopy
comes up to cover the receiver and bracket. (FIG 1, 2 and 3)
IMPORTANT
YOU MUST SET CEILING FAN MANUAL SWITCH TO HIGH SPEED LIGHT KIT ON
POSTION BEFORE OPERATING REMOTE CONTROL.
CAUTION: INCORRECT WIRE CONNECTION WOULD DAMAGE THIS RECEIVER.
FIG. 4
TR
228
A
ACTIVATING THE LEARNING PROCESS
1. After installation is complete, AC power is turned on
and SWITCH is at ON position within 30
seconds, press and hold the LEARN button for 3
seconds. The receiver will make sound, Bi, once. This
will indicate the receiver has learned the ID that was
previously selected on the transmitter. then the wall
transmitter can control the receiver.
2. If user cannot finish the setting within the 30 seconds
time frame,
the main power must be turned off and re-started again. This will reset
the unit. Repeat step 1 until the LEARNING feature is activated as indicated.

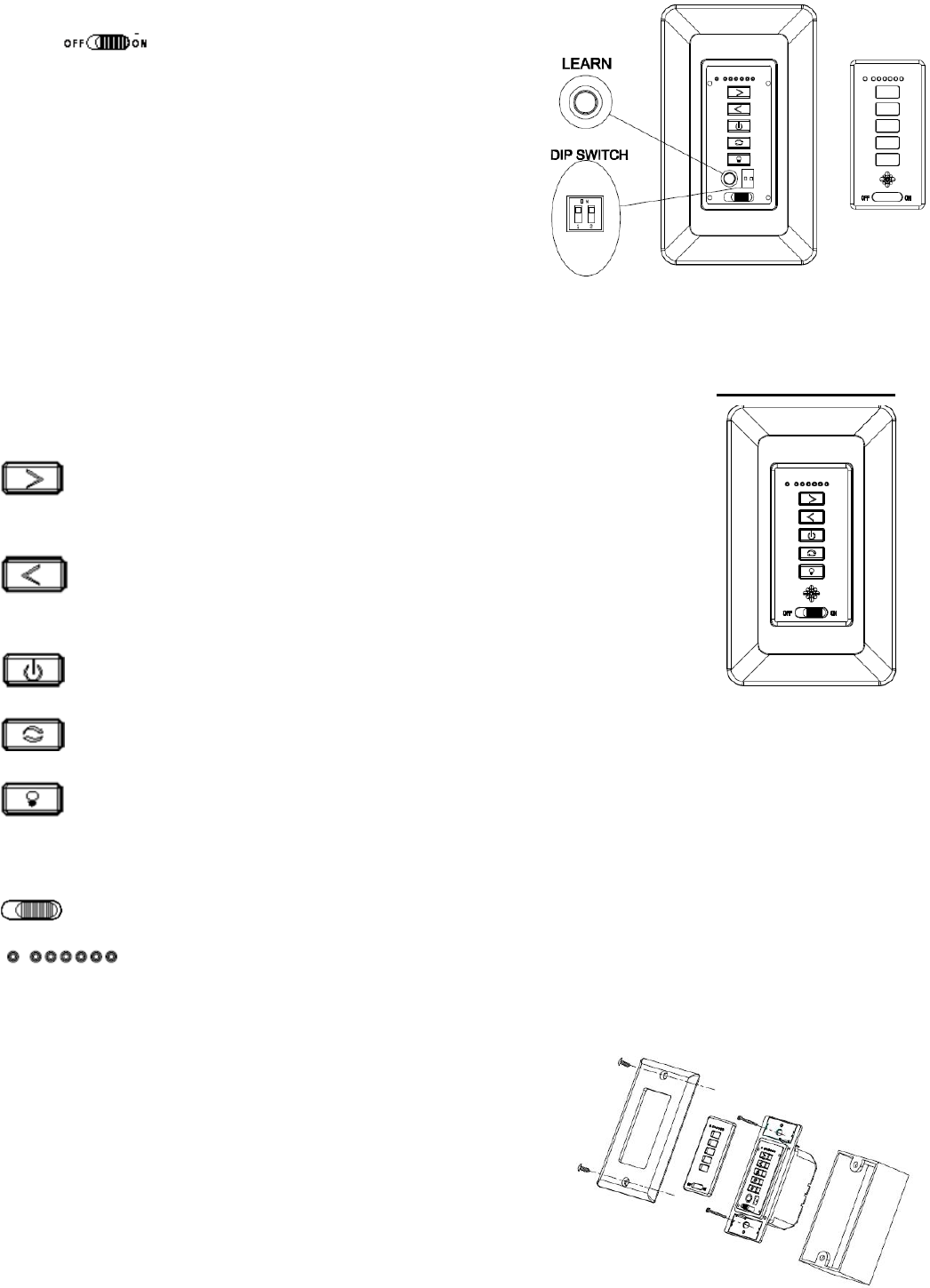

WALL TRANSMITTER OPERATION (FIG.5)
While the fan is on, Press this button to increasing fan speed
(1~6speed).
While the fan is on,Press this button to decreasing fan speed (1~6
speed).
Press this button to turn the fan on or off.
Press this button to set fan wind direction up or down.
ON/OFF—Press this button and release instantly to turn on or off the light.
DIMMER—Press and hold to dim or brighten lights to the desired level and release.
(Tungsten bulb only)
AC POWER ON/OFF SWITCH, Slide to left to set power off, Slide to right to set power on.
LED indicator，When pressing remote button, the LED indicator on position 1 would
be on. When press fan speed button, the LED indicator on position 2~7 would be on( 1~6 speed).
Installing Wall Control (TRANSMITTER):
Remove wall plate, disconnect and remove the toggle switch
from wall junction box. Using the wire connectors,
make the electrical connections to the wall control
(transmitter) unit. Carefully push all connected wires
inside wall switch box. Secure wall control unit with
2 screws previously removed. Face plate could be screwed
onto the transmitter.
TRANSMITTER
TR2
28
A
FIG5
To assure continued FCC compliance:
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
--Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect
the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or
an experienced radio/TV technician for help.
CAUTION:
Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to
operate the equipment.
FCC ID：KUJCE10405
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
IC
ThisdevicecomplieswithIndustryCanadalicense‐exemptRSSstandard(s).Operationis
subjecttothefollowingtwoconditions:(1)thisdevicemaynotcauseinterference,and(2)
thisdevicemustacceptanyinterference,includinginterferencethatmaycauseundesired
operationofthedevice.
ThisequipmentcomplieswithICradiationexposurelimitssetforthforanuncontrolled
environment.Thisequipmentshouldbeinstalledandoperatedwithminimumdistance20cm
betweentheradiatorandyourbody.
French:
CetappareilradioestconformeauCNR‐247d’Industrie Canada.L’utilisationdecedispositif
estautoriséeseulementauxdeuxconditionssuivantes:(1)ilnedoitpasproduirede
brouillage,et(2)l’utilisateurdudispositifdoitêtreprêtàacceptertoutbrouillage
radioélectriquereçu,mêmesicebrouillageestsusceptibledecompromettrele
fonctionnementdudispositif.
Cetéquipementestconformeauxlimitesd’expositionauxrayonnementsICétabliespourun
environnementnoncontrôlé.Cetéquipementdoitêtreinstalléetutiliséavecunminimum
de20cmdedistanceentrelasourcederayonnementetvotrecorps.
