Chungear Co CE10710 Ceiling Fan Remote Controller (Transmitter) User Manual
Chungear Industrial Co Ltd Ceiling Fan Remote Controller (Transmitter)
User Manual
Model # TR190C+JY1055(with light function)
DC POWER CEILING FAN REMOTE CONTROL MANUAL
□INSTALLATION INSTRUCTIONS
NOTE:This unit is to be used for the control of DC power ceiling
fan and in an AC120V 60Hz power supply only. Output Power:
40W
(Max.)
for
motor
and
30W
(Max.)
for
LED
light
.
Important
:
Using
a
full
range
dimmer
switch
(not
included)
to
control
fan
speed
will
damage
the
fan.
To
reduce
the
risk
of
fire
or
electrical
shock,
do
not
use
a
full
range
dimmer
switch
to
control
fan speed.
1.
Switch
power
off
at
fuse
box
or
circuit
breaker
before
you
begin installing the fan.
2.

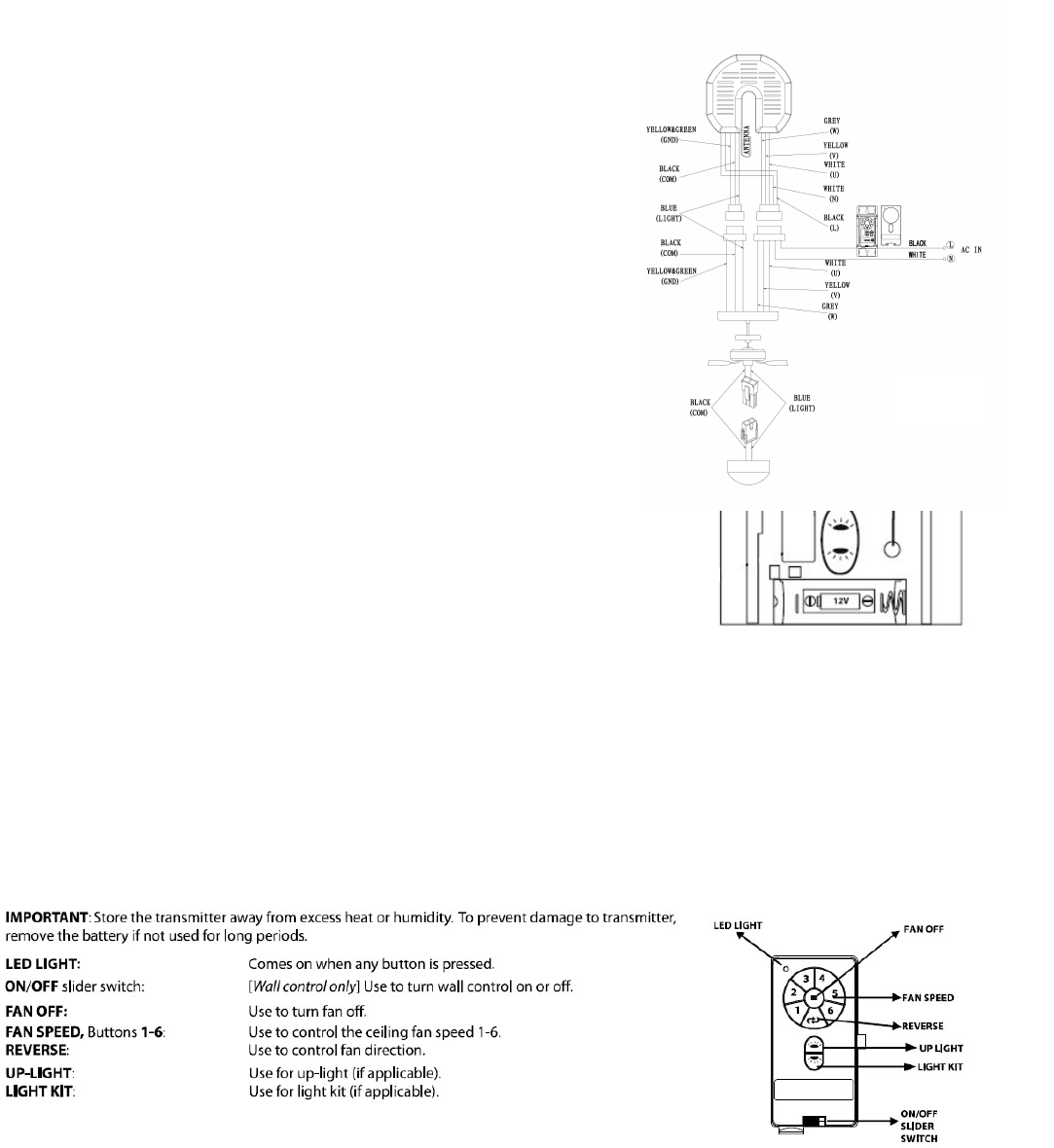

Make
wiring
connections
as
indicated
Fig.
1.
3.
Launch
distance
for
remote
control:
about
10m.
4. The remote code setting process:
Step: 1 Open the remote battery cover and install DC12V,A23 1
pc
alkaline battery, with the fan power off. (Fig. 2)
Step: 2. Within 30 seconds of restring power to the fan, you must use
a
ball pen or tool to press “Learn” button about 2 seconds. Once
the
receiver has detected the frequency, the ceiling fan light will turn on, then off
.
This will indicate the receiver has learned the frequency that was
previously
selected on the transmitter.
Note: After the AC power is on, do not press any other button on the transmitter before setting learning. Doing so
will cause the procedure to fail.
After completing the steps above, you should be able to operate the ceiling fan and light. If the fan is not
responding to the transmitter, please turn the power off to the receiver. And repeat step 2.
If you want to clear before learned transmitter, hold the “Learn” button about 12 seconds. The ceiling fan light will
flash twice.
□FUCNCTIONS OF REMOTE CONTROL: (Fig. 3)
The receiver will make bi sound when light is dim for the brightness or
darkness
level.
When the battery is low power, press any button and LED light would be flash about 2 seconds. Please change
and use new battery.
Fig. 2
Fig. 1
TR190C
