CipherLab 1260S Bluetooth Wireless Scanner User Manual Table of Contents
CipherLab Co., Ltd. Bluetooth Wireless Scanner Table of Contents
Contents
- 1. users manual
- 2. barcode manual
barcode manual
Table of Contents
Restore Default Settings .......................................................................................1
Exit Setup without Changes.................................................................................1
Set Connection.......................................................................................................1
RF Auto Shutdown Duration...............................................................................1
Memory Mode Parameters...................................................................................2
List Setting.............................................................................................................3
Buzzer Settings......................................................................................................3
Reading Redundancy Setting...............................................................................4
Scan Mode Setting.................................................................................................4
Auto-Sense Setting ................................................................................................4
Scanner Time-out Duration..................................................................................5
Negative Barcode Setting .....................................................................................5
Delay between Reread ..........................................................................................5
Keyboard Wedge Parameters..............................................................................6
Laptop Support .....................................................................................................8
RS-232 Parameters ...............................................................................................9
Bluetooth Serial Port Parameters......................................................................11
Prefix / Postfix Settings.......................................................................................12
Character Substitution .......................................................................................12
Code ID Selection................................................................................................12
Code ID Setting ...................................................................................................13
Length Code Setting (2 digits)............................................................................14
Select Readable Codes ........................................................................................17
Code39 Parameters.............................................................................................22
Italy Pharmacode Parameters............................................................................22
French Pharmacode Parameters .......................................................................23
Industrial 25 Parameters....................................................................................23
Interleave 25 Parameters....................................................................................24
Matrix 25 Parameters.........................................................................................26
Codabar Parameters...........................................................................................27
Plessey Parameters..............................................................................................28
Telepen Parameters ............................................................................................28
MSI Parameters..................................................................................................29
MSI Parameters..................................................................................................29
EAN128 Parameters ...........................................................................................30
EAN8 Parameters ...............................................................................................31
UPCA Parameters...............................................................................................31
UPCE Parameters...............................................................................................32
EAN13 Parameters .............................................................................................33
RSS Code ID Selection........................................................................................34
RSS14 Parameters...............................................................................................34
RSS Limited Parameters ....................................................................................35
RSS Limited Parameters....................................................................................35
Activate Editing Formats...................................................................................36
Editing Format Parameters ...............................................................................37
Decimal Digits .....................................................................................................49
Hexadecimal Digits .............................................................................................50
RS-232 Character Table.....................................................................................51

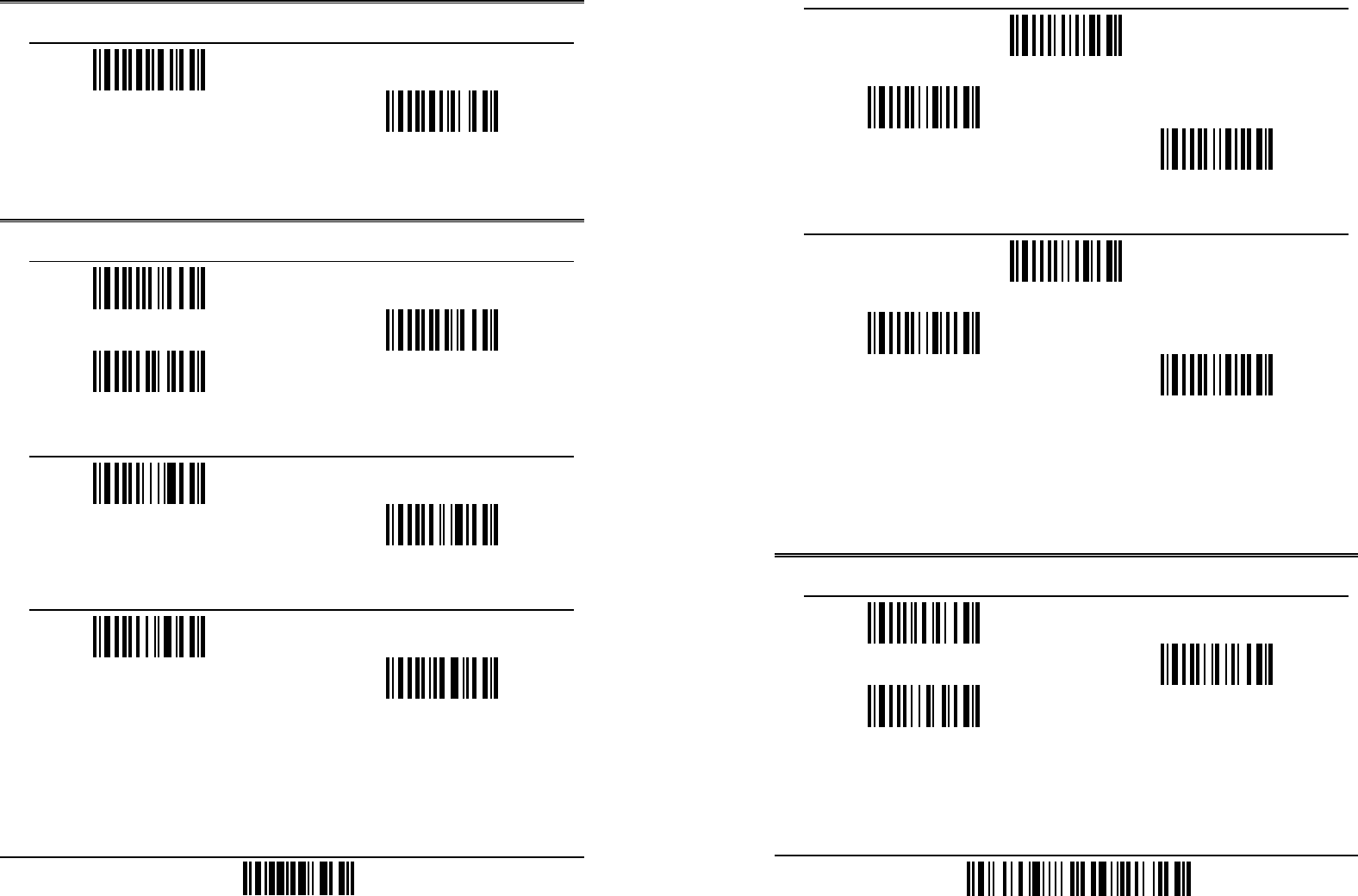

Restore Default Settings Memory Mode Parameters
• Memory Mode
Enable
< Disable >
Exit Setup without Changes
• Clear Data
Clear
Confirm
Set Connection
*
Programming Instructions : (1) Read the label. (2) Read the Serial Number barcode
on the bottom of the desired 3660 Base Station within 5 seconds to complete this
setting.
• Send Data
• Memory Data Delay
RF Auto Shutdown Duration
< 0 >
2 sec
250 ms
3 sec
500 ms
5 sec
1 sec
8 sec
*
Programming Instructions : (1) Read the label. (2) Program the desired auto
shutdown duration (in minutes) by reading Decimal Digits on page 49. (3) Read the
“Validate” label (also on page 49) to complete this setting.
2
Enter Setup
1
Update

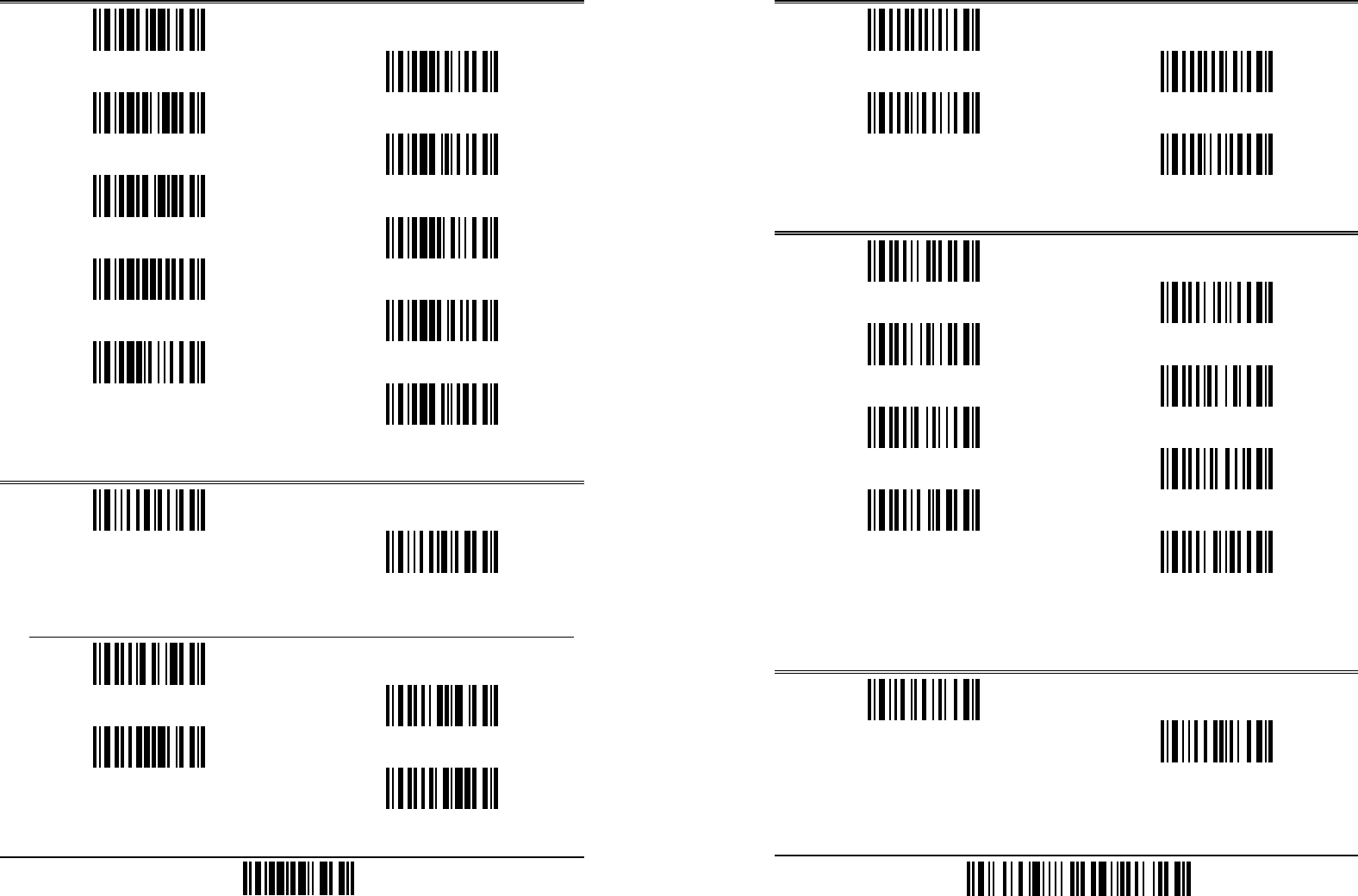

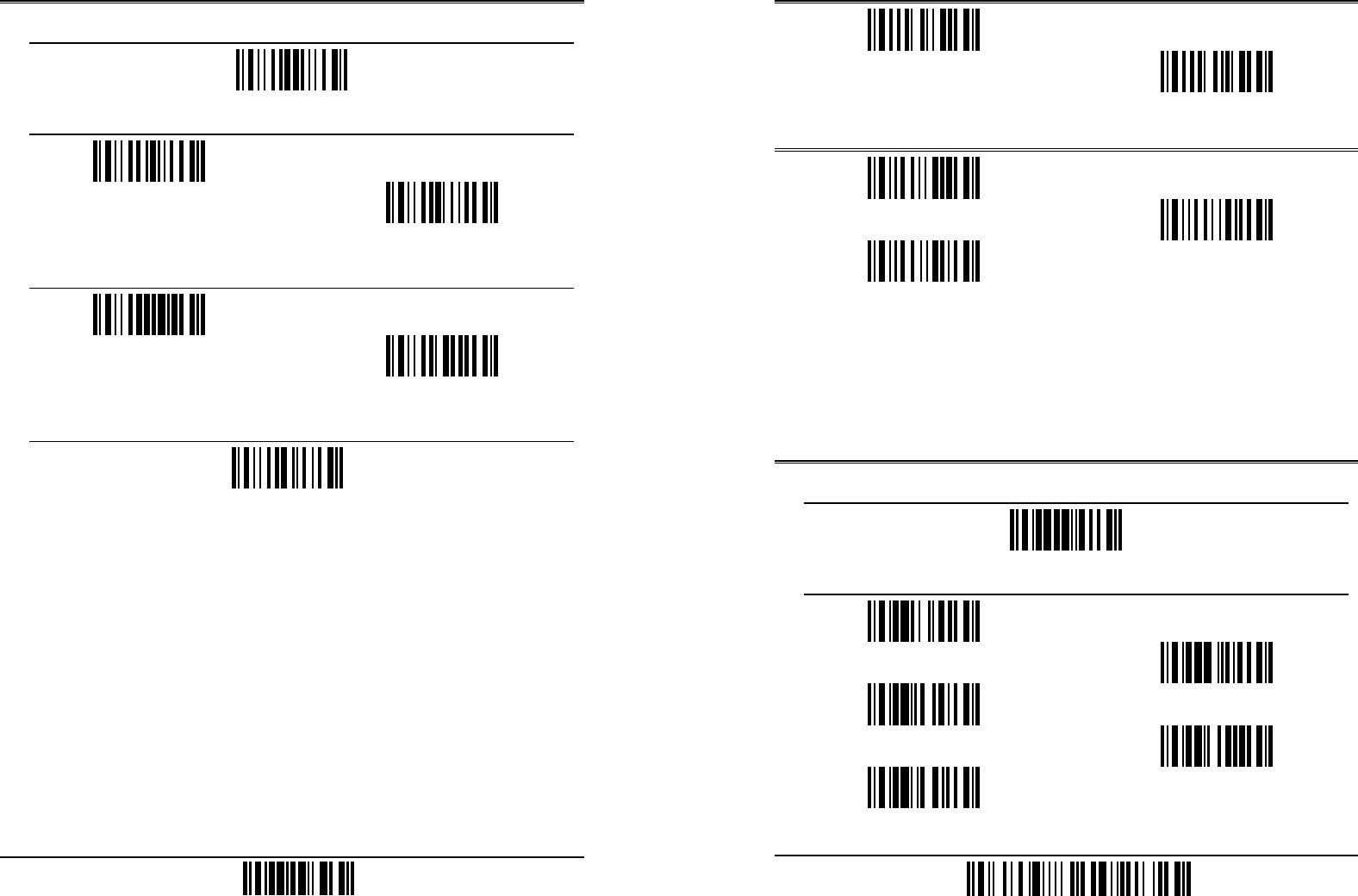

List Setting Reading Redundancy Setting
Page1
Page 6
Page 2
Page 7
Page 3
Page 8
Page 4
Page 9
Page 5
Page 10
< No Redundancy >
2 Times
3 Times
4 Times
Scan Mode Setting
Auto Off Mode
< Continuous Mode >
Auto Power Off Mode
Alternate Mode
Momentary Mode
Repeat Mode
Laser Mode
Test Mode
Buzzer Settings
< Buzzer Enable>
Buzzer Disable
• Buzzer Frequency Auto-Sense Setting
8 kHz
< 4 kHz >
2 kHz
1 kHz
Enable
< Disable >
4
Enter Setup
3
Update

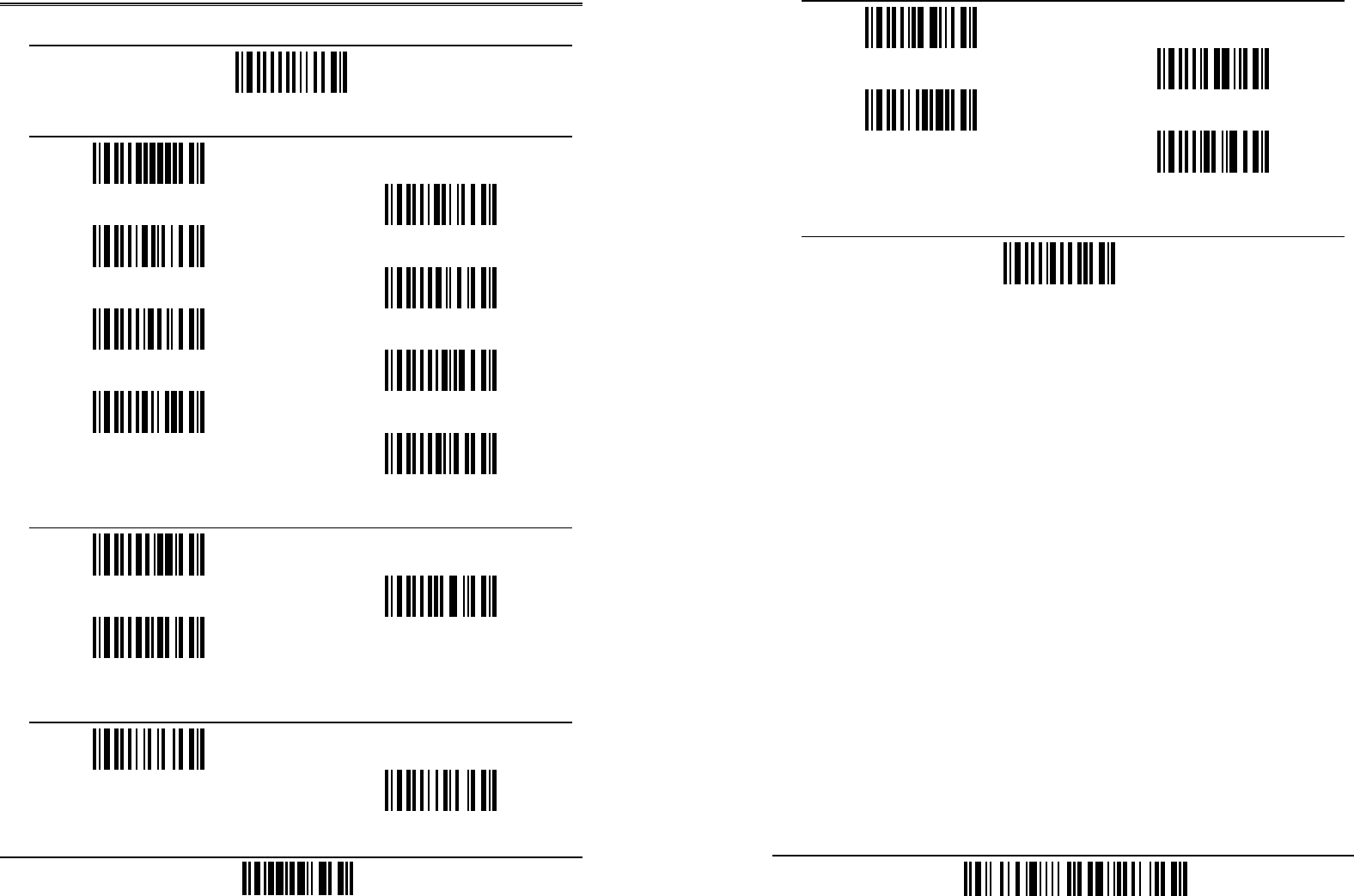

Keyboard Wedge Parameters
Scanner Time-out Duration
• Activate and Select Keyboard Type
*
Programming Instructions : (1) Read the label. (2) Program the desired time-out
duration by reading Decimal Digits on page 49. (3) Read the “Validate” label (also
on page 49) to complete this setting.
*
Programming Instructions : (1) Read the label. (2) Program the desired keyboard
number (shown in the following table) by reading Decimal Digits on page 49. (3)
Read the “Validate” label (also on page 49) to complete this setting.
Negative Barcode Setting • Keyboard Table
Enable
< Disable >
No. Keyboard Type
1 PCAT (US)
2 PCAT (French)
3 PCAT (German)
4 PCAT (Italy)
5 PCAT (Swedish)
6 PCAT (Norwegian)
7 PCAT (UK)
8 PCAT (Belgium)
9 PCAT (Spanish)
10 PCAT (Portuguese)
11 PS55 A01-1
12 PS55 A01-2
13 PS55 A01-3
14 PS55 001-1
15 PS55 001-81
16 PS55 001-2
17 PS55 001-82
18 PS55 001-3
19 PS55 001-8A
20 PS55 002-1, 003-1
21 PS55 002-81, 003-81
22 PS55 002-2, 003-2
23 PS55 002-82, 003-82
24 PS55 002-3, 003-3
25 PS55 002-8A, 003-8A
26 IBM 3477 (Japanese)
27 PS2-30
28 IBM 34XX/319X, Memorex Telex 122 Keys
Delay between Reread
100 ms
1 sec
200ms
2 sec
< 400 ms >
3 sec
800 ms
5 sec
6
Enter Setup
5
Update

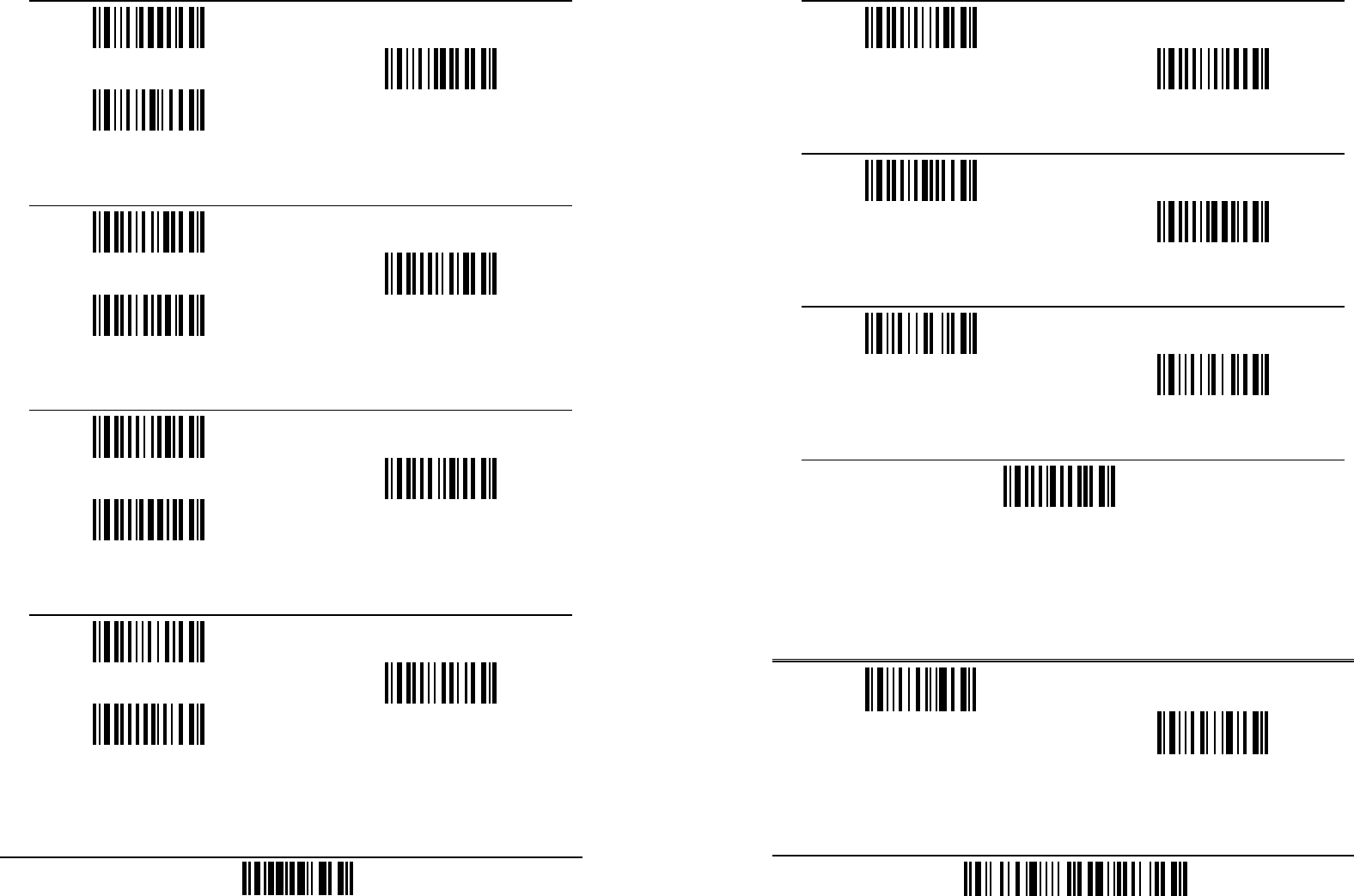

• Keyboard Alphabets Layout • Alphabet Transmission
< Default Layout >
AZERTY
QWERTZ
< Case Sensitive >
Ignore Case
• Digits Transmission
< Alphanumeric Key >
Numeric Key
• Keyboard Digits Layout
< Default Layout >
Lower Row
Upper Row
• Alt Composing
Yes
< No >
• Keyboard Capital Lock Type
< Default >
Shift Lock
Capital Lock
• Inter-Character Delay
*
Programming Instructions : (1) Read the label. (2) Program the desired inter-
character delay by reading Decimal Digits on page 49. (3) Read the “Validate”
label (also on page 49) to complete this setting.
• Capital Lock Setting
Capital Lock ON
< Capital Lock OFF >
Auto Detection
Laptop Support
< Disable>
Enable
8
Enter Setup
7
Update
RS-232 Parameters • Flow Control
< None >
Scanner Ready
Data Ready
INV. Data Ready
• Activate RS232 Interface
• Baud Rate
115200
38400
19200
< 9600 >
4800
2400
1200
300
• Inter-Character Delay
*
Programming Instructions : (1) Read the label. (2) Program the desired inter-
character delay by reading Decimal Digits on page 49. (3) Read the “Validate”
label (also on page 49) to complete this setting.
• Parity
Even
Odd
< No Parity >
• Data Bit
< 8 >
7
10
Enter Setup
9
Update
Bluetooth Serial Port Parameters Prefix / Postfix Settings
Prefix Code *
Postfix Code *
• Activate BlueTooth Serial Port Interface
• Device Name Broadcasting Character Substitution
< Yes >
No
Set 1 *
Set 2 *
Set 3 *
• Authentication
Yes
< No >
Programming Instructions : (1) Read the label. (2) Program the desired character
string by reading Hexadecimal Digits on page 50. One character consists of 2
hexadecimal digits. (3) Read the “Validate” label (also on page 50) to complete
this setting.
• PIN Code Code ID Selection
* • Clear All Code ID Settings
Programming Instructions : (1) Read the label. (2) Program the desired character
string by reading Hexadecimal Digits on page 50. One character consists of 2
hexadecimal digits. (3) Read the “Validate” label (also on page 50) to complete
this setting. (4) Max 6 characters for this PIN Code setting.
• Select Code ID Set
Set 1
Set 2
Set 3
Set 4
Set 5
12
Enter Setup
11
Update

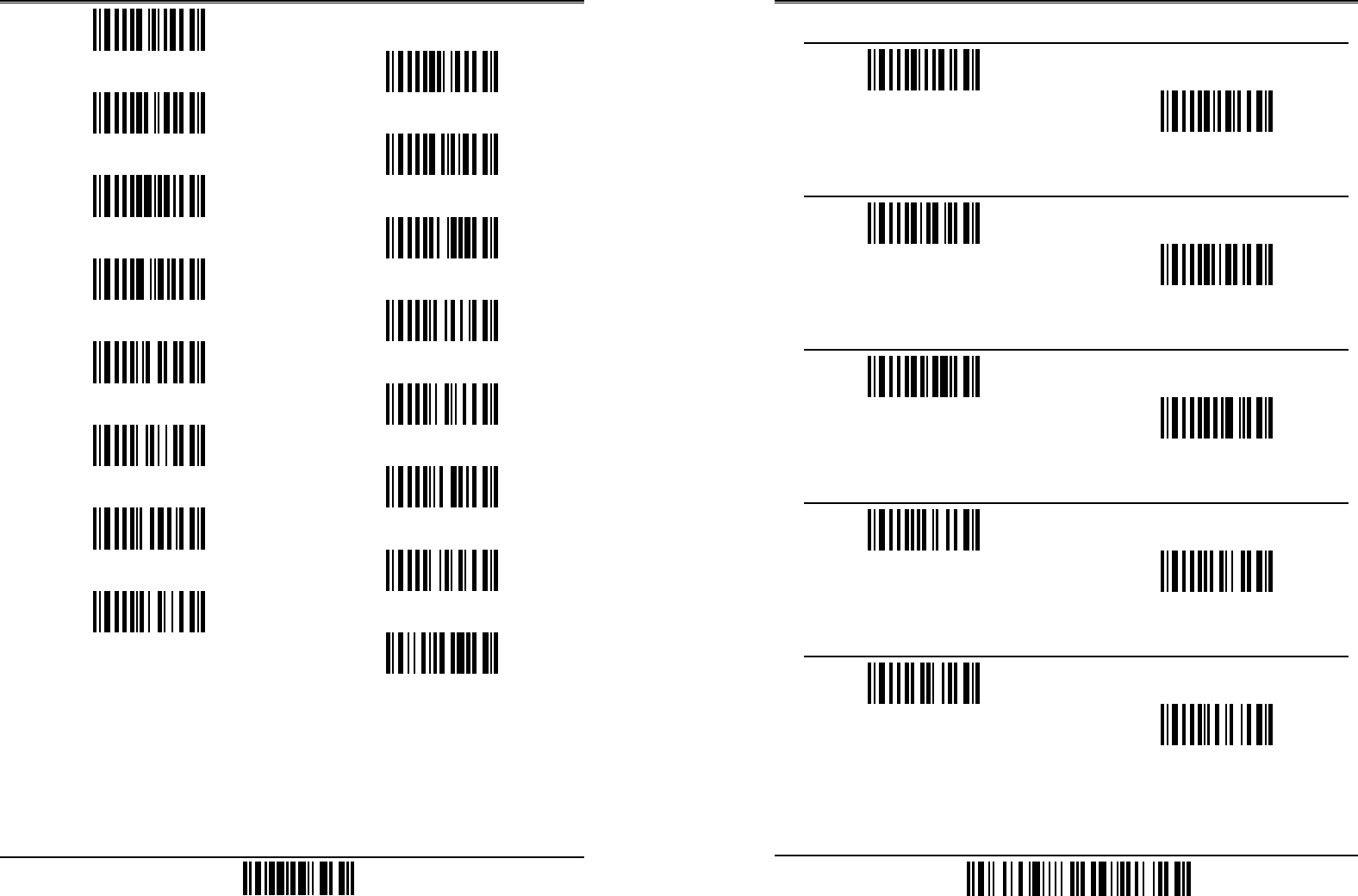

Code ID Setting Length Code Setting (2 digits)
Code 39 *
Italy Pharmacode *
French Pharmacode *
Industrial 25 *
Interleave 25 *
Matrix 25 *
Codabar *
UPCA *
UPCE *
EAN8 *
EAN13 *
Code 93 *
Code 128 *
MSI *
Plessey *
Telepen *
• Code 39 Length Code
Enable
< Disable >
• Italy Pharmacode Length Code
Enable
< Disable >
• French Pharmacode Length Code
Enable
< Disable >
• Industrial 25 Length Code
Enable
< Disable >
• Interleave 25 Length Code
Enable
< Disable >
Programming Instructions : (1) Read the label. (2) Program the desired character
string by reading Hexadecimal Digits on page 50. One character consists of 2
hexadecimal digits. (3) Read the “Validate” label (also on page 50) to complete this
setting.
14
Enter Setup
13
Update

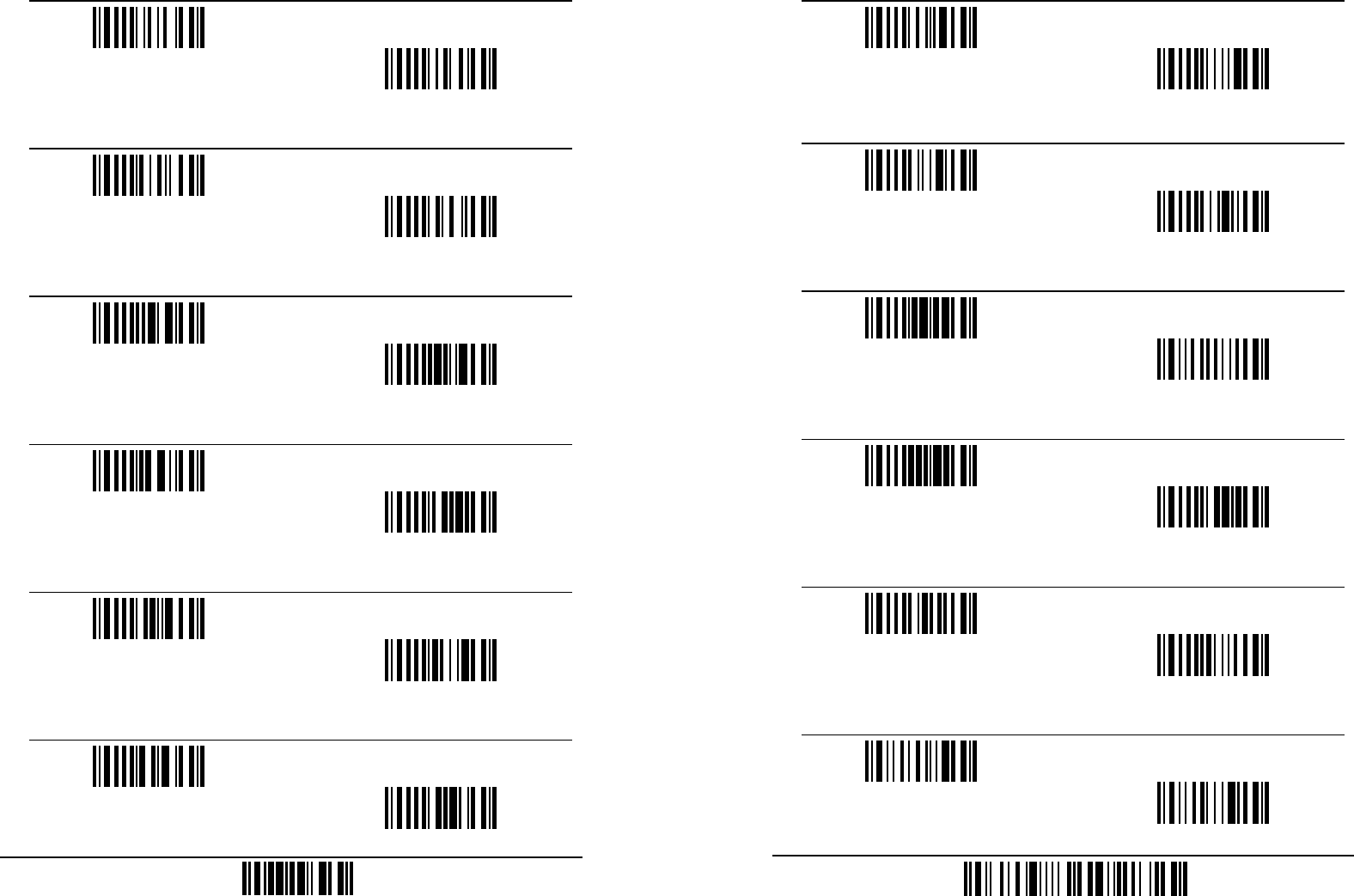

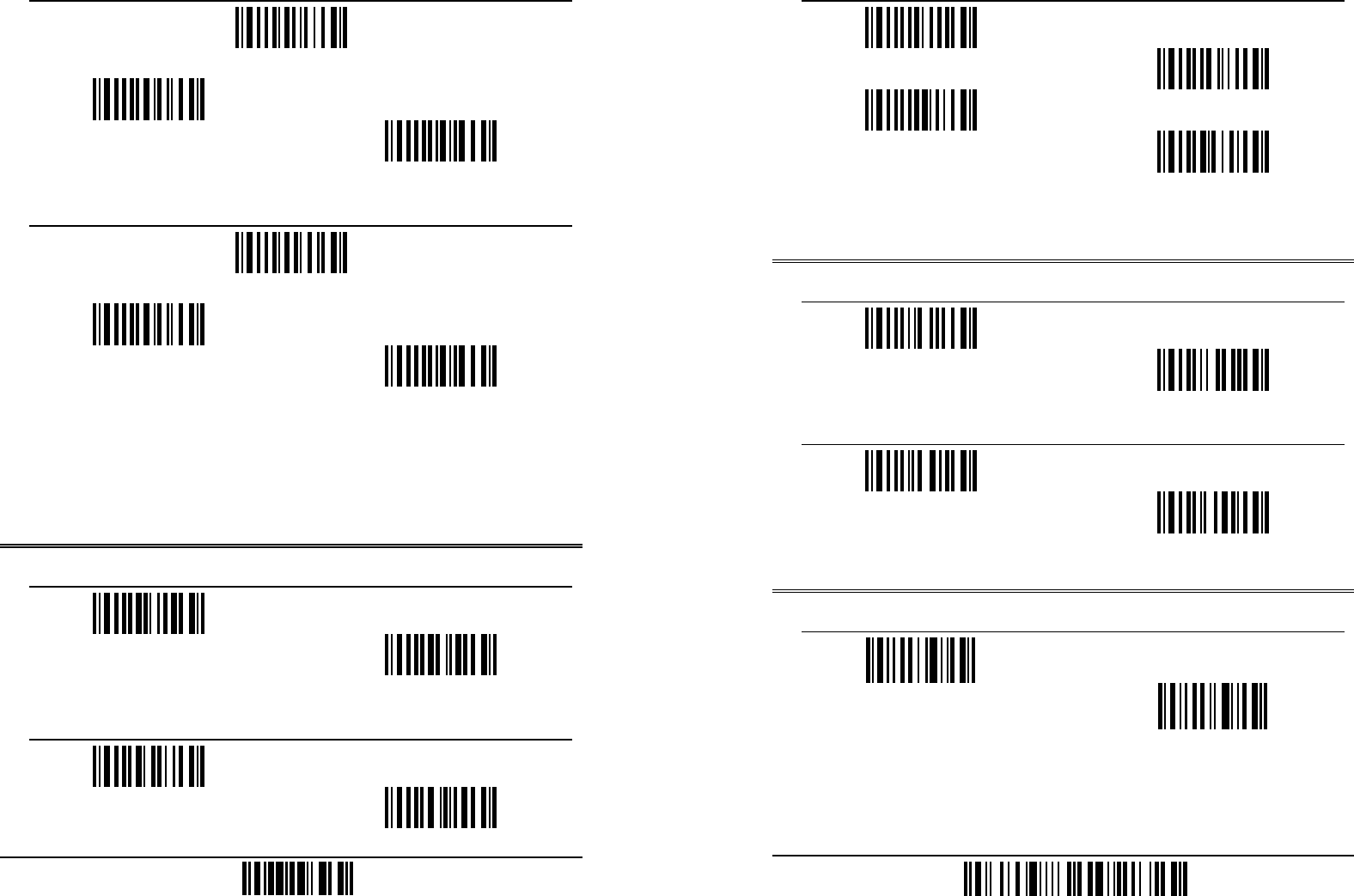

• Matrix 25 Length Code • Code 93 Length Code
Enable
< Disable >
Enable
< Disable >
• Code 128 Length Code
• Codabar Length Code
Enable
< Disable >
Enable
< Disable >
• EAN128/RSS Length Code
• UPCA Length Code
Enable
< Disable >
Enable
< Disable >
• MSI Length Code
• UPCE Length Code
Enable
< Disable >
Enable
< Disable >
• Plessey Length Code
• EAN8 Length Code
Enable
< Disable >
Enable
< Disable >
• Telepen Length Code
• EAN13 Length Code
Enable
< Disable >
Enable
< Disable >
16
Enter Setup
15
Update

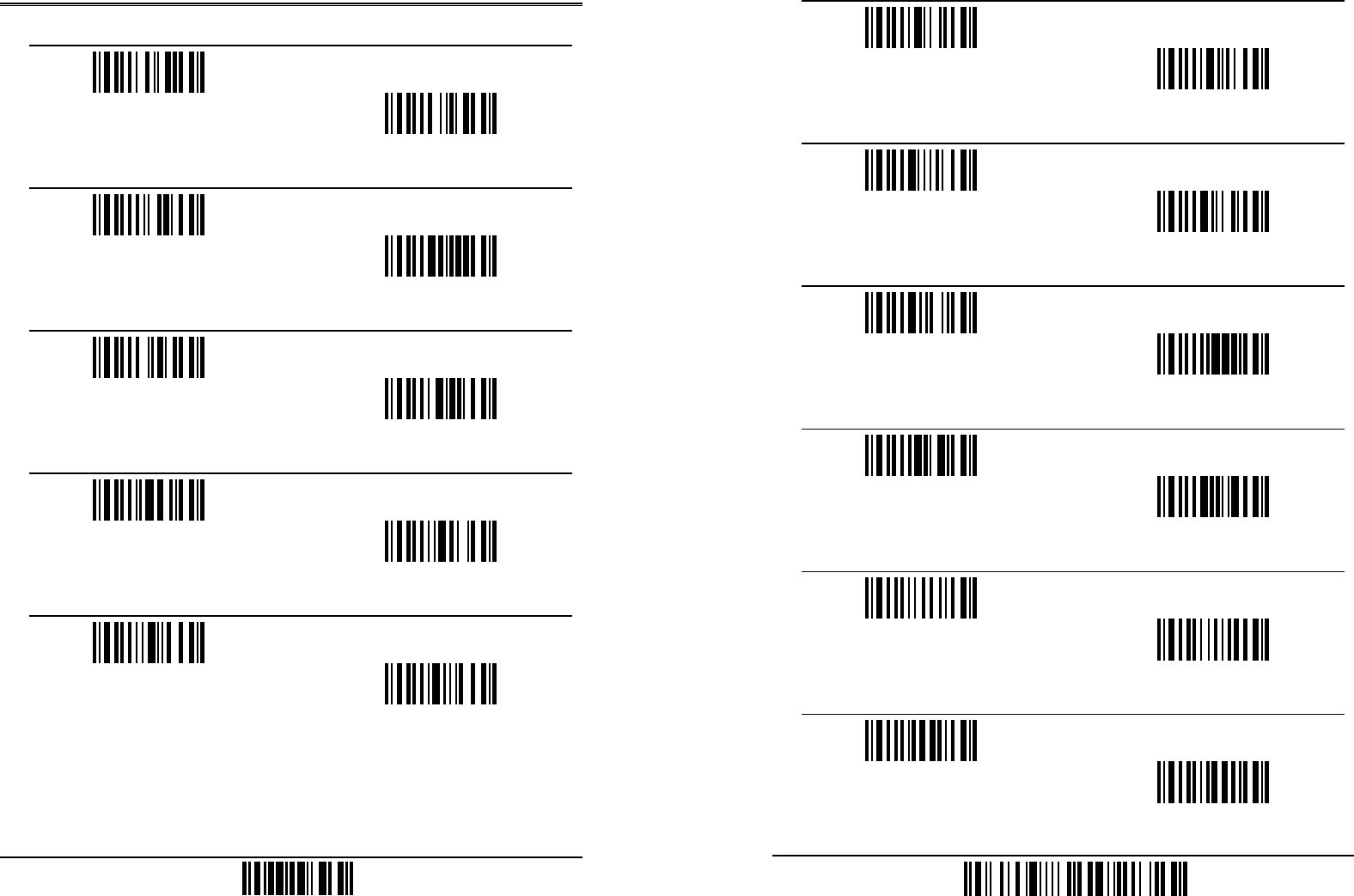

Select Readable Codes • Matrix 25
Enable
< Disable >
• Code 39
< Enable >
Disable • Codabar
< Enable >
Disable
• Italy Pharmacode
Enable
< Disable > • Code 93
< Enable >
Disable
• French Pharmacode
Enable
< Disable > • Code 128
< Enable >
Disable
• Industrial 25
< Enable >
Disable • EAN128
Enable
< Disable >
• Interleave 25
< Enable >
Disable • MSI
Enable
< Disable >
18
Enter Setup
17
Update
• Plessey • UPCE
Enable
< Disable >
< Enable No Addon >
Disable No Addon
Enable Addon2
< Disable Addon2 >
Enable Addon5
< Disable Addon5 >
• Telepen
Enable
< Disable >
• UPCA
< Enable No Addon >
Disable No Addon
Enable Addon2
< Disable Addon2 >
Enable Addon5
< Disable Addon5 >
• EAN8
< Enable No Addon >
Disable No Addon
Enable Addon2
< Disable Addon2 >
Enable Addon5
< Disable Addon5 >
20
Enter Setup
19
Update

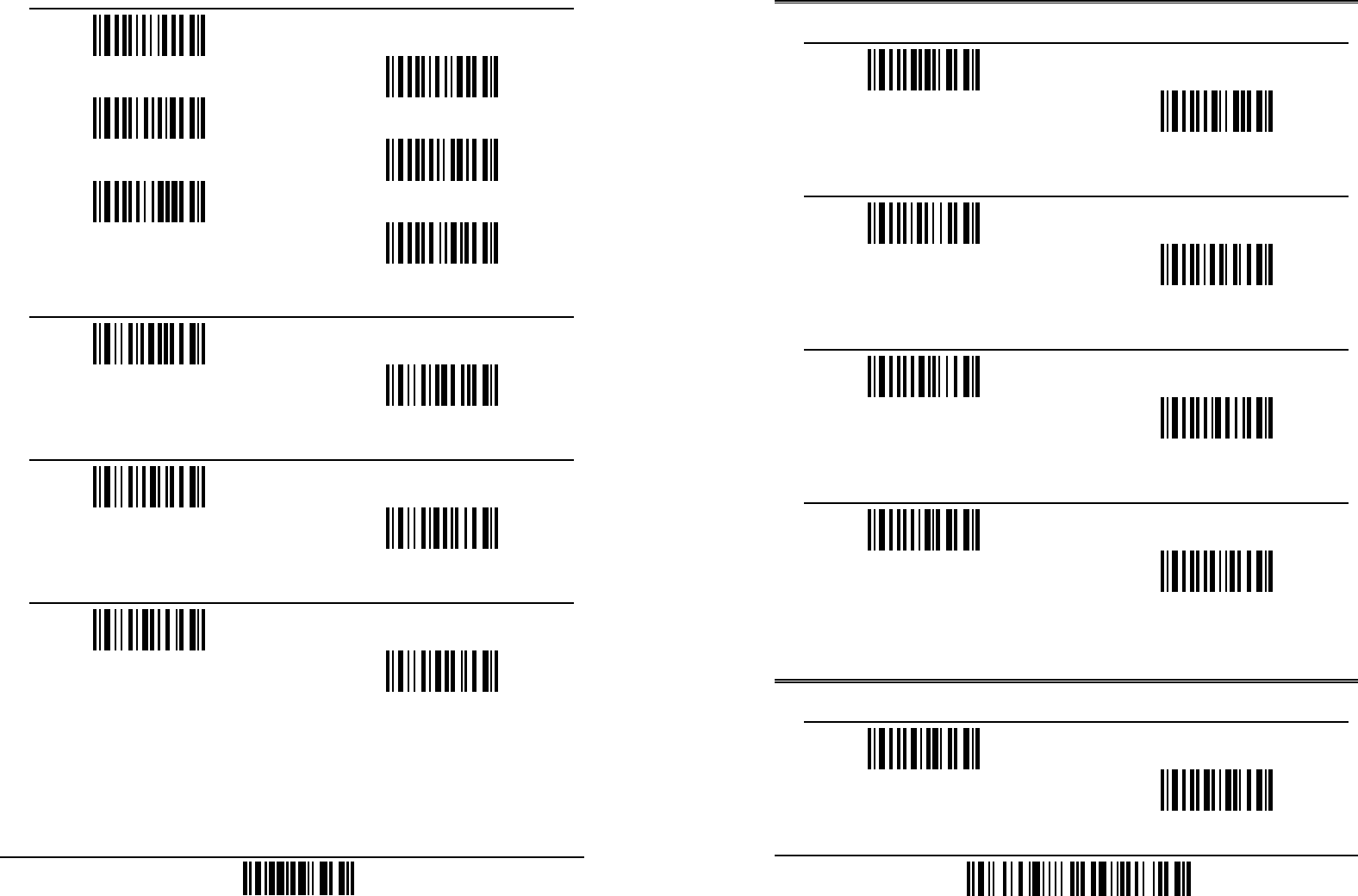

Code39 Parameters
• EAN13
• Standard / Full ASCII Code39
< Enable No Addon >
Disable No Addon
Enable Addon2
< Disable Addon2 >
Enable Addon5
< Disable Addon5 >
< Standard >
Full ASCII
• Start / Stop Transmission
Enable
< Disable >
RSS14
• Checksum Verification
Enable
< Disable >
Enable
< Disable >
• RSS Limited
Enable
< Disable >
• Checksum Transmission
< Enable >
Disable
• RSS Expanded
Enable
< Disable >
Italy Pharmacode Parameters
• Checksum Transmission
< Enable >
Disable>
22
Enter Setup
21
Update
French Pharmacode Parameters • Max / Min Code Length Qualification
• Checksum Transmission
Select Max / Min Length Qualification
< Enable >
Disable
Max Length *
Min Length *
Industrial 25 Parameters • Fixed Code Length Qualification
• Start / Stop Selection
Select Fixed Length Qualification
< Industrial 25 >
Interleave 25
Matrix 25
Fixed Length 1 *
Fixed Length 2 *
Programming Instructions : (1) Read the label. (2) Program the desired length by
reading Decimal Digits on page 49. (3) Read the “Validate” label (also on page 49)
to complete this setting.
• Checksum Verification
Enable
< Disable > Interleave 25 Parameters
• Start / Stop Selection
• Checksum Transmission
Industrial 25
< Interleave 25 >
Matrix 25
< Enable >
Disable
24
Enter Setup
23
Update
• Checksum Verification • Fixed Code Length Qualification
Enable
< Disable >
Select Fixed Length Qualification
Fixed Length 1 *
Fixed Length 2 *
• Checksum Transmission
< Enable >
Disable
Programming Instructions : (1) Read the label. (2) Program the desired length by
reading Decimal Digits on page 49. (3) Read the “Validate” label (also on page 49)
to complete this setting.
• Max / Min Code Length Qualification Matrix 25 Parameters
Select Max / Min Length Qualification • Start / Stop Selection
Industrial 25
Interleave 25
< Matrix 25 >
Max Length *
Min Length *
Programming Instructions : (1) Read the label. (2) Program the desired length by
reading Decimal Digits on page 49. (3) Read the “Validate” label (also on page 49)
to complete this setting. • Checksum Verification
Enable
< Disable >
• Checksum Transmission
< Enable >
Disable
26
Enter Setup
25
Update
• Max / Min Code Length Qualification • Start / Stop Selection
< abcd / abcd >
abcd / tn*e
ABCD / ABCD
ABCD / TN*E
Select Max / Min Length Qualification
Max Length *
Min Length *
• Fixed Code Length Qualification Plessey Parameters
Select Fixed Length Qualification • Convert to UK Plessey
Fixed Length 1 *
Fixed Length 2 *
Enable
< Disable >
• Checksum Transmission
Programming Instructions : (1) Read the label. (2) Program the desired length by
reading Decimal Digits on page 49. (3) Read the “Validate” label (also on page 49)
to complete this setting.
< Enable >
Disable
Codabar Parameters
Telepen Parameters
• CLSI Conversion
Enable
< Disable >
• Telepen Output
< AIM Telepen >
Original Telepen
• Start / Stop Transmission
Enable
< Disable >
28
Enter Setup
27
Update
MSI Parameters • Fixed Code Length Qualification
• Checksum Verification
Select Fixed Length Qualification
< Single Modulo 10 >
Double Modulo 10
Modulo 11 & 10
Fixed Length 1 *
Fixed Length 2 *
Programming Instructions : (1) Read the label. (2) Program the desired length by
reading Decimal Digits on page 49. (3) Read the “Validate” label (also on page 49)
to complete this setting.
• Checksum Transmission
< Last digit not Transmitted >
Transmitted
Last 2 Digits not Transmitted
EAN128 Parameters
• Code ID Transmission
Enable
< Disable >
• Max / Min Code Length Qualification
Select Max / Min Length Qualification • Field Separator
Max Length *
Min Length *
*
Programming Instructions : (1) Read the label. (2) Program the desired character
string by reading Hexadecimal Digits on page 50. One character consists of 2
hexadecimal digits. (3) Read the “Validate” label (also on page 50) to complete this
setting.
Programming Instructions : (1) Read the label. (2) Program the desired length by
reading Decimal Digits on page 49. (3) Read the “Validate” label (also on page 49)
to complete this setting.
30
Enter Setup
29
Update

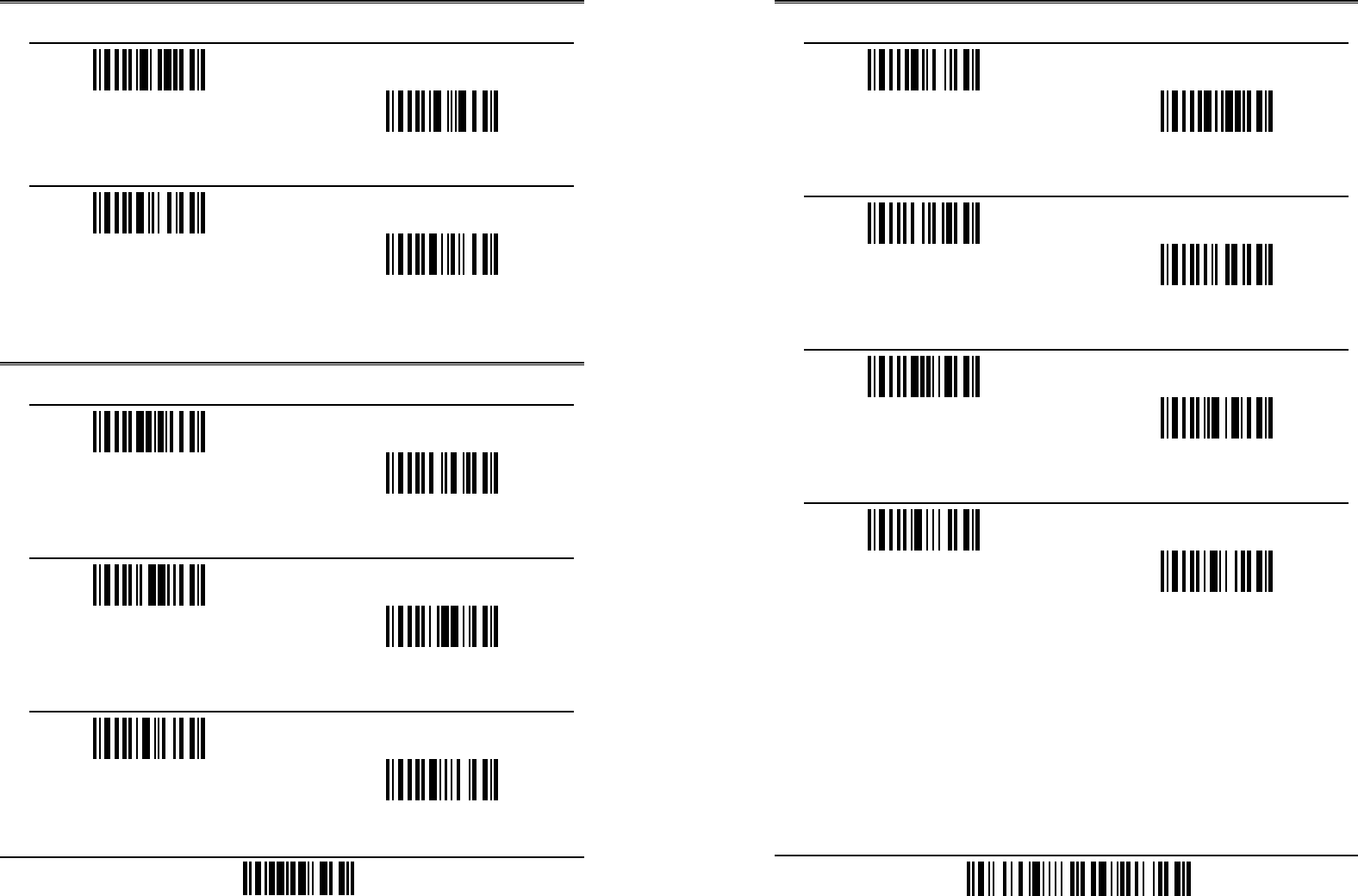

EAN8 Parameters UPCE Parameters
• Convert to EAN13 • System Number Selection
Enable
< Disable >
System Number 0 and 1
< System Number 0 only >
• Checksum Transmission • Convert to UPCA
< Enable >
Disable
Enable
< Disable >
• System Number Transmission
UPCA Parameters
Enable
< Disable >
• Convert to EAN13
< Enable >
Disable • Checksum Transmission
< Enable >
Disable
• System Number Transmission
< Enable >
Disable
• Checksum Transmission
< Enable >
Disable
32
Enter Setup
31
Update
EAN13 Parameters RSS Code ID Selection
• ISBN Conversion
]C1
< ]e0 >
Enable
< Disable > RSS14 Parameters
• ISSN Conversion
• Code ID Transmission
Enable
< Disable >
< Enable >
Disable
• Checksum Transmission
• Application ID Transmission
< Enable >
Disable
< Enable >
Disable
• Checksum Transmission
< Enable >
Disable
34
Enter Setup
33
Update

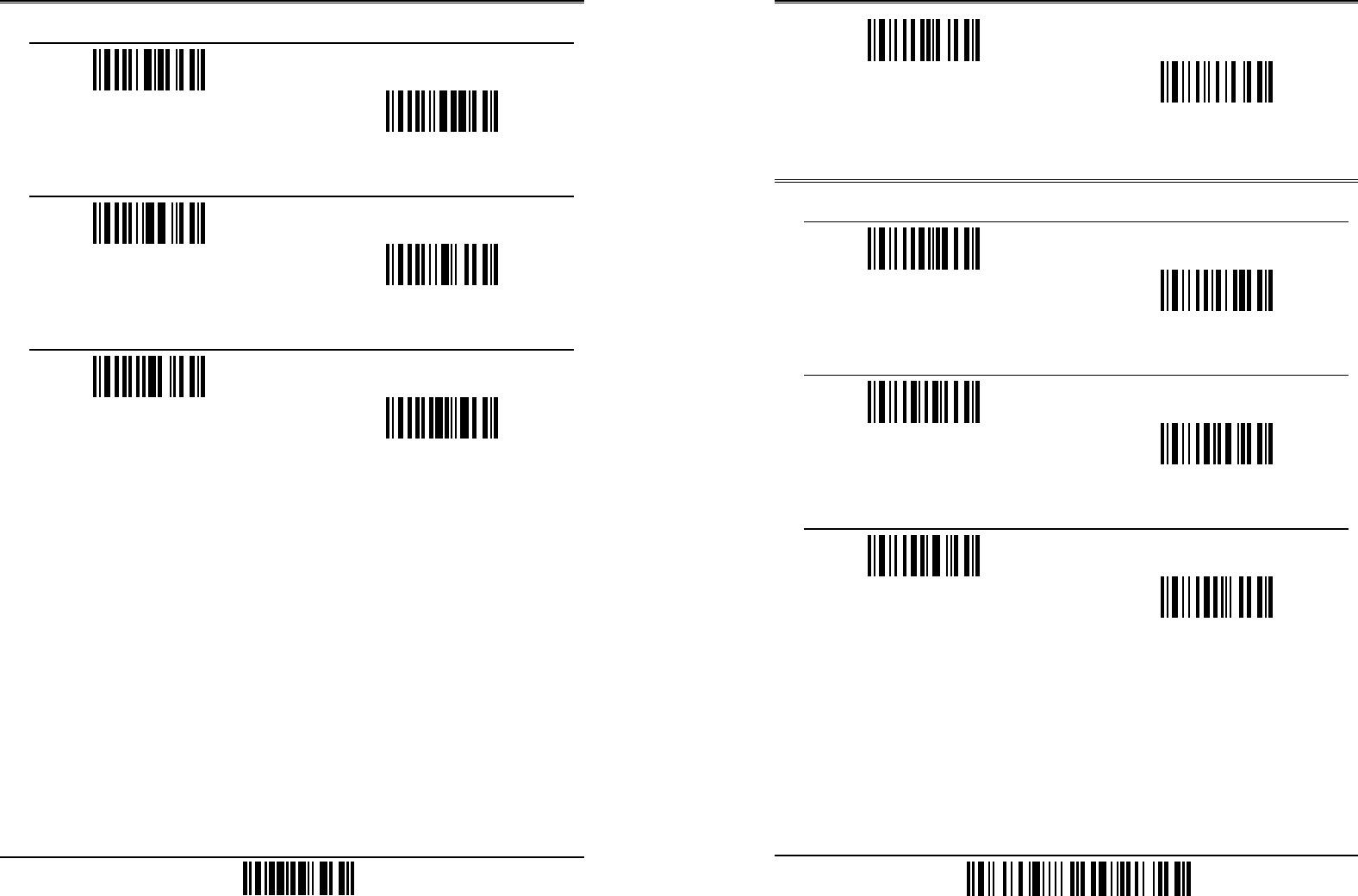

RSS Limited Parameters Activate Editing Formats
• Code ID Transmission • Format 1
< Enable >
Disable
Enable
< Disable >
• Application ID Transmission • Format 2
< Enable >
Disable
Enable
< Disable >
• Checksum Transmission • Format 3
< Enable >
Disable
Enable
< Disable >
• Exclusive Data Editing
RSS Limited Parameters
Yes
< No >
• Code ID Transmission
< Enable >
Disable • Apply Editing Format to Telepen
< Yes >
No
36
Enter Setup
35
Update
Editing Format Parameters • Applicable Data Length
Maximum Length *
Minimum Length *
• Format Selection
Format 1
Format 2
Format 3
Programming Instructions : (1) Read the label. (2) Program the desired length by
reading Decimal Digits on page 49. (3) Read the “Validate” label (also on page 49)
to complete this setting.
• Matching String of Applicable Data
• Restore Default Format
*
Programming Instructions : (1) Read the label. (2) Program the desired character
string by reading Hexadecimal Digits on page 50. One character consists of 2
hexadecimal digits. (3) Read the “Validate” label (also on page 50) to complete this
setting.
• Location of Matching String
*
Programming Instructions : (1) Read the label. (2) Program the desired location by
reading Decimal Digits on page 49. (3) Read the “Validate” label (also on page 49)
to complete this setting.
38
End of Format Programming
37
Update
• Total Number of Fields • Applicable Code Type
1
4
2
5
3
6
All
Clear
Code 39
Italy Pharmacode
French Pharmacode
Industrial 25
Interleave 25
Matrix 25
Codebar
Code 93
Code 128
EAN128 / RSS
UPCE No Addon
UPCE Addon2
UPCE Addon5
EAN8 No Addon
EAN8 Addon2
EAN8 Addon5
40
End of Format Programming
39
Update
• Field1 Setting
EAN13 No Addon
EAN13 Addon2
EAN13 Addon5
UPCA No Addon
UPCA Addon2
UPCA Addon5
MSI
Plessey
Divide Field by
Field Terminating String
Field Terminating String *
Programming Instructions : (1) Read the label. (2) Program the desired character
string by reading Hexadecimal Digits on page 50. One character consists of 2
hexadecimal digits. (3) Read the “Validate” label (also on page 50) to complete this
setting.
Include Terminating String
Discard Terminating String
Divide Field by Field Length
Field Length *
Programming Instructions : (1) Read the label. (2) Program the desired length by
reading Decimal Digits on page 49. (3) Read the “Validate” label (also on page 49)
to complete this setting.
42
End of Format Programming
41
Update
• Field2 Setting • Field3 Setting
Divide Field by
Field Terminating String Divide Field by
Field Terminating String
Field Terminating String *
Field Terminating String *
Programming Instructions : (1) Read the label. (2) Program the desired character
string by reading Hexadecimal Digits on page 50. One character consists of 2
hexadecimal digits. (3) Read the “Validate” label (also on page 50) to complete this
setting.
Programming Instructions : (1) Read the label. (2) Program the desired character
string by reading Hexadecimal Digits on page 50. One character consists of 2
hexadecimal digits. (3) Read the “Validate” label (also on page 50) to complete this
setting.
Include Terminating String
Discard Terminating String
Include Terminating String
Discard Terminating String
Divide Field by Field Length Divide Field by Field Length
Field Length *
Field Length *
Programming Instructions : (1) Read the label. (2) Program the desired length by
reading Decimal Digits on page 49. (3) Read the “Validate” label (also on page 49)
to complete this setting.
Programming Instructions : (1) Read the label. (2) Program the desired length by
reading Decimal Digits on page 49. (3) Read the “Validate” label (also on page 49)
to complete this setting.
44
End of Format Programming
43
Update
• Field4 Setting • Field5 Setting
Divide Field by
Field Terminating String Divide Field by
Field Terminating String
Field Terminating String *
Field Terminating String *
Programming Instructions : (1) Read the label. (2) Program the desired character
string by reading Hexadecimal Digits on page 50. One character consists of 2
hexadecimal digits. (3) Read the “Validate” label (also on page 50) to complete this
setting.
Programming Instructions : (1) Read the label. (2) Program the desired character
string by reading Hexadecimal Digits on page 50. One character consists of 2
hexadecimal digits. (3) Read the “Validate” label (also on page 50) to complete this
setting.
Include Terminating String
Discard Terminating String
Include Terminating String
Discard Terminating String
Divide Field by Field Length Divide Field by Field Length
Field Length *
Field Length *
Programming Instructions : (1) Read the label. (2) Program the desired length by
reading Decimal Digits on page 49. (3) Read the “Validate” label (also on page 49)
to complete this setting.
Programming Instructions : (1) Read the label. (2) Program the desired length by
reading Decimal Digits on page 49. (3) Read the “Validate” label (also on page 49)
to complete this setting.
46
End of Format Programming
45
Update
• Additional Fields Setting • Field Transmission Sequence
Additional Field 1 *
Additional Field 4 *
Additional Field 2 *
Additional Field 5 *
Additional Field 3 *
Start
Field 1
Additional Field 1
Field 2
Additional Field 2
Field 3
Additional Field 3
Field 4
Additional Field 4
Field 5
Additional Field 5
Field 6
Programming Instructions : (1) Read the label. (2) Program the desired character
string by reading Hexadecimal Digits on page 50. One character consists of 2
hexadecimal digits. (3) Read the “Validate” label (also on page 50) to complete this
setting.
End
Programming Instructions : (1) Read the “Start” label. (2) Program the desired
transmission sequence by reading the Field / Additional Field labels. (3) Read the
“End” label to complete this setting.
48
End of Format Programming
47
Update

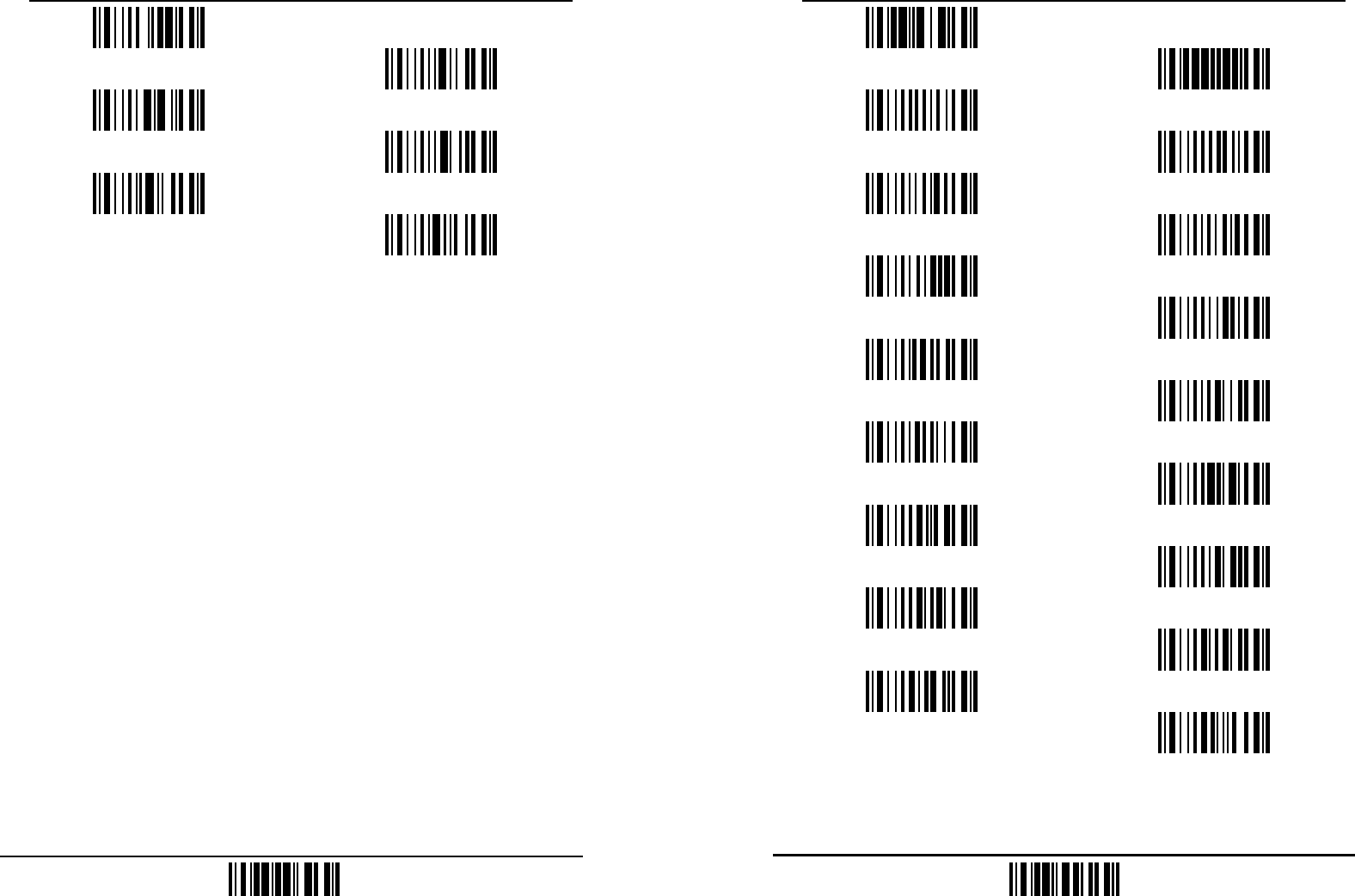

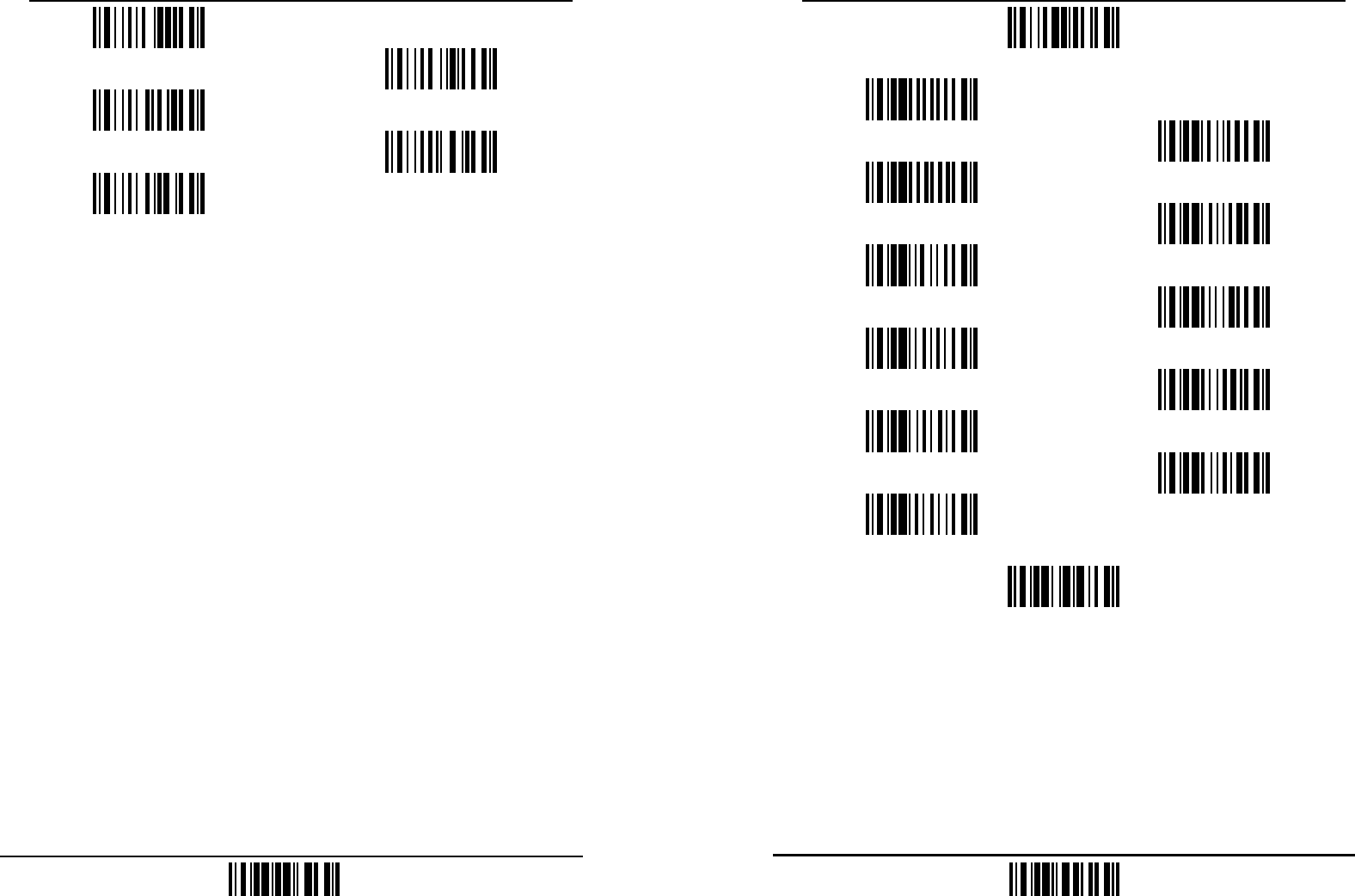

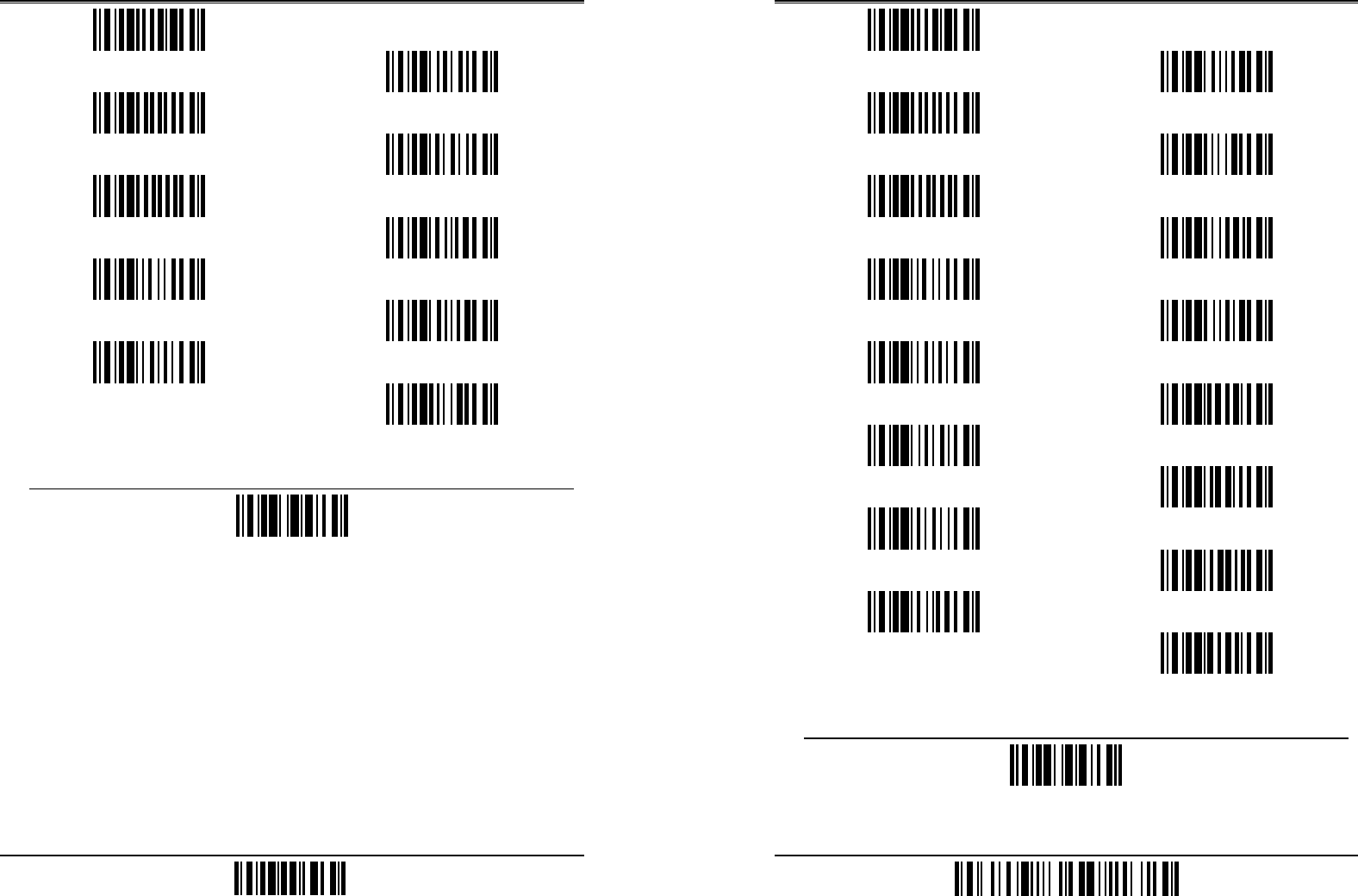

Decimal Digits Hexadecimal Digits
0
5
1
6
2
7
3
8
4
9
0
8
1
9
2
A
3
B
4
C
5
D
6
E
7
F
• Validate
• Validate
49
Update 50
Enter Setup
RS-232 Character Table
3450 1 2 6 7
0 DLE SP 0 @ P ` p
1 SOH DC1 ! 1 A Q a q
2 STX DC2 " 2 B R b r
3 ETX DC3 # 3 C S c s
4 EOT DC4 $ 4 D T d t
5 ENQ NAK % 5 E U e u
6 ACK SYN & 6 F V f v
7 BEL ETB ' 7 G W g w
8 BS CAN ( 8 H X h x
9 HT EM ) 9 I Y i y
A LF SUB * : J Z j z
B VT ESC + ; K [ k {
C FF FS , < L \ l |
D CR GS - = M ] m }
E SO RS . > N ^ n ~
F SI US / ? O _ o DEL
51
Update
