CipherLab 8231 Terminal User Manual 8231 Reference Manual v1 05E 0625
CipherLab Co., Ltd. Terminal 8231 Reference Manual v1 05E 0625
Users Manual
8200 Series
T
erminal
8200/8231/8260
Version 1.05E
Copyright © 2009~2014 CIPHERLAB CO., LTD.
All rights reserved
The software contains proprietary information of CIPHERLAB CO., LTD.; it is provided
under a license agreement containing restrictions on use and disclosure and is also
protected by copyright law. Reverse engineering of the software is prohibited.
Due to continued product development this information may change without notice. The
information and intellectual property contained herein is confidential between CIPHERLAB
and the client and remains the exclusive property of CIPHERLAB CO., LTD. If you find
any problems in the documentation, please report them to us in writing. CIPHERLAB
does not warrant that this document is error-free.
No part of this publication may be reproduced, stored in a retrieval system, or
transmitted in any form or by any means, electronic, mechanical, photocopying,
recording or otherwise without the prior written permission of CIPHERLAB CO., LTD.
For product consultancy and technical support, please contact your local sales
representative. Also, you may visit our web site for more information.
The CipherLab logo is a registered trademark of CIPHERLAB CO., LTD.
All brand, product and service, and trademark names are the property of their registered
owners.
The editorial use of these names is for identification as well as to the benefit of the
owners, with no intention of infringement.
CIPHERLAB CO., LTD.
Website: http://www.cipherlab.com
FOR USA
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
FOR CANADA
This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject
to the following two conditions:
This device may not cause interference; and
This device must accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils
radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes :
l’appareil ne doit pas produire de brouillage;
l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d’en compromettre le fonctionnement.
The device meets the exemption from the routine evaluation limits in section 2.5 of RSS
102 and compliance with RSS-102 RF exposure, users can obtain Canadian information
on RF exposure and compliance.
IMPORTANT NOTICES
Le dispositif rencontre l'exemption des limites courantes d'évaluation dans la section 2.5
de RSS 102 et la conformité à l'exposition de RSS-102 rf, utilisateurs peut obtenir
l'information canadienne sur l'exposition et la conformité de rf.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter. This equipment should be installed and operated with a minimum
distance of 20 centimeters between the radiator and your body.
Cet émetteur ne doit pas être Co-placé ou ne fonctionnant en même temps qu'aucune
autre antenne ou émetteur. Cet équipement devrait être installé et actionné avec une
distance minimum de 20 centimètres entre le radiateur et votre corps.
FOR HAND-HELD PRODUCT WITH RF FUNCTIONS
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20
cm between the radiator & your body. It only operated in hand-held used.
This device and it's antennas(s) must not be co-located or operating in conjunction with a
ny other antenna or transmitter. End-users and installers must be provide with antenna i
nstallation instructions and consider removing the no-collocation statement.
If you only transfer data to the host wirelessly, please keep the minimum distance 20 cm
between machine & your body.
FOR PRODUCT WITH LASER
CAUTION
This laser component emits FDA / IEC Class 2 laser light at the exit port. Do not
stare into beam.
SAFETY PRECAUTIONS
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
The use of any batteries or charging devices, which are not originally sold or
manufactured by CipherLab, will void your warranty and may cause damage to
human body or the product itself.
DO NOT disassemble, incinerate or short circuit the battery.
DO NOT expose the scanner or the battery to any flammable sources.
For green-environment issue, it's important that batteries should be recycled in a
proper way.
Under no circumstances, internal components are self-serviceable.
CARE & MAINTENANCE
This Terminal is intended for enterprise logistics use. The Terminal is rated IP 52,
however, it may do damage to the Terminal when being exposed to extreme
temperatures or soaked wet.
When the body of the Terminal gets dirty, use a clean and wet cloth to wipe off the
dust. DO NOT use/mix any bleach or cleaner. Always keep the LCD dry.
For a liquid crystal display (LCD), use a clean, non-abrasive, lint-free cloth to wipe
dust off the screen. DO NOT use any pointed or sharp object to move against the
surface.
If you want to put away the Terminal for a period of time, download the collected
data to a host computer, and then take out the battery pack. Store the Terminal and
battery pack separately.
When the Terminal resumes its work, the main and backup batteries will take a
certain time to become fully charged.
Keep the Terminal away from any magnets and magnetic fields to prevent the laser
engine from malfunctioning.
If you shall find the Terminal malfunctioning, write down the specific scenario and
consult your local sales representative.
RELEASE NOTES
CONTENTS
IMPORTANT NOTICES ...................................................................................................................... - 3 -
For USA .......................................................................................................................................... - 3 -
For Canada .................................................................................................................................... - 3 -
For Hand-held Product with RF Functions ................................................................................... - 4 -
For Product with Laser .................................................................................................................. - 5 -
Safety Precautions ........................................................................................................................ - 5 -
Care & Maintenance ..................................................................................................................... - 5 -
RELEASE NOTES .............................................................................................................................. - 5 -
INTRODUCTION .................................................................................................................................... 1

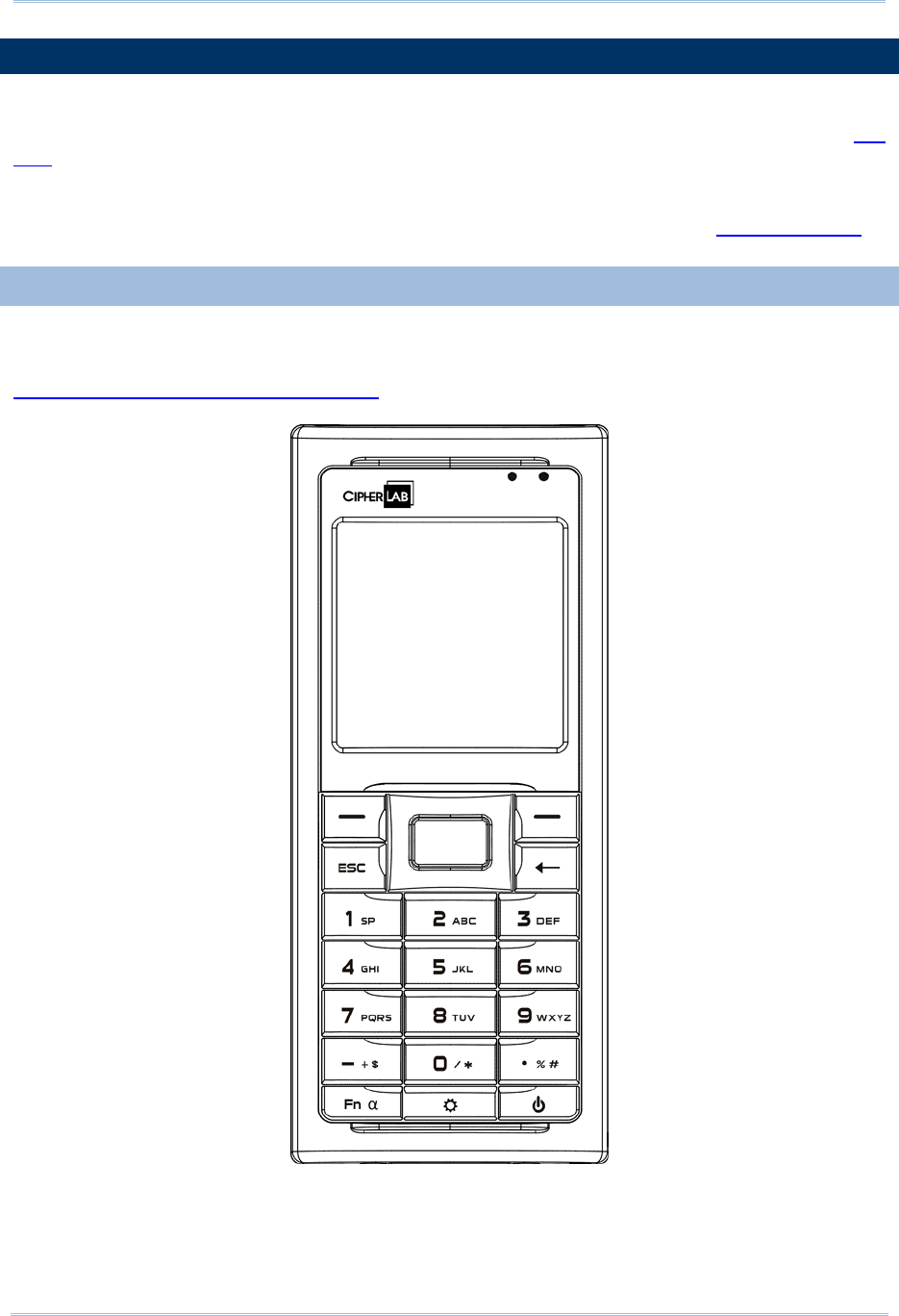

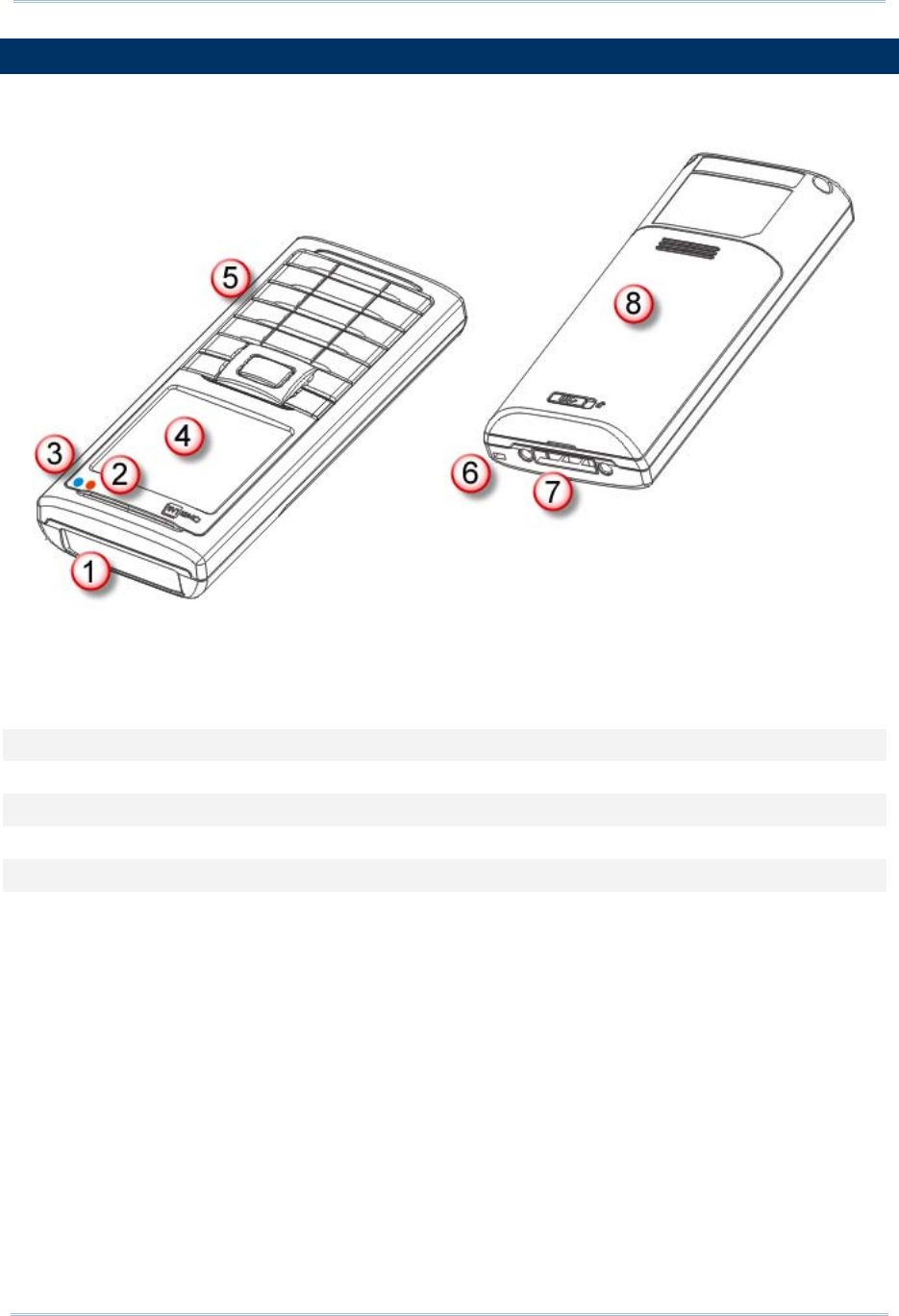

Getting Familiarized with 8200 ........................................................................................................ 2
Features ............................................................................................................................................. 3
Inside the Package ............................................................................................................................ 3
Accessories ........................................................................................................................................ 3
Getting Started .................................................................................................................................. 4

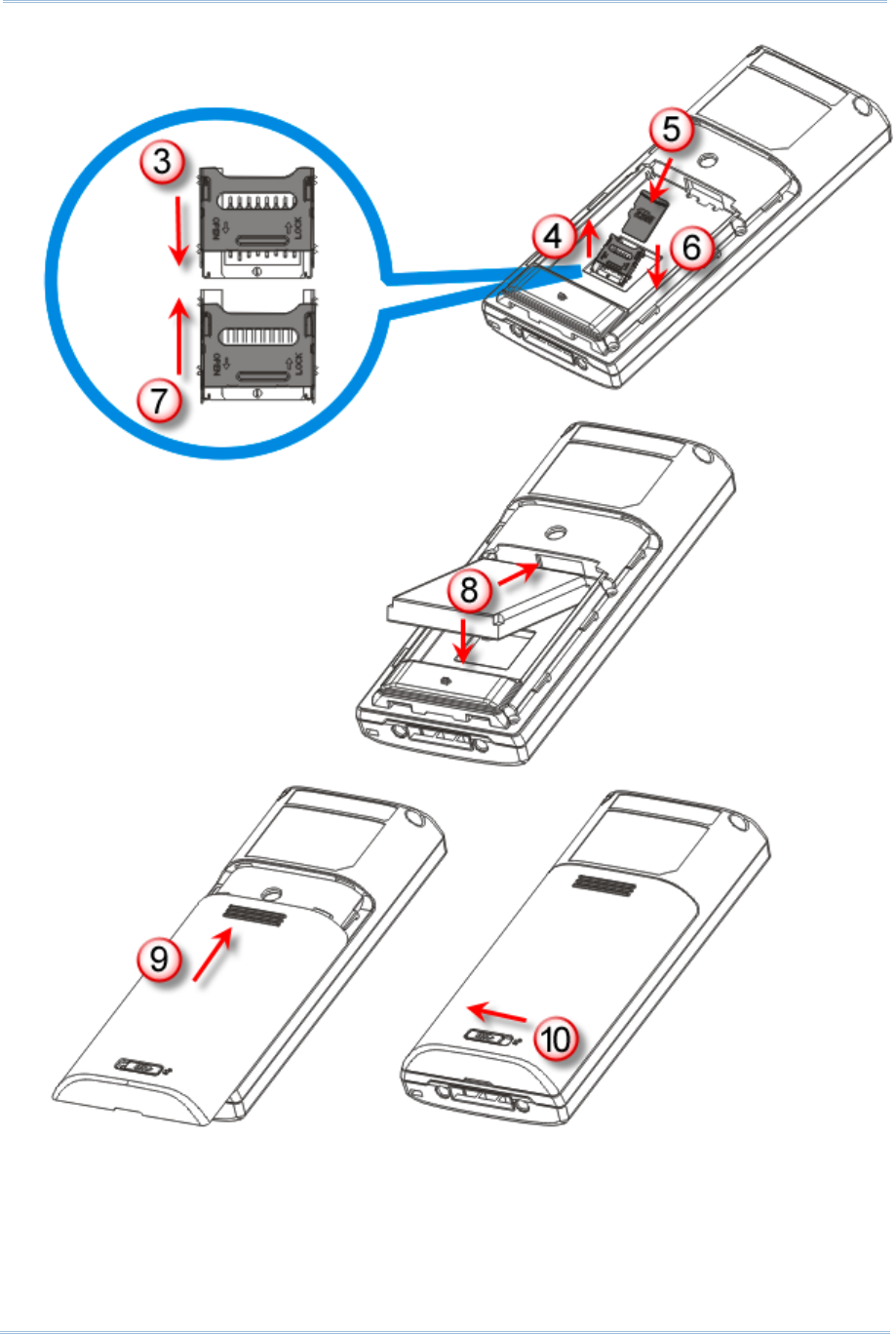

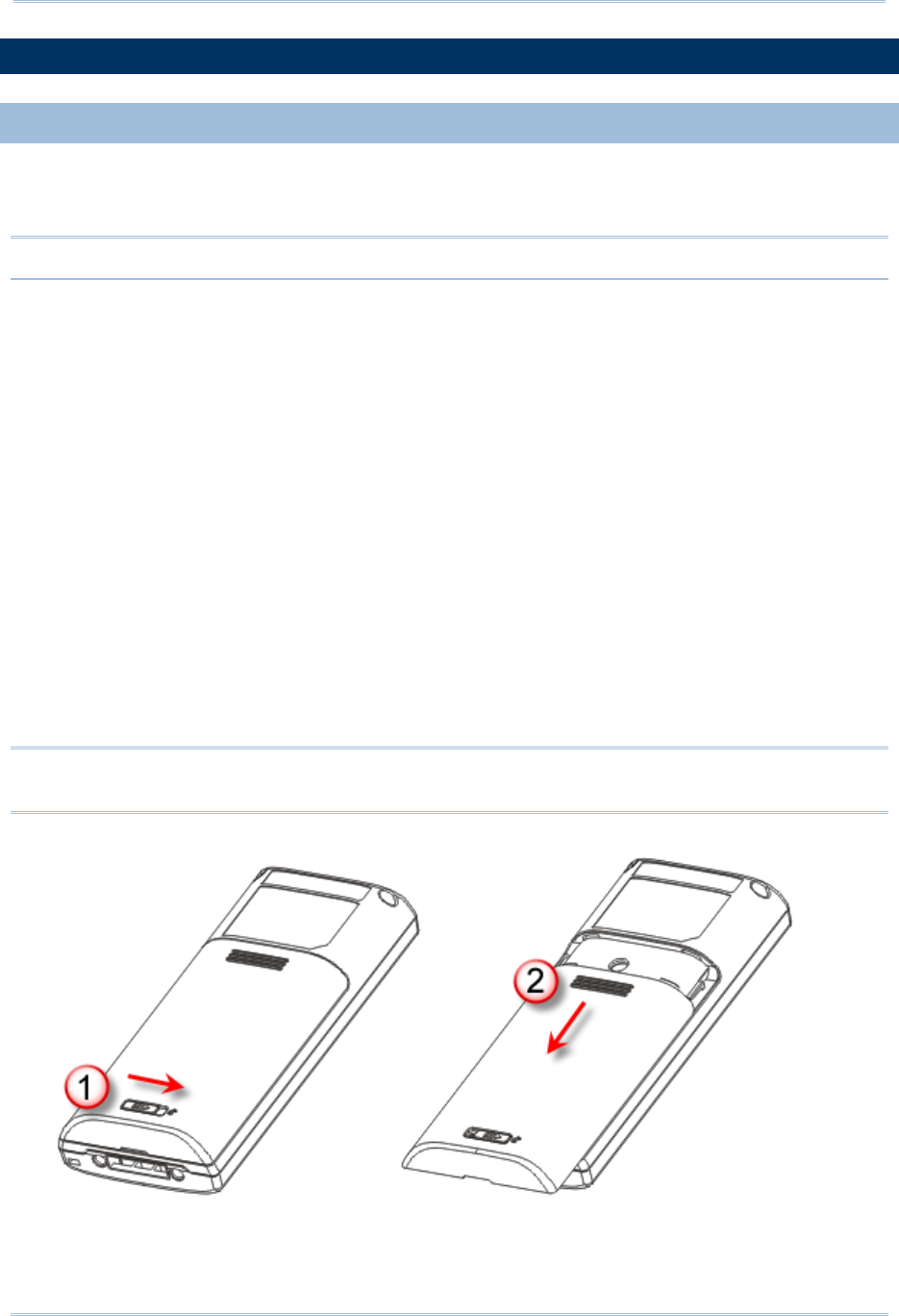

Inserting Battery & Memory Card ................................................................................................ 4

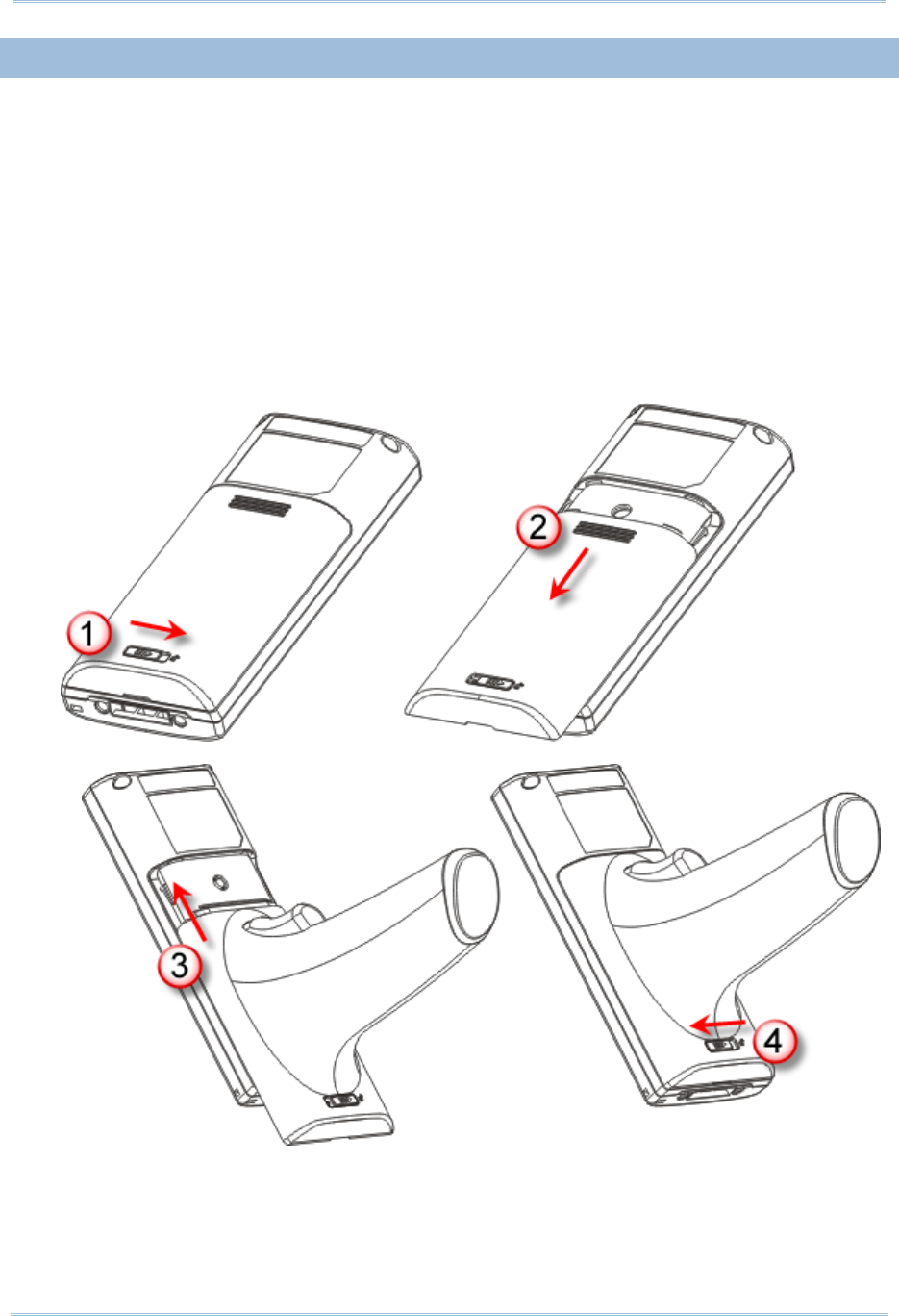

Installing Pistol Grip ..................................................................................................................... 6
Initial Charging ............................................................................................................................. 7
Setting Local Time ........................................................................................................................ 7
Power Management ..................................................................................................................... 7
USING 8200 TERMINAL ...................................................................................................................... 9
1.1 Battery ......................................................................................................................................... 9
1.1.1 Main Battery ....................................................................................................................... 9
1.1.2 Backup Battery ................................................................................................................. 10
1.1.3 Caution of Low Battery Charge ........................................................................................ 10

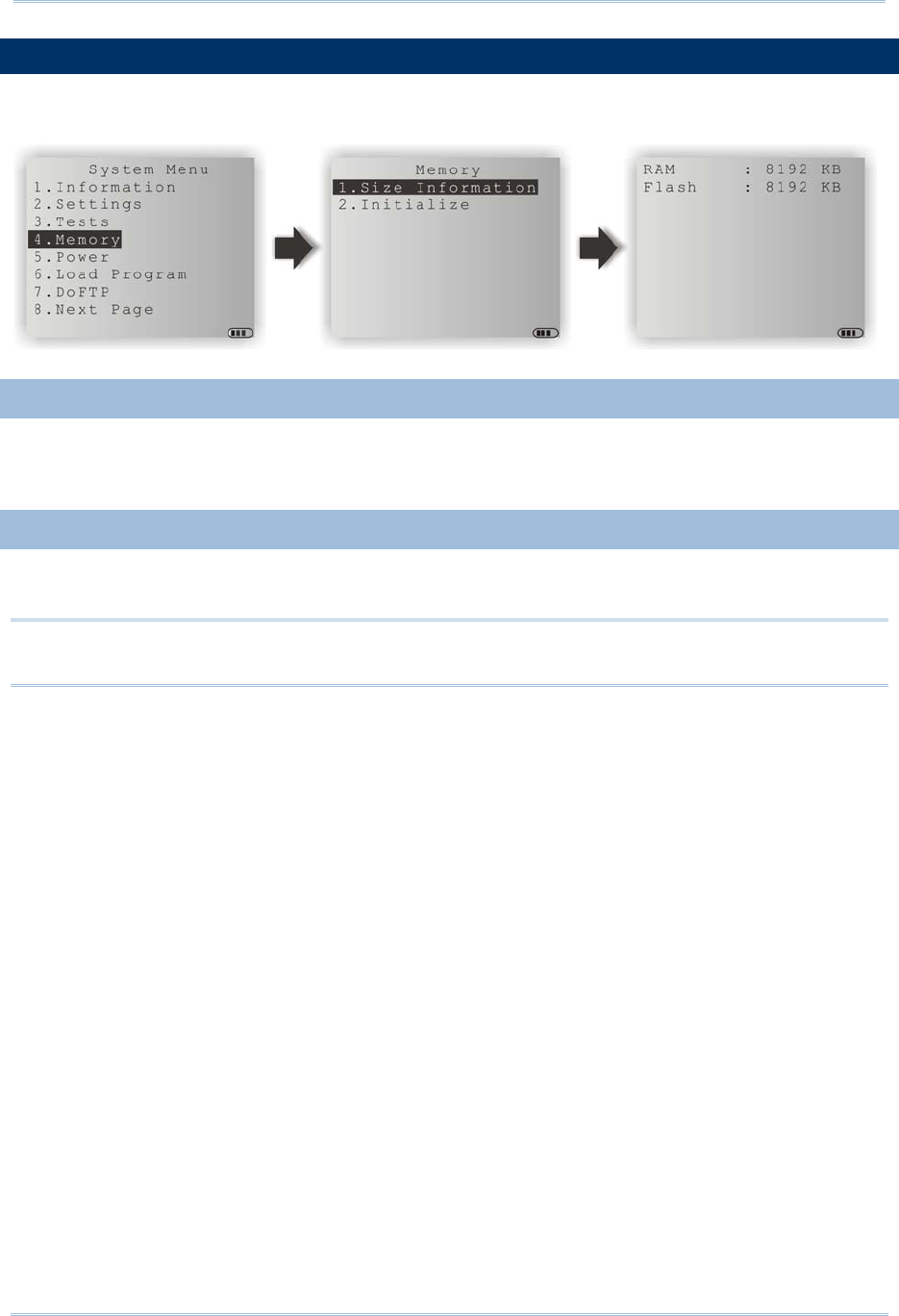

1.2 Memory ..................................................................................................................................... 11
1.2.1 Read-only Memory (ROM) ................................................................................................ 11
1.2.2 Random-access Memory (RAM) ...................................................................................... 11
1.2.3 SD Card ............................................................................................................................. 11
1.3 Keypad ...................................................................................................................................... 12
1.3.1 24-key Layout ................................................................................................................... 12
1.4 LCD ............................................................................................................................................ 16
1.4.1 Adjusting the Backlight .................................................................................................... 16
1.5 Notifications .............................................................................................................................. 17
1.5.1 Status LED ........................................................................................................................ 17
1.5.2 Audio ................................................................................................................................. 18
1.5.3 Vibrator ............................................................................................................................. 18
1.6 Data Capture ............................................................................................................................. 19
1.7 Charging & Communications ................................................................................................... 21
1.7.1 Interface Cable Options ................................................................................................... 22
1.8 SD Card ..................................................................................................................................... 24
8200 Series Mobile Computer Reference Manual
1.8.1 File System ....................................................................................................................... 24
1.8.2 Directory ............................................................................................................................ 24
1.8.3 File Name .......................................................................................................................... 26

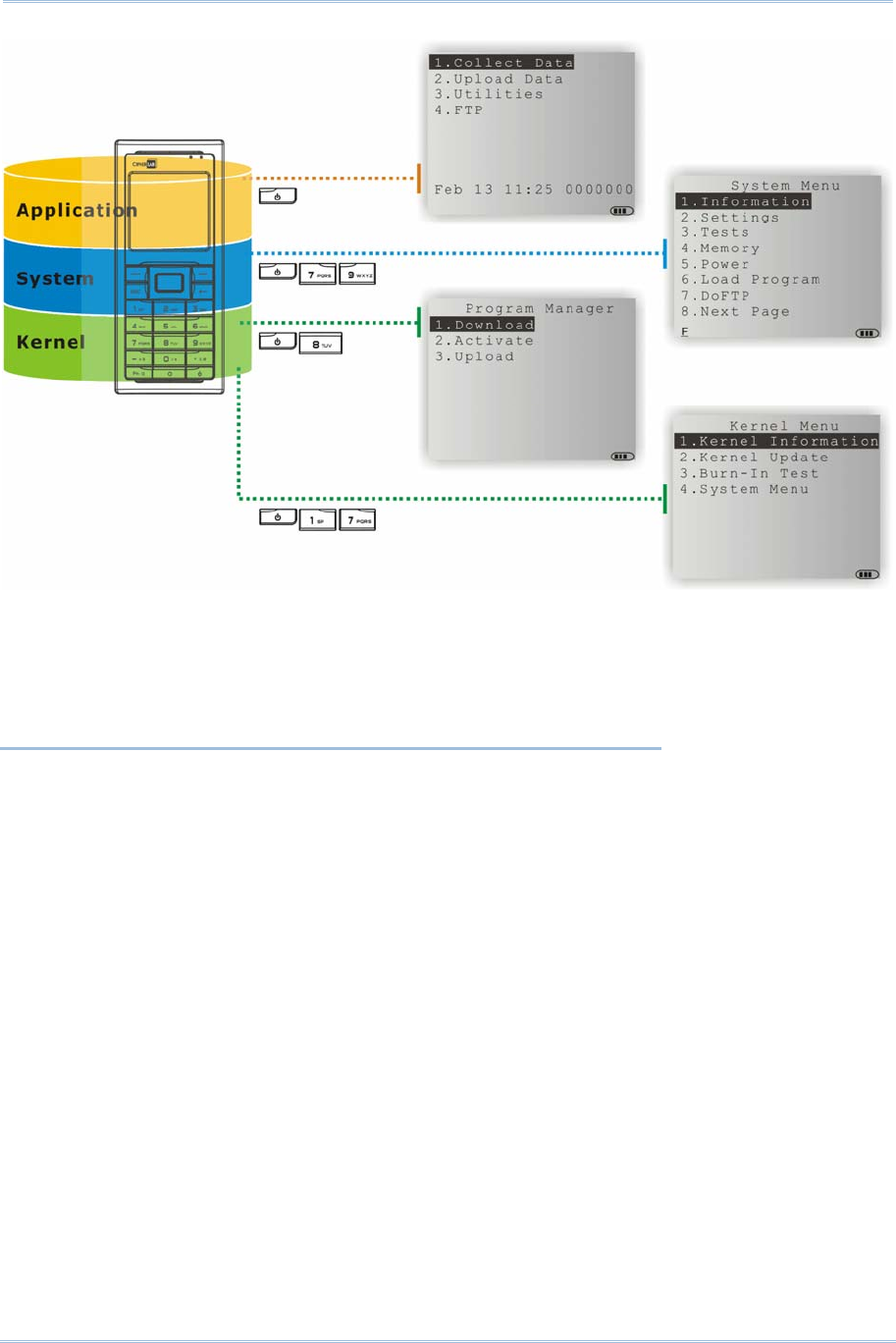

LEARNING SOFTWARE ARCHITECTURE ............................................................................................. 27
2.1 Application Module ................................................................................................................... 29
2.1.1 FORGE Application Generator (AG) ................................................................................. 29
2.1.2 MIRROR Emulator (CipherNet) ........................................................................................ 30
2.1.3 User Program .................................................................................................................... 30
2.2 System Configuration & Core ................................................................................................... 30

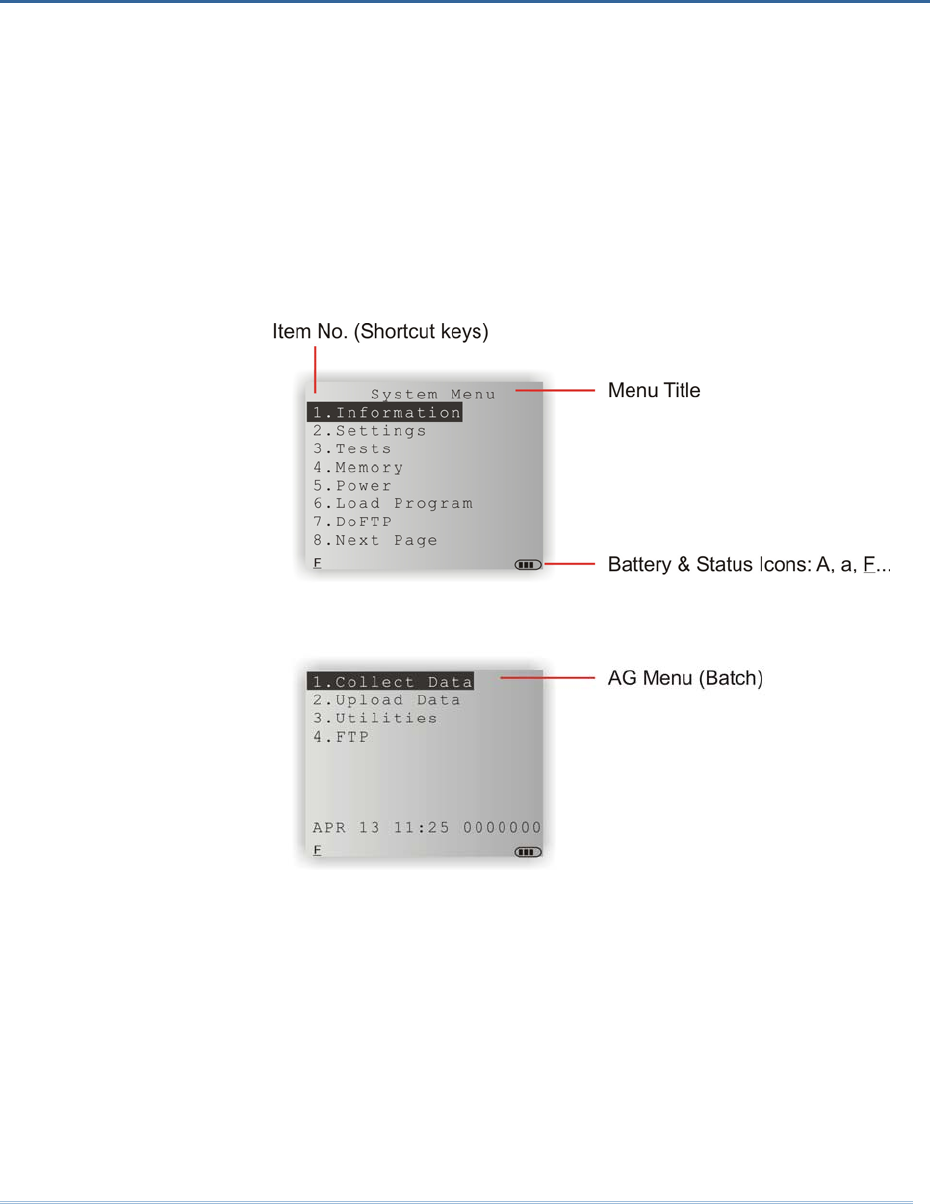

2.2.1 System Menu .................................................................................................................... 31

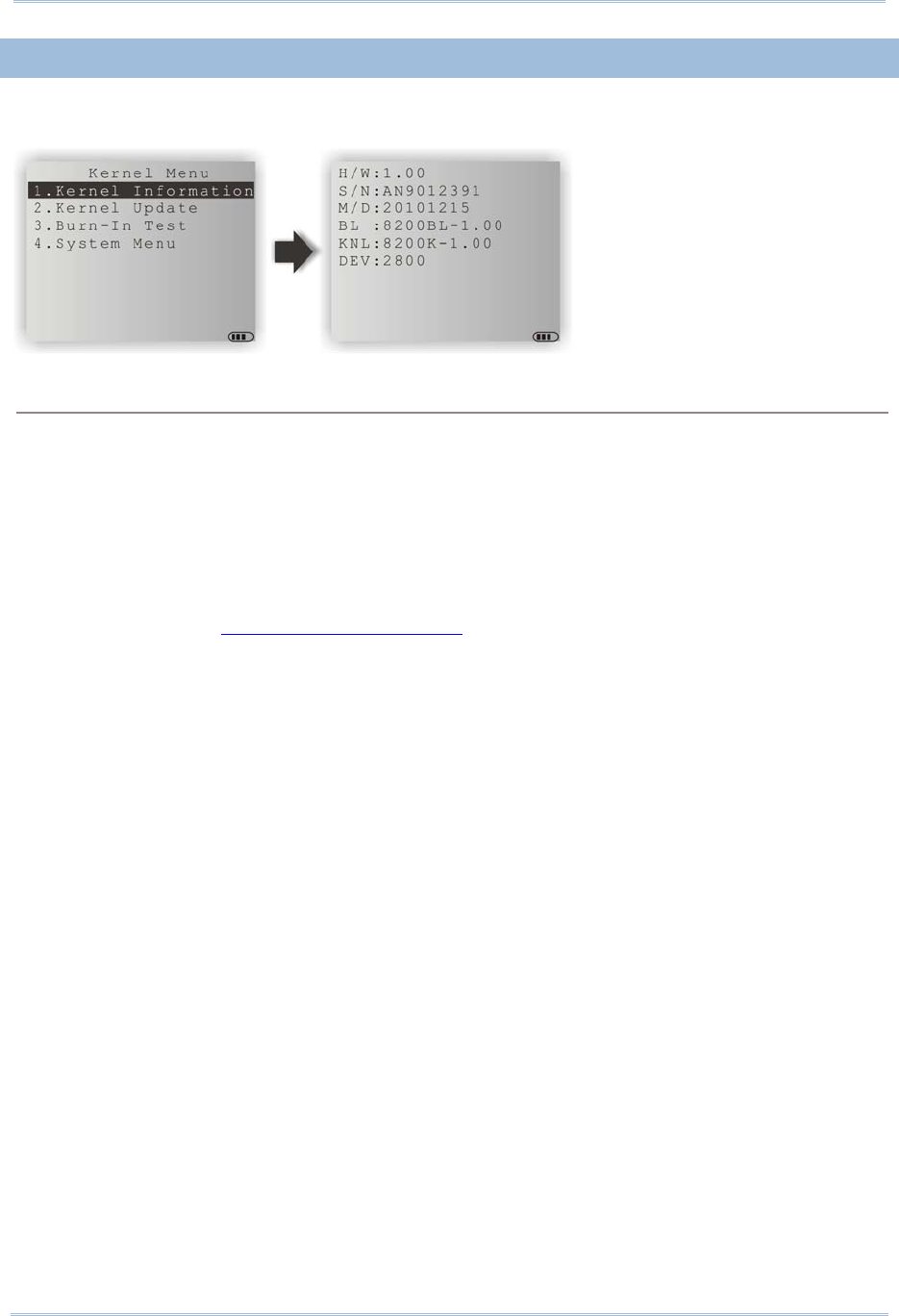

2.2.2 Kernel ............................................................................................................................... 31

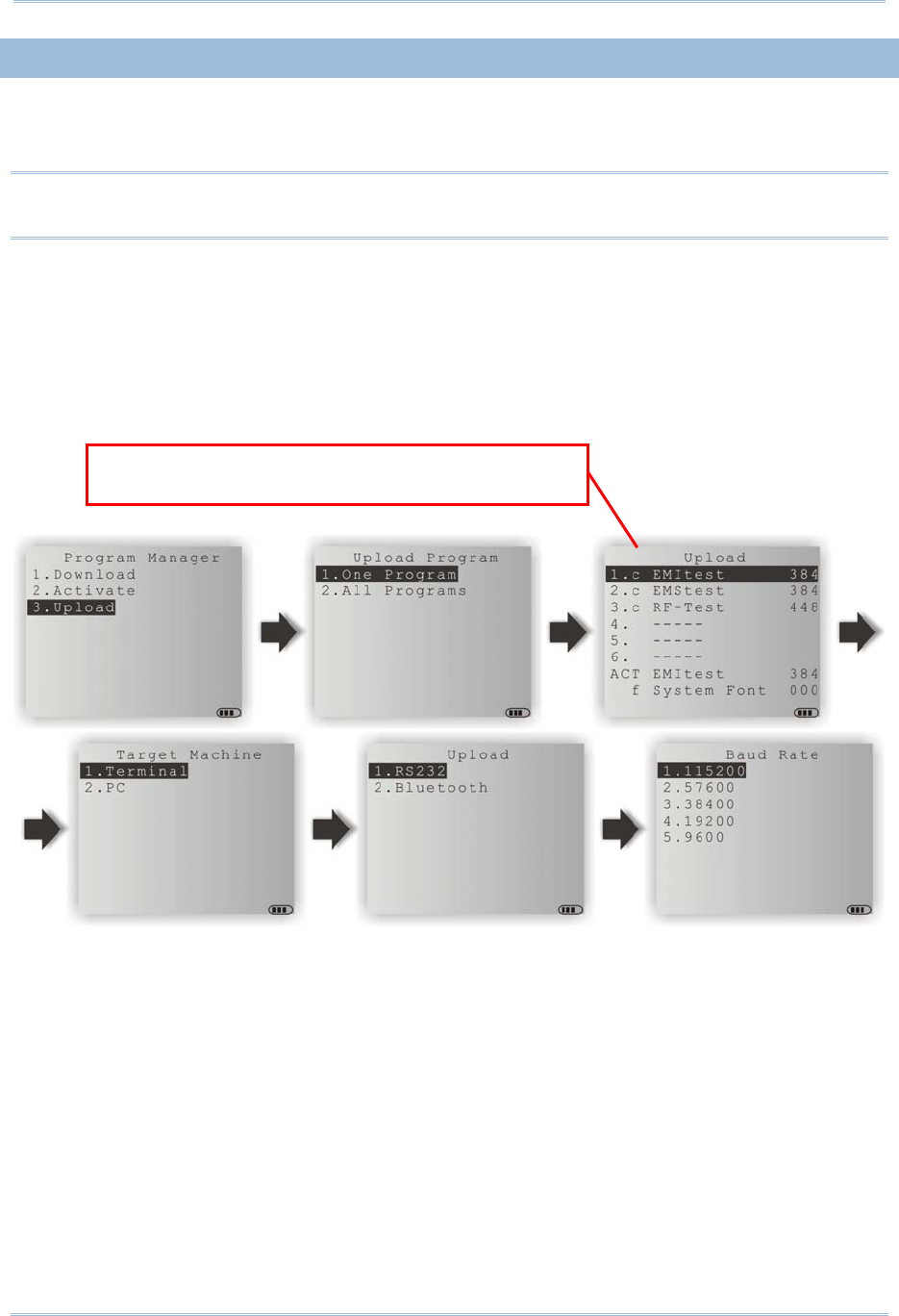

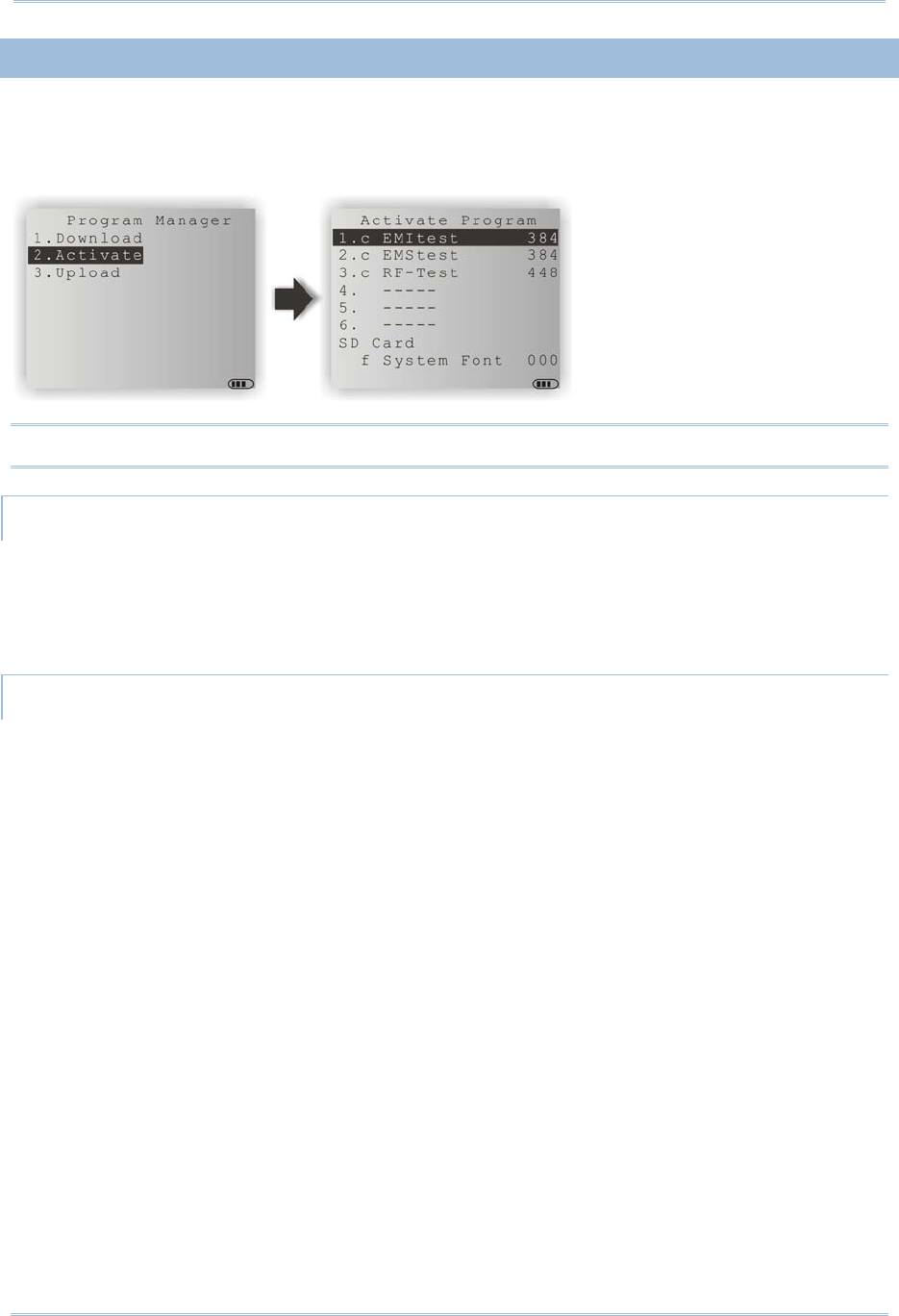

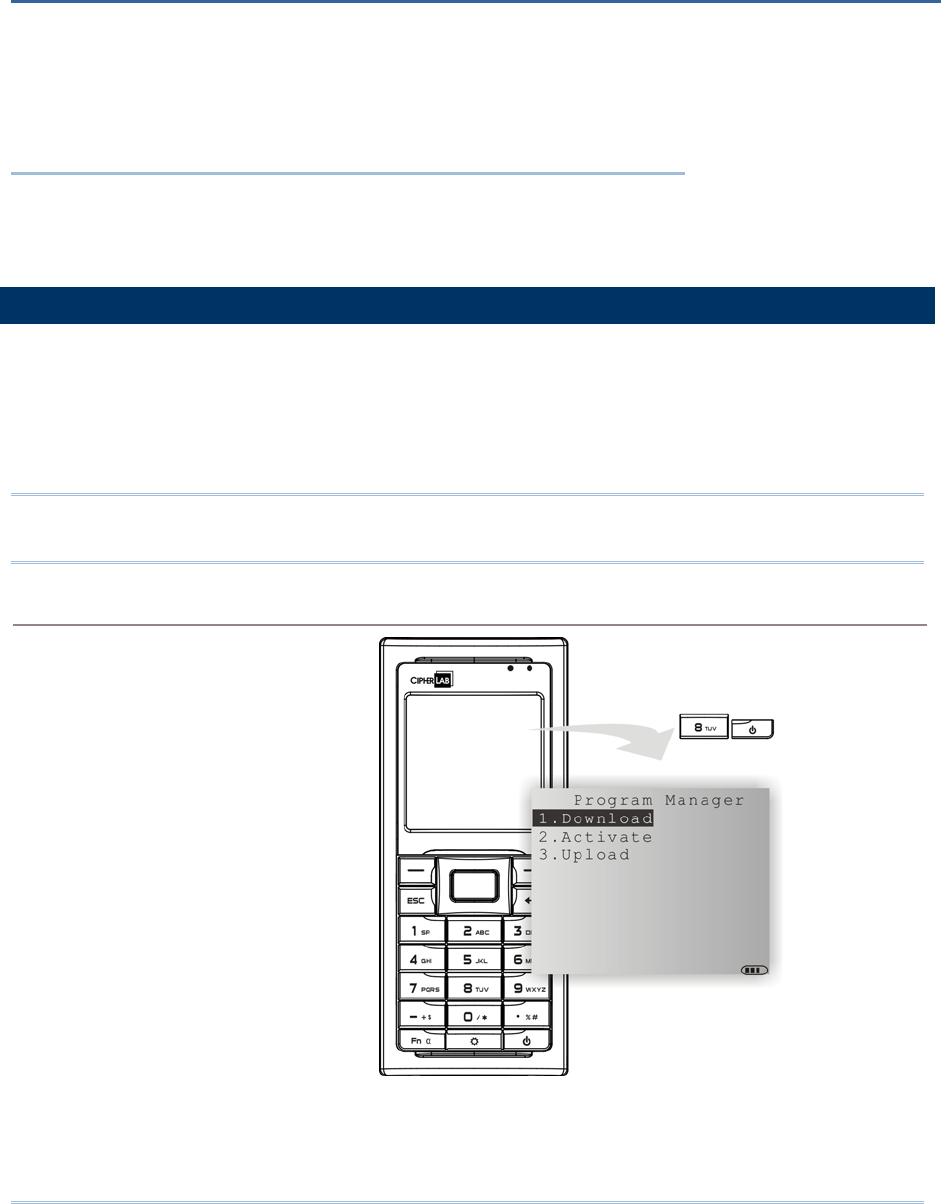

2.2.3 Program Manager ............................................................................................................ 31

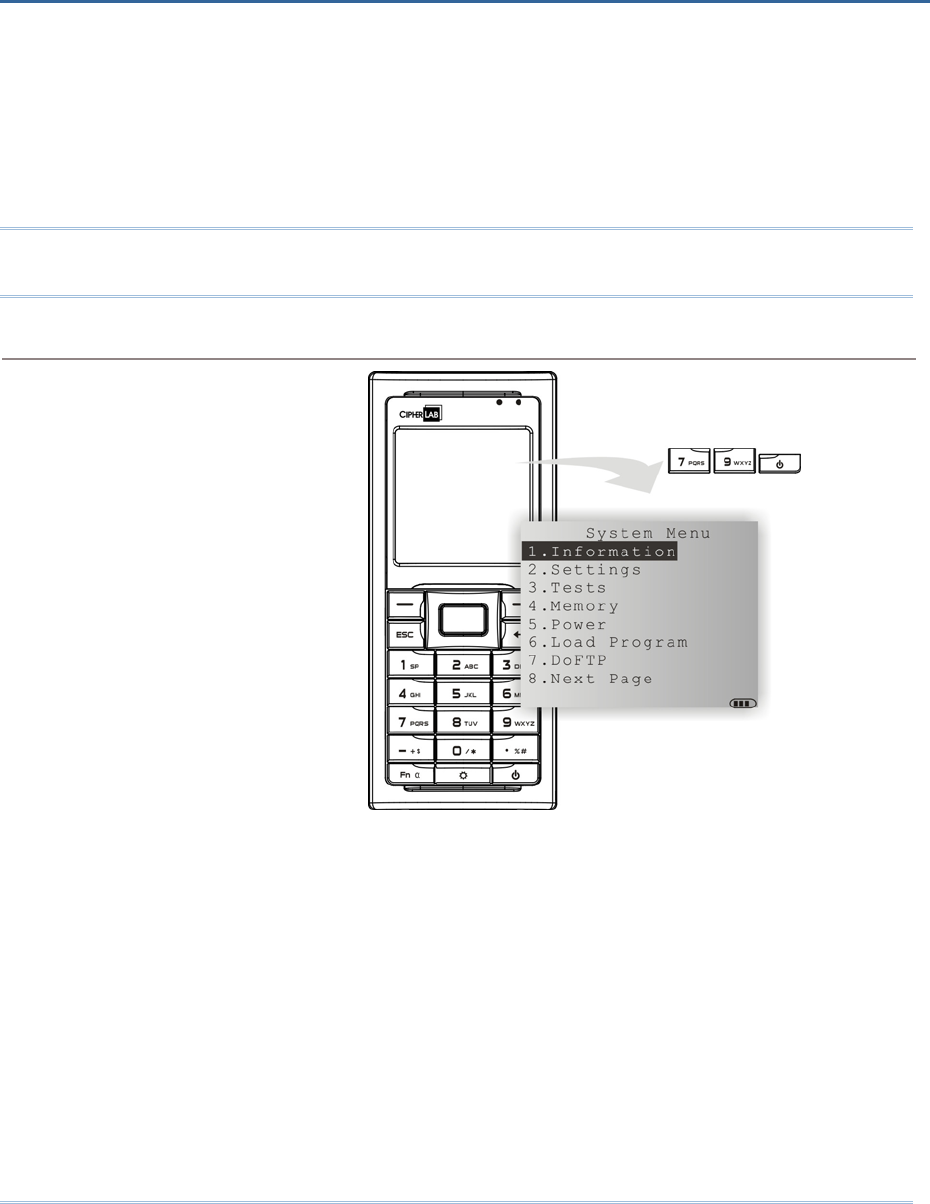

SYSTEM MENU................................................................................................................................... 33

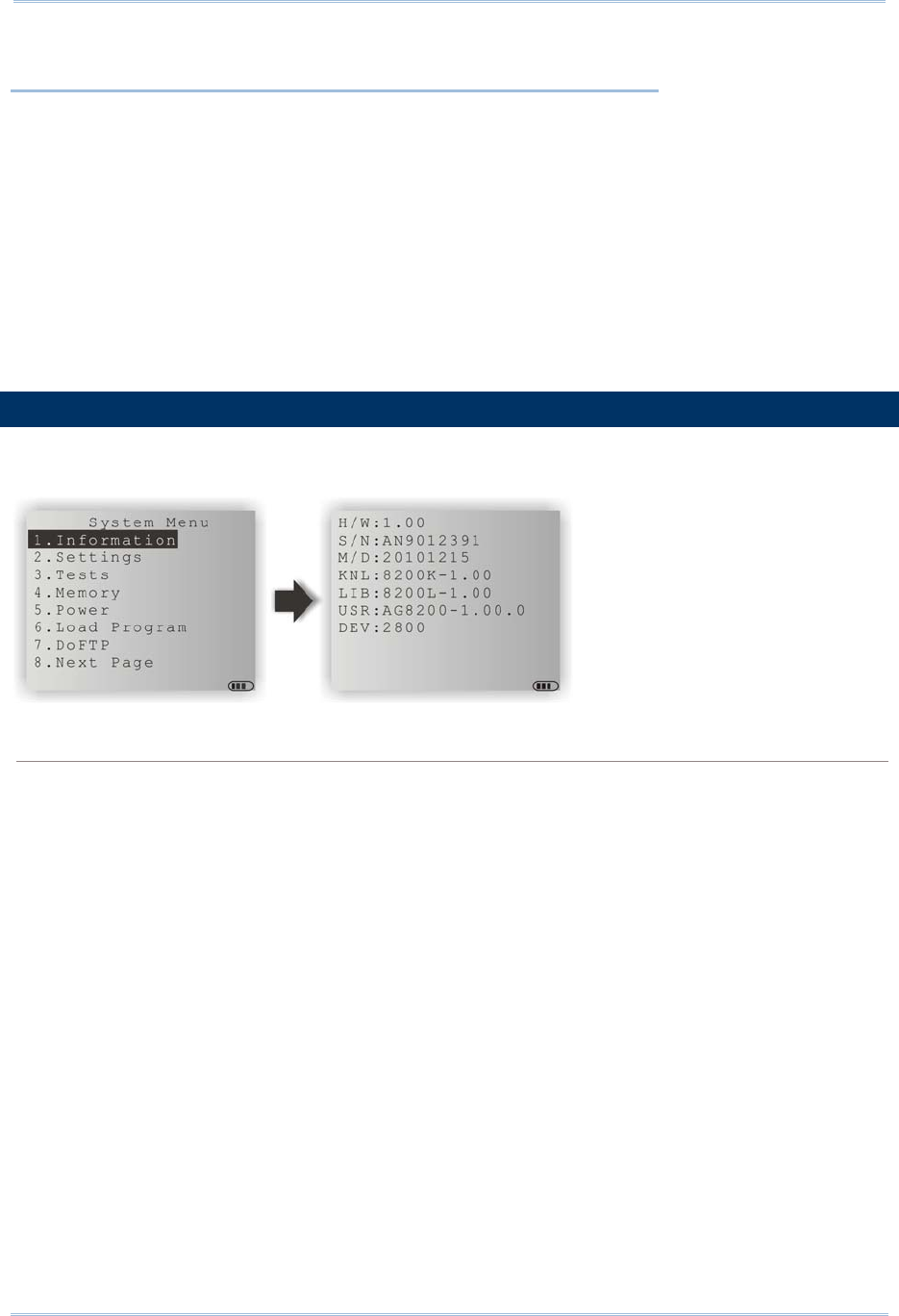

3.1 Information ................................................................................................................................ 34
3.1.1 Understanding Device Code ............................................................................................ 35

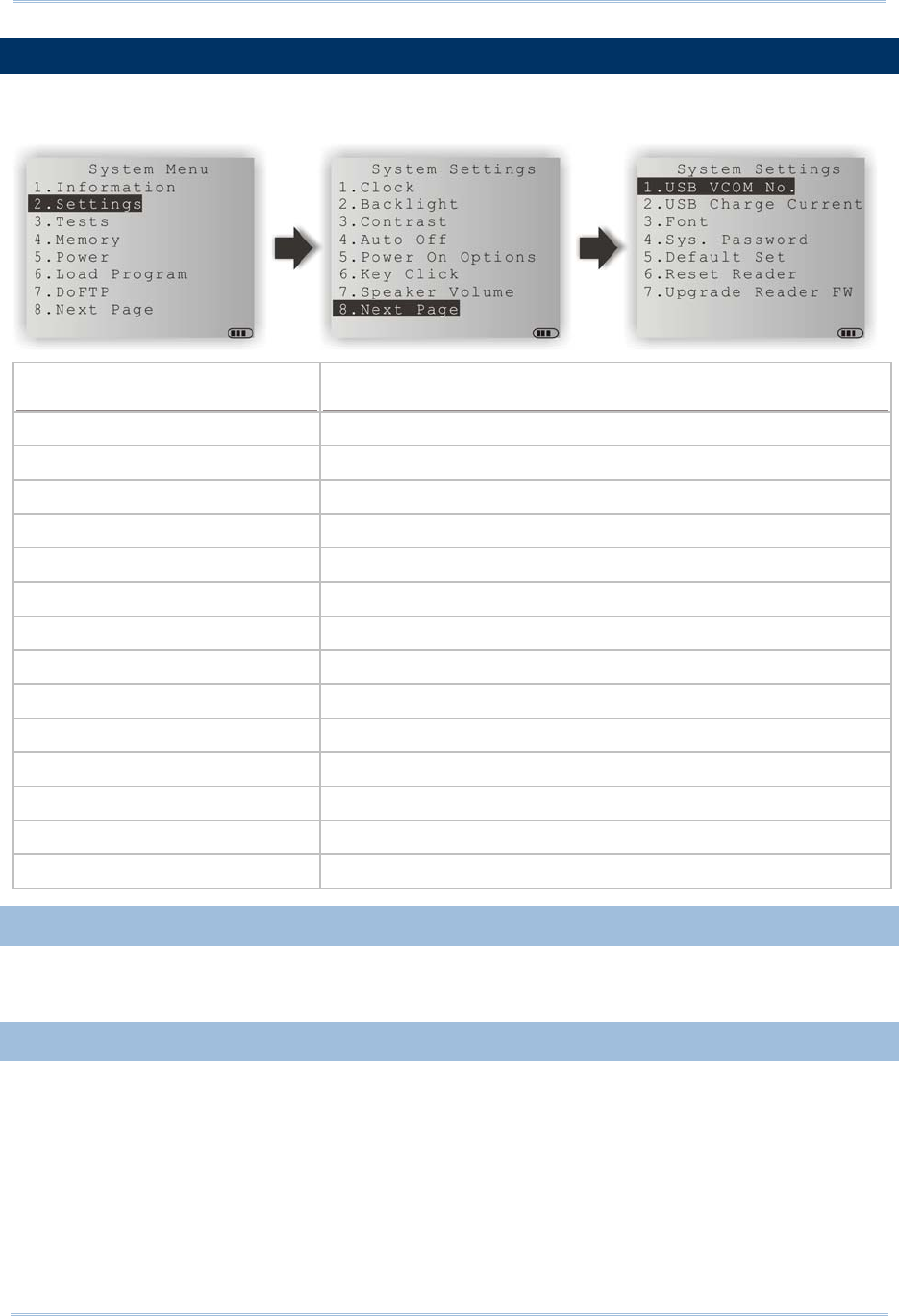

3.2 Settings ..................................................................................................................................... 36
3.2.1 Clock ................................................................................................................................. 36
3.2.2 Backlight ........................................................................................................................... 36
3.2.3 Contrast ............................................................................................................................ 37
3.2.4 Auto Off ............................................................................................................................. 37
3.2.5 Power On (& Wakeup Event) Options.............................................................................. 37
3.2.6 Key Click ........................................................................................................................... 38
3.2.7 Speaker Volume ............................................................................................................... 38
3.2.8 USB VCOM No ................................................................................................................... 38
3.2.9 USB Charge Current ......................................................................................................... 38
3.2.10 Font ................................................................................................................................. 38
3.2.11 System Password ........................................................................................................... 39
3.2.12 Default Set ..................................................................................................................... 39
3.2.13 Reset Reader ................................................................................................................. 39
3.2.14 Upgrade Reader FW ....................................................................................................... 39
3.3 Tests .......................................................................................................................................... 40
3.3.1 Reader .............................................................................................................................. 40
3.3.2 Speaker ............................................................................................................................. 40
3.3.3 LCD & LED ........................................................................................................................ 40
3.3.4 Keyboard ........................................................................................................................... 40
3.3.5 Memory ............................................................................................................................. 40
3.3.6 Echo Test .......................................................................................................................... 41
3.3.7 Vibrator ............................................................................................................................. 41
3.4 Memory ..................................................................................................................................... 42
3.4.1 Size information ............................................................................................................... 42
3.4.2 Initialize ............................................................................................................................. 42
3.5 Power ......................................................................................................................................... 43

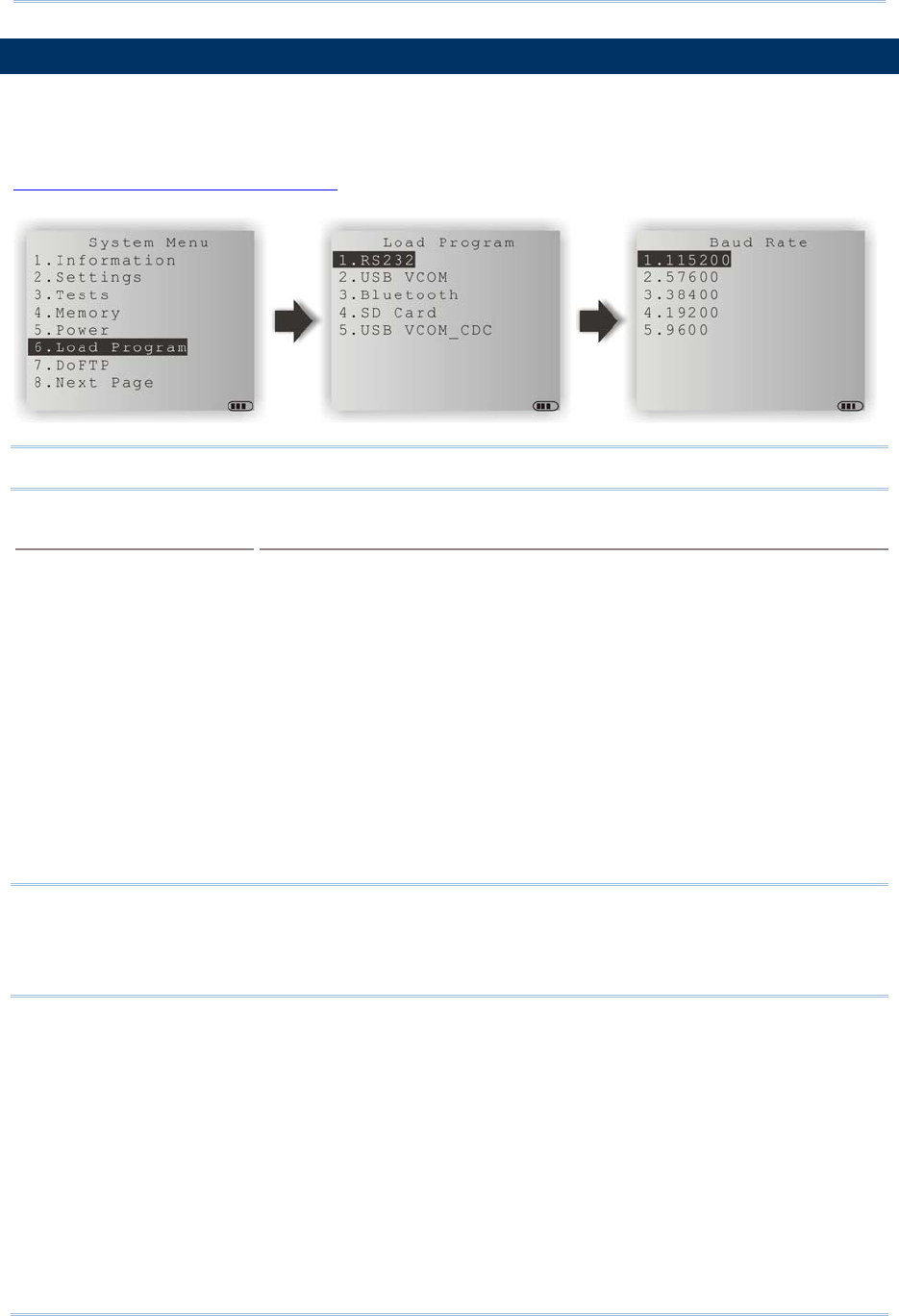

3.6 Load Program ........................................................................................................................... 44

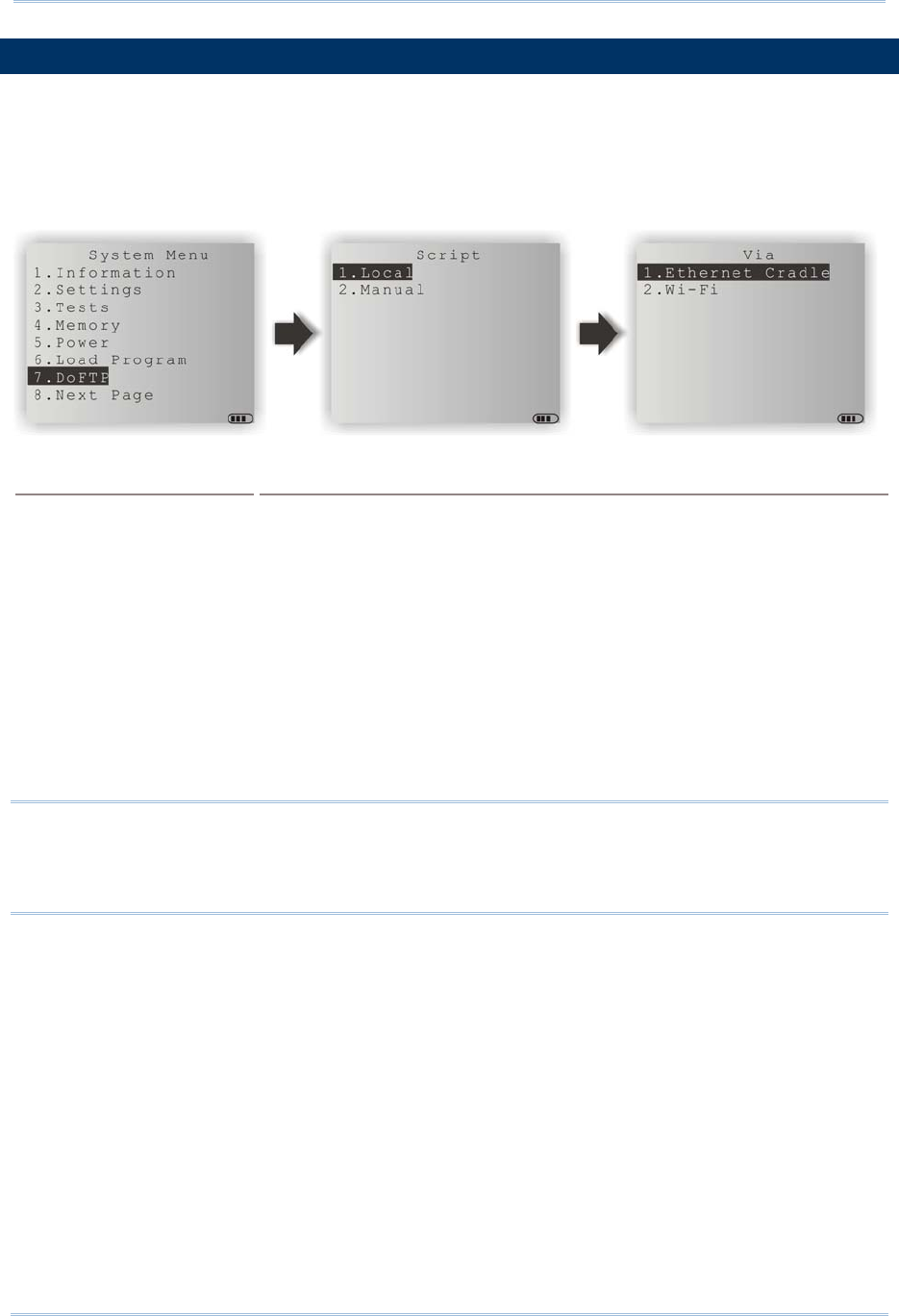

3.7 DoFTP Menu .............................................................................................................................. 47
3.7.1 Local .................................................................................................................................. 48
3.7.2 Manual .............................................................................................................................. 48

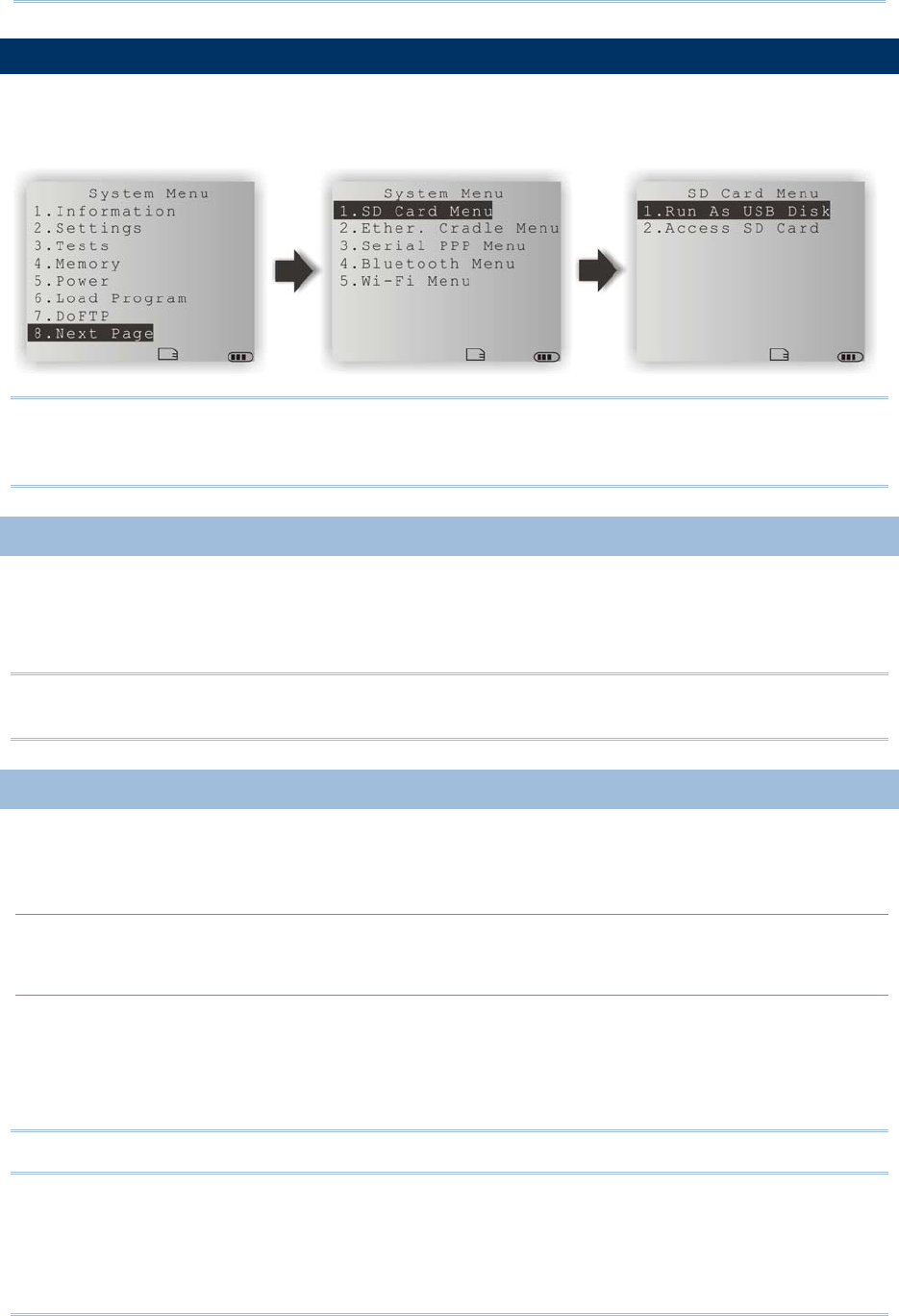

3.8 SD Card Menu ........................................................................................................................... 49
3.8.1 Run as USB Disk .............................................................................................................. 49
3.8.2 Access SD Card ................................................................................................................ 49
8200 Series Mobile Computer Reference Manual

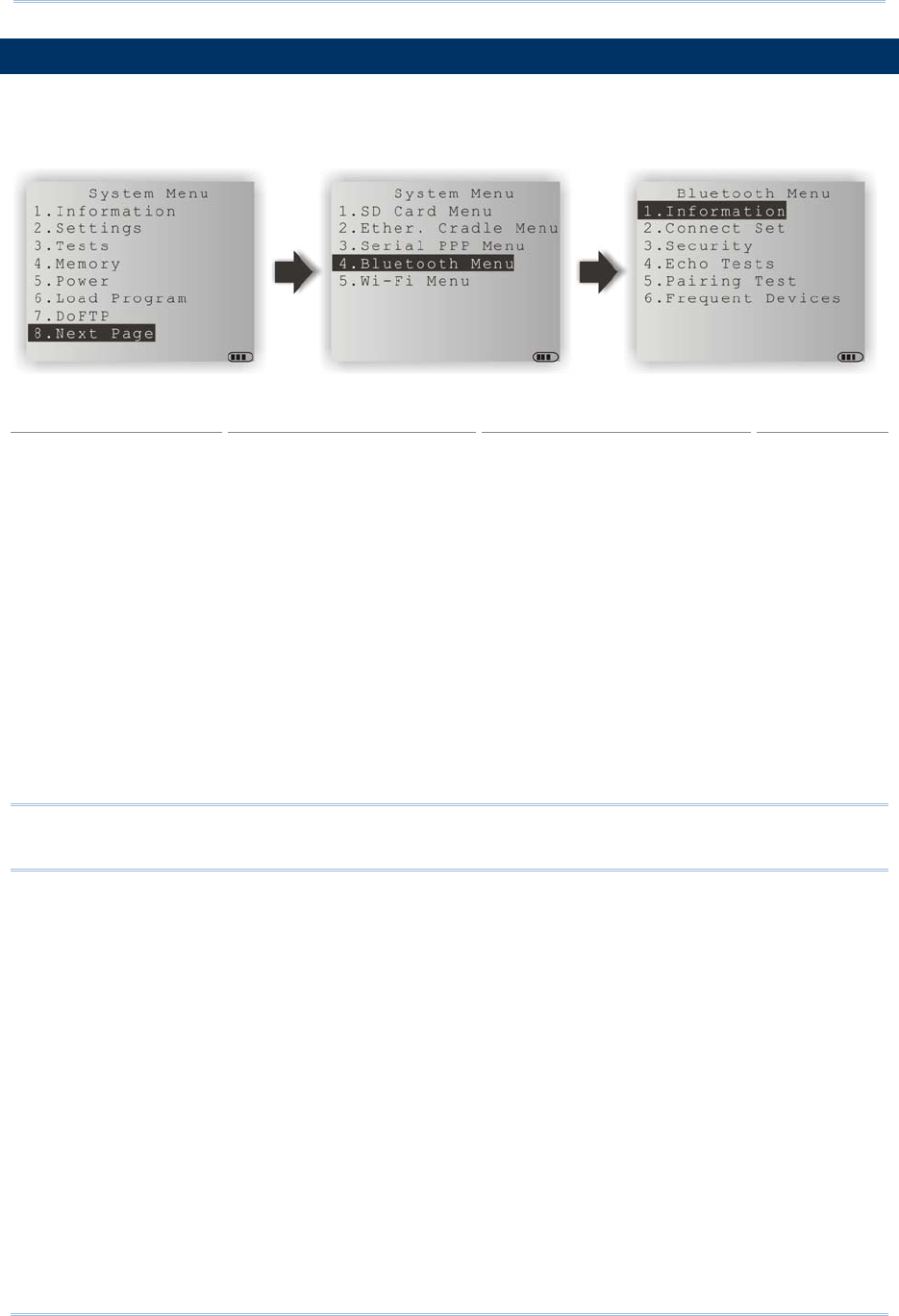

3.11 Bluetooth Menu ...................................................................................................................... 51
3.11.1 Information ..................................................................................................................... 52
3.11.2 Connect Setting .............................................................................................................. 53

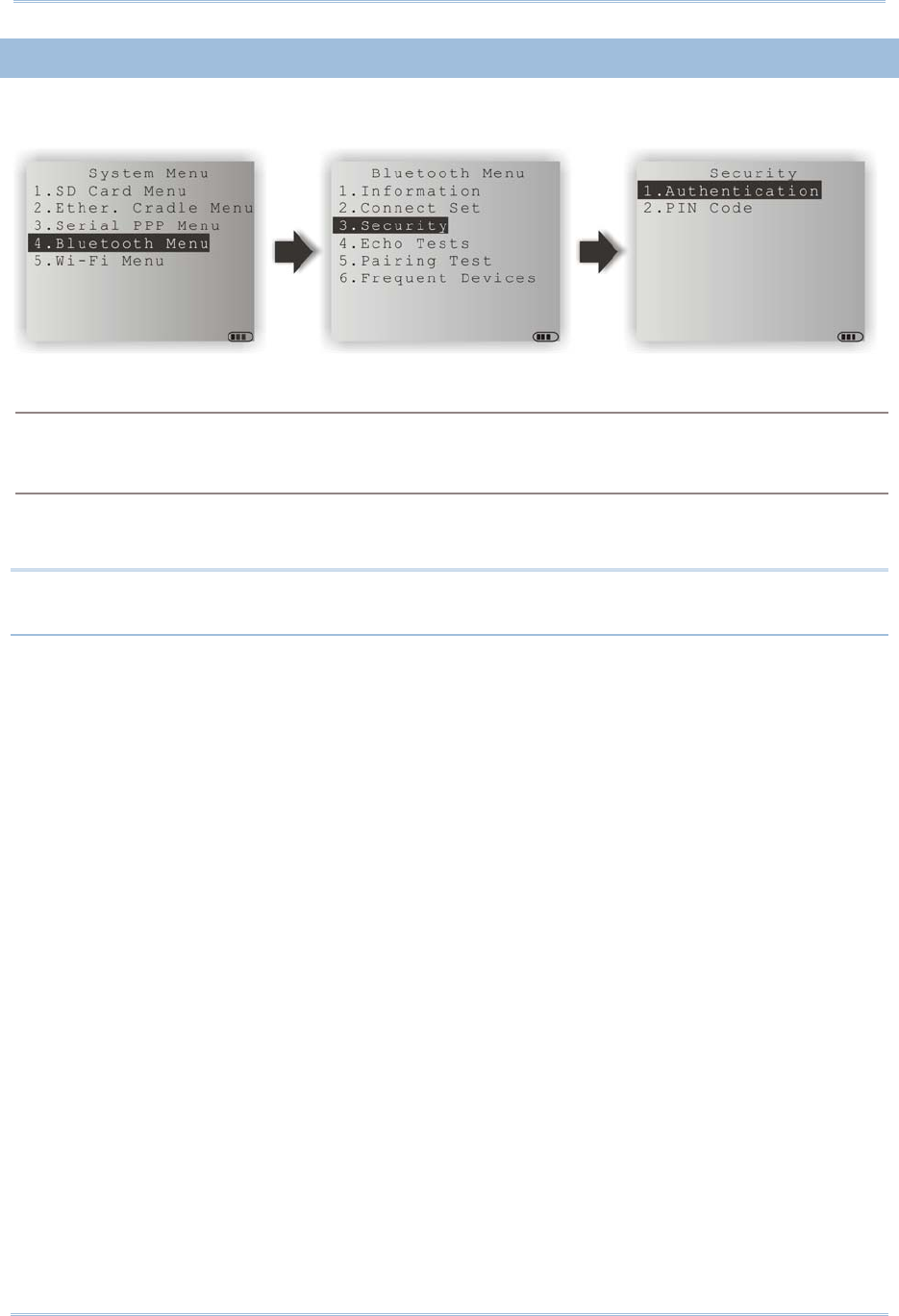

3.11.3 Security ........................................................................................................................... 54

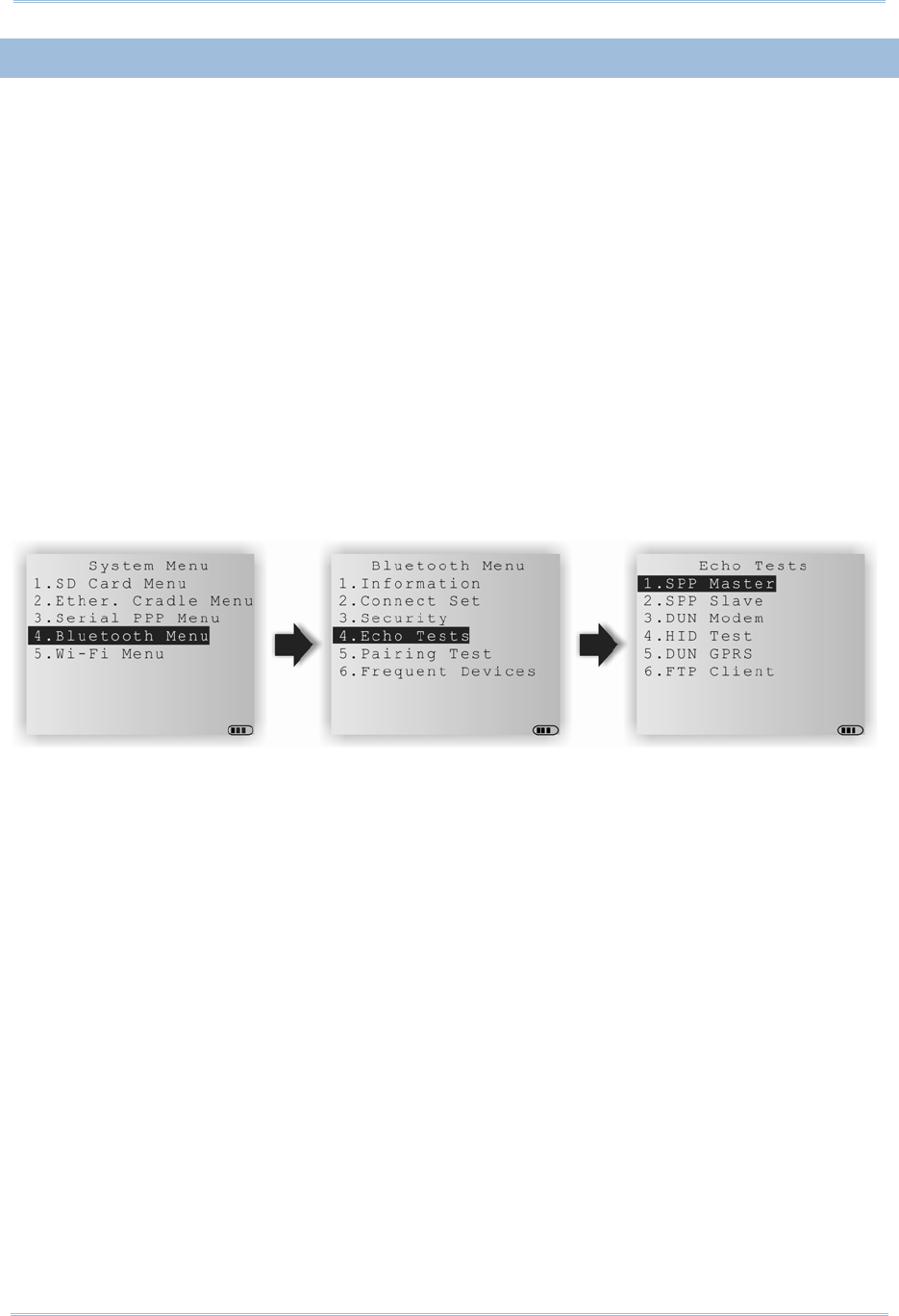

3.11.4 Echo Tests ...................................................................................................................... 55

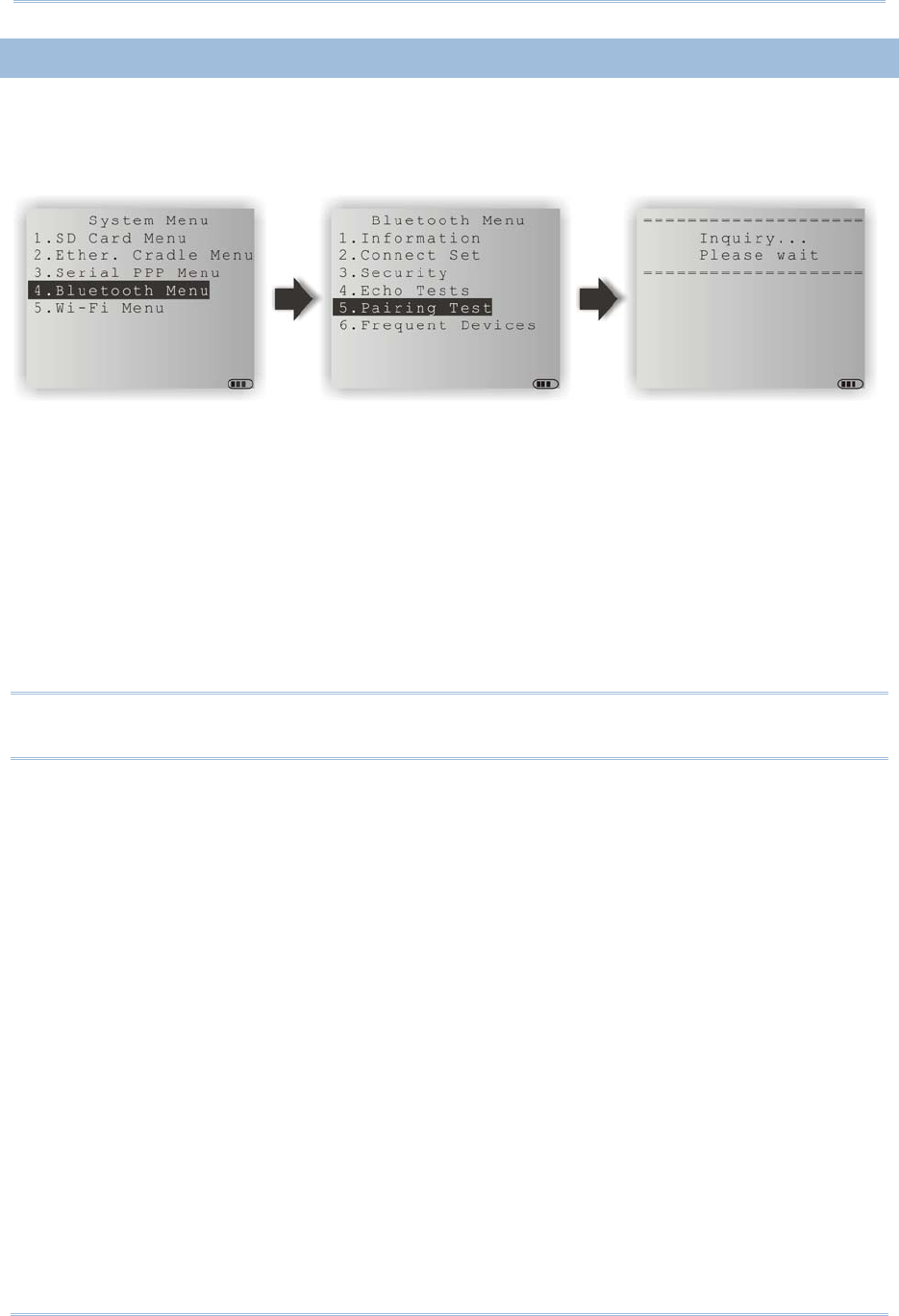

3.11.5 Pairing Test..................................................................................................................... 58

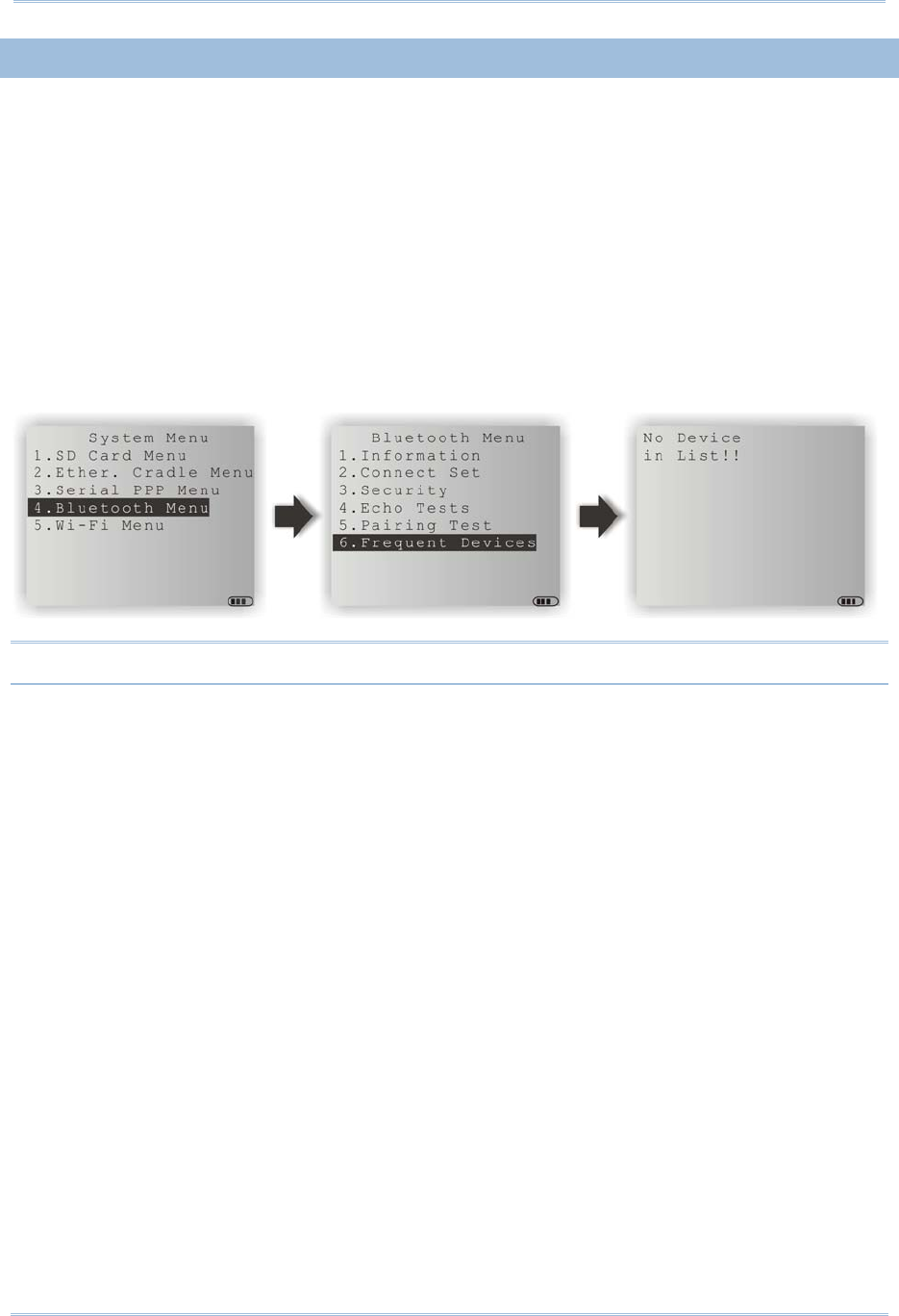

3.11.6 Frequent Devices ........................................................................................................... 59
3.12 Wi-Fi Menu .............................................................................................................................. 60

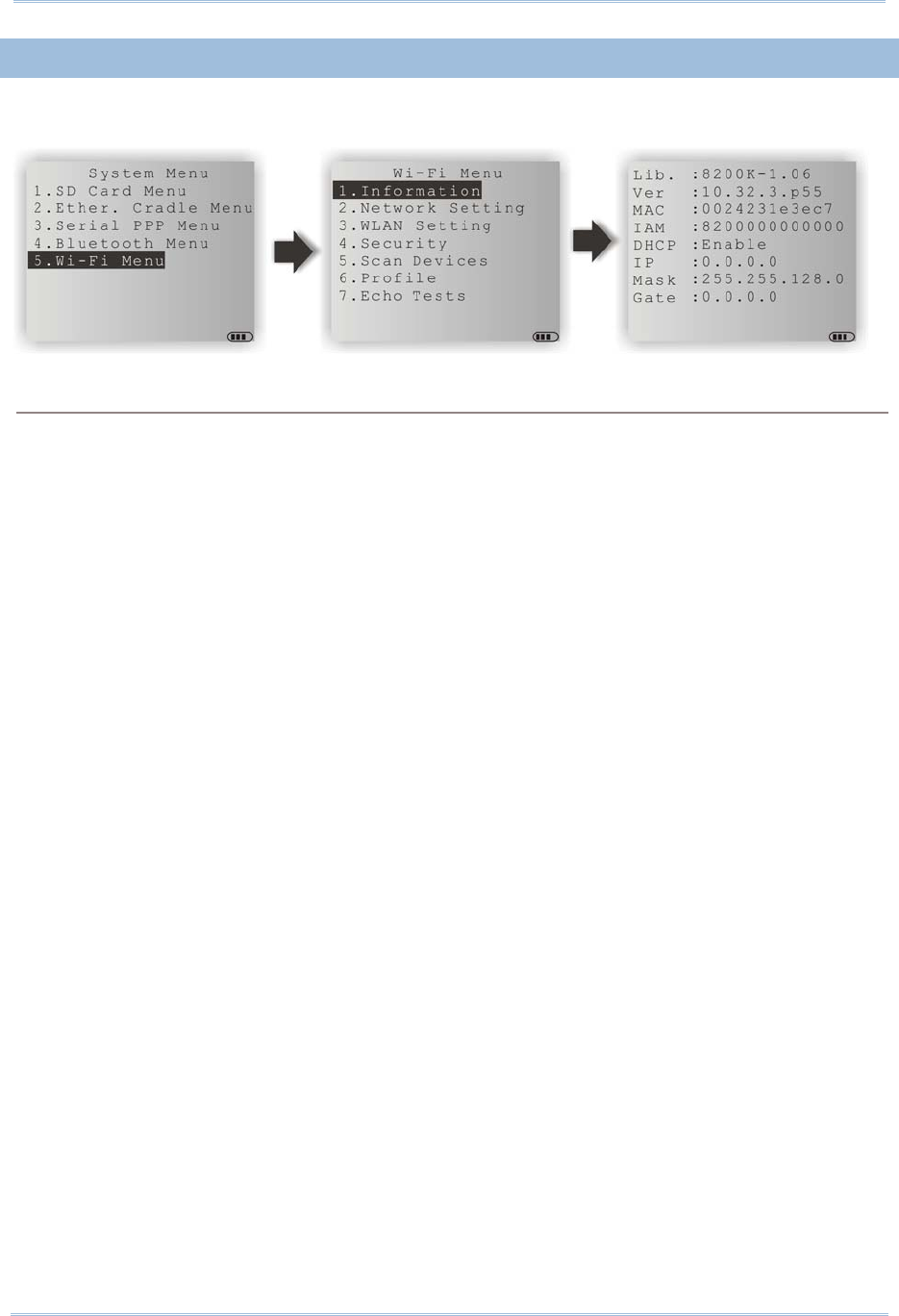

3.12.1 Information ..................................................................................................................... 61

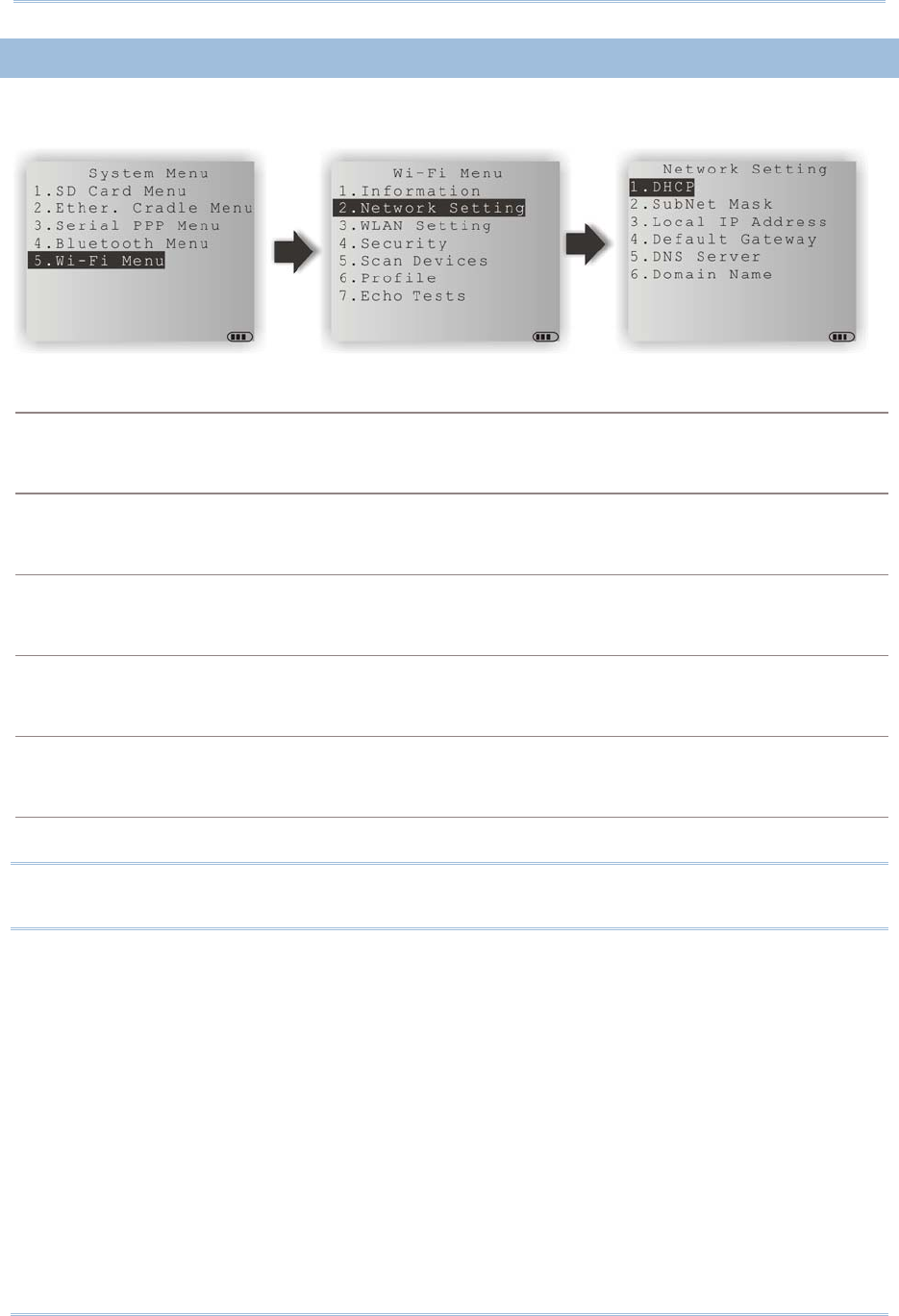

3.12.2 Network Setting ............................................................................................................. 62

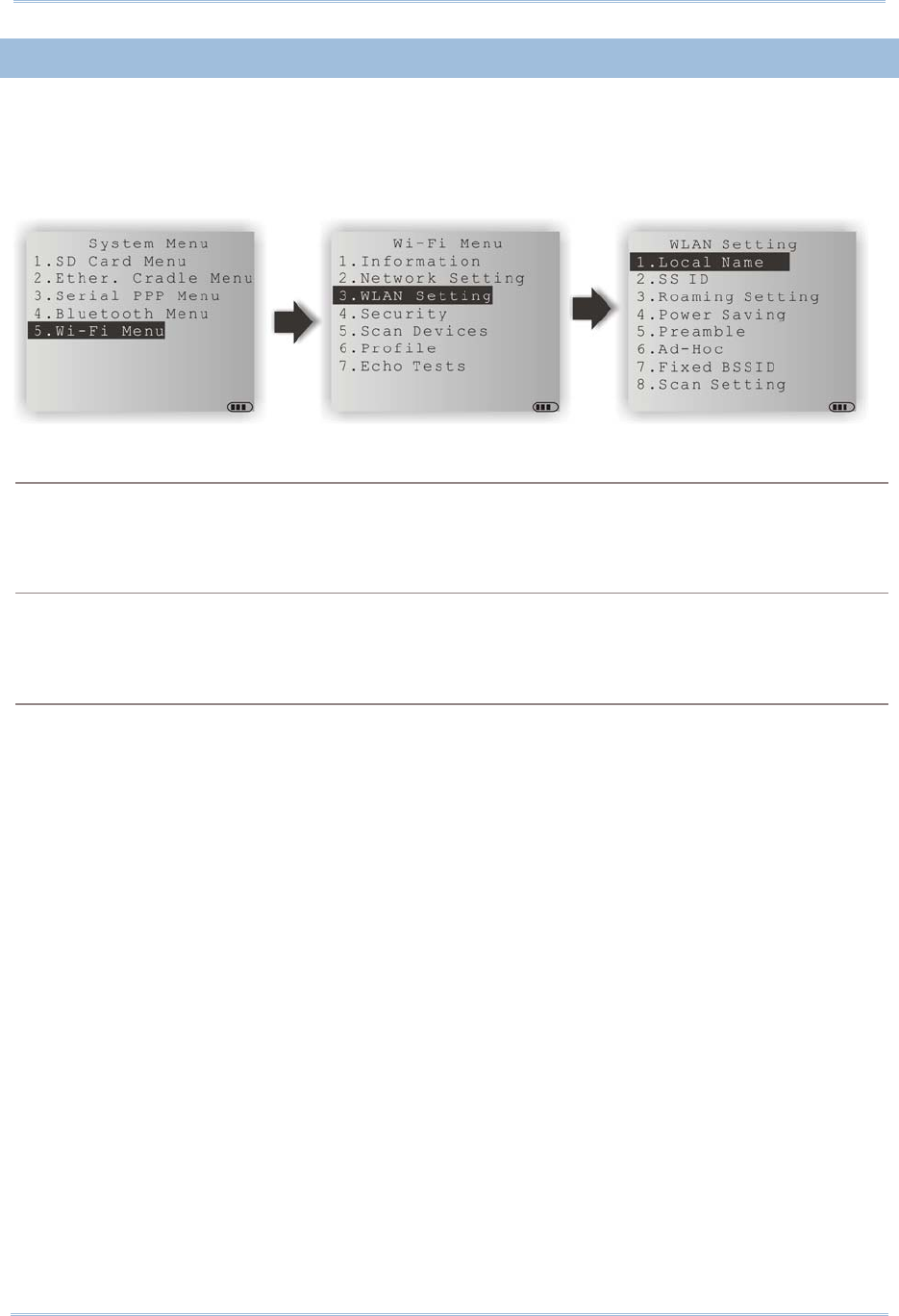

3.12.3 WLAN Setting ................................................................................................................. 63

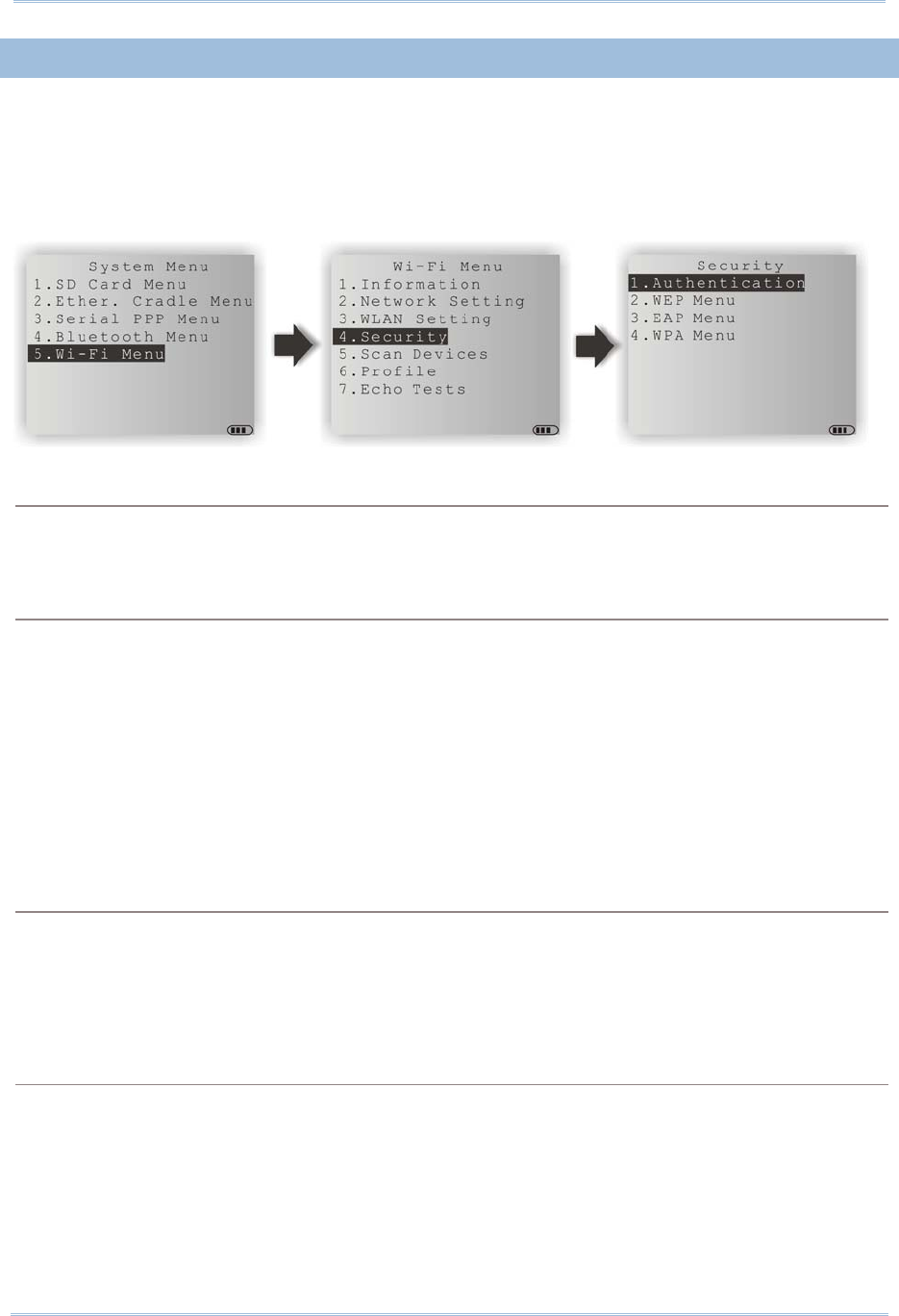

3.12.4 Security ........................................................................................................................... 65

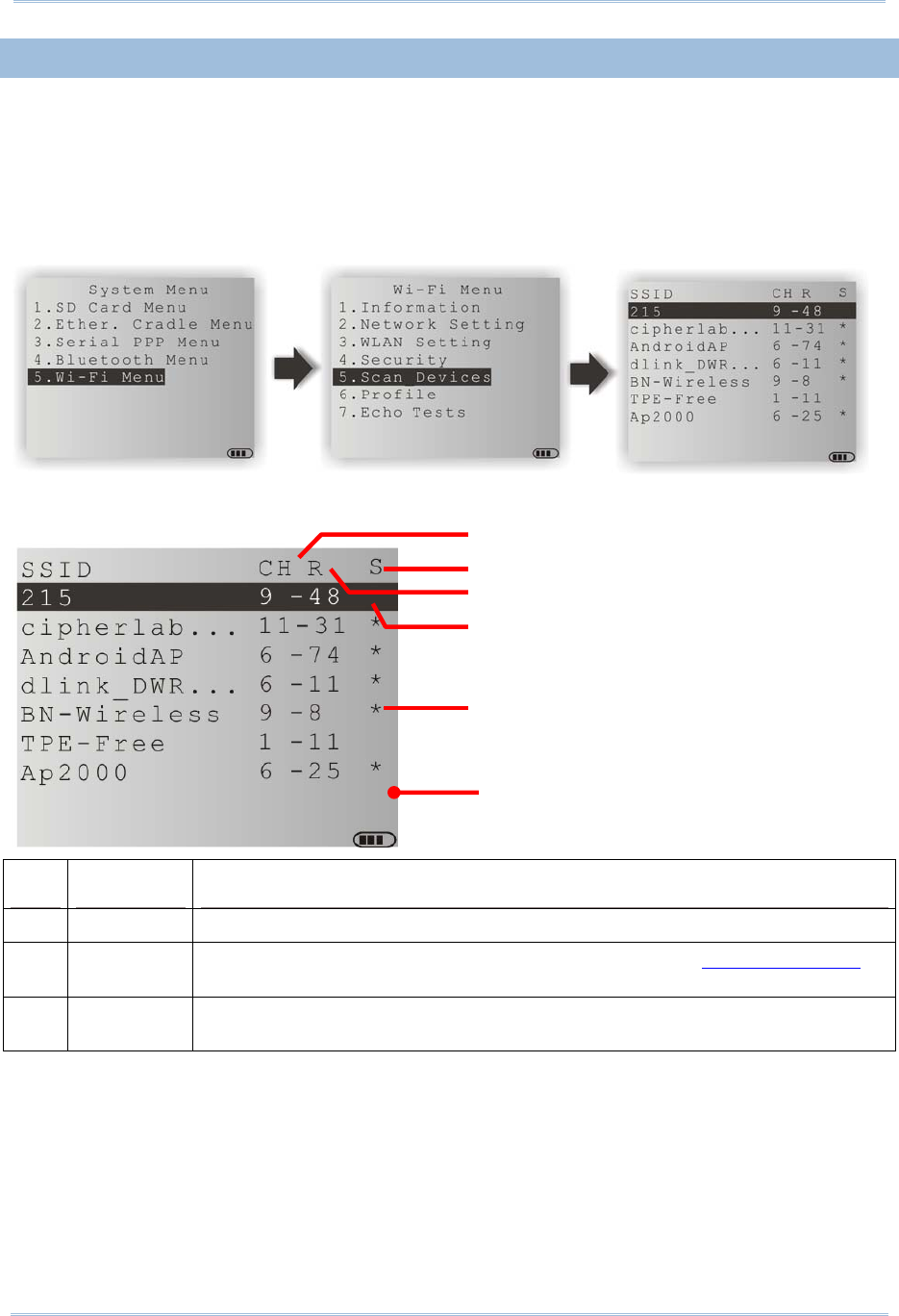

3.12.5 Scan Devices .................................................................................................................. 66

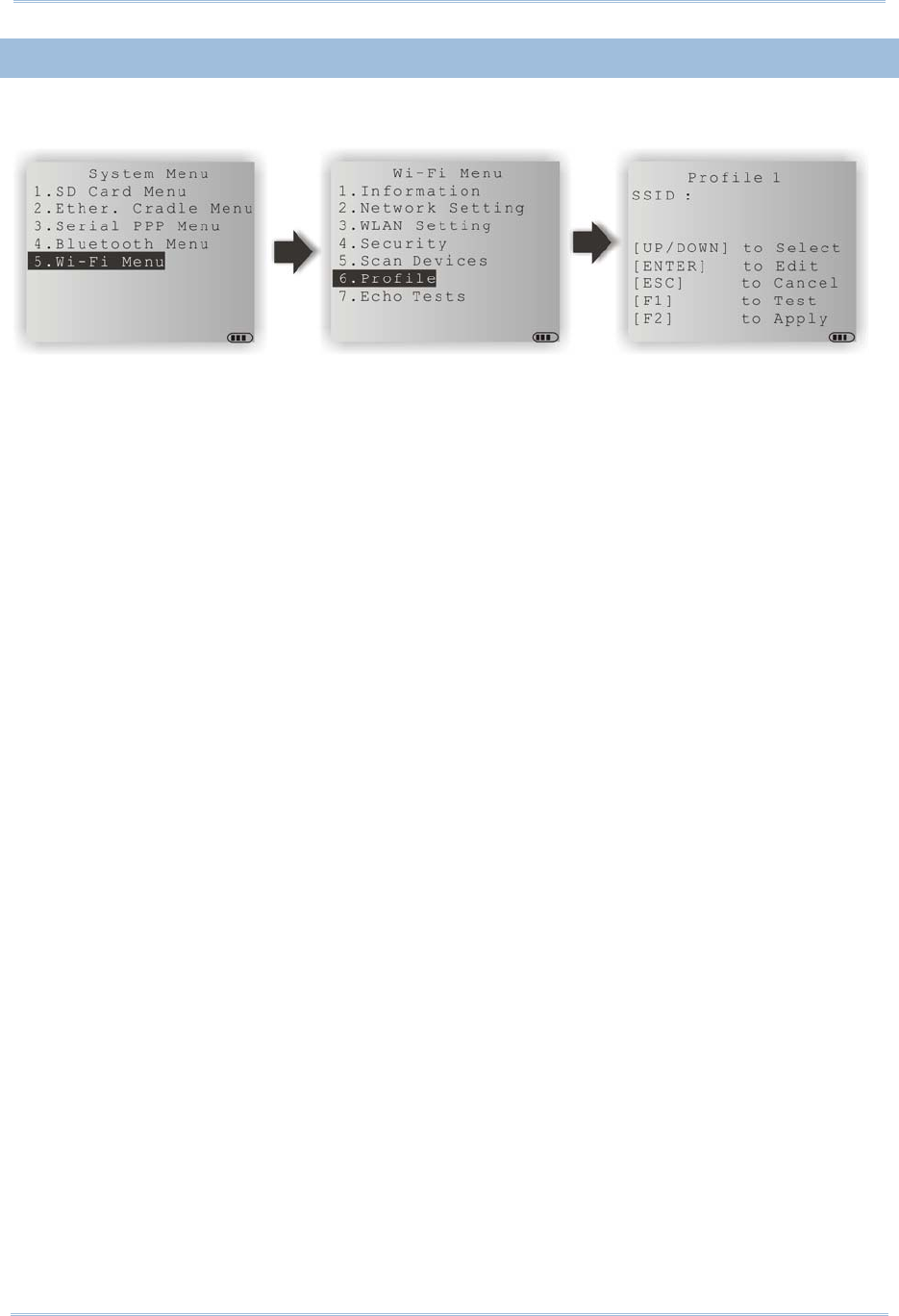

3.12.6 Profile ............................................................................................................................. 67

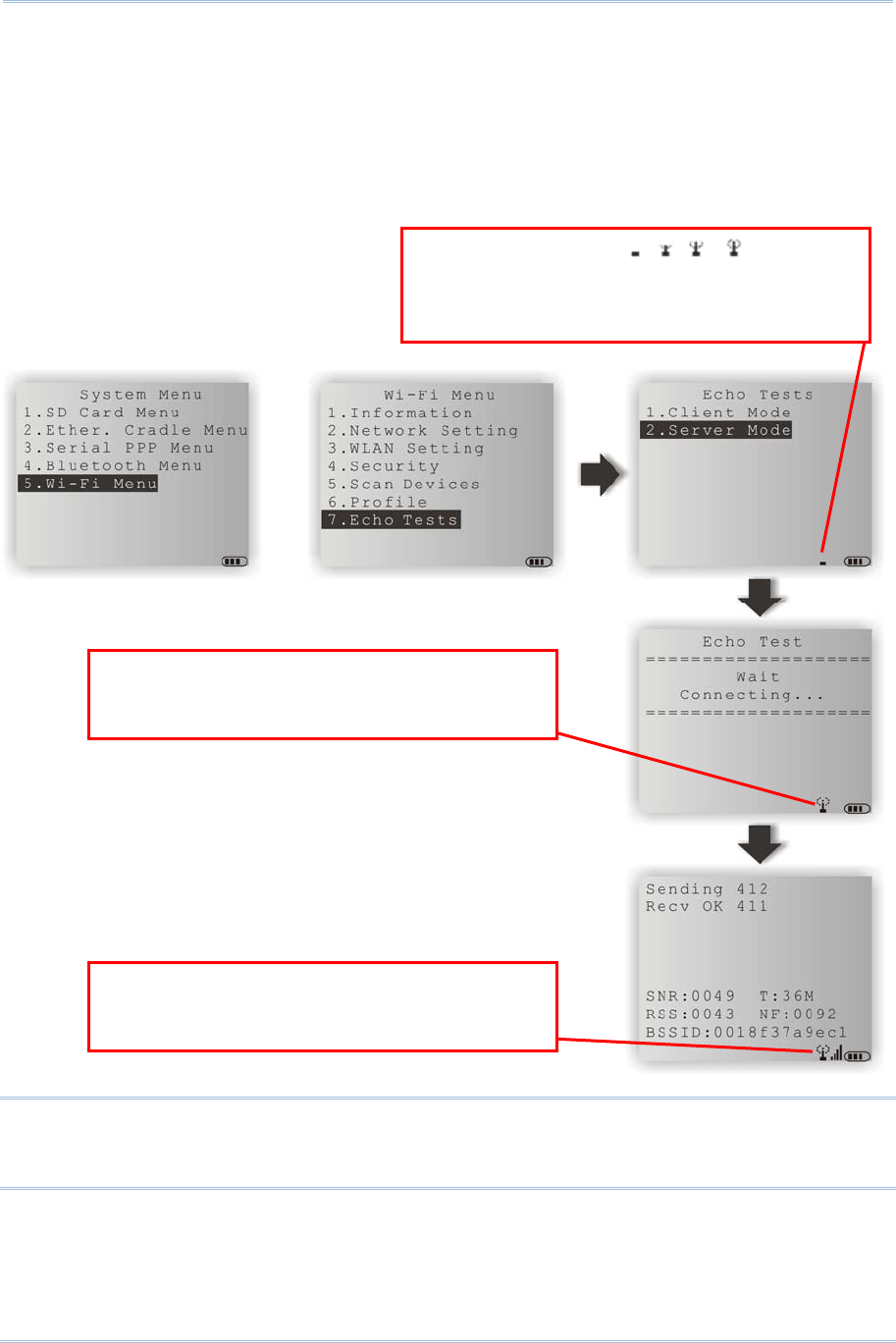

3.12.7 Echo Tests ...................................................................................................................... 68
PROGRAM MANAGER & KERNEL ...................................................................................................... 71
4.1 Program Manager ..................................................................................................................... 71
4.1.1 Download .......................................................................................................................... 72
4.1.2 Activate ............................................................................................................................. 74
4.1.3 Upload ............................................................................................................................... 75

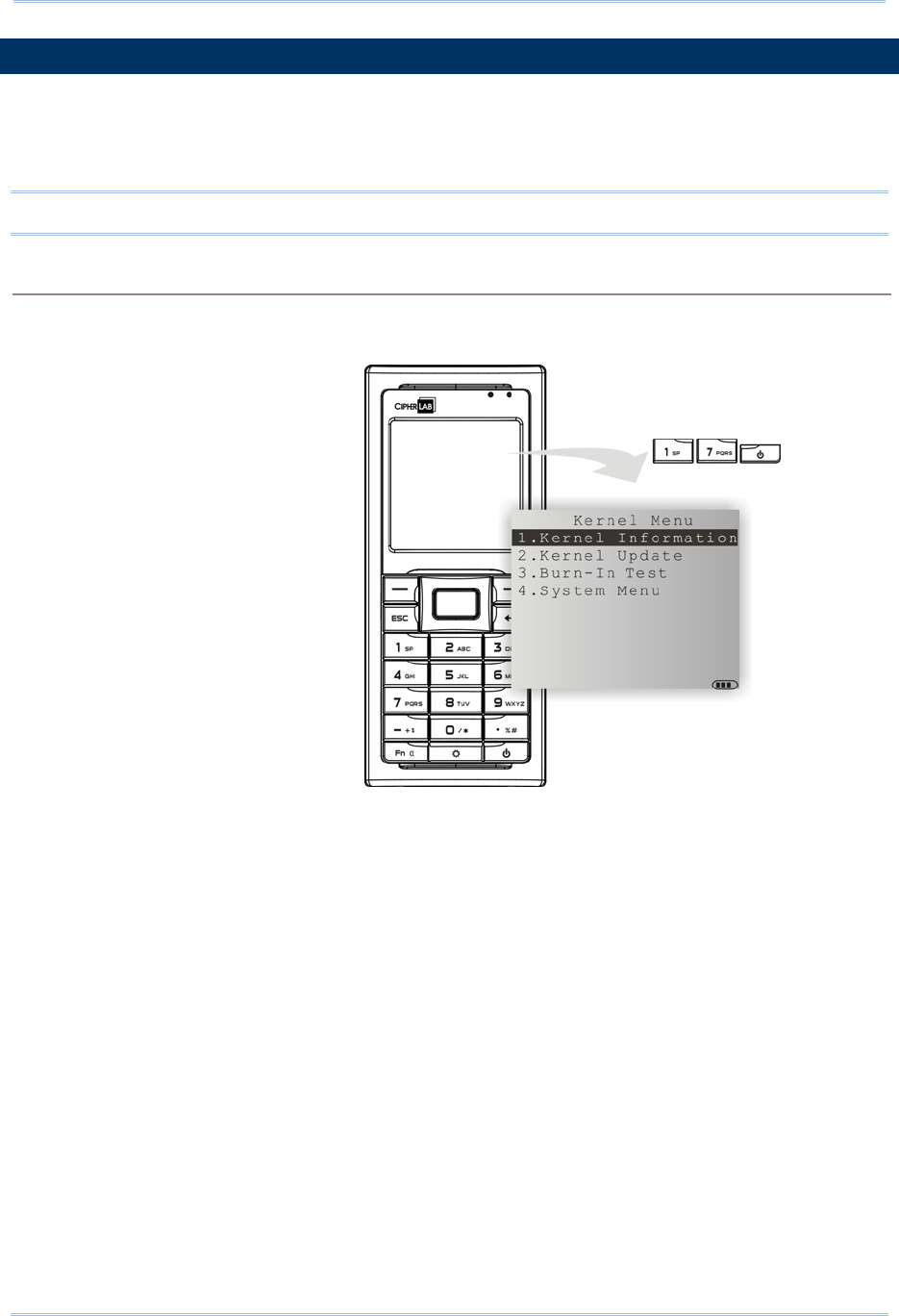

4.2 Kernel ........................................................................................................................................ 76
4.2.1 Kernel Information ........................................................................................................... 77

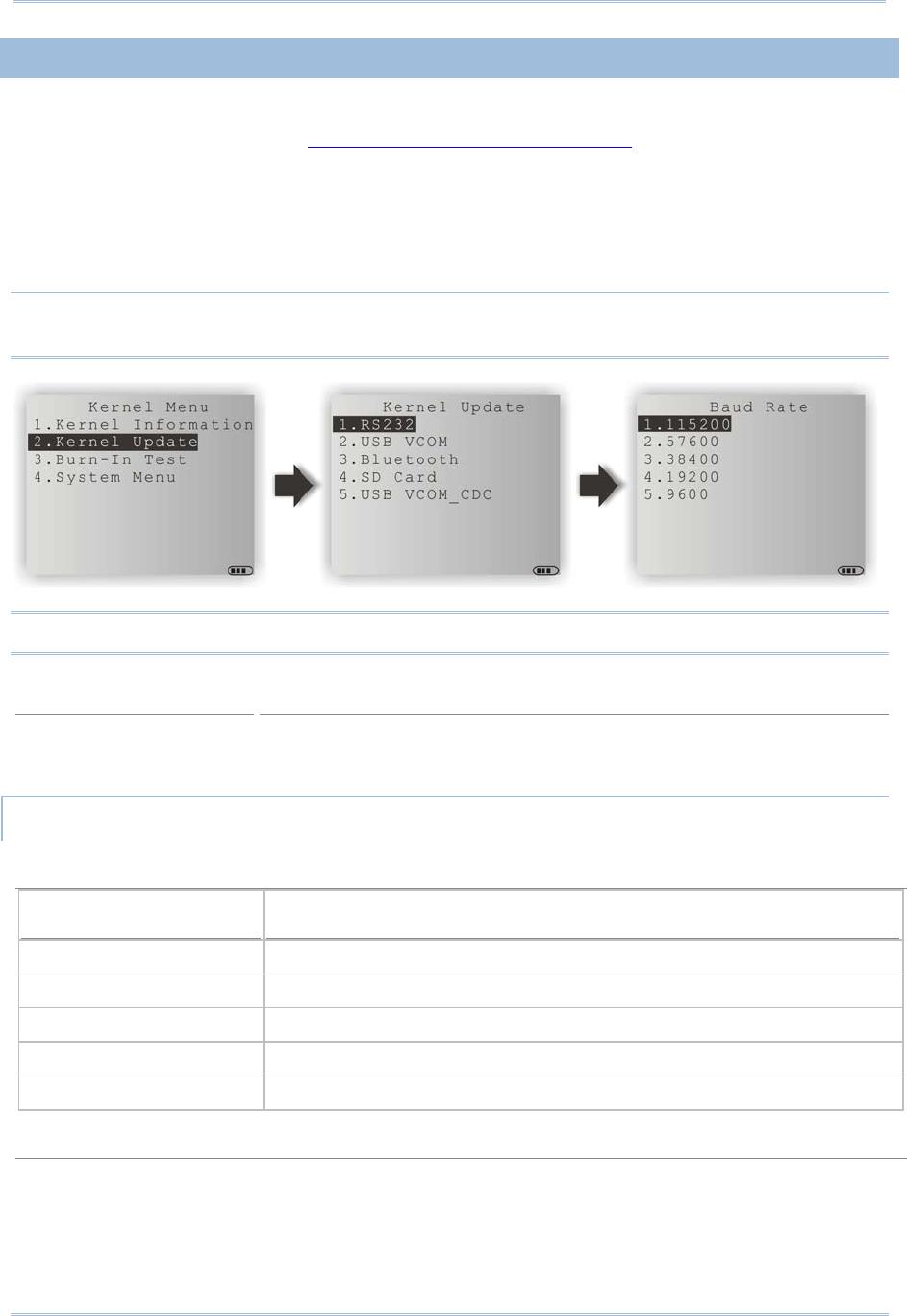

4.2.2 Kernel Update .................................................................................................................. 78

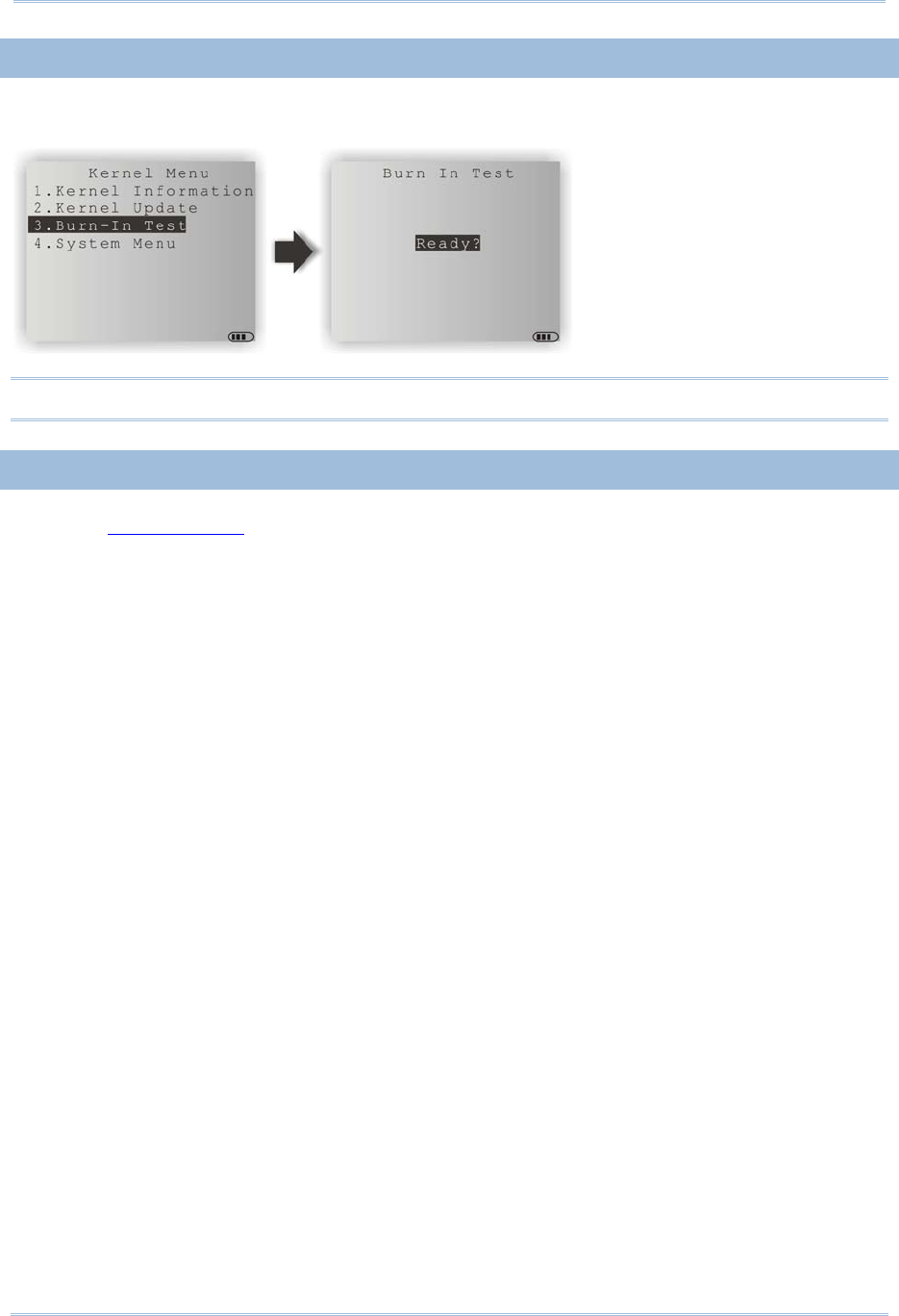

4.2.3 Burn-In Test ...................................................................................................................... 80
4.2.4 System Menu .................................................................................................................... 80
SPECIFICATIONS ................................................................................................................................ 81
1
Answering industrial demands for rugged, light-weight and versatile computers, the 8200
Series Terminal is specifically designed for enterprise logistics use.
This line of product comes with built-in Bluetooth technology and allows for optional
module for 802.11b/g/n connectivity, enabling real time sharing of performance.
The 8200 Series Terminal is bundled with powerful and rich features to ensure success in
timely processing of information, and thus, makes an ideal choice for inventory control,
shop floor management, warehousing and distribution operations. Being programmable,
this handy device can run custom applications or terminal emulation applications.
This manual serves to guide you through how to install, configure, and operate the
Terminal. We recommend you to keep one copy of the manual at hand for quick
reference or maintenance purposes. To avoid any improper disposal or operation, please
read the manual thoroughly before use.
Thank you for choosing CipherLab products!
INTRODUCTION
2
8200 Series Mobile Computer Reference Manual
GETTING FAMILIARIZED WITH 8200
No. Description No.
Description
1 Scanning window 2 LED for Good Read and battery charging
3 LED for wireless communications 4 LCD screen
5 Keypad, 24 keys 6 Wristband
7 Communication/charging port 8 Battery compartment
Figure 1: Overview
3
Introduction
FEATURES
Ergonomic design — ruggedized yet streamlined, with wristband for secure hold
Built tough to survive drop test and sealed against moisture/dust to IP 52
Rich interface options — USB
High capacity memory card (microSDHC) supported
Flexible wireless solutions — Bluetooth or 802.11b/g/n
FTP client support — 802.11b/g/n
Graphic monochrome LCD supports double-byte characters and bitmap graphics
Programmable feedback includes speaker, LED indicators and vibrator
Quick link to any backend database through MIRROR Emulator programs for
VT100/220 and IBM 5250 emulation
Easy customization of data collection applications through FORGE Application
Generator (AG) programs for preloaded AG Runtime, batch and WLAN versions
available
Programming support includes BASIC & C compilers
Accessories include pistol grip
INSIDE THE PACKAGE
The following items are included in the package. Save the box and packaging material for
future use in case you need to store or ship the Terminal.
8200 Series Terminal
Rechargeable Li-ion battery pack
Wristband
Standard USB cable

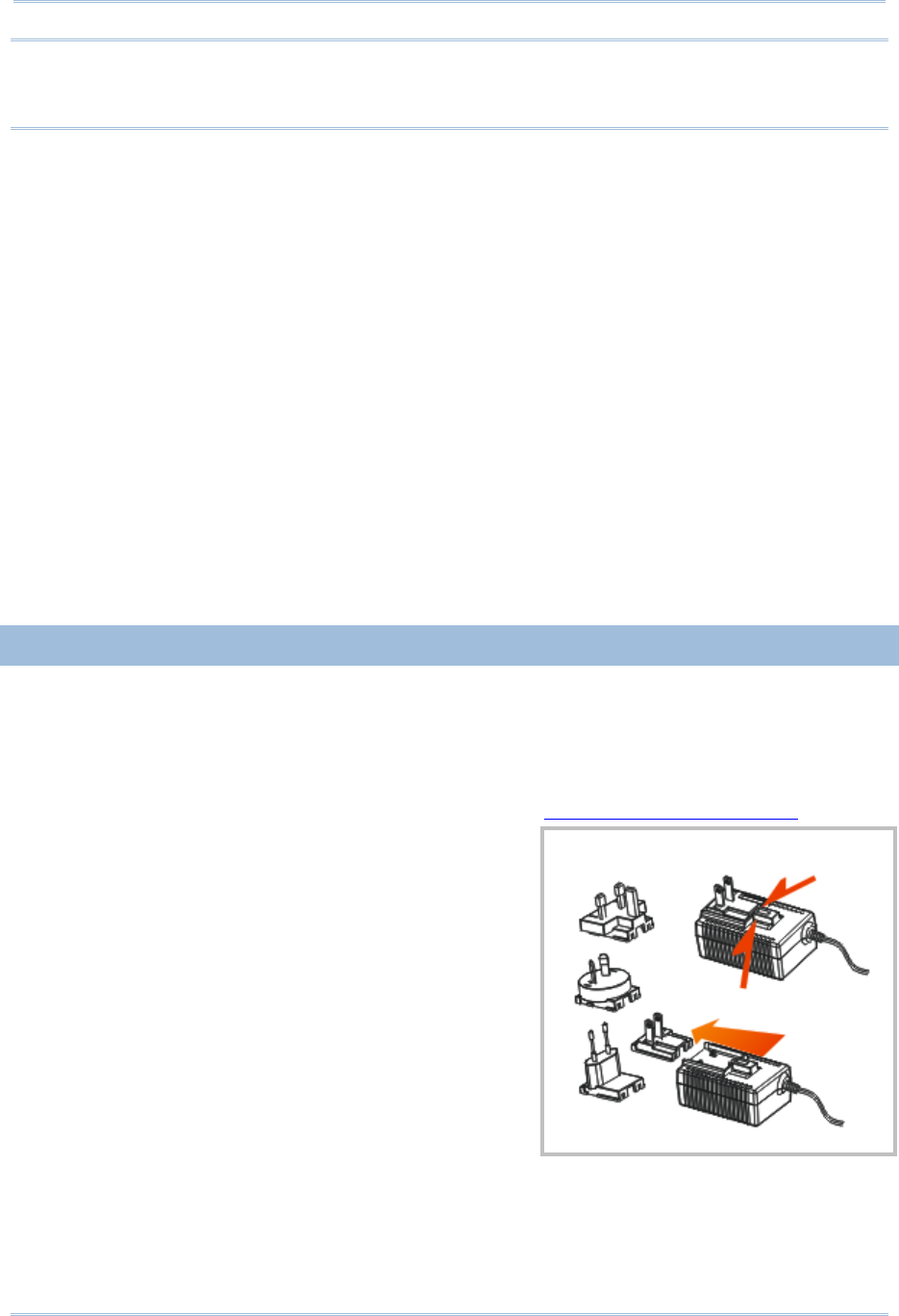

Universal power adaptor
Product CD
Quick Start Guide
ACCESSORIES
Rich choices of optional accessories are available for you to enhance the total
performance of the Terminal.
Pistol Grip (detachable)
Protective Cover
Spare rechargeable Li-ion battery
4
8200 Series Mobile Computer Reference Manual
GETTING STARTED
INSERTING BATTERY & MEMORY CARD
For shipping and storage purposes, save the Terminal and the main battery in separate
packages. This will keep both batteries in good condition for future use.
Note: Any improper handling may reduce the battery life.
1) Hold the Terminal still and slide the release latch to the right to unlock the battery
cover.
2) Slide off the battery cover.
3) Use your finger to slide the locking plate towards its hinge to unlock the SD card
holder.
4) Flip up the SD card holder.
5) Insert your memory card (microSD or microSDHC) to the SD card holder.
6) Push the SD card holder down.
7) Slide the locking plate away from its hinge to secure the card.
8) Slide the battery pack into the battery compartment at a proper angle (30°~45°) so
that the metal contacts of the battery are met with the charging contacts inside the
compartment. Make sure that the battery is snugly fit into the compartment.
9) Replace the battery cover.
10) Slide the release latch to the left to lock it firmly.
Note: For a new battery, make sure it is fully charged before use. Always prepare a
spare battery pack, especially when you are on the road.
5
Introduction
Figure 2: Installing the Main Battery & Memory Card
Unlock
Lock
6
8200 Series Mobile Computer Reference Manual
INSTALLING PISTOL GRIP
This contoured pistol grip enables intuitive trigger-and-scan operation, which is very
helpful in scan intensive applications.
When a pistol grip is necessary, install it to the Terminal by following these steps:
1) Hold the Terminal still and slide the release latch to the right to unlock the battery
cover.
2) Slide off the battery cover.
3) Insert the pistol grip into place (is like replacing the battery cover).
4) Slide the release latch to the left to lock it firmly, and turn on the Terminal to test the
trigger.
Figure 3: Installing the Pistol Grip
7
Introduction
INITIAL CHARGING
The main and backup batteries may not be charged to full for shipment. When you first
receive the package, you will need to charge the main battery to full before using the
Terminal. Instead of direct charging.
Note: Battery charging stops when the temperature drops below 0°C or exceeds 40°C. It
is recommended to charge the battery at room temperature (18°C to 25°C) for
optimal performance. For initial charging, it takes approximately 2.5 hours to
charge the battery to full (from the adaptor).
Because the internal backup battery is constantly charged from the main battery, the
initial charging requires inserting the battery pack to the Terminal for charging. This will
have both the main and backup batteries charged at the same time. It takes at least 72
hours to fully charge the backup battery. However, it is not necessary to fully charge the
backup battery for the Terminal to work.
Note: In order to charge the backup battery to full, you must insert the main battery and
leave it for at least 72 hours, whether the Terminal is in use or not.
SETTING LOCAL TIME
If you need to set your local time, go to System Menu | 2. Settings | 1. Clock. Refer
to 3.2.1 Clock.
POWER MANAGEMENT
For any portable device, power management is a critical issue especially when you are on
the road. Below are some tips to help you save battery power.
Warning: Using backlight, wireless connectivity, and peripherals while on battery
power will substantially reduce battery power.
To speed up charging the Terminal, turn off the Terminal and use the
charging/communication cable.
Bring a second battery pack on the road.
Stop wireless connectivity, Bluetooth or 802.11b/g/n that is not in use.
Go to System Menu | 2. Settings | 2. Backlight, and configure backlight period,
luminosity, as well as the shade effect. Refer to 3.2.2 Backlight.
Go to System Menu | 2. Settings | 4. Auto Off, and configure the amount of idle
time that must pass before the system will shut down automatically. Refer to 3.2.4
Auto Off.
9
This chapter explains the features and usage of the 8200 Series Terminal. The 8200
family includes:
8200 Batch type
8231 Bluetooth 2.1+EDR / BLE, Class 2; 802.11b/g/n
8260 Bluetooth 2.1+EDR, Class 2
IN THIS CHAPTER
1.1 Battery ....................................................................... 9
1.2 Memory .................................................................... 11
1.3 Keypad ..................................................................... 12
1.4 LCD ......................................................................... 16
1.5 Notifications .............................................................. 17
1.6 Data Capture ............................................................ 19
1.7 Charging & Communications ........................................ 21
1.8 SD Card ................................................................... 24
1.1 BATTERY
1.1.1 MAIN BATTERY
The Terminal is powered by a rechargeable 3.7 V/1200 mAh Li-ion battery pack. When
the Terminal is turned on, it takes approx. 2.5 hours to charge it to full from the power
adaptor (using cable) or approx. 4 hours from the USB cable (at 500 mA).
For power-saving purpose, always turn off the backlight while working in a well-lit area.
When the backlight is on for extended periods of time, the main battery will become low
sooner than expected.
The smart battery icon on the LCD screen shows the status of power consumption. There
are two ways to monitor a low battery charge or discharged battery from the screen.
Examine the level of the 4-bar battery icon
Monitor voltage level (see 3.5 Power)
Chapter 1
USING 8200 TERMINAL
10
8200 Series Mobile Computer Reference Manual
1.1.2 BACKUP BATTERY
The backup battery on the main board takes charge when the main battery is removed or
drained out. When fully charged, the 3.0 V/18 mAh rechargeable Lithium button cell
helps retain data in SRAM and maintain the running of the real-time clock and calendar
for at least 25 days without the main battery. In the meantime, you have to replace the
main battery as soon as possible. It takes at least 72 hours to fully charge the backup
battery. However, it is not necessary to fully charge the backup battery for the Terminal
to work.
Monitor voltage level (see 3.5 Power)
1.1.3 CAUTION OF LOW BATTERY CHARGE
The battery pack is the only power source for the Terminal to work. It also charges the
backup battery on the main board so that the data stored in SRAM can be retained
properly. Therefore, when the main battery charge goes low, you need to replace the
battery pack with a charged one or charge it as soon as possible. Most of all, you should
upload important data on a regular basis.
Warning: Data loss may occur with SRAM during low battery condition. Always save
data before running out of power or keep a fresh battery for replacement.
11
Chapter 1
Using 8200 Terminal
1.2 MEMORY
The collected data can be sent back to a host computer immediately over wireless
networks, or stored in memory (SRAM) and upload later. The Terminal is equipped with a
calendar chip for accurate time/date logging. When the main battery is removed or
drained, the backup battery on the main board is to retain the contents of SRAM and
maintain the running of real-time clock and calendar for at least 25 days, on condition
that the backup battery has already been fully charged.
If you want to put away the Terminal for a couple of days, you should be aware that data
loss occurs when both the main and backup batteries discharge completely. Therefore, it
is necessary to upload data and files before putting away the Terminal!
1.2.1 READ-ONLY MEMORY (ROM)
8 megabytes flash memory for storing core, OS, application programs, font, etc.
1.2.2 RANDOM-ACCESS MEMORY (RAM)
Options include 4 or 8 megabytes SRAM for storing data. Its contents will be retained by
the backup battery.
1.2.3 SD CARD
Secure Digital (SD) card is a flash memory data storage device. High capacity memory
card (microSDHC) is supported. Refer to Inserting Battery & Memory Card for how to
insert the microSD or microSDHC card. For more details, refer to 1.8 SD Card.
Note: (1) When SD card is present, the card icon will appear on the screen and flash
while being accessed.
(2) For an SD card that has never been used on 8200, a message like “Found New
SD Card” will be displayed allowing users to scan the card for memory check. If
the action is canceled then, memory check can still be performed via System
Menu — 3.8 SD Card Menu.
12
8200 Series Mobile Computer Reference Manual
1.3 KEYPAD
The Terminal is equipped with a keypad of 24 keys for system setup, user entry and so
on. The keypad comes with programmable LED backlight, like the screen. Refer to 1.4
LCD for screen & backlight settings.
Silicon rubber has been chosen for their durability and prompt feedback. The key click
can be configured through programming or via System Menu. Refer to 3.2.6 Key Click.
1.3.1 24-KEY LAYOUT
The layout of the 24-key keypad is similar to that of a telephone, which includes
alphanumeric, navigation and function keys, as well as assorted characters. Refer to
Appendix III — 錯誤! 找不到參照來源。 for color-coded keys.
Figure 4: 24-key Layout
13
Chapter 1
Using 8200 Terminal
This alphanumeric keypad is set to numeric mode by default. The [Fn α] key serves as a
toggle among numeric, alpha (lower-case alphabetic), and ALPHA (upper-case alphabetic)
input modes, as well as function mode.
Note: It is not necessary to hold down the [Fn α] key.
The associated icon will appear on the lower-left corner of the screen in a sequence as
shown below.
Status Icon Function/Alpha Key Input Mode
(none) N/A Numbers
A Press [Fn α] one time Upper-case alphabetic
a Press [Fn α] two times Lower-case alphabetic
F Press [Fn α] three times Function Mode
When in alpha mode, it takes turns to show alphabets and number when you keep
pressing the same key; each press must not exceed one second. For example, keep
pressing the number key [2], it will take turns to show “A”, “B”, “C” or “2” for upper-case,
and “a”, “b”, “c” or “2” for lower-case.
When you first press the number key [2], it will produce the letter “A” or “a”.
When you press the number key [2] twice (the time interval must not exceed one
second), it will produce the letter “B” or “b”.
When you press the number key [2] three times (the time interval between each
press must not exceed one second), it will produce the letter “C” or “c”.
When you press the number key [2] four times (the time interval between each press
must not exceed one second), it will produce the number “2”.
In order to get the desired character, you will need to press the same key, one to four
times (the time interval between each press must not exceed one second). Only when
you stop pressing the same key for longer than one second or you press another key, will
the system send the real key code to the application program.
When in function mode, the [Fn α] key works with a number key. Press the [Fn α] key
three times, and its associated icon F will be displayed on the screen. Press the second
key, say [5], to complete the key combination and access the function [F5]. Press [Fn α]
again and the icon F will go off.
14
8200 Series Mobile Computer Reference Manual
Below briefly describes the functions of common keys on the Terminal.
SCAN
The yellow key is used to work as the ENTER key by default.
When the reader function is enabled, this yellow key is set to trigger the scan engine so that it
can read a barcode.
ENTER
The two keys on each upper side of the SCAN key are user-friendly and convenient for either
right-handed or left-handed operator. Normally, it is used for command execution or input
confirmation.
ESC (Escape)
This key is on the left lower side of the SCAN key. Normally, it is used to stop and exit the current
operation.
Navigation Pad
The 4-way navigation pad around the SCAN key is used to move the cursor left, up, down, or
right.
While pressing [ ], they can be used to adjust the luminosity and contrast of the screen
backlight.
Backspace
This key is Backspace by default. If this key is being held down for more than one second, a
clear code will be sent.
Function/Alpha Key
This key is a modifier key that requires pressing a second key to get the yellow-coded letter (A~Z)
or symbol printed above the second key, or the function (F0~F9) of the second key.
Icon Description
A This icon appears when you press the [Fn α] key one time, indicating it is set to
alphabetic mode for typing upper-case alphabetic letters.
a This icon appears when you press the [Fn α] key two times, indicating it is set to
alphabetic mode for typing lower-case alphabetic letters.
F This icon appears when you press the [Fn α] key three times, indicating it is set to the
function mode. Then, press another key ([0] ~ [9]) to get the desired function.
To get the value of another key combination modified by the function key, keep
pressing another key ([0] ~ [9]) to produce the result.
To exit the function mode, press [Fn α] again and the icon will go off.
15
Chapter 1
Using 8200 Terminal
Backlight Configuration Key
This key is used to turn ON/OFF the backlight of the LCD and keypad. Also, while pressing [ ],
the navigation keys can be used to adjust the luminosity and contrast of the screen backlight.
Key Description
[] + [Right] Press these keys at the same time to increase the contrast.
[] + [Left] Press these keys at the same time to decrease the contrast.
[] + [Up] Press these keys at the same time to increase the luminosity.
[] + [Down] Press these keys at the same time to decrease the luminosity.
Power Key
In order to prevent an accidental press of the POWER key, you need to hold down this key for
approximately 1.5 seconds to turn ON/OFF the Terminal.
Note: (1) Functionality of keys is application-dependent. The system will send the
associated key code to the application program, and it is up to the application
program to interpret the key code.
(2) When a status icon appears on the screen, it indicates a certain mode is
activated and it is not necessary to hold down the modifier key.
16
8200 Series Mobile Computer Reference Manual
1.4 LCD
The Terminal comes with a FSTN graphic LCD, 160 by 160 pixels resolutions, which can
be programmed to display text or graphics, such as specific font and company logo, to
meet varying application needs.
Options Font Size (pixels) Characters by lines
English font Font size 6×8 (pixels)
Font size 8×16 (pixels)
26 characters by 18 lines
20 characters by 9 lines
Chinese font Font size 12×12 (pixels)
Font size 16×16 (pixels)
13 characters by 12 lines
10 characters by 9 lines
Other language fonts, company logo… Programmable
Note: The bottom line (ICON_ZONE) is reserved to display status icons, such as the
battery icon.
1.4.1 ADJUSTING THE BACKLIGHT
The backlight of screen and keypad helps ease reading under dim environments. It can
be turned on and adjusted decreasingly or increasingly by the following key combinations.
Keep pressing the key combination until the luminosity or contrast is decreased or
increased to a desired level. Alternatively, the luminosity and contrast can be configured
through programming or via System Menu. Refer to 3.2.2 Backlight and 3.2.3 Contrast.
Note: Using backlight while on battery power will substantially reduce battery power. We
suggest that you dim the backlight while working in a well-lit area or have it set to
be automatically turned off when not in use.
Key Combination Action
[] Toggle ON/OFF the backlight
[] + [Up] Turn ON the backlight and increase the luminosity of LCD
[] + [Down] Turn ON the backlight and decrease the luminosity of LCD
[] + [Right] Turn ON the backlight and increase the contrast of LCD
[] + [Left] Turn ON the backlight and decrease the contrast of LCD
Note: Hold down the first key, and keep pressing the second key for adjustment.
17
Chapter 1
Using 8200 Terminal
1.5 NOTIFICATIONS
1.5.1 STATUS LED
There are two dual-color LED indicators above the screen. Both can be programmed to
provide information that helps diagnosing. For example, if you are using AG runtime, you
will be informed of the scanning result immediately. LED1 is used for "Good Read" and
will become solid green upon reading a barcode successfully.
LED1 is used to provide information on the charging status and barcode decoding.
LED2 is used to provide information on wireless communications.
Figure 5: LED Indicators
LED1
LED2
18
8200 Series Mobile Computer Reference Manual
LED1: Red/Green Red Green
User Power ON User definable User definable
Solid green for Good Read by
default
Power Off, Battery
Charging
System default
Flashing red: Charging
System default
Flashing green: Charging done
Charging Error System default
Flashing red and green: Charging error occurs
LED2: Blue/Green Blue Green
Bluetooth System default
Flashing blue, quickly: Waiting for
connection or connecting
Flashing blue, slowly: Connected
---
Wi-Fi --- System default
Flashing green, quickly: Waiting
for connection or connecting
Flashing green, slowly:
Connected
1.5.2 AUDIO
The Terminal has a mono or stereo speaker at the bottom, which can be programmed for
status feedback. It is used to play sounds for events in the programs, or play audio files
such as .WAV files. Its volume can be configured through programming or via System
Menu. Refer to 3.2.7 Speaker Volume. In particular, its frequency and duration are
software programmable for Good Read in the provided terminal emulation programs.
1.5.3 VIBRATOR
The Terminal is integrated with a vibrator, which can be programmed for status feedback.
It can be helpful when working in noisy environments. In particular, the vibrator is
software programmable for Good Read in the provided terminal emulation programs.
19
Chapter 1
Using 8200 Terminal
1.6 DATA CAPTURE
A wide variety of scan engines is available for delivering flexibility to meet different
requirements. Depending on the scan engine integrated, the Terminal is capable of
scanning barcodes of a number of symbologies that are enabled by default while running
the preloaded AG runtime. Refer to 3.3.1 Reader for functional test.
If you need to scan barcodes that are encoded in a symbology, which is disabled by
default in AG runtime, FORGE Application Generator (ForgeAG.exe) allows configuring
symbology settings, as well as reader settings. First, enable the desired symbologies, and
then, download the application settings to the Terminal.
Note: For details on configuring reader and symbology settings, please refer to the
documentation of the software you use.
Varying by the scan engine installed, the supported symbologies are listed below.
1D CCD scan engine
1D Laser scan engine
2D scan engine
Note: In AG or CipherNet runtime, not all of the symbologies are enabled by default.
Instead of running any of them, you can develop your own applications to control
the scan engine for data collection.
Symbologies Supported (Default Setting: Enable/Disable) CCD/Laser 2D
Codabar Enabled Enabled
Code 11 Disabled
Code 93 Enabled Enabled
Composite
Code
CC-A/B Disabled
CC-C Disabled
TCIF Linked Code 39 Enabled
MSI Disabled Disabled
Plessey Disabled
Postal Codes Enabled
Telepen Disabled
Code 128 Code 128 Enabled Enabled
GS1-128 (EAN-128) Enabled Enabled
ISBT 128 Enabled Enabled
Code 2 of 5 Industrial 25 (Discrete 25) Enabled Enabled
Interleaved 25 Enabled Enabled
Matrix 25 Disabled Disabled
20
8200 Series Mobile Computer Reference Manual
Chinese 25 Disabled
Coop 25 Disabled
Code 3 of 9 Code 39 Enabled Enabled
Trioptic Code 39 Disabled
Italian Pharmacode (Code 32) Disabled Disabled
French Pharmacode Disabled
EAN/UPC EAN-8 Enabled Enabled
EAN-8 Addon 2 Disabled Disabled
EAN-8 Addon 5 Disabled Disabled
EAN-13 Enabled Enabled
EAN-13 & UPC-A Addon 2 Disabled Disabled
EAN-13 & UPC-A Addon 5 Disabled Disabled
Bookland EAN (ISBN) Disabled Disabled
UPC-E0 Enabled Enabled
UPC-E1 Disabled Disabled
UPC-E Addon 2 Disabled Disabled
UPC-E Addon 5 Disabled Disabled
UPC-A Enabled Enabled
GS1 DataBar
(RSS)
GS1 DataBar Omnidirectional (RSS-14) Disabled Enabled
GS1 DataBar Truncated Disabled Enabled
GS1 DataBar Stacked Disabled Enabled
GS1 DataBar Stacked Omnidirectional Disabled Enabled
GS1 DataBar Limited (RSS Limited) Disabled Enabled
GS1 DataBar Expanded (RSS Expanded) Disabled Enabled
GS1 DataBar Expanded Stacked Disabled Enabled
2D
Symbologies
PDF417 Enabled
MicroPDF417 Enabled
Data Matrix Enabled
Maxicode Enabled
QR Code Enabled
21
Chapter 1
Using 8200 Terminal
1.7 CHARGING & COMMUNICATIONS
Normally, the Terminal ships with a USB cable for charging and communications.
If you are using USB Virtual COM for the first time, you must install its driver from
the CD-ROM. Driver version 5.3 or later is required. Please remove older versions!
The virtual COM port will not be assigned until the USB port is in use.
If you are using USB Virtual COM_CDC for the first time, you must install its driver
from the CD-ROM. USB CDC driver installer is available in the “Windows” folder,
which will copy a vendor-supplied INF file to Windows.
For Standard USB cable, it will release COM port in the following conditions:
(i) Detach the cable from the Terminal directly.
(ii) The Terminal is turned off.
(iii) No application is running on the Terminal, or COM port is shut down.
USB Interface Cable
Task USB Cable
Charging USB direct charging
500 mA: USB icon
100 mA: Highlighted USB icon
0 mA: Disable charging for 8200
5 V charging from the adaptor (Plug icon)
Communications USB Virtual COM — If using FORGE Application Generator software, you
may use a download utility to receive data on your computer; otherwise,
run HyperTerminal.exe to receive data directly.
USB HID — Run a text editor on your computer to receive data directly.
USB Virtual COM_CDC — If using FORGE Application Generator software,
you may use a download utility to receive data on your computer;
otherwise, run HyperTerminal.exe to receive data directly.
22
8200 Series Mobile Computer Reference Manual
Note: Battery charging stops when the temperature drops below 0°C or exceeds 40°C. It
is recommended to charge the battery at room temperature (18°C to 25°C) for
optimal performance.
1.7.1 INTERFACE CABLE OPTIONS
For charging via the USB cable, the standard charging current is 500 mA. However, we
recommend you to connect the power adaptor to speed up charging the battery.
If you connect the Terminal to a USB hub, the charging current may be insufficient.
In that case, change the charging current to 100 mA after connecting the USB cable.
It will take a longer time to charge to full. Refer to 3.2.9 USB Charge Current.
Universal Power Adaptor
Push & release
23
Chapter 1
Using 8200 Terminal
Warning: The Terminal is not allowed to function when it is solely on USB power and
without a battery loaded. It will display a warning message “Battery
Missing” along with an audible alert. In that case, you should install the
battery before restarting.
Figure 6: Using USB/RS-232 cable
24
8200 Series Mobile Computer Reference Manual
1.8 SD CARD
SD card can be accessed directly by using the provided functions in user application. Yet,
when 8200 is equipped with SD card and connected to your computer via the USB cable,
it can be treated as a removable disk (USB mass storage device) as long as it is
configured properly through programming or via System Menu | 8. Next Page | 1. SD
Card Menu | 1. Run As USB Disk. Refer to 3.8 SD Card Menu.
Note: While running BASIC application, the size of DAT files on SD card can be calibrated.
Go to System Menu | 8. Next Page | 1. SD Card Menu | 2. Access SD Card |
4. Check File Size to refresh the size of “A:\BASICRUN\TXACTn.DAT” (n=1~6).
1.8.1 FILE SYSTEM
For 8200 Series, it supports FAT12/FAT16/FAT32 and allows formatting the card through
C programming or via System Menu | 8. Next Page | 1. SD Card Menu | 2. Access
SD Card. Based on the capacity of the card, it will automatically decide the FAT format:
Card Capacity FAT Format Sectors per Cluster
≦ 32 MB FAT12 32
≦ 1 GB FAT16 32
≦ 2 GB FAT16 64
≦ 8 GB FAT32 8
1.8.2 DIRECTORY
Unlike the file system on SRAM, the file system on SD card supports hierarchical tree
directory structure and allows creating sub-directories. Several directories are reserved
for particular use.
Reserved Directory Related Application or Function Remark
\Program System Menu | Load Program
Program Manager | Download
Program Manager | Activate
Kernel Menu | Kernel Update
UPDATE_BASIC()
Store programs to this folder so that you can
download them to 8200:
C program — *.SHX
BASIC program — *.INI and *.SYN
\BasicRun BASIC Runtime Store DAT and DBF files that are created and
accessed in BASIC runtime to this folder.
Their permanent filenames are as follows:
25
Chapter 1
Using 8200 Terminal
DAT Filename
DAT file #1 TXACT1.DAT
DAT file #2 TXACT2.DAT
DAT file #3 TXACT3.DAT
DAT file #4 TXACT4.DAT
DAT file #5 TXACT5.DAT
DAT file #6 TXACT6.DAT
DBF Filename
DBF file #1 Record file F1.DB0
System Default
Index
F1.DB1
Index file #1 F1.DB2
Index file #2 F1.DB3
Index file #3 F1.DB4
DBF file #2 Record file F2.DB0
System Default
Index
F2.DB1
Index file #1 F2.DB2
Index file #2 F2.DB3
Index file #3 F2.DB4
DBF file #3 Record file F3.DB0
System Default
Index
F3.DB1
Index file #1 F3.DB2
Index file #2 F3.DB3
Index file #3 F3.DB4
DBF file #4 Record file F4.DB0
System Default
Index
F4.DB1
Index file #1 F4.DB2
Index file #2 F4.DB3
Index file #3 F4.DB4
DBF file #5 Record file F5.DB0
System Default
Index
F5.DB1
Index file #1 F5.DB2
Index file #2 F5.DB3
Index file #3 F5.DB4
26
8200 Series Mobile Computer Reference Manual
\AG\DBF
\AG\DAT
\AG\EXPORT
\AG\IMPORT
Application Generator (a.k.a. AG)
Store DAT, DBF, and Lookup files that are
created and/or accessed in Application
Generator to this folder.
1.8.3 FILE NAME
A file name must follow 8.3 format (= short filenames) — at most 8 characters for
filename, and at most three characters for filename extension. The following characters
are unacceptable: “ * + , : ; < = > ? | [ ]
On 8200 Series, it can only display a filename of 1 ~ 8 characters (the null character
not included), and filename extension will be displayed if provided. If a file name
specified is longer than eight characters, it will be truncated to eight characters.
Long filenames, at most 255 characters, are allowed when using 8200 equipped with
SD card as a mass storage device. For example, you may have a filename
“123456789.txt” created from your computer. However, when the same file is directly
accessed on 8200, the filename will be truncated to “123456~1.txt”.
If a file name is specified other in ASCII characters, in order for 8200 to display it
correctly, you may need to download a matching font file to 8200 first.
The file name is not case-sensitive.
27
This chapter mainly describes the software inside the Terminal. It consists of three
modules — Kernel, System, and Application; each has a function menu.
When a menu is displayed, you may select an item by either of the following ways:
Press the arrow keys [Up] and [Down] to move the highlight bar.
Press the number key that corresponds to the item number.
Follow the on-screen instructions to change a specific setting, or press [ESC] to
return to a previous page or menu.
On each screen, the bottom line displays status icons, such as:
The 4-bar battery icon indicates the current power status.
The status icon of input mode or function mode is controlled by the [Fn α] key.
Chapter 2
LEARNING SOFTWARE ARCHITECTURE
28
8200 Series Mobile Computer Reference Manual
IN THIS CHAPTER
2.1 Application Module ..................................................... 29
2.2 System Configuration & Core ....................................... 30
Figure 7: Software Architecture
29
Chapter 2
Learning Software Architecture
2.1 APPLICATION MODULE
The Terminal ships with software package on the CD-ROM. It includes FORGE
Application Generator (batch and WLAN versions), MIRROR Emulator (VT and 5250
versions), download utilities, etc.

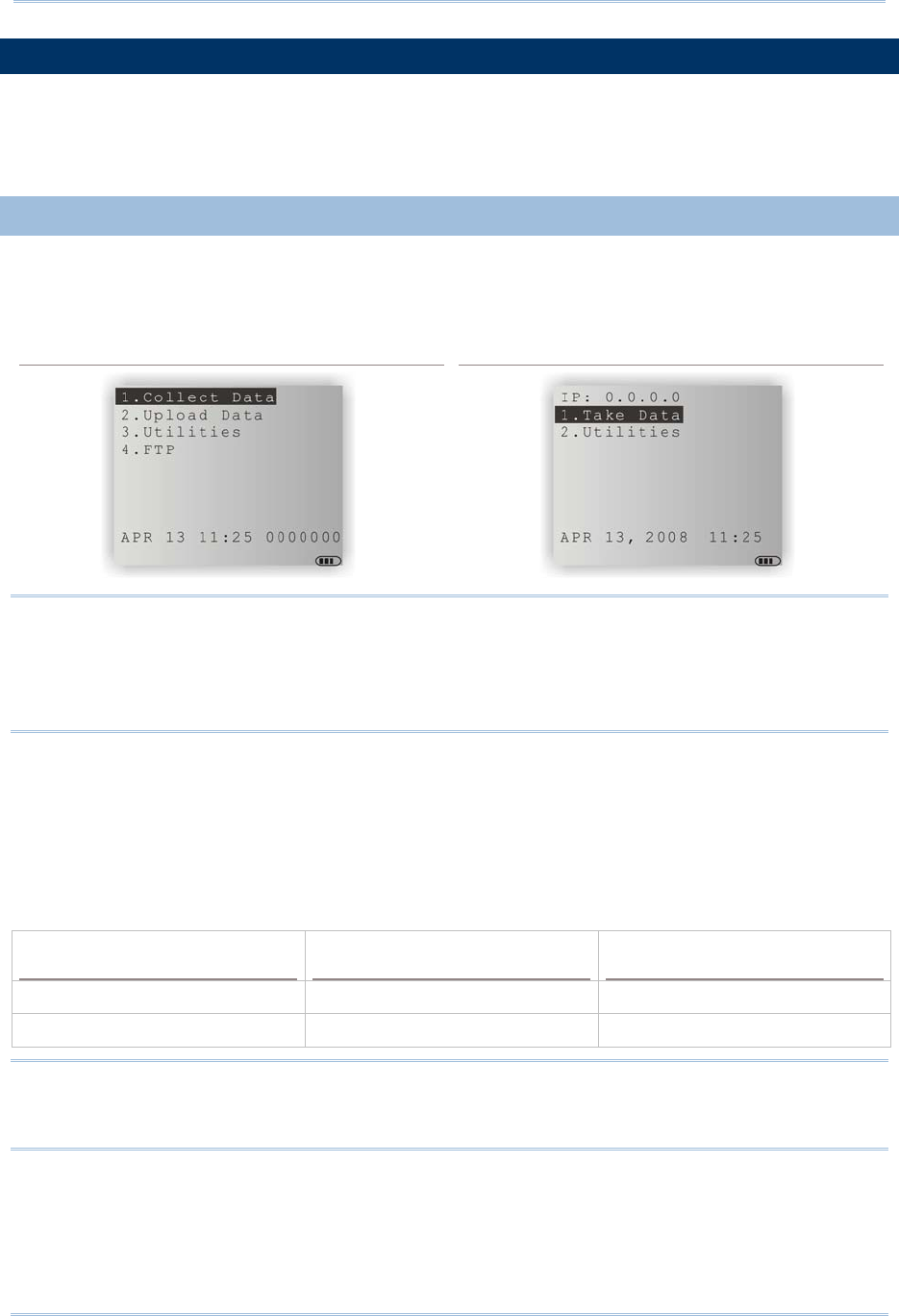

2.1.1 FORGE APPLICATION GENERATOR (AG)
For easy development of applications, the Terminal is preloaded with AG runtime. When
you turn on the Terminal, it displays the Main Menu of AG application, as shown below.
Batch AG WLAN AG
Note: Batch AG supports automatically uploading data to a host computer when the
upload interface is properly configured. Once the Terminal is connected via the
RS-232 or USB Virtual COM cable, there will be a moving hourglass icon displayed
on the upper-right corner of the screen, indicating the Terminal is ready for auto
upload.
Before using the Terminal to collect data, you need to configure the application with the
companion tool on your computer. This time-saving development tool helps create
application templates on your computer.
For details on the AG application, please refer to separate user manual.
Application Generator AG Runtime Companion Tool on PC End
Batch AG U8200.SHX ForgeAG.exe
WLAN AG WU8200.SHX AG8200WLAN.exe
Note: FORGE Application Generator (AG) software package includes
(1) a companion tool for quickly developing your application — Batch or WLAN AG;
(2) several download utilities to make it versatile in use.
30
8200 Series Mobile Computer Reference Manual
2.1.2 MIRROR EMULATOR (CIPHERNET)
The Terminal supports VT100/220 and IBM 5250 terminal emulation for accessing a
backend database. Instead of using FORGE Application Generator, you may download
the terminal emulation program, i.e. CipherNet Runtime, to the Terminal. Refer to 3.6
Load Program. Then, run individual companion tool on your computer.
For details on the MIRROR Emulator application, please refer to separate user manuals.
Terminal Emulation CipherNet Runtime Companion Tool on PC End
VT100/220 82xx-VT.SHX CipherNet-VT.exe
IBM 5250 82xx-5250.SHX CipherNet-5250.exe
2.1.3 USER PROGRAM
You may need to develop your own application program. For developing custom
applications, CipherLab provides BASIC and C compilers through licensing. For detailed
information, please contact your sales representative.
2.2 SYSTEM CONFIGURATION & CORE
31
Chapter 2
Learning Software Architecture
For managing system configurations and multiple programs, each Terminal comes with
System Menu, Program Manager, and Kernel Menu. Refer to the following chapters
on how to configure the 8200 Series Terminal, regarding system configurations and
program download.
2.2.1 SYSTEM MENU
System Menu is bundled with BASIC Runtime or user programs that are written in “C”. It
is provided for system configuration, functionality testing, downloading font file and
program.
2.2.2 KERNEL
Kernel is the innermost core of the OS. It provides services for updating the kernel and
bootloader, and repairing the system.
2.2.3 PROGRAM MANAGER
Program Manager is part of the kernel. You may download as many as seven application
programs.
32
8200 Series Mobile Computer Reference Manual
33
System Menu is generated by a powerful utility, which offers an interface for engineers
(programmers or system integrator) to view system information, change the
configuration parameters, download programs and run diagnostics.
This menu is designed for engineering tests and maintenance ONLY. For this reason, it
provides password protection to prevent unauthorized users from accidentally changing
system settings.
Warning! System Menu is NOT for the use of any end users. The system password
helps ensure system safety and integrity.
How to access System Menu?
5) Turn off the Terminal.
6) Press [7] + [9] + [Power].
Chapter 3
SYSTEM MENU
34
8200 Series Mobile Computer Reference Manual
IN THIS CHAPTER
3.1 Information ............................................................... 34
3.2 Settings ................................................................... 36
3.3 Tests ....................................................................... 40
3.4 Memory .................................................................... 42
3.5 Power ...................................................................... 43
3.6 Load Program ............................................................ 44
3.7 DoFTP Menu .............................................................. 47
3.8 SD Card Menu ........................................................... 49
錯誤! 找不到參照來源。 .......................... 錯誤! 尚未定義書籤。
3.11 Bluetooth Menu ....................................................... 51
3.12 Wi-Fi Menu .............................................................. 60
3.1 INFORMATION
Here provides important system information to help diagnose the system.
System Menu | 1. Information
H/W Hardware version
S/N A serial number assigned to the Terminal
M/D Manufacturing date
KNL Kernel version
LIB
BSC
C library version
BASIC Run-time version, if a BASIC application is downloaded
USR Application program version
DEV 4-digit code for optional hardware configurations
For example, 2800 indicates the Terminal is equipped with Laser scan engine
and combo module for wireless connectivity (Bluetooth + 802.11b/g/n).
35
Chapter 3 System Menu
3.1.1 UNDERSTANDING DEVICE CODE
Device Code Modular Component Types
1st digit Reader module 0= none
1= CCD scan engine
2= Laser scan engine
3= 2D scan engine
2nd digit Wireless module 0= none
5= Bluetooth only
8= Bluetooth + 802.11b/g/n
(8200)
(8260)
(8231)
3rd digit Reserved 0
4th digit Reserved 0
36
8200 Series Mobile Computer Reference Manual
3.2 SETTINGS
You can change the default settings here.
System Settings Default Values
Clock Current time
Backlight 20 seconds at level 2, backlight shade enabled
Contrast Level 4
Auto Off 10 minutes
Power On Options Program Resume
Key Click Tone 2
Speaker Volume High volume level
USB VCOM No. Fixed
USB Charge Current 500 mA
System Password Open access
Font System font
Default Set (=Reset to Default) Load factory settings
Reset Reader Restore default reader settings
Upgrade Reader FW Upgrade 2D reader firmware (For maintenance use only)
3.2.1 CLOCK
Set date and time for Real Time Clock. Enter two digits for the year, e.g. 04 for 2004.
3.2.2 BACKLIGHT
Set the backlight duration for the keypad and LCD.
Enter a value between 0 and 9999 (second).
Press the arrow keys [Up] and [Down] to adjust the backlight level (4 levels).
Press the [Left] key to adjust the shade effect.
37
Chapter 3 System Menu
3.2.3 CONTRAST
Set the contrast level for the LCD.
Press the arrow keys [Up] and [Down] to adjust the contrast level.
3.2.4 AUTO OFF
The Terminal will be turned off automatically when no operation is taking place during a
specified period of time. Enter a value between 0 and 999 (minute).
Note: To disable this function, enter 0.
3.2.5 POWER ON (& WAKEUP EVENT) OPTIONS
Set the startup screen once the Terminal is turned on, and specify which events will wake
up the Terminal:
Power On Options
Press the arrow keys [Up] and [Down] to select “Program Resume” or “Program Restart”, and then
press [ENTER].
Program Resume: When selected, the Terminal will start from the last session of program
before it is turned off.
Program Restart: When selected, the Terminal will start from the first session of the program.
WakeUp Events
The specified events can wake up the Terminal when the conditions are met. Press the arrow keys
[Up] and [Down] to select a specific event, and press [ENTER] to determine when it is treated as a
wake-up event or not.
PwrKey: If yes, it will wake up the Terminal upon pressing the Power key.
USB: If yes, it will wake up the Terminal upon connecting the USB cable.
Charged: If yes, it will wake up the Terminal upon completion of charging.
Alarm: If yes, it will wake up the Terminal upon the alarm time is up. Alarm can be set up
through programming only.
38
8200 Series Mobile Computer Reference Manual
3.2.6 KEY CLICK
The system will produce an audible signal when any key on the keypad is pressed. The
current value is highlighted. Select a desired tone for the speaker or mute it.
3.2.7 SPEAKER VOLUME
Set the speaker volume.
Press the arrow keys [Up] and [Down] to adjust the volume level (3 levels) or mute
it.
3.2.8 USB VCOM NO
By default, it is set to use one virtual COM port for all (=FIXED), regardless of how many
8200 Terminals are connected to PC when USB Virtual COM is in use. This setting
requires you to connect one 8200 at a time, and will facilitate configuring a great amount
of 8200 Terminals via the same virtual COM port (for administrators’ or factory use). If
necessary, you can have it set to use variable virtual COM port (=Change by Serial
Number), which will vary by the serial number of each different 8200.
Press the arrow keys [Up] and [Down] to select between “Fixed” and “Change by
Serial Number”.
3.2.9 USB CHARGE CURRENT
By default, the USB charging current is set to 500 mA. For direct charging via the USB
cable without supplying a power adaptor, the standard charging current is 500 mA. If you
connect the Terminal to a USB hub, the charging current may be insufficient. In that case,
change the charging current to 100 mA after connecting the USB cable. It will take a
longer time to charge to full.
Press the arrow keys [Up] and [Down] to select between “500 mA” and “100 mA”.
To disable charging for 8200, select “0 mA”.
Note: (1) USB direct charging, 500 mA: USB icon
(2) USB direct charging, 100 mA: Highlighted USB icon
(3) 5V charging from the adaptor: Plug icon
3.2.10 FONT
Font version information can be viewed here. It displays System Font if there is no
custom font file. If a multi-language font file is downloaded, you will be able to select a
font from the list.
39
Chapter 3 System Menu
3.2.11 SYSTEM PASSWORD
Set a password to control user access to System Menu, Program Manager and Kernel
Menu. The password can be up to eight alphanumeric characters.
Note: The password is case-sensitive. To disable a previous password, enter blank on
the "Input new password" and "Verify password" screens.
3.2.12 DEFAULT SET
Reset system settings to the default values, except for the reader settings.
3.2.13 RESET READER
Reset reader settings to the default values.
3.2.14 UPGRADE READER FW
Upgrade 2D reader firmware if necessary.
40
8200 Series Mobile Computer Reference Manual
3.3 TESTS
Here provides functional tests for key parts.
3.3.1 READER
Test the reading performance of the scanner. The supported symbologies depend on the
scan engine you use. Refer to 1.6 Data Capture for symbologies that are enabled by
default. For symbologies that are disabled by default, they must be enabled through
programming.
Press [SCAN] to start. To stop and exit the test, press any key.
3.3.2 SPEAKER
Test the speaker with different volume levels.
To stop and exit the test, press any key.
3.3.3 LCD & LED
Test the LCD display and LED indicators.
To stop and exit the test, press any key.
3.3.4 KEYBOARD
Test the rubber keys. Press any key and its corresponding character will be shown on the
screen.
To stop and exit the test, press [ESC].
3.3.5 MEMORY
Test the data memory (SRAM), and the results will be shown on the screen.
To stop and exit the test, press [ESC].
Warning! The contents of the data memory (SRAM) will be wiped out after test.
41
Chapter 3 System Menu
3.3.6 ECHO TEST
After a physical connection is established properly, run a test utility on your computer
and start the test on your Terminal. Select a desired baud rate if necessary.
To stop and exit the test, press [ESC].
Interface Description Test Utility
USB This echo test is to verify connectivity via the USB cable
between the Terminal and a host computer.
USB VCOM Echo — The Terminal works as a generic
USB device.
EchoTest.exe for
Virtual COM
USB HID — The Terminal works as an input device;
select keyboard type and Caps Lock status for running a
test.
Any text editor for
HID
USB VCOM_CDC Echo — The Terminal works as a
generic USB device.
EchoTest.exe for
Virtual COM
3.3.7 VIBRATOR
Test the vibrator.
To stop and exit the test, press [ESC].
42
8200 Series Mobile Computer Reference Manual
3.4 MEMORY
Here provides information and initialization function of the memory.
3.4.1 SIZE INFORMATION
RAM — onboard SRAM for data memory
Flash — program memory
3.4.2 INITIALIZE
Initialize the data memory.
Warning! The contents of the data memory (SRAM) will be wiped out after memory
initialization.
43
Chapter 3 System Menu
3.5 POWER
Here shows current voltage consumption.
Main (battery)
It shows dynamic status of the battery pack, which is used as the main power source.
Backup (battery)
It shows dynamic status of the button cell, which is used to retain data in SRAM.
Warning! Always examine the battery icon on the device screen so that you will be
alerted for a low battery condition.
44
8200 Series Mobile Computer Reference Manual
3.6 LOAD PROGRAM
Here you can access the Load Program service provided by the kernel. Because the
kernel will take over the job, you will not be able to return to System Menu by pressing
[ESC]. After downloading, restart the Terminal to activate the new program. Refer to
Appendix I 錯誤! 找不到參照來源。.
Note: The Terminal will stay in download mode for approximately 30 seconds.
.SHX Program Download one of the following C program files and/or font file:
Program File AG Runtime: U8200.shx (Batch AG)
WU8200.shx (WLAN AG)
CipherNet Runtime: 82xx-5250.shx (CipherNet-5250)
82xx-VT.shx (CipherNet-VT)
BASIC RuntimeNote: B8200.shx
User program
Font File Refer to the Font Files folder on CD-ROM.
If you have downloaded a BASIC Runtime program, the next time you enter the Load
Program submenu you will be able to select whether to download a C program (.SHX) or
BASIC program (.SYN).
Note: (1) “Load Basic” menu is only available after you have downloaded a BASIC
Runtime program.
(2) In addition to the system font, there can be only one font file downloaded to
the Terminal.
45
Chapter 3 System Menu
SETTINGS
Interface
Options Description
USB VCOM Connect the USB cable between your computer and the Terminal.
Bluetooth Approach the target Bluetooth enabled device.
SD Card This option is available only when the memory card is present.
USB VCOM_CDC Connect the USB cable between your computer and the Terminal.
Baud Rate
Available baud rate options: 115200/57600/38400/19200/9600 bps
LOAD PROGRAM VIA BLUETOOTH
1) Go to System Menu | 8. Next Page | 5. Bluetooth Menu | 3. Security, and
configure the following Bluetooth settings first.
Authentication
PIN code
2) Go to System Menu | 6. Load Program and select Bluetooth.
3) Start the pairing procedure from your computer, for example, click [Pair Device]
and/or [Connect Bluetooth Serial Port].
4) Run the download utility: ProgLoad.exe
- Select interface RS-232 for using Bluetooth SPP.
- Select COM port properties that match with the serial port settings used on your
computer.
46
8200 Series Mobile Computer Reference Manual
LOAD PROGRAM VIA SD CARD
1) If you have copied the desired program file(s) to your SD card, go to System Menu |
6. Load Program and select SD Card. You will see a list of all the files under the
directory “\Program”, as shown above.
2) Press the arrow keys [Up] and [Down] to select a file.
3) Press [ENTER] to view information of the program file.
4) Press [ENTER] to confirm downloading the program file to the Terminal.
Press [ESC] to abort the download task.
Press the arrow keys to select a file. Then, press
[ENTER] to view information of the program file.
47
Chapter 3 System Menu
3.7 DOFTP MENU
This submenu is for the FTP client connection. It will log the Terminal into an FTP server
via Wi-Fi for the following tasks.
Execute and/or update the script file “FTP.dat”
Download the program update(s)
.SHX Program Download one of the following C program files and/or font file, firmware file:
Program File AG Runtime: U8200.shx (Batch AG)
WU8200.shx (WLAN AG)
CipherNet Runtime: 82xx-5250.shx (CipherNet-5250)
82xx-VT.shx (CipherNet-VT)
BASIC Runtime: B8200.shx
User program
Font File Refer to the Font Files folder on CD-ROM.
Firmware File Kernel update: K8200.shx
Bootloader update: BL8200.shx
Note: (1) When more than one program files of the same type are specified in the script
file, only the last program file is used for update.
(2) The system will restart itself right after successful update and the downloaded
file(s) will then be removed.
48
8200 Series Mobile Computer Reference Manual
3.7.1 LOCAL
Depending on the script file “FTP.dat” saved on the Terminal, you may update the script
file or download any program update from FTP server, if necessary.
SETTING
Interface
Options Supported Description
Wi-Fi Connect the Terminal to an access point.
Note: This setting is available only when the Wi-Fi module is present.
3.7.2 MANUAL
You may log into an FTP server manually, and follow the script file on the server and
update programs. However, this script file will not be kept after execution, nor replace
the existing one on the Terminal, if there is any.
SETTINGS
Server IP
Specify the IP address or name of the FTP server.
Server Port
Specify the remote port number.
By default, TCP port 21 is used on the server for the control connection.
Login Name
Specify the user name for logging onto FTP server.
Login Password
Specify the password for logging onto FTP server.
Interface
Options Supported Description
Wi-Fi Connect the Terminal to an access point.
Note: This setting is available only when the Wi-Fi module is present.
49
Chapter 3 System Menu
3.8 SD CARD MENU
This submenu is for using the Terminal equipped with SD card as a removable disk, as
well as for directly accessing files on SD card.
Note: When SD card is present, the card icon will appear flashing while being accessed.
If the Terminal is preloaded with Batch AG runtime, it will automatically create two
working directories “\AG\IMPORT” and “\AG\EXPORT” on SD card.
3.8.1 RUN AS USB DISK
When the Terminal is equipped with SD card and connected to your computer via the
USB cable, it can be treated as a removable disk (USB mass storage device) as long as it
is configured properly through programming or via selecting [Run as USB Disk].
Note: The SD card must be properly configured through programming or user menu
before use.
3.8.2 ACCESS SD CARD
Edit the file system or format the SD card.
Edit Files
View and edit the file system on SD card.
Format
If the file system is not desired any more, you may format the SD card.
If the capacity is 32 MB or under, the file system will be FAT12.
If the capacity is 32 MB~2 GB, the file system will be FAT16.
If the capacity is larger than 2 GB, the file system will be FAT32.
Warning! The contents on SD card will be wiped out after formatting.
50
8200 Series Mobile Computer Reference Manual
Check Memory
For an SD card that has never been used on 8200, a message like “Found New SD Card” will be
displayed allowing users to scan the card for memory check. If the action is canceled then,
memory check can still be performed here.
Check File Size
You may calibrate the size of DAT files on SD card while running BASIC application, and it will
refresh the size of “A:\BASICRUN\TXACTn.DAT” (n=1~6).
Note: “Check File Size” is only available after you have downloaded the BASIC Runtime.
51
Chapter 3 System Menu
3.11 BLUETOOTH MENU
This submenu is for the Terminal, with built-in Bluetooth module, to work with other
Bluetooth enabled devices. You must configure these parameters correctly.
Bluetooth Settings Default Value HID, SPP, FTP Client DUN
Connect Setting Items Need to Be Checked
Local Name
Remote Name
Broadcast Me
Power Saving
BT-GPRS AP Name
DHCP
Local IP Address
Model no. + Serial no.
---
Enable
Enable
---
Enable
0.0.0.0
v
---
v
v
---
---
---
v
---
v
v
(v)Note
(v)Note
(v)Note
Security
Authentication
PIN Code
Disable
---
v
v
v
v
Note: BT-GPRS AP Name, DHCP and local IP Address are required for DUN-GPRS mode
only.
52
8200 Series Mobile Computer Reference Manual
3.11.1 INFORMATION
Information of network configuration can be viewed here.
Bluetooth Menu | 1. Information
LIB Kernel version
All user libraries reside in Kernel; no external libraries are required.
MAC MAC address of the Bluetooth module
IAM A name given to the Terminal for identification
By default, it is made up of model number and the serial number. (Identical to
2. Connect Set | 1. Local Name)
CTY "Normal" means all 79 channels are available for frequency-hopping
There are bandwidth limitations for 2.4 GHz ISM band in some countries. For
example, only 23 RF channels are defined instead of 79 RF channels in Japan,
Spain and France.
DHCP DHCP server in use or not
It will automatically become enabled while connecting to a BT-GPRS AP.
IP IP address of the Terminal
53
Chapter 3 System Menu
3.11.2 CONNECT SETTING
Set the connection parameters if necessary.
Local Name
Enter a name for identifying the Terminal.
By default, it is made up of model number and the serial number.
Remote Name
Leave it empty unless you want to make a specific connection.
Broadcast Me
Options — Enable or Disable
For initial connection, broadcasting must be enabled so that other Bluetooth devices can
discover the Terminal.
For security concerns, you may disable it in future use to hide the Terminal from other
Bluetooth devices.
Power Saving
This refers to the low power consumption mode.
Options — Enable or Disable (Only the Sniff mode is supported.)
BT-GPRS AP Name
For DUN-GPRS mode, enter the AP name for connecting to the content server.
DHCP
Options - Enable or Disable
Local IP Address
Enter a new address for the Terminal, if necessary.
Note: BT-GPRS AP Name, DHCP and local IP Address are required for DUN-GPRS mode
only.
54
8200 Series Mobile Computer Reference Manual
3.11.3 SECURITY
Set or modify security parameters.
Authentication
Options — Enable or Disable
PIN Code
Define the encryption key values.
Up to 16 characters, using ASCII code.
Note: When authentication is enabled without providing a pre-set PIN code, the Terminal
supports dynamic input of PIN code during pairing.
55
Chapter 3 System Menu
3.11.4 ECHO TESTS
These echo tests are used for verifying connectivity to make sure the Terminal is within
coverage. Press [ESC] to stop and exit the test.
SPP: Serial Port Profile
It is used for ad hoc networking.
DUN: Dial-Up Networking Profile
DUN Modem - It makes use of a Bluetooth modem or mobile phone as a
wireless modem.
DUN GPRS – It makes use of a mobile phone with GPRS functionality and
connects to GPRS AP.
HID: Human Interface Device Profile
It is used for the Terminal to work as an input device, i.e. keyboard, for a
host computer.
FTP client: File Transfer Protocol Profile (FTP)
It is used for the Terminal to connect to a file server for file transfer.
56
8200 Series Mobile Computer Reference Manual
SPP Master
Set the Terminal as a master device.
1. Pairing with your computer (slave) must be completed first.
2. Run the utility “EchoTest.exe” on your computer. Associated settings include
- Select “RS-232” for interface.
- Use the Bluetooth COM port that has been paired.
- Set Action Mode to “Passive”.
3. Start the echo test on both ends. The Terminal will try to connect to PC (slave).
SPP Slave
Set the Terminal as a slave device.
1. Enable Authentication and set your PIN code on the Terminal.
2. Run the utility “EchoTest.exe” on your computer. Associated settings include
- Select “RS-232” for interface.
- Use the Bluetooth COM port that has been configured as “outgoing”.
- Set Action Mode to “Passive”.
3. Start the echo test on both ends.
4. The Terminal will wait for PC (master) to start the connection.
5. Enter the preset PIN code for authentication on your computer.
DUN Modem
The Terminal will try to connect to a Bluetooth modem or mobile phone.
1.
Pairing with your mobile phone must be completed first.
Select “DialUp Network” for Target Machine options.
2. Run the utility “EchoTest.exe” on your computer. Associated settings include
- Select “Modem” for interface.
- Set Action Mode to “Passive”.
3. Start the echo test on both ends.
4. The Terminal will connect to your mobile phone that dials up to your computer.
HID Test
Set the Terminal as an input device.
1. The Terminal will wait for PC to start the connection.
It is suggested to disable Authentication on the Terminal.
2. Run a text editor on your computer.
3. Start to input data via the keypad on the Terminal.
57
Chapter 3 System Menu
DUN GPRS
The Terminal will try to connect to a mobile phone with GPRS functionality.
1. Pairing with your mobile phone must be completed first.
Select “DialUp Network” for Target Machine options.
2. Run the utility “EchoTest.exe” on your computer. Associated settings include
- Select “TCP/IP – Server” for interface.
- Set Action Mode to “Passive”.
3. Start the echo test on both ends.
4. Enter the server IP on the Terminal.
5. The Terminal will connect to your mobile phone that dials up a GPRS AP, and finally connect to
your computer (server) through the GPRS AP.
FTP Client
The Terminal (as a client) will try to connect to an FTP server.
1. Pairing with your FTP server must be completed first.
Select “FTP Server” for Target Machine options.
2. The Terminal will try to connect to PC (server).
3. Enter the FTP Test submenu for FTP function test.
Change Directory: Change the current working directory.
Get Folder Listing: View a list of all the folder(s) and file(s) of the current working
directory.
Download File: Download a file from PC. The filename will be converted to “BTFTP01”
for testing.
Upload File: Upload a file (i.e. BTFTP01) to PC.
Disconnect: Disconnect with the FTP server.
58
8200 Series Mobile Computer Reference Manual
3.11.5 PAIRING TEST
The pairing procedure is for the creation and exchange of a link key between two
Bluetooth-enabled devices. The devices use the link key for future authentication when
exchanging information.
1) The Terminal will start with making an inquiry so that the system can generate a list
of device(s) that has been discovered nearby.
2) Select a desired target device.
For the device name, it can only display a maximum length of 11 characters. When
the device name is too long, it will be truncated automatically.
3) Select a Bluetooth service from the “Target Machine” menu. To stop and exit the test,
press [ESC].
After pairing successfully, the target device will be added to the Frequent Devices list
for quick connection in the future.
Note: For the initial use of Bluetooth networking, the pairing procedure must be done
before the Echo tests.
59
Chapter 3 System Menu
3.11.6 FREQUENT DEVICES
Here is a list of devices that the Terminal has been connected to lately. After each
successful pairing, the system will update it.
This list can show information of one device that provides any of the following services:
Serial Port (SPP)
Dial-Up Networking (DUN)
Human Interface Device (HID)
FTP Server (FTP)
For the device name, it can only display a maximum length of 11 characters. When the
device name is too long, it will be truncated automatically.
Note: To unpair any device, simply delete the device from this list.
60
8200 Series Mobile Computer Reference Manual
3.12 WI-FI MENU
This submenu accesses the settings of 802.11b/g/n wireless networking. You must
configure these parameters correctly to be able to make the connection.
Note: The menu is available only when the Wi-Fi module is present.
Wi-Fi Settings Default Value Ad-hoc Infrastructure
Network Setting Items Need to Be Checked
DHCP
SubNet Mask
Local IP Address
Default Gateway
DNS Server
Domain Name
Enable
255.255.128.0
0.0.0.0
0.0.0.0
0.0.0.0
---
---
v
v
---
---
---
v
v
v
v
v
v
WLAN Setting
Local Name
SS ID
System Scale
Power Saving
Preamble
Ad-Hoc
Fixed BSSID
Model no. + Serial no.
---
Medium
Enable
Long
Disable
000000000000
v
---
---
---
---
v
---
v
v
v
v
v
---
v
Security
Authentication
WEP Menu
EAP Menu
WPA Menu
Open System
Disable
Disable
Disable
---
---
---
---
v
v
v
v
61
Chapter 3 System Menu
3.12.1 INFORMATION
Information of network configuration can be viewed here.
Wi-Fi Menu | 1. Information
Lib Kernel version
All user libraries reside in Kernel; no external libraries are required.
Ver Firmware version of the Wi-Fi module
MAC MAC address of the Wi-Fi module
IAM A name given to the Terminal for identification.
By default, it is made up of model number and the serial number.
(Identical to 3. WLAN Setting | 1. Local Name)
DHCP DHCP server in use or not
IP IP address of the Terminal
Mask Subnet Mask
Gate Default Gateway
62
8200 Series Mobile Computer Reference Manual
3.12.2 NETWORK SETTING
Set parameters for IP networking.
DHCP
Options — Enable or Disable
Subnet Mask
Enter a new Mask IP, if necessary.
Local IP Address
Enter a new address for the Terminal, if necessary.
Default Gateway
Enter a new address for the default Gateway, if necessary.
DNS Server
Enter a new address for the DNS server, if necessary.
Domain Name
The domain name of the host is displayed when DHCP server is enabled.
Note: Normally, DHCP is enabled and all of the settings can be obtained from the DHCP
server.
63
Chapter 3 System Menu
3.12.3 WLAN SETTING
Wireless networking can operate in two modes – (1) Ad-hoc mode: peer-to-peer, and (2)
Infrastructure mode: point to multi-point through access points.
Set the following parameters.
Local Name
Enter a name for identifying the Terminal.
By default, it is made up of model number and the serial number.
SS ID
This refers to Service Set Identifier or AP name, which is used for remote device association.
The Terminal can ONLY communicate with access points that have the same SS ID.
Roaming Setting
This refers to Access Point Density.
System Scale options — [1] Low [2] Medium [3] High [4] Custom –Tx Rate [5] Custom -Rssi
The value you set must match that set for the access point.
“Low / Medium / High” means the Terminal will search for other APs only when data
transmission rate drops below “1 / 2 / 5” Mbps individually.
“Custom –Tx Rate” lets you set data rate for the Terminal to search for other APs when data
transmission rate drops below the specified value —
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 1, 2, 5.5, 11 Mbps & 6, 9, 12, 18, 24, 36, 48, 54 Mbps
“Custom –Rssi” lets you set the conditions for the Terminal to search for other APs —
RSSI Threshold: options including -50, -55, -60, …, -85, -90 dBm. When the current AP signal
strength (RSSI) goes below the specified value, the Terminal starts to search for other APs.
RSSI Delta: options including 0, 5, 10, 15, and 20. Compare the signal strength between the
current AP and the new one. If the signal differential between them is equal to or higher than
the specified value, the Terminal will connect to the new AP.
Roaming Period options — 3 ~ 10 seconds
64
8200 Series Mobile Computer Reference Manual
Power Saving
This refers to the low power consumption mode.
Options — Enable or Disable
The value you set must match that set for the access point.
Preamble
Options — [1] Long [2] Short [3] Both
The value you set must match that set for the access point.
Ad-Hoc
This refers to peer-to-peer mode, without going through access points.
Options — Enable or Disable
Fixed BSSID
This refers to the use of a specific AP’s MAC address as the fixed Basic Service Set Identifier.
The Terminal can ONLY communicate with this one and only access point.
Scan Setting
Specify the scan time period and channels.
Scan Time options — 60, 70, 80, 90, 100, 110 ms; and Disable or Enable “Double the time” (for
example, when scan time is set to 60 with Double the time enabled, the scan time period for each
channel will be 120 ms)
Scan Channel options — 1 ~ 14 channel (multiple selection)
65
Chapter 3 System Menu
3.12.4 SECURITY
Set or modify security parameters.
WEP: Wired Equivalent Privacy
EAP: Extensible Authentication Protocol
WPA: Wi-Fi Protected Access
Authentication
[1] Open System
[0] Share Key
Default authentication type
This requires implementing WEP key.
WEP Menu
WEP Setting Enable (For Share Key, it must be enabled!)
Disable (default)
WEP Key Length 64 bits
128 bits (default)
Default Key WEP KEY1
WEP Key Enter WEP Keys 1 ~ 4 in one of the following input data type:
ASCII (up to 13 characters)
Hexadecimal (up to 26 characters)
EAP Menu (for associating to Cisco access points)
EAP Setting Enable
Disable (default)
EAP ID Enter a user name (up to 32 characters)
EAP Password Enter a password (up to 32 characters)
WPA Menu (WPA-PSK)
WPA Setting Enable
Disable (default)
WPA2 Setting Enable
Disable (default)
WPA Passphrase Enter a phrase as your password (8 ~ 63 characters)
66
8200 Series Mobile Computer Reference Manual
3.12.5 SCAN DEVICES
Select this command to launch the scanning for the Wi-Fi hotspots within range. The
Terminal will first produce a scanning screen and then a result screen that displays all the
WiFi hotspots discovered whether open or secured.
Select an entry on the result screen to see more details about it including the BSSID,
BSS Type, and the security framework it applies.
The screenshot below details the result screen:
Label Description Function
CH channel Delivers the channel (frequency range) in use by the network.
R rssi Delivers the “Received Signal Strength Indication”. See 3.12.7 Echo Tests to
know how signal strength is rated by numbers.
S security Delivers the security of the network. A secured network goes with an asterisk
sign (*) while an open network doesn’t.
T
he result screen
a secured network
channel
security
rssi, the “received signal strength indication
”
Select an entry to view more details about it.
67
Chapter 3 System Menu
3.12.6 PROFILE
Up to 4 profiles can be used to save Wi-Fi connection options.
68
8200 Series Mobile Computer Reference Manual
3.12.7 ECHO TESTS
This function is used to measure the coverage of the range, estimate the number of APs
and Terminals needed, and determine the topology of deploying APs.
Client Mode
Set the Terminal as a client. Enter the IP address of a server with which a connection is desired.
Then, it will try to connect to an AP.
1. Run the utility “EchoTest.exe” on your computer. Associated settings include
- Select “TCP/IP – Server” for interface.
- Set Action Mode to “Passive”.
2. Start the echo test on both ends.
3. Enter the server IP and port number on the Terminal.
Server Mode
Set the Terminal as a server. The Terminal will try to connect to an AP.
1. Run the utility “EchoTest.exe” on your computer. Associated settings include
- Select “TCP/IP – Client” for interface.
- Set Action Mode to “Passive”.
2. Start the echo test on both ends.
While running echo tests, if WPA setting is enabled for security, the SSID and Passphrase
will be processed to generate a pre-share key.
Note: If you change the SSID or Passphrase, it will have to re-generate a pre-share key.
69
Chapter 3 System Menu
1) For initial association with an access point, you will see an antenna icon developing
on the screen to indicate that the Terminal is processing a pre-share key.
2) After having generated the pre-share key, the Terminal proceeds to establish a
connection with an access point, and you will see the whole antenna is flashing.
3) When the Terminal has been connected to the access point successfully, you will see
the whole antenna and the indication of wireless signal strength.
Note: If you are programming in C or BASIC, be aware that the antenna icon will appear
on the device screen after NetInit() or START TCPIP() is called. (WPA must be
enabled first!)
The changing icon indicates
8200 is processing a pre-share key.
Wait for a few seconds.
The antenna icon will become ready and
flashes to indicate 8200 is connecting
to an access point under the same SSID.
Once connected, the antenna icon will
stop flashing. Next to the icon, the
more bars, the stronger the signal.
70
8200 Series Mobile Computer Reference Manual
Once the connection of echo test is established, the details will be displayed as illustrated
below.
SNR (dB) T RSS (-dBm) NF (-dBm)
(Signal to Noise ratio)
(Transmit Speed) (Received Signal
Strength Level)
(Noise Floor Level)
0 ~ 10
10 ~ 20
20 ~ 30
30 ~ 40
over 40
Very Poor
Poor
Fair
Good
Very
Good
1
2
5.5
11
6
9
12
18
24
36
48
54
Mbps
Mbps
Mbps
Mbps
Mbps
Mbps
Mbps
Mbps
Mbps
Mbps
Mbps
Mbps
0 ~ 60
60 ~ 75
over 75
Strong
Moderate
Weak
0 ~ 92
92 ~ 98
over 98
Strong
Moderate
Weak
71
This chapter explains Program Manager and Kernel that manage multiple programs
and firmware upgrade.
IN THIS CHAPTER
4.1 Program Manager ...................................................... 71
4.2 Kernel ...................................................................... 76
4.1 PROGRAM MANAGER
The Terminal supports multiple applications and languages. In the menu of Program
Manager, it allows storing up to six programs and has one activated for the current use.
If there is no application program exists, Program Manager will be displayed after you
turn on the Terminal.
Warning! Program Manager is provided for managing programs in an administrative
level.
How to access Program Manager?
1) Turn off the Terminal.
2) Press [8] + [Power].
Chapter 4
PROGRAM MANAGER & KERNEL
72
8200 Series Mobile Computer Reference Manual
4.1.1 DOWNLOAD
Here provides a full list of programs that are currently stored on the Terminal with size
information. Multiple application programs can be downloaded through a variety of
interfaces. Upon completion of downloading, you are allowed to input a name for the
program. If there is no need to rename the program, simply press [ENTER] to leave as it
is.
The length of program name can be up to 12 characters. Program size is in kilobytes.
A suffix letter after the memory sector (1 ~ 6) indicates the file type of program.
“b” for BASIC program (.SYN)
“c” for C program (.SHX)
The last line starting with a prefix letter “f” is reserved to display the font file (.SHX) in
use on the Terminal.
Note: For a custom font file (.SHX) or a BASIC program (.SYN), it can only be
downloaded via System Menu.
73
Chapter 4
Program Manager & Kernel
SPARE MEMORY SECTORS (1 ~ 6)
Additional program files can be directly downloaded to these sectors.
Download a program file to an empty sector:
1. Press the arrow keys [Up] and [Down] to select an empty sector, and then press [ENTER].
2. Select a desired interface for downloading.
3. Connect the interface cable if required, and wait for a few seconds to establish a connection…
4. To abort the action, press [ESC]. Then press [ESC] again to return to the menu.
Download a program file to an occupied sector:
If no available sectors, you'll have to replace one program with the new one.
1. Press the arrow keys [Up] and [Down] to select a program that you want to delete, and then
press [ENTER].
2. The program information is displayed on the screen.
Press the [Fn α] key to enter the Alpha mode:
Press the capital letter [C] and follow the steps below to download a program file.
Press the capital letter [D] if you simply want to delete the program.
3. Select a desired interface for downloading.
4. Connect the interface cable if required, and wait for a few seconds to establish a connection…
5. To abort the action, press [ESC]. Then press [ESC] again to return to the menu.
From the menu, you'll see the program has been deleted but no new program is present
(because you have canceled the download action).
ACTIVE MEMORY SECTOR (“ACT”)
Only the application program, which needs to be activated immediately, can be
downloaded to the active memory sector.
Download to Memory Sector “ACT”:
1. Press the arrow key [Down] to select the memory sector “ACT” (may be unoccupied), and then
press [ENTER].
2. Select a desired interface for downloading.
3. Connect the interface cable if required, and wait for a few seconds to establish a connection…
If the active memory sector has already been occupied by an application program, the newly
downloaded program will replace the currently active program and come into effect
immediately.
74
8200 Series Mobile Computer Reference Manual
4.1.2 ACTIVATE
The list shows the entire spare programs stored on the Terminal. From the list, you can
select from the memory sector (1 ~ 6) or SD card. The selected program will be copied
to the active memory sector and replace the current one.
Note: A font file cannot be activated.
TO CLEAR FILE SYSTEM
When <New Program Start> screen appears, “Press [ESC] to clear file” means the file
system in the SRAM will be cleared out by pressing [ESC]. Then there will be no data
(transactions, settings, etc.) stored on the Terminal when the new program comes into
effect.
TO KEEP FILE SYSTEM
To keep the data, simply press any other key.
75
Chapter 4
Program Manager & Kernel
4.1.3 UPLOAD
You may duplicate one or all of the programs from the Terminal to a host computer or
another Terminal. This can be used to clone software on Terminals.
Note: To clone all of the programs, the target Terminal cannot have any other program
downloaded except the active one; that is, Memory Sectors 1 ~ 6 must be empty!
The procedures are similar to that for downloading programs.
If the target is “Terminal”, the interface options “USB Virtual COM”, “SD Card” and
“USB Virtual COM_CDC” are unavailable.
If the target is “PC”, the interface option “SD Card” is unavailable.
This screen is not available if you select
“2.All Programs” from the previous screen.
76
8200 Series Mobile Computer Reference Manual
4.2 KERNEL
The kernel resides in the innermost core of the system. It has the highest security and is
always protected by the system. When the application program is corrupted and System
Menu fails at the same time, Kernel Menu provides an access to fix the system.
Warning! Kernel Menu is NOT for the use of any end users.
How to access Kernel Menu?
1) When the last session is in System Menu or Program Manager, simply turn off the
Terminal. Otherwise, you must reload the battery pack.
2) Press [1] + [7] + [Power].
77
Chapter 4
Program Manager & Kernel
4.2.1 KERNEL INFORMATION
Here provides important system information to help diagnose the system.
Kernel Menu | 1. Information
H/W Hardware version
S/N Serial number of the Terminal
M/D Manufacturing date
BL Bootloader version
KNL Kernel version
DEV 4-digit code for optional hardware configurations
Refer to Understanding Device Code.
78
8200 Series Mobile Computer Reference Manual
4.2.2 KERNEL UPDATE
The kernel and bootloader might need to be updated to improve performance or due to
other considerations. Refer to Appendix I 錯誤! 找不到參照來源。.
To download a kernel (K8200.shx) or bootloader (BL8200.shx) update, the procedure
is the same as that for downloading a program.
Any attempt to download an older version of bootloader will be rejected.
The system will restart itself right after downloading.
Warning: Do not turn off the Terminal while downloading a kernel update or
re-starting the Terminal. Otherwise, it will crash the kernel forever.
Note: The Terminal will stay in download mode for approximately 30 seconds.
.SHX Program Download one of the following firmware files:
Firmware File Kernel update: K8200.shx
Bootloader update: BL8200.shx
SETTINGS
Interface
Options Description
USB VCOM Connect the USB cable between your computer and the Terminal.
Bluetooth Approach the target Bluetooth enabled device.
SD Card This option is available only when the memory card is present.
USB VCOM_CDC This option is available only when USB Virtual COM_CDC is in use.
Baud Rate
Available baud rate options: 115200/57600/38400/19200/9600 bps
79
Chapter 4
Program Manager & Kernel
KERNEL UPDATE VIA BLUETOOTH
1) Go to Kernel Menu | 4. System Menu | 8. Next Page | 5. Bluetooth Menu | 3.
Security, and configure the following Bluetooth settings first.
Authentication
PIN code
2) Go to Kernel Menu | 2. Kernel Update and select Bluetooth.
3) Start the pairing procedure from your computer, for example, click [Pair Device]
and/or [Connect Bluetooth Serial Port].
4) Run the download utility: ProgLoad.exe
- Select interface RS-232 for using Bluetooth SPP.
- Select COM port properties that match with the serial port settings used on your
computer.
KERNEL UPDATE VIA SD CARD
1) If you have copied the desired program file(s) to your SD card, go to Kernel Menu |
2. Kernel Update and select SD Card. You will see a list of all the files under the
directory “\Program”, as shown above.
2) Press the arrow keys [Up] and [Down] to select a file.
3) Press [ENTER] to view information of the program file.
4) Press [ENTER] to confirm downloading the program file to the Terminal.
Press [ESC] to abort the download task.
Press the arrow keys to select a file. Then, press
[ENTER] to view information of the program file.
80
8200 Series Mobile Computer Reference Manual
4.2.3 BURN-IN TEST
This tool is provided for manufacturing use.
Warning! You should not perform this test.
4.2.4 SYSTEM MENU
Refer to System Menu for details. This submenu is the same as System Menu for
system configuration.
81
Model Designation 8200 8231 8260
Wireless
Communications Bluetooth 2.1+EDR
/ BLE dual mode,
Class 2
− √ −
Bluetooth
2.1+EDR, Class 2
− − √
802.11b/g/n − √ −
Readers Barcode Reader CCD (linear imager)
Standard Laser
2D Imager
Electrical
Characteristics Main Battery Rechargeable Li-ion battery – 3.7 V, 1200 mAh
Working Time Laser, one scan per 5 seconds, without backlight:
124 hours in batch mode
40 hours in Bluetooth mode (8260 in power
saving mode)
20 hours in Wi-Fi mode (1 broadcast packet per
second)
Backup Battery Rechargeable Lithium button cell – 3.7 V, 1200
mAh
Data retention – at least 25 days
Power Adaptor Input: AC 100~240 V, 50/60 Hz
Output: DC 5 V, 3 A
Operating Temperature: 0 °C to 40 °C
Physical
Characteristics CPU 32-bit Toshiba CMOS type, 60 MHz
Memory Program memory – 8 MB flash
Data memory – onboard SRAM, options include 4
or 8 MB
Display Graphic LCD, 160 x 160 pixels, FSTN with LED
backlight programmable
Font size 6x8: 26 characters by 18 lines
Font size 8x16: 20 characters by 9 lines
Font size 12x12: 13 characters by 12 lines
Font size 16x16: 10 characters by 9 lines
Keypad 24 rubber keys, LED backlight programmable
Indicators Two dual-color LEDs – red/green and blue/green,
programmable
Vibrator 0.45G, programmable
SPECIFICATIONS
82
8200 Series Mobile Computer Reference Manual
Audio Integrated with one mono or stereo speaker
Expansion Slot microSDHC supported
Enclosure Material Rubber & ABS plastic
Dimensions CCD:
Laser/2D:
136 mm (L) 58 mm (W) 25 mm (H)
136 mm (L) 58 mm (W) 32 mm (H)
Weight Approx. 150 g (Laser, battery included)
Environmental
Characteristics Temperature Operating:
Storage:
-10 °C to 55 °C
-20 °C to 70 °C
Humidity Operating:
Storage:
10% to 90% non-condensing
5% to 95% non-condensing
Impact Resistance 1.2 m, 5 drops per 6 sides
Tumble Test 1000 times at 1 meter
Splash / Dust
Resistance
IP 52
Electrostatic
Discharge
± 15 kV air discharge, ± 8 kV contact discharge
Programming Development Tools
C and BASIC
Software & Utilities
FORGE Application Generator (AG), AG utilities;
MIRROR Emulator (CipherNet) for VT100/220, IBM
5250 emulation;
Download utilities, testing tools, etc.
Accessories Pistol Grip
Spare rechargeable battery pack
83
