Cisco Linksys WSB24-2 Wireless Signal Booster User Manual Manual

Cisco-Linksys, LLC Wireless Signal Booster Manual

Manual

WWW. LINKS YS . C O M

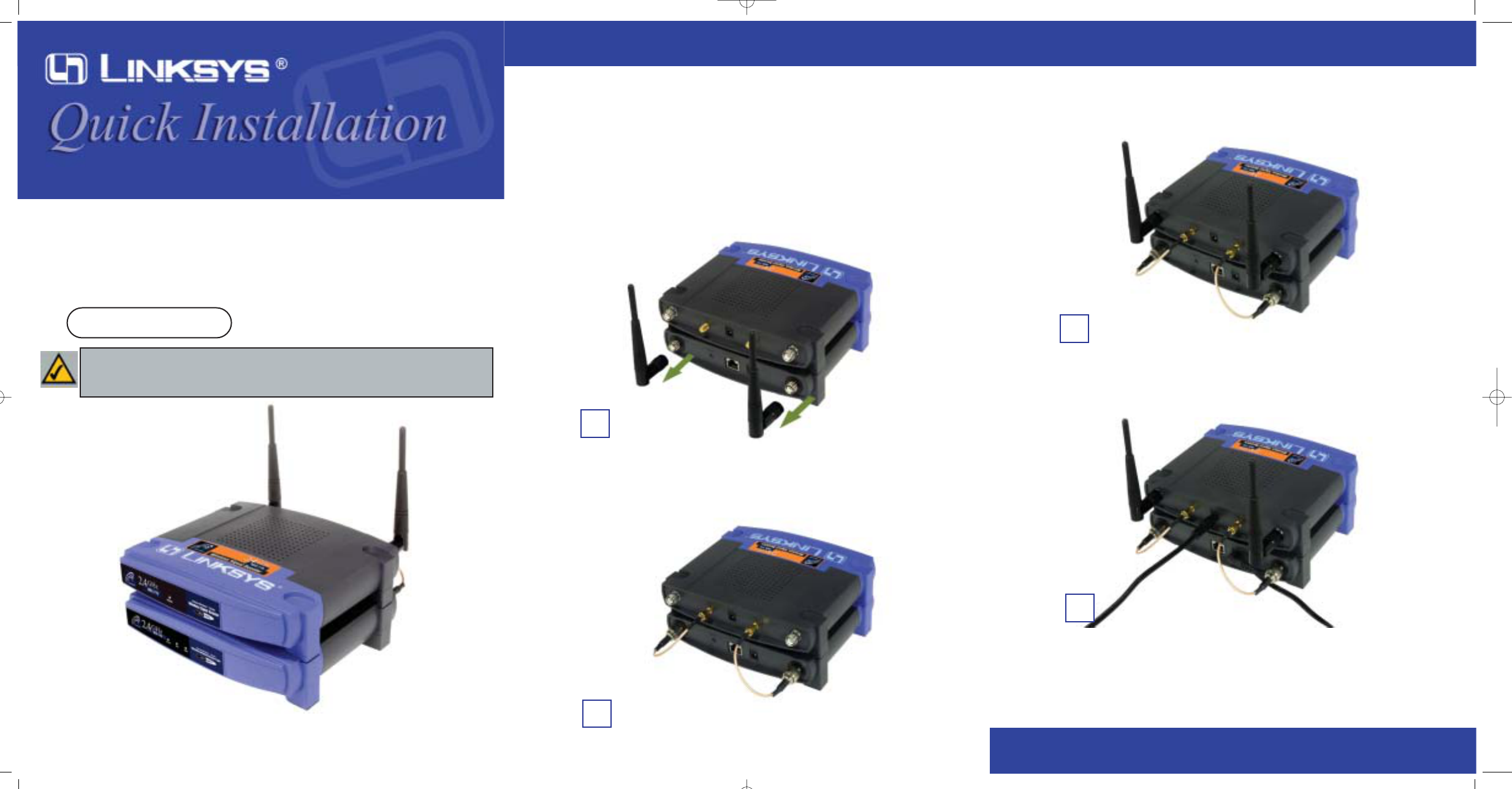

A. With your Access Point/Router powered off, place the Wireless Signal
Booster on top of the Access Point/Router.
B. Disconnect the Access Point’s/Router’s antennas.
C. Connect the Signal Booster Cables from the Access Point’s/Router’s anten-
na ports to the Wireless Signal Booster’s cable ports.
D. Connect the antennas to the Wireless Signal Booster’s antenna ports.
E. Connect the appropriate power adapters to both the Access Point/Router
and Wireless Signal Booster.
F. Now you are ready to use the Wireless Signal Booster in your wireless
network.
Connecting the Wireless Signal Booster to
Your Linksys Access Point/Router
QI-WSB24-10/25/02NC BW
B
Minimum Requirements
• One of the following Linksys products:
Wireless Access Point, WAP11
Wireless Router, BEFW11S4
Package Contents
• One Linksys Wireless Signal Booster
Two Signal Booster Cables
One Power Adapter
One Quick Installation guide
Wireless Signal
Booster
Instant Wireless®
WSB24
The Wireless Signal Booster with Access Point C
D
E
Note: The images in this document show the Wireless Signal Booster being con-
nected to an Access Point; the same directions can be followed when connecting the
Wireless Signal Booster to a wireless Router.
wsb24 quick install-1.qxd 2002/12/11 ¤U¤È 01:14 Page 1
COPYRIGHT & TRADEMARKS
Copyright c 2002 Linksys, All Rights Reserved. All other trademarks and brand
names are the property of their respective proprietors.
LIMITED WARRANTY
Linksys guarantees that every Wireless Signal Booster WSB24 is free from physical
defects in material and workmanship under normal use for one years from the date
of purchase. If the product proves defective during this warranty period, call Linksys
Customer Support in order to obtain a Return Authorization Number. BE SURE TO
HAVE YOUR PROOF OF PURCHASE ON HAND WHEN CALLING. RETURN
REQUESTS CANNOT BE PROCESSED WITHOUT PROOF OF PURCHASE.
When returning a product, mark the Return Authorization Number clearly on the out-
side of the package and include a copy of your original proof of purchase. All cus-
tomers outside of the United States of America and Canada shall be held responsi-
ble for shipping and handling charges.
IN NO EVENT SHALL LINKSYS’ LIABILITY EXCEED THE PRICE PAID FOR THE
PRODUCT FROM DEFECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSE-
QUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT, ITS
ACCOMPANYING SOFTWARE, OR ITS DOCUMENTATION. LINKSYS DOES NOT
ISSUE REFUNDS. WARRANTY DOES NOT COVER NATURAL DISASTERS OR
ACTS OF NATURE.
Linksys makes no warranty or representation, expressed, implied, or statutory, with
respect to its products or the contents use of this documentation and all accompany-
ing software, and specially disclaims its quality, performance, merchantability, or fit-
ness for any particular purpose. Linksys reserves the right to revise or update its
products, software, or documentation without obligation to notify any individual or
entity. Please direct all inquiries to :
Linksys P.O.Box 18558, Irvine, CA 92623
CAUTION : ANY CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED
IN THIS MANUAL COULD VOID YOUR AUTHORIZATION TO USE
THIS DEVICE.
This device should be operated at least 2.0m away from any person
FCC STATEMENT
The Wireless Signal Booster WSB24 has been tested and found to comply with the
limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in a resi-
dential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interfer-
ence to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interfer-
ence to radio or television reception, which can be determined by turning the equip-
ment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
—-Reorient or relocate the receiving antenna.
—-Increase the separation between the equipment and receiver.
—-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
—-Consult the dealer or an experienced radio/TV technician for help.
Regulatory information / Disclaimers
Installation and use of this Wireless LAN device must be in strict accordance with
the instructions included in the user documentation provided with the product. Any
changes or modifications (including the antennas) made to this device that are not
expressly approved by the manufacturer may void the user’s authority to operate
the equipment. The manufacturer is not responsible for any radio or television inter-
ference caused by unauthorized modification of this device, or the substitution of the
connecting cables and equipment other than manufacturer specified. It is the respon-
sibility of the user to correct any interference caused by such unauthorized modifica-
tion, substitution or attachment. Manufacturer and its authorized resellers or distribu-
tors will assume no liability for any damage or violation of government regulations
arising from failing to comply with these guidelines.
CAUTION: To maintain compliance with FCC’sRF exposure guidelines, this
equipment should be installed and operated with minimum distance
20cm between the radiator and your body. Use on the supplied
antenna. Unauthorized antenna, modification, or attachments could
damage the transmitter and may violate FCC regulations.
MPE Statement (Safety Information)
Your device contains a low power transmitter. When device is transmitted it sends
out Radio Frequency (RF) signal.
Safety Information
In order to maintain compliance with the FCC RF exposure guidelines, this equip-
ment should be installed and operated with minimum distance 20cm between the
radiator and your body.
Use only with supplied antenna. Unauthorized antenna, modification, or attachments
could damage the transmitter and may violate FCC regulations.
Caution Statement of the FCC Radio Frequency
Exposure
This Wireless LAN radio device has been evaluated under FCC Bulletin OET 65C
and found compliant to the requirements as set forth in CFR 47 Sections 2.1091,
2.1093, and 15.247(b)(4) addressing RF Exposure from radio frequency devices.
The radiation output power of this Wireless LAN device is far below the FCC radio
frequency exposure limits. Nevertheless, this device shall be used in such a manner
that the potential for human contact during normal operation-as a mobile or portable
device but use in a body-worn way is strictly prohibit. When using this device, a cer-
tain separation distance between antenna and nearby persons has to be kept to
ensure RF exposure compliance. In order to comply with the RF exposure limits
established in the ANSI C95.1 standards, the distance between the antennas and
the user should not be less than 20cm.
Contact Information
For help with the installation or operation of this product, contact Linksys
Technical Support at one of the phone numbers or Internet addresses below.
Sales Information 800-546-5797 (LINKSYS)
Technical Support 888-326-7114
RMA Issues 949-261-1288
Fax 949-261-8868
Email support@linksys.com
Web http://www.linksys.com
FTP Site ftp.linksys.com
wsb24 quick install-1.qxd 2002/12/11 ¤U¤È 01:14 Page 2
WSB24 - color sleeve size A:
286mm W x 243mm H x 66mm D)
(11.25” W x 9.569” H x 2.613” D)
Made In Taiwan
Instant Wireless
Series
Model No. WSB24
Instant Wireless
Series
Model No. WSB24
Instant Wirel
ess
Series
Model No. WSB24
Instant Wireless
Series
Model No.
WSB24
Instant Wireless
Series
Model No. WSB24
Linksys is a Registered Trademark of The Linksys Group,
Inc. Other brands and product names are trademarks or
registered trademarks of their respective holders.
Copyright © 2002 Linksys. All rights reserved.
• Increases the effective range of your
Linksys 802.11b Access Point or
Wireless Router
• Stronger signal improves throughput
by reducing retransmissions
• Save on wiring costs—increase your
wireless coverage into hard-to-reach
areas
• Simple installation—stack, connect,
and go
Specifications
Model Number
• WSB24
Standards
• IEEE 802.11b
Peak Gain
• +14 dBm
Receiver Gain
• +20 dBm (nomial)
TX input power
• +5 dBm (min) -
+20dBm (max)
Connectors
• Two RP SMA and Two RP
TNC
LEDs
• Power: Green when power
is applied to device
Dimensions (W x H x D)
• 7.31" x 1.88" x 6.88”
(186 mm x 48 mm x 175 mm)
Warranty
• 1-Year Limited
Broadband & Wireless Networking
Broadband & Wireless Networking
Broadband & Wireless Networking
Wireless
Signal Booster
Wireless
Signal Booster
Broadband & Wireless Networking
Increase the range of your Wireless LAN!
Rev. NC - posted on ftp 10/25/02:
New sku per Frank Lin
PM sign:__ ___
Frank Lin
Linksys
World Headquarters:
17401 Armstrong Ave.
Irvine, CA 92614 USA
World Wide Web http://www.linksys.com
Email sales@linksys.com
support@linksys.com
Linksys products are available in more than
50 countries, supported by 12 Linksys Regional
Offices throughout the world. For a complete list
of local Linksys Sales and Technical Support
contacts, please visit our Worldwide Web Site at
www.linksys.com
Wireless
Signal Booster
Wireless
Signal Booster
Wireless
Signal Booster
Wireless
Signal Booster
Wireless
Signal Booster
Wireless
Signal Booster
Wireless
Signal Booster
Wireless
Signal Booster
GHz
802.11b
2.4
Data Rate: 11Mbps
