Antenna Data Sheets

Corporate Headquarters:

Cisco Systems, Inc., 170 West Tasman Drive, San Jose, CA 95134-1706 USA

CiscoAironet3.5-dBiArticulatedDipoleAntenna

(AIR-ANT5135D-R)

This document outlines the specifications and describes the Cisco Aironet 3.5-dBi Articulated Dipole

Antenna. The antenna operates in the 5-GHz frequency band and is designed for use with Cisco Aironet

5-GHz radio products using a reverse-polarity Neil Councilman connector (RP-TNC).

The following information is provided in this document.

•Technical Specifications, page 2

•System Requirements, page 3

•Documentation Feedback, page 4

•Obtaining Technical Assistance, page 4

•Obtaining Additional Publications and Information, page 6

Cisco Aironet 3.5-dBi Articulated Dipole Antenna (AIR-ANT5135D-R) 78-16570-01

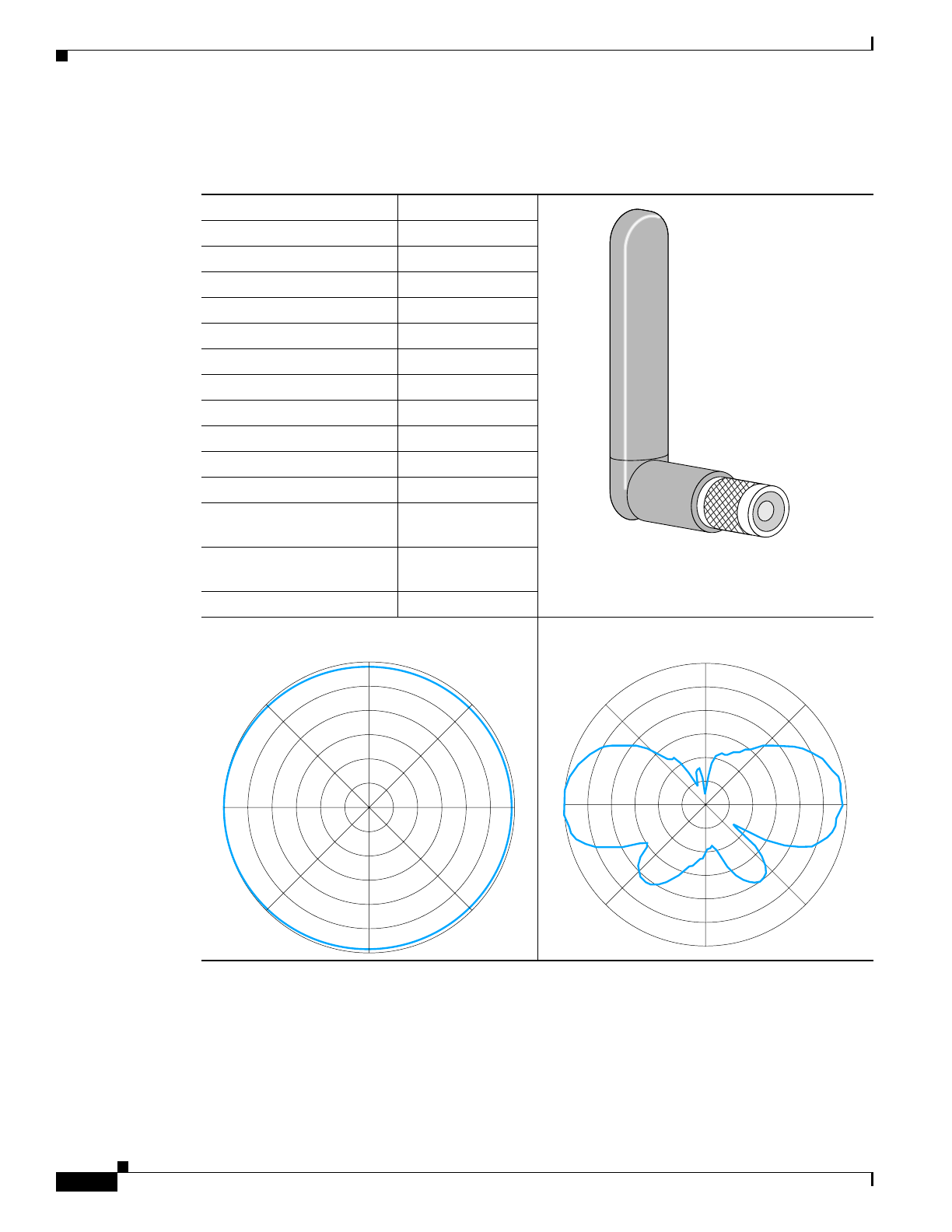

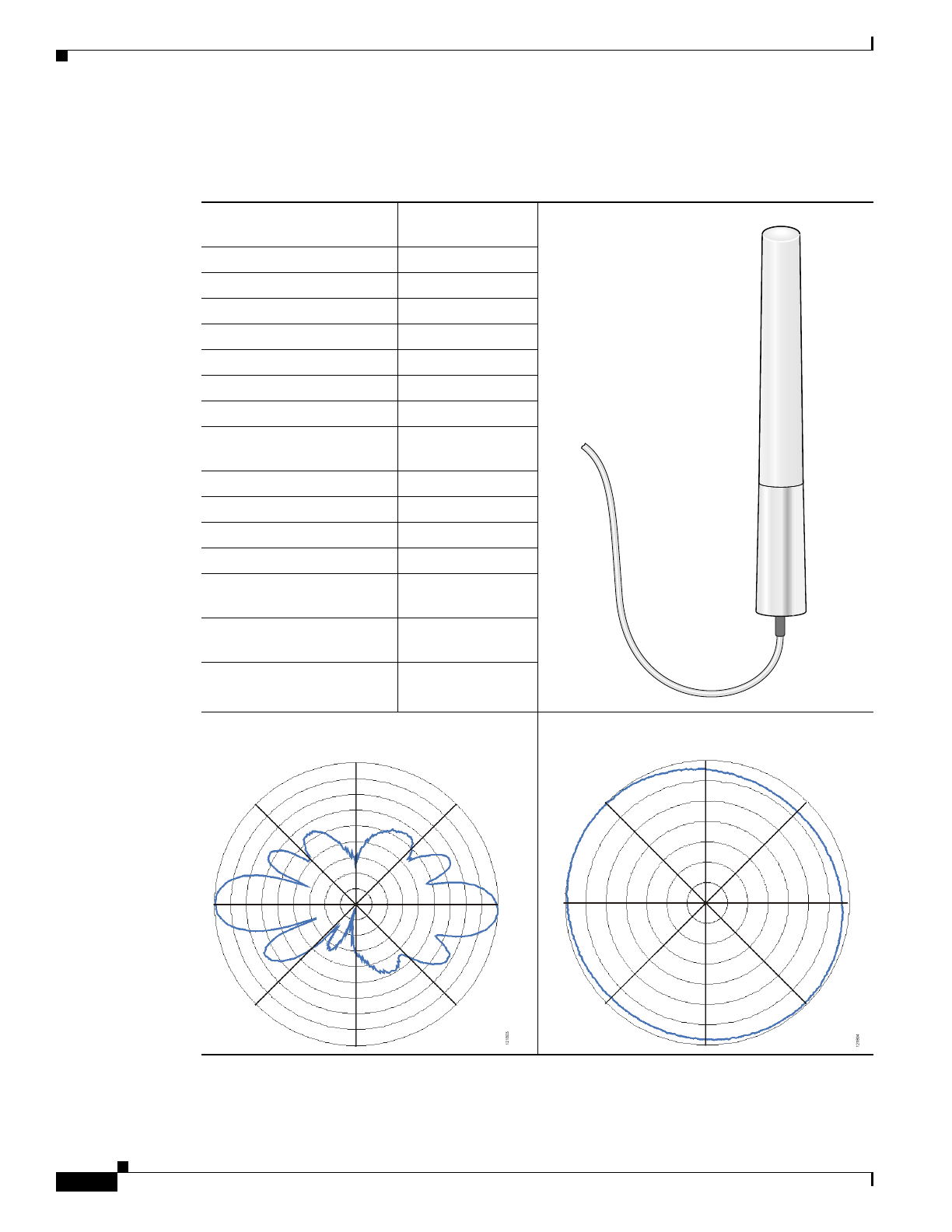

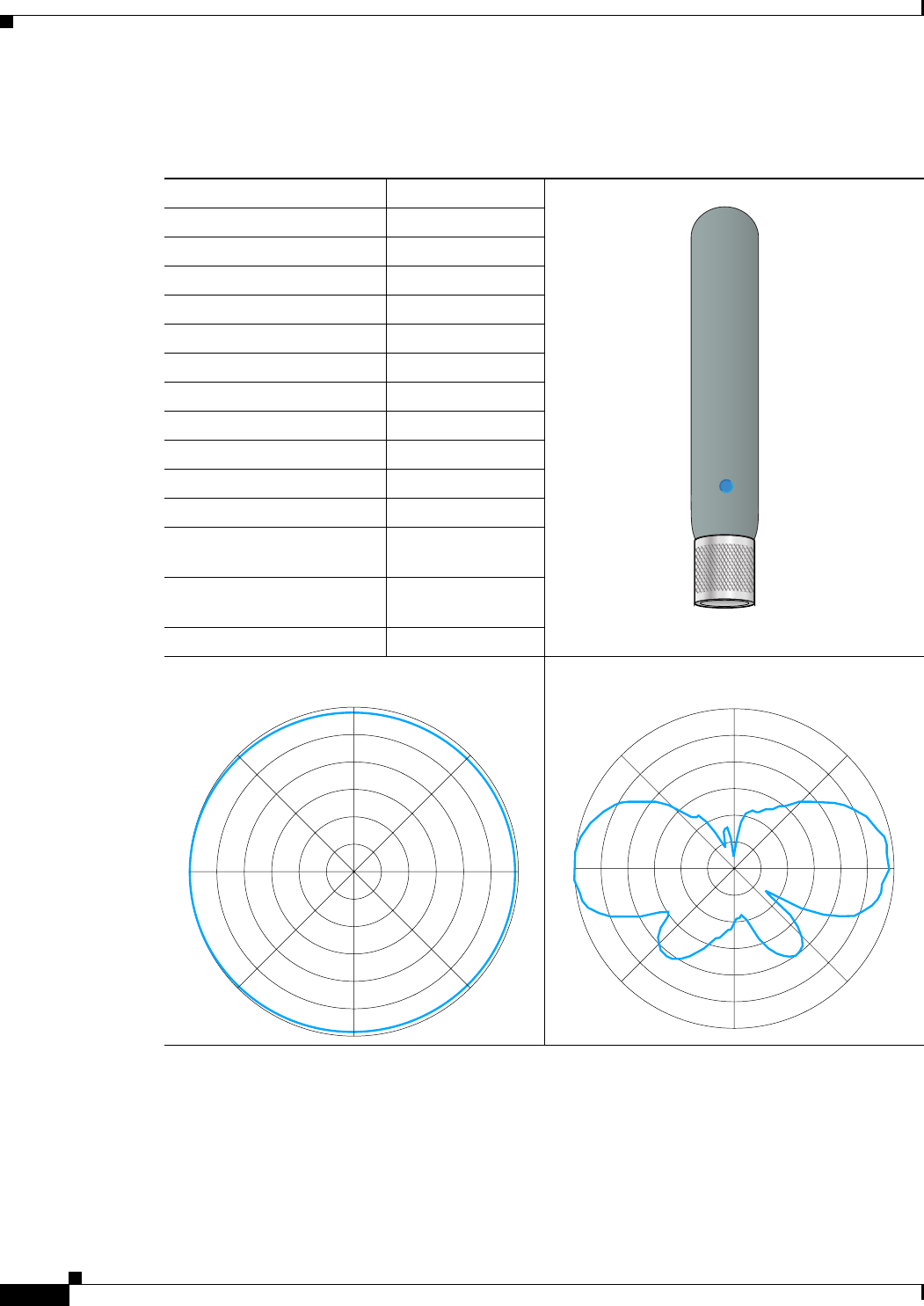

Technical Specifications

Antenna type Dipole

Operating frequency range 5150 – 5850 MHz

Nominal input impedance 50Ω

2:1 VSWR bandwidth 5150 – 5850 MHz

Gain 3.5 dBi

Polarization Linear, vertical

E-plane 3-dB beamwidth 40 degrees

H-plane 3-dB beamwidth Omnidirectional

Connector type RP-TNC plug

Length 5.3 in. (13.4 cm)

Radome length 3.4 in. (8.6 cm)

Width 0.62 in. (1.5 cm)

Operating temperature –22 F– 158 F(–30 C

– 70 C)

Storage temperature –40 F– 185 F(–40 C

– 85 C)

Environment Indoor, office

H-Plane Pattern E-Plane Pattern

121667

122293

122292

Cisco Aironet 3.5-dBi Articulated Dipole Antenna (AIR-ANT5135D-R)

78-16570-01

System Requirements

This antenna is designed for use with Cisco Aironet access points and bridges but can be used with any

5-GHz Cisco Aironet radio device that uses RP-TNC connectors.

Features

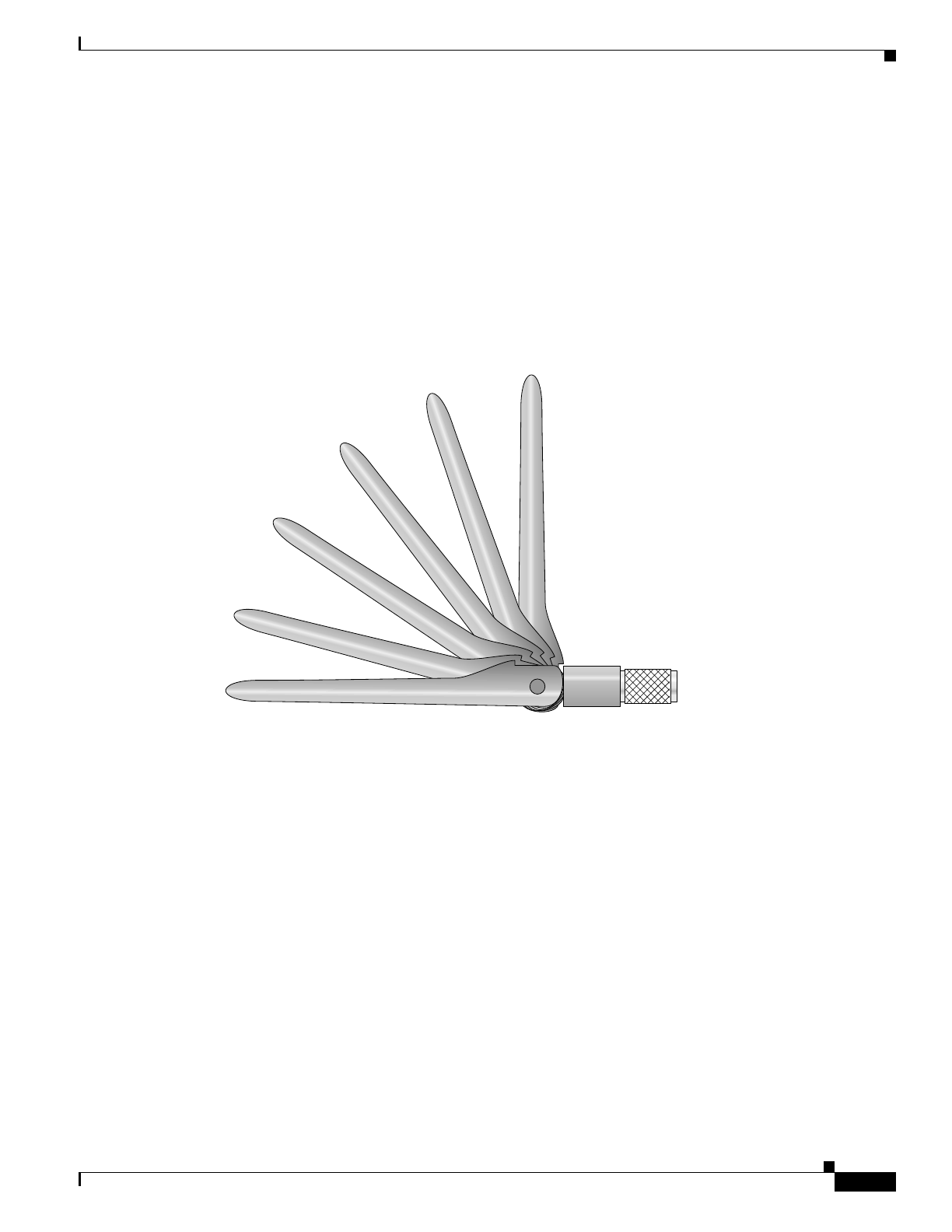

The antenna has an articulated base that can be rotated 360 degrees at the connection point and from 0

to 90 degrees at its knuckle with detents at 45 and 90 degrees. The articulated base is shown in the

following illustration.

Obtaining Documentation

Cisco provides several ways to obtain documentation, technical assistance, and other technical

resources. These sections explain how to obtain technical information from Cisco Systems.

Cisco.com

You can access the most current Cisco documentation on the World Wide Web at this URL:

http://www.cisco.com/univercd/home/home.htm

You can access the Cisco website at this URL:

http://www.cisco.com

International Cisco websites can be accessed from this URL:

http://www.cisco.com/public/countries_languages.shtml

121668

Cisco Aironet 3.5-dBi Articulated Dipole Antenna (AIR-ANT5135D-R) 78-16570-01

Documentation CD-ROM

Cisco documentation and additional literature are available in a Cisco Documentation CD-ROM

package, which may have shipped with your product. The Documentation CD-ROM is updated regularly

and may be more current than printed documentation. The CD-ROM package is available as a single unit

or through an annual or quarterly subscription.

Registered Cisco.com users can order a single Documentation CD-ROM (product number

DOC-CONDOCCD=) through the Cisco Ordering tool:

http://www.cisco.com/en/US/partner/ordering/ordering_place_order_ordering_tool_launch.html

All users can order annual or quarterly subscriptions through the online Subscription Store:

http://www.cisco.com/go/subscription

Click Subscriptions & Promotional Materials in the left navigation bar.

Ordering Documentation

You can find instructions for ordering documentation at this URL:

http://www.cisco.com/univercd/cc/td/doc/es_inpck/pdi.htm

You can order Cisco documentation in these ways:

•Registered Cisco.com users (Cisco direct customers) can order Cisco product documentation from

the Networking Products MarketPlace:

http://www.cisco.com/en/US/partner/ordering/index.shtml

•Nonregistered Cisco.com users can order documentation through a local account representative by

calling Cisco Systems Corporate Headquarters (California, USA) at 408 526-7208 or, elsewhere in

North America, by calling 800 553-NETS (6387).

Documentation Feedback

You can submit e-mail comments about technical documentation to bug-doc@cisco.com.

You can submit comments by using the response card (if present) behind the front cover of your

document or by writing to the following address:

Cisco Systems

Attn: Customer Document Ordering

170 West Tasman Drive

San Jose, CA 95134-9883

We appreciate your comments.

Obtaining Technical Assistance

For all customers, partners, resellers, and distributors who hold valid Cisco service contracts, the Cisco

Technical Assistance Center (TAC) provides 24-hour-a-day, award-winning technical support services,

online and over the phone. Cisco.com features the Cisco TAC website as an online starting point for

technical assistance. If you do not hold a valid Cisco service contract, please contact your reseller.

Cisco Aironet 3.5-dBi Articulated Dipole Antenna (AIR-ANT5135D-R)

78-16570-01

Cisco TAC Website

The Cisco TAC website provides online documents and tools for troubleshooting and resolving technical

issues with Cisco products and technologies. The Cisco TAC website is available 24 hours a day, 365

days a year. The Cisco TAC website is located at this URL:

http://www.cisco.com/tac

Accessing all the tools on the Cisco TAC website requires a Cisco.com user ID and password. If you

have a valid service contract but do not have a login ID or password, register at this URL:

http://tools.cisco.com/RPF/register/register.do

Opening a TAC Case

Using the online TAC Case Open Tool is the fastest way to open P3 and P4 cases. (P3 and P4 cases are

those in which your network is minimally impaired or for which you require product information.) After

you describe your situation, the TAC Case Open Tool automatically recommends resources for an

immediate solution. If your issue is not resolved using the recommended resources, your case will be

assigned to a Cisco TAC engineer. The online TAC Case Open Tool is located at this URL:

http://www.cisco.com/tac/caseopen

For P1 or P2 cases (P1 and P2 cases are those in which your production network is down or severely

degraded) or if you do not have Internet access, contact Cisco TAC by telephone. Cisco TAC engineers

are assigned immediately to P1 and P2 cases to help keep your business operations running smoothly.

To open a case by telephone, use one of the following numbers:

Asia-Pacific: +61 2 8446 7411 (Australia: 1 800 805 227)

EMEA: +32 2 704 55 55

USA: 1 800 553-2447

For a complete listing of Cisco TAC contacts, go to this URL:

http://www.cisco.com/warp/public/687/Directory/DirTAC.shtml

TAC Case Priority Definitions

To ensure that all cases are reported in a standard format, Cisco has established case priority definitions.

Priority 1 (P1)—Your network is “down” or there is a critical impact to your business operations. You

and Cisco will commit all necessary resources around the clock to resolve the situation.

Priority 2 (P2)—Operation of an existing network is severely degraded, or significant aspects of your

business operation are negatively affected by inadequate performance of Cisco products. You and Cisco

will commit full-time resources during normal business hours to resolve the situation.

Priority 3 (P3)—Operational performance of your network is impaired, but most business operations

remain functional. You and Cisco will commit resources during normal business hours to restore service

to satisfactory levels.

Priority 4 (P4)—You require information or assistance with Cisco product capabilities, installation, or

configuration. There is little or no effect on your business operations.

Cisco Aironet 3.5-dBi Articulated Dipole Antenna (AIR-ANT5135D-R) 78-16570-01

Obtaining Additional Publications and Information

Information about Cisco products, technologies, and network solutions is available from various online

and printed sources.

•The Cisco Product Catalog describes the networking products offered by Cisco Systems, as well as

ordering and customer support services. Access the Cisco Product Catalog at this URL:

http://www.cisco.com/en/US/products/products_catalog_links_launch.html

•Cisco Press publishes a wide range of general networking, training and certification titles. Both new

and experienced user will benefit from these publications. For current Cisco Press titles and other

information, go to Cisco Press online at this URL:

http://www.ciscopress.com

•Packet magazine is the Cisco quarterly publication that provides the latest networking trends,

technology breakthroughs, and Cisco products and solutions to help industry professionals get the

most from their networking investment. Included are networking deployment and troubleshooting

tips, configuration examples, customer case studies, tutorials and training, certification information,

and links to numerous in-depth online resources. You can access Packet magazine at this URL:

http://www.cisco.com/packet

•iQ Magazine is the Cisco bimonthly publication that delivers the latest information about Internet

business strategies for executives. You can access iQ Magazine at this URL:

http://www.cisco.com/go/iqmagazine

•Internet Protocol Journal is a quarterly journal published by Cisco Systems for engineering

professionals involved in designing, developing, and operating public and private internets and

intranets. You can access the Internet Protocol Journal at this URL:

http://www.cisco.com/en/US/about/ac123/ac147/about_cisco_the_internet_protocol_journal.html

•Training—Cisco offers world-class networking training. Current offerings in network training are

listed at this URL:

http://www.cisco.com/en/US/learning/index.html

CCSP, the Cisco Square Bridge logo, Cisco Unity, Follow Me Browsing, FormShare, and StackWise are trademarks of Cisco Systems, Inc.; Changing

the Way We Work, Live, Play, and Learn, and iQuick Study are service marks of Cisco Systems, Inc.; and Aironet, ASIST, BPX, Catalyst, CCDA, CCDP,

CCIE, CCIP, CCNA, CCNP, Cisco, the Cisco Certified Internetwork Expert logo, Cisco IOS, Cisco Press, Cisco Systems, Cisco Systems Capital, the

Cisco Systems logo, Empowering the Internet Generation, Enterprise/Solver, EtherChannel, EtherFast, EtherSwitch, Fast Step, GigaDrive, GigaStack,

HomeLink, Internet Quotient, IOS, IP/TV, iQ Expertise, the iQ logo, iQ Net Readiness Scorecard, LightStream, Linksys, MeetingPlace, MGX, the

Networkers logo, Networking Academy, Network Registrar, Packet, PIX, Post-Routing, Pre-Routing, ProConnect, RateMUX, Registrar, ScriptShare,

SlideCast, SMARTnet, StrataView Plus, SwitchProbe, TeleRouter, The Fastest Way to Increase Your Internet Quotient, TransPath, and VCO are

registered trademarks of Cisco Systems, Inc. and/or its affiliates in the United States and certain other countries.

All other trademarks mentioned in this document or Website are the property of their respective owners. The use of the word partner does not imply a

partnership relationship between Cisco and any other company. (0406R)

Corporate Headquarters:

Cisco Systems, Inc., 170 West Tasman Drive, San Jose, CA 95134-1706 USA

Cisco Aironet 3.5-dBi Dipole Antenna

(AIR-ANT5135DG-R)

This document outlines the specifications and describes the Cisco Aironet 3.5-dBi Dipole Antenna. The

antenna operates in the 5-GHz frequency band and is designed for use with Cisco Aironet 5-GHz radio

products using an RP-TNC connector.

Note This antenna is a fixed antenna. It does not have an articulating feature.

The following information is provided in this document.

•Technical Specifications, page 2

•System Requirements, page 3

•Obtaining Documentation, page 3

•Documentation Feedback, page 4

•Cisco Product Security Overview, page 4

•Obtaining Technical Assistance, page 5

•Obtaining Additional Publications and Information, page 7

Cisco Aironet 3.5-dBi Dipole Antenna (AIR-ANT5135DG-R)

78-17783-01

Technical Specifications

Antenna type Dipole

Operating frequency range 5150 – 5850 MHz

Nominal input impedance 50Ω

2:1 VSWR bandwidth 5150 – 5850 MHz

Gain 3.5 dBi

Polarization Linear, vertical

E-plane 3-dB beamwidth 40 degrees

H-plane 3-dB beamwidth Omnidirectional

Connector type RP-TNC plug

Length 5.3 in. (13.4 cm)

Radome length 3.4 in. (8.6 cm)

Width 0.62 in. (1.5 cm)

Operating temperature –22°F – 158°F

(–30°C – 70°C)

Storage temperature –40°F – 185°F

(–40°C – 85°C)

Environment Indoor, office

H-Plane Pattern E-Plane Pattern

170297

122293

122292

Cisco Aironet 3.5-dBi Dipole Antenna (AIR-ANT5135DG-R)

78-17783-01

System Requirements

This antenna is designed for use with Cisco Aironet access points and bridges but can be used with any

5-GHz Cisco Aironet radio device that uses RP-TNC connectors.

Features

The antenna has a small blue dot near its base. The blue dot identifies it as a 5-Ghz antenna.

Obtaining Documentation

Cisco documentation and additional literature are available on Cisco.com. Cisco also provides several

ways to obtain technical assistance and other technical resources. These sections explain how to obtain

technical information from Cisco Systems.

Cisco.com

You can access the most current Cisco documentation at this URL:

http://www.cisco.com/techsupport

You can access the Cisco website at this URL:

http://www.cisco.com

You can access international Cisco websites at this URL:

http://www.cisco.com/public/countries_languages.shtml

Product Documentation DVD

Cisco documentation and additional literature are available in the Product Documentation DVD package,

which may have shipped with your product. The Product Documentation DVD is updated regularly and

may be more current than printed documentation.

The Product Documentation DVD is a comprehensive library of technical product documentation on

portable media. The DVD enables you to access multiple versions of hardware and software installation,

configuration, and command guides for Cisco products and to view technical documentation in HTML.

With the DVD, you have access to the same documentation that is found on the Cisco website without

being connected to the Internet. Certain products also have .pdf versions of the documentation available.

The Product Documentation DVD is available as a single unit or as a subscription. Registered Cisco.com

users (Cisco direct customers) can order a Product Documentation DVD (product number

DOC-DOCDVD=) from Cisco Marketplace at this URL:

http://www.cisco.com/go/marketplace/

Cisco Aironet 3.5-dBi Dipole Antenna (AIR-ANT5135DG-R)

78-17783-01

Ordering Documentation

Beginning June 30, 2005, registered Cisco.com users may order Cisco documentation at the Product

Documentation Store in the Cisco Marketplace at this URL:

http://www.cisco.com/go/marketplace/

Nonregistered Cisco.com users can order technical documentation from 8:00 a.m. to 5:00 p.m.

(0800 to 1700) PDT by calling 1 866 463-3487 in the United States and Canada, or elsewhere by

calling 011 408 519-5055. You can also order documentation by e-mail at

tech-doc-store-mkpl@external.cisco.com or by fax at 1 408 519-5001 in the United States and Canada,

or elsewhere at 011 408 519-5001.

Documentation Feedback

You can rate and provide feedback about Cisco technical documents by completing the online feedback

form that appears with the technical documents on Cisco.com.

You can send comments about Cisco documentation to bug-doc@cisco.com.

You can submit comments by using the response card (if present) behind the front cover of your

document or by writing to the following address:

Cisco Systems

Attn: Customer Document Ordering

170 West Tasman Drive

San Jose, CA 95134-9883

We appreciate your comments.

Cisco Product Security Overview

Cisco provides a free online Security Vulnerability Policy portal at this URL:

http://www.cisco.com/en/US/products/products_security_vulnerability_policy.html

From this site, you can perform these tasks:

•Report security vulnerabilities in Cisco products.

•Obtain assistance with security incidents that involve Cisco products.

•Register to receive security information from Cisco.

A current list of security advisories and notices for Cisco products is available at this URL:

http://www.cisco.com/go/psirt

If you prefer to see advisories and notices as they are updated in real time, you can access a Product

Security Incident Response Team Really Simple Syndication (PSIRT RSS) feed from this URL:

http://www.cisco.com/en/US/products/products_psirt_rss_feed.html

Cisco Aironet 3.5-dBi Dipole Antenna (AIR-ANT5135DG-R)

78-17783-01

Reporting Security Problems in Cisco Products

Cisco is committed to delivering secure products. We test our products internally before we release them,

and we strive to correct all vulnerabilities quickly. If you think that you might have identified a

vulnerability in a Cisco product, contact PSIRT:

•Emergencies— security-alert@cisco.com

An emergency is either a condition in which a system is under active attack or a condition for which

a severe and urgent security vulnerability should be reported. All other conditions are considered

nonemergencies.

•Nonemergencies— psirt@cisco.com

In an emergency, you can also reach PSIRT by telephone:

•1 877 228-7302

•1 408 525-6532

Tip We encourage you to use Pretty Good Privacy (PGP) or a compatible product to encrypt any sensitive

information that you send to Cisco. PSIRT can work from encrypted information that is compatible with

PGP versions 2.x through 8.x.

Never use a revoked or an expired encryption key. The correct public key to use in your correspondence

with PSIRT is the one linked in the Contact Summary section of the Security Vulnerability Policy page

at this URL:

http://www.cisco.com/en/US/products/products_security_vulnerability_policy.html

The link on this page has the current PGP key ID in use.

Obtaining Technical Assistance

Cisco Technical Support provides 24-hour-a-day award-winning technical assistance. The Cisco

Technical Support & Documentation website on Cisco.com features extensive online support resources.

In addition, if you have a valid Cisco service contract, Cisco Technical Assistance Center (TAC)

engineers provide telephone support. If you do not have a valid Cisco service contract, contact your

reseller.

Cisco Technical Support & Documentation Website

The Cisco Technical Support & Documentation website provides online documents and tools for

troubleshooting and resolving technical issues with Cisco products and technologies. The website is

available 24 hours a day, at this URL:

http://www.cisco.com/techsupport

Access to all tools on the Cisco Technical Support & Documentation website requires a Cisco.com user

ID and password. If you have a valid service contract but do not have a user ID or password, you can

http://tools.cisco.com/RPF/register/register.do

Cisco Aironet 3.5-dBi Dipole Antenna (AIR-ANT5135DG-R)

78-17783-01

Note Use the Cisco Product Identification (CPI) tool to locate your product serial number before submitting

a web or phone request for service. You can access the CPI tool from the Cisco Technical Support &

Documentation website by clicking the Tools & Resources link under Documentation & Tools. Choose

Cisco Product Identification Tool from the Alphabetical Index drop-down list, or click the Cisco

Product Identification Tool link under Alerts & RMAs. The CPI tool offers three search options: by

product ID or model name; by tree view; or for certain products, by copying and pasting show command

output. Search results show an illustration of your product with the serial number label location

highlighted. Locate the serial number label on your product and record the information before placing a

service call.

Submitting a Service Request

Using the online TAC Service Request Tool is the fastest way to open S3 and S4 service requests. (S3

and S4 service requests are those in which your network is minimally impaired or for which you require

product information.) After you describe your situation, the TAC Service Request Tool provides

recommended solutions. If your issue is not resolved using the recommended resources, your service

request is assigned to a Cisco engineer. The TAC Service Request Tool is located at this URL:

http://www.cisco.com/techsupport/servicerequest

For S1 or S2 service requests or if you do not have Internet access, contact the Cisco TAC by telephone.

(S1 or S2 service requests are those in which your production network is down or severely degraded.)

Cisco engineers are assigned immediately to S1 and S2 service requests to help keep your business

operations running smoothly.

To open a service request by telephone, use one of the following numbers:

Asia-Pacific: +61 2 8446 7411 (Australia: 1 800 805 227)

EMEA: +32 2 704 55 55

USA: 1 800 553-2447

For a complete list of Cisco TAC contacts, go to this URL:

http://www.cisco.com/techsupport/contacts

Definitions of Service Request Severity

To ensure that all service requests are reported in a standard format, Cisco has established severity

definitions.

Severity 1 (S1)—Your network is “down,” or there is a critical impact to your business operations. You

and Cisco will commit all necessary resources around the clock to resolve the situation.

Severity 2 (S2)—Operation of an existing network is severely degraded, or significant aspects of your

business operation are negatively affected by inadequate performance of Cisco products. You and Cisco

will commit full-time resources during normal business hours to resolve the situation.

Severity 3 (S3)—Operational performance of your network is impaired, but most business operations

remain functional. You and Cisco will commit resources during normal business hours to restore service

to satisfactory levels.

Severity 4 (S4)—You require information or assistance with Cisco product capabilities, installation, or

configuration. There is little or no effect on your business operations.

Cisco Aironet 3.5-dBi Dipole Antenna (AIR-ANT5135DG-R)

78-17783-01

Obtaining Additional Publications and Information

Information about Cisco products, technologies, and network solutions is available from various online

and printed sources.

•Cisco Marketplace provides a variety of Cisco books, reference guides, documentation, and logo

merchandise. Visit Cisco Marketplace, the company store, at this URL:

http://www.cisco.com/go/marketplace/

•Cisco Press publishes a wide range of general networking, training and certification titles. Both new

and experienced users will benefit from these publications. For current Cisco Press titles and other

information, go to Cisco Press at this URL:

http://www.ciscopress.com

•Packet magazine is the Cisco Systems technical user magazine for maximizing Internet and

networking investments. Each quarter, Packet delivers coverage of the latest industry trends,

technology breakthroughs, and Cisco products and solutions, as well as network deployment and

troubleshooting tips, configuration examples, customer case studies, certification and training

information, and links to scores of in-depth online resources. You can access Packet magazine at

this URL:

http://www.cisco.com/packet

•iQ Magazine is the quarterly publication from Cisco Systems designed to help growing companies

learn how they can use technology to increase revenue, streamline their business, and expand

services. The publication identifies the challenges facing these companies and the technologies to

help solve them, using real-world case studies and business strategies to help readers make sound

technology investment decisions. You can access iQ Magazine at this URL:

http://www.cisco.com/go/iqmagazine

or view the digital edition at this URL:

http://ciscoiq.texterity.com/ciscoiq/sample/

•Internet Protocol Journal is a quarterly journal published by Cisco Systems for engineering

professionals involved in designing, developing, and operating public and private internets and

intranets. You can access the Internet Protocol Journal at this URL:

http://www.cisco.com/ipj

•Networking products offered by Cisco Systems, as well as customer support services, can be

obtained at this URL:

http://www.cisco.com/en/US/products/index.html

•Networking Professionals Connection is an interactive website for networking professionals to share

questions, suggestions, and information about networking products and technologies with Cisco

experts and other networking professionals. Join a discussion at this URL:

http://www.cisco.com/discuss/networking

•World-class networking training is available from Cisco. You can view current offerings at

this URL:

http://www.cisco.com/en/US/learning/index.html

Cisco Aironet 3.5-dBi Dipole Antenna (AIR-ANT5135DG-R)

78-17783-01

CCSP, CCVP, the Cisco Square Bridge logo, Follow Me Browsing, and StackWise are trademarks of Cisco Systems, Inc.; Changing the Way We

Work, Live, Play, and Learn, and iQuick Study are service marks of Cisco Systems, Inc.; and Access Registrar, Aironet, BPX, Catalyst, CCDA,

CCDP, CCIE, CCIP, CCNA, CCNP, Cisco, the Cisco Certified Internetwork Expert logo, Cisco IOS, Cisco Press, Cisco Systems, Cisco Systems

Capital, the Cisco Systems logo, Cisco Unity, Enterprise/Solver, EtherChannel, EtherFast, EtherSwitch, Fast Step, FormShare, GigaDrive,

GigaStack, HomeLink, Internet Quotient, IOS, IP/TV, iQ Expertise, the iQ logo, iQ Net Readiness Scorecard, LightStream, Linksys, MeetingPlace,

MGX, the Networkers logo, Networking Academy, Network Registrar, Packet, PIX, Post-Routing, Pre-Routing, ProConnect, RateMUX,

ScriptShare, SlideCast, SMARTnet, The Fastest Way to Increase Your Internet Quotient, and TransPath are registered trademarks of Cisco Systems,

Inc. and/or its affiliates in the United States and certain other countries.

All other trademarks mentioned in this document or Website are the property of their respective owners. The use of the word partner does not imply

a partnership relationship between Cisco and any other company. (0601R)

Printed in the USA on recycled paper containing 10% postconsumer waste.

REVIEW DRAFT—CISCO CONFIDENTIAL

Americas Headquarters:

Cisco Systems, Inc., 170 West Tasman Drive, San Jose, CA 95134-1706 USA

Cisco Aironet 4-dBi Omnidirectional Antenna

(AIR-ANT5140V-R)

This document outlines the specifications, describes the AIR-ANT(AIR-ANT5140V-R) 4-dBi

omnidirectional antenna, and provides instructions for mounting it.

The antenna is designed specifically for use with pre-802.11n and 802.11n 3-antenna access points. The

antenna operates in the 5-GHz frequency range and is designed for use only in an indoor office

environment. The antenna assembly consists of three radiating elements, each fed with its own coaxial

cable.

The following information is provided in this document.

•Technical Specifications, page 2

•System Requirements, page 4

•Safety Instructions, page 4

•Installation Notes, page 4

•Obtaining Documentation, page 12

•Documentation Feedback, page 13

•Cisco Product Security Overview, page 13

•Product Alerts and Field Notices, page 14

•Obtaining Technical Assistance, page 14

•Obtaining Additional Publications and Information, page 16

REVIEW DRAFT—CISCO CONFIDENTIAL

Cisco Aironet 4-dBi Omnidirectional Antenna (AIR-ANT5140V-R)

78-17605-01

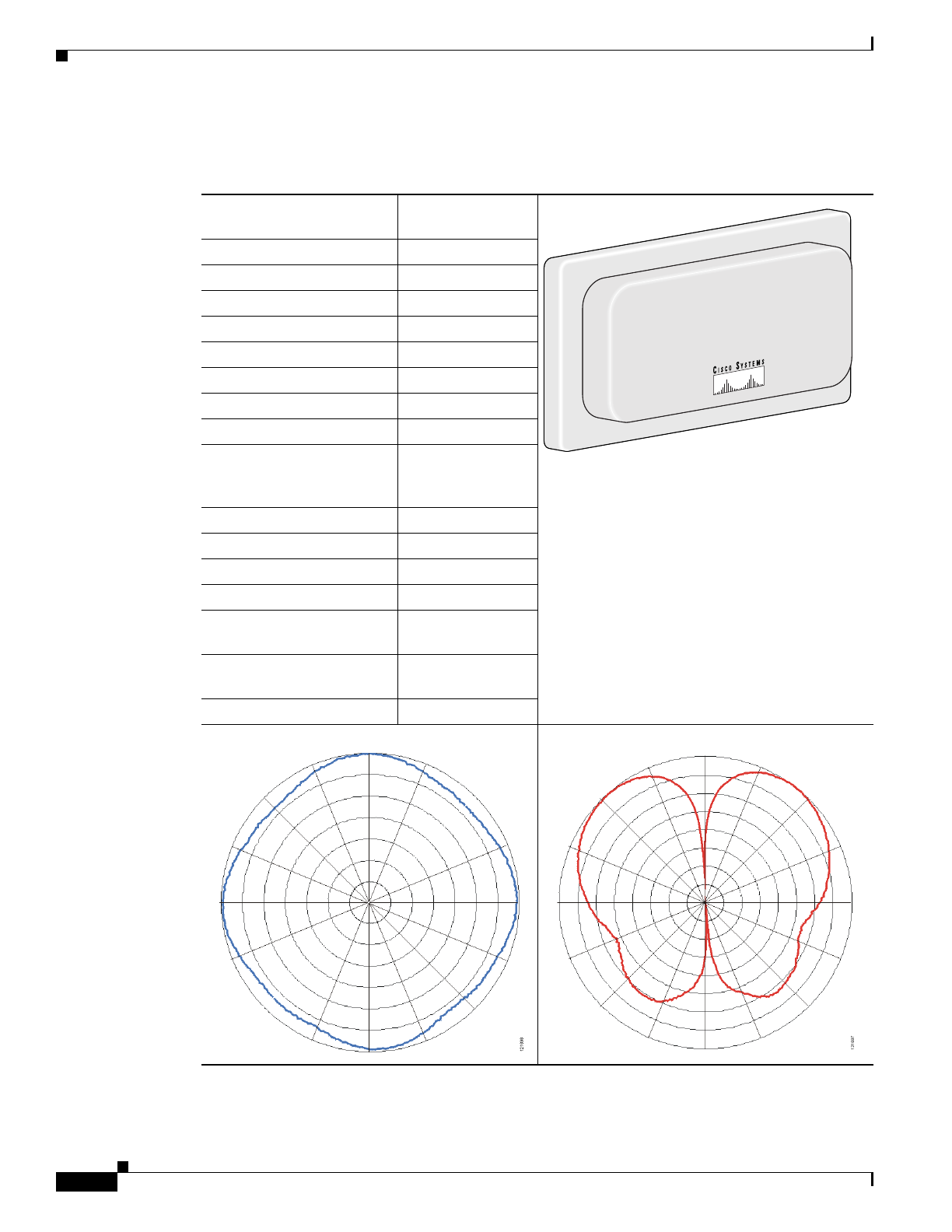

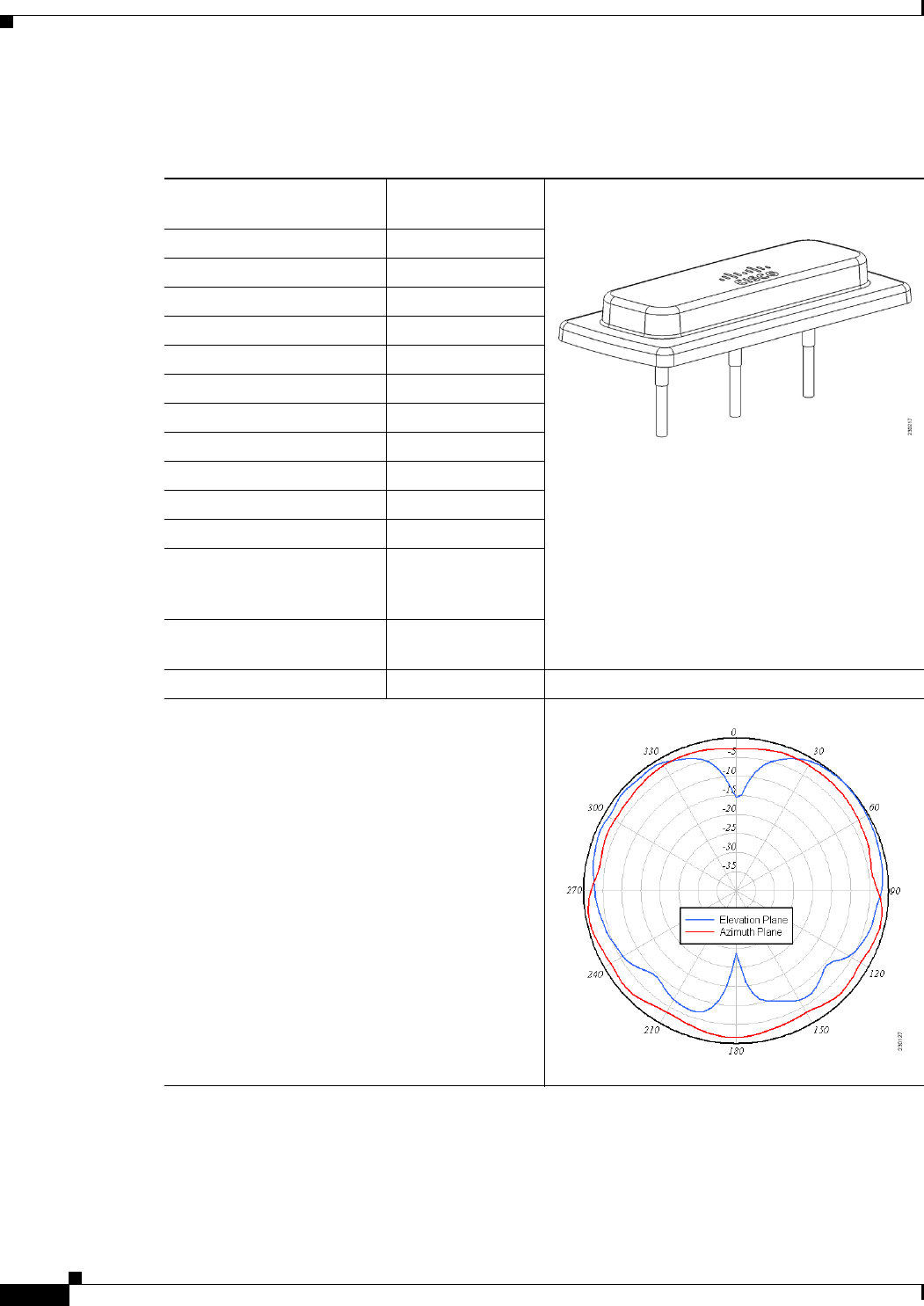

Technical Specifications

Antenna type Omnidirectional,

indoor office only

Operating frequency range 4900 – 5850 MHz

Nominal input impedance 50 ohms

1.5:1 VSWR bandwidth 4900 – 5850 MHz

Peak gain 4 dBi

Polarization Linear

E-plane 3 dB beamwidth 45 degrees

H-plane 3 dB beamwidth Omnidirectional

Front-to-back ratio 10 dB

Length 6.9 in (17.5 cm)

Width 3 in (7.6 cm)

Height < 1 in (< 2.5 cm)

Cable length and type 36 in (91.4 cm)

Plenum rated, UV

stable

Operating temperature 32 F – 131 F

(0 C – 55 C)

UL2043 compliant Yes

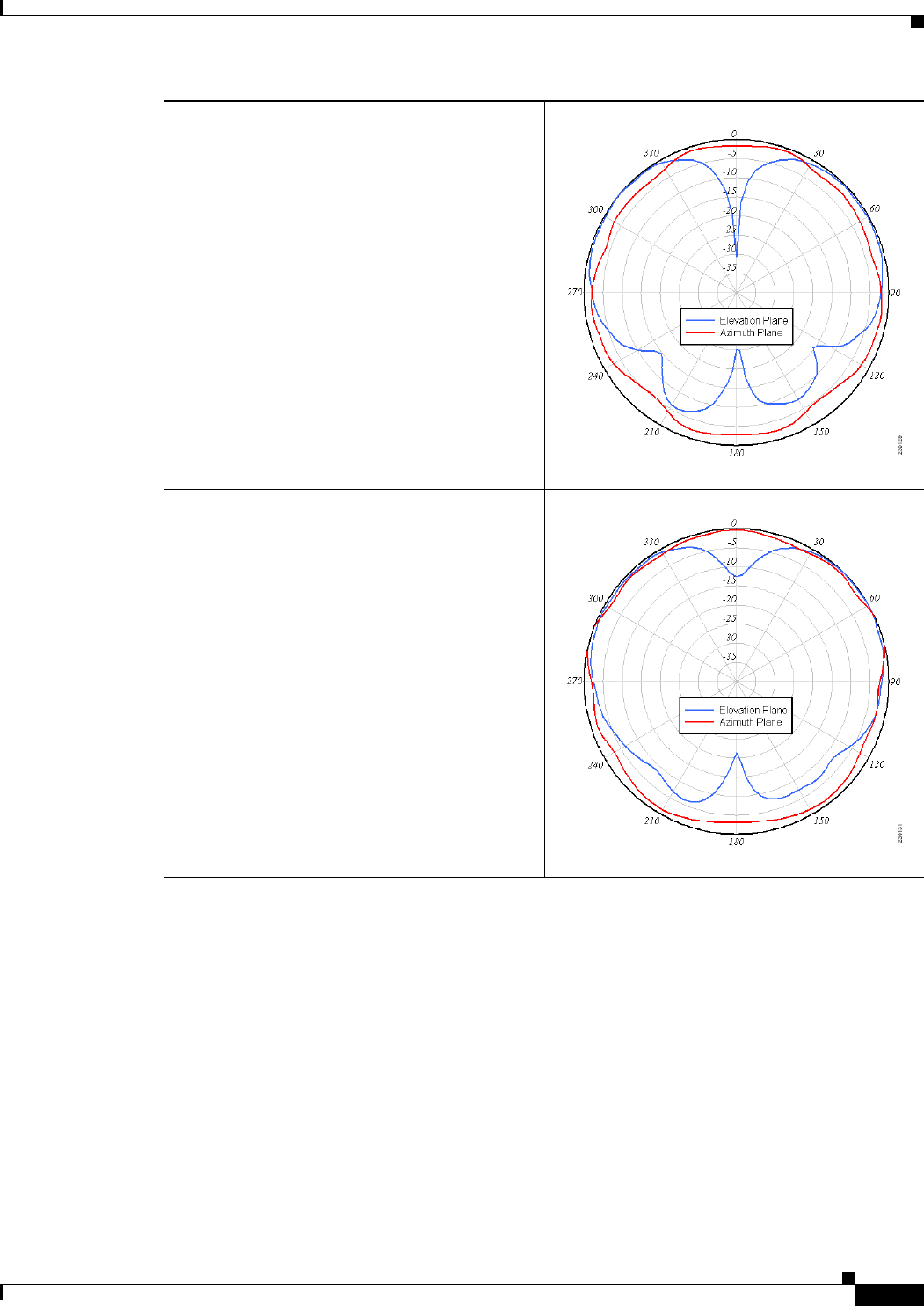

Antenna A Elevation and Azimuth Pattern

REVIEW DRAFT—CISCO CONFIDENTIAL

Cisco Aironet 4-dBi Omnidirectional Antenna (AIR-ANT5140V-R)

78-17605-01

Technical Specifications

Antenna C Elevation and Azimuth Pattern

Antenna B Elevation and Azimuth Pattern

REVIEW DRAFT—CISCO CONFIDENTIAL

Cisco Aironet 4-dBi Omnidirectional Antenna (AIR-ANT5140V-R)

78-17605-01

System Requirements

This antenna is designed for indoor use with pre-802.11n and 802.11n Cisco Aironet access points.

Safety Instructions

Follow these safety instructions when installing your antenna.

•Plan your installation procedure carefully and completely before you begin.

•If you are installing an antenna for the first time, for your own safety as well as others, seek

professional assistance. Consult your dealer, who can explain which mounting method to use for

the location where you intend to install the antenna.

•Select your installation site with safety, as well as performance, in mind. Remember that electric

power cables and telephone lines look alike. For your safety, assume that any line is an electric

power line until determined otherwise.

•Call your local power company or building maintenance organization if you are unsure about cables

close to your mounting location.

•When installing your antenna, do not use a metal ladder. Do dress properly - shoes with rubber soles

and heels, rubber gloves, and a long sleeved shirt or jacket.

•If an accident or emergency occurs with the power lines, call for qualified emergency help

immediately.

Installation Notes

Because antennas transmit and receive radio signals, they are susceptible to RF obstructions and

common sources of interference that can reduce throughput and range of the device to which they are

connected. Follow these guidelines to ensure the best possible performance:

•Mount the antenna to utilize its propagation characteristics. A way to do this is to orient the antenna

horizontally as high as possible at or near the center of its coverage area.

•Keep the antenna away from metal obstructions such as heating and air-conditioning ducts, large

ceiling trusses, building superstructures, and major power cabling runs. If necessary, use a rigid

conduit to lower the antenna away from these obstructions.

•The density of the materials used in a building’s construction determines the number of walls the

signal must pass through and still maintain adequate coverage. Consider the following before

choosing the location to install your antenna:

–

Paper and vinyl walls have very little affect on signal penetration.

–

Solid and pre-cast concrete walls limit signal penetration to one or two walls without degrading

coverage.

–

Concrete and wood block walls limit signal penetration to three or four walls.

–

A signal can penetrate five or six walls constructed of drywall or wood.

–

A thick metal wall causes signals to reflect off, causing poor penetration.

–

A chain link fence or wire mesh spaced between 1 and 1 1/2 in. (2.5 and 3.8 cm) acts as a

harmonic reflector that blocks a 5 Ghz radio signal.

REVIEW DRAFT—CISCO CONFIDENTIAL

Cisco Aironet 4-dBi Omnidirectional Antenna (AIR-ANT5140V-R)

78-17605-01

Installing the Antenna

•Install the antenna away from microwave ovens and 5-GHz cordless phones. These products can

cause signal interference because they operate in the same frequency range as the device to which

your antenna is connected.

•Install the antenna horizontally to maximize signal propagation.

Choosing a Mounting Location

The antenna should be mounted clear of any obstructions to the sides of the radiating element. Generally,

the higher an antenna is above the ground, the better it performs. If possible, find a mounting place

directly above your wireless device so that the lead-in cable can be as short as possible.

Installing the Antenna

You can install the antenna on the following dropped ceiling systems:

•Standard or recessed T-rail—15/16 in. (23.8 mm) or 9/16 in. (14.3 mm)

•Channel type T-rail—1/4 in (6.3 mm) or 1/2 in (12.7 mm)

You can also install the antenna above a dropped ceiling ceiling using a user-supplied bridge. The

antenna ships with the necessary hardware to install it on a standard dropped ceiling already installed.

To install the antenna on any other type of dropped ceiling listed above, you will need to use the

mounting hardware contained in the supplied mounting hardware kit

Mounting Hardware Kit Contents

The antenna ships with a hardware mounting kit containing the following items:

•2 Recessed ceiling T-rail spacers

•2 Channel ceiling rail adapters

230321

230320

REVIEW DRAFT—CISCO CONFIDENTIAL

Cisco Aironet 4-dBi Omnidirectional Antenna (AIR-ANT5140V-R)

78-17605-01

Installing the Antenna

•2 Bridge mounting clips

ILLUSTRATION TBD

•2 4x40 Phillips head machine screws

Making Connections to the Access Point

WHAT IS THE BEST WAY TO DESCRIBE THIS? I THINK THE HICKORY HAS ITS

ANTENNA CONNECTORS LABELLED A, B, AND C. HOW ARE THE CABLES ON THESE

ANTENNAS IDENTIFIED, I.E. WE KNOW THE CENTER IS C, SO WHICH ONE IS A OR B?

DOES IT MAKE ANY DIFFERENCE?

Tools and Equipment Required

To install your antenna, you need the following tools and equipment, which are not supplied.

•A pencil

•A small standard screwdriver

•A cutting tool suitable for cutting and trimming dropped ceiling tiles

•Masking tape

Installing the Antenna on a Standard Dropped Ceiling T-Rail

The antenna is shipped ready to install on a standard dropped ceiling T-rail. No adapters or spacers are

necessary. Figure 1 shows the antenna installed on a standard dropped ceiling T-rail.

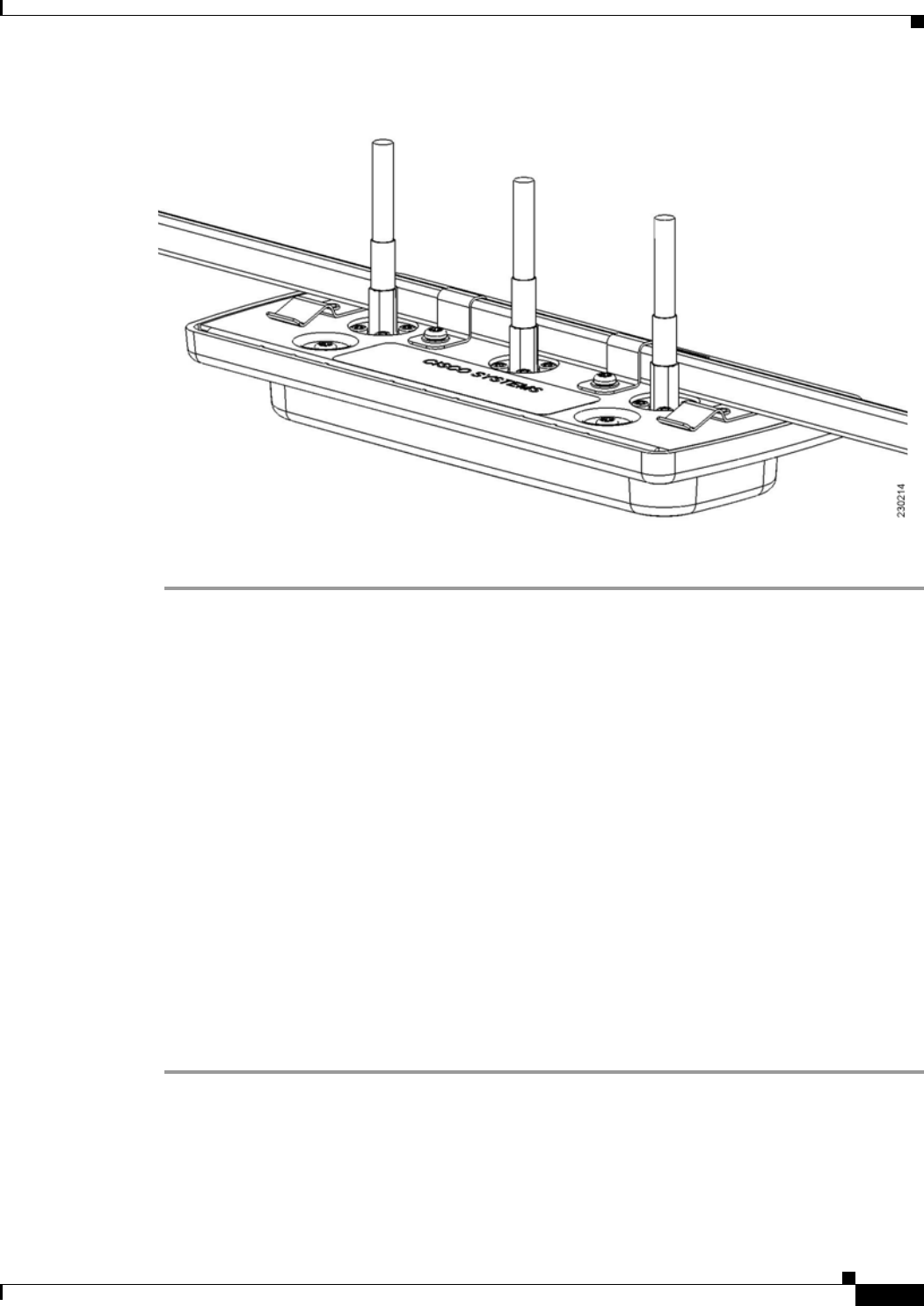

Figure 1 Antenna Installed on a Standard Dropped Ceiling T-Rail

Follow these steps to install the antenna on a standard dropped ceiling T-rail.

Step 1 Determine the location where you intend to install the antenna.

Step 2 Looking at the T-rail, raise ceiling tile on the left side of the T-rail.

REVIEW DRAFT—CISCO CONFIDENTIAL

Cisco Aironet 4-dBi Omnidirectional Antenna (AIR-ANT5140V-R)

78-17605-01

Installing the Antenna

Step 3 Position the clips on the antenna on the T-rail.

Step 4 Gently slide the antenna over the T-rail until it is secure.

Step 5 Connect the antenna cable to the access point or extender cables.

Step 6 Lower the ceiling tile onto the T-rail. The antenna cables will prevent you from lowering it completely.

Step 7 Mark the places on the ceiling tile where they are obstructed by the antenna cables.

Step 8 Cut notches in the ceiling tile to eliminate the obstruction. You should then be able to lower the ceiling

tile onto the T-rail.

Installing the Antenna on a Recessed Dropped Ceiling T-Rail

To install the antenna on a recessed dropped ceiling requires using the two recessed ceiling spacers that

shipped in the mounting kit. These spacers attach to the recessed ceiling T-rail and must be disassembled

before you can attach them. Figure 2 shows the antenna installed on a recessed ceiling T-rail using the

supplied recessed T-rail spacers.

Figure 2 Antenna Installed on a Recessed Dropped Ceiling T-Rail

Follow these steps to install the antenna on a recessed dropped ceiling T-rail.

Step 1 Determine the location where you intend to install the antenna.

Step 2 Use a pencil to make an index mark at the locations on the T-rail where you will install the dropped

ceiling spacers.

Note These marks indicate the center points of the spacers and must be 10 3/16 in. (24.8 cm) apart.

Step 3 In the mounting kit, locate two recessed dropped ceiling spacers.

REVIEW DRAFT—CISCO CONFIDENTIAL

Cisco Aironet 4-dBi Omnidirectional Antenna (AIR-ANT5140V-R)

78-17605-01

Installing the Antenna

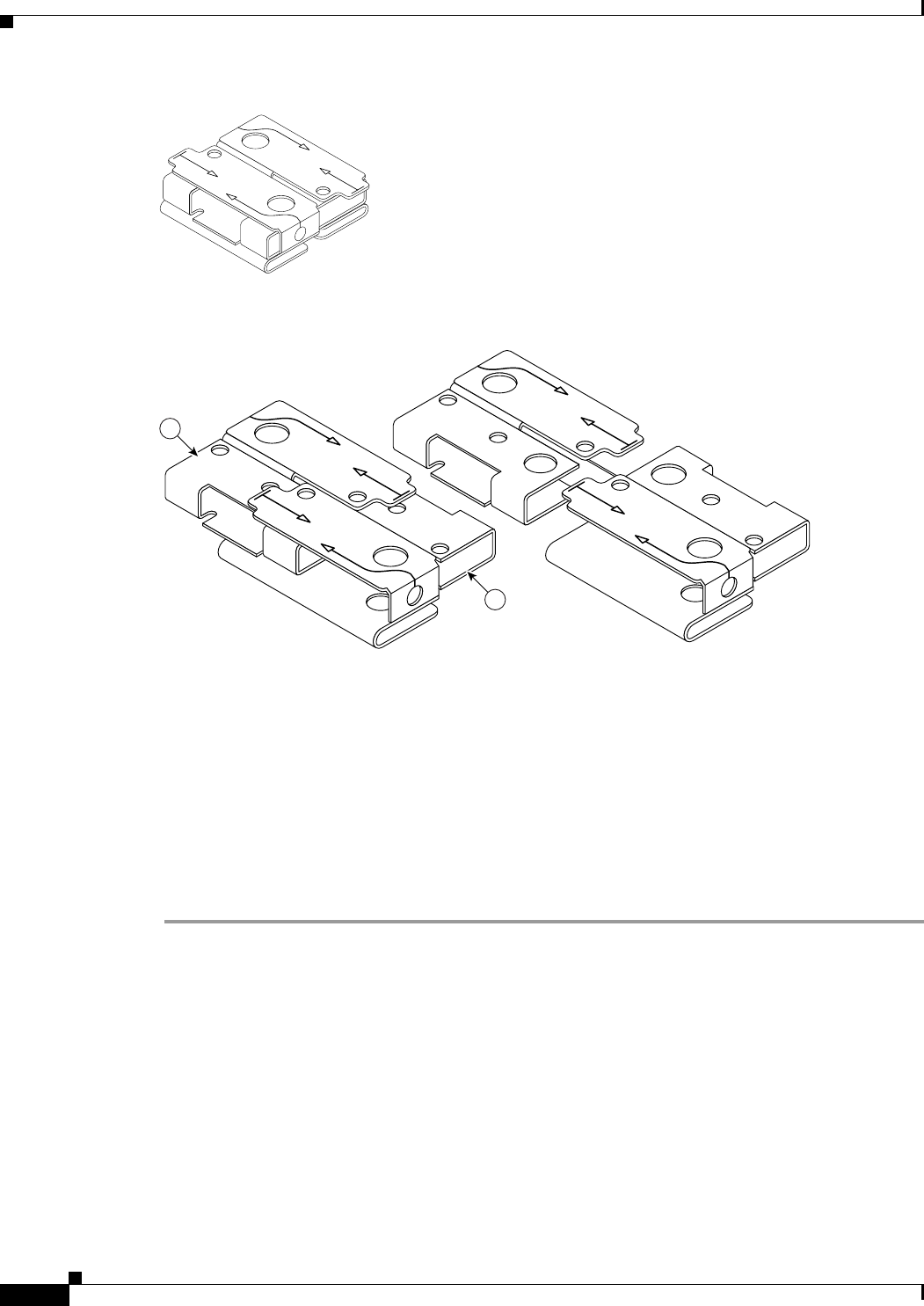

Step 4 Disassemble the spacers by pushing on its tabs using your thumb and forefinger.

Step 5 Raise the ceiling tile off the T-rail and position both parts of the spacer on the T-rail (callout 1), one part

on one side and the other on the opposite side. Make sure the ON arrows on the spacer parts point

towards each other as shown below. The OFF arrows will point away from each other.

Step 6 Position the spacers so that each one is centered over the index marks you made in Step 2.

Step 7 Use a small standard screwdriver to tighten the two set screws on the spacers and secure it to the T-rail.

Do not overtighten the set screws.

Step 8 Connect the antenna cable to the access point or extender cables.

Step 9 Lower the ceiling tile onto the T-rail. Depending on the width of the T-rail, you may have to squeeze the

tile to make it fit onto the T-rail.

Installing the Antenna on a Channel Ceiling T-Rail

To install the antenna on a recessed dropped ceiling requires using the two channel ceiling adapters that

shipped in the mounting kit. These adapters attach to the channel ceiling T-rail and must be disassembled

before you can attach them. Figure 3 shows the antenna installed on a channel ceiling T-rail using the

supplied channel T-rail spacers.

230321

230319

REVIEW DRAFT—CISCO CONFIDENTIAL

Cisco Aironet 4-dBi Omnidirectional Antenna (AIR-ANT5140V-R)

78-17605-01

Installing the Antenna

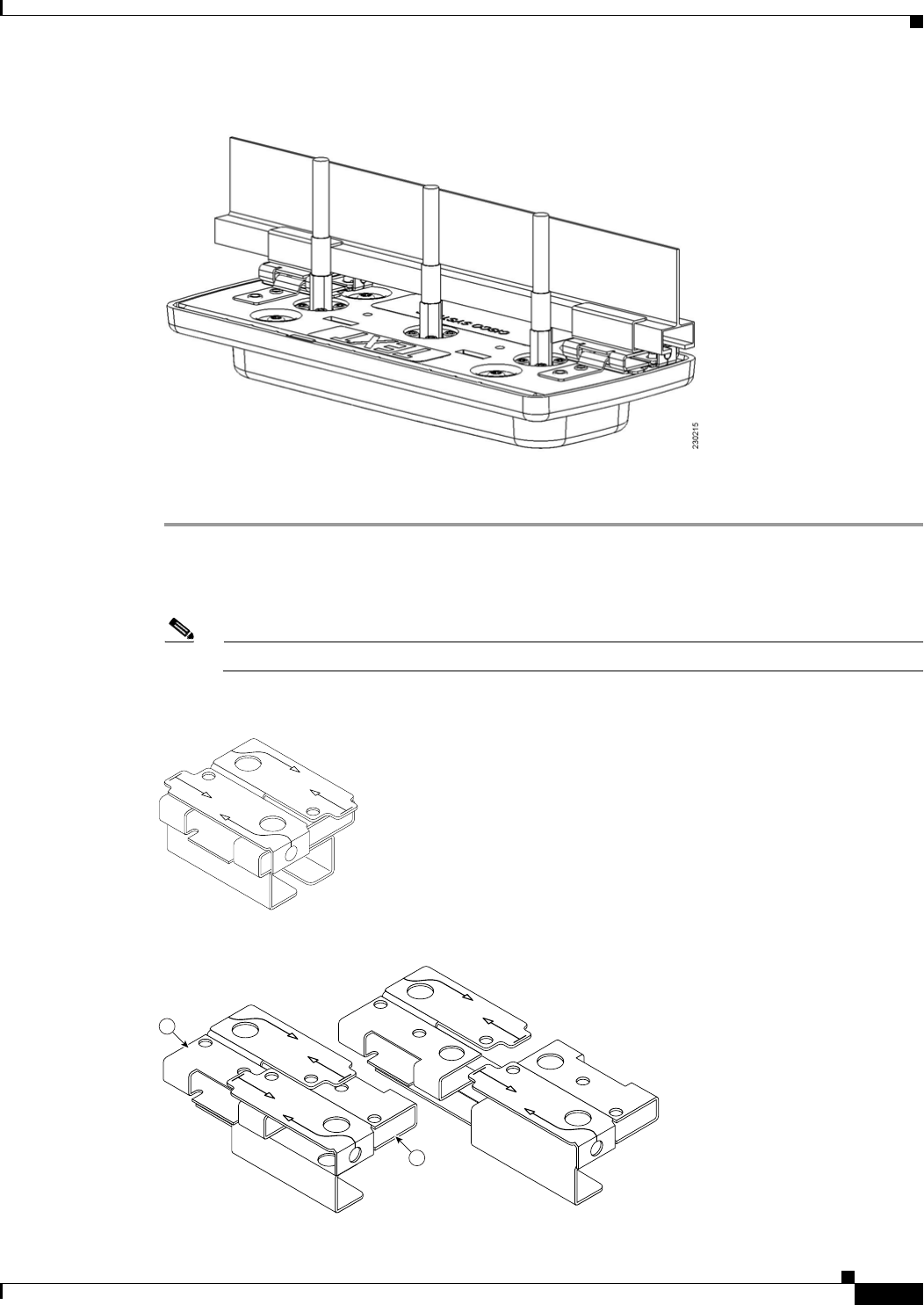

Figure 3 Antenna Installed on a Channel Ceiling T-Rail

Follow these steps to install the antenna on a channel ceiling T-rail.

Step 1 Determine the location where you intend to install the antenna.

Step 2 Use a pencil to make an index mark at the locations on the T-rail where you will install the channel T-rail

adapters.

Note These marks indicate the center points of the adapters and must be 10 3/16 in. (24.8 cm) apart.

Step 3 In the mounting kit, locate two recessed channel ceiling adapters.

Step 4 Disassemble the adapters by pushing on its tabs using your thumb and forefinger.

230320

230322

REVIEW DRAFT—CISCO CONFIDENTIAL

Cisco Aironet 4-dBi Omnidirectional Antenna (AIR-ANT5140V-R)

78-17605-01

Installing the Antenna

Step 5 Raise the ceiling tile off the channel T-rail and position both parts of the adapter on the T-rail (callout

1), one part on one side and the other on the opposite side. Make sure the ON arrows on the adapter parts

are pointing towards each other as shown below. The OFF arrows will point away from each other.

Step 6 Position the adapters so that each one is centered over the index marks you made in Step 2.

Step 7 Use a small standard screwdriver to tighten the two set screws on the adapters and secure it to the channel

T-rail. Do not overtighten the set screws.

Step 8 Connect the antenna cable to the access point or extender cables.

Step 9 Lower the ceiling tile onto the T-rail.

Installing the Antenna Above a Suspended Ceiling

To install the antenna above a dropped ceiling requires using the two bridge clips and 4/40 Phillips head

machine screws that shipped in the mounting kit. The clips attach the antenna to the ceiling bridge

assembly and the screws secure the clips to the antenna.

You must supply the ceiling bridge. In order to ensure compatibility with the supplied bridge clips, we

recommend using a Erico 512A or equivalent T-bar box hanger.Figure 4 shows a typical dropped ceiling

bridge assembly and Figure 5 shows the antenna installed on a dropped ceiling bridge assembly.

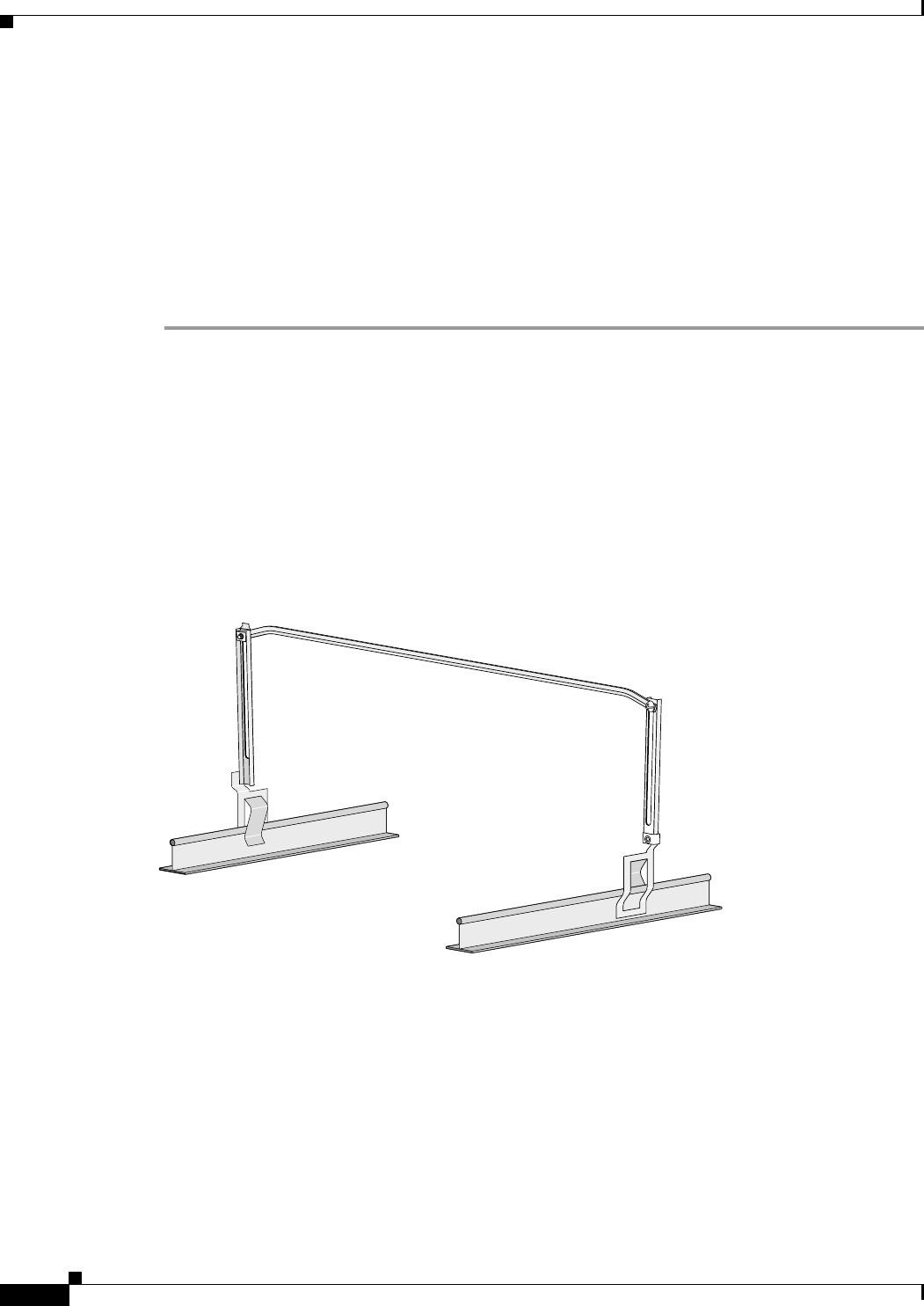

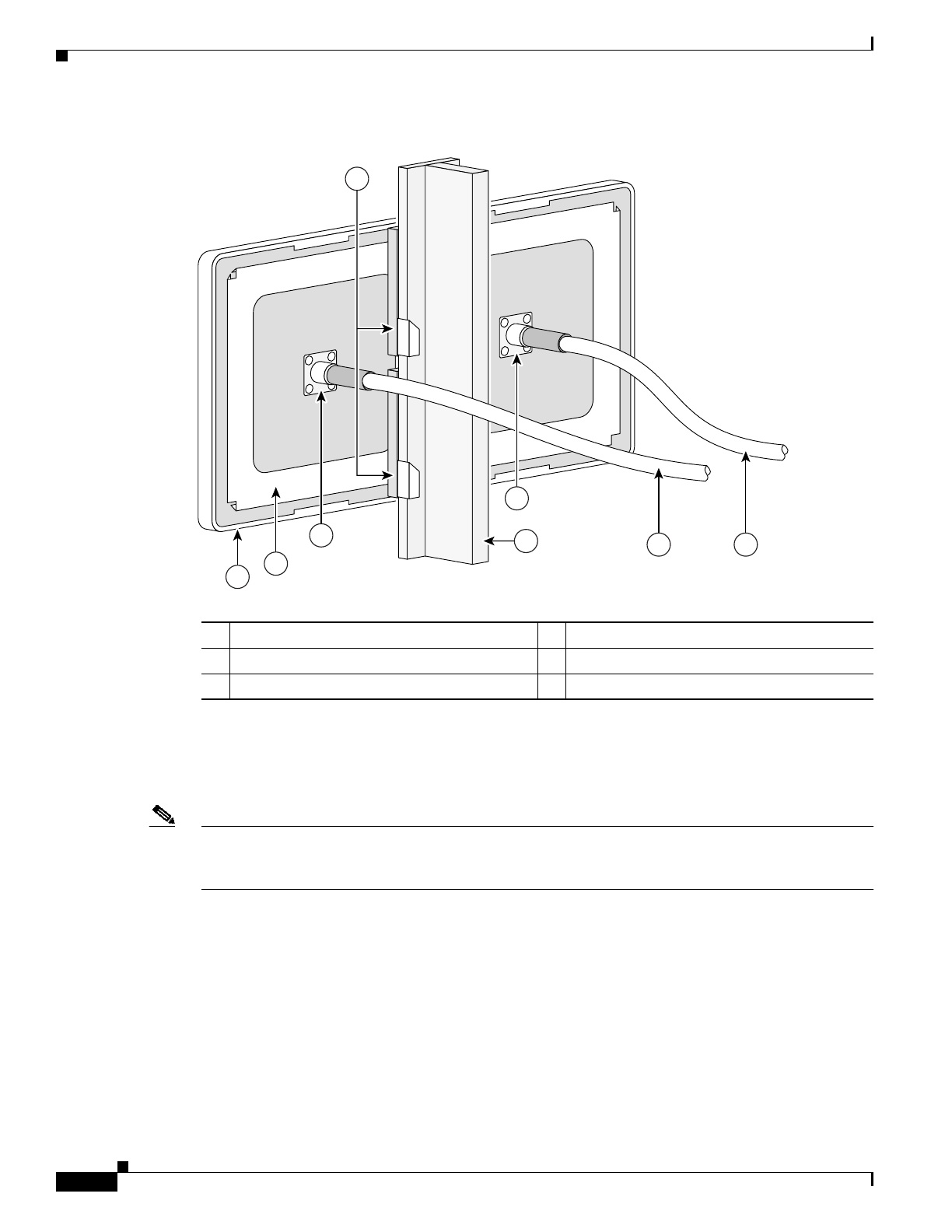

Figure 4 Typical Dropped Ceiling Bridge Assembly

230318

REVIEW DRAFT—CISCO CONFIDENTIAL

Cisco Aironet 4-dBi Omnidirectional Antenna (AIR-ANT5140V-R)

78-17605-01

Installing the Antenna

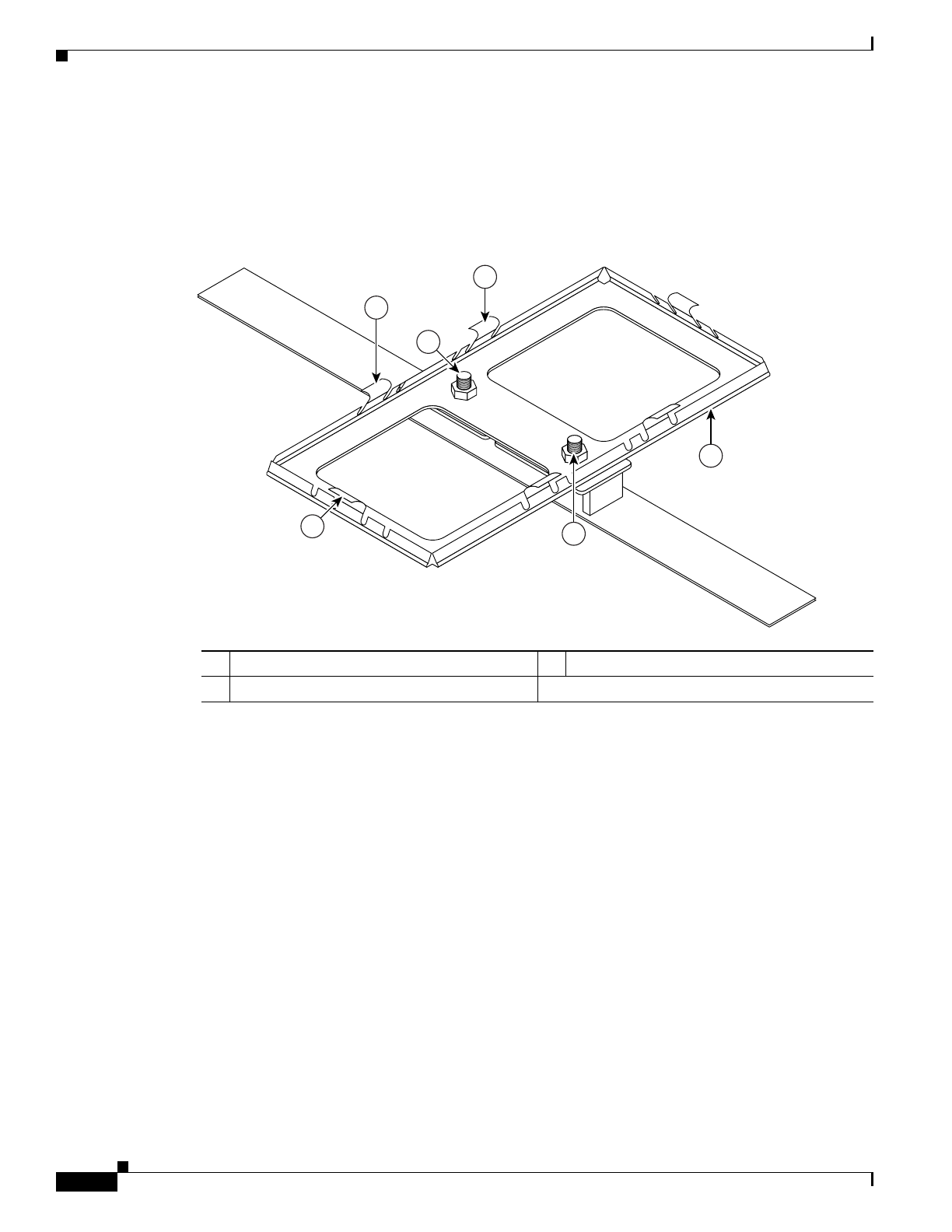

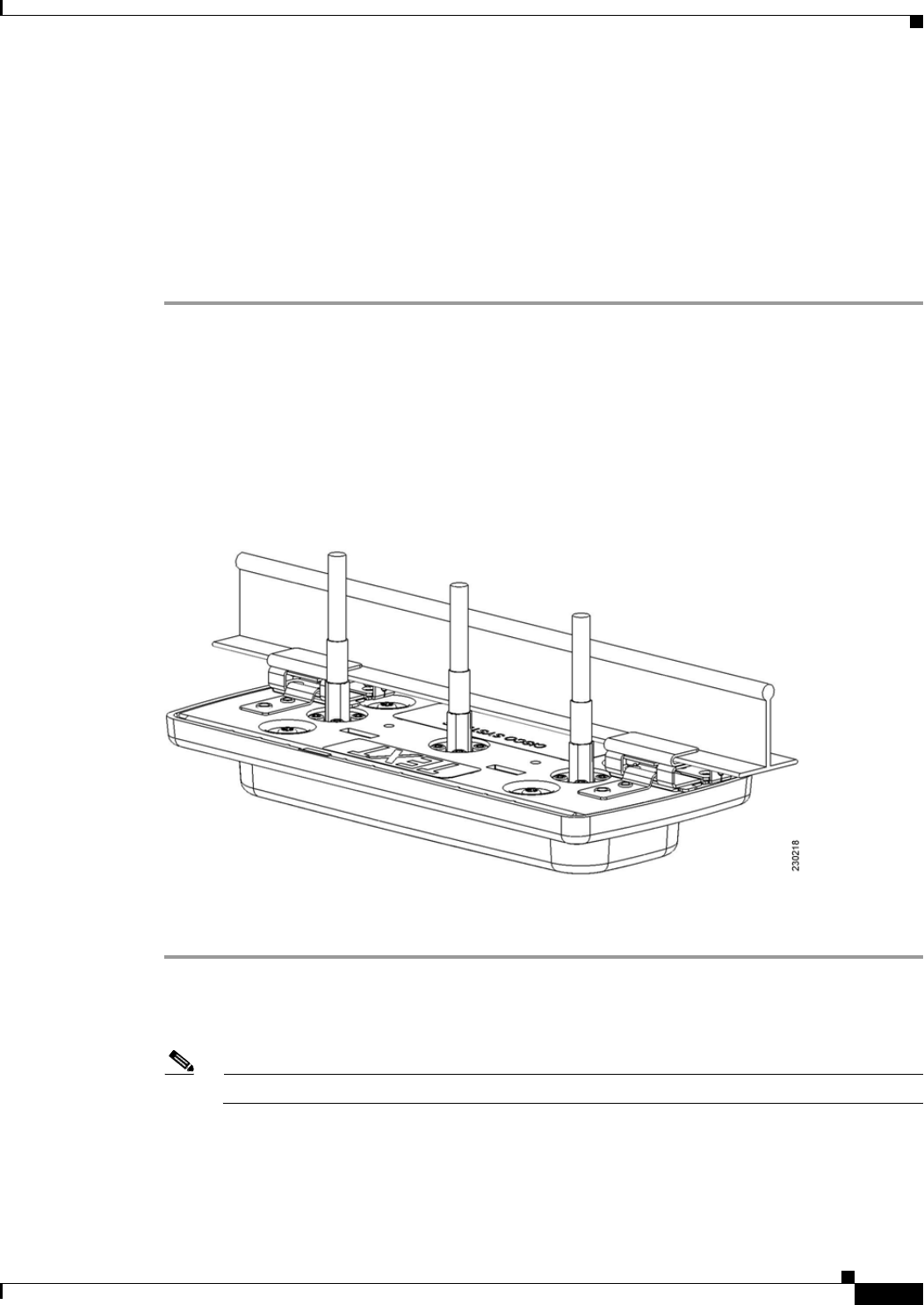

Figure 5 Antenna Installed on a Dropped Ceiling Bridge Assembly

Follow these steps to install the antenna above a suspended ceiling.

Step 1 Establish the location in the ceiling where you want to install the antenna.

Step 2 Remove the ceiling tiles adjacent to the T-rails where you will install the ceiling bridge assembly.

Step 3 In the mounting kit, locate two bridge clips and 4x40 Phillips head screws.

Step 4 Place the bridge clips on the bridge so that they are xx in. (xx cm) apart.

Step 5 Temporarily secure the clip to the bridge with a short length of masking tape.

Step 6 Position the antenna so that the two rectangular slots are aligned with the clip tab that has no holes.

Step 7 Carefully move the antenna so that the clip tabs are fully inserted into the rectangular slots.

Step 8 Start a 4/40 Phillips head screw into each of the holes in the clip tabs.

Step 9 Use a Phillips head screwdriver to secure, but not tighten the screws.

Step 10 Remove the masking tape from the clips.

Step 11 Verify that the antenna is attached to the bridge where you want it to be. If it is not in the correct position,

carefully slide the antenna until it is.

Step 12 Tighten, but do not overtighten, the Phillips head screws.

Step 13 Install the bridge in the ceiling.

Step 14 Connect the antenna cables to the access point or extender cables.

Step 15 Replace the ceiling tiles.

REVIEW DRAFT—CISCO CONFIDENTIAL

Cisco Aironet 4-dBi Omnidirectional Antenna (AIR-ANT5140V-R)

78-17605-01

Obtaining Documentation

Suggested Cable

Cisco recommends a high-quality, low-loss cable for use with the antenna.

Note Coaxial cable loses efficiency as the frequency increases, resulting in signal loss. The cable

should be kept as short as possible because cable length also determines the amount of

signal loss (the longer the run, the greater the loss).

Each antenna terminates with a RP-TNC plug after a short, 3-ft (0.91-m) cable. The mating connector

to the antenna is an appropriate RP-TNC jack. The connector on the opposite end will vary according to

the type of equipment used.

Obtaining Documentation

Cisco documentation and additional literature are available on Cisco.com. This section explains the

product documentation resources that Cisco offers.

Cisco.com

You can access the most current Cisco documentation at this URL:

http://www.cisco.com/techsupport

You can access the Cisco website at this URL:

http://www.cisco.com

You can access international Cisco websites at this URL:

http://www.cisco.com/public/countries_languages.shtml

Product Documentation DVD

The Product Documentation DVD is a library of technical product documentation on a portable medium.

The DVD enables you to access installation, configuration, and command guides for Cisco hardware and

software products. With the DVD, you have access to the HTML documentation and some of the

PDF files found on the Cisco website at this URL:

http://www.cisco.com/univercd/home/home.htm

The Product Documentation DVD is created and released regularly. DVDs are available singly or by

subscription. Registered Cisco.com users can order a Product Documentation DVD (product number

DOC-DOCDVD= or DOC-DOCDVD=SUB) from Cisco Marketplace at the Product Documentation

Store at this URL:

http://www.cisco.com/go/marketplace/docstore

REVIEW DRAFT—CISCO CONFIDENTIAL

Cisco Aironet 4-dBi Omnidirectional Antenna (AIR-ANT5140V-R)

78-17605-01

Documentation Feedback

Ordering Documentation

You must be a registered Cisco.com user to access Cisco Marketplace. Registered users may order Cisco

documentation at the Product Documentation Store at this URL:

http://www.cisco.com/go/marketplace/docstore

If you do not have a user ID or password, you can register at this URL:

http://tools.cisco.com/RPF/register/register.do

Documentation Feedback

You can provide feedback about Cisco technical documentation on the Cisco Support site area by

entering your comments in the feedback form available in every online document.

Cisco Product Security Overview

Cisco provides a free online Security Vulnerability Policy portal at this URL:

http://www.cisco.com/en/US/products/products_security_vulnerability_policy.html

From this site, you will find information about how to do the following:

•Report security vulnerabilities in Cisco products

•Obtain assistance with security incidents that involve Cisco products

•Register to receive security information from Cisco

A current list of security advisories, security notices, and security responses for Cisco products is

available at this URL:

http://www.cisco.com/go/psirt

To see security advisories, security notices, and security responses as they are updated in real time, you

can subscribe to the Product Security Incident Response Team Really Simple Syndication (PSIRT RSS)

feed. Information about how to subscribe to the PSIRT RSS feed is found at this URL:

http://www.cisco.com/en/US/products/products_psirt_rss_feed.html

Reporting Security Problems in Cisco Products

Cisco is committed to delivering secure products. We test our products internally before we release

them, and we strive to correct all vulnerabilities quickly. If you think that you have identified a

vulnerability in a Cisco product, contact PSIRT:

•For emergencies only— security-alert@cisco.com

An emergency is either a condition in which a system is under active attack or a condition for which

a severe and urgent security vulnerability should be reported. All other conditions are considered

nonemergencies.

•For nonemergencies— psirt@cisco.com

In an emergency, you can also reach PSIRT by telephone:

•1 877 228-7302

REVIEW DRAFT—CISCO CONFIDENTIAL

Cisco Aironet 4-dBi Omnidirectional Antenna (AIR-ANT5140V-R)

78-17605-01

Product Alerts and Field Notices

•1 408 525-6532

Tip We encourage you to use Pretty Good Privacy (PGP) or a compatible product (for example, GnuPG) to

encrypt any sensitive information that you send to Cisco. PSIRT can work with information that has been

encrypted with PGP versions 2.x through 9.x.

Never use a revoked encryption key or an expired encryption key. The correct public key to use in your

correspondence with PSIRT is the one linked in the Contact Summary section of the Security

Vulnerability Policy page at this URL:

http://www.cisco.com/en/US/products/products_security_vulnerability_policy.html

The link on this page has the current PGP key ID in use.

If you do not have or use PGP, contact PSIRT to find other means of encrypting the data before sending

any sensitive material.

Product Alerts and Field Notices

Modifications to or updates about Cisco products are announced in Cisco Product Alerts and Cisco Field

Notices. You can receive these announcements by using the Product Alert Tool on Cisco.com. This tool

enables you to create a profile and choose those products for which you want to receive information.

To access the Product Alert Tool, you must be a registered Cisco.com user. Registered users can access

the tool at this URL:

http://tools.cisco.com/Support/PAT/do/ViewMyProfiles.do?local=en

To register as a Cisco.com user, go to this URL:

http://tools.cisco.com/RPF/register/register.do

Obtaining Technical Assistance

Cisco Technical Support provides 24-hour-a-day award-winning technical assistance. The

Cisco Support website on Cisco.com features extensive online support resources. In addition, if you

have a valid Cisco service contract, Cisco Technical Assistance Center (TAC) engineers provide

telephone support. If you do not have a valid Cisco service contract, contact your reseller.

Cisco Support Website

The Cisco Support website provides online documents and tools for troubleshooting and resolving

technical issues with Cisco products and technologies. The website is available 24 hours a day at

this URL:

http://www.cisco.com/en/US/support/index.html

Access to all tools on the Cisco Support website requires a Cisco.com user ID and password. If you have

a valid service contract but do not have a user ID or password, you can register at this URL:

http://tools.cisco.com/RPF/register/register.do

REVIEW DRAFT—CISCO CONFIDENTIAL

Cisco Aironet 4-dBi Omnidirectional Antenna (AIR-ANT5140V-R)

78-17605-01

Obtaining Technical Assistance

Note Before you submit a request for service online or by phone, use the Cisco Product Identification Tool

to locate your product serial number. You can access this tool from the Cisco Support website

by clicking the Get Tools & Resources link, clicking the All Tools (A-Z) tab, and then choosing

Cisco Product Identification Tool from the alphabetical list. This tool offers three search options:

by product ID or model name; by tree view; or, for certain products, by copying and pasting show

command output. Search results show an illustration of your product with the serial number label

location highlighted. Locate the serial number label on your product and record the information

before placing a service call.

Tip Displaying and Searching on Cisco.com

If you suspect that the browser is not refreshing a web page, force the browser to update the web page

by holding down the Ctrl key while pressing F5.

To find technical information, narrow your search to look in technical documentation, not the

entire Cisco.com website. After using the Search box on the Cisco.com home page, click the

Advanced Search link next to the Search box on the resulting page and then click the

Technical Support & Documentation radio button.

To provide feedback about the Cisco.com website or a particular technical document, click

Contacts & Feedback at the top of any Cisco.com web page.

Submitting a Service Request

Using the online TAC Service Request Tool is the fastest way to open S3 and S4 service requests.

(S3 and S4 service requests are those in which your network is minimally impaired or for which you

require product information.) After you describe your situation, the TAC Service Request Tool provides

recommended solutions. If your issue is not resolved using the recommended resources, your service

request is assigned to a Cisco engineer. The TAC Service Request Tool is located at this URL:

http://www.cisco.com/techsupport/servicerequest

For S1 or S2 service requests, or if you do not have Internet access, contact the Cisco TAC by telephone.

(S1 or S2 service requests are those in which your production network is down or severely degraded.)

Cisco engineers are assigned immediately to S1 and S2 service requests to help keep your business

operations running smoothly.

To open a service request by telephone, use one of the following numbers:

Asia-Pacific: +61 2 8446 7411

Australia: 1 800 805 227

EMEA: +32 2 704 55 55

USA: 1 800 553 2447

For a complete list of Cisco TAC contacts, go to this URL:

http://www.cisco.com/techsupport/contacts

REVIEW DRAFT—CISCO CONFIDENTIAL

Cisco Aironet 4-dBi Omnidirectional Antenna (AIR-ANT5140V-R)

78-17605-01

Obtaining Additional Publications and Information

Definitions of Service Request Severity

To ensure that all service requests are reported in a standard format, Cisco has established severity

definitions.

Severity 1 (S1)—An existing network is “down” or there is a critical impact to your business operations.

You and Cisco will commit all necessary resources around the clock to resolve the situation.

Severity 2 (S2)—Operation of an existing network is severely degraded, or significant aspects of your

business operations are negatively affected by inadequate performance of Cisco products. You and Cisco

will commit full-time resources during normal business hours to resolve the situation.

Severity 3 (S3)—Operational performance of the network is impaired while most business operations

remain functional. You and Cisco will commit resources during normal business hours to restore service

to satisfactory levels.

Severity 4 (S4)—You require information or assistance with Cisco product capabilities, installation, or

configuration. There is little or no effect on your business operations.

Obtaining Additional Publications and Information

Information about Cisco products, technologies, and network solutions is available from various online

and printed sources.

•The Cisco Online Subscription Center is the website where you can sign up for a variety of Cisco

e-mail newsletters and other communications. Create a profile and then select the subscriptions that

you would like to receive. To visit the Cisco Online Subscription Center, go to this URL:

http://www.cisco.com/offer/subscribe

•The Cisco Product Quick Reference Guide is a handy, compact reference tool that includes brief

product overviews, key features, sample part numbers, and abbreviated technical specifications for

many Cisco products that are sold through channel partners. It is updated twice a year and includes

the latest Cisco channel product offerings. To order and find out more about the Cisco Product

Quick Reference Guide, go to this URL:

http://www.cisco.com/go/guide

•Cisco Marketplace provides a variety of Cisco books, reference guides, documentation, and logo

merchandise. Visit Cisco Marketplace, the company store, at this URL:

http://www.cisco.com/go/marketplace/

•Cisco Press publishes a wide range of general networking, training, and certification titles. Both

new and experienced users will benefit from these publications. For current Cisco Press titles and

other information, go to Cisco Press at this URL:

http://www.ciscopress.com

•Internet Protocol Journal is a quarterly journal published by Cisco for engineering professionals

involved in designing, developing, and operating public and private internets and intranets. You can

access the Internet Protocol Journal at this URL:

http://www.cisco.com/ipj

•Networking products offered by Cisco, as well as customer support services, can be obtained at

this URL:

http://www.cisco.com/en/US/products/index.html

REVIEW DRAFT—CISCO CONFIDENTIAL

Cisco Aironet 4-dBi Omnidirectional Antenna (AIR-ANT5140V-R)

78-17605-01

Obtaining Additional Publications and Information

•Networking Professionals Connection is an interactive website where networking professionals

share questions, suggestions, and information about networking products and technologies with

Cisco experts and other networking professionals. Join a discussion at this URL:

http://www.cisco.com/discuss/networking

•“What’s New in Cisco Documentation” is an online publication that provides information about the

latest documentation releases for Cisco products. Updated monthly, this online publication is

organized by product category to direct you quickly to the documentation for your products. You

can view the latest release of “What’s New in Cisco Documentation” at this URL:

http://www.cisco.com/univercd/cc/td/doc/abtunicd/136957.htm

•World-class networking training is available from Cisco. You can view current offerings at

this URL:

http://www.cisco.com/en/US/learning/index.html

REVIEW DRAFT—CISCO CONFIDENTIAL

Cisco Aironet 4-dBi Omnidirectional Antenna (AIR-ANT5140V-R)

78-17605-01

Obtaining Additional Publications and Information

CCVP, the Cisco Logo, and the Cisco Square Bridge logo are trademarks of Cisco Systems, Inc.; Changing the Way We Work, Live, Play, and Learn

is a service mark of Cisco Systems, Inc.; and Access Registrar, Aironet, BPX, Catalyst, CCDA, CCDP, CCIE, CCIP, CCNA, CCNP, CCSP, Cisco,

the Cisco Certified Internetwork Expert logo, Cisco IOS, Cisco Press, Cisco Systems, Cisco Systems Capital, the Cisco Systems logo, Cisco Unity,

Enterprise/Solver, EtherChannel, EtherFast, EtherSwitch, Fast Step, Follow Me Browsing, FormShare, GigaDrive, GigaStack, HomeLink, Internet

Quotient, IOS, iPhone, IP/TV, iQ Expertise, the iQ logo, iQ Net Readiness Scorecard, iQuick Study, LightStream, Linksys, MeetingPlace, MGX,

Networking Academy, Network Registrar, Packet, PIX, ProConnect, RateMUX, ScriptShare, SlideCast, SMARTnet, StackWise, The Fastest Way

to Increase Your Internet Quotient, and TransPath are registered trademarks of Cisco Systems, Inc. and/or its affiliates in the United States and certain

other countries.

All other trademarks mentioned in this document or Website are the property of their respective owners. The use of the word partner does not imply

a partnership relationship between Cisco and any other company. (0612R)

Any Internet Protocol (IP) addresses used in this document are not intended to be actual addresses. Any examples, command display output, and

figures included in the document are shown for illustrative purposes only. Any use of actual IP addresses in illustrative content is unintentional and

coincidental.

Printed in the USA on recycled paper containing 10% postconsumer waste.

Corporate Headquarters:

Cisco Systems, Inc., 170 West Tasman Drive, San Jose, CA 95134-1706 USA

Cisco Aironet 4.5-dBi Low Profile

Omnidirectional Antenna (AIR-ANT5145V-R)

This document outlines the specifications, describes the Cisco Aironet 4.5-dBi Diversity

Omnidirectional Antenna (AIR-ANT5145V-R), and provides instructions for mounting it. The antenna

operates in the 5-GHz frequency range and is designed for use indoors.

The following information is provided in this document.

•Technical Specifications, page 2

•System Requirements, page 3

•Installation Guidelines, page 3

•Safety Instructions, page 3

•Installing the Antenna, page 4

•Obtaining Documentation, page 7

•Documentation Feedback, page 7

•Obtaining Technical Assistance, page 8

•Obtaining Additional Publications and Information, page 9

Cisco Aironet 4.5-dBi Low Profile Omnidirectional Antenna (AIR-ANT5145V-R) 78-16467-01

Technical Specifications

Antenna type Omnidirectional

TM02 Mode Patch

Operating frequency range 5150 – 5850 MHz

Nominal input impedance 50Ω

2:1 VSWR bandwidth 5000 – 6000 MHz

Gain 4.5 dBi

Polarization Linear

Front-to-back ratio 10 dB

E-plane 3dB beamwidth 50

H-plane 3dB beamwidth Omnidirectional

Cable length and type 36 in. (91.4 cm)

Plenum rated UV

stable LMR-185

Connector type 2 RP-TNC Male

Length 5 in. (12.7 cm)

Width 3 in. (7.6 cm)

Height 0.75 oz (21.2 g)

Operating temperature –22 F– 158 F(–30 C

– 70 C)

Storage temperature –40 F– 185 F(–40 C

– 85 C)

Environment Indoor, office

H-Plane Pattern E-Plane Pattern

121666

Cisco Aironet 4.5-dBi Low Profile Omnidirectional Antenna (AIR-ANT5145V-R)

78-16467-01

System Requirements

This antenna is designed for use with Cisco Aironet access points and bridges but can be used with any

5-GHz Cisco Aironet radio device that utilizes reverse polarity Neil Councilman (RP-TNC) connectors.

Installation Guidelines

Because the antenna transmits and receives radio signals, they are susceptible to RF obstructions and

common sources of interference that can reduce throughput and range of the device to which they are

connected. Follow these guidelines to ensure the best possible performance:

•Mount the antenna to utilize its propagation characteristics. One way to do this is to orient the

antenna horizontally and mount it as high as possible.

•Keep the antenna away from metal obstructions such as heating and air-conditioning ducts, large

ceiling trusses, building superstructures, and major power cabling runs. If necessary, use a rigid

conduit to lower the antenna away from these obstructions.

•The density of the materials used in a building’s construction determines the number of walls the

signal must pass through and still maintain adequate coverage. Consider the following before

choosing the location to install your antenna:

–

Paper and vinyl walls have very little affect on signal penetration.

–

Solid and pre-cast concrete walls limit signal penetration to one or two walls without degrading

coverage.

–

Wood and concrete block walls limit signal penetration to three or four walls.

–

A signal can penetrate five or six walls constructed of drywall or wood.

–

A thick metal wall causes signals to reflect off, causing poor penetration.

Safety Instructions

Follow these safety precautions when installing your antenna.

•Plan your installation procedure carefully and completely before you begin.

•If you are installing an antenna for the first time, for your own safety as well as others, seek

professional assistance. Consult your dealer, who can explain which mounting method to use for

the location where you intend to install the antenna.

•Select your installation site with safety, as well as performance, in mind. Remember that electric

power lines and telephone lines look alike. For your safety, assume that any line is an electric power

line until determined otherwise.

•Call your local power company or building maintenance organization if you are unsure about cables

close to your intended mounting location.

•If an accident or emergency occurs with the power lines, call for qualified emergency help

immediately.

•When installing your antenna in any location, do not use a metal ladder. Do dress properly - shoes

with rubber soles and heels, rubber gloves, and a long sleeved shirt or jacket. When drilling

mounting holes, wear safety glasses.

Cisco Aironet 4.5-dBi Low Profile Omnidirectional Antenna (AIR-ANT5145V-R) 78-16467-01

Installing the Antenna

The antenna ships with a mounting bracket and the hardware required to install the antenna on a

suspended ceiling. Figure 1 shows the layout of the detachable mounting bracket.

Figure 1 Mounting Bracket

Tools and Equipment Required

To install the antenna, you will need the following tools and equipment.

•The mounting kit supplied with your antenna consisting of:

–

Mounting bracket

–

Two T-rail clips with studs

–

Two plastic spacers

–

Two 1/4-20 T-rail nuts with built-in washers

•A 9 mm open end wrench or suitable pliers

•Standard screwdriver

•A 3/4 in. (20 mm) drill bit

•A Drill

•A pencil or suitable marker

1Retaining tabs 3Mounting bracket

2Mounting holes

121664

Cisco Aironet 4.5-dBi Low Profile Omnidirectional Antenna (AIR-ANT5145V-R)

78-16467-01

Installing the Antenna

Follow these steps to install the antenna. It may be helpful to refer to before you begin.

Step 1 Choose a location in which to install the antenna.

Step 2 Remove the adjacent ceiling panels on each side of the T-rail on which the antenna is to be installed.

Note The panels must be removed so you can attach the antenna’s cables to the cables coming from

the device using the antenna. Removing the pane lets you support to the ceiling T-rail when you

snap the antenna in place on the mounting bracket.

Step 3 Attach the T-rail clips to the ceiling T-rail.

Step 4 Verify that the distance between the t-rail studs is 3.125-in (80 mm).

Step 5 Slip a plastic spacer onto the stud of each T-rail clip.

Step 6 Position the mounting bracket into the T-rail clip studs.

Step 7 Start a T-rail nut on each stud.

Step 8 Tighten each T-rail nut wrench tight. Use a standard screwdriver to keep the stud from turning while you

tighten the nut.

Step 9 Use the mounting bracket to determine and mark where to drill the antenna cable access hole in the

ceiling panel.

Step 10 Drill a 3/4 in. (20 mm) hole at each mark.

Step 11 Position the antenna over the mounting bracket and feed each cable through its respective access hole.

Step 12 Grasp the ceiling T-rail as closely as possible to the mounting bracket while aligning the antenna with

the retaining tabs.

Step 13 Snap the antenna over the retaining tabs.

Step 14 Connect the antenna cables.

Step 15 Replace the ceiling panels.

Cisco Aironet 4.5-dBi Low Profile Omnidirectional Antenna (AIR-ANT5145V-R) 78-16467-01

Installing the Antenna

Figure 2 Installation Details

Suggested Cable

Cisco recommends a high-quality, low-loss cable for use with the antenna.

Note Coaxial cable loses efficiency as the frequency increases, resulting in signal loss. The cable

should be kept as short as possible because cable length also determines the amount of

signal loss (the longer the run, the greater the loss).

The antenna terminates with a RP-TNC plug after a short, 3-ft (0.91-m) cable. The mating connector to

the antenna is an appropriate RP-TNC jack.

1Antenna 4Antenna cable

2Mounting bracket 5T-rail clip

3Antenna connectors 6Ceiling T-rail

121665

4 4

Cisco Aironet 4.5-dBi Low Profile Omnidirectional Antenna (AIR-ANT5145V-R)

78-16467-01

Obtaining Documentation

Cisco documentation and additional literature are available on Cisco.com. Cisco also provides several

ways to obtain technical assistance and other technical resources. These sections explain how to obtain

technical information from Cisco Systems.

Cisco.com

You can access the most current Cisco documentation at this URL:

http://www.cisco.com/univercd/home/home.htm

You can access the Cisco website at this URL:

http://www.cisco.com

You can access international Cisco websites at this URL:

http://www.cisco.com/public/countries_languages.shtml

Ordering Documentation

You can find instructions for ordering documentation at this URL:

http://www.cisco.com/univercd/cc/td/doc/es_inpck/pdi.htm

You can order Cisco documentation in these ways:

•Registered Cisco.com users (Cisco direct customers) can order Cisco product documentation from

the Ordering tool:

http://www.cisco.com/en/US/partner/ordering/index.shtml

•Nonregistered Cisco.com users can order documentation through a local account representative by

calling Cisco Systems Corporate Headquarters (California, USA) at 408 526-7208 or, elsewhere in

North America, by calling 800 553-NETS (6387).

Documentation Feedback

You can send comments about technical documentation to bug-doc@cisco.com.

You can submit comments by using the response card (if present) behind the front cover of your

document or by writing to the following address:

Cisco Systems

Attn: Customer Document Ordering

170 West Tasman Drive

San Jose, CA 95134-9883

We appreciate your comments.

Cisco Aironet 4.5-dBi Low Profile Omnidirectional Antenna (AIR-ANT5145V-R) 78-16467-01

Obtaining Technical Assistance

For all customers, partners, resellers, and distributors who hold valid Cisco service contracts, Cisco

Technical Support provides 24-hour-a-day, award-winning technical assistance. The Cisco Technical

Support Website on Cisco.com features extensive online support resources. In addition, Cisco Technical

Assistance Center (TAC) engineers provide telephone support. If you do not hold a valid Cisco service

contract, contact your reseller.

Cisco Technical Support Website

The Cisco Technical Support Website provides online documents and tools for troubleshooting and

resolving technical issues with Cisco products and technologies. The website is available 24 hours a day,

365 days a year at this URL:

http://www.cisco.com/techsupport

Access to all tools on the Cisco Technical Support Website requires a Cisco.com user ID and password.

If you have a valid service contract but do not have a user ID or password, you can register at this URL:

http://tools.cisco.com/RPF/register/register.do

Submitting a Service Request

Using the online TAC Service Request Tool is the fastest way to open S3 and S4 service requests. (S3

and S4 service requests are those in which your network is minimally impaired or for which you require

product information.) After you describe your situation, the TAC Service Request Tool automatically

provides recommended solutions. If your issue is not resolved using the recommended resources, your

service request will be assigned to a Cisco TAC engineer. The TAC Service Request Tool is located at

this URL:

http://www.cisco.com/techsupport/servicerequest

For S1 or S2 service requests or if you do not have Internet access, contact the Cisco TAC by telephone.

(S1 or S2 service requests are those in which your production network is down or severely degraded.)

Cisco TAC engineers are assigned immediately to S1 and S2 service requests to help keep your business

operations running smoothly.

To open a service request by telephone, use one of the following numbers:

Asia-Pacific: +61 2 8446 7411 (Australia: 1 800 805 227)

EMEA: +32 2 704 55 55

USA: 1 800 553 2447

For a complete list of Cisco TAC contacts, go to this URL:

http://www.cisco.com/techsupport/contacts

Definitions of Service Request Severity

To ensure that all service requests are reported in a standard format, Cisco has established severity

definitions.

Severity 1 (S1)—Your network is “down,” or there is a critical impact to your business operations. You

and Cisco will commit all necessary resources around the clock to resolve the situation.

Cisco Aironet 4.5-dBi Low Profile Omnidirectional Antenna (AIR-ANT5145V-R)

78-16467-01

Obtaining Additional Publications and Information

Severity 2 (S2)—Operation of an existing network is severely degraded, or significant aspects of your

business operation are negatively affected by inadequate performance of Cisco products. You and Cisco

will commit full-time resources during normal business hours to resolve the situation.

Severity 3 (S3)—Operational performance of your network is impaired, but most business operations

remain functional. You and Cisco will commit resources during normal business hours to restore service

to satisfactory levels.

Severity 4 (S4)—You require information or assistance with Cisco product capabilities, installation, or

configuration. There is little or no effect on your business operations.

Obtaining Additional Publications and Information

Information about Cisco products, technologies, and network solutions is available from various online

and printed sources.

•Cisco Marketplace provides a variety of Cisco books, reference guides, and logo merchandise. Visit

Cisco Marketplace, the company store, at this URL:

http://www.cisco.com/go/marketplace/

•The Cisco Product Catalog describes the networking products offered by Cisco Systems, as well as

ordering and customer support services. Access the Cisco Product Catalog at this URL:

http://cisco.com/univercd/cc/td/doc/pcat/

•Cisco Press publishes a wide range of general networking, training and certification titles. Both new

and experienced users will benefit from these publications. For current Cisco Press titles and other

information, go to Cisco Press at this URL:

http://www.ciscopress.com

•Packet magazine is the Cisco Systems technical user magazine for maximizing Internet and

networking investments. Each quarter, Packet delivers coverage of the latest industry trends,

technology breakthroughs, and Cisco products and solutions, as well as network deployment and

troubleshooting tips, configuration examples, customer case studies, certification and training

information, and links to scores of in-depth online resources. You can access Packet magazine at this

URL:

http://www.cisco.com/packet

•iQ Magazine is the quarterly publication from Cisco Systems designed to help growing companies

learn how they can use technology to increase revenue, streamline their business, and expand

services. The publication identifies the challenges facing these companies and the technologies to

help solve them, using real-world case studies and business strategies to help readers make sound

technology investment decisions. You can access iQ Magazine at this URL:

http://www.cisco.com/go/iqmagazine

•Internet Protocol Journal is a quarterly journal published by Cisco Systems for engineering

professionals involved in designing, developing, and operating public and private internets and

intranets. You can access the Internet Protocol Journal at this URL:

http://www.cisco.com/ipj

•World-class networking training is available from Cisco. You can view current offerings at

this URL:

http://www.cisco.com/en/US/learning/index.html

Cisco Aironet 4.5-dBi Low Profile Omnidirectional Antenna (AIR-ANT5145V-R) 78-16467-01

Obtaining Additional Publications and Information

Cisco Aironet 4.5-dBi Low Profile Omnidirectional Antenna (AIR-ANT5145V-R)

78-16467-01

Obtaining Additional Publications and Information

Cisco Aironet 4.5-dBi Low Profile Omnidirectional Antenna (AIR-ANT5145V-R) 78-16467-01

Obtaining Additional Publications and Information

CCSP, the Cisco Square Bridge logo, Cisco Unity, Follow Me Browsing, FormShare, and StackWise are trademarks of Cisco Systems, Inc.; Changing

the Way We Work, Live, Play, and Learn, and iQuick Study are service marks of Cisco Systems, Inc.; and Aironet, ASIST, BPX, Catalyst, CCDA, CCD
