Cisco Systems Inc Aironet 802.11n Single Band Mesh Access Points ap1550qsg
Contents
User manual
DRAFT
GETTING STARTED GUIDE
Cisco Aironet 1550 Series Outdoor Mesh Access Points
INCLUDING LICENSE AND WARRANTY
1About this Guide
2Introduction to the Access Point
3Unpacking the Access Point
4Configurations
5Becoming Familiar With the Access Point

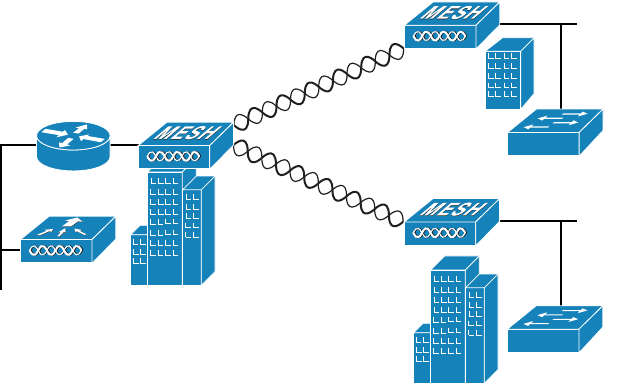

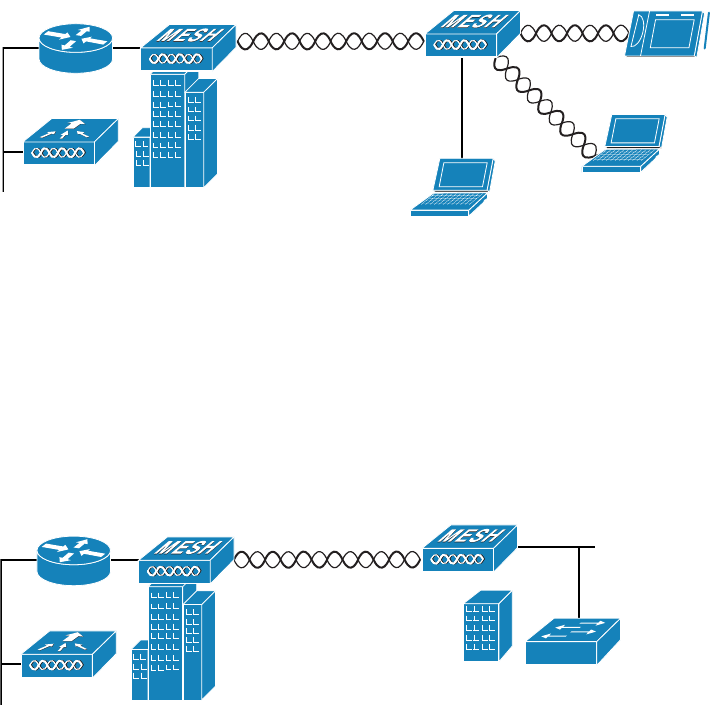

6Network Deployment Examples
7Preparing the Access Point
8Deploying the Access Point
9Declarations of Conformity and Regulatory Information
10 In Case of Difficulty
11 Cisco 90-Day Limited Hardware Warranty Terms
2
DRAFT
1 About this Guide
This guide is designed to familiarize yourself with your Cisco Aironet 1550 Series Outdoor Mesh
Access Point and prepare it for use in your wireless network. Due to the complexity and number of
product options available, this guide does not provide detailed mounting and configuration
instructions. Those instructions can be found in the following documents:
• Cisco Mesh Networking Solution Deployment Guide
• Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide
• Cisco Aironet 1520 Series Access Point Power Injector Installation Instructions
Detailed configuration information can also be found in the Cisco wireless LAN controller
documentation for the controller and software release you are using. These and other documents are
available on Cisco.com. Follow these steps to access these documents:
Step 1 Browse to http://www.cisco.com.
Step 2 Click Support. A pop-up window appears.
Step 3 Click Wireless under Select a Product Name. The Select Your Product or Technology page
appears.
Step 4 Click Wireless > Outdoor Wireless.
Step 5 Click Cisco Aironet 1550 Series in the Search for a Specific Product field. The Cisco Aironet
1550 Series Introduction page appears.
Step 6 Choose the appropriate link for the documentation you want to view or download.
FCC Safety Compliance Statement
The FCC with its action in ET Docket 96-8 has adopted a safety standard for human exposure to radio
frequency (RF) electromagnetic energy emitted by FCC certified equipment. When used with approved
Cisco Aironet antennas, Cisco Aironet products meet the uncontrolled environmental limits found in
OET-65 and ANSI C95.1, 1991. Proper installation of this radio according to the instructions found
in this manual will result in user exposure that is substantially below the FCC recommended limits.
Declaration of Conformity for RF Exposure
This access point product has been found to be compliant to the requirements set forth in CFR 47
Section 1.1307 addressing RF Exposure from radio frequency devices as defined in Evaluating
Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields.
3
DRAFT
Use is permitted with antenna gain not exceeding 4 dBi in the 2.4 GHz band and 7 dBi in the 5 GHz
band, as described in filing, with a minimum separation distance of 20 cm between the antenna and
all persons during normal operation.

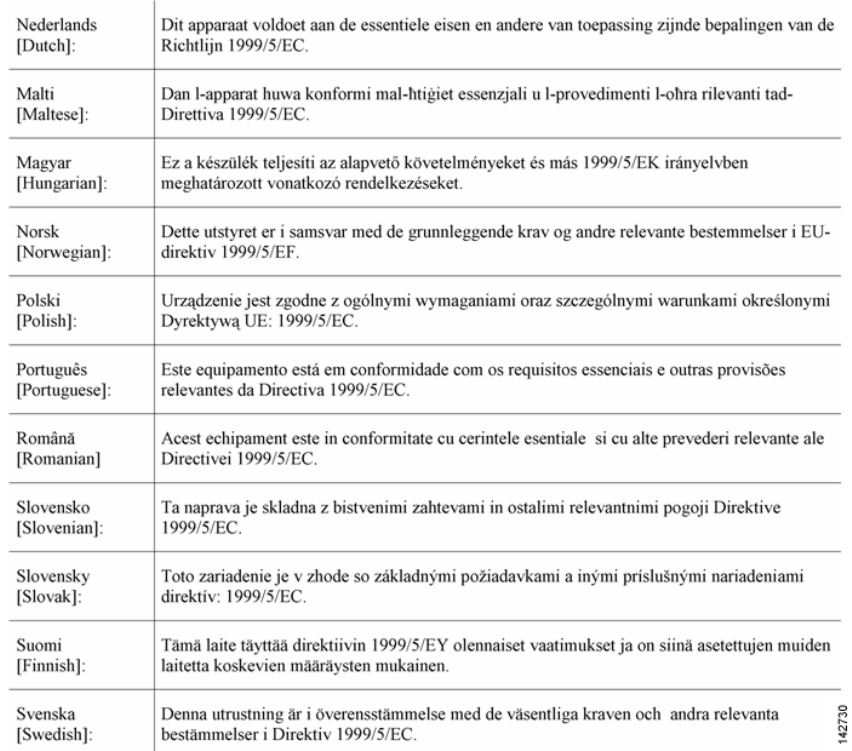

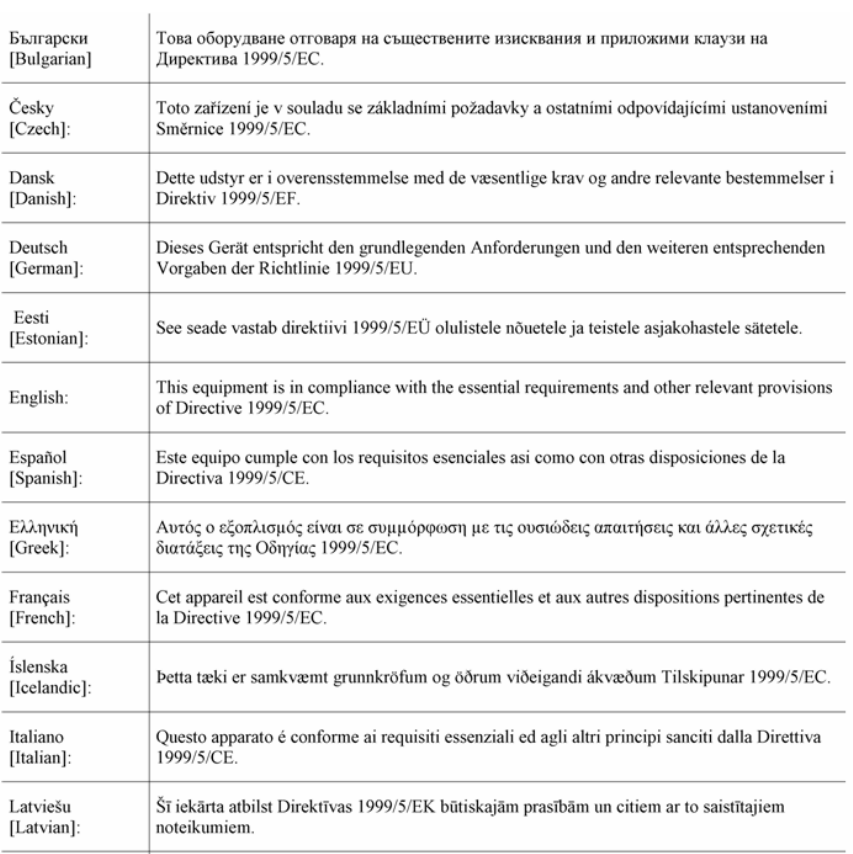

Declaration of Conformity with Regard to the EU Directive 1999/5/EC
(R&TTE Directive)
This declaration is only valid for configurations (combinations of software, firmware and hardware)
provided and/or supported by Cisco Systems. The use software or firmware not supported/provided
by Cisco Systems may result that the equipment is no longer compliant with the regulatory
requirements.
General Safety Guidelines
Warnings
Safety warnings appear throughout this guide in procedures that may harm you if performed
incorrectly. A warning symbol precedes each warning statement. The warnings below are general
warnings that are applicable to the entire guide. Specific warnings are included in the sections to which
they apply.
Translated versions of the safety warnings in this guide are provided in the Safety Warnings for
Cisco Aironet 1550 Series Outdoor Mesh Access Points document that accompanies this guide.
The translated warnings are also in Appendix A of the Cisco Aironet 1550 Series Outdoor Mesh
Access Point Hardware Installation Guide, which is available at cisco.com.
Warning
This warning symbol means danger. You are in a situation that could cause bodily injury.
Before you work on any equipment, be aware of the hazards involved with electrical
circuitry and be familiar with standard practices for preventing accidents. Use the
statement number provided at the end of each warning to locate its translation in the
translated safety warnings that accompanied this device.
Statement 1071
SAVE THESE INSTRUCTIONS
Warning
There is the danger of explosion if the battery is replaced incorrectly. Replace the battery
only with the same or equivalent type recommended by the manufacturer. Dispose of
used batteries according to the manufacturer’s instructions.
Statement 1015
4
DRAFT
Warning
Do not operate the unit near unshielded blasting caps or in an explosive environment
unless the device has been modified to be especially qualified for such use.
Statement 364
Warning
This equipment must be externally grounded using a customer-supplied ground wire
before power is applied. Contact the appropriate electrical inspection authority or an
electrician if you are uncertain that suitable grounding is available.
Statement 366
Warning
Read the installation instructions before connecting the system to the power source.
Statement 1004
Warning
Only trained and qualified personnel should be allowed to install, replace, or service
this equipment.
Statement 1030
Warning
Ultimate disposal of this product should be handled according to all national laws and
regulations.
Statement 1040
2 Introduction to the Access Point
The Cisco Aironet 1550 Series Outdoor Mesh Access Point (hereafter called the access point) is a
ruggedized outdoor access designed for service in mesh networks. The 1550 series leverages 802.11n
technology with integrated radio and external antennas. The 1550 outdoor platform consists of
(Multiple Input Multiple Output) MIMO WLAN radios and optional integrated spectrum intelligence
(Clean Air).
CleanAir provides full 11n data rates while detecting, locating, classifying and mitigating radio
frequency (RF) interference to provide the best client experience possible. CleanAir technology on the
outdoor 11n platform mitigates WiFi and non-WiFi interference for both the access and backhaul
radios.
5
DRAFT
The 1550 AP series offers multi-band 2.4 GHz, and 5 GHz configurations with an option to configure
access and backhaul radios. The 1550 outdoor radios are called 2.4GHz MIMO radios and 5GHz
MIMO radios. The radios can be configured for one or two radio operation. The 2.4GHz radios are
used primarily for local access and the 5 GHz radios for wireless backhaul in the Mesh.
The 1550 series supports the modularity of the 1520 series and allows flexibility in radio
configuration. In addition to full interoperability with 802.11n clients, the 1550 series interoperates
with legacy clients and offers enhanced backhaul performance. The 1550 series can also be configured
with an integrated DOCSIS 3.0 cable modem.
Note The 4.9-GHz Public Safety band requires a license and may be used only by qualified Public
Safety operators as defined in section 90.20 of the FCC rules.

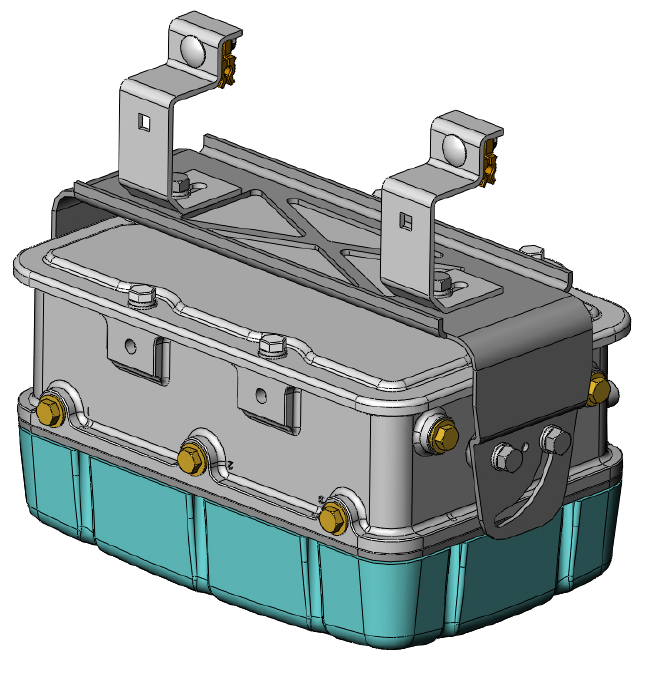

The access point is a standalone unit that can be cable strand or tower mounted. The access point can
also operate as a relay node for other access points not directly connected to a wired network.
Intelligent wireless routing is provided by the patent-pending Adaptive Wireless Path Protocol
(AWPP). This enables each access point to identify its neighbors and intelligently choose the optimal
path to the wired network by calculating the cost of each path in terms of signal strength and the
number of hops required to get to a controller. The access point is configured, monitored, and operated
through a Cisco wireless LAN controller (hereafter called a controller) as described in the appropriate
Cisco Wireless LAN Controller Configuration Guide. The Cisco Mesh Networking Solution
Deployment Guide describes how to plan and initially configure the Cisco mesh network, which

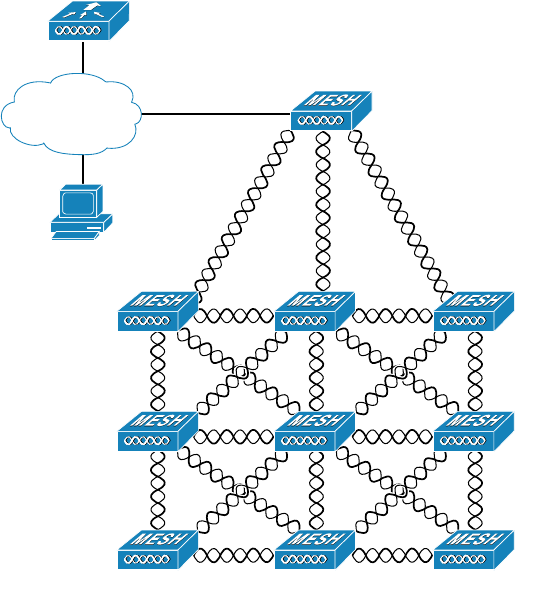

supports wireless point-to-point, point-to-multipoint, and mesh deployments. The controllers use a
browser-based management system, a command-line interface (CLI), or the Cisco Wireless Control
System (WCS) network management system to manage the controller and the associated access points.
The access point is compliant with Wi-Fi Protected Access 2 (WPA2) and employs hardware-based
Advanced Encryption Standard (AES) encryption between wireless nodes to provide end-to-end
security.
3 Unpacking the Access Point
Note When you are unpacking the access point, do not remove the foam blocks attached to the
antenna connectors. The foam protects the antenna connectors during installation.
Follow these steps to unpack the access point:
Step 1 Open the shipping container and carefully remove the contents.
Step 2 Return all packing materials to the shipping container and save it.
6
DRAFT
Step 3 Ensure that all items listed in the “Package Contents” section are included in the shipment.
Check each item for damage. If any item is damaged or missing, notify your authorized Cisco
sales representative.
Package Contents
Each access point package contains the following items:
• One 1550 series access point
• Installed mounting plate (attached to the back of the access point)
• Ground lug with screw and washer
• Cisco Aironet 1550 Series Outdoor Mesh Access Point Mounting Instructions
• Translated Safety Warnings for Cisco Aironet 1520 Series Outdoor Mesh Access Points
• This guide
Optional Equipment
Depending on what you ordered, the following optional equipment may be part of your shipment:
• Hazardous Location Battery Backup Unit (HZBBU)
• Standard Battery Backup Unit (BBU)
• Fiber Optic Link
• Cable modem (AIR-1520-CM-D2=)
• Battery, 6 amp hour (AIR-1520-BATT-6AH=)
• 100BASE-BX10-U rugged SFP (GLC-FE-100BX-URGD=)
• Take-up reel for fiber cable (AIR-1520-FIB-REEL=)
• Pole mount kit (AIR-ACCMK1520=)
• Strand mount kit (AIR-ACCSMK1520=)
• Cable power module and supply (AIR-1520-CAB-PWR=)
• Band installation tool for pole mount kit (AIR-BAND-INS-TL=)
• Street light power tap (AIR-PWR-ST-LT-R3P=)
• AC power cord, 40 ft. (12.2 m) with North American plug (AIR-CORD-R3P-50NA=)
• Power injector (AIR-PWRINJ1500-2=)
• FIPS kit (AIRLAP-FIPSKIT=)
7
DRAFT
• Third-party lightning arrestors as required by local authorities
4 Configurations
The 2GHz MIMO radio operates in 2.4 GHz ISM band. It supports channels 1-11 in US, 1-13 in
Europe, and 1-13 in Japan.The 5GHz MIMO radio operates in the UNII-2 band (5.25 – 5.35 GHz),
the UNII-2 Extended/ETSI band (5.47 – 5.725 GHz), and the upper ISM band (5.725 – 5.850 GHz).
For information on the regulatory domains see “Regulatory Domains” section on page 7.
The configurations for two (2) radios are:
• AIR-CAP1552E-x-K9 2.4GHz b/g/n, 5GHz a/n MIMO, Outdoor Mesh AP
• AIR-CAP1552H-x-K9 2.4GHz b/g/n, 5GHz a/n MIMO, Outdoor Mesh AP w/ Haz Loc
• AIR-CAP1552C-x-K9 2.4GHz b/g/n, 5GHz a/n MIMO, Outdoor Mesh AP w/ DOCSIS 3.0 Cable
Modem
• AIR-CAP1552I-x-K9
Regulatory Domains
The 1550 series supports the following regulatory domains:
• -A FCC/North America
• -E ETSI/EU
• -N Non-FCC
• -C China
• -M Middle East
• -K Korea
• -T Taiwan
• -Q Japan (5.47-5.725GHz channels)
• -S Singapore
• -R Russia
5 Becoming Familiar With the Access Point

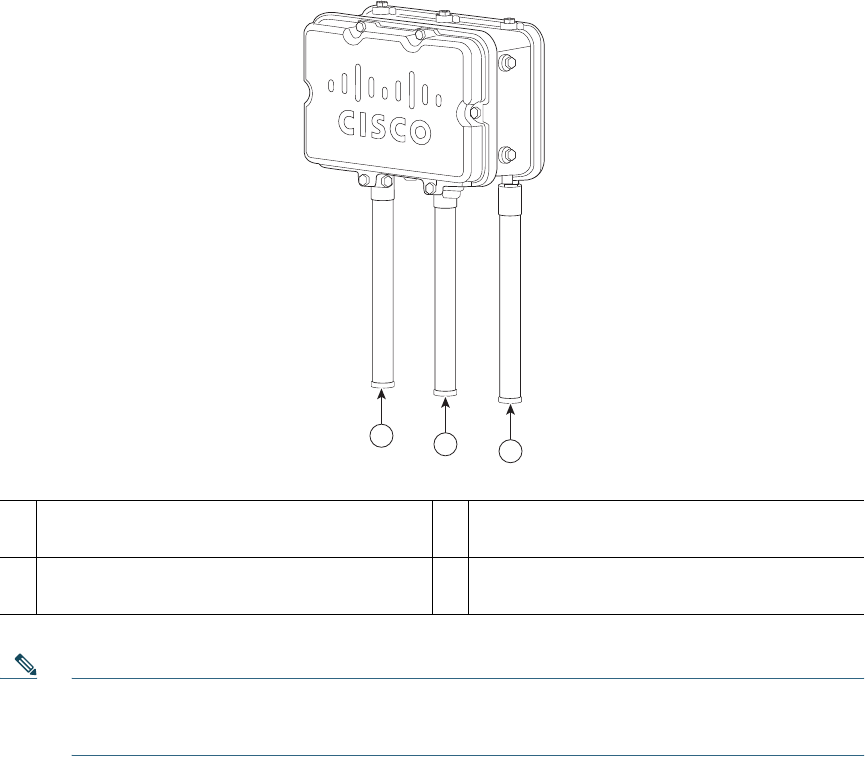

The following illustrations show identify the access point connections. Before you begin the
installation process, use these illustrations to familiarize yourself with the access point.
8
DRAFT
Note The illustrations show all available connections for the configuration ordered. Unused
connections are capped to ensure the access point’s watertight integrity. Liquid tight
connectors are provided for all ports, which can be installed prior to or after deploying the
access point.
9
DRAFT

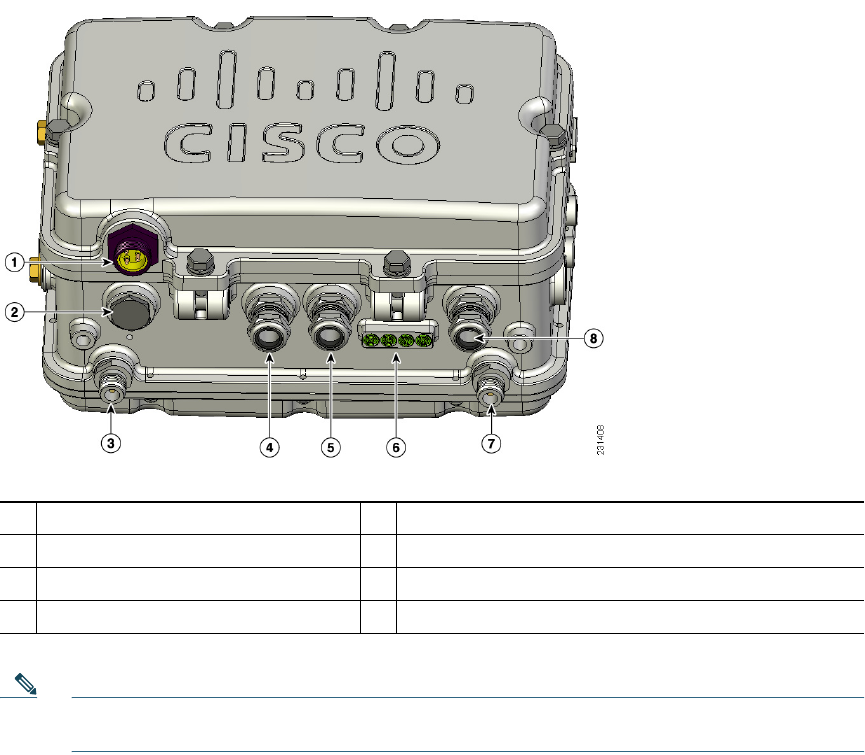

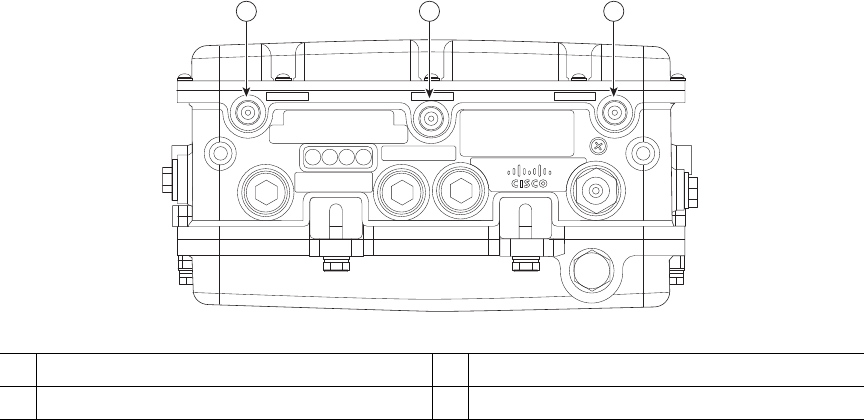

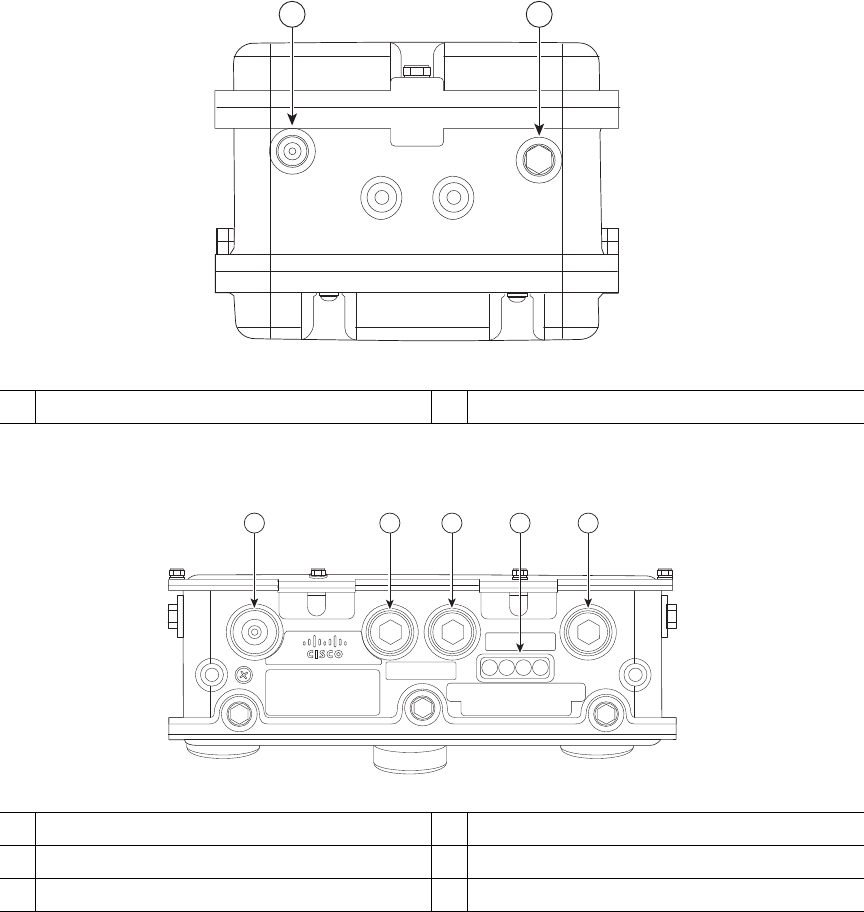

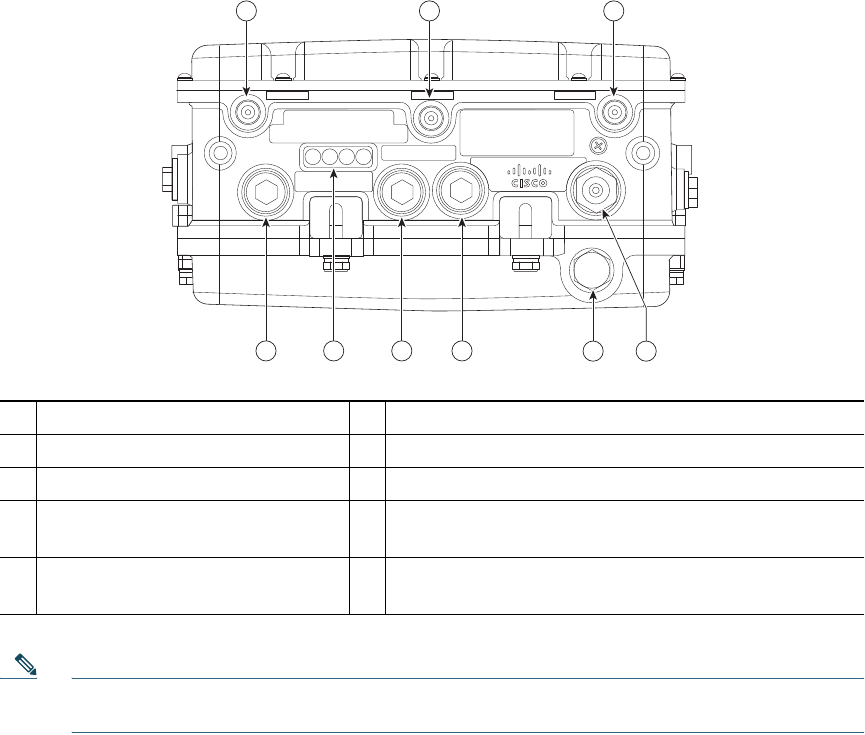

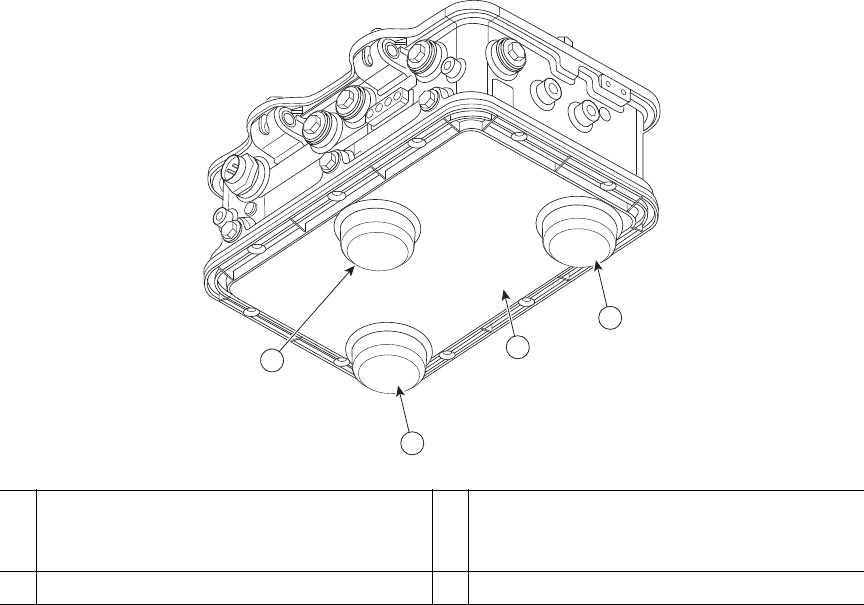

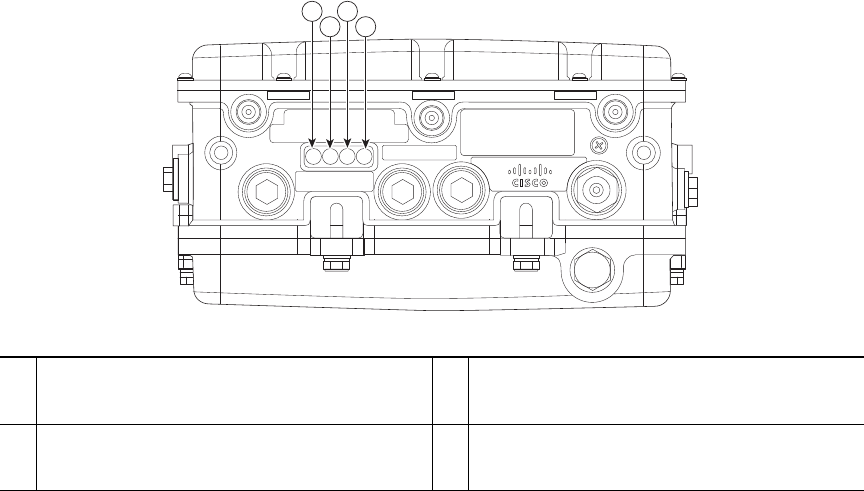

Figure 1 shows the access point bottom connectors.
Figure 1 Access Point Bottom Connectors
1AC power connector 5Power-over-Ethernet (PoE) Out Ethernet connector
2Reserved for future use 6LEDs
3Antenna port 6 7Antenna port 4
4Fiber optic connector 8PoE-In Ethernet connector
Note Antenna port 5 is not shown in this illustration. The port is reserved for future use and will
be located midway between antenna ports 4 and 6.
11
DRAFT

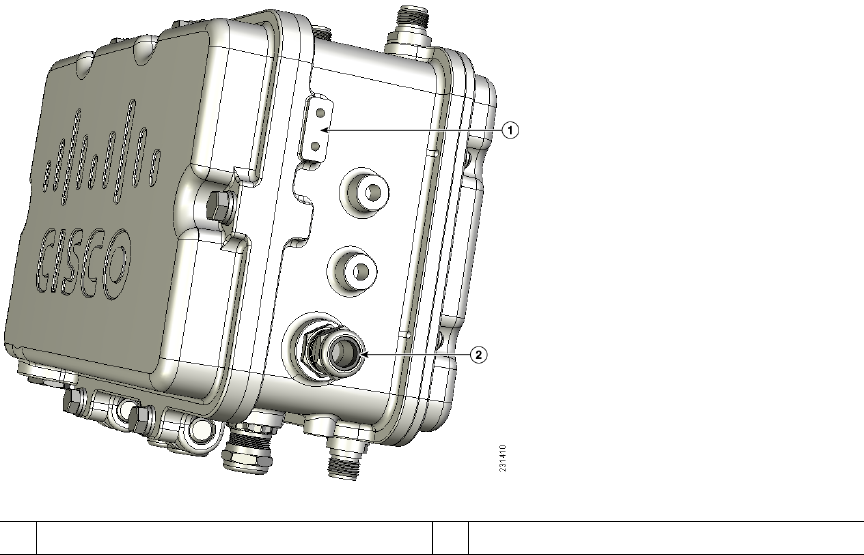

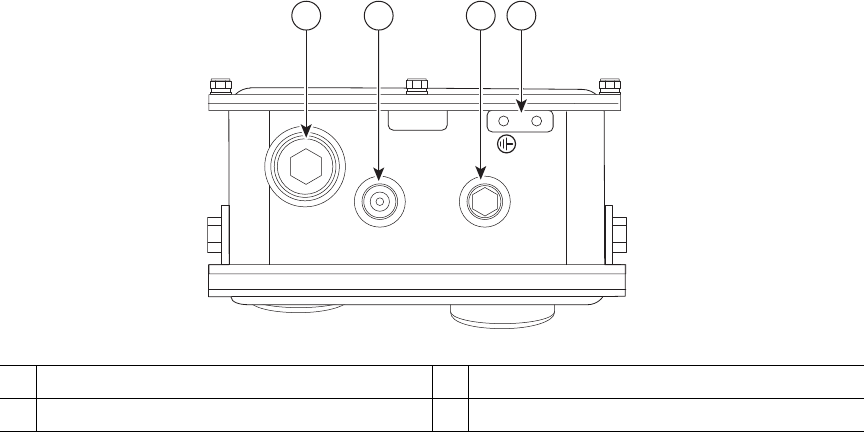

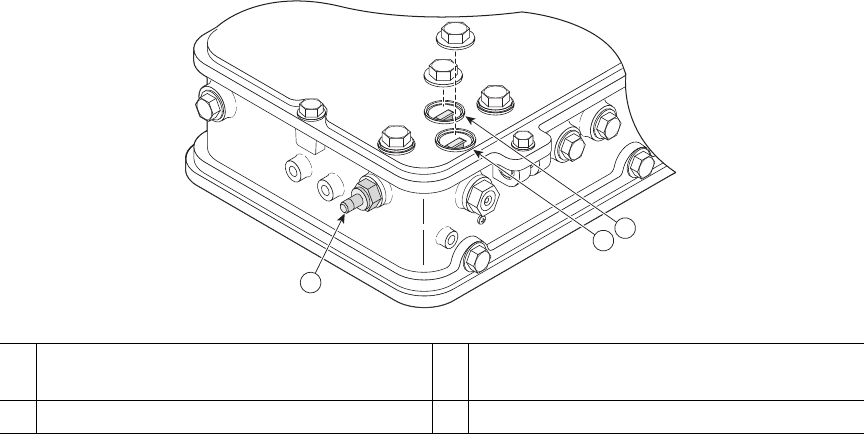

Figure 3 shows the access point right side connections.
Figure 3 Access Point Right Side Connections
1Ground screw holes 2DC power connector
Radio Operation
The 1550 access point 802.11b/g/n radio is used primarily for local access and its 802.11a/n radio for
wireless backhaul in the Mesh.
The 2GHz b/g/n radio operates in 2.4 GHz ISM band. It supports channels 1-11 in US, 1-13 in Europe,
and 1-13 in Japan. It has two transmitters with a maximum total output power of 25dBm for
802.11b/g/n operation. Output power is configurable to 5 levels. It has three receivers that enable
maximum-ratio combining (MRC).
12
DRAFT
The 5GHz a/n radio operates in the UNII-2 band (5.25 - 5.35 GHz), UNII-2 Extended/ETSI band (5.47
- 5.725 GHz), and the upper ISM band (5.725 - 5.850 GHz). It has two transmitters with a maximum
total output power of 26 dBm for UNII-2 and Extended/ETSI bands. The total maximum output power
for the upper ISM band is 28 dBm. Output power is configurable for 5 power levels in 3dB steps. Its
three receivers enables maximum-ratio combining (MRC).
The 1550 access point antenna options include a new integrated dual-band omni-directional antenna,
with 2dBi gain at 2.4-2.5 GHz and 4 dBi gain at 5.25-5.85GHz. The antenna works in cable strand
mount and low cost, low profile applications.
External Antennas
Warning
In order to comply with radio frequency (RF) exposure limits, the antennas for this
product should be positioned no less than 20cm from your body or nearby persons.
Statement 339
Warning
Do not locate the antenna near overhead power lines or other electric light or power
circuits, or where it can come into contact with such circuits. When installing the
antenna, take extreme care not to come into contact with such circuits, because they
may cause serious injury or death. For proper installation and grounding of the antenna,
please refer to national and local codes (for example, U.S.:NFPA 70, National Electrical
Code, Article 810, Canada: Canadian Electrical Code, Section 54).
Statement 1052
Warning
Only trained and qualified personnel should be allowed to install, replace, or service this
equipment.
Statement 1030
The access point is equipped with three N-type radio frequency (RF) connectors (antenna ports 1, 2,
and 3) on the top of the unit for external antennas to support multiple input single output (MISO)
operation as shown in Figure 1. The access point also has three N-type RF connectors (antenna ports
4, 5, and 6) on the bottom of the unit for external antennas as shown in Figure 2. When using the
optional Cisco compact omnidirectional antennas, the 2.4- and 5-GHz antennas connect directly to
the access point. The Cisco omnidirectional antennas use vertical polarization.
The access point can also be equipped with specific third-party external antennas (see Table 1), subject
to local regulatory requirements. If you install third-party antennas, be sure to install them with all
waterproofing steps recommended by the third-party manufacturer. For additional information, see
the documentation shipped with the antenna.
13
DRAFT
Note The FCC limits the amount of power this device can transmit. Power transmitted is a
combination of the amplification of the signal and the antenna gain. The access point has been
designed to operate with the antennas listed below having a maximum gain of 4 dBi for
2.5-GHz and 7 dBi for 5-GHz antennas. Antennas not included in this list or having a higher
gain are strictly prohibited for use with the access point. The required antenna impedance is
50 ohms.”
Note To reduce potential radio interference to other users, the antenna type and its gain should be
chosen so that the equivalent subtropical radiated power (EIRP) is not more than required for
successful communication.
Antenna Configurations
Two antenna configurations are available, based on how the access point is mounted. The cable strand
mounting configuration uses three antennas and the tower mount configuration uses four antennas.
Table 1 identifies the antenna ports used and explains the configurations.
Table 1 Antenna Ports and Configurations
Antenna Port Product Configuration
Cable Strand Mount
(Two Antenna Receive MRC Access and
One Backhaul)
Pole Mount
(Three Antenna Receive MRC Access and
One Backhaul)
12.4-GHz receive only 5-GHz receive and transmit
25-GHz transmit and receive No connection
32.4-GHz transmit and receive 2.4-GHz receive only
4No connection 2.4-GHz receive only
5No connection No connection
6No connection 2.4-GHz transmit and receive
MIMO Antenna Options
The MIMO antenna replaces the aluminum cover on the radio-side of the housing. The MIMO
antenna is constructed of a polycarbonate radome, aluminum ground plane, antenna support brackets
and 3dual-band dipole antennas, each with an integral coax cable. Dual-band antennas cover the
14
DRAFT
frequency ranges 2.400-2.483 GHz and 5.250-5.850 GHz. The dual-band antennas span the WiMAX
band 2.496- 2.690 GHz and extend the upper band to 5.250-5.875 GHz. Each 3-inch dual band
antenna element is a vertically polarized omni-directional antenna with nominal peak antenna gain of
2 dBi for the 2.4 GHz antenna and 4 dBi for the 5 GHz. See Figure 4 for installed 1550 series MIMO
antennas. Peak gain of the 2.4 GHz antenna is at 20 degrees down from the horizon, the 5 GHz is at
10 degrees down. The pigtail coax cable from each dual-band antenna will connect to the 5 GHz
MIMO radio by a MCX right-angle male connector. The LP MIMO antenna requires the 5 GHz
MIMO radio to be mounted 90 degrees to that of the non-PoC 1550 MIMO radio, as illustrated in
Figure 4.
15
DRAFT
Figure 4 1550 Series MIMO Radio with Dual-Band Antennas Installed
MIMO External Antenna Configurations
The 1550 series support several MIMO external antenna configurations. The external antenna option
for dual band 2.4/5 GHz operation is listed in Table 2.
All the external antennas have DC shorts to ground for lightning protection. The 1550 series will
provide up to six N-connectors for external connection to antennas.
16
DRAFT
Table 2 Dual-Band (2.4 GHz and 5 GHz) External Omni Antenna Option
Description
2.4-2.5/5.25-5.85 GHz, 4 dBi/7dBi 11" Omni Direct Mounting Ant with N male
Connector.
The selection of the antenna is determined in the configuration of the product. The antennas cable
strand mounting sustains up to 165 MPH gust wind loading. Dual-Bank antennas fit within a 12 x 12
inch boundary box as shown in Figure 5.
17
DRAFT

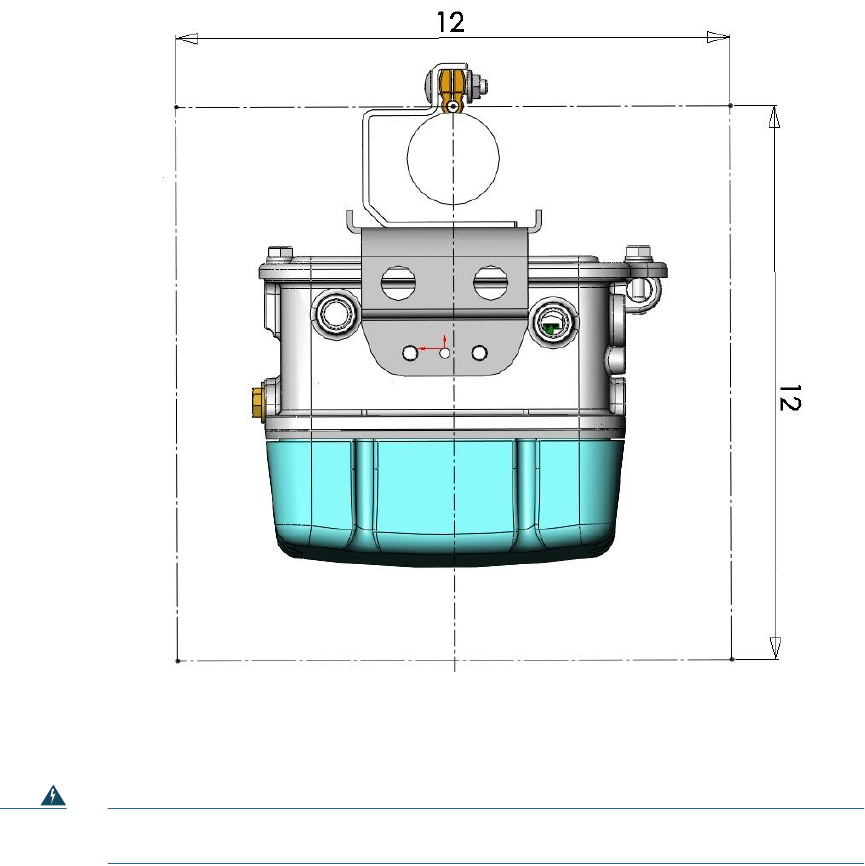

Figure 5 1550 Series Boundary Box for Installed Dual-Band Antennas
Power
Warning
Installation of the equipment must comply with local and national electrical codes.
Statement 1074
18
DRAFT
Warning
This equipment must be externally grounded using a customer-supplied ground wire
before power is applied. Contact the appropriate electrical inspection authority or an
electrician if you are uncertain that suitable grounding is available.
Statement 366
Warning
Do not work on the system or connect or disconnect cables during periods of lightning
activity.
Statement 1001
Caution Do not place the power injector in an unprotected outdoor environment because water
could get into the power injector and cause a short circuit and possible fire.
The 1550 series access point supports the following power sources:
• AC power—100 to 480 VAC
• Quazi-AC power-over-cable (POC)—40 to 90 V
• External 12 VDC power
• Power-over-Ethernet—1550 power injector
• Internal 6 ampere-hour battery backup
• Alternative power source prioritization for custom applications is selectable with software
upgrade
Warning
Connect the unit only to DC power source that complies with the Safety Extra-Low
Voltage (SELV) requirements in IEC 60950 based safety standards
Statement 1033
The 1550 series access point can be connected to more than one power source. The access point detects
available input sources and switches to the preferred power source using the following prioritization:
• AC or POC power
• External DC power
• 1520 power injector PoE power
• Internal battery power
Warning
This unit might have more than one power supply connection. All connections must be
removed to de-energize the unit.
Statement 1028
19
DRAFT
Warning
To reduce the risk of fire, use only No. 26 AWG or larger telecommunication line cord.
Statement 1023
Caution To provide inline PoE, you must use the 1520 series power injector. Other power
injectors, PoE switches, and 802.3af power sources cannot provide adequate power,
which may cause the access point to malfunction and cause over-current conditions at the
power source. You must ensure that the switch port connected to the access point has PoE
turned off.
Caution Do not install the power injector and the power outdoors. They must be installed indoors.
Caution When the access point is installed outdoors or in a wet or damp location, the AC branch
circuit that is powering the access point should be provided with ground fault protection
(GFCI), as required by Article 210 of the National Electrical Code (NEC).
Three AC power cord options are available:
• 40-ft (12.2-m) power cord for light pole installations in the US and Canada. One end of the power
cord is terminated with an access point AC power connector and the other end is terminated
with an AC plug (AIR-CORD-R3P-50NA=).
• 40-ft (12.2-m) power cord for use outside the US and Canada. One end of the power cord is
terminated with an access point AC power connector and the other end is unterminated.
(AIR-CORD-R3P-50UE=).
• 4-ft (1.2-m) streetlight power tap adapter for light pole installations in the US and Canada
(AIR-PWR-ST-LT-R3P=).
Ethernet (PoE) Ports
The access point supports an Ethernet uplink port (POE-In) and a downlink port (POE-Out). The
access point’s Ethernet uplink port uses an RJ-45 connector (with weatherproofing) to link the access
point to the 10BASE-T, 100BASE-T, or 1000BASE-T network. The Ethernet cable is used to send and
receive Ethernet data and to optionally supply inline 56-VDC power from the power injector. The
minimum length of this cable must be not less than 10 feet (3 meters).
20
DRAFT
The access point’s downlink Ethernet port uses an RJ-45 connector (with weatherproofing) to provide
LAN connectivity and IEEE 802.3af power to a peripheral customer device, such as a camera or sensor
gateway. The BVI MAC addresses are printed on the label on the side of the access point
Tip The access point senses the Ethernet and power signals and automatically switches internal
circuitry to match the cable connections.
Caution To provide inline PoE, you must use the 1520 series power injector. Other power
injectors, PoE switches, and 802.3af power sources can not provide adequate power,
which may cause the access point to malfunction and cause possible over-current
conditions at the power source.
Cable Option
The factory-orderable cable option provides a cable modem and Power-over-Cable capabilities for the
access point for high-speed data transfer and Internet access. When the cable option is installed, the
access point uses its F-type cable connection to receive both data and power. Data is passed between
wireless clients on the mesh network to the cable company’s network via the access point’s internal
cable modem. In this configuration, the access point receives operating power from the cable. For
detailed installation information, see the Cisco Aironet 1550 Series Outdoor Access Point Hardware
Installation Guide. Configuration information can be found in the controller configuration guide of
the controller you are using.
Fiber Option
Warning
Class 1 laser product.
Statement 1008
The factory-orderable fiber option provides a fiber input and output capability. Fiber is data is
transmitted and received over a single-strand fiber cable which is connected to the access point using:
• 100BASE-BX10-U fiber Rugged small factor pluggable (SFP) module
• 1000BASELX single-mode Rugged SFP module
• 1000BaseSX multimode Rugged SFP module
Note SFP modules are not hot-swappable.
21
DRAFT
For convenience, two fiber connections are available on the access point. One connection is on the
bottom of the unit (shown on Figure 1) and the other on the left side (shown on Figure 2). Client data
is passed to the network controller through the fiber connection via a fiber capable switch. For detailed
installation information about the fiber option, see the Cisco Aironet 1550 Series Outdoor Mesh
Access Point Hardware Installation Guide. Configuration information can be found in the controller
configuration guide of the controller you are using.
6 Network Deployment Examples
The access point is a wireless device designed for wireless client access and point-to-point bridging,
point-to-multipoint bridging, and point-to-multipoint mesh wireless connectivity. The access point
provides 5-GHz backhaul capability to link with another access point to reach a wired network
connection or to provide repeater operations for other access points.
The access point plays two primary radio roles: a root access point (hereafter called a RAP) or a
non-root access point (hereafter called a MAP), which is the default role of all access points. When the
access point has a wired Ethernet or cable connector connection to the controller (through a switch),
the radio role is called a RAP. In order to be considered a RAP, the access point must be configured as
a RAP. A RAP is a parent node to any bridging or mesh network. A controller can support one or more
RAPs, each one parenting the same or different wireless networks. There can be more than one RAP
for the same mesh network for redundancy. RAPs and MAPs can support wireless clients on the
2.4-GHz band.
When the access point does not have a wired Ethernet connection to the controller (through a switch),
the radio role is called a MAP. The MAPs have a wireless connection (through the backhaul interface)
to other MAPs and finally to a RAP which has an Ethernet connection through a switch to the
controller. MAPs may also have a wired Ethernet connection to a local LAN and serve as a bridge
endpoint for that LAN (using a point-to-point or point-to-multipoint bridge connection).

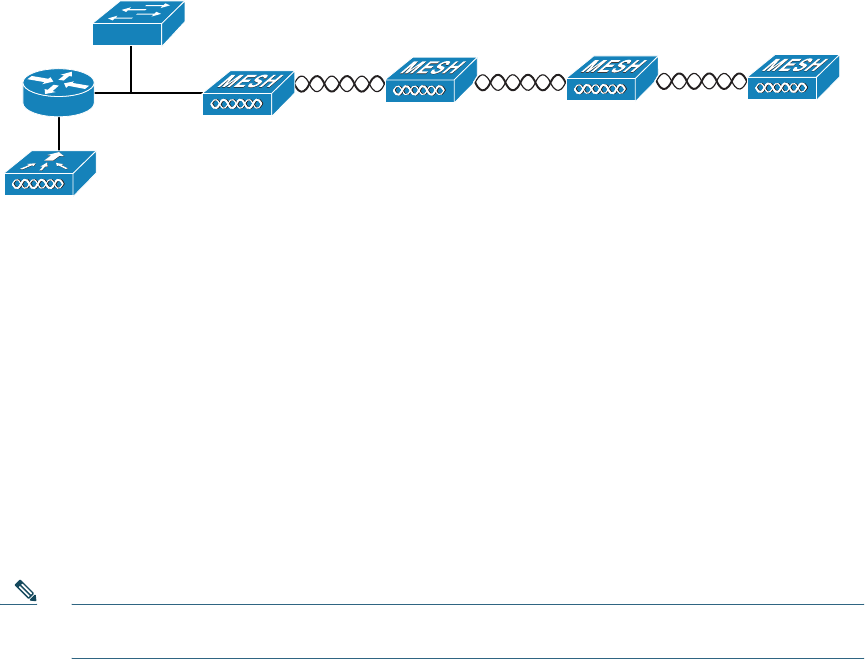

Wireless Backhaul
The access point supports wireless backhaul capability using the 5-GHz radio to bridge to another
access point to reach a wired network connection to a controller as shown in Figure 6. The access point
connected to the wired network is considered a RAP in this configuration. The remote access point is
considered a MAP and transfers wireless client traffic to the RAP for transfer to the wired network.
Lightweight access point protocol (LWAPP) control traffic is also transferred over this bridged link.
22
DRAFT

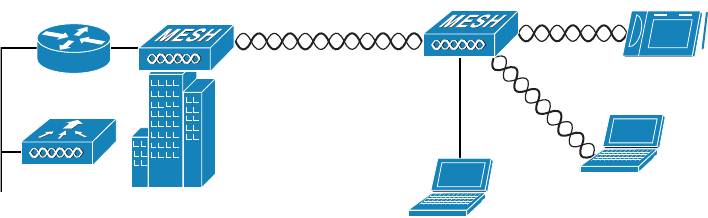

Figure 6 Access Point Backhaul Example
148438
(5.8 Ghz)
(2.4 Ghz)

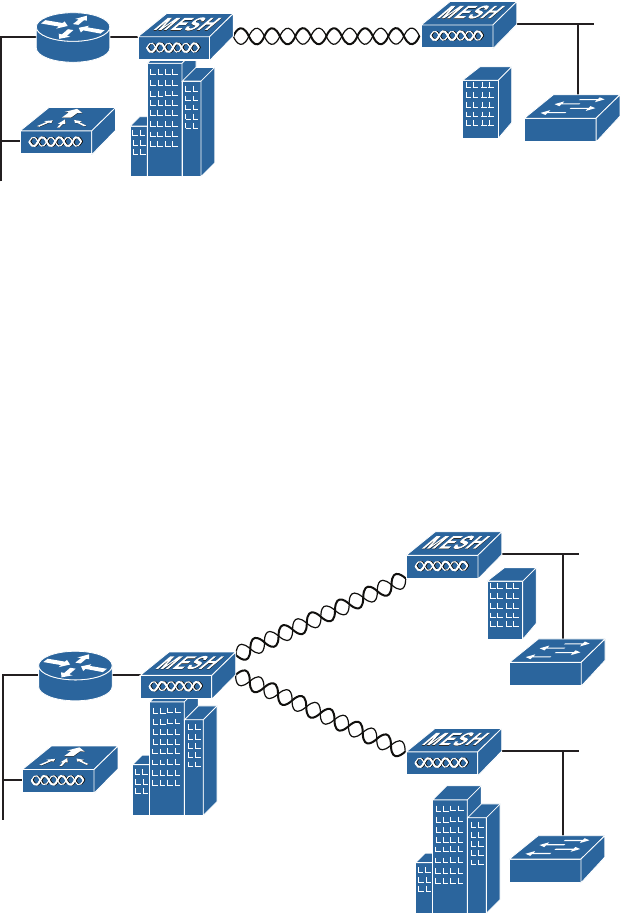

Point-to-Point Bridging
The access points can be used to extend a remote network by using the 5-GHz backhaul radio to bridge
the two network segments as shown in Figure 7. To support Ethernet bridging, you must enable
bridging on the controller for each access point.
Wireless client access is supported; however, if bridging between tall buildings, the 2.4-Ghz wireless
coverage area may be limited and possibly not suitable for direct wireless client access.
Figure 7 Point-to-Point Bridging Example
148440
Point-to-Multipoint Bridging
The access points can be used as a RAP to connect multiple remote MAPs with their associated wired
networks. By default this capability is turned-off for all access points. To support Ethernet bridging,
you must enable bridging on the controller for each access point. Wireless client access can be provided
over the bridging link; however, if bridging between tall buildings, the 2.4-Ghz wireless coverage area
may be limited and possibly not suitable for direct wireless client access.
23
DRAFT
Figure 8 illustrates an example of access point-to-multipoint bridging.
Figure 8 Point-to-Multipoint Bridging Example
148439
Mesh Network
The access point is typically deployed in a mesh network configuration. In a typical mesh deployment,
one or more RAPs have a wired network connection through a switch to a controller. Other remote
MAPs without wired network connections use the backhaul feature to optimally link to a RAP that is
connected to the wired network. In the mesh network, the links between the access points are referred
to as the backhaul links.
Intelligent wireless routing is provided by the patent-pending Adaptive Wireless Path protocol
(AWPP). This enables each MAP to identify its neighbors and intelligently choose the optimal path to
the RAP with the wired network connection by calculating the cost of each path in terms of signal
strength and the number of hops required to get to a controller with signal strength given priority since
signal strength determines the bandwidth available for backhaul.
Figure 9 illustrates a typical mesh configuration using MAPs and RAPs.
24
DRAFT
Figure 9 Typical Mesh Configuration Using MAPs and RAPs
148441
WCS
Network
RAP
MAP 1 MAP 2 MAP 3
MAP 4 MAP
6
MAP 5
MAP 7 MAP 8 MAP 9
Layer 3 Network Operation
The access points support Layer 3 network operation. Access points and controllers in Layer 3
configurations use IP addresses and UDP packets, which can be routed through large networks.
Layer 3 operation is scalable and recommended by Cisco. Figure 10 illustrates a typical Layer-3
wireless network configuration containing access points and a controller.
25
DRAFT
Figure 10 Typical Layer 3 Access Point Network Configuration Example
1
48458
7 Preparing the Access Point
The access point is a radio device which is susceptible to common causes of interference that can
reduce throughput and range. Follow these basic guidelines to ensure the best possible performance:
• For information on planning and initially configuring your Cisco mesh network, refer to the Cisco
Mesh Networking Solution Deployment Guide or the Cisco Aironet 1500 Series Wireless Mesh
AP Design Guide. These documents are available on cisco.com.
• Do not install the access point in an area where structures, trees, or hills obstruct radio signals to
and from the access point.
• You can install the access point at any height, but best throughput is achieved when the access
points are mounted at the same height.
Note To perform path loss calculation and to determine how far apart to install access points,
consult an RF planning expert.
Site Surveys
Cisco recommends that you perform a site survey before installing the equipment. A site survey reveals
problems that can be resolved before the network is operational. Because 802.11a is unlicensed, there
may be sources of interference from other 802.11a wireless devices (especially in multi-tenant
buildings) that could degrade your 802.11 signals. A site survey can determine if such interference
exists.
A proper site survey involves temporarily setting up mesh links and taking measurements to determine
whether your antenna calculations are accurate. Determine the correct locations and antenna types
before you drill holes and route cables and mounting equipment.
26
DRAFT
Tip When power is not readily available during a site survey, use an unrestricted power supply
(UPS) to temporarily power the mesh link.
Consider the following operating and environmental conditions when performing a site survey:
• How far is your wireless link?
• Has a previous site survey been conducted?
• Do you have a clear Fresnel zone between the access points or radio line of sight?
• What is the minimum acceptable data rate within the link?
• Do you have the correct antenna?
• Do you have access to both of the mesh site locations?
• Do you have the proper permits, if required?
• Do you have a partner? Never attempt to survey or work alone on a roof or tower.
• Have you configured the access points before you go onsite? It is always easier to resolve
configurations or device problems first.
• Do you have the proper tools and equipment to complete your survey?
Avoiding Damage to Radios in a Testing Environment
The radios on outdoor units (bridges) have higher transmit power levels than radios on indoor units
(access points). When you test high power radios in a link, you must avoid exceeding the receiver’s
maximum receive input level. At levels higher than the normal the receiver’s operating range, packet
error rate (PER) performance is degraded. At even higher levels, the receiver can be permanently
damaged.
To avoid receiver damage and PER degradation, you can use one of the following techniques:
• Separate the omnidirectional antennas by at least 2 ft (0.6 m) to avoid receiver damage or by at
least 25 ft (7.6 m) to avoid PER degradation.
Note These distances assume free space path loss and are conservative estimates. Required
separation distances for damage and performance degradation levels in actual
deployments will be less due to non line-of-sight propagation conditions.
• Reduce the configured transmit power to the minimum level.
• Use directional antennas and keep them pointed away from each other.
27
DRAFT
• Cable the radios together using a combination of attenuators, combiners, or splitters to achieve a
total attenuation of at least 60 dB.
For a radiated test bed, the following equation describes the relationships among transmit power,
antenna gain, attenuation, and receiver sensitivity:
txpwr + tx gain + rx gain - [attenuation due to antenna spacing] < max rx input level
Where:
txpwr = Radio transmit power level
tx gain = transmitter antenna gain
rx gain = receiver antenna gain
For a conducted test bed, the following equation describes the relationships among transmit power,
antenna gain, and receiver sensitivity:
txpwr - [attenuation due to coaxial components] < max rx input level
Caution Under no circumstances should you connect the antenna port from one access point to the
antenna port of another access point without using an RF attenuator. If you connect
antenna ports you must not exceed the maximum survivable receive level of 0 dBm. Never
exceed 0 dBm or damage to the access point can occur. Using attenuators, combiners, and
splitters having a total of at least 60 dB of attenuation ensures that the receiver is not
damaged and PER performance is not degraded.
Before You Begin
Warning
Read the installation instructions before connecting the system to the power source.
Statement 1004
Before you begin the installation process:
• Become familiar with the procedures for mounting the access point.
• Become familiar with the access point connections (Figure 1 on page 9, Figure 2 on page 10, and
Figure 3 on page 11).
• Verify that the switch you are using to connect the controller is configured properly.
28
DRAFT
Note For additional installation, mounting and safety information for the outdoor mesh access
point, see the Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation
Guide, which is available on Cisco.com, and Safety Warnings for Cisco Aironet 1520 Series
Outdoor Mesh Access Points, which accompanies this guide.
8 Deploying the Access Point
Warning
Do not operate the unit near unshielded blasting caps or in an explosive environment
unless the device has been modified to be especially qualified for such use.
Statement 364
The access point is deployed on Layer 3 networks. Layer 3is the default mode for a newly configured
wireless LAN controller. This guide assumes that you will be deploying your access point on a Layer
3 network and a DHCP server is available.
Before deploying the access point, make sure the controller to which the access point will associate is
properly configured by performing the following operations:
• Make sure that the wireless LAN controller is set to Layer 3 mode
• Verify the wireless LAN controller software version
• Record the access point BVI MAC address
• Enter the access point BVI MAC address to the wireless LAN controller filter list
Verifying the Wireless LAN Controller Mode
Follow these steps to verify that the wireless LAN controller mode is set to Layer 3:
Step 1 Open your web-browser and enter the IP address of your wireless LAN controller. Be sure to
precede the IP address with https://. A login screen appears.
Step 2 Enter your username and password. The default case-sensitive username and password are
admin and admin. The Summary page appears.
Step 3 From the top menu bar, click CONTROLLER. The Controller General page appears.
Step 4 Verify that the LWAPP Transport Mode is set to Layer 3. If it is not, change it to Layer 3 and
click Apply.
Step 5 Save any changes you made.
29
DRAFT
Step 6 From the menu bar, click MONITOR to return to the Monitor Summary page.
Verifying the Wireless LAN Controller Software Version
On the Summary page, you can verify the software version that the wireless LAN controller is running.
If a version update is necessary, refer to the appropriate controller configuration documentation.
Recording the Access Point MAC Address
Use a text file to record the MAC address of all the access points you intend to deploy in your network.
Having a file of access point MAC addresses will be of considerable value for future testing. While you
are compiling the list, you might want to change the name of the access point to something you can
easily remember. The name can contain up to 32 characters. The following example, fisher_street:ea:co
contains the last four HEX characters of the access point MAC address.
Adding the Access Point MAC Address to the Wireless LAN Controller
Filter List
The wireless LAN controller maintains an access point authorization MAC address list and responds
to discovery requests from access points on that list. Follow these steps to add the access point MAC
address (or MAC addresses) to the Wireless LAN controller filter list:
Step 1 If you are not logged onto the wireless LAN controller, log on now. The Summary page
appears.
Step 2 On the menu bar, click SECURITY. The Security RADIUS Authentication Server page
appears.
Step 3 Under AAA in the left frame, click MAC Filtering. The Security MAC Filtering page appears.
Step 4 Click New. The MAC Filters New page appears.
Step 5 Enter the MAC address of the access point in the MAC Address field. You can also use the
config macfilter add command to add a MAC filter entry to the controller.
Step 6 Select a WLAN ID or Any WLAN from the WLAN ID pop-up menu.
Step 7 Enter a description (32 characters maximum) of the access point in the Description field.
Step 8 Choose an interface from the Interface Name pop-up menu.
Step 9 Click Apply.
Step 10 Repeat this process to add other access points to the list.
30
DRAFT
Note You can also use the controller CLI command config macfilter add to add a MAC
filter entry on the controller.
Step 11 On the menu bar, click Monitor to return to the Monitor Summary page.
Verifying Controller Association
To verify that your access point is associated to the wireless LAN controller, perform these steps:
Step 1 Log into your controller web interface (https) using a web browser.
Step 2 Click Wireless and verify that your access point MAC address is listed under Ethernet MAC.
Step 3 Log out of the controller and close your web browser.
Deployment Notes
Using a DHCP Server in a Layer 3 Mesh Network
To use a DHCP server in a Layer 3 mesh network, make sure the wireless LAN controller is in Layer
3 mode. You must also configure DHCP option 43 on the DHCP server. After the controller is
restarted, the access point receives IP addresses from the DHCP server.
Configuring DHCP Option 43
You can use DHCP Option 43 to provide a list of controller IP addresses to the access points, enabling
each access point to find and join a controller. This section contains a DHCP Option 43 configuration
example on a Microsoft Windows 2003 Enterprise DHCP server for use with Cisco Aironet
lightweight access points.
Additional information about Microsoft DHCP Option 43 is available on Cisco.com at the following
URL:
http://www.cisco.com/en/US/tech/tk722/tk809/technologies_configuration_example09186a0080871
4fe.shtml
DHCP Option 43 server implementation information for Cisco IOS is available at cisco.com at the
following URL:
31
DRAFT
http://www.cisco.com/en/US/docs/wireless/technology/controller/deployment/guide/dep.html#wp106
8287
Note In DHCP Option 43, you should use the IP address of the controller management interface.
Note DHCP Option 43 is limited to one access point type per DHCP pool. You must configure a
separate DHCP pool for each access point type.
Cisco Aironet 1000 and 1500 (1505 and 1510) series access points use a comma-separated string
format for DHCP Option 43. Other Cisco Aironet access points use the type-length-value (TLV)
format for DHCP Option 43. DHCP servers must be programmed to return the option based on the
access point’s DHCP Vendor Class Identifier (VCI) string (DHCP Option 60). The VCI strings for
Cisco access points capable of operating in lightweight mode are listed in Table 3:
32
DRAFT
Table 3 Lightweight Access Point VCI Strings
Access Point Vendor Class Identifier (VCI)
Cisco Aironet 1000 Series Airespace.AP1200
Cisco Aironet 1040 Series Cisco AP c1040
Cisco Aironet 1100 Series Cisco AP c1100
Cisco Aironet 1130 Series Cisco AP c1130
Cisco Aironet 1200 Series Cisco AP c1200
Cisco Aironet 1240 Series Cisco AP c1240
Cisco Aironet 1250 Series Cisco AP c1250
Cisco Aironet 1260 Series Cisco AP c1260
Cisco Aironet 1300 Series Cisco AP c1300
Cisco Aironet 1500 Series Cisco AP c1500
1. For controller release 4.1 or later.
1
Cisco AP.OAP1500
2. For controller release 4.0, the VCI depends on the model.
2, Cisco AP.LAP15102, or
Cisco AP.LAP15052
Airespace.AP1200
3. For controller release 3.2.
3
Cisco Aironet 1520 Series Cisco AP c1520
Cisco Aironet 1550 Series Cisco AP c1552
Cisco AP c1553
The format of the TLV block for 1040, 1100, 1130, 1200, 1240, 1250, 1260, 1300, and 1520 series
access points is listed below:
• Type: 0xf1 (decimal 241)
• Length: Number of controller IP addresses * 4
• Value: List of WLC management interfaces
33
DRAFT
To configure DHCP Option 43 for Cisco 1000 and 1500 (1505 and 1510) series lightweight access
points in the embedded Cisco IOS DHCP server, follow these steps:
Step 1 Enter configuration mode at the Cisco IOS command line interface.
Step 2 Create the DHCP pool, including the necessary parameters such as default router and name
server as shown in the following example:
ip dhcp pool pool name
network IP Network Netmask
default-router Default router
dns-server DNS Server
Where:
pool name is the name of the DHCP pool, such as AP1000.
IP Network is the network IP address where the controller resides, such as
10.0.15.1
Netmask is the subnet mask, such as 255.255.255.0
Default router is the IP address of the default router, such as 10.0.0.1
DNS Server is the IP address of the DNS server, such as 10.0.10.2
Step 3 Add the Option 60 line using the following syntax:
option 60 ascii “VCI string”
For the VCI string, use the value from Table 3. The quotation marks must be included.
Step 4 Add the Option 43 line using the following syntax:
option 43 ascii “Comma Separated IP Address List”
For example, if you are configuring Option 43 for Cisco 1000 or 1500 series access points
using the controller IP addresses 10.126.126.2 and 10.127.127.2, add the following line to
the DHCP pool in the Cisco IOS CLI. Be sure to include the quotation marks:
option 43 ascii “10.126.126.2,10.127.127.2”
The quotation marks must be included.
34
DRAFT
To configure DHCP Option 43 for Cisco Aironet 1040, 1100, 1130, 1200, 1240, 1250, 1260, 1300, and 1520
series lightweight access points in the embedded Cisco IOS DHCP server, follow these steps:
Step 1 Enter configuration mode at the Cisco IOS CLI.
Step 2 Create the DHCP pool, including the necessary parameters such as default router and name server.
The commands used to create a DHCP pool are as follows:
ip dhcp pool pool name
network IP Network Netmask
default-router Default router
dns-server DNS Server
Where:
pool name is the name of the DHCP pool, such as AP1520.
IP Network is the network IP address where the controller resides, such as
10.0.15.1
Netmask is the subnet mask, such as 255.255.255.0
Default router is the IP address of the default router, such as 10.0.0.1
DNS Server is the IP address of the DNS server, such as 10.0.10.2
Step 3 Add the Option 60 line using the following syntax:
option 60 ascii “VCI string”
For the VCI string, use the value from Table 3. The quotation marks must be included.
Step 4 Add the option 43 line using the following syntax:
option 43 hex hex string
The hex string is assembled by concatenating the TLV values shown below:
Type + Length + Value
Type is always f1(hex). Length is the number of controller management IP addresses times 4
in hex. Value is the IP address of the controller listed sequentially in hex.
For example, suppose that there are two controllers with management interface IP addresses,
10.126.126.2 and 10.127.127.2. The type is f1(hex). The length is 2 * 4 = 8 = 08 (hex). The
IP addresses translate to 0a7e7e02 and 0a7f7f02. Assembling the string then yields
f1080a7e7e020a7f7f02. The resulting Cisco IOS command added to the DHCP scope is listed
below:
option 43 hex f1080a7e7e020a7f7f02
35
DRAFT
9 Declarations of Conformity and Regulatory Information
This section provides declarations of conformity and regulatory information for the Cisco Aironet
1500 Series Access Point.
Manufacturers Federal Communication Commission Declaration of
Conformity Statement
Tested To Comply
With FCC Standard
s
FOR HOME OR OFFICE USE
Models Certification Numbers
AIR-CAP1552E-A-K9
AIR-CAP1552H-A-K9 FCC ID: LDK102074P
AIR-CAP1552C-A-K9
AIR-CAP1552I-A-K9
Manufacturer:
Cisco Systems, Inc.
170 West Tasman Drive
San Jose, CA 95134-1706
USA
This device complies with Part 15 rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired
operation.
This equipment has been tested and found to comply with the limits of a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a residential environment. This
equipment generates, uses, and radiates radio frequency energy, and if not installed and used in
accordance with the instructions, may cause harmful interference. However, there is no guarantee that
DRAFT
interference will not occur. If this equipment does cause interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to correct the
interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician.
Caution The Part 15 radio device operates on a non-interference basis with other devices operating
at this frequency when using the integrated antennas. Any changes or modification to the
product not expressly approved by Cisco could void the user’s authority to operate this
device.

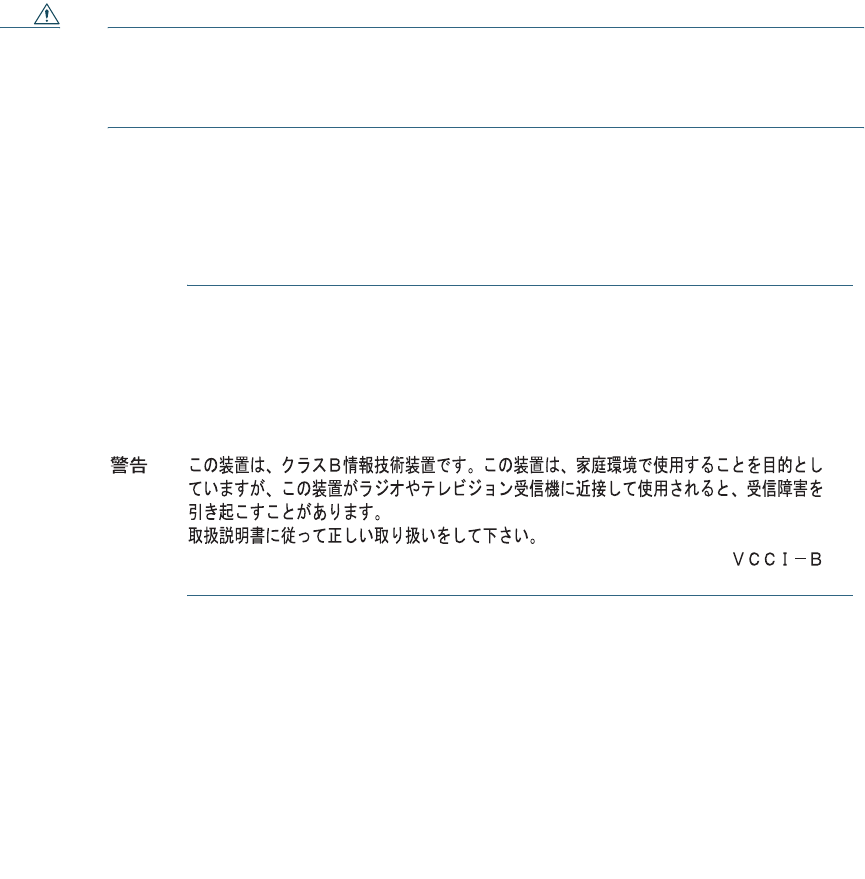

VCCI Statement for Japan
Warning
This is a Class B product based on the standard of the Voluntary Control
Council for Interference from Information Technology Equipment (VCCI). If this
is used near a radio or television receiver in a domestic environment, it may
cause radio interference. Install and use the equipment according to the
instruction manual.
37
DRAFT
Guidelines for Operating Cisco Aironet Access Points in Japan
This section provides guidelines for avoiding interference when operating Cisco Aironet access points
in Japan. These guidelines are provided in both Japanese and English.
Japanese Translation
03-6434-6500
208697
English Translation
This equipment operates in the same frequency bandwidth as industrial, scientific, and medical devices
such as microwave ovens and mobile object identification (RF-ID) systems (licensed premises radio
stations and unlicensed specified low-power radio stations) used in factory production lines.
1. Before using this equipment, make sure that no premises radio stations or specified low-power
radio stations of RF-ID are used in the vicinity.
2. If this equipment causes RF interference to a premises radio station of RF-ID, promptly change
the frequency or stop using the device; contact the number below and ask for recommendations
on avoiding radio interference, such as setting partitions.
3. If this equipment causes RF interference to a specified low-power radio station of RF-ID, contact
the number below.
Contact Number: 03-6434-6500
38
DRAFT
Statement 371—Power Cable and AC Adapter
English Translation
When installing the product, please use the provided or designated connection cables/power cables/AC
adaptors. Using any other cables/adaptors could cause a malfunction or a fire. Electrical Appliance and
Material Safety Law prohibits the use of UL-certified cables (that have the “UL” shown on the code)
for any other electrical devices than products designated by CISCO. The use of cables that are certified
by Electrical Appliance and Material Safety Law (that have “PSE” shown on the code) is not limited
to CISCO-designated products.
Industry Canada
Canadian Compliance Statement
AIR-CAP1552E-A-K9
AIR-CAP1552H-A-K9 IC: 2461B-102074P
AIR-CAP1552C-A-K9
AIR-CAP1552I-A-K9
This Class B Digital apparatus meets all the requirements of the Canadian Interference-Causing
Equipment Regulations.
Cet appareil numerique de la classe B respecte les exigences du Reglement sur le material broilleur du
Canada.
39
DRAFT
This device complies with Class B Limits of Industry Canada. Operation is subject to the following
two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired
operation.
Cisco Aironet Access Points are certified to the requirements of RSS-210. The use of this device in a
system operating either partially or completely outdoors may require the user to obtain a license for
the system according to the Canadian regulations. For further information, contact your local Industry
Canada office.
This device has been designed to operate with antennas having a maximum gain of 4 dB for 2.4 GHz
and 6 dB for 5 GHz. Antennas having a gain greater than 6 dB are strictly prohibited for use with this
device. The required antenna impedance is 50 ohms.
To reduce potential radio interference to other users, the antenna type and its gain should be so chosen
that the equivalent isotropically radiated power (EIRP) is not more than that permitted for successful
communication.
European Community, Switzerland, Norway, Iceland, and
Liechtenstein
Models:
AIR-CAP1552E-E-K9
AIR-CAP1552H-E-K9
AIR-CAP1552C-E-K9
AIR-CAP1552I-E-K9
40
DRAFT
Declaration of Conformity with regard to the R&TTE Directive
1999/5/EC & Medical Directive 93/42/EEC
41
DRAFT
The following standards were applied:
EMC—EN 301.489-1 v1.4.1; EN 301.489-17 v2.1.1
Health & Safety—EN60950-1: 2005; EN 50385: 2002
Radio—EN 300 328 v 1.7.1; EN 301.893 v 1.5.1
The conformity assessment procedure referred to in Article 10.4 and Annex III of Directive 1999/5/EC
has been followed.
42
DRAFT
This device also conforms to the EMC requirements of the Medical Devices Directive 93/42/EEC.
Note This equipment is intended to be used in all EU and EFTA countries. Outdoor use may be
restricted to certain frequencies and/or may require a license for operation. For more details,
contact Cisco Corporate Compliance.
The product carries the CE Mark:
Declaration of Conformity for RF Exposure
United States
This system has been evaluated for RF exposure for Humans in reference to ANSI C 95.1 (American
National Standards Institute) limits. The evaluation was based on ANSI C 95.1 and FCC OET Bulletin
65C rev 01.01. The minimum separation distance from the antenna to general bystander is 7.9 inches
(20cm) to maintain compliance.
Canada
This system has been evaluated for RF exposure for Humans in reference to ANSI C 95.1 (American
National Standards Institute) limits. The evaluation was based on RSS-102 Rev 2. The minimum
separation distance from the antenna to general bystander is 7.9 inches (20cm) to maintain
compliance.
European Union
This system has been evaluated for RF exposure for Humans in reference to the ICNIRP (International
Commission on Non-Ionizing Radiation Protection) limits. The evaluation was based on the EN
50385 Product Standard to Demonstrate Compliance of Radio Base stations and Fixed Terminals for
Wireless Telecommunications Systems with basic restrictions or reference levels related to Human
Exposure to Radio Frequency Electromagnetic Fields from 300 MHz to 40 GHz. The minimum
separation distance from the antenna to general bystander is 20cm (7.9 inches).
43
DRAFT
Australia
This system has been evaluated for RF exposure for Humans as referenced in the Australian Radiation
Protection standard and has been evaluated to the ICNIRP (International Commission on
Non-Ionizing Radiation Protection) limits. The minimum separation distance from the antenna to
general bystander is 20cm (7.9 inches).

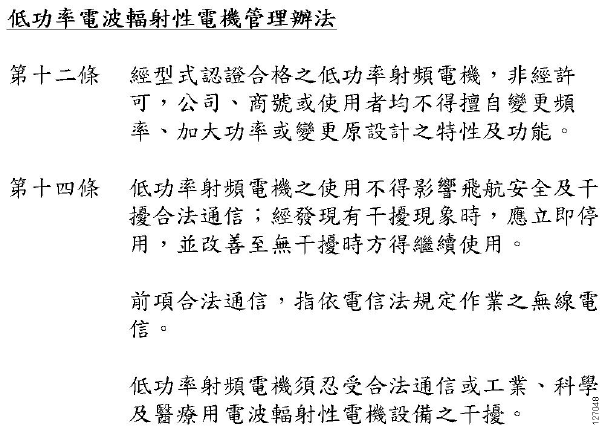

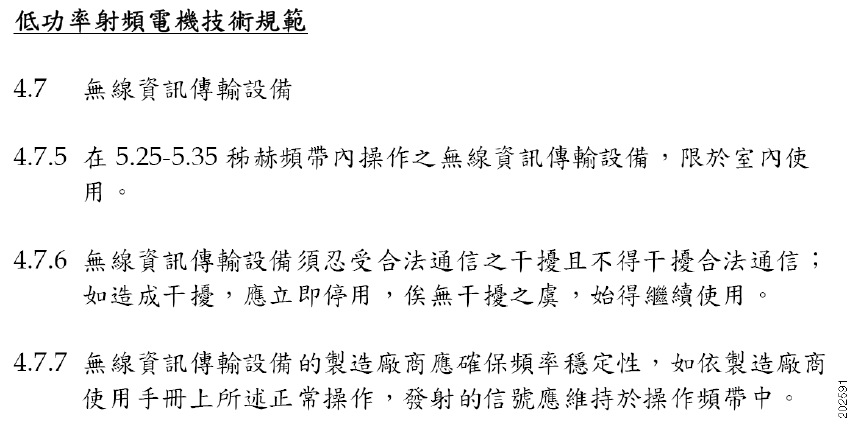

Administrative Rules for Cisco Aironet Access Points in Taiwan
This section provides administrative rules for operating Cisco Aironet access points in Taiwan. The
rules for all access points are provided in both Chinese and English.
Chinese Translation
44
DRAFT
English Translation
Administrative Rules for Low-power Radio-Frequency Devices
Article 12
For those low-power radio-frequency devices that have already received a type-approval, companies,
business units or users should not change its frequencies, increase its power or change its original
features and functions.
Article 14
The operation of the low-power radio-frequency devices is subject to the conditions that no harmful
interference is caused to aviation safety and authorized radio station; and if interference is caused, the
user must stop operating the device immediately and can't re-operate it until the harmful interference
is clear.
The authorized radio station means a radio-communication service operating in accordance with the
Communication Act.
The operation of the low-power radio-frequency devices is subject to the interference caused by the
operation of an authorized radio station, by another intentional or unintentional radiator, by
industrial, scientific and medical (ISM) equipment, or by an incidental radiator.
Chinese Translation
45
DRAFT
English Translation
Low-power Radio-frequency Devices Technical Specifications
4.7 Unlicensed National Information Infrastructure
4.7.6 The U-NII devices shall accept any interference from legal communications and shall not
interfere the legal communications. If interference is caused, the user must stop operating
the device immediately and can't re-operate it until the harmful interference is clear.
4.7.7 Manufacturers of U-NII devices are responsible for ensuring frequency stability such that
an emission is maintained within the band of operation under all conditions of normal
operation as specified in the user manual.
Operation of Cisco Aironet Access Points in Brazil
This section contains special information for operation of Cisco Aironet access points in Brazil.
Access Point Models
AIR-CAP1552E-x-K9
AIR-CAP1552H-x-K9
AIR-CAP1552C-x-K9
AIR-CAP1552I-x-K9
Regulatory Information
Figure 11 contains Brazil regulatory information for the access point models identified in the previous
section.
46
DRAFT
Figure 11 Brazil Regulatory Information
Portuguese Translation
Este equipamento opera em caráter secundário, isto é, não tem direito a proteção contra interferência
prejudicial, mesmo de estações do mesmo tipo, e não pode causar interferência a sistemas operando
em caráter primário.
English Translation
This equipment operates on a secondary basis and consequently must accept harmful interference,
including interference from stations of the same kind. This equipment may not cause harmful
interference to systems operating on a primary basis.
Declaration of Conformity Statements
All the Declaration of Conformity statements related to this product can be found at the following
location: http://www.ciscofax.com
10 In Case of Difficulty
Help is available from Cisco should you experience difficulties; however, before contacting Cisco, look
for a solution to your problem in the following places:
• The Troubleshooting section of this guide
47
DRAFT
• The troubleshooting section of the Cisco Aironet 1550 Series Outdoor Mesh Access Point
Hardware Installation Guide
• The Troubleshooting a Mesh Network troubleshooting guide found on cisco.com at
http://www.cisco.com/en/US/products/ps8368/prod_troubleshooting_guides_list.html
• The Tools and Resources section on the Technical Support and Documentation page at cisco.com
Follow these steps to contact the Technical Assistance Center on cisco.com:
Step 1 Open your browser and go to http://www.cisco.com/.
Step 2 Click Support. The Support page appears.
Step 3 Choose the link that best serves your support requirements.
Note Click My Tech Support if you are a registered user.
Step 4 Follow the instructions on the page.
Troubleshooting
Caution No serviceable parts inside. Do not open.
This section provides troubleshooting procedures for basic problems with the access point. For the
most up-to-date, detailed troubleshooting information, refer to the Cisco Support website at
cisco.com.
48
DRAFT
Guidelines for Using the Access Point
You should keep these guidelines in mind when you use the access point:
• The access points can only communicate with controllers and cannot operate independently.
• The access point communicates only with controllers and does not support Wireless Domain
Services (WDS). The access points cannot communicate with WDS devices. However, the
controller provides functionality equivalent to WDS when an access point associates to it.
• The access point supports Layer 3 LWAPP communications with the controllers. In Layer 3
operation, the access point and the controller can be on the same or different subnets. The access
point communicates with the controller using standard IP packets. Layer 3 operation is scalable
and is recommended by Cisco. Unless it has a static IP address, a Layer 3 access point on a different
subnet than the controller requires a DHCP server on the access point subnet and a route to the
controller. The route to the controller must have destination UDP ports 12222 and 12223 open
for LWAPP communications. The routes to the primary, secondary, and tertiary controllers must
allow IP packet fragments.
• Before deploying your mesh access points ensure that the following has been done:
–
Your controllers are connected to switch ports that are configured as trunk ports.
–
Your mesh access points are connected to switch ports that are configured as untagged access
ports.
–
A DHCP server is reachable by your mesh access points and has been configured with Option
43. Option 43 is used to provide the IP addresses of the Management Interfaces of your
controllers. Typically, a DHCP server can be configured on a Cisco Layer 3 switch or router.
–
Optionally a DNS server can be configured to enable a local domain Cisco LWAPP controller
(CISCO-LWAPP-CONTROLLER.<local domain>) to resolve to the IP address of the
Management Interface of your controller.
–
Your controllers are configured and reachable by the mesh access points.
–
Your controllers are configured with the MAC addresses of the mesh access points.
Checking the LEDs
Four LEDs, located between the PoE-In and PoE-Out connectors, monitor the status of the access
point’s power, uplinks, and radios. Figure 12 identifies and describes the LED functions. Table 7
provides additional LED information.
49
DRAFT

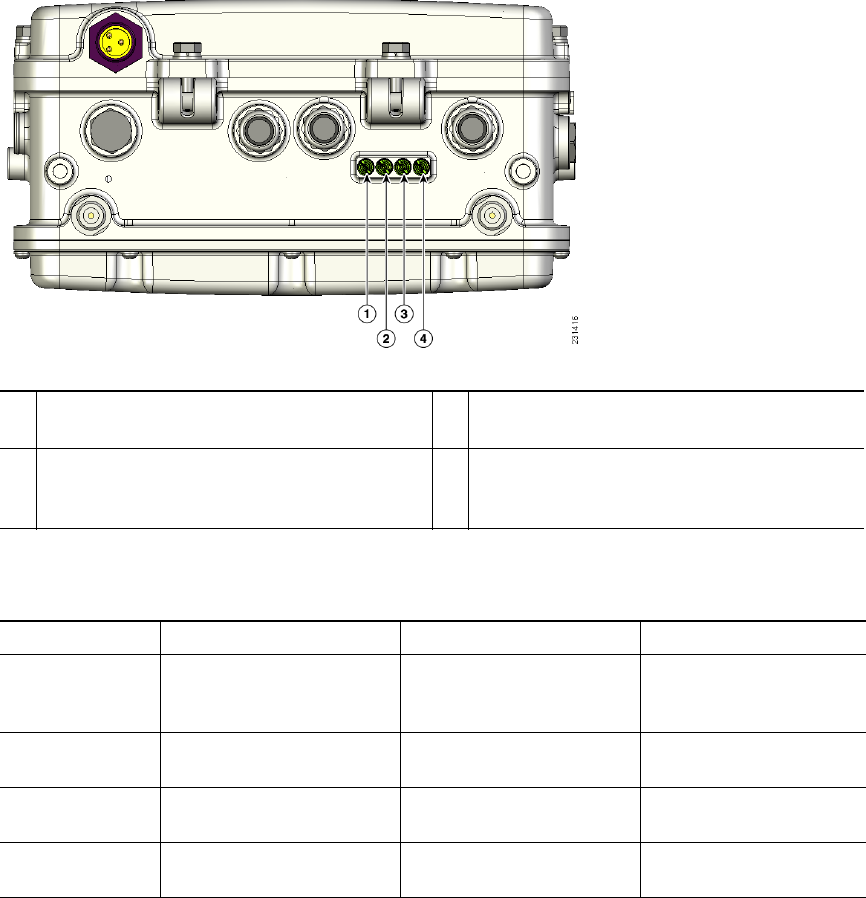

Figure 12 LEDs
1Status LED— Displays the current status of
the access point and power. 3Radio 1 Status LED—Displays the status of
the 802.11n radio.
2Uplink Status LED—Displays the status of all
uplink connections (Ethernet, fiber, cable,
and mesh).
4Radio 2 Status LED—Displays the status of
the 802.11n radio.
Table 4 Access Point LED Descriptions
Color1Status LED Uplink LED RF-1 and RF-2 LEDs
Dark No power applied No physical connector
present or all uplink ports
are down.
Radio turned off
Green Access point operating
normally Uplink ports operating
normally Radios operating
normally
Blinking green Loading or upgrading IOS
image – –
Blinking red Mesh Authentication
mode – –
50
DRAFT
Note Regarding LED status colors, it is expected that there will be small variations in color intensity
and hue from unit to unit. This is within the normal range of the LED manufacturer’s
specifications and is not a defect.
See the Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide for a
detailed description of the LEDs and additional troubleshooting tips.
Misconfigured Access Point IP address
IP address misconfiguration can occur when you are re-addressing a segment of your mesh network
and you start at the mesh access point connected to the wired network (RAP). To avoid this problem,
always start the IP addressing changes from the farthest access point and work your way back to the
root access point. This problem might also happen if you move equipment such as uninstalling an mesh
access point and then redeploying with a different IP subnet in another physical location on the mesh
network.
Another option to fix this misconfigured IP address is to physically take a controller in Layer 3 mode
with a root access point to the location of the misconfigured mesh access point. Set the bridge group
name for the root access point to match the misconfigured access point. Add the access point’s MAC
address to the controller’s filter list. When the misconfigured access point appears in the controller’s
Summary page, configure the access point with an IP address.
If you are using a static IP address on the access point and plan on redeploying the access point on
another subnet, perform a clear config command from the controller for that access point while it is
joined before you remove it from the network.
Red Firmware failure –Firmware failure
Cycling
red/green LWAPP discovery – –
1. All LEDs dark indicates no power is applied.
All LEDs amber indicates the access point power supply is on.
Table 4 Access Point LED Descriptions (continued)
Color1Status LED Uplink LED RF-1 and RF-2 LEDs
51
DRAFT
Verifying the Controller MAC Filter List
Prior to activating your access point, you must ensure that the access point MAC address has been
added to the controller MAC Filter list and that Mac Filter List is enabled. To view the MAC addresses
added to the controller MAC filter list and ensure the MAC filter list is enabled, you can use the
controller CLI or the controller GUI.
Controller CLI
Use the show macfilter summary controller CLI command to view the MAC addresses added to the
controller filter list.
Controller GUI
Log into your controller web interface (HTTPS) using a web browser and click SECURITY > AAA >
MAC Filtering to view the MAC addresses added to the controller filter list. Then click Wireless >
Mesh to ensure the MAC filter list is enabled.
11 Cisco 90-Day Limited Hardware Warranty Terms
There are special terms applicable to your hardware warranty and various services that you can use
during the warranty period. Your formal Warranty Statement, including the warranties and license
agreements applicable to Cisco software, is available on Cisco.com. Follow these steps to access and
download the Cisco Information Packet and your warranty and license agreements from Cisco.com.
1. Launch your browser, and go to this URL:
http://www.cisco.com/en/US/products/prod_warranties_listing.html
The Warranties and License Agreements page appears.
2. To read the Cisco Information Packet, follow these steps:
a. Click the Information Packet Number field, and make sure that the part number
78-5235-03D0 is highlighted.
b. Select the language in which you would like to read the document.
c. Click Go.
The Cisco Limited Warranty and Software License page from the Information Packet appears.
d. Read the document online, or click the PDF icon to download and print the document in
Adobe Portable Document Format (PDF).
52
DRAFT
Note You must have Adobe Acrobat Reader to view and print PDF files. You can download
the reader from Adobe’s website: http://www.adobe.com
3. To read translated and localized warranty information about your product, follow these steps:
a. Enter this part number in the Warranty Document Number field:
78-5236-01C0
b. Select the language in which you would like to view the document.
c. Click Go.
The Cisco warranty page appears.
d. Read the document online, or click the PDF icon to download and print the document in
Adobe Portable Document Format (PDF).
You can also contact the Cisco service and support website for assistance:
http://www.cisco.com/en/US/support/
The following are special terms applicable to your hardware warranty.
Duration of Hardware Warranty
Ninety (90) Days
Replacement, Repair, or Refund Policy for Hardware
Cisco or its service center will use commercially reasonable efforts to ship a replacement part within
ten (10) working days after receipt of a Return Materials Authorization (RMA) request. Actual
delivery times can vary, depending on the customer location.
Cisco reserves the right to refund the purchase price as its exclusive warranty remedy.
To Receive a Return Materials Authorization (RMA) Number
Contact the company from whom you purchased the product. If you purchased the product directly
from Cisco, contact your Cisco Sales and Service Representative.
Complete the information below, and keep it for your reference.
Company product purchased from
Company telephone number
Product model number
Product serial number
Maintenance contract number
53
DRAFT
54
DRAFT
Cisco and the Cisco Logo are trademarks of Cisco Systems, Inc. and/or its affiliates in the U.S. and other countries. A listing of Cisco's trademarks
can be found at www.cisco.com/go/trademarks. Third party trademarks mentioned are the property of their respective owners. The use of the word
partner does not imply a partnership relationship between Cisco and any other company. (1005R)
