Cisco Systems CEED3700 CISCO Education Enabled Development 3700 User Manual Cisco Network Building Mediator User Guide
Cisco Systems Inc CISCO Education Enabled Development 3700 Cisco Network Building Mediator User Guide
User Manual
CEED
3700
User
Guide
Release 2.2
R&D Office:
SEZ Unit, Cessna Business Park, Kadubeesanahalli Village,
Varthur Hobli, Sarjapur - Marathahalli Outer ring road,
Bangalore - 560087
Karnataka
India
Text Part Number:
THE SPECIFICATIONS AND INFORMATION REGARDING THE PRODUCTS IN THIS MANUAL ARE SUBJECT TO CHANGE WITHOUT NOTICE. ALL
STATEMENTS, INFORMATION, AND RECOMMENDATIONS IN THIS MANUAL ARE BELIEVED TO BE ACCURATE BUT ARE PRESENTED WITHOUT
WARRANTY OF ANY KIND, EXPRESS OR IMPLIED. USERS MUST TAKE FULL RESPONSIBILITY FOR THEIR APPLICATION OF ANY PRODUCTS.
THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE ACCOMPANYING PRODUCT ARE SET FORTH IN THE INFORMATION PACKET THAT
SHIPPED WITH THE PRODUCT AND ARE INCORPORATED HEREIN BY THIS REFERENCE. IF YOU ARE UNABLE TO LOCATE THE SOFTWARE LICENSE
OR LIMITED WARRANTY, CONTACT YOUR CISCO REPRESENTATIVE FOR A COPY.
The Cisco implementation of TCP header compression is an adaptation of a program developed by the University of California, Berkeley (UCB) as part of UCB’s public
domain version of the UNIX operating system. All rights reserved. Copyright © 1981, Regents of the University of California.
NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE OF THESE SUPPLIERS ARE PROVIDED “AS IS” WITH
ALL FAULTS. CISCO AND THE ABOVE-NAMED SUPPLIERS DISCLAIM ALL WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING, WITHOUT
LIMITATION, THOSE OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OR ARISING FROM A COURSE OF
DEALING, USAGE, OR TRADE PRACTICE.
IN NO EVENT SHALL CISCO OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING,
WITHOUT LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF CISCO
OR ITS SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of Cisco trademarks, go to this
URL:
www.cisco.com/go/trademarks.
Third-party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership
relationship between Cisco and any other company. (1110R)
Any Internet Protocol (IP) addresses used in this document are not intended to be actual addresses. Any examples, command display output, and figures included in the
document are shown for illustrative purposes only. Any use of actual IP addresses in illustrative content is unintentional and coincidental.
CEED 3700 User Guide
© 2014 Cisco Systems, Inc. All rights reserved.
R
E
V I E W
DR
AFT
—
CISC
O
C
O
NFIDE
N
TIAL
CEED 3700
User Guide Index
C H A P T E R
1 Introduction 1-1
CEED Operating Environment Overview
1-1
Installation
Prerequisites 1-3
CEED
3700
Components and Prerequisites
1-3
Safety
Guidelines 1-4
Usage Guidelines and
Restrictions 1-5
CEED
3700
Hardware
Summary 1-7
C H A P T E R
2 Installation 2-1
Mounting Prerequisites
2-1
Mounting
of
the CEED
37002-1
Accessories, Peripherals and Cable
Assembly 2-6
External Wiring and Placement
of Accessories 2-6
Assembling
of
the
Accessories 2-8
C H A P T E R
3 Configuring LAN and Connectivity 3-1
Configuring
LAN 3-1
Powering On CEED
3700 3-3
C H A P T E R
4 Configuring CEED 3700 Software 4-1
First Time Log
in 4-1
C H A P T E R
5 Configuring the Browser 5-1
Launching the
Browser 5-1
Verification
of
the Browser
Settings 5-3
C H A P T E R
6 Configuring the Router 6-1
Configuring
WAN 6-1
Configuring
3G 6-5
78-xxxxx-xx
iii
Contents
R E V IE W
DRAFT—
CISC
O
C
O
N F IDENTIA L
Configuring
Wi-Fi 6-6
Powering Down/Shutting Down the CEED
3700 6-7
C H A P T E R
7 Configuring the Live Session 7-1

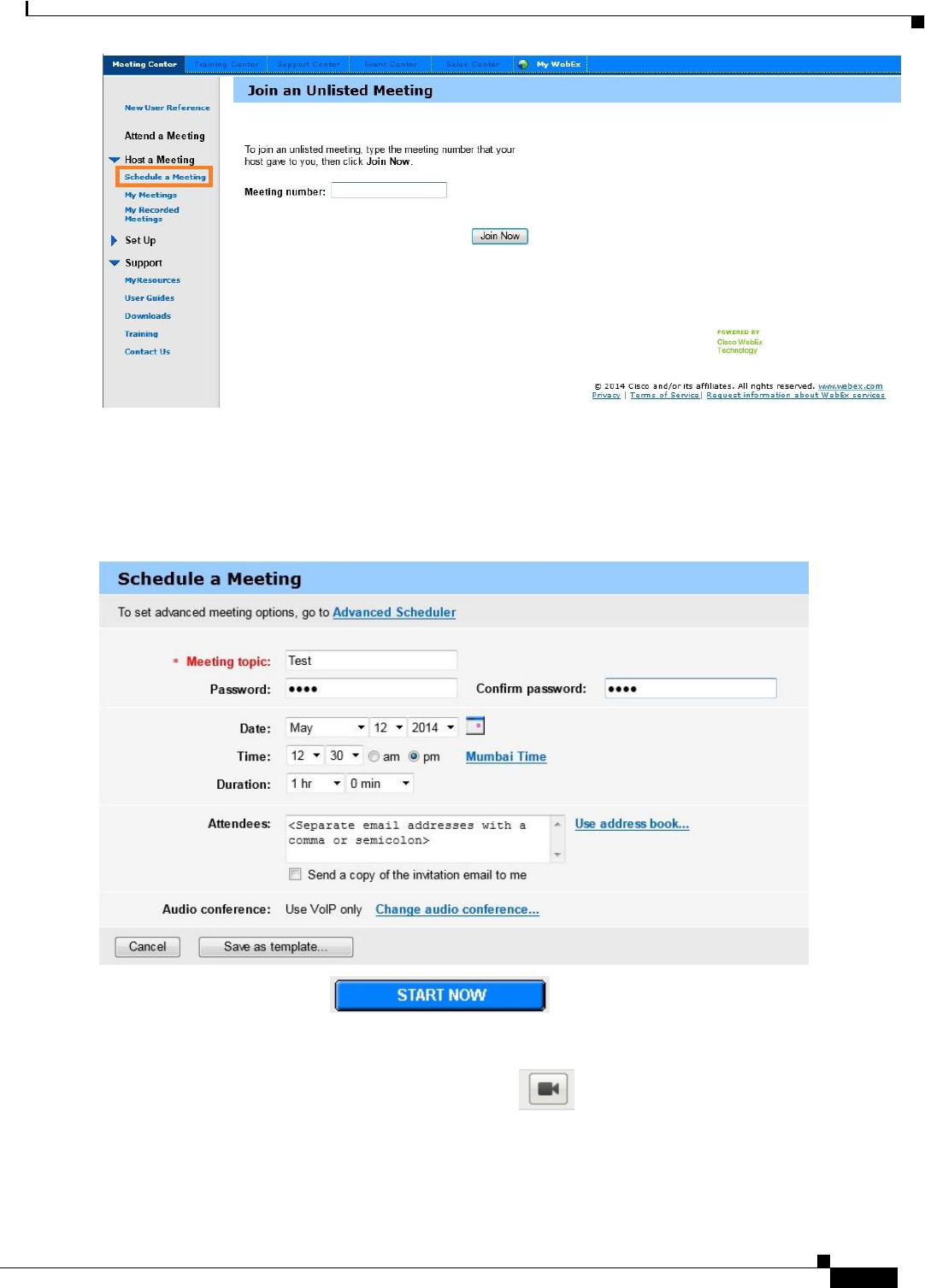

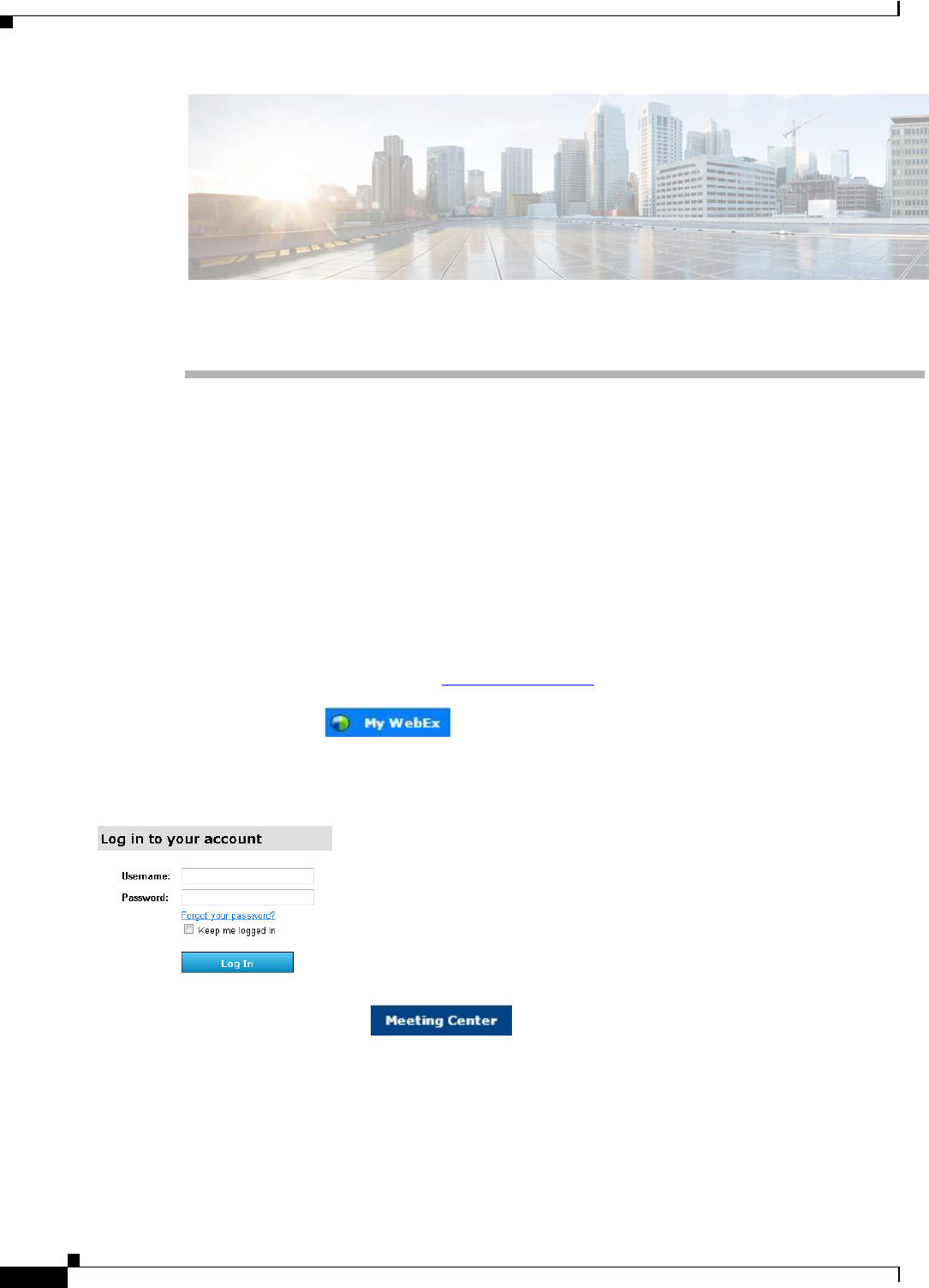

Hosting a WebEx Session 7-1

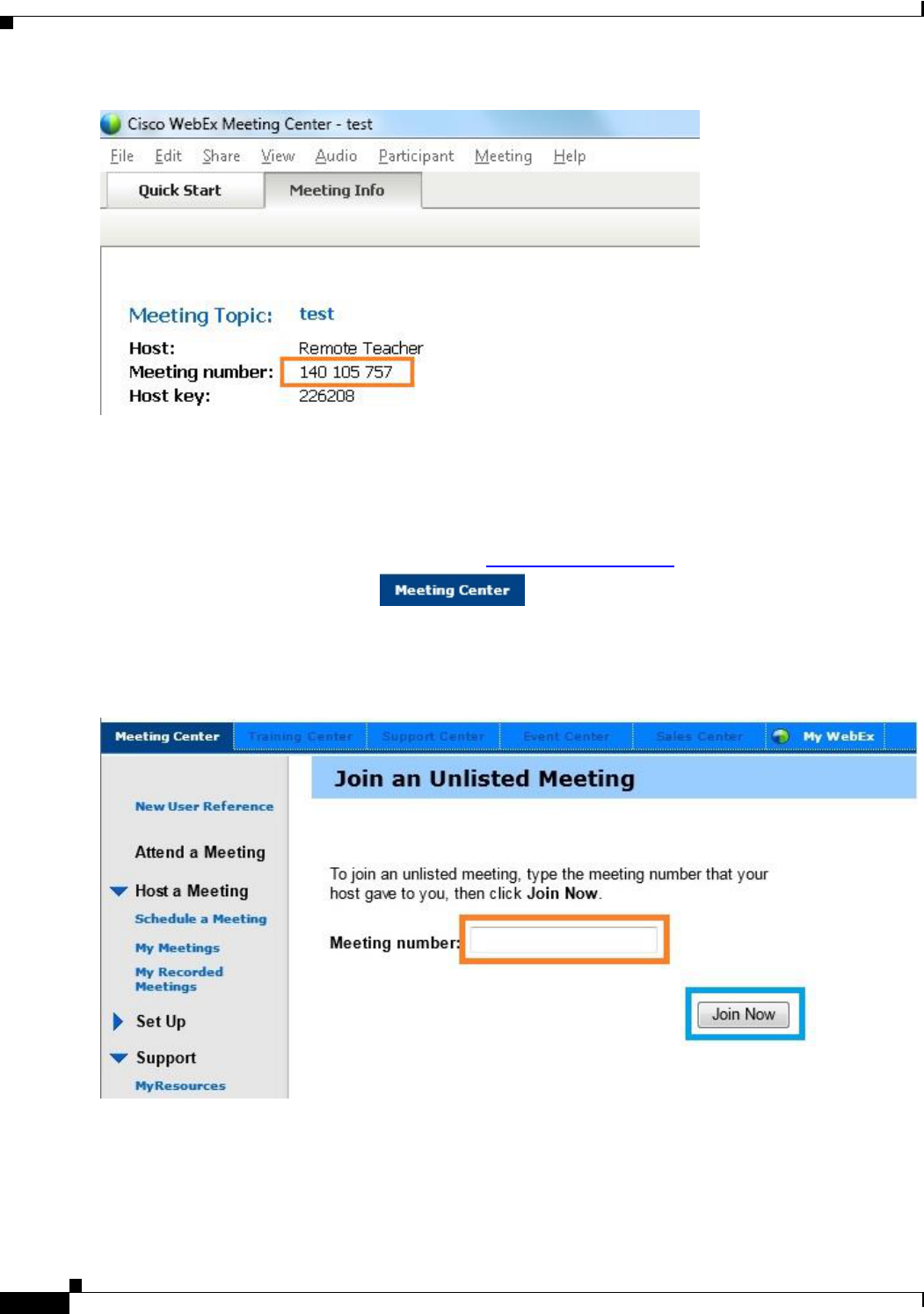

Joining a WebEx Session 7-3
Verification of the Accessories 7-4
iv
78-xxxxx-xx
R
E
V I E W
DR
AFT
—
CISC
O
C
O
NF IDE
N
TIAL
C H A P T E R
1
Introduction
This chapter describes the overview and the operating environment overview and installation
prerequisites of the CEED 3700 and contains the following sections:
This section contains the following sections:
• CEED Operating Environment Overview
• Installation Prerequisites
• Usage Guidelines and Restrictions

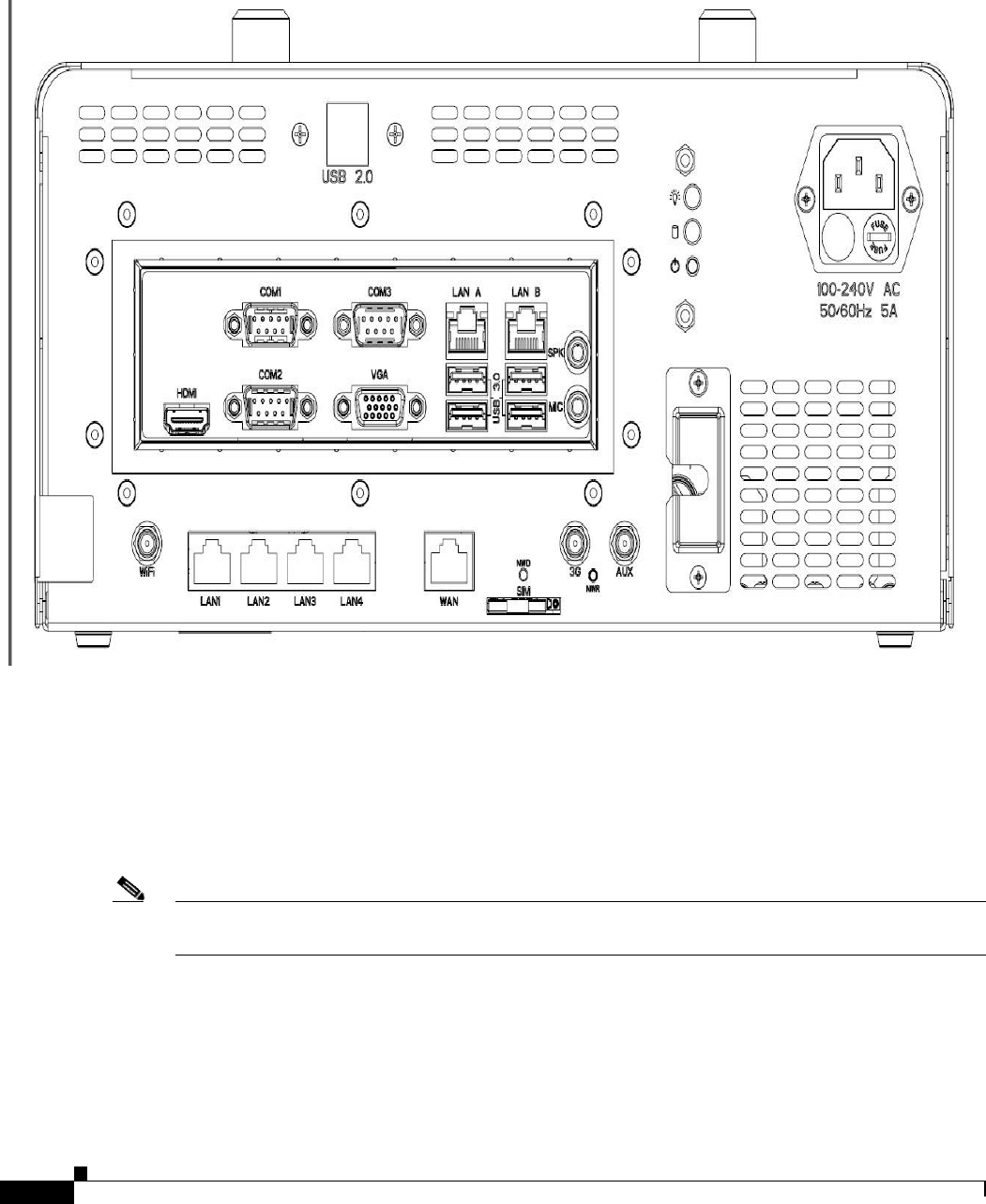

• CEED 3700 Hardware Summary
CEED Operating Environment Overview
This section provides a detailed overview of CEED 3700 and its operating environment.
CEED 3700 series is a comprehensive integrated and open platform designed to leverage collaboration
and live content video to enable session. It is a high end reliable router with video conferencing
capability. It includes an intelligent edge device and leverages cloud capabilities of Cisco to deliver
secure, high definition video using the latest collaboration tools from the cloud.
1-1
R
E
V I E W
DR
AFT
—
CISC
O
C
O
NF IDE
N
TIAL

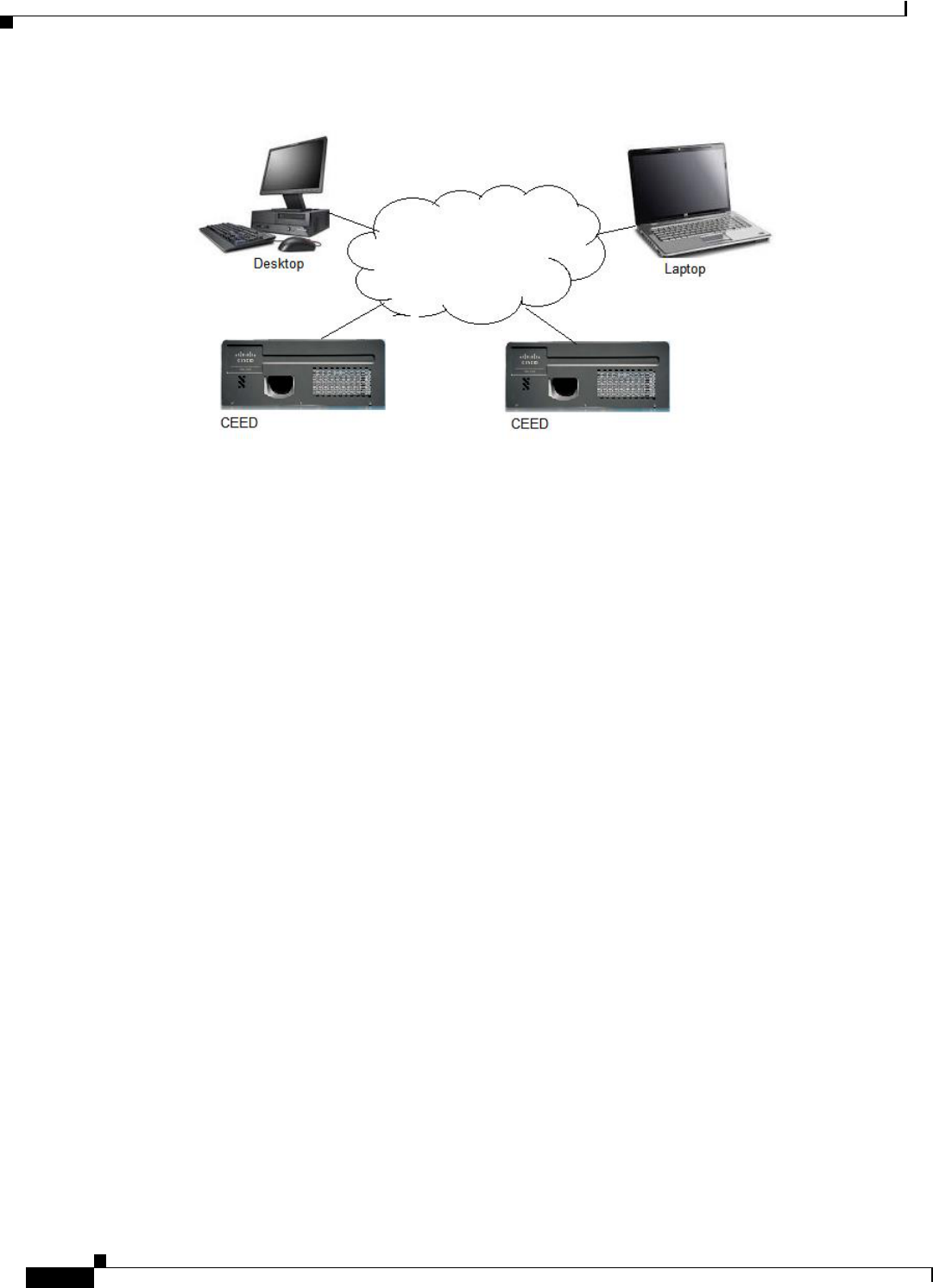

At one end CEED is connected. Other end can be a CEED, Desktop or Laptops
The CEED 3700 provides additional capabilities such as:
• 4th Generation Intel Processor.
• Operating temperature between (0°C to 40 °C).
• Projection lamp light brightness of 3000 Lumen for 4000 hours in standard mode and up to 6000
hours in Eco Mode.
• Field Replaceable Unit (FRU) based projection lamp.
• 3G Wireless Capability with Subscriber Identified Module (SIM)/ User Identify
Module
(UIM).
1-2
Chapter 1 Introduction
Installation Prerequisites
R
E
V I E W
DR
AFT
—
CISC
O
C
O
NF IDE
N
TIAL
Installation Prerequisites
This section describes how to install CEED 3700 unit, precautions, prerequisites and unpacking of
the CEED 3700 unit and contains the following sections:
• CEED 3700 Components and Prerequisites, page 1-3
• Safety Guidelines, page 1-4
• Usage Guidelines and Restrictions, page 1-5
CEED 3700 Components and Prerequisites
The prerequisites and the required components to install the CEED 3700 are as follows:
• 100 V to 240V, 5 Amps Uninterrupted Power Supply (UPS)
• 1 Mbps Internet Leased Line (ILL) with static IP availability
Note You need a minimum of /30 public IP pool provided the connection is coming directly on the Ethernet.
In case where the connection is coming on serial link, you will need an Ethernet modem and this needs
a /29 Public IP pool.
• 3G SIM for 3G Internet Access
• Power Socket for CEED unit with required earthing.
• Manually retractable projection screen
• CAT-6 cable - approximately10 feet or as required at site
• Power socket for the speakers
• Coach Bolts
• Screw Driver Set
• Allen Key set
• Hammer and Drill Set (manual as well as power-driven)
1-3
Chapter 1 Introduction
Usage Guidelines and Restrictions
R E V IE W
DRAFT—
CISC
O
C
O
N F ID E NT IA L
Safety Guidelines
CEED 3700 series in a single package that contains the items that are listed in the table List of CEED
3700 Package Items.
Warning Ensure that never use defective parts or test the equipment with different parts that are not
listed.
Warning Do not replace any part that are not listed in
prerequisites
or in the unpacking section
Warning Read the installation instructions before connecting the system to the power source. If an item in
the
box is damaged or missing, contact your Cisco
representative
Caution Be aware of the size and weight of the CEED 3700 when mounting. Ensure that the mounting location
can safely support the weight. Please use the appropriate type of screws, electric drills and screw drivers
to install the unit.
Read the installation instructions before connecting the system to the power source
Warning This product requires short-circuit
(over-current)
protection, to be provided as part of the
building
installation. Install only in accordance with national and local wiring
regulations.
Warning The plug-socket combination must be accessible at all times, because it serves as the
main disconnecting device.
Warning Only trained and qualified personnel should be allowed to install, replace, or service this
equipment.
Warning Covers are integral part of safety design of the product. Do not operate without the covers
installed.
Warning The area must be known to be
nonhazardous
before installing, servicing, or replacing the
unit.
Warning This equipment must be grounded. Never defeat the ground conductor or operate the equipment in
the
absence of a suitably installed ground conductor. Contact the appropriate electrical
inspection
authority or an electrician if you are uncertain that suitable grounding is
available.
1-4
Chapter 1 Introduction
Usage Guidelines and Restrictions
R
E
V I E W
DR
AFT
—
CISC
O
C
O
NF IDE
N
TIAL
Warning There is the danger of explosion if the battery is replaced incorrectly. Replace the battery only
with
the same or equivalent type
recommended
by the
manufacturer.
Dispose of used batteries
according
to the
manufacturer's instructions
Warning Before using the CEED device, read the user's manuals to ensure correct usage. Incorrect handling
of
this product could possibly result in personal injury or physical damage. The
manufacturer
assumes
no
responsibility
for any damage caused by mishandling that is beyond normal usage
defined in
these
manuals of this
product
Caution Be cautious of high temperatures of the CEED. High temperatures are generated when the lamp is lit. It
could result in fire or burn. Use special caution in households where children are present.
Usage Guidelines and Restrictions
Warning This section describes the usage guidelines and restrictions while using CEED
3700.
Warning The warranty will be void if one or more points in this section is
violated.
Warning Do not change the user name or
password.
Warning Do not install any third party software or update the system
settings.
• CEED 3700 is
not
a
permanent
storage
dev
i
ce.
• Do
no
t
operate
CEED 3700
if
a
problem should occu
r
.
–
Abnormal
o
p
erations
such
as
smoke,
strange odor, no image, no sound, excessive
sound,
damaged casing or
elements or cables,
p
e
netratio
n
of liquids or foreign
matte
r
,
etc. can
cause a
fire or electrical
shock.In such case,
immediately
turn off the power switch and then disconnect the power plug from the power o
u
tl
et.
After making
sure that the smoke or
odor
has stopped, contact
you
r
accoun
t
ma
nage
r
.
Never attempt to
make
repairs yourself
because
this could
be dangerous.
• Do
no
t
disassemble or
modify.
–
Modification and/or disassembly of the equipment
or accessories could result
in
fire or electrica
l
shock.
–
Never open the cabinet.
• Do
no
t
give the
CEED
any shock or
impact.
–
If the
CEED
is shocked and/or broken, it could result
in an
injury, and
con
t
i
n
ued
use
coul
d
result
in
fire or
electrical
shock.
1-5
Chapter 1 Introduction
Usage Guidelines and Restrictions
R E V IE W
DRAFT—
CISC
O
C
O
N F ID E NT IA L
–
If the
CEED
is shocked, immediately turn
off the
power
switch, disconnect the power
plug
fro
m
the power
outlet and
con
t
a
c
t
your Cisco
representative.
•
The
CEED 3700
device
“must be”
installed on
a RCC
or
equiv
a
len
t
ceiling with
provided
mounting
b
r
a
c
kets
and accessories.
Do
not place
CEED 3700
on
an
unstable
surfac
e
– Do
not
p
l
ace
the
CEED
on
an
unstable, slant or
vib
r
an
t
surface such
as a
wob
b
ly
or
inclined
st
and.
• Do
not touch the surface of the lens, air fans and ventilation openings during use or i
m
mediately
after use to prevent
a
burn.
•
Ensure to give ample of ventilation space for the
CEED 3700
dev
i
ce.
• Do
no
t
operate
CEED 3700
continuously for more
t
h
an
4
hours. Ensure that you
turn off
the
CEED 3700
device every
4
hours for about
30 minutes
•
Avoid
a
high
te
mpe
r
ature
ope
r
a
t
i
n
g
environment.
•
The heat could have adverse influence on the cabinet of the
CEED3700
and other parts. Do
not place the
CEED3700,
the remote control and other parts
in
direct sunlight or near
a
hot
object
such
as
heater,
etc
• Keep
enough space between the
CEED 3700
device and other objects such
as
wa
lls.
• Do
not
p
l
ace
any objects on or
nea
r
the lens, air fans and ventilation openings of the
CEED3700.
–
Never block the air fan and ventilation
openings.
• Do
no
t
cover the
CEED3700
with
a
tablecloth, etc. Do not place the
CEED 3700
on
a
ca
rpe
t
or
bedding.
• Use
only the correct
powe
r
cord and the correct
powe
r
outlet.
–
Incorrect power supply could result
in
fire or electrical
shock.
– Use
only the correct
power
outlet
depending on the indication on the
CEED
3700and
th
e
safety
standard
.
• Be
sure to connect with
g
r
ound
wire.
–
Connect the
g
r
ound
terminal of
AC
inlet of this unit with the ground terminal provided at the building using the
correct
powe
r
cord; otherwise, fire or electric shock can
result.
•
Avoid
a
smoky, humid or dusty
place.
–
Placing the
CEED 3700 in a
smoke,
a
highly humid, dusty
p
l
ace,
oily soot or corrosive g
a
s
could result in fire or
electrical
shock. High dust environment
wi
ll
also result in quick clogg
i
ng
of the ventilation system and
result
in
lamp
shutdown.
– Do
no
t
place the
CEED 3700
near
a
smoky, humid or dusty place
(ex. a
smoking space,
a
kitchen,
a
beach,
etc.).
Do
not place the
CEED3700
outdoors.
– Do
no
t
use
a
humidifier near the
CEED3700.
•
Avoid
M
agneti
s
m.
–
Avoid any magnetic
conta
c
t
that is not shielded or protected on or near the
CEED3700
itself.
(ie.,.
Magnetic
Security Devices, or other
CEED
accessory that contains magnetic material that has not been provided
by
the
manufacture etc.)
M
agne
t
i
c
objects
may
cause
interruption
of the internal mechanical performance of the
CEED
3700,
which
may
interfere with
cooling
fans speed or stopping, and
may
cause the
CEED3700
to completely
shut
down.
•
The
CEED 3700
should not go
in
sleep mode. Adjust your Power
Mana
g
emen
t
options
accordingly
through the
power management options during the set
up.
• Do
no
t
allow
CEED 3700
to install updates
au
t
o
m
a
t
i
c
a
lly
fr
om
the Internet and
rest
ar
t
.
1-6
Chapter 1 Introduction
CEED 3700 Hardware Summary
R
E
V I E W
DR
AFT
—
CISC
O
C
O
NF IDE
N
TIAL
CEED 3700 Hardware Summary
The table 1-1 describes the materials that are packaged with CEED 3700 unit in a single package.
Note Ensure that all parts are in the package. Contact your Cisco representative within 2 weeks for any
missing parts.
Caution Do not use defective parts or use replacement parts that do not conform to specification. Make sure only
authorized personnel can open the package.
Note Keep the original packaging materials for future shipment. Ensure to use original packaging material.
Table 1-1 List of CEED 3700 Package
Items
Item
Number
Size
Mounting kit (Top Side)
1
246x130x547 mm (low)
Mounting kit (Bottom Side)
1
210x200x625 mm (low)
CEED 3700
1
440x315x135 mm (low)
AC Power Cord
1
2.5 meters
Speakers one pair
1
NA
Speaker Adapter
1
Available along speaker
Speaker Extension Cable
1
10 meters
Speaker to Speaker inter
connection cable
1
10 meters
Remote for projection
1
NA
Keyboard
1
Wireless Keyboard
Mouse
1
Wireless Mouse
1-7
Chapter 1 Introduction
CEED 3700 Hardware Summary
R E V IE W
DRAFT—
CISC
O
C
O
N F ID E NT IA L
Item
Number
Size
Wireless Dongle
1
NA
Microphone
2
Wired microphone
Microphone Extension Cable
2
10 meters
Microphone Splitters
1
NA
Camera
2
Wired Camera
Active USB Extension Cable
2
10 meters
RJ45 cable from Router to
Mother board (Pre-installed in
the unit)
1
50 cm
Anchor Bolts
4
M 10
Allen Screws with washer
4
M 10 x 10 mm
Bolt with washer
2
M12 x 70 mm
Nut
2
M12
Router 3G Antenna*
2
Router Antennas (*Provided
only if 3G Option is selected
while ordering)
Wi-Fi antenna
1
Router Antenna
Remote Batteries*
1
3V, model:CR2025
Keyboard and Mouse Batteries*
3
2 AAA (keyboard batteries)*
and 1 AA (Mouse batteries)*
Note The batteries are either pre-installed or to be procured by the installation partner at the time of
installation.
1-8
R
E
V I E W
DR
AFT
—
CISC
O
C
O
NF IDE
N
TIAL
C H A P T E R
2
Installation
This chapter describes the installation/mounting of the CEED3700 (CEED 3700) and contains the
following sections:
This section contains the following sections:
• Mounting Prerequisites, page 2-1
• Mounting of the CEED 3700, page 2-1
• Accessories, Peripherals and Cable Assembly, page 2-6
Mounting Prerequisites
• CEED 3700 is optimally designed for a room size of 20*20 ft. Any deviations shall be suitably
notified and prior approval on the installation with partners (The document assumes a size of 20*20
ft room. Actual position may vary depending on the implementation and other details)
• CEED is
placed at
10
to
13
feet from the
screen.
• Ensure the celling is strong enough with reinforced concrete (RCC) or steel structures and is capable
of taking at least 20 Kilograms (Kg) of load.
• Ensure ambient room lighting for proper image capture and better image projections.
• Use
d
r
a
p
es
or opaque curtains to block excess
light
in
the room that
wi
ll
interfere the
projection.
Caution Ensure that all “Installation Prerequisites” section on page 1-2 in the Introduction chapter is adhered to
without any deviations.
Mounting of the CEED 3700
To mount the CEED 3700 in the ceiling, perform the following steps:
Step 1 Assign the position of the CEED (from the screen) to be mounted. Align/arrange the top portion of the
mounting kit towards the ceiling as shown in “Top portion of the Moutning Kit” in Figure 2-1.
Remove the portion after you mark the holes.
2-1
Chapter 2 Installation
R E V IE W
DRAFT—
CISC
O
C
O
N F ID E NT IA L
Figure
2-1
Top portion of the Moutning
Kit
• Alternatively, you can also mark the holes using the template markings as shown in “Template for
the Drilling Hole” in Figure 2-2.
Figure
2-2
Template for the Drilling
Hole
Step 2 Drill 12 mm diameter for the depth of 55 mm holes at the marked position.
Step 3 Insert all 4 anchor bolts one-by-one and slightly hammer to drive anchor into the drilled holes. Fix the
top portion of the mounting kit and tighten the screws using the wrench/heavy duty screwdriver. See
“Fixing of the Anchor Bolts” in Figure 2-3.
Figure
2-3
Fixing of the Anchor
Bolts
2-2
Chapter 2 Installation
R
E
V I E W
DR
AFT
—
CISC
O
C
O
NF IDE
N
TIAL
Step 4 To connect all the cables, draw all the cables that are mentioned in “List of CEED 3700 Package
Items”
through the pipe and pull them towards the top portion of the mounting kit. See Figure
2-4.
Note Ensure that respective end of cables pass through the mounting kit from the bottom.

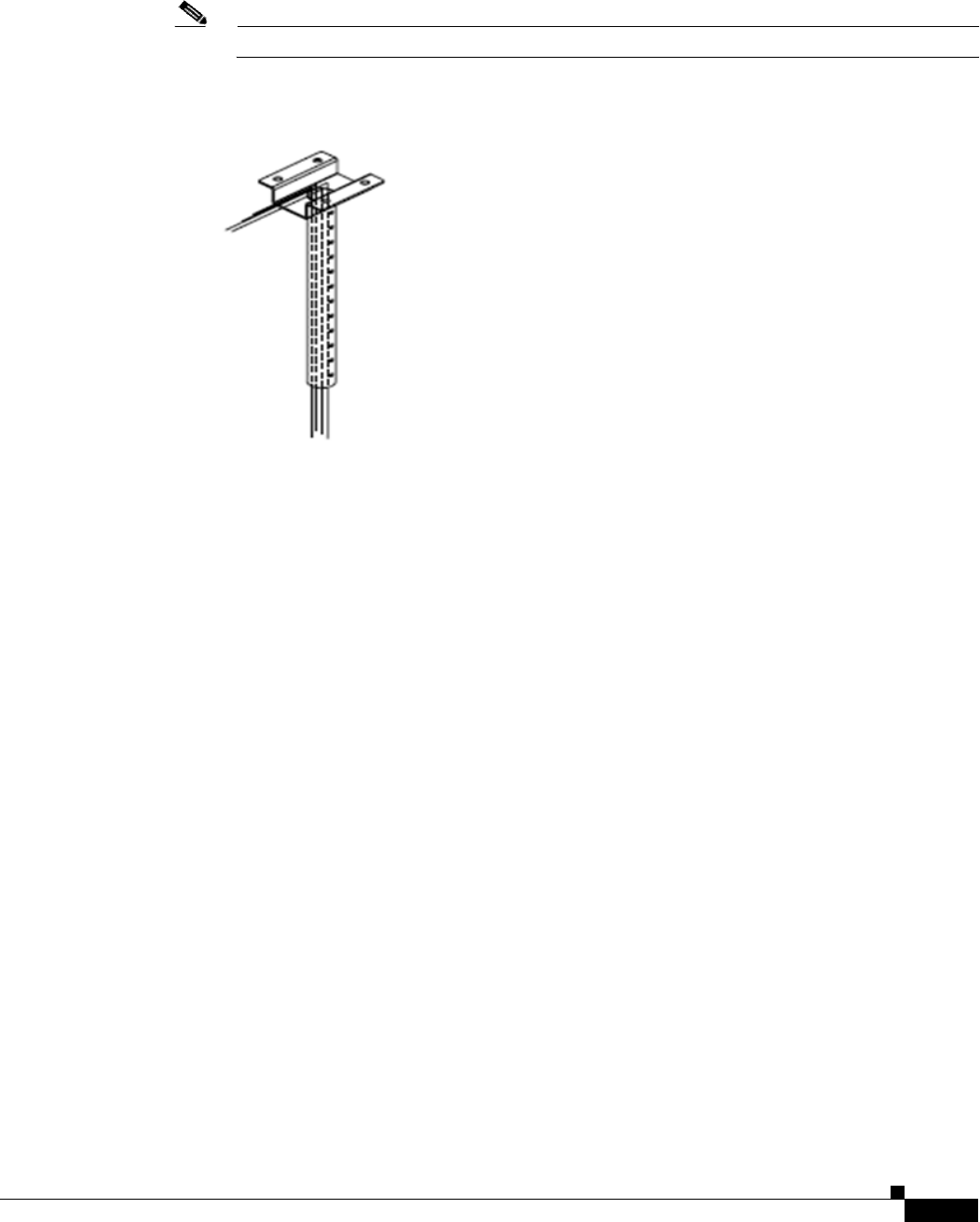

Figure
2-4
Cable Connections through the Mounting
Kit
Step 5 Insert bottom portion of mounting kit to top portion of the mounting kit as shown in “Alignment of
the
Top Portion and the Bottom Portion of the Mounting Kit”.
Step 6 Adjust the length of the vertical slider so that the base of the CEED 3700 is above 6 feet from the
ground.
2-3
Chapter 2 Installation
R E V IE W
DRAFT—
CISC
O
C
O
N F ID E NT IA L

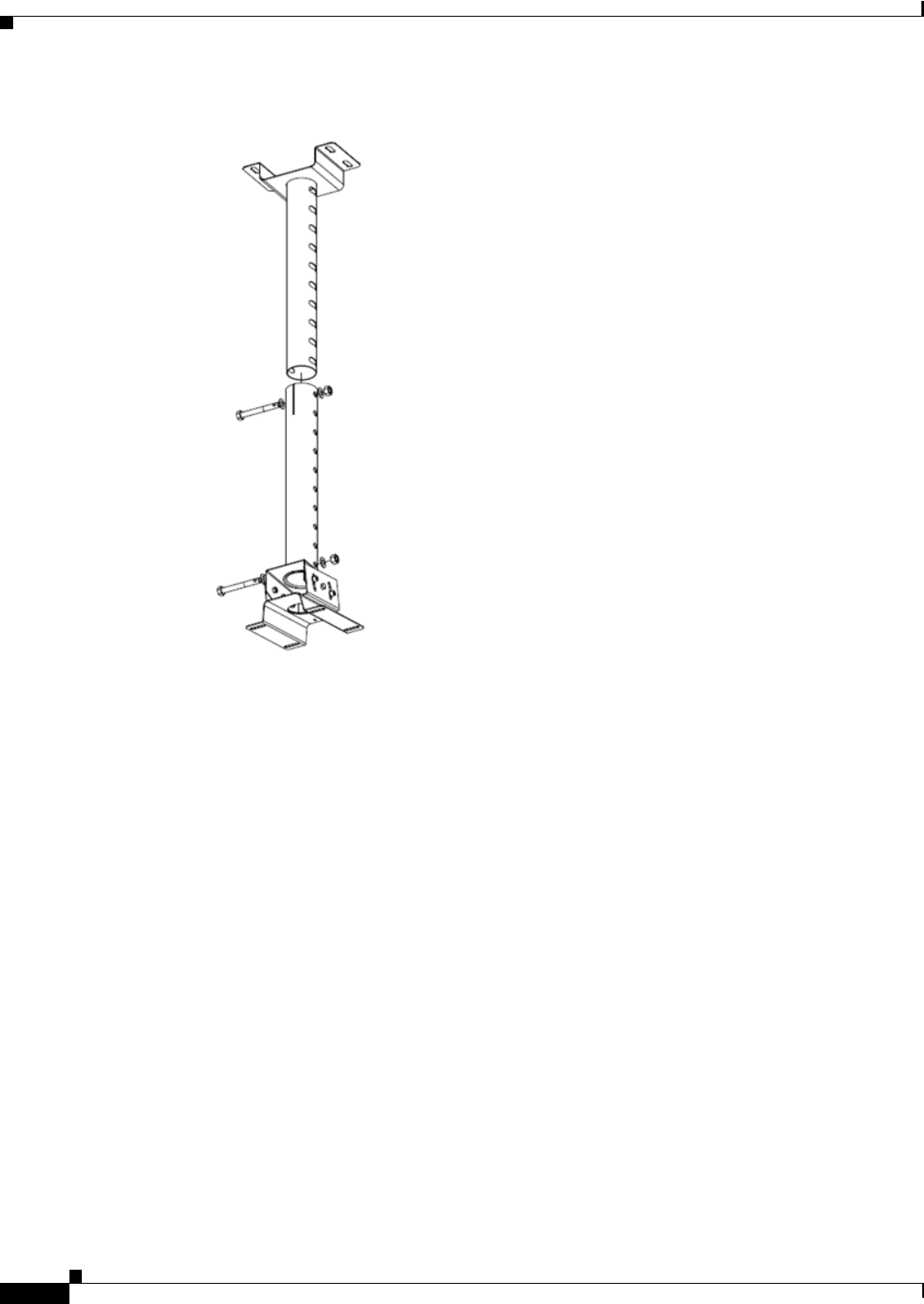

Figure
2-5
Alignment of the Top Portion and the Bottom Portion of the Mounting
Kit
Step 7 Lock the Vertical Slider in both top and bottom side of the mounting kit. See Figure 2-6
2-4
Chapter 2 Installation
R
E
V I E W
DR
AFT
—
CISC
O
C
O
NF IDE
N
TIAL
Figure
2-6
Locking the Vertical
Slider
Step 8 Place CEED 3700 unit as shown in figure“CEED 3700 Placement”in Figure 2-7.
Note Ensure that the lens of the CEED 3700 is facing the screen.
Step 9 Lock the screws tightly.
2-5
Chapter 2 Installation
R E V IE W
DRAFT—
CISC
O
C
O
N F ID E NT IA L
Figure
2-7
CEED 3700
Placement
Step 10 Complete set up looks as shown in
Accessories, Peripherals and Cable Assembly
This section describes the external wiring, all cable connections, positioning of the accessories and their
connections and contains the following section:
• External Wiring and Placement of Accessories, page 2-6
• Assembling of the Accessories, page 2-8
External Wiring and Placement of Accessories
To connect and place all the accessories, peripherals and cables that are coming out of the CEED
3700 device, perform the following steps:
Note: The accessories and peripherals should be kept outside the test chamber/room using the extension cables while
performing any compliance test.
Step 1 To connect accessories such as camera, microphone, keyboard, mouse and speaker follow the “CEED
3700 External Cable Connections” in Figure 2-9.
2-6
Chapter 2 Installation
Accessories, Peripherals and Cable Assembly
R
E
V I E W
DR
AFT
—
CISC
O
C
O
NF IDE
N
TIAL
Figure 2-9 CEED 3700 External Cable
Connections
Step 2 Allocate appropriate positions to the accessories.
2-7
R E V IE W
DRAFT—
CISC
O
C
O
N F ID E NT IA L
Assembling of the Accessories
This section describes how to connect camera, microphone and speakers to CEED 3700.
VGA
Connect the VGA cable to the CEED back panel VGA port. Refer number 1 in
Figure
2-9
Camera
To connect the camera 1 and camera 2 to the CEED 3700 back panel, perform the following steps:
Step 1 Connect the Camera 1 and Camera 2 to Active USB extension cable. Refer number 3 and number 4 in
Figure 2-9 for connection.
Step 2 Insert the USB extension cable in the USB port in the CEED 3700 back panel as shown in Figure 2-9
Step 3 Place the camera in the appropriate position.
Step 4 Secure the camera position with appropriate nuts, bolts and screws.
Speakers
To connect the speakers to the
CEED 3700
back panel, perform the following
steps:
Step 1 Connect the speakers to the audio extension cable.Refer number 8 and number 9 as shown in Figure 2-9.
Step 2 Insert the audio extension cables in Audio port (Lime Color).
Step 3 Place the speakers at a suitable height on the wall for the sound to be audible as shown in Figure 2-9.
Note that the height will differ at each site.
Step 4 Secure the speakers with appropriate brackets and screws.
Step 5 Connect the speakers to the power outlet.
Note The power cord provided with the speakers in the CEED 3700 package items are to be used only in India.
For other countries use your respective adapters/converters for the power cord.
2-8
Chapter 2 Installation
Accessories, Peripherals and Cable Assembly
R
E
V I E W
DR
AFT
—
CISC
O
C
O
NF IDE
N
TIAL
Microphone
Step 1 Connect the microphone splitter to the microphone. Refer number 6 and number 7 as shown in
Figure 2-9.
Step 2 Connect the microphone extension cable to the splitter.
Step 3 Connect the microphone wire to the other end of the microphone extension cable
Step 4 Insert audio extension cables into Audio port (Pink Color).
Step 5 Place the microphones at suitable locations such that it is easily accessible as shown in Figure 2-9.
Keyboard and Mouse
CEED 3700
comes with the wireless keyboard and wireless mouse.
Plug-in the
appropriate
respective
dongle
in
the
USB
port of the
CEED 3700
back panel. Refer number
10 as
shown
in Figure 2-9.
Screen
To
connect the projection screen to the
CEED 3700,
perform the following
steps:
Step 1 Vertically place the screen parallel to the wall. Placement of the screen should be such that the lens of
the CEED 3700 projects on the screen.
Step 2 Secure the screen to the wall with screws.
Note Screen is not part of the CEED 3700 package items. To be procured by the installation partner.
2-9
R E V IE W
DRAFT—
CISC
O
C
O
N F ID E NT IA L
C H A P T E R
3
Configuring LAN and Connectivity
This chapter describes the how to configure Local Area Network and its related connectivity to the
CEED 3700 device and how to power on the CEED 3700. This chapter contains the following sections:
• Configuring LAN
• Powering On CEED 3700
Configuring LAN
To connect the RJ45 cable to the specific ports, perform the following steps:
Step 1 Connect RJ45 cable from the modem to the CEED 3700 WAN port in CEED 3700 back panel.
3-1
R E V IE W
DRAFT—
C
ISC
O
CON
FIDENTIA L
Figure
3-1
CEED 3700 Back P
anel
Step 2 Connect RJ 45 cable provided with the CEED 3700 package item from LAN1 port in the back panel to
the LAN A port. See CEED 3700 Back Panel in Figure 3-1.
Step 3 Connect the Wi-Fi Antenna to the Wi-Fi Antenna port.
Step 4 Connect the one 3G Antenna to 3G port.
Step 5 Connect the other 3G antenna to the AUX port.
Step 6 Insert a 3G SIM in the SIM slot.
Note RJ45 cable from the modem to CEED 3700 is not provided with the CEED packaging items. The
deployment partner has to procure the RJ45 cable as the length may be different in each location.
3-2
R E V IE W
DRAFT—
CISC
O
C
O
N F ID E NT IA L
Chapter 3 Configuring LAN and Connectivity
Powering On CEED 3700
Powering On CEED 3700
Caution All cables, peripherals and accessories to be connected securely before power-on.
This section describes how to power on the
CEED 3700
after connecting the
pow
e
r
cord.
Step 1 Press the power switch once. See Power Switch in Figure 3-2.
Figure
3-2
Power
Switch
Step 2 Turn on the projection system using the remote or the projection ON/OFF switch at the bottom of CEED
3700.
3-3
REV I E W
DRAFT—
CISC
O
C
O
NF IDE N T IA L
A
C H A P T E R
4
Configuring CEED 3700 Software
This chapter describes how to configure the CEED 3700 software, first time login and subsequent login
sessions using the CEED 3700. This configuration is a one-time process to be performed during the first
time login only.
Note The following sections assumes that you have removed the plastic sheet covering the back panel of
the
CEED 3700 and CEED 3700 powered on.
First Time Log in
To complete the configuration of CEED 3700, perform the following steps after you first login.
Step 1 After you power on the setup screen will appear as shown in “Setup Screen” figure Figure 4-1

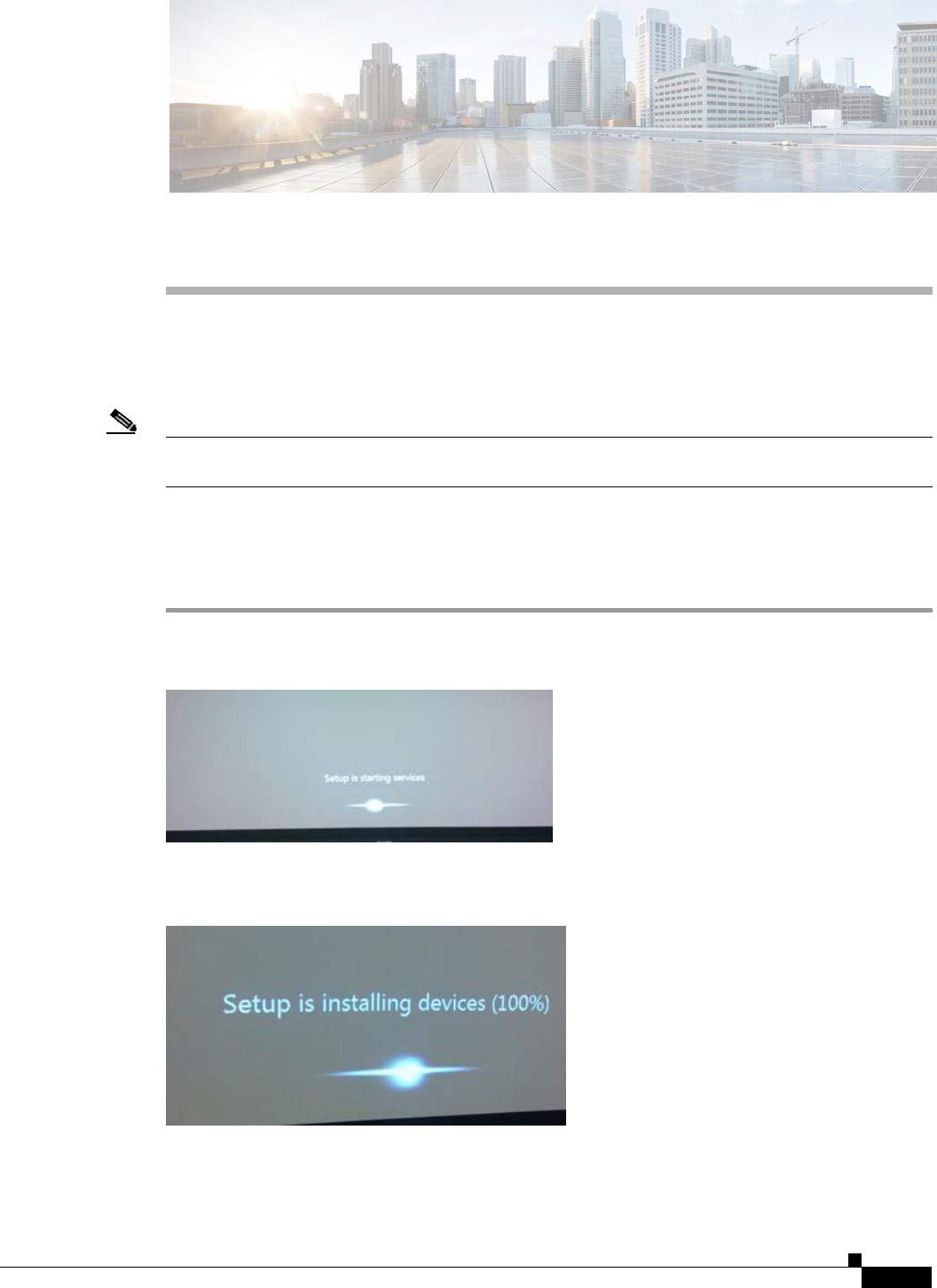

Figure
4-1
Setup
Screen
Step 2 Wait for 20-30 seconds for the setup process screen to appear as shown in “Setup Process” in Figure 4-2
Figure
4-2
Setup
Process
Step 3 Once the system has installed the required devices 100%, Windows 7 professional license starts its
installation process. The windows 7 licence screen as appears.
4-1
Chapter 4 Configuring CEED 3700 Software
R E V IE W
DRAFT—
CISC
O
C
O
N FI D EN T IA L
Step 4 From the Country or region drop-down list, choose India.
Step 5 From theTi me and Currency drop-down list, choose your country. For example, English (India)
Step 6 From the Keyboard layout drop-down list, choose US and click Next.
For Steps 4 to 6 see figure Figure 4-3.
Figure
4-3
Windows 7 License
Screen
Step 7 Enter the desired Username. For example, CEED.
Type the computer name filed will auto-populate with the “username-PC”. For example CEED-PC.
See Figure 4-4.
Figure
4-4 Username
Step 8 Click Next. Set a Password for your account screen appears. See Figure 4-5.
4-2
Chapter 4 Configuring CEED 3700 Software
R
E
V I E W
DR
AFT
—
CISC
O
C
O
NF IDE
N
TIAL

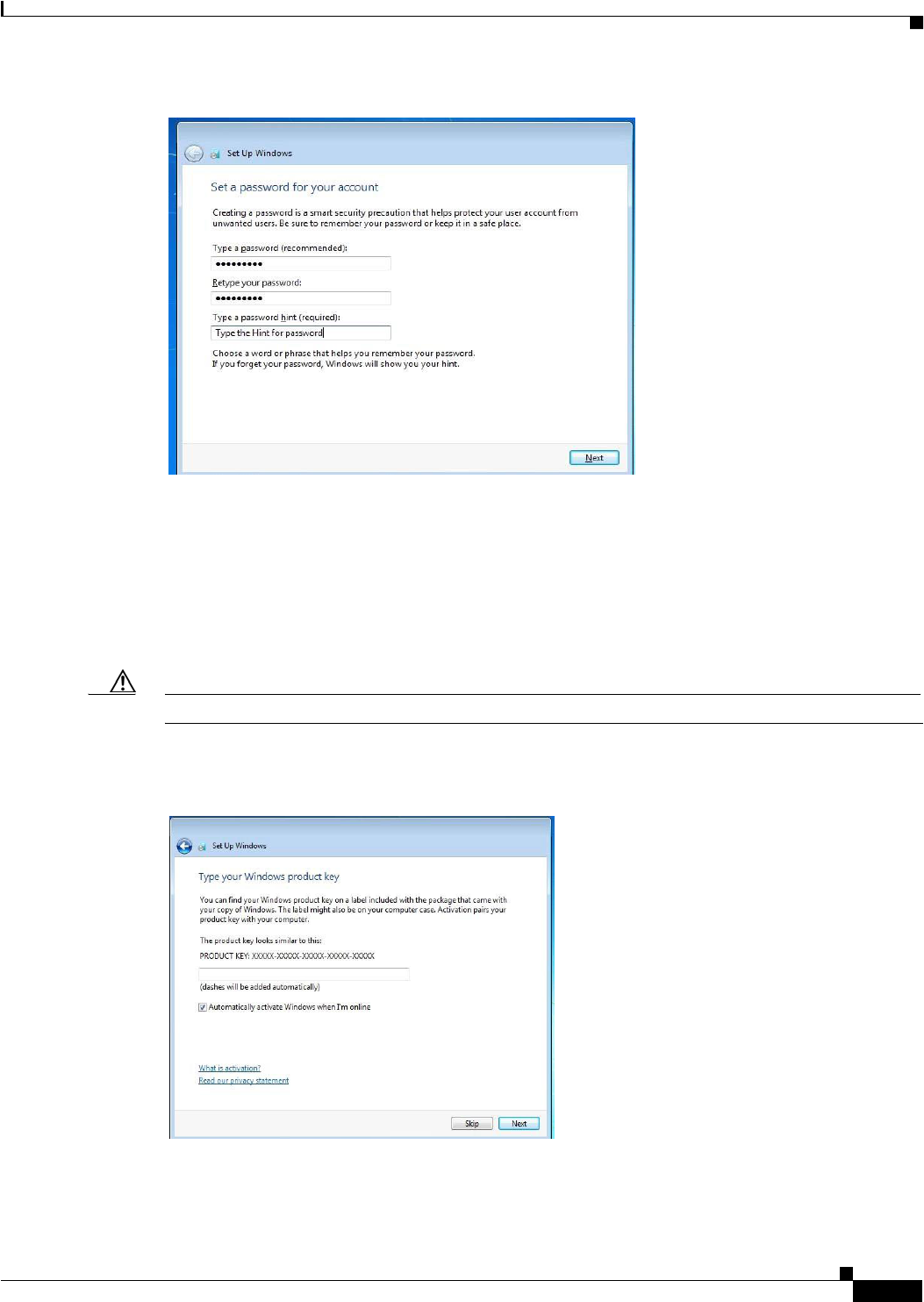

Figure
4-5
Set
a
password for your
a
c
co
un
t
Step 9 In the Type a Password field, type a password. For example, xyzabc
Step 10 Re-type your password, in the Re-Type password field.
Step 11 (Optional) Enter the hint for your password.
Step 12 Click Next.
Step 13 Type your Windows Product Key screen appears. See Figure 4-6
Step 14 Click Skip.
Caution Do not enter the product key
Step 15 Uncheck the Automatically activate windows when I’m Online check box.
Figure
4-6
Product
Key
Step 16 Check the radio button I accept the license terms and then click Next. See Figure 4-7
4-3
Chapter 4 Configuring CEED 3700 Software
R E V IE W
DRAFT—
CISC
O
C
O
N F ID E NT IA L
Figure
4-7
Accepting Windows
Licence
Step 17 Click Next.
Step 18 Review your Date and Time settings on the window that appears as shown in “Set Date and Time” in
Figure 4-8.
Figure
4-8
Set Date and
Time
Step 19 Set your Time Zone. For example, (UTC +5.30) Chennai, Kolkata, Mumbai, New Delhi, if you have
selected India as your country in Step 4.
Step 20 Set the current Date and Time.
Step 21 Click Next.
Step 22 Select Public network from select your computer's current location. See Figure 4-9
4-4
Chapter 4 Configuring CEED 3700 Software
R
E
V I E W
DR
AFT
—
CISC
O
C
O
NF IDE
N
TIAL
Note This Window will not appear if LAN is not connected to CEED 3700. Select Public network whenever
LAN cable is connected

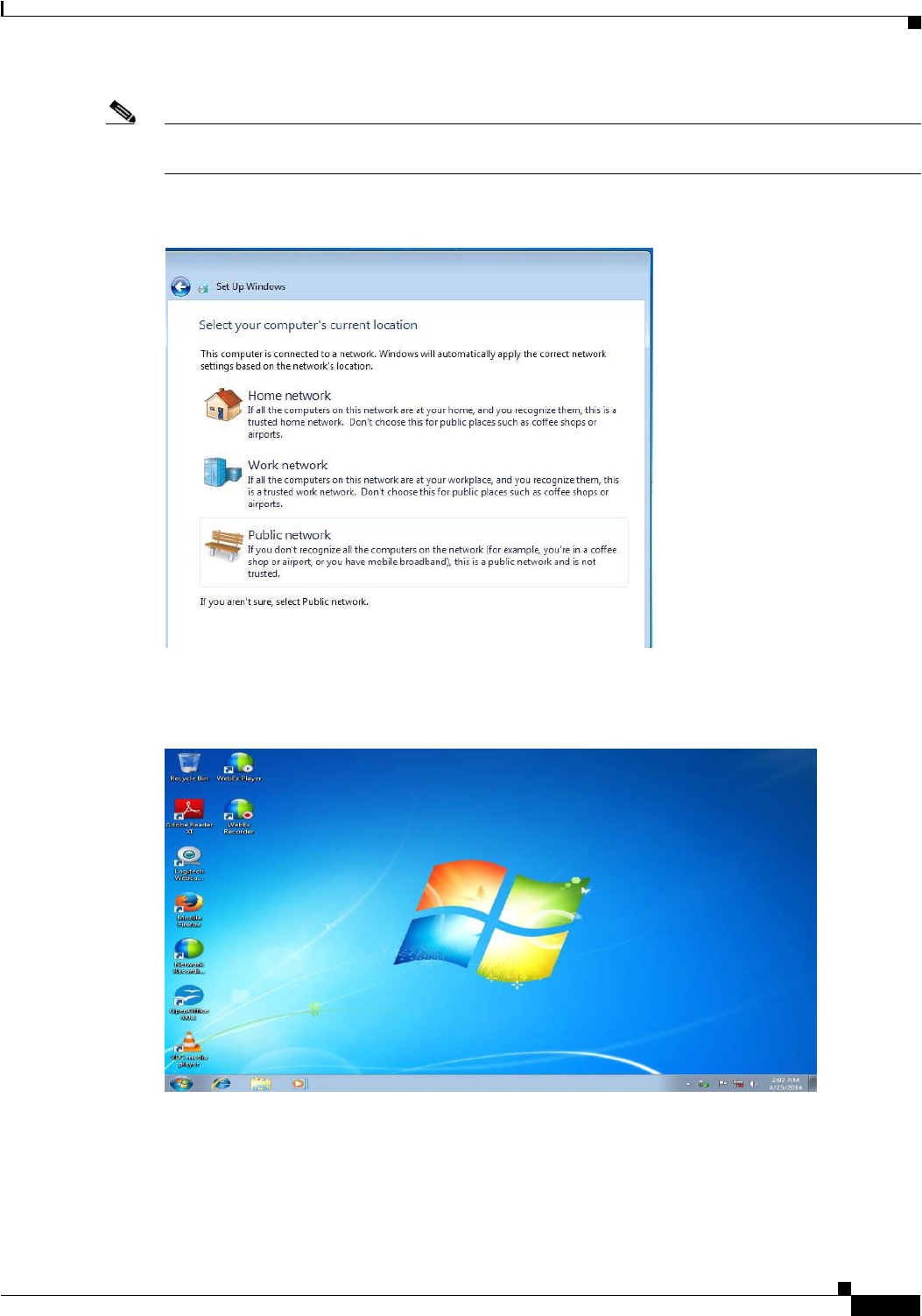

Figure
4-9
Set Up
Windows
Step 23 Windows Desktop Screen with windows logo appears see “Windows Desktop” in Figure 4-10.
Figure 4-10
Windows
Desktop
Step 24 Click the Start button, enter “Microsoft Security Essentials” in the search box, and open “Microsoft
Security Essentials” application. See Figure 4-11.
4-5
Chapter 4 Configuring CEED 3700 Software
R E V IE W
DRAFT—
CISC
O
C
O
N F ID E NT IA L

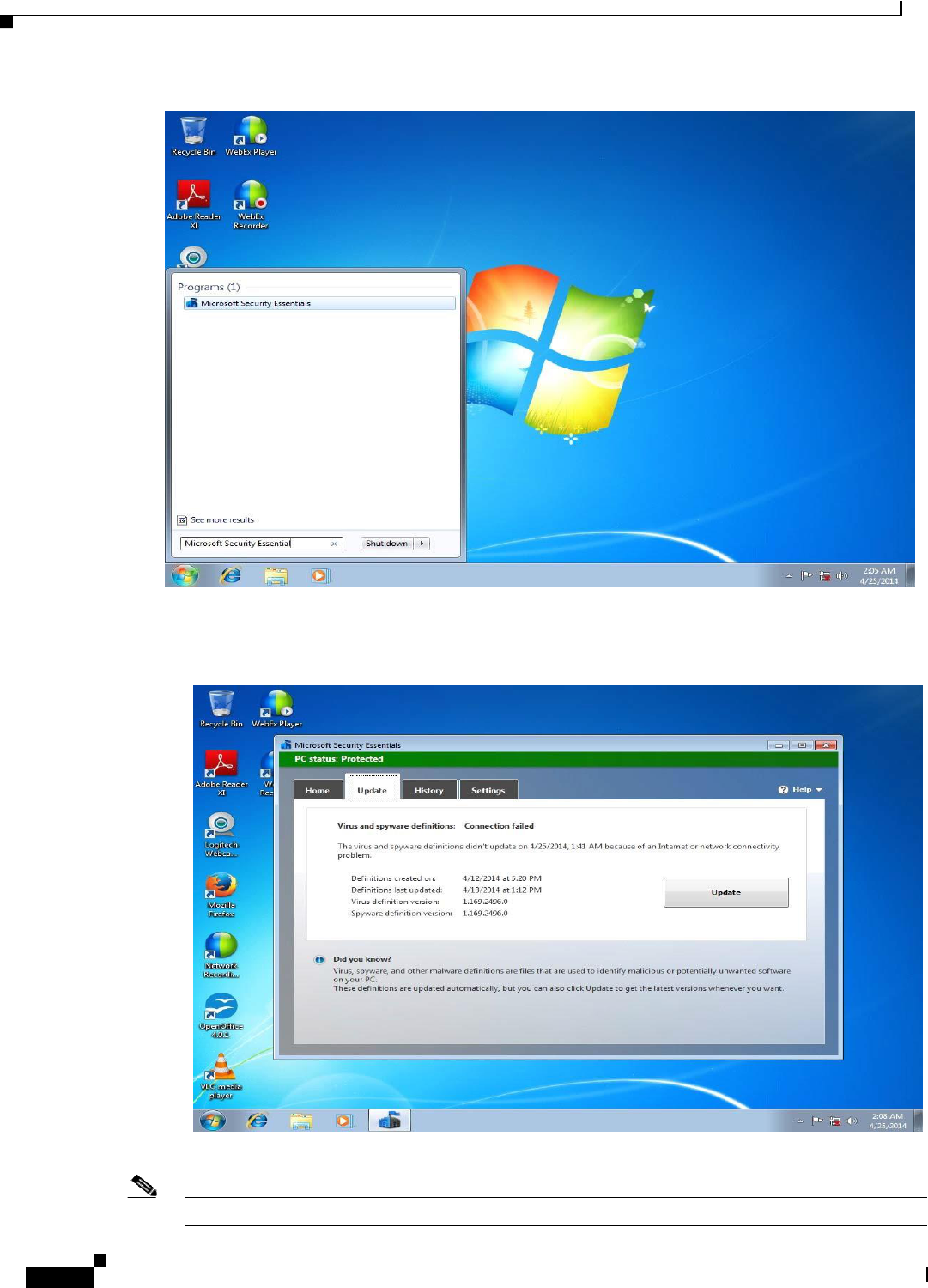

Figure 4-11
Search
Box
Step 25 Wait for a few seconds before Microsoft Security Essentials screen pop up on the desktop as shown in
Figure 4-12.
Figure
4-12
Microsoft Security
Essentials
Step 26 Click Update tab to update the latest Virus and Spyware definition.
Note Ensure that CEED 3700 is connected to the Internet while you perform the Step 26.
4-6
Chapter 4 Configuring CEED 3700 Software
REV I E W
DRAFT—
CISC
O
C
O
NF IDENTIA L
Step 27 To activate windows right-click on My Computers and then choose Properties from the drop-down
menu. See Figure 4-13.

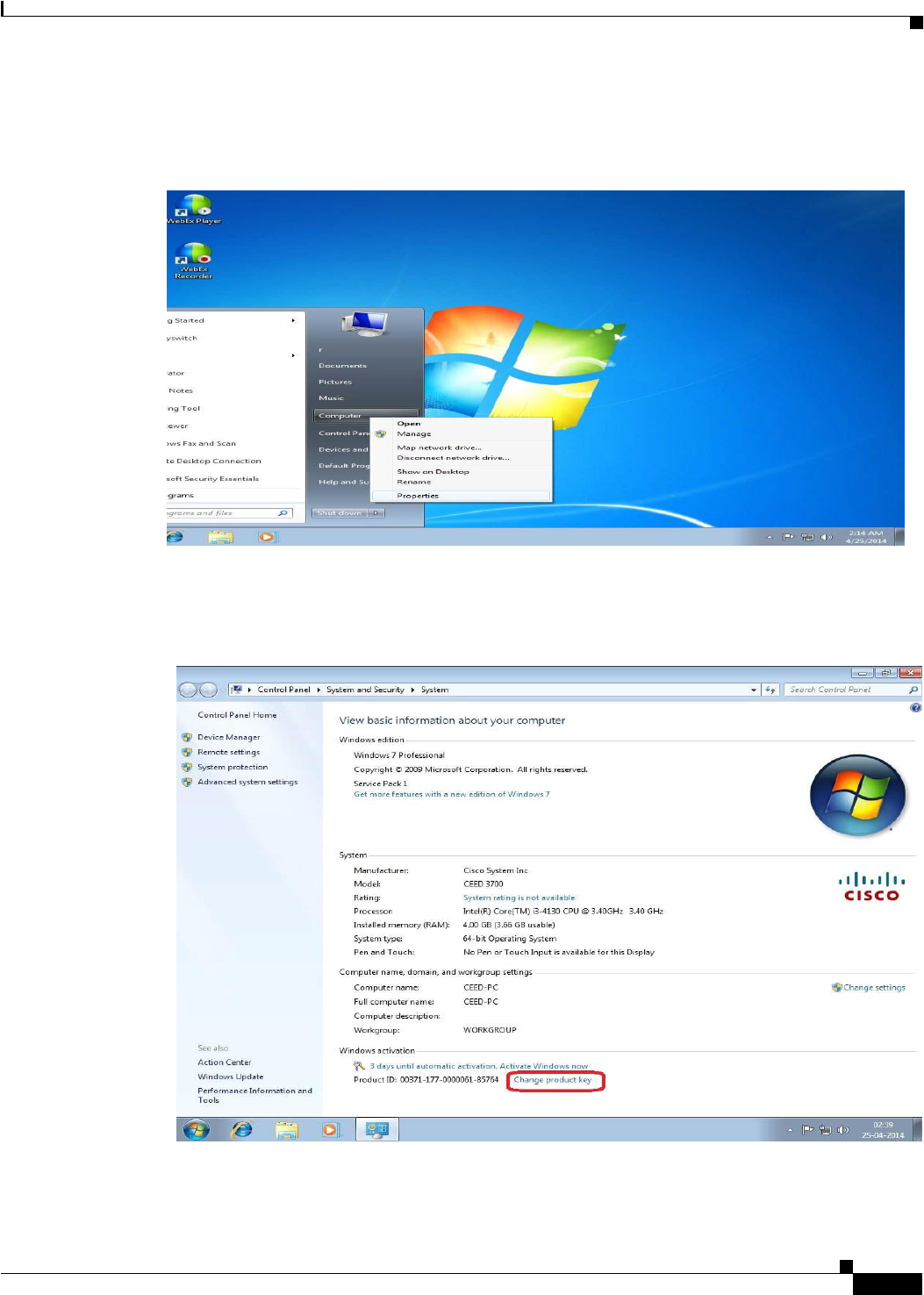

Figure
4-13 Properties
A System Screen appears where you can change the product key. See Figure 4-14.
Figure
4-14
System
Screen
Step 28 To change the product Key, click Change Product key.
A Windows Activation Screen appears. See Figure 4-15.
4-7
Chapter 4 Configuring CEED 3700 Software
R
E
V I E W
DR
AFT
—
CISC
O
C
O
NF IDE
N
TIAL
Figure 4-15
Windows
A
c
tiv
ation
Step 29 Enter the Product Key in the Product key
field.
Note The product key is an alphanumeric key which is found in the CEED Box
A Windows Activation with activating windows appears. See Figure 4-16.
Figure 4-16
Activating
Windows
4-8
Chapter 4 Configuring CEED 3700 Software
REVIEW
DRAFT-CISCO CONFIDENTIAL
Step 30
After
a few
minutes
the
Windows
is
activated
screen appears
as
shown
in
Figure 4-17

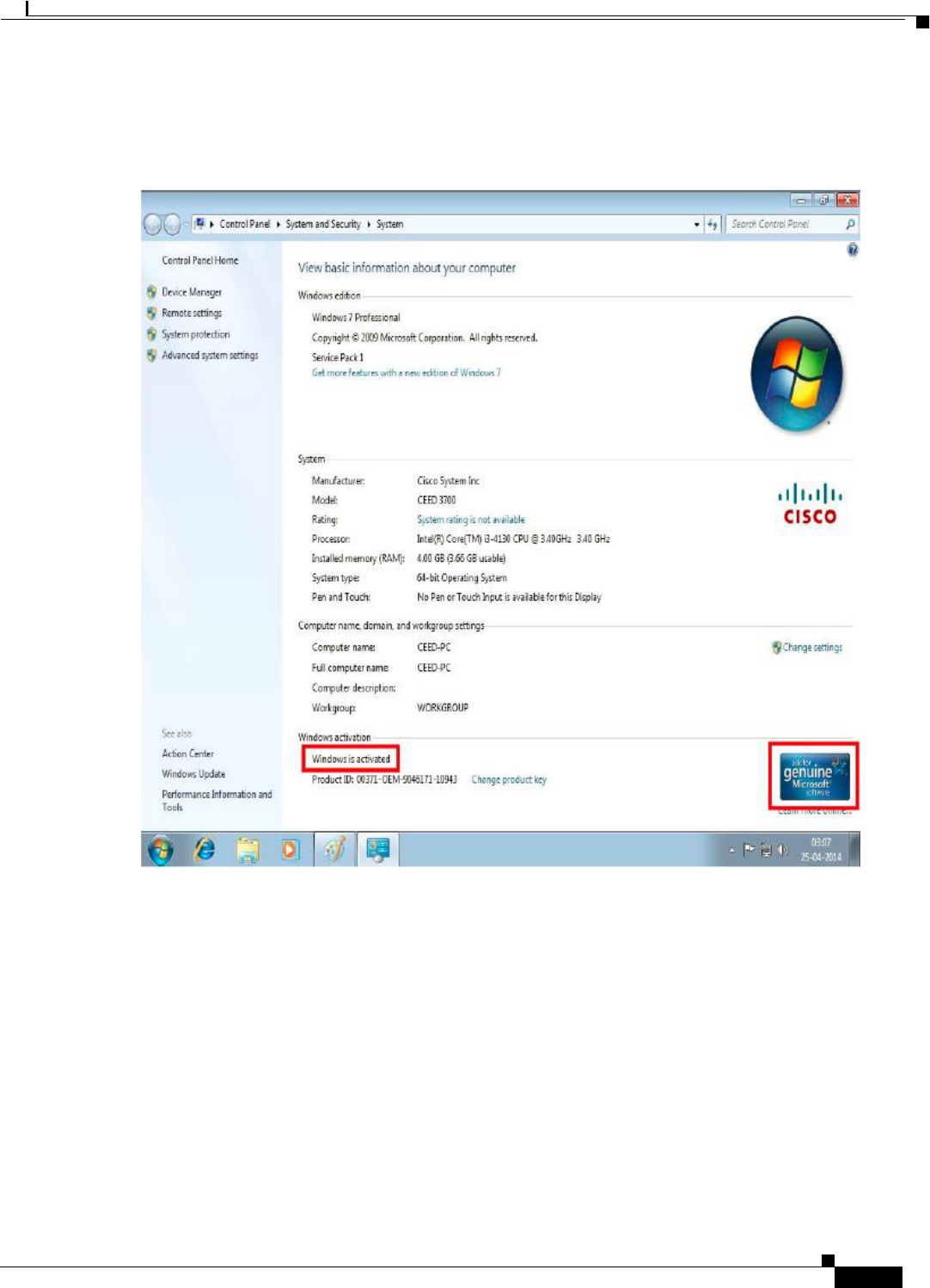

Figure 4-17 Activated
Windows
4-9
R
E
V I E W
DR
AFT
—
CISC
O
C
O
NF IDE
N
TIAL
C H A P T E R
5
Configuring the Browser
This chapter describes about how to configure the CEED3700 (CEED
3700 browser (Internet Explorer 8.0) and contains the following sections
• Launching the Browser, page 5-1
• Verification of the Browser Settings, page 5-3
Launching the Browser
To launch the browser in CEED 3700, perform the following steps:
Step 1 Power on the CEED 3700 device by pressing the Power Switch once.
Step 2 Enter the Username in the Username field. For example, Cisco
Step 3 Enter the Password in the password field. For example, 1234
Step 4 Click the Internet Explorer e icon to launch the browser
Step 5 From the browser menu bar, click Tools. (See Figure Figure 5-1)
Alternatively, you can press Alt + F simultaneously in your keyboard to open the Tools Menu.
5-1
R E V IE W
DRAFT—
CISC
O
C
O
N F ID E NT IA L
Figure
5-1
Tools
Menu
Step 6 From Tools menu, choose Internet Options. (See Figure 5-1Tools Menu)
Step 7 Click Internet Options.
A Internet Options dialog box opens. (See Figure 5-2Internet Options)
Step 8 Enter the homepage address or URL in the homepage field. For example, http://kssa.webex.com
Note This URL or homepage address will be provided by the Cisco Representative or the partner
during the installation.
5-2
Chapter 5 Configuring the Browser
R
E
V I E W
DR
AFT
—
CISC
O
C
O
NF IDE
N
TIAL
Figure
5-2
Internet
Options
Step 9 Click OK.
Step 10 Restart the browser.
Verification of the Browser Settings
To verify your browser settings, perform the following steps:
Note Ensure the CEED 3700 device is powered ON. If not power ON the CEED device as given in Step 1.
Step 1 Check the Back Panel LED indicators functionality which is as follows:
• Link LED glow continuously
Step 2 To login to enter the Username and password.
Step 3 Click the Internet Explorer icon e to launch the browser
The homepage (CEED Page) must open with your default address/URL that you have set in Step 8 of
last section.
Note If the default page does not open, repeat the tasks in Launching the Browser section.
5-3
R
E
V I E W
DR
AFT
—
CISC
O
C
O
NF IDE
N
TIAL
C H A P T E R
6
Configuring the Router
This chapter describes how to configure the router for the CEED 3700. This chapter contains the
following:
• Configuring WAN

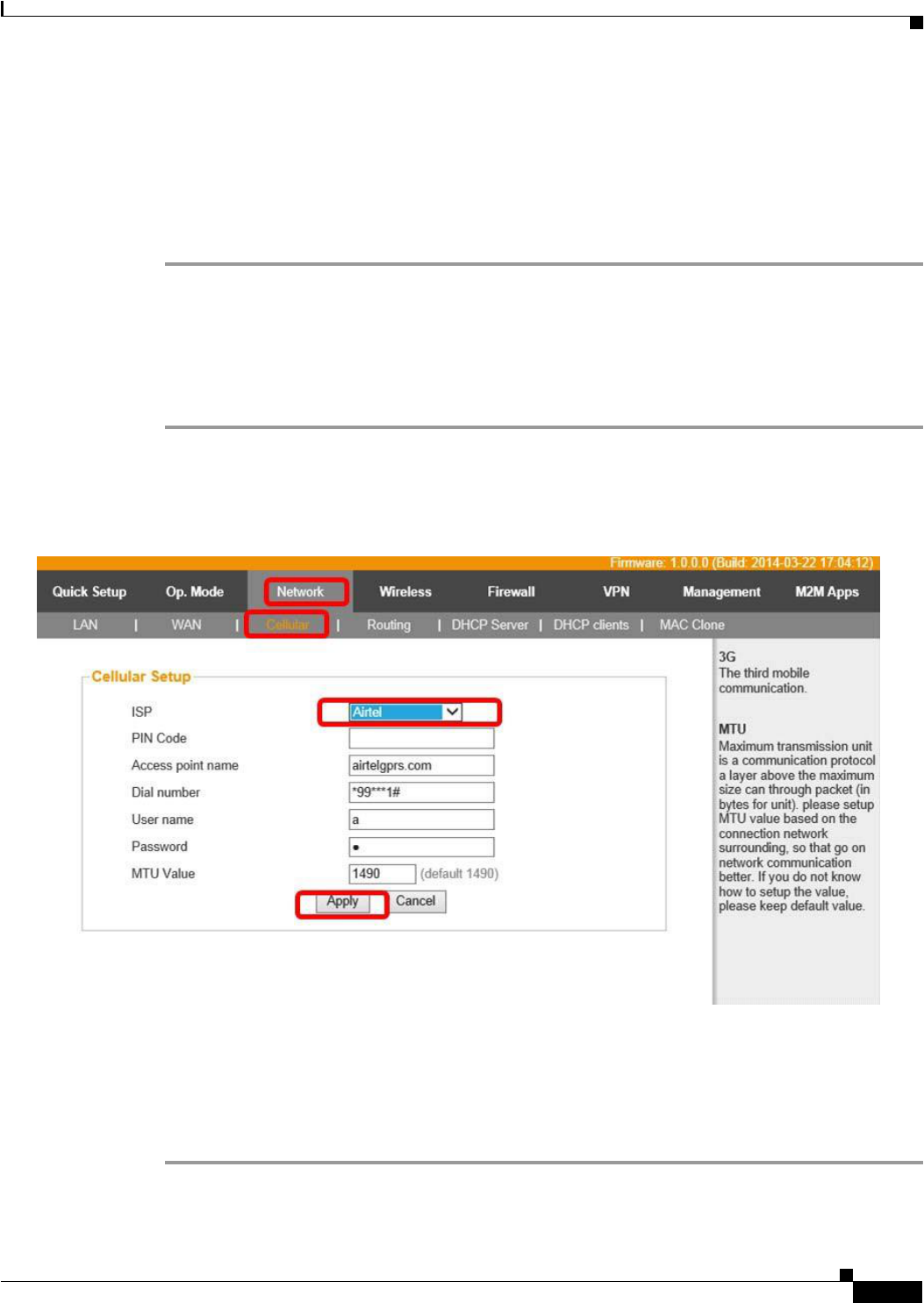

• Configuring 3G
• Configuring Wi-Fi
• Powering Down/Shutting Down the CEED 3700
This chapter assumes that the following prerequisites have been completed.
• At least 1 Mbps Internet Leased Line with Static Public IP for WAN interface is available.
• The Internet link should have an Ethernet hand-off.
Configuring WAN
To configure the WAN in the router, perform the following steps:
Step 1 Connect RJ45 cable from the modem to the CEED 3700 WAN port in CEED 3700 back panel.
Step 2 Connect RJ 45 cable provided with the CEED 3700 package item from LAN1 port in the back panel to
the LAN A port. See CEED 3700 Back Panel in Figure 6-1.
6-1
Chapter 6 Configuring the Router
Configuring WAN
R E V IE W
DRAFT—
CISC
O
C
O
N F ID E NT IA L
Figure
6-1
CEED 3700 Back
Panel
Step 3 Click Windows Start button, choose All Programs and then click Internet Explorer to open the web
browser.
Step 4 Enter the IP address of the router in the web address bar and then press Enter. The default IP address is
192.168.1.1.
An Authentication required dialog box appears as shown in Figure 6-2.
6-2
Chapter 6 Configuring the Router
Configuring WAN
R
E
V I E W
DR
AFT
—
CISC
O
C
O
NF IDE
N
TIAL
Figure
6-2 Authentication Required
Step 5 Enter the Username and password in the Username and password field respectively. The default
username is admin and the password is admin
Step 6 Click OK.
Step 7 The Router homepage appears as shown in “Router Home Page” in Figure 6-3.
Figure
6-3
Router Home
Page
Step 8 Cick Op.mode tab to change the WAN mode to WAN Main, Cellular Back up.
Step 9 Select the WAN Main, Cellular Back up radio button as shown in “Op.Mode”in Figure 6-4.
6-3
Chapter 6 Configuring the Router
Configuring WAN
R E V IE W
DRAFT—
CISC
O
C
O
N F ID E NT IA L
Figure
6-4 Op.Mode
Step 10 Click Apply and then wait for the settings to be applied.
Step 11 Press F5 to refresh the browser.
Step 12 Click Network tab, choose WAN to set up the static IP on WAN.
The router page as shown in Figure 6-5 appears.
Figure
6-5
Network
Tab
Step 13 From the WAN Connection Type drop-down list, choose STATIC (Fixed IP)
6-4
Chapter 6 Configuring the Router
Configuring 3G
R
E
V I E W
DR
AFT
—
CISC
O
C
O
NF IDE
N
TIAL
The IP Address, Subnet Mask, Default Gateway, Primary DNS Server, Secondary DNS Server and MTU
value fields will be enabled.
Step 14 Enter the values that you have obtained from the Service Provider in the IP address, Subnet Mask,
Default Gateway, Primary DNS Server, Secondary DNS Server.
Step 15 The MTU Value is set to default 1500.
Step 16 Click Apply and wait for the settings to be applied.
Configuring 3G
To configure 3G network in the router, perform the following steps:
Step 1 Perform Step 1 to Step 7 in the section Configuring WAN, page 6-1.
Step 2 Click Network tab and then choose Cellular as shown in “Cellular Tab” in Figure 6-6.
Figure
6-6
Cellular
Tab
Step 3 From the IPS drop-down list, choose the service provider. For example, Airtel.
Step 4 If your Service provider is not listed in the drop-down menu, enter the service provider’s name manually.
Step 5 In the Access point name, dial number , user name and password fields enter the respective values
provided by the service provider.
Step 6 Click Apply and wait for the changes to be applied.
6-5
Chapter 6 Configuring the Router
Configuring Wi-Fi
R E V IE W
DRAFT—
CISC
O
C
O
N F ID E NT IA L
Configuring Wi-Fi
To configure Wi-Fi set up in the router, perform the following steps:
Step 1 Perform Step 1 to Step 7 in the section Configuring WAN, page 6-1.

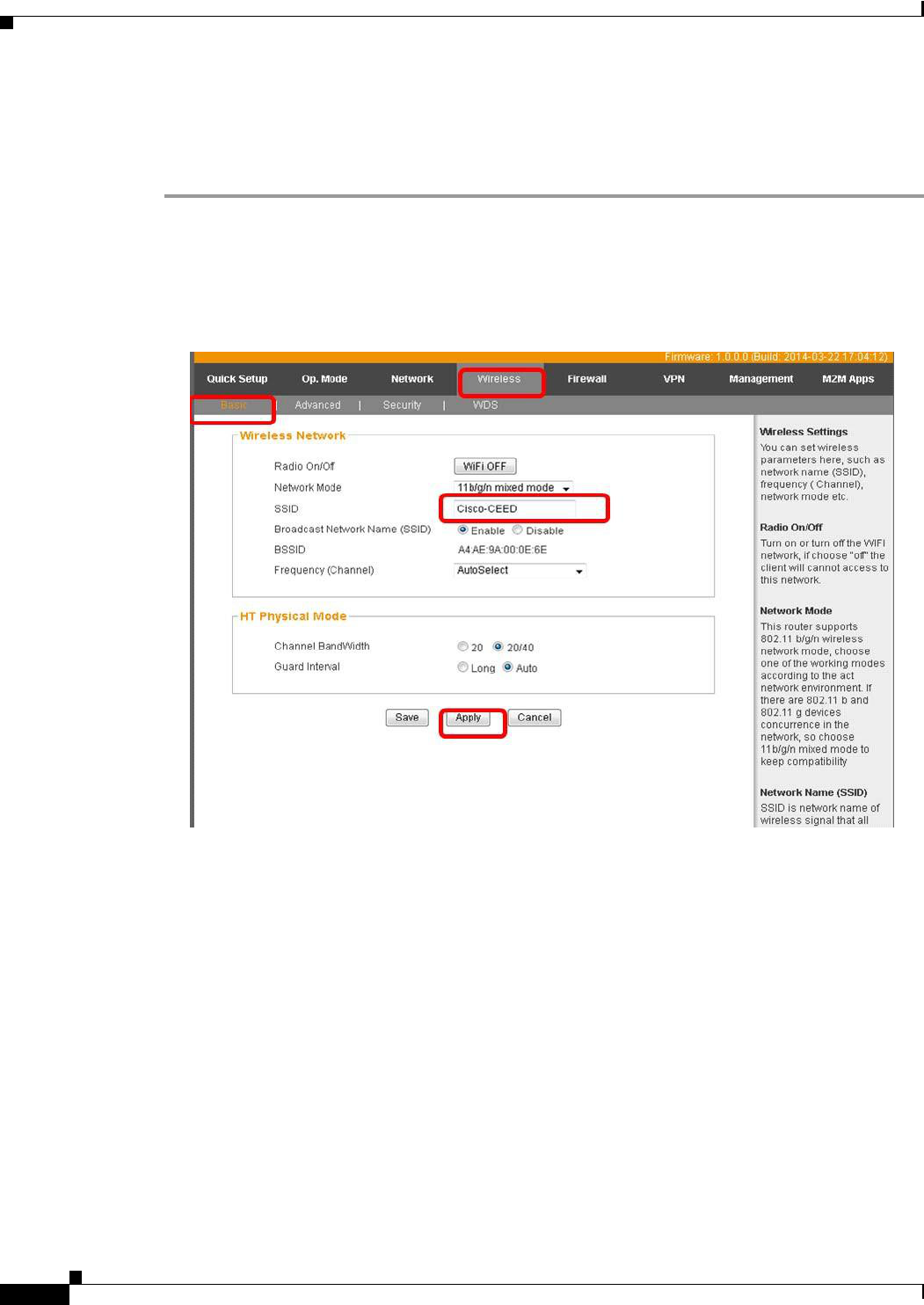

Click Wireless tab and then choose Basic as shown in “Wireless Tab” in Figure 6-7.
Figure
6-7
Wireless
Tab
Step 2 In the SSID field, enter Cisco-CEED.
Step 3 Click Apply and then wait for settings to be applied.
Step 4 Press F5 to refresh the browser.
Step 5 Click Wireless Tab to change the Wi-Fi password
6-6
Chapter 6 Configuring the Router
Powering Down/Shutting Down the CEED 3700
R
E
V I E W
DR
AFT
—
CISC
O
C
O
NF IDE
N
TIAL
Figure
6-8
Wireless
Tab
Step 6 Click Security.
Step 7 In the Pass phrase field, enter cisco@123 to set the password.
Step 8 Click Apply and wait for the changes to be applied.
Step 9 Press F5 to refresh the browser.
Step 10 Reboot the CEED 3700 device.
Powering Down/Shutting Down the CEED 3700
To shut down the CEED 3700 device, perform the following tasks:
Step 1 Close all applications and wait for all applications to shutdown
Step 2
Click
Start
button
Step 3 Click Shut down.
Step 4 Wait for the display to turn off.
Step 5 Wait for the projection fan to stop (Step 1 and Step 4 will take about 2-3 minutes)
Step 6 Tum off the AC Power Switch in the wall power
outlet.
6-7
Chapter 7 Configuring the Live Session
R
E
V I E W
DR
AFT
—
CISC
O
C
O
NF IDE
N
TIAL
C H A P T E R
7
Configuring the Live Session
This chapter describes how to schedule and join the live session. It also describes about the accessories
that are enabled during a session and troubleshooting techniques. This chapter includes the following
sections:
• Hosting a WebEx Session
• Joining a WebEx Session
• Verification of the Accessories
Hosting a WebEx Session (HOST)
Step 1 Log into WebEx Meeting Center site: http://kssa.webex.com
Step 2 Click on My WebEx.
Step 3 Log into WebEx account using the following credentials:
User Name: hoskote
Password: Edu@123
Step 4 Click on Meeting Center.
Step 5 Click on Schedule a Meeting (Marked in Red in the below figure).
7-1
Chapter 6 Configuring the Router
Powering Down/Shutting Down the CEED 3700
R
E
V I E W
DR
AFT
—
CISC
O
C
O
NF IDE
N
TIAL
REV I E W
DRAFT—
CISC
O
C
O
N F ID E NT IA L
Step 6 Enter a Meeting Topic (For example: Test).
Step 7 Set Session password as 1234 and confirm the same.
Step 8 Set date and time.
Step 9 Audio conference type should always be “Use VoIP only”.
Step 10 Click on Start Now. . This will start the WebEx session.
Note: If this is the first time WebEx is running on your computer, you will be prompted to install
the WebEx software via ActiveX. Install it.
Step 11 Turn on the video by clicking the video icon
Step 12 Note the Meeting number (marked in Red).
7-2
Chapter 7 Configuring the Live Session
R E V IE W
DRAFT—
CISC
O
C
O
NF IDENTIA L
Joining a WebEx Session (Participant / Attendee)
Step 1 Log in to WebEx Meeting Center site: http://kssa.webex.com
Step 2 Click on Meeting Center.
Step 3 Note down the Meeting number from the Meeting Info tab in Host login (Refer Step 12 of
Hosting a WebEx Session).
Step 4 Enter the Meeting number (in the box marked in Red) and click Join Now (marked in Blue).
Step 5 Enter the required login info: Name, email and password. Password will be 1234 (Refer Step 7
of Hosting a WebEx Session).
7-3
Chapter 6 Configuring the Router
Powering Down/Shutting Down the CEED 3700
R
E
V I E W
DR
AFT
—
CISC
O
C
O
NF IDE
N
TIAL
R E V IE W
DRAFT—
CISC
O
C
O
N F ID E NT IA L
Step 6 Click on Join. This will start the WebEx session for attendee.
Note: If this is the first time WebEx is running on your computer, you will be prompted to install
the WebEx software via ActiveX. Install it.
Step 7 A pop up to Join the Integrated Voice Conference appears. Click on Yes.
Step 8 Turn on the video by clicking the video icon
Note: This document is grounded on WebEx Meeting center. If WebEx Training center is used, the only
change would be to click on Training center instead of Meeting center (wherever applicable).
Verification of the Accessories
To verify the accessories (Camera/Microphone) perform the following steps:
Step 1 Microphone 1 and 2 on CEED 3700 is audible on the speakers. Both microphones are tested for its
individual effect.
a. If the microphone is not audible, make sure you have selected the right microphone.
b. Click Audio from the menu bar, choose the appropriate microphone from the drop-down menu to
make the microphone audible.
If the above steps does not seem to work, troubleshoot with the following
tasks.
c. Click windows Start button. Choose Control Panel.
Adjust your computer settings window appears.
d. Click Hardware and Sound.
e. From the list, click Sound.
A sound dialog box appears
f. From the playback tab, choose the appropriate output and click OK.
g. From the Microphone tab, choose the appropriate Microphone output and click OK.
Step 2 Verify the camera image is visible on the training screen (projection screen) of CEED 3700
device.
Step 3 Change the camera as shown in the figure below to test the second camera from CEED 3700. To change
of camera view, perform the following steps:
a. Click Set Video Options in the participants bar as shown in “Set Video Options” in Figure 7-4
7-4
Chapter 7 Configuring the Live Session
R
E
V I E W
DR
AFT
—
CISC
O
C
O
NF IDE
N
TIAL
Figure 7-4
Set Video
Options
b. A Video options dialog box appears as shown in Figure 7-5.
Figure 7-5
Video
Options
c. Click the drop-down arrow as shown in Figure 7-5 next to the present camera name.
d. Select the second camera name as shown in “Capture Device” in Figure 7-6.
7-5
Chapter 6 Configuring the Router
Powering Down/Shutting Down the CEED 3700
R
E
V I E W
DR
AFT
—
CISC
O
C
O
NF IDE
N
TIAL
R E V IE W
DRAFT—
CISC
O
C
O
N F ID E NT IA L

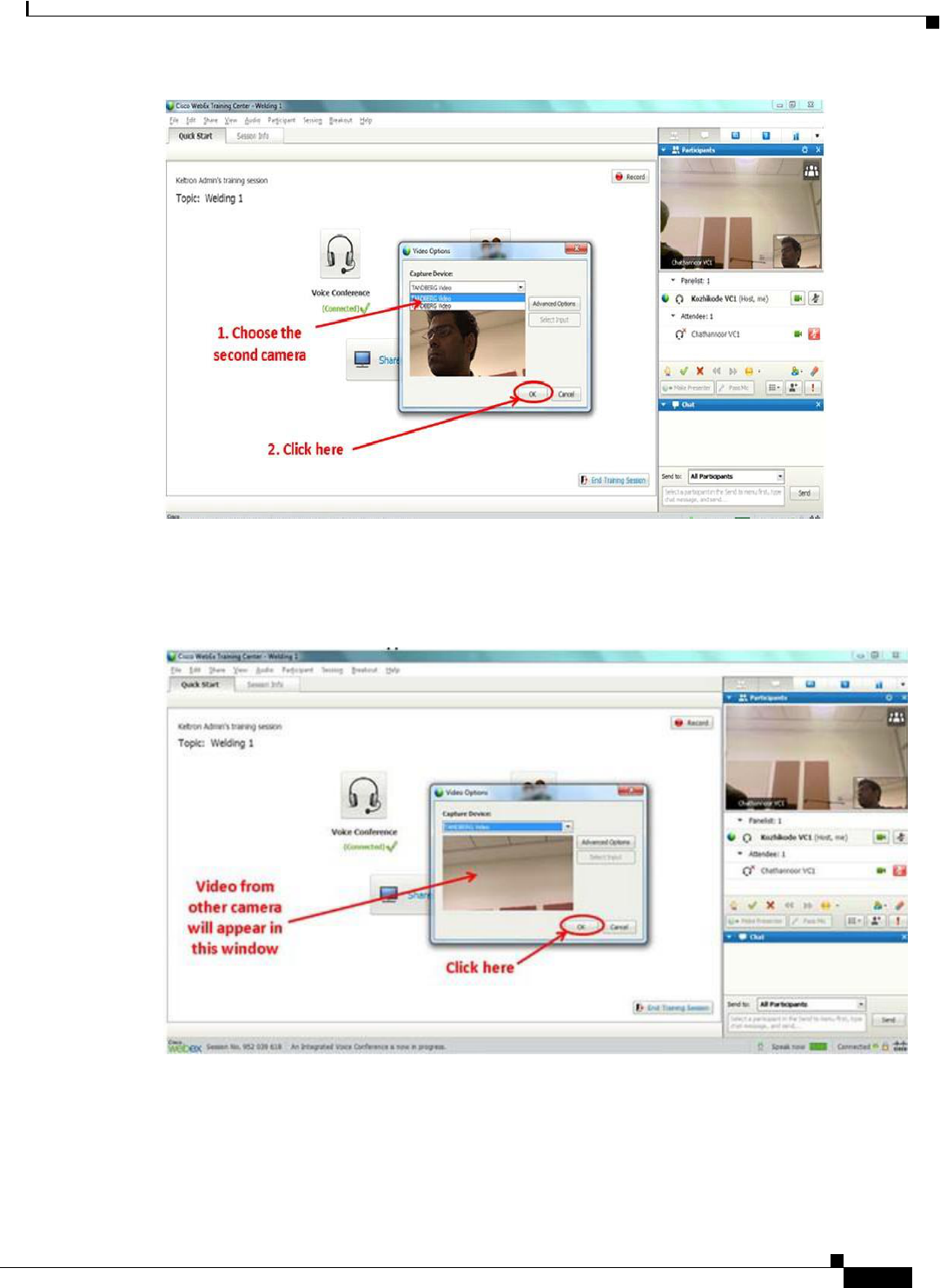

Figure 7-6
Capture
Dev
i
ce
e. Click OK.
f. The video from the second camera will appear in the small window as shown in “Second Camera
Trasmission” in Figure 7-7.
Figure 7-7
Second Camera
Trasmission
The attendee is set to attend the live session.
7-6
