CISCO SYSTEMS PUBLICATION HISTORY

170 WEST TASMAN DR

SAN JOSE, CA, 95134 REV A.16 OCTOBER 9, 2012

WWW.CISCO.COM

Cisco UCS C220 M3

High-Density Rack Server

(Small Form Factor Disk

Drive Model)

Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model) 2

CONTENTS

OVERVIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

DETAILED VIEWS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Chassis Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Chassis Rear View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

BASE SERVER STANDARD CAPABILITIES and FEATURES . . . . . . . . . . . . . . . . . 6

CONFIGURING the SERVER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

STEP 1 VERIFY SERVER SKU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

STEP 2 SELECT CPU(s) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

STEP 3 SELECT MEMORY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

STEP 4 SELECT RAID CONFIGURATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

STEP 5 SELECT HARD DISK DRIVES (HDDs) or SOLID STATE DRIVES (SSDs) . . . . . . . . . . . . . 22

STEP 6 SELECT PCIe OPTION CARD(s) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

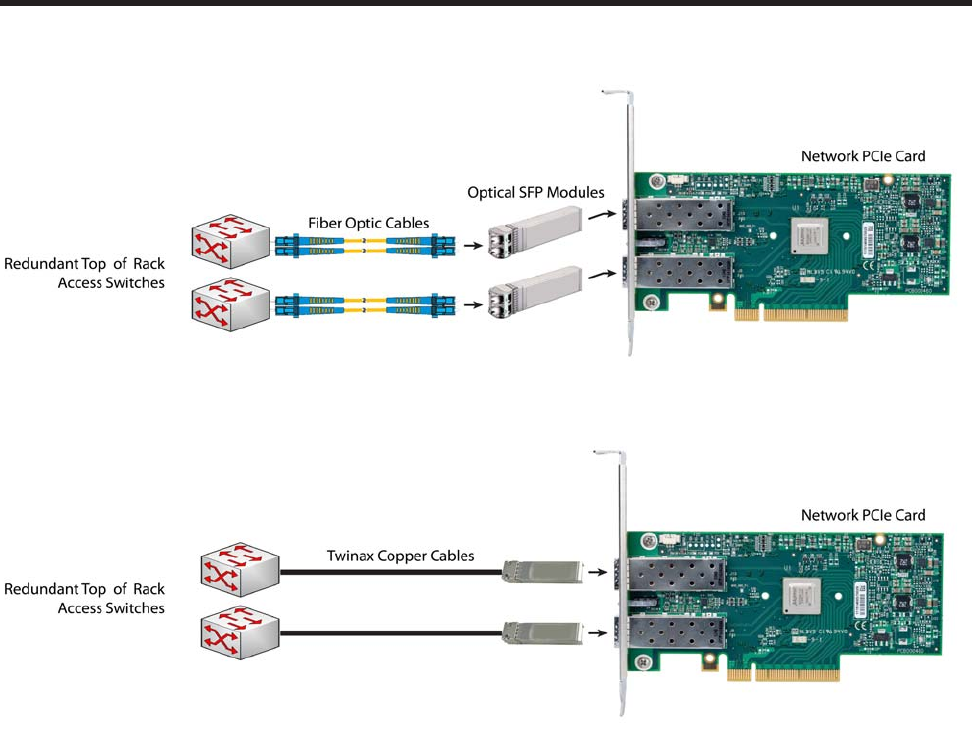

STEP 7 ORDER OPTIONAL NETWORK CARD ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . 26

STEP 8 ORDER POWER SUPPLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

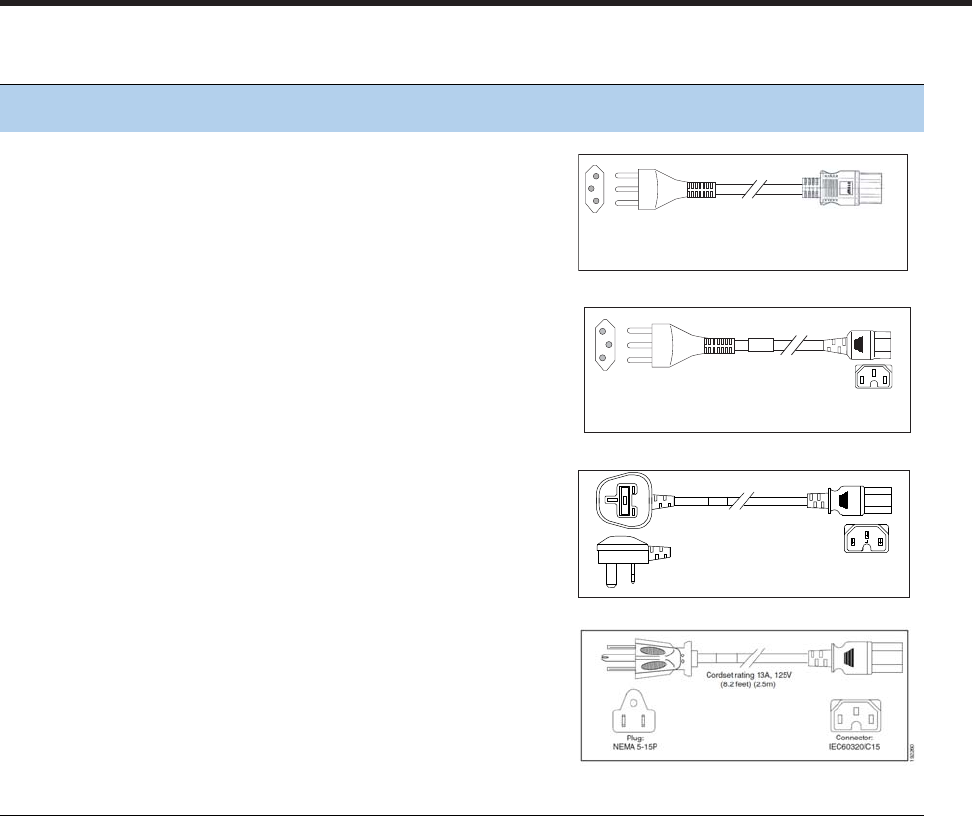

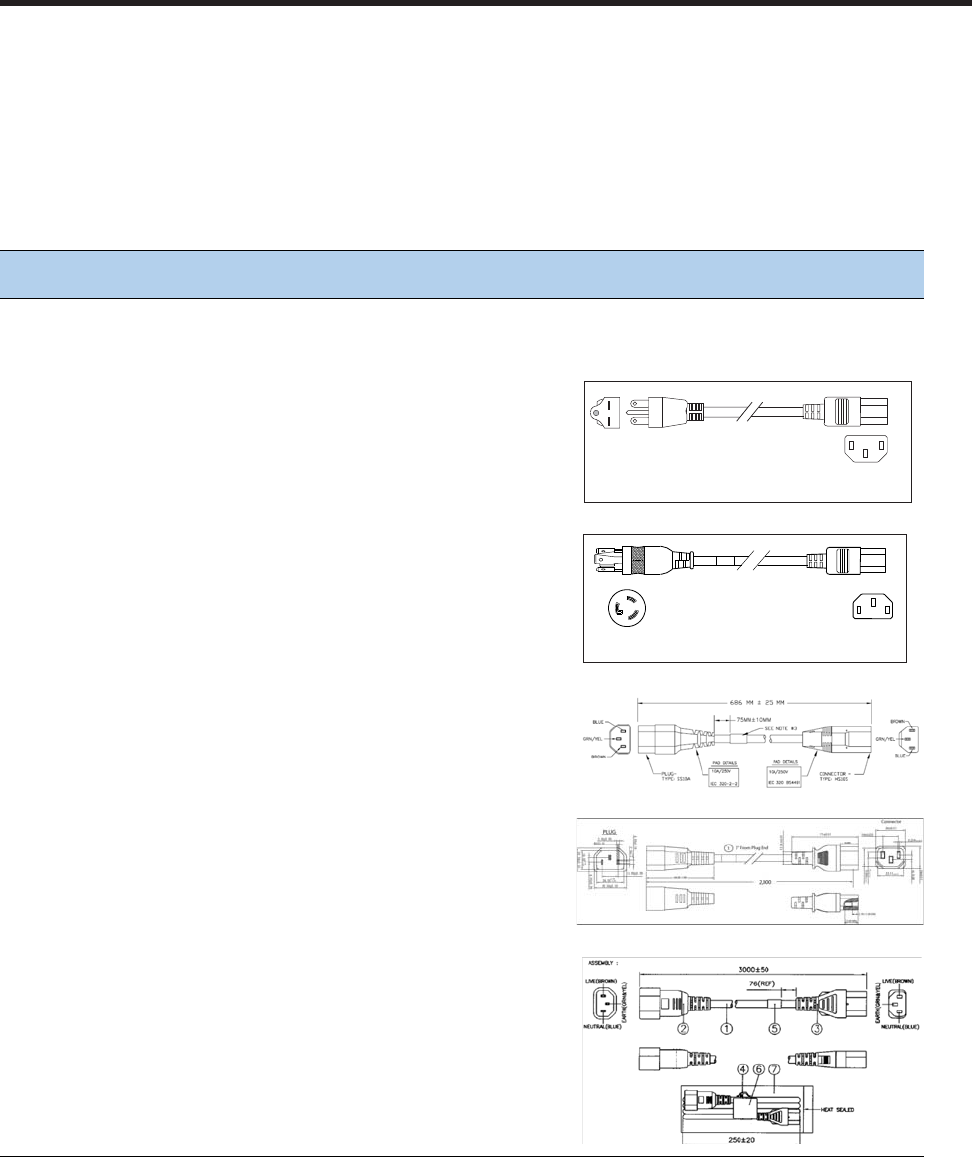

STEP 9 SELECT AC POWER CORD(s) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

STEP 10 ORDER OPTIONAL REVERSIBLE CABLE MANAGEMENT ARM . . . . . . . . . . . . . . . . . 33

STEP 11 ORDER A TRUSTED PLATFORM MODULE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

STEP 12 ORDER CISCO FLEXIBLE FLASH SD CARD MODULE (OPTIONAL) . . . . . . . . . . . . . . . 35

STEP 13 ORDER OPTIONAL USB 2.0 DRIVE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

STEP 14 SELECT OPERATING SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

STEP 15 SELECT OPERATING SYSTEM MEDIA KIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

STEP 16 SELECT OPTIONAL VALUE-ADDED SOFTWARE . . . . . . . . . . . . . . . . . . . . . . . . . 40

STEP 17 SELECT SERVICE and SUPPORT LEVEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

OPTIONAL STEP - ORDER RACK(s) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

OPTIONAL STEP - ORDER PDU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

SUPPLEMENTAL MATERIAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

CHASSIS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

CPUs and DIMMs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

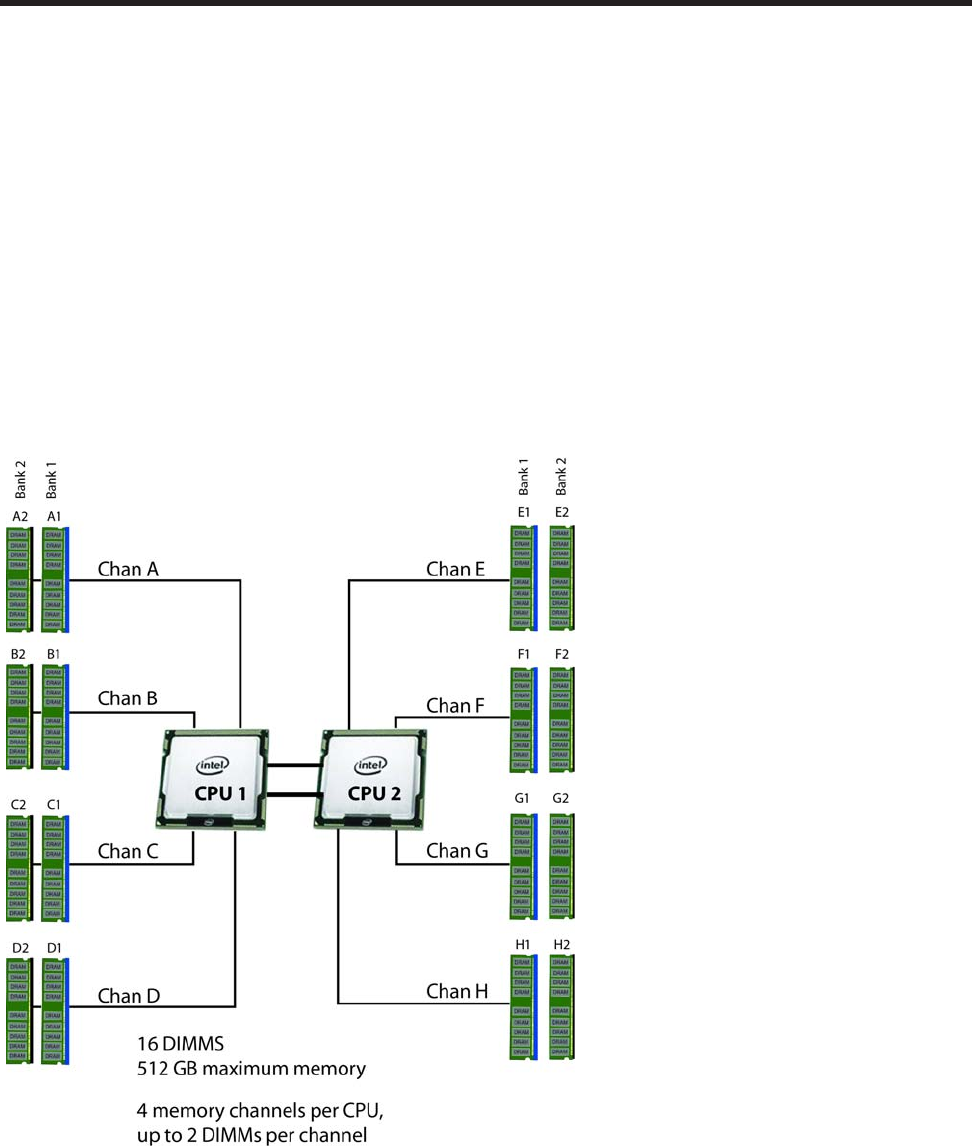

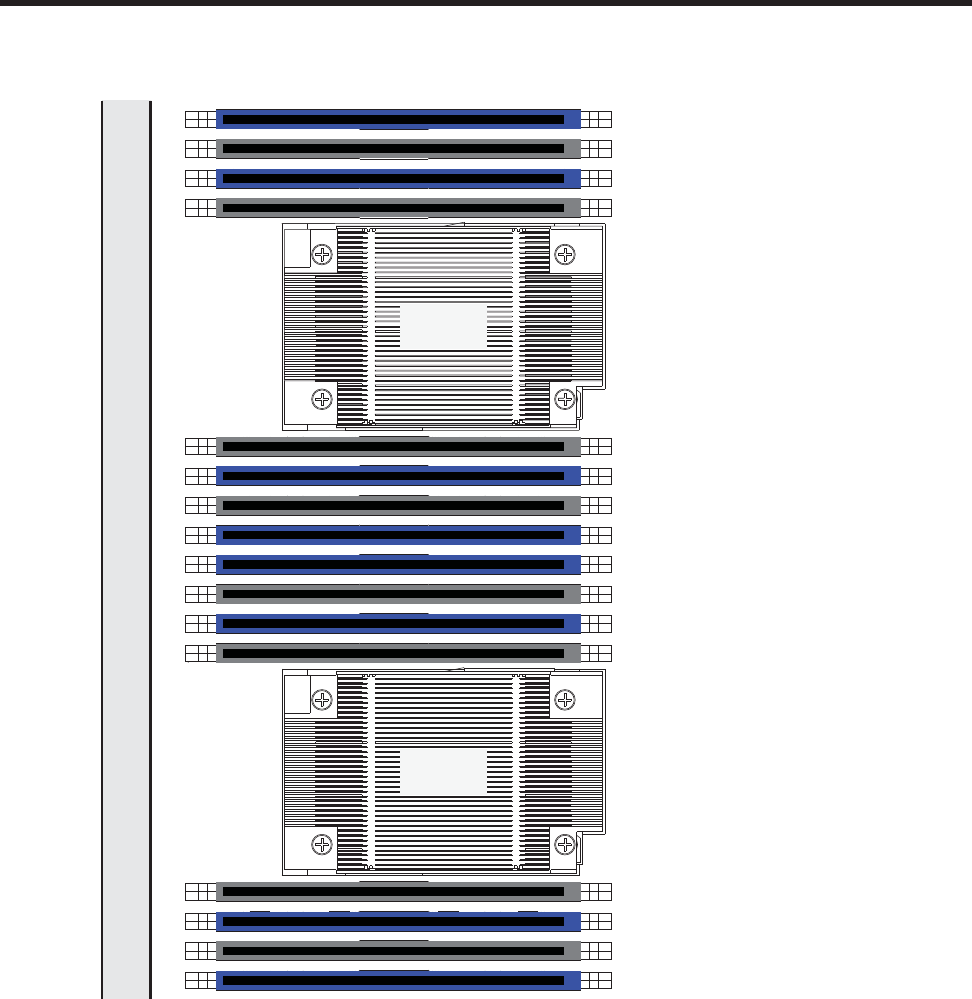

Physical Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Memory Population Rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Recommended Memory Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Supported DIMM Populations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Low-Voltage DIMM Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

RAID Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

RACKS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55

PDUs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

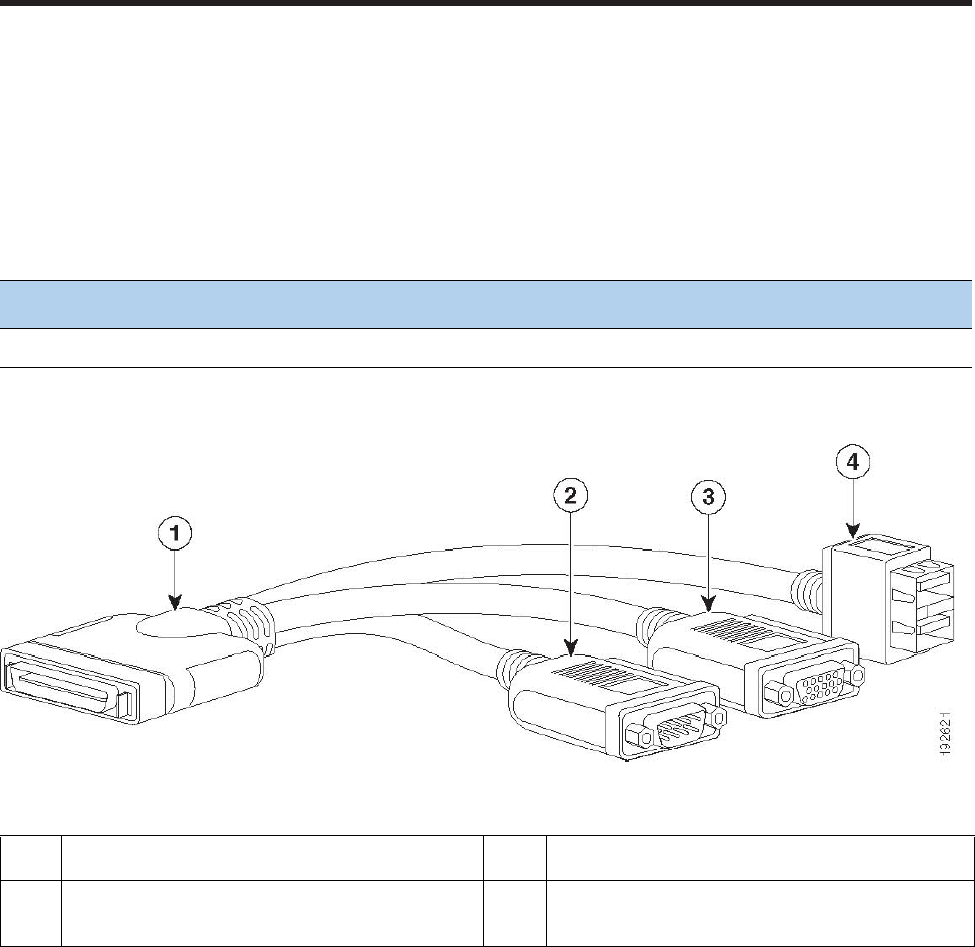

KVM CABLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58

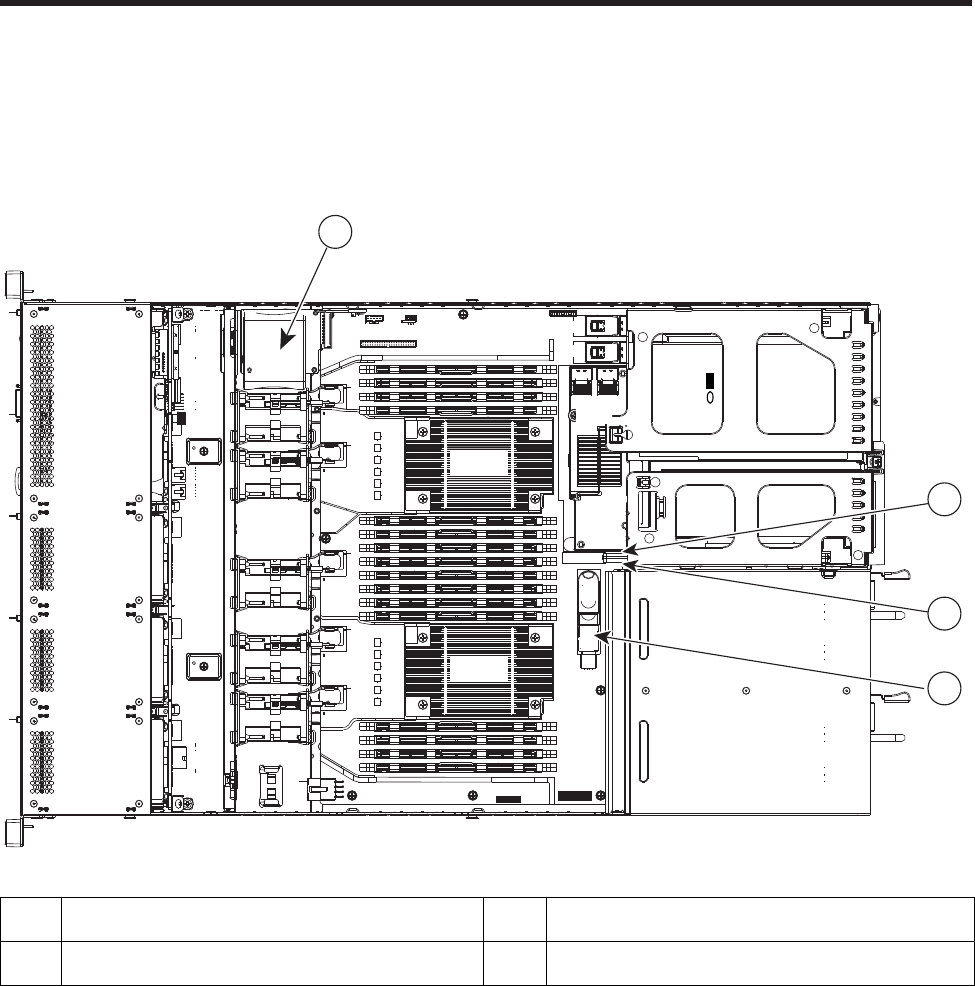

Motherboard USB and SD Ports, and RAID Card Backup Location . . . . . . . . . . . . . . . . . . . .59

TECHNICAL SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Dimensions and Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60

Power Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60

Environmental Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62

Compliance Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

OVERVIEW

The Cisco® UCS C220 M3 rack server is designed for performance and density over a wide range of business

workloads from web serving to distributed database.

Building on the success of the Cisco UCS C200 M2 rack server, the enterprise-class UCS C220 M3 server

further extends the capabilities of Cisco’s Unified Computing System portfolio in a 1U form factor with the

addition of the Intel® E5-2600 series product family CPUs that deliver significant performance and

efficiency gains. In addition, the UCS C220 M3 server provides 16 DIMM slots, up to 8 drives and 2 x 1 GbE

LAN-on-motheroard (LOM) ports delivering outstanding levels of density and performance in a compact

package.

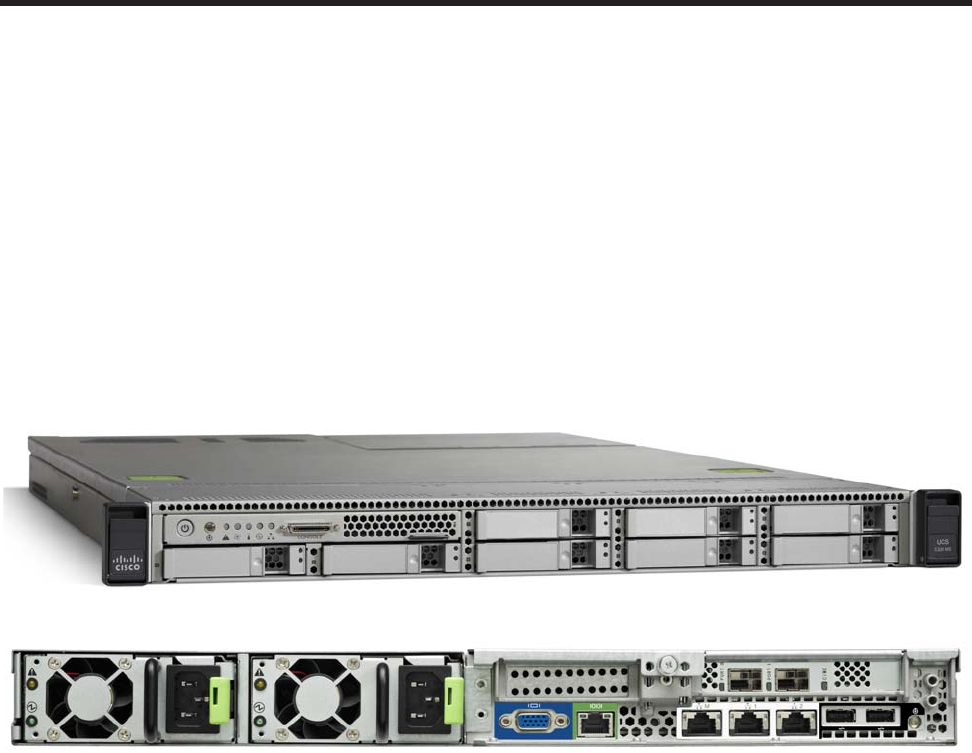

Figure 1 Cisco UCS C220 M3 High-Density SFF Rack Server

Front View

Rear View

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

DETAILED VIEWS

Chassis Front View

Figure 2 shows the Cisco UCS C220 M3 High-Density SFF Rack Server.

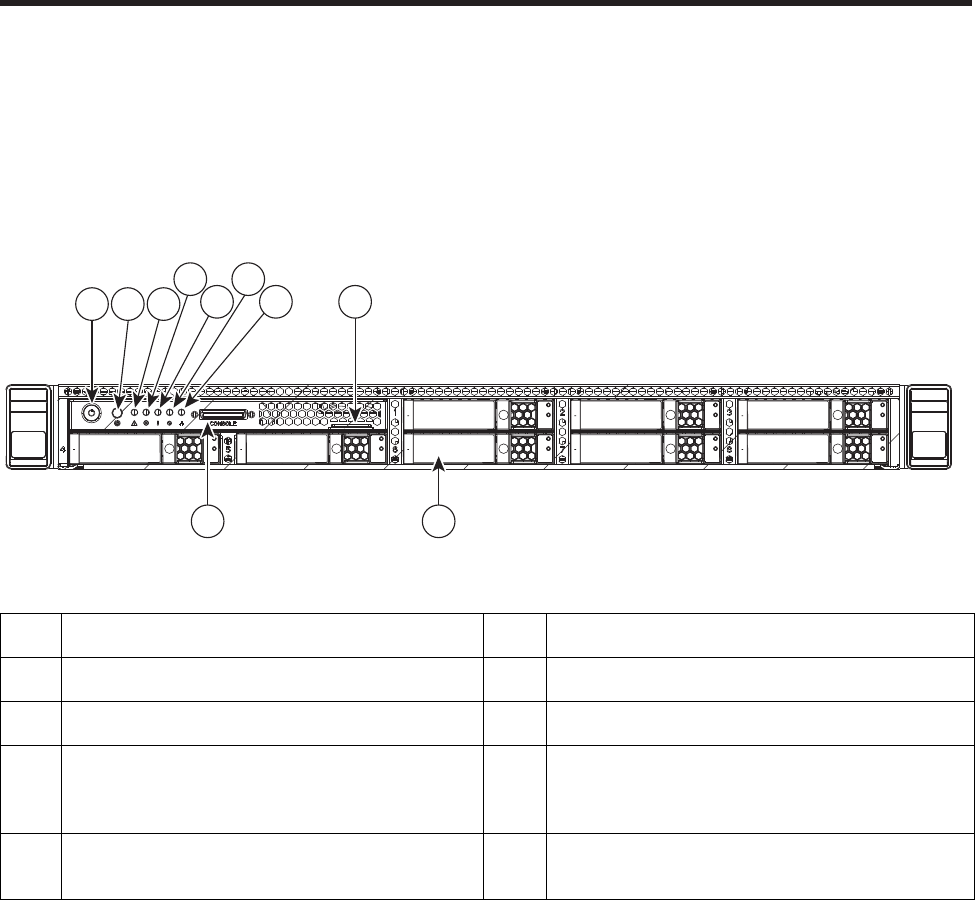

Figure 2 Chassis Front View

For more information about the KVM cable connection, see KVM CABLE, page 58.

1Power button/power status LED 6Power supply status LED

2Identification button/LED 7Network link activity LED

3System status LED 8Asset tag (serial number)

4Fan status LED 9KVM connector (used with KVM cable that

provides two USB, one VGA, and one serial

connector)

5Temperature status LED 10 Drives (up to eight hot-swappable 2-5-inch

drives)

HDD4 HDD5

HDD1

HDD6

HDD2

HDD7

HDD3

HDD8

9 10

1 3

5 7

331682

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

DETAILED VIEWS

Chassis Rear View

Figure 3 shows the external features of the rear panel.

Figure 3 Chassis Rear View

1Power supplies (up to two) 6One 10/100/1000 Ethernet dedicated

management port

2Slot 2: Low-profile PCIe slot on riser:

(half-height, half-length, x16 connector, x8

lane width)

7Dual 1-Gb Ethernet ports

(LAN1 and LAN2)

3Slot 1: Standard-profile PCIe slot on riser:

(full-height, half-length, x24 connector, x16

lane width)

8USB ports

4VGA video connector 9Rear Identification button/LED

5Serial port (RJ-45 connector) --

PSU1PSU1 PSU2PSU2PSU1 PSU2

PCIe2 PCIe1

4 5 6 98

2 31

331683

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

BASE SERVER STANDARD CAPABILITIES and FEATURES

Table 1 lists the capabilities and features of the base server. Details about how to configure the server for

a particular feature or capability (for example, number of processors, disk drives, or amount of memory)

are provided in CONFIGURING the SERVER, page 9.

Table 1 Capabilities and Features

Capability/Feature Description

Chassis One rack unit (1RU) chassis

CPU One or two Intel® E5-2600 series processor family CPUs

Chipset Intel® C600 series chipset

Memory 16 slots for registered ECC DIMMs (RDIMMs) and load-reduced DIMMs

(LRDIMMs)

NIC Embedded dual-port Intel i350 PCIe-based Gigabit Ethernet controller,

supporting the following:

■Pre-Execution Boot (PXE boot)

■iSCSI boot

Expansion slots Two PCIe slots (on a riser card)

■One full-height profile, half-length slot with x24 connector and x16 lane

■One half-height profile, half-length slot with x16 connector and x8 lane

Internal storage devices Drives are installed into front-panel drive bays that provide hot-pluggable

access.

■Small Form Factor (SFF) drives. Up to eight 2.5-inch SAS or SATA

hot-swappable hard disk drives (HDDs) or solid state drives (SSDs)

■The server also contains one internal USB 2.0 port on the motherboard

that you can use with a USB thumb drive for additional storage

Cisco Flexible Flash

drives The server supports one internal Cisco Flexible Flash drive (SD card).

■The SD card is pre-loaded with four virtual drives. The four virtual drives

contain, respectively, the Cisco Server Configuration Utility, the Cisco

Host Upgrade Utility, the Cisco C-Series server drivers set, and a blank

virtual drive on which you can install an OS or a hypervisor

■4 GB is available for general use

Video The Emulex Pilot 3 Integrated Baseboard Management Controller provides

video:

■Matrox G200e video controller

■Integrated 2D graphics core with hardware acceleration

■Supports all display resolutions up to 1920 x 1200 x 16 bpp resolution at

60 Hz

■24-bit color depth for all resolutions less than 1600x1200

■Up to 256 MB video memory

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

BASE SERVER STANDARD CAPABILITIES and FEATURES

Storage controller ■Embedded RAID (3 Gbs)

• Embedded SATA-only RAID controller, supporting up to 4 SATA-only

drives (RAID 0, 1, 10)

• ROM5 embedded RAID upgrade, supporting up to 8 SAS/SATA drives

(RAID 0, 1, 10). SAS and SATA drives can be mixed.

• ROM55 embedded RAID upgrade, supporting up to 8 SAS/SATA drives

(RAID 0, 1, 10, 5). SAS and SATA drives can be mixed.

■2008M-8i Mezzanine Cards (6 Gbs) - two versions

• Cisco UCSC RAID SAS 2008M-8i Mezzanine Card, supporting up to 8

SAS/SATA drives supporting RAID 0, 1, 10, 5, and 50. SAS and SATA

drives can be mixed. This card has a product ID (PID) of

UCSC-RAID-11-C220.

• Cisco UCSC RAID SAS 2008M-8i Mezzanine Card, supporting up to

eight SAS/SATA drives supporting RAID 0, 1, and 10. SAS and SATA

drives can be mixed. This card has a product ID (PID) of

UCSC-RAID-MZ-220.

■Plug-in PCIe Cards (6 Gbs)

• LSI MegaRAID SAS 9266-8i 8-port plug-in PCIe RAID RAID controller

card (occupies a half-height PCIe slot), supporting RAID levels 0, 1,

10, 5, 6, 50, 60 and up to 8 internal SAS or SATA drives. SAS and SATA

drives can be mixed.

• LSI MegaRAID SAS 9266CV-8i RAID 8-port PCIe plug-in RAID controller

card, supporting RAID 0, 1, 10, 5, 6, 50, and 60 and up to eight

internal SAS or SATA drives. SAS and SATA drives can be mixed.

Interfaces ■Rear panel

• One RJ45 serial port connector

• Two USB 2.0 port connectors

• One DB15 VGA connector

• Two RJ-45 10/100/1000 Ethernet port connectors

• One RJ-45 10/100/1000 Ethernet management port, using Cisco

Integrated Management Controller (CIMC) firmware

■Various PCIe card ports (dependent on which cards are installed)

• Converged Network Adapter (CNA) ports

• Network Interface Card (NIC) ports

• Host Bus Adapter (HBA) ports

■Front panel

• One KVM console connector (supplies two USB, one VGA, and one

serial connector)

Front Panel A front panel controller provides status indications and control buttons

Power subsystem Up to two 450 W 650 W power supplies. One is mandatory; one more can be

added for 1 + 1 redundancy.

Capability/Feature Description

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

BASE SERVER STANDARD CAPABILITIES and FEATURES

Fans Chassis:

■Five hot-swappable fans for front-to-rear cooling

Power supply:

■Each power supply is equipped with a fan.

Integrated management

processor Cisco Integrated Management Controller (CIMC) firmware.

Depending on your CIMC settings, the CIMC can be accessed through the 1-Gb

Ethernet dedicated management port, the 1-Gb Ethernet LOM ports, or a

Cisco P81E or Cisco 1225 virtual interface card (VIC).

Capability/Feature Description

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

Follow these steps to configure the Cisco UCS C220 M3 High-Density SFF Rack Server:

■STEP 1 VERIFY SERVER SKU, page 10

■STEP 2 SELECT CPU(s), page 11

■STEP 3 SELECT MEMORY, page 13

■STEP 4 SELECT RAID CONFIGURATION, page 18

■STEP 5 SELECT HARD DISK DRIVES (HDDs) or SOLID STATE DRIVES (SSDs), page 22

■STEP 6 SELECT PCIe OPTION CARD(s), page 24

■STEP 7 ORDER OPTIONAL NETWORK CARD ACCESSORIES, page 26

■STEP 8 ORDER POWER SUPPLY, page 29

■STEP 9 SELECT AC POWER CORD(s), page 30

■STEP 10 ORDER OPTIONAL REVERSIBLE CABLE MANAGEMENT ARM, page 33

■STEP 11 ORDER A TRUSTED PLATFORM MODULE, page 34

■STEP 12 ORDER CISCO FLEXIBLE FLASH SD CARD MODULE (OPTIONAL), page 35

■STEP 13 ORDER OPTIONAL USB 2.0 DRIVE, page 36

■STEP 14 SELECT OPERATING SYSTEM, page 37

■STEP 15 SELECT OPERATING SYSTEM MEDIA KIT, page 39

■STEP 16 SELECT OPTIONAL VALUE-ADDED SOFTWARE, page 40

■STEP 17 SELECT SERVICE and SUPPORT LEVEL, page 41

■OPTIONAL STEP - ORDER RACK(s), page 45

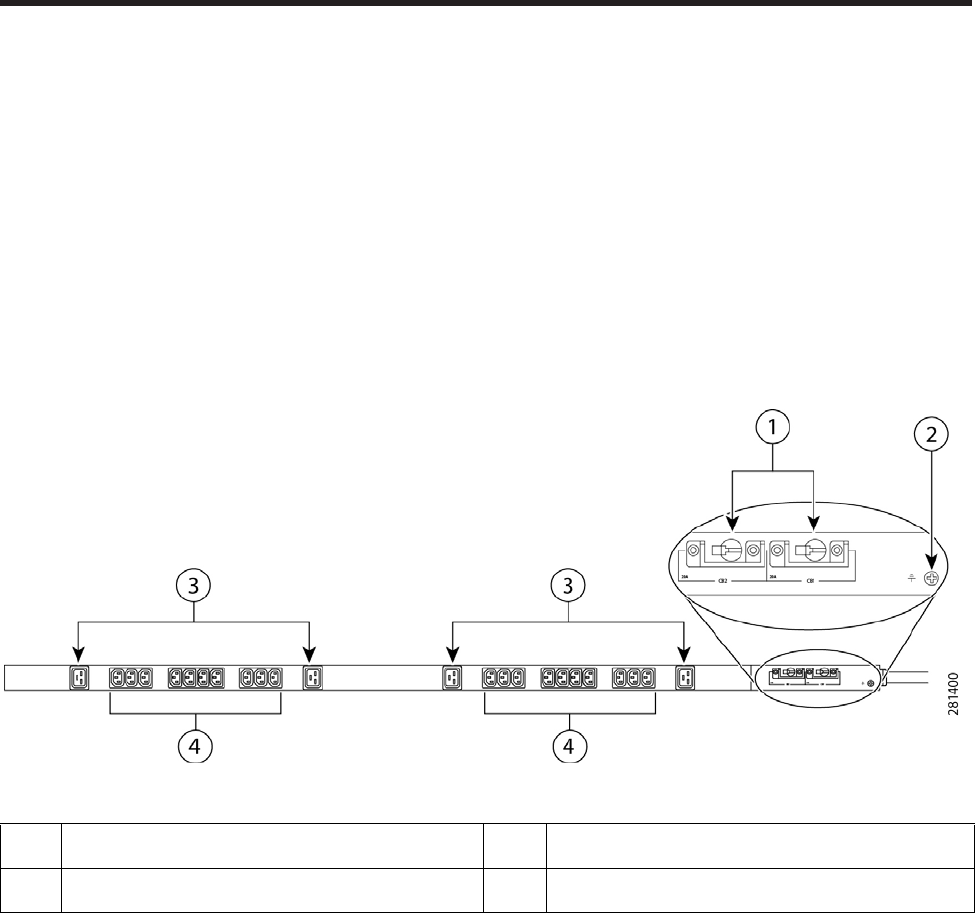

■OPTIONAL STEP - ORDER PDU, page 46

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

STEP 1 VERIFY SERVER SKU

Verify the product ID (PID) of the server as shown in Table 2.

The Cisco C220 M3 server:

■Includes one tool-less rail kit

■Does not include power supply, CPU, memory, hard disk drives (HDDs), solid-state drives

(SSDs), SD card, or plug-in PCIe cards.

Table 2 PID of the C220 M3 High-Density SFF Rack Base Server

Product ID (PID) Description

UCSC-C220-M3S UCS C220 M3 SFF, no CPU, memory, HDD, SDD, power supply, SD card, or PCIe

cards, with 1 rail kit

NOTE: Use the steps on the following pages to configure the server with

the components that you want to include.

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

STEP 2 SELECT CPU(s)

The standard CPU features are:

■Intel E5-2600 series processor family CPUs

■Intel C600 series chipset

■Cache size of 10, 15, or 20 MB

Select CPUs

The available CPUs are listed in Table 3.

Table 3 Available Intel CPUs: E5-2600 Series Processor Family CPUs

Product ID (PID) Intel

Number

Clock

Freq

(GHz)

Power

(W)

Cache

Size

(MB) Cores QPI Highest DDR3

DIMM Clock

Support (MHz)1

Notes . . .

1. If higher or lower speed DIMMs are selected than what is shown in the table for a given CPU, the DIMMs will be

clocked at the lowest common denominator of CPU clock and DIMM clock.

UCS-CPU-E5-2690 E5-2690 2.90 135 20 88 GT/s 1600

UCS-CPU-E5-2680 E5-2680 2.70 130 20 88 GT/s 1600

UCS-CPU-E5-2667 E5-2667 2.90 130 15 68 GT/s 1600

UCS-CPU-E5-2665 E5-2665 2.40 115 20 88 GT/s 1600

UCS-CPU-E5-2660 E5-2660 2.20 95 20 88 GT/s 1600

UCS-CPU-E5-2650 E5-2650 2.00 95 20 88 GT/s 1600

UCS-CPU-E5-2650L E5-2650L 1.80 70 20 88 GT/s 1600

UCS-CPU-E5-2643 E5-2643 3.30 130 10 48 GT/s 1600

UCS-CPU-E5-2640 E5-2640 2.50 95 15 67.2 GT/s 1333

UCS-CPU-E5-2630 E5-2630 2.30 95 15 67.2 GT/s 1333

UCS-CPU-E5-2630L E5-2630L 2.00 60 15 67.2 GT/s 1333

UCS-CPU-E5-2620 E5-2620 2.00 95 15 67.2 GT/s 1333

UCS-CPU-E5-2609 E5-2609 2.40 80 10 46.4 GT/s 1066

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

Approved Configurations

(1) 1-CPU configurations:

■Select any one CPU listed in Table 3.

(2) 2-CPU Configurations:

■Select two identical CPUs from any one of the rows of Table 3 on page 11.

Caveats

■You can select either one processor or two identical processors.

■For optimal performance, select DIMMs with the highest clock speed for a given processor

(see Table 3 on page 11). If you select DIMMs whose speeds are lower or higher than that

shown in the tables, suboptimal performance will result.

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

STEP 3 SELECT MEMORY

The standard memory features are:

■DIMMs

— Clock speed: 1333 or 1600 MHz

— Ranks per DIMM: 1, 2, or 4

— Operational voltage: dual voltage capable (1.5 V or 1.35 V)

— Registered ECC DDR3 DIMMS (RDIMMS) or load-reduced DIMMS (LRDIMMs)

■Memory is organized with four memory channels per CPU, with up to two DIMMs per channel,

as shown in Figure 4.

Figure 4 C220 M3 SFF Memory Organization

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

Select DIMMs and Memory Mirroring

Select the memory configuration and whether or not you want the memory mirroring option.

The available memory DIMMs and mirroring option are listed in Table 4.

NOTE: When memory mirroring is enabled, the memory subsystem simultaneously

writes identical data to two channels. If a memory read from one of the channels

returns incorrect data due to an uncorrectable memory error, the system

automatically retrieves the data from the other channel. A transient or soft error in

one channel does not affect the mirrored data, and operation continues unless there

is a simultaneous error in exactly the same location on a DIMM and its mirrored

DIMM. Memory mirroring reduces the amount of memory available to the operating

system by 50% because only one of the two populated channels provides data.

Table 4 Available DDR3 DIMMs

Product ID (PID) PID Description Voltage Ranks/

DIMM

DIMM Options

UCS-ML-1X324RY-A 32GB DDR3-1600-MHz LR DIMM/PC3-12800/quad rank/x4/1.35v 1.35 V 4

UCS-MR-1X162RY-A 16GB DDR3-1600-MHz RDIMM/PC3-12800/dual rank/x4/1.35v 1.35 V 2

UCS-MR-1X162RX-A 16GB DDR3-1333-MHz RDIMM/PC3-10600/dual rank/x4/1.35v 1.35 V 2

UCS-MR-1X082RY-A 8GB DDR3-1600-MHz RDIMM/PC3-12800/dual rank/x4/1.35v 1.35 V 2

UCS-MR-1X082RX-A 8GB DDR3-1333-MHz RDIMM/PC3-10600/dual rank/x4/1.35v 1.35 V 2

UCS-MR-1X041RY-A 4GB DDR3-1600-MHz RDIMM/PC3-12800/single rank/x4/1.35v 1.35 V 1

UCS-MR-1X041RX-A 4GB DDR3-1333-MHz RDIMM/PC3-10600/single rank/x4/1.35v 1.35 V 1

Memory Mirroring Option

N01-MMIRROR Memory mirroring option

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

Approved Configurations

(1) 1-CPU configuration without memory mirroring:

■Select from 1 to 8 DIMMs. Refer to Memory Population Rules, page 50, for more detailed

information.

(2) 1-CPU configuration with memory mirroring:

■Select 2, 4, 6, or 8 identical DIMMs. The DIMMs will be placed by the factory as shown in the

following table.

■Select the memory mirroring option (N01-MMIRROR) as shown in Table 4 on page 14.

(3) 2-CPU configuration without memory mirroring:

■Select from 1 to 8 DIMMs per CPU. Refer to Memory Population Rules, page 50, for more

detailed information.

Total

Number

DIMMs

CPU 1 DIMM Placement in Channels

(for identical DIMMs)

Blue Slots Black Slots

2(A1, B1)

4(A1,B1); (C1,D1)

6(A1,B1); (C1,D1) (A2,B2)

8(A1,B1); (C1,D1) (A2,B2); (C2,D2)

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

(4) 2-CPU configuration with memory mirroring:

■Select 2, 4, 6, or 8 identical DIMMs per CPU. The DIMMs will be placed by the factory as

shown in the following table.

■Select the memory mirroring option (N01-MMIRROR) as shown in Table 4 on page 14.

Number

DIMMs

per CPU

CPU 1 DIMM Placement in Channels

(for identical dual-rank DIMMs) CPU 2 DIMM Placement in Channels

(for identical dual-rank DIMMs)

Blue Slots Black Slots Blue Slots Black Slots

2(A1, B1) (E1, F1)

4(A1,B1); (C1,D1) (E1,F1); (G1,H1)

6(A1,B1); (C1,D1) (A2,B2) (E1,F1); (G1,H1) (E2,F2)

8(A1,B1); (C1,D1) (A2,B2); (C2,D2) (E1,F1); (G1,H1) (E2,F2); (G2,H2)

NOTE: System performance is optimized when the DIMM type and quantity are equal

for both CPUs.

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

Caveats

■The server supports registered DIMMs (RDIMMs) or load-reduced DIMMS (LRDIMMs), however,

do not mix RDIMMs and LRDIMMs in a server.

■When using mirroring, DIMMs must be installed in identical pairs across paired DDR3 buses.

That is, mirrored pairs in channels A and B must be identical and pairs in channels C and D

must be identical. However, the DIMMs used in channels A and B and in C and D can be

different.

■UDIMMs and non-ECC DIMMs are not supported.

■Memory mirroring reduces the amount of available memory by 50% (quantity of DIMMs must

be even for mirroring).

■When single- and dual-rank DIMMs are populated for 2DPC, always populate the dual rank

DIMM in the blue DIMM slot, and the single-rank DIMM in the black DIMM slot (only the 4GB

DIMMs are single-rank).

■By default, all DIMMs run at 1.35 V, which yields 1333-MHz memory speeds. To run the

memory DIMMS at 1600 MHz, you need to go into the BIOS or set the policy with UCSM

(service profile) to run in Performance Mode. This forces the DIMMs to operate at 1.5 V and

yields 1600-MHz speeds, provided:

— The DIMMs are 1600-MHz devices

— The CPUs chosen support 1600-MHz operation.

For more information regarding memory, see CPUs and DIMMs, page 48.

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

STEP 4 SELECT RAID CONFIGURATION

The RAID controller choices are:

■Embedded RAID (on motherboard)

■Mezzanine RAID controller cards

■Plug-in PCIe RAID controller cards

Cisco can provide factory-configured RAID systems depending on the RAID controller chosen and

the number of drives ordered. Factory-configured RAID options are listed with each RAID card

description.

Select RAID Options

Select as follows:

■One embedded RAID upgrade option (see Table 5), or

■One mezzanine RAID controller (see Table 6), or

■One PCIe RAID controller card (see Table 7 on page 19)

NOTE: If you do not select a mezzanine card, a plug-in PCIe RAID card, or one of the

embedded RAID upgrade options, you will have an embedded SATA-only RAID

controller that supports up to four SATA-only drives (RAID 0, 1, 10)

NOTE: The number of RAID groups (logical drives/ virtual drives) supported per

controller is as follows:

■Embedded RAID = 8 drives

■Cisco UCSC RAID SAS 2008M-8i Mezzanine Card = 16 drives

■LSI MegaRAID SAS 9266-8i RAID controller card = 64 drives

Table 5 Available Embedded RAID Options

Product ID (PID) PID Description

RAID Controllers

UCSC-RAID-ROM5 Onboard RAID, supporting up to 8 SAS or SATA drives. SAS and SATA drives can

be mixed. This option supports RAID 0, 1, and 10, and operates at 3 Gb/s.

Operating systems supported are Windows and Linux only (no VMware

support).

UCSC-RAID-ROM55 Onboard RAID, supporting up to 8 SAS or SATA drives. SAS and SATA drives can

be mixed. This option supports RAID 0, 1, 10, and 5, and operates at 3 Gb/s.

Operating systems supported are Windows and Linux only (no VMware

support).

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

Table 6 Available Mezzanine Card RAID Options

Product ID (PID) PID Description

RAID Controllers

UCSC-RAID-11-C220 Cisco UCSC RAID SAS 2008M-8i Mezzanine Card (RAID 0, 1, 10, 5, and 50

supported), operating at 6 Gbs.

■Supports up to eight internal SAS or SATA drives. SAS and SATA drives can

be mixed.

■Factory-configured RAID options available: RAID 0, 1, 10, and 5 (see the

RAID PIDs section in this table)

■No data cache backup

UCSC-RAID-MZ-220 Cisco UCSC RAID SAS 2008M-8i Mezzanine Card (RAID 0, 1, 10 supported),

operating at 6 Gbs.

■Supports up to eight internal SAS or SATA drives. SAS and SATA drives can

be mixed.

■Factory-configured RAID options available: RAID 0, 1, and 10 (see the RAID

PIDs section in this table)

■No data cache backup

Table 7 Available Plug-In PCIe Card RAID Options

Product ID (PID) PID Description

RAID Controllers

UCS-RAID-9266NB LSI MegaRAID SAS 9266-8i RAID controller card with no data cache backup

(RAID 0, 1, 10, 5, 6, 50, and 60 supported), operating at 6 Gbs.

■Supports up to eight internal SAS and/or SATA drives. SAS and SATA drives

can be mixed.

■Includes 1 GB of write cache

■Factory-configured RAID options available: RAID 0, 1, 10, 5, and 6 (see the

RAID PIDs section in this table)

UCS-RAID-9266CV LSI MegaRAID SAS 9266CV-8i RAID controller card with data cache backup (RAID

0, 1, 10, 5, 6, 50, 60), operating at 6 Gbs.

■Supports up to eight internal SAS or SATA drives. SAS and SATA drives can

be mixed.

■Includes a 1 GB Transportable Memory Module (TMM) and SuperCap power

module for data cache backup

■Factory-configured RAID options available: RAID 0, 1, 10, 5, and 6 (see the

RAID PIDs section in this table)

Super Capacitor Option

UCS-RAID-CV-SC= LSI CacheVault Power Module for SAS 9266CV

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

RAID Configuration Options

R2XX-RAID0 Factory preconfigured RAID striping option

Enable RAID 0 Setting. Requires a minimum of one hard drive.

R2XX-RAID1 Factory preconfigured RAID mirroring option

Enable RAID 1 Setting. Requires exactly two drives with the same size, speed,

capacity.

R2XX-RAID5 Factory preconfigured RAID option

Enable RAID 5 Setting. Requires a minimum of three drives of the same size,

speed, capacity.

R2XX-RAID6 Factory preconfigured RAID option

Enable RAID 6 Setting. Requires a minimum of four drives of the same size,

speed, capacity.

R2XX-RAID10 Factory preconfigured RAID option

Enable RAID 10 Setting. Requires a even number of drives (minimum of four

drives) of the same size, speed, capacity.

NOTE: Although RAID levels 50 and 60 are not orderable from the factory, they are

supported for selected controllers as shown in Table 5

NOTE: No RAID option can be chosen if you have no drives

Table 7 Available Plug-In PCIe Card RAID Options (continued)

Product ID (PID) PID Description

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

Approved Configurations

(1) 1-CPU Configurations

Mezzanine cards are not supported for 1-CPU configurations, Therefore, only the following RAID

controllers are supported for single-CPU configurations:

■Embedded RAID

■LSI MegaRAID SAS 9266-8i

■LSI MegaRAID SAS 9266CV-8i

(2) 2-CPU Configurations

Select an embedded RAID option from Table 5, one mezzanine RAID controller from Table 6 on

page 19, or one PCIe RAID controller from Table 7 on page 19. You may also select an

appropriate optional RAID configuration listed in Table 7 on page 19.

Caveats

■The mezzanine controller is not available for 1-CPU configurations.

■If you choose a mezzanine card RAID controller or onboard RAID, both the half-height and

full-height PCIe card slots are still available for adding optional PCIe cards.

■The optional PCIe RAID controllers are all half-height PCIe cards. If you choose one of these

cards, only the full-height PCIe card slot will be available for adding an optional PCIe card.

■Note that only a single Cisco VIC card (either the full-height Cisco UCS P81E or the

half-height Cisco VIC 1225 PCIe card) is supported and it must be installed in the full-height

PCIe slot (slot 1) on riser 1. So take this into account when populating RAID controller cards.

■You can choose only one RAID controller (embedded RAID, plug-in PCIe RAID controller, or

mezzanine card RAID controller).

■You can choose an optional RAID configuration (RAID 0, 1, 5, 6, or 10), which is

preconfigured at the factory. The RAID level you choose must be an available RAID choice for

the controller selected. RAID levels 50 and 60 are supported, although they are not available

as configuration options.

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

STEP 5 SELECT HARD DISK DRIVES (HDDs) or SOLID STATE DRIVES

(SSDs)

The standard disk drive features are:

■2.5-inch small form factor

■Hot-pluggable

■Sled-mounted

Select Drives

The available drives are listed in Table 8.

Table 8 Available Hot-Pluggable Sled-Mounted HDDs and SSDs

Product ID (PID) PID Description Drive

Type Capacity

HDDs

A03-D1TBSATA 1TB SATA 7.2K RPM SFF HDD SATA 1 TB

UCS-HDD900GI2F106 900 GB 6Gb SAS 10K RPM SFF HDD SAS 900 GB

A03-D600GA2 600 GB 6Gb SAS 10K RPM SFF HDD SAS 600 GB

A03-D500GC3 500 GB SATA 7.2K RPM SFF HDD SATA 500 GB

UCS-HDD300GI2F105 300 GB 6Gb SAS 15K RPM SFF HDD SAS 300 GB

A03-D300GA2 300 GB 6Gb SAS 10K RPM SFF HDD SAS 300 GB

SSDs

UCS-SD300G0KA2-E 300GB Std Height 15mm SATA SSD SATA 300 GB

UCS-SD200G0KA2-E 200GB Std Height 15mm SATA SSD SATA 200 GB

UCS-SD100G0KA2-E 100GB Std Height 15mm SATA SSD SATA 100 GB

NOTE: No RAID option can be chosen if you have no drives

NOTE: No virtual drive groupings are allowed if you mix HDDs and SSDs.

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

Approved Configurations

(1) Onboard RAID, Mezzanine Cards, and all Plug-In RAID Controllers

■If you have not selected an onboard RAID upgrade option (ROM5 or ROM55), a mezzanine

card, or a plug-in RAID controller, you may select up to 4 SATA-only drives.

■Otherwise, select up to eight SAS/SATA drives listed in Table 8. You can mix SAS and SATA

drives.

Caveats

■You can mix SATA and SAS drives.

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

STEP 6 SELECT PCIe OPTION CARD(s)

The standard PCie card offerings are:

■Converged Network Adapters (CNAs)

■Network Interface Cards (NICs)

■Host Bus Adapters (HBAs)

Select PCIe Option Cards

The available PCIe option cards are listed in Table 9.

Table 9 Available PCIe Option Cards

Product ID (PID) PID Description Card

Height

Converged Network Adapters (CNAs)

N2XX-ACPCI01 Cisco UCS P81E Virtual Interface Card (VIC)/ 2-port 10Gbps Full

UCSC-PCIE-BSFP Broadcom 57712 Dual Port 10Gb SFP+ w/TOE iSCSI Half

UCSC-PCIE-CSC-02 Cisco VIC 1225 Dual Port 10Gb SFP+ CNA Half

Network Interface Cards (NICs)

N2XX-ABPCI01-M3 Broadcom 5709 Dual Port 1Gb w/TOE iSCSI for M3 Servers Half

N2XX-ABPCI03-M3 Broadcom 5709 Quad Port 1Gb w/TOE iSCSI for M3 Servers Half

N2XX-AIPCI01 Intel X520 Dual Port 10Gb SFP+ Adapter Half

UCSC-PCIE-IRJ45 Intel i350 Quad Port 1Gb Adapter Half

UCSC-PCIE-BTG Broadcom 57712 Dual Port 10GBASE-T w/TOE iSCSI Half

Host Bus Adapters (HBAs)

N2XX-AEPCI03 Emulex LPe 11002 Dual Port 4Gb Fibre Channel HBA Half

N2XX-AEPCI05 Emulex LPe 12002 Dual Port 8Gb Fibre Channel HBA Half

N2XX-AQPCI03 Qlogic QLE2462 Dual Port 4Gb Fibre Channel HBA Half

N2XX-AQPCI05 Qlogic QLE2562 Dual Port 8Gb Fibre Channel HBA Half

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

Approved Configurations

(1) No RAID controller plug-in card

■If you did not choose a plug-in RAID controller (for example, you are using embedded RAID

or a mezzanine RAID controller), you can select up to two PCie option cards listed in

Table 9.

(2) One RAID controller plug-in card

■If you selected a plug-in PCIe RAID controller, you can select only one of the optional PCIe

cards listed in Table 9.

Caveats

■For 1-CPU systems:

— Only the full-height PCIe slot (slot 1) is supported

— Neither PCIe slot 2 nor the mezzanine card slot are supported

— Only a single VIC card (either the full-height Cisco UCS P81E or the Cisco VIC 1225

PCIe card) is supported and it must be installed in slot 1 (the full-height slot).

■For 2-CPU systems:

— Both PCIe slots and the mezzanine card slot are supported

— Only a single VIC card (either the full-height Cisco UCS P81E or the half-height Cisco

VIC 1225 PCIe card) is supported and it must be installed in slot 1 (the full height

slot).

■All PCIe cards will fit in either slot, except the Cisco UCS P81E Virtual Interface Card (VIC),

which must be installed in the full-height slot (slot 1).

■Other considerations for the Cisco VIC 1225:

— Supports 10G SFP+ optical and copper twinax connections

— Requires that the server has CIMC firmware version 1.4(6) or later installed. There is

a heartbeat LED on the top of the card that indicates when firmware is active.

— To use this card for UCS integration (Cisco UCS Manager mode) with Cisco UCS

Manager 2.1(0) or later, the minimum card-firmware and uboot image level is

2.1(0.306).

■To help ensure that your operating system is compatible with the card you have selected,

check the Hardware Compatibility List at this URL:

http://www.cisco.com/en/US/products/ps10477/prod_technical_reference_list.html

NOTE: If a plug-in RAID controller card is installed, any optional PCIe card you select

will be installed in the full-height slot. RAID controllers are always installed in the

half-height slot.

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

STEP 7 ORDER OPTIONAL NETWORK CARD ACCESSORIES

Copper twinax cables and SFP optical modules may be ordered to support the two-port network cards that

are available with the server.

Choose Optional Twinax Cables

Table 10 lists the copper twinax cables available for the PCIe cards. You can choose cable

lengths of 1, 3, 5, 7, or 10 meters. The two longer cables (7 and 10 meters) are active, which

means that they contain active components within the SFP+ housing to improve signal quality.

Approved Configurations

(1) Choose Up to Two Twinax Cables for Each Network Card Ordered

■You may choose one or two twinax cables for each network card ordered. The cables can be

different lengths; however, you would normally order two cables of equal lengths to connect

to the primary and redundant network switching equipment.

Caveats

The twinax cables listed in Table 10 can be ordered only for the following PCIe cards:

— N2XX-ACPCI01 (Cisco UCS P81E Virtual Interface Card/ 2-port 10Gbps)

— UCS-PCIE-BSFP (Broadcom 57712)

— N2XX-AEPCI01 (Emulex OCe10102-F)

— N2XX-AIPCI01 (Intel Dual Port Ethernet X520)

— UCSC-PCIE-CSC-02 (Cisco VIC 1225 Dual Port 10Gb SFP+ CNA)

Table 10 Available Twinax Cables

Product ID (PID) PID Description

SFP-H10GB-CU1M 10GBASE-CU SFP+ Cable (1 M)

SFP-H10GB-CU3M 10GBASE-CU SFP+ Cable (3 M)

SFP-H10GB-CU5M 10GBASE-CU SFP+ Cable (5 M)

SFP-H10GB-ACU7M 10GBASE-CU SFP+ Cable (7 M)

SFP-H10GB-ACU10M 10GBASE-CU SFP+ Cable (10 M)

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

Choose Optional SFP Modules

Optical Cisco SFP+ modules are listed in Table 11.

Approved Configurations

(1) Choose Up to Two SFP+ Modules for Each Network Card Ordered

■You may choose one or two SFP+ optical modules cables for each network card ordered. You

would normally order two modules for connecting to the primary and redundant network

switching equipment. With the SFP+ optical modules, you can use common fiber optic

cables, widely available.

See Figure 5 on page 28 for typical SFP+ and twinax connections to the network cards.

Caveats

The SFP-10G-SR optical module listed in Table 11 should be ordered only for the following PCIe

cards, as they do not come by default with any optical modules:

— N2XX-ACPCI01 (Cisco UCS P81E Virtual Interface Card/ 2-port 10Gbps)

— UCSC-PCIE-BSFP (Broadcom 57712)

— N2XX-ABPCI02 (Broadcom 57711)

— N2XX-AEPCI01 (Emulex OCe10102-F)

— UCSC-PCIE-CSC-02 (Cisco VIC 1225 Dual Port 10Gb SFP+ CNA)

The DS-SFP-FC8G-SW optical module listed in Table 11 should be ordered only for the following

PCIe cards, as they do not come by default with any optical modules:

— N2XX-AEPCI05 (Emulex LPe 12002, 8Gb dual-port Fibre Channel HBA)

Table 11 Available SFP Modules

Product ID (PID) PID Description

SFP-10G-SR 10GBASE-SR SFP+ Module

850 nm, multimode, SR, 3.3V, LC connector, with Digital Optical Monitoring

DS-SFP-FC8G-SW 8 Gbit SFP+ Module

850 nm, multimode, SR, 3.3V, LC connector, with Digital Optical Monitoring

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

Figure 5 Network Card Connections

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

STEP 8 ORDER POWER SUPPLY

The C220 M3 SFF server accommodates two power supplies. A lightly loaded server can operate

from one 650 W power supply. A fully loaded server might need to be powered with two 450 W or

two 650 W power supplies (see Table 12). Use the power calculator at the following link to

determine the needed power based on the options chosen (CPUs, drives, memory, and so on):

https://express.salire.com/Go/Cisco/Cisco-UCS-Power-Calculator.aspx

Table 12 Power Supply PIDs

Product ID (PID) PID Description

UCSC-PSU-450W 450 W power supply

UCSC-PSU-650W 650 W power supply

NOTE: In a two power supply server, both power supplies must be identical.

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

STEP 9 SELECT AC POWER CORD(s)

Using Table 13, select the appropriate AC power cords. You can select a minimum of no power

cords and a maximum of two. If you select the option R2XX-DMYMPWRCORD, no power cord is

shipped with the server.

Table 13 Available Power Cords

Product ID (PID) PID Description Images

R2XX-DMYMPWRCORD No power cord (dummy PID to

allow for a no power cord option) Not applicable

CAB-N5K6A-NA Power Cord, 200/240V 6A, North

America

CAB-AC-250V/13A Power Cord, NEMA L6-20 250V/20A

plug-IEC320/C13 receptacle, North

America,

CAB-C13-CBN CABASY,WIRE,JUMPER CORD, 27" L,

C13/C14, 10A/250V

CAB-C13-C14-2M CABASY,WIRE,JUMPER CORD, PWR,

2 Meter, C13/C14,10A/250V

CAB-C13-C14-AC CORD,PWR,JMP,IEC60320/C14,IEC6

0320/C13, 3.0M

Cordset rating: 10 A, 250 V

Length: 8.2 ft

86570

Plug: NEMA 6-15P

Connector:

IEC60320/C13

Cordset rating 13A, 250V

(6.6 feet) (79±2m)

Plug:

EL312MoldedTwistlock

(NEMA L6-20)

186568

Connector:

EL 701

(IEC60320/C13)

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

SFS-250V-10A-AR Power Cord, SFS, 250V, 10A,

Argentina

CAB-9K10A-AU Power Cord, 250VAC 10A 3112 Plug,

Australia

SFS-250V-10A-CN Power Cord, SFS, 250V, 10A, China

CAB-250V-10A-CN AC Power Cord - 250V, 10A - PRC

CAB-9K10A-EU Power Cord, 250VAC 10A CEE 7/7

Plug, EU

SFS-250V-10A-ID Power Cord, SFS, 250V, 10A, India

SFS-250V-10A-IS Power Cord, SFS, 250V, 10A, Israel

Table 13 Available Power Cords

Product ID (PID) PID Description Images

186571

2500 mm

Cordset rating: 10 A, 250/500 V MAX

Length: 8.2 ft

Plug:

EL 219

(IRAM 2073) Connector:

EL 701

(IEC60320/C13)

Plug:

Cordset rating: 10 A, 250 V/500 V MAX

Length: 2500mm

186580

Connector:

EL 701C

(EN 60320/C15)

EL 210

(BS 1363A) 13 AMP fuse

Cordset rating 10A, 250V

(2500 mm)

Plug:

EL 218

(CCEE GB2009)

186573

Connector:

EL 701

(IEC60320/C13)

Connector:

VSCC15

Cordset rating: 10A/16 A, 250 V

Length: 8 ft 2 in. (2.5 m)

Plug:

M2511

186576

OVE

Cordset rating 16A, 250V

(2500mm)

Plug:

EL 208

87490

Connector:

EL 701

Cordset rating 10A, 250V/500V MAX

(2500 mm)

Plug:

EL 212

(SI-32)

186574

Connector:

EL 701B

(IEC60320/C13)

-212

16A

250V

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

CAB-9K10A-IT Power Cord, 250VAC 10A CEI

23-16/VII Plug, Italy

CAB-9K10A-SW Power Cord, 250VAC 10A MP232

Plug, Switzerland

CAB-9K10A-UK Power Cord, 250VAC 10A BS1363

Plug (13 A fuse), UK

CAB-9K12A-NA Power Cord, 125VAC 13A NEMA

5-15 Plug, North America

CAB-JPN-3PIN Power Cord 3PIN, Japan Image not available

Table 13 Available Power Cords

Product ID (PID) PID Description Images

Plug:

I/3G

(CEI 23-16)

Connector

C15M

(EN60320/C15 )

Cordset rating: 10 A, 250 V

Length: 8 ft 2 in. (2.5 m)

186575

Plug:

MP232-R

Cordset rating: 10 A, 250 V

Length: 8 ft. 2 in (2.5 m)

186578

Connector:

IEC 60320 C15

Plug:

Cordset rating: 10 A, 250 V/500 V MAX

Length: 2500mm

186580

Connector:

EL 701C

(EN 60320/C15)

EL 210

(BS 1363A) 13 AMP fuse

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

STEP 10 ORDER OPTIONAL REVERSIBLE CABLE MANAGEMENT ARM

The reversible cable management arm mounts on either the right or left slide rails at the rear of

the server and is used for cable management. Use Table 14 to order a cable management arm.

For more information about the cable management arm, see the Cisco UCS C220 M3 Installation

and Service Guide at this URL:

http://www.cisco.com/en/US/docs/unified_computing/ucs/c/hw/C220/install/C220.pdf

Table 14 Cable Management Arm

Product ID (PID) PID Description

UCSC-CMA1 Cable Management Arm for C220 rack servers

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

STEP 11 ORDER A TRUSTED PLATFORM MODULE

Trusted Platform Module (TPM) is a computer chip (microcontroller) that can securely store

artifacts used to authenticate the platform (server). These artifacts can include passwords,

certificates, or encryption keys. A TPM can also be used to store platform measurements that

help ensure that the platform remains trustworthy. Authentication (ensuring that the platform

can prove that it is what it claims to be) and attestation (a process helping to prove that a

platform is trustworthy and has not been breached) are necessary steps to ensure safer

computing in all environments.

The TPM ordering information is listed in Table 15.

Table 15 Trusted Platform Module

Product ID (PID) PID Description

UCSX-TPM1-001 Trusted Platform Module

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

STEP 12 ORDER CISCO FLEXIBLE FLASH SD CARD MODULE (OPTIONAL)

You can order one optional 16 GB Cisco Flexible Flash secure digital (SD) card. This SD card

contains preloaded software for simplified server operation. The ordering information is listed

in Table 16.

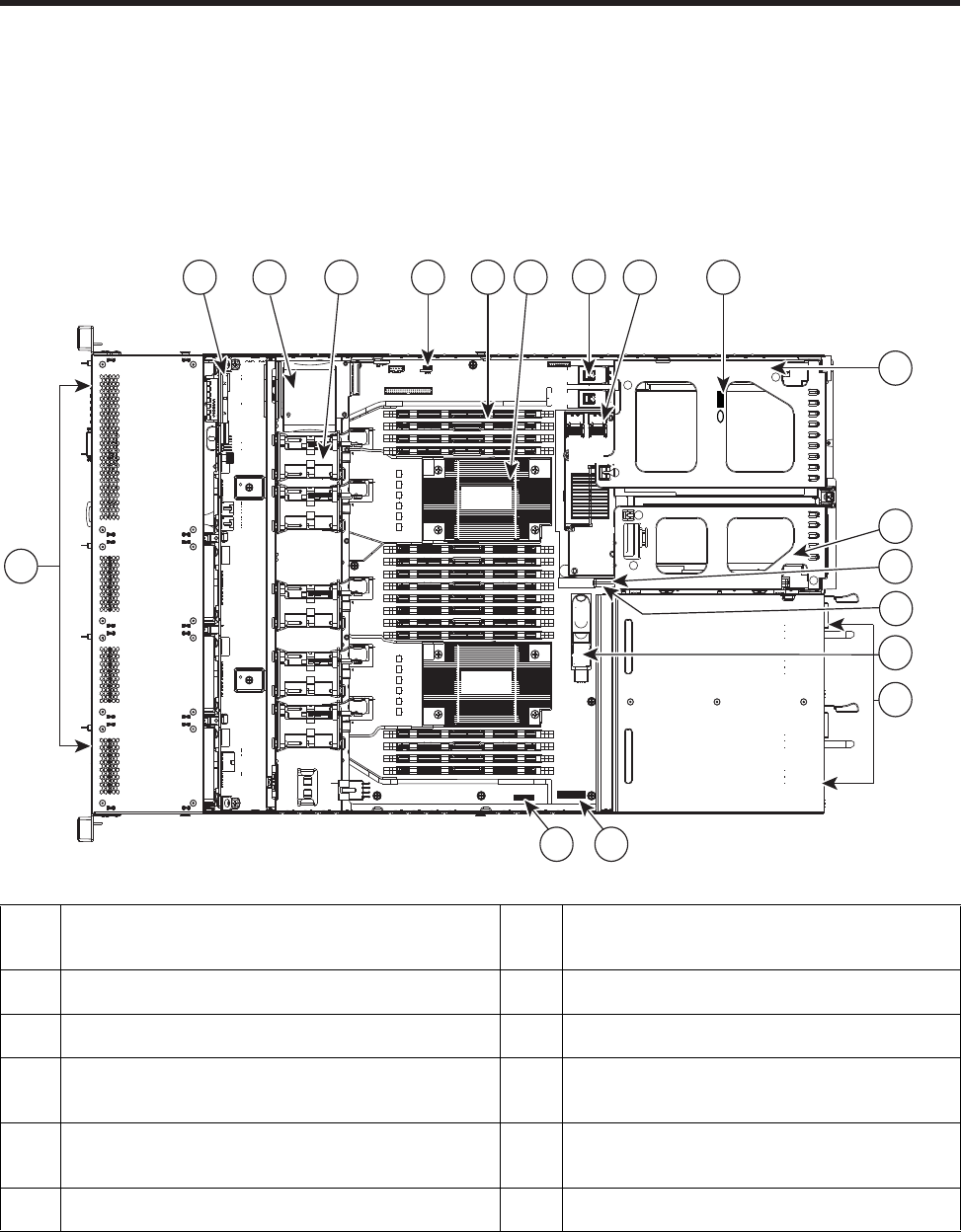

See Figure 6 on page 47 for the location of the SD cards. There are two locations, SD1 and SD2;

however, at present only SD1 is supported.

Table 16 Secure Digital (SD) Card

Product ID (PID) PID Description

UCSC-SD-16G-C220 16GB SD Card for C220 servers

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

STEP 13 ORDER OPTIONAL USB 2.0 DRIVE

You may order one optional USB 2.0 drive. The USB drive ordering information is listed in

Table 17.

See Figure 6 on page 47 for the location of the USB connector.

Table 17 USB 2.0 Drive

Product ID (PID) PID Description

UCS-USBFLSH-S-4GB 4GB Flash USB Drive (shorter length) for all servers except C260

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

STEP 14 SELECT OPERATING SYSTEM

Several operating systems are available from which to choose. Select one of the operating

systems shown in Table 18.

Table 18 Operating Systems

PID Description Product ID (PID)

SUSE Linux Enterprise Server

SLES-1A SLES/1yr subscription/svcs required/0 media

SLES-3A SLES/3yr subscription/svcs required/0 media

Red Hat Enterprise Linux

RHEL-2S-1G-1A RHEL/2 Socket/1 Guest/1Yr Svcs Required

RHEL-2S-1G-3A RHEL/2 Socket/1 Guest/3Yr Svcs Required

RHEL-2S-4G-1A RHEL/2 Socket/4 Guest/1Yr Svcs Required

RHEL-2S-4G-3A RHEL/2 Socket/4 Guest/3Yr Svcs Required

RHEL-2S-UG-1A RHEL/2 Socket/U Guest/1Yr Svcs Required

RHEL-2S-UG-3A RHEL/2 Socket/U Guest/3Yr Svcs Required

RHEL Add-Ons

RHEL-HA-2S-1A RHEL Option/High-Availability/2 Socket/1Yr Svcs Required

RHEL-RS-2S-1A RHEL Option/Resilient w/Ha /2 Socket/1 Yr Svcs Required

RHEL-SFS-2S-1A RHEL Option/Scalable File System/2 Socket/1 Yr Svcs Required

RHEL-HA-2S-3A RHEL Option/High-Availability/2 Socket/3Yr Svcs Required

RHEL-RS-2S-3A RHEL Option/Resilient Storage w/ HA /2 Socket/3 Yr Svcs Reqd

RHEL-SFS-2S-3A RHEL Option/Scalable File System/2 Socket/3 Yr Svcs Required

Windows Server

MSWS-08R2-STHV Windows Svr 2008 ST media R2 ST (1-4CPU, 5CAL)

MSWS-08R2-ENHV Windows Svr 2008 EN media R2 EN (1-8CPU, 25CAL)

MSWS-08R2-DCHV2S Windows Svr 2008 R2-2 CPU-Data Center

MSWS-08R2-DCHV4S Windows Svr 2008 R2-4 CPU-Data Center

VMWare Server

VMW-VS5-STD-1A VMware vSphere 5 Standard for 1 Processor, 1 Year, Support Required

VMW-VS5-STD-2A VMware vSphere 5 Standard for 1 Processor, 2 Year, Support Required

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

VMW-VS5-STD-3A VMware vSphere 5 Standard for 1 Processor, 3 Year, Support Required

VMW-VS5-STD-4A VMware vSphere 5 Standard for 1 Processor, 4 Year, Support Required

VMW-VS5-STD-5A VMware vSphere 5 Standard for 1 Processor, 5 Year, Support Required

VMW-VS5-ENT-1A VMware vSphere 5 Enterprise for 1 Processor, 1 Year Support Required

VMW-VS5-ENT-2A VMware vSphere 5 Enterprise for 1 CPU, 2 Yr Support Required

VMW-VS5-ENT-3A VMware vSphere 5 Enterprise for 1 CPU, 3 Yr Support Required

VMW-VS5-ENT-4A VMware vSphere 5 Enterprise for 1 Processor, 4 Year Support Required

VMW-VS5-ENT-5A VMware vSphere 5 Enterprise for 1 CPU, 5 Yr Support Required

VMW-VS5-ENTP-1A VMware vSphere 5 Enterprise Plus for 1 Processor, 1 Year Support Required

VMW-VS5-ENTP-2A VMware vSphere 5 Enterprise Plus for 1 CPU, 2 Yr Support Required

VMW-VS5-ENTP-3A VMware vSphere 5 Enterprise Plus for 1 Processor, 3 Year Support Required

VMW-VS5-ENTP-4A VMware vSphere 5 Enterprise Plus for 1 Processor, 4 Year Support Required

VMW-VS5-ENTP-5A VMware vSphere 5 Enterprise Plus for 1 Processor, 5 Year Support Required

Table 18 Operating Systems (continued)

PID Description Product ID (PID)

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

STEP 15 SELECT OPERATING SYSTEM MEDIA KIT

Select the optional operating system media listed in Table 19.

Table 19 OS Media

Product ID (PID) PID Description

RHEL-6 RHEL 6 Recovery Media Only (Multilingual)

SLES-11 SLES 11 media only (multilingual)

MSWS-08R2-STHV-RM Windows Svr 2008 R2 ST (1-4CPU, 5CAL), Media

MSWS-08R2-ENHV-RM Windows Svr 2008 R2 EN (1-8CPU, 25CAL), Media

MSWS-08R2-DCHV-RM Windows Svr 2008 R2 DC (1-8CPU, 25CAL), Media

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

STEP 16 SELECT OPTIONAL VALUE-ADDED SOFTWARE

You can select from a variety of value-added software listed in Table 20.

Table 20 Value Added Software

Product ID (PID) PID Description

BMC-SE-4C BMC BladeLogic Standard Edition, 4 Cores, Support Required

BMC-SE-6C BMC BladeLogic Standard Edition, 6 Cores, Support Required

BMC-SE-8C BMC BladeLogic Standard Edition, 8 Cores, Support Required

BMC-SE-10C BMC BladeLogic Standard Edition, 10 Cores, Support Required

BMC-AE-4C BladeLogic Advanced Edition, 4 Cores, Support Required

BMC-AE-6C BMC BladeLogic Advanced Edition, 6 Cores, Support Required

BMC-AE-8C BMC BladeLogic Advanced Edition, 8 Cores, Support Required

BMC-AE-10C BMC BladeLogic Advanced Edition, 10 Cores, Support Required

BMC-002 BMC BladeLogic CM for Physical Cisco Servers

BMC-012 BMC BPPM Per Server

VMW-VC5-STD-1A VMware vCenter 5 Standard for 1 Processor, 1 Year, Support Required

VMW-VC5-STD-2A VMware vCenter 5 Standard for 1 Processor, 2 Year, Support Required

VMW-VC5-STD-3A VMware vCenter 5 Standard for 1 Processor, 3 Year, Support Required

VMW-VC5-STD-4A VMware vCenter 5 Standard for 1 Processor, 4 Year, Support Required

VMW-VC5-STD-5A VMware vCenter 5 Standard for 1 Processor, 5 Year, Support Required

N1K-VLEM-UCS-1 Nexus 1000V License PAK for 1 Virtual Ethernet module

N1K-CSK9-UCS-404 Nexus 1000V VSM Virtual Appliance Software

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

STEP 17 SELECT SERVICE and SUPPORT LEVEL

A variety of service options are available, as described in this section.

Unified Computing Warranty, No Contract

If you have noncritical implementations and choose no service contract, the following coverage

is supplied:

■Three-year parts coverage.

■Next business day (NBD) parts replacement eight hours a day, five days a week.

■90-day software warranty on media.

■Downloads of BIOS, drivers, and firmware updates.

■UCSM updates for systems with Unified Computing System Manager. These updates include

minor enhancements and bug fixes that are designed to maintain the compliance of UCSM

with published specifications, release notes, and industry standards.

Unified Computing Support Service

For support of the entire Cisco Unified Computing System, Cisco offers the Cisco Unified

Computing Support Service. This service provides expert software and hardware support to help

sustain performance and high availability of the unified computing environment. Access to the

Cisco Technical Assistance Center (TAC) is provided around the clock, from anywhere in the

world.

For UCS blade servers, there is Smart Call Home, which provides proactive, embedded

diagnostics and real-time alerts. For systems that include Unified Computing System Manager,

the support service includes downloads of UCSM upgrades. The Unified Computing Support

Service includes flexible hardware replacement options, including replacement in as little as

two hours. There is also access to Cisco's extensive online technical resources to help maintain

optimal efficiency and uptime of the unified computing environment. You can choose a desired

service listed in Table 21.

Table 21 UCS Computing Support Service

Product ID (PID) On Site? Description

CON-UCS1-C220-M3-W No UC Support 8X5XNBD

CON-UCS2-C220-M3-W No UC Support 8X5X4

CON-UCS3-C220-M3-W No UC Support 24x7x4

CON-UCS4-C220-M3-W No UC Support 24x7x2

CON-UCS5-C220-M3-W Yes UC Support 8X5XNBD

CON-UCS6-C220-M3-W Yes UC Support 8X5X4

CON-UCS7-C220-M3-W Yes UC Support 24x7x4

CON-UCS8-C220-M3-W Yes UC Support 24x7x2

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

Unified Computing Warranty Plus Service

For faster parts replacement than is provided with the standard Cisco Unified Computing System

warranty, Cisco offers the Cisco Unified Computing Warranty Plus Service. You can choose from

several levels of advanced parts replacement coverage, including onsite parts replacement in as

little as two hours. Warranty Plus provides remote access any time to Cisco support professionals

who can determine if a return materials authorization (RMA) is required. See Table 22.

Unified Computing Drive Retention Service

With the Cisco Unified Computing Drive Retention (UCDR) Service, you can obtain a new disk

drive in exchange for a faulty drive without returning the faulty drive. In exchange for a Cisco

replacement drive, you provide a signed Certificate of Destruction (CoD) confirming that the

drive has been removed from the system listed, is no longer in service, and has been destroyed.

Sophisticated data recovery techniques have made classified, proprietary, and confidential

information vulnerable, even on malfunctioning disk drives. The UCDR service enables you to

retain your drives and ensures that the sensitive data on those drives is not compromised, which

reduces the risk of any potential liabilities. This service also enables you to comply with

regulatory, local, and federal requirements.

If your company has a need to control confidential, classified, sensitive, or proprietary data, you

might want to consider one of the Drive Retention Services listed in Table 23.

Table 22 UCS Computing Warranty Plus Service

Product ID (PID) On Site? Description

CON-UCW2-C220-M3-W No UC Warranty Plus 8x5x4

CON-UCW3-C220-M3-W No UC Warranty Plus 24x7x4

CON-UCW4-C220-M3-W No UC Warranty Plus 24x7x2

CON-UCW5-C220-M3-W Yes UC Warranty Plus 8X5XNBD

CON-UCW6-C220-M3-W Yes UC Warranty Plus 8X5X4

CON-UCW7-C220-M3-W Yes UC Warranty Plus 24x7x4

CON-UCW8-C220-M3-W Yes UC Warranty Plus 24x7x2

NOTE: Cisco does not offer a certified drive destruction service as part of this

service.

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

Mission Critical Support Service

This service delivers personalized technical account management, expedited technical support,

and expert field support engineering for the Cisco Unified Computing System (UCS).

The Mission Critical Support Service provides a designated technical account manager (TAM) who

acts as a strategic resource to help ensure that the unified computing environment runs at peak

efficiency. If a problem arises that threatens business continuity, the TAM provides crisis

management leadership, and your IT staff receives expedited access to Cisco's Technical

Assistance Center (TAC).

Table 23 Drive Retention Service Options

Service Description Service

Program Name Service

Level GSP Service Level Product ID (PID)

UCS Mission Critical

Support Service

With Drive

Retention

UC CRIT DR UCMD7 24x7x4 Onsite CON-UCMD7-C220-M3-WSFF

UCMD8 24x7x2 Onsite CON-UCMD8-C220-M3-WSFF

UCS Support

Service With Drive

Retention

UC SUPP DR UCSD1 8x5xNBD CON-UCSD1-C220-M3-WSFF

UCSD2 8x5x4 CON-UCSD2-C220-M3-WSFF

UCSD3 24x7x4 CON-UCSD3-C220-M3-WSFF

UCSD4 24x7x2 CON-UCSD4-C220-M3-WSFF

UCSD5 8x5xNBD

Onsite CON-UCSD5-C220-M3-WSFF

UCSD6 8x5x4 Onsite CON-UCSD6-C220-M3-WSFF

UCSD7 24x7x4 Onsite CON-UCSD7-C220-M3-WSFF

UCSD8 24x7x2 Onsite CON-UCSD8-C220-M3-WSFF

UCS Warranty Plus

With Drive

Retention

UC PLUS DR UCWD2 8x5x4 CON-UCWD2-C220-M3-WSFF

UCWD3 24x7x4 CON-UCWD3-C220-M3-WSFF

UCWD4 24x7x2 CON-UCWD4-C220-M3-WSFF

UCWD5 8x5xNBD

Onsite CON-UCWD5-C220-M3-WSFF

UCWD6 8x5x4 Onsite CON-UCWD6-C220-M3-WSFF

UCWD7 24x7x4 Onsite CON-UCWD7-C220-M3-WSFF

UCWD8 24x7x2 Onsite CON-UCWD8-C220-M3-WSFF

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

Mission Critical Support Service is a layered service available for all Cisco data center products

already support by a UCS Support Service or SMARTnet service contract. For further information

about Cisco Mission Critical Support Service, please consult the Service Description that can be

found at the following link:

http://www.cisco.com/web/about/doing_business/legal/service_descriptions/index.html

or contact your Cisco account Manager.

For more service and support information, see this URL:

http://www.cisco.com/en/US/services/ps2961/ps10312/ps10321/Cisco_UC_Warranty_Support_DS.pdf

For a complete listing of available services for Cisco Unified Computing System, see this URL:

http://www.cisco.com/en/US/products/ps10312/serv_group_home.html

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

OPTIONAL STEP - ORDER RACK(s)

The optional R42610 rack is available from Cisco for the C-Series servers, including the C220 M3

SFF server. This rack is a standard 19-inch rack and can be ordered with a variety of options, as

listed in Table 24. Racks are shipped separately from the C220 M3 SFF server.

For more information about the R42610 rack, see RACKS, page 55.

Table 24 Racks and Rack Options

Product ID (PID) PID Description

RACK-UCS1

Notes . . .

1. Use these same base PIDs to order spare racks (available only as next-day replacements).

Cisco R42610 expansion rack, no side panels

RACK-UCS21Cisco R42610 standard rack, w/side panels

RACK-BLANK-001 Filler panels (qty 12), 1U, plastic, toolless

RACK-CBLMGT-001 Cable mgt D rings (qty 10), metal

RACK-CBLMGT-011 Cable mgt straps (qty 10), Velcro

RACK-FASTEN-001 Mounting screws (qty 100), M6

RACK-FASTEN-002 Cage nuts (qty 50), M6

RACK-JOIN-001 Rack joining kit

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

OPTIONAL STEP - ORDER PDU

An optional power distribution unit (PDU) is available from Cisco for the C-Series rack servers,

including theC220 M3 server. This PDU is available in a zero rack unit (RU) style (see Table 24).

For more information about the PDU, see PDUs, page 57.

Table 25 PDU Options

Product ID (PID) PID Description

RP208-30-2P-U-2 Zero RU PDU

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

SUPPLEMENTAL MATERIAL

CHASSIS

An internal view of the C220 M3 chassis with the top cover removed is shown in Figure 6.

Figure 6 C220 M3 SFF With Top Cover Off

1Drives

(hot-swappable, accessed through front panel) 10 Trusted platform module socket on

motherboard

2Drive backplane 11 Standard-profile PCIe riser (PCIe slot 1)

3SuperCap backup unit mounting location 12 Low-profile PCIe riser (PCIe slot 2)

4Cooling fans (five) 13 Cisco Flexible Flash SD socket SD2 on PCIe

riser 2

5SCU upgrade ROM header (RAID key). 14 Cisco Flexible Flash SD socket SD1 on PCIe

riser 2

6DIMM slots on motherboard (16) 15 Internal USB port

FAN1FAN1FAN1

FAN2

FAN2FAN2

FAN3

FAN3FAN3

FAN4FAN4

FAN5

FAN5FAN5

PSU2

PCIe1

PCIe2

PSU1

CPU1

CPU2

SAS1

SAS2

SAS1

SAS2

1718

896 7

52 3 4

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

SUPPLEMENTAL MATERIAL

CPUs and DIMMs

Physical Layout

Each CPU has four DIMM channels:

■CPU1 has channels A, B, C, and D

■CPU2 has channels E, F, G, and H

Each DIMM channel has two banks: bank 1 and bank 2. The blue-colored DIMM banks are for bank 1 and the

black-colored are for bank 2.

As an example, DIMM slots A1, B1, C1, and D1 belong to bank 1, while A2, B2, C2, and D2 belong to bank 2.

Figure 7 shows how banks and channels are physically laid out on the motherboard. The DIMM slots on the

right (channels A, B, C, and D) are associated with CPU1, while the DIMM slots on the left (channels E, F, G,

and H) are associated with CPU2. The bank 1 (blue) DIMM slots are always located farther away from a CPU

than the corresponding bank 2 (black) slots. Bank 1 slots (blue) are populated before bank 2 slots (black).

7CPUs and heatsinks (two) 16 Power supplies (two, hot-swappable

access through rear panel)

8Integrated RAID on motherboard, and mini-SAS

connectors 17 RTC battery on motherboard

9Mezzanine RAID card, mini-SAS connectors

SAS1 and SAS2 18 Software RAID 5 header (RAID key).

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

SUPPLEMENTAL MATERIAL

Figure 7 Physical Layout of CPU DIMM Channels and Banks

Front of Server

CPU1

CPU2

331707

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

SUPPLEMENTAL MATERIAL

Memory Population Rules

When considering the memory configuration of your server, you should consider the following items:

■For optimum performance, populate at least one DIMM per memory channel per CPU. If

using 4 GB DIMMs, you must populate 2 DIMMs per CPU memory channel.

■The server supports registered DIMMs (RDIMMs) or load-reduced DIMMS (LRDIMMs), however,

do not mix RDIMMs and LRDIMMs in a server.

■Each channel has two DIMM slots (for example, channel A = slots A1 and A2).

— A channel can operate with one or two DIMMs installed.

— If a channel has only one DIMM, populate slot 1 first (the blue slot).

■When both CPUs are installed, populate the DIMM slots of each CPU identically.

— Fill blue slots in the channels first: A1, E1, B1, F1, C1, G1, D1, H1

— Fill black slots in the channels second: A2, E2, B2, F2, C2, G2, D2, H2

■Any DIMM installed in a DIMM socket for which the CPU is absent is not recognized.

■Observe the DIMM mixing rules shown in Table 26

Table 26 DIMM Mixing Rules for C220 M3 Server

DIMM Parameter Mixed Mix Across a Single Bank? Mix Across Multiple Banks?

DIMM Size (4, 8, 16 GB) No—Must be same size in the

same bank Yes—Different banks can use

different DIMM sizes (as long

as all DIMMs in a single bank

use the same DIMM size).

DIMM Speed

(1066, 1333, or 1600 MHz)1

Notes . . .

1. Only 1333 and 1600 MHz DIMMs are currently available for the C220 M3 server.

No—Must be same speed in

the same bank. No—All DIMMs in the server

must be same speed.

DIMM Type (R-DIMM) No—All DIMMs in a bank must

be same type. No—All DIMMs in the server

must be same type.

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

SUPPLEMENTAL MATERIAL

Recommended Memory Configuration

This section explains the recommended DIMM population order rules for the C220 M3 server.

■All DIMMs must be DDR3 DIMMs.

■Do not mix:

— DIMMs with different sizes or clock rates in a bank

— RDIMMs and LRDIMMs

— ECC and non-ECC DIMMs

■There are blue and black DIMM slots. Populate blue slots first.

■When single- and dual-rank DIMMs are populated for 2DPC, always populate the dual-rank

DIMM in the blue DIMM slot and the single-rank DIMM in the black DIMM slot.

Many memory configurations are possible. For best results, follow Table 27 when populating DIMMs.

Table 27 Recommended Memory Configurations

Total

System

Memory

Size

CPU 1 DIMMs CPU 2 DIMMs DIMM Max

Operating

Speed

(MHz)

Total

DIMMs in

the

System1

Blue Slots

Bank 1

(A1, B1,

C1, D1)

Black Slots

Bank 2

(A2, B2,

C2, D2)

Blue Slots

Bank 1

(E1, F1,

G1, H1)

Black Slots

Bank 2

(E2, F2,

G2, H2)

32 GB 4x4 GB —4x4 GB —1600 8

2x8 GB —2x8 GB —1600 4

64 GB 4x4 GB 4x4 GB 4x4 GB 4x4 GB 1600 16

4x8 GB —4x8 GB —1600 8

1x32 GB —1x32GB —1600 2

96 GB

4x8 GB 2x8 GB 4x8 GB 2x8 GB 1600 12

3x16 GB —3x16 GB —1600 6

4x8 GB 4x4 GB 4x8 GB 4x4 GB 1600 16

1x32 GB 1x16 GB 1x32 GB 1x16 GB 1600 4

128 GB 4x8 GB 4x8 GB 4x8 GB 4x8 GB 1600 16

4x16 GB —4x16 GB —1600 8

1x32 GB 1x32GB 1x32 GB 1x32GB 1600 8

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

SUPPLEMENTAL MATERIAL

192 GB 4x16 GB 2x16 GB 4x16 GB 2x16 GB 1600 12

4x16 GB 4x8 GB 4x16 GB 4x8 GB 1600 16

2x32 GB 1x32 GB 2x32 GB 1x32 GB 1600 6

256 GB 4x16 GB 4x16 GB 4x16 GB 4x16 GB 1600 16

2x32 GB 2x32 GB 2x32 GB 2x32 GB 1600 8

512 GB 4x32 GB 4x32 GB 4x32 GB 4x32 GB 1600 16

Notes . . .

1. Rows marked in yellow indicate best performance

Table 27 Recommended Memory Configurations (continued)

Total

System

Memory

Size

CPU 1 DIMMs CPU 2 DIMMs DIMM Max

Operating

Speed

(MHz)

Total

DIMMs in

the

System1

Blue Slots

Bank 1

(A1, B1,

C1, D1)

Black Slots

Bank 2

(A2, B2,

C2, D2)

Blue Slots

Bank 1

(E1, F1,

G1, H1)

Black Slots

Bank 2

(E2, F2,

G2, H2)

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

SUPPLEMENTAL MATERIAL

Supported DIMM Populations

The supported DIMM populations are listed in Table 28.

Table 28 Supported DIMM Configurations

CPU 1 DIMMs Total DIMMs

for CPU 1 CPU 1

Capacity CPU 2 DIMMs Total DIM Ms

for CPU 2 CPU 2

Capacity

Total

Capacity for

2 CPUs

1 x 8 GB 18 GB 1 x 8 GB 18 GB 16 GB

1 x 16 GB 116 GB 1 x 16 GB 116 GB 32 GB

2 x 4 GB 28 GB 2 x 4 GB 28 GB 16 GB

4 x 4 GB 416 GB 4 x 4 GB 416 GB 32 GB

2 x 8 GB 216 GB 2 x 8 GB 216 GB 32 GB

6 x 4 GB 624 GB 6 x 4 GB 624 GB 48 GB

8 x 4 GB 832 GB 8 x 4 GB 832 GB 64 GB

4 x 8 GB 432 GB 4 x 8 GB 432 GB 64 GB

8 x 4 GB 832 GB 8 x 4 GB 832 GB 64 GB

1 x 32 GB 132 GB 1 x 32 GB 132 GB 64 GB

5 x 8 GB 540 GB 5 x 8 GB 540 GB 80 GB

3 x 16 GB 348 GB 3 x 16 GB 348 GB 96 GB

6 x 8 GB 648 GB 6 x 8 GB 648 GB 96 GB

4x8 GB + 4x4 GB 848 GB 4x8 GB + 4x4 GB 848 GB 96 GB

7 x 8 GB 756 GB 7 x 8 GB 756 GB 112 GB

4 x 16 GB 464 GB 4 x 16 GB 464 GB 128 GB

8 x 8 GB 864 GB 8 x 8 GB 864 GB 128 GB

2 x 32 GB 264 GB 2 x 32 GB 264 GB 128 GB

5 x 16 580 GB 5 x 16 580 GB 160 GB

4x16 GB + 4x4 GB 880 GB 4x16 GB + 4x4 GB 880 GB 160 GB

6 x 16 GB 696 GB 6 x 16 GB 696 GB 192 GB

4x8 GB + 4x16 GB 896 GB 4x8 GB + 4x16 GB 896 GB 192 GB

7 x 16 GB 7112 GB 7 x 16 GB 7112 GB 224 GB

8 x 16 GB 8128 GB 8 x 16 GB 8128 GB 256 GB

4 x 32 GB 4128 GB 4 x 32 GB 4128 GB 256 GB

8 x 32 GB 8256 GB 8 x 32 GB 8256 GB 512 GB

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

SUPPLEMENTAL MATERIAL

Low-Voltage DIMM Considerations

The C220 M3 server can be ordered with dual-voltage (1.5/1.35 V) DIMMs only. Note the following

considerations:

■Low-voltage DIMMs within the server must have the identical manufacturer, type, speed,

and size.

■Low-voltage DIMMs and standard-voltage DIMMs can be mixed in the same server. Note that

this causes the system BIOS to default to standard-voltage operation (Performance Mode).

That is, the server cannot operate in Power Saving Mode unless all DIMMs are low-voltage

DIMMs.

■CPUs that have a maximum memory frequency less than 1333 MHz support low-voltage

DIMMs operating in Power Saving Mode only, and do not support Performance Mode.

RAID Summary

The C220 M3 SFF server has an 8-drive backplane.

■ROM5 and ROM55 embedded RAID upgrade options support up to 8 drives

■Mezzanine card (UCSC-RAID-11-C220) supports up to 8 drives

■Mezzanine card (UCSC-RAID-MZ-220) supports up to 8 drives

■SAS 9266-8i and SAS 9266CV-8i PCIe cards support up to 8 drives

NOTE: If you do not select a mezzanine card, a plug-in PCIe RAID card, or one of the

embedded RAID upgrade options, you will have an embedded SATA-only RAID

controller that supports up to four SATA-only drives (RAID 0, 1, 10)

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

SUPPLEMENTAL MATERIAL

RACKS

The Cisco R42610 rack (see Figure 8) is certified for Cisco UCS installation at customer sites and is suitable

for the following equipment:

■Cisco UCS B-Series servers and fabric interconnects

■Cisco UCS C-Series and select Nexus switches

The rack is compatible with hardware designed for EIA-standard 19-inch racks. Rack specifications are

listed in Table 29.

Table 29 Cisco R42610 Rack Specifications

Parameter Standard Rack Expansion Rack

Dimensions (H x W x D) 78.74 x 24 x 43.38 in.

(2000 x 610 x 1102 mm) 78.74 x 23.58 x 43.38 in.

(2000 x 599 x 1102 mm)

Dimensions (H x W x D)

with packaging 89 x 33 x 47 in.

(2261 x 838 x 1194 mm) 89 x 33 x 47 in.

(2261 x 838 x 1194 mm)

Distance from front

mounting rail to rear

mounting rail

29.2 in (741 mm) 29.2 in (741 mm)

Weight 299.83 lb (136 kg) 231. 49 lb (105 kg)

Weight with packaging 354 lb

(161 kg) 284 lb

(129 kg)

Side panels included Yes No

Equipment mounting

capacity 42RU 42RU

Static load capacity 2100 lb

(954 kg) 2100 lb

(954 kg)

Dynamic load capacity Not applicable Not applicable

NOTE: The AC input connector is an IEC 320 C-14 15 A/250 VAC power inlet.

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

SUPPLEMENTAL MATERIAL

Figure 8 Cisco R42610 Rack

Front view - door closed Front view - door open Front view - door removed

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

SUPPLEMENTAL MATERIAL

PDUs

Cisco RP Series Power Distribution Units (PDUs) offer power distribution with branch circuit protection.

Cisco RP Series PDU models distribute power to up to 24 outlets. The architecture organizes power

distribution, simplifies cable management, and enables you to move, add, and change rack equipment

without an electrician.

With a Cisco RP Series PDU in the rack, you can replace up to two dozen input power cords with just one.

The fixed input cord connects to the power source from overhead or under-floor distribution. Your IT

equipment is then powered by PDU outlets in the rack using short, easy-to-manage power cords.

The C-series severs accept the zero-rack-unit (0RU) PDU. See Figure 9).

Figure 9 Zero Rack Unit PDU (PID = RP208-30-2P-U-2)

Cisco RP Series PDU models provide two 20-ampere (A) circuit breakers for groups of receptacles. The

effects of a tripped circuit are limited to a receptacle group. Simply press a button to reset that circuit.

1Breakers 3C19 plugs

2Ground connection 4C13 plugs

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

SUPPLEMENTAL MATERIAL

KVM CABLE

The KVM cable provides a connection into the server, providing a DB9 serial connector, a VGA connector for

a monitor, and dual USB ports for a keyboard and mouse. With this cable, you can create a direct

connection to the operating system and the BIOS running on the server.

The KVM cable ordering information is listed in Table 30.

Figure 10 KVM Cable

Table 30 KVM Cable

Product ID (PID) PID Description

N20-BKVM KVM cable for B-Series Blade Server console port

1Connector (to server front panel) 3VGA connector (for a monitor)

2DB-9 serial connector 4Two-port USB connector (for a mouse and

keyboard)

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

SUPPLEMENTAL MATERIAL

Motherboard USB and SD Ports, and RAID Card Backup Location

The C220 M3 SFF motherboard has a general-purpose USB socket, and two SD sockets as shown in Figure 11.

The mounting location for the RAID SuperCap data cache power backup module is also shown.

Figure 11 Motherboard USB and SD Ports and RAID Card Super Capacitor Location

1SD1 socket 3USB connector

2SD2 socket 4SuperCap module mounting location

FAN1FAN1FAN1

FAN2

FAN2FAN2

FAN3

FAN3FAN3

FAN4FAN4

FAN5

FAN5FAN5

PSU2

PCIe1

PCIe2

PSU1

CPU1

CPU2

SAS1

SAS2

SAS1

SAS2

331714

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

TECHNICAL SPECIFICATIONS

Dimensions and Weight

Power Specifications

The general power specifications for the C220 M3 SFF server 450 W power supply are listed in Table 32.

Table 31 UCS C220 M3 Dimensions and Weight

Parameter Value

Height 1.7 in. (4.32 cm)

Width 16.92 in.(43.0 cm)

Depth 28.5 in. (72.4cm)

Front Clearance 3 in. (76 mm)

Side Clearance 1 in. (25 mm)

Rear Clearance 6 in. (152 mm)

Weight

Maximum (8 HDDs, 2 CPUs, 16 DIMMs, 2 power supplies) 35.6 lbs (16.2 kg)

Minimum (1 HDD, 1 CPU, 1 DIMM, 1 power supply) 26.8 lbs (12.1 kg)

Bare (0 HDD, 0 CPU, 0 DIMM, 1 power supply) 22 lbs (10 kg)

Table 32 UCS C220 M3 SFF 450 W Power Supply Specifications

Description Specification

AC input voltage 90 to 264 VAC self-ranging,

100 to 120 VAC nominal

200 to 240 VAC nominal

AC input frequency Range: 47 to 63 Hz (single phase, 50 to 60 Hz nominal)

Maximum AC input current 7.6 A peak at 100 VAC

3.65 A peak at 208 VAC

Maximum AC inrush current 11 A

Maximum output power for each

power supply 450 W

Power supply output voltage Main power: 12 VDC

Standby power: 12 VDC

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

TECHNICAL SPECIFICATIONS

The general power specifications for the C220 M3 SFF server 650 W power supply are listed in Table 32.

For configuration-specific power specifications, use the Cisco UCS Power Calculator at this URL:

https://express.salire.com/Go/Cisco/Cisco-UCS-Power-Calculator.aspx

Power supply efficiency CSCI Platinum

NOTE: AC input connector is an IEC 320 C-14 15A/250VAC power inlet.

Table 33 UCS C220 M3 LFF 650 W Power Supply Specifications

Description Specification

AC input voltage 90 to 264 VAC self-ranging,

100 to 120 VAC nominal

200 to 240 VAC nominal

AC input frequency Range: 47 to 63 Hz (single phase, 50 to 60 Hz nominal)

Maximum AC input current 7.6 A peak at 100 VAC

3.65 A peak at 208 VAC

Maximum AC inrush current 11 A

Maximum output power for the

power supply 650 W

Power supply output voltage Main power: 12 VDC

Standby power: 12 VDC

Power supply efficiency CSCI Platinum

NOTE: AC input connector is an IEC 320 C-14 15A/250VAC power inlet.

Table 32 UCS C220 M3 SFF 450 W Power Supply Specifications

Description Specification

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

TECHNICAL SPECIFICATIONS

Environmental Specifications

The power specifications for the C220 M3 server are listed in Table 34.

Table 34 UCS C220 M3 Environmental Specifications

Parameter Minimum

Temperature operating 41 to 104° F (5 to 40° C)

derate the maximum temperature by 1°C per every 305m of

altitude above sea level

Temperature nonoperating –40 to 149°F (–40 to 65°C)

Humidity (RH) nonoperating,

non-condensing 10 to 90%

Altitude operating 0 to 3,000 m (0 to 10,000 ft.)

Altitude nonoperating 0 to 12,192 m (0 to 40,000 ft.)

Sound Power level, Measure

A-weighted per ISO7779 LWAd

(Bels)Operation at 73°F (23°C)

5.4

Sound Pressure level, Measure

A-weighted per ISO7779 LpAm

(dBA)Operation at 73°F (23°C)

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

TECHNICAL SPECIFICATIONS

Compliance Requirements

The regulatory compliance requirements for C-Series servers are listed in Table 35.

Table 35 UCS C-Series Regulatory Compliance Requirements

Parameter Description

Regulatory Compliance Products should comply with CE Markings per directives

2004/108/EC and 2006/95/EC

Safety UL 60950-1 Second Edition

CAN/CSA-C22.2 No. 60950-1 Second Edition

EN 60950-1 Second Edition

IEC 60950-1 Second Edition

AS/NZS 60950-1

GB4943 2001

EMC - Emissions 47CFR Part 15 (CFR 47) Class A

AS/NZS CISPR22 Class A

CISPR22 Class A

EN55022 Class A

ICES003 Class A

VCCI Class A

EN61000-3-2

EN61000-3-3

KN22 Class A

CNS13438 Class A

EMC - Immunity EN55024

CISPR24

EN300386

KN24

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

TECHNICAL SPECIFICATIONS

Cisco Systems A03D1Tbsata Users Manual UCS C220 M3 High Density Small Form Factor Rack Mount Server

A03D1TBSATA to the manual 90184770-1a4e-4838-b2dd-d80c7d7ad20c

Navigation menu

Versions of this User Manual:

Views

Navigation
