PA-E3 Serial Port Adapter Installation

and Configuration

Product Number: PA-E3(=) and PA-2E3(=)

Platforms Supported: Cisco 7500 Series, Cisco 7000 Series,

VIP2, Cisco 7200 Series, Cisco uBR7200 Series, Cisco 7100

Series, Catalyst 5000 Family Switches

Access Registrar, AccessPath, Any to Any, AtmDirector, CCDA, CCDE, CCDP, CCIE, CCNA, CCNP, CCSI, CD-PAC, the Cisco logo, Cisco Certified Internetwork Expert logo,

CiscoLink, the Cisco Management Connection logo, the Cisco NetWorks logo, the Cisco Powered Network logo, Cisco Systems Capital, the Cisco Systems Capital logo, Cisco Systems

Networking Academy, the Cisco Technologies logo, ConnectWay, ControlStream, Fast Step, FireRunner, GigaStack, IGX, JumpStart, Kernel Proxy, MGX, Natural Network Viewer,

NetSonar, Network Registrar, Packet, PIX, Point and Click Internetworking, Policy Builder, Precept, RouteStream, Secure Script, ServiceWay, SlideCast, SMARTnet, StreamView, The

Cell, TrafficDirector, TransPath, ViewRunner, VirtualStream, VisionWay, VlanDirector, Workgroup Director, and Workgroup Stack are trademarks; Changing the Way We Work, Live,

Play, and Learn, Empowering the Internet Generation, The Internet Economy, and The New Internet Economy are service marks; and Asist, BPX, Catalyst, Cisco, Cisco IOS, the Cisco

IOS logo, Cisco Systems, the Cisco Systems logo, the Cisco Systems Cisco Press logo, Enterprise/Solver, EtherChannel, EtherSwitch, FastHub, FastLink, FastPAD, FastSwitch, IOS,

IP/TV, IPX, LightStream, LightSwitch, MICA, NetRanger, Registrar, StrataView Plus, Stratm, TeleRouter, and VCO are registered trademarks of Cisco Systems, Inc. in the U.S. and certain

other countries. All other trademarks mentioned in this document are the property of their respective owners. (9905R)

PA-E3 Serial Port Adapter Installation and Configuration

Text Part Number: 78-4482-08

Preface v

Preface

This preface describes how to ﬁnd additional information on the PA-E3 serial port adapter and other

Cisco products, services, and documentation. This preface contains the following sections:

•Objectives, page v

•Organization, page v

•Related Documentation, page vi

•Cisco Connection Online, page viii

•Documentation CD-ROM, page viii

Objectives

This document describes how to install and conﬁgure the PA-E3 serial port adapter (PA-E3[=] and

PA-2E3[=]) in the following platforms:

•Second-generation Versatile Interface Processor (VIP2) in Cisco 7500 series routers and

Cisco 7000 series routers with the Cisco 7000 Series Route Switch Processor (RSP7000) and

Cisco 7000 Series Chassis Interface (RSP7000CI).

•Cisco 7200 series routers, which consist of the two-slot Cisco 7202, four-slot Cisco 7204 and

Cisco 7204VXR, and six-slot Cisco 7206 and Cisco 7206VXR

•Cisco uBR7200 series universal broadband routers

•Cisco 7100 series routers, which consist of the Cisco 7120 and Cisco 7140

•Catalyst Route Switch Module (RSM)/VIP2 in the Catalyst 5000 family switches

Organization

This document is organized into the following chapters:

Section Title Description

Chapter 1 Overview Describes the PA-E3 port adapter and

describes its LED displays, cables, and

receptacles.

Chapter 2 Preparing for Installation Describes safety considerations, tools

required, and procedures you should

perform before the actual installation.

Related Documentation

—Route Switch Module Catalyst VIP2-15 and VIP2-40 Installation and Conﬁguration Note

(Document Number 78-4780-01) which shipped with your Catalyst RSM/VIP2.

•For hardware installation and maintenance information on Cisco 7100 series routers, refer to the

Cisco 7100 Series Installation and Conﬁguration Guide publication that shipped with your

Cisco 7100 series router.

•For information on setting up a Virtual Private Network, see the Cisco 7100 Series VPN

Conﬁguration Guide.

•For hardware installation and maintenance information on the Cisco 7200 VXR routers, refer to

the Cisco 7200 VXR Installation and Conﬁguration Guide publication that shipped with your

Cisco 7200 VXR router.

•For hardware installation and maintenance information on the Cisco 7200 routers, refer to the

following publications that shipped with your router:

—Cisco 7202 Installation and Conﬁguration Guide

—Cisco 7204 Installation and Conﬁguration Guide

—Cisco 7206 Installation and Conﬁguration Guide

•For hardware installation and maintenance information on the Cisco uBR7200 series routers,

refer to the Cisco uBR72xx Universal Broadband Router Installation and Conﬁguration Guide

that shipped with your Cisco uBR7200 series router.

•For international agency compliance, safety, and statutory information for WAN interfaces for

the Cisco 7500 series routers, Cisco 7000 series routers, Cisco 7200 series routers, Cisco

ubr7200 series routers, and Cisco 7100 series routers, refer to the following publications:

—Regulatory Compliance and Safety Information for the Cisco 7500 Series Routers

—Regulatory Compliance and Safety Information for the Cisco 7000 Series Routers

—Regulatory Compliance and Safety Information for the Cisco 7200 Series Routers

—Regulatory Compliance and Safety Information for the Cisco 7100 Series Routers

—Regulatory Compliance and Safety Information for the Cisco uBR72xx Universal

Broadband Router

Note The regulatory compliance and safety information documentation listed above applies to the

Catalyst 5000 family switches and the Catalyst RSM/VIP2.

•For port adapter hardware and memory conﬁguration guidelines for the Cisco 7200 series

routers, refer to the document Cisco 7200 Series Port Adapter Hardware Conﬁguration

Guidelines.

To view Cisco documentation or obtain general information about the documentation, see the “Cisco

Connection Online” section on page viii or the “Related Documentation” section on page vi, or call

customer service at 800 553-6387 or 408 526-7208. Customer service hours are 5:00 a.m. to

6:00 p.m. Paciﬁc time, Monday through Friday (excluding Cisco-observed holidays). You can also

send e-mail to cs-rep@cisco.com.

Cisco Connection Online

viii PA-E3 Serial Port Adapter Installation and Configuration

Cisco Connection Online

Cisco Connection Online (CCO) is Cisco Systems’ primary, real-time support channel. Maintenance

customers and partners can self-register on CCO to obtain additional information and services.

Available 24 hours a day, 7 days a week, CCO provides a wealth of standard and value-added

services to Cisco’s customers and business partners. CCO services include product information,

product documentation, software updates, release notes, technical tips, the Bug Navigator,

conﬁguration notes, brochures, descriptions of service offerings, and download access to public and

authorized ﬁles.

CCO serves a wide variety of users through two interfaces that are updated and enhanced

simultaneously: a character-based version and a multimedia version that resides on the World Wide

Web (WWW). The character-based CCO supports Zmodem, Kermit, Xmodem, FTP, and Internet

e-mail, and it is excellent for quick access to information over lower bandwidths. The WWW version

of CCO provides richly formatted documents with photographs, ﬁgures, graphics, and video, as well

as hyperlinks to related information.

You can access CCO in the following ways:

WWW: http://www.cisco.com

WWW: http://www-europe.cisco.com

WWW: http://www-china.cisco.com

Telnet: cco.cisco.com

Modem: From North America, 408 526-8070; from Europe, 33 1 64 46 40 82. Use the following

terminal settings: VT100 emulation; databits: 8; parity: none; stop bits: 1; and connection rates up

to 28.8 kbps.

For a copy of CCO’s Frequently Asked Questions (FAQ), contact cco-help@cisco.com. For

additional information, contact cco-team@cisco.com.

If you are a network administrator and need personal technical assistance with a Cisco product that

is under warranty or covered by a maintenance contract, contact Cisco’s Technical Assistance Center

(TAC) at 800 553-2447, 408 526-7209, or tac@cisco.com. To obtain general information about

Cisco Systems, Cisco products, or upgrades, contact 800 553-6387, 408 526-7208, or

cs-rep@cisco.com.

Documentation CD-ROM

Cisco documentation and additional literature are available in a CD-ROM package, which ships with

your product. The Documentation CD-ROM, a member of the Cisco Connection Family, is updated

monthly. Therefore, it might be more current than printed documentation. To order additional copies

of the Documentation CD-ROM, contact your local sales representative or call customer service.

The CD-ROM package is available as a single package or as an annual subscription. You can also

access Cisco documentation on the World Wide Web at http://www.cisco.com,

http://www-china.cisco.com, or http://www-europe.cisco.com.

If you are reading Cisco product documentation on the World Wide Web, you can submit comments

electronically. Click Feedback in the toolbar and select Documentation. After you complete the

form, click Submit to send it to Cisco. We appreciate your comments.

CHAPTER

Overview 1-1

Overview

This chapter describes the one-port PA-E3 and two-port PA-2E3 E3 serial port adapters. This

chapter contains the following sections:

•Port Adapter Overview, page 1-1

•PA-E3 Serial Port Adapter Features, page 1-2

•Management Information Base, page 1-3

•PA-E3 Port Adapter LEDs, page 1-3

•PA-E3 Receptacles and Cables, page 1-4

•Interoperability Guidelines for PA-E3 DSUs, page 1-5

Port Adapter Overview

The PA-E3 is a single-width, one-port or two-port module that integrates data service unit (DSU)

functionality into the Cisco router (see Figure 1-1 and Figure 1-2). The module provides one or two

high-speed serial E3 interfaces on:

• Cisco 7100 series routers

•Cisco 7200 series routers

•Cisco uBR7200 series routers

•Second-generation Versatile Interface Processors (VIP2) in all Cisco 7000 series and Cisco 7500

series routers

•Catalyst RSM/VIP2 in the Catalyst 5000 family switches

Note Port adapters have a handle attached, but this handle is occasionally not shown in ﬁgures in

this publication to allow a full view of detail on the port adapter’s faceplate.

Port Adapter Overview

PA-E3 Serial Port Adapter Installation and Configuration

1-2

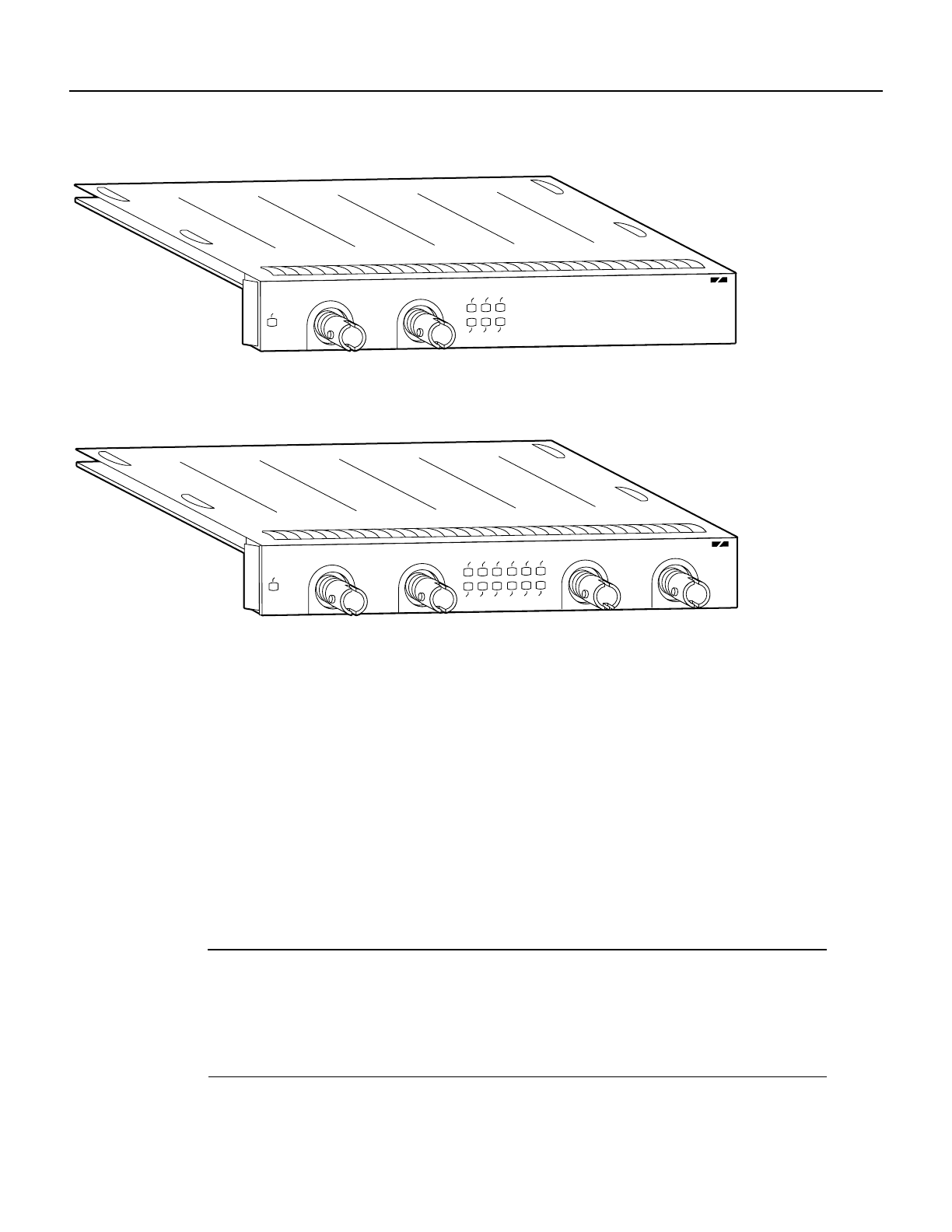

Figure 1-1 One-Port PA-E3 Serial Port Adapter

Figure 1-2 Two-Port PA-2E3 Serial Port Adapter

The one-port PA-E3 provides two network interfaces per VIP2 for Cisco 7000 series and

Cisco 7500 series routers and the Catalyst RSM/VIP2 for Catalyst 5000 family switches, and one

high-speed interface on the Cisco 7100 series, Cisco 7200 series, and Cisco uBR7200 series routers.

The two-port PA-2E3 provides four network interfaces per VIP2 for Cisco 7000 series and

Cisco 7500 series routers and the Catalyst RSM/VIP2 for Catalyst 5000 family switches, and two

high-speed interfaces on the Cisco 7100 series, Cisco 7200 series, and Cisco uBR7200 series

routers.

Serial network interfaces reside on modular port adapters, which provide a direct connection

between the high-speed bus in the router and the external networks. The PA-E3 provides a

full-duplex synchronous serial E3 interface for transmitting and receiving data at rates of up to

34 megabits per second (Mbps).

The port adapter supports both 16- and 32-bit cyclic redundancy checks (CRCs). The default is

16-bit CRCs; to enable 32-bit CRCs, you use a conﬁguration command. For a description of the CRC

function, see the “Conﬁguring Cyclic Redundancy Checks” section on page 8-10.

Note Although the VIP2 and Catalyst RSM/VIP2 supports online insertion and removal (OIR),

individual port adapters do not. To replace port adapters, you must ﬁrst remove the VIP2 and

Catalyst RSM/VIP2 from the chassis, and then replace port adapters as required.

The Cisco 7100 series, Cisco 7200 series, and Cisco uBR7200 series routers support the OIR of all

port adapter types.

H10607

RCLK

XMTR

RCVR

ENABLED

FERF

OOF

AIS

E3 SERIAL

H10050

RCLK

XMTR

RCVR

ENABLED

FERF

OOF

RCLK

FERF

AIS

OOF

AIS

2E3 SERIAL

XMTR

RCVR

Overview 1-3

PA-E3 Serial Port Adapter Features

The PA-E3 serial port adapter has the following features:

•Single-width port adapter for the VIP2 in all Cisco 7000 series and Cisco 7500 routers, and in

Cisco 7100 series, Cisco 7200 series, and Cisco uBR7200 series routers

•Single-width port adapter for the Catalyst RSM/VIP2 in the Catalyst 5000 family switches

•Single- or double-port E3 rate (34 Mbps) connectivity

•Full-duplex synchronous serial E3 interface

•High-speed High-Level Data Link Control (HDLC) data

•Integrated data service unit (DSU) functionality

•Support for 16- and 32-bit cyclic redundancy checks (CRCs)

•Support for G.751 framing or bypass framing

•Support for ATM-DXI, Frame Relay, HDLC, SMDS, and PPP serial encapsulations

•Support for national service bits

•Support for E3 MIB (RFC 1407)

•Support for remote and local loopback

•HDB3 line coding

•Scrambling and bandwidth reduction

•Online insertion and removal (OIR)

Management Information Base

Management Information Base (MIB) attributes are readable and writable across the Interim Local

Management Interface (ILMI) through use of the Simple Network Management Protocol (SNMP).

The one-port PA-E3 supports MIB-II (RFC 1213) and the E3 interface MIB (RFC 1407).

The two-port PA-2E3 supports MIB-II (RFC 1213) and the E3 interface MIB (RFC 1407).

PA-E3 Port Adapter LEDs

The one-port PA-E3 port adapter has one status LED and six uplink port status LEDs (RCLK, FERF,

OOF, AIS, RL, and LL) for the serial E3 port. (See Figure 1-3.)

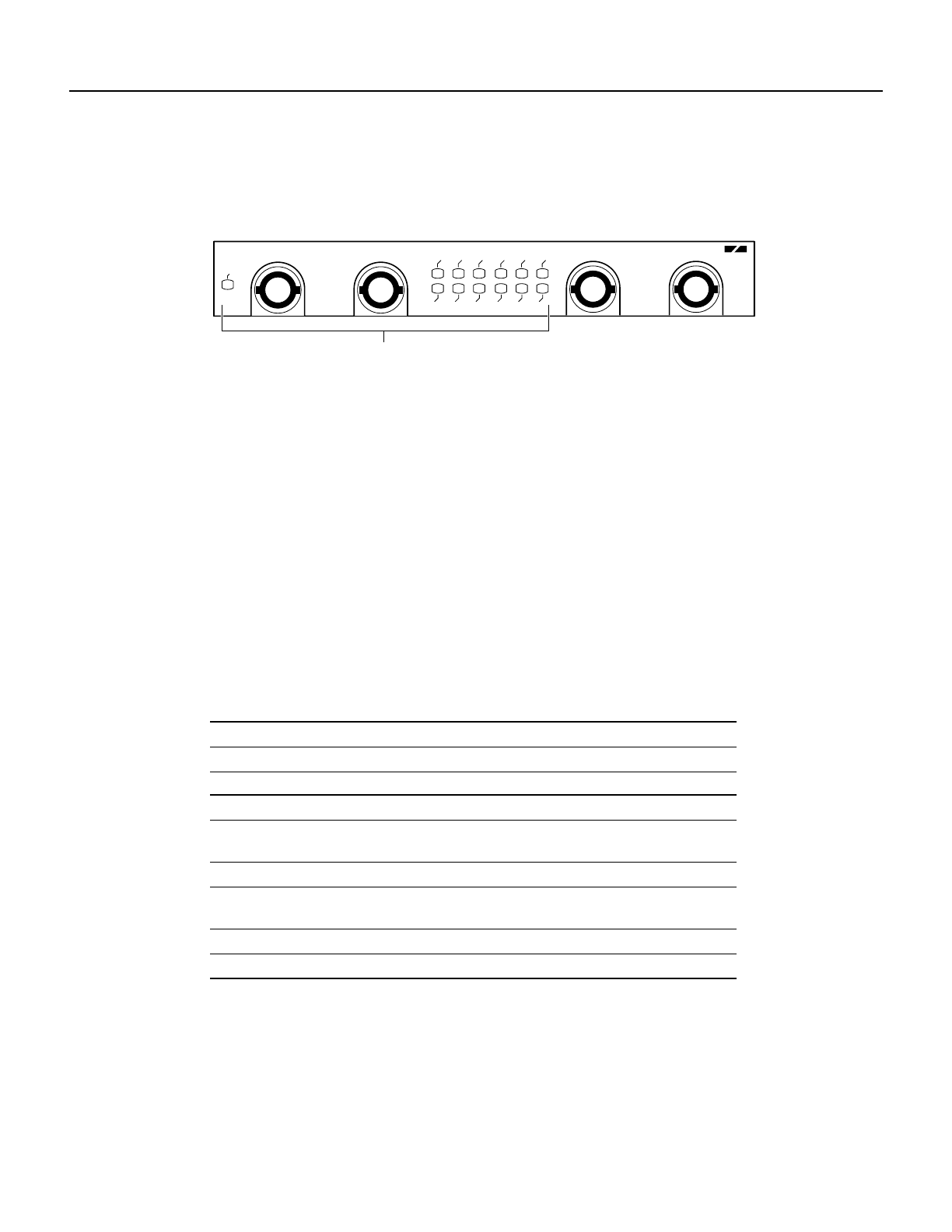

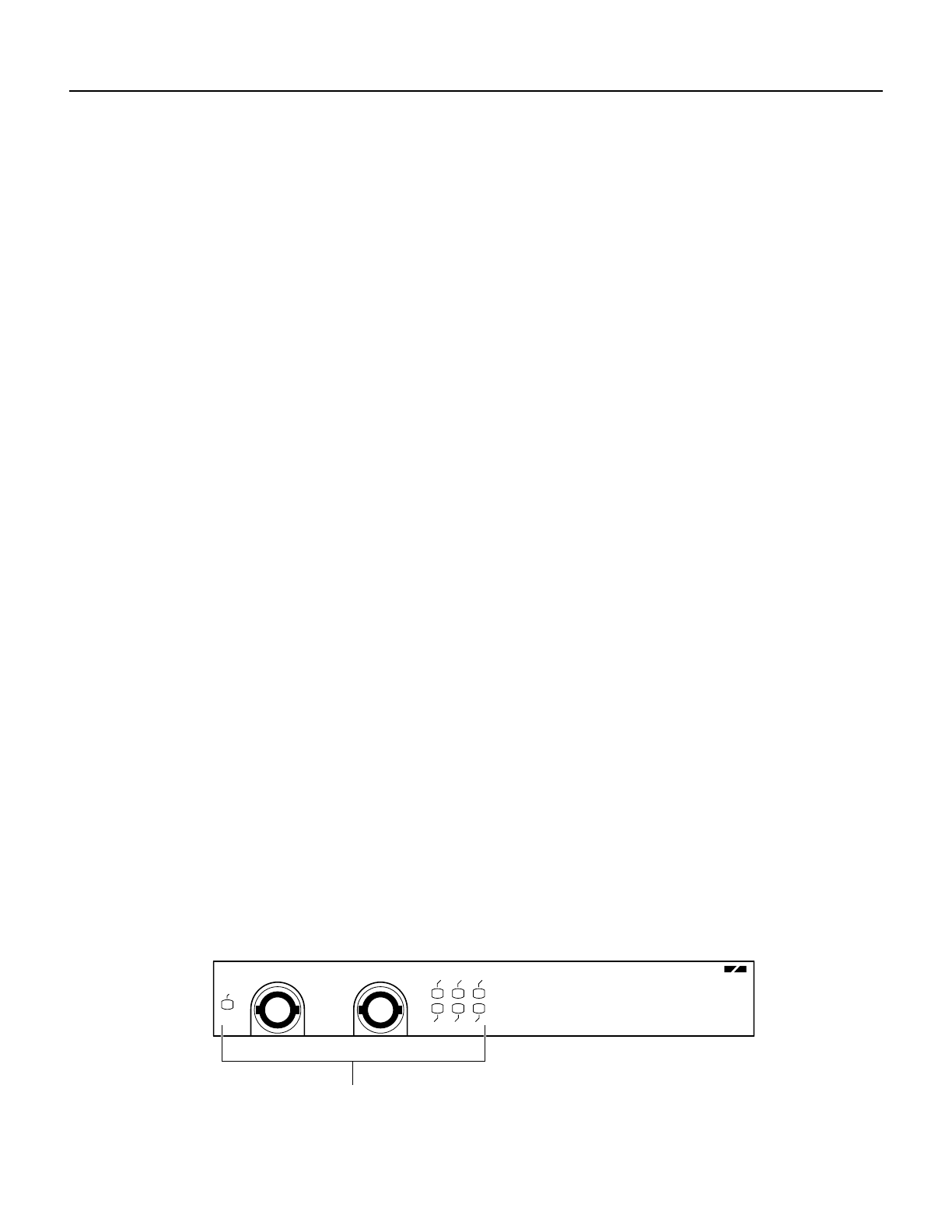

Figure 1-3 One-Port PA-E3 Port Adapter LEDs—Partial Front View Shown

ENABLED

RCVR

XMTR

RCLK

AIS FERF

OOF

E3 SERIAL

H10606

LEDs

PA-E3 Receptacles and Cables

PA-E3 Serial Port Adapter Installation and Configuration

1-4

The two-port PA-2E3 port adapter has one status LED and six uplink port status LEDs (RCLK,

FERF, OOF, AIS, RL, and LL) for each serial E3 port. (See Figure 1-4.)

Figure 1-4 Two-Port PA-2E3 Port Adapter LEDs—Partial Front View Shown

After system initialization, the ENABLED LED goes on, indicating that the port adapter has been

enabled for operation.

The following conditions must be met before the PA-E3 port adapter is enabled:

•The port adapter contains a valid microcode version that has been downloaded successfully.

•For Cisco 7000 and 7500 series routers, the port adapter is correctly connected to the VIP2 and

the midplane and is receiving power in the Cisco router.

•For the Catalyst 5000 family switches, the port adapter is correctly connected to the

Catalyst RSM/VIP2 and is receiving power in the switch.

•The bus recognizes the port adapter.

If any of these conditions are not met, or if the initialization fails for other reasons, the ENABLED

LED does not go on.

Table 1-1 describes the PA-E3 LEDs.

Table 1-1 PA-E3 Port Adapter LEDs

PA-E3 Receptacles and Cables

The serial interface cable for the PA-E3, which is a 75-ohm coaxial cable, is used to connect your

router to a serial E3 network. Serial cables conform to EIA/TIA-612 and EIA/TIA-613

speciﬁcations. The serial ports on the PA-E3 are considered to be DTE devices.

Name Color State Description

ENABLED Green On Indicates that the port adapter is ready.

Uplink port status

RCLK Green On Indicates that a receive clock has been detected.

FERF Yellow On Indicates that Framer detected Far End Receive

Failure.

OOF Yellow On Indicates that Framer detected Out of Frame.

AIS Yellow On Indicates that Framer detected Alarm Indication

Signal.

RL Yellow On Indicates that port is in remote loopback mode.

LL Yellow On Indicates that port is in local loopback mode.

ENABLED

RCVR

XMTR

RCLK

AIS FERF

RCLK

FERF

OOF

AIS

OOF

2E3 SERIAL

H10049

LEDs

Overview 1-5

Interoperability Guidelines for PA-E3 DSUs

On a single PA-E3, there are one or two serial E3 ports, each with two connectors (receive and

transmit), where you connect the Cisco 75-ohm coaxial cable. The 75-ohm coaxial cable

(Cisco part number CAB-ATM-DS3/E3) for the PA-E3 is available only from Cisco Systems; it is

not available from outside commercial cable vendors.

The Cisco E3 75-ohm coaxial cable, which comes with an attached ferrite sleeve (see Figure 1-5),

is available only in 10-foot (3.05-meter) lengths. The typical maximum distance between stations

for E3 transmissions is 1300 feet (396 meters).

Note For E3 (75-ohm) connections, you must have ferrite beads on the 75-ohm coaxial cable and

EMI decoupling clips on the Rcvr end of the cable (see Figure 1-5) if compliance with European

certiﬁcation standards for emission control is required (EN55022/CISPR22 Class B for radiated

emission levels).

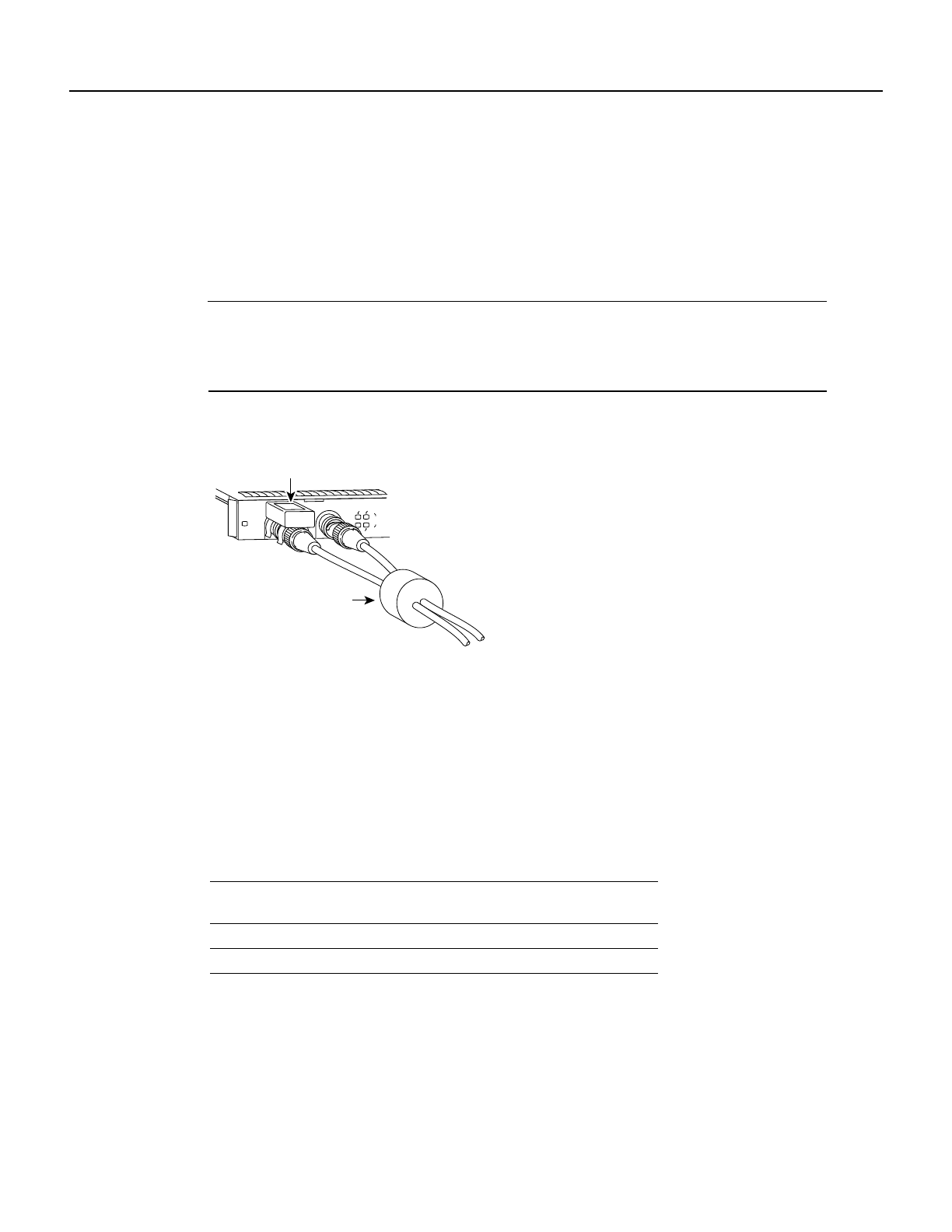

Figure 1-5 PA-E3 Cables

You can test the DTE-to-DCE cable connection by using the loopback dte command. See the

“Using the loopback Command to Verify the Physical Interface” section on page 8-20 for more

information.

Interoperability Guidelines for PA-E3 DSUs

The PA-E3 supports several types of integrated DSUs. Table 1-2 lists the feature compatibilities of

the PA-E3 DSUs.

Table 1-2 Feature Compatibilities of PA-E3 DSUs

DSU Full Rate

Support Scrambling

Support Subrate

Support

DL3100E Yes No1

1 DL3100E does not support scrambling. However, the PA-E3 can turn on scrambling

in DSU mode 0 for connecting to another PA-E3. The PA-E3 supports either

scrambling (in mode 0) or DL3100E subrate, not both at the same time.

Yes1

Kentrox Yes Yes2

2 The PA-E3 supports either scrambling or Kentrox subrate, not both at the same time.

Yes2

RCLK

XMTR

RCVR

FERF

OOF

AIS

H10314

EMI decoupler clip

Ferrite beads

Interoperability Guidelines for PA-E3 DSUs

PA-E3 Serial Port Adapter Installation and Configuration

1-6

CHAPTER

Preparing for Installation 2-1

Preparing for Installation

This chapter describes the general equipment, safety, and site preparation requirements for installing

PA-E3 port adapters.

•Parts and Tools Required, page 2-1

•Software and Hardware Requirements, page 2-2

•Safety Guidelines, page 2-3

•Compliance Information, page 2-6

Parts and Tools Required

You need the following tools and parts to install a port adapter. If you need additional equipment,

contact a service representative for ordering information.

•PA-E3 serial port adapter and one of the following:

—VIP2-15(=) if you are installing only one PA-E3 port adapter; otherwise, we recommend a

VIP2-40(=) or VIP2-50(=).

—Catalyst RSM/VIP2-15(=) if you are installing only one PA-E3 port adapter; otherwise, we

recommend a Catalyst RSM/VIP2-40(=).

—Cisco 7100 series router with at least one available port adapter slot.

—Cisco 7200 series router with at least one available port adapter slot.

—Cisco uBR7200 series router with at least one available port adapter slot.

•Cisco 75-ohm coaxial serial interface cables. (The PA-E3’s 75-ohm cables are available only

from Cisco Systems; they are not available from outside commercial vendors.)

•Number 1 Phillips screwdriver and a 3/16-inch ﬂat-blade screwdriver (for VIP2 and

Catalyst RSM/VIP2 installation only).

•Your own ESD-prevention equipment or the disposable grounding wrist strap included with all

upgrade kits, ﬁeld-replaceable units (FRUs), and spares.

Software and Hardware Requirements

PA-E3 Serial Port Adapter Installation and Configuration

2-2

Software and Hardware Requirements

Table 2-1 lists the minimum Cisco IOS software release required to use the one-port PA-E3 and

two-port PA-2E3 in supported router platforms.

Table 2-1 PA-E3 and PA-2E3 Software Requirements

Caution The VIP2 requires that the host Cisco 7000 series router have the RSP7000 and RSP7000CI

installed. The VIP2 does not operate properly with the Route Processor (RP), Switch Processor (SP), or

Silicon Switch Processor (SSP) installed in the host Cisco series router.

The PA-E3 is considered a high-bandwidth port adapter; therefore at a minimum, Cisco recommends

that the PA-E3 be installed on the VIP2-15 or Catalyst RSM/VIP2-15 motherboard (with 1 MB of

SRAM and 8 MB of DRAM). Installation of the PA-E3 on the VIP2-10 (with 512 KB of SRAM and

8 MB of DRAM) is not recommended.

Platforms Recommended Minimum Cisco IOS Release

Cisco 7000 and Cisco 7500 Series PA-E3 PA-2E3

• With VIP2-15(=) or VIP2-40(=)

• With VIP2-50(=)

Cisco IOS Release 11.1(13)CA or a later

release of Cisco IOS Release 11.1 CA

Cisco IOS Release 11.1(14)CA or a later

release of Cisco IOS Release 11.1 CA

Cisco IOS Release 11.1(16)CA or a later

release of Cisco IOS Release 11.1 CA

Cisco IOS Release 11.1(16)CA or a later

release of Cisco IOS Release 11.1 CA

Cisco 7200 Series

• Cisco 7204VXR and Cisco 7206VXR Cisco IOS Release 12.0(2)XE2 or a later

release of Cisco IOS Release 12.0 XE

Cisco IOS Release 12.0(3)T or a later release

of Cisco IOS Release 12.0 T

Cisco IOS Release 12.0(2)XE2 or a later

release of Cisco IOS Release 12.0 XE

Cisco IOS Release 12.0(3)T or a later release

of Cisco IOS Release 12.0 T

• Cisco 7204 and Cisco 7206 Cisco IOS Release 11.1(16)CA or a later

release of Cisco IOS Release 11.1 CA

Cisco IOS Release 11.1(16)CA or a later

release of Cisco IOS Release 11.1 CA

• Cisco 7202 Cisco IOS Release 11.1(19)CC1 or a later

release of Cisco IOS Release 11.1 CC

Cisco IOS Release 11.3(4)AA or a later

release of Cisco IOS Release 11.3 AA

Cisco IOS Release 11.1(19)CC1 or a later

release of Cisco IOS Release 11.1 CC

Cisco IOS Release 11.3(4)AA or a later

release of Cisco IOS Release 11.3 AA

Cisco uBR7200 Series

• Cisco uBR7246 and Cisco uBR7223 Cisco IOS Release 12.0(2)XA or a later

release of Cisco IOS Release 12.0 XA

Cisco IOS Release 12.0(2)XA or a later

release of Cisco IOS Release 12.0 XA

Cisco 7100 Series

• Cisco 7120 series and Cisco 7140 series Cisco IOS Release 12.0(4)XE or a later

release of Cisco IOS Release 12.0 XE

Cisco IOS Release 12.0(5)T or a later release

of Cisco IOS Release 12.0 T

Catalyst 5000 Family Switches

• With Catalyst RSM/VIP2-15(=) or

Catalyst RSM/VIP2-40(=)

Cisco IOS Release 12.0(1) or a later release of

Cisco IOS Release 12.0

Cisco IOS Release 12.0(1) or a later release of

Cisco IOS Release 12.0

Preparing for Installation 2-3

Safety Guidelines

Note The VIP2 and Catalyst RSM/VIP2 supports online insertion and removal (OIR), but

individual port adapters do not. To replace the port adapters, you must ﬁrst remove the VIP2 or

Catalyst RSM/VIP2 from the chassis and then replace port adapters as required. OIR is supported

for port adapters in the Cisco 7100 series, Cisco 7200 series, and Cisco uBR7200 series routers.

Port adapters have a handle attached, but this handle is occasionally not shown in illustrations in this

publication to allow a full view of detail on the port adapter’s faceplate.

In the Cisco 7000 series, Cisco 7100 series, Cisco 7500 series, Cisco uBR7200 series routers and

Catalyst 5000 family switches, there are no restrictions on slot locations or sequence; however, in

the Cisco 7200 series routers, there are speciﬁc conﬁguration guidelines that must be observed for

high-bandwidth port adapters.

For speciﬁc Cisco 7200 series hardware conﬁguration information and for memory conﬁguration

guidelines for Cisco 7200 series routers, refer to the document Cisco 7200 Series Port Adapter

Hardware Conﬁguration Guidelines, which shipped with your Cisco 7200 series chassis and is also

available on the Cisco Connection Documentation, Enterprise Series CD-ROM.

To determine if your Cisco 7000 series, Cisco 7100 series, Cisco 7500 series, Cisco 7200 series, or

Cisco uBR7200 series router, or the Catalyst RSM/VIP2 is compatible with the PA-E3, use the show

version command to display the current hardware conﬁguration of the router, including the system

software version that is currently loaded and running.

You can check the version of the default ROM image by removing the board and checking the ROM

labels, or by conﬁguring the interface or system software to boot from ROM, restarting the system,

and using the show version command to check the running version.

To display the current system software version, use the show version command. In the following

example, the running system software is Release 11.1(16)CA.

Router> show version

Cisco Internetwork Operating System Software

IOS (tm) GS Software, Version 11.1(16)CA

Synced to mainline version: 11.1(10.5)

Compiled Thu 22-May-97 14:32

If your system lacks the required system software and microcode, contact a customer service

representative for upgrade information.

Safety Guidelines

The following are safety guidelines that you should follow when working with any equipment that

connects to electrical power or telephone wiring.

Warning This warning symbol means danger. You are in a situation that could cause bodily injury. Before

you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with

standard practices for preventing accidents. To see translations of the warnings that appear in this publication,

refer to the Regulatory Compliance and Safety Information document that accompanied this device.

Waarschuwing Dit waarschuwingssymbool betekent gevaar. U verkeert in een situatie die

lichamelijk letsel kan veroorzaken. Voordat u aan enige apparatuur gaat werken, dient u zich bewust

te zijn van de bij elektrische schakelingen betrokken risico's en dient u op de hoogte te zijn van

standaard maatregelen om ongelukken te voorkomen. Voor vertalingen van de waarschuwingen die

Safety Guidelines

PA-E3 Serial Port Adapter Installation and Configuration

2-4

in deze publicatie verschijnen, kunt u het document Regulatory Compliance and Safety Information

(Informatie over naleving van veiligheids- en andere voorschriften) raadplegen dat bij dit toestel is

ingesloten.

Varoitus Tämä varoitusmerkki merkitsee vaaraa. Olet tilanteessa, joka voi johtaa ruumiinvammaan.

Ennen kuin työskentelet minkään laitteiston parissa, ota selvää sähkökytkentöihin liittyvistä

vaaroista ja tavanomaisista onnettomuuksien ehkäisykeinoista. Tässä julkaisussa esiintyvien

varoitusten käännökset löydät laitteen mukana olevasta Regulatory Compliance and Safety

Information -kirjasesta (määräysten noudattaminen ja tietoa turvallisuudesta).

Attention Ce symbole d'avertissement indique un danger. Vous vous trouvez dans une situation

pouvant causer des blessures ou des dommages corporels. Avant de travailler sur un équipement,

soyez conscient des dangers posés par les circuits électriques et familiarisez-vous avec les

procédures couramment utilisées pour éviter les accidents. Pour prendre connaissance des

traductions d’avertissements ﬁgurant dans cette publication, consultez le document Regulatory

Compliance and Safety Information (Conformité aux règlements et consignes de sécurité) qui

accompagne cet appareil.

Warnung Dieses Warnsymbol bedeutet Gefahr. Sie beﬁnden sich in einer Situation, die zu einer

Körperverletzung führen könnte. Bevor Sie mit der Arbeit an irgendeinem Gerät beginnen, seien Sie

sich der mit elektrischen Stromkreisen verbundenen Gefahren und der Standardpraktiken zur

Vermeidung von Unfällen bewußt. Übersetzungen der in dieser Veröffentlichung enthaltenen

Warnhinweise ﬁnden Sie im Dokument Regulatory Compliance and Safety Information

(Informationen zu behördlichen Vorschriften und Sicherheit), das zusammen mit diesem Gerät

geliefert wurde.

Avvertenza Questo simbolo di avvertenza indica un pericolo. La situazione potrebbe causare

infortuni alle persone. Prima di lavorare su qualsiasi apparecchiatura, occorre conoscere i pericoli

relativi ai circuiti elettrici ed essere al corrente delle pratiche standard per la prevenzione di incidenti.

La traduzione delle avvertenze riportate in questa pubblicazione si trova nel documento Regulatory

Compliance and Safety Information (Conformità alle norme e informazioni sulla sicurezza) che

accompagna questo dispositivo.

Advarsel Dette varselsymbolet betyr fare. Du beﬁnner deg i en situasjon som kan føre til

personskade. Før du utfører arbeid på utstyr, må du vare oppmerksom på de faremomentene som

elektriske kretser innebærer, samt gjøre deg kjent med vanlig praksis når det gjelder å unngå ulykker.

Hvis du vil se oversettelser av de advarslene som ﬁnnes i denne publikasjonen, kan du se i

dokumentet Regulatory Compliance and Safety Information (Overholdelse av forskrifter og

sikkerhetsinformasjon) som ble levert med denne enheten.

Aviso Este símbolo de aviso indica perigo. Encontra-se numa situação que lhe poderá causar danos

físicos. Antes de começar a trabalhar com qualquer equipamento, familiarize-se com os perigos

relacionados com circuitos eléctricos, e com quaisquer práticas comuns que possam prevenir

possíveis acidentes. Para ver as traduções dos avisos que constam desta publicação, consulte o

documento Regulatory Compliance and Safety Information (Informação de Segurança e Disposições

Reguladoras) que acompanha este dispositivo.

¡Advertencia! Este símbolo de aviso signiﬁca peligro. Existe riesgo para su integridad física.

Antes de manipular cualquier equipo, considerar los riesgos que entraña la corriente eléctrica y

familiarizarse con los procedimientos estándar de prevención de accidentes. Para ver una traducción

de las advertencias que aparecen en esta publicación, consultar el documento titulado Regulatory

Compliance and Safety Information (Información sobre seguridad y conformidad con las

disposiciones reglamentarias) que se acompaña con este dispositivo.

Preparing for Installation 2-5

Electrical Equipment Guidelines

Varning! Denna varningssymbol signalerar fara. Du beﬁnner dig i en situation som kan leda till

personskada. Innan du utför arbete på någon utrustning måste du vara medveten om farorna med

elkretsar och känna till vanligt förfarande för att förebygga skador. Se förklaringar av de varningar

som förkommer i denna publikation i dokumentet Regulatory Compliance and Safety Information

(Efterrättelse av föreskrifter och säkerhetsinformation), vilket medföljer denna anordning.

Electrical Equipment Guidelines

Follow these basic guidelines when working with any electrical equipment:

•Before beginning any procedures requiring access to the chassis interior, locate the emergency

power-off switch for the room in which you are working.

•Disconnect all power and external cables before moving a chassis.

•Do not work alone when potentially hazardous conditions exist and never assume that power has

been disconnected from a circuit; always check.

•Do not perform any action that creates a potential hazard to people or makes the equipment

unsafe. Carefully examine your work area for possible hazards such as moist ﬂoors, ungrounded

power extension cables, and missing safety grounds.

Telephone Wiring Guidelines

Use the following guidelines when working with any equipment that is connected to telephone

wiring or to other network cabling:

•Never install telephone wiring during a lightning storm.

•Never install telephone jacks in wet locations unless the jack is speciﬁcally designed for wet

locations.

•Never touch uninsulated telephone wires or terminals unless the telephone line has been

disconnected at the network interface.

•Use caution when installing or modifying telephone lines.

Preventing Electrostatic Discharge Damage

Electrostatic discharge (ESD) damage, which can occur when electronic cards or components are

improperly handled, results in complete or intermittent failures. Port adapters and processor modules

consist of printed circuit boards that are ﬁxed in metal carriers. Electromagnetic interference (EMI)

shielding and connectors are integral components of the carrier. Although the metal carrier helps to

protect the board from ESD, use a preventive antistatic strap during handling.

The following are guidelines for preventing ESD damage:

•Always use an ESD wrist or ankle strap and ensure that it makes good skin contact.

•Connect the equipment end of the strap to an unﬁnished chassis surface.

•When installing a component, use any available ejector levers or captive installation screws to

properly seat the bus connectors in the backplane or midplane. These devices prevent accidental

removal, provide proper grounding for the system, and help to ensure that bus connectors are

properly seated.

•When removing a component, use any available ejector levers or captive installation screws to

release the bus connectors from the backplane or midplane.

Compliance Information

PA-E3 Serial Port Adapter Installation and Configuration

2-6

•Handle carriers by available handles or edges only; avoid touching the printed circuit boards or

connectors.

•Place a removed component board-side-up on an antistatic surface or in a static shielding

container. If you plan to return the component to the factory, immediately place it in a static

shielding container.

•Avoid contact between the printed circuit boards and clothing. The wrist strap only protects

components from ESD voltages on the body; ESD voltages on clothing can still cause damage.

•Never attempt to remove the printed circuit board from the metal carrier.

Caution For safety, periodically check the resistance value of the antistatic strap. The measurement should

be between 1 and 10 megohms (Mohm).

Compliance Information

The following sections provide compliance information that applies to the FCC and the PA-E3 serial

port adapter, which has been designed to meet these requirements. Modiﬁcations to this product that

are not authorized by Cisco Systems, Inc., could void the various approvals and negate your

authority to operate the product.

BABT Compliance

The BABT607116 marking on the PA-E3 signiﬁes that it meets United Kingdom directive 607116

and has been designed to BABT standards. The BABT label is located on the top of the PA-E3;

Figure 2-1 shows the BABT label for the PA-E3.

Figure 2-1 BABT Label for PA-E3 Serial Port Adapter

ITI-T Compliance

ITI-T recommendation G.823 speciﬁes that it is important to restrict jitter gain. Figure 4 of G.823

shows a typical jitter transfer characteristic. (Note that small jitter gain is allowed.) British Standard

6328: Section 8.1 1990 gives the allowable gain as 0.5 dB. The PA-E3’s line mode clocking complies

with these sections.

TBR24 Compliance

When the PA-E3 is in line clocking mode, jitter is not attenuated, and any jitter received is transferred

to the line. If input jitter exceeds the limits of TBR24, then output jitter will not meet TBR24 transfer

speciﬁcations. Line clocking mode is intended for use only where the connection involves a single

hop, and where clock timing will not be transferred to other network equipment.

When not in line clocking mode, the PA-E3 complies with TBR24 standards.

H10017

607116

CHAPTER

VIP2 and the PA-E3 3-1

VIP2 and the PA-E3

This chapter provides information on the PA-E3 serial port adapter and its use on the VIP2 in

Cisco 7000 series and Cisco 7500 series routers. This chapter contains the following sections:

•Overview, page 3-1

•Removing a Port Adapter, page 3-4

•Installing a Port Adapter, page 3-5

Overview

The PA-E3 is used on the VIP2 in Cisco 7000 series and Cisco 7500 series routers and can be

installed in either port adapter slot 0 or slot 1 on the VIP2 motherboard.

Note You can have up to three E3 serial interfaces on a VIP2 motherboard. Cisco recommends a

conﬁguration of one PA-E3 (with one E3 serial interface) and one PA-2E3 (with two serial

interfaces) for a total of three E3 serial interfaces per VIP2.

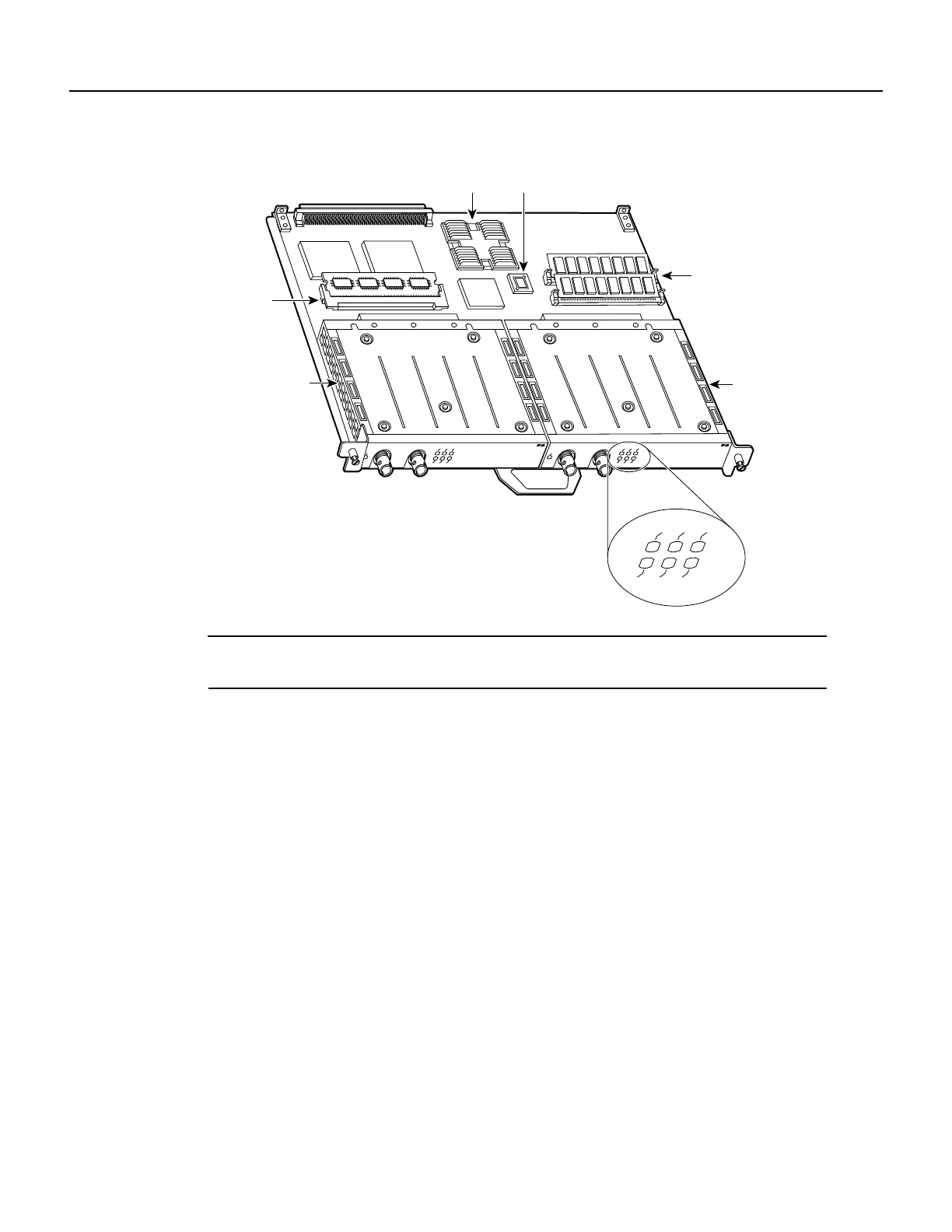

Figure 3-1 shows two one-port PA-E3 port adapters installed in port adapter slot 0 and slot 1, on a

VIP2-15 or VIP2-40.

Overview

PA-E3 Serial Port Adapter Installation and Configuration

3-2

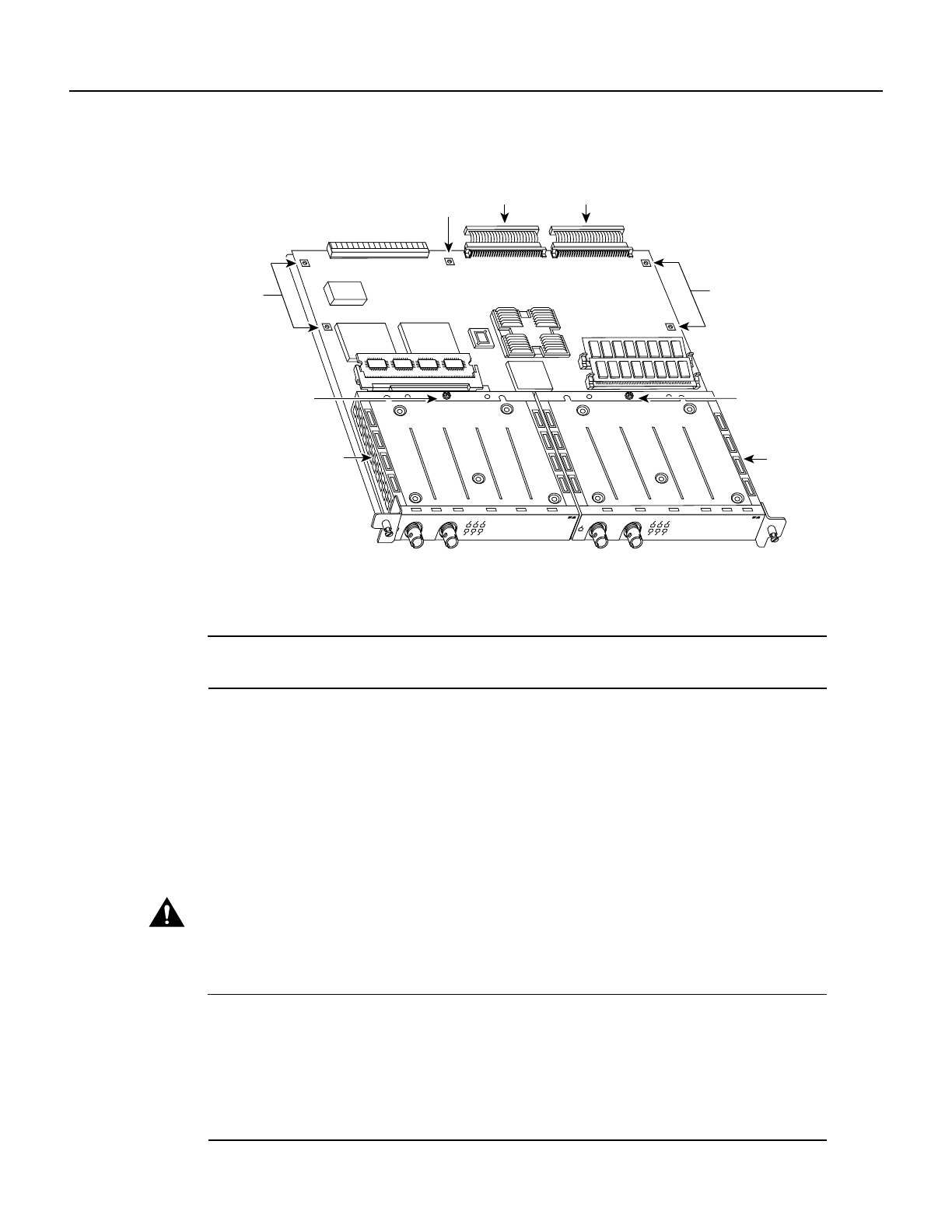

Figure 3-1 VIP2-15 or VIP2-40 with One-Port PA-E3 Port Adapters in Port Adapter Slots 0

and 1

Note Port adapters have a handle attached, but this handle is not shown to allow a full view of detail

on each port adapter’s faceplate.

H10611

PA-E3 in port

adapter slot 0 PA-E3 in port

adapter slot 1

Port adapter

handles not

shown

Bus connector

DRAM

SIMMs

SRAM

DIMM U5

CPU

Boot ROM

ENABLED

RCVR

XMTR

RCLK

AIS FERF

OOF

T3 SERIAL

ENABLED

RCVR

XMTR

RCLK

AIS FERF

OOF

E3 SERIAL

RCLK

AIS FERF

OOF

VIP2 and the PA-E3 3-3

Overview

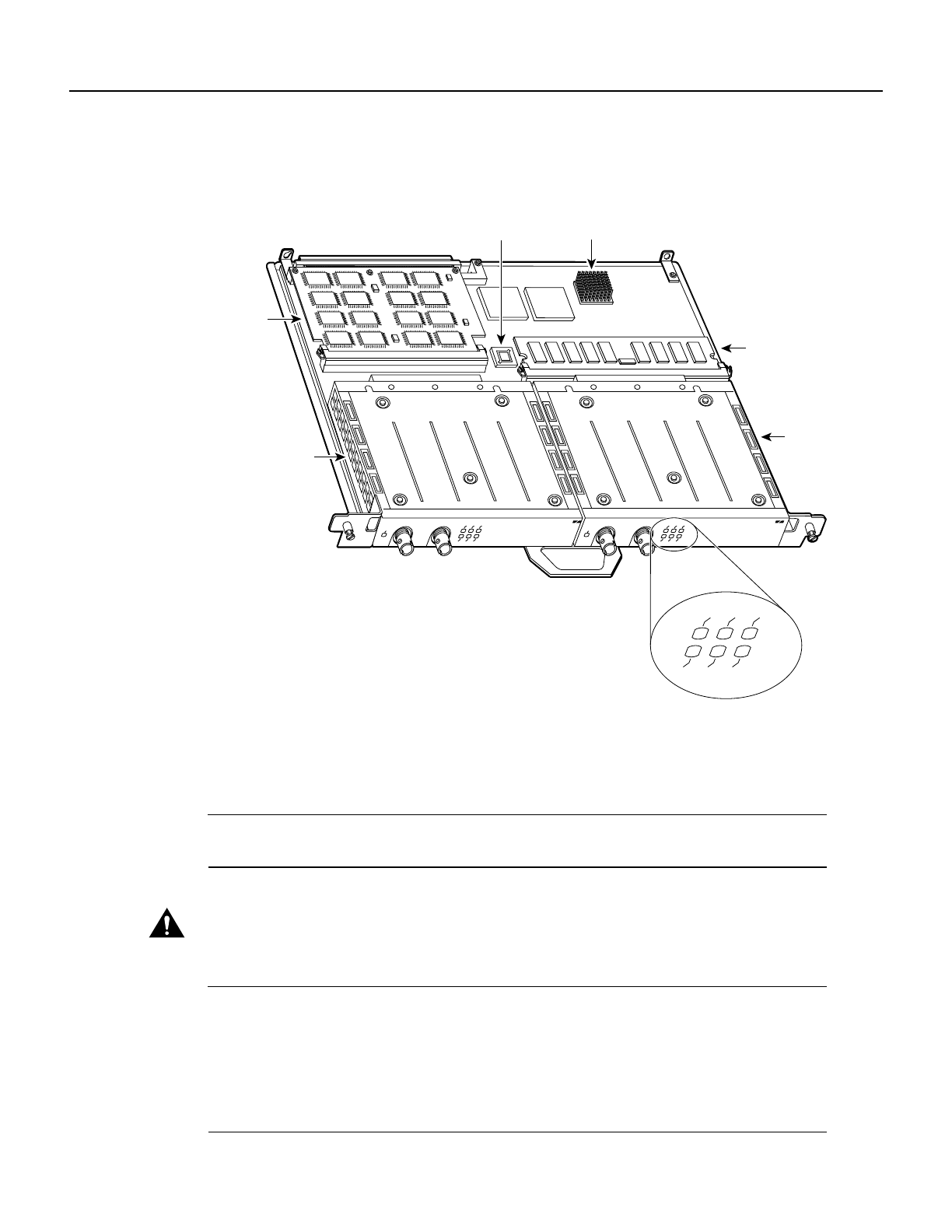

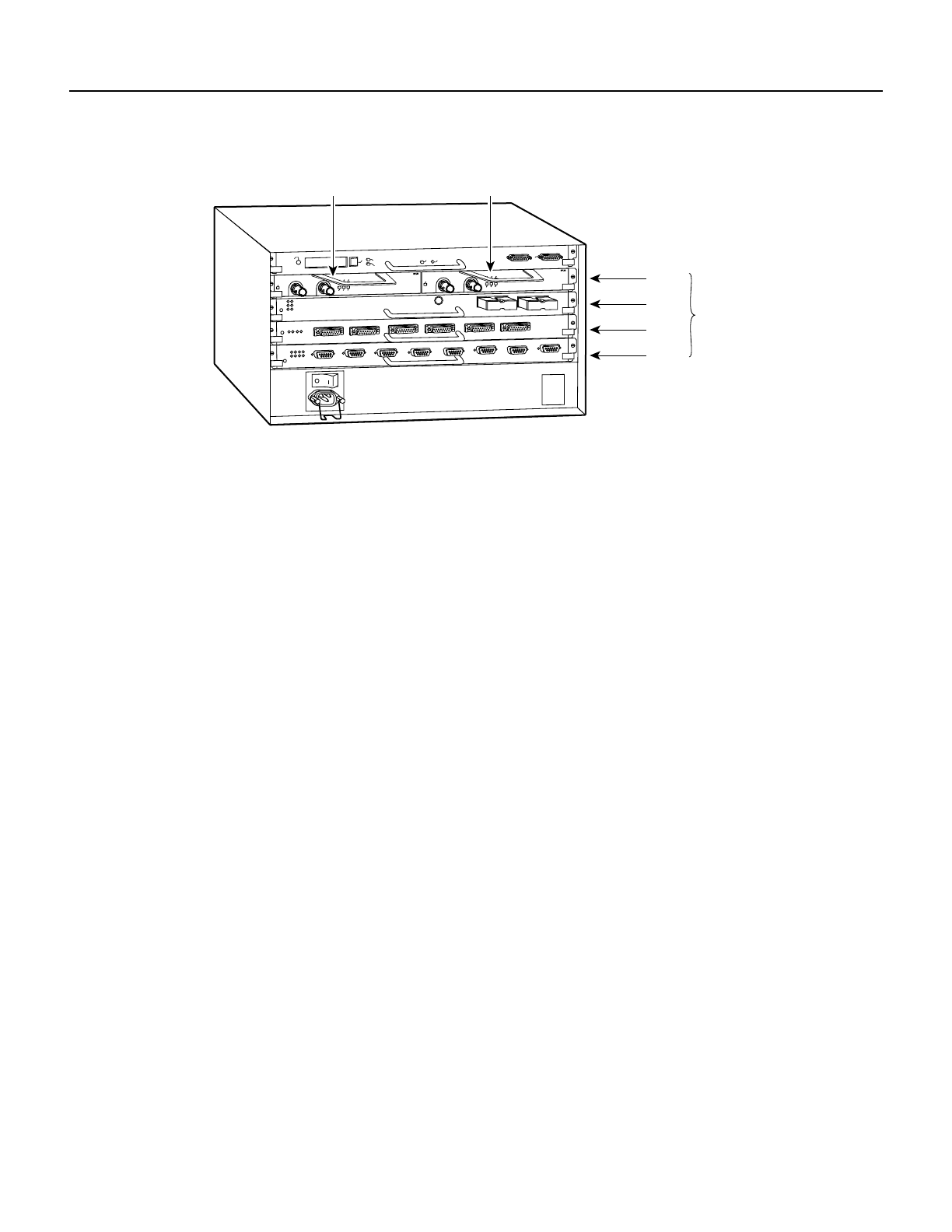

Figure 3-2 shows two one-port E3 port adapters installed in port adapter slots 0 and 1, on a VIP2-50.

Figure 3-2 VIP2-50 with One-Port PA-E3 Port Adapters in Port Adapter Slots 0 and 1

Depending on the circumstances, you might need to install a new port adapter on a VIP2

motherboard or replace a failed port adapter in the ﬁeld. In either case, you need a number 1 Phillips

screwdriver, an antistatic mat on which you can place the removed interface processor, and an

antistatic container in which you can place a failed port adapter for shipment back to the factory.

Note The PA-E3 can be installed on a VIP2-15, VIP2-20, VIP2-40, or VIP2-50 motherboard;

however, installation on the VIP2-10 is not recommended.

Caution To prevent system problems, do not remove port adapters from the VIP2 motherboard or

attempt to install other port adapters on the VIP2 motherboard while the system is operating. To

install or replace port adapters, ﬁrst remove the VIP2 from its interface processor slot.

Note Each port adapter circuit board is mounted to a metal carrier and is sensitive to ESD damage.

The following procedures should be performed by a Cisco-certiﬁed service provider only. The VIP2

supports online insertion and removal (OIR), but individual port adapters do not. To replace

port adapters, you must ﬁrst remove the VIP2 from the chassis and then install or replace port

adapters as required. If a blank port adapter is installed on the VIP2 in which you want to install a

new port adapter, you must ﬁrst remove the VIP2 from the chassis and then remove the blank

port adapter.

Bus connector

SRAM

daughter

card

Boot ROM CPU

SDRAM DIMM

H11248

Port adapter handles not shown

PA-E3 in

port adapter

slot 0

PA-E3 in

port adapter

slot 1

ENABLED

RCVR

XMTR

RCLK

AIS FERF

OOF

T3 SERIAL

ENABLED

RCVR

XMTR

RCLK

AIS FERF

OOF

E3 SERIAL

RCLK

AIS FERF

OOF

Removing a Port Adapter

PA-E3 Serial Port Adapter Installation and Configuration

3-4

When only one port adapter is installed on a VIP2, a blank port adapter must ﬁll the empty slot. This

allows the VIP2 and router chassis to conform to electromagnetic interference (EMI) emissions

requirements, and encourages air to ﬂow through the chassis properly. If you plan to install a new

port adapter, you must ﬁrst remove the blank port adapter.

Removing a Port Adapter

Following is the standard procedure for removing any type of port adapter on the VIP2:

Step 1 Attach an ESD-preventive wrist strap between you and an unﬁnished chassis surface.

Note If you want to install a new port adapter on a VIP2 with a single port adapter, you

must ﬁrst remove the blank port adapter from the port adapter slot in which you want to

install the new port adapter.

Step 2 For a new port adapter installation or a port adapter replacement, disconnect any interface

cables from the ports on the front of the port adapter, although this is not required. You

can remove VIP2s with cables attached; however, we do not recommend it.

Step 3 To remove the VIP2 from the chassis, follow the steps in the section “Removing a VIP2”

in the conﬁguration note Second-Generation Versatile Interface Processor (VIP2)

Installation and Conﬁguration, which shipped with your VIP2. Place the removed VIP2

on an antistatic mat.

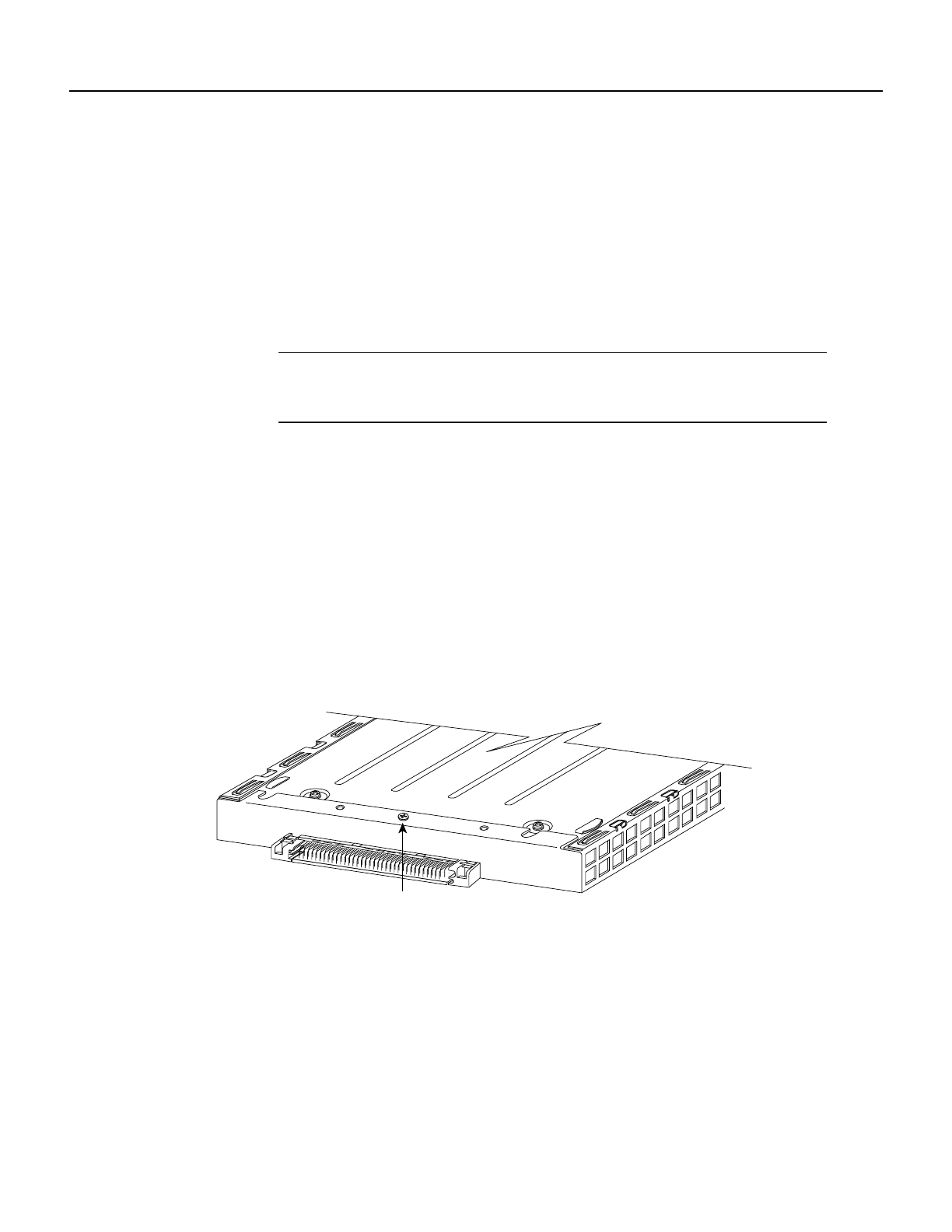

Step 4 Locate the screw at the rear of the port adapter (or blank port adapter) to be replaced.

(See Figure 3-3.) This screw secures the port adapter (or blank port adapter) to its slot.

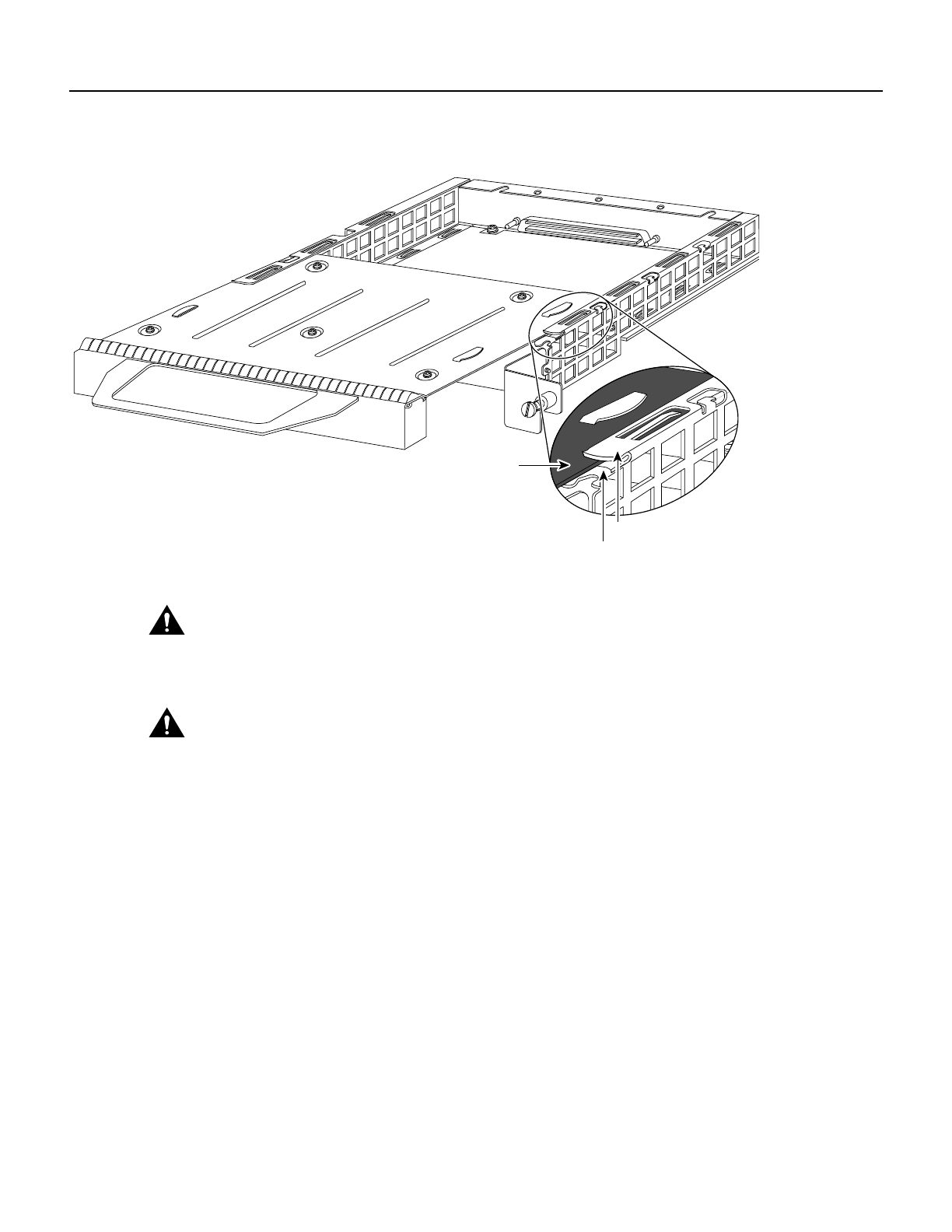

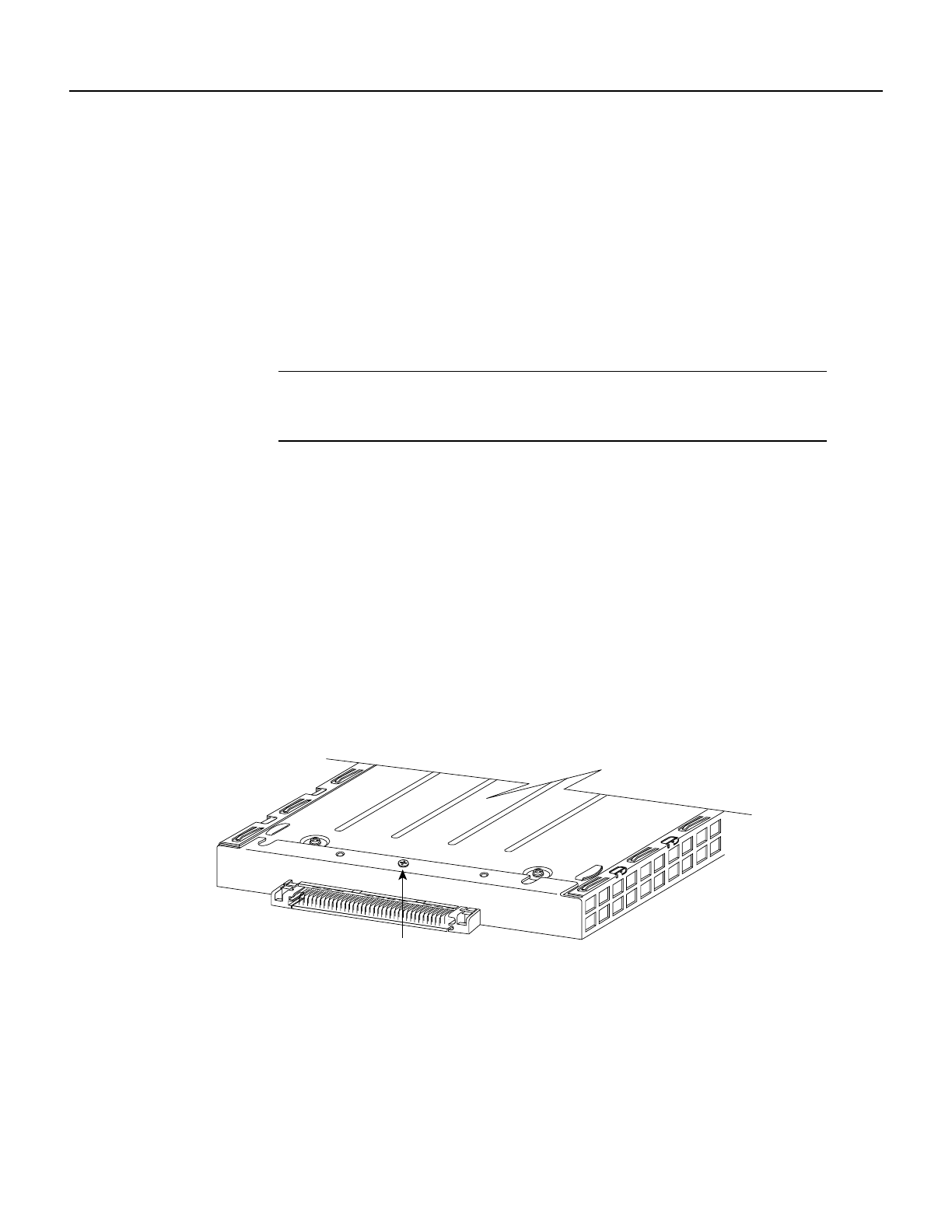

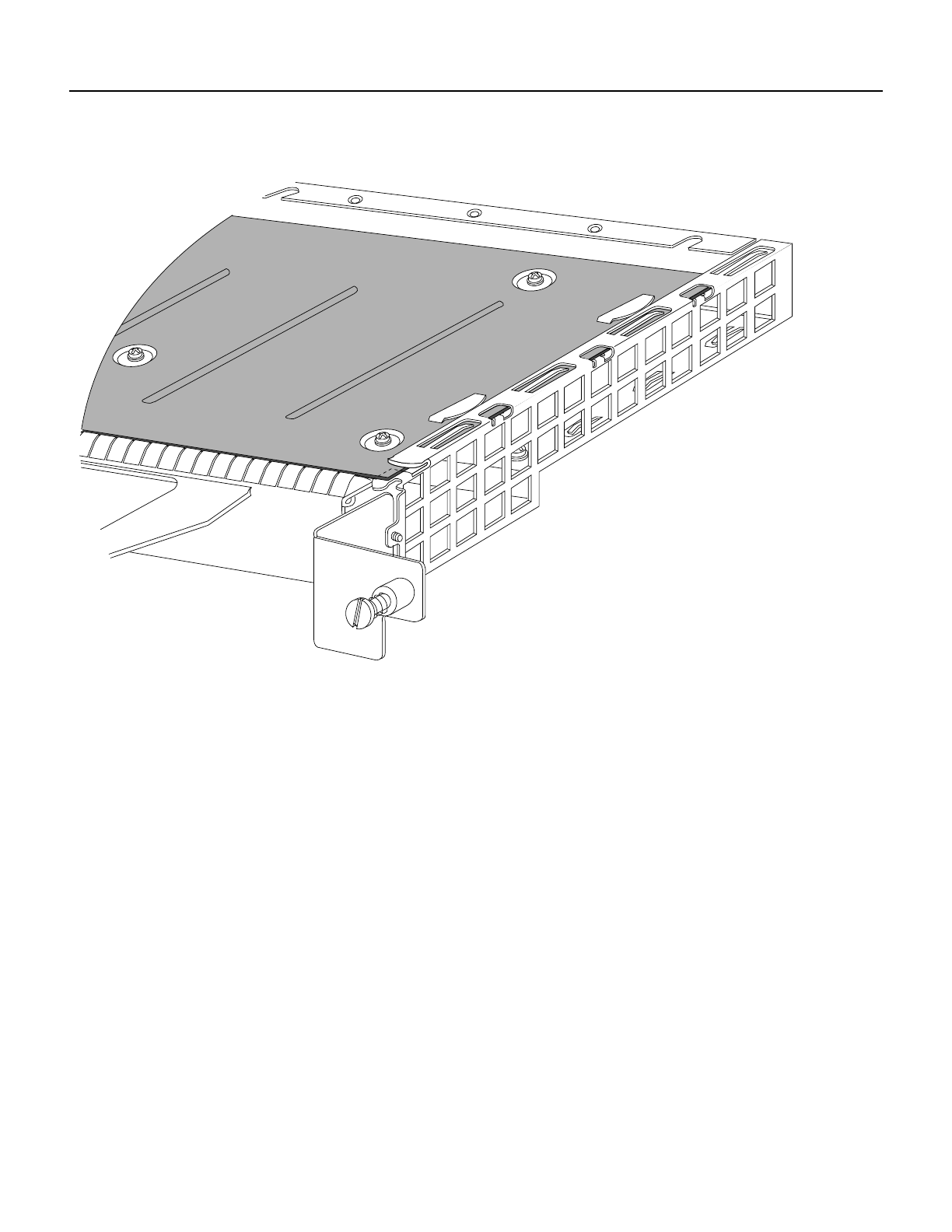

Figure 3-3 Location of Port Adapter Screw—Partial Port Adapter View

Step 5 Remove the screw that secures the port adapter (or blank port adapter).

Step 6 With the screw removed, grasp the handle on the front of the port adapter (or blank

port adapter) and carefully pull it out of its slot, away from the edge connector at the rear

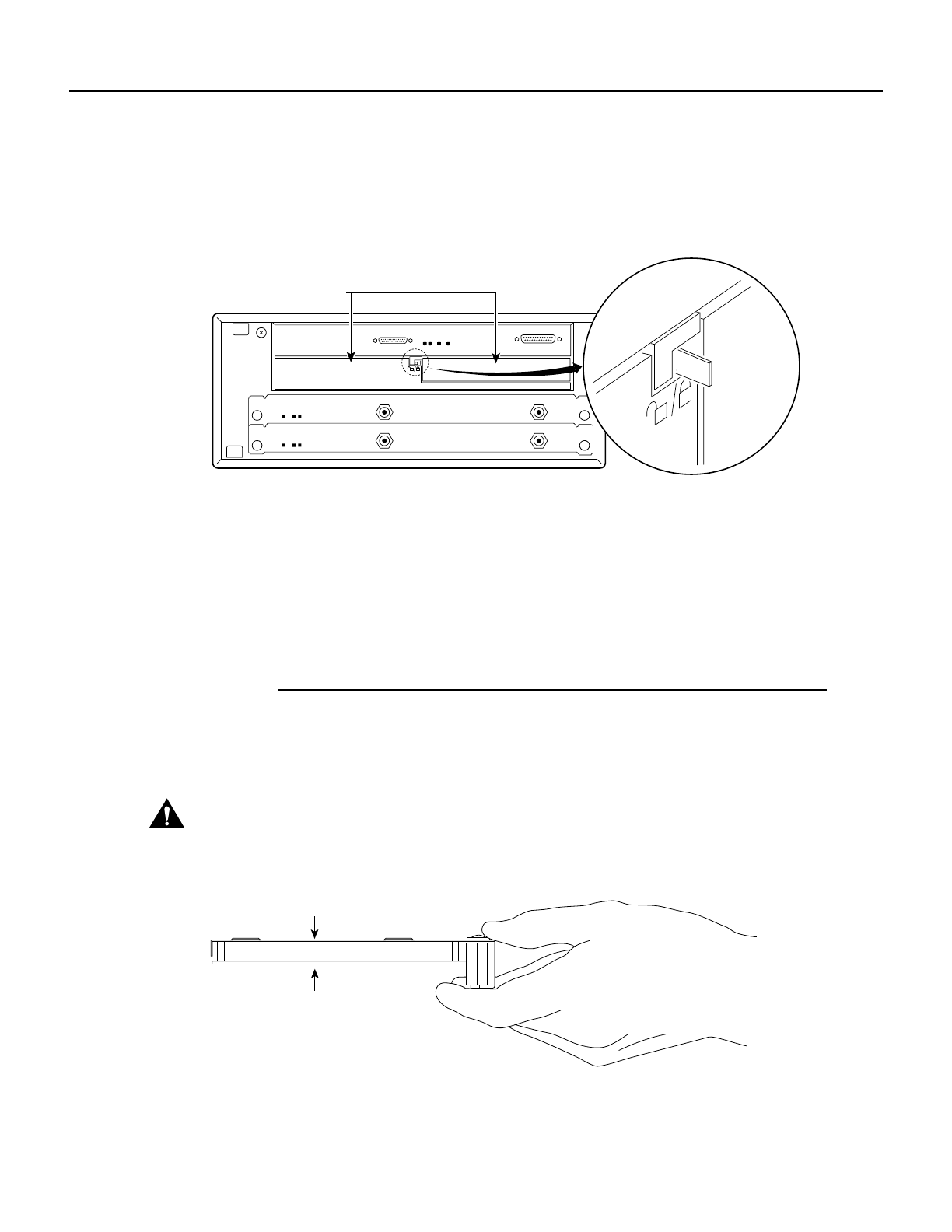

of the slot. (See Figure 3-4.)

H3148

Screw

VIP2 and the PA-E3 3-5

Installing a Port Adapter

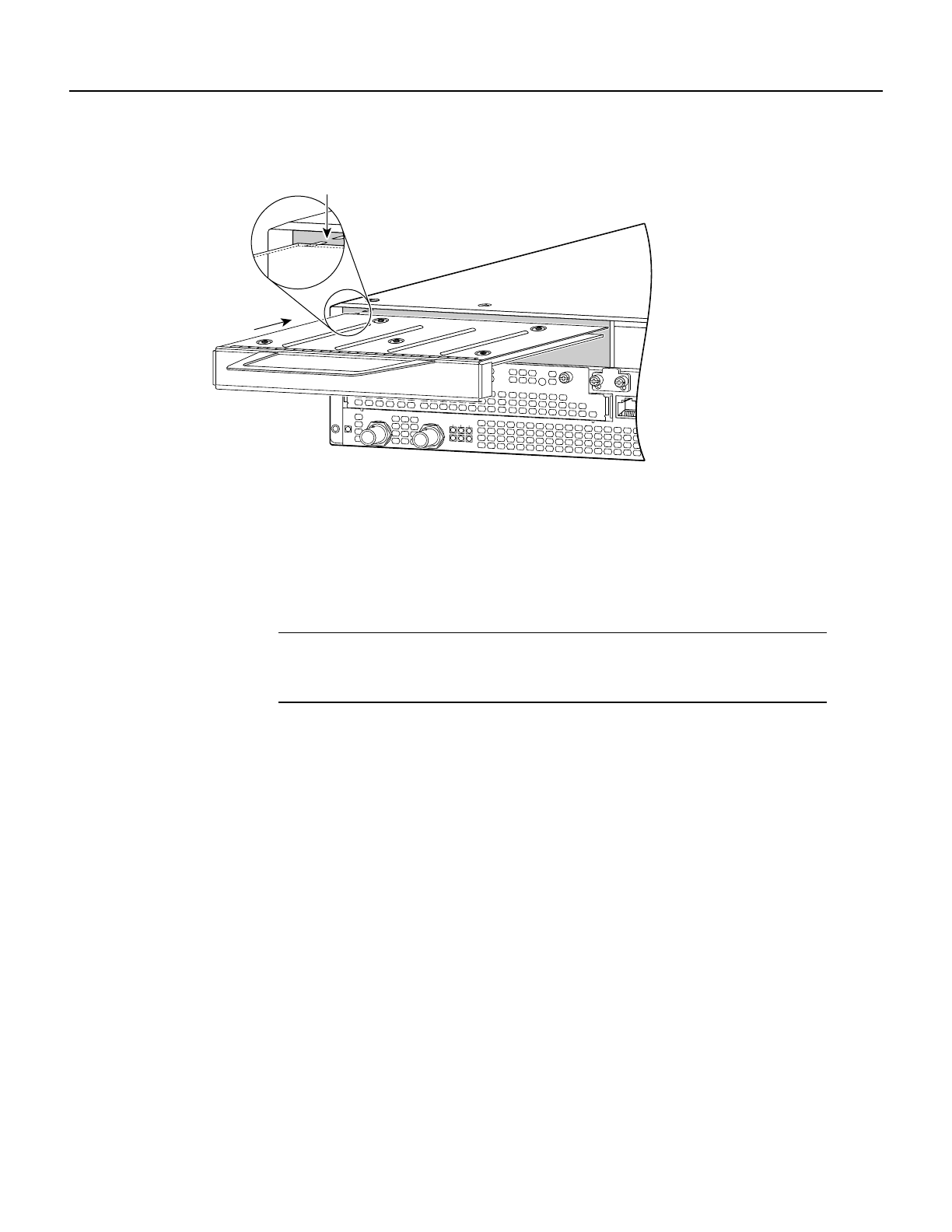

Figure 3-4 Pulling a Port Adapter Out of a Slot—Partial Port Adapter View

Step 7 If you removed a port adapter, place it in an antistatic container for safe storage or

shipment back to the factory. If you removed a blank port adapter, no special handling is

required; however, store the blank port adapter for potential future use.

This completes the procedure for removing a new port adapter on a VIP2.

Installing a Port Adapter

Following is the standard procedure for replacing a port adapter on the VIP2:

Step 1 Attach an ESD-preventive wrist strap between you and an unﬁnished chassis surface.

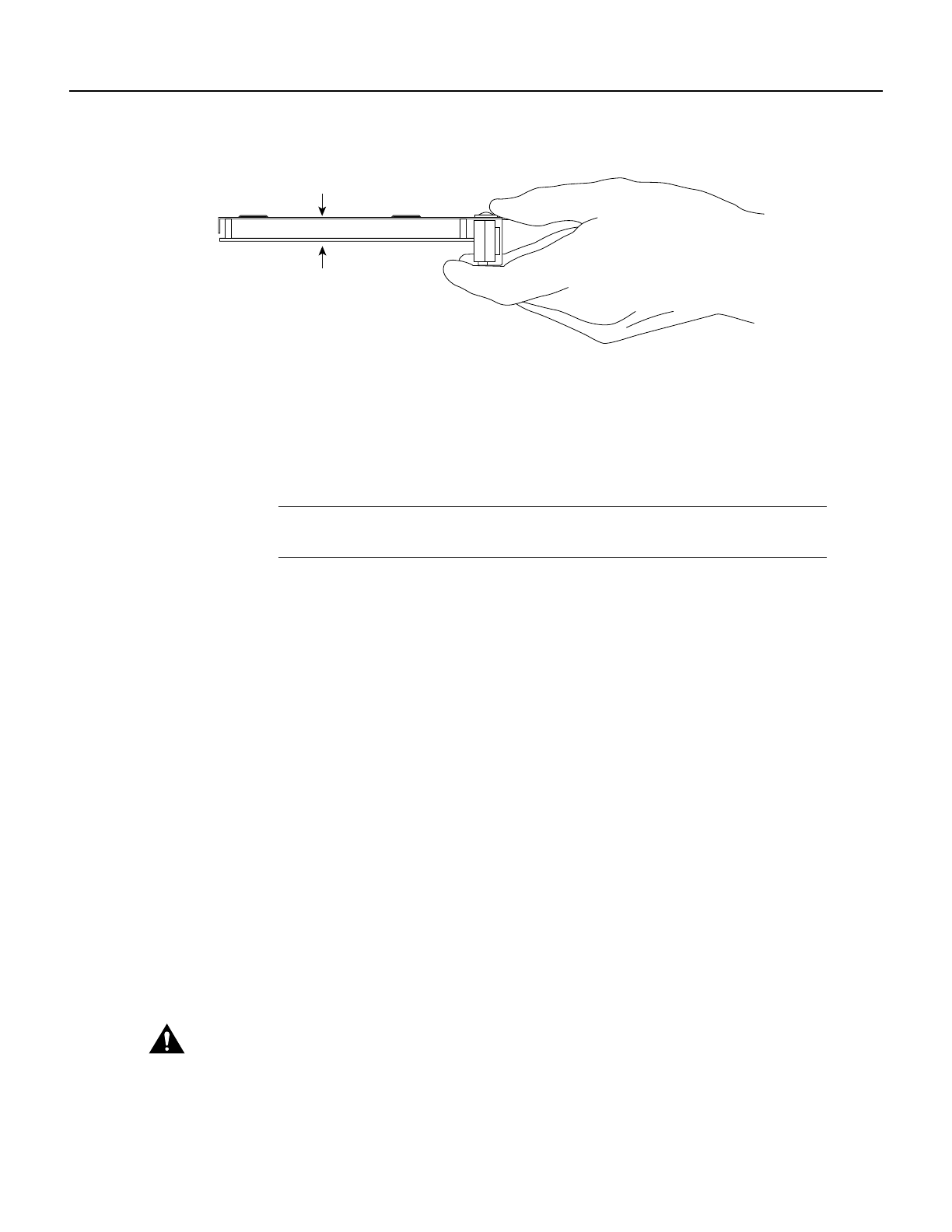

Step 2 Remove the new port adapter from its antistatic container and position it at the opening

of the slot.

Step 3 Carefully align the port adapter carrier between the upper and the lower edges of the port

adapter slot, as shown in Figure 3-5.

H3149

Installing a Port Adapter

PA-E3 Serial Port Adapter Installation and Configuration

3-6

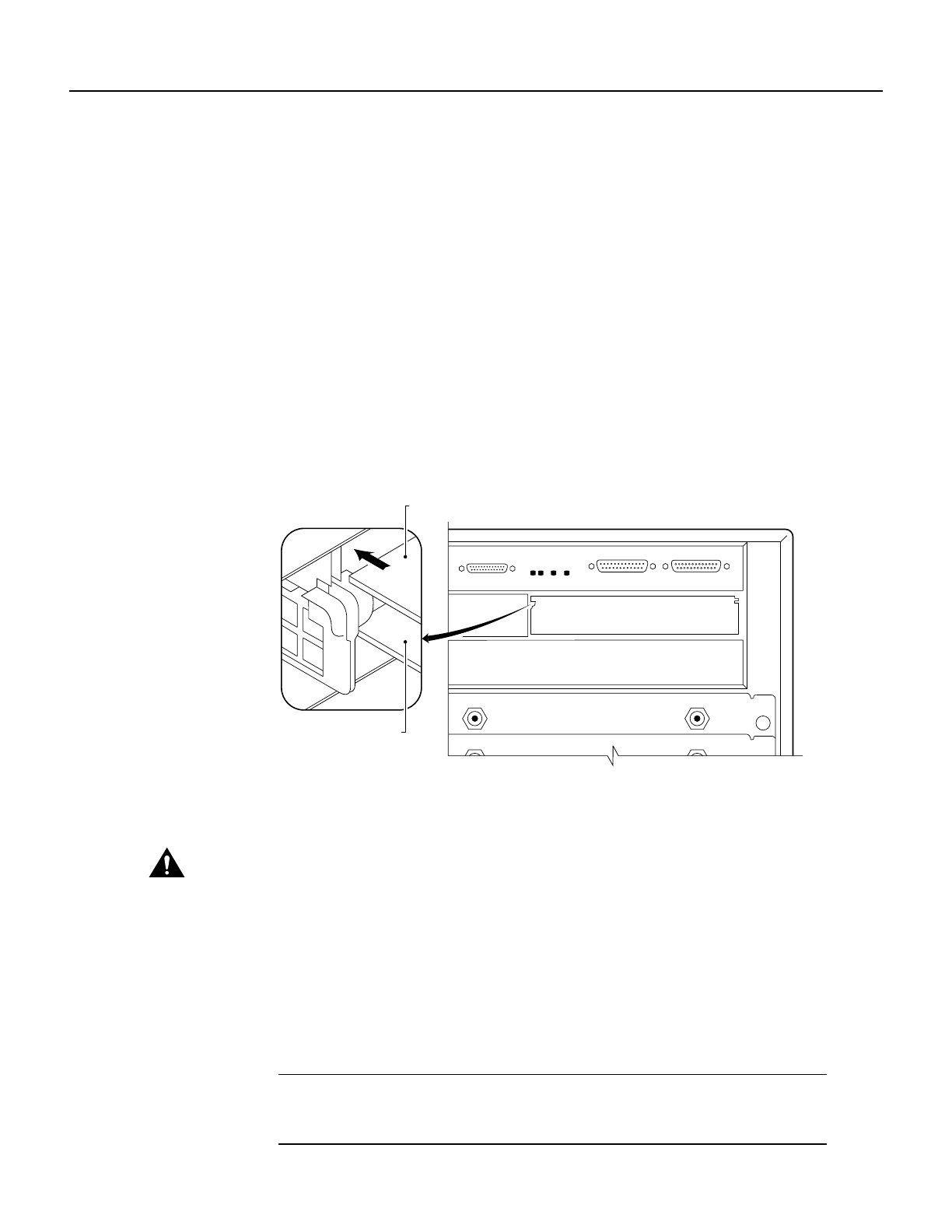

Figure 3-5 Aligning a Port Adapter in a Port Adapter Slot

Caution To prevent jamming the carrier between the upper and lower edges of the port adapter slot

and to ensure that the edge connector at the rear of the port adapter mates with the connector at the

rear of the port adapter slot, make certain that the leading edges of the carrier are between the upper

and lower slot edges, as shown in the cutaway in Figure 3-5.

Caution To ensure a positive ground attachment between the port adapter carrier and the VIP2

motherboard and port adapter slot, and to ensure that the connectors at the rear of the port adapter

and slot mate properly, position the carrier between the upper and lower slot edges, as shown in

Figure 3-5.

Step 4 Carefully slide the new port adapter into the port adapter slot until the connector on the

port adapter is completely seated in the connector on the motherboard. (See Figure 3-6.)

H3150

Upper edge

Lower edge

Carrier

VIP2 and the PA-E3 3-7

Installing a Port Adapter

Figure 3-6 Port Adapter Installed in a Port Adapter Slot—Partial Port Adapter View

Step 5 Replace the screw in the rear of the port adapter slot. (See Figure 3-3 for its location.) Do

not overtighten this screw.

Step 6 To reinstall the VIP2 in the system, follow the steps in the section “Installing a VIP2” in

the conﬁguration note Second-Generation Versatile Interface Processor (VIP2)

Installation and Conﬁguration, which shipped with your VIP2.

Step 7 If the interface cables have been disconnected, reconnect the interface cables to the port

adapters.

This completes the procedure for installing a port adapter on a VIP2. Proceed to Chapter 8,

“Conﬁguring the PA-E3 Interfaces,” for information on how to conﬁgure your port adapter

interfaces.

H3152

Installing a Port Adapter

PA-E3 Serial Port Adapter Installation and Configuration

3-8

CHAPTER

Catalyst RSM/VIP2 and the PA-E3 4-1

Catalyst RSM/VIP2 and the PA-E3

This chapter provides information on the PA-E3 serial port adapter and its use on the

Catalyst RSM/VIP2 in the Catalyst 5000 family switches. This chapter contains the following

sections:

•Overview, page 4-1

•Removing a Port Adapter, page 4-3

•Installing a Port Adapter, page 4-4

Overview

The PA-E3 is used on the Catalyst RSM/VIP2 in the Catalyst 5000 family switches and can be

installed in either port adapter slot 0 or slot 1 on the Catalyst RSM/VIP2 motherboard.

Note You can have up to three E3 serial interfaces on a Catalyst RSM/VIP2 motherboard. Cisco

recommends a conﬁguration of one PA-E3 (with one E3 serial interface) and one PA-2E3 (with two

serial interfaces) for a total of three E3 serial interfaces.

Figure 4-1 shows two one-port PA-E3 port adapters installed in port adapter slot 0 and slot 1, on a

Catalyst RSM/VIP2-40.

Overview

PA-E3 Serial Port Adapter Installation and Configuration

4-2

Figure 4-1 Catalyst RSM/VIP2-40 with One-Port PA-E3 Port Adapters in Port Adapter

Slots 0 and 1

Note Port adapters have a handle attached, but this handle is not shown in the ﬁgure to allow a full

view of detail on each port adapter’s faceplate.

Depending on the circumstances, you might need to install a new port adapter on a

Catalyst RSM/VIP2 motherboard or replace a failed port adapter in the ﬁeld. In either case, you need

the following items:

•Number 1 Phillips screwdriver

•Antistatic mat on which you can place the removed interface processor

•Antistatic container in which you can place a failed port adapter for shipment back to the factory

Caution To prevent system problems, do not remove port adapters from the Catalyst RSM/VIP2

motherboard or attempt to install other port adapters on the Catalyst RSM/VIP2 motherboard while

the system is operating. To install or replace port adapters, ﬁrst remove the Catalyst RSM/VIP2 from

its slot.

Note Each port adapter circuit board is mounted to a metal carrier and is sensitive to ESD damage.

The following procedures should be performed by a Cisco-certiﬁed service provider only. The

Catalyst RSM/VIP2 supports online insertion and removal (OIR), but individual port adapters do

not. To replace port adapters, you must ﬁrst remove the Catalyst RSM/VIP2 from the chassis and

then install or replace port adapters as required. If a blank port adapter is installed on the

Catalyst RSM/VIP2 in which you want to install a new port adapter, you must ﬁrst remove the

Catalyst RSM/VIP2 from the chassis and then remove the blank port adapter.

26452

Backplane

bus connector

Ribbon cables

Standoff

mounting

holes

Standoff

mounting

holes

Standoff

mounting

hole

Port adapter

securing screw Port adapter

securing screw

PA-E3 in port

adapter slot 0 PA-E3 in port

adapter slot 1

Port adapter

handles not

shown

ENABLED

RCVR

XMTR

RCLK

AIS FERF

OOF

T3 SERIAL

ENABLED

RCVR

XMTR

RCLK

AIS FERF

OOF

E3 SERIAL

Catalyst RSM/VIP2 and the PA-E3 4-3

Removing a Port Adapter

When only one port adapter is installed on a Catalyst RSM/VIP2, a blank port adapter must ﬁll the

empty slot to conform to electromagnetic interference (EMI) emissions requirements and to allow

air to ﬂow through the chassis properly. If you plan to install a new port adapter, you must ﬁrst

remove the blank port adapter.

Removing a Port Adapter

The following is the standard procedure for removing any type of port adapter on the

Catalyst RSM/VIP2:

Step 1 Attach an antistatic wrist strap between you and an unﬁnished chassis surface.

Note If you want to install a new port adapter on a Catalyst RSM/VIP2 with a single port

adapter, you must ﬁrst remove the blank port adapter from the port adapter slot in which

you want to install the new port adapter.

Step 2 For a new port adapter installation or a port adapter replacement, disconnect any interface

cables from the ports on the front of the port adapter, although this is not required. You

can remove a Catalyst RSM/VIP2 with cables attached; however, we do not recommend

this action.

Step 3 To remove the Catalyst RSM/VIP2 from the chassis, follow the steps in the Route Switch

Module Catalyst VIP2-15 and VIP2-40 Installation and Conﬁguration Note (Document

Number 78-4780-01), which shipped with your Catalyst RSM/VIP2.

Step 4 Place the removed Catalyst RSM/VIP2 on an antistatic mat.

Step 5 Locate the screw at the rear of the port adapter (or blank port adapter) to be replaced.

(See Figure 4-2.) This screw secures the port adapter (or blank port adapter) to its slot.

Figure 4-2 Location of Port Adapter Screw—Partial Port Adapter View

Step 6 Remove the screw that secures the port adapter (or blank port adapter).

Step 7 With the screw removed, grasp the handle on the front of the port adapter (or blank

port adapter) and carefully pull it out of its slot, away from the edge connector at the rear

of the slot. (See Figure 4-3.)

H3148

Screw

Installing a Port Adapter

PA-E3 Serial Port Adapter Installation and Configuration

4-4

Figure 4-3 Pulling a Port Adapter Out of a Slot—Partial Port Adapter View

Step 8 If you removed a port adapter, place it in an antistatic container for safe storage or

shipment back to the factory. If you removed a blank port adapter, no special handling is

required; however, store the blank port adapter for potential future use.

This completes the procedure for removing a new port adapter on a Catalyst RSM/VIP2.

Installing a Port Adapter

The following is the standard procedure for replacing a port adapter on the Catalyst RSM/VIP2:

Step 1 Attach an ESD-preventive wrist strap between you and an unﬁnished chassis surface.

Step 2 Remove the new port adapter from its antistatic container and position it at the opening

of the slot.

Step 3 Carefully align the port adapter carrier between the upper and the lower edges of the port

adapter slot, as shown in Figure 4-4.

H3149

Catalyst RSM/VIP2 and the PA-E3 4-5

Installing a Port Adapter

Figure 4-4 Aligning a Port Adapter in a Port Adapter Slot

Caution To prevent jamming the carrier between the upper and lower edges of the port adapter slot

and to ensure that the edge connector at the rear of the port adapter mates with the connector at the

rear of the port adapter slot, make certain that the leading edges of the carrier are between the upper

and lower slot edges, as shown in the cutaway in Figure 4-5.

Caution To ensure a positive ground attachment between the port adapter carrier and the

Catalyst RSM/VIP2 motherboard and port adapter slot, and to ensure that the connectors at the rear

of the port adapter and slot mate properly, position the carrier between the upper and lower slot

edges, as shown in Figure 4-5.

Step 4 Carefully slide the new port adapter into the port adapter slot until the connector on the

port adapter is completely seated in the connector on the motherboard. (See Figure 4-5.)

H3150

Upper edge

Lower edge

Carrier

Installing a Port Adapter

PA-E3 Serial Port Adapter Installation and Configuration

4-6

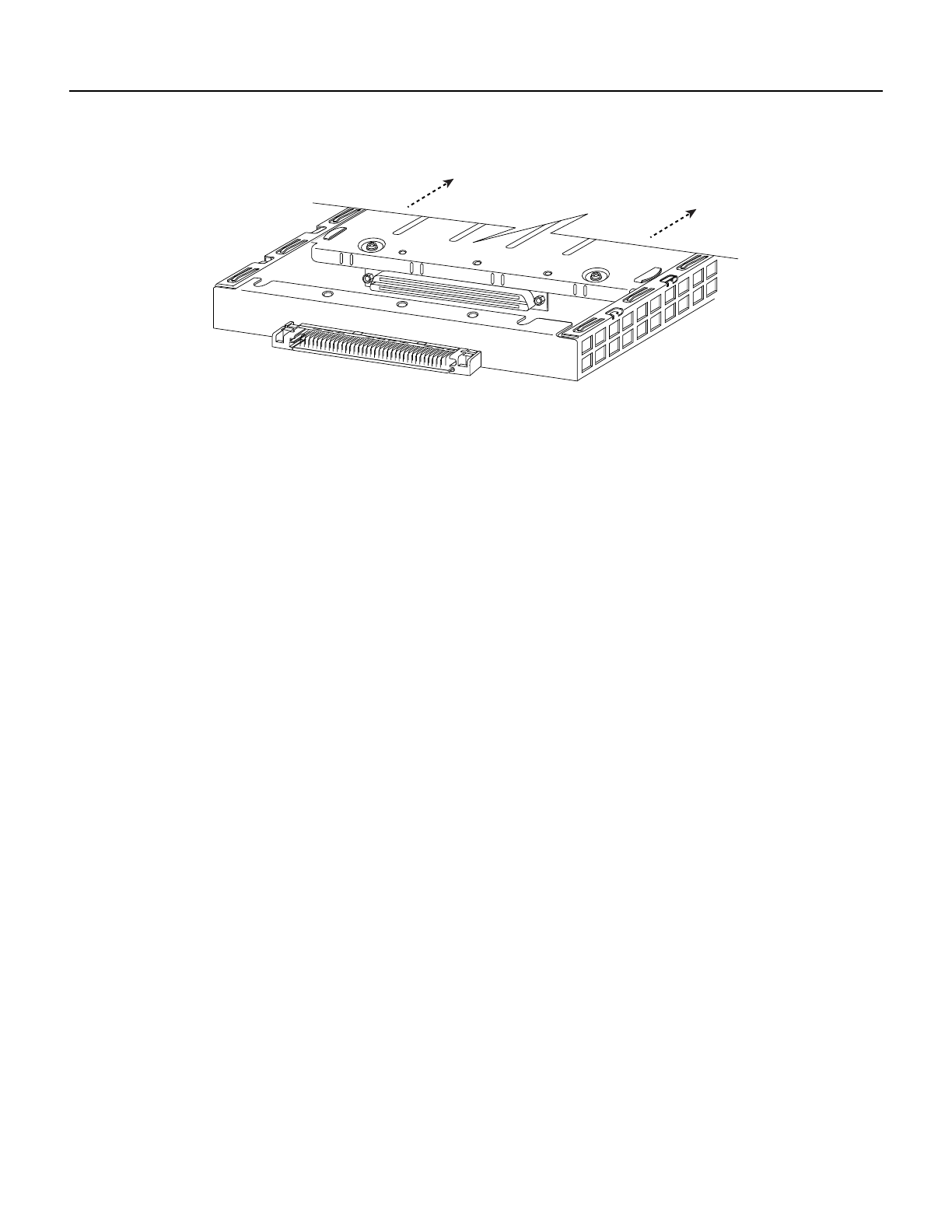

Figure 4-5 Port Adapter Installed in a Port Adapter Slot—Partial Port Adapter View

Step 5 Replace the screw in the rear of the port adapter slot. (See Figure 4-2 for its location.) Do

not overtighten this screw.

Step 6 To reinstall the Catalyst RSM/VIP2 in the system, follow the steps in the Route Switch

Module Catalyst VIP2-15 and VIP2-40 Installation and Conﬁguration Note (Document

Number 78-4780-01), which shipped with your Catalyst RSM/VIP2.

Step 7 If the interface cables have been disconnected, reconnect the interface cables to the port

adapters.

This completes the procedure for installing a port adapter on a Catalyst RSM/VIP2. Proceed to

Chapter 8, “Conﬁguring the PA-E3 Interfaces,” for information on how to conﬁgure your port

adapter interfaces.

H3152

CHAPTER

Cisco 7200 Series and the PA-E3 5-1

Cisco 7200 Series and the PA-E3

This chapter provides information on the PA-E3 serial port adapter and its use in Cisco 7200 series

routers. This chapter contains the following sections:

•Overview, page 5-1

•Removing a Port Adapter, page 5-2

•Installing a Port Adapter, page 5-3

Overview

The PA-E3 can be installed in any available port adapter slot in Cisco 7200 series routers (which

consist of the two-slot Cisco 7202, four-slot Cisco 7204 and Cisco 7204VXR, and the six-slot

Cisco 7206 and Cisco 7206VXR). Figure 5-1 shows a one-port PA-E3 installed in port adapter slot 3

of a Cisco 7206.

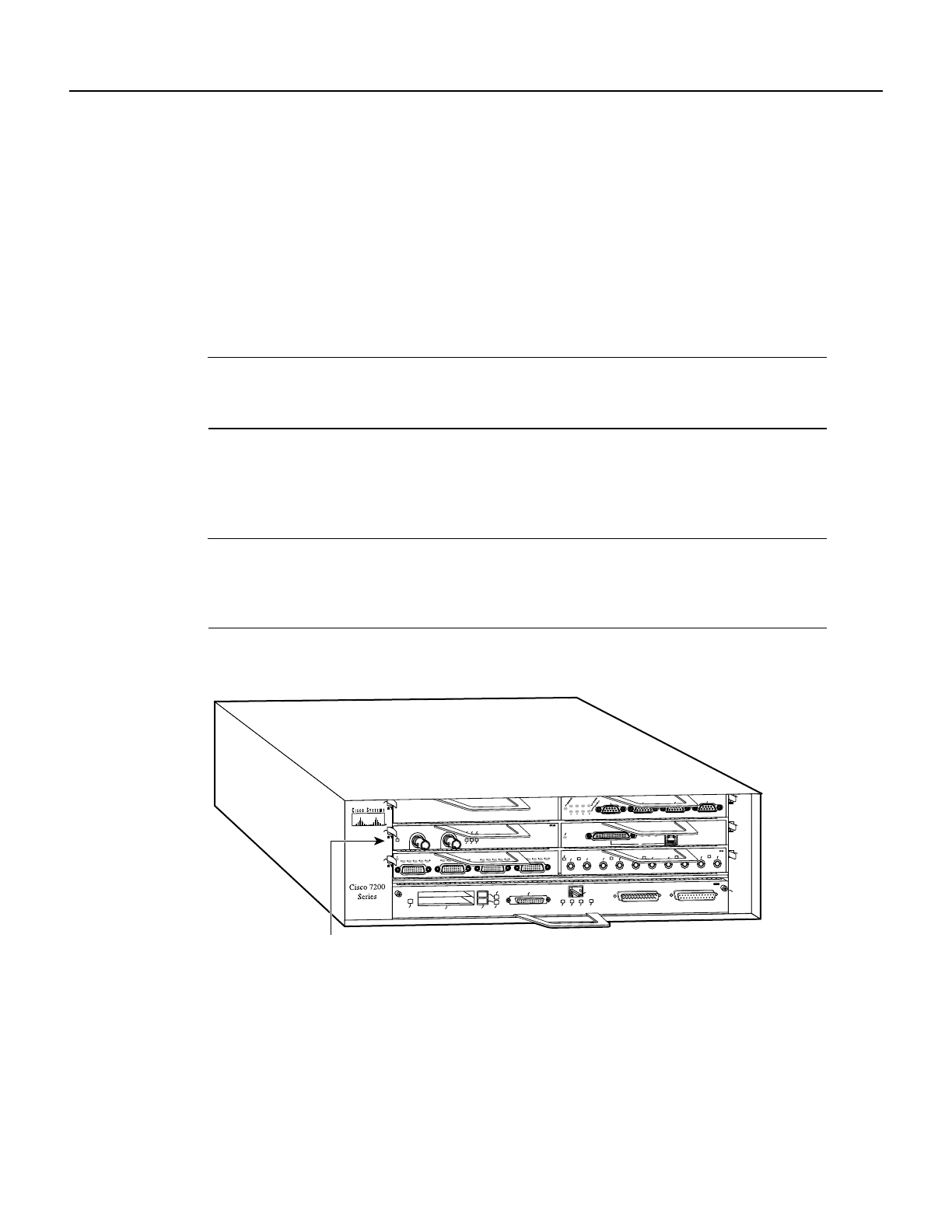

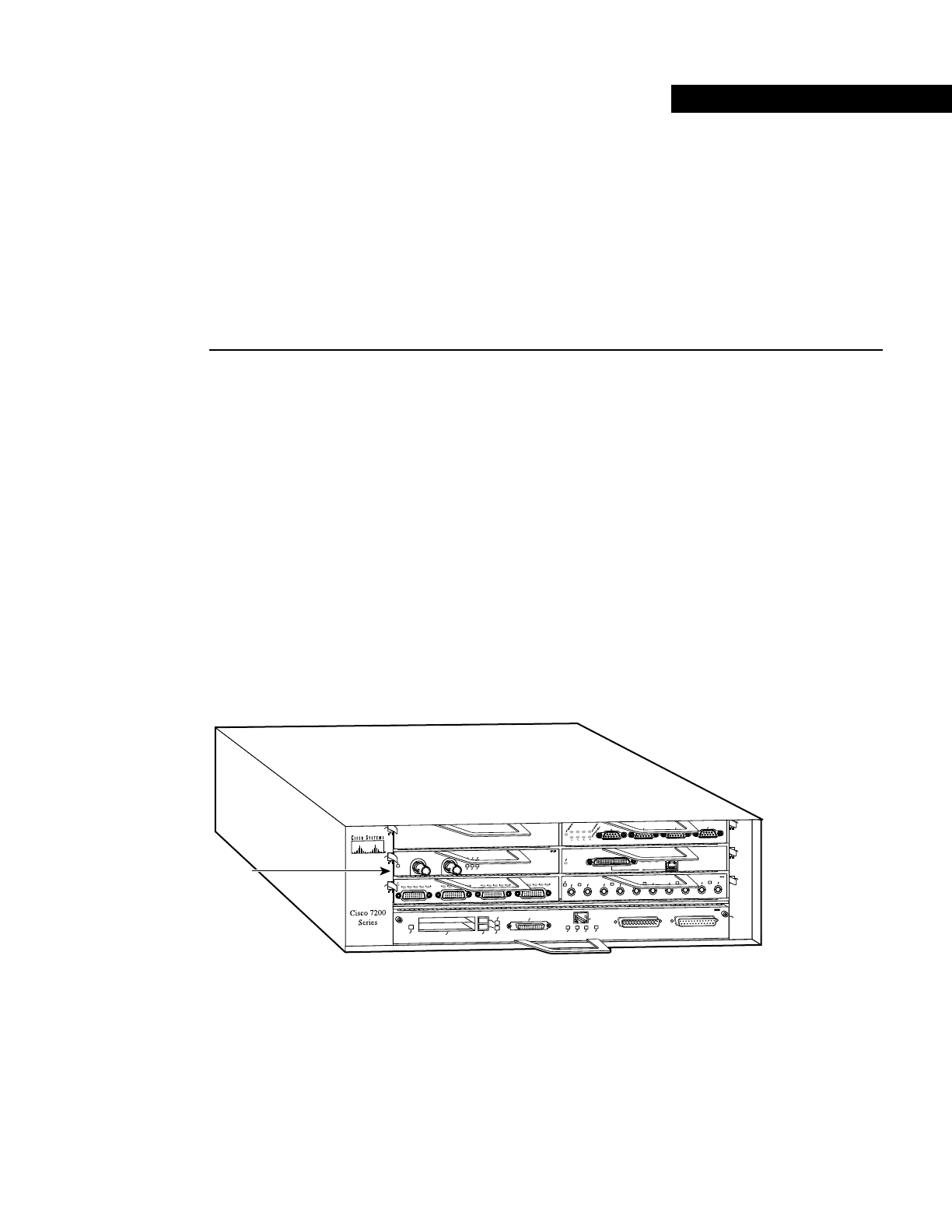

Figure 5-1 Cisco 7206 with a PA-E3 in Port Adapter Slot 3

Depending on your circumstances, you might need to install a new port adapter in a Cisco 7200

series router or replace a failed port adapter in the ﬁeld. In either case, no tools are necessary; all port

adapters available for the Cisco 7200 series connect directly to the router midplane and are locked

into position by a port adapter lever. When removing and replacing a port adapter, you need an

antistatic mat onto which you can place a removed port adapter and an antistatic container into which

you can place a failed port adapter for shipment back to the factory.

H10608

ENABLED

RCLK

XMTR

RCVR

FERF

OOF

AIS

E3 SERIAL

FAST SERIAL

ENABLED

MII

LINK

RJ45

FAST ETHERNET

TOKEN RING

ETHERNET-10BFL

FAST ETHERNET INPUT/OUTPUT CONTROLLER

ENABLED

PCMCIA

EJECT

SLOT 0

SLOT 1

FE MII

PA-E3

port

adapter

MII

RJ-45

EN RJ-45

RJ-45

LINK

1O PWR

Removing a Port Adapter

PA-E3 Serial Port Adapter Installation and Configuration

5-2

Note The Cisco 7200 series routers support online insertion and removal(OIR); therefore, you do

not have to power down the Cisco 7200 series routers when removing and replacing a port adapter.

When a port adapter slot is not in use, a blank port adapter must ﬁll the empty slot to allow the router

to conform to EMI emissions requirements and to allow proper airﬂow across the port adapters. If

you plan to install a new port adapter in a slot that is not in use, you must ﬁrst remove a blank port

adapter.

Removing a Port Adapter

Following is the procedure for removing a port adapter from a Cisco 7200 series router:

Step 1 Attach an ESD-preventive wrist strap between you and an unﬁnished chassis surface.

Step 2 Place the port adapter lever for the desired port adapter slot in the unlocked position. The

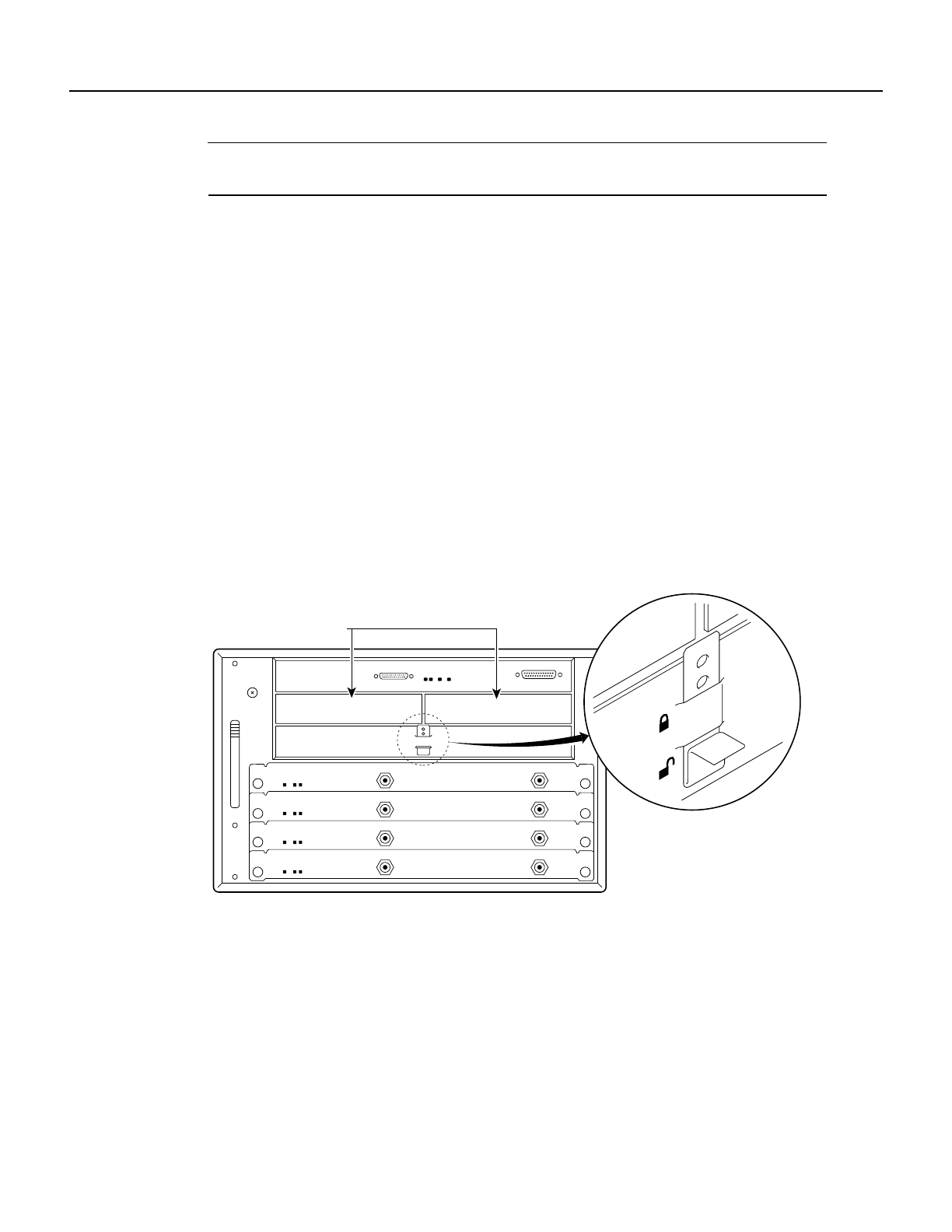

port adapter lever remains in the unlocked position. (See Figure 5-2.)

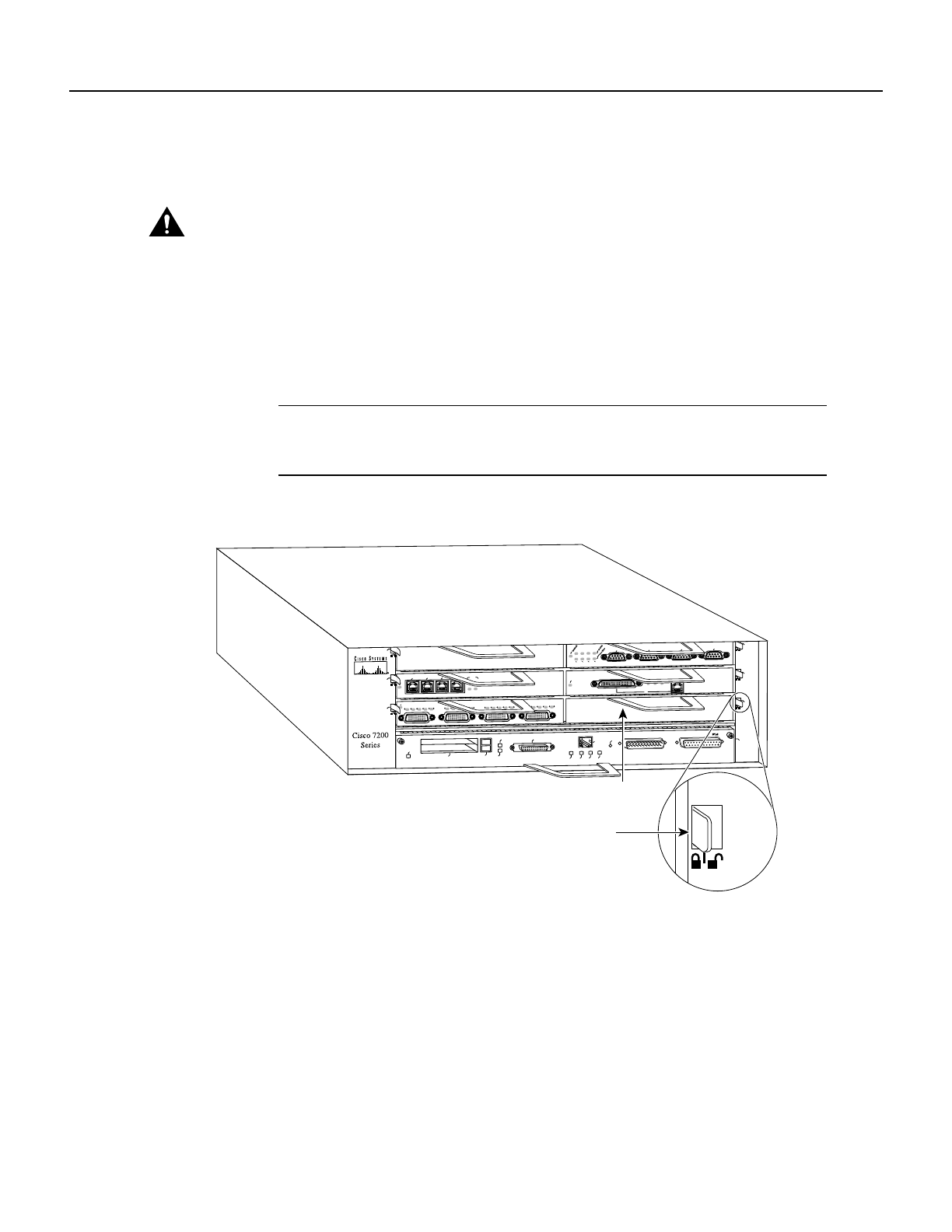

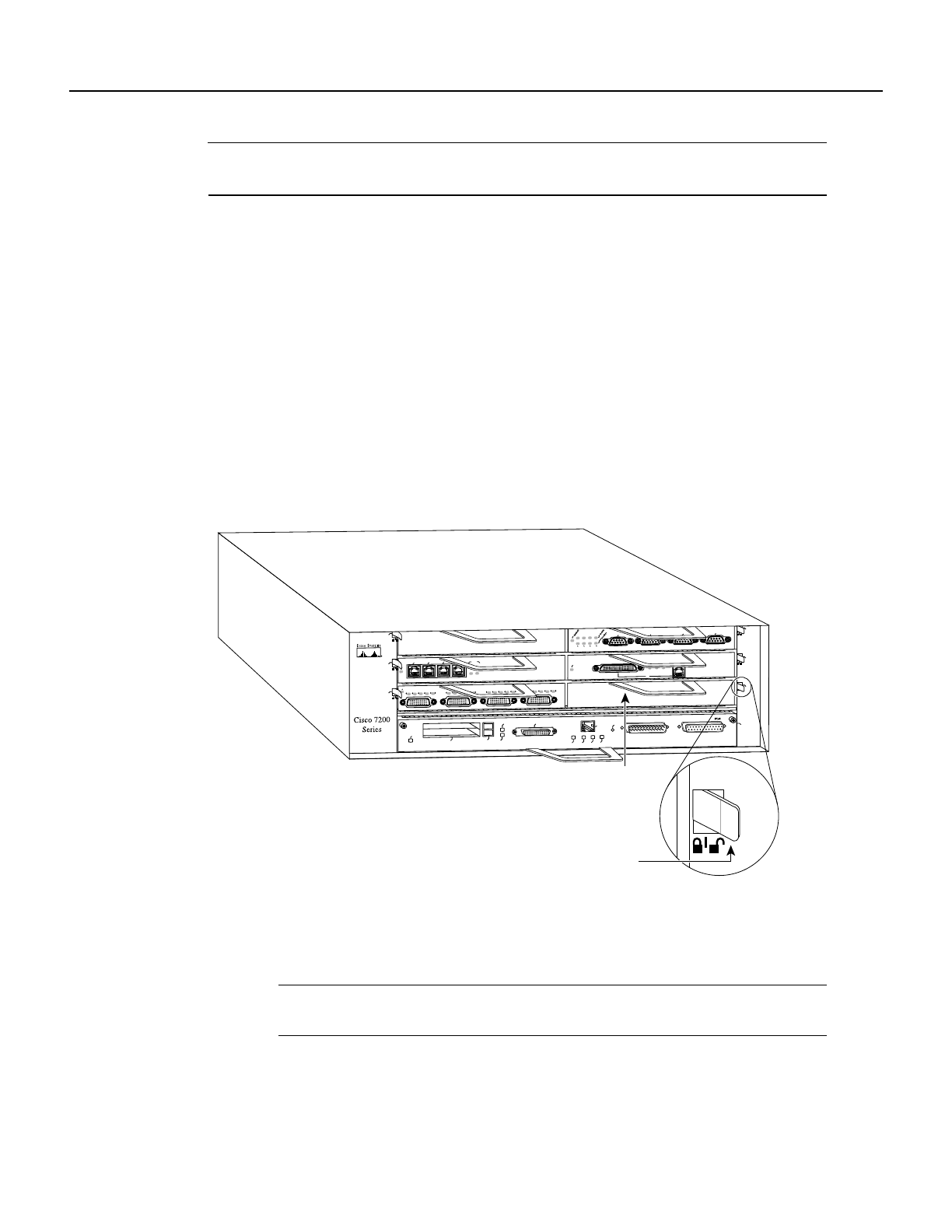

Figure 5-2 Placing the Port Adapter Lever in the Unlocked Position—Cisco 7206 Shown

Step 3 Grasp the handle on the port adapter and pull the port adapter from the midplane, about

halfway out of its slot. If you are removing a blank port adapter, pull the blank

port adapter completely out of the chassis slot.

Note As you disengage the port adapter from the router midplane, OIR administratively

shuts down all active interfaces on the port adapter.

Step 4 With the port adapter halfway out of the slot, disconnect all cables from the port adapter.

Step 5 After disconnecting the cables, pull the port adapter from its chassis slot.

ETHERNET 10BT

ENABLED

LINK

FAST SERIAL

ENABLED

MII

LINK

RJ45

FAST ETHERNET

TOKEN RING

H6596

MII

RJ45

LINK

1O PWR

RJ-45

CPU RESET

FAST ETHERNET INPUT/OUTPUT CONTROLLER

ENABLED

PCMCIA

EJECT

SLOT 0

SLOT 1

FE MII

Port adapter

handle

Port adapter

lever (unlocked

position)

Note: This adapter removal

applies to any port or service

adapter.

Cisco 7200 Series and the PA-E3 5-3

Installing a Port Adapter

Caution Always handle the port adapter by the carrier edges and handle; never touch the port adapter’s

components or connector pins. (See Figure 5-3.)

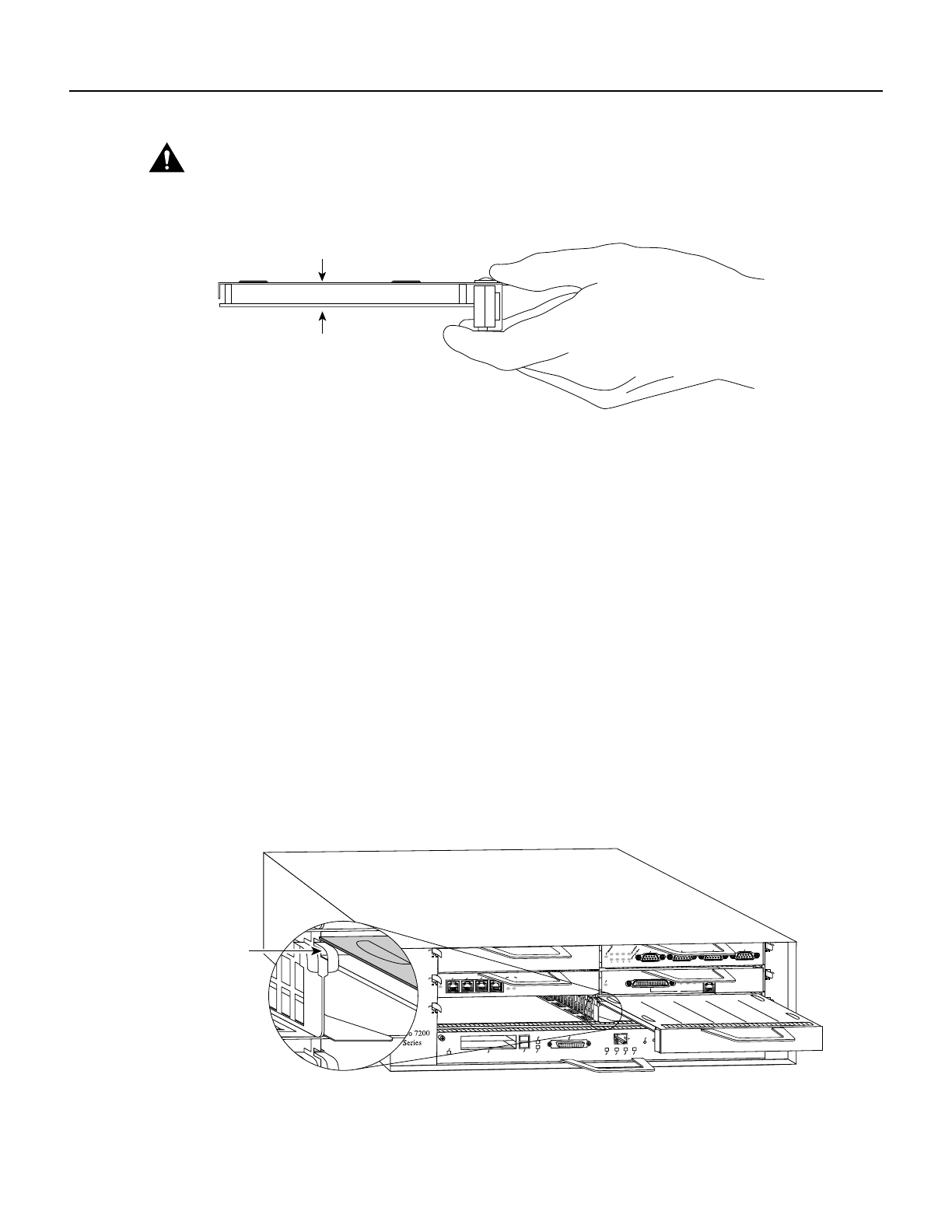

Figure 5-3 Handling a Port Adapter

Step 6 Place the port adapter on an antistatic surface with its components facing upward, or in a

static shielding bag. If the port adapter will be returned to the factory, immediately place

it in a static shielding bag.

This completes the procedure for removing a port adapter from a Cisco 7200 series router.

Installing a Port Adapter

Following is the procedure for installing a new port adapter in a Cisco 7200 series router:

Step 1 Attach an ESD-preventive wrist strap between you and an unﬁnished chassis surface.

Step 2 Remove the new port adapter from its antistatic container and position it at the opening

of the slot. (See Figure 5-4.)

Step 3 Use both hands to grasp the port adapter by its metal carrier edges and position the port

adapter so that its components face downward. (See Figure 5-3.)

Step 4 Align the left and the right edge of the port adapter metal carrier between the guides in

the port adapter slot. (See Figure 5-4.)

Figure 5-4 Aligning the Port Adapter Metal Carrier Between the Slot

Guides—Cisco 7206 Shown

H6420

Metal carrier

Printed circuit board

H6597

MII

RJ45

LINK

1O PWR

RJ-45

CPU RESET

FAST ETHERNET INPUT/OUTPUT CONTROLLER

ENABLED

PCMCIA

EJECT

SLOT 0

SLOT 1

FE MII

ETHERNET 10BT

ENABLED

LINK

ENABLED

MII

LINK

RJ45

FAST ETHERNET

TOKEN RING

Slot

guide

Note: This adapter alignment

applies to any port or service

adapter.

Installing a Port Adapter

PA-E3 Serial Port Adapter Installation and Configuration

5-4

Step 5 With the metal carrier aligned in the slot guides, gently slide the port adapter halfway into

the slot.

Caution Do not slide the port adapter all the way into the slot until you have connected all required cables.

Trying to do so disrupts normal operation of the router.

Step 6 With the port adapter halfway in the slot, connect all required cables to the port adapter.

Step 7 After connecting all required cables, carefully slide the port adapter all the way into the

slot until the port adapter is seated in the router midplane.

Step 8 After seating the port adapter in the router midplane, move the port adapter lever to the

locked position. Figure 5-5 shows the port adapter lever in the locked position.

Note If the port adapter lever does not move to the locked position, the port adapter is

not completely seated in the midplane. Carefully pull the port adapter halfway out of the

slot, reinsert it, and move the port adapter lever to the locked position.

Figure 5-5 Placing the Port Adapter Lever in the Locked Position—Cisco 7206 Shown

This completes the procedure for installing a new port adapter in a Cisco 7200 series router. Proceed

to Chapter 8, “Conﬁguring the PA-E3 Interfaces,” for information on how to conﬁgure your

port adapter interfaces.

ETHERNET 10BT

ENABLED

LINK

FAST SERIAL

ENABLED

MII

LINK

RJ45

FAST ETHERNET

TOKEN RING

H6747

MII

RJ45

LINK

1O PWR

RJ-45

CPU RESET

FAST ETHERNET INPUT/OUTPUT CONTROLLER

ENABLED

PCMCIA

EJECT

SLOT 0

SLOT 1

FE MII

Port adapter

handle

Port adapter

lever (locked

position)

Note: This adapter installation

applies to any port or service

adapter.

CHAPTER

Cisco uBR7200 Series and the PA-E3 6-1

Cisco uBR7200 Series and the PA-E3

This chapter provides information on the PA-E3 serial port adapter and its use in Cisco uBR7200

series universal broadband routers. This chapter includes the following sections:

•Overview, page 6-1

•Removing a Port Adapter, page 6-2

•Installing a Port Adapter, page 6-4

Overview

The PA-E3 can be installed in any of the available port adapter slots in Cisco uBR7200 series routers.

Figure 6-1 shows a PA-E3 installed in port adapter slot 2 of a Cisco uBR7200 series router.

Figure 6-1 Cisco uBR7200 Series with a PA-E3 Port Adapter in Port Adapter Slot 2

Depending on the circumstances, you might need to install a new port adapter or replace a failed port

adapter in a Cisco uBR7200 series router. In either case, no tools are necessary; all port adapters

available for the Cisco uBR7200 series routers connect directly to the router midplane and are locked

into position by a port adapter retention clip (Cisco uBR7246) or lever (Cisco uBR7223). When

removing and replacing a port adapter, you need an antistatic mat onto which you can place a

removed port adapter and an antistatic container into which you can place a failed port adapter for

shipment back to the factory.

15259

PA-E3

port adapter

E3 SERIAL

RCLK

FERF

AIS

OOF

RCLK

ENABLED

FERF

AIS

OOF

XMTR

RCVR

Removing a Port Adapter

PA-E3 Serial Port Adapter Installation and Configuration

6-2

Note The Cisco uBR7200 series routers support online Insertion and Removal (OIR); therefore,

you do not have to power down the router when removing and replacing a PA-E3.

When a port adapter slot is not in use, blank port adapters must ﬁll empty slots to allow the router to

conform to EMI emissions requirements and to allow proper airﬂow across the port adapters. If you

plan to install a new port adapter in a slot that is not in use, you must ﬁrst remove the blank

port adapter.

Removing a Port Adapter

Following is the procedure for removing a port adapter from a Cisco uBR7200 series router:

Step 1 Attach an ESD-preventive wrist strap between you and an unﬁnished chassis surface.

Step 2 Unlock the port adapter retaining mechanism.

•For a Cisco uBR7246, place the port adapter retention clip for the desired port adapter

slot in the unlocked position. The retention clip remains in the unlocked position. (See

Figure 6-2.)

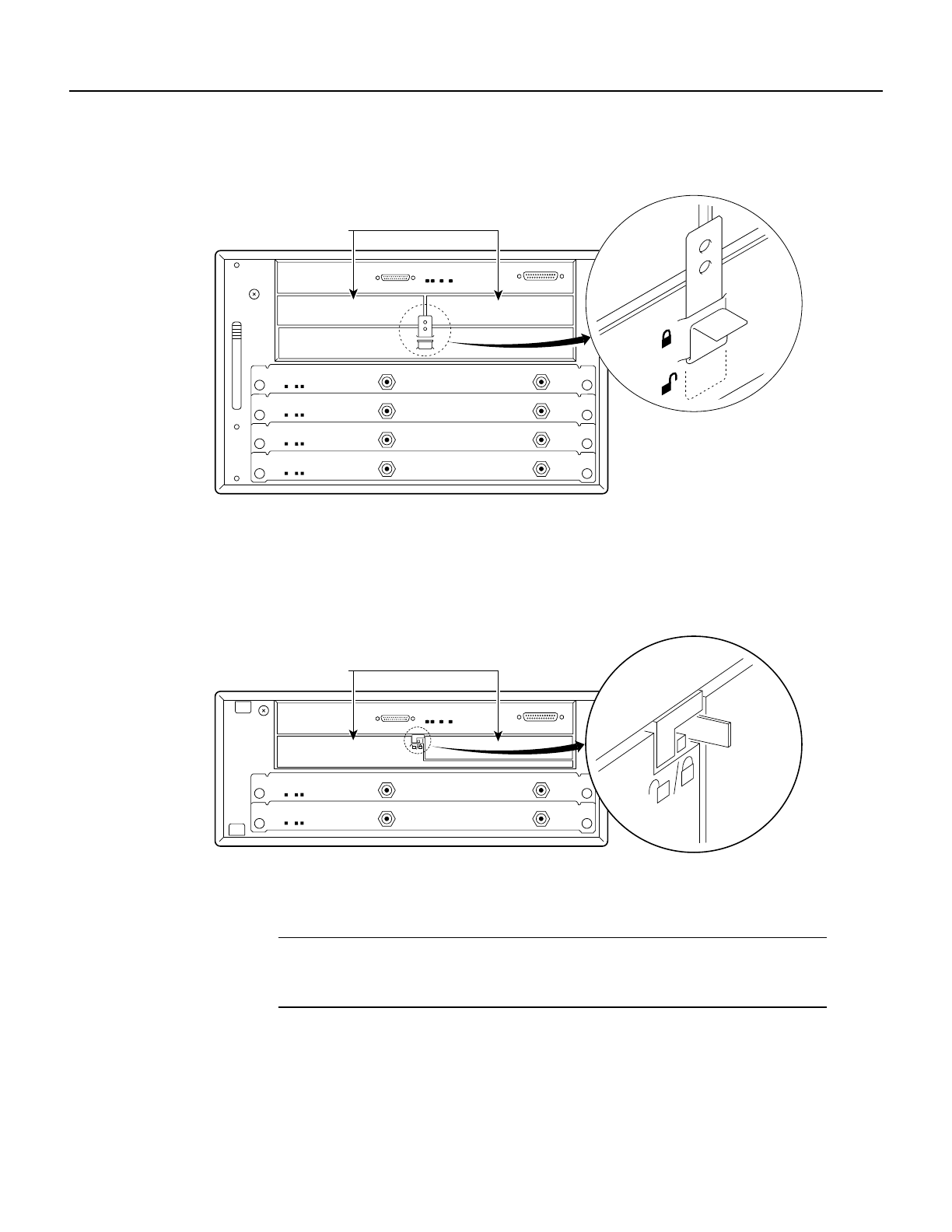

Figure 6-2 Placing the Port Adapter Retention Clip in the Unlocked

Position—Cisco uBR7246 Shown

H11518

Port adapter

retention clip in

unlocked position

Port adapters

Cisco uBR7200 Series and the PA-E3 6-3

Removing a Port Adapter

•For a Cisco uBR7223, place the port adapter lever in the unlocked position.

(See Figure 6-3.)

Figure 6-3 Placing the Port Adapter Lever in the Unlocked

Position—Cisco uBR7223 Shown

Step 3 Grasp the handle on the port adapter and pull the port adapter from the router midplane,

about halfway out of its slot. If you are removing a blank port adapter, pull the blank

port adapter completely out of the chassis slot.

Note As you disengage the port adapter from the midplane, OIR administratively shuts

down all active interfaces on the port adapter.

Step 4 With the port adapter halfway out of the slot, disconnect all cables from the port adapter.

Step 5 After disconnecting the cables, pull the port adapter from its chassis slot.

Caution Always handle the port adapter by the carrier edges and handle; never touch the

port adapter’s components or connector pins. (See Figure 6-4.)

Figure 6-4 Handling a Port Adapter

16217

Port adapter

lever in unlocked

position

Port adapters

H6420

Metal carrier

Printed circuit board

Installing a Port Adapter

PA-E3 Serial Port Adapter Installation and Configuration

6-4

Step 6 Place the port adapter on an antistatic surface with its components facing upward, or in a

static shielding bag. If the port adapter will be returned to the factory, immediately place

it in a static shielding bag.

This completes the procedure for removing a port adapter from a Cisco uBR7200 series router.

Installing a Port Adapter

Following is the procedure for installing a port adapter in a Cisco uBR7200 series router:

Step 1 Attach an ESD-preventive wrist strap between you and an unﬁnished chassis surface.

Step 2 Use both hands to grasp the port adapter by its metal carrier edges and position the

port adapter so that its components are downward. (See Figure 6-4.)

Step 3 Align the left and the right edge of the port adapter metal carrier between the guides in

the port adapter slot. (See Figure 6-5.)

Figure 6-5 Aligning the Port Adapter Metal Carrier Between the Slot Guides

Step 4 With the metal carrier aligned in the slot guides, gently slide the port adapter halfway into

the slot.

Caution Do not slide the port adapter all the way into the slot until you have connected all required

cables. Trying to do so disrupts normal operation of the router.

Step 5 With the port adapter halfway in the slot, connect all required cables to the port adapter.

Step 6 After connecting the cables, carefully slide the port adapter all the way into the slot until

the port adapter is seated in the router midplane.

Step 7 Secure the port adapter:

•For a Cisco uBR7246, slide the port adapter retention clip up to the locked position.

See Figure 6-6.

Note If the retention clip does not slide up to the locked position, the port adapter is not

completely seated in the midplane. Carefully pull the port adapter halfway out of the slot,

reinsert it, and slide the retention clip up to the locked position.

H11519

Inside

slot guide

Metal carrier

PC board

Cisco uBR7200 Series and the PA-E3 6-5

Installing a Port Adapter

Figure 6-6 Placing the Port Adapter Retention Clip in the Locked

Position—Cisco uBR7246 Shown

•For a Cisco uBR7223, place the port adapter lever in the locked position. (See

Figure 6-7.)

Figure 6-7 Placing the Port Adapter Lever in the Locked

Position—Cisco uBR7223 Shown

Note If the port adapter lever does not move to the locked position, the port adapter is

not completely seated in the midplane. Carefully pull the port adapter halfway out of the

slot, reinsert it, and move the port adapter lever to the locked position.

This completes the procedure for installing a port adapter in a Cisco uBR7200 series router. Proceed

to Chapter 8, “Conﬁguring the PA-E3 Interfaces,” for information on how to conﬁgure your

port adapter interfaces.

H11517

Port adapter

retention clip in

locked position

Port adapters

16177

Port adapter

lever in locked

position

Port adapters

Installing a Port Adapter

PA-E3 Serial Port Adapter Installation and Configuration

6-6

CHAPTER

Cisco 7100 Series and the PA-E3 7-1

Cisco 7100 Series and the PA-E3

This chapter provides information on the PA-E3 serial port adapter and its use in the Cisco 7100

series routers. This chapter contains the following sections:

•Installation Overview, page 7-1

•Removing a Port Adapter, page 7-2

•Installing a Port Adapter, page 7-3

Installation Overview

The PA-E3 can be installed in port adapter slot 3 in Cisco 7120 series routers and in port adapter slot

4 in Cisco 7140 series routers. Figure 7-1 shows port adapter slot 3 of a Cisco 7120 series router.

Figure 7-2 shows port adapter slot 4 of a Cisco 7140 series router.

Figure 7-1 Cisco 7120 Series Router—Port Adapter Slot 3 Location

SLOT 0 SLOT 1

FE 0 / 0 FE

AUX

7120 - AE3

RXTX

CEL CAR ALM

CONS

ACT

0 / 1

ACT

LNK

0LNK

PWR

SYS

RDY

Unlocked

Slot 3ESD plug

Locked

22133

Removing a Port Adapter

PA-E3 Serial Port Adapter Installation and Configuration

7-2

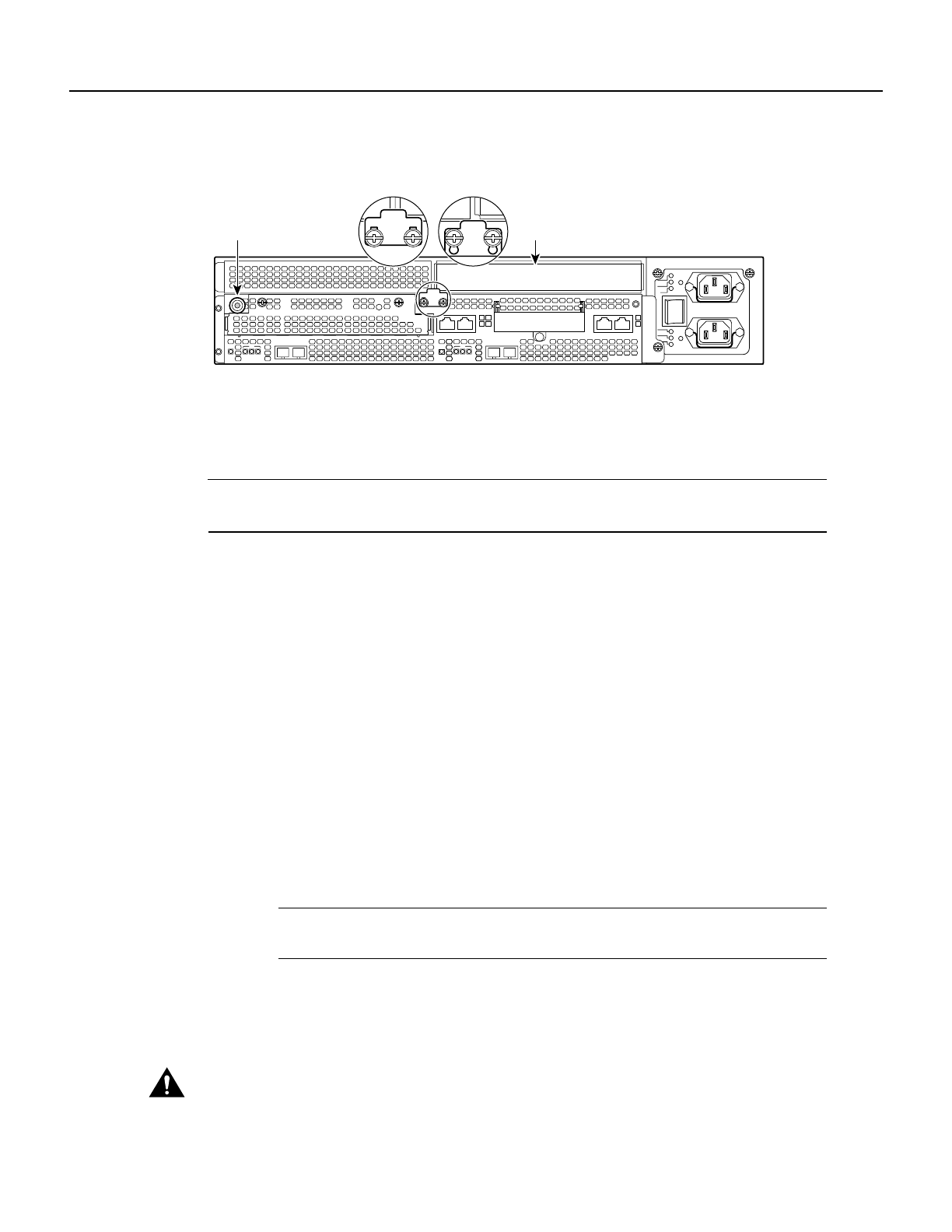

Figure 7-2 Cisco 7140 Series Router—Port Adapter Slot 4 Location

Depending on your circumstances, you might need to install a new port adapter in a Cisco 7100

series router or replace a failed port adapter in the ﬁeld. All port adapters available for the Cisco 7100

series connect directly to the router and are locked into position by a locking tab with two screws

(see Figure 7-1 or Figure 7-2). You need a number 2 Phillips screwdriver to loosen the screws.

Note Cisco 7100 series routers support online insertion and removal (OIR); therefore, you do not

have to power down the router when removing and replacing a port adapter.

When a port adapter slot is not in use, a blank port adapter must ﬁll the empty slot to allow the router

to conform to EMI emissions requirements and to allow proper airﬂow across the port adapters. If

you plan to install a new port adapter in a slot that is not in use, you must ﬁrst remove a blank

port adapter.

Removing a Port Adapter

Follow these steps to remove a port adapter from a Cisco 7100 series router:

Step 1 Attach an ESD-preventive wrist strap between you and the chassis. (See Figure 7-1 or

Figure 7-2 for the location of the ESD plug.)

Step 2 Use a number 2 Phillips screwdriver to loosen the screws on the locking tab; then slide

the tab down to the unlocked position. (See Figure 7-1 or Figure 7-2.)

Step 3 Grasp the handle on the port adapter and pull the port adapter from the router, about

halfway out of its slot. If you are removing a blank port adapter, pull the blank port

adapter completely out of the chassis slot.

Note As you disengage the port adapter from the router, OIR administratively shuts

down all active interfaces on the port adapter.

Step 4 With the port adapter halfway out of the slot, disconnect all cables from the port adapter.

Step 5 After disconnecting the cables, pull the port adapter from its chassis slot.

Caution Always handle the port adapter by the carrier edges and handle; never touch the port adapter’s

components or connector pins. (See Figure 7-3.)

AC OK

DC OK

OTF

AC OK

DC OK

OTF

SLOT 0 SLOT 1

155 - MM

CEL CAR ALM

155 - MM CONS

FE 0 / 0 FE

ACT

0 / 1

AUX

7140 - 2MM3

CEL CAR ALM

ACT

LNK

0LNK

PWR

SYS

RDY

Slot 4

Unlocked

Locked

22134

ESD plug

Cisco 7100 Series and the PA-E3 7-3

Installing a Port Adapter

Figure 7-3 Handling a Port Adapter

Step 6 Place the port adapter on an antistatic surface with its components facing upward, or in a

static shielding bag. If the port adapter will be returned to the factory, immediately place

it in a static shielding bag.

Step 7 Install a blank port adapter or replacement port adapter to maintain proper ﬂow of cooling

air across the internal components. For procedures on how to install a port adapter, see

the next section, “Installing a Port Adapter”.

Note The blank port adapter is available from Cisco Systems as a spare. The blank

port adapter product number is MAS-7100-PABLANK.

This completes the procedure for removing a port adapter from a Cisco 7100 series router.

Installing a Port Adapter

Follow these steps to install a new port adapter in a Cisco 7100 series router:

Step 1 Attach an ESD-preventive wrist strap between you and the chassis. (See Figure 7-1 for

the location of the ESD plug.)

Step 2 Ensure that the locking tab is down in the unlocked position. If it is locked, use a

number 2 Phillips to loosen the screws; then slide the tab down to the unlocked position.

(See Figure 7-1.)

Step 3 Remove the new port adapter from its antistatic container and position it at the opening

of the slot.

Step 4 Use both hands to grasp the port adapter by its metal carrier edges, and position the port

adapter so that its components face downward. (See Figure 7-3.)

Step 5 Align the left and the right edge of the port adapter metal carrier between the guides in

the port adapter slot. (See Figure 7-4.)

Step 6 With the metal carrier aligned in the slot guides, gently slide the port adapter halfway into

the slot.

Caution Do not slide the port adapter all the way into the slot until you have connected all required cables.

Trying to do so disrupts normal operation of the router.

H6420

Metal carrier

Printed circuit board

Installing a Port Adapter

PA-E3 Serial Port Adapter Installation and Configuration

7-4

Figure 7-4 Aligning the Single-Width Port Adapter Between the Slot Guides

Step 7 With the port adapter halfway in the slot, connect all required cables to the port adapter.

Step 8 After connecting all required cables, carefully slide the port adapter all the way into the

slot until the port adapter is seated in the router.

Step 9 After seating the port adapter in the router, slide the locking tab up to the locked position

and tighten the screws. (Figure 7-1 or Figure 7-2 shows the locking tab in the locked

position.)

Note If the port adapter lever is not in the locked position, the port adapter is not

completely seated in the router. Carefully pull the port adapter halfway out of the slot,

reinsert it, and move the port adapter lever to the locked position.

This completes the procedure for installing a new port adapter in a Cisco 7100 series router. Proceed

to Chapter 8, “Conﬁguring the PA-E3 Interfaces,” to connect the necessary cables to your port

adapter.

22132

FE 0 /

XMTRRCVR

RCLK FERF RL

AIS OOF LL

Guides

CHAPTER

Configuring the PA-E3 Interfaces 8-1

Configuring the PA-E3 Interfaces

To continue your PA-E3 serial port adapter installation, you must conﬁgure the E3 interfaces. The

instructions that follow apply to all supported platforms. Minor differences between the platforms

are noted. This chapter contains the following sections:

•Using the EXEC Command Interpreter, page 8-1

•Identifying Port Adapter Slot and PA-E3 Interface Port Numbers, page 8-2

•Performing a Basic Conﬁguration, page 8-7

•Conﬁguration Example, page 8-8

•Customizing the PA-E3, page 8-8

•Conﬁguring Cyclic Redundancy Checks, page 8-10

•Checking the Conﬁguration, page 8-11

If you installed a new PA-E3 or if you want to change the conﬁguration of an existing interface, you

must enter conﬁguration mode using the conﬁgure command. If you replaced a PA-E3 that was

previously conﬁgured, the system recognizes the new PA-E3 interfaces and brings each of them up

in their existing conﬁguration.

After you verify that the new PA-E3 is installed correctly (the enabled LED goes on), use the

privileged-level conﬁgure command to conﬁgure the new interfaces. You will need the following

information for your conﬁguration:

•Protocols you plan to route on each new interface

•Internet Protocol (IP) addresses if you are conﬁguring the interfaces for IP routing

•Plan to use bridging or not on the new interfaces

•Timing source for each new interface and clock speeds for external timing

For a summary of the conﬁguration options available and instructions for conﬁguring interfaces on

the PA-E3, refer to the appropriate conﬁguration publications listed in the “Related Documentation”

section on page vi.

Using the EXEC Command Interpreter

You modify the conﬁguration of your router through the software command interpreter called the

EXEC (also called enable mode). You must enter the privileged level of the EXEC command

interpreter with the enable command before you can use the conﬁgure command to conﬁgure a new

interface or to change the existing conﬁguration of an interface. The system prompts you for a

password if one is set.

Identifying Port Adapter Slot and PA-E3 Interface Port Numbers

PA-E3 Serial Port Adapter Installation and Configuration

8-2

The system prompt for the privileged level ends with a pound sign (#) instead of an angle bracket

(>). At the console terminal, use the following procedure to enter the privileged level:

Step 1 At the user-level EXEC prompt, enter the enable command. The EXEC prompts you for

a privileged-level password as follows:

Router> enable

Password:

Step 2 Enter the password (the password is case-sensitive). For security purposes, the password

is not displayed.

Step 3 When you enter the correct password, the system displays the privileged-level system

prompt (#):

Router#

Proceed to the following section to conﬁgure the new interfaces.

Identifying Port Adapter Slot and PA-E3 Interface Port Numbers

This section describes how to identify port adapter slot and PA-E3 interface port numbers for

Cisco 7200 series routers, Cisco 7100 series routers, Cisco uBR7200 series routers, and the VIP2.

You can identify interface ports by physically checking the port location on the back of the router or

by using software commands to display information about a speciﬁc interface or all interfaces in the

router.

The PA-E3 can be installed in the following slots on the hardware platforms described in this

document:

•VIP2—Port adapter slot 0 and slot 1

•Catalyst RSM/VIP2—Port adapter slot 0 and slot 1

•Cisco 7100 series routers—Port adapter slot 3 in a Cisco 7120 series router and port adapter

slot 4 in a Cisco 7140 series router

•Cisco 7200 series routers—Port adapter slot 1 and slot 2 in a Cisco 7202; port adapter slot 1

through slot 4 in a Cisco 7204 and Cisco 7204VXR; port adapter slot 1 through slot 6 in a

Cisco 7206 and Cisco 7206VXR

•Cisco uBR7200 series—Port adapter slot 1 and slot 2 in a Cisco uBR7246 and port adapter slot 1

in a Cisco uBR7223

Port adapters have a handle attached, but this handle is occasionally not shown in this document to

allow a full view of detail on the port adapter’s faceplate.

Cisco 7200 Series and Cisco uBR7200 Series Ports

Physical port addresses specify the actual physical location of each interface port on a Cisco 7200

series router (see Figure 8-1) or a Cisco uBR7200 series router (see Figure 8-2). This address is

composed of a two-part number in the format port adapter slot number/interface port number, as

follows:

•The ﬁrst number identiﬁes the chassis slot in which the PA-E3 is installed.

•The second number identiﬁes the interface port on each PA-E3; the interface port is always

numbered as interface 0 for the one-port PA-E3 and 0 or 1 for the two-port PA-2E3.

Configuring the PA-E3 Interfaces 8-3

Cisco 7200 Series and Cisco uBR7200 Series Ports

Interface ports maintain the same address regardless of whether other port adapters are installed or

removed from the slot. However, when you move a port adapter to a different slot, the ﬁrst number

in the address changes to reﬂect the new chassis slot number.

In Cisco 7200 series routers, port adapter slots are numbered from the lower left to the upper right,

beginning with port adapter slot 1 and continuing through port adapter slot 2 for the Cisco 7202,

slot 4 for the Cisco 7204 and Cisco 7204VXR, and slot 6 for the Cisco 7206 and Cisco 7206VXR.

Port adapter slot 0 is reserved for the optional Fast Ethernet port on the I/O controller if present.

Figure 8-1 shows the port adapter slots and interface ports of a Cisco 7206. The individual interface

port numbers always begin with 0. The number of additional ports depends on the number of ports

on a port adapter.

Note The I/O controller is available with or without a Fast Ethernet port. You can install both I/O

controller types in all Cisco 7200 series routers; however, when you install an I/O controller with a

Fast Ethernet port in a Cisco 7202, the system software automatically disables the port.

For example, the serial port on a one-port PA-E3 in port adapter slot 3 has the address 3/0.

(See Figure 8-1.) If the PA-E3 is in port adapter slot 1, this same interface port is numbered 1/0. The

serial ports on a two-port PA-2E3 in port adapter slot 3 have the addresses 3/0 and 3/1.

Note The PA-E3 is considered a high-bandwidth port adapter; you must observe speciﬁc

conﬁguration guidelines. Refer to the publication Cisco 7200 Series Port Adapter Hardware

Conﬁguration Guidelines, which shipped with your Cisco 7200 series chassis and is also available

on the Cisco Connection Documentation, Enterprise Series CD-ROM.

Figure 8-1 Cisco 7206 Serial Port Number Example

Figure 8-2 shows the interface ports of a PA-E3 in slot 2 of a Cisco uBR7200 series router. The port

adapter slots are numbered slot 1 and slot 2 for the Cisco uBR7246 and slot 1 for the Cisco uBR7223

(slot 0 is always reserved for the Fast Ethernet port on the I/O controller if present). The individual

interface port numbers always begin with 0. The number of additional ports depends on the number

of ports on a port adapter. Port adapters can occupy any port adapter slot; there are no restrictions.

For example, the serial port on a one-port PA-E3 in port adapter slot 1 has the address 1/0.

(See Figure 8-2.) If the PA-E3 is in port adapter slot 2, this same interface port is numbered 2/0. The

serial ports on a two-port PA-2E3 in port adapter slot 2 have the addresses 2/0 and 2/1.

H10609

FAST SERIAL

ENABLED

MII

LINK

RJ45

FAST ETHERNET

TOKEN RING

ENABLED

RCLK

XMTR

RCVR

FERF

OOF

AIS

E3 SERIAL

ETHERNET-10BFL

FAST ETHERNET INPUT/OUTPUT CONTROLLER

ENABLED

PCMCIA

EJECT

SLOT 0

SLOT 1

FE MII

PA-E3 port adapter

(port number 3/0)

MII

RJ-45

EN RJ-45

RJ-45

LINK

1O PWR

Identifying Port Adapter Slot and PA-E3 Interface Port Numbers

PA-E3 Serial Port Adapter Installation and Configuration

8-4

Figure 8-2 PA-E3 Interface Port Address Example—Cisco uBR7246 Shown

You can identify interface ports by physically checking the port adapter/interface port location on

the back of the router or by using software commands to display information about a speciﬁc

interface or all interfaces in the router.

VIP2 Ports

In the router, physical port addresses specify the actual physical location of each interface port on

the router interface processor end. (See Figure 8-3.) Each address is composed of a three-part

number in the format interface processor slot number/port adapter number/interface port number,

as follows:

•The ﬁrst number identiﬁes the chassis slot in which the VIP2 is installed (as shown in the sample

system in Figure 8-3).

•The second number identiﬁes the physical port adapter slot on the VIP2, and is either 0 or 1.

•The third number identiﬁes the interface port on each E3 serial port adapter, which is always

numbered as interface 0 for the one-port PA-E3 and 0 or 1 for the two-port PA-2E3.

Note Although the processor slots in the 7-slot Cisco 7000 and Cisco 7507 and 13-slot Cisco 7513

are vertically oriented and the slots in the 5-slot Cisco 7010 and Cisco 7505 are horizontally

oriented, all models use the same method for slot and port numbering.

Interface ports on the VIP2 maintain the same address regardless of whether other interface

processors are installed or removed. However, when you move a VIP2 to a different slot, the ﬁrst

number in the address changes to reﬂect the new chassis slot number.

Figure 8-3 shows the port adapter slots and interface ports of a sample Cisco 7505 system. On the

VIP2, the ﬁrst port adapter slot number is always 0. The second port adapter slot number is always 1.

The individual interface port numbers always begin with 0. The number of additional ports depends

on the number of ports on a port adapter.

For example, the serial port on a one-port PA-E3 in the ﬁrst port adapter slot in chassis slot 3 is

numbered 3/0/0. (See Figure 8-3.) If the PA-E3 is in port adapter slot 1, this same port is numbered

3/1/0. The serial ports on a two-port PA-2E3 in the ﬁrst port adapter slot in chassis slot 3 are

numbered 3/0/0 and 3/0/1.

Port adapters can occupy either port adapter slot; there are no restrictions.

15260

PA-E3

port adapter

(port number 1/0)

E3 SERIAL

RCLK

FERF

AIS

OOF

RCLK

ENABLED

FERF

AIS

OOF

XMTR

RCVR

Configuring the PA-E3 Interfaces 8-5

Catalyst RSM/VIP2 Ports

Figure 8-3 Cisco 7505 Serial Port Number Example

You can identify interface ports by physically checking the slot/port-adapter/interface port location

on the back of the router or by using show commands to display information about a speciﬁc

interface or all interfaces in the router.

Catalyst RSM/VIP2 Ports

In the Catalyst RSM/VIP2, each port adapter address is composed of a two-part number in the

format port adapter number/interface port number, as follows:

•The ﬁrst number identiﬁes the physical port adapter slot on the Catalyst RSM/VIP2, and is either

0 or 1.

•The second number identiﬁes the interface port on each E3 serial port adapter, which is always

numbered as interface 0 for the one-port PA-E3 and 0 or 1 for the two-port PA-2E3.

Figure 8-4 shows the port adapters on a Catalyst RSM/VIP2 installed in a Catalyst 5509 switch. The

ﬁrst port adapter slot number is always 0. The second port adapter slot number is always 1. The

individual interface port numbers always begin with 0. The number of additional ports depends on

the number of ports on a port adapter.

For example, the serial port on a one-port PA-E3 in the ﬁrst port adapter slot is numbered 0/0. (See

Figure 8-4.) If the PA-E3 is in port adapter slot 1, this same port is numbered 1/0. The serial ports

on a two-port PA-2E3 in the ﬁrst port adapter slot are numbered 0/0 and 0/1.

Port adapters can occupy either port adapter slot; there are no restrictions.

H10610

ENABLED

RCLK

XMTR

RCVR

FERF

OOF

AIS

E3 SERIAL

Slot 0

Slot 1

Slot 2

Slot 3

Interface

processor

slots

EJECT

SLOT 0

SLOT 1

NORMAL

CPU HALT

RESET

CONSOLE

ROUTE SWITCH PROCESSOR

PA-E3 (port numbers 3/1/0)PA-E3 (port number 3/0/0)

ENABLED

RCLK

XMTR

RCVR

FERF

OOF

AIS

E3 SERIAL

Identifying Port Adapter Slot and PA-E3 Interface Port Numbers

PA-E3 Serial Port Adapter Installation and Configuration

8-6

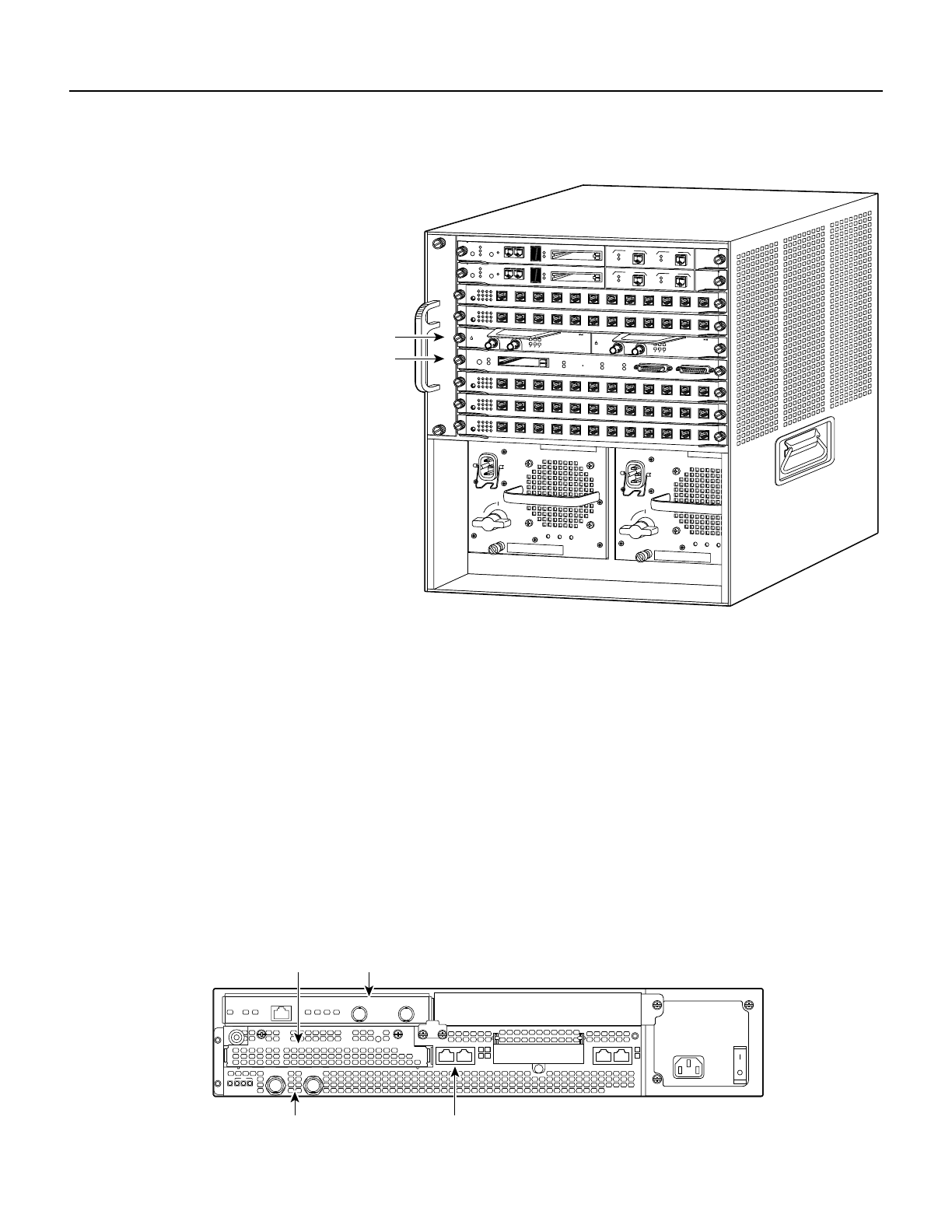

Figure 8-4 Serial Port Adapters in the Catalyst 5509

You can identify interface ports by physically checking the port-adapter/interface port location on

the back of the router or by using show commands to display information about a speciﬁc interface

or all interfaces in the router.

Cisco 7100 Series Ports

In the Cisco 7100 series routers, the slot number is the location in the chassis where the interface

resides and the port number is the physical port. Interfaces in the Cisco IOS software are identiﬁed

by a type, slot number, and port number. For example, serial 3/1 indicates port 1 on the serial

port adapter in slot 3.

Slots in the Cisco 7120 series routers are numbered as shown in Figure 8-5. The ﬁxed LAN interface

is slot 0, the ﬁxed WAN interface is slot 1, and the modular port adapter interface is slot 3. Slots 2

and 4 are not used on the Cisco 7120 series routers. Slot 5 is the service module.

Figure 8-5 Port Adapter Slot Numbering—Cisco 7120 Series

26453

FAN

OUTPUT

FAIL

FAN

OUTPUT

FAIL

STATUS

FAST ETHERNET SWITCHING MODULE

STATUS

FAST ETHERNET SWITCHING MODULE

STATUS

FAST ETHERNET SWITCHING MODULE

UTP

CHANNEL 1

AUX

CONSOLE

CHANNEL 0

SLOT 1

RESET

PCMCIA

SLOT 0

CPU HALT

PCMICA

EJECT

STATUS

ROUTE SWITCH MODULE

ENABLED

STATUS

FAST ETHERNET SWITCHING MODULE

STATUS

FAST ETHERNET SWITCHING MODULE

PORT 2

Switch Load PCMCIA

100%

10/100Mbps

LINK

CONSOLE AUX

PORT 1

RESET

FAN

SLOT 1

SLOT 0

ACTIVE

PS1

PS2

SUPERVISOR ENGINE I I I 10/100 FAST ETHERCHANNEL

MDIX MDIX

WS-U5531-FETX

WS-x5530

10/100Mbps

LINK

SYSTEM

STATUS

PORT 2

Switch Load PCMCIA

100%

10/100Mbps

LINK

CONSOLE AUX

PORT 1

RESET

FAN

SLOT 1

SLOT 0

ACTIVE

PS1

PS2

SUPERVISOR ENGINE I I I 10/100 FAST ETHERCHANNEL

MDIX MDIX

WS-U5531-FETX

WS-x5530

10/100Mbps

LINK

SYSTEM

STATUS

Route Switch Module

Versatile Interface Processor

with port adapters

ENABLED

E3 SERIAL

RCLK

RCVR

XMTR

FERF

OOF

AIS

ENABLED

E3 SERIAL

RCLK

RCVR

XMTR

FERF

OOF

AIS

SLOT 0 SLOT 1

FE 0 / 0 FE

AUX

7120 - AE3

RXTX

CEL CAR ALM

CONS

ACT

0 / 1

ACT

LNK

0LNK

PWR

SYS

RDY

Slot 1 Slot 0

Slot 3

Slot 5

18498

Configuring the PA-E3 Interfaces 8-7

Performing a Basic Configuration

Slots in the Cisco 7140 series routers are numbered as shown Figure 8-6. The ﬁxed LAN interface

is slot 0, the ﬁxed WAN interfaces are slots 1 and 2, and the modular port adapter interface is slot 4.

Slot 3 is not used. Slot 5 is the service module.

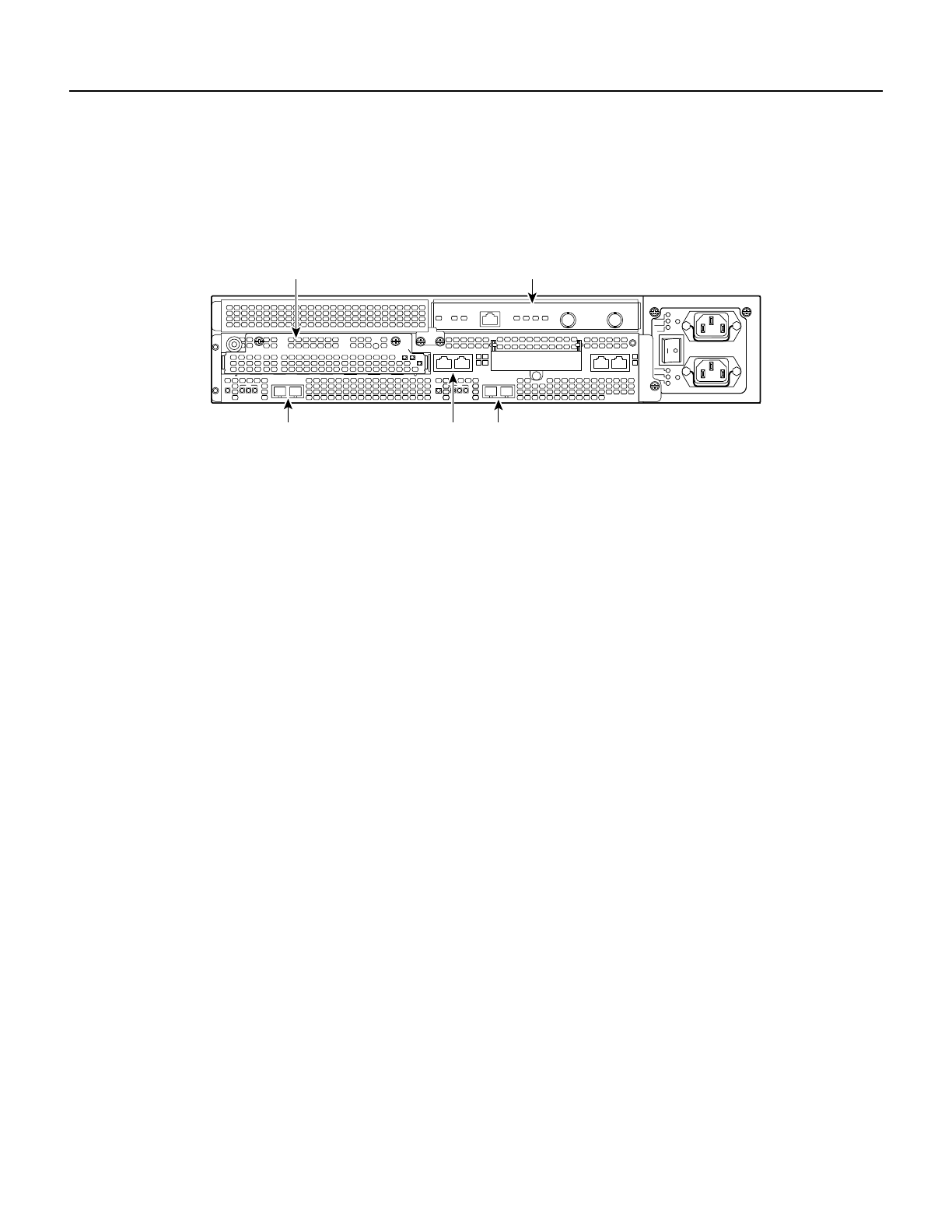

Figure 8-6 Port Adapter Slot Numbering—Cisco 7140 Series

Performing a Basic Conﬁguration

The following steps are for a basic interface conﬁguration for the PA-E3. Press the Return key after

each step unless otherwise noted. At any time you can exit the privileged level and return to the user

level by entering disable at the prompt:

router# disable

router>

Step 1 At the privileged-level prompt, enter conﬁguration mode and specify that the console

terminal is the source of the conﬁguration subcommands:

router# configure terminal

Enter configuration commands, one per line. End with CNTL/Z.

router(config)#

Step 2 Specify the interface to conﬁgure:

•For Cisco 7100 series, Cisco 7200 series, or Cisco uBR7200 series routers, specify the

interface to conﬁgure by entering the subcommand interface serial followed by the

slot/port (port adapter slot number and interface port number). The example that

follows is for the interface of the port adapter in slot 3:

router(config)# interface serial 3/0

•For a VIP2, specify the interface to conﬁgure by entering the subcommand

interface serial, followed by the slot/port-adapter/port (interface processor slot

number, port adapter slot number, and interface port number). The example that

follows is for the interface of the ﬁrst port adapter on a VIP2 in interface processor slot

router(config)# interface serial 1/0/0

•For a Catalyst RSM/VIP2, specify the interface to conﬁgure by entering the

subcommand interface serial, followed by the port-adapter/port (port adapter slot

number and interface port number). The example that follows is for the interface of

the ﬁrst port adapter on a Catalyst RSM/VIP2:

router(config)# interface serial 0/0

SLOT 0 SLOT 1

AC OK

DC OK

OTF

AC OK

DC OK

OTF

155 - MM

CEL CAR ALM

155 - MM CONS

FE 0 / 0 FE

ACT

0 / 1

AUX

7140 - 2MM3

CEL CAR ALM

ACT

LNK

0LNK

PWR

SYS

RDY

ERROR

BOOT

RESETSM-EC-DS

18499

Slot 1 Slot 0 Slot 2

Slot 4Slot 5

Configuration Example

PA-E3 Serial Port Adapter Installation and Configuration

8-8

Step 3 If IP routing is enabled on the system, change to interface conﬁguration mode and use the

ip address conﬁguration subcommand to assign an IP address and subnet mask to the

interface, as in the following example:

router(config-if)# ip address 10.0.0.0 10.255.255.255

Step 4 In interface conﬁguration mode, choose the internal clock source by entering the

clock source conﬁguration subcommand, as in the following example:

router(config-if)# clock source internal

Use the no form of this command to restore the default clock source, which is line.

Step 5 In interface conﬁguration mode, change the shutdown state to up and enable the interface

as follows:

router(config-if)# no shutdown

Step 6 Conﬁgure additional interfaces as required.

Step 7 When you have included all of the conﬁguration subcommands to complete the

conﬁguration, press Ctrl-Z to exit conﬁguration mode.

Step 8 Write the new conﬁguration to nonvolatile memory as follows:

router# copy running-config startup-config

[OK]

router#

To check the interface conﬁguration using show commands, proceed to the “Using show Commands

to Display Interface and System Information” section on page 8-12.

Conﬁguration Example

The following example shows a typical conﬁguration for the PA-E3 on a Cisco 7500 series router:

router> enable

router# configure terminal

router(config)# interface serial

router(config)# interface serial 1/0/0

router(config)# ip address 1.1.1.10 255.255.255.0

router(config-if)# clock source internal

router(config-if)# no shutdown

router(config-if)# ^Z

Customizing the PA-E3

You can customize the PA-E3. The features you can customize have default values that will probably

suit your environment and need not be changed. However, you might need to enter conﬁguration

commands, depending on the requirements for your system conﬁguration and the protocols you plan

to route on the interface. Perform the tasks in the following sections if you need to customize the

PA-E3.

Configuring the PA-E3 Interfaces 8-9

Setting the Bandwidth

In interface conﬁguration mode, reduce effective bandwidth (range of 22 to 34010 kilobits per

second) by entering the dsu bandwidth conﬁguration subcommand, as in the following example:

router(config-if)# dsu bandwidth 16000

Use the no form of this command to return to the default, 34010.

Note The local port conﬁguration must match the remote port conﬁguration. For example, if you

reduce the effective bandwidth to 16000 on the local port, you must do the same on the remote port.

Deﬁning the DSU Mode

In interface conﬁguration mode, deﬁne the DSU interoperability mode by entering the

dsu mode [0|1] conﬁguration subcommand, as in the following example:

router(config-if)# dsu mode 1

Use the no form of this command to return to the default, 0.

Note The local port conﬁguration must match the remote port conﬁguration. For example, if you

deﬁne the DSU interoperability mode as 1 on the local port, you must do the same on the remote

port. You need to know what type of DSU is at the remote port to ﬁnd out if it interoperates with the

PA-E3. For E3 serial interfaces, specify mode 0 for connection from a PA-E3 to another PA-E3 or a

Digital Link DSU (DL3100). Specify mode 1 for connection from a PA-E3 to a Kentrox DSU.

Also refer to the “Interoperability Guidelines for PA-E3 DSUs” section on page 15 for information

regarding DSU feature compatibilities.

Deﬁning Set Bit (National)

In interface conﬁguration mode, deﬁne set bit in G751 frame (national bit) by entering the

national bit [0 | 1] conﬁguration subcommand, as in the following example:

router(config-if)# national bit 1

Use the no form of this command to return to the default, which is 0.

Enabling E3 Scrambling

In interface conﬁguration mode, enable E3 scrambling by entering the scramble conﬁguration

subcommand, as in the following example:

router(config-if)# scramble

Use the no form of this command to restore the default value, which is disabled.

Note The local port conﬁguration must match the remote port conﬁguration. For example, if you

enable scrambling on the local port, you must do the same on the remote port.

Also refer to the “Interoperability Guidelines for PA-E3 DSUs” section on page 15 for information

regarding DSU feature compatibilities.

Configuring Cyclic Redundancy Checks

PA-E3 Serial Port Adapter Installation and Configuration

8-10

Specifying E3 Framing

In interface conﬁguration mode, specify E3 framing by entering the framing {g751 | bypass}

conﬁguration subcommand, as in the following example:

router(config-if)# framing g751

Use the no form of this command to return to the default, which is G.751 framing.

Note If you use the bypass option, scrambling must be set to the default, disabled; the DSU mode

must be set to the default, 0; and the DSU bandwidth must be set to the default, 34010.

Setting the Cable Length

In interface conﬁguration mode, set the cable length (0 to 450 feet), as in the following example:

router(config-if)# cablelength 250

Use the no form of this command to return to the default, which is 10 feet.

Conﬁguring Cyclic Redundancy Checks

The PA-E3 uses a 16-bit cyclic redundancy check (CRC) by default; it also supports a 32-bit CRC.

The CRC is an error-checking technique that uses a calculated numeric value to detect errors in

transmitted data. The sender of a data frame divides the bits in the frame message by a predetermined

number to calculate a remainder or frame check sequence (FCS). Before sending the frame, the

sender appends the FCS value to the message so that the frame contents are exactly divisible by the

predetermined number. The receiver divides the frame contents by the same predetermined number

that the sender used to calculate the FCS. If the result is not 0, the receiver assumes that a

transmission error occurred and sends a request to the sender to resend the frame.

Note To enable a 32-bit CRC on an interface, follow Step 1 and Step 2 of the preceding procedure

(enter conﬁguration mode and specify the slot and port address of the PA-E3, and the interface port

number for a VIP2), and then enter the command crc 32. Enter Ctrl-Z to exit from conﬁguration

mode.

For a Cisco 7100 series, Cisco 7200 series, or Cisco uBR7200 series router, use the following

example:

router# configure terminal

Enter configuration commands, one per line. End with CNTL/Z.

router(config)#

router(config)# interface serial 3/0

router(config-int)# crc 32

Ctrl-z

Configuring the PA-E3 Interfaces 8-11

Checking the Configuration

For a VIP2, use the following example:

router# configure terminal

Enter configuration commands, one per line. End with CNTL/Z.

router(config)#

router(config)# interface serial 1/0/0

router(config-if)# crc 32

Ctrl-z

For a Catalyst RSM/VIP2, use the following example:

router# configure terminal

Enter configuration commands, one per line. End with CNTL/Z.

router(config)#

router(config)# interface serial 0/0

router(config-if)# crc 32

Ctrl-z

To disable CRC-32 and return to the default CRC-16 setting, specify the slot and port address (and

the interface port number for a VIP2) and use the no crc 32 command. For complete command

descriptions and instructions, refer to the related software documentation.

Note When enabling a 32-bit CRC on an interface, ensure that the remote device is also conﬁgured

for a 32-bit CRC. Both the sender and the receiver must use the same CRC setting.

To check the interface conﬁguration using show commands, proceed to the following section,

“Checking the Conﬁguration.”

Checking the Conﬁguration

After conﬁguring the new interface, use the show commands to display the status of the new

interface or all interfaces, the ping command to check connectivity, and the loopback command to

verify the physical interface.

Using show Commands to Verify Status

Use show commands to verify that the new interfaces are conﬁgured and operating correctly:

Step 1 Use the show version command to display the system hardware conﬁguration. Ensure

that the list includes the new interfaces.

Step 2 Display all of the current port adapters and their interfaces with the show controllers

command. Verify that the new PA-E3 appears in the correct slot.

Step 3 Specify one of the new interfaces as follows:

•show interfaces type slot/port command on Cisco 7100 series, Cisco 7200 series, and

Cisco uBR7200 series routers

•show interfaces type slot/port-adapter/port on the VIP2

•show interfaces port-adapter/port on the Catalyst RSM/VIP2

Verify that the ﬁrst line of the display speciﬁes the interface with the correct slot number

and that the interface and line protocol are in the correct state: up or down.

Checking the Configuration

PA-E3 Serial Port Adapter Installation and Configuration

8-12

Step 4 Specify one of the new interfaces as follows:

•show interfaces port adapter type slot/port on Cisco 7100 series, Cisco 7200 series,

and Cisco uBR7200 series routers

•show interfaces type slot/port adapter/interface command on the VIP2

•show interfaces port adapter/interface command on the Catalyst RSM/VIP2

Verify that the ﬁrst line of the display speciﬁes the interface with the correct slot number

and that the interface and line protocol are in the correct state: up or down.

Step 5 View the information that is speciﬁc to the serial interface hardware:

•For Cisco 7100, Cisco 7200 series and Cisco uBR7200 series routers, specify the new

serial interface with the show controllers serial [port adapter slot number/interface

port number] command, and verify that the ﬁrst line of the display speciﬁes the

interface with the correct slot number.

•For a VIP2, specify information that is speciﬁc to the new serial interface with the

show controllers serial [type slot/port adapter/interface] command, and verify that

the ﬁrst line of the display speciﬁes the interface with the correct slot number.

•For a Catalyst RSM/VIP2, specify information that is speciﬁc to the new serial

interface with the show controllers serial [port adapter/interface] command, and

verify that the ﬁrst line of the display speciﬁes the interface with the correct slot

number.

Step 6 Display the protocols conﬁgured for the entire system and for the speciﬁc interfaces with

the show protocols command. If necessary, return to conﬁguration mode to add or

remove protocol routing on the system or on speciﬁc interfaces.

Step 7 Display the running conﬁguration ﬁle with the show running-conﬁg command. Display

the conﬁguration stored in NVRAM using the show startup-conﬁg command. Verify

that the conﬁguration is accurate for the system and each interface.

If the interface is down and you conﬁgured it as up, or if the displays indicate that the hardware is

not functioning properly, ensure that the network interface is properly connected and terminated. If

you still have problems bringing the interface up, ask a service representative for assistance.

Using show Commands to Display Interface and System Information

For Cisco 7100, Cisco 7200, or Cisco uBR7200 series routers, to display information about a

speciﬁc interface, use the show interfaces command with the interface type and port address in the

format show interfaces type slot/port.

Configuring the PA-E3 Interfaces 8-13

Using show Commands to Display Interface and System Information

The following example of the show interfaces type slot/port command shows all of the information

speciﬁc to the serial E3 port (interface port 0) in port adapter slot 2:

router# show interfaces serial 2/0

Serial2/0 is up, line protocol is up

Hardware is M1T-E3 pa

Internet address is 172.16.0.0/8

MTU 4470 bytes, BW 34010 Kbit, DLY 200 usec, rely 255/255, load 1/255

Encapsulation HDLC, loopback not set, keepalive not set

Last input 00:00:05, output 00:00:46, output hang never

Last clearing of "show interface" counters never

Queueing strategy: fifo

Output queue 0/40, 0 drops; input queue 0/75, 0 drops

5 minute input rate 0 bits/sec, 0 packets/sec

5 minute output rate 0 bits/sec, 0 packets/sec

22 packets input, 7128 bytes, 0 no buffer

Received 22 broadcasts, 0 runts, 0 giants

0 parity

6 input errors, 3 CRC, 0 frame, 0 overrun, 0 ignored, 3 abort

22 packets output, 7348 bytes, 0 underruns

0 output errors, 0 applique, 6 interface resets

0 output buffer failures, 0 output buffers swapped out

1 carrier transitions

rxLOS inactive rxLOF inactive rxAIS inactive

txAIS inactive txRAI inactive

For a VIP2, the show interfaces type slot/port-adapter/port command displays status information

(including the physical slot and port address) for the interfaces you specify. In this example, a

one-port E3 serial port adapter-conﬁgured VIP2 is in chassis slot 1, in port adapter slot 0.

router# show interfaces serial 1/0/0

Serial1/0/0 is up, line protocol is up

Hardware is cyBus Serial

Internet address is 10.0.0.0/24

MTU 4470 bytes, BW 45045 Kbit, DLY 200 usec, rely 255/255, load 1/255

Encapsulation HDLC, loopback not set, keepalive not set

Last input 2d22h, output 00:00:19, output hang never

Last clearing of “show interface” counters 2d20h

Queueing strategy: fifo

Output queue 0/40, 0 drops; input queue 0/75, 0 drops

5 minute input rate 0 bits/sec, 0 packets/sec

5 minute output rate 0 bits/sec, 0 packets/sec

0 packets input, 0 bytes, 0 no buffer

Received 0 broadcasts, 0 runts, 0 giants, 0 parity

0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored, 0 abort

4084 packets output, 1298712 bytes, 0 underruns

0 output errors, 0 applique, 0 interface resets

0 output buffer failures, 0 output buffers swapped out

0 carrier transitions

For a Catalyst RSM/VIP2, the show interfaces port-adapter/port command displays status

information for the interfaces you specify. In this example, a one-port E3 serial port

adapter-conﬁgured Catalyst RSM/VIP2 in port adapter slot 0.

router# show interfaces serial 0/0

Serial0/0 is up, line protocol is up

Hardware is cyBus Serial

Internet address is 10.0.0.0/24

MTU 4470 bytes, BW 45045 Kbit, DLY 200 usec, rely 255/255, load 1/255

Encapsulation HDLC, loopback not set, keepalive not set

Last input 2d22h, output 00:00:19, output hang never

Last clearing of “show interface” counters 2d20h

Queueing strategy: fifo

Checking the Configuration

PA-E3 Serial Port Adapter Installation and Configuration

8-14

Output queue 0/40, 0 drops; input queue 0/75, 0 drops

5 minute input rate 0 bits/sec, 0 packets/sec

5 minute output rate 0 bits/sec, 0 packets/sec

0 packets input, 0 bytes, 0 no buffer

Received 0 broadcasts, 0 runts, 0 giants, 0 parity

0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored, 0 abort

4084 packets output, 1298712 bytes, 0 underruns

0 output errors, 0 applique, 0 interface resets

0 output buffer failures, 0 output buffers swapped out

0 carrier transitions

For Cisco 7100, Cisco 7200, and Cisco uBR7200 series routers, use the show controllers serial

command, using arguments such as the slot and port number (slot/port), to display information that

is speciﬁc to the serial interface hardware. Following is an example of the show controllers serial

slot/port command that shows the serial port adapter installed on a Cisco 7200 series router in

chassis slot 3:

router# show controllers serial 3/0

M1T-Serial: show controller:

PAS unit 0, subunit 0, f/w version 1-23, rev ID 0x1, version 2

idb = 0x608E3340, ds = 0x608E50C0, ssb=0x608E5A84

Clock mux=0x35, ucmd_ctrl=0x8, port_status=0x25

maxdgram=4474, bufpool=64Kb, 128 particles

TM=down CA=up LC=down

line state: up

Serial DTE cable

(Display text omitted.)

For a VIP2, use the show controllers serial command, using arguments such as those that specify

the slot, port adapter, and port numbers (slot/port-adapter/port), to display information that is

speciﬁc to the serial interface hardware. Following is an example of the show controllers serial

slot/port adapter/interface command that shows serial port 2/0/1 on a one-port PA-E3 installed on a

VIP2 in chassis slot 1:

router# show controllers serial 2/0/1

Serial2/0/1

Mx E3(2) HW Revision 0x2, FW Revision 2.42

Framing is g751, Clock Source is Line, Bandwidth limit is 34010.

National Bit is 0, International Bits are: 0 0

DSU mode 0

Data in current interval (421 seconds elapsed):

0 Line Code Violations, 0 P-bit Coding Violation

0 C-bit Coding Violation

0 P-bit Err Secs, 0 P-bit Severely Err Secs

0 Severely Err Framing Secs, 0 Unavailable Secs

0 Line Errored Secs, 0 C-bit Errored Secs, 0 C-bit Severely Errored Secs

Total Data (last 1 15 minute intervals):

4 Line Code Violations, 0 P-bit Coding Violation,

0 C-bit Coding Violation,

0 P-bit Err Secs, 0 P-bit Severely Err Secs,

0 Severely Err Framing Secs, 0 Unavailable Secs,

3 Line Errored Secs, 0 C-bit Errored Secs, 0 C-bit Severely Errored Secs

No alarms detected.

(Display text omitted.)

Configuring the PA-E3 Interfaces 8-15

Using show Commands to Display Interface and System Information

For a Catalyst RSM/VIP2, use the show controllers serial command, using arguments such as those

that specify the port adapter and port numbers (port-adapter/port), to display information that is

speciﬁc to the serial interface hardware. Following is an example of the show controllers serial

port-adapter/interface command that shows serial port 0/1 on a one-port PA-E3 installed on a

Catalyst RSM/VIP2:

router# show controllers serial 0/1

Serial0/1

Mx E3(2) HW Revision 0x2, FW Revision 2.42

Framing is g751, Clock Source is Line, Bandwidth limit is 34010.

National Bit is 0, International Bits are: 0 0

DSU mode 0

Data in current interval (421 seconds elapsed):

0 Line Code Violations, 0 P-bit Coding Violation

0 C-bit Coding Violation

0 P-bit Err Secs, 0 P-bit Severely Err Secs

0 Severely Err Framing Secs, 0 Unavailable Secs

0 Line Errored Secs, 0 C-bit Errored Secs, 0 C-bit Severely Errored Secs

Total Data (last 1 15 minute intervals):

4 Line Code Violations, 0 P-bit Coding Violation,

0 C-bit Coding Violation,

0 P-bit Err Secs, 0 P-bit Severely Err Secs,

0 Severely Err Framing Secs, 0 Unavailable Secs,

3 Line Errored Secs, 0 C-bit Errored Secs, 0 C-bit Severely Errored Secs

No alarms detected.

(Display text omitted.)

The show version (or show hardware) command displays the conﬁguration of the system hardware

(the number of each port adapter type installed), the software version, the names and sources of

conﬁguration ﬁles, and the boot images. Following is an example of the output from the

show version command on a Cisco 7200 series router:

router# show version

Cisco Internetwork Operating System Software

IOS (tm) 7200 Software (C7200-P-M), Version 11.1(16)CA

Synced to mainline version: 11.1(10.5)

Compiled Thu 22-May-97 14:40

Image text-base: 0x600088F0, data-base: 0x604B6000

ROM: System Bootstrap, Version 11.1(5) [mkamson 5], RELEASE SOFTWARE (fc1)

ROM: 7200 Software (C7200-BOOT-M), Version 11.1(6), RELEASE SOFTWARE (fc1)

byron uptime is 22 minutes

System restarted by reload

System image file is "paking/poet/c7200-p-mz", booted via tftp from 172.16.0.0

cisco 7206 (NPE150) processor with 12288K/4096K bytes of memory.

R4700 processor, Implementation 33, Revision 1.0 (512KB Level 2 Cache)

Last reset from power-on

X.25 software, Version 2.0, NET2, BFE and GOSIP compliant.

4 Ethernet/IEEE 802.3 interfaces.

1 Serial network interface.

1 FDDI network interface.

125K bytes of non-volatile configuration memory.

1024K bytes of packet SRAM memory.

4096K bytes of Flash internal SIMM (Sector size 256K).

Configuration register is 0x2

Checking the Configuration

PA-E3 Serial Port Adapter Installation and Configuration

8-16

Following is an example of the show version command used with a Cisco 7500 series system:

router# show version

Cisco Internetwork Operating System Software

IOS (tm) GS Software, Version 11.1(16)CA

Synced to mainline version: 11.1(10.5)

Compiled Thu 22-May-97 14:32

Image text-base: 0x600108E0, data-base: 0x60A00000

ROM: System Bootstrap, Version 5.3.2(3.2) [kmac 3.2], MAINTENANCE INTERIM SOFTWARE

ROM: GS Software, Version 11.1(8)CA, EARLY DEPLOYMENT RELEASE SOFTWARE (fc1)

keats uptime is 22 minutes

System restarted by reload

System image file booted via tftp from 172.16.0.0

Last reset from power-on

G.703/E1 software, Version 1.0.

G.703/JT2 software, Version 1.0.

Bridging software.

X.25 software, Version 2.0, NET2, BFE and GOSIP compliant.

Chassis Interface.

3 VIP2 controllers (1 FastEthernet)(4 Ethernet)(1 Fddi)(2 E3).

4 Ethernet/IEEE 802.3 interfaces.

1 FastEthernet/IEEE 802.3 interface.

2 Serial network interfaces.

1 FDDI network interface.

125K bytes of non-volatile configuration memory.

8192K bytes of Flash internal SIMM (Sector size 256K).

Configuration register is 0x2

To determine which type of port adapter is installed in your system, use the show diag slot

command. Speciﬁc port adapter information is displayed, as shown in the following example of a

one-port PA-E3 in chassis slot 3 on a Cisco 7200 series router:

router# show diag 3

Slot 3:

E3 PA port adapter, 1 ports

Port adapter is analyzed

Port adapter insertion time 01:04:31 ago

Hardware revision 1.0 Board revision UNKNOWN

Serial number 3710903 Part number 73-1801-03

Test history 0x0 RMA number 00-00-00

EEPROM format version 1

EEPROM contents (hex):

0x20: 01 71 01 00 00 38 9F B7 49 07 09 03 00 00 00 00

0x30: 06 00 00 00 FF FF FF 00 FF FF FF FF FF FF FF FF

Configuring the PA-E3 Interfaces 8-17

Using show Commands to Display Interface and System Information

To determine which type of port adapter is installed on a VIP2 in your system, use the show diag slot

command. Speciﬁc port adapter information is displayed, as shown in the following example of a

one-port PA-E3 in chassis slot 2:

router# show diag 2

Slot 2:

Physical slot 2, ~physical slot 0xD, logical slot 2, CBus 0

Microcode Status 0x4

Master Enable, LED, WCS Loaded

Board is analyzed

Pending I/O Status: None

EEPROM format version 1

VIP2 controller, HW rev 2.4, board revision D0

Serial number: 04371939 Part number: 73-1684-03

Test history: 0x00 RMA number: 00-00-00

Flags: cisco 7500

EEPROM contents (hex):

0x20: 01 15 02 04 00 42 B5 E3 49 06 94 03 00 00 00 00

0x30: 68 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

Slot database information:

Flags: 0x4 Insertion time: 0x14A4 (00:23:00 ago)

Controller Memory Size: 32 MBytes DRAM, 2048 KBytes SRAM

PA Bay 0 Information:

E3 Serial PA, 1 port

EEPROM format version 1

HW rev 1.00, Board revision AO

Serial number: 3549502 Part number: 73-2620-02

To determine which type of port adapter is installed on a Catalyst RSM/VIP2 in your system, use the

show diag command. Speciﬁc port adapter information is displayed, as shown in the following

example of a one-port PA-E3:

router# show diag 1

Slot 1:

Physical slot 1, ~physical slot 0xD, logical slot 1, CBus 0

Microcode Status 0x4

Master Enable, LED, WCS Loaded

Board is analyzed

Pending I/O Status: None

EEPROM format version 1

VIP2 controller, HW rev 2.4, board revision D0

Serial number: 04371939 Part number: 73-1684-03

Test history: 0x00 RMA number: 00-00-00

Flags: cisco 7500

EEPROM contents (hex):

0x20: 01 15 02 04 00 42 B5 E3 49 06 94 03 00 00 00 00

0x30: 68 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

Slot database information:

Flags: 0x4 Insertion time: 0x14A4 (00:23:00 ago)

Note The slot values displayed by some commands (such as show diag and show controllers

cbus) are not relevant to any physical connection; disregard these slot values for the

Catalyst RSM/VIP2.

Checking the Configuration

PA-E3 Serial Port Adapter Installation and Configuration

8-18

For a VIP2, use the show controllers cbus command to display all of the current interface

processors and their interfaces. Following is an example of the show controllers cbus command that

shows serial port 1/0/0 on a one-port PA-E3 installed on a VIP2 in chassis slot 1:

router# show controllers cbus

MEMD at 40000000, 2097152 bytes (unused 4288, recarves 1, lost 0)

RawQ 48000100, ReturnQ 48000108, EventQ 48000110

BufhdrQ 48000138 (2810 items), LovltrQ 48000150 (20 items, 2016 bytes)

IpcbufQ 48000160 (32 items, 4096 bytes)

IpcbufQ_classic 48000158 (8 items, 4096 bytes)

3570 buffer headers (48002000 - 4800FF10)

pool0: 9 buffers, 256 bytes, queue 48000140

pool1: 458 buffers, 1536 bytes, queue 48000148

pool2: 229 buffers, 4512 bytes, queue 48000168

pool3: 4 buffers, 4544 bytes, queue 48000170

slot0: VIP2, hw 2.4, sw 21.40, ccb 5800FF20, cmdq 48000080, vps 8192

software loaded from system

IOS (tm) VIP Software (SVIP-DW-M), Version 11.1(16)CA

ROM Monitor version 17.0

Ethernet0/0/0, addr 00e0.f7d7.cb00 (bia 00e0.f7d7.cb00)

gfreeq 48000148, lfreeq 48000178 (1536 bytes), throttled 0

rxlo 4, rxhi 273, rxcurr 2, maxrxcurr 4

txq 48001A00, txacc 48001A02 (value 152), txlimit 152

Ethernet0/0/1, addr 00e0.f7d7.cb01 (bia 00e0.f7d7.cb01)

gfreeq 48000148, lfreeq 48000180 (1536 bytes), throttled 0

rxlo 4, rxhi 273, rxcurr 0, maxrxcurr 0

txq 48001A08, txacc 48001A0A (value 0), txlimit 152

Ethernet0/0/2, addr 00e0.f7d7.cb02 (bia 00e0.f7d7.cb02)

gfreeq 48000148, lfreeq 48000188 (1536 bytes), throttled 0

rxlo 4, rxhi 273, rxcurr 0, maxrxcurr 0

txq 48001A10, txacc 48001A12 (value 0), txlimit 152

Ethernet0/0/3, addr 00e0.f7d7.cb03 (bia 00e0.f7d7.cb03)

gfreeq 48000148, lfreeq 48000190 (1536 bytes), throttled 0

rxlo 4, rxhi 273, rxcurr 0, maxrxcurr 0

txq 48001A18, txacc 48001A1A (value 0), txlimit 152

(Display text omitted.)

Configuring the PA-E3 Interfaces 8-19

Using the ping Command to Verify Network Connection

For a Catalyst RSM/VIP2, use the show controllers cbus command to display all of the current

interfaces. Following is an example of the show controllers cbus command that shows serial port

0/0 on a one-port PA-E3 installed on a Catalyst RSM/VIP2:

router# show controllers cbus

MEMD at 40000000, 2097152 bytes (unused 4288, recarves 1, lost 0)

RawQ 48000100, ReturnQ 48000108, EventQ 48000110

BufhdrQ 48000138 (2810 items), LovltrQ 48000150 (20 items, 2016 bytes)

IpcbufQ 48000160 (32 items, 4096 bytes)

IpcbufQ_classic 48000158 (8 items, 4096 bytes)

3570 buffer headers (48002000 - 4800FF10)

pool0: 9 buffers, 256 bytes, queue 48000140

pool1: 458 buffers, 1536 bytes, queue 48000148

pool2: 229 buffers, 4512 bytes, queue 48000168

pool3: 4 buffers, 4544 bytes, queue 48000170

slot0: VIP2, hw 2.4, sw 21.40, ccb 5800FF20, cmdq 48000080, vps 8192

software loaded from system

IOS (tm) VIP Software (SVIP-DW-M), Version 11.1(16)CA

ROM Monitor version 17.0

Ethernet0/0, addr 00e0.f7d7.cb00 (bia 00e0.f7d7.cb00)

gfreeq 48000148, lfreeq 48000178 (1536 bytes), throttled 0

rxlo 4, rxhi 273, rxcurr 2, maxrxcurr 4

txq 48001A00, txacc 48001A02 (value 152), txlimit 152

Ethernet0/1, addr 00e0.f7d7.cb01 (bia 00e0.f7d7.cb01)

gfreeq 48000148, lfreeq 48000180 (1536 bytes), throttled 0

rxlo 4, rxhi 273, rxcurr 0, maxrxcurr 0

txq 48001A08, txacc 48001A0A (value 0), txlimit 152

Ethernet0/2, addr 00e0.f7d7.cb02 (bia 00e0.f7d7.cb02)

gfreeq 48000148, lfreeq 48000188 (1536 bytes), throttled 0

rxlo 4, rxhi 273, rxcurr 0, maxrxcurr 0

txq 48001A10, txacc 48001A12 (value 0), txlimit 152

Ethernet0/3, addr 00e0.f7d7.cb03 (bia 00e0.f7d7.cb03)

gfreeq 48000148, lfreeq 48000190 (1536 bytes), throttled 0

rxlo 4, rxhi 273, rxcurr 0, maxrxcurr 0

txq 48001A18, txacc 48001A1A (value 0), txlimit 152

(Display text omitted.)

Note The slot values displayed by some commands (such as show diag and show controllers

cbus) are not relevant to any physical connection; please disregard these slot values for the

Catalyst RSM/VIP2.

For complete command descriptions and examples for the Cisco 7100 series routers, Cisco 7200

series routers, Cisco uBR7200 series routers, the VIP2, and the Catalyst RSM/VIP2, refer to the

publications listed in the “Related Documentation” section on page vi.

Using the ping Command to Verify Network Connection

The ping command allows you to verify that an interface port is functioning properly and to check

the path between a speciﬁc port and connected devices at various locations on the network. For

example, after you verify that the system and VIP2 have booted successfully and are operational,

you can use the ping command to verify the status of interface ports. Refer to the publications listed

in the “Related Documentation” section on page vi for detailed command descriptions and

examples.

The ping command sends an echo request out to a remote device at an IP address that you specify.

After sending a series of signals, the command waits a speciﬁed time for the remote device to echo

the signals. Each returned signal is displayed as an exclamation point (!) on the console terminal;

Checking the Configuration

PA-E3 Serial Port Adapter Installation and Configuration

8-20

each signal that is not returned before the speciﬁed timeout is displayed as a period (.). A series of

exclamation points (!!!!!) indicates a good connection; a series of periods (.....) or the message [timed

out] or [failed] indicates that the connection failed.

Following is an example of a successful ping command to a remote server with the address 10.0.0.0:

router# ping 10.0.0.0 <Return>

Type escape sequence to abort.

Sending 5, 100-byte ICMP Echoes to 1.1.1.10, timeout is 2 seconds:

!!!!!

Success rate is 100 percent (5/5), round-trip min/avg/max = 1/15/64 ms

router#

If the connection fails, verify that you have the correct IP address for the server and that the server

is active (powered on), and repeat the ping command. Refer to the publications listed in the “Related

Documentation” section on page vi for complete descriptions of interface subcommands and the

conﬁguration options available for VIP2-related interfaces, and to determine which subcommands

and conﬁguration options support VIP2 functionality.

Using the loopback Command to Verify the Physical Interface

Use the loopback {dte | local |network {line | payload} command to troubleshoot the E3 serial

port adapter at the physical interface level. The command loops all packets from the E3 interface

either back to the interface or from the network back out toward the network. Use the no form of the

command to remove the loop.

The following examples of the loopback {dte |local |network {line |payload} command conﬁgure

loopback modes on the single interface (interface 0) of a one-port E3 serial port adapter in port

adapter slot 0 of a VIP2 in chassis slot 10 of a Cisco 7500 series router:

•Set the interface into loopback data terminal equipment (DTE) mode as follows:

Router# configure terminal

Enter configuration commands, one per line. End with CNTL/Z.

router(config)# interface serial 10/0/0

router(config-if)# loopback dte

Loopback DTE loops the router output data back toward the router (after the line interface unit).

•Set the interface into local loopback mode as follows:

Router# configure terminal

Enter configuration commands, one per line. End with CNTL/Z.

router(config)# interface serial 10/0/0

router(config-if)# loopback local

Local loopback loops the router output data back toward the router at the framer.

•Set the interface into network line loopback mode as follows:

Router# configure terminal

Enter configuration commands, one per line. End with CNTL/Z.

router(config)# interface serial 10/0/0

router(config-if)# loopback network line

Network line loopback loops the data back toward the network (before the framer).

Configuring the PA-E3 Interfaces 8-21

Using the loopback Command to Verify the Physical Interface

•Set the interface into network payload loopback mode as follows:

Router# configure terminal

Enter configuration commands, one per line. End with CNTL/Z.

router(config)# interface serial 10/0/0

router(config-if)# loopback network payload

Network payload loopback loops just the payload data back toward the network at the E3 framer.

Checking the Configuration

PA-E3 Serial Port Adapter Installation and Configuration

8-22

Cisco Systems Pa 2E3 Installation And Configuration Guide

PA-E3 to the manual e0d0a0e7-f579-41e7-8d7f-cc4b0d1e0443

Navigation menu

Versions of this User Manual:

Views

Navigation
