FM1200 user manual

Fluidmesh 1100/1200VOLO/3100 MITO series

User manual

Firmware Version 6.0.×

Fluidmesh 1100/1200VOLO/3100 MITO Series

WARNING

ONLY QUALIFIED PERSONNEL SHOULD INSTALL THIS UNIT. THE IN-

STALLATION SHOULD CONFORM TO ALL LOCAL CODES. IN SOME

COUNTRIES, A CERTIFIED ELECTRICIAN MAY BE REQUIRED.

CAUTION

When open, the apparatus should not be dripping or splashing. No object

ﬁlled with liquid shall be placed on the apparatus.

NOTICE TO USERS

or the software described herein, in whole or in part, shall not be

reproduced, translated or reduced to any machine-readable form without

prior written approval from Fluidmesh Networks LLC.

FLUIDMESH NETWORKS LLC, PROVIDES NO WARRANTY WITH RE-

GARD TO THIS MANUAL, THE SOFTWARE OR OTHER INFORMATION

CONTAINED HEREIN AND HEREBY EXPRESSLY DISCLAIMS ANY IM-

PLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR ANY

PARTICULAR PURPOSE WITH REGARD TO THIS MANUAL, THE SOFT-

WARE OR SUCH OTHER INFORMATION. IN NO EVENT SHALL FLU-

IDMESH NETWORKS, INC. BE LIABLE FOR ANY INCIDENTAL, CON-

SEQUENTIAL OR SPECIAL DAMAGES, WHETHER BASED ON TORT,

CONTRACT, OR OTHERWISE, ARISING OUT OF OR IN CONNECTION

WITH THIS MANUAL, THE SOFTWARE OR OTHER INFORMATION CON-

TAINED HEREIN OR THE USE THEREOF.

Fluidmesh Networks LLC, reserves the right to make any modification to

this manual or the information contained herein at any time without notice.

The software described herein may also be governed by the terms of a

separate user license agreement.

Fluidmesh is a registered trademark of Fluidmesh Networks LLC, Mesh-

Wizard, EasyMesh, FMQuadro, FluidThrottle, Endo, MITO are trademarks

of Fluidmesh Networks, Inc.

Microsoft, Windows, Internet Explorer are registered trademarks of Mi-

crosoft Corporation in the United States and/or other countries.

Ethernet is a registered trademark of Xerox Corporation.

All other brands and product names are trademarks or registered trade-

marks of their respective owners.

Contents

1 Manual Overview 6

2 Precautions 7

3 Installation and System Set-up 8

3.1 Fluidmesh 1100 MITO Series ................. . 8

3.1.1 Proper Installation Procedures . ........... . 9

3.1.2 Powering on an FM1100 . . . ............. . 9

3.1.3 Status and Link LEDs . . . ............... 10

3.1.4 Factory Default Hardware Reset .......... . . 10

3.1.5 Integrated Panel Antenna . . .............. 11

3.2 Fluidmesh 3100 MITO Series . . . . ............. . 12

3.2.1 Proper Installation Procedures . ........... . 13

3.2.2 Powering on an FM3100 . . . ............. . 13

3.2.3 Status and Link LEDs . . . ............... 14

3.2.4 Factory Default Hardware Reset .......... . . 14

3.2.5 Integrated Panel Antenna . . .............. 15

4 Fluidmesh Architecture Overview 20

4.1 Point-to-Point Wireless Bridge .................. 20

4.2 Mesh Network Architecture ................. . . 21

4.3 Point-to-Multipoint Architecture: FluidMAX™ . . . . ..... 22

3.3 Fluidmesh 1200VOLO .. . . . . . . . . . . . . . . . . . . .

3.3.1 Proper Installation Procedures . . . . . . . . . . . . . 17

3.3.2 Powering on an 1200 VOLO. . .. . . . . . . . . . . . . 17

3.3.3 Status and Link LEDs . . . . . . . . . . . . . . . . . . 18

3.3.4 Factory Default Hardware Reset . . . . . . . . . . . . 18

3.3.5 Integrated Panel Antenna . . . . . . . . . . . . . . . . 19

5 Fluidmesh Network Addressing 24

5.1 Bridge IP Addressing . . . .... . . .............. 24

5.1.1 Connecting and Conﬁguring IP Devices and Cameras 25

5.2 Mesh Addressing . . . ...................... 25

5.2.1 Network Addressing . . . .......... . . . . . . 26

6 Software Plug-ins 29

6.1 Plug-in Activation/Deactivation Procedure . .... . . . . . . 30

7 Web-based Interface and Conﬁguration 33

7.1 Software and Hardware Requirements........... . . 33

7.2 Logging-in to the Web-based Interface ....... . . . . . . 34

7.3 End-user License Agreement and Region of Operation . . . . 35

7.4 MeshWizard™ . . . ....................... 37

7.5 Web-based Interface Menus................. . . 37

7.6 General Mode .......................... 38

7.7 Wireless Settings ................. . . . . . . . . 38

7.8 Advanced Wireless Settings . .................. 42

7.9 Antenna Alignment Tools and Physical Statistics ....... 43

7.10 Frequency Scan Tool .................. . . . . . 45

7.11 FMQuadro™ (Mesh End only) .............. . . . 47

7.11.1 VLAN Tagging Conﬁguration (Software Plug-inRe-

quired)........................... 53

7.12 Firmware Upgrade . . ... . ............... . . . 54

7.13 Plug-in Management . . ..................... 56

7.14 Advanced Tools . . . . . ..... . . . . ........... . 57

7.15 Multicast . . ............ . ... . ........... 58

7.16 PoE Passthrough (FM1100 and

FM1200 only) . . . . . . . . . 59

7.17 Change Password ... . .... . . ............. . 59

7.18 Status............................. . . 59

7.19 Reboot and Reset to Factory Default . . . . .......... 60

7.20 On-line Help ................ . .......... 60

8 Troubleshooting 61

8.1 I am unable to get the log-in screen . . ....... . . . . . 61

8.2 I am unable to log-in into the Web-based interface .... . . 61

8.3 I forgot the administrator password ............. . . 62

8.4 In Bridge Mode I get no Link or the Link LED is always red or

I am getting a weak Wireless link (below 60% signal strength) 62

1 Manual Overview

This manual describes how to install and operate the Fluidmesh VOLO

and MITO series products. More specifically, this manual contains a

general overview of the Fluidmesh 1100 MITO, Fluidmesh 1200 VOLO and

the Fluidmesh 3100 MITO in Section 3.1, Section 3.2 and Section 3.3

respectively. Please refer to Fig. 1.1(a), Fig. 1.1(b) and Fig.1.1(c) for a

representation of each product. This user’s manual also includes a

complete overview of the network architectures that can be created using

Fluidmesh technology, and is discussed in Section 4. The Fluidmesh net-

work addressing is described in Section 5. The use of Fluidmesh software

plug-ins, their features, and their installation procedures in a network fol-

lows in Section 6. The Web-based Graphical User Interface (GUI) is then

described in Section 7. Please note that, unless otherwise explicitly speci-

fied, the Web GUI presentation refers to the Fluidmesh 1100, Fluidemesh

1200 and the Fluidmesh 3100. Screenshots shown in this manual are

explanatory examples and may be different from the ones that appear

when you run the Web-based configuration software.

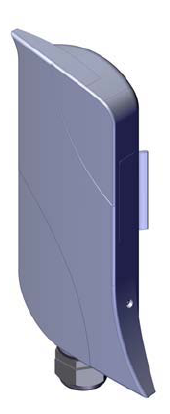

(a) Fluidmesh 1100 MITO (b) Fluidmesh 3100 MITO (c) Fluidmesh 1200 VOLO

Figure 1.1: Fluidmesh 1100 MITO, Fluidmesh 1200 VOLO and Fluidmesh 3100 MITO front view.

2 Precautions

Fluidmesh Networks products are for professional use only.

Fluidmesh Networks products have been designed with safety in mind.

However, if not used properly, they can cause fires which may lead to

serious bodily injuries. To avoid such accidents, make sure that you are

properly qualified to install these products.

In Case of Breakdown

In case of system breakdown, discontinue use and immediately contact

your authorized Fluidmesh Networks dealer or Fluidmesh Networks LLC.

directly.

In Case of Abnormal Operations

If the unit emits smoke or an unusual smell, if water or other foreign mat-

ter enters the enclosure, or if your drop the unit or damage the enclosure,

power off the unit immediately and contact your authorized Fluidmesh Net-

works dealer or Fluidmesh Networks LLC directly.

3 Installation and System

Set-up

This section describes how to install and set up Fluidmesh products. Specif-

ically, the Fluidmesh 1100 MITO, Fluidmesh 1200 VOLO and Fluidmesh

3100 MITO series are described in Section 3.1, Section 3.2 and Section 3.3

respectively.

3.1 Fluidmesh 1100 MITO Series

The Fluidmesh 1100 MITO (part number FM1100M-HW, for simplicity re-

ferred to as FM1100) is designed for wireless operations .

The hardware is multi-band panel an-tenna which can be mounted and

oriented using the supplied pole-mounting adapter as depicted in Fig.

3.1 and Fig. 3.2

Figure 3.1: Fluidmesh 1100 enclosure (back).

The FM1100 can operate both as a point-to-point wireless bridge or as

a single radio mesh unit. The former operating mode is described in Sec-

tion 4.1 whereas the latter is discussed in Section 4.2.

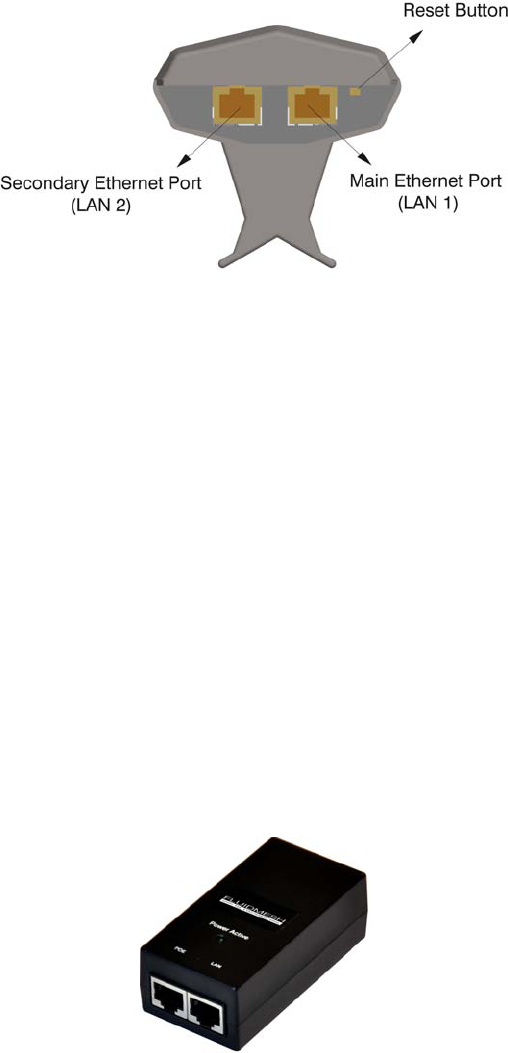

Figure 3.2: Fluidmesh 1100 pole mounting adapter, Ethernet ports and

reset button.

3.1.1 Proper Installation Procedures

The FM1100 comes with a pole-mounting adapter, shown in Fig. 3.2, that

allows the installer to change the alignment of the antenna along the hor-

izontal axis. Plastic or metal tie wraps can be used to install the unit on a

pole.

3.1.2 Powering on an FM1100

The unit can be powered only with the Power-over-Ethernet injector pro-

vided with the FM1100 (Fig. 3.3). The PoE injector does not comply with

the 802.3af standard and therefore it cannot be substituted with a different

injector.

Figure 3.3: Fluidmesh 1100 Power-over-Ethernet injector.

The PoE injector must be powered 100-240V 50-60Hz AC using the AC

LED # (Color) Boot Status Link Quality

1 (Red) Booting core system poor/link absent

2 (Orange) Booting wireless system fair

3 (Green) Booting routing engine good

4 (Green) Booting unit conﬁguration very good

Table 3.1: FM1100 Boot/Link Status LEDs Color Scheme

adapter included.

3.1.3 Status and Link LEDs

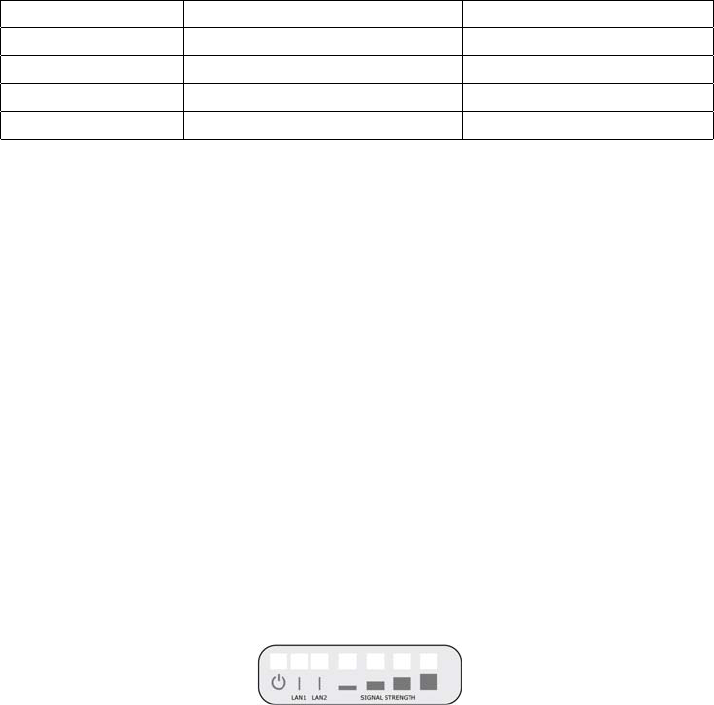

A panel on the back of the FM1100, shown in Fig. 3.4, provides seven

(7) LEDs which can be used to check the unit and the link quality status.

From the left-hand side, the ﬁrst 3 green LEDs indicate the unit power, the

Ethernet port #1 activity and the Ethernet port #2 activity, respectively. The

remaining 4 colored LEDs indicate the level of the link signal and can be

used for antenna alignment purposes. During the unit boot-up process,

the 4 colored LEDs indicate the boot status and can be used for problem

detection. In fact, the LEDs light up in sequence from the leftmost one (red)

to rightmost one (bright green). If the LEDs lighting up sequence does

not complete, then an error has been detected during the booting process.

Please refer to Table 3.1 for details.

Figure 3.4: From left to right status LEDs, link/boot LEDs.

3.1.4 Factory Default Hardware Reset

The FM1100 can be reset to factory default using the RESET button placed

nearby the Ethernet ports as shown in Fig. 3.2. To reset the FM1100 to

factory default settings, power up the unit and wait approximately 40 sec-

onds for the unit to boot up. Once the unit is up and running, press the

reset button for 5 seconds. The FM1100 will restore the factory default set-

tings and automatically reboot. After the reset, the default IP address of

192.168.0.10/255.255.255.0 is restored and the administrator password is

set to admin.

The RESET button can also be used to reboot the unit when pressed for 1

second.

3.1.5 Integrated Panel Antenna

The FM1100 has an integrated panel antenna that can operate at 4.9-6.0

GHz. A separate or external antenna cannot be installed or mounted. The

gain of the antenna is 15 dBi at 4.9-6.0 GHz. The speciﬁcations of the

integrated panel antenna are reported Table 3.2.

Gain at 4.9-6.0 GHz 14.6-16.1 dBi

Frequency Range 4940-6075 MHz

Polarization Dual Linear

3 dB Beam Angle @ 5470 MHz 43 degrees

Front to Back Ratio 22 dB

Table 3.2: Antenna Speciﬁcations

3.2 Fluidmesh 3100 MITO Series

The Fluidmesh 3100 MITO (part number FM3100M-HW, for simplicity re-

ferred to as FM3100) is designed for

wireless

operations.

The hardware is multi-band sector antenna which can be mounted and

oriented using the supplied pole-mounting adapter as depicted in Fig.

3.5 and Fig. 3.6.

Figure 3.5: Fluidmesh 3100 enclosure.

The FM3100 can operate both as a point-to-point wireless bridge or as

a single radio mesh unit . The former operating mode is described in Sec-

tion 4.1 whereas the latter is discussed in Section 4.2.

Figure 3.6: Fluidmesh 3100 pole mounting adapter.

3.2.1 Proper Installation Procedures

The FM3100 comes with a pole-mounting adapter, shown in Fig. 3.6, that

allows the installer to change the alignment of the antenna along both the

vertical and the horizontal axis.

3.2.2 Powering on an FM3100

The unit can be powered only with the Power-over-Ethernet injector pro-

vided with the FM3100 (Fig. 3.7). The PoE injector does not comply with

the 802.3af standard and therefore it cannot be substituted with a different

injector.

Figure 3.7: Fluidmesh 3100 Power-over-Ethernet injector.

The PoE injector must be powered 100-240V 50-60Hz AC using the AC

adapter included.

LED # (Color) Boot Status Link Quality

1 (Red) Booting core system poor/link absent

2 (Orange) Booting wireless system fair

3 (Green) Booting routing engine good

4 (Green) Booting unit conﬁguration very good

Table 3.3: FM3100 Boot/Link Status LEDs Color Scheme

3.2.3 Status and Link LEDs

A panel on the back of the FM3100, shown in Fig. 3.8, provides six (6) LEDs

which can be used to check the unit and the link quality status. From the

left-hand side, the ﬁrst 2 green LEDs indicate the unit power, the Ethernet

port activity, respectively. The remaining 4 colored LEDs indicate the level

of the link signal and can be used for antenna alignment purposes. During

the unit boot-up process, the LEDs indicate the boot status and can be used

for problem detection. Speciﬁcally, the 4 colored LEDs light up in sequence

from the leftmost one (red) to rightmost one (bright green). If the LEDs

lighting up sequence does not complete, then an error has been detected

during the booting process. Please refer to Table 3.3 for details.

Figure 3.8: From left to right status LEDs, link/boot LEDs.

3.2.4 Factory Default Hardware Reset

The FM3100 can be reset to factory default using the proper RESET button

present on the PoE injector provided with the unit as shown in Fig. 3.7.

To reset the FM3100 to factory default settings, power up the unit and wait

approximately 40 seconds for the unit to boot up. Once the unit is up and

running, press the reset button for 5 seconds. The FM3100 will restore

the factory default settings and automatically reboot. The LEDs will blink

when the unit receives the reset to factory default signal. After the reset,

the default IP address of 192.168.0.10/255.255.255.0 is restored and the

administrator password is set to admin.

The RESET button can also be used to reboot the unit when pressed for 1

second.

3.2.5 Integrated Panel Antenna

The FM3100 has an integrated 93 degrees sector antenna that can oper-

ate at 4.9-6.0 GHz. A separate or external antenna cannot be installed or

mounted. The gain of the antenna is 15 dBi at 4.9-6.0 GHz. The speciﬁca-

tions of the integrated panel antenna are reported Table 3.4.

Gain at 4.9-6.0 GHz 15 dBi

Frequency Range 4940-6075 MHz

Polarization Dual Linear

3 dB Beam Angle @ 5470 MHz 93 degrees

Front to Back Ratio 22 dB

Table 3.4: Antenna Speciﬁcations

3.3 Fluidmesh 1200 VOLO

The Fluidmesh 1200 VOLO(part number FM1200V-HW, for simplicity re-

ferred to as FM1200) is designed for wireless operations.

The hardware is multi-band sector antenna which can be mounted and

oriented using the supplied pole-mounting adapter as depicted in Fig.

3.9and Fig. 3.10.

Figure 3.9: Fluidmesh 1200 enclosure.

The FM1200 can operate both as a point-to-point wireless bridge or as a

single radio mesh unit. The former operating mode is described in Sec-tion

4.1 whereas the latter is discussed in Section 4.2.

LED # (Color) Boot Status Link Quality

1 (Red) Booting core system poor/link absent

2 (Orange) Booting wireless system fair

3 (Green) Booting routing engine good

4 (Green) Booting unit conguration very good

Table 3.5: FM1200 Boot/Link Status LEDs Color Scheme

3.3.3 Status and Link LEDs

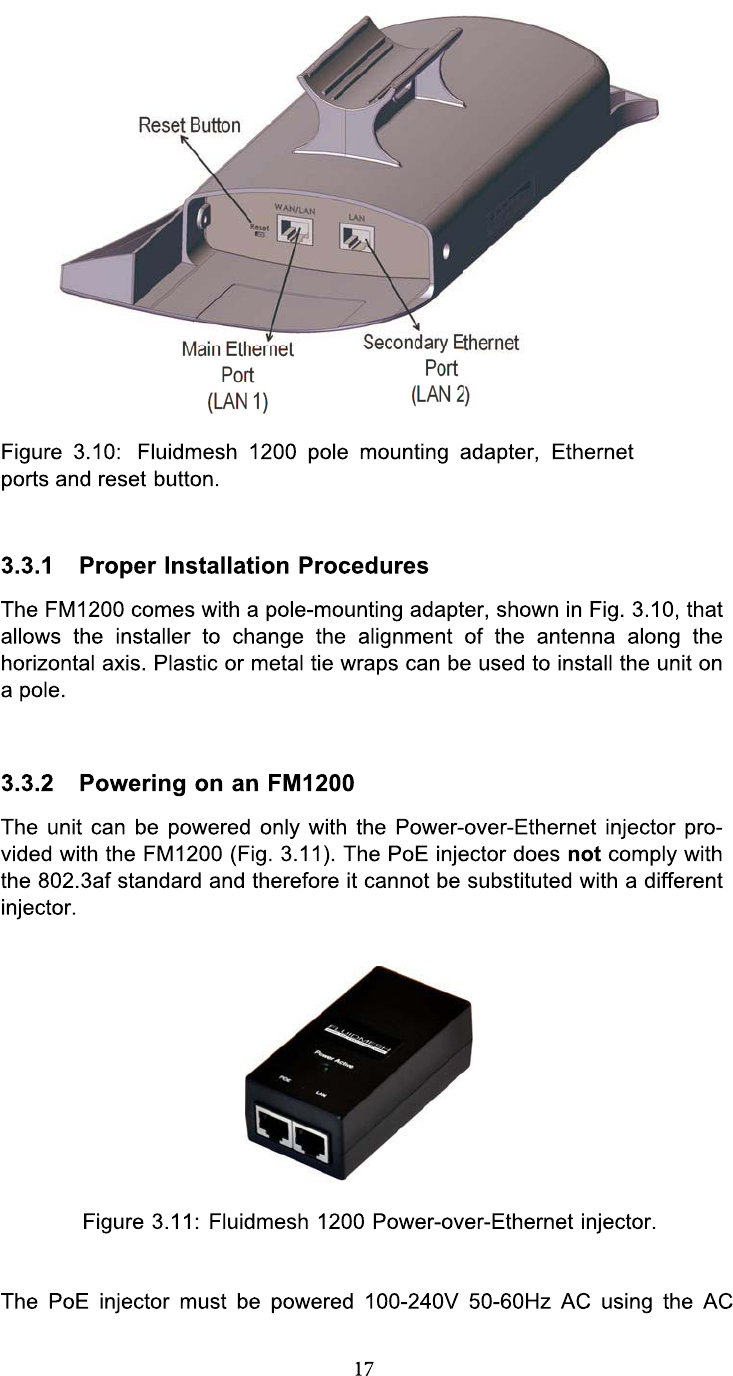

A panel on the side of the FM1200, shown in Fig. 3.12, provides six (6)

LEDs which can be used to check the unit and the link quality status. From

the buttom up, the first 2 green LEDs indicate the unit power, the Ethernet

port activity, respectively. The remaining 4 colored LEDs indicate the level

of the link signal and can be used for antenna alignment purposes. During

the unit boot-up process, the LEDs indicate the boot status and can be

used for problem detection. Specifically, the 4 colored LEDs light up in

sequence from the leftmost one (red) to rightmost one (bright green). If the

LEDs lighting up sequence does not complete, then an error has been

detected during the booting process. Please refer to Table 3.5 for details.

Figure 3.12: From buttom up status LEDs, link/boot LEDs.

3.3.4 Factory Default Hardware Reset

The FM1200 can be reset to factory default using the proper RESET

button present on the PoE injector provided with the unit as shown in Fig.

3.11. To reset the FM1200 to factory default settings, power up the unit

and wait approximately 40 seconds for the unit to boot up. Once the

unit is up and running, press the reset button for 5 seconds. The

FM1200 will restore the factory default settings and automatically

reboot. The LEDs will blink when the unit receives the reset to factory

default signal. After the reset, the default IP address of

192.168.0.10/255.255.255.0 is restored and the administrator password

is set to admin.

The RESET button can also be used to reboot the unit when pressed for

1 second.

3.3.5 Integrated Panel Antenna

The FM1200 has an integrated 93 degrees sector antenna that can oper-

ate at 4.9-6.0 GHz. A separate or external antenna cannot be installed or

mounted. The gain of the antenna is 15 dBi at 4.9-6.0 GHz. The specifica-

tions of the integrated panel antenna are reported Table 3.4.

Gain at 4.9-6.0 GHz 15 dBi

Frequency Range 4940-6075 MHz

Polarization Dual Linear

3 dB Beam Angle@5470 MHz 93 degrees

Front to Back Ratio 22 dB

Table 3.6: Antenna Specifications

4 Fluidmesh Architecture

Overview

The FM1100, FM1200 and the FM3100 series can be used to create any

kind of network architecture such as point-to-point links and mesh networks.

More-over, thanks to the innovative FluidMAX™ patent pending

technology, point-to-multipoint links can be created. This also gives to the

user the ability to create mixed networks architectures leading to higher

performance and flexibility in the deployment. In the following section

we describe how to build point-to-point, point-to- multipoint, and

mesh networks with the Fluidmesh products.

4.1 Point-to-Point Wireless Bridge

A wireless bridge enables two local networks (i.e., network segments) to

communicate with each other . The wireless bridge

is deﬁned as “transparent” because its activity is transparent to the network

hosts. Inother words, the wireless bridge forwards packets from onenet-

work segment to the other according to a “forwarding table” which is built

by learning the network topology from the analysis of the incoming trafﬁc.

Inthis conﬁguration,no explicitinteractionbetweenthe wireless bridge and

the network hosts takes place. The two network segments, connected to

both sides of the wireless bridge, will share the same IP addressing class.

Thus, each network host must use a unique IP address, i.e., it is not allowed

to have two devices sharing the same IP address.

4.2 Mesh Network Architecture

This section describes the Fluidmesh mesh networking architecture and the

basic functionalities of the FM1100/FM1200/FM3100 series. For the sake of

clarity, we will refer to a generic FM unit whenever the discussion applies to

the FM1100, FM1200 and the FM3100 series.

Fluidmesh Networks develops wireless networkingsolutions based onthe

innovative mesh networking architecture which presentsunmatched advan-

tages interms of reliability andﬂexibility compared to any traditionalwire-

less solution.Using Fluidmesh technology for your network allows you to

take advantage of this powerful architecture. Anexample of wireless mesh

network is showninFig. 4.3. Ina wireless mesh network, every FM unit

transmits the data packets coming from the devices directly attached to it

and also acts as an “intelligent router” able to forward packets coming from

other FM units through the optimalpath.

In a redundant and reliable mesh network, every stream of data packets

has multiple available paths to reach the base station, and the network

forwards the packets through the optimal path at any point in time. The

absence of any single point of failure increases its reliability compared to

any other transmission technology, either wireless or wired.

4.3 Point-to-Multipoint Architecture: FluidMAX™

Developing FluidMAX1, Fluidmesh embraced the Point-to-Multipoint archi-

tecture improving its features and capabilities to meet the needs of

system integrators in the security and industrial automation indus-try.

The FluidMAX technology is based on a centralized Medium Access

Control (MAC) protocol and allows Fluidmesh customers to create point-to-

multipoint networks using the FM units.

With the FluidMAX technology, an FM unit can thus be used at the center

of the star topology in a point-to-multipoint fashion using sector antennas

or antenna splitters with multiple directional antennas. The unit operating

at the center of the star topology plays the role of Master and is in charge

of coordinating communications to and from the other units which thus act

as Slaves. As a result, the hidden and exposed terminal problems are

eliminated by the centralized FluidMAX MAC protocol which supports up

1Patent pending.

to 100 Mb/s maximum throughput.2By reducing the number of slaves, the

supported rate per slave can be increased provided that the sum of the

throughput requirements of the slaves is lower than or equal to 100 Mb/s.

FluidMAX is fully automatic and integrated within the mesh architecture. By

continuously monitoring the network topology, FM units are able to auto-

matically select whether to operate the FluidMAX MAC protocol or remain

in the initial mesh operating mode. Consequently, no additional conﬁgura-

tion is needed to enable the FluidMAX features because the communica-

tion protocol is automatically chosen by the FluidMAX protocol based on

the detected network topology.

2We assume the default channel width of 40 MHz.

5 Fluidmesh Network

Addressing

5.1 Bridge IP Addressing

The FM unit can be operated in bridge mode to create a single point-

to-point connection between two network segments as described in Sec-

tion 4.1.

Each FM unit is provided with a default IP address for its wired Ethernet

port(s), which is:

192.168.0.10

No IP address is associated to the wireless interface.

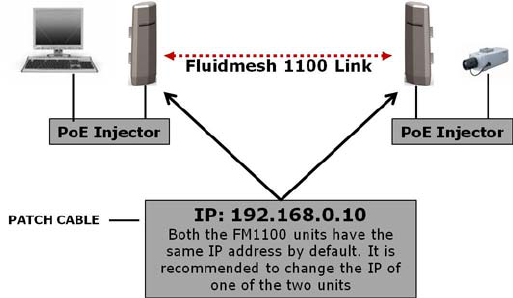

When you set up a wireless bridge using two FM units for the ﬁrst time,

both units will have the same default IP address equal to 192.168.0.10. It is

recommended to change the IP address of one of the two units in order to

unambiguously address and conﬁgure the system with no confusion (see

Fig. 5.1).

Figure 5.1: Wireless network architecture and initial bridge conﬁguration.

5.1.1 Connecting and Conﬁguring IP Devices and Cameras

The FM3100 mounts one Ethernet port and the FM1100 andFM1200 is

equipped with 2 Ethernet ports that can be used to connect a camera or

other Ethernet-compatible device. You should directly connect any

device using an Ethernet cable to the PoE injector. Use a patch

Ethernet cable to connect the PoE injector to the FM unit.

FM1100 the second Ethernet port can be used to power any 12-18V

passive PoE device. Therefore, multiple FM unit can be connected

together in a daisy chain fashion if

required.

The camera or the device attached to the FM unit should use an IP address

belonging to the same class of the devices on the other network segment

of the wireless bridge.

The default IP address class is 192.168.0.0/255.255.255.0.

5.2 Mesh Addressing

The FM units have two modes of operation which are used to develop mesh

network architectures:

•Mesh Point Mode

•Mesh End Mode

Mesh Point Mode: it is the default mode for the FM unit. Each unit in the

ﬁeld that is not connected to the wired LAN backbone must be set in Mesh

Point Mode.

Mesh End Mode: in the Fluidmesh network, an FM unit that is connected

to the main wired LAN must be set in Mesh End Mode. The Mesh End unit

is the junction point between the wireless network and any IP-based wired

network.

Regardless of its conﬁguration, any FM unit comes from the factory with a

unique unit ID with the following format:

5.a.b.c

where the triplet (a,b,c) unambiguously identiﬁes the unit and cannot be

changed. The unit ID is used to identify the units throughout the Web-

based Graphical User Interface (GUI).

Figure 5.2: Fluidmesh network addressing.

5.2.1 Network Addressing

The Fluidmesh layer 2 addressing allows configuring each FM unit and

each device connected to the FM units according to the IP address class

used within the private LAN to which the Mesh End unit is connected. A

sample network configuration is shown in Fig. 5.2.

The Fluidmesh network logically becomes part of the private LAN where

(usually) the control room resides. Therefore, both the FM units and any

other edge device should be provided with a private LAN IP address and

will be accessed through that specified IP address.

Consider the example depicted in Fig. 5.2 where the private LAN IP ad-

dress class is 192.168.150.0 with netmask 255.255.255.0. Each device is

configured with an IP address belonging to this class. Please note that

each IP address must be univocal within the entire network to avoid ad-

dress conflicts. The default IP address of each FM unit is 192.168.0.10

with netmask 255.255.255.0. Finally, please note that the default factory-

set 5.a.b.c unit IDs are still valid and used to unambiguously identify each

FM unit.

Multiple FM units can be connected together through a network switch to

form clusters of radios if needed. The Fluidmesh proprietary routing proto-

col will be run automatically on the cabled segment of the network. Please

note that the units must be operated in Mesh Point mode only to activate

the cluster feature.

Connecting and Conﬁguring an Ethernet Edge-device

The FM unit Ethernet ports can be used to connect all kinds of Ethernet

edge devices (e.g. IP Cameras, Video-Servers, Wi-Fi Access Points, etc.).

Any Ethernet device can be conﬁgured either manually or automatically

through a DHCP server.

A manual IP setting is recommended in any video-surveillance system where

the cameras need to have a ﬁxed custom IP address to be accessed by the

video-recording software.

Figure 5.3: Network conﬁguration with two port-based VLANs.

VLAN Tagging (Software Plug-in Required)

Virtual LAN (VLAN) tagging (or IEEE 802.1q) is a networking standard al-

lowing multiple switched networks to transparently share the same physical

hardware without the leakage of information between networks. For exam-

ple, consider a company with several departments. With VLAN tagging,

a separate private logical network is made available for each department

while using only one physical corporate network. Each VLAN is identiﬁed

by a speciﬁc number called VLAN ID (VID) which is also used for tagging

packets belonging to the same VLAN. Because VLANs are based on logi-

cal instead of physical connections, several types of VLANs exist based on

the criteria adopted to logically separate networks. The traditional VLAN

scheme is port-based where each physical Ethernet port is conﬁgured

specifying membership in a VLAN. However, if there are requirements that

individuals or devices must be segregated regardless of their physical lo-

cation, the MAC-based VLANs can be used. In this case, the network is

conﬁgured with an access list mapping individual MAC addresses to VLAN

membership. Other, less common, types of VLANs exist like the protocol-

based VLANs, where the protocol type is used to separate networks.

VLAN tagging is usually supported by network switches with advanced

capabilities. The wireless networks can be viewed as a large distributed

switch with VLAN support. Two different types of VLAN tagging mecha-

nisms are supported: port-based and mac-based VLANs. Fig 5.3 reports

a network conﬁguration example where two VLANs are set up, i.e. using

VID #2 and VID #3. Each VLAN uses a separate IP address class and the

devices belonging to the VLANs must be conﬁgured accordingly.

The Fluidmesh VLAN implementation is compatible with the speciﬁcation

of the IEEE 802.1q standard and, thus, the Fluidmesh network can interop-

erate with other VLAN-aware network devices. VLAN trunking between the

Fluidmesh network and the Ethernet switches is also supported to enable

carrying VLAN membership information throughout the wireless and wired

network segments.

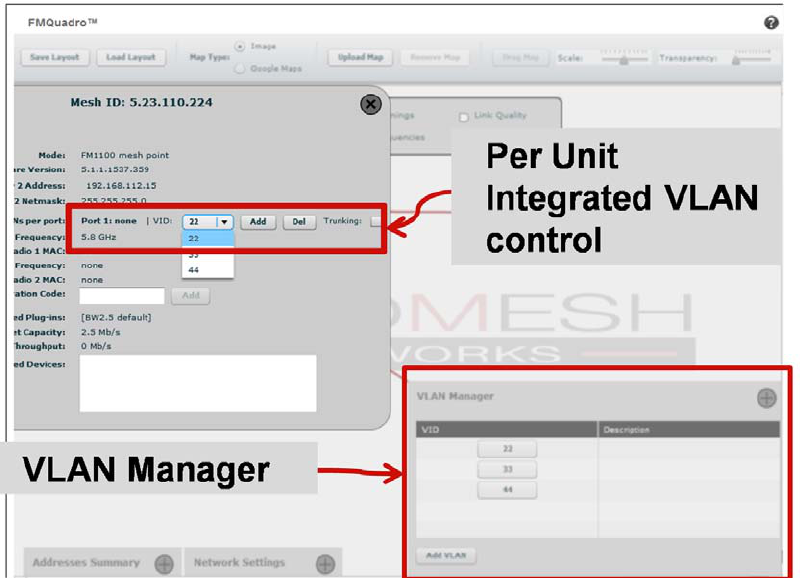

The VLAN tagging can be enabled and conﬁgured through the Web inter-

face as described in Section 7.11.1.

Multicast Streaming

To enable multicast video-streams from IP cameras or video-encoders, no

multicast group setting is required. Every multicast packet will be forwarded

by the Mesh Point unit towards the closest Mesh End unit. Please refer to

Section 7.15 for additional details.

6 Software Plug-ins

The Fluidmesh 1100 MITO (part number FM1100M-HW), Fluidmesh

1200VOLO (part number FM1200V-HW)

and the Fluidmesh 3100 MITO (part

number FM3100M-HW) feature the innovative FluidThrot-tle™ technology

which provides a variable software-upgradable capacity of the Ethernet

port based on the user’s needs. On the Fluidmesh 1100 and

Fluidemsh1200, the user can purchase software-based Plug-ins to

increase the maximum capacity of the Ethernet port from 1 Mb/s to 100

Mb/s depending on the system’s bandwidth requirements. On the

Fluidmesh 3100, the user can purchase software-based Plug-ins to

increase the maximum capacity of the Ethernet port from 10 Mb/s to 100

Mb/s depending on the system’s band-width requirements. The

FluidThrottle technology follows the cost-effective “What You Need Is

What You Get” philosophy which provides the user with maximum flexibility

in choosing (and paying for) what he/she exactly needs. FM1100M-HW and

FM1200V-HW part numbers include the hardware and the default Ethernet

Port Capacity of 1 Mb/s. FM3100M-HW part number includes the hardware

and the default Ethernet Port Capacity of 10 Mb/s.

Part Number Description FM1100 FM3100

FM1100M-02 Ethernet Capacity up to 2.5 Mb/s

FM1100M-05 Ethernet Capacity up to 5 Mb/s

FM1100M-10 Ethernet Capacity up to 10 Mb/s

FM1100M-30 Ethernet Capacity up to 30 Mb/s

FM1100M-60 Ethernet Capacity up to 60 Mb/s

FM1100M-UN Ethernet Capacity up to 100 Mb/s

FM3100M-30 Ethernet Capacity up to 30 Mb/s

FM3100M-60 Ethernet Capacity up to 60 Mb/s

FM3100M-UN Ethernet Capacity up to 100 Mb/s

FM-AES 128-bit AES Encryption

FM-49 4.9 GHz Band

FM-LF Licensed Frequencies

Table 6.1: Software Plug-in upgrades.

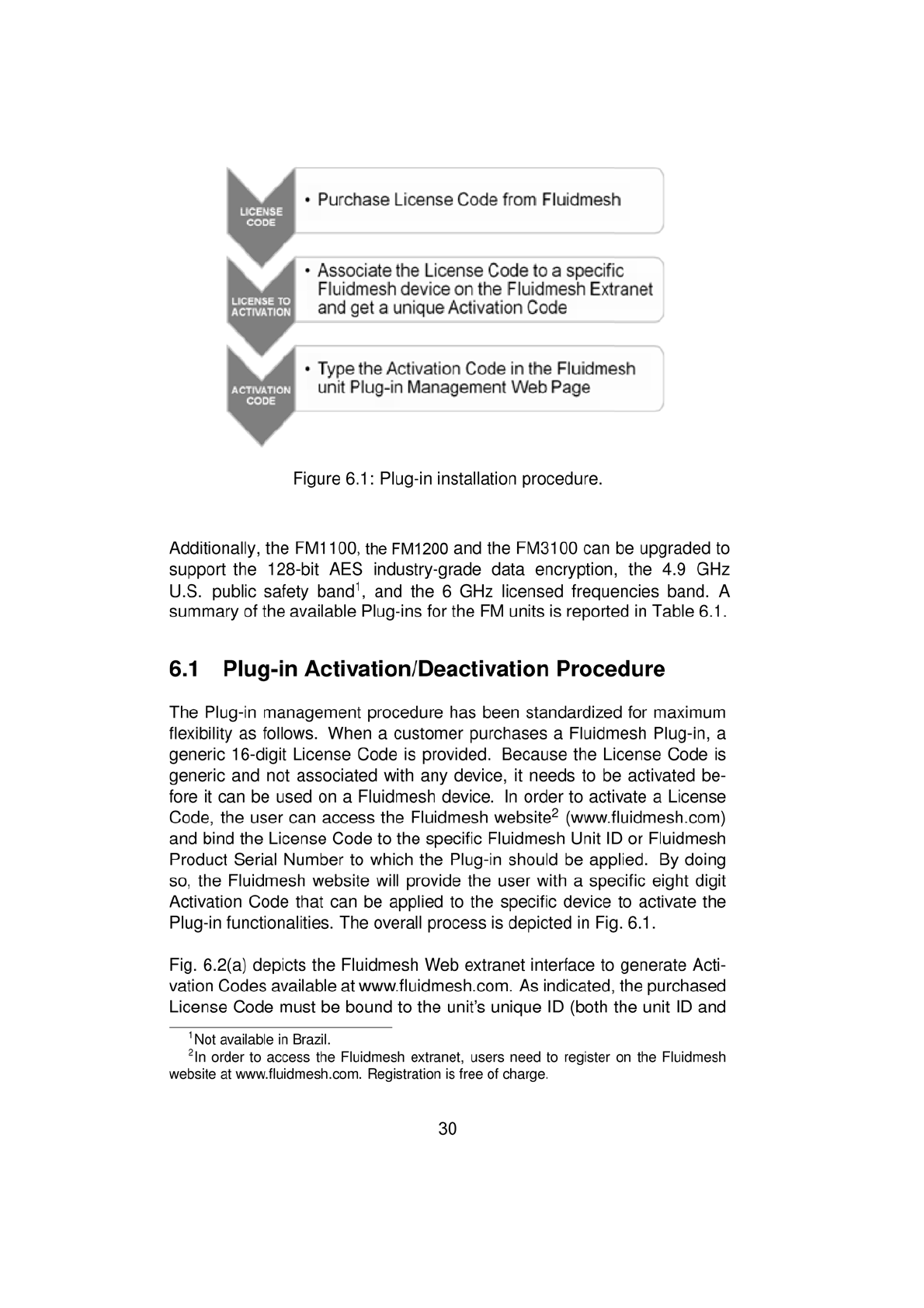

the Serial Number are accepted) in order to get the Activation Code. Please

refer to Section 7.13 to input the Activation Code into the unit Web interface.

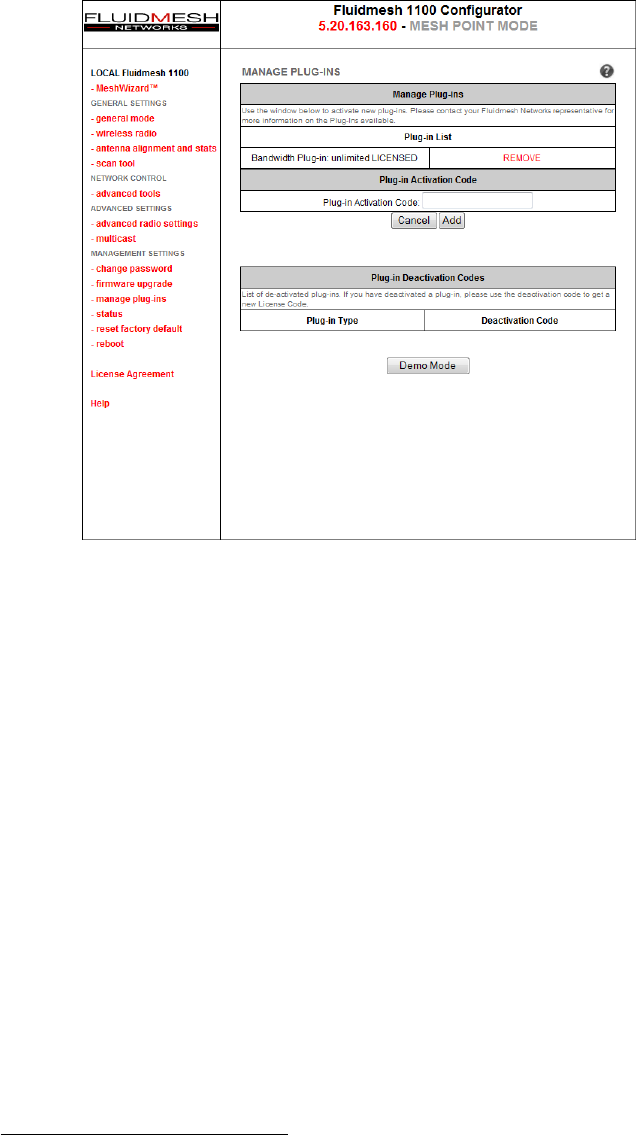

To provide the maximum ﬂexibility in the Plug-in management, Fluidmesh

allows the deactivation of any installed Plug-in in order to transfer it to an-

other Fluidmesh unit. Speciﬁcally, each Plug-in can be deactivated via the

Web interface of the unit according to the procedure described in Sec-

tion 7.13. A Deactivation Code is provided by the unit which can be input

in the Fluidmesh Plug-in Management Web Page on Fluidmesh Extranet to

generate a fresh License Code as depicted in Fig. 6.2(b). The latter can

then be used to generate a new Activation Code to activate the Plug-in for

a different unit.

(a) Plug-in Activation

(b) Plug-in Deactivation

Figure 6.2: Activation/Deactivation Code Generation Web interface avail-

able at www.ﬂuidmesh.com.

7 Web-based Interface and

Conﬁguration

Every FM unit can be conﬁgured and managed using a Web-based Graph-

ical User Interface (GUI). By default, each FM unit is conﬁgured in Bridge

Mode with the Bridge IP address 192.168.0.10 and netmask 255.255.255.0.

To change the settings on the units, you need to log-in to the Web-based

interface.

7.1 Software and Hardware Requirements

To log-in to the Web GUI, you need a PC with a Web-browser, an Ethernet

port, and an Ethernet cable.

Requirements List:

• Cat5 Crossover Ethernet cable with RJ45 connectors.

• PC with the following characteristics:

– Windows XP or Windows 2000. In this manual, we assume use

of Windows XP and every instruction or screenshot is based on

this assumption. The device can also be conﬁgured using other

operating systems, such as Linux, MAC OS, or older versions of

Windows.

– Microsoft Internet Explorer 6. In this manual, we assume use

of Microsoft Internet Explorer 6 or newer. A Fluidmesh device

can also be conﬁgured using other browsers such as older ver-

sions of Internet Explorer, Firefox or Safari but the conﬁguration

using these browsers has not been thoroughly tested.

– Wired Ethernet Network Card.

– Hardware Requirements. Typical PC hardware allowing for

proper operations of Windows XP and Microsoft Internet Ex-

plorer 6.

Figure 7.1: Log-in window.

7.2 Logging-in to the Web-based Interface

Power up the device after making sure the antennas are properly con-

nected. Wait for about one minute for the initialization to be completed.

Connect an Ethernet cable with RJ45 connectors between a computer and

the Fluidmesh device that you want to conﬁgure.

Conﬁgure the wired Ethernet port of your computer according to the de-

fault class “C” IP address of the device, e.g., IP: 192.168.0.30, Netmask:

255.255.255.0.

If you do not know how to conﬁgure your Windows PC, please refer to Sec-

tion 8 where the manual IP conﬁguration process is described. Disable

the Access the Internet using a proxy server function. To disable this

function, go to Control Panel >Internet Options >Connections >LAN

Settings and uncheck the Enable box. Disable the wireless Wi-Fi card of

your PC if present to avoid routing issues between the two network inter-

faces of your computer. Open a Web-browser such as Internet Explorer

and type the following URL:

http://192.168.0.10

Make sure not to omit the initial “http://”. Some browsers might not work

without the “http://” preﬁx preceding the numeric address. A log-in form

asking for a username and a password should appear as shown in Fig. 7.1.

To preserve the security of your system, make sure you change the default

password once the entire installation is completed. In case the log-in form

does not appear, please refer to Section 8.

The default username and a password are:

Username: admin

Password: admin

Figure 7.2: End-user license agreement.

7.3 End-user License Agreement and Region of Op-

eration

The ﬁrst time you log-in, you will be asked to accept the terms of the end-

user license agreement and select the country where you will be operating

the unit (Fig. 7.2 is an example for an FM1100 unit). You must accept the

terms of the license agreement in order to activate the device. If you do not

wish to accept the terms of the license agreement, please turn off the unit

and contact Fluidmesh Networks. Choosing a wrong country/regulatory do-

main setting may lead to an illegal wireless conﬁguration.

Once the license is accepted, the unit can be conﬁgured. Two conﬁgu-

ration methods are available as shown in Fig. 7.3(a): MeshWizard™ and

Classic. The former consists of a simple four step wizard to conﬁgure the

basic settings of the unit (see Section 7.4), whereas the latter is the classic

Fluidmesh Web-based GUI for advanced conﬁguration (see Section 7.5).

(a) Step 1 (b) Step 2

Figure 7.3: MeshWizard™ FM unit conﬁguration steps.

7.4 MeshWizard™

MeshWizard is a simple yet effective tool to conﬁgure the basic settings of

an FM unit based on the following four steps:

1. Step 1, Fig. 7.3(a): click on the “Wizard” button to start conﬁguring

the unit;

2. Step 2, Fig. 7.3(b): unit IP conﬁguration;

3. Step 3, Fig. 7.3(c): wireless radio frequencies conﬁguration;

4. Step 4, Fig. 7.3(d): settings summary and conﬁguration save.

7.5 Web-based Interface Menus

Once logged in successfully, the general mode page will appear as shown

in Fig. 7.4. Through this page you can change the mode of operation of

the FM unit. The item list menu on the left can be used to set/modify the

conﬁguration of the unit.

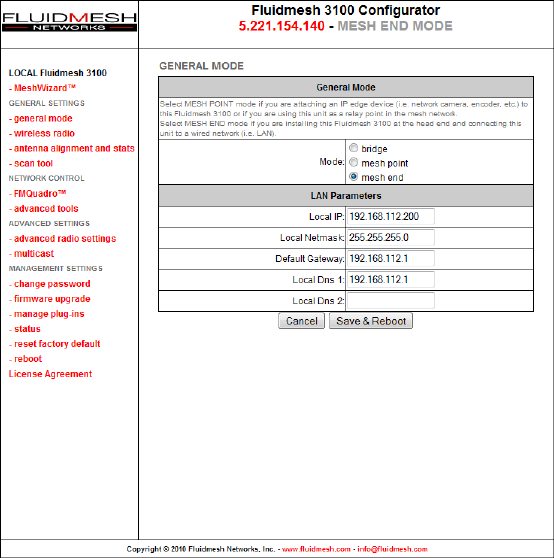

Figure 7.4: FM unit general conﬁguration window.

7.6 General Mode

Every FM unit has three possible modes of operations:

•Bridge Mode

•Mesh Point Mode

•Mesh End Mode

The FM unit factory default mode is Bridge. The Mesh Point mode must be

used for any unit deployed in the ﬁeld. On the other hand, the FM unit must

be set in Mesh End whenever it is connected to the main cabled network

where the control room (usually) resides. You will need to input the settings

of the wired network (LAN) to which the FM unit unit will be connected. The

default IP address of the FM unit is 192.168.0.10 and the default Netmask

is 255.255.255.0. If you do not know the LAN settings, contact the local

network administrator before changing the settings of the gateway.

Please remember that a Mesh End unit is always necessary for the correct

mesh network operations, even for small networks (e.g., 2 FM units).

7.7 Wireless Settings

The wireless settings menu is used to conﬁgure the radio present in the

FM unit and can be accessed by clicking on wireless radio. The wire-

less settings menu is available in either Basic (Fig. 7.5) or Advanced mode

(Fig. 7.6). The former provides the basic radio conﬁguration options whereas

the latter can be enabled by expert users for tuning the radio channel width

or using non-standard carriers. The following wireless parameters are avail-

able:

Shared Passphrase. The shared passphrase is a shared secret that must

be set in every FM unit forming a wireless network. Any Fluidmesh device

that does not have the correct passphrase will not be able to be part of the

network. Different passphrases can also be used to create separate Flu-

idmesh networks in the same area and sharing the same frequencies.

Country. You need to specify the country where you will operate the unit.

Different countries have different telecommunications regulations. Setting

the country properly allows you to operate in compliance with national reg-

ulations. The available frequencies and other settings related to the RF op-

eration will vary based on the selected country. Choosing the wrong coun-

try/regulatory domain may lead to an illegal operation of the unit. Please

Figure 7.5: Wireless parameters conﬁguration. Basic mode

make sure the country has been properly speciﬁed before changing the fre-

quency of the system.

Frequency Selectors. All Fluidmesh units are equipped with multi-band

radios capable of operating on the 4.9-6 GHz bands.1You can change the

frequency of each radio in order to minimize interference with other wire-

less networks operating in the same area. The frequencies listed on the

Frequency Selector are the carrier frequencies. In Basic mode, each ra-

dio operates using ﬁxed channel carriers with 40 MHz channel widths as

speciﬁed by the local country regulations. In Advanced mode, the user is

allowed to select any channel carrier in the local country frequency band

with a 5 MHz granularity. The channel width can be set through the speciﬁc

selector (see below). Make sure you pick non-overlapping channels if you

need to operate more than one unit in the same area.

In Advanced mode, the following selectors are also available:

14.9 GHz and 6 GHz are licensed bands which must be enabled through the proper

software plug-in. Please refer to Section 7.13 for details.

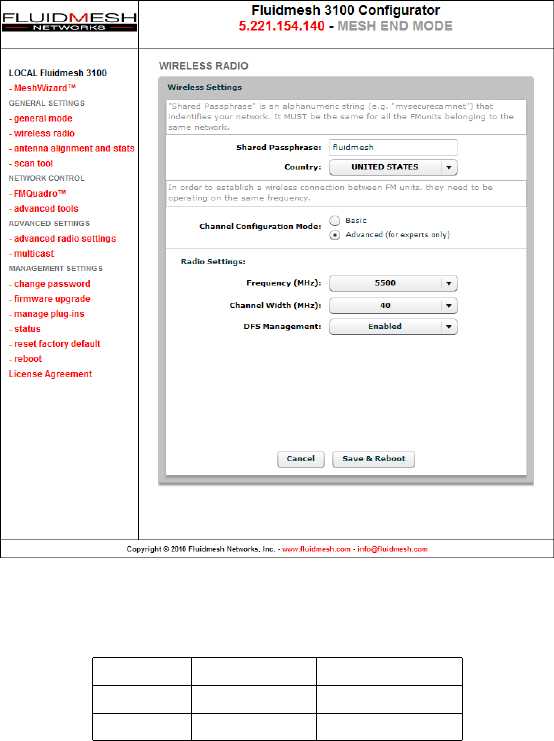

Figure 7.6: Wireless parameters conﬁguration. Advanced mode

Width Data Rate Throughput

20 MHz 150 Mb/s 60 Mb/s

40 MHz 300 Mb/s 100 Mb/s

Table 7.1: Available radio channel widths.

Channel Width. The width of the operating radio channel can be set

through this selector. The available options are described in Table 7.1

where the theoretic data rate and the achievable throughput are also in-

dicated for each channel width.

Whenever possible, setting the radio to operate on a narrower channel can

be useful to reduce the interference in the network and to increase the num-

ber of available channels. Please remember to set the same channel width

on both sides of the wireless link. A channel width mismatch will prevent

the FM units from communicating properly. Please note that changing the

channel width may violate the local telecommunication authorities guide-

lines and lead to illegal wireless operations.

IN NO EVENT SHALL FLUIDMESH NETWORKS, INC. BE LIABLE FOR

ANY INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES, WHETHER

BASED ON TORT, CONTRACT, OR OTHERWISE, ARISING OUT OF OR

IN CONNECTION WITH IMPROPER USE OR OPERATION OF THE CHAN-

NEL WIDTH FUNCTIONALITIES.

DFS Management. Each device implements a proprietary distributed chan-

nel switching algorithm which is used when a radar is detected to com-

ply with the Dynamic Frequency Selection (DFS) international regulations.

Upon radar detection, two communicating Fluidmesh units agree to switch

to the next radar-free channel so that they can continue to communicate on

that channel. The DFS is automatically enabled in the following frequency

ranges: 5.250 GHz – 5.350 GHz and 5.470 GHz – 5.725 GHz. The DFS

management can be manually disabled. The number of detected radars is

reported as well. Outside these mandatory frequency bands, the DFS is

not required and it is disabled by default. Please note the DFS is required

by law in many countries and by disabling it you might incur ﬁnes and crim-

inal charges by the local telecommunication authorities.

IN NO EVENT SHALL FLUIDMESH NETWORKS, INC. BE LIABLE FOR

ANY INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES, WHETHER

BASED ON TORT, CONTRACT, OR OTHERWISE, ARISING OUT OF OR

IN CONNECTION WITH IMPROPER USE OR OPERATION OF THE DFS

FUNCTIONALITIES.

Option Speciﬁcation

AUTO The FluidMAX engine is enabled and the unit role is set

automatically.

MASTER The FluidMAX engine is enabled and the unit role is set to

MASTER. This is used to force the FluidMAX role of the

Fluidmesh unit at the center of the star topology to be a

MASTER.

SLAVE The FluidMAX engine is enabled and the unit role is set to

SLAVE. This is used to force the FluidMAX role of the unit

which is NOT the center of the star topology to be a SLAVE.

OFF The FluidMAX engine is disabled.

Table 7.2: FluidMAX Management options.

7.8 Advanced Wireless Settings

The advanced wireless settings menu (Fig. 7.7) can be used to conﬁgure

advanced wireless parameters:

FluidMAX Management. Although the FluidMAX engine automatically se-

lects the most appropriate MAC protocol to be used according to the de-

tected network topology, convenient selectors are included in the Web GUI

to force the FluidMAX operations and control the FluidMAX role of the unit.

Please refer to Table 7.2 for the available options and their speciﬁcation.

Transmission Rate Selection. Each FM unit implements a proprietary

data-rate selection algorithm which is able to adapt to the speciﬁc radio

channel conditions. Through this setting, it is possible to force the rate se-

lection algorithm to limit the modulation speed at a speciﬁc rate. This option

might be useful with unstable channel conditions.

Maximum TX Power. This setting controls the output power of the radio.

By decreasing the output power of a radio, you can decrease the overall

E.I.R.P. By default, the radio transmission power is controlled automatically

by the innovative Fluidmesh Transmission Power Control (TPC) algorithm.

The Fluidmesh TPC algorithm tries to obtain an optimal link signal strength

(about -55 dBm) on both sides of the link while not exceeding the maximum

TX power which can be set by the user through the selector. Note that the

maximum transmission power may vary depending on the operating fre-

quency channel of the radio.

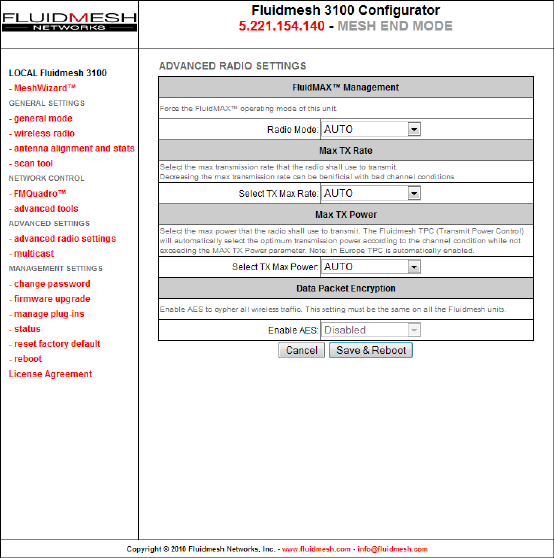

Figure 7.7: Advanced wireless parameters conﬁguration.

Data Packet Encryption (Software Plug-in Required). Advanced En-

cryption Standard (AES) 128 bit encryption can be enabled at the link-level

for wireless data transmission. This feature is available in addition to the

default Fluidmesh proprietary encoding algorithm for maximum industry-

grade network security. A software Plug-in is required to activate this op-

tion. Please contact your Fluidmesh Networks’ representative for details.

7.9 Antenna Alignment Tools and Physical Statis-

tics

The antenna alignment and stats page provides a powerful tool which

can be used to check the current link status during the normal unit oper-

ation and the physical installation of the antennas. Speciﬁcally, the web

page shows the list of links detected by the local unit and the relative signal

strengths (in dBm) on each radio as shown in Fig. 7.8(a).

To perform an accurate antenna alignment for a speciﬁc link, click on the

“Align” button to open the antenna alignment tool as depicted in Fig. 7.8(b).

(a) Link selection

(b) Alignment

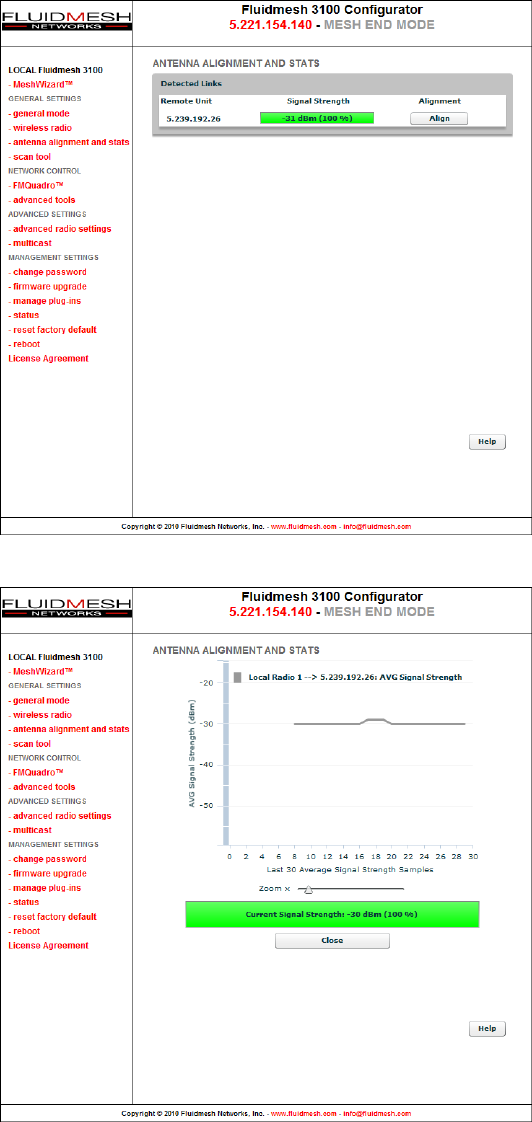

Figure 7.8: Antenna Alignment tool.

Figure 7.9: Frequency Scan Tool results.

The user is warned that the proprietary Fluidmesh TPC algorithm (see Sec-

tion 7.8) will be disabled during the alignment process so as to avoid un-

wanted interactions with the tools. The antenna alignment tool consists of

a real-time graph and a bar which report the average signal strength and

the current signal strength detected at the local unit receiver, respectively.

During the physical antenna alignment process, the graph and the bar can

be monitored to obtain optimal link quality.

7.10 Frequency Scan Tool

The Scan Tool page provides a powerful tool for analyzing the status of

the radio interference in the available channels. The channel scan can be

started on each radio separately by means of the buttons at the top of the

page (see Fig. 7.9). As soon as the scanning is complete, a bar chart will

appear indicating the current interference level and the overall quality of

each channel.

As shown in Fig. 7.9, each bar in the chart consists of two sections. The

black section represents the amount of interference detected in the chan-

nel, whereas the colored one gives a qualitative idea of the status of the

channel according to the following table:

Color Channel Quality

GREEN GOOD

YELLOW FAIR

RED BAD

Additional information such as number of Fluidmesh units and access points

detected is available by bringing the cursor of the mouse over the frequency

channel bars. Please note that in a network with overlapping channels, the

number of Fluidmesh units detected by the scan tool might be higher than

the actual number of units deployed.

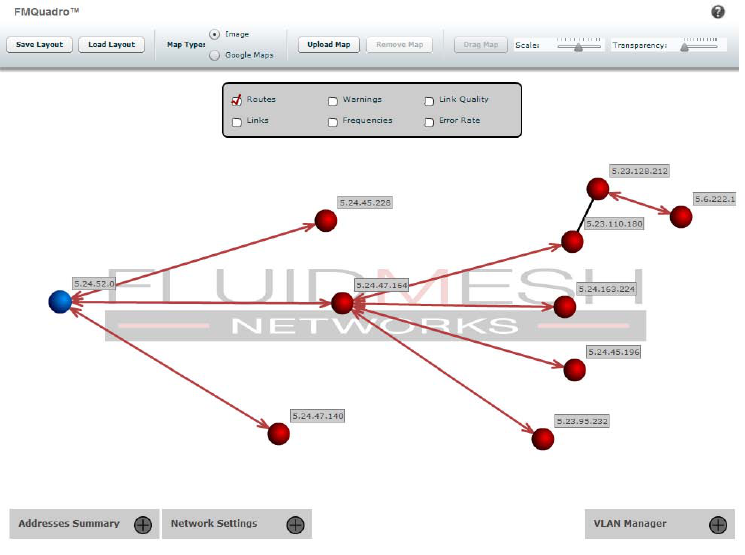

Figure 7.10: FMQuadro.

7.11 FMQuadro™ (Mesh End only)

This feature is available only in FM units conﬁgured in Mesh End mode. The

innovative FMQuadro engine provides an interactive graph representation

of the Fluidmesh network where vertices and edges represent FM units

and wireless links, respectively, as shown in Fig. 7.10. The links which are

currently in use by every packet generated/relayed by a Fluidmesh device

to reach a possible destination in the network (i.e., the routing table) are

depicted as a continuous lines.

Backup links are depicted as dashed lines, and they are not shown by de-

fault. Backup links can be viewed by selecting the appropriate ﬁeld in the

top panel of the FMQuadro window.

This panel also includes other ﬁelds which can be selected to display ad-

ditional always-on link information such as the link frequency, the link error

rate, and the link quality.

In the graph, blue is the color of a mesh end whereas mesh points are de-

picted in red. The unit color becomes yellow if any anomalous condition is

detected on the unit.

Each element displayed in FMQuadro is interactive, and can be dragged

and/or clicked to get additional real-time information based on the context.

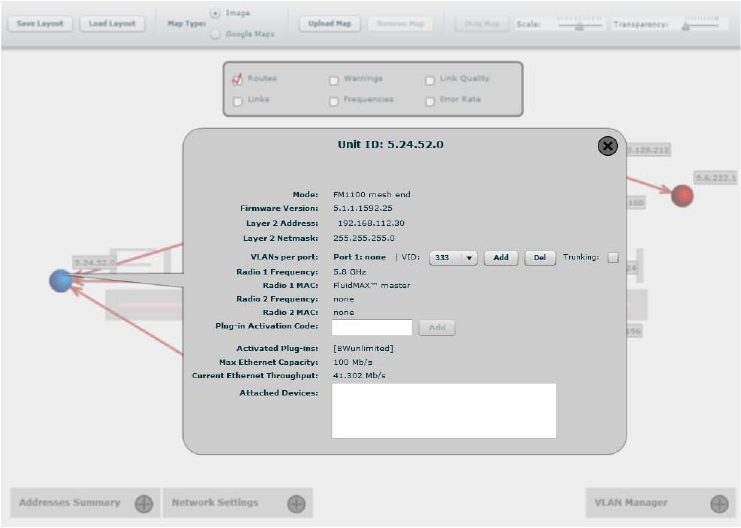

Figure 7.11: FMQuadro. Unit information.

For example, by clicking on a speciﬁc unit, information about the remote

unit selected is displayed in a callout as shown in Fig. 7.11. This informa-

tion includes the Layer 2 IP address, current FluidMAX status of the unit,

the radio frequencies currently in use, and the details of the data trafﬁc

ﬂows generated by the edge devices connected to the unit.

The list of currently active Plug-ins is visible. Furthermore, any Plug-in Ac-

tivation Code can be conveniently added to the speciﬁc remote unit using

the form available in the callout. Finally, current throughput and maximum

capacity of the Ethernet port is reported in order to monitor the Ethernet

ports utilization and detect whether the Ethernet port is over-utilized with

respect to the installed FluidThrottle Plug-in.

Similarly, the status of a wireless link connecting any two units can be mon-

itored by clicking on the related line, as reported in Fig. 7.12. Several real-

time parameters are displayed including the current signal strength, the

packet error rate, and the link utilization of both link directions (i.e. the link

from a unit to the other and vice-versa). Additionally, the current congestion

level of the link is monitored. A detailed description of the available param-

eters is reported in Table 7.3. Visual alarms and warnings are triggered

whenever anomalous conditions are detected, as described in Table 7.4.

Warnings are of two types: link and unit. When unit warnings are trig-

gered, the unit color becomes yellow. The warning details are available by

clicking on the unit element. The link warnings notiﬁcation can be disabled

by removing the “Warning” ﬂag in the FMQuadro top panel.

Metric Description

Current TX Rate Current link transmission rate in Mb/s.

Packet Error Rate Percentage of packet dropped due to excessive trans-

mission errors.

Link Error Rate Percentage of packet retransmissions due to trans-

mission errors.

Signal Strength Current received signal level in dBm.

Link Utilization Percentage of the current link utilization for data

transmission in a pie chart format.

Table 7.3: Link metrics description.

Warning Type Cause

Low Signal Strength Link Link Signal Strength <60%.

High Error Rate Link Packet Error Rate >5%.

High Link Congestion Link Link Utilization >80%.

Ethernet Capacity Overﬂow Unit Plug-in capacity exceeded.

Hidden Terminal Detected Unit Hidden terminal detected by the

FluidMAX engine.

Table 7.4: FMQuadro warning description.

Through the link status callout, the user can also check the level of interfer-

ence of the selected link by clicking on the “Check for Interference” button.

The link interference is analyzed on both sides of the link by the FMQuadro

engine and the interface suggests, in case of detected problems, a set of

preferred channel frequencies that the radio link is recommended to be set

to.

All the link metrics are continuously monitored by the FMQuadro engine

and statistics are logged and can be displayed by clicking on any link met-

ric button, as shown in Fig. 7.13. By default, the last 48 hour’s statistics

are recorded with a metrics’ sampling interval of 5 minutes. The statistics

recording time can be increased up to 24 days at the cost of increasing the

metrics’s sample interval proportionally.

Figure 7.12: FMQuadro. Link information.

A table, placed at the bottom of the window, reports the network units’ ad-

dress summary and can be viewed by clicking on the proper button as re-

ported in Fig. 7.14. It is possible to assign a name to each of the Fluidmesh

units. This may be especially convenient with a large mesh network.

Furthermore, through the “Network Settings” table, placed at the bottom of

the window, you can check whether the DFS settings are consistent the

network, e.g., the DFS is enabled in the all the units. The Network Settings

table allows for harmonizing the DFS settings in the whole network with a

single mouse click.

FMQuadro is an accurate representation of the network, so it can be use-

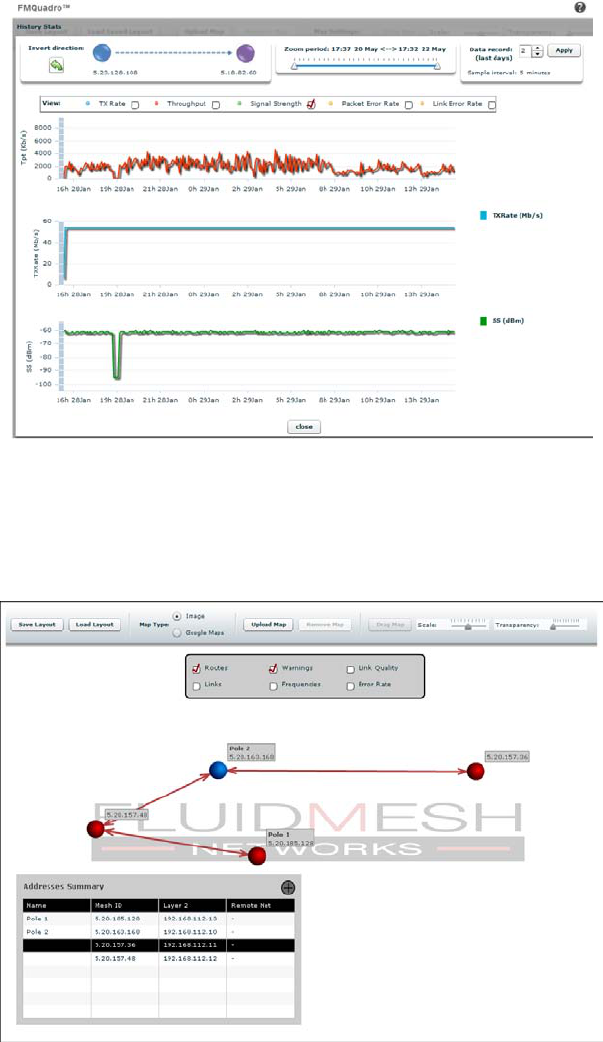

Figure 7.13: FMQuadro. Last 48 hours Link information.

Figure 7.14: FMQuadro. Addresses Summary table.

ful to add a map of the area in which the Fluidmesh system is deployed.2

Map images can be uploaded to the Mesh End unit using the proper button

placed in the FMQuadro top toolbar. Common image formats are supported

including png, jpg and bmp. Furthermore, whenever an Internet connection

is available to the user PC used to conﬁgure the Fluidmesh network, Google

Maps map can be used to set the background of FMQuadro.3The top tool-

bar provides several intuitive buttons to drag & drop the background map

and control its transparency and scale. Once the map is set up, the FM

units can be dragged to their actual installation places. Finally, the modiﬁed

layout can be saved and used again in the future.

As the FMQuadro engine collects statistics from the entire network through

the Mesh End unit, it is no longer necessary to directly connect to remote

units. The overall network status and individual device status can be moni-

tored real-time through the FMQuadro interface on Mesh End unit.

2Aerial images can be downloaded using Google Earth (http://earth.google.com/).

3Please note the you need an Internet connection to use the Google Maps background

feature.

Figure 7.15: VLAN conﬁguration steps.

7.11.1 VLAN Tagging Conﬁguration (Software Plug-in Required)

Each VLAN can be conﬁgured via FMQuadro with a simple two steps pro-

cedure as described below. Please note that VLANs require some network

conﬁguration expertise and should be used by advanced users only. Please

refer to Section 5.2.1 for further details.

1. VLAN ID creation: a new VID can be created using the VLAN man-

ager control placed at the bottom-right hand of the FMQuadro window

as shown in Fig. 7.15. You must specify the VID number and, op-

tionally, a description of the VLAN. Once the VID is created you can

specify the Ethernet ports and/or the MAC addresses membership.

2. Ports and/or MAC membership: FM unit ethernet ports can be

added to the created VLAN by using the speciﬁc callout of the unit

as shown in Fig. 7.15. On the other hand, MAC addresses member-

ship can be speciﬁed in the VLAN manager control.

The Fluidmesh VLAN implementation is compatible with the speciﬁcation

of the IEEE 802.1q standard and, thus, the Fluidmesh network can inter-

operate with other VLAN-aware network devices. VLAN trunking between

the Fluidmesh network and Ethernet switches is also supported and can

be enabled by selecting the proper control in the unit’s callout window. En-

abling VLAN trunking on a speciﬁc port instructs the FM unit to forward

VLAN membership information to the device connected to the port, thus

extending VLANs across multiple network devices.

To simplify the conﬁguration of the units when trunking is enabled, a special

VID #1 is available. Simply conﬁguring the network switch with a VLAN #1

will allow any PC belonging to the VLAN #1 to access the web interface of

the FM units without the need for additional settings of the FM units.

7.12 Firmware Upgrade

Through the ﬁrmware upgrade page (Fig. 7.16), it is possible to upgrade

the Firmware of the devices to the latest version available. To do so, down-

load the latest Firmware upgrade ﬁle to your PC from the Fluidmesh Net-

works Web site at www.ﬂuidmesh.com.4Select the correct ﬁle on your hard

disk, and upload it. This operation might take several minutes. The unit will

automatically reboot at the end of the upgrade process.

Upgrading a working system is always a delicate and somewhat risky oper-

ation. Fluidmesh discourages anybody from upgrading a functional system

except if there is an issue to ﬁx.

Recommended upgrading procedure for running systems:

1. Download the latest ﬁrmware release available for your hardware/ﬁrmware

family;

2. Power off the whole network;

3. Power on one device at a time;

4. Connect directly to the Fluidmesh unit to be upgraded directly through

an Ethernet cable;

5. Write down the unit conﬁguration (at least network settings and wire-

less settings);

4An approved Fluidmesh extranet account is required. Please register for a an on-line

account and contact Fluidmesh for approval.

6. Upgrade the device with the chosen ﬁrmware;

7. Once the upgrade is completed, wait for the system to reboot;

WARNING: DO NOT RESTART OR POWER OFF THE UNIT WHILE UP-

GRADING THE FIRMWARE. RESTARTING OR POWERING OFF THE

UNIT BEFORE THE UPGRADE IS COMPLETED MIGHT DAMAGE THE

UNIT.

When the upgrade is completed, check the ﬁrmware upgrade page in

order to make sure that the new ﬁrmware version has been correctly up-

dated. If the ﬁrmware version has not been changed, the upgrade process

has failed. Therefore, please repeat the upgrading procedure from the be-

ginning.

Figure 7.16: Firmware upgrade Web page.

Figure 7.17: Plug-ins management Web page.

7.13 Plug-in Management

The manage plug-ins page (Fig. 7.17) shows the installed Plug-ins and

allows the user to add Plug-in Activation Codes. Additionally, a Plug-in can

be deactivated to, for example, transfer it from one unit to another. Once the

Plug-in has been deactivated, you will be provided with a Deactivation Code

displayed at the bottom of the page. In order to get a fresh Activation Code

to use it in another device, you must complete the unit deactivation pro-

cedure at the Fluidmesh Networks website (www.ﬂuidmesh.com). Please

refer to Section 6 for details on the software Plug-in activation/deactivation

procedures.

A 8 hour plug-in trial is available by clicking on the “Demo Mode” button at

the bottom of the page. The plug-in demo mode includes the 4.9 GHz5, the

AES and the Unlimited plug-in trials all at once. The unit will reboot on the

8 hours plug-in trial expiration.

5Not available in Brazil.

7.14 Advanced Tools

Through the advanced tools page, it is possible to run tests to verify net-

work connectivity and the achievable throughput on a network path. As

shown in Fig. 7.18, network connectivity can be tested by issuing a “Ping

Test” towards a speciﬁc destination. Additionally, the “Bandwidth Test” tool

generates a stream of packets at a speciﬁed rate to test the available net-

work path throughput.6

In order to run a Ping or a Bandwidth Test, write the destination IP in the

proper window and click run. The Bandwidth Test allows you to select the

throughput from a value of 4Mb/s to 20 Mb/s. Both tests can be run on

top of a loaded network to test operational performances, or on top of an

unloaded network to test installed capacity.

Figure 7.18: Advanced Tools Web page.

6Please note that the achievable rate computation is cpu-intensive and only indicative.

Results may be not accurate. Usually the bandwidth tests tend to underestimate the real

throughput of the link.

7.15 Multicast

By default, FM units operating in Mesh Point mode forward all the multicast

trafﬁc generated by the cameras to their closest Mesh End unit. However,

in some network conﬁgurations, it may be convenient to forward the multi-

cast trafﬁc from a Mesh Point to others, e.g., to remotely record the video

ﬂow.

By default, the unit operating in Mesh End mode does NOT forward any

multicast trafﬁc7to the wireless networks.

Figure 7.19: Add/Remove multicast routes towards Mesh Points.

To redirect a trafﬁc ﬂow to a Mesh Point, you must specify all the multicast

ﬂows redirection information within the Mesh End multicast page as shown

in Fig 7.19.

7With the exception of UPnP and IGMP trafﬁc.

7.16 PoE Passthrough (FM1100 and FM1200 only)

The second Ethernet port present on the FM1100 and FM1200 can be used

to power up other passive 12-18 V PoE devices such as cameras and

FM units. This feature can be enabled through the PoE passthrough

page as depicted in Fig. 7.20.

Figure 7.20: Enable the PoE passthrough feature.

7.17 Change Password

Use this page to change the password to access the unit Web GUI.

7.18 Status

This page reportsasummary of the status of the unit. Additionally, in case

of system malfunctions, the unit’s diagnostic ﬁle dump can be downloaded

through this page and emailed to the Fluidmesh technical support to facili-

tate the problem diagnosis.

7.19 Reboot and Reset to Factory Default

Use the Reboot page to restart the unit. Use the Reset to Factory Default

page to restore the unit default factory settings.

7.20 On-line Help

The electronic version of this manual is available by accessing the Help web

page. Additionally, speciﬁc manual sections can be consulted by clicking

on the question mark present at the upper right corner of every page of the

Web GUI.

8 Troubleshooting

The troubleshooting section will allow you to solve the most common prob-

lems encountered when conﬁguring and installing Fludimesh products.

8.1 I am unable to get the log-in screen

If you are unable to get the log-in form on your computer screen, you should

check the following:

Is your computer set to a valid IP address? You should manually set the

correct network settings as follows:

1. In Windows Explorer, right-click “My Network Places” and select Prop-

erties.

2. Right-click Local Area Network and select Properties.

3. Right-click Internet Protocol (TCP/IP) and select Properties.

4. Set the IP address to 192.168.0.30 (or any other IP address belonging

to the subnet 192.168.0.0/255.255.255.0), Netmask to 255.255.255.0.

5. Click OK, then OK again.

Have you disabled the “Access the Internet using a proxy server” function?

To disable the Access the Internet using a proxy server function, go to

Control Panel >Internet Options >Connections >LAN Settings and

uncheck the enable box.

8.2 I am unable to log-in into the Web-based inter-

face

If you are unable to log-in into the Web-based interface, check your user

name and password settings.

The user name cannot be changed by the user and corresponds to:

admin

The password can be changed, so make sure you are using the right pass-

word. The default password is:

admin

If you forgot the password, check Section 8.3 to ﬁx the problem.

8.3 I forgot the administrator password

If you forgot the password and need to access the Web-based interface,

you must physically access the unit, open the enclosure in a weather-safe

situation and reset to the factory default settings. Please refer to the in-

structions of Section 3.1.4 for FM1100, Section 3.3.4 for FM1200 and Section

3.2.4 for FM3100 units.

8.4 In Bridge Mode I get no Link or the Link LED is

always red or I am getting a weak Wireless link

(below 60% signal strength)

To improve your link strength, please check the following:

•Antenna Alignment: the two antennas must be aligned toward each

other.

•Line of Sight: you must have clear line of sight between the two

antennas.

•Antenna Polarization: both antennas must have the same polariza-

tion. Check antenna polarity.

•Power: check if the FM unit is properly powered-on with the provided

PoE injector.

•Channel: both FM unit units must be operating on the same channel.

APPENDIX A

FCC Notices

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) this device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that may cause undesired

operation.

CAUTION: Change or modification not expressly approved by the party responsible

for compliance could void the user’s authority to operate this equipment.

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

--Reorient or relocate the receiving antenna.

--Increase the separation between the equipment and receiver.

--Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

--Consult the dealer or an experienced radio/TV technician for help.

CAUTION:

Any changes or modifications not expressly approved by the grantee of this device could

void the user's authority to operate the equipment.

RF exposure warning:

The equipment complies with FCC RF exposure limits set forth for an uncontrolled

environment. The equipment must not be co-located or operating in conjunction with any

other antenna or transmitter.

This device is operation in 5.15 – 5.25GHz frequency range, then restricted in

indoor use only, Outdoor operations in the 5150~5250MHz is prohibit.

APPENDIX C

Contact Information

Worldwide Headquarters

Fluidmesh Networks, LLC

1359 Barclay Boulevard

Buffalo Grove, IL 60089

U.S.A.

Tel. +1 (617) 209 -6080

Fax. +1 (866) 458-1522

info@fluidmesh.com

EMEA Headquarters (Italy)

Tel. +39 02 0061 6189

UK Branch

Tel. +44 2078 553 132

www.ﬂuidmesh.com

Worldwide Headquarters

Fluidmesh Networks, LLC

1359 Barclay Boulevard

Buffalo Grove, IL 60089

U.S.A.

Tel. +1 (617) 209 -6080

Fax. +1 (866) 458-1522

info@fluidmesh.com

EMEA Headquarters (Italy)

Tel. +39 02 0061 6189

UK Branch

Tel. +44 2078 553 132

Cisco Systems FV WiFi AP User Manual FM1200

Fluidmesh Networks LLC WiFi AP FM1200

FM1200 user manual

Navigation menu

Namespaces

Views

Navigation
