Cisco Systems RMN302 Wireless-N Boardband Home Router User Manual

Cisco Systems Inc Wireless-N Boardband Home Router

user manual

User Guide
Wireless-N Broadband
Home Router
Model: RMN302
FPO
DRAFT - 6/25/201
0
i
Notice to Installers
The servicing instructions in this notice are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform
any servicing other than that contained in the operating instructions, unless you are qualified to do so.
Notice à l’attention des installateurs de réseaux câblés
Les instructions relatives aux interventions d’entretien, fournies dans la présente notice, s’adressent exclusivement au personnel
technique qualifié. Pour réduire les risques de chocs électriques, n’effectuer aucune intervention autre que celles décrites dans le mode
d’emploi et les instructions relatives au fonctionnement, à moins que vous ne soyez qualifié pour ce faire.
Note to System Installer
For this apparatus, the cable shield/screen shall be grounded as close as practical to the point of
entry of the cable into the building.For products sold in the US and Canada, this reminder is provided
to call the system installer's attention to Article 820-93 and Article 820-100 of the NEC (or Canadian
Electrical Code Part 1), which provides guidelines for proper grounding of the coaxial cable shield.
This symbol is intended to alert you that uninsulated voltage within this product may
have sufficient magnitude to cause electric shock.Therefore, it is dangerous to make any
kind of contact with any inside part of this product.
CAUTION: To reduce the risk of electric shock, do not
remove cover (or back). No user-serviceable parts inside.
Refer servicing to qualified service personnel.
WARNING
TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS UNIT TO RAIN OR MOISTURE.
This symbol is intended to alert you of the presence of important operating and
maintenance (servicing) instructions in the literature accompanying this product.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
AVIS
RISQUE DE CHOC ÉLECTRIQUE
NE PAS OUVRIR
Remarque à l’attention de l’installateur du système
Avec cet appareil, le blindage/écran du câble doit être mis à la terre aussi près que possible du point
d’entrée du câble dans le bâtiment. En ce qui concerne les produits vendus aux États-Unis et au
Canada, ce rappel est fourni pour attirer l’attention de l’installateur sur les articles 820-93 et 820-100
du Code national de l’électricité (ou Code de l'électricité canadien, Partie 1) qui fournissent des lignes
directrices concernant la mise à la terre correcte du blindage (écran) du câble. coaxial
Ce symbole a pour but de vous prévenir que des tensions électriques non isolées
existent à l’intérieur de ce produit, pouvant être d’une intensité suffisante pour causer
des chocs électriques. Il est donc dangereux d'établir un contact quelconque avec l’une
des pièces comprises à l’intérieur de ce produit.
ATTENTION : Pour réduire les risques de chocs électriques,
ne pas enlever le couvercle (ou le panneau arrière). Ne
contient aucune pièce réparable par l’utilisateur. Confier les
interventions aux techniciens d’entretien qualifiés.
AVERTISSEMENT
POUR ÉVITER LES INCENDIES OU LES CHOCS ÉLECTRIQUES,
NE PAS EXPOSER L’APPAREIL À LA PLUIE OU À L’HUMIDITÉ.
Ce symbole a pour but de vous prévenir de la présence d’instructions importantes
relatives au fonctionnement ou à l’entretien (et aux réparations) dans la documentation
accompagnant ce produit.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
ATTENTION
DANGER ÉLECTRIQUE
NE PAS OUVRIR
DRAFT - 6/25/201
0
ii
Mitteilung für CATV-Techniker
Die in dieser Mitteilung aufgeführten Wartungsanweisungen sind ausschließlich für qualifiziertes Fachpersonal bestimmt. Um die
Gefahr eines elektrischen Schlags zu reduzieren, sollten Sie keine Wartungsarbeiten durchführen, die nicht ausdrücklich in der
Bedienungsanleitung aufgeführt sind, außer Sie sind zur Durchführung solcher Arbeiten qualifiziert.
Aviso a los instaladores de sistemas CATV
Las instrucciones de reparación contenidas en el presente aviso son para uso exclusivo por parte de personal de mantenimiento
cualificado. Con el fin de reducir el riesgo de descarga eléctrica, no realice ninguna otra operación de reparación distinta a las contenidas
en las instrucciones de funcionamiento, a menos que posea la cualificación necesaria para hacerlo.
Mitteilung an den Systemtechniker
Für dieses Gerät muss der Kabelschutz/Schirm so nahe wie möglich am Eintrittspunkt des Kabels in
das Gebäude geerdet werden. Dieser Erinnerungshinweis liegt den in den USA oder Kanada
verkauften Produkten bei.Er soll den Systemtechniker auf Paragraph 820-93 und Paragraph 820-100
der US- Elektrovorschrift NEC (oder der kanadischen Elektrovorschrift Canadian Electrical Code Teil
1) aufmerksam machen, in denen die Richtlinien für die ordnungsgemäße Erdung des
Koaxialkabelschirms festgehalten sind.
Dieses Symbol weist den Benutzer auf das Vorhandensein von nicht isolierten
gefährlichen Spannungen im Gerät hin, die Stromschläge verursachen können. Ein
Kontakt mit den internen Teilen dieses Produktes ist mit Gefahren verbunden.
ACHTUNG: Zur Vermeidung eines Stromschlags darf die
Abdeckung (bzw. die Geräterückwand) nicht entfernt
werden. Das Gerät enthält keine vom Benutzer wartbaren
Teile. Wartungsarbeiten dürfen nur von qualifiziertem
Fachpersonal durchgeführt werden.
AVERTISSEMENT
DAS GERÄT NICHT REGEN ODER FEUCHTIGKEIT
AUSSETZEN, UM STROMSCHLAG ODER DURCH EINEN
KURZSCHLUSS VERURSACHTEN BRAND ZU VERMEIDEN
Dieses Symbol weist den Benutzer darauf hin, dass die mit diesem Produkt gelieferte
Dokumentation wichtige Betriebs- und Wartungsanweisungen für das Gerät enthält.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
ACHTUNG
STROMSCHLAGGEFAHR,
NICHT ÖFFNEN
Nota para el instalador del sistema
En lo que se refiere a este aparato, el blindaje del cable debe conectarse a tierra lo más cerca
posible al punto por el cual el cable entra en el edificio. En el caso de los productos vendidos en los
EE. UU. y Canadá, el presente aviso se suministra para llamar la atención del instalador del sistema
sobre los Artículos 820-93 y 820-100 del NEC (o Código Eléctrico de Canadá, Parte 1), que
proporcionan directrices para una correcta conexión a tierra del blindaje del cable coaxial.
Este símbolo tiene como fin advertirle de que una tensión sin aislamiento en el interior
de este producto podría ser de una magnitud suficiente como para provocar una
descarga eléctrica. Por consiguiente, resulta peligroso realizar cualquier tipo de contacto
con alguno de los componentes internos de este producto.
ATENCIÓN:
con el fin de reducir el riesgo de descarga
eléctrica, no retire la tapa (ni la parte posterior). No
existen en el interior componentes que puedan ser
reparados por el usuario. Encargue su revisión a
personal de mantenimiento cualificado.
ADVERTENCIA
PARA EVITAR EL RIESGO DE INCENDIO O DESCARGA
ELÉCTRICA, NO EXPONGA LA UNIDAD A LA LLUVIA O A LA
HUMEDAD.
Este símbolo tiene como fin alertarle de la presencia de importantes instrucciones de
operación y mantenimiento (revisión) contenidas en la literatura que acompaña al
producto.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
ATENCIÓN
RIESGO DE DESCARGA
ELÉCTRICA NO ABRIR
20080814_Installer800_Intl
DRAFT - 6/25/201
0
iii
IMPORTANT SAFETY INSTRUCTIONS
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug
has two blades with one wider than the other. A grounding-type plug has two blades and
a third grounding prong. The wide blade or the third prong are provided for your safety.
If the provided plug does not fit into your outlet, consult an electrician for replacement
of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution when
moving the cart/apparatus combination to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as a power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate normally, or has been dropped.
Power Source Warning
A label on this product indicates the correct power source for this product. Operate this product
only from an electrical outlet with the voltage and frequency indicated on the product label. If you
are uncertain of the type of power supply to your home or business, consult your service provider
or your local power company.
The AC inlet on the unit must remain accessible and operable at all times.
Ground the Product
WARNING: Avoid electric shock and fire hazard! If this product connects to coaxial cable
wiring, be sure the cable system is grounded (earthed). Grounding provides some protection
against voltage surges and built-up static charges.
Protect the Product from Lightning
In addition to disconnecting the AC power from the wall outlet, disconnect the signal inputs.
Verify the Power Source from the On/Off Power Light
When the on/off power light is not illuminated, the apparatus may still be connected to the power
source. The light may go out when the apparatus is turned off, regardless of whether it is still plugged
into an AC power source.
Eliminate AC Mains Overloads
WARNING: Avoid electric shock and fire hazard! Do not overload AC mains, outlets,
extension cords, or integral convenience receptacles. For products that require battery power
or other power sources to operate them, refer to the operating instructions for those products.
Provide Ventilation and Select a Location
• Remove all packaging material before applying power to the product.
• Do not place this apparatus on a bed, sofa, rug, or similar surface.
• Do not place this apparatus on an unstable surface.
• Do not install this apparatus in an enclosure, such as a bookcase or rack, unless the installation
provides proper ventilation.
• Do not place entertainment devices (such as VCRs or DVDs), lamps, books, vases with liquids, or
other objects on top of this product.
• Do not block ventilation openings.
Protect from Exposure to Moisture and Foreign Objects
WARNING: Avoid electric shock and fire hazard! Do not expose this product to
dripping or splashing liquids, rain, or moisture. Objects filled with liquids, such as vases,
should not be placed on this apparatus.
WARNING: Avoid electric shock and fire hazard! Unplug this product before cleaning.
Do not use a liquid cleaner or an aerosol cleaner. Do not use a magnetic/static cleaning device
(dust remover) to clean this product.
WARNING: Avoid electric shock and fire hazard! Never push objects through the
openings in this product. Foreign objects can cause electrical shorts that can result in
electric shock or fire.
Service Warnings
WARNING: Avoid electric shock! Do not open the cover of this product. Opening
or removing the cover may expose you to dangerous voltages. If you open the cover, your
warranty will be void. This product contains no user-serviceable parts.
Check Product Safety
Upon completion of any service or repairs to this product, the service technician must perform safety
checks to determine that this product is in proper operating condition.
Protect the Product When Moving It
Always disconnect the power source when moving the apparatus or connecting or disconnecting
cables.
Telephone Equipment Notice
When using your telephone equipment, basic safety precautions should always be followed to
reduce the risk of fire, electric stock and injury to persons, including the following:
1. Do not use this product near water, for example, near a bath tub, wash bowl, kitchen sink or laundry
tub, in a wet basement or near a swimming pool.
2. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a
remote risk of electric shock from lightning.
3. Do not use the telephone to report a gas leak in the vicinity of the leak.
SAVE THESE INSTRUCTIONS
20090326_Modem No Battery_Safety
DRAFT - 6/25/201
0
iv
Cisco Wireless-N Broadband Home Router
Model: RMN302
Manufactured by:
Cisco Systems, Inc.
5030 Sugarloaf Parkway
Lawrenceville, Georgia 30044 USA
Telephone: 770-236-1077
FCC Compliance
United States FCC Compliance
This device has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
such interference in a residential installation. This equipment generates, uses, and can radiate radio
frequency energy. If not installed and used in accordance with the instructions, it may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment OFF and ON, the user is encouraged
to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the service provider or an experienced radio/television technician for help.
Any changes or modifications not expressly approved by Cisco Systems, Inc., could void the user’s
authority to operate the equipment.
The information shown in the FCC Declaration of Conformity paragraph below is a requirement of
the FCC and is intended to supply you with information regarding the FCC approval of this device.
The phone numbers listed are for FCC-related questions only and not intended for questions
regarding the connection or operation for this device. Please contact your service provider for
any questions you may have regarding the operation or installation of this device.
Declaration of Conformity
This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions:
1) the device may not cause harmful interference, and 2) the device must accept any interference
received, including interference that may cause undesired operation.
Canada EMI Regulation
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la class B est conforme à la norme NMB-003 du Canada.
FCC Part 68
The Federal Communications Commission (FCC) of the United States restricts specific uses of modems,
and places registration responsibilities on both the manufacturer and the individual user.
1. The modem may not be connected to a party line or to a coin-operated telephone.
2. Notification to the telephone company is no longer required prior to connecting registered equipment,
but upon request from the telephone company, the user shall tell the telephone company which line
the equipment is connected to as well as the registration number and ringer equivalence number of

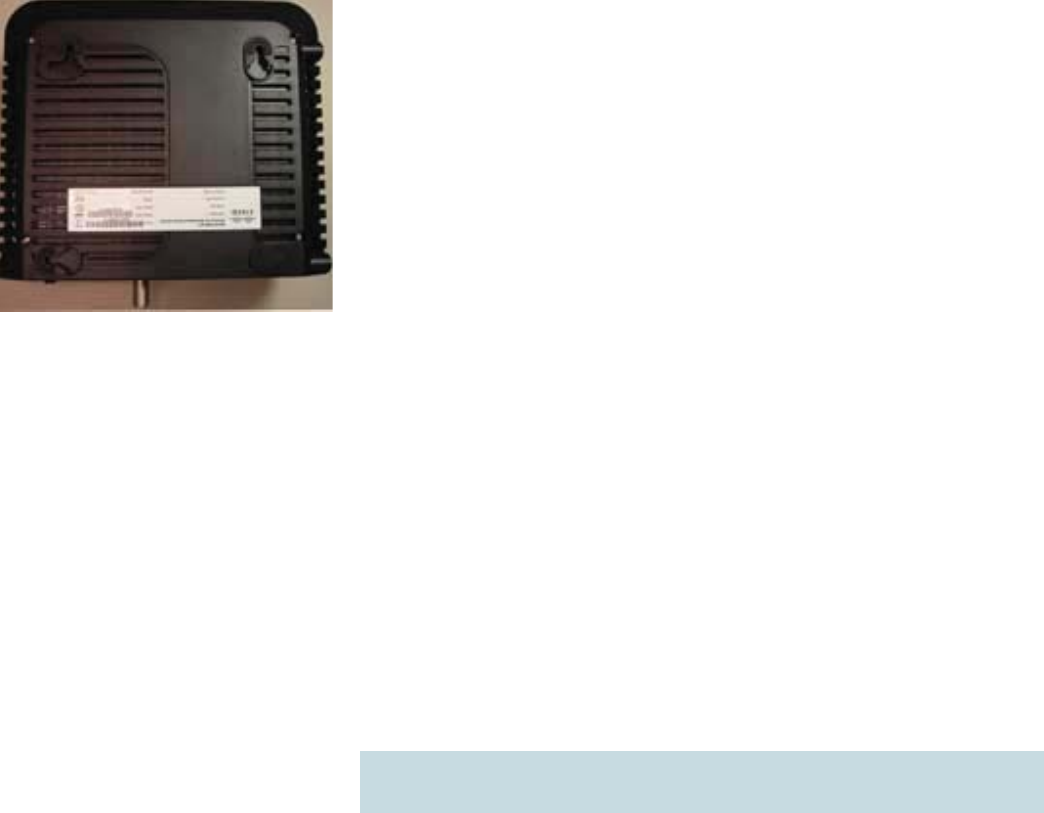

the registered protective circuitry. FCC information is printed on a label on the bottom of the modem.
This equipment complies with Part 68 of FCC Rules and the requirements adopted by the ACTA. On
the base unit of this equipment is a label that contains, among other information, a product identifier in
the format US: GEMDL01BDDR2201V1. If requested, this number must be provided to the telephone
company.
The REN is useful to determine the quantity of devices you may connect to your telephone line and still
have those devices ring when your telephone number is called. In most, but not all areas, the sum of
the REN of all devices connected to one line should not exceed five (5.0). To be certain of the number
of devices you may connect to your line, as determined by the REN, you should contact your local
telephone company to determine the maximum REN for your calling area.
If your equipment causes harm to the telephone network, the telephone company may discontinue your
service temporarily. If possible, they will notify you in advance. If advance notice is not practical, you
will be notified as soon as possible. You will be informed of your right to file a complaint with the FCC.
Your telephone company may make changes in its facilities, equipment, operations or procedures that
could affect the proper functioning of your equipment. If they do, you will be notified in advance to give
you an opportunity to maintain uninterrupted telephone service.
If you experience trouble with this telephone equipment, please contact the service provider for
information on obtaining service or repairs.
The telephone company may ask that you disconnect this equipment from the network until the problem
has been corrected or until you are sure that the equipment is not malfunctioning.
This equipment may not be used on coin service provided by the telephone company. Connection to
party lines is subject to state tariffs.
IC (Industry Canada) Notice
Notice: The Industry Canada (formerly Canadian Department of Communications) label identifies
certified equipment. This certification means that the equipment meets certain telecommunications
network protective, operational, and safety requirements. The department does not guarantee the
equipment will operate to the user’s satisfaction.
Before installing this equipment, users should ensure that it is permissible to be connected to the
facilities of the local telecommunications company. The equipment must also be installed using an
acceptable method of connection. In some cases, the company’s inside wiring associated with a
single-line individual service may be extended by means of a certified connector assembly (telephone
extension cord). The customer should be aware that compliance with the above conditions may not
prevent degradation of service in some situations.
Repairs to certified equipment should be made by an authorized Canadian maintenance
facility designated by the supplier. Any repairs or alterations made by the user may give the
telecommunications company cause to request the user to disconnect the equipment. Users should
ensure for their own protection that the electrical ground connections of the power utility, telephone
lines and internal metallic water pipe system, if present, are connected together. This precaution
may be particularly important in rural areas.
CAUTION: Users should not attempt to make such connections themselves, but
should contact the appropriate electric inspection authority, or electrician, as appropriate.
Radiation Exposure Statements
Note: This transmitter must not be co-located or operated in conjunction with any other antenna or
transmitter. This equipment should be installed and operated with a minimum distance of 7.9 inches
(20 cm) between the radiator and your body.
US
This system has been evaluated for RF exposure for humans in reference to ANSI C 95.1 (American
National Standards Institute) limits. The evaluation was based on evaluation per ANI C 95.1 and FCC
OET Bulletin 65C rev 01.01. The minimum separation distance from the antenna to general bystander
is 7.9 inches (20 cm) to maintain compliance.
Canada
This system has been evaluated for RF exposure for humans in reference to ANSI C 95.1 limits. The
evaluation was based on evaluation per RSS-102 Rev 2. The minimum separation distance from the
antenna to general bystander is 7.9 inches (20 cm) to maintain compliance.
EU
This system has been evaluated for RF exposure for humans in reference to the ICNIRP (International
Commission on Non-Ionizing Radiation Protection) limits. The evaluation was based on the EN
50385 Product Standard to Demonstrate Compliance of Radio Base Stations and Fixed Terminals
for Wireless Telecommunications Systems with basic restrictions or reference levels related to
Human Exposure to Radio Frequency Electromagnetic Fields from 300 MHz to 40 GHz. The minimum
separation distance from the antenna to general bystander is 20 cm (7.9 inches).
Australia
This system has been evaluated for RF exposure for humans as referenced in the Australian
Radiation Protection standard and has been evaluated to the ICNIRP (International Commission
on Non-Ionizing Radiation Protection) limits. The minimum separation distance from the antenna to
general bystander is 20 cm (7.9 inches).
20090317 FCC DSL_Dom and Intl
DRAFT - 6/25/201
0
v
CE Compliance
Declaration of Conformity with
Regard to the EU Directive
1999/5/EC
(R&TTE Directive)
This declaration is only valid for configurations (combinations of software, firmware and hardware)
supported or provided by Cisco Systems for use within the EU. The use of software or firmware not
supported or provided by Cisco Systems may result in the equipment no longer being compliant
with the regulatory requirements.

[Bulgarian]         
  1999/5/.
esky
[Czech]:
Toto zaízení je v souladu se základními požadavky a ostatními odpovídajícími
ustanoveními Smrnice 1999/5/EC.
Dansk
[Danish]:
Dette udstyr er i overensstemmelse med de væsentlige krav og andre relevante
bestemmelser i Direktiv 1999/5/EF.
Deutsch
[German]:
Dieses Gerät entspricht den grundlegenden Anforderungen und den weiteren
entsprechenden Vorgaben der Richtlinie 1999/5/EU.
Eesti
[Estonian]:
See seade vastab direktiivi 1999/5/EÜ olulistele nõuetele ja teistele asjakohastele
sätetele.
English: This equipment is in compliance with the essential requirements and other relevant
provisions of Directive 1999/5/EC.
Español
[Spanish]:
Este equipo cumple con los requisitos esenciales asi como con otras disposiciones
de la Directiva 1999/5/CE.

[Greek]:
           
    1999/5/EC.
Français
[French]:
Cet appareil est conforme aux exigences essentielles et aux autres dispositions
pertinentes de la Directive 1999/5/EC.
Íslenska
[Icelandic]:
Þetta tæki er samkvæmt grunnkröfum og öðrum viðeigandi ákvæðum Tilskipunar
1999/5/EC.
Italiano
[Italian]:
Questo apparato é conforme ai requisiti essenziali ed agli altri principi sanciti dalla
Direttiva 1999/5/CE.
Latviski
[Latvian]:
Š iekrta atbilst Direktvas 1999/5/EK btiskajm prasbm un citiem ar to
saisttajiem noteikumiem.
Lietuvi
[Lithuanian]:
Šis renginys tenkina 1999/5/EB Direktyvos esminius reikalavimus ir kitas šios
direktyvos nuostatas.
Nederlands
[Dutch]:
Dit apparaat voldoet aan de essentiele eisen en andere van toepassing zijnde
bepalingen van de Richtlijn 1999/5/EC.
Malti
[Maltese]:
Dan l-apparat huwa konformi mal-tiiet essenzjali u l-provedimenti l-ora rilevanti
tad-Direttiva 1999/5/EC.
Magyar
[Hungarian]:
Ez a készülék teljesíti az alapvet követelményeket és más 1999/5/EK irányelvben
meghatározott vonatkozó rendelkezéseket.
Norsk
[Norwegian]:
Dette utstyret er i samsvar med de grunnleggende krav og andre relevante
bestemmelser i EU-direktiv 1999/5/EF.
Polski
[Polish]:
Urzdzenie jest zgodne z ogólnymi wymaganiami oraz szczególnymi warunkami
okrelonymi Dyrektyw UE: 1999/5/EC.
Português
[Portuguese]:
Este equipamento está em conformidade com os requisitos essenciais e outras
provisões relevantes da Directiva 1999/5/EC.
Român
[Romanian] Acest echipament este in conformitate cu cerintele esentiale si cu alte prevederi
relevante ale Directivei 1999/5/EC.
Slovensko
[Slovenian]:
Ta naprava je skladna z bistvenimi zahtevami in ostalimi relevantnimi pogoji
Direktive 1999/5/EC.
Slovensky
[Slovak]:
Toto zariadenie je v zhode so základnými požiadavkami a inými príslušnými
nariadeniami direktív: 1999/5/EC.
Suomi
[Finnish]:
Tämä laite täyttää direktiivin 1999/5/EY olennaiset vaatimukset ja on siinä
asetettujen muiden laitetta koskevien määräysten mukainen.
Svenska
[Swedish]:
Denna utrustning är i överensstämmelse med de väsentliga kraven och andra
relevanta bestämmelser i Direktiv 1999/5/EC.
Note: The full declaration of conformity for this product can be found in the Declarations of Conformity
and Regulatory Information section of the appropriate product hardware installation guide, which
is available on Cisco.com.
The following standards were applied during the assessment of the product against the requirements
of the Directive 1999/5/EC:
• Radio: EN 300 328
• EMC: EN 301 489-1 and EN 301 489-17
• Safety: EN 60950 and EN 50385
The CE mark and class-2 identifier is affixed to the product and its packaging. This product conforms
to the following European directives:
-1999/5/EC
National Restrictions
This product is for indoor use only.
France
For 2.4 GHz, the output power is restricted to 10 mW EIRP when the product is used outdoors in the
band 2454 - 2483,5 MHz. There are no restrictions when used in other parts of the 2,4 GHz band.
Check http://www.arcep.fr/ for more details.
Pour la bande 2,4 GHz, la puissance est limitée à 10 mW en p.i.r.e. pour les équipements utilisés en
extérieur dans la bande 2454 - 2483,5 MHz. Il n’y a pas de restrictions pour des utilisations dans
d’autres parties de la bande 2,4 GHz. Consultez http://www.arcep.fr/ pour de plus amples détails.
Italy
This product meets the National Radio Interface and the requirements specified in the National
Frequency Allocation Table for Italy. Unless this wireless LAN product is operating within the
boundaries of the owner’s property, its use requires a “general authorization.” Please check http://
www.comunicazioni.it/it/ for more details.
Questo prodotto è conforme alla specifiche di Interfaccia Radio Nazionali e rispetta il Piano Nazionale
di ripartizione delle frequenze in Italia. Se non viene installato all ‘interno del proprio fondo, l’utilizzo di
prodotti Wireless LAN richiede una “Autorizzazione Generale”. Consultare http://www.comunicazioni.
it/it/ per maggiori dettagli.
Latvia
The outdoor usage of the 2.4 GHz band requires an authorization from the Electronic Communications
Office. Please check http://www.esd.lv for more details.
2,4 GHz frekven?u joslas izmantošanai ?rpus telp?m nepieciešama at?auja no Elektronisko sakaru
direkcijas. Vair?k inform?cijas: http://www.esd.lv.
Note: The regulatory limits for maximum output power are specified in EIRP. The EIRP level of a
device can be calculated by adding the gain of the antenna used (specified in dBi) to the output
power available at the connector (specified in dBm).
Antennas
Use only the antenna supplied with the product.
20090312 CE_Gateway
DRAFT - 6/25/201
0
vi
U.S. Patents
A patent notice is affixed to this product. In addition, the product
may also be covered by one or more of the following patents:
4,498,169, 4,692,919, 4,748,667; 4,829,569; 4,866,770; 4,885,775; 4,888,799; 4,890,319; 4,922,456;
4,922,532; 4,924,498; 4,965,534; 4,991,011; 5,003,384; 5,012,510; 5,029,207; 5,045,816; 5,053,883;
5,054,071; 5,058,160; 5,142,575; 5,142,690; 5,146,526; 5,155,590; 5,214,390; 5,225,902; 5,225,925;
5,235,619; 5,237,610; 5,239,540; 5,241,610; 5,247,364; 5,255,086; 5,257,403; 5,267,071; 5,270,809;
5,271,041; 5,272,752; 5,282,028; 5,285,497; 5,287,351; 5,301,028; 5,309,514; 5,317,391; 5,319,709;
5,341,425; 5,347,388; 5,347,389; 5,357,276; 5,359,601; 5,361,156; 5,367,571; 5,379,141; 5,379,145;
5,381,481; 5,390,337; 5,400,401; 5,406,558; 5,418,782; 5,420,866; 5,420,923; 5,425,101; 5,428,404;
5,430,568; 5,434,610; 5,436,749; 5,438,370; 5,440,632; 5,442,472; 5,455,570; 5,457,701; 5,471,492;
5,477,199; 5,477,262; 5,477,282 5,477,370; 5,481,389; 5,481,542; 5,485,221; 5,493,339; 5,497,187;
5,500,758; 5,502,499; 5,506,904; 5,519,780; 5,539,822; 5,550,825; 5,579,055; 5,579,057; 5,583,562;
5,592,551; 5,596,606; 5,600,378; 5,602,933; 5,640,388; 5,657,414; 5,675,575; 5,684,876; 5,715,515;
5,724,525; 5,734,822; 5,740,300; 5,742,677; 5,754,940; 5,757,416; 5,771,064; 5,774,859; 5,825,829;
5,826,167; 5,850,305; 5,854,703; 5,870,474; 5,892,607; 5,920,626; 5,923,755; 5,930,024; 5,930,515;
5,937,067; 5,963,352; 5,966,163; 5,982,424; 5,991,139; 5,999,207; 6,005,631; 6,005,938; 6,016,163;
6,028,941; 6,029,046; 6,052,384; 6,055,244; 6,072,532; 6,105,134; 6,148,039; 6,157,719; 6,188,729;
6,195,389; 6,212,278; 6,215,530; 6,219,358; 6,240,103; 6,243,145; 6,246,767; 6,252,964; 6,272,226;
6,292,081; 6,292,568; 6,320,131; 6,374,275; 6,405,239; 6,411,602; 6,417,949; 6,424,714; 6,424,717;
6,433,906; 6,438,139; 6,463,586; 6,467,091; 6,476,878; 6,493,876; 6,510,519; 6,516,002; 6,516,412;
6,526,508; 6,538,595; 6,546,013; 6,560,340; 6,567,118; 6,570,888; 6,622,308; 6,629,227; 6,664,984;
6,667,994; 6,671,879; 6,674,967; 6,678,891; 6,714,598; 6,721,352; 6,721,956; 6,725,459; 6,738,982;
6,744,892; 6,744,967; 6,751,271; 6,760,918; 6,795,972; 6,802,077; 6,804,708; 6,811,447; 6,817,028;
6,822,972; 6,823,385; 6,832,386; 6,845,106; 6,868,473; 6,874,075; 6,889,191; 6,909,471; 6,917,622;
6,917,628; 6,922,412; 6,927,806; 6,928,656; 6,931,058; 6,937,729; 6,969,279; 6,971,008; 6,971,121;
6,978,310; 6,986,156; 6,988,900; 6,996,838; 7,010,801; 7,053,960; 7,065,213; 7,069,578; 7,069572;
D348065; D354959; D359737; D363932; D390217; D434753; D507240; D507535; D513407;
D516518; RE36368; RE36988
20070417 Patents
Disclaimer
Cisco Systems, Inc. assumes no responsibility for errors or
omissions that may appear in this guide. We reserve the right to
change this guide at any time without notice.
Documentation Copyright Notice
Information in this document is subject to change without notice.
No part of this document may be reproduced in any form without
the express written permission of Cisco Systems, Inc.
Software and Firmware Use
The software described in this document is protected by copyright
law and furnished to you under a license agreement. You may only
use or copy this software in accordance with the terms of your
license agreement.
The firmware in this equipment is protected by copyright law. You
may only use the firmware in the equipment in which it is provided.
Any reproduction or distribution of this firmware, or any portion of
it, without our express written consent is prohibited.
DRAFT - 6/25/201
0
1
Table of Contents
Product Overview ............................................................................................................3
Front Panel ............................................................................................................................................................................................3
Top Panel ...............................................................................................................................................................................................4
Back Panel.............................................................................................................................................................................................5
Connecting to the Network ...................................................................................................................................5
Placement Positions.....................................................................................................................................................................6
Wireless Security Checklist ...........................................................................................7
General Network Security Guidelines ..........................................................................................................................8
Additional Security Tips ............................................................................................................................................................8
Advanced Configuration .................................................................................................8

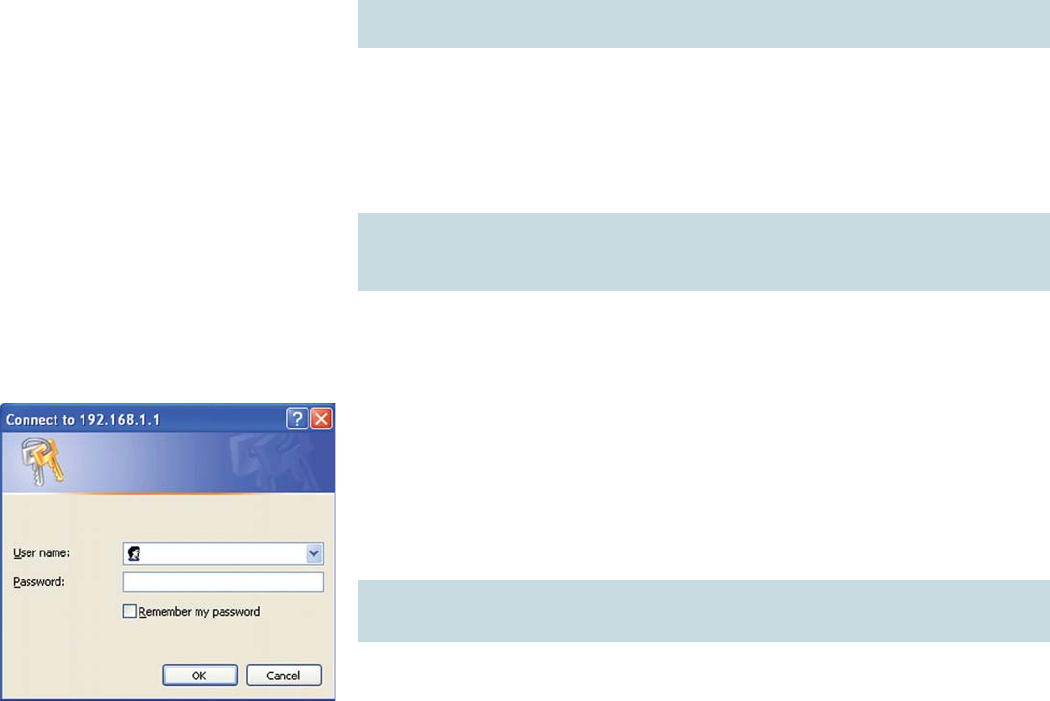

How to Access the Web-Based Utility ..........................................................................................................................8
Setup > ADSL .....................................................................................................................................................................................9
Setup > ADSL (WAN Connection for PVC) ............................................................................................................13
Setup > Ethernet ...........................................................................................................................................................................16

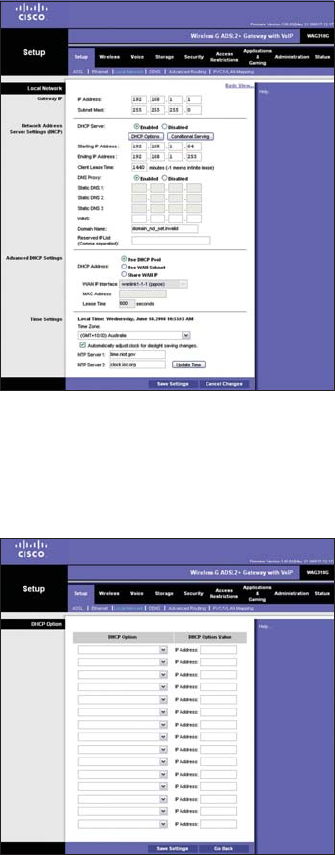

Setup > Local Network ............................................................................................................................................................18
Setup > DDNS .................................................................................................................................................................................20
Setup > Advanced Routing .................................................................................................................................................21

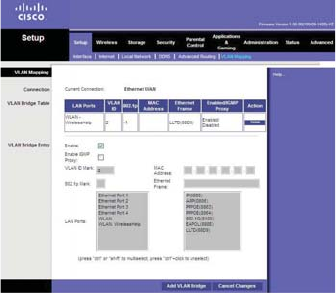

Setup > PVC/VLAN Mapping ............................................................................................................................................22
Wireless > Basic Settings .....................................................................................................................................................23
Wireless > Security ....................................................................................................................................................................23
Wireless > MAC Filter ...............................................................................................................................................................25
Wireless > Wi-Fi Protected Setup .................................................................................................................................25
Wireless > Advanced Settings .........................................................................................................................................27
Voice .......................................................................................................................................................................................................28
Voice > Info ........................................................................................................................................................................................28
Voice > System ..............................................................................................................................................................................30
Voice > User1/2 ............................................................................................................................................................................30
Storage > Disk Detail .................................................................................................................................................................31
Storage > Disk Management .............................................................................................................................................32
Security > Firewall .......................................................................................................................................................................32
Access Restrictions > Internet Access Policy .....................................................................................................33
Applications & Gaming > Single Port Forwarding ...........................................................................................34
Applications & Gaming > Port Range Forwarding ...........................................................................................35
Applications & Gaming > DMZ .........................................................................................................................................35
Applications & Gaming > Port Range Triggering .............................................................................................36
Applications & Gaming > QoS ..........................................................................................................................................36
Applications & Gaming > Service ..................................................................................................................................39
Administration > Management .........................................................................................................................................40
Administration > Log .................................................................................................................................................................41

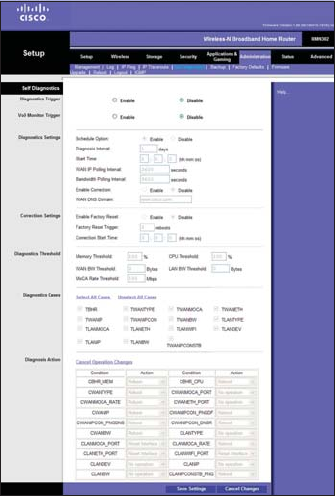

Administration > Diagnostic ................................................................................................................................................42
Administration > Backup ........................................................................................................................................................42
Administration > Factory Defaults .................................................................................................................................42
Administration > Upgrade ....................................................................................................................................................43
Administration > Reboot ........................................................................................................................................................43
Administration > Logout .........................................................................................................................................................43

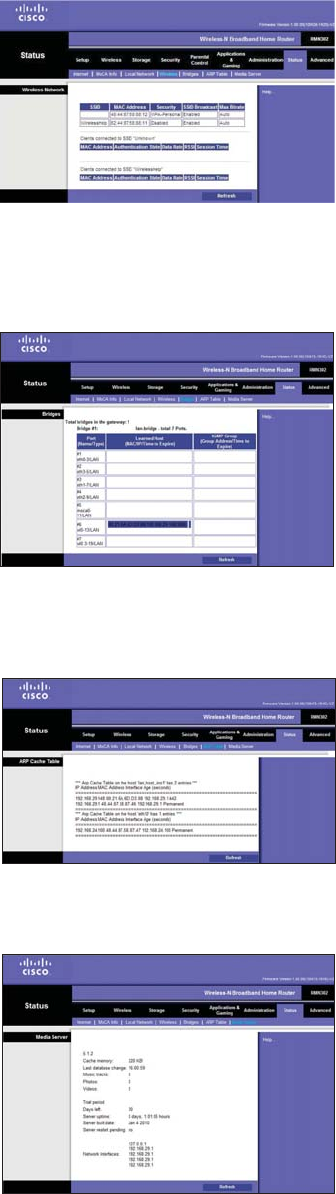

Status > Internet ............................................................................................................................................................................44
Status > Local Network............................................................................................................................................................44
Status > Wireless .........................................................................................................................................................................45
Status > DSL Connection ......................................................................................................................................................45
Status > Bridges ............................................................................................................................................................................46
Troubleshooting ............................................................................................................ 47
Specifications ................................................................................................................ 48
Software License Agreement ...................................................................................... 49
Software in Cisco Products ................................................................................................................................................49
Software Licenses .......................................................................................................................................................................49
DRAFT - 6/25/201
0
2
DRAFT - 6/25/201
0
3

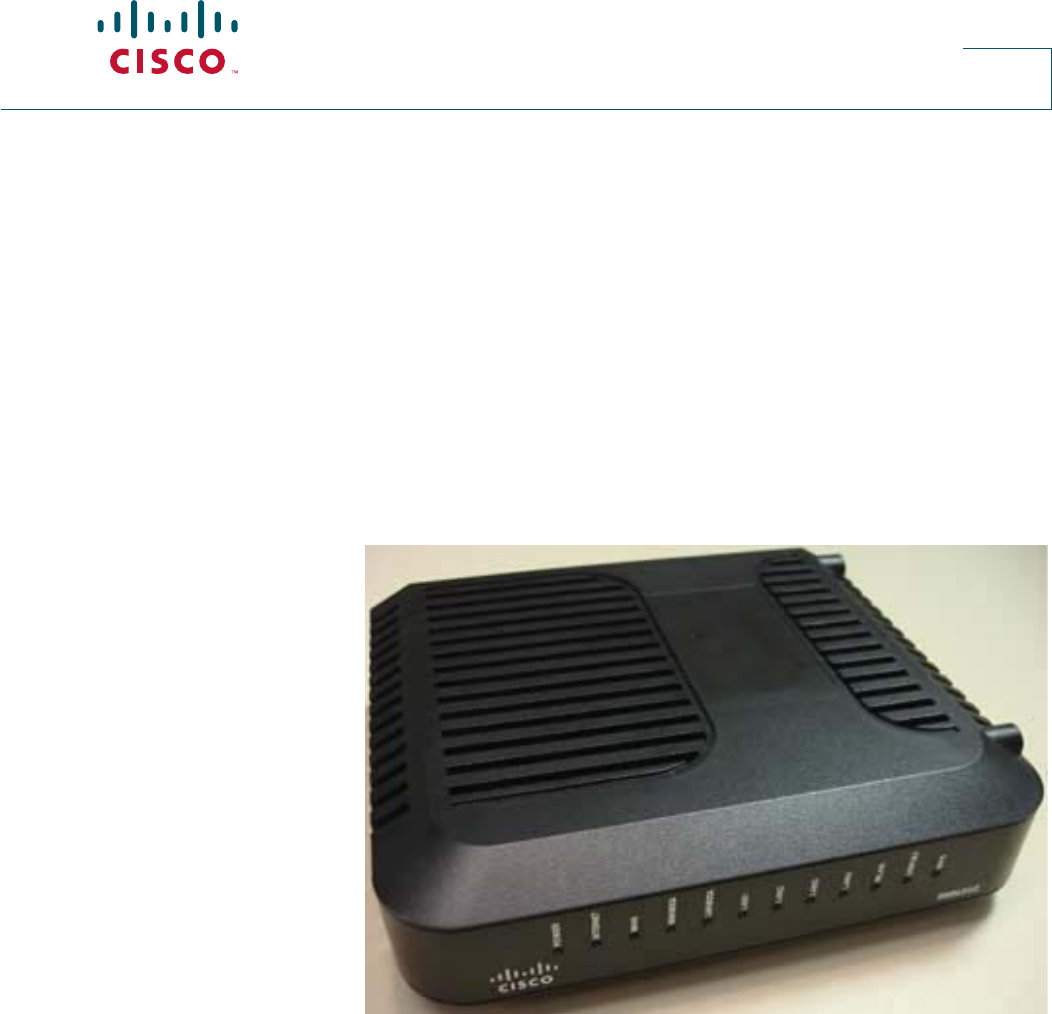

Product Overview
Thank you for choosing the Cisco® Wireless-N Broadband Home Router. The Router
lets you access the Internet via a wireless connection or through one of its four (or five)
switched ports.
You can also use the Router to share resources such as computers and storage. Various
security features help to protect your data and your privacy while you are online. Security
features include WPA2 security, a Stateful Packet Inspection (SPI) firewall, and NAT
technology. Configuring the Router is easy using the provided browser-based utility.
Front Panel
Power (Green/Red) The Power LED lights up when the Router is powered on. It
flashes during the self-test. The LED becomes red during a malfunction.
Internet (Green/Red)The Internet LED lights up when the Router is connected to the
Internet. It flashes to indicate network activity over the Internet port. The LED
becomes red when the Internet connection fails.
WAN (Green) The WAN LED corresponds with the WAN port and serves two
purposes. If the LED is continuously lit, the Router is successfully connected
to a device through that port. It flashes to indicate network activity over that
port.
WAN MOCA (Green) Text TBD
LAN MOCA (Green)Text TBD
LAN 1-4 (Green) These numbered LEDs, corresponding with the numbered Ethernet
ports on the Router’s back panel, serve two purposes. If the LED is
continuously lit, the Router is connected to a device through that port. It
flashes to indicate network activity over that port.
WLAN (Green) The WLAN LED lights up when the wireless feature is enabled.
It flashes when the Router is sending or receiving data over the wireless
network.
USB 1 (Green) The USB LED lights up when the Router is connected to a device
and 2 through the USB port. It flashes to indicate USB activity.
WPS (Green/Red) The WPS LED lights up when wireless security is enabled. It
flashes during the Wi-Fi Protected Setup process. The LED becomes red
when wireless security is disabled.
FPO
DRAFT - 6/25/201
0
4
Top Panel
Wi-Fi Protected If you have a client device, such as a wireless adapter, that supports
Setup Wi-Fi Protected Setup, then you can use Wi-Fi Protected Setup to
automatically configure wireless security for your wireless network(s).
Note: Wi-Fi Protected Setup can only be used for the default wireless
network. (The Router supports up to four wireless networks. The other
three can be configured using the Router’s web-based utility.)
Follow the appropriate instructions:
Method #1
Use this method if your client device has a Wi-Fi Protected Setup button.
1. Click or press the Wi-Fi Protected Setup button on the client device. (If Wi-Fi Protected
Setup is an on-screen option, then select it.)
2. Click the Wi-Fi Protected Setup button on the top panel of the Router.
3. After the client device has been configured, refer back to your client device or its
documentation for further instructions.
Method #2
Use this method if your client device has a Wi-Fi Protected Setup PIN number.
1. Access the Router’s web-based utility.
2. Click the Wireless tab.
3. Click the Wi-Fi Protected Setup tab
4. Enter the client PIN number in the PIN field on this screen (the Router’s Wi-Fi Protected
Setup screen).
5. Click Register.
Method #3
Use this method if your client device asks for the Router’s PIN number.
1. Enter the PIN number listed on the label on the bottom of the Router.
2. After the client device has been configured, refer back to your client device or its
documentation for further instructions.
Note: Wi-Fi Protected Setup configures one client device at a time. Repeat the instructions
for each client device that supports Wi-Fi Protected Setup.
FPO
DRAFT - 6/25/201
0
5
Back Panel
Reset There are two ways to reset the Router’s settings to factory defaults.
Either press and hold the Reset button for approximately ten seconds, or
restore the defaults from the Administration > Factory Defaults screen of
the Router’s web-based utility.
Note: The reset does not restore the voice settings to the factory defaults.
WPS Text TBD
USB The USB port connects to a USB storage device, such as a USB hard drive
or flash disk.
Ethernet These Ethernet ports (1, 2, 3, 4) connect the Router to wired computers
LAN 1-4 and other Ethernet network devices.
F Connector Text TBD
Ethernet The WAN/LAN5 port can act as a Wide Area Network (WAN) or Local Area
WAN/LAN5 Network (LAN) port. As a WAN port, it connects to a broadband modem.
As a LAN port, it connects to a wired computer or other Ethernet network
device.
Connecting to the Network
1. Use a coaxial cable to connect the F-Conn port on the RMN302 to the
wall connector or to the coaxial network used to distribute IP data.
2. Use an Ethernet cable to connect the LAN port on the RMN302 to your
home network or to a PC.
3. Attach the power adapter to the POWER port on the back of the
RMN302, and plug it into a wall outlet.
4. Turn on the power switch.
FPO
T14758
FPO
PC or
Home Network
Coaxial Network Set-Top Box
To Wall
Outlet
V
O
L
U
M
E
C
H
A
N
N
E
L
TV Guide Record
CISCO 8455DVB
DRAFT - 6/25/201
0
6
Placement Positions
There are two ways to physically install the Router. The first way is to place the Router
horizontally on a surface. The second way is to mount the Router on a wall.
Horizontal Placement
The Router has four rubber feet on its bottom panel. Place the Router on a level surface
near an electrical outlet.
Wall-Mounting Placement
The Router has four wall-mount slots on its bottom panel. The distance between two
adjacent slots is 54 mm (2.13 inches).
Two screws are needed to mount the Router.

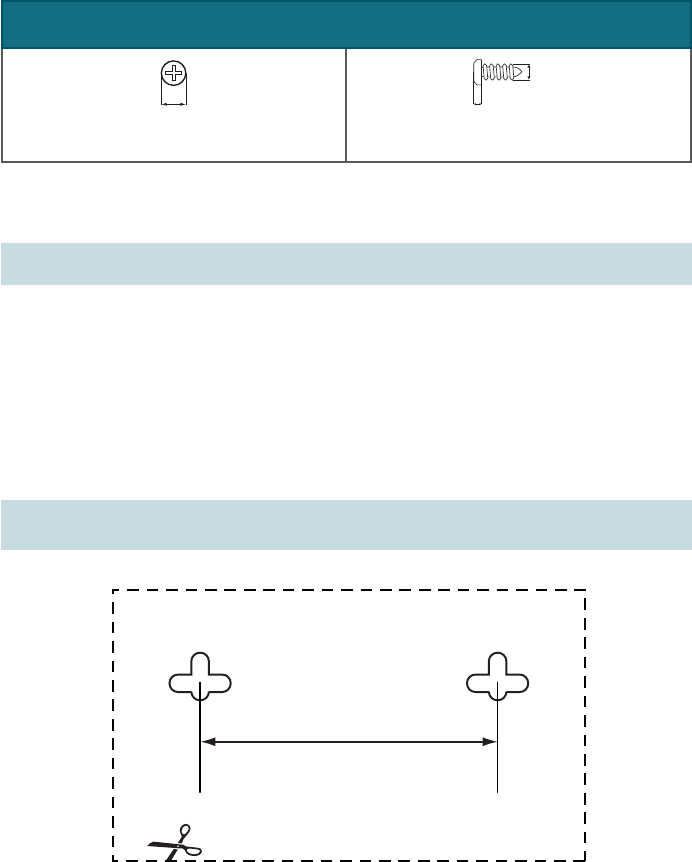

Suggested Mounting Hardware
2.5 to 3.0 mm
4 to 5 mm 1 to 1.5 mm
Note: Mounting hardware illustrations are not true to scale.
Note: Cisco is not responsible for damages incurred by insecure wall-mounting hardware.
Follow these instructions:
1. Determine where you want to mount the Router. Make sure that the wall you use is smooth,
flat, dry, and sturdy. Also make sure the location is within reach of an electrical outlet.
2. Drill two holes into the wall. Make sure the holes are 54 mm (2.13 inches) apart.
3. Insert a screw into each hole and leave 2 mm (0.8 inches) below the head exposed.
4. Maneuver the Router so two of the wall-mount slots line up with the two screws.
5. Place the wall-mount slots over the screws and slide the Router down until the screws fit
snugly into the wall-mount slots.
Note: To safely wall-mount the Router, the side panel with the antenna must face upward.
54 mm
Print this page at 100% size. Cut along the dotted
line, and place on the wall to drill precise spacing.
Wall Mounting Template
DRAFT - 6/25/201
0
7
Wireless Security Checklist
Wireless networks are convenient and easy to install, so homes with high-speed Internet
access are adopting them at a rapid pace. Because wireless networking operates by
sending information over radio waves, it can be more vulnerable to intruders than a
traditional wired network. Like signals from your cellular or cordless phones, signals from
your wireless network can also be intercepted. Since you cannot physically prevent
someone from connecting to your wireless network, you need to take some additional
steps to keep your network secure.
1. Change the default wireless network name or SSID
Wireless devices have a default wireless network name or Service Set Identifier (SSID) set
by the factory. This is the name of your wireless network, and can be up to 32 characters
in length. Cisco wireless products use cisco as the default wireless network name. You
should change the wireless network name to something unique to distinguish your
wireless network from other wireless networks that may exist around you, but do not use
personal information (such as your Social Security number) because this information may
be available for anyone to see when browsing for wireless networks.
2. Change the default password
For wireless products such as access points, routers, and gateways, you will be asked for a
password when you want to change their settings. These devices have a default password
set by the factory. The Cisco default password is admin. Hackers know these defaults and
may try to use them to access your wireless device and change your network settings. To
thwart any unauthorized changes, customize the device’s password so it will be hard to
guess.
3. Enable MAC address filtering
Cisco routers and gateways give you the ability to enable Media Access Control (MAC)
address filtering. The MAC address is a unique series of numbers and letters assigned to
every networking device. With MAC address filtering enabled, wireless network access is
provided solely for wireless devices with specific MAC addresses. For example, you can
specify the MAC address of each computer in your home so that only those computers can
access your wireless network.
4. Enable encryption
Encryption protects data transmitted over a wireless network. Wi-Fi Protected Access
(WPA/WPA2) and Wired Equivalency Privacy (WEP) offer different levels of security for
wireless communication.
A network encrypted with WPA/WPA2 is more secure than a network encrypted with WEP,
because WPA/WPA2 uses dynamic key encryption. To protect the information as it passes
over the airwaves, you should enable the highest level of encryption supported by your
network equipment.
WEP is an older encryption standard and may be the only option available on some older
devices that do not support WPA.
DRAFT - 6/25/201
0
8
General Network Security Guidelines
Wireless network security is useless if the underlying network is not secure.
•Password protect all computers on the network and individually password protect
sensitive files.
•Change passwords on a regular basis.
•Install anti-virus software and personal firewall software.
•Disable file sharing (peer-to-peer). Some applications may open file sharing without
your consent and/or knowledge.
Additional Security Tips
•Keep wireless routers, access points, or gateways away from exterior walls and
windows.
•Turn wireless routers, access points, or gateways off when they are not being used (at
night, during vacations).
•Use strong passphrases that are at least eight characters in length. Combine letters
and numbers to avoid using standard words that can be found in the dictionary.
Web: For more information on wireless security, visit www.linksysbycisco.com/security
Advanced Configuration
To configure the Router, use its web-based utility. This chapter describes each web page
of the utility and each page’s key functions. You can access the utility via a web browser on
a computer connected to the Router.
Note: If your service provider supplied you with the Router, then it may be pre-configured
for you, and you will not need to make any changes. Contact your service provider for more
information.
The web-based utility has these main tabs: Setup, Wireless, Storage, Security, Parental
Control, Applications & Gaming, Administration, Status, and Advanced. Additional tabs will
be available after you click one of the main tabs.
How to Access the Web-Based Utility
To access the web-based utility, launch the web browser on your computer, and enter the
Router’s default IP address, 192.168.1.1, in the Address field. Then, press Enter.
A login screen appears. The first time you open the web-based utility, use the default user
name and password, admin and password. (You can set a new user name and password
from the Administration tab’s Management screen.) Click OK to continue.
Note: If the Router was supplied by your service provider, then it may restrict access to the
web-based utility. Contact your service provider for the login information.
Login Screen
DRAFT - 6/25/201
0
9
Setup > Interface
WAN Interface Setup
WAN Connection Settings
Network Type: Choose your WAN interface type from the dropdown list. Options include
Auto-Detection, MoCA, and Ethernet.
•Auto Detection: The router detects physical interface automatically and determine
the connection type. The detect result is displayed in “Current Network” field;
•MoCA: You can manually configure MoCA connection as physical interface.
•Ethernet: You can manually configure the layer 2 network as Ethernet WAN connection
Current Network: Indicates whether the current WAN connection is MoCA or Ethernet
WAN, and whether the connection is manually configured or auto-detected.
Ethernet WAN settings
Set Connection Shaping: Choose whether you want the router to smooth the ethernet
bandwidth. Options include No Shaping, Auto(link speed) and Manual.
MoCA WAN settings
Channel: Allow the router to detect an available frequency for your MoCA WAN, or choose
a channel frequency.
Node Type: Allow the router to detect your node type, or choose the correct option.
Auto-Detect privacy: Choose this option if you want to enable privacy auto detection.
MoCA Privacy: Choose this option if you want to enable privacy on your MoCA WAN
connection.
Password: If you chose to enable privacy on your MoCA WAN, enter your password here.
Power Limit: Allow the router to set the limit for the transmission power on your MoCA
WAN, or choose a percentage of power to use as a limit.
MoCA LAN Setup
MoCA LAN Settings
Channel: Allow the router to detect an available frequency for your MoCA LAN, or choose
a channel frequency.
MoCA Privacy: Choose this option if you want to enable privacy on your MoCA LAN
connection.
Password: If you chose to enable privacy on your MoCA LAN, enter your password here.
Power Limit: Allow the router to set the limit for the transmission power on your MoCA
WAN, or choose a percentage of power to use as a limit.
Setup > Interface
DRAFT - 6/25/201
0
10
Setup > Internet
WAN Connection Settings
Network Type: Choose your network type. Connection Type
Auto Detection Settings
Auto Detect Connection: Allows you to enable or disable internet connection type auto
detection.
Protocol Detection: Select this checkbox if you want the router to detect the internet connection
continuously, as defined by the Auto Detection Interval.
Auto Detection Interval: Specify how often the router should detect the internet connection (if
you chose Protocol Detection).
Ethernet WAN Setup
Connection Type: Choose whether your WAN uses IPoE (including DHCP and static IP) or
PPPoE.
IPoE Settings
IPoE Connection: Need text.
Gateway Probing: Choose whether you want to probe the gateway if the gateway is alive. Select
ARP to resolve MAC address by default.
Probing Using Unicast: Choose whether you want to ping the gateway with an ICMP request.
Probing Only on Idle: Choose whether you want to restrict probing if traffic is going through
router.
Probing Interval: Specify your probing interval, in seconds.
Probing Reset Trigger: Specify how long the probe should run before resetting the connection
Setup > Internet
DRAFT - 6/25/201
0
11

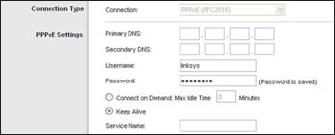

PPPoE Settings for PPPoE (RFC2516)
Primary (Required) and Secondary (Optional) DNS Enter the DNS (Domain Name System)
server IP address(es) provided by your service provider. At least one is required.
Username and Password Enter the Username and Password provided by your service
provider.
Connect on Demand: Max Idle Time You can configure the Router to cut the Internet connection
after it has been inactive for a specified period of time (Max Idle Time). If your Internet connection
has been terminated due to inactivity, Connect on Demand enables the Router to automatically
re-establish your connection as soon as you attempt to access the Internet again. To use this
option, select Connect on Demand. In the Max Idle Time field, enter the number of minutes
you want to have elapsed before your Internet connection terminates. The default Max Idle Time
is 5 minutes.
Keep Alive If you select this option, the Router will periodically check your Internet connection.
If you are disconnected, then the Router will automatically re-establish your connection. To use
this option, select Keep Alive.
Setup > ADSL (WAN Connection for PVC) >
PPPoE (RFC2516)
DRAFT - 6/25/201
0
12
Setup > Local Network
Configure the Router’s Local Area Network (LAN) settings on this screen.
There are two views available, Basic and Advanced. The default view is Basic. To display the
Advanced View, click Advanced View. To return to the Basic View, click Basic View.
Local Network
The Local Network section changes the settings on the network connected to the Router’s
Ethernet ports. Wireless setup is performed through the Wireless tab.
Router IP
The values for the Router’s local IP Address and Subnet Mask are displayed. In most cases,
keeping the default values will work.
IP Address The default value is 192.168.1.1.
Subnet Mask The default value is 255.255.255.0.
Network Address Server Settings (DHCP)
The settings allow you to configure the Router’s Dynamic Host Configuration Protocol (DHCP)
server function. The Router can be used as a DHCP server for your network. A DHCP server
automatically assigns an IP address to each computer on your network. If you choose to enable
the Router’s DHCP server option, make sure there is no other DHCP server on your network.
DHCP Server A Dynamic Host Configuration Protocol (DHCP) server automatically assigns
an IP address to each computer on your network for you. Unless you already have one, Cisco
recommends that you keep the default, Enabled.
DHCP Options To configure DHCP options (available if DHCP is enabled), click this option. A
new window appears.
DHCP Option
•DHCP Option Select the appropriate setting.
•DHCP Option Value Enter the appropriate IP address, which is stored as a binary string
on the Router. (No check is performed on these values.)
Click Save Settings to apply your changes, or click Go Back to cancel your changes and
return to the Local Network screen.
Conditional Serving To configure the Conditional Serving Pool settings (available if DHCP is
enabled), click this option. A new window appears.
Setup > Local Network (Advanced View)
Setup > Local Network > DHCP Option
DRAFT - 6/25/201
0
13
Conditional Serving
Conditional Serving Pool
Enable DHCP Conditional Serving To enable this option, select the check box.
Otherwise, leave the check box blank.
For each entry, the table lists the following: MAC Address, Vendor Class ID, User Class ID,
Client ID, Host Name, Domain Name, IP Address, Precedence, and Action. To delete an
entry, click Delete. To configure the DHCP options for an entry, click DHCP Option.
Conditional Serving Entry
Precedence Enter the Precedence value. A lower value indicates higher priority.
MAC Address Enter the MAC Address, if applicable as a filter condition.
Vendor Class ID Enter the Vendor Class ID, if applicable as a filter condition.
User Class ID Enter the User Class ID, if applicable as a filter condition.
Client ID Enter the Client ID, if applicable as a filter condition. This field accepts ASCII or
hexadecimal strings. To enter a hexadecimal string, add Ox before the string.
Host Name Enter the Host Name, if applicable as a filter condition.
Domain Name If there is a match, the DHCP server will assign this Domain Name to the
host.
IP Address If there is a match, the DHCP server will assign this IP Address to the host.
Click Add Entry to add a new entry to the table. Click Save Settings to apply your changes.
Click Back to LAN Setup to return to the Local Network screen.
Starting IP Address Enter a value for the DHCP server to start with when issuing IP addresses.
Because the Router’s default IP address is 192.168.1.1, the Starting IP Address must be
192.168.1.2 or greater, but smaller than 192.168.1.253. The default is 192.168.1.64.
Ending IP Address Specify the final IP address of the range available for assignment. The
default is 192.168.1.253.
Client Lease Time The Client Lease Time is the amount of time a network device will be allowed
connection to the Router with its current dynamic IP address. Enter the number of minutes
that the device will be “leased” this dynamic IP address. After the time is up, the device will be
automatically assigned a new dynamic IP address. The default is 1440 minutes.
DNS Proxy (Advanced View) The Domain Name System (DNS) is how the Internet translates
domain or website names into Internet addresses or URLs. To use DNS Proxy, keep the default,
Enable. Otherwise, select Disable.
Static DNS 1-3 (Advanced View) These entries are valid only when the DNS Proxy option is
disabled. At least one DNS server IP address is provided by your service provider. You can
enter up to three DNS server IP addresses here. The Router will use these for quicker access to
functioning DNS servers.
WINS (Advanced View) The Windows Internet Naming Service (WINS) converts NetBIOS
names to IP addresses. If you use a WINS server, enter that server’s IP address here. Otherwise,
leave this field blank.
Domain Name (Advanced View) Enter the Domain Name of your local network.
Reserved IP List (Advanced View) Enter the IP addresses you want to reserve, so they will not
be leased to DHCP clients.
Setup > Local Network > Conditional Serving
DRAFT - 6/25/201
0
14
Advanced DHCP Settings (Advanced View)
DHCP Address This option defines the DHCP address allocation method. To assign local IP
addresses from the DHCP pool you have defined, keep the default, Use DHCP Pool.
To have the local network devices share the WAN subnet address, select Use WAN
Subnet. In this pass-through mode, the local computers get WAN-side IP addresses. They
bypass NAT and are visible on the service provider’s network. However, these computers
can still communicate with other computers that are allocated private IP addresses.
To have a local network device share the WAN IP address, select Share WAN IP. In this
mode, which is also known as super-DMZ mode, a single computer bypasses NAT. You
can specify the computer’s MAC address in the MAC Address field.
WAN IP Interface If you selected Use WAN Subnet or Share WAN IP, select the appropriate
WAN IP connection to use.
MAC Address If you selected Share WAN IP, enter the MAC address of the local network device.
Lease Time Enter the number of seconds you want the local network device to lease the WAN
IP address.
Time Settings (Advanced View)
Time Zone Select the time zone in which your network functions.
Automatically adjust clock for daylight saving changes Select this option if you want the Router
to automatically adjust for daylight saving time.
NTP Server 1/2 Enter the URL (web address) of the Network Time Protocol (NTP) server you
want to use. The default NTP servers are time.nist.gov and clock.isc.org.
Update Time Click this option to immediately synchronize the Router with the NTP server.
Click Save Settings to apply your changes, or click Cancel Changes to cancel your
changes.
Setup > DDNS
The Router offers a Dynamic Domain Name System (DDNS) feature. DDNS lets you assign
a fixed host and domain name to a dynamic Internet IP address. It is useful when you are
hosting your own website, FTP server, or other server behind the Router.
Before you can use this feature, you need to sign up for DDNS service with a DDNS service
provider, www.dyndns.org or www.TZO.com. If you do not want to use this feature, keep the
default, Disabled.
DDNS
DDNS Service
Disabled/DynDNS.org/TZO.com If your DDNS service is provided by DynDNS.org, then
select DynDNS.org from the drop-down menu. If your DDNS service is provided by TZO, then
select TZO.com. The features available on the DDNS screen will vary, depending on which
DDNS service provider you use.
WAN IP The WAN IP address of the Router is displayed.
User/Email Enter the user name or e-mail address for your account.
Password/Key Enter the password or key for your account.
Host Name Enter the DDNS URL assigned by the service.
Status The status of the DDNS service connection is displayed.
Setup > DDNS
DRAFT - 6/25/201
0
15
Connect To manually trigger an update, click this button.
Click Save Settings to apply your changes, or click Cancel Changes to cancel your
changes.
Setup > Advanced Routing
This screen is used to set up the Router’s advanced routing functions. Static Routing sets
up a fixed route to another network destination.
Advanced Routing
Routing Table
For each route, the Destination LAN IP address, Subnet Mask, Router, and Metric are
displayed. In the Action column, click Delete to delete a static route.
Default Interface The default Layer 3 connection is displayed.
Default Router The default next-hop gateway of the default interface is displayed.
Default Connection This advanced setting usually indicates the default connection since the
Router supports multiple WAN connections. If the Router has multiple connections, specify
which one is the default.
Static Routing
A static route is a pre-determined pathway that network information must travel to reach a
specific host or network. Enter the information described below to set up a new static route.
Note: When you add a static route, certain rules apply. For example, the Router must
belong to the subnet of any of the router’s interfaces.
Destination IP Address The Destination IP Address is the IP address of the remote network or
host to which you want to assign a static route.
Subnet Mask The Subnet Mask determines which portion of a Destination IP Address is the
network portion, and which portion is the host portion.
Router This is the IP address of the gateway device that allows for contact between the Router
and the remote network or host.
Metric This is the number of hops to each node until the destination is reached (16 hops
maximum). Enter the appropriate Metric. The default is 1.
To save the static route you have configured, click Add Entry. Click Save Settings to
apply your changes, or click Cancel Changes to cancel your changes.
Setup > Advanced Routing
DRAFT - 6/25/201
0
16
Setup > PVC/VLAN Mapping
This advanced screen is used to map the PVCs to the Virtual Local Area Networks (VLANs).
When you create a mapping, a layer 2 bridge is formed between the Router’s LAN port
(including WLAN SSID) and WAN port (PVC or Ethernet WAN).
You should configure this screen according to your service provider’s instructions. For
example, when Ethernet port 1 is connected to a set-top box, a PVC mapping is created for
Ethernet port 1 and PVC 1 with VLAN 1002. Traffic is marked with the configured VLAN ID
when it travels to the service provider’s network.
PVC VLAN Mapping
Select PVC Connection Select the PVC you want to map.
VLAN Bridge Table
For each entry, the table lists the following: LAN Ports, VLAN ID, 802.1p, MAC Address,
Ethernet Frame, Enable status, and Action. To delete an existing PVC/VLAN mapping, click
Delete.
VLAN Bridge Entry
Enabled Select Enabled to enable the mapping rule.
VLAN ID Enter the VLAN you want to map. The default is 2.
MAC Address Enter the packet’s source MAC address, if applicable as a filter condition.
802.1p Enter the priority level for each port. These are the mappings to 802.1p:
•6 High (highest, EF)
•5 Medium (CS)
•4 Normal (CS)
•0 Low (best effort)
•-1 No Change (no change to the original 802.1p value)
Cisco recommends the following:
•For voice and video traffic, enter 6.
•For gaming or mission-critical traffic, enter 5.
•For normal traffic, enter 4.
•For low-priority traffic, enter 0.
LAN Ports Every LAN interface is listed, including the Ethernet ports and Wireless Local Area
Network (WLAN) ports. (The WLAN ports are listed with their wireless network names, also
known as SSIDs.) Select the appropriate LAN interface. For multiple selection, press the Ctrl or
Shift key. To deselect, use Ctrl + click (click the selection).
Ethernet Frame The Ethernet frame types are listed. Select the packet’s Ethernet frame type,
if applicable as a filter condition. For multiple selection, press the Ctrl or Shift key. To deselect,
use Ctrl + click (click the selection).
Click Add VLAN Bridge to create a new PVC/VLAN mapping, or click Cancel Changes to
cancel your changes.
Setup > PVC/VLAN Mapping
DRAFT - 6/25/201
0
17
Wireless > Basic Settings
The basic settings for wireless networking are set on this screen.
There are two ways to configure the Router’s wireless settings, manual and Wi-Fi Protected
Setup. For manual configuration, use this screen to change the settings.
Wi-Fi Protected Setup is a feature that makes it easy to set up your wireless network. If you
have devices that support Wi-Fi Protected Setup, then click the Wi-Fi Protected Setup
tab, and follow the on-screen instructions (refer to the “Wireless > Wi-Fi Protected Setup”
section for more information).
Note: Wi-Fi Protected Setup can only be used for the default wireless network. (The
Router supports up to four wireless networks. The other three can be configured using
the Router’s web-based utility.)
Wireless Network
Wireless Channel Select the channel you want to use. All devices in your wireless network
must use the same channel in order to communicate.
Wireless Network State Select the wireless standards running on your network. If you have
Wireless-G and Wireless-B devices in your network, keep the default, Mixed. If you have only
Wireless-G devices, select G-Only. If you have only Wireless-B devices, select B-Only. If you do
not have any wireless devices, select Disabled.
The Router supports up to four wireless networks. By default, only the first wireless network
is enabled. On the Wireless Security and MAC Filter screens, you can configure different
security settings and MAC filtering rules for each wireless network.
Configure the following settings for each wireless network (SSID1-4):
Wireless Network Name (SSID) The network name is case-sensitive and must not exceed
32 characters (use any of the characters on the keyboard). Cisco recommends that you change
the default name of the first network, linksys1, to a unique name of your choice.
Wireless Network State If you want to use the wireless network, select Enabled. Otherwise,
select Disabled.
Wireless SSID Broadcast When wireless devices survey the local area for wireless networks
to associate with, they will detect the wireless network name or SSID broadcast by the Router. If
you want to broadcast the Router’s SSID, keep the default, Enabled. Otherwise, select Disabled.
Click Save Settings to apply your changes, or click Cancel Changes to cancel your
changes.
Wireless > Security
The Security screen configures the security of your wireless network(s). The Router supports
the following wireless security mode options: WPA2-Personal, WPA-Personal, WEP, WPA-
Enterprise, and WPA2-Enterprise. (WPA stands for Wi-Fi Protected Access, which is a
security standard stronger than WEP encryption, and WEP stands for Wired Equivalent
Privacy.) For detailed instructions on configuring wireless security for the Router, refer to
“Wireless Security Checklist” on page 7.
Note: If you used Wi-Fi Protected Setup to configure your wireless network(s), then
wireless security has already been set up. Do not make changes to the Wireless Security
screen.
Wireless > Basic Settings
DRAFT - 6/25/201
0
18
Wireless Security
Wireless Network Select the wireless network you want to configure.
Security Mode Select the security method for your wireless network. Proceed to the
appropriate instructions. If you do not want to use wireless security, keep the default, Off.
Note: If you are using wireless security, remember that each device in your wireless
network MUST use the same security method and settings, or else the wireless devices
cannot communicate.
WPA2-Personal
Mixed Mode Select Enabled to support both WPA and WPA2 clients. Otherwise, keep the
default, Disabled.
Encryption Select the appropriate method, AES or TKIP or AES.
Passphrase Enter a Passphrase (also called a WPA shared key) of 8-63 characters.
Key Renewal Enter a Key Renewal period, which instructs the Router how often it should change
the encryption keys. The default is 3600 seconds.
WPA-Personal
Encryption TKIP is automatically selected.
Passphrase Enter a Passphrase (also called a WPA shared key) of 8-63 characters.
Key Renewal Enter a Key Renewal period, which instructs the Router how often it should change
the encryption keys. The default is 3600 seconds.
WEP
Encryption Select a level of WEP encryption, 40/64-bit (10 hex digits) or 104/128-bit (26
hex digits).
Passphrase Enter a Passphrase to automatically generate WEP keys. Then click Generate.
Note: The WEP Passphrase is compatible with Cisco wireless products only. If you are
using non-Cisco products, manually enter the appropriate WEP key on those devices.
Key 1-4 If you did not enter a Passphrase, enter the WEP key(s) manually.
TX Key Select which TX (Transmit) Key to use. The default is 1.
WPA Enterprise
This option features WPA used in coordination with a RADIUS server. (RADIUS stands for
Remote Authentication Dial-In User Service. This option should only be used when a RADIUS
server is connected to the Router.)
Encryption TKIP is automatically selected.
RADIUS Server Enter the IP address of the RADIUS server.
RADIUS Port Enter the port number of the RADIUS server. The default value is 1812.
Shared Key Enter the key shared between the Router and the server.
Key Renewal Enter a Key Renewal period, which instructs the Router how often it should change
the encryption keys. The default is 3600 seconds.
Security Mode > WPA2-Personal
Security Mode > WPA-Personal
Security Mode > WEP
Security Mode > WPA Enterprise
DRAFT - 6/25/201
0
19
WPA2 Enterprise
This option features WPA2 used in coordination with a RADIUS server. (It should only be used
when a RADIUS server is connected to the Router.)
Mixed Mode Select Enabled to support both WPA and WPA2 clients. Otherwise, keep the
default, Disabled.
Encryption Select the appropriate method, AES or TKIP or AES.
RADIUS Server Enter the IP address of the RADIUS server.
RADIUS Port Enter the port number of the RADIUS server. The default value is 1812.
Shared Key Enter the key shared between the Router and the server.
Key Renewal Enter a Key Renewal period, which instructs the Router how often it should change
the encryption keys. The default is 3600 seconds.
Click Save Settings to apply your changes, or click Cancel Changes to cancel your
changes.
Wireless > MAC Filter
Wireless access can be filtered by using the MAC addresses of the wireless devices transmitting
within your network’s radius.
Wireless MAC Filter
Select Wireless Network (SSID) Select the wireless network you want to configure.
Enabled/Disabled To use the wireless MAC filter, select Enabled. Otherwise, keep the default,
Disabled.
MAC Address Filter
Filter As White List/Filter As Black List
To allow access by network devices with the MAC
addresses on this list, select Filter As White List. To block access by network devices with the MAC
addresses on this list, keep the default, Filter As Black List
.
MAC 01-20 Enter the MAC addresses of the devices whose wireless access you want to block
or allow.
For each wireless device, its MAC address and connection status are listed. To copy a
MAC address to one of the MAC 01-20 fields, click Copy.
Click Save Settings to apply your changes, or click Cancel Changes to cancel your
changes.
Wireless > Wi-Fi Protected Setup
There are two ways to configure the Router’s wireless settings, manual and Wi-Fi Protected
Setup. For manual configuration, click the Basic Settings tab (refer to the “Wireless > Basic
Settings” section for more information).
Wi-Fi Protected Setup is a feature that makes it easy to set up your wireless network. If you
have devices that support Wi-Fi Protected Setup, then use the following instructions.
Note: Wi-Fi Protected Setup can only be used for the default wireless network. (The
Router supports up to four wireless networks. The other three can be configured using
the Wireless > Basic Settings screen of the Router’s web-based utility.)
Wireless > MAC Filter
Wireless > Wi-Fi Protected Setup
Security Mode > WPA2 Enterprise
DRAFT - 6/25/201
0
20
Wi-Fi Protected Setup
If you have client devices, such as a wireless adapter, that support Wi-Fi Protected Setup,
then you can use Wi-Fi Protected Setup to automatically configure wireless security for your
wireless network(s).
There are three methods available. Use the method that applies to the client device you
are configuring.
Note: Wi-Fi Protected Setup configures one client device at a time. Repeat the instructions
for each client device that supports Wi-Fi Protected Setup.
Method #1
Use this method if your client device has a Wi-Fi Protected Setup button.
1. Click or press the Wi-Fi Protected Setup button on the client device. (If Wi-Fi Protected
Setup is an on-screen option, then select it.)
2. Click the Wi-Fi Protected Setup button on this screen.
3. After the client device has been configured, click OK. Then refer back to your client device
or its documentation for further instructions.
Method #2
Use this method if your client device has a Wi-Fi Protected Setup PIN number.
1. Enter the client PIN number in the PIN field on this screen (the Router’s Wi-Fi Protected
Setup screen).
2. Click Register.
Method #3
Use this method if your client device asks for the Router’s PIN number.
1. Enter the PIN number listed on this screen. (It is also listed on the label on the bottom of the
Router.)
2. After the client device has been configured, click OK. Then refer back to your client device
or its documentation for further instructions.
At the bottom of the screen, status information for your wireless security is displayed:
Wi-Fi Protected Setup Simple-Config-State The status of the Wi-Fi Protected Setup
feature is displayed. The default is Not configured. After the Router has been configured, the
status changes to “Configured”.
Network Name (SSID) The name of the wireless network is displayed.
Security The security method of the wireless network is displayed.
Encryption The encryption method, such as TKIP or AES, is displayed.
Passphrase The passphrase for the wireless security method is displayed. It acts like a
password for access to the wireless network. (For WPA security methods, the passphrase is
also known as a WPA shared key.)
Note: If you have client devices that do not support Wi-Fi Protected Setup, note the
wireless settings, and then manually configure those client devices.
DRAFT - 6/25/201
0
21
Wireless > Advanced Settings
Use this screen to set up the Router’s advanced wireless settings, which apply to all of
the Router’s wireless networks. These settings should only be adjusted by an expert
administrator as incorrect settings can reduce wireless performance.
Advanced Wireless
Basic Rate The Basic Rate setting is not actually one rate of transmission but a series of rates
at which the Router can transmit. The Router will advertise its Basic Rate to the other wireless
devices in your network, so they know which rates will be used. The Router will also advertise that
it will automatically select the best rate for transmission. Select the appropriate option: Default,
for transmission at all standard wireless rates; 1-2Mbps, for use with older wireless technology;
All, for transmission at all wireless rates; or Wi-Fi Alt. For the Wi-Fi Alt option, basic rates are 1,
2, 5.5, 6, 11, 12, and 24 Mbps; supported rates are 9, 18, 36, 48, and 54 Mbps. If you are not sure
which rate to select, keep the default, Default.
CTS Protection Mode CTS (Clear-To-Send) Protection Mode’s default is Disabled. Select
Auto if you want the device to automatically use CTS Protection Mode when your Wireless-G
products are experiencing severe problems and are not able to transmit to the device in an
environment with heavy 802.11b traffic. This function boosts the device’s ability to catch all
Wireless-G transmissions but will severely decrease performance.
Control TX Rate The Control TX Rate should be set depending on the speed of your wireless
network. Select from a range of transmission speeds, or keep the default, Auto. When the Auto
setting is selected, the Router automatically uses the fastest possible data rate and enables
the Auto-Fallback feature, which negotiates the best possible connection speed between the
Router and a wireless device.
Wireless Afterburner To improve wireless performance when the Router is used with devices
that support SpeedBooster, select Enable. Otherwise, keep the default, Disable.
Beacon Interval Enter a value between 1 and 65,535 milliseconds. The Beacon Interval value
indicates the frequency interval of the beacon. A beacon is a packet broadcast by the Router to
synchronize the wireless network(s). The default value is 100.
DTIM Interval This value, between 1 and 255, indicates the interval of the Delivery Traffic
Indication Message (DTIM). A DTIM field is a countdown field informing clients of the next window
for listening to broadcast and multicast messages. When the Router has buffered broadcast or
multicast messages for associated clients, it sends the next DTIM with a DTIM Interval value. Its
clients hear the beacons and awaken to receive the broadcast and multicast messages. The
default value is 1.
Fragmentation Threshold This value specifies the maximum size for a packet before data is
fragmented into multiple packets. If you experience a high packet error rate, you may slightly
increase the Fragmentation Threshold. Setting the Fragmentation Threshold too low may result
in poor network performance. Only minor reduction of the default value is recommended. In
most cases, it should remain at its default value of 2346.
RTS Threshold Should you encounter inconsistent data flow, only minor reduction of the default,
2346, is recommended. If a network packet is smaller than the preset RTS threshold size, the
RTS/CTS mechanism will not be enabled. The Router sends Request to Send (RTS) frames
to a particular receiving station and negotiates the sending of a data frame. After receiving an
RTS, the wireless station responds with a Clear to Send (CTS) frame to acknowledge the right
to begin transmission. The RTS Threshold value should remain at its default value of 2346.
WMM Support The Router supports Wi-Fi Multimedia (WMM) for Quality of Service (QoS).
When WMM Support is enabled, it provides four priority queues for different types of traffic. It
automatically maps the incoming packets to the appropriate queues based on QoS settings (in
the IP or layer 2 header). WMM provides the capability to prioritize traffic in your environment. If
you have other devices on your network that support WMM, select Enable. Otherwise, keep the
default, Disable.
Wireless > Advanced Settings
DRAFT - 6/25/201
0
22
Auto Power Save Delivery Unscheduled Automatic Power Save Delivery (UAPSD) is a special
power-saving mode to achieve end-to-end QoS. This option is available if you enabled WMM
Support. To use the power save feature, select Auto Power save Delivery.
Click Save Settings to apply your changes, or click Cancel Changes to cancel your
changes.
Storage > Media Server
General
Server Name: Type your Media server name.
Navigation Tree: Choose the way that you want to view the navigation tree, folder structure,
and so on.
Media Receivers
Enable Sharing: Choose whether you want to enable media sharing.
Network
Restart on NIC changes: Choose whether you want to restart router when NIC changes are
received.
Maintenance
Logging: Choose whether you want to enable media server logging.
Clear logs: Click to clear media server logs.
View Log File: Click to view the media server log.
Restart Server: Click to restart the server.
Reset Defaults: Will remove later
Rescan Directories: Click to scan the content directory manually.
Rebuild Database: Click to delete the database file from the media server and rebuild a
new one. This may take 5 seconds.
Sharing
Rescan time: Specify how often the media server may iteratively scan the content directory.
Content Locations: Specify the location of the content directory on the media server. The
default location is already configured.
Storage > MediaServer
DRAFT - 6/25/201
0
23
Security > Firewall
The Firewall screen is used to configure a firewall that can filter out various types of
unwanted traffic on the Router’s local network.
Firewall
Intrusion Detection Protection To use Intrusion Detection System (IDS) and Denial of Service
(DoS) protection, select Enabled. Otherwise, keep the default, Disabled.
Web Content Filtering To filter web content, keep the default, Enabled. Otherwise, select
Disabled. (This feature must be enabled to use the Website Blocking options on the Access
Restrictions > Internet Access Policy screen.)
Max Firewall Sessions Enter the maximum number of firewall sessions that will be processed
at any given time.
Max QoS Sessions Enter the maximum number of QoS sessions that will be processed at any
given time.
SIP ALG The SIP ALG feature assists VoIP phones behind the Router when NAT problems are
encountered. This feature also assists QoS (when enabled) with automatic classification of SIP-
and RTP-related traffic. To use the SIP ALG feature, keep the default, Enabled. Otherwise, select
Disabled.
Firewall Profile
Apply Firewall Profile For a low level of firewall protection, keep the default, Low. For a high
level of firewall protection, select High. To disable the firewall, select Off.
To configure user-based security rules, click Access Restrictions. (Refer to the “Access
Restrictions > Internet Access Policy” section for details.)
Click Save Settings to apply your changes, or click Cancel Changes to cancel your
changes.
Security > Certificates
Local Certificates: This section shows the certificates associated with the router and allows
you to import certificates.
CA Certificates: This section shows the certificates of a certificate authority chain and allows you
to import certificates.
Certificate Request: Click here to generate a certificate request, which can be filed to CA.
Security > VPN
VPN: Choose whether to enable or disable VPN.
Local Domain Name: Type the FQDN (domain name) of the router for IKE phase 1 negotiation.
Local Email Address: Type the user-FQDN(email address) of the router for IKE phase 1
negotiation.
View IKE Status: Click to view the IKE negotiation status of the configured endpoints.
VPN Log: Click to view the IKE negotiation log.
IPSec VPN Tunnel: This section shows the IPsec tunnel (endpoint) configuration.
IKE Proposal: This section shows a predefined parameter set for IKE negotiation, which can be
associated with a specific IPsec tunnel.
Security > Firewall
Security > Certificates
Security > VPN
DRAFT - 6/25/201
0
24
Applications & Gaming > Single Port Forwarding
The Single Port Forwarding screen allows you to customize port services for common
applications on this screen.
When users send these types of requests to your network via the Internet, the Router will
forward those requests to the appropriate servers (computers). Before using forwarding, you
should assign static IP addresses to the designated servers.
Single Port Forwarding
To forward a port, enter the information on each line for the criteria required.
Application Select the appropriate application: HTTP (80), HTTPS (443), FTP (21),
Windows Media Player (1755), DNS (53), POP3 (110), Simple Mail Transfer (25), or
TR069 Connection Request (888).
Internal Port Enter the internal port number used by the server or Internet application. Check
with the Internet application documentation for more information.
IP Address For each application, enter the IP address of the computer that should receive the
requests.
Enabled For each application, select Enabled to enable port forwarding.
Click Save Settings to apply your changes, or click Cancel Changes to cancel your
changes.
Applications & Gaming > Port Range Forwarding
The Port Range Forwarding screen allows you to set up public services on your network,
such as web servers, ftp servers, e-mail servers, or other specialized Internet applications.
(Specialized Internet applications are any applications that use Internet access to perform
functions such as videoconferencing or online gaming. Some Internet applications may not
require any forwarding.)
When users send these types of requests to your network via the Internet, the Router will
forward those requests to the appropriate servers (computers). Before using forwarding, you
should assign static IP addresses to the designated servers.
If you need to forward all ports to one computer, click the DMZ tab.
Port Range Forwarding
To forward a port range, enter the information on each line for the criteria required.
Application Select the appropriate application.

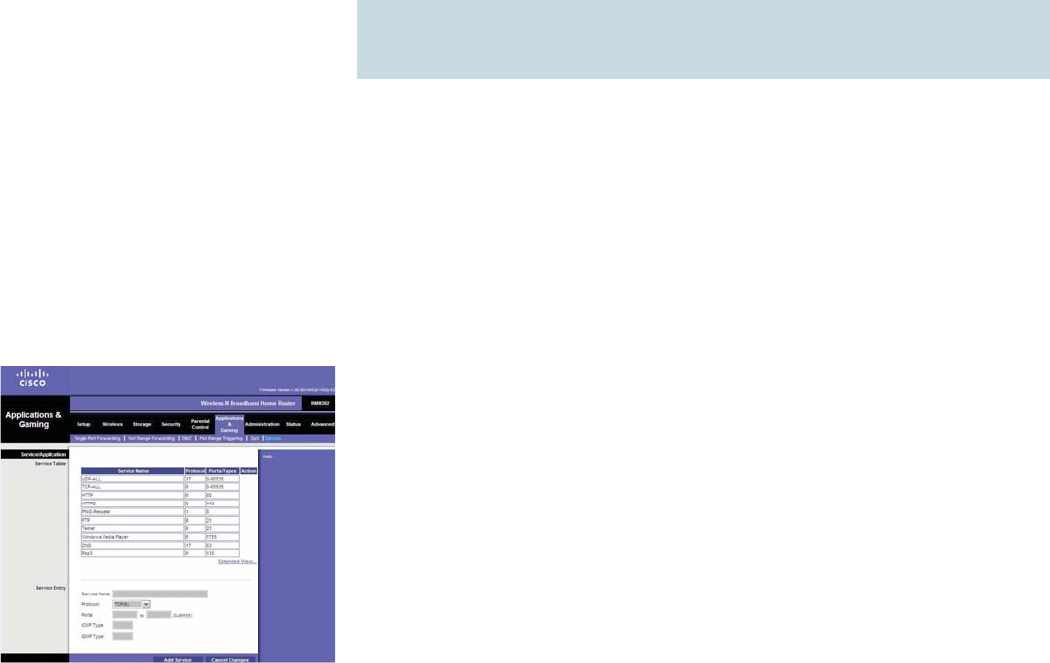

Note: If you do not see the application you want, configure the service on the Applications
& Gaming > Service screen.
IP Address For each application, enter the IP address of the computer running the specific
application.
Enabled Select Enabled to enable port forwarding for the applications you have defined.
Click Save Settings to apply your changes, or click Cancel Changes to cancel your
changes.
Applications and Gaming >
Single Port Forwarding
Applications and Gaming >
Port Range Forwarding
DRAFT - 6/25/201
0
25
Applications & Gaming > DMZ
The DMZ feature allows one network computer to be exposed to the Internet for use of
a special-purpose service such as Internet gaming or videoconferencing. DMZ hosting
forwards all the ports at the same time to one PC. The Port Range Forwarding feature is
more secure because it only opens the ports you want to have opened, while DMZ hosting
opens all the ports of one computer, exposing the computer to the Internet.
DMZ
Any computer whose port is being forwarded must have its DHCP client function disabled
and should have a new static IP address assigned to it because its IP address may change
when using the DHCP function.
DMZ To disable DMZ hosting, keep the default, Disabled. To expose one PC, select Enabled.
Then configure the following setting:
DMZ IP Address Enter the IP address of the computer.
Click Save Settings to apply your changes, or click Cancel Changes to cancel your
changes.
Applications & Gaming > Port Range Triggering
The Port Range Triggering screen allows the Router to watch outgoing data for specific
port numbers. The IP address of the computer that sends the matching data is remembered
by the Router, so that when the requested data returns through the Router, the data is
pulled back to the proper computer by way of IP address and port mapping rules.
Port Range Triggering
To trigger a port range, enter the information on each line for the criteria required.
Application Name Enter the unique application name of the trigger.
Port Start ~ Port End For each application, enter the starting and ending port numbers of the
triggering port number range. These are the ports used by initiating traffic. Check with the
Internet application documentation for the port number(s) needed.
Protocol For each application, select the appropriate protocol, TCP(6) or UDP(17).
Forwarded Port Start ~ Forwarded Port End For each application, enter the starting and ending
port numbers of the forwarded port number range. These are the ports used by incoming traffic.
Check with the Internet application documentation for the port number(s) needed.
Allow Multiple Hosts Select this option to allow multiple hosts in returned traffic.
Enabled Select Enabled to enable port triggering for the applications you have defined.
Click Save Settings to apply your changes, or click Cancel Changes to cancel your
changes.
Applications & Gaming > QoS
Quality of Service (QoS) ensures better service to high-priority types of network traffic,
which may involve demanding, real-time applications, such as videoconferencing.
Note: The Router’s QoS is for upstream traffic regulation only. Downstream QoS is
usually enforced by the service provider’s headend equipment.
Applications and Gaming > DMZ
Applications and Gaming >
Port Range Triggering
Applications and Gaming > QoS
DRAFT - 6/25/201
0
26
QoS (Quality of Service)
Application-based QoS manages information as it is transmitted and received.
QoS To use QoS, select Enabled. Otherwise, keep the default, Disabled.
Default Queue Index Select the default queue (and priority) for applications not specified below:
1-8. (A lower value has higher priority.)
Queue Management A new window appears.
Queue Management
•Queue Index There are eight queues for each interface. You can configure the
parameters but cannot add or delete queues.
Higher index queues generally represent higher-priority queues. Queues 1-3 are Strict
Priority (WP) queues, and Queues 4-8 are priority-based Weighted Fair Queues (WFQ).
•Precedence Enter the Precedence value of this queue relative to the others. A lower
value indicates higher precedence.
•Scheduler Select the scheduling algorithm: SP, WFQ, or WRR (Weighted Round
Robin). The default is SP.
•Dropper Select the dropping algorithm used if there is congestion: RED (Random
Early Detection), DT (Drop Tail), or WRED (Weighted RED). The default is WRED.
•Weight When WFQ or WRR is used, this option is available and used only for queues
of equal precedence. Queues 4-6 have equal precedence, and Queues 7-8 have equal
precedence. Queues 1-3 have higher precedence than Queues 4-6, while Queues 4-6
have higher precedence than Queues 7-8.
•Shaping If the Shaping rate is greater than or equal to 100, then it is the percentage
of physical bandwidth. If the Shaping rate is less than 100, then it is the rate in bits per
second. A value of -1 indicates no shaping. The default is -1.
•Burst Size Enter the Burst Size in bytes (1 to 10485760). For both leaky bucket (constant
rate shaping) and token bucket (variable rate shaping) algorithms, the Burst Size value
is the bucket size and the maximum burst size. If you set this value to zero, then the
Router will use the system default Burst Size, which is the current Shaping rate divided
by eight. The default is 0.
Click Save Settings to apply your changes, or click Back to QoS to cancel your changes
and return to the QoS screen.
Summary
The QoS rules are displayed with the following information: Port, Filters/Target, Queue
Index, Marks and On (status).
To move, edit, or delete a rule, select the entry (its color will change).
Move Up To move a QoS rule up in precedence, click this option.
Move Top To move a QoS rule to highest in precedence, click this option.
Move Down To move a QoS rule down in precedence, click this option.
Move Bottom To move a QoS rule lowest in precedence, click this option.
Delete To delete a QoS rule, click this option.
Edit Rule To change a QoS rule, click this option.
New Rule To create a new QoS rule, click this option.
If you click Edit Rule or New Rule, a different screen appears.
Applications and Gaming > QoS >
Queue Management
DRAFT - 6/25/201
0
27
QoS (Quality of Service)
•Enable To enable this QoS rule, select the check box. Otherwise, leave the check box
blank.
•Classification Sources Select All Sources, Local Router, All LAN Ports that traffic
will come from, or a specific LAN port: Ethernet Ports 1-5 or WLAN SSID networks. The
default is All Sources.
•Ethernet Type Select None, IP (0x0800), ARP (0x0806), PPPoE Discovery Stage
(0x8863), PPPoE Session State (0x8864), or EAPOL (0x888e).
•Protocol If you selected IP (0x0800) for the Ethernet Type setting, then select the
appropriate Protocol: None, ICMP (1), IGMP (2), TCP (6), or UDP (17).
Depending on the Protocol you selected, the following settings may be available:
•Destination IP Enter the Destination IP address, if applicable as a filter condition.
•Destination Subnet Mask Enter the Destination subnet mask, if applicable as a filter
condition.
•Destination Port If you selected TCP or UDP for the Protocol setting, enter the
Destination port range, if applicable as a filter condition.
•Source IP Enter the Source IP address of the local computer, if applicable as a filter
condition.
•Source Subnet Mask Enter the Source subnet mask, if applicable as a filter condition.
•Source Port If you selected TCP or UDP for the Protocol setting, enter the Source port
range, if applicable as a filter condition.
•Source MAC Enter the Source MAC address of the local computer, if applicable as a filter
condition.
•Source MAC Mask Enter the Source MAC Mask, if applicable as a filter condition. If you
leave this setting blank, then this mask will be ignored.
•Source Vendor Class ID If applicable as a filter condition, enter the Source Vendor Class ID
in the host’s DHCP request.
•Source Client ID If applicable as a filter condition, enter the Source Client ID in the host’s
DHCP request.
•Source User Class ID If applicable as a filter condition, enter the Source User Class ID in the
host’s DHCP request.
•DSCP If applicable as a filter condition, enter the DSCP value of the LAN’s incoming packet.
•Ethernet Priority If applicable as a filter condition, enter the Ethernet Priority of the LAN’s
incoming packet.
•VLAN ID If applicable as a filter condition, enter the VLAN ID of the LAN’s incoming packet.
•Ethernet Priority Mark (optional) To mark outgoing packets with a specific 802.1p value,
enter the value in the field provided.
•DSCP Mark (optional) To mark outgoing packets with a specific DSCP value, enter the value
in the field provided.
•Target Interface (optional) All WAN connections and PVC/VLAN bridges are listed. Select
the appropriate interface. The Router will direct matching packets to this outgoing interface.
QoS > Add New Rule
DRAFT - 6/25/201
0
28
•Queue Index Traffic priority applies to LAN-to-WAN traffic only. Higher priority traffic is
guaranteed available bandwidth. This is useful for simultaneous activities that put a heavy
load on the network (for example, a VoIP phone call during large file downloads). Select the
appropriate Queue Index (and priority): 1 High-8 (a lower value means higher priority).
Note: Traffic from the Router’s voice lines are automatically assigned highest priority.
You can update parameters, such as the Ethernet Priority Mark setting, according to your
service provider’s request.
Click Add Rule or Save Rule to save your changes, or click Cancel Changes to cancel your
changes and return to the original QoS screen.
On the original QoS screen, click Save Settings to apply your changes, or click Cancel
Changes to cancel your changes.
Applications & Gaming > Service
The Service screen allows you to add services.
Service/Application
Service Table
The services are displayed with the following information: Service Name, Protocol, Ports/
Types, and Action. To delete a user-defined service, click Delete. (Default services cannot
be deleted.)
To view additional services, click Extended View. To return to the Basic View, click Basic
View.
Service Entry
Service Name Enter a name for the new service.
Protocol Select the appropriate protocol: TCP(6), UDP(17), ICMP, ESP(50), AH(51), GRE(47),
IGMP(2), PIM-DM(103), or IPCOMP(108).
Ports Enter the starting and ending port numbers.
ICMP Type Enter the appropriate number, 1-255, which is valid only for ICMP.
IGMP Type Enter the appropriate number, 1-255, which is valid only for IGMP.
Click Add Service to add a new service, or click Cancel Changes to cancel your changes.
Applications and Gaming > Service
DRAFT - 6/25/201
0
29
Administration > Management
The Administration > Management screen allows the network’s administrator to manage
specific Router functions for access and security.
Gateway Access
Local Gateway Access
To ensure the Router’s security, you will be asked for your username and password when you
access the Router’s web-based utility. The default username and password are admin.
Router Username Enter the default Router Username, admin.
Router Password Cisco recommends that you change the default Router Password, admin, to
one of your choice.
Re-enter to Confirm Enter the Router Password again to confirm.
Remote Gateway Access
Remote Management To permit remote access of the Router, from outside the local network,
select Enabled. Otherwise, keep the default, Disabled.
Management Port Enter the port number that will be open to outside access.
Management Protocol Select the appropriate protocol, HTTP or HTTPS.
Note: When you are in a remote location and wish to manage the Router, enter
https://<Internet_IP_address>:port or http://<Internet_IP_address>:port. Enter
the Router’s specific Internet IP address in place of <Internet_IP_address>, and enter
the Management Port number in place of the word port.
Remote User Name Enter the login user name for remote management.
Remote User Password Enter the login password for remote management.
IGMP
Internet Group Multicast Protocol (IGMP) is used to establish membership in a multicast
group and is commonly used for multicast streaming applications. For example, you may
have Internet Protocol Television (IPTV) with multiple set-top boxes on the same local
network. These set-top boxes have different video streams running simultaneously, so you
should use the IGMP feature of the Router.
IGMP Proxy IGMP forwarding (proxying) is a system that improves multicasting for LAN-side
clients. If the clients support this option, keep the default, Enabled. Otherwise, select Disabled.
IGMP Querier Version Select: Version 1, Version 2, or Version 3. The default is Version 2.
Query Interval This option is valid when IGMP Proxy is enabled. Enter the number of seconds
between queries. The default is 125 seconds.
Querier Immediate Leave Select Enabled, if you use IPTV applications and want to allow
immediate channel swapping or flipping without lag or delays. Otherwise, keep the default,
Disabled.
Administration > Management
DRAFT - 6/25/201
0
30
UPnP
Universal Plug and Play (UPnP) allows Windows XP and Vista to automatically configure
the Router for various Internet applications, such as gaming and videoconferencing.
UPnP If you want to use UPnP, keep the default, Enabled. Otherwise, select Disabled.
Note: IGMPv2 is enabled by default, and v3 is supported. IGMP Snooping is enabled by
default for all bridges.
Administration > Log
The Router can keep logs of traffic and events for your Internet connection.
Basic Settings
Log To disable the Log function, select Disabled. To monitor traffic between the network and
the Internet, keep the default, Enabled. With logging enabled, you can choose to view temporary
logs.
Log Severity Select the severity level of the log events you want to view: Informational,
Warning (default), or Critical.
System Log Server To enable system log server support, enter the IP address of the system log
server. To disable system log server support, leave this setting blank.
Advanced Settings
Category: Choose the category of logs that you want to view (firewall, security, system control,
network, QoS, user authorization, VPN, routing, or certification).
Logging Size: Type the file size that you want to use for logging files here. The default value is
256 KB.
Firewall Logging size: Type the maximum number of rows to include in a firewall log here. The
default value is 1000 rows.
Email Alert
Email Alerts (For Warning Events) To enable E-Mail Alerts for Warning-level events, select
Enabled. Otherwise, keep the default, Disabled.
SMTP Mail Server Enter the address (domain name) or IP address of the Simple Mail Transport
Protocol (SMTP) server for outgoing e-mail.
User Name Enter the User Name for SMTP authentication.
Password Enter the Password for SMTP authentication.
Email to Address Enter the e-mail address that will receive alert logs.
Email From Address Enter the return address for the e-mail alerts. (This can be a dummy
address.)
Administration > Log
DRAFT - 6/25/201
0
31
Search Log
Category: Choose the category of logs that you want to view (firewall, security, system control,
network, QoS, user authorization, VPN, routing, certification).
Log Severity: Choose the severity of messages that you want to include in the logs here..
Policy: TBD.
Message: If you want to see only messages that contain a certain keyword, type that keyword
here.
IP Address: Use these fields to restrict the logs so that you only see messages to or from certain
IP addresses.
MAC address: Use these fields to restrict the logs so that you only see messages to or from
certain MAC addresses.
DateTime: Use the fields to restrict the logs so that you only see messages that happened
during a certain date range.
Click Save Settings to apply your changes. Click Clear Event Log to clear all of the events.
Click Refresh to update the on-screen information.
Administration > IPPing
The ping test allows you to check the connections of your network devices, including
connection to the Internet.
Ping Test
Ping Test Parameters
The ping test checks the status of a connection.
Target IP/FQDN Enter the IP address or Fully Qualified Domain Name (FQDN) that you want to
ping. This can be either a local (LAN) or Internet (WAN) IP address.
Ping Size Enter the packet size you want to use. The default is 32 bytes.
Number of Pings Enter how many times you want to ping. The default is 3.
Ping Timeout Enter the number of milliseconds before the ping test will time out. The default is
5000 milliseconds.
Ping Result The results of the ping test are displayed.
To run the test, click Start Test. Click Refresh to update the on-screen information.
Administration > IP Traceroute
Traceroute test parameters
Target IP/FQDN: Type the destination of the traceroute, as an IP address or a domain name.
Traceroute Size: Type the ICMP packet size, in bytes. If the MTU is lower than this value and
fragments are not allowed, an ICMP error message appears.
Number of Traceroutes: For each hop, the traceroute application may send multiple packets.
Specify the number of traceroutes here.
Max Number of hop: Type the maximum number of hops allowed here. If the number of hops is
greater than this value, an ICMP error message appears.
Traceroute Timeout: Type the maximum waiting time between the ICMP request and the ICMP
response.
Administration >IPPing
Administration > IPTracert
DRAFT - 6/25/201
0
32
Administration > Self Diagnostics
Diagnostics Trigger:
Choose whether you want to enable the diagnostics trigger.
VoD Monitor Trigger:
Choose whether you want the MoCA network performance to be recorded in the router
persistence log along with a TR-069 parameter for troubleshooting analysis when
necessary.
Diagnostics Settings
Schedule option: Choose Enable if you want self-diagnostics to occur periodically, or
choose Disable to perform the self-diagnostics immediately, followed by the correction
procedure if enabled.
Diagnosis interval: Choose how often the diagnostics tests should occur. The minimum
interval is one day.
Start time: Enter the time that the diagnostics tests should start here, in 24-hour format.
WAN IP Polling Interval: Enter the time interval that should pass before the next WAN IP
check, in seconds.The default value is 1 hour (3600 seconds).
Bandwidth Polling Interval: Enter the time interval that should pass before the next
bandwidth polling test.
Enable Correction: Choose Enable if the router should attempt to recover from any
errors that it encounters, or choose Disable if you router should only log the error without
attempting to recover.
WAN DNS Domain: Type the domain that is used to test DNS.
Correction Settings
Enable Factory Reset: Choose whether or not to allow self diagnostics to reset the router
to the factory default. Choosing Enable will delete the user’s configuration.
Factory Reset Trigger: Errors that are detected by self diagnistics may trigger the router
to reboot. Specify how many reboots can take place before the router resets itself.
Correction Start Time: Self diagnostics corrections do not take place immediately after
the error is detected. Specify when a self diagnostics correct should take place.
Diagnostics Threshold
Memory Threshold: Specify the memory utilization that can be reached before corrective
action is taken.
WAN BW Threshold: Specify the bandwidth utilization that can be reached before
corrective action is taken.
MoCA Rate Threshold: Specify the MoCA rate utilization that can be reached before
corrective action is taken.
Diagnostics Cases
TBHR: This test ensures that there are sufficient internal resources for the router to
operate optimally. The CPU and memory utilization snapshot should be taken during the
self-diagnostics operation or using a polling interval (BANDWIDTH_POLLING _INTERVAL).
TWANIP: This test ensures that the router has a WAN IP assigned.
TLANMOCA: This test only applies if the MoCA interface is enabled and active. It ensures
that the transmission rate for both Tx and Rx should be greater than 180Mbps.
Administration > Self Diagnosis
DRAFT - 6/25/201
0
33
TLANIP: This test ensures that all LAN devices which are currently attached and active
have an IP assigned correctly. One method to determine if the LAN device is active or
inactive is by sending an ARP request from the router.
TWANTYPE: This test ensures that only one WAN interface is be enabled and active at
any time it is in a Connected state. Both WAN interfaces can be enabled, if they are in a
Disconnected state.
TWANIPCON: This test ensures that the router has WAN IP connectivity. The IP
connectivity is validated via ping tests to both the default gateway (the first hop network
router) and the VZ DNS server.
TLANETH: This test ensures that all the Ethernet ports with devices attached are operating
optimally, for example, no hardware port failures, excessive framing or CRC errors, and so
on. This test only applies if the LAN Ethernet interface is enabled.
TLANBW: This test ensures that at least one of the enabled LAN interfaces can send
or receive network traffic based on the delta bytes count. The delta bytes count is the
difference between the current value and the last recorded poll value. The default poll
interval is every hour.
TWANMOCA: This test ensures that the transmission rate for both Tx and Rx is greater
than MoCA threshold level for expected performance. This test only applies if the MoCA
interface is enabled.
TWANBW: This test ensures that the WAN interface can send and receive network traffic
based on the delta bytes count. The delta bytes count is the difference between the
current value and the last recorded polled value. The poll interval is cinfigurable through
CMS; the default interval is every hour.
TLANWIFI: This test ensures that the WiFi signal level (RSSI) is acceptable for each WiFi
device that is visible in this interface.
TLANIPCONSTB: This test ensures that all set-top boxes that are attached and active on
this WAN interface respond successfully to the PING test operation.
TWANETH: This test ensures that the WAN Ethernet port is operating optimally, for exampl,
no hardware issue, excessive framing errors, CRC errors, and so on.
TLANTYPE: This test ensures that at least one of the LAN interfaces is enabled and active.
TLANDEV: This test determines how many LAN devices are currently attached and active
on the various LAN interfaces (for example, LAN Ethernet, LAN MoCA, and LAN WiFi) of the
BHR. The device count determination should be done at the physical medium level and
NOT at the IP level. A LAN device must be included in the count if it has been attached and
active for more than 30 minutes. (This is due to the BHR implementation of record updates.)
Diagnostics Action
Use this area to specify the action that should take if any of the following conditions occur.
For example, for CBHR_MEM, if the memory utilization is less than the memory threshold,
then the router will perform the associated action.
The conditions are:
CBHR_MEM: The memory utilization is less than the memory threshold.
CWANTYPE: Only one WAN interface is enabled, or both WAN interfaces are enabled but
disconnected.
CWANMOCA_RATE: The transmission rate (Tx and Rx) is greater than the MoCA rate
threshold.
CWANIP: The WAN IP address is assigned.
CLANMOCA_PORT: The physical port is operational with no hardware failure.
CLANETH_PORT: All the LAN Ethernet ports which have devices attached are operating
optimally, with no failures.
DRAFT - 6/25/201
0
34
CLANDEV: One or more LAN devices are attached and active.
CLANBW: Both the delta number of bytes sent and the number of bytes received are
greater than the LAN bandwidth threshold.
CBHR_CPU: The CPU utilization is less than the CPU threshold.
CWANMOCA_PORT: The physical MoCA port is operational with no hardware failure.
CWANETH_PORT: The Ethernet port is operational, with no hardware failure.
CWANIPCON_PNGDF: The default gateway responds to to the ICMP PING.
CWANIPCON_DNSR: The DNS server responds to ICMP PING.
CLANTYPE: One or more of the LAN interface are enabled (LAN MoCA, LAN Ethernet, and
LAN WiFi).
CLANMOCA_RATE: Both transmission rates (Tx and Rx) are greater than the MoCA rate
threshold.
CLANWIFI_PORT: The WiFi interface is operating optimally, with no hardware issues or
errors.
CLANIP: All LAN devices have an IP address assigned.
CLANIPCONSTB_PNG: All attached and active set-top boxes respond to the ICMP PING.
Administration > Backup
The Backup screen allows you to back up or restore the Router’s settings using a configuration
file.
Backup Configuration
Backup To save the Router’s settings in a configuration file, click this button and follow the
on-screen instructions.
Note: The voice settings will not be saved in the configuration file.
Restore Configuration
To use this option, you must have previously backed up its configuration settings.
Please select a file to restore Click Browse and select the Router’s configuration file.
Restore To restore the Router’s configuration settings, click this button and follow the
on-screen instructions.
Administration > Factory Defaults
The Factory Defaults screen allows you to restore the Router’s configuration to its factory
default settings, except for the voice settings. (An alternative method is to press and hold
the Reset button on the Router’s back panel for approximately ten seconds.)
Note: Restoring factory defaults deletes custom settings except for the voice settings.
Note your custom settings before clicking the Restore Factory Defaults button.
Administration > Factory Defaults
Administration > Backup
DRAFT - 6/25/201
0
35
Factory Defaults
Restore Factory Defaults To reset settings to the default values, click this button and follow
the on-screen instructions. Any custom Router settings you have saved (except for the voice
settings) will be lost when the default settings are restored.
Administration > Upgrade
The Upgrade screen allows you to upgrade the Router’s firmware. Do not upgrade the
firmware unless you are experiencing problems with the Router or the new firmware has a
feature you want to use.
Note: The Router may lose the settings you have customized. Before you upgrade its
firmware, write down all of your custom settings. After you upgrade its firmware, you will
have to re-enter all of your configuration settings.
Firmware Upgrade
Before upgrading the firmware, download the Router’s firmware upgrade file from the
Cisco website, www.linksysbycisco.com/international. Then extract the file.
Please Select a File to Upgrade Click Browse and select the extracted firmware upgrade
file.
Start to Upgrade After you have selected the appropriate file, click this button, and follow the
on-screen instructions.
Note: In rare cases (such as a power failure), the firmware upgrade may fail. If that
happens, the Router will enter recovery mode and automatically download firmware from
your service provider’s provisioning server.
Administration > Reboot
The Reboot screen allows you to restart the Router through the web-based utility.
Reboot
Click Reboot Box to restart the Router. The restart will terminate the Internet connection.
Administration > Logout
The Logout screen allows you to properly exit the web-based utility.
Logout
Click Logout to exit the web-based utility.
Administration > Upgrade
Administration > Reboot
Administration > Logout
DRAFT - 6/25/201
0
36
Administration > IGMP
IGMP Access Policy Control
IGMP Access Policy Table:
Needs text.
IGMP Access Policy Rule
IGMP Access control: Choose whether to allow multicast traffic of a specific multicast
group.
Group Address: Type the IP address of multicast traffic which is affected the rule.
Address Mask: Type the network mask of the IP address specified in the Group Address.
Allow Traffic: Choose whether to allow multicast traffic. This rule defines how the router
will respond to a multicast route from outside.
IGMP Hosts
IGMP Host Table
Needs text.
Status > Internet
The Internet screen displays information about the Router and its current settings.
Router Information
Manufacturer OUI The manufacturer ID number is displayed.
Serial Number The serial number of the Router is displayed.
Hardware Version The version number of the Router’s hardware is displayed.
Software Version The version number of the Router’s software is displayed.
System Uptime The length of time the Router has been active is displayed.
Local Time The date and time of the Router are displayed.
Internet Connection
This section shows the current information for enabled connections. The table lists the
following information about each connection: Interface, MAC/IP/Subnet, Router, DNS, and
Status.
For DHCP connections, you can manually renew or release them. For PPP-type connections,
you can manually connect or disconnect them.
Click Refresh to update the on-screen information.
Status > Internet
Administration > IGMP
DRAFT - 6/25/201
0
37
Status > MoCA
MoCA WAN Info
This section p rovides information about the MoCA WAN connection.
MoCA LAN Info
This section provides information about the MoCA LAN connection.
Status > Local Network
The Local Network screen displays information about the local network.
Local Network
IP Address The Router’s IP address, as it appears on your local network, is displayed.
Subnet Mask The Subnet Mask of the Router is displayed.
DHCP Server The status of the Router’s DHCP server function is displayed.
Starting IP Address For the range of IP addresses used by devices on your local network, the
starting IP address is displayed.
Ending IP Address For the range of IP addresses used by devices on your local network, the
ending IP address is displayed.
DHCP Lease Time The length of time for the DHCP lease setting is displayed.
DHCP Client Table
The table displays DHCP, static, and dynamic (found by ARP) types of clients. It describes
the devices that have been assigned IP addresses by the Router. For each device, the
table lists the following information: Interface, MAC Address, IP Address, Host Name, and
Lease Remaining (how much time is left for the current IP address).
IGMP Group Table
The table describes the IGMP configuration of the Router (if configured).
Click Refresh to update the on-screen information.
Statistics
This section provides information about transmitted and received data.
Ethernet Port Mode
This section shows the configuration of the LAN interface status, duplex mode and rate.
Status > MoCAInfo
Status > Local Network
DRAFT - 6/25/201
0
38
Status > Wireless
The Wireless screen displays information about your wireless network(s).
Wireless Network
For each wireless network, the following is displayed:
SSID The name of the wireless network is displayed.
MAC Address The MAC address of the Router’s local, wireless interface is displayed.
Security The wireless security method is displayed (if used).
SSID Broadcast The SSID broadcast setting is displayed.
Click Refresh to update the on-screen information.
Status > Bridges
The Bridges screen displays information about the PVC/VLAN and default LAN bridges
of the Router
Bridges
The total number of bridges and their descriptions are displayed.
Port (Name/Type) The port name or type is displayed.
Learned Host (MAC/IP/Time to Expire) The MAC address, IP address, or Time to Expire duration
is displayed.
IGMP (Group Address/Time to Expire) The IGMP Group Information of this port is displayed.
Click Refresh to update the on-screen information.
Status > ARP Table
ARP Cache Table
This section displays ARP entries for the listed interface. It includes IP address,
corresponding MAC address and length of time active.
Status > Media Server
Media Server
This section provides information about the status of the media server.
Status > Bridge
Status > ARP Table
Status > MediaServer
Status > Wireless
DRAFT - 6/25/201
0
39
Troubleshooting
Your computer cannot connect to the Internet.
Follow the instructions until your computer can connect to the Internet:
•Make sure that the Router is powered on. The Power LED should be green and not
flashing.
•If the Power LED is flashing, then power off all of your network devices, including the
Router and computers. Then power on each device in the following order:
1. Router
2. Computer
•Check the LEDs on the front panel of the Router. Make sure the Power, DSL, and at least
one of the numbered LEDs are lit. If they are not, then check the cable connections. The
computer should be connected to one of the ports numbered 1-4 on the Router, and
the Line port of the Router must be connected to the ADSL line.
When you double-click the web browser, you are prompted for a
user name and password. If you want to get rid of the prompt, follow
these instructions.
Launch the web browser and perform the following steps (these steps are specific to
Internet Explorer but are similar for other browsers):
1. Select Tools > Internet Options.
2. Click the Connections tab.
3. Select Never dial a connection.
4. Click OK.
The computer cannot connect wirelessly to the network.
Make sure the wireless network name or SSID is the same on both the computer and the
Router. If you have enabled wireless security, then make sure the same security method
and key are used by both the computer and the Router.
You need to modify the advanced settings on the Router.
Open the web browser (for example, Internet Explorer or Firefox), and enter the Router’s
IP address in the address field (the default IP address is 192.168.1.1). When prompted,
complete the User name and Password fields (the default user name and password is
admin). Click the appropriate tab to change the settings.
Web: Refer to the Cisco website, www.linksysbycisco.com/international, if your
questions are not addressed here.
DRAFT - 6/25/201
0
40
Specifications
Model RMN302
Interfaces
COAX MoCA LAN; MoCA WAN
WAN Ethernet WAN Interface RJ-45 Port
LAN Ports (RJ-45); Ethernet 10/100/1000 BASE-T with
Auto-Crossover
USB 2 USB 2.0 (host) Ports
Wi-Fi IEEE 802.11b/g/n
802.1x Authentication
External RADIUS Authentication
WPA2 and WPA Access
WEP, AES & TKIP Encryption
WPA/WEP Mixed Mode
Wi-Fi Multimedia Support (WMM)
Multiple SSIDs
MAC Address Filtering Integrated
WPS (Push button & PIN entry)
Regional Channel Setting
LEDs Power, Internet ,WAN, WAN MoCA, LAN MoCA, LAN1~4,
WLAN, USB1&2, WPS
Buttons On/Off, Reset, WPS
Mounting Desktop and Wall Mount
Environmental
Dimensions 220 mm x 42 mm x 175 mm (8.66 in. x 1.65 in. x 6.89 in.)
Weight 400 g (14.11 oz)
Power 110-240 VAC 50/60 Hz Switching Power Supply;
12 VDC, 2 A Output
Certification FCC Part 68, Part 15, Class B, UL1950, CSA, European EMC
& Immunity, CE Mark, Industry-Canada
Operating Temp. 0° to 40°C (32° to 104°F)
Storage Temp. 0° to 70°C (32° to 158°F)
Humidity 20 to 80% Noncondensing
Specifications are subject to change without notice.
DRAFT - 6/25/201
0
41
Software License Agreement
Software in Cisco Products
This product from Cisco-Cisco LLC or from one of its affiliates Cisco
Systems-Cisco (Asia) Pte Ltd. or Cisco-Cisco K.K. (“Cisco”) contains
software (including firmware) originating from Cisco and its suppliers
and may also contain software from the open source community. Any
software originating from Cisco and its suppliers is licensed under the
Cisco Software License Agreement contained at Schedule 1 below. You
may also be prompted to review and accept that Cisco Software License
Agreement upon installation of the software
Any software from the open source community is licensed under the
specific license terms applicable to that software made available by Cisco
at www.linksysbycisco.com/gpl or as provided for in Schedules 2, 3 and
4 below.
Where such specific license terms entitle you to the source code of such
software, that source code is upon request available at cost from Cisco
for at least three years from the purchase date of this product and may
also be available for download from www.linksysbycisco.com/gpl. For
detailed license terms and additional information on open source software
