11/17/06 BETA DRAFT —CISCO CONFIDENTIAL 1Cisco IOS Release TBD3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series RoutersThe Third Generation (3G) Wireless High-Speed WAN interface card (HWIC) is a multiband, multiservice WAN card. Its primary application is WAN connectivity as a backup datalink for critical data applications. It is an alternative to ISDN as a backup line because it offers 3G wireless sustainable data rates of 150 to 500 kbps. However, the cellular HWIC can also function as the primary WAN connection. It supports the following Cisco integrated services routers (Cisco ISRs):•Cisco 1841•Cisco 2800•Cisco 3800 The cellular WAN HWIC has the following features:•Broadband WAN connectivity using high speed cellular data technology•Cellular interface based on the async interface in Cisco IOS•Multiple product SKUs for CDMA and GSM standards•Multiple external antenna options•Supports different speeds with different networks.•Static and dynamic IP addressing•Modem-based support for mobile IP•Automatic best network selection•Supports CDMA Over the Air Service Provisioning (OTASP)•NAT support•Security features like Firewall, IDS/IPS and IPSec VPN on the router•WAN switchover using IOS backup interface feature
BETA DRAFT —CISCO CONFIDENTIAL3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series Routers2Cisco IOS Release TBDFigure 1 shows the GSM (HSDPA/UMTS) WAN HWIC:Figure 1 Front Panel of the HSDPA WAN HWICFigure 2 shows the front panel of the CDMA (EVDO) WAN HWIC:Figure 2 Front Panel of the EVDO WAN HWIC The cellular WAN HWIC will provide the following software functionality:•Dialup connection (DDR)—Dialup allows users to build up connections from a local network to remote locations, e.g., to an Internet Provider (ISP) and to exchange data.•Fallback connection (DDR backup)—the cellular HWIC allows the user to configure the cellular modem to initiate a dialup connection when connection to a primary service is lost.•Teardown after Fallback (Part of Fallback DDR)—Once a primary connection has failed and the cellular connection is in "fallback" mode, the cellular HWIC tears down the connection once the primary connection is available. •Automatic teardown—After a configurable timeout value, the cellular HWIC automatically tears down a connection if there has been no activity. •Portable Application—You can move the router into different coverage areas (different Base stations within the same service provider) and the router establishes a connection with the nearest cell infrastructure automatically. This is different from the mobile capability that cell phones offer.•Remote Access—The cellular HWIC allows users to connect with the cellular HWIC router through the cellular network. •Bidirectional Keepalive—The cellular HWIC allows you to configure keep alive to check the WAN connection at an interval that you can configure. In the event of a failure of the keep-alive request, the cellular HWIC will clear the existing connection and reestablish a new connection. This feature works in both directions—from the cellular network to the router, and from the router to the cellular network•Auto-detect—The cellular HWIC automatically detects and utilizes the best available connection from a selected service provider.•Mobile IP Support—The cellular HWIC allows you to maintain a seamless connection while transitioning between areas covered by different foreign agents.Table 1 shows the different SKUs and the frequencies supported by the cellular WAN HWICs:170842WWAN RSSI UMTSANTHSDPAHWIC-3G-GSMDiag Port170843WWAN RSSI 1xRTTMAINDIVEVDOHWIC-3G-CDMADiag Port
BETA DRAFT —CISCO CONFIDENTIAL3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series RoutersContents3Cisco IOS Release TBDFeature HistoryFinding Support Information for Platforms and Cisco IOS Software ImagesUse Cisco Feature Navigator to find information about platform support and Cisco IOS software image support. Access Cisco Feature Navigator at http://www.cisco.com/go/fn. You must have an account on Cisco.com. If you do not have an account or have forgotten your username or password, click Cancel at the login dialog box and follow the instructions that appear. Contents•Prerequisites for Configuring the Wireless WAN HWIC, page 3•Restrictions for the Wireless WAN HWIC, page 4•Information About the Wireless WAN HWIC, page 4•How to Configure the Wireless WAN HWIC, page 4•Configuration Examples for the Wireless WAN HWIC, page 7•Command Reference, page 10•Supported Standards, MIBs, and RFCs, page 56•Troubleshooting, page 57•Glossary, page 62Prerequisites for Configuring the Wireless WAN HWICThe following are prerequisites to configuring the Wireless WAN HWICs: •Familiarity with Cisco IOS•Use of the Cisco IOS T-release, beginning with release TBD or later for Cisco HWIC support. (Refer to the Cisco IOS documentation.)•HWIC must be supported by a carrier. Please see data sheet for a list of supported carriers.Table 1 SKU Description and Supported FrequenciesSKU Number Description Region FrequencyHWIC-3G-GSM HSDPA/UMTS/EDGE/GPRS Worldwide 850/900/1800/1900/2100 MHzHWIC-3G-CDMA-V EVDO Rev A/Rel 0/1xRTT US 800/1900MHzHWIC-3G-CDMA-S EVDO Rev A/Rel 0/1xRTT 800/1900MHzRelease ModificationRelease # TBD This feature was introduced.
BETA DRAFT —CISCO CONFIDENTIAL3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series RoutersRestrictions for the Wireless WAN HWIC4Cisco IOS Release TBD•Service availability on the HWIC and certification on the carrier networkRestrictions for the Wireless WAN HWICThe following restrictions apply to the Cisco Wireless WAN HWICs:•Data connection can be originated only by the host platform call; the call by the other peer connected to the cellular network is not supported.•Throughput—due to the shared nature of wireless communications, the experienced throughput varies depending on the number of users in a given network. •Latency—Wireless networks have higher latency compared to other wired networks.•Coverage in your area, at your site, and in the specific location where the router is placed. •Congestion on the network.•Any restrictions that are a part of the terms of service from your carrier.Information About the Wireless WAN HWICTo configure the third generation wireless HWIC feature, you must understand the following concepts:•IOS CLI•Asynchronous communication commands•Modem configuration commandsFor detailed information on Cisco IOS and related topics, go to: http://www.cisco.com/en/US/products/sw/iosswrel/tsd_products_support_category_home.htmlHow to Configure the Wireless WAN HWICThis section contains the following procedures:•Configuring NAT Using the Cellular Modem•Creating and Activating a New CDMA Profile Using OTASP•Activating a GSM Account•Configuring DDR•Asynchronous Line and Reverse Telnet\Configuring NAT Using the Cellular ModemNetwork Address Translation (NAT) operates on a router that is connecting two networks; one of these networks (designated as the inside network) is addressed with either private or obsolete addresses that must be converted into legal addresses before it forwards packets to the other network (designated as the outside network). The translation operates in conjunction with routing, so that NAT can simply be enabled on a customer-side Internet access router when translation is desired.
BETA DRAFT —CISCO CONFIDENTIAL3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series RoutersHow to Configure the Wireless WAN HWIC5Cisco IOS Release TBDNote To configure NAT on your router, see the NAT documentation, which is available at the following URL: http://www.cisco.com/en/US/tech/tk648/tk361/tk438/tsd_technology_support_sub-protocol_home.htmlCreating and Activating a New CDMA Profile Using OTASPTo create and activate a new CDMA profile using Over-the-Air-Service-Provisioning (OTASP), perform the steps in this section. This section contains the following subsections:•Over the Air Service Provisioning•SUMMARY STEPS•DETAILED STEPSNote To create and activate a profile, you must have an active CDMA wireless account.Over the Air Service ProvisioningOver-the-Air Service Provisioning allows you to activate new wireless services over a wireless network. It also allows carriers to add new types of services to a customer's handset by using the wireless network instead of requiring the customer to bring a wireless device to a carrier's location for reprogramming.SUMMARY STEPS1. cellular cdma profile create2. cellular cdma profile activate3. cellular activate ota cdma | gsm 4. show cellular profile DETAILED STEPSUse the following commands to create and activate a new CDMA profile with OTASP:Command or Action PurposeStep 1 cellular<slot/wic_slot/port>cdma profile create <profile number><mdn><min><sid><nid><msl>Creates a new profile.Step 2 cellular<slot/wic_slot/port>cdma profile activate <profile number>Activates the created profile.Step 3 cellular<slot/wic_slot/port>activate ota cdma | gsm <phone number>Initiates over the air activation using OTA/OTASP.Step 4 show cellular<slot/wic_slot/port> profile Verifies the profile data.
BETA DRAFT —CISCO CONFIDENTIAL3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series RoutersHow to Configure the Wireless WAN HWIC6Cisco IOS Release TBDActivating a GSM AccountThe GSM WAN HWIC is equipped with a SIM card slot. The card is pre-provisioned and is available with cellular account-specific information. You must subscribe to a GSM service from a carrier to obtain this card.Configuring DDRTo configure DDR on the interface, perform the steps in this section. This section contains the following subsections:•Dial-on-Demand Routing•SUMMARY STEPS•DETAILED STEPSDial-on-Demand RoutingDial-On-Demand Routing (DDR) is a technique whereby a router can automatically initiate and close a circuit-switched session as transmitting stations demand. The router spoofs keepalives so that end stations treat the session as active. DDR permits routing over ISDN or telephone lines using an external ISDN terminal adaptor or modem.DDR addresses the need for intermittent network connections over circuit-switched WANs. SUMMARY STEPS1. interface cellular dialer in-band2. chat-script ”ATDT*99#” interface cellular dialer-string 3. dialer-list protocol permit4. ip access-list permit 5. show cellular dialer-groupDETAILED STEPSCommand or Action PurposeStep 1 interface cellular<slot/wic_slot/port>dialer in-band Enables DDR on the interface.Step 2 chat-script<carrier string name>””ATDT*99#” interface cellular<slot/wic_slot/port> dialer-string<carrier string name>Defines chat-script for the dialer interface.Step 3 dialer-list <dialer-group> protocol <protocol-name> {permit | deny | list <access-list-number> | access-group}>Creates dialer list for interesting traffic and permits access to an entire protocol.Step 4 ip access-list<access list number>permit <ip source address>Defines interesting traffic.Step 5 show cellular<slot/wic_slot/port> dialer-group<dialer group number> Maps dialer list to the dialer interface.
BETA DRAFT —CISCO CONFIDENTIAL3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series RoutersConfiguration Examples for the Wireless WAN HWIC7Cisco IOS Release TBDAsynchronous Line and Reverse TelnetEach cellular interface has one TTY line associated with it. The line will allow you to use reverse telnet to the cellular modem located in the cellular HWIC.Note Reverse telnet to the modem is allowed only when the modem is not in the data connection.To reverse telnet to the cellular modem, perform the steps in this section. This section contains the following subsections:•SUMMARY STEPS•DETAILED STEPSSUMMARY STEPS1. show line2. telnet3. atiDETAILED STEPSConfiguration Examples for the Wireless WAN HWICThis section provides the following configuration examples: •Configuring NAT Using the Cellular Modem•Asynchronous Line and Reverse Telnet•Configuring the Cellular InterfaceConfiguring NAT Using the Cellular ModemThe following sample configuration shows the configuration of the router with NAT:Command or Action PurposeStep 1 show line In Exec mode, this command shows the line that is communicating to the interface.Step 2 telnet<cellular interface IP address><line number> Example:Router# telnet 10.0.0.1 2001Starts the reverse telnet session.Note Add prefix 20 to line number.Step 3 ATI Gives information on the modem and verifies that the modem is in the reverse telnet session.Step 4 Press Ctrl+Shift+6 together, followed by lower case xPrepares to disconnect the reverse telnet session.Step 5 At router prompt (#), enter disconnect Disconnects the reverse telnet session.
BETA DRAFT —CISCO CONFIDENTIAL3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series RoutersConfiguration Examples for the Wireless WAN HWIC8Cisco IOS Release TBD!version 12.3service timestamps debug datetime msecservice timestamps log datetime msecno service password-encryption!hostname Router!boot-start-markerboot-end-marker!no network-clock-participate aim 0 no network-clock-participate aim 1 no aaa new-modelip subnet-zero!ip cef!ip ips po max-events 100no ftp-server write-enable!chat-script cdma_1x "" "ATDT#19788" TIMEOUT 30 CONNECT!interface Loopback0 ip address 7.7.7.7 255.255.255.0!interface GigabitEthernet0/0 ip address 1.8.12.55 255.0.0.0 duplex auto speed auto!interface GigabitEthernet0/1 ip address 20.0.0.1 255.255.0.0 ip nat inside ip virtual-reassembly duplex auto speed auto!interface Cellular0/0/0 physical-layer async ip address negotiated ip nat outside ip virtual-reassembly encapsulation ppp no ip mroute-cache dialer in-band dialer idle-timeout 2147000 dialer string cdma_1x dialer-group 1 async mode interactive no peer default ip address keepalive 5 3 no fair-queue ppp accm 0 no ppp lcp fast-start!ip classlessip route 0.0.0.0 0.0.0.0 Cellular0/0/0ip route 223.255.254.254 255.255.255.255 GigabitEthernet0/0!ip http serverno ip http secure-serverip nat pool sky 69.82.2.206 69.82.2.206 netmask 255.255.0.0ip nat inside source list 1 pool sky overload
BETA DRAFT —CISCO CONFIDENTIAL3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series RoutersConfiguration Examples for the Wireless WAN HWIC9Cisco IOS Release TBD!access-list 1 permit 20.0.0.0 0.0.255.255dialer-list 1 protocol ip permit!control-plane!line con 0line aux 0 exec-timeout 0 0 no exec transport input allline 0/0/0 exec-timeout 0 0 script dialer cdma_1x login modem InOut no exec transport input all autoselect during-login autoselect ppp stopbits 1 speed 115200 flowcontrol hardwareline vty 0 4 login!scheduler allocate 20000 1000endAsynchronous Line and Reverse TelnetEach cellular interface has one TTY line associated with it. The line will allow you to use reverse telnet to the cellular modem located in the cellular HWIC.Note Reverse telnet to the modem is allowed only when the modem is not in the data connection.The following CLI command starts the Reverse Telnet session:telnet <cellular interface IP address> <line number>An example of the use of this command is:Router# telnet 10.0.0.1 2001To verify if the modem is in the reverse telnet session, enter the command AT. If you see an OK response from the modem, then the session is successful.Configuring the Cellular InterfaceThe following is an example of the cellular interface configuration on Next Generation platforms:interface Cellular0/0/0 encapsulation ppp ip address negotiated no ip mroute-cache dialer in-band
BETA DRAFT —CISCO CONFIDENTIAL3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series RoutersCommand Reference10Cisco IOS Release TBD dialer idle-timeout 2147000 dialer string cdma_1x dialer-group 1 async mode interactive no peer default ip address keepalive 5 3 no fair-queue ppp accm 0 no ppp lcp fast-start ppp chap hostname 4085267374vzw3g.com ppp chap password vzwCommand ReferenceThis section documents new commands only.•cellular cdma profile create•cellular cdma profile activate•cellular cdma otasp•debug cellular messages all•debug cellular messages async•debug cellular messages data•debug cellular messages management•debug cellular messages virt-con•debug cellular messages virt-con•show cellular all•show cellular connection•show cellular hardware•show cellular connection personality•show cellular network•show cellular profile•show cellular radio•show cellular security•show controllers cellular•show interfaces cellular•show interfaces cellular•show run interface cellular•test cellular modem-power-cycle•test cellular modem-reset•test cellular cnm-process-enqueue
BETA DRAFT —CISCO CONFIDENTIAL3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series RoutersCommand Reference11Cisco IOS Release TBDcellular cdma profile createTo create a new CDMA profile, enter the cellular cdma create profile command in privileged EXEC mode. cellular slot/wic_slot/port cdma profile create profile_number mdn min sid nidSyntax DescriptionCommand Default There is no default for this command.Command Modes EXECCommand HistoryUsage Guidelines The cdma profile create command is used to create a new CDMA profile for a cellular modem. Multiple profiles can be created, but only one profile will be active at one time.Examples The following example shows output of the cdma profile create command:2851-b1-sprint#cellular 0/0/0 cdma prof create 0 9134390870 9132214671 4183 87 333830 Profile 0 will be Created and will become ActiveModem will be activated with following Parameters MDN :9134390870; MSID :9132214671; SID :4183; NID 87:Oct 27 00:02:34.051: Checking Current Activation StatusOct 27 00:02:34.107: Modem activation status: Not ActivatedOct 27 00:02:34.107: Begin ActivationOct 27 00:02:34.107: Beginning Profile Provisioning - Step 1 of 5Oct 27 00:02:34.219: Beginning Profile Provisioning - Step 2 of 5Oct 27 00:02:34.271: Beginning Profile Provisioning - Step 3 of 5Oct 27 00:02:34.383: Beginning Profile Provisioning - Step 4 of 5Oct 27 00:02:34.439: Beginning Profile Provisioning - Step 5 of 5Oct 27 00:02:34.495: Secure Commit Result: Succeed (success for all non-provisioning commitOct 27 00:02:34.495: Done Configuring the profile - Resetting the ModemOct 27 00:02:34.551: The Provisioning of the profile is CompleteOct 27 00:02:37.547: %CELLWAN-2-MODEM_UP: Cellular0/1/0 modem is now UPslot/wic_slot/port Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.cdma profile create Displays a summary of the profile you create. profile number The profile number you create.mdn 10-digit mobile directory numbermin 10-digit mobile identity numbersid System IDnid Network IDRelease ModificationThis command was introduced.
BETA DRAFT —CISCO CONFIDENTIAL3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series RoutersCommand Reference12Cisco IOS Release TBDBeginning IOTA2851-b1-sprint#Oct 27 00:02:44.595: IOTA Status Message Received. Event: IOTA Start, Result: SUCCESSOct 27 00:02:44.595: Please wait till IOTA END message is receivedOct 27 00:02:44.595: It can take up to 5 minutes2851-b1-sprint#Oct 27 00:03:10.623: OTASP State = SPL unlock, Result = Successdeb modem2851-b1-sprint#Oct 27 00:03:14.987: OTASP State = Parameters commited to NVRAM, Result = SuccessOct 27 00:03:22.375: IOTA Status Message Received. Event: IOTA End, Result: SUCCESSRelated Commands Command Descriptioncellular cdma profile activate Activates an existing CDMA profile.cellular cdma otasp Activates a cellular account using the over the air (OTA) procedure or over the air service provisioning (OTASP)
BETA DRAFT —CISCO CONFIDENTIAL3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series RoutersCommand Reference13Cisco IOS Release TBDcellular cdma profile activateTo activate an existing CDMA profile, use the cellular cdma profile activate command in EXEC mode.cellular slot/wic_slot/port cdma profile activate profile numberSyntax DescriptionCommand Default There is no default for this command.Command Modes EXECCommand HistoryUsage Guidelines You can verify the profile data using the show cellular slot/wic_slot/port profile CLI.Examples The following is a sample output of the cellular cdma profile activate command:Rc2800#cellular 0/3/0 cdma profile activate 1 Profile 1 will become ActiveActivate Profile SuccessfulRelated Commandsslot/wic_slot/port Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.profile number The existing profile number you want to activate.Release ModificationThis command was introduced.Command Descriptioncellular cdma profile create Creates a new CDMA profile.cellular cdma otasp Activates a cellular account using the over the air (OTA) procedure or over the air service provisioning (OTASP)
BETA DRAFT —CISCO CONFIDENTIAL3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series RoutersCommand Reference14Cisco IOS Release TBDcellular cdma otaspTo activate a cellular account using the over the air (OTA) procedure or over the air service provisioning (OTASP), use the cellular activate ota cdma|gsm command in EXEC mode.cellular slot/wic_slot/port cdma otasp phone_numberSyntax DescriptionCommand Default There is no default for this command.Command Modes EXECCommand HistoryUsage Guidelines You can verify the profile data using the show cellular slot/wic_slot/port profile CLI.Note Use this command only if you have an HWIC-CDMA-V for Verizon.Examples The following example shows output of the for a CDMA account:Enzo#cellular 0/3/0 cdma otasp *22899Beginning OTASP activationOTASP number is *22899Enzo#Enzo#Nov 15 16:32:03.883: OTASP State = SPL unlock, Result = SuccessNov 15 16:32:23.935: OTASP State = PRL downloaded, Result = SuccessNov 15 16:32:24.783: OTASP State = Profile downloaded, Result = SuccessNov 15 16:32:24.783: OTASP State = MDN downloaded, Result = SuccessNov 15 16:32:28.711: OTASP State = Parameters commited to NVRAM, Result = Succes c3845-1#Related Commandsslot/wic_slot/port Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.phone_number Phone number of the carrier that you must dial to begin activation using OTASP. This number is provider-specific. For Verizon, it is *228 or *22899. Release ModificationThis command was introduced.Command Descriptioncellular cdma profile create Creates a new CDMA profile.cellular cdma profile activate Activates an existing CDMA profile.
BETA DRAFT —CISCO CONFIDENTIAL3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series RoutersCommand Reference15Cisco IOS Release TBDdebug cellular messages allTo print all Cisco IOS driver debug messages, use the debug cellular messages all command in EXEC mode.debug cellular slot/wic_slot/port messages allSyntax DescriptionCommand Default There is no default for this command.Command Modes EXECCommand HistoryUsage Guidelines Use this command for debugging purposes only.Related Commandsslot/wic_slot/port Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.Release ModificationThis command was introduced.Command Descriptiondebug cellular messages async Debugs cellular async.debug cellular messages data Prints Cisco IOS data path debug messages.debug cellular messages managementPrints management path messages, such as CnS.debug cellular messages virt-con Prints Diagnostics Monitor (DM) messages from the Qualcomm CDMA chipset.debug cellular messages virt-con Redirects the Nios II console driver messages to display them in the Cisco IOS router console environment.
BETA DRAFT —CISCO CONFIDENTIAL3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series RoutersCommand Reference16Cisco IOS Release TBDdebug cellular messages asyncTo debug cellular async, use the debug cellular messages async command in EXEC mode.debug cellular slot/wic_slot/port messages asyncSyntax DescriptionCommand Default There is no default for this command.Command Modes EXECCommand HistoryUsage Guidelines Use this command for debugging purposes only.Related Commandsslot/wic_slot/port Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.Release ModificationThis command was introduced.Command Descriptiondebug cellular messages all Prints all Cisco IOS driver debug messages.debug cellular messages data Prints Cisco IOS data path debug messages.debug cellular messages managementPrints management path messages, such as CnS.debug cellular messages virt-con Prints Diagnostics Monitor (DM) messages from the Qualcomm CDMA chipset.debug cellular messages virt-con Redirects the Nios II console driver messages to display them in the Cisco IOS router console environment.
BETA DRAFT —CISCO CONFIDENTIAL3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series RoutersCommand Reference17Cisco IOS Release TBDdebug cellular messages dataTo print IOS data path debug messages, use the debug cellular messages data command in EXEC mode.show cellular slot/wic_slot/port messages dataSyntax DescriptionCommand Default There is no default for this command.Command Modes EXECCommand HistoryUsage Guidelines Use this command for debugging purposes only.Related Commandsslot/wic_slot/port Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.Release ModificationThis command was introduced.Command Descriptiondebug cellular messages all Prints all Cisco IOS driver debug messages.debug cellular messages async Debugs cellular async.debug cellular messages managementPrints management path messages, such as CnS.debug cellular messages virt-con Prints Diagnostics Monitor (DM) messages from the Qualcomm CDMA chipset.debug cellular messages virt-con Redirects the Nios II console driver messages to display them in the Cisco IOS router console environment.
BETA DRAFT —CISCO CONFIDENTIAL3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series RoutersCommand Reference18Cisco IOS Release TBDdebug cellular messages dmTo print Diagnostics Monitor (DM) messages from the Qualcomm CDMA chipset, use the debug cellular messages dm command in EXEC mode.debug cellular slot/wic_slot/port messages dmSyntax DescriptionCommand Default There is no default for this command.Command Modes EXECCommand HistoryUsage Guidelines Use this command for debugging purposes only.Related Commandsslot/wic_slot/port Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.Release ModificationThis command was introduced.Command Descriptiondebug cellular messages all Prints all Cisco IOS driver debug messages.debug cellular messages async Debugs cellular async.debug cellular messages data Prints Cisco IOS data path debug messages.debug cellular messages managementPrints management path messages, such as CnS.debug cellular messages virt-con Redirects the Nios II console driver messages to display them in the Cisco IOS router console environment.
BETA DRAFT —CISCO CONFIDENTIAL3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series RoutersCommand Reference19Cisco IOS Release TBDdebug cellular messages managementTo print management path messages, such as CnS, use the debug cellular messages management command in EXEC mode.debug cellular slot/wic_slot/port messages managementSyntax DescriptionCommand Default There is no default for this command.Command Modes EXECCommand HistoryUsage Guidelines Use this command for debugging purposes only.Related Commandsslot/wic_slot/port Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.Release ModificationThis command was introduced.Command Descriptiondebug cellular messages all Prints all Cisco IOS driver debug messages.debug cellular messages async Debugs cellular async.debug cellular messages data Prints Cisco IOS data path debug messages.debug cellular messages virt-con Prints Diagnostics Monitor (DM) messages from the Qualcomm CDMA chipset.debug cellular messages virt-con Redirects the Nios II console driver messages to display them in the Cisco IOS router console environment.
BETA DRAFT —CISCO CONFIDENTIAL3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series RoutersCommand Reference20Cisco IOS Release TBDdebug cellular messages virt-conTo redirect the Nios II console driver messages to display them in the Cisco IOS router console environment, use the debug cellular virt-con command in EXEC mode.debug cellular slot/wic_slot/port virt-con {clear | disable | dump-data-structs | log | monitor | wrapper-on | wrapper-off}Syntax DescriptionCommand Default There is no default for this command.Command Modes EXECCommand HistoryUsage Guidelines Use this command for debugging purposes only.Related Commandsslot/wic_slot/port Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.clear (Optional) Clears all virtual console debug log messages.disable (Optional) Disables virtual console real time debug monitoring.dump-data-structs (Optional) Dumps virtual console data structures.log (Optional) Displays virtual console messages from the debug log.monitor (Optional) Enables monitoring of real time virtual console debug messages.wrapper-on (Optional) Disables wrap around for virtual console log messages.wrapper-off (Optional) Enables wrap around for virtual console log messages.Release ModificationThis command was introduced.Command Descriptiondebug cellular messages all Prints all Cisco IOS driver debug messages.debug cellular messages async Debugs cellular async.debug cellular messages data Prints Cisco IOS data path debug messages.debug cellular messages managementPrints management path messages, such as CnS.debug cellular messages virt-con Prints Diagnostics Monitor (DM) messages from the Qualcomm CDMA chipset.

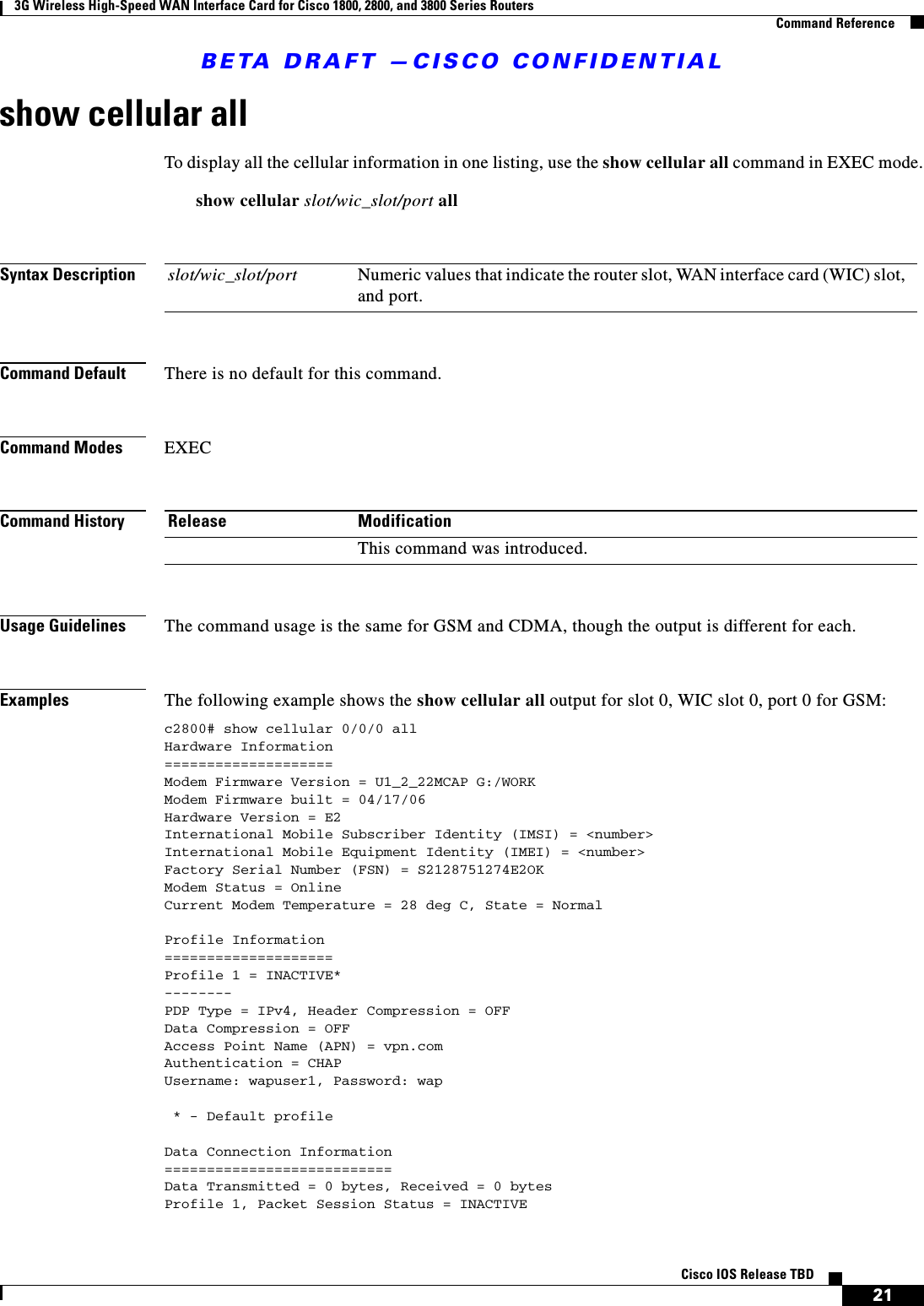

BETA DRAFT —CISCO CONFIDENTIAL3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series RoutersCommand Reference21Cisco IOS Release TBDshow cellular allTo display all the cellular information in one listing, use the show cellular all command in EXEC mode.show cellular slot/wic_slot/port allSyntax DescriptionCommand Default There is no default for this command.Command Modes EXECCommand HistoryUsage Guidelines The command usage is the same for GSM and CDMA, though the output is different for each.Examples The following example shows the show cellular all output for slot 0, WIC slot 0, port 0 for GSM:c2800# show cellular 0/0/0 allHardware Information====================Modem Firmware Version = U1_2_22MCAP G:/WORKModem Firmware built = 04/17/06Hardware Version = E2International Mobile Subscriber Identity (IMSI) = <number>International Mobile Equipment Identity (IMEI) = <number>Factory Serial Number (FSN) = S2128751274E2OKModem Status = OnlineCurrent Modem Temperature = 28 deg C, State = NormalProfile Information====================Profile 1 = INACTIVE*--------PDP Type = IPv4, Header Compression = OFFData Compression = OFFAccess Point Name (APN) = vpn.comAuthentication = CHAPUsername: wapuser1, Password: wap * - Default profileData Connection Information===========================Data Transmitted = 0 bytes, Received = 0 bytesProfile 1, Packet Session Status = INACTIVEslot/wic_slot/port Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.Release ModificationThis command was introduced.
BETA DRAFT —CISCO CONFIDENTIAL3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series RoutersCommand Reference22Cisco IOS Release TBD Inactivity Reason = Normal inactivate stateProfile 2, Packet Session Status = INACTIVE Inactivity Reason = Normal inactivate stateProfile 3, Packet Session Status = INACTIVE Inactivity Reason = Normal inactivate stateProfile 4, Packet Session Status = INACTIVE Inactivity Reason = Normal inactivate stateProfile 5, Packet Session Status = INACTIVE Inactivity Reason = Normal inactivate stateProfile 6, Packet Session Status = INACTIVE Inactivity Reason = Normal inactivate stateProfile 7, Packet Session Status = INACTIVE Inactivity Reason = Normal inactivate stateProfile 8, Packet Session Status = INACTIVE Inactivity Reason = Normal inactivate stateProfile 9, Packet Session Status = INACTIVE Inactivity Reason = Normal inactivate stateProfile 10, Packet Session Status = INACTIVE Inactivity Reason = Normal inactivate statec2800#Network Information===================Current Service Status = No service, Service Error = NoneCurrent Service = InvalidPacket Service = NonePacket Session Status = InactiveCurrent Roaming Status = HomeNetwork Selection Mode = AutomaticCountry = 0, Network = Mobile Country Code (MCC) = 0Mobile Network Code (MNC) = 0Location Area Code (LAC) = 0Routing Area Code (RAC) = 255Cell ID = 0Primary Scrambling Code = 0PLMN Selection = Automatic Radio Information=================Current Band = None, Channel Number = 0Current RSSI = -110 dBm Modem Security Information==========================Card Holder Verification (CHV1) = DisabledSIM Status = OKSIM User Operation Required = NoneNumber of Retries remaining = 3c2800#The following example shows the show cellular all output for slot 0, WIC slot 3, port 0 for CDMA:c2800#sh cellular 0/3/0 allHardware Information====================Modem Firmware Version = p2005300Modem Firmware built = 09-13-06Hardware Version = 1.0Electronic Serial Number (ESN) = 0x6032692APreferred Roaming List (PRL) Version = 10Current Modem Temperature = 30 degrees Celsius Profile Information====================
BETA DRAFT —CISCO CONFIDENTIAL3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series RoutersCommand Reference23Cisco IOS Release TBDElectronic Serial Number (ESN) = 0x6032692AModem activated = NOProfile Prov Date MDN MSID======= ========== =============== =========== 0 None 0000006458 0000006458 *1 None 8585551515 0000006951 * - Default Profile Data Connection Information===========================Phone number of outgoing call = HDR AT State = Inactive, HDR Session State = OpenHDR Session Info: UATI (Hex) = FEA0:0000:0000:0000:0000:0000:0000:0003 Color Code = 64, RATI = 0xFFFFFFFF Session duration = 0 msecs, Session start = 0 msecs Session end = 0 msecs, Authentication Status = Authentication disabledHDR DRC Value = 0, DRC Cover = 0, RRI = Pilot onlyCurrent Transmitted = 0 bytes, Received = 0 bytesTotal Transmitted = 0 KB, Received = 0 KBCurrent Call Status = NoneCurrent Call Duration = 0 secsTotal Call Duration = 234255 secondsCurrent Call State = Last Call Disconnect Reason = Modem offlineLast Connection Error = NoneHDR DDTM (Data Dedicated Transmission Mode) Preference = Off Network Information===================Current Service = No ServiceCurrent Roaming Status(1xRTT) = HOME, (HDR) = HOMECurrent Idle Digital Mode = No ServiceCurrent System Identifier (SID) = 0Current Network Identifier (NID) = 0Serving Base Station Longitude = 0 deg 0 min 0 secServing Base Station Latitude = 0 deg 0 min 0 secCurrent System Time = Sun Jan 6 0:28:57 1980 Radio Information=================1xRTT related info------------------Current RSSI = -125 dBm, ECIO = -2 dBmCurrent Channel Number = 88Current Channel State = ScanningCurrent Band Class = Band Class 1 HDR related info----------------Current RSSI = -125 dBm, ECIO = -2 dBmCurrent Channel Number = 88Current Band Class = Band Class 1Sector ID (Hex) = 0000:0000:0000:0000:0000:0000:0000:0000Subnet Mask = 0, Color Code = 0, PN Offset = 0Rx gain control(Main) = Unavailable, Diversity = UnavailableTx total power = 0 dBm, Tx gain adjust = 0 dBmCarrier to interference (C/I) ratio = 0 Modem Security Information==========================Modem PIN Security UNLOCKEDPower-up lock DISABLED
BETA DRAFT —CISCO CONFIDENTIAL3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series RoutersCommand Reference24Cisco IOS Release TBDc2800#Related Commands Command Descriptioncellular cdma otasp Displays the current active connection state and statistics.debug cellular messages all Displays the cellular modem hardware information.debug cellular messages data Displays the cellular network (base station) information.debug cellular messages managementDisplays the cellular profile information.show cellular radio Displays the cellular modem radio statistics.show cellular security Displays the modem lock state.show controllers cellular Displays the SMS messages received by the cellular modem.
BETA DRAFT —CISCO CONFIDENTIAL3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series RoutersCommand Reference25Cisco IOS Release TBDshow cellular connectionTo display the current active connection state and statistics, use the show cellular connection command in EXEC mode.show cellular slot/wic_slot/port connectionSyntax DescriptionCommand Default There is no default for this command.Command Modes EXECCommand HistoryUsage Guidelines The command usage is the same for GSM and CDMA, though the output is different for each.Examples The following example shows output for code division multiple access (CDMA) for slot 0, WIC slot 0, port 0:c2800#sh cellular 0/0/0 connection Phone number of outgoing call = #777HDR AT State = Connected, HDR Session State = OpenHDR Session Info: UATI (Hex) = 0080:0580:0000:0000:000A:CCC5:45C1:8E52 Color Code = 237, RATI = 0xC739C302 Session duration = 672 msecs, Session start = 368388914 msecs Session end = 368390063 msecs, Authentication Status = Not authenticatedHDR DRC Value = 9, DRC Cover = 1, RRI = 38.4 kbpsCurrent Transmitted = 379707 bytes, Received = 374429 bytesTotal Transmitted = 83514 KB, Received = 454699 KBCurrent Call Status = CONNECTEDPrivacy Mode = OFF, Service Option = 33023Current Call Duration = 1554 secsTotal Call Duration = 234255 secondsCurrent Call State = AT Packet CallLast Call Disconnect Reason = Base station release (No reason)Last Connection Error = NoneHDR DDTM (Data Dedicated Transmission Mode) Preference = OffMobile IP Error Code (RFC-2002) = 0 (Registration accepted)Table 8 describes the output fields for CDMA for this command:slot/wic_slot/port Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.Release ModificationThis command was introduced.
BETA DRAFT —CISCO CONFIDENTIAL3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series RoutersCommand Reference26Cisco IOS Release TBDTable 2 Output DescriptionField DescriptionPhone number of outgoing call Shows the phone number of the data call dialed.HDR AT State Indicates the AT state. Will show as CONNECTED when the CONNECT is received from the modem while dialing out. This is valid only for 1xEVDO.HDR Session State Will indicate as OPEN once the HDR session is established. This is valid only for 1xEVDOUATI Unicast Access Terminal Identifier (UATI) obtained by the modem/access terminal (AT) from the base station during session establishment.Color Code HDR session color code of the sector.RATI HDR Random Access Terminal Identifier used for opening the sessionSession Duration HDR Session duration in milliseconds.Session Start Phone uptime in units of milliseconds at session start.Session End Phone uptime in units of milliseconds at session end.Authentication Status Modem/Access terminal authentication status with the base station.HDR DRC Value The data rate channel value specified by the access terminal. The access terminal uses DRC value to specify the requested transmission rateDRC Cover DRC cover value used by the access terminal to specify the transmitting sector.RRI Indicates the rate of the reverse traffic data channel.Current Transmitted Number of bytes transmitted by the modem to the base station. This will be cleared when the call is disconnected.Current Received Number of bytes received by the modem from the base station. This will be cleared when the call is disconnected.Current call status Current call status of the modem, e.g., Connected, Disconnected, Dormant, Connecting, Error.Privacy Mode Current privacy status of the call in progress.Service Option Service option for the call in progress.Current Call Duration Duration of the call in progress. If the call status is DISCONNECTED, it indicates the call duration of the last call.Total Transmitted Total number of KB transmitted from the modem. This will be cleared on "clear counters".
BETA DRAFT —CISCO CONFIDENTIAL3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series RoutersCommand Reference27Cisco IOS Release TBDThe following example shows output for global system for mobile communication (GSM): # show cellular 1/0/1 connectionData Transmitted = 1066807500 bytes, Received = 1066807500 bytesProfile 1, Packet Session Status = ACTIVE IP address = 1.5.97.2Profile 2, Packet Session Status = INACTIVE Inactivity Reason = Normal inactivate stateTable 9 describes the output for the GSM command:Related CommandsTotal Received Total number of KB received by the modem. This will be cleared on "clear counters".Total Call Duration Total duration of calls made from the modem. This will be updated when the current call in progress is disconnected.Current Call State Indicates the type of call made. Since Enzo supports only data calls dialed using chat script, this will show as AT Packet Call. Last Call Disconnect Reason Indicates why the last call was disconnected.Last Connection Error Indicates the error code if the call status indicates error.Mobile IP Error Code Indicates the error code as per RFC-2002 if the call is a mobile IP call.Table 2 Output Description (continued)Field DescriptionTable 3 Output DescriptionField DescriptionData Transmitted Total data transmitted by the modem. Can be cleared by the clear counters command.Data Received Total data received by the modem. Can be cleared by the clear counters command.Profile <profile number> Indicates the profiles configured in the modem. Total of 16 profiles can be configuredPacket Session Status PDP session status of the profile. Active when the call is made and PDP context has become active in the modem.IP Address IP address of the cellular interface received during IPCP negotiationInactivity Reason Reason why the profile is inactive.Command Descriptioncellular cdma profile activate Displays all the show cellular information in one listing.debug cellular messages all Displays the cellular modem hardware information.debug cellular messages data Displays the cellular network (base station) information.
BETA DRAFT —CISCO CONFIDENTIAL3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series RoutersCommand Reference28Cisco IOS Release TBDdebug cellular messages managementDisplays the cellular profile information.show cellular radio Displays the cellular modem radio statistics.show cellular security Displays the modem lock state.show controllers cellular Displays the SMS messages received by the cellular modem.Command Description
BETA DRAFT —CISCO CONFIDENTIAL3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series RoutersCommand Reference29Cisco IOS Release TBDshow cellular connection personalityTo display the negotiated personalities when the 1xEVDO-Rev A service is acquired by the modem, use the show cellular connection personality command in EXEC mode.show cellular slot/wic_slot/port connection personalitySyntax DescriptionCommand Default There is no default for this command.Command Modes EXECCommand HistoryUsage Guidelines NoneExamples The following example shows output for code division multiple access (CDMA) for slot 0, WIC slot 0, port 0:c2800#sh cellular 0/0/0 connection personalityCurrent Active Personality = Personality1Personality 1:=============Physical Layer Protocol =Control Channel MAC Protocol =Access Channel MAC Protocol = Forward Traffic Channel MAC Protocol = Reverse Traffic Channel MAC Protocol =Key Exchange Protocol = Authentication Protocol = Encryption Protocol = Security Protocol = Idle State Protocol =Generic Multimode Capability Discovery Protocol =Generic Virtual Stream Protocol = Other Negotiated Personalities============================== Personality 2:=============Stream 0 Application Subtype =Stream 1 Application Subtype =Stream 2 Application Subtype =Stream 3 Application Subtype =slot/wic_slot/port Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.Release ModificationThis command was introduced.
BETA DRAFT —CISCO CONFIDENTIAL3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series RoutersCommand Reference30Cisco IOS Release TBDRelated Commands Command Descriptioncellular cdma profile activate Displays all the show cellular information in one listing.debug cellular messages all Displays the cellular modem hardware information.debug cellular messages data Displays the cellular network (base station) information.debug cellular messages managementDisplays the cellular profile information.show cellular radio Displays the cellular modem radio statistics.show cellular security Displays the modem lock state.show controllers cellular Displays the SMS messages received by the cellular modem.
BETA DRAFT —CISCO CONFIDENTIAL3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series RoutersCommand Reference31Cisco IOS Release TBDshow cellular connection statistics single-userTo display the forward traffic and control channel, use the show cellular connection statistics single-user command in EXEC mode.show cellular slot/wic_slot/port connection statistics single-userSyntax DescriptionCommand Default There is no default for this command.Command Modes EXECCommand HistoryUsage Guidelines To clear the statictics, use the clear counters command.Examples The following example shows output for code division multiple access (CDMA) for slot 0, WIC slot 0, port 0:c2800#sh cellular 0/0/0 connection statistics single-userForward Traffic Channel Statistics==================================DRC Info (kbps) CRC Count Passed CRC Count Failed=============== ================ ================DRC_00 ( 0) 0 0 DRC_01 ( 38.4) 0 0 DRC_02 ( 76.8) 0 0 DRC_03 ( 153.6) 0 0 DRC_04 ( 307.2) 0 0 DRC_05 ( 307.2) 0 0 DRC_06 ( 614.4) 0 0 DRC_07 ( 614.4) 0 0 DRC_08 ( 921.6) 0 0 DRC_09 (1228.8) 0 0 DRC_10 (1228.8) 0 0 DRC_11 (1843.2) 0 0 DRC_12 (2457.6) 0 0 DRC_13 ( 1536) 0 0 DRC_14 ( 3072) 0 0 Forward Control Channel Statistics================================== DRC Info CRC Count CRC Count Kbps Format Passed Failed ==== ============== ================ ================slot/wic_slot/port Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.Release ModificationThis command was introduced.
BETA DRAFT —CISCO CONFIDENTIAL3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series RoutersCommand Reference32Cisco IOS Release TBD38.4 1024,16,1024 0 0 76.8 1024,8,512 0 0 Total Bad Packets Received = 0Total Packets Received = 0Packet Error Rate = 00.00 %Throughput When Served = 0 kbpsInstantaneous Throughput = 0 kbpsAverage Throughput (1sec) = 0 kbpsForward Traffic Channel Termination Slot Count Statistics==========================================================DRC Info Termination Slot Count 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16======== ========== ========== ========== ========== ========== ==========DRC_00 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 DRC_01 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 DRC_02 0 0 0 0 0 0 0 0 DRC_03 0 0 0 0 DRC_04 0 0 DRC_05 0 0 0 0 DRC_06 0 DRC_07 0 0 DRC_08 0 0 DRC_09 0 DRC_10 0 0 DRC_11 0 DRC_12 0 DRC_13 0 0 DRC_14 0 Forward Control Channel Termination Slot Count Statistics=========================================================38.4 kbps 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 76.8 kbps 0 0 0 0 0 0 0 0 Related Commands Command Descriptioncellular cdma profile activate Displays all the show cellular information in one listing.debug cellular messages all Displays the cellular modem hardware information.debug cellular messages data Displays the cellular network (base station) information.debug cellular messages managementDisplays the cellular profile information.show cellular radio Displays the cellular modem radio statistics.show cellular security Displays the modem lock state.show controllers cellular Displays the SMS messages received by the cellular modem.
BETA DRAFT —CISCO CONFIDENTIAL3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series RoutersCommand Reference33Cisco IOS Release TBDshow cellular connection statistics multi-userTo display the forward channle statistics for mulit-user traffic for the 1xEVDO-Rev A service, use the show cellular connection statistics multi-user command in EXEC mode.show cellular slot/wic_slot/port connection statistics multi-userSyntax DescriptionCommand Default There is no default for this command.Command Modes EXECCommand HistoryUsage Guidelines To clear the statictics, use the clear counters command.Examples The following example shows output for code division multiple access (CDMA) for slot 0, WIC slot 0, port 0:c2800#sh cellular 0/0/0 connection statistics multi-userDRC Info (Kbps) Format CRC Count Passed CRC Count Failed=============== ============ ================ ================DRC_03 ( 19.2) 128,4,256 0 0 DRC_03 ( 38.4) 256,4,256 0 0 DRC_03 ( 76.8) 512,4,256 0 0 DRC_03 ( 153.6) 1024,4,256 0 0 DRC_05 ( 307.2) 2048,4,128 0 0 DRC_08 ( 921.6) 3072,2,64 0 0 DRC_10 (1228.8) 4096,2,64 0 0 DRC_13 (1536.0) 5120,2,64 0 0 Total Bad Packets Received = 0Total Packets Received = 0Packet Error Rate = 00.00 %Throughput When Served = 0 kbpsInstantaneous Throughput = 0 kbpsAverage Throughput (1sec) = 0 kbps Termination Slot CountDRC Info (Kbps) Format 1 2 3 4=============== ========== ========== ========== ========== ==========DRC_03 ( 19.2) 128,4,256 0 0 0 0 DRC_03 ( 38.4) 256,4,256 0 0 0 0 DRC_03 ( 76.8) 512,4,256 0 0 0 0 DRC_03 ( 153.6) 1024,4,256 0 0 0 0 DRC_05 ( 307.2) 2048,4,128 0 0 0 0 slot/wic_slot/port Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.Release ModificationThis command was introduced.

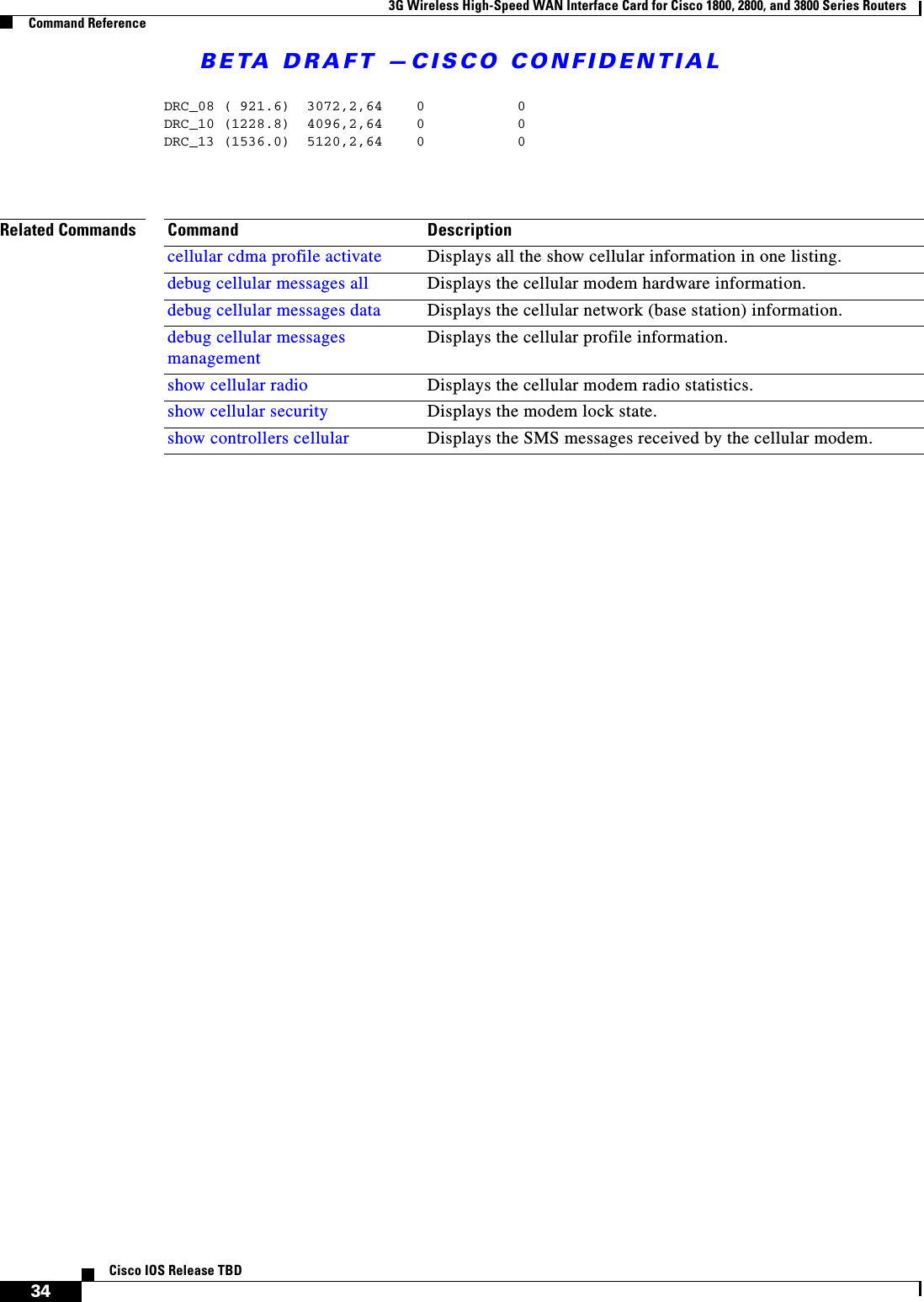

BETA DRAFT —CISCO CONFIDENTIAL3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series RoutersCommand Reference34Cisco IOS Release TBDDRC_08 ( 921.6) 3072,2,64 0 0 DRC_10 (1228.8) 4096,2,64 0 0 DRC_13 (1536.0) 5120,2,64 0 0 Related Commands Command Descriptioncellular cdma profile activate Displays all the show cellular information in one listing.debug cellular messages all Displays the cellular modem hardware information.debug cellular messages data Displays the cellular network (base station) information.debug cellular messages managementDisplays the cellular profile information.show cellular radio Displays the cellular modem radio statistics.show cellular security Displays the modem lock state.show controllers cellular Displays the SMS messages received by the cellular modem.
BETA DRAFT —CISCO CONFIDENTIAL3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series RoutersCommand Reference35Cisco IOS Release TBDshow cellular hardwareTo display the cellular modem hardware information, use the show cellular hardware command in EXEC mode.show cellular slot/wic_slot/port hardwareSyntax DescriptionCommand Default There is no default for this command.Command Modes EXECCommand HistoryUsage Guidelines The command usage is the same for GSM and CDMA, though the output is different for each.Examples The following example shows output for code division multiple access (CDMA) for slot 0, WIC slot 0, port 0:# show cellular 0/0/0 hardwareModem Firmware Version = p2005300Modem Firmware built = 09-13-06Hardware Version = 1.0Electronic Serial Number (ESN) = 0x6032692APreferred Roaming List (PRL) Version = 10Current Modem Temperature = 31 degrees Celsiusslot/wic_slot/port Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.Release ModificationThis command was introduced.Table 4 Output Description for show cellular hardware command for CDMAField DescriptionModem Firmware Version Firmware version of the modem.Modem Firmware Built Date firmware was built in mm-dd-yy formatHardware Version Modem hardware version.Electronic Serial Number Unique serial number of the modem.
BETA DRAFT —CISCO CONFIDENTIAL3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series RoutersCommand Reference36Cisco IOS Release TBDThe following example shows output for global system for mobile communication (GSM) for slot 0, WIC slot 0, port 0: # show cellular 0/0/0 hardwareModem Firmware Version = H1_0_0_1MCAP C:/WS/Modem Firmware built = 09/08/06Hardware Version = 1.0International Mobile Subscriber Identity (IMSI) = <number>International Mobile Equipment Identity (IMEI) = <number>Factory Serial Number (FSN) = X2819460254100DModem Status = OnlineCurrent Modem Temperature = 33 deg C, State = NormalRelated CommandsPreferred Roaming List (PRL) Version PRL version is unique to a service provider. This indicates to the modem which channels the modem should scan.Current Modem Temperature Radio temperature of the modem in celsius.Table 4 Output Description for show cellular hardware command for CDMA (continued)Field DescriptionTable 5 Output Description for show cellular hardware command for GSMField DescriptionModem Firmware Version Firmware version of the modem.Modem Firmware Built Date firmware was built in mm-dd-yy formatHardware Version Modem hardware version.International Mobile Subscriber Identity (IMSI) IMSI is stored in the SIM. IMSI consists of MCC (mobile country code, 3 digits), MNC (mobile network code, 3 for N. America and 2 digits for rest of the world) and MSIN (mobile station identification number). The MCC and MNC in the IMSI identify the subscribers PLMN (Public Land Mobile Network). International Mobile Equipment Identity (IMEI) Number that uniquely identifies the modem in a GSM/UMTS network.Factory Serial Number (FSN) Unique serial number of the modem.Modem Status Will be online if the modem has booted up fine, otherwise will be offline and the modem will be unusable.Current Modem Temperature Radio temperature of the modem in celsius. State is normal when temperature is between -15 deg C to 85 deg C. If state reaches critical (108 deg C), the modem will be shutdown.Command Descriptioncellular cdma profile activate Displays all the show cellular information in one listing.cellular cdma otasp Displays the current active connection state and statistics.debug cellular messages data Displays the cellular network (base station) information.
BETA DRAFT —CISCO CONFIDENTIAL3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series RoutersCommand Reference37Cisco IOS Release TBDdebug cellular messages managementDisplays the cellular profile information.show cellular radio Displays the cellular modem radio statistics.show cellular security Displays the modem lock state.show controllers cellular Displays the SMS messages received by the cellular modem.Command Description
BETA DRAFT —CISCO CONFIDENTIAL3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series RoutersCommand Reference38Cisco IOS Release TBDshow cellular networkTo display the cellular network (base station) information, use the show cellular network command in EXEC mode.show cellular slot/wic_slot/port networkSyntax DescriptionCommand Default There is no default for this command.Command Modes EXECCommand HistoryUsage Guidelines The command usage is the same for GSM and CDMA, though the output is different for each.Examples The following example shows output for code division multiple access (CDMA) for slot 0, WIC slot 0, port 0:# show cellular 0/0/0 networkCurrent Service = 1xEV-DO and 1xRTTCurrent Roaming Status(1xRTT) = HOME, (HDR) = HOME Current Idle Digital Mode = HDR Current System Identifier (SID) = 40 Current Network Identifier (NID) = 2 Serving Base Station Longitude = 0 deg 0 min 0 sec Serving Base Station Latitude = 0 deg 0 min 0 sec Current System Time = Tue Sep 26 13:49:22 2006slot/wic_slot/port Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.Release ModificationThis command was introduced.Table 6 Output Description for show cellular hardware command for GSMField DescriptionCurrent Service Service attached by the modem.Current Roaming Status Indicates whether the modem is in the home network or roaming.Current Idle Digital Mode Idle mode of the modem.Current System Identifier SID received by the modem (applicable only for 1xRTT)Current Network Identifier NID received by the modem (applicable only for 1xRTT).
BETA DRAFT —CISCO CONFIDENTIAL3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series RoutersCommand Reference39Cisco IOS Release TBDThe following example shows output for global system for mobile communication (GSM) for slot 0, WIC slot 0, port 0: # show cellular 0/0/0 networkCurrent Service Status = Normal, Service Error = NoneCurrent Service = CombinedPacket Service = UMTS/WCDMA (Attached)Packet Session Status = InactiveCurrent Roaming Status = RoamingNetwork Selection Mode = AutomaticCountry = USA, Network = CINGULARMobile Country Code (MCC) = 310Mobile Network Code (MNC) = 380Location Area Code (LAC) = 56997Routing Area Code (RAC) = 253Cell ID = 4503Primary Scrambling Code = 169PLMN Selection = AutomaticRegistered PLMN = Cingular , Abbreviated = Service Provider = Current BSS Longitude/Latitude Geographic location of the BSS (if this information is received from the BSS).Current System Time System time received from the base station.Table 6 Output Description for show cellular hardware command for GSM (continued)Field DescriptionTable 7 Output Description for show cellular hardware command for GSMField DescriptionCurrent Service Status Indicates whether service is available.Current Service Error Shows the error in case there is no serviceCurrent Idle Digital Mode Idle mode of the modem.Packet Service Indicates the type of service available. For normal operation, the modem should be attached.Packet Session Status Status of PDP session. When data transfer is taking place, packet session will be active.Current Roaming Status Indicates whether the modem is in the home network or roaming.Network Selection Mode Can be manual or automatic selection mode. Set to automatic by default.Country Country string given by the base station.Network Network string given by the base station.Mobile Country Code Country code given by the base station. Only if the country code given by the base station matches the MCC of the IMSI and the network code given by the base station matches the MNC of the IMSI, the modem will be in the home network.

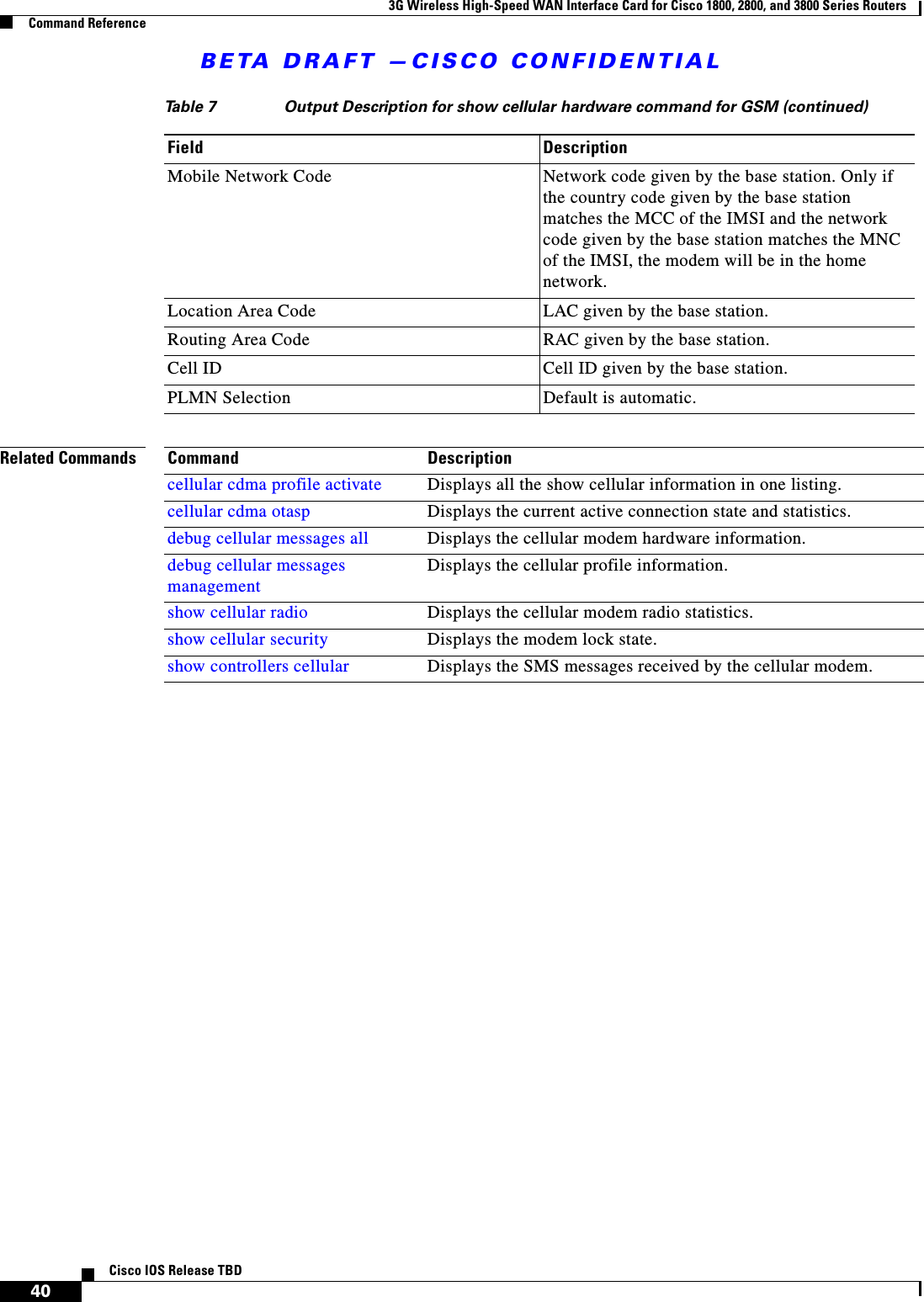

BETA DRAFT —CISCO CONFIDENTIAL3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series RoutersCommand Reference40Cisco IOS Release TBDRelated CommandsMobile Network Code Network code given by the base station. Only if the country code given by the base station matches the MCC of the IMSI and the network code given by the base station matches the MNC of the IMSI, the modem will be in the home network.Location Area Code LAC given by the base station.Routing Area Code RAC given by the base station.Cell ID Cell ID given by the base station.PLMN Selection Default is automatic.Table 7 Output Description for show cellular hardware command for GSM (continued)Field DescriptionCommand Descriptioncellular cdma profile activate Displays all the show cellular information in one listing.cellular cdma otasp Displays the current active connection state and statistics.debug cellular messages all Displays the cellular modem hardware information.debug cellular messages managementDisplays the cellular profile information.show cellular radio Displays the cellular modem radio statistics.show cellular security Displays the modem lock state.show controllers cellular Displays the SMS messages received by the cellular modem.
BETA DRAFT —CISCO CONFIDENTIAL3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series RoutersCommand Reference41Cisco IOS Release TBDshow cellular profileTo display the cellular profile information, use the show cellular profile command in EXEC mode.show cellular slot/wic_slot/port profileSyntax DescriptionCommand Default Profile 1 is the default for this command.Command Modes EXECCommand HistoryUsage Guidelines The command usage is the same for GSM and CDMA, though the output is different for each.Examples The following example shows output for code division multiple access (CDMA) for slot 0, WIC slot 1, port 1:# show cellular 0/1/1 profileElectronic Serial Number (ESN) = 12637162381Modem activated = YESProfile Prov Date MDN MIN======= ========== =============== =========== *1 2005/04/10 123456789012345 1234567890 2 2005/01/10 687679789898977 7877886775“*” indicates the default profile.Table 8 describes the output fields from the command for CDMA:slot/wic_slot/port Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.Release ModificationThis command was introduced.Table 8 Field DescriptionField DescriptionElectronic Serial Number A unique serial number of the CDMA modem.Modem Activated Indicates the activation status of the modem. Yes indicates that the modem is activated by the carrier.Profile Profile supported by MC57xx modems. Note MC57xx modems support two profiles. Only one profile can be active at a time.
BETA DRAFT —CISCO CONFIDENTIAL3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series RoutersCommand Reference42Cisco IOS Release TBDThe following example shows output for global system for mobile communication (GSM) for slot 0, WIC slot 1, port 1: # show cellular 0/1/1 profileProfile 1 = ACTIVE--------PDP Type = IPv4, Header Compression = ONData Compression = ONPDP address = 0x7F000201Access Point Name (APN) = enzo.cisco.comAuthentication = CHAPUsername: cisco, Password: labPrimary DNS address = 127.0.2.1Source Address = 127.0.2.1 255.255.255.0 Profile 2 = INACTIVE---------PDP Type = IPv4, Header Compression = ONData Compression = ONPDP address = 0x7F000202Access Point Name (APN) = enzo.cingular.comAuthentication = CHAPUsername: cisco, Password: labPrimary DNS address = 127.0.2.1Source Address = 127.0.2.2 255.255.255.0Table 9 describes the output for the GSM modem:Field DescriptionProvDate Date the modem was provisioned, in YYYY/MM/DD format.MDN Mobile Directory Number assigned to the modem by the carrier during provisioning.MIN Mobile Identity Number assigned to the modem by the carrier during provisioningTable 8 Field Description (continued)Field DescriptionTable 9 Field DescriptionField DescriptionProfile <number> Shows whether a particular profile is ACTIVE or INACTIVE. The profile is ACTIVE when the PDP context is active. This happens when a data call is successfully established.PDP Type Indicates the PDP type. Supported type is IPv4.PDP Address Shows the IP address assigned for the PDP context during PPP negotiationAccess Point Name PDP AddressAccess Point Name for the profile This information is provided by the service provider.
BETA DRAFT —CISCO CONFIDENTIAL3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series RoutersCommand Reference43Cisco IOS Release TBDRelated CommandsAuthentication PPP Authentication supported. CHAP and PAP are supported. The type of authentication to be used is provided by the service provider.Username Username to be used for PPP authentication. This information is provided by the service provider.Password Password to be used for PPP authentication. This information is provided by the service provider.Table 9 Field Description (continued)Field DescriptionCommand Descriptioncellular cdma profile activate Displays all the show cellular information in one listing.cellular cdma otasp Displays the current active connection state and statistics.debug cellular messages all Displays the cellular modem hardware information.debug cellular messages data Displays the cellular network (base station) information.show cellular radio Displays the cellular modem radio statistics.show cellular security Displays the modem lock state.show controllers cellular Displays the SMS messages received by the cellular modem.show interfaces cellular Displays statistics for the cellular interfaces.show run interface cellular Displays the current running configuration for the cellular interface.
BETA DRAFT —CISCO CONFIDENTIAL3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series RoutersCommand Reference44Cisco IOS Release TBDshow cellular radioTo display the cellular modem radio statistics, use the show cellular radio command in user EXEC mode.show cellular slot/wic_slot/port radio [history]Syntax DescriptionCommand Default There is no default for this command.Command Modes EXECCommand HistoryUsage Guidelines The command usage is the same for GSM and CDMA, though the output is different for each.Examples The following example shows output for code division multiple access (CDMA) for slot 0, WIC slot 0, port 0:1xRTT related info------------------Current RSSI = -85 dBm, ECIO = -7 dBmCurrent Channel Number = 507Current Channel State = AcquiredCurrent Band Class = Band Class 0HDR related info----------------Current RSSI = -88 dBm, ECIO = -4 dBmCurrent Channel Number = 1175Current Band Class = Band Class 1Sector ID (Hex) = 0080:0580:0000:0000:000A:CCC5:4501:0A02Subnet Mask = 104, Color Code = 237, PN Offset = 174 Rx gain control(Main) = -86, Diversity = -104 Tx total power = -6 dBm, Tx gain adjust = -3072 dBm Carrier to interference (C/I) ratio = 5slot/wic_slot/port Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.history Displays the RSSI history.Release ModificationThis command was introduced.
BETA DRAFT —CISCO CONFIDENTIAL3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series RoutersCommand Reference45Cisco IOS Release TBDThe following example shows output for global system for mobile communication (GSM) for slot 0, WIC slot 0, port 0:# show cellular 0/0/0 radioCurrent Band = WCDMA 1900, Channel Number = 9721Current RSSI(RSCP) = -91 dBmRelated CommandsTable 10 Output Description for show cellular radio command for CDMAField DescriptionCurrent RSSI Current radio signal strength in dbm (-125 dbm indicates no signal)Current ECIO Current energy per chip (ECIO) in dbmCurrent Channel Number Current channel number to which the modem is attached to the base station.Current Channel State Indicates whether the modem is scanning or has acquired the channelCurrent Band Class Band class attachedSector ID Sector ID of the base station to which the modem is attachedSubnet Mask Subnet mask of the sectorColor Code Color code of the sectorPN Offset PN offset for the sectorRx Gain Control Rx gain control for the modemTx Total Power Transmitted powerTable 11 Output Description for show cellular radio command for GSMField DescriptionCurrent Band Band attached by the modemChannel Number Channel number attached by the modemCurrent RSSI Current radio signal strength received by the modemCommand Descriptioncellular cdma profile activate Displays all the show cellular information in one listing.cellular cdma otasp Displays the current active connection state and statistics.debug cellular messages all Displays the cellular modem hardware information.debug cellular messages data Displays the cellular network (base station) information.show cellular security Displays the modem lock state.show controllers cellular Displays the SMS messages received by the cellular modem.
BETA DRAFT —CISCO CONFIDENTIAL3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series RoutersCommand Reference46Cisco IOS Release TBDshow interfaces cellular Displays statistics for the cellular interfaces.show run interface cellular Displays the current running configuration for the cellular interface.Command Description
BETA DRAFT —CISCO CONFIDENTIAL3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series RoutersCommand Reference47Cisco IOS Release TBDshow cellular securityTo display the modem lock state, use the show cellular security command in user EXEC mode.show cellular slot/wic_slot/port securitySyntax DescriptionCommand Default There is no default for this command.Command Modes EXECCommand HistoryUsage Guidelines The command usage is the same for GSM and CDMA, though the output is different for each.Examples The following example shows output for code division multiple access (CDMA) for slot 0, WIC slot 0, port 0:# show cellular 0/0/0 securityModem PIN Security LOCKEDPower-up lock ENABLEDTable 12 describes the output for this command:The following example shows output for global system for mobile communication (GSM) for slot 2, WIC slot 1, port 1: # show cellular 0/0/0 securityCard Holder Verification (CHV1) ENABLEDSIM Status = OKSIM User Operation Required = CHV1Number of Retries remaining = 3slot/wic_slot/port Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.Release ModificationThis command was introduced.Table 12 Output DescriptionField DescriptionModem PIN Security If the modem is locked, you cannot make calls without unlocking.Power-up Lock Shows whether the modem will be locked on power-up.
BETA DRAFT —CISCO CONFIDENTIAL3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series RoutersCommand Reference48Cisco IOS Release TBDTable 13 describes the output from this command:Related CommandsTable 13 Output DescriptionFiled DescriptionCard Holder Verification If enabled, access to the SIM is restricted. For Enzo, it will always be disabled.SIM Status Indicates whether the SIM is present or removed from the SIM socket.SIM User Operation Required If the SIM is protected (e.g., because of CHV1 enabled), it will indicate the type of user operation required.Number of Retries Remaining Indicates the number of attempts remaining in case the SIM is locked. If the number of retries becomes zero, the SIM is blocked and becomes unusable.Command Descriptioncellular cdma profile activate Displays all the show cellular information in one listing.cellular cdma otasp Displays the current active connection state and statistics.debug cellular messages all Displays the cellular modem hardware information.debug cellular messages data Displays the cellular network (base station) information.show cellular radio Displays the cellular modem radio statistics.show controllers cellular Displays the SMS messages received by the cellular modem.show interfaces cellular Displays statistics for the cellular interfaces.show run interface cellular Displays the current running configuration for the cellular interface.
BETA DRAFT —CISCO CONFIDENTIAL3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series RoutersCommand Reference49Cisco IOS Release TBDshow controllers cellularTo display high-speed WAN interface card (HWIC) hardware and driver specific information, use the show controllers cellular command in EXEC mode.show controllers cellular slot/wic_slot/port Syntax DescriptionCommand Default There is no default for this command.Command Modes EXECCommand HistoryUsage Guidelines Use this command to capture the output for debugging or troubleshooting purposes only.Examples The output is variable.Related Commandsslot/wic_slot/port Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.Release ModificationThis command was introduced.Command Descriptioncellular cdma profile activate Displays all the show cellular information in one listing.cellular cdma otasp Displays the current active connection state and statistics.debug cellular messages all Displays the cellular modem hardware information.debug cellular messages data Displays the cellular network (base station) information.show cellular radio Displays the cellular modem radio statistics.show cellular security Displays the modem lock state.show interfaces cellular Displays statistics for the cellular interfaces.show run interface cellular Displays the current running configuration for the cellular interface.
BETA DRAFT —CISCO CONFIDENTIAL3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series RoutersCommand Reference50Cisco IOS Release TBDshow interfaces cellularTo display statistics for the cellular interfaces, use the show interfaces cellular command in EXEC mode.show interfaces cellular slot/wic_slot/portSyntax DescriptionCommand Default There is no default for this command.Command Modes EXECCommand HistoryUsage Guidelines When you enter this command, encapsulation should be PPP and all signals, like DCD, DSR, DTR, RTS and CTS should be up during normal operation.Examples The following example shows the cellular interface statistics for slot 0, WIC slot 0, port 0; the encapsulation in the example is SLIP and DTR is down:c2800# show interfaces cellular 0/0/0Cellular0/0/0 is down, line protocol is down Hardware is HSDPA North America MTU 1500 bytes, BW 9 Kbit, DLY 100000 usec, reliability 255/255, txload 1/255, rxload 1/255 Encapsulation SLIP, loopback not set Last input never, output never, output hang never Last clearing of "show interface" counters never Input queue: 0/75/0/0 (size/max/drops/flushes); Total output drops: 0 Queueing strategy: weighted fair Output queue: 0/1000/64/0 (size/max total/threshold/drops) Conversations 0/0/16 (active/max active/max total) Reserved Conversations 0/0 (allocated/max allocated) Available Bandwidth 6 kilobits/sec 5 minute input rate 0 bits/sec, 0 packets/sec 5 minute output rate 0 bits/sec, 0 packets/sec 0 packets input, 0 bytes, 0 no buffer Received 0 broadcasts, 0 runts, 0 giants, 0 throttles 0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored, 0 abort 0 packets output, 0 bytes, 0 underruns 0 output errors, 0 collisions, 0 interface resets 0 output buffer failures, 0 output buffers swapped out 0 carrier transitions DCD=up DSR=up DTR=down RTS=up CTS=upc2800#slot/wic_slot/port Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.Release ModificationThis command was introduced.

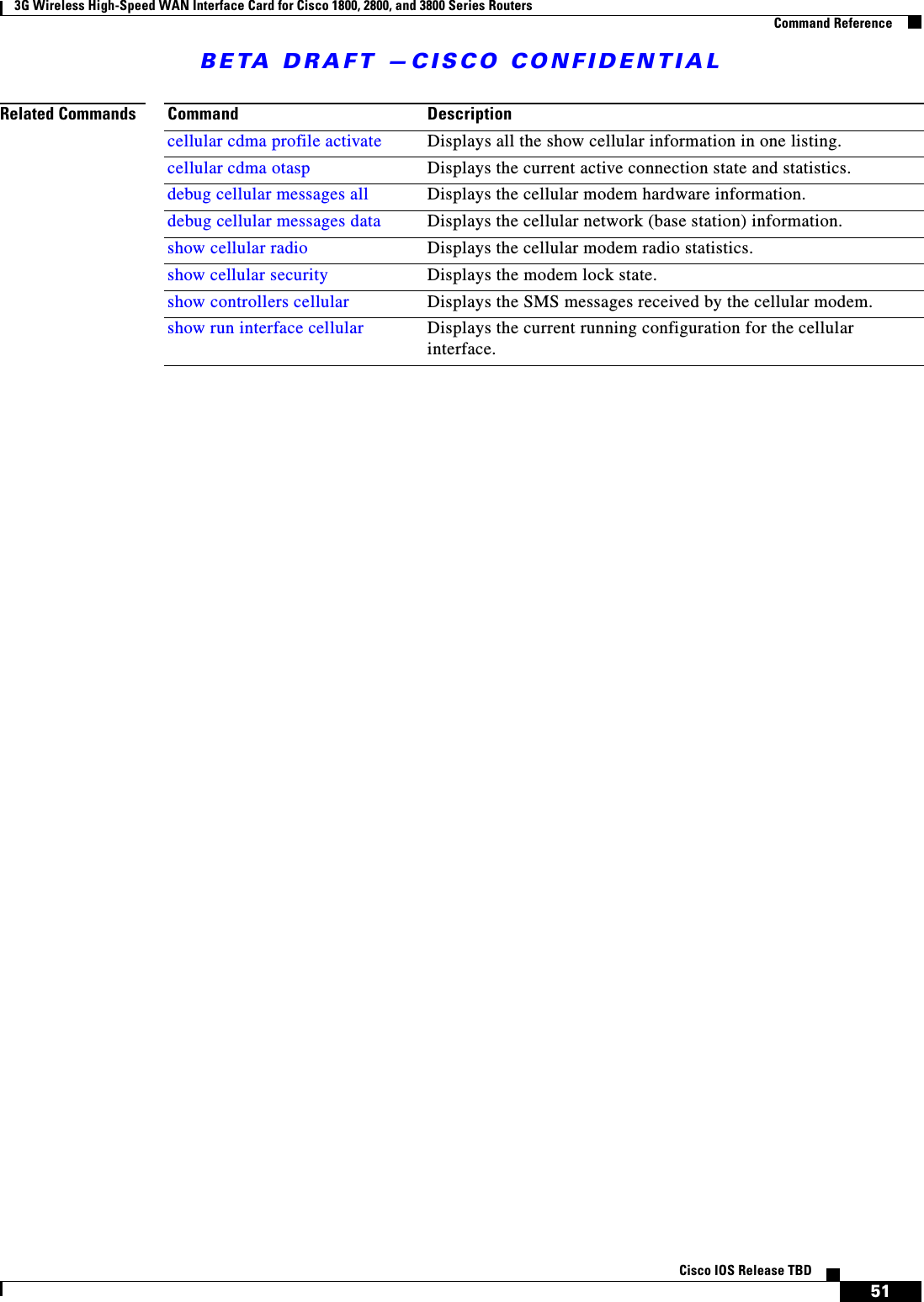

BETA DRAFT —CISCO CONFIDENTIAL3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series RoutersCommand Reference51Cisco IOS Release TBDRelated Commands Command Descriptioncellular cdma profile activate Displays all the show cellular information in one listing.cellular cdma otasp Displays the current active connection state and statistics.debug cellular messages all Displays the cellular modem hardware information.debug cellular messages data Displays the cellular network (base station) information.show cellular radio Displays the cellular modem radio statistics.show cellular security Displays the modem lock state.show controllers cellular Displays the SMS messages received by the cellular modem.show run interface cellular Displays the current running configuration for the cellular interface.
BETA DRAFT —CISCO CONFIDENTIAL3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series RoutersCommand Reference52Cisco IOS Release TBDshow run interface cellularTo see the current running configuration for the cellular interface, use the show run interface cellular command in EXEC mode.show run interface cellular slot/wic_slot/portSyntax DescriptionCommand Default There is no default for this command.Command Modes EXECCommand HistoryUsage Guidelines NoneExamples The following example shows the output of the command for slot 0, WIC slot 2, port 0:c2800#sh running-config interface cellular 0/2/0Building configuration... Current configuration : 278 bytes!interface Cellular0/2/0 ip address negotiated encapsulation ppp no ip mroute-cache dialer in-band dialer idle-timeout 2147000 dialer string umts dialer-group 1 async mode interactive no peer default ip address ppp chap hostname bombor ppp chap password 0 enzoend c2800# slot/wic_slot/port Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.Release ModificationThis command was introduced.
BETA DRAFT —CISCO CONFIDENTIAL3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series RoutersCommand Reference53Cisco IOS Release TBDRelated Commands Command Descriptioncellular cdma profile activate Displays all the show cellular information in one listing.cellular cdma otasp Displays the current active connection state and statistics.debug cellular messages all Displays the cellular modem hardware information.debug cellular messages data Displays the cellular network (base station) information.show cellular radio Displays the cellular modem radio statistics.show cellular security Displays the modem lock state.show controllers cellular Displays the SMS messages received by the cellular modem.show interfaces cellular Displays statistics for the cellular interfaces.
BETA DRAFT —CISCO CONFIDENTIAL3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series RoutersCommand Reference54Cisco IOS Release TBDtest cellular cnm-process-enqueueTo debug the control and management (CNM) process in the router, use the test cellular cnm-process-enqueue command in privileged EXEC mode. test cellular slot/wic_slot/port cnm-process-enqueueSyntax DescriptionCommand Default There is no default for this command.Command Modes Privileged EXECCommand HistoryUsage Guidelines Use this command to capture output for debugging. After you enter the command, make sure you see the modem upmessage on the console. This indicates that the modem has booted properly.Examples The following example resets the modem for slot 0, WIC_slot 1, port 1:c2800#test cellular 0/2/0 cnm-process-enqueue messages ? <0-5> 0 - Heartbeat, 1 - Call disc, 2 - too hot, 3 - reset, 4 - modem up, 5 - undefinedRelated Commandsslot/wic_slot/port Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.Release ModificationThis command was introduced.Command Descriptiontest cellular modem-power-cycle Displays modem power cycle.test cellular modem-reset Resets modem.
BETA DRAFT —CISCO CONFIDENTIAL3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series RoutersCommand Reference55Cisco IOS Release TBDtest cellular modem-power-cycleTo recycle the power on the modem, use the test cellular modem-power-cycle command in privileged EXEC mode. The modem will disconnect the calls and then cycle the power.test cellular slot/wic_slot/port modem- power-cycleSyntax DescriptionCommand Default There is no default for this command.Command Modes Privileged EXECCommand HistoryUsage Guidelines Use this command to capture output for debugging. After you enter the command, make sure you see the modem UP message on the console. This indicates that the modem has booted properly.Examples The following example cycles the power for the modem in slot 0, WIC_slot 2, port 0:c2800#test cellular 0/2/0 modem-power-cycle Modem Power cycled successfullyc2800#01:01:01: %CELLWAN-2-MODEM_UP: Cellular0/2/0 modem is now UPRelated Commandsslot/wic_slot/port Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.Release ModificationThis command was introduced.Command Descriptiontest cellular cnm-process-enqueue Enqueues to CNM process.test cellular modem-reset Resets modem.

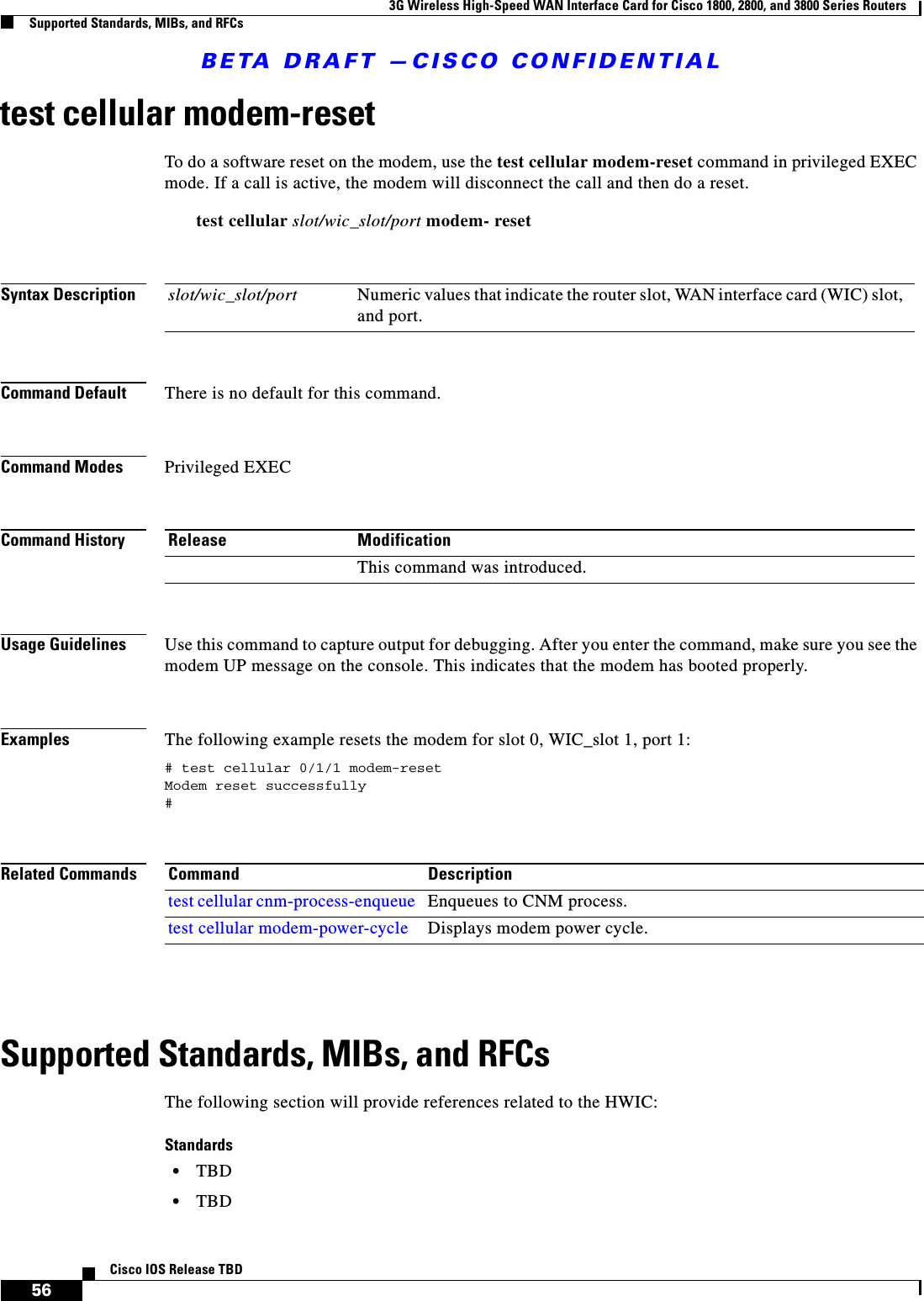

BETA DRAFT —CISCO CONFIDENTIAL3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series RoutersSupported Standards, MIBs, and RFCs56Cisco IOS Release TBDtest cellular modem-resetTo do a software reset on the modem, use the test cellular modem-reset command in privileged EXEC mode. If a call is active, the modem will disconnect the call and then do a reset.test cellular slot/wic_slot/port modem- resetSyntax DescriptionCommand Default There is no default for this command.Command Modes Privileged EXECCommand HistoryUsage Guidelines Use this command to capture output for debugging. After you enter the command, make sure you see the modem UP message on the console. This indicates that the modem has booted properly.Examples The following example resets the modem for slot 0, WIC_slot 1, port 1:# test cellular 0/1/1 modem-resetModem reset successfully#Related CommandsSupported Standards, MIBs, and RFCsThe following section will provide references related to the HWIC:Standards•TBD•TBDslot/wic_slot/port Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.Release ModificationThis command was introduced.Command Descriptiontest cellular cnm-process-enqueue Enqueues to CNM process.test cellular modem-power-cycle Displays modem power cycle.
BETA DRAFT —CISCO CONFIDENTIAL3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series RoutersTroubleshooting57Cisco IOS Release TBDMIBs•TBD•TBD•TBDTroubleshootingIf you are encoutering issues with your system, this section will help you troubleshoot and pinpoint the cause of failure.Verifying Configuration To verify your configuration and to make sure that your connection is up and running, follow these step:Step 1 After creating a profile with the create cellular profile command, send a ping from a router or attached host.Step 2 If you do not get any response, to find where failure is occuring, run the following debug commands:•debug chat script•debug PPP negotiation•show cellular all•show interface cellular•show running-config•show controllers cellularStep 3 Save the output from all these commands and contact your system administrator.Checking Signal StrengthIf the RSSI level is very low, for example, if it is less than -110 dBm, it means one of the following:•Your antenna is not connected•The antenna is not working properly•There is no service in your areaIf all the above are working correctly, contact your system administrator.Troubleshooting Profile CreationYou must make sure that your profile is created correctly using the cellular cdma profile create command. Sample outputs for the different scenarios you may encouter are:•No profile created, low RSSI
BETA DRAFT —CISCO CONFIDENTIAL3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series RoutersTroubleshooting58Cisco IOS Release TBD•Profile created; antenna disconnectedNo profile created, Low RSSIThe following is a sample output from this command if the antenna is disconnected and a profile has not been created. The errors in this case have been highlighted with >>>>>>>:3825_GSM_3#sh cellular 0/3/0 allLoad for five secs: 0%/0%; one minute: 0%; five minutes: 1%Time source is hardware calendar, 19:40:43.239 UTC Wed Nov 8 2006Hardware Information====================Modem Firmware Version = H1_0_0_7MCAP G:/WS/Modem Firmware built = 10/26/06Hardware Version = 1.0International Mobile Subscriber Identity (IMSI) = <specific sim number>International Mobile Equipment Identity (IMEI) = <specific modem number>Factory Serial Number (FSN) = X2819460388100DModem Status = OnlineCurrent Modem Temperature = 38 deg C, State = NormalProfile Information==================== * - Default profile >>>>>>>> no profile here.Data Connection Information===========================Profile 1, Packet Session Status = INACTIVE Inactivity Reason = Normal inactivate stateProfile 2, Packet Session Status = INACTIVE Inactivity Reason = Normal inactivate stateProfile 3, Packet Session Status = INACTIVE Inactivity Reason = Normal inactivate stateProfile 4, Packet Session Status = INACTIVE Inactivity Reason = Normal inactivate stateProfile 5, Packet Session Status = INACTIVE Inactivity Reason = Normal inactivate stateProfile 6, Packet Session Status = INACTIVE Inactivity Reason = Normal inactivate stateProfile 7, Packet Session Status = INACTIVE Inactivity Reason = Normal inactivate stateProfile 8, Packet Session Status = INACTIVE Inactivity Reason = Normal inactivate stateProfile 9, Packet Session Status = INACTIVE Inactivity Reason = Normal inactivate stateProfile 10, Packet Session Status = INACTIVE Inactivity Reason = Normal inactivate stateProfile 11, Packet Session Status = INACTIVE Inactivity Reason = Normal inactivate stateProfile 12, Packet Session Status = INACTIVE Inactivity Reason = Normal inactivate stateProfile 13, Packet Session Status = INACTIVE Inactivity Reason = Normal inactivate stateProfile 14, Packet Session Status = INACTIVE Inactivity Reason = Normal inactivate stateProfile 15, Packet Session Status = INACTIVE Inactivity Reason = Normal inactivate stateProfile 16, Packet Session Status = INACTIVE Inactivity Reason = Normal inactivate state Network Information
BETA DRAFT —CISCO CONFIDENTIAL3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series RoutersTroubleshooting59Cisco IOS Release TBD===================Current Service Status = No service, Service Error = None >>>>>>> no service means not connected to the network.Current Service = CombinedPacket Service = NonePacket Session Status = InactiveCurrent Roaming Status = HomeNetwork Selection Mode = AutomaticCountry = USA, Network = CinglrMobile Country Code (MCC) = 310Mobile Network Code (MNC) = 380Location Area Code (LAC) = 6042Routing Area Code (RAC) = 255Cell ID = 0Primary Scrambling Code = 0PLMN Selection = AutomaticRadio Information=================Current Band = None, Channel Number = 0Current RSSI = -110 dBm >>>>>>> either no antenna, or bad antenna or out of network.Modem Security Information==========================Card Holder Verification (CHV1) = DisabledSIM Status = OKSIM User Operation Required = NoneNumber of Retries remaining = 3Profile Created Correctly; Antenna DisconnectedThe following is a sample output when a profile has been created correctly, but the antenna is not working properly, or there is no RSSI. The errors to look for are highlighted with >>>>>>:3825_GSM_3#show cell 0/3/0 allLoad for five secs: 0%/0%; one minute: 0%; five minutes: 0%Time source is hardware calendar, 19:54:03.919 UTC Wed Nov 8 2006Hardware Information====================Modem Firmware Version = H1_0_0_7MCAP G:/WS/Modem Firmware built = 10/26/06Hardware Version = 1.0International Mobile Subscriber Identity (IMSI) = 310410070721403International Mobile Equipment Identity (IMEI) = 352678010006713Factory Serial Number (FSN) = X2819460388100DModem Status = OnlineCurrent Modem Temperature = 38 deg C, State = NormalProfile Information====================Profile 1 = INACTIVE* >>>>>>> one profile created--------PDP Type = IPv4Access Point Name (APN) = <provided by ISP>Authentication = <PAP or CHAP, depending on the ISP>Username: <ISP provided>, Password: <ISP Provided> * - Default profile Data Connection Information===========================
BETA DRAFT —CISCO CONFIDENTIAL3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series RoutersTroubleshooting60Cisco IOS Release TBDProfile 1, Packet Session Status = INACTIVE Inactivity Reason = Normal inactivate stateProfile 2, Packet Session Status = INACTIVE Inactivity Reason = Normal inactivate stateProfile 3, Packet Session Status = INACTIVE Inactivity Reason = Normal inactivate stateProfile 4, Packet Session Status = INACTIVE Inactivity Reason = Normal inactivate stateProfile 5, Packet Session Status = INACTIVE Inactivity Reason = Normal inactivate stateProfile 6, Packet Session Status = INACTIVE Inactivity Reason = Normal inactivate stateProfile 7, Packet Session Status = INACTIVE Inactivity Reason = Normal inactivate stateProfile 8, Packet Session Status = INACTIVE Inactivity Reason = Normal inactivate stateProfile 9, Packet Session Status = INACTIVE Inactivity Reason = Normal inactivate stateProfile 10, Packet Session Status = INACTIVE Inactivity Reason = Normal inactivate stateProfile 11, Packet Session Status = INACTIVE Inactivity Reason = Normal inactivate stateProfile 12, Packet Session Status = INACTIVE Inactivity Reason = Normal inactivate stateProfile 13, Packet Session Status = INACTIVE Inactivity Reason = Normal inactivate stateProfile 14, Packet Session Status = INACTIVE Inactivity Reason = Normal inactivate stateProfile 15, Packet Session Status = INACTIVE Inactivity Reason = Normal inactivate stateProfile 16, Packet Session Status = INACTIVE Inactivity Reason = Normal inactivate stateNetwork Information===================Current Service Status = No service, Service Error = NoneCurrent Service = CombinedPacket Service = NonePacket Session Status = InactiveCurrent Roaming Status = HomeNetwork Selection Mode = AutomaticCountry = USA, Network = CinglrMobile Country Code (MCC) = 310Mobile Network Code (MNC) = 380Location Area Code (LAC) = 6042Routing Area Code (RAC) = 255Cell ID = 0Primary Scrambling Code = 0PLMN Selection = AutomaticRadio Information=================Current Band = None, Channel Number = 0Current RSSI = -110 dBm >>>>>>>>>no antenna, bad antenna or out of networkModem Security Information==========================Card Holder Verification (CHV1) = DisabledSIM Status = OKSIM User Operation Required = NoneNumber of Retries remaining = 3
BETA DRAFT —CISCO CONFIDENTIAL3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series RoutersTroubleshooting61Cisco IOS Release TBDCall Setup Using CHAT ScriptThe following is a sample output when a call is set up using CHAT script. It shows a received ip address from network and call setup is successful and data path is open:Debugsdebug modemdebup chatdebug ppp negotiationdebug ppp eventdebup ppp error3825_GSM_3#Nov 8 20:04:42.295: CHAT0/3/0: Attempting async line dialer scriptNov 8 20:04:42.295: CHAT0/3/0: Dialing using Modem script: cingular & System script: noneNov 8 20:04:42.299: CHAT0/3/0: process startedNov 8 20:04:42.299: CHAT0/3/0: Asserting DTRNov 8 20:04:42.299: CHAT0/3/0: Chat script cingular started >>>>> chat script invokedNov 8 20:04:42.299: CHAT0/3/0: Sending string: atdt*98*1# Nov 8 20:04:42.299: CHAT0/3/0: Expecting string: CONNECT Nov 8 20:04:42.343: CHAT0/3/0: Completed match for expect: CONNECTNov 8 20:04:42.343: CHAT0/3/0: Chat script cingular finished, status = Success >>>> successful communication with modemNov 8 20:04:42.395: TTY0/3/0: no timer type 1 to destroyNov 8 20:04:42.395: TTY0/3/0: no timer type 0 to destroyNov 8 20:04:42.395: TTY0/3/0: no timer type 2 to destroyNov 8 20:04:44.395: %LINK-3-UPDOWN: Interface Cellular0/3/0, changed state to upNov 8 20:04:44.395: Ce0/3/0 PPP: Using dialer call directionNov 8 20:04:44.395: Ce0/3/0 PPP: Treating connection as a calloutNov 8 20:04:44.395: Ce0/3/0 PPP: Session handle[7E000089] Session id[46]Nov 8 20:04:44.395: Ce0/3/0 PPP: Phase is ESTABLISHING, Active OpenNov 8 20:04:44.395: Ce0/3/0 PPP: No remote authentication for call-outNov 8 20:04:44.395: Ce0/3/0 LCP: O CONFREQ [Closed] id 75 len 16Nov 8 20:04:44.395: Ce0/3/0 LCP: ACCM 0x000A0000 (0x0206000A0000)Nov 8 20:04:44.395: Ce0/3/0 LCP: MagicNumber 0x179E8E46 (0x0506179E8E46)Nov 8 20:04:44.395: Ce0/3/0 LCP: I CONFREQ [REQsent] id 83 len 25Nov 8 20:04:44.395: Ce0/3/0 LCP: ACCM 0x00000000 (0x020600000000)Nov 8 20:04:44.395: Ce0/3/0 LCP: AuthProto CHAP (0x0305C22305)Nov 8 20:04:44.395: Ce0/3/0 LCP: MagicNumber 0x374C7C61 (0x0506374C7C61)Nov 8 20:04:44.395: Ce0/3/0 LCP: PFC (0x0702)Nov 8 20:04:44.395: Ce0/3/0 LCP: ACFC (0x0802)Nov 8 20:04:44.395: Ce0/3/0 LCP: O CONFREJ [REQsent] id 83 len 8Nov 8 20:04:44.395: Ce0/3/0 LCP: PFC (0x0702)Nov 8 20:04:44.395: Ce0/3/0 LCP: ACFC (0x0802)Nov 8 20:04:44.399: Ce0/3/0 LCP: I CONFACK [REQsent] id 75 len 16Nov 8 20:04:44.399: Ce0/3/0 LCP: ACCM 0x000A0000 (0x0206000A0000)Nov 8 20:04:44.399: Ce0/3/0 LCP: MagicNumber 0x179E8E46 (0x0506179E8E46)Nov 8 20:04:44.399: Ce0/3/0 LCP: I CONFREQ [ACKrcvd] id 84 len 21Nov 8 20:04:44.399: Ce0/3/0 LCP: ACCM 0x00000000 (0x020600000000)Nov 8 20:04:44.399: Ce0/3/0 LCP: AuthProto CHAP (0x0305C22305)Nov 8 20:04:44.399: Ce0/3/0 LCP: MagicNumber 0x374C7C61 (0x0506374C7C61)Nov 8 20:04:44.399: Ce0/3/0 LCP: O CONFACK [ACKrcvd] id 84 len 21Nov 8 20:04:44.399: Ce0/3/0 LCP: ACCM 0x00000000 (0x020600000000)Nov 8 20:04:44.399: Ce0/3/0 LCP: AuthProto CHAP (0x0305C22305)Nov 8 20:04:44.399: Ce0/3/0 LCP: MagicNumber 0x374C7C61 (0x0506374C7C61)Nov 8 20:04:44.399: Ce0/3/0 LCP: State is OpenNov 8 20:04:44.399: Ce0/3/0 PPP: Phase is AUTHENTICATING, by the peer
BETA DRAFT —CISCO CONFIDENTIAL3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series RoutersGlossary62Cisco IOS Release TBDNov 8 20:04:44.403: Ce0/3/0 CHAP: I CHALLENGE id 1 len 35 from "UMTS_CHAP_SRVR"Nov 8 20:04:44.403: Ce0/3/0 CHAP: Using hostname from interface CHAPNov 8 20:04:44.403: Ce0/3/0 CHAP: Using password from interface CHAPNov 8 20:04:44.403: Ce0/3/0 CHAP: O RESPONSE id 1 len 40 from "<username configured on the cellular interface>" Nov 8 20:04:44.407: Ce0/3/0 CHAP: I SUCCESS id 1 len 4Nov 8 20:04:44.407: Ce0/3/0 PPP: Phase is FORWARDING, Attempting ForwardNov 8 20:04:44.407: Ce0/3/0 PPP: Phase is ESTABLISHING, Finish LCPNov 8 20:04:44.407: Ce0/3/0 PPP: Phase is UP >>>>> pap/chap succeededNov 8 20:04:44.407: Ce0/3/0 IPCP: O CONFREQ [Closed] id 1 len 22Nov 8 20:04:44.407: Ce0/3/0 IPCP: Address 0.0.0.0 (0x030600000000)Nov 8 20:04:44.407: Ce0/3/0 IPCP: PrimaryDNS 0.0.0.0 (0x810600000000)Nov 8 20:04:44.407: Ce0/3/0 IPCP: SecondaryDNS 0.0.0.0 (0x830600000000)Nov 8 20:04:44.407: Ce0/3/0 PPP: Process pending ncp packetsNov 8 20:04:45.411: Ce0/3/0 IPCP: I CONFNAK [REQsent] id 1 len 16Nov 8 20:04:45.411: Ce0/3/0 IPCP: PrimaryDNS 10.11.12.13 (0x81060A0B0C0D)Nov 8 20:04:45.411: Ce0/3/0 IPCP: SecondaryDNS 10.11.12.14 (0x83060A0B0C0E)Nov 8 20:04:45.411: Ce0/3/0 IPCP: O CONFREQ [REQsent] id 2 len 22Nov 8 20:04:45.411: Ce0/3/0 IPCP: Address 0.0.0.0 (0x030600000000)Nov 8 20:04:45.411: Ce0/3/0 IPCP: PrimaryDNS 10.11.12.13 (0x81060A0B0C0D)Nov 8 20:04:45.411: Ce0/3/0 IPCP: SecondaryDNS 10.11.12.14 (0x83060A0B0C0E)Nov 8 20:04:45.459: Ce0/3/0 IPCP: I CONFREQ [REQsent] id 25 len 4Nov 8 20:04:45.459: Ce0/3/0 IPCP: O CONFACK [REQsent] id 25 len 4Nov 8 20:04:45.459: Ce0/3/0 IPCP: I CONFNAK [ACKsent] id 2 len 22Nov 8 20:04:45.459: Ce0/3/0 IPCP: Address 166.138.186.119 (0x0306A68ABA77)Nov 8 20:04:45.459: Ce0/3/0 IPCP: PrimaryDNS 66.102.163.231 (0x81064266A3E7)Nov 8 20:04:45.459: Ce0/3/0 IPCP: SecondaryDNS 66.102.163.232 (0x83064266A3E8)Nov 8 20:04:45.459: Ce0/3/0 IPCP: O CONFREQ [ACKsent] id 3 len 22Nov 8 20:04:45.459: Ce0/3/0 IPCP: Address 166.138.186.119 (0x0306A68ABA77)Nov 8 20:04:45.459: Ce0/3/0 IPCP: PrimaryDNS 66.102.163.231 (0x81064266A3E7)Nov 8 20:04:45.459: Ce0/3/0 IPCP: SecondaryDNS 66.102.163.232 (0x83064266A3E8)Nov 8 20:04:45.463: Ce0/3/0 IPCP: I CONFACK [ACKsent] id 3 len 22Nov 8 20:04:45.463: Ce0/3/0 IPCP: Address 166.138.186.119 (0x0306A68ABA77)Nov 8 20:04:45.463: Ce0/3/0 IPCP: PrimaryDNS 66.102.163.231 (0x81064266A3E7)Nov 8 20:04:45.463: Ce0/3/0 IPCP: SecondaryDNS 66.102.163.232 (0x83064266A3E8)Nov 8 20:04:45.463: Ce0/3/0 IPCP: State is OpenNov 8 20:04:45.463: Ce0/3/0 IPCP: Install negotiated IP interface address 166.138.186.119GlossaryBGP—Border Gateway Protocol. An inter-domain routing protocol that replaces Exterior Gateway Protocol (EGP). BGP exchanges reachability information with other BGP systems. It is defined by RFC 1163.1xRTT—Single carrier Radio Transmission Technology.1xEVDOt—Single carrier evolution data only (or data optimized).3DES—Triple Data Encryption Standard.AES—Advanced Encryption Standard.BGP—Border Gateway Protocol.CAR—Committed Access Rate.CBWFQ—Class Based Weighted Fair Queuing.CCOA—Collocated Care Of Address.
BETA DRAFT —CISCO CONFIDENTIAL3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series RoutersGlossary63Cisco IOS Release TBDCDMA—Code-Division Multiple Access. It is a technique for multiple-access digital communications that divides channels through unique code sequences.CLI—Command Line Interface.CN—Correspondence Node.DES—Data Encryption Standard.DSCP—Differentiated Services Code Point.ECIO—Also written as Ec/Io. A notation used to represent a dimensionless ratio of the average power of a channel, typically the pilot channel, to the total signal power, measured in dBm.EDGE—Enhanced Data GSM Environment.ESN—Electronic Serial Number. A 32-digit number assigned by the mobile station maniufacturer used to identify a mobile station. It is unique for each station.FA—Foreign Agent.FIPS—General Information Processing Standards.GPRS—General Packet Radio Service.GSM—Global system for mobile communications.HA—Home Agent.HoA—Home Address.HDR—High Data RateHSDPA—High-Speed Downlink Packet Access.HWIC—High-Speed WAN Interface Card.IKE—Internet Key Exchange.IOS—Cisco Internetworking Operating System.IP—Internet Protocol.IPsec—IP security.LFI—Link Fragmenting and Interleaving.LLQ—Low latency Queueing.MAC—Media Access Controller.MAR—Mobile Access Router.MIB—Management Information Base.MN—Mobile Node.MoIP—Mobile IP.MR—Mobile Router.NAM—Number Assignment Module.NBAR—Network Based Application Recognition.OTASP—Over The Air Service Provisioning.PKI—Public Key Infrastructure.PRL—Preferred Roaming List.QoS—Quality of Service.
BETA DRAFT —CISCO CONFIDENTIAL3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series RoutersGlossary64Cisco IOS Release TBDRED—Random Early Detection.RSSI—Receive Signal Strength Indicator.SIM—Subscriber Identity Module.TFTP—Trivial File Transfer Protocol.ToS—Type of Service.UMTS—Universal Mobile Telecommunications System.VPN—Virtual Private Network.WAN—Wide Area Network.WRED—Weighted Random Early Detection.Any Internet Protocol (IP) addresses used in this document are not intended to be actual addresses. Any examples, command display output, and figures included in the document are shown for illustrative purposes only. Any use of actual IP addresses in illustrative content is unintentional and coincidental© 2006 Cisco Systems, Inc. All rights reserved.CCSP, CCVP, the Cisco Square Bridge logo, Follow Me Browsing, and StackWise are trademarks of Cisco Systems, Inc.; Changing the Way We Work, Live, Play, and Learn, and iQuick Study are service marks of Cisco Systems, Inc.; and Access Registrar, Aironet, BPX, Catalyst, CCDA, CCDP, CCIE, CCIP, CCNA, CCNP, Cisco, the Cisco Certified Internetwork Expert logo, Cisco IOS, Cisco Press, Cisco Systems, Cisco Systems Capital, the Cisco Systems logo, Cisco Unity, Enterprise/Solver, EtherChannel, EtherFast, EtherSwitch, Fast Step, FormShare, GigaDrive, GigaStack, HomeLink, Internet Quotient, IOS, IP/TV, iQ Expertise, the iQ logo, iQ Net Readiness Scorecard, LightStream, Linksys, MeetingPlace, MGX, the Networkers logo, Networking Academy, Network Registrar, Pack et , PIX, Post-Routing, Pre-Routing, ProConnect, RateMUX, ScriptShare, SlideCast, SMARTnet, The Fastest Way to Increase Your Internet Quotient, and TransPath are registered trademarks of Cisco Systems, Inc. and/or its affiliates in the United States and certain other countries. All other trademarks mentioned in this document or Website are the property of their respective owners. The use of the word partner does not imply a partnership relationship between Cisco and any other company. (0601R)
