11/17/06 BETA DRAFT —CISCO CONFIDENTIAL

Cisco IOS Release TBD

3G Wireless High-Speed WAN Interface Card for

Cisco 1800, 2800, and 3800 Series Routers

The Third Generation (3G) Wireless High-Speed WAN interface card (HWIC) is a multiband,

multiservice WAN card. Its primary application is WAN connectivity as a backup datalink for critical

data applications. It is an alternative to ISDN as a backup line because it offers 3G wireless sustainable

data rates of 150 to 500 kbps. However, the cellular HWIC can also function as the primary WAN

connection. It supports the following Cisco integrated services routers (Cisco ISRs):

•Cisco 1841

•Cisco 2800

•Cisco 3800

The cellular WAN HWIC has the following features:

•Broadband WAN connectivity using high speed cellular data technology

•Cellular interface based on the async interface in Cisco IOS

•Multiple product SKUs for CDMA and GSM standards

•Multiple external antenna options

•Supports different speeds with different networks.

•Static and dynamic IP addressing

•Modem-based support for mobile IP

•Automatic best network selection

•Supports CDMA Over the Air Service Provisioning (OTASP)

•NAT support

•Security features like Firewall, IDS/IPS and IPSec VPN on the router

•WAN switchover using IOS backup interface feature

BETA DRAFT —CISCO CONFIDENTIAL

3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series Routers

Cisco IOS Release TBD

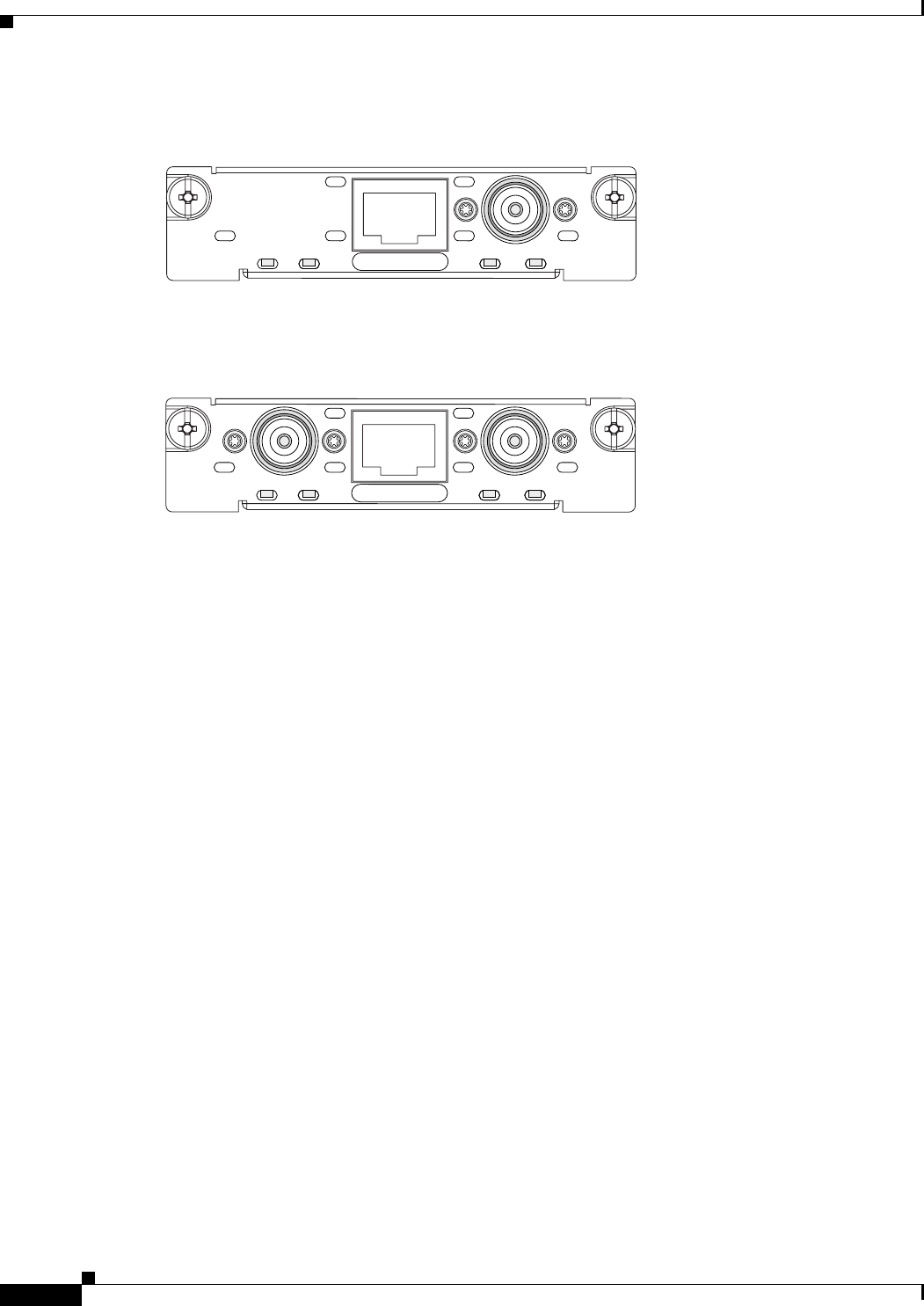

Figure 1 shows the GSM (HSDPA/UMTS) WAN HWIC:

Figure 1 Front Panel of the HSDPA WAN HWIC

Figure 2 shows the front panel of the CDMA (EVDO) WAN HWIC:

Figure 2 Front Panel of the EVDO WAN HWIC

The cellular WAN HWIC will provide the following software functionality:

•Dialup connection (DDR)—Dialup allows users to build up connections from a local network to

remote locations, e.g., to an Internet Provider (ISP) and to exchange data.

•Fallback connection (DDR backup)—the cellular HWIC allows the user to configure the cellular

modem to initiate a dialup connection when connection to a primary service is lost.

•Teardown after Fallback (Part of Fallback DDR)—Once a primary connection has failed and the

cellular connection is in "fallback" mode, the cellular HWIC tears down the connection once the

primary connection is available.

•Automatic teardown—After a configurable timeout value, the cellular HWIC automatically tears

down a connection if there has been no activity.

•Portable Application—You can move the router into different coverage areas (different Base stations

within the same service provider) and the router establishes a connection with the nearest cell

infrastructure automatically. This is different from the mobile capability that cell phones offer.

•Remote Access—The cellular HWIC allows users to connect with the cellular HWIC router through

the cellular network.

•Bidirectional Keepalive—The cellular HWIC allows you to configure keep alive to check the WAN

connection at an interval that you can configure. In the event of a failure of the keep-alive request,

the cellular HWIC will clear the existing connection and reestablish a new connection. This feature

works in both directions—from the cellular network to the router, and from the router to the cellular

network

•Auto-detect—The cellular HWIC automatically detects and utilizes the best available connection

from a selected service provider.

•Mobile IP Support—The cellular HWIC allows you to maintain a seamless connection while

transitioning between areas covered by different foreign agents.

Table 1 shows the different SKUs and the frequencies supported by the cellular WAN HWICs:

170842

WWAN RSSI UMTS

ANT

HSDPA

HWIC-

3G-GSM

Diag Port

170843

WWAN RSSI 1xRTT

MAIN

DIV

EVDO

HWIC-

3G-CDMA

Diag Port

BETA DRAFT —CISCO CONFIDENTIAL

3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series Routers

Contents

Cisco IOS Release TBD

Feature History

Finding Support Information for Platforms and Cisco IOS Software Images

Use Cisco Feature Navigator to find information about platform support and Cisco IOS software image

support. Access Cisco Feature Navigator at http://www.cisco.com/go/fn. You must have an account on

Cisco.com. If you do not have an account or have forgotten your username or password, click Cancel at

the login dialog box and follow the instructions that appear.

Contents

•Prerequisites for Configuring the Wireless WAN HWIC, page 3

•Restrictions for the Wireless WAN HWIC, page 4

•Information About the Wireless WAN HWIC, page 4

•How to Configure the Wireless WAN HWIC, page 4

•Configuration Examples for the Wireless WAN HWIC, page 7

•Command Reference, page 10

•Supported Standards, MIBs, and RFCs, page 56

•Troubleshooting, page 57

•Glossary, page 62

Prerequisites for Configuring the Wireless WAN HWIC

The following are prerequisites to configuring the Wireless WAN HWICs:

•Familiarity with Cisco IOS

•Use of the Cisco IOS T-release, beginning with release TBD or later for Cisco HWIC support. (Refer

to the Cisco IOS documentation.)

•HWIC must be supported by a carrier. Please see data sheet for a list of supported carriers.

Table 1 SKU Description and Supported Frequencies

SKU Number Description Region Frequency

HWIC-3G-GSM HSDPA/UMTS/EDGE/GPRS Worldwide 850/900/1800/1900

/2100 MHz

HWIC-3G-CDMA-V EVDO Rev A/Rel 0/1xRTT US 800/1900MHz

HWIC-3G-CDMA-S EVDO Rev A/Rel 0/1xRTT 800/1900MHz

Release Modification

Release # TBD This feature was introduced.

BETA DRAFT —CISCO CONFIDENTIAL

3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series Routers

Restrictions for the Wireless WAN HWIC

Cisco IOS Release TBD

•Service availability on the HWIC and certification on the carrier network

Restrictions for the Wireless WAN HWIC

The following restrictions apply to the Cisco Wireless WAN HWICs:

•Data connection can be originated only by the host platform call; the call by the other peer connected

to the cellular network is not supported.

•Throughput—due to the shared nature of wireless communications, the experienced throughput

varies depending on the number of users in a given network.

•Latency—Wireless networks have higher latency compared to other wired networks.

•Coverage in your area, at your site, and in the specific location where the router is placed.

•Congestion on the network.

•Any restrictions that are a part of the terms of service from your carrier.

Information About the Wireless WAN HWIC

To configure the third generation wireless HWIC feature, you must understand the following concepts:

•IOS CLI

•Asynchronous communication commands

•Modem configuration commands

For detailed information on Cisco IOS and related topics, go to:

http://www.cisco.com/en/US/products/sw/iosswrel/tsd_products_support_category_home.html

How to Configure the Wireless WAN HWIC

This section contains the following procedures:

•Configuring NAT Using the Cellular Modem

•Creating and Activating a New CDMA Profile Using OTASP

•Activating a GSM Account

•Configuring DDR

•Asynchronous Line and Reverse Telnet\

Configuring NAT Using the Cellular Modem

Network Address Translation (NAT) operates on a router that is connecting two networks; one of these

networks (designated as the inside network) is addressed with either private or obsolete addresses that

must be converted into legal addresses before it forwards packets to the other network (designated as the

outside network). The translation operates in conjunction with routing, so that NAT can simply be

enabled on a customer-side Internet access router when translation is desired.

BETA DRAFT —CISCO CONFIDENTIAL

3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series Routers

How to Configure the Wireless WAN HWIC

Cisco IOS Release TBD

Note To configure NAT on your router, see the NAT documentation, which is available at the following URL:

http://www.cisco.com/en/US/tech/tk648/tk361/tk438/tsd_technology_support_sub-protocol_home.htm

Creating and Activating a New CDMA Profile Using OTASP

To create and activate a new CDMA profile using Over-the-Air-Service-Provisioning (OTASP), perform

the steps in this section. This section contains the following subsections:

•Over the Air Service Provisioning

•SUMMARY STEPS

•DETAILED STEPS

Note To create and activate a profile, you must have an active CDMA wireless account.

Over the Air Service Provisioning

Over-the-Air Service Provisioning allows you to activate new wireless services over a wireless network.

It also allows carriers to add new types of services to a customer's handset by using the wireless network

instead of requiring the customer to bring a wireless device to a carrier's location for reprogramming.

SUMMARY STEPS

1. cellular cdma profile create

2. cellular cdma profile activate

3. cellular activate ota cdma | gsm

4. show cellular profile

DETAILED STEPS

Use the following commands to create and activate a new CDMA profile with OTASP:

Command or Action Purpose

Step 1 cellular<

slot/wic_slot/port

>cdma profile create

profile number

mdn

min

sid

nid

msl

Creates a new profile.

Step 2 cellular<

slot/wic_slot/port

>cdma profile activate

profile number

Activates the created profile.

Step 3 cellular<

slot/wic_slot/port

>activate ota cdma | gsm

phone number

Initiates over the air activation using OTA/OTASP.

Step 4 show cellular<

slot/wic_slot/port

> profile Verifies the profile data.

BETA DRAFT —CISCO CONFIDENTIAL

3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series Routers

How to Configure the Wireless WAN HWIC

Cisco IOS Release TBD

Activating a GSM Account

The GSM WAN HWIC is equipped with a SIM card slot. The card is pre-provisioned and is available

with cellular account-specific information. You must subscribe to a GSM service from a carrier to obtain

this card.

Configuring DDR

To configure DDR on the interface, perform the steps in this section. This section contains the following

subsections:

•Dial-on-Demand Routing

•SUMMARY STEPS

•DETAILED STEPS

Dial-on-Demand Routing

Dial-On-Demand Routing (DDR) is a technique whereby a router can automatically initiate and close a

circuit-switched session as transmitting stations demand. The router spoofs keepalives so that end

stations treat the session as active. DDR permits routing over ISDN or telephone lines using an external

ISDN terminal adaptor or modem.

DDR addresses the need for intermittent network connections over circuit-switched WANs.

SUMMARY STEPS

1. interface cellular dialer in-band

2. chat-script ”ATDT*99#” interface cellular dialer-string

3. dialer-list protocol permit

4. ip access-list permit

5. show cellular dialer-group

DETAILED STEPS

Command or Action Purpose

Step 1 interface cellular<

slot/wic_slot/port

>dialer in-band Enables DDR on the interface.

Step 2 chat-script

<carrier string name

>””ATDT*99#” interface

cellular

dialer-string<

carrier

string name

Defines chat-script for the dialer interface.

Step 3 dialer-list

<dialer-group>

protocol

<protocol-name>

{permit | deny | list <access-list-number> |

access-group}>

Creates dialer list for interesting traffic and permits

access to an entire protocol.

Step 4 ip access-list

<access list number

>permit

<ip source

address

Defines interesting traffic.

Step 5 show cellular<

slot/wic_slot/port

> dialer-group

<dialer

group number>

Maps dialer list to the dialer interface.

BETA DRAFT —CISCO CONFIDENTIAL

3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series Routers

Configuration Examples for the Wireless WAN HWIC

Cisco IOS Release TBD

Asynchronous Line and Reverse Telnet

Each cellular interface has one TTY line associated with it. The line will allow you to use reverse telnet

to the cellular modem located in the cellular HWIC.

Note Reverse telnet to the modem is allowed only when the modem is not in the data connection.

To reverse telnet to the cellular modem, perform the steps in this section. This section contains the

following subsections:

•SUMMARY STEPS

•DETAILED STEPS

SUMMARY STEPS

1. show line

2. telnet

3. ati

DETAILED STEPS

Configuration Examples for the Wireless WAN HWIC

This section provides the following configuration examples:

•Configuring NAT Using the Cellular Modem

•Asynchronous Line and Reverse Telnet

•Configuring the Cellular Interface

Configuring NAT Using the Cellular Modem

The following sample configuration shows the configuration of the router with NAT:

Command or Action Purpose

Step 1 show line In Exec mode, this command shows the line that is

communicating to the interface.

Step 2 telnet

<cellular interface IP address

Example:

Router# telnet 10.0.0.1 2001

Starts the reverse telnet session.

Note Add prefix 20 to line number.

Step 3 ATI Gives information on the modem and verifies that

the modem is in the reverse telnet session.

Step 4 Press Ctrl+Shift+6 together, followed by lower case xPrepares to disconnect the reverse telnet session.

Step 5 At router prompt (#), enter disconnect Disconnects the reverse telnet session.

BETA DRAFT —CISCO CONFIDENTIAL

3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series Routers

Configuration Examples for the Wireless WAN HWIC

Cisco IOS Release TBD

version 12.3

service timestamps debug datetime msec

service timestamps log datetime msec

no service password-encryption

hostname Router

boot-start-marker

boot-end-marker

no network-clock-participate aim 0

no network-clock-participate aim 1

no aaa new-model

ip subnet-zero

ip cef

ip ips po max-events 100

no ftp-server write-enable

chat-script cdma_1x "" "ATDT#19788" TIMEOUT 30 CONNECT

interface Loopback0

ip address 7.7.7.7 255.255.255.0

interface GigabitEthernet0/0

ip address 1.8.12.55 255.0.0.0

duplex auto

speed auto

interface GigabitEthernet0/1

ip address 20.0.0.1 255.255.0.0

ip nat inside

ip virtual-reassembly

duplex auto

speed auto

interface Cellular0/0/0

physical-layer async

ip address negotiated

ip nat outside

ip virtual-reassembly

encapsulation ppp

no ip mroute-cache

dialer in-band

dialer idle-timeout 2147000

dialer string cdma_1x

dialer-group 1

async mode interactive

no peer default ip address

keepalive 5 3

no fair-queue

ppp accm 0

no ppp lcp fast-start

ip classless

ip route 0.0.0.0 0.0.0.0 Cellular0/0/0

ip route 223.255.254.254 255.255.255.255 GigabitEthernet0/0

ip http server

no ip http secure-server

ip nat pool sky 69.82.2.206 69.82.2.206 netmask 255.255.0.0

ip nat inside source list 1 pool sky overload

BETA DRAFT —CISCO CONFIDENTIAL

3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series Routers

Configuration Examples for the Wireless WAN HWIC

Cisco IOS Release TBD

access-list 1 permit 20.0.0.0 0.0.255.255

dialer-list 1 protocol ip permit

control-plane

line con 0

line aux 0

exec-timeout 0 0

no exec

transport input all

line 0/0/0

exec-timeout 0 0

script dialer cdma_1x

modem InOut

no exec

transport input all

autoselect during-login

autoselect ppp

stopbits 1

speed 115200

flowcontrol hardware

line vty 0 4

scheduler allocate 20000 1000

end

Asynchronous Line and Reverse Telnet

Each cellular interface has one TTY line associated with it. The line will allow you to use reverse telnet

to the cellular modem located in the cellular HWIC.

Note Reverse telnet to the modem is allowed only when the modem is not in the data connection.

The following CLI command starts the Reverse Telnet session:

telnet <cellular interface IP address> <line number>

An example of the use of this command is:

Router# telnet 10.0.0.1 2001

To verify if the modem is in the reverse telnet session, enter the command AT. If you see an OK response

from the modem, then the session is successful.

Configuring the Cellular Interface

The following is an example of the cellular interface configuration on Next Generation platforms:

interface Cellular0/0/0

encapsulation ppp

ip address negotiated

no ip mroute-cache

dialer in-band

BETA DRAFT —CISCO CONFIDENTIAL

3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series Routers

Command Reference

Cisco IOS Release TBD

dialer idle-timeout 2147000

dialer string cdma_1x

dialer-group 1

async mode interactive

no peer default ip address

keepalive 5 3

no fair-queue

ppp accm 0

no ppp lcp fast-start

ppp chap hostname 4085267374vzw3g.com

ppp chap password vzw

Command Reference

This section documents new commands only.

•cellular cdma profile create

•cellular cdma profile activate

•cellular cdma otasp

•debug cellular messages all

•debug cellular messages async

•debug cellular messages data

•debug cellular messages management

•debug cellular messages virt-con

•show cellular all

•show cellular connection

•show cellular hardware

•show cellular connection personality

•show cellular network

•show cellular profile

•show cellular radio

•show cellular security

•show controllers cellular

•show interfaces cellular

•show run interface cellular

•test cellular modem-power-cycle

•test cellular modem-reset

•test cellular cnm-process-enqueue

BETA DRAFT —CISCO CONFIDENTIAL

3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series Routers

Command Reference

Cisco IOS Release TBD

cellular cdma profile create

To create a new CDMA profile, enter the cellular cdma create profile command in privileged EXEC

mode.

cellular slot/wic_slot/port cdma profile create profile_number mdn min sid nid

Syntax Description

Command Default There is no default for this command.

Command Modes EXEC

Command History

Usage Guidelines The cdma profile create command is used to create a new CDMA profile for a cellular modem. Multiple

profiles can be created, but only one profile will be active at one time.

Examples The following example shows output of the cdma profile create command:

2851-b1-sprint#cellular 0/0/0 cdma prof create 0 9134390870 9132214671 4183 87 333830

Profile 0 will be Created and will become Active

Modem will be activated with following Parameters

MDN :9134390870; MSID :9132214671; SID :4183; NID 87:

Oct 27 00:02:34.051: Checking Current Activation Status

Oct 27 00:02:34.107: Modem activation status: Not Activated

Oct 27 00:02:34.107: Begin Activation

Oct 27 00:02:34.107: Beginning Profile Provisioning - Step 1 of 5

Oct 27 00:02:34.219: Beginning Profile Provisioning - Step 2 of 5

Oct 27 00:02:34.271: Beginning Profile Provisioning - Step 3 of 5

Oct 27 00:02:34.383: Beginning Profile Provisioning - Step 4 of 5

Oct 27 00:02:34.439: Beginning Profile Provisioning - Step 5 of 5

Oct 27 00:02:34.495: Secure Commit Result: Succeed (success for all non-provisioning

commit

Oct 27 00:02:34.495: Done Configuring the profile - Resetting the Modem

Oct 27 00:02:34.551: The Provisioning of the profile is Complete

Oct 27 00:02:37.547: %CELLWAN-2-MODEM_UP: Cellular0/1/0 modem is now UP

slot/wic_slot/port Numeric values that indicate the router slot, WAN interface card (WIC) slot,

and port.

cdma profile create Displays a summary of the profile you create.

profile number The profile number you create.

mdn 10-digit mobile directory number

min 10-digit mobile identity number

sid System ID

nid Network ID

Release Modification

This command was introduced.

BETA DRAFT —CISCO CONFIDENTIAL

3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series Routers

Command Reference

Cisco IOS Release TBD

Beginning IOTA

2851-b1-sprint#

Oct 27 00:02:44.595: IOTA Status Message Received. Event: IOTA Start, Result: SUCCESS

Oct 27 00:02:44.595: Please wait till IOTA END message is received

Oct 27 00:02:44.595: It can take up to 5 minutes

2851-b1-sprint#

Oct 27 00:03:10.623: OTASP State = SPL unlock, Result = Successdeb modem

2851-b1-sprint#

Oct 27 00:03:14.987: OTASP State = Parameters commited to NVRAM, Result = Success

Oct 27 00:03:22.375: IOTA Status Message Received. Event: IOTA End, Result: SUCCESS

Related Commands Command Description

cellular cdma profile activate Activates an existing CDMA profile.

cellular cdma otasp Activates a cellular account using the over the air (OTA) procedure

or over the air service provisioning (OTASP)

BETA DRAFT —CISCO CONFIDENTIAL

3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series Routers

Command Reference

Cisco IOS Release TBD

cellular cdma profile activate

To activate an existing CDMA profile, use the cellular cdma profile activate command in EXEC mode.

cellular slot/wic_slot/port cdma profile activate profile number

Syntax Description

Command Default There is no default for this command.

Command Modes EXEC

Command History

Usage Guidelines You can verify the profile data using the show cellular slot/wic_slot/port profile CLI.

Examples The following is a sample output of the cellular cdma profile activate command:

Rc2800#cellular 0/3/0 cdma profile activate 1

Profile 1 will become Active

Activate Profile Successful

Related Commands

slot/wic_slot/port Numeric values that indicate the router slot, WAN interface card (WIC) slot,

and port.

profile number The existing profile number you want to activate.

Release Modification

This command was introduced.

Command Description

cellular cdma profile create Creates a new CDMA profile.

cellular cdma otasp Activates a cellular account using the over the air (OTA) procedure

or over the air service provisioning (OTASP)

BETA DRAFT —CISCO CONFIDENTIAL

3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series Routers

Command Reference

Cisco IOS Release TBD

cellular cdma otasp

To activate a cellular account using the over the air (OTA) procedure or over the air service provisioning

(OTASP), use the cellular activate ota cdma|gsm command in EXEC mode.

cellular slot/wic_slot/port cdma otasp phone_number

Syntax Description

Command Default There is no default for this command.

Command Modes EXEC

Command History

Usage Guidelines You can verify the profile data using the show cellular slot/wic_slot/port profile CLI.

Note Use this command only if you have an HWIC-CDMA-V for Verizon.

Examples The following example shows output of the for a CDMA account:

Enzo#cellular 0/3/0 cdma otasp *22899

Beginning OTASP activation

OTASP number is *22899

Enzo#

Nov 15 16:32:03.883: OTASP State = SPL unlock, Result = Success

Nov 15 16:32:23.935: OTASP State = PRL downloaded, Result = Success

Nov 15 16:32:24.783: OTASP State = Profile downloaded, Result = Success

Nov 15 16:32:24.783: OTASP State = MDN downloaded, Result = Success

Nov 15 16:32:28.711: OTASP State = Parameters commited to NVRAM, Result = Succes

c3845-1#

Related Commands

slot/wic_slot/port Numeric values that indicate the router slot, WAN interface card (WIC) slot,

and port.

phone_number Phone number of the carrier that you must dial to begin activation using

OTASP. This number is provider-specific. For Verizon, it is *228 or *22899.

Release Modification

This command was introduced.

Command Description

cellular cdma profile create Creates a new CDMA profile.

cellular cdma profile activate Activates an existing CDMA profile.

BETA DRAFT —CISCO CONFIDENTIAL

3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series Routers

Command Reference

Cisco IOS Release TBD

debug cellular messages all

To print all Cisco IOS driver debug messages, use the debug cellular messages all command in EXEC

mode.

debug cellular slot/wic_slot/port messages all

Syntax Description

Command Default There is no default for this command.

Command Modes EXEC

Command History

Usage Guidelines Use this command for debugging purposes only.

Related Commands

slot/wic_slot/port Numeric values that indicate the router slot, WAN interface card (WIC) slot,

and port.

Release Modification

This command was introduced.

Command Description

debug cellular messages async Debugs cellular async.

debug cellular messages data Prints Cisco IOS data path debug messages.

debug cellular messages

management

Prints management path messages, such as CnS.

debug cellular messages virt-con Prints Diagnostics Monitor (DM) messages from the Qualcomm

CDMA chipset.

debug cellular messages virt-con Redirects the Nios II console driver messages to display them in the

Cisco IOS router console environment.

BETA DRAFT —CISCO CONFIDENTIAL

3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series Routers

Command Reference

Cisco IOS Release TBD

debug cellular messages async

To debug cellular async, use the debug cellular messages async command in EXEC mode.

debug cellular slot/wic_slot/port messages async

Syntax Description

Command Default There is no default for this command.

Command Modes EXEC

Command History

Usage Guidelines Use this command for debugging purposes only.

Related Commands

slot/wic_slot/port Numeric values that indicate the router slot, WAN interface card (WIC) slot,

and port.

Release Modification

This command was introduced.

Command Description

debug cellular messages all Prints all Cisco IOS driver debug messages.

debug cellular messages data Prints Cisco IOS data path debug messages.

debug cellular messages

management

Prints management path messages, such as CnS.

debug cellular messages virt-con Prints Diagnostics Monitor (DM) messages from the Qualcomm

CDMA chipset.

debug cellular messages virt-con Redirects the Nios II console driver messages to display them in the

Cisco IOS router console environment.

BETA DRAFT —CISCO CONFIDENTIAL

3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series Routers

Command Reference

Cisco IOS Release TBD

debug cellular messages data

To print IOS data path debug messages, use the debug cellular messages data command in EXEC mode.

show cellular slot/wic_slot/port messages data

Syntax Description

Command Default There is no default for this command.

Command Modes EXEC

Command History

Usage Guidelines Use this command for debugging purposes only.

Related Commands

slot/wic_slot/port Numeric values that indicate the router slot, WAN interface card (WIC) slot,

and port.

Release Modification

This command was introduced.

Command Description

debug cellular messages all Prints all Cisco IOS driver debug messages.

debug cellular messages async Debugs cellular async.

debug cellular messages

management

Prints management path messages, such as CnS.

debug cellular messages virt-con Prints Diagnostics Monitor (DM) messages from the Qualcomm

CDMA chipset.

debug cellular messages virt-con Redirects the Nios II console driver messages to display them in the

Cisco IOS router console environment.

BETA DRAFT —CISCO CONFIDENTIAL

3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series Routers

Command Reference

Cisco IOS Release TBD

debug cellular messages dm

To print Diagnostics Monitor (DM) messages from the Qualcomm CDMA chipset, use the debug

cellular messages dm command in EXEC mode.

debug cellular slot/wic_slot/port messages dm

Syntax Description

Command Default There is no default for this command.

Command Modes EXEC

Command History

Usage Guidelines Use this command for debugging purposes only.

Related Commands

slot/wic_slot/port Numeric values that indicate the router slot, WAN interface card (WIC) slot,

and port.

Release Modification

This command was introduced.

Command Description

debug cellular messages all Prints all Cisco IOS driver debug messages.

debug cellular messages async Debugs cellular async.

debug cellular messages data Prints Cisco IOS data path debug messages.

debug cellular messages

management

Prints management path messages, such as CnS.

debug cellular messages virt-con Redirects the Nios II console driver messages to display them in the

Cisco IOS router console environment.

BETA DRAFT —CISCO CONFIDENTIAL

3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series Routers

Command Reference

Cisco IOS Release TBD

debug cellular messages management

To print management path messages, such as CnS, use the debug cellular messages management

command in EXEC mode.

debug cellular slot/wic_slot/port messages management

Syntax Description

Command Default There is no default for this command.

Command Modes EXEC

Command History

Usage Guidelines Use this command for debugging purposes only.

Related Commands

slot/wic_slot/port Numeric values that indicate the router slot, WAN interface card (WIC) slot,

and port.

Release Modification

This command was introduced.

Command Description

debug cellular messages all Prints all Cisco IOS driver debug messages.

debug cellular messages async Debugs cellular async.

debug cellular messages data Prints Cisco IOS data path debug messages.

debug cellular messages virt-con Prints Diagnostics Monitor (DM) messages from the Qualcomm

CDMA chipset.

debug cellular messages virt-con Redirects the Nios II console driver messages to display them in the

Cisco IOS router console environment.

BETA DRAFT —CISCO CONFIDENTIAL

3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series Routers

Command Reference

Cisco IOS Release TBD

debug cellular messages virt-con

To redirect the Nios II console driver messages to display them in the Cisco IOS router console

environment, use the debug cellular virt-con command in EXEC mode.

debug cellular slot/wic_slot/port virt-con {clear | disable | dump-data-structs | log | monitor |

wrapper-on | wrapper-off}

Syntax Description

Command Default There is no default for this command.

Command Modes EXEC

Command History

Usage Guidelines Use this command for debugging purposes only.

Related Commands

slot/wic_slot/port Numeric values that indicate the router slot, WAN interface card (WIC) slot,

and port.

clear (Optional) Clears all virtual console debug log messages.

disable (Optional) Disables virtual console real time debug monitoring.

dump-data-structs (Optional) Dumps virtual console data structures.

log (Optional) Displays virtual console messages from the debug log.

monitor (Optional) Enables monitoring of real time virtual console debug messages.

wrapper-on (Optional) Disables wrap around for virtual console log messages.

wrapper-off (Optional) Enables wrap around for virtual console log messages.

Release Modification

This command was introduced.

Command Description

debug cellular messages all Prints all Cisco IOS driver debug messages.

debug cellular messages async Debugs cellular async.

debug cellular messages data Prints Cisco IOS data path debug messages.

debug cellular messages

management

Prints management path messages, such as CnS.

debug cellular messages virt-con Prints Diagnostics Monitor (DM) messages from the Qualcomm

CDMA chipset.

BETA DRAFT —CISCO CONFIDENTIAL

3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series Routers

Command Reference

Cisco IOS Release TBD

show cellular all

To display all the cellular information in one listing, use the show cellular all command in EXEC mode.

show cellular slot/wic_slot/port all

Syntax Description

Command Default There is no default for this command.

Command Modes EXEC

Command History

Usage Guidelines The command usage is the same for GSM and CDMA, though the output is different for each.

Examples The following example shows the show cellular all output for slot 0, WIC slot 0, port 0 for GSM:

c2800# show cellular 0/0/0 all

Hardware Information

====================

Modem Firmware Version = U1_2_22MCAP G:/WORK

Modem Firmware built = 04/17/06

Hardware Version = E2

International Mobile Subscriber Identity (IMSI) = <number>

International Mobile Equipment Identity (IMEI) = <number>

Factory Serial Number (FSN) = S2128751274E2OK

Modem Status = Online

Current Modem Temperature = 28 deg C, State = Normal

Profile Information

====================

Profile 1 = INACTIVE*

--------

PDP Type = IPv4, Header Compression = OFF

Data Compression = OFF

Access Point Name (APN) = vpn.com

Authentication = CHAP

Username: wapuser1, Password: wap

* - Default profile

Data Connection Information

===========================

Data Transmitted = 0 bytes, Received = 0 bytes

Profile 1, Packet Session Status = INACTIVE

slot/wic_slot/port Numeric values that indicate the router slot, WAN interface card (WIC) slot,

and port.

Release Modification

This command was introduced.

BETA DRAFT —CISCO CONFIDENTIAL

3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series Routers

Command Reference

Cisco IOS Release TBD

Inactivity Reason = Normal inactivate state

Profile 2, Packet Session Status = INACTIVE

Inactivity Reason = Normal inactivate state

Profile 3, Packet Session Status = INACTIVE

Inactivity Reason = Normal inactivate state

Profile 4, Packet Session Status = INACTIVE

Inactivity Reason = Normal inactivate state

Profile 5, Packet Session Status = INACTIVE

Inactivity Reason = Normal inactivate state

Profile 6, Packet Session Status = INACTIVE

Inactivity Reason = Normal inactivate state

Profile 7, Packet Session Status = INACTIVE

Inactivity Reason = Normal inactivate state

Profile 8, Packet Session Status = INACTIVE

Inactivity Reason = Normal inactivate state

Profile 9, Packet Session Status = INACTIVE

Inactivity Reason = Normal inactivate state

Profile 10, Packet Session Status = INACTIVE

Inactivity Reason = Normal inactivate state

c2800#

Network Information

===================

Current Service Status = No service, Service Error = None

Current Service = Invalid

Packet Service = None

Packet Session Status = Inactive

Current Roaming Status = Home

Network Selection Mode = Automatic

Country = 0, Network =

Mobile Country Code (MCC) = 0

Mobile Network Code (MNC) = 0

Location Area Code (LAC) = 0

Routing Area Code (RAC) = 255

Cell ID = 0

Primary Scrambling Code = 0

PLMN Selection = Automatic

Radio Information

=================

Current Band = None, Channel Number = 0

Current RSSI = -110 dBm

Modem Security Information

==========================

Card Holder Verification (CHV1) = Disabled

SIM Status = OK

SIM User Operation Required = None

Number of Retries remaining = 3

c2800#

The following example shows the show cellular all output for slot 0, WIC slot 3, port 0 for CDMA:

c2800#sh cellular 0/3/0 all

Hardware Information

====================

Modem Firmware Version = p2005300

Modem Firmware built = 09-13-06

Hardware Version = 1.0

Electronic Serial Number (ESN) = 0x6032692A

Preferred Roaming List (PRL) Version = 10

Current Modem Temperature = 30 degrees Celsius

Profile Information

====================

BETA DRAFT —CISCO CONFIDENTIAL

3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series Routers

Command Reference

Cisco IOS Release TBD

Electronic Serial Number (ESN) = 0x6032692A

Modem activated = NO

Profile Prov Date MDN MSID

======= ========== =============== ===========

0 None 0000006458 0000006458

*1 None 8585551515 0000006951

* - Default Profile

Data Connection Information

===========================

Phone number of outgoing call =

HDR AT State = Inactive, HDR Session State = Open

HDR Session Info:

UATI (Hex) = FEA0:0000:0000:0000:0000:0000:0000:0003

Color Code = 64, RATI = 0xFFFFFFFF

Session duration = 0 msecs, Session start = 0 msecs

Session end = 0 msecs, Authentication Status = Authentication disabled

HDR DRC Value = 0, DRC Cover = 0, RRI = Pilot only

Current Transmitted = 0 bytes, Received = 0 bytes

Total Transmitted = 0 KB, Received = 0 KB

Current Call Status = None

Current Call Duration = 0 secs

Total Call Duration = 234255 seconds

Current Call State =

Last Call Disconnect Reason = Modem offline

Last Connection Error = None

HDR DDTM (Data Dedicated Transmission Mode) Preference = Off

Network Information

===================

Current Service = No Service

Current Roaming Status(1xRTT) = HOME, (HDR) = HOME

Current Idle Digital Mode = No Service

Current System Identifier (SID) = 0

Current Network Identifier (NID) = 0

Serving Base Station Longitude = 0 deg 0 min 0 sec

Serving Base Station Latitude = 0 deg 0 min 0 sec

Current System Time = Sun Jan 6 0:28:57 1980

Radio Information

=================

1xRTT related info

------------------

Current RSSI = -125 dBm, ECIO = -2 dBm

Current Channel Number = 88

Current Channel State = Scanning

Current Band Class = Band Class 1

HDR related info

----------------

Current RSSI = -125 dBm, ECIO = -2 dBm

Current Channel Number = 88

Current Band Class = Band Class 1

Sector ID (Hex) = 0000:0000:0000:0000:0000:0000:0000:0000

Subnet Mask = 0, Color Code = 0, PN Offset = 0

Rx gain control(Main) = Unavailable, Diversity = Unavailable

Tx total power = 0 dBm, Tx gain adjust = 0 dBm

Carrier to interference (C/I) ratio = 0

Modem Security Information

==========================

Modem PIN Security UNLOCKED

Power-up lock DISABLED

BETA DRAFT —CISCO CONFIDENTIAL

3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series Routers

Command Reference

Cisco IOS Release TBD

c2800#

Related Commands Command Description

cellular cdma otasp Displays the current active connection state and statistics.

debug cellular messages all Displays the cellular modem hardware information.

debug cellular messages data Displays the cellular network (base station) information.

debug cellular messages

management

Displays the cellular profile information.

show cellular radio Displays the cellular modem radio statistics.

show cellular security Displays the modem lock state.

show controllers cellular Displays the SMS messages received by the cellular modem.

BETA DRAFT —CISCO CONFIDENTIAL

3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series Routers

Command Reference

Cisco IOS Release TBD

show cellular connection

To display the current active connection state and statistics, use the show cellular connection command

in EXEC mode.

show cellular slot/wic_slot/port connection

Syntax Description

Command Default There is no default for this command.

Command Modes EXEC

Command History

Usage Guidelines The command usage is the same for GSM and CDMA, though the output is different for each.

Examples The following example shows output for code division multiple access (CDMA) for slot 0, WIC slot 0,

port 0:

c2800#sh cellular 0/0/0 connection

Phone number of outgoing call = #777

HDR AT State = Connected, HDR Session State = Open

HDR Session Info:

UATI (Hex) = 0080:0580:0000:0000:000A:CCC5:45C1:8E52

Color Code = 237, RATI = 0xC739C302

Session duration = 672 msecs, Session start = 368388914 msecs

Session end = 368390063 msecs, Authentication Status = Not authenticated

HDR DRC Value = 9, DRC Cover = 1, RRI = 38.4 kbps

Current Transmitted = 379707 bytes, Received = 374429 bytes

Total Transmitted = 83514 KB, Received = 454699 KB

Current Call Status = CONNECTED

Privacy Mode = OFF, Service Option = 33023

Current Call Duration = 1554 secs

Total Call Duration = 234255 seconds

Current Call State = AT Packet Call

Last Call Disconnect Reason = Base station release (No reason)

Last Connection Error = None

HDR DDTM (Data Dedicated Transmission Mode) Preference = Off

Mobile IP Error Code (RFC-2002) = 0 (Registration accepted)

Table 8 describes the output fields for CDMA for this command:

slot/wic_slot/port Numeric values that indicate the router slot, WAN interface card (WIC) slot,

and port.

Release Modification

This command was introduced.

BETA DRAFT —CISCO CONFIDENTIAL

3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series Routers

Command Reference

Cisco IOS Release TBD

Table 2 Output Description

Field Description

Phone number of outgoing call Shows the phone number of the data call dialed.

HDR AT State Indicates the AT state. Will show as

CONNECTED when the CONNECT is received

from the modem while dialing out. This is valid

only for 1xEVDO.

HDR Session State Will indicate as OPEN once the HDR session is

established. This is valid only for 1xEVDO

UATI Unicast Access Terminal Identifier (UATI)

obtained by the modem/access terminal (AT) from

the base station during session establishment.

Color Code HDR session color code of the sector.

RATI HDR Random Access Terminal Identifier used for

opening the session

Session Duration HDR Session duration in milliseconds.

Session Start Phone uptime in units of milliseconds at session

start.

Session End Phone uptime in units of milliseconds at session

end.

Authentication Status Modem/Access terminal authentication status

with the base station.

HDR DRC Value The data rate channel value specified by the

access terminal. The access terminal uses DRC

value to specify the requested transmission rate

DRC Cover DRC cover value used by the access terminal to

specify the transmitting sector.

RRI Indicates the rate of the reverse traffic data

channel.

Current Transmitted Number of bytes transmitted by the modem to the

base station. This will be cleared when the call is

disconnected.

Current Received Number of bytes received by the modem from the

base station. This will be cleared when the call is

disconnected.

Current call status Current call status of the modem, e.g., Connected,

Disconnected, Dormant, Connecting, Error.

Privacy Mode Current privacy status of the call in progress.

Service Option Service option for the call in progress.

Current Call Duration Duration of the call in progress. If the call status

is DISCONNECTED, it indicates the call duration

of the last call.

Total Transmitted Total number of KB transmitted from the modem.

This will be cleared on "clear counters".

BETA DRAFT —CISCO CONFIDENTIAL

3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series Routers

Command Reference

Cisco IOS Release TBD

The following example shows output for global system for mobile communication (GSM):

# show cellular

1/0/1

connection

Data Transmitted = 1066807500 bytes, Received = 1066807500 bytes

Profile 1, Packet Session Status = ACTIVE

IP address = 1.5.97.2

Profile 2, Packet Session Status = INACTIVE

Inactivity Reason = Normal inactivate state

Table 9 describes the output for the GSM command:

Related Commands

Total Received Total number of KB received by the modem. This

will be cleared on "clear counters".

Total Call Duration Total duration of calls made from the modem.

This will be updated when the current call in

progress is disconnected.

Current Call State Indicates the type of call made. Since Enzo

supports only data calls dialed using chat script,

this will show as AT Packet Call.

Last Call Disconnect Reason Indicates why the last call was disconnected.

Last Connection Error Indicates the error code if the call status indicates

error.

Mobile IP Error Code Indicates the error code as per RFC-2002 if the

call is a mobile IP call.

Table 2 Output Description (continued)

Field Description

Table 3 Output Description

Field Description

Data Transmitted Total data transmitted by the modem. Can be

cleared by the clear counters command.

Data Received Total data received by the modem. Can be cleared

by the clear counters command.

Profile <profile number> Indicates the profiles configured in the modem.

Total of 16 profiles can be configured

Packet Session Status PDP session status of the profile. Active when the

call is made and PDP context has become active

in the modem.

IP Address IP address of the cellular interface received during

IPCP negotiation

Inactivity Reason Reason why the profile is inactive.

Command Description

cellular cdma profile activate Displays all the show cellular information in one listing.

debug cellular messages all Displays the cellular modem hardware information.

debug cellular messages data Displays the cellular network (base station) information.

BETA DRAFT —CISCO CONFIDENTIAL

3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series Routers

Command Reference

Cisco IOS Release TBD

debug cellular messages

management

Displays the cellular profile information.

show cellular radio Displays the cellular modem radio statistics.

show cellular security Displays the modem lock state.

show controllers cellular Displays the SMS messages received by the cellular modem.

Command Description

BETA DRAFT —CISCO CONFIDENTIAL

3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series Routers

Command Reference

Cisco IOS Release TBD

show cellular connection personality

To display the negotiated personalities when the 1xEVDO-Rev A service is acquired by the modem, use

the show cellular connection personality command in EXEC mode.

show cellular slot/wic_slot/port connection personality

Syntax Description

Command Default There is no default for this command.

Command Modes EXEC

Command History

Usage Guidelines None

Examples The following example shows output for code division multiple access (CDMA) for slot 0, WIC slot 0,

port 0:

c2800#sh cellular 0/0/0 connection personality

Current Active Personality = Personality1

Personality 1:

=============

Physical Layer Protocol =

Control Channel MAC Protocol =

Access Channel MAC Protocol =

Forward Traffic Channel MAC Protocol =

Reverse Traffic Channel MAC Protocol =

Key Exchange Protocol =

Authentication Protocol =

Encryption Protocol =

Security Protocol =

Idle State Protocol =

Generic Multimode Capability Discovery Protocol =

Generic Virtual Stream Protocol =

Other Negotiated Personalities

==============================

Personality 2:

=============

Stream 0 Application Subtype =

Stream 1 Application Subtype =

Stream 2 Application Subtype =

Stream 3 Application Subtype =

slot/wic_slot/port Numeric values that indicate the router slot, WAN interface card (WIC) slot,

and port.

Release Modification

This command was introduced.

BETA DRAFT —CISCO CONFIDENTIAL

3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series Routers

Command Reference

Cisco IOS Release TBD

Related Commands Command Description

cellular cdma profile activate Displays all the show cellular information in one listing.

debug cellular messages all Displays the cellular modem hardware information.

debug cellular messages data Displays the cellular network (base station) information.

debug cellular messages

management

Displays the cellular profile information.

show cellular radio Displays the cellular modem radio statistics.

show cellular security Displays the modem lock state.

show controllers cellular Displays the SMS messages received by the cellular modem.

BETA DRAFT —CISCO CONFIDENTIAL

3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series Routers

Command Reference

Cisco IOS Release TBD

show cellular connection statistics single-user

To display the forward traffic and control channel, use the show cellular connection statistics

single-user command in EXEC mode.

show cellular slot/wic_slot/port connection statistics single-user

Syntax Description

Command Default There is no default for this command.

Command Modes EXEC

Command History

Usage Guidelines To clear the statictics, use the clear counters command.

Examples The following example shows output for code division multiple access (CDMA) for slot 0, WIC slot 0,

port 0:

c2800#sh cellular 0/0/0 connection statistics single-user

Forward Traffic Channel Statistics

==================================

DRC Info (kbps) CRC Count Passed CRC Count Failed

=============== ================ ================

DRC_00 ( 0) 0 0

DRC_01 ( 38.4) 0 0

DRC_02 ( 76.8) 0 0

DRC_03 ( 153.6) 0 0

DRC_04 ( 307.2) 0 0

DRC_05 ( 307.2) 0 0

DRC_06 ( 614.4) 0 0

DRC_07 ( 614.4) 0 0

DRC_08 ( 921.6) 0 0

DRC_09 (1228.8) 0 0

DRC_10 (1228.8) 0 0

DRC_11 (1843.2) 0 0

DRC_12 (2457.6) 0 0

DRC_13 ( 1536) 0 0

DRC_14 ( 3072) 0 0

Forward Control Channel Statistics

==================================

DRC Info CRC Count CRC Count

Kbps Format Passed Failed

==== ============== ================ ================

slot/wic_slot/port Numeric values that indicate the router slot, WAN interface card (WIC) slot,

and port.

Release Modification

This command was introduced.

BETA DRAFT —CISCO CONFIDENTIAL

3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series Routers

Command Reference

Cisco IOS Release TBD

38.4 1024,16,1024 0 0

76.8 1024,8,512 0 0

Total Bad Packets Received = 0

Total Packets Received = 0

Packet Error Rate = 00.00 %

Throughput When Served = 0 kbps

Instantaneous Throughput = 0 kbps

Average Throughput (1sec) = 0 kbps

Forward Traffic Channel Termination Slot Count Statistics

==========================================================

DRC Info Termination Slot Count

1 2 3 4 5 6

7 8 9 10 11 12

13 14 15 16

======== ========== ========== ========== ========== ========== ==========

DRC_00 0 0 0 0 0 0

0 0 0 0 0 0

0 0 0 0

DRC_01 0 0 0 0 0 0

0 0 0 0 0 0

0 0 0 0

DRC_02 0 0 0 0 0 0

0 0

DRC_03 0 0 0 0

DRC_04 0 0

DRC_05 0 0 0 0

DRC_06 0

DRC_07 0 0

DRC_08 0 0

DRC_09 0

DRC_10 0 0

DRC_11 0

DRC_12 0

DRC_13 0 0

DRC_14 0

Forward Control Channel Termination Slot Count Statistics

=========================================================

38.4 kbps 0 0 0 0 0 0

0 0 0 0 0 0

0 0 0 0

76.8 kbps 0 0 0 0 0 0

0 0

Related Commands Command Description

cellular cdma profile activate Displays all the show cellular information in one listing.

debug cellular messages all Displays the cellular modem hardware information.

debug cellular messages data Displays the cellular network (base station) information.

debug cellular messages

management

Displays the cellular profile information.

show cellular radio Displays the cellular modem radio statistics.

show cellular security Displays the modem lock state.

show controllers cellular Displays the SMS messages received by the cellular modem.

BETA DRAFT —CISCO CONFIDENTIAL

3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series Routers

Command Reference

Cisco IOS Release TBD

show cellular connection statistics multi-user

To display the forward channle statistics for mulit-user traffic for the 1xEVDO-Rev A service, use the

show cellular connection statistics multi-user command in EXEC mode.

show cellular slot/wic_slot/port connection statistics multi-user

Syntax Description

Command Default There is no default for this command.

Command Modes EXEC

Command History

Usage Guidelines To clear the statictics, use the clear counters command.

Examples The following example shows output for code division multiple access (CDMA) for slot 0, WIC slot 0,

port 0:

c2800#sh cellular 0/0/0 connection statistics multi-user

DRC Info (Kbps) Format CRC Count Passed CRC Count Failed

=============== ============ ================ ================

DRC_03 ( 19.2) 128,4,256 0 0

DRC_03 ( 38.4) 256,4,256 0 0

DRC_03 ( 76.8) 512,4,256 0 0

DRC_03 ( 153.6) 1024,4,256 0 0

DRC_05 ( 307.2) 2048,4,128 0 0

DRC_08 ( 921.6) 3072,2,64 0 0

DRC_10 (1228.8) 4096,2,64 0 0

DRC_13 (1536.0) 5120,2,64 0 0

Total Bad Packets Received = 0

Total Packets Received = 0Packet Error Rate = 00.00 %

Throughput When Served = 0 kbps

Instantaneous Throughput = 0 kbps

Average Throughput (1sec) = 0 kbps

Termination Slot Count

DRC Info (Kbps) Format 1 2 3 4

=============== ========== ========== ========== ========== ==========

DRC_03 ( 19.2) 128,4,256 0 0 0 0

DRC_03 ( 38.4) 256,4,256 0 0 0 0

DRC_03 ( 76.8) 512,4,256 0 0 0 0

DRC_03 ( 153.6) 1024,4,256 0 0 0 0

DRC_05 ( 307.2) 2048,4,128 0 0 0 0

slot/wic_slot/port Numeric values that indicate the router slot, WAN interface card (WIC) slot,

and port.

Release Modification

This command was introduced.

BETA DRAFT —CISCO CONFIDENTIAL

3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series Routers

Command Reference

Cisco IOS Release TBD

DRC_08 ( 921.6) 3072,2,64 0 0

DRC_10 (1228.8) 4096,2,64 0 0

DRC_13 (1536.0) 5120,2,64 0 0

Related Commands Command Description

cellular cdma profile activate Displays all the show cellular information in one listing.

debug cellular messages all Displays the cellular modem hardware information.

debug cellular messages data Displays the cellular network (base station) information.

debug cellular messages

management

Displays the cellular profile information.

show cellular radio Displays the cellular modem radio statistics.

show cellular security Displays the modem lock state.

show controllers cellular Displays the SMS messages received by the cellular modem.

BETA DRAFT —CISCO CONFIDENTIAL

3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series Routers

Command Reference

Cisco IOS Release TBD

show cellular hardware

To display the cellular modem hardware information, use the show cellular hardware command in

EXEC mode.

show cellular slot/wic_slot/port hardware

Syntax Description

Command Default There is no default for this command.

Command Modes EXEC

Command History

Usage Guidelines The command usage is the same for GSM and CDMA, though the output is different for each.

Examples The following example shows output for code division multiple access (CDMA) for slot 0, WIC slot 0,

port 0:

# show cellular

0/0/0

hardware

Modem Firmware Version = p2005300

Modem Firmware built = 09-13-06

Hardware Version = 1.0

Electronic Serial Number (ESN) = 0x6032692A

Preferred Roaming List (PRL) Version = 10

Current Modem Temperature = 31 degrees Celsius

slot/wic_slot/port Numeric values that indicate the router slot, WAN interface card (WIC) slot,

and port.

Release Modification

This command was introduced.

Table 4 Output Description for show cellular hardware command for CDMA

Field Description

Modem Firmware Version Firmware version of the modem.

Modem Firmware Built Date firmware was built in mm-dd-yy format

Hardware Version Modem hardware version.

Electronic Serial Number Unique serial number of the modem.

BETA DRAFT —CISCO CONFIDENTIAL

3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series Routers

Command Reference

Cisco IOS Release TBD

The following example shows output for global system for mobile communication (GSM) for slot 0,

WIC slot 0, port 0:

# show cellular

0/0/0

hardware

Modem Firmware Version = H1_0_0_1MCAP C:/WS/

Modem Firmware built = 09/08/06

Hardware Version = 1.0

International Mobile Subscriber Identity (IMSI) = <

number

International Mobile Equipment Identity (IMEI) = <

number

Factory Serial Number (FSN) = X2819460254100D

Modem Status = Online

Current Modem Temperature = 33 deg C, State = Normal

Related Commands

Preferred Roaming List (PRL) Version PRL version is unique to a service provider. This

indicates to the modem which channels the

modem should scan.

Current Modem Temperature Radio temperature of the modem in celsius.

Table 4 Output Description for show cellular hardware command for CDMA (continued)

Field Description

Table 5 Output Description for show cellular hardware command for GSM

Field Description

Modem Firmware Version Firmware version of the modem.

Modem Firmware Built Date firmware was built in mm-dd-yy format

Hardware Version Modem hardware version.

International Mobile Subscriber Identity (IMSI) IMSI is stored in the SIM. IMSI consists of MCC

(mobile country code, 3 digits), MNC (mobile

network code, 3 for N. America and 2 digits for

rest of the world) and MSIN (mobile station

identification number). The MCC and MNC in the

IMSI identify the subscribers PLMN (Public Land

Mobile Network).

International Mobile Equipment Identity (IMEI) Number that uniquely identifies the modem in a

GSM/UMTS network.

Factory Serial Number (FSN) Unique serial number of the modem.

Modem Status Will be online if the modem has booted up fine,

otherwise will be offline and the modem will be

unusable.

Current Modem Temperature Radio temperature of the modem in celsius. State

is normal when temperature is between -15 deg C

to 85 deg C. If state reaches critical (108 deg C),

the modem will be shutdown.

Command Description

cellular cdma profile activate Displays all the show cellular information in one listing.

cellular cdma otasp Displays the current active connection state and statistics.

debug cellular messages data Displays the cellular network (base station) information.

BETA DRAFT —CISCO CONFIDENTIAL

3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series Routers

Command Reference

Cisco IOS Release TBD

debug cellular messages

management

Displays the cellular profile information.

show cellular radio Displays the cellular modem radio statistics.

show cellular security Displays the modem lock state.

show controllers cellular Displays the SMS messages received by the cellular modem.

Command Description

BETA DRAFT —CISCO CONFIDENTIAL

3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series Routers

Command Reference

Cisco IOS Release TBD

show cellular network

To display the cellular network (base station) information, use the show cellular network command in

EXEC mode.

show cellular slot/wic_slot/port network

Syntax Description

Command Default There is no default for this command.

Command Modes EXEC

Command History

Usage Guidelines The command usage is the same for GSM and CDMA, though the output is different for each.

Examples The following example shows output for code division multiple access (CDMA) for slot 0, WIC slot 0,

port 0:

# show cellular

0/0/0

network

Current Service = 1xEV-DO and 1xRTT

Current Roaming Status(1xRTT) = HOME, (HDR) = HOME

Current Idle Digital Mode = HDR

Current System Identifier (SID) = 40

Current Network Identifier (NID) = 2

Serving Base Station Longitude = 0 deg 0 min 0 sec

Serving Base Station Latitude = 0 deg 0 min 0 sec

Current System Time = Tue Sep 26 13:49:22 2006

slot/wic_slot/port Numeric values that indicate the router slot, WAN interface card (WIC) slot,

and port.

Release Modification

This command was introduced.

Table 6 Output Description for show cellular hardware command for GSM

Field Description

Current Service Service attached by the modem.

Current Roaming Status Indicates whether the modem is in the home

network or roaming.

Current Idle Digital Mode Idle mode of the modem.

Current System Identifier SID received by the modem (applicable only for

1xRTT)

Current Network Identifier NID received by the modem (applicable only for

1xRTT).

BETA DRAFT —CISCO CONFIDENTIAL

3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series Routers

Command Reference

Cisco IOS Release TBD

The following example shows output for global system for mobile communication (GSM) for slot 0,

WIC slot 0, port 0:

# show cellular

0/0/0

network

Current Service Status = Normal, Service Error = None

Current Service = Combined

Packet Service = UMTS/WCDMA (Attached)

Packet Session Status = Inactive

Current Roaming Status = Roaming

Network Selection Mode = Automatic

Country = USA, Network = CINGULAR

Mobile Country Code (MCC) = 310

Mobile Network Code (MNC) = 380

Location Area Code (LAC) = 56997

Routing Area Code (RAC) = 253

Cell ID = 4503

Primary Scrambling Code = 169

PLMN Selection = Automatic

Registered PLMN = Cingular , Abbreviated =

Service Provider =

Current BSS Longitude/Latitude Geographic location of the BSS (if this

information is received from the BSS).

Current System Time System time received from the base station.

Table 6 Output Description for show cellular hardware command for GSM (continued)

Field Description

Table 7 Output Description for show cellular hardware command for GSM

Field Description

Current Service Status Indicates whether service is available.

Current Service Error Shows the error in case there is no service

Current Idle Digital Mode Idle mode of the modem.

Packet Service Indicates the type of service available. For normal

operation, the modem should be attached.

Packet Session Status Status of PDP session. When data transfer is

taking place, packet session will be active.

Current Roaming Status Indicates whether the modem is in the home

network or roaming.

Network Selection Mode Can be manual or automatic selection mode. Set

to automatic by default.

Country Country string given by the base station.

Network Network string given by the base station.

Mobile Country Code Country code given by the base station. Only if

the country code given by the base station

matches the MCC of the IMSI and the network

code given by the base station matches the MNC

of the IMSI, the modem will be in the home

network.

BETA DRAFT —CISCO CONFIDENTIAL

3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series Routers

Command Reference

Cisco IOS Release TBD

Related Commands

Mobile Network Code Network code given by the base station. Only if

the country code given by the base station

matches the MCC of the IMSI and the network

code given by the base station matches the MNC

of the IMSI, the modem will be in the home

network.

Location Area Code LAC given by the base station.

Routing Area Code RAC given by the base station.

Cell ID Cell ID given by the base station.

PLMN Selection Default is automatic.

Table 7 Output Description for show cellular hardware command for GSM (continued)

Field Description

Command Description

cellular cdma profile activate Displays all the show cellular information in one listing.

cellular cdma otasp Displays the current active connection state and statistics.

debug cellular messages all Displays the cellular modem hardware information.

debug cellular messages

management

Displays the cellular profile information.

show cellular radio Displays the cellular modem radio statistics.

show cellular security Displays the modem lock state.

show controllers cellular Displays the SMS messages received by the cellular modem.

BETA DRAFT —CISCO CONFIDENTIAL

3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series Routers

Command Reference

Cisco IOS Release TBD

show cellular profile

To display the cellular profile information, use the show cellular profile command in EXEC mode.

show cellular slot/wic_slot/port profile

Syntax Description

Command Default Profile 1 is the default for this command.

Command Modes EXEC

Command History

Usage Guidelines The command usage is the same for GSM and CDMA, though the output is different for each.

Examples The following example shows output for code division multiple access (CDMA) for slot 0, WIC slot 1,

port 1:

# show cellular

0/1/1

profile

Electronic Serial Number (ESN) = 12637162381

Modem activated = YES

Profile Prov Date MDN MIN

======= ========== =============== ===========

*1 2005/04/10 123456789012345 1234567890

2 2005/01/10 687679789898977 7877886775

“*” indicates the default profile.

Table 8 describes the output fields from the command for CDMA:

slot/wic_slot/port Numeric values that indicate the router slot, WAN interface card (WIC) slot,

and port.

Release Modification

This command was introduced.

Table 8 Field Description

Field Description

Electronic Serial Number A unique serial number of the CDMA modem.

Modem Activated Indicates the activation status of the modem. Yes

indicates that the modem is activated by the carrier.

Profile Profile supported by MC57xx modems.

Note MC57xx modems support two profiles.

Only one profile can be active at a time.

BETA DRAFT —CISCO CONFIDENTIAL

3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series Routers

Command Reference

Cisco IOS Release TBD

The following example shows output for global system for mobile communication (GSM) for slot 0,

WIC slot 1, port 1:

# show cellular

0/1/1

profile

Profile 1 = ACTIVE

--------

PDP Type = IPv4, Header Compression = ON

Data Compression = ON

PDP address = 0x7F000201

Access Point Name (APN) = enzo.cisco.com

Authentication = CHAP

Username: cisco, Password: lab

Primary DNS address = 127.0.2.1

Source Address = 127.0.2.1 255.255.255.0

Profile 2 = INACTIVE

---------

PDP Type = IPv4, Header Compression = ON

Data Compression = ON

PDP address = 0x7F000202

Access Point Name (APN) = enzo.cingular.com

Authentication = CHAP

Username: cisco, Password: lab

Primary DNS address = 127.0.2.1

Source Address = 127.0.2.2 255.255.255.0

Table 9 describes the output for the GSM modem:

Field Description

ProvDate Date the modem was provisioned, in

YYYY/MM/DD format.

MDN Mobile Directory Number assigned to the modem

by the carrier during provisioning.

MIN Mobile Identity Number assigned to the modem

by the carrier during provisioning

Table 8 Field Description (continued)

Field Description

Table 9 Field Description

Field Description

Profile <number> Shows whether a particular profile is ACTIVE or

INACTIVE. The profile is ACTIVE when the

PDP context is active. This happens when a data

call is successfully established.

PDP Type Indicates the PDP type. Supported type is IPv4.

PDP Address Shows the IP address assigned for the PDP

context during PPP negotiation

Access Point Name PDP AddressAccess Point Name for the profile

This information is provided by the service

provider.

BETA DRAFT —CISCO CONFIDENTIAL

3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series Routers

Command Reference

Cisco IOS Release TBD

Related Commands

Authentication PPP Authentication supported. CHAP and PAP

are supported. The type of authentication to be

used is provided by the service provider.

Username Username to be used for PPP authentication. This

information is provided by the service provider.

Password Password to be used for PPP authentication. This

information is provided by the service provider.

Table 9 Field Description (continued)

Field Description

Command Description

cellular cdma profile activate Displays all the show cellular information in one listing.

cellular cdma otasp Displays the current active connection state and statistics.

debug cellular messages all Displays the cellular modem hardware information.

debug cellular messages data Displays the cellular network (base station) information.

show cellular radio Displays the cellular modem radio statistics.

show cellular security Displays the modem lock state.

show controllers cellular Displays the SMS messages received by the cellular modem.

show interfaces cellular Displays statistics for the cellular interfaces.

show run interface cellular Displays the current running configuration for the cellular

interface.

BETA DRAFT —CISCO CONFIDENTIAL

3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series Routers

Command Reference

Cisco IOS Release TBD

show cellular radio

To display the cellular modem radio statistics, use the show cellular radio command in user EXEC

mode.

show cellular slot/wic_slot/port radio [history]

Syntax Description

Command Default There is no default for this command.

Command Modes EXEC

Command History

Usage Guidelines The command usage is the same for GSM and CDMA, though the output is different for each.

Examples The following example shows output for code division multiple access (CDMA) for slot 0, WIC slot 0,

port 0:

1xRTT related info

------------------

Current RSSI = -85 dBm, ECIO = -7 dBm

Current Channel Number = 507

Current Channel State = Acquired

Current Band Class = Band Class 0

HDR related info

----------------

Current RSSI = -88 dBm, ECIO = -4 dBm

Current Channel Number = 1175

Current Band Class = Band Class 1

Sector ID (Hex) = 0080:0580:0000:0000:000A:CCC5:4501:0A02

Subnet Mask = 104, Color Code = 237, PN Offset = 174

Rx gain control(Main) = -86, Diversity = -104

Tx total power = -6 dBm, Tx gain adjust = -3072 dBm

Carrier to interference (C/I) ratio = 5

slot/wic_slot/port Numeric values that indicate the router slot, WAN interface card (WIC) slot,

and port.

history Displays the RSSI history.

Release Modification

This command was introduced.

BETA DRAFT —CISCO CONFIDENTIAL

3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series Routers

Command Reference

Cisco IOS Release TBD

The following example shows output for global system for mobile communication (GSM) for slot 0,

WIC slot 0, port 0:

# show cellular

0/0/0

radio

Current Band = WCDMA 1900, Channel Number = 9721

Current RSSI(RSCP) = -91 dBm

Related Commands

Table 10 Output Description for show cellular radio command for CDMA

Field Description

Current RSSI Current radio signal strength in dbm (-125 dbm

indicates no signal)

Current ECIO Current energy per chip (ECIO) in dbm

Current Channel Number Current channel number to which the modem is

attached to the base station.

Current Channel State Indicates whether the modem is scanning or has

acquired the channel

Current Band Class Band class attached

Sector ID Sector ID of the base station to which the modem

is attached

Subnet Mask Subnet mask of the sector

Color Code Color code of the sector

PN Offset PN offset for the sector

Rx Gain Control Rx gain control for the modem

Tx Total Power Transmitted power

Table 11 Output Description for show cellular radio command for GSM

Field Description

Current Band Band attached by the modem

Channel Number Channel number attached by the modem

Current RSSI Current radio signal strength received by the

modem

Command Description

cellular cdma profile activate Displays all the show cellular information in one listing.

cellular cdma otasp Displays the current active connection state and statistics.

debug cellular messages all Displays the cellular modem hardware information.

debug cellular messages data Displays the cellular network (base station) information.

show cellular security Displays the modem lock state.

show controllers cellular Displays the SMS messages received by the cellular modem.

BETA DRAFT —CISCO CONFIDENTIAL

3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series Routers

Command Reference

Cisco IOS Release TBD

show interfaces cellular Displays statistics for the cellular interfaces.

show run interface cellular Displays the current running configuration for the cellular

interface.

Command Description

BETA DRAFT —CISCO CONFIDENTIAL

3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series Routers

Command Reference

Cisco IOS Release TBD

show cellular security

To display the modem lock state, use the show cellular security command in user EXEC mode.

show cellular slot/wic_slot/port security

Syntax Description

Command Default There is no default for this command.

Command Modes EXEC

Command History

Usage Guidelines The command usage is the same for GSM and CDMA, though the output is different for each.

Examples The following example shows output for code division multiple access (CDMA) for slot 0, WIC slot 0,

port 0:

# show cellular

0/0/0

security

Modem PIN Security LOCKED

Power-up lock ENABLED

Table 12 describes the output for this command:

The following example shows output for global system for mobile communication (GSM) for slot 2,

WIC slot 1, port 1:

# show cellular

0/0/0

security

Card Holder Verification (CHV1) ENABLED

SIM Status = OK

SIM User Operation Required = CHV1

Number of Retries remaining = 3

slot/wic_slot/port Numeric values that indicate the router slot, WAN interface card (WIC) slot,

and port.

Release Modification

This command was introduced.

Table 12 Output Description

Field Description

Modem PIN Security If the modem is locked, you cannot make calls

without unlocking.

Power-up Lock Shows whether the modem will be locked on

power-up.

BETA DRAFT —CISCO CONFIDENTIAL

3G Wireless High-Speed WAN Interface Card for Cisco 1800, 2800, and 3800 Series Routers

Command Reference

Cisco IOS Release TBD

Table 13 describes the output from this command:

Related Commands

Table 13 Output Description

Filed Description

Card Holder Verification If enabled, access to the SIM is restricted. For

Enzo, it will always be disabled.

SIM Status Indicates whether the SIM is present or removed

from the SIM socket.

SIM User Operation Required If the SIM is protected (e.g., because of CHV1

enabled), it will indicate the type of user operation

required.

Number of Retries Remaining Indicates the number of attempts remaining in

case the SIM is locked. If the number of retries

becomes zero, the SIM is blocked and becomes
