Cisco Systems Inc 4.9 GHz WMIC Mini PCI Module Tune up Procedure

UserManual.wiki >

Cisco Systems >

XSCLCR14 User Manual HTML Version

Users Manual Revised

Corporate Headquarters

Cisco Systems, Inc.

170 West Tasman Drive

San Jose, CA 95134-1706

USA

http://www.cisco.com

Tel: 408 526-4000

800 553-NETS (6387)

Fax: 408 526-4100

Cisco 3200 Series Wireless MIC Software

Configuration Guide

June 2005

Text Part Number: OL-7734-02

THE SPECIFICATIONS AND INFORMATION REGARDING THE PRODUCTS IN THIS MANUAL ARE SUBJECT TO CHANGE WITHOUT NOTICE. ALL

STATEMENTS, INFORMATION, AND RECOMMENDATIONS IN THIS MANUAL ARE BELIEVED TO BE ACCURATE BUT ARE PRESENTED WITHOUT

WARRANTY OF ANY KIND, EXPRESS OR IMPLIED. USERS MUST TAKE FULL RESPONSIBILITY FOR THEIR APPLICATION OF ANY PRODUCTS.

THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE ACCOMPANYING PRODUCT ARE SET FORTH IN THE INFORMATION PACKET THAT

SHIPPED WITH THE PRODUCT AND ARE INCORPORATED HEREIN BY THIS REFERENCE. IF YOU ARE UNABLE TO LOCATE THE SOFTWARE LICENSE

OR LIMITED WARRANTY, CONTACT YOUR CISCO REPRESENTATIVE FOR A COPY.

The Cisco implementation of TCP header compression is an adaptation of a program developed by the University of California, Berkeley (UCB) as part of UCB’s public

NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE OF THESE SUPPLIERS ARE PROVIDED “AS IS” WITH

ALL FAULTS. CISCO AND THE ABOVE-NAMED SUPPLIERS DISCLAIM ALL WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING, WITHOUT

LIMITATION, THOSE OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OR ARISING FROM A COURSE OF

DEALING, USAGE, OR TRADE PRACTICE.

IN NO EVENT SHALL CISCO OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING,

WITHOUT LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF CISCO

OR ITS SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

CCIP, CCSP, the Cisco Arrow logo, the Cisco Powered Network mark, Cisco Unity, Follow Me Browsing, FormShare, and StackWise are trademarks of Cisco Systems, Inc.;

Changing the Way We Work, Live, Play, and Learn, and iQuick Study are service marks of Cisco Systems, Inc.; and Aironet, ASIST, BPX, Catalyst, CCDA, CCDP, CCIE, CCNA,

CCNP, Cisco, the Cisco Certified Internetwork Expert logo, Cisco IOS, the Cisco IOS logo, Cisco Press, Cisco Systems, Cisco Systems Capital, the Cisco Systems logo,

Empowering the Internet Generation, Enterprise/Solver, EtherChannel, EtherSwitch, Fast Step, GigaStack, Internet Quotient, IOS, IP/TV, iQ Expertise, the iQ logo, iQ Net

Readiness Scorecard, LightStream, MGX, MICA, the Networkers logo, Networking Academy, Network Registrar, Packet, PIX, Post-Routing, Pre-Routing, RateMUX, Registrar,

ScriptShare, SlideCast, SMARTnet, StrataView Plus, Stratm, SwitchProbe, TeleRouter, The Fastest Way to Increase Your Internet Quotient, TransPath, and VCO are registered

trademarks of Cisco Systems, Inc. and/or its affiliates in the United States and certain other countries.

All other trademarks mentioned in this document or Website are the property of their respective owners. The use of the word partner does not imply a partnership relationship

between Cisco and any other company. (0401R)

iii

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

CONTENTS

Preface xv

Audience xv

Purpose xv

Organization xv

Conventions xvii

Related Documentation

Feature Navigator—Locates the Cisco IOS Software release based on the features you want to run on

your network.

http://tools.cisco.com/ITDIT/CFN/jsp/index.jsp

Obtain information on compatibility between hardware products and software releases at the following

public URL:

http://tools.cisco.com/Support/Fusion/FusionHome.do

Obtaining Additional Publications and Information

Information about Cisco products, technologies, and network solutions is available from various online

and printed sources.

•Cisco Marketplace provides a variety of Cisco books, reference guides, and logo merchandise. Visit

Cisco Marketplace, the company store, at this URL:

http://www.cisco.com/go/marketplace/

•The Cisco Product Catalog describes the networking products offered by Cisco Systems, as well as

ordering and customer support services. Access the Cisco Product Catalog at this URL:

http://cisco.com/univercd/cc/td/doc/pcat/

•Cisco Press publishes a wide range of general networking, training and certification titles. Both new

and experienced users will benefit from these publications. For current Cisco Press titles and other

information, go to Cisco Press at this URL:

http://www.ciscopress.com

•Packet magazine is the Cisco Systems technical user magazine for maximizing Internet and

networking investments. Each quarter, Packet delivers coverage of the latest industry trends,

technology breakthroughs, and Cisco products and solutions, as well as network deployment and

troubleshooting tips, configuration examples, customer case studies, certification and training

information, and links to scores of in-depth online resources. You can access Packet magazine at

this URL:

http://www.cisco.com/packet

•iQ Magazine is the quarterly publication from Cisco Systems designed to help growing companies

learn how they can use technology to increase revenue, streamline their business, and expand

services. The publication identifies the challenges facing these companies and the technologies to

help solve them, using real-world case studies and business strategies to help readers make sound

technology investment decisions. You can access iQ Magazine at this URL:

http://www.cisco.com/go/iqmagazine

•Internet Protocol Journal is a quarterly journal published by Cisco Systems for engineering

professionals involved in designing, developing, and operating public and private internets and

intranets. You can access the Internet Protocol Journal at this URL:

http://www.cisco.com/ipj

•World-class networking training is available from Cisco. You can view current offerings at

this URL:

http://www.cisco.com/en/US/learning/index.html

xxii

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Preface

Cisco 3200 Documentation CD

The Cisco 3200 Series Router Documentation CD contains the technical publications for the

Cisco 3200 Series Mobile Access Router. To view the documentation requires Acrobat Reader 4.0 or

higher.

After the CD is inserted in the CD ROM drive and recognized by your PC, do the following:

Step 1 Access the root directory CD drive.

Step 2 Double click the StartHere.htm file.

System Requirements for the CD

Printing Documents from the CD

To print a document:

Step 1 Display the document in Acrobat.

Step 2 Click the Printer icon on the Acrobat toolbar.

The Windows Print Dialog box appears.

Step 3 Select your default printer, and click OK.

Processor Pentium 150 MHz or faster recommended

PC Operating System Microsoft Windows 95

Microsoft Windows 98

Microsoft Windows ME

Microsoft Windows XP

Microsoft Windows NT 4.0

Microsoft Windows 2000

Memory 64-MB DRAM

Drives 4x CD-ROM drive

Monitor Color monitor capable of 800 x 600 pixel

resolution

Software Adobe Acrobat Reader 4.0 or later

xxiii

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Preface

Obtaining Technical Assistance

For all customers, partners, resellers, and distributors who hold valid Cisco service contracts, the Cisco

Technical Assistance Center (TAC) provides 24-hour-a-day, award-winning technical support services,

online and over the phone. Cisco.com features the Cisco TAC website as an online starting point for

technical assistance. If you do not hold a valid Cisco service contract, please contact your reseller.

Cisco TAC Website

The Cisco TAC website provides online documents and tools for troubleshooting and resolving technical

issues with Cisco products and technologies. The Cisco TAC website is available 24 hours a day, 365

days a year. The Cisco TAC website is located at this URL:

http://www.cisco.com/tac

Accessing all the tools on the Cisco TAC website requires a Cisco.com user ID and password. If you

have a valid service contract but do not have a login ID or password, register at this URL:

http://tools.cisco.com/RPF/register/register.do

Opening a TAC Case

Using the online TAC Case Open Tool is the fastest way to open P3 and P4 cases. (P3 and P4 cases are

those in which your network is minimally impaired or for which you require product information.) After

you describe your situation, the TAC Case Open Tool automatically recommends resources for an

immediate solution. If your issue is not resolved using the recommended resources, your case will be

assigned to a Cisco TAC engineer. The online TAC Case Open Tool is located at this URL:

http://www.cisco.com/tac/caseopen

For P1 or P2 cases (P1 and P2 cases are those in which your production network is down or severely

degraded) or if you do not have Internet access, contact Cisco TAC by telephone. Cisco TAC engineers

are assigned immediately to P1 and P2 cases to help keep your business operations running smoothly.

To open a case by telephone, use one of the following numbers:

Asia-Pacific: +61 2 8446 7411 (Australia: 1 800 805 227)

EMEA: +32 2 704 55 55

USA: 1 800 553-2447

For a complete listing of Cisco TAC contacts, go to this URL:

http://www.cisco.com/warp/public/687/Directory/DirTAC.shtml

TAC Case Priority Definitions

To ensure that all cases are reported in a standard format, Cisco has established case priority definitions.

Priority 1 (P1)—Your network is “down” or there is a critical impact to your business operations. You

and Cisco will commit all necessary resources around the clock to resolve the situation.

Priority 2 (P2)—Operation of an existing network is severely degraded, or significant aspects of your

business operation are negatively affected by inadequate performance of Cisco products. You and Cisco

will commit full-time resources during normal business hours to resolve the situation.

xxiv

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Preface

Obtaining Additional Publications and Information

Priority 3 (P3)—Operational performance of your network is impaired, but most business operations

remain functional. You and Cisco will commit resources during normal business hours to restore service

to satisfactory levels.

Priority 4 (P4)—You require information or assistance with Cisco product capabilities, installation, or

configuration. There is little or no effect on your business operations.

Obtaining Additional Publications and Information

Information about Cisco products, technologies, and network solutions is available from various online

and printed sources.

•Cisco Marketplace provides a variety of Cisco books, reference guides, and logo merchandise. Go

to this URL to visit the company store:

http://www.cisco.com/go/marketplace/

•The Cisco Product Catalog describes the networking products offered by Cisco Systems, as well as

ordering and customer support services. Access the Cisco Product Catalog at this URL:

http://cisco.com/univercd/cc/td/doc/pcat/

•Cisco Press publishes a wide range of general networking, training and certification titles. Both new

and experienced users will benefit from these publications. For current Cisco Press titles and other

information, go to Cisco Press online at this URL:

http://www.ciscopress.com

•Packet magazine is the Cisco quarterly publication that provides the latest networking trends,

technology breakthroughs, and Cisco products and solutions to help industry professionals get the

most from their networking investment. Included are networking deployment and troubleshooting

tips, configuration examples, customer case studies, tutorials and training, certification information,

and links to numerous in-depth online resources. You can access Packet magazine at this URL:

http://www.cisco.com/packet

•iQ Magazine is the Cisco bimonthly publication that delivers the latest information about Internet

business strategies for executives. You can access iQ Magazine at this URL:

http://www.cisco.com/go/iqmagazine

•Internet Protocol Journal is a quarterly journal published by Cisco Systems for engineering

professionals involved in designing, developing, and operating public and private internets and

intranets. You can access the Internet Protocol Journal at this URL:

http://www.cisco.com/ipj

•Training—Cisco offers world-class networking training. Current offerings in network training are

listed at this URL:

http://www.cisco.com/en/US/learning/index.html

CHAPTER

1-1

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Overview

The Cisco Wireless Mobile Interface Card (WMIC) provides wireless connectivity for the

Cisco 3200 Series Mobile Access Router. WMICs operate in the 2.4-GHz or 4.9-GHz bands and

conform to the 802.11 standards.

This chapter provides information on the following topics:

•Understanding the Cisco Mobile Wireless Network

•Features

•Management Options

1-2

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 1 Overview

Understanding the Cisco Mobile Wireless Network

This section provides basic wireless network configuration descriptions and an example of a metro

mobile network. The 2.4-GHz WMIC has a fixed channel spacing and bandwidth of 20-MHz. The

4.9-GHz WMIC can be configured for different channel spacings or bandwidths of 5-MHz, 10-MHz, or

20-MHz. These channels are designed to be non overlapping and non-interfering.

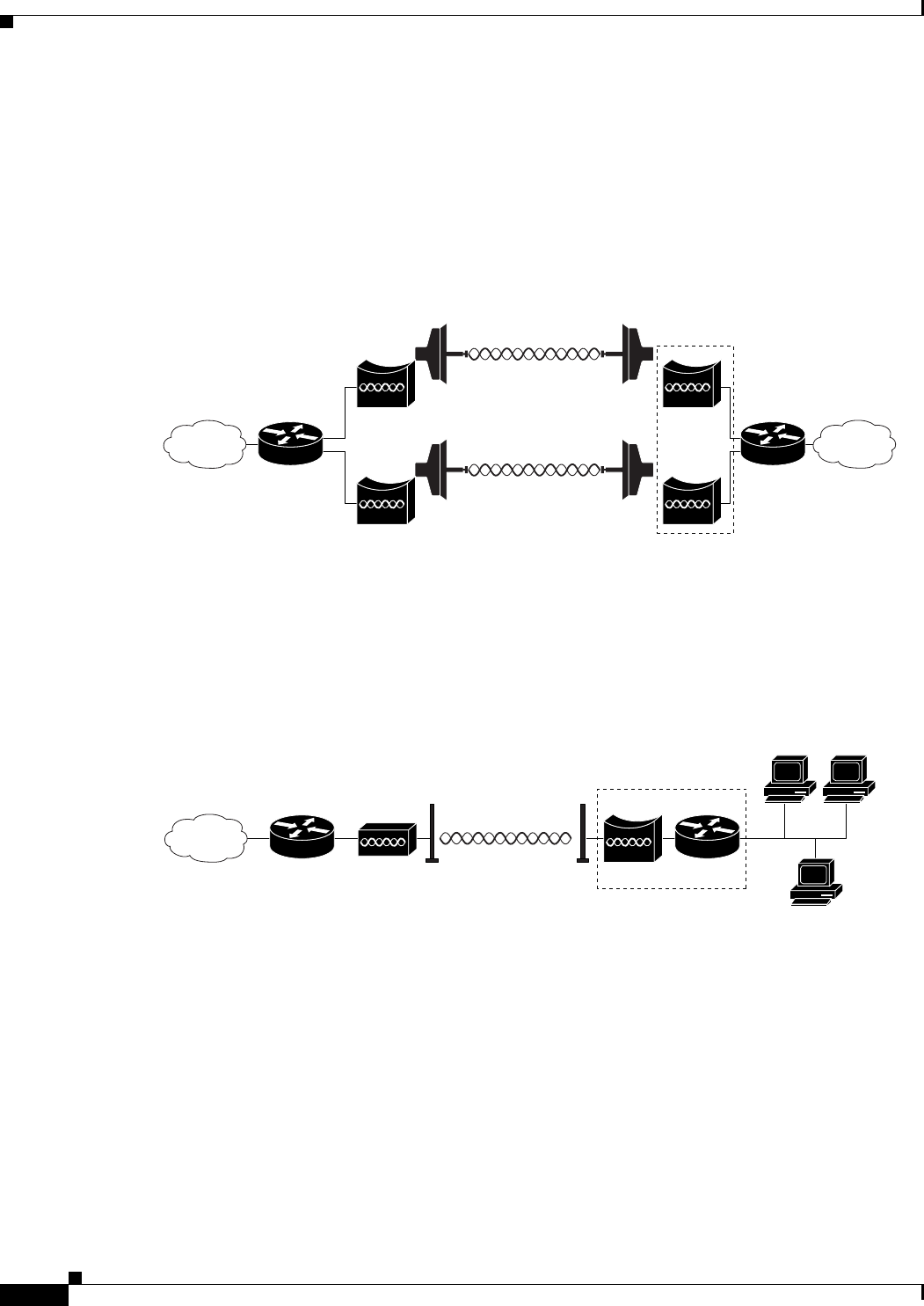

Network Configuration Descriptions

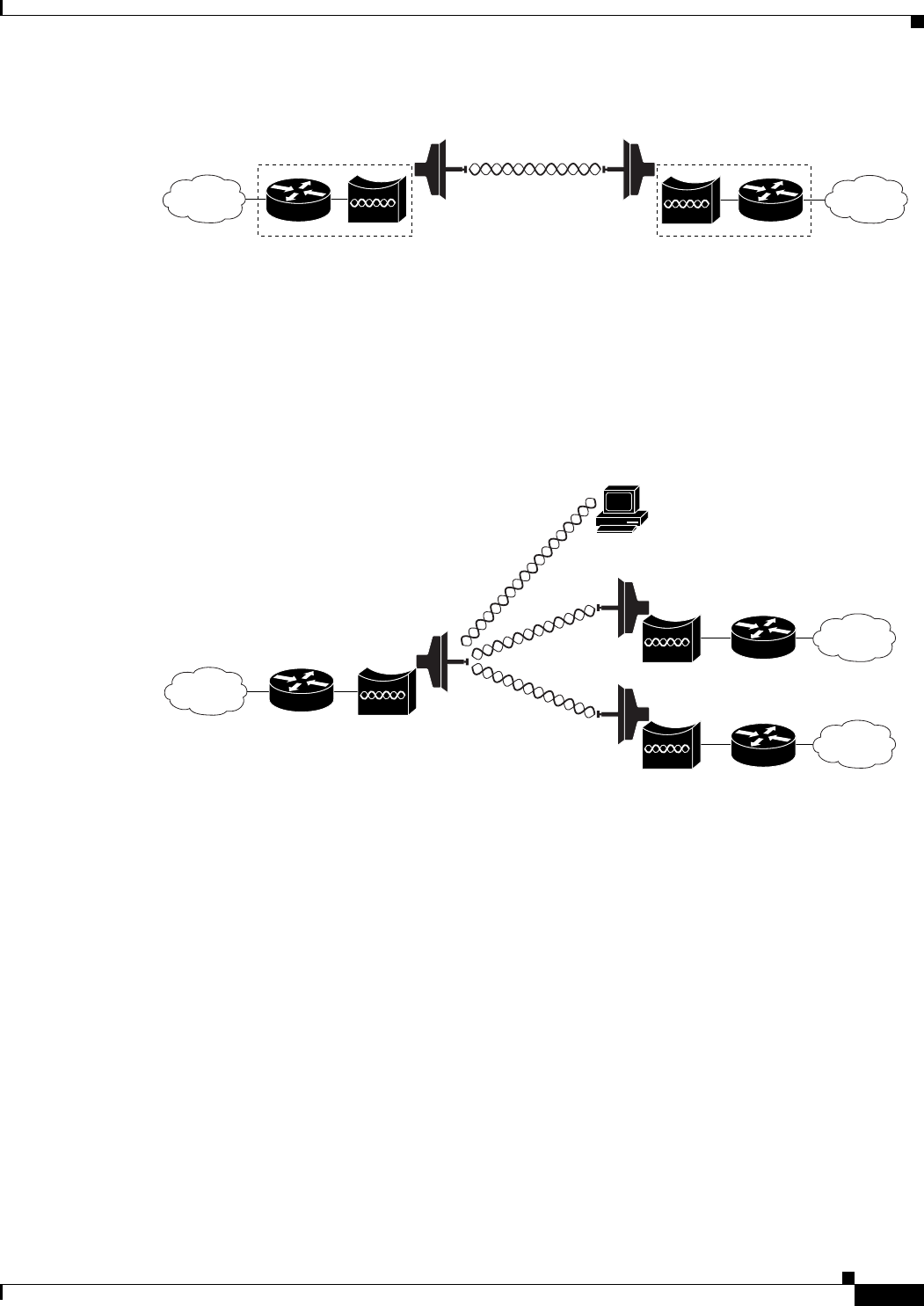

This section describes the role of a Cisco 3200 Series Mobile Access Router in common wireless

configurations: access point mode, point-to-point bridging, point-to-multipoint bridging, redundant

bridging, and workgroup bridge mode.

Root Bridge–accepts associations from workgroup bridges, non-root bridges, and clients

Root Access Point–accepts assocations from workgroup bridge and clients

Workgroup Bridge–associates to root access points or root bridges

Non-Root Bridge–associates to root bridges

Access Point Mode

You can configure the WMIC as an access point. In the access point mode, the WMIC accepts

associations from local client devices. See Chapter 4, “Configuring Radio Settings,” for instructions on

configuring the WMIC as an access point.

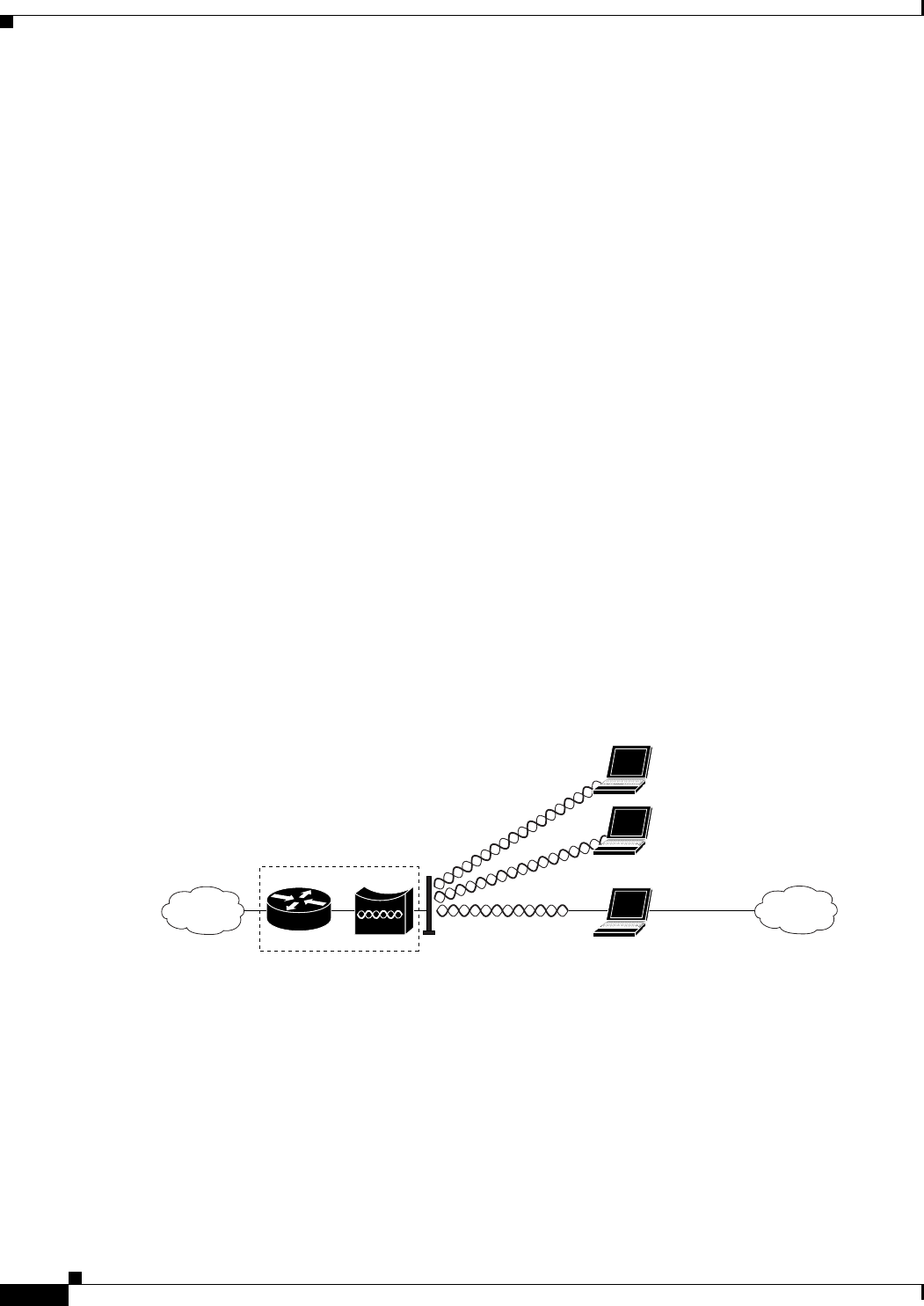

Figure 1-1 shows a typical scenario where the WMIC functions as an access point.

Figure 1-1 Access Point Mode

Point-to-Point Bridging

In a point-to-point configuration, a non-root bridge associates to a root bridge. The WMIC listens for

another bridge. If it does not recognize another bridge, the WMIC becomes a root bridge. If it recognizes

another bridge, it becomes a non-root bridge associated to the bridge it recognizes.

Figure 1-2 shows bridges in a point-to-point configuration.

127919

Cisco 3200

1-3

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 1 Overview

Understanding the Cisco Mobile Wireless Network

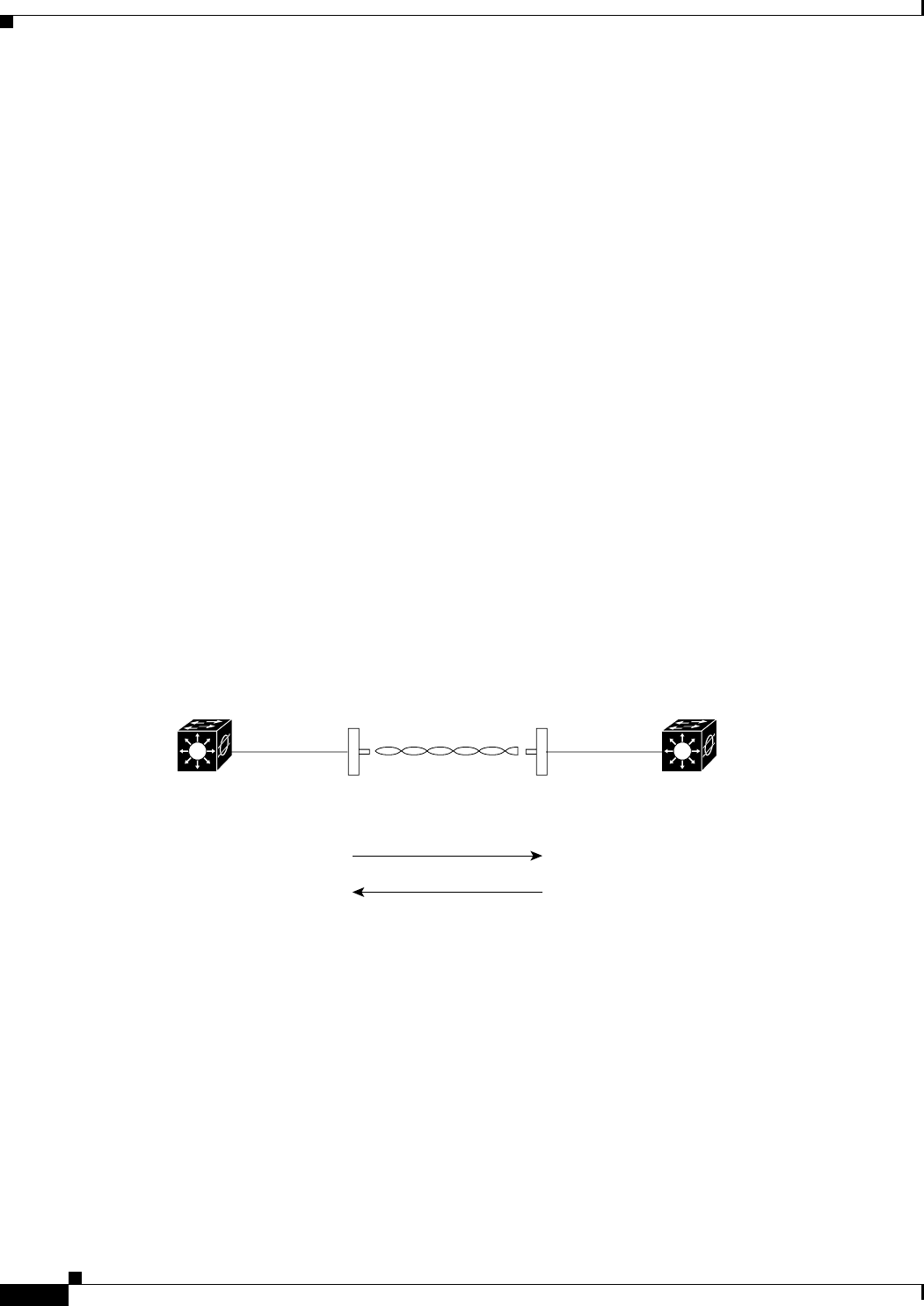

Figure 1-2 Point-to-Point Bridge Configuration

Point-to-Multipoint Bridging

In a point-to-multipoint configuration, two or more non-root bridges associate to a root bridge. Up to 17

non-root bridges can associate to a root bridge, but the non-root bridges must share the available

bandwidth.

Figure 1-3 shows bridges in a point-to-multipoint configuration.

Figure 1-3 Point-to-Multipoint Configuration

127920

117021

1-4

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 1 Overview

Features

Redundant Bridging

You can set up two pairs of bridges to add redundancy or load balancing to the bridge link. The bridges

must use non-adjacent, non-overlapping radio channels to prevent interference, and they must use

Spanning Tree Protocol (STP) to prevent loops. (STP is disabled by default. See Chapter 6, “Configuring

Spanning Tree Protocol,” for instructions on configuring STP.)

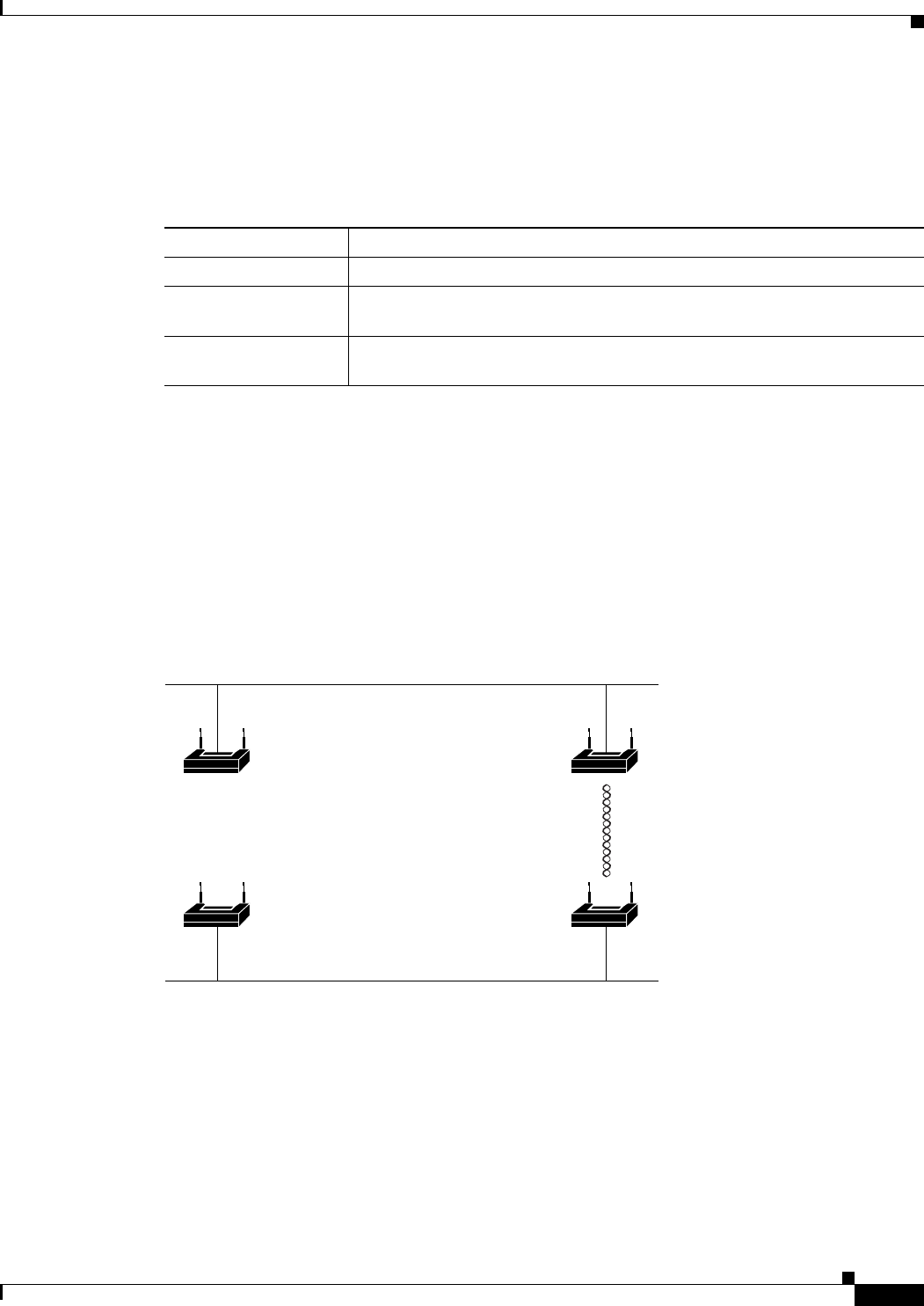

Figure 1-4 shows two pairs of redundant bridges.

Figure 1-4 Redundant Bridge Configuration

Workgroup Bridge Mode

You can configure the WMIC to function as a workgroup bridge. Figure 1-5 shows a typical scenario

where the WMIC functions as a workgroup bridge. See Chapter 4, “Configuring Radio Settings,” for

instructions on how to configure the WMIC as a workgroup bridge.

Figure 1-5 Workgroup Bridge Mode

Features

Cisco wireless devices running Cisco IOS offer these software features:

•VLANs—Allow VLAN trunking on both wireless and Ethernet interfaces.

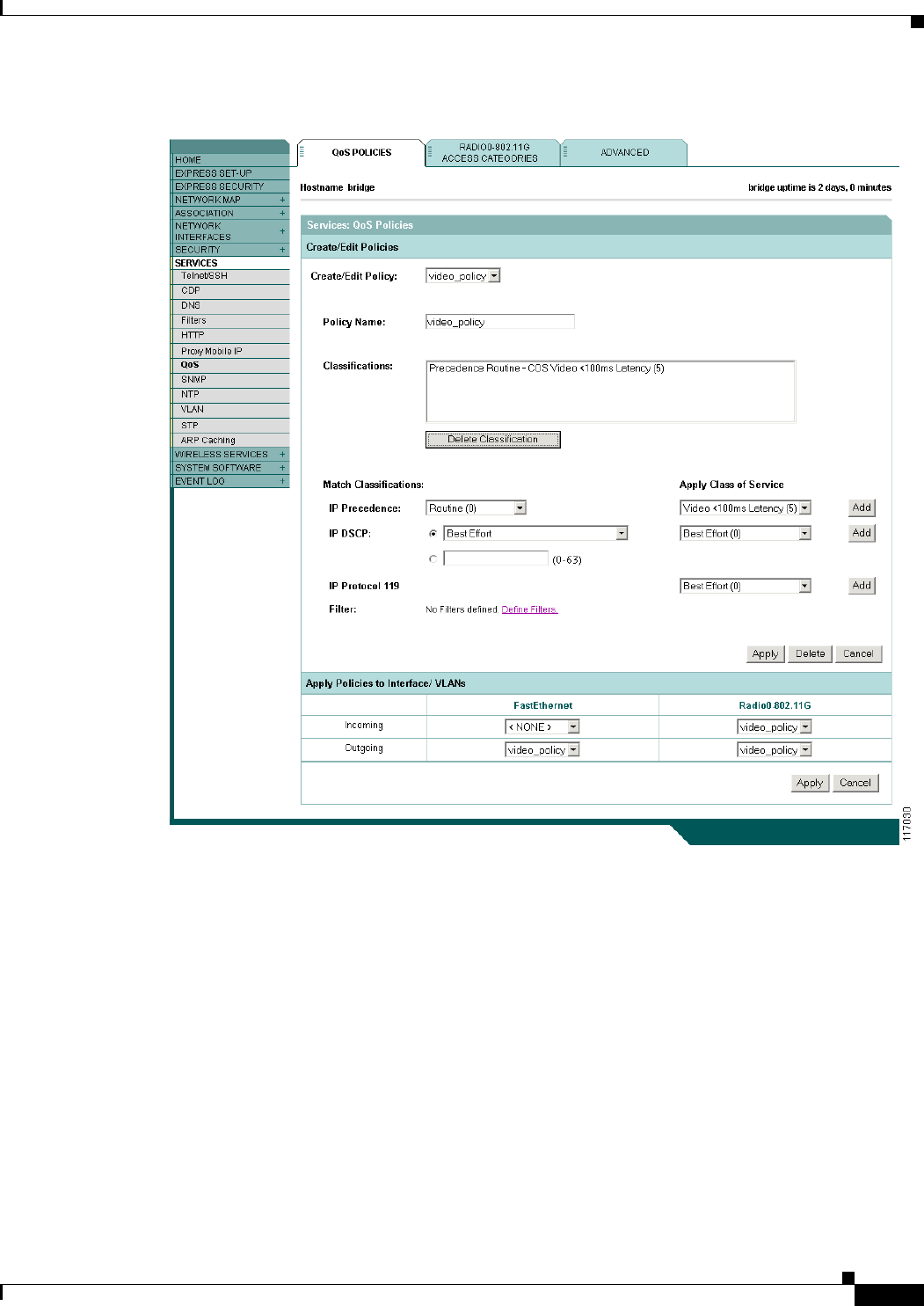

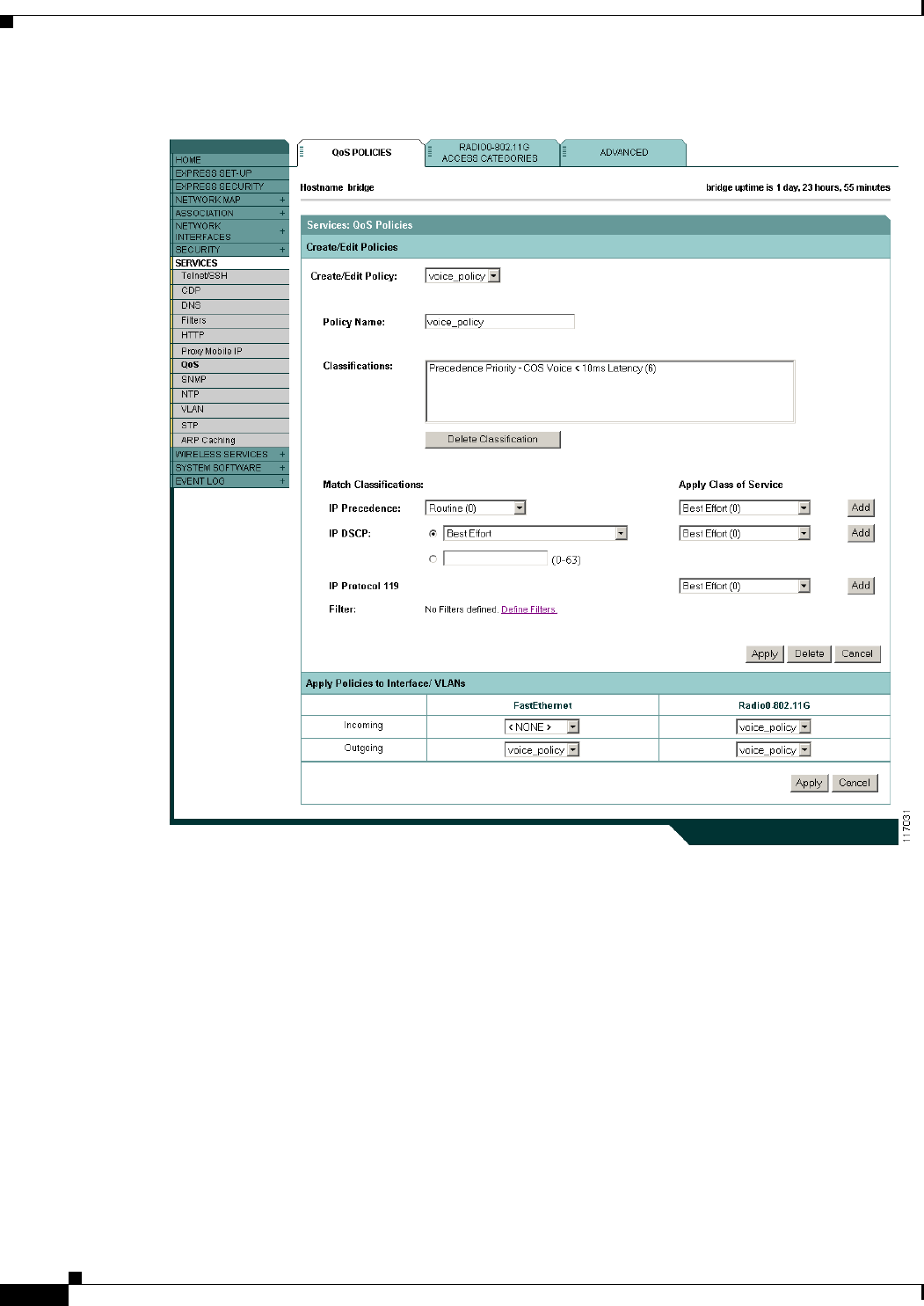

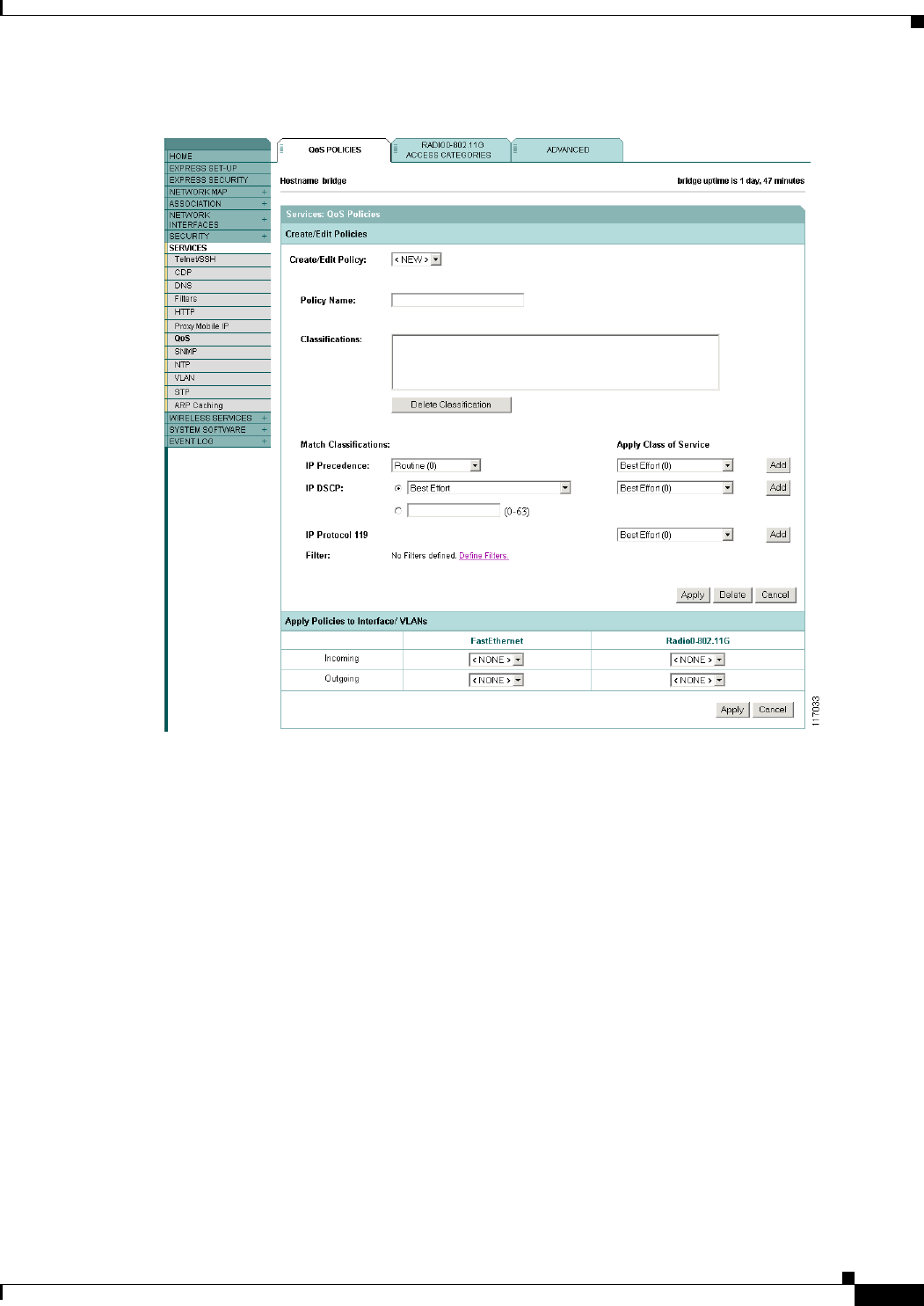

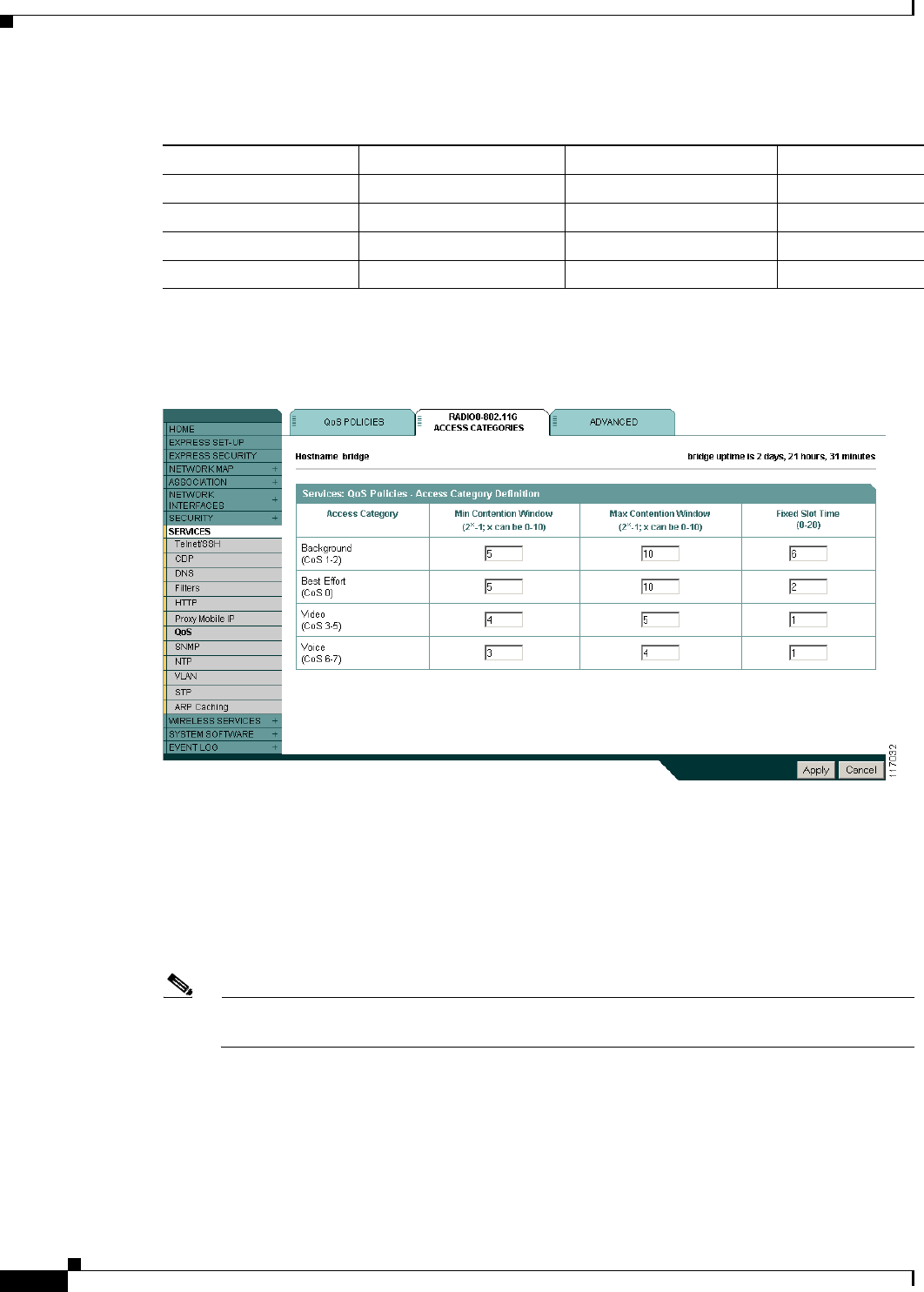

•QoS—Use this feature to support quality of service for prioritizing traffic on the wireless interface.

•RADIUS Accounting—Enable accounting on the WMIC to send accounting data about wireless

client devices to a RADIUS server on your network.

•TACACS+ administrator authentication—Enable TACACS+ for server-based, detailed accounting

information and flexible administrative control over authentication and authorization processes. It

provides secure, centralized validation of administrators attempting to gain access to your WMIC.

127922

Cisco 3200

127923

Cisco 3200

1-5

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 1 Overview

Features

•Enhanced security—Enable three advanced security features to protect against sophisticated attacks

on your wireless network's WEP keys: Message Integrity Check (MIC) and WEP key hashing.

Enhanced security for WPA/TKIP is also available.

•Enhanced authentication services—Set up non-root bridges or workgroup bridges to authenticate to

the network like other wireless client devices. After a network username and password for the

non-root bridge or workgroup bridge are set, it authenticates to the network using Cisco Light

Extensible Authentication Protocol (LEAP), and receives and uses dynamic WEP keys.

•Advanced Encryption Standard (AES) (only available on the 4.9-GHz WMIC)—This feature

supports Advanced Encryption Standard-Counter Mode with Cipher Block Chaining Message

Authentication Code Protocol (AES-CCMP). AES-CCMP is required for Wi-Fi Protected Access 2

(WPA2) and IEEE 802.11i wireless LAN security.

•Enhanced authentication for Cisco Centralized Key Management (CCKM).

•Fast, secure roaming of client devices, and radio management through wireless domain services

(WDS) (See the “Configuring WDS, Fast Secure Roaming, and Radio Management” chapter for

more information.

Note The 4.9-GHz WMIC does not support CKIP and CMIC encryption; however, The 2.4-GHz WMIC does

support CKIP and CMIC encryption.

The key differences between the 2.4-GHz WMIC and the 4.9-GHz WMIC are shown in Table 1-1.

Table 1-1 Differences Between the 2.4-GHz WMIC and the 4.9-GHz WMIC

Feature 2.4-GHz WMIC 4.9-GHz WMIC Comment

Cookie and

Banner

C3201 C32XX

Frequency 2.4 GHz 4.9 GHz

Data rates 802.11b data rates are

1 Mbps, 2 Mbps, 5.5 Mbps

and 11 Mbps.

802.11g, data rates are

1 Mbps, 2 Mbps, 5.5 Mbps,

6 Mbps, 9 Mbps, 11 Mbps,

12 Mbps, 18 Mbps, 24 Mbps,

36 Mbps, 48 Mbps, and

54 Mbps

20-MHz base band. 6 Mbps,

9 Mbps, 12 Mbps, 24 Mbps,

36 Mbps, 48 Mbps, and

56 Mbps.

10-MHz base band. Data

rates are 3 Mbps, 4.5 Mbps,

6 Mbps, 9 Mbps, 12 Mbps,

18 Mbps, 24 Mbps, and

27 Mbps.

5-MHz base band. Data

rates are 1.5 Mbps,

2.25 Mbps, 3 Mbps,

4.5 Mbps, 6 Mbps, 9 Mbps,

12 Mbps, and 13.5 Mbps

The dot11 interface speed command

manages data rates and only applies to the

4.9-GHz WMIC.

Power Maximum OFDM power

level is 15 dBm (30mw). This

varies by country.

Maximum OFDM power

level is 17 dBm (50mw). US

only.

The dot11 interface power command is

used to manage the power levels.

Concatenation Supported Not supported

1-6

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 1 Overview

Features

distance

command

(minimizes delay

propagation)

Supported Supported Formula to minimize the delay propagation

will be added to the dot11 interface

distance command

World Mode Supported Not supported

HTML-Based

User Interface

Supported Not supported

VLAN 16 unencrypted VLANs

16 static key VLANs

16 dynamic key VLANs

16 unencrypted VLANs

1 static key VLANs

4 dynamic key VLANs

Wireless

encryption/cipher

suites

WEP-40, WEP-128, TKIP,

CKIP, CMIC, and

CKIP-CMIC

WEP-40, WEP-128, TKIP,

and AES-CCM

CKIP, CMIC and CKIP-CMIC are not part

of 802.11 standard cipher suites.

Maximum

number of

stations with

WEP

255 116

Maximum

number of

stations with

TKIP

256 26

Maximum

number of

stations with

AES-CCM

256 116

Channelization Statically declared as defined

by IEEE 802.11b/g.

Channel spacing selected by

using the CLI.

WDS server Not supported Can be configured to act as

WDS server.

WDS client 2.4 GHz WMIC

(C3201-WMIC) acting as

Root device can

auto-discover a WDS server.

Acting as Root device, it can

auto-discover and work

within a subnet WDS server.

If the IP address of a WDS server is

statically configured, the 4.9-GHz WMIC,

acting as Root device, can also work with

central WDS server located anywhere in the

network.

Table 1-1 Differences Between the 2.4-GHz WMIC and the 4.9-GHz WMIC

Feature 2.4-GHz WMIC 4.9-GHz WMIC Comment

1-7

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 1 Overview

Management Options

You can use the WMIC management system through the following interfaces:

•The IOS command-line interface (CLI), which you use through a PC running terminal emulation

software or a Telnet session. Appendix A, “Connecting to the Cisco 3200 Series Router and Using

the Command-Line Interface,” provides a detailed description of how the CLI is used to confugure

the router. The “Preface” describes the command formats.

•Simple Network Management Protocol (SNMP). Chapter 14, “Configuring SNMP,” explains how to

configure your bridge for SNMP management.

Scanning

Enhancements

for Faster

Roaming

All Scanning Enhancements

for Faster Roaming are

available.

All Scanning Enhancements

for Faster Roaming are

available except “Use First

Better Access Point.”

•Synthesizer tuning time

•Start on Current Channel

•Only Probe Current SSID

•Shorten Wait time for Probe Response

•Automatically Limiting Frequencies

Scanned

•Time out the Scan

•Use First Better Access Point

•Save Best Probe Response

EAP-TLS,

EAP-TTLS

Supported on root devices Not supported

SNMP MIB Ids Supported Supported (new values) The platform-dependent SNMP code was

modified to return new values.

(entPhysicalVendorType, System OID, and

Chassis ID)

Dot11 MIB

parameters

Not available The dot11 parameters are

returned through the dot11

MIB interface.

WDS

server-related

MIBS

Not available Supported

Table 1-1 Differences Between the 2.4-GHz WMIC and the 4.9-GHz WMIC

Feature 2.4-GHz WMIC 4.9-GHz WMIC Comment

1-8

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 1 Overview

Management Options

CHAPTER

2-9

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Configuring the WMIC for the First Time

This chapter describes how to configure basic settings on a Wireless Mobile Interface Card (WMIC) for

the first time. You can configure all the settings described in this chapter using the CLI, but it might be

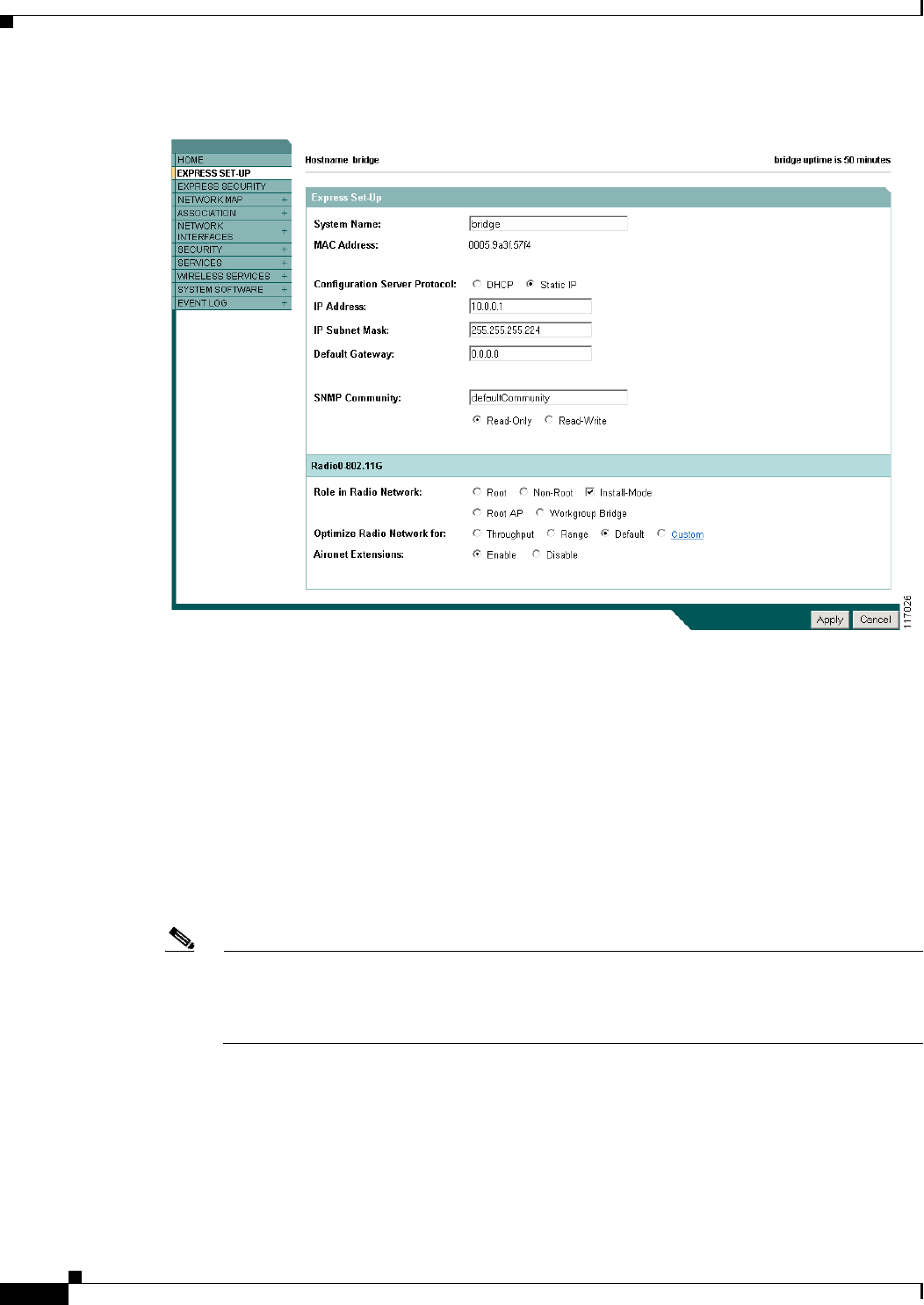

simplest to browse to the web-browser interface to complete the initial configuration and use the CLI to

enter additional settings for a more detailed configuration.

This chapter contains these sections:

•Before You Start

•Connecting to the WMIC

•Obtaining and Assigning an IP Address

•Configuring Basic Security Settings

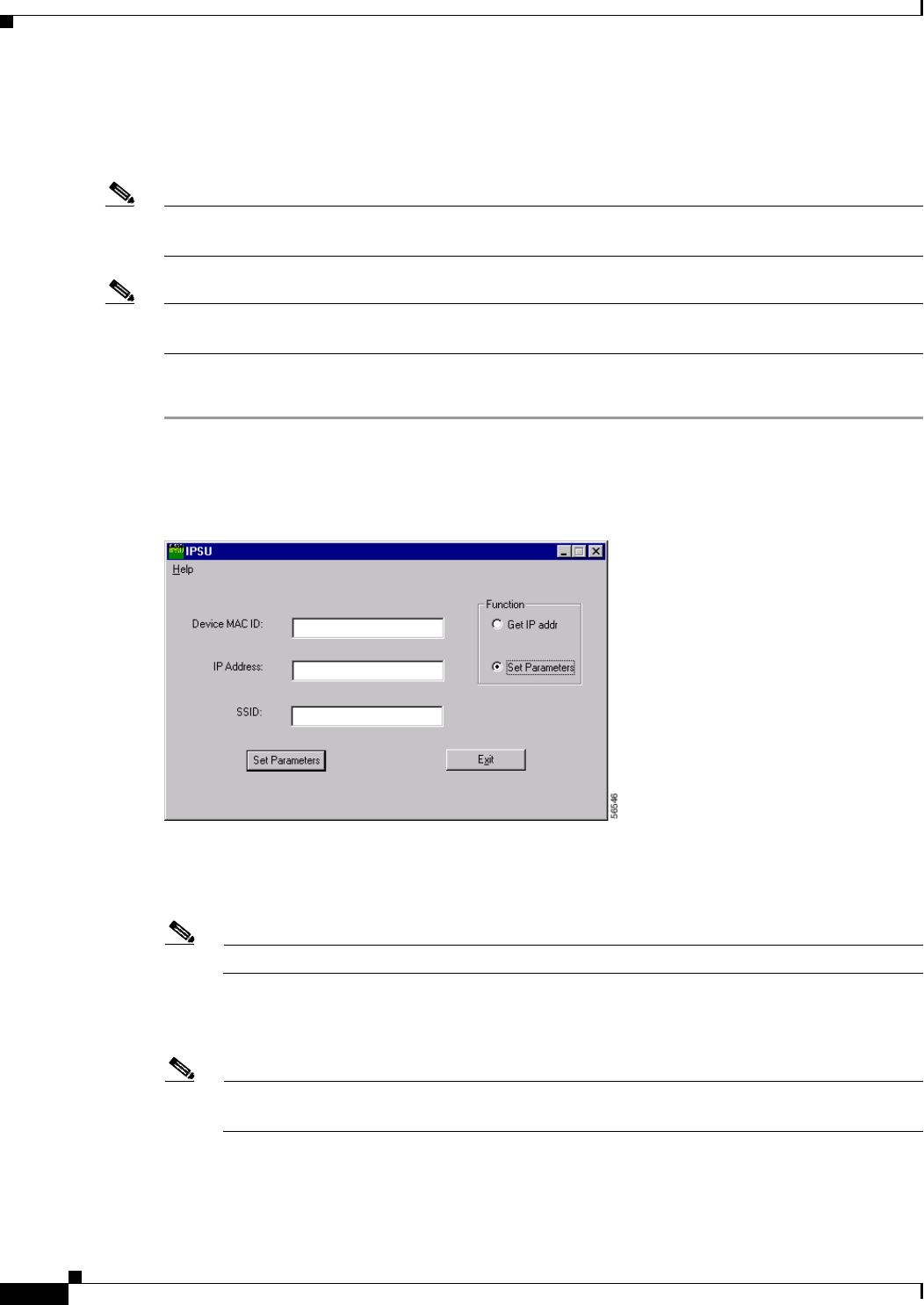

•Using the IP Setup Utility

2-10

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 2 Configuring the WMIC for the First Time

Before You Start

Before you install the WMIC, make sure you are using a computer connected to the same network as the

WMIC, and obtain the following information from your network administrator:

•A system name for the WMIC

•The case-sensitive wireless service set identifier (SSID) that your WMICs use

•If not connected to a DHCP server, a unique IP address for your WMIC (such as 172.17.255.115)

•If the WMIC is not on the same subnet as your PC, a default gateway address and subnet mask

•A Simple Network Management Protocol (SNMP) community name and the SNMP file attribute (if

SNMP is in use)

Connecting to the WMIC

To configure the WMIC locally (without connecting the WMIC to a wired LAN), connect a PC to the

console port. If the WMIC has an IP address and Telnet is allowed on the device, connect to a Fast

Ethernet Switch Mobile Interface Card (FESMIC) Ethernet port by using an Ethernet cable, and use

Telnet to establish the connection. Or you can Telnet into the WMIC from a node on the LAN.

Note When you connect your PC to the WMIC or reconnect your PC to the LAN, it might be necessary to

release and renew the IP address on the PC. On most PCs, release and renew the IP address by rebooting

the PC or by entering the ipconfig /release and ipconfig /renew commands in a command window.

Consult your PC operating instructions for detailed instructions.

Using the Console Port to Access the Exec

Connect a PC to the WMIC console port by using a DB-9 to RJ-45 serial cable. Note that there might be

several console ports on a Cisco 3200 Series router.

Follow these steps to access the CLI by connecting to the WMIC console port:

Step 1 Connect a nine-pin, female DB-9 to RJ-45 serial cable to the WMIC RJ-45 serial port on the router and

to the COM port on your PC.

Step 2 Set up a terminal emulator to communicate with the WMIC. Use the following settings for the terminal

emulator connection: 9600 baud, 8 data bits, no parity, 1 stop bit, and no flow control.

Step 3 When the terminal emulator is activated, press Enter. An Enter Network Password window appears.

Step 4 Enter your username in the User Name field. The default username is Cisco.

Step 5 Enter the WMIC password in the Password field and press Enter. The default password is Cisco.

When the CLI activates, you can enter CLI commands to configure the WMIC.

2-11

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 2 Configuring the WMIC for the First Time

Connecting to the WMIC

Using a Telnet Session to Access the Exec

Follow these steps to access the WMIC CLI by using a Telnet session. The WMIC must have been

previously configured to accept a Telnet session.

These steps are for a PC running Microsoft Windows with a Telnet terminal application. Check the PC

operating instructions for detailed instructions for your operating system.

Step 1 Select Start > Programs > Accessories > Telnet.

If Telnet is not listed in your Accessories menu, select Start > Run, type Telnet in the entry field, and

press Enter.

Step 2 When the Telnet window appears, click Connect and select Remote System.

Note In Windows 2000, the Telnet window does not contain drop-down menus. To start the Telnet

session in Windows 2000, type open followed by the WMIC IP address.

Step 3 In the Host Name field, type the WMIC IP address and click Connect.

Opening the CLI with Secure Shell

Secure Shell Protocol is a protocol that provides a secure, remote connection to networking devices set

up to use it. Secure Shell (SSH) is a software package that provides secure login sessions by encrypting

the entire session. SSH features strong cryptographic authentication, strong encryption, and integrity

protection. For detailed information on SSH, visit the homepage of SSH Communications Security, Ltd.

at this URL: http://www.ssh.com/

SSH provides more security for remote connections than Telnet by providing strong encryption when a

device is authenticated. See the “Configuring the WMIC for Secure Shell” section for instructions on

setting up the WMIC for SSH access.

2-12

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 2 Configuring the WMIC for the First Time

Obtaining and Assigning an IP Address

To browse to the WMIC Express Setup page, you must assign the WMIC IP address using one of the

following methods:

•Use command when you connect to the WMIC locally. For detailed instructions, see the

“Connecting to the WMIC” section of this document.

•Use a DHCP server (if available) to automatically assign an IP address. You can find out the

DHCP-assigned IP address using one of the following methods:

–

Provide your organization’s network administrator with your WMIC Media Access Control

(MAC) address. Your network administrator will query the DHCP server using the MAC

address to identify the IP address.

–

Use the Cisco IP Setup Utility (IPSU) to identify the assigned address. You can also use IPSU

to assign an IP address to the WMIC if it did not receive an IP address from the DHCP server.

IPSU runs on most Microsoft Windows operating systems: Windows 9x, 2000, Me, NT, and XP.

You can download IPSU from the Software Center on Cisco.com. Click this link to browse to

the Software Center:

http://www.cisco.com/public/sw-center/sw-wireless.shtml

–

If the unit is a non-root bridge, browse to the Associations page on the root bridge to which the

non-root is associated. The non-root bridge’s MAC address and IP address appear on the root

bridge’s Associations page.

Assigning an IP Address By Using the Exec

The WMIC links to the network using a Bridge Group Virtual Interface (BVI) that it creates

automatically. Instead of tracking separate IP addresses for the WMIC Ethernet and radio ports, the

network uses the BVI.

Note The WMIC supports only one BVI. Configuring more than one BVI might cause errors in the WMIC

ARP table.

When you assign an IP address to the WMIC using the CLI, you must assign the address to the BVI.

Beginning in privileged EXEC mode, follow these steps to assign an IP address to the BVI:

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 interface bvi1 Enter interface configuration mode for the BVI.

Step 3 ip address address

mask

Assign an IP address and address mask to the BVI.

Note If you are connected to the WMIC using a Telnet session, you lose

your connection to the WMIC when you assign a new IP address to

the BVI. To continue configuring the WMIC using Telnet, use the

new IP address to open another Telnet session to the WMIC.

2-13

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 2 Configuring the WMIC for the First Time

Obtaining and Assigning an IP Address

Assigning Basic Settings By Using the Web Browser

After you determine or assign the WMIC IP address, browse to the Express Setup page and perform an

initial configuration:

Step 1 Open your Internet browser. The web-browser interface is fully compatible with these browsers:

Microsoft Internet Explorer versions 5.0, 5.01, 5.5 and 6.0; and Netscape Navigator versions 4.79 and

7.0.

Step 2 Enter the IP address in the browser address line and press Enter. An Enter Network Password screen

appears.

Step 3 Press Tab to bypass the Username field and advance to the Password field.

Step 4 Enter the case-sensitive password (usually Cisco) and press Enter. The Summary Status page appears.

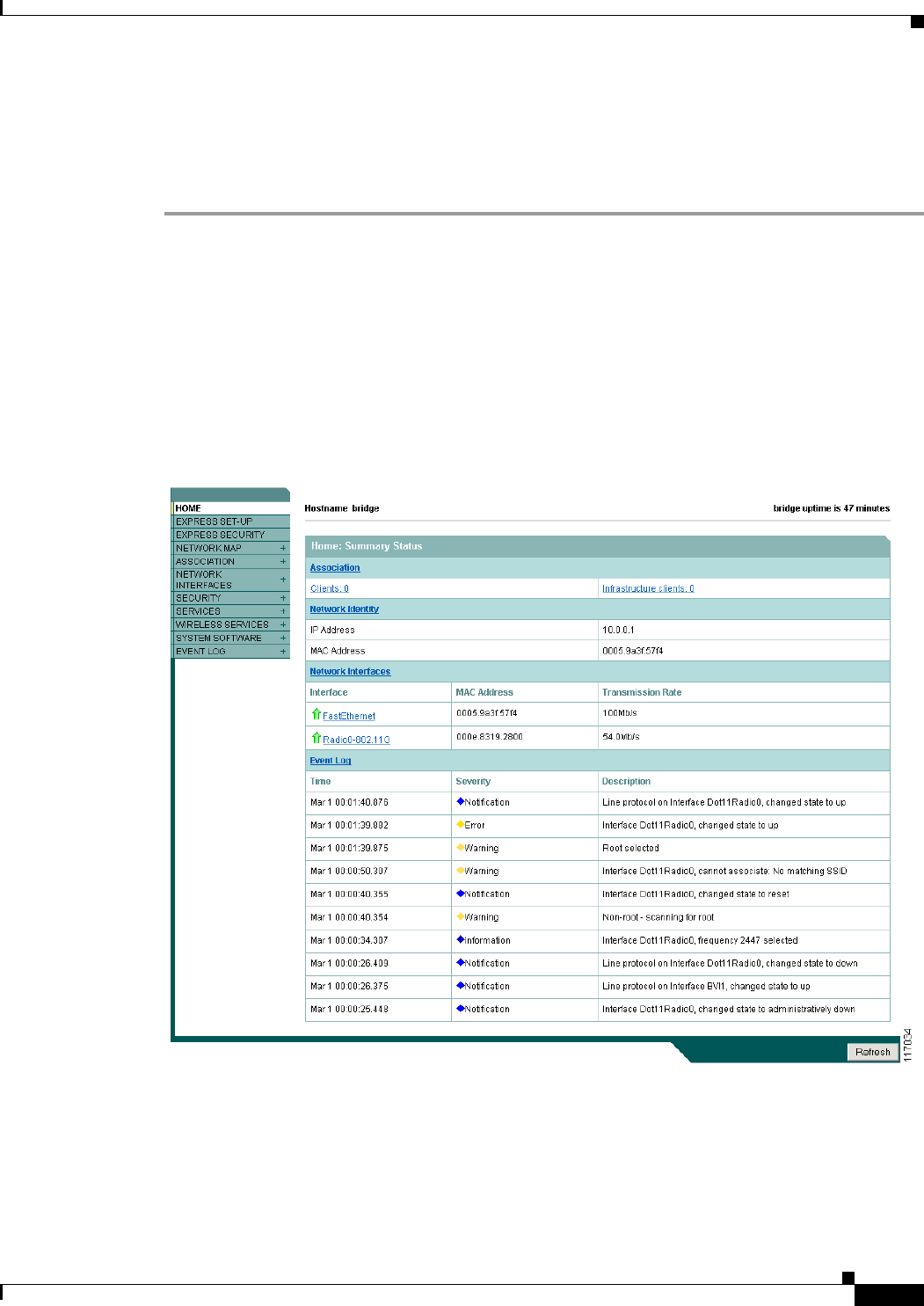

Figure 2-1 shows the Summary Status page.

Figure 2-1 Summary Status Page

Step 5 Click Express Setup. The Express Setup screen appears. Figure 2-2 shows the Express Setup page.

2-14

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 2 Configuring the WMIC for the First Time

Obtaining and Assigning an IP Address

Figure 2-2 Express Setup Page

Step 6 Enter the configuration settings you obtained from your system administrator. The configurable settings

include:

•System Name— The system name, while not an essential setting, helps identify the WMIC on your

network. The system name appears in the titles of the management system pages.

•Configuration Server Protocol—Click on the button that matches the network’s method of IP

address assignment.

–

DHCP—IP addresses are automatically assigned by your network’s DHCP server.

–

Static IP—The WMIC uses a static IP address that you enter in the IP address field.

•IP Address—Use this setting to assign or change the WMIC’s IP address. If DHCP is enabled for

your network, leave this field blank.

Note If the WMIC IP address changes while you are configuring the WMIC using the web-browser

interface or a Telnet session over the wired LAN, you lose your connection to the WMIC. If you

lose your connection, reconnect to the WMIC using its new IP address. Follow the steps in the

“Obtaining and Assigning an IP Address” section on page 2-12 if you need to start over.

•IP Subnet Mask—Enter the IP subnet mask provided by your network administrator so the IP

address can be recognized on the LAN. If DHCP is enabled, leave this field blank.

•Default Gateway—Enter the default gateway IP address provided by your network administrator.

If DHCP is enabled, leave this field blank.

2-15

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 2 Configuring the WMIC for the First Time

Obtaining and Assigning an IP Address

•SNMP Community—If your network is using SNMP, enter the SNMP Community name provided

by your network administrator and select the attributes of the SNMP data (also provided by your

network administrator).

•Role in Radio Network—Click on the button that describes the role of the device on your network.

–

Root—Configures the device as a root bridge. In this mode, you establish a link with a non-root

bridge. In this mode, the bridge also accepts associations from clients.

–

Non-Root— Places the device in non-root mode. In this mode, it links with a root bridge.

–

Install Mode—Places the device into installation mode so you can align and adjust the bridge

link for optimum efficiency.

–

Root AP—Places the device in the access point mode. In this mode, the device accepts

associations from client devices.

–

Workgroup Bridge—Places the device in the workgroup bridge mode. In this mode, the bridge

accepts wired clients.

Note In bridge modes, one bridge in any pair or group of bridges must be set to root, and the bridge

or bridges associated to the root bridge must be set to non-root.

•Optimize Radio Network for—Use this setting to select either preconfigured settings or

customized settings for the bridge radio. See the “Configuring the Radio Distance Setting” section

on page 4-14 for more information on data rates and throughput.

–

Throughput—Maximizes the data volume handled by the WMIC but might reduce its range.

When you select Throughput, the WMIC sets all data rates to basic.

–

Range—Maximizes the WMIC’s range but might reduce throughput. When you select Range,

the WMIC sets the 6-Mbps rate to basic and the other rates to enabled.

–

Default—The WMIC retains default radio settings that are designed to provide good range and

throughput for most bridges.

–

Custom—Takes you to the Network Interfaces: Radio-802.11G Settings page.

•Aironet Extensions—Enabled by default, click the Disable Aironet Extensions radio button, and

click Apply. The change will not be made to the configuration if the device is in workgroup bridge

mode. In root bridge and non-root bridge mode, an error message displays, indicating that Aironet

Extensions should always be enabled in root or non-root mode.

Step 7 Click Apply to save your settings. If you changed the IP address, you lose your connection to the WMIC.

Browse to the new IP address to reconnect to the WMIC.

Your WMIC is now running but probably requires additional configuring to conform to your network’s

operational and security requirements.

2-16

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 2 Configuring the WMIC for the First Time

Protecting Your Wireless LAN

Default Settings on the Express Setup Page

Table 2-1 lists the default settings for the settings on the Express Setup page.

Protecting Your Wireless LAN

After you assign basic settings to your WMIC, you must configure security settings to prevent

unauthorized access to your network. Because it is a radio device, the WMIC can communicate beyond

the physical boundaries of your building. You can use Express Security page in the Configuring Basic

Security Settings section to set basic security settings for your WMIC. Advanced security features can

be found in the following chapters:

•A unique SSID that are not broadcast in the beacon (see Chapter 5, “Configuring SSIDs”

•WEP and WEP features (see Chapter 7, “Configuring WEP and WEP Features”)

•Dynamic WEP and WMIC authentication (see Chapter 8, “Configuring Authentication Types”)

Table 2-1 Default Settings on the Express Setup Page

Setting Default

System Name bridge

Configuration Server Protocol DHCP

IP Address Assigned by DHCP by default; if DHCP is disabled, the default

setting is 10.0.0.1

IP Subnet Mask Assigned by DHCP by default; if DHCP is disabled, the default

setting is 255.255.255.224

Default Gateway Assigned by DHCP by default; if DHCP is disabled, the default

setting is 0.0.0.0

SNMP Community defaultCommunity

Role in Radio Network Install-Mode

Optimize Radio Network for Default

Aironet Extensions Enable

2-17

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 2 Configuring the WMIC for the First Time

Protecting Your Wireless LAN

Configuring Basic Security Settings

After you assign basic settings to your access point, you must configure security settings to prevent

unauthorized access to your network. Because it is a radio device, the access point can communicate

beyond the physical boundaries of your worksite.

Just as you use the Express Setup page to assign basic settings, you can use the Express Security page

to create unique SSIDs and assign one of four security types to them. Figure 2-3 shows the Express

Security page.

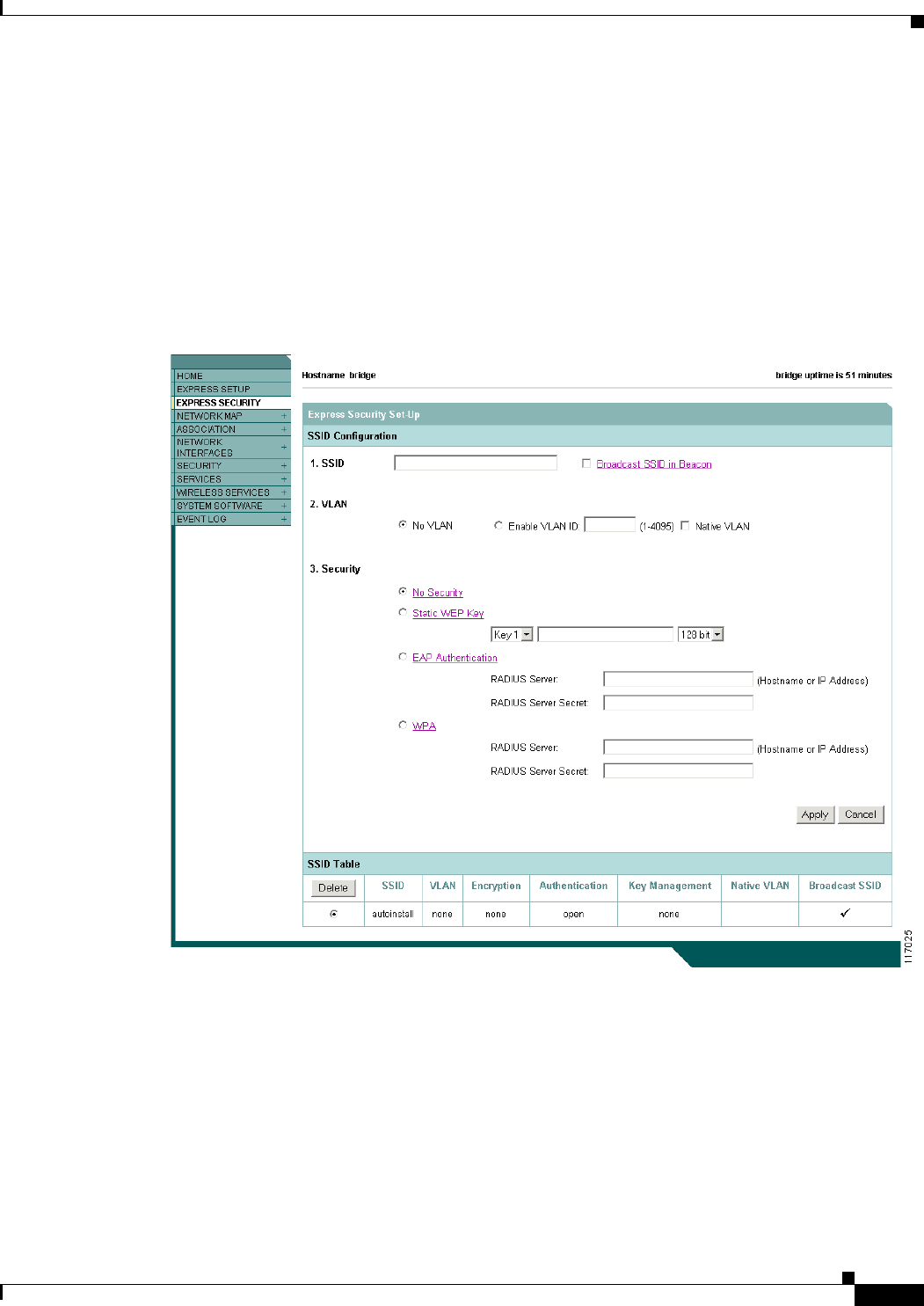

Figure 2-3 Express Security Page

The Express Security page helps you configure basic security settings. You can use the web-browser

interface’s main Security pages to configure more advanced security settings.

2-18

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 2 Configuring the WMIC for the First Time

Protecting Your Wireless LAN

Understanding Express Security Settings

When the WMIC configuration is at factory defaults, the first SSID that you create using the Express

security page overwrites the default SSID, install, which has no security settings. The SSIDs that you

create appear in the SSID table at the bottom of the page. You can create up to 16 SSIDs on the access

point.

Using VLANs

If you use VLANs on your wireless LAN and assign SSIDs to VLANs, you can create multiple SSIDs

using any of the four security settings on the Express Security page. However, if you do not use VLANs

on your wireless LAN, the security options that you can assign to SSIDs are limited because, on the

Express Security page, encryption settings and authentication types are linked. Without VLANs,

encryption settings (WEP and ciphers) apply to an interface such as the 2.4-GHz radio, and you cannot

use more than one encryption setting on an interface. For example, when you create an SSID with static

WEP with VLANs disabled, you cannot create additional SSIDs with WPA authentication because they

use different encryption settings. If you find that the security setting for an SSID conflicts with another

SSID, you can delete one or more SSIDs to eliminate the conflict.

Express Security Types

Table 2-2 describes the four security types that you can assign to an SSID.

Table 2-2 Security Types on Express Security Setup Page

Security Type Description Security Features Enabled

No Security This is the least secure option. You

should use this option only for SSIDs

used in a public space and assign it to

a VLAN that restricts access to your

network.

None.

Static WEP Key This option is more secure than no

security. However, static WEP keys

are vulnerable to attack. If you

configure this setting, you should

consider limiting association to the

access point based on MAC address

or, if your network does not have a

RADIUS server, consider using an

access point as a local authentication

server.

Mandatory WEP encryption, no key

management, and open

authentication. In Root AP mode,

client devices cannot associate using

this SSID without a WEP key that

matches the access point key.

2-19

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 2 Configuring the WMIC for the First Time

Protecting Your Wireless LAN

Express Security Limitations

Because the Express Security page is designed for simple configuration of basic security, the options

available are a subset of the WMIC’s security capabilities. Keep these limitations in mind when using

the Express Security page:

•You cannot edit SSIDs. However, you can delete SSIDs and re-create them.

•You cannot assign SSIDs to specific radio interfaces. The SSIDs that you create are enabled on all

radio interfaces. To assign SSIDs to specific radio interfaces, use the Security SSID Manager page.

•You cannot configure multiple authentication servers. To configure multiple authentication servers,

use the Security Server Manager page.

•You cannot configure multiple WEP keys. To configure multiple WEP keys, use the Security

Encryption Manager page.

•You cannot assign an SSID to a VLAN that is already configured on the WMIC. To assign an SSID

to an existing VLAN, use the Security SSID Manager page.

•You cannot configure combinations of authentication types on the same SSID (for example, MAC

address authentication and EAP authentication). To configure combinations of authentication types,

use the Security SSID Manager page.

EAP Authentication This option enables 802.1x

authentication (such as LEAP, PEAP,

EAP-TLS, EAP-GTC, EAP-SIM, and

others) and requires you to enter the

IP address and shared secret for an

authentication server on your network

(server authentication port 1645).

Because 802.1x authentication

provides dynamic encryption keys,

you do not need to enter a WEP key.

Mandatory 802.1x authentication, In

Root AP mode, client devices that

associate using this SSID must

perform 802.1x authentication.

WPA Wi-Fi Protected Access (WPA)

permits wireless access to users

authenticated against a database

through the services of an

authentication server, then encrypts

their IP traffic with stronger

algorithms than those used in WEP.

As with EAP authentication, you

must enter the IP address and shared

secret for an authentication server on

your network (server authentication

port 1645).

Mandatory WPA authentication. In

Root AP mode, client devices that

associate using this SSID must be

WPA-capable.

Table 2-2 Security Types on Express Security Setup Page (continued)

Security Type Description Security Features Enabled

2-20

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 2 Configuring the WMIC for the First Time

Protecting Your Wireless LAN

Using the Express Security Page

Follow these steps to create an SSID using the Express Security page:

Step 1 Type the SSID in the SSID entry field. The SSID can contain up to 32 alphanumeric characters.

a. The Broadcast SSID in Beacon setting is active only when the WMIC is in the Root AP mode.

When you broadcast the SSID, devices that do not specify an SSID can associate to the WMIC when

it is a root access point. This is a useful option for an SSID used by guests or by client devices in a

public space. If you do not broadcast the SSID, client devices cannot associate to the access point

unless their SSID matches this SSID. Only one SSID can be included in the beacon.

Step 2 (Optional) Check the Enable VLAN ID check box and enter a VLAN number (1 through 4095) to assign

the SSID to a VLAN. You cannot assign an SSID to an existing VLAN.

Step 3 (Optional) Check the Native VLAN check box to mark the VLAN as the native VLAN.

Step 4 Select the security setting for the SSID. The settings are listed in order of robustness, from No Security

to WPA, which is the most secure setting. If you select EAP Authentication or WPA, enter the IP address

and shared secret for the authentication server on your network.

Note If you do not use VLANs on your wireless LAN, the security options that you can assign to multiple

SSIDs are limited. See the “Using VLANs” section on page 2-18 for details.

Step 5 Click Apply. The SSID appears in the SSID table at the bottom of the page.

CLI Security Configuration Examples

The examples in this section show the CLI commands that are equivalent to creating SSIDs using each

security type on the Express Security page. This section contains these example configurations:

•Example: No Security, page 2-20

•Example: Static WEP, page 2-21

•Example: EAP Authentication, page 2-22

•Example: WPA, page 2-23

Example: No Security

This example shows part of the configuration that results from using the Express Security page to create

an SSID called no_security_ssid, including the SSID in the beacon, assigning it to VLAN 10, and

selecting VLAN 10 as the native VLAN:

interface Dot11Radio0

no ip address

no ip route-cache

ssid no_security-ssid

vlan 10

authentication open

guest-mode

2-21

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 2 Configuring the WMIC for the First Time

Protecting Your Wireless LAN

concatenation

speed basic-1.0 basic-2.0 basic-5.5 6.0 9.0 basic-11.0 12.0 18.0 24.0 36.0 48.0 54.0

rts threshold 4000

station-role root

infrastructure-client

bridge-group 1

interface Dot11Radio0.10

encapsulation dot1Q 10

no ip route-cache

bridge-group 10

bridge-group 10 spanning-disabled

interface FastEthernet0

no ip address

no ip route-cache

duplex auto

speed auto

bridge-group 1

interface FastEthernet0

no ip address

no ip route-cache

duplex auto

speed auto

bridge-group 1

Example: Static WEP

This example shows part of the configuration that results from using the Express Security page to create

an SSID called static_wep_ssid, excluding the SSID from the beacon, assigning the SSID to VLAN 20,

selecting 3 as the key slot, and entering a 128-bit key:

interface Dot11Radio0

no ip address

no ip route-cache

encryption vlan 20 key 3 size 128bit 7 4E78330C1A841439656A9323F25A transmit-ke

encryption vlan 20 mode wep mandatory

ssid static_wep_ssid

vlan 20

authentication open

concatenation

speed basic-1.0 basic-2.0 basic-5.5 6.0 9.0 basic-11.0 12.0 18.0 24.0 36.0 48.0 54.0

rts threshold 4000

station-role root

infrastructure-client

bridge-group 1

interface Dot11Radio0.20

encapsulation dot1Q 20

no ip route-cache

bridge-group 20

bridge-group 20 spanning-disabled

interface FastEthernet0

no ip address

no ip route-cache

duplex auto

2-22

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 2 Configuring the WMIC for the First Time

Protecting Your Wireless LAN

speed auto

bridge-group 1

interface FastEthernet0.20

encapsulation dot1Q 20

no ip route-cache

bridge-group 20

bridge-group 20 spanning-disabled

Example: EAP Authentication

This example shows part of the configuration that results from using the Express Security page to create

an SSID called eap_ssid, excluding the SSID from the beacon, and assigning the SSID to VLAN 30:

interface Dot11Radio0

no ip address

no ip route-cache

encryption vlan 30 mode wep mandatory

ssid eap_ssid

vlan 30

authentication open eap eap_methods

authentication network-eap eap_methods

speed basic-1.0 basic-2.0 basic-5.5 basic-11.0

rts threshold 2312

station-role root

bridge-group 1

bridge-group 1 subscriber-loop-control

bridge-group 1 block-unknown-source

no bridge-group 1 source-learning

no bridge-group 1 unicast-flooding

bridge-group 1 spanning-disabled

interface Dot11Radio0.30

encapsulation dot1Q 30

no ip route-cache

bridge-group 30

bridge-group 30 subscriber-loop-control

bridge-group 30 block-unknown-source

no bridge-group 30 source-learning

no bridge-group 30 unicast-flooding

bridge-group 30 spanning-disabled

interface FastEthernet0

mtu 1500

no ip address

ip mtu 1564

no ip route-cache

duplex auto

speed auto

bridge-group 1

no bridge-group 1 source-learning

bridge-group 1 spanning-disabled

2-23

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 2 Configuring the WMIC for the First Time

Protecting Your Wireless LAN

interface FastEthernet0.30

mtu 1500

encapsulation dot1Q 30

no ip route-cache

bridge-group 30

no bridge-group 30 source-learning

bridge-group 30 spanning-disabled

Example: WPA

This example shows part of the configuration that results from using the Express Security page to create

an SSID called wpa_ssid, excluding the SSID from the beacon, and assigning the SSID to VLAN 40:

aaa new-model

aaa group server radius rad_eap

server 10.91.104.92 auth-port 1645 acct-port 1646

aaa group server radius rad_mac

aaa group server radius rad_acct

aaa group server radius rad_admin

aaa group server tacacs+ tac_admin

aaa group server radius rad_pmip

aaa group server radius dummy

aaa authentication login eap_methods group rad_eap

aaa authentication login mac_methods local

aaa authorization exec default local

aaa authorization ipmobile default group rad_pmip

aaa accounting network acct_methods start-stop group rad_acct

aaa session-id common

bridge irb

interface Dot11Radio0

no ip address

no ip route-cache

encryption vlan 40 mode ciphers tkip

ssid wpa_ssid

vlan 40

authentication open eap eap_methods

authentication network-eap eap_methods

authentication key-management wpa

concatenation

speed basic-1.0 basic-2.0 basic-5.5 6.0 9.0 basic-11.0 12.0 18.0 24.0 36.0 48 54.0

rts threshold 4000

station-role root

infrastructure-client

bridge-group 1

interface Dot11Radio0.40

encapsulation dot1Q 40

2-24

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 2 Configuring the WMIC for the First Time

Using the IP Setup Utility

no ip route-cache

bridge-group 40

interface FastEthernet0

no ip address

no ip route-cache

duplex auto

speed auto

bridge-group 1

interface FastEthernet0.40

encapsulation dot1Q 40

no ip route-cache

bridge-group 40

ip http server

ip http help-path http://www.cisco.com/warp/public/779/smbiz/prodconfig/help/eag

/122-15.JA/1100

ip radius source-interface BVI1

radius-server attribute 32 include-in-access-req format %h

radius-server host 10.91.104.92 auth-port 1645 acct-port 1646 key 7 135445415F59

radius-server authorization permit missing Service-Type

radius-server vsa send accounting

bridge 1 route ip

line con 0

line vty 5 15

end

Using the IP Setup Utility

IPSU enables you to find the IP address of a device when it has been assigned by a DHCP server. You

can also use IPSU to set the IP address and SSID of a device if they have not been changed from the

default settings. This section explains how to download the utility from Cisco.com and install it, how to

use it to find the IP address of a device, and how to use it to set the IP address and the SSID.

Note IPSU can be used only on the following operating systems: Windows 95, 98, NT, 2000, ME, or XP.

Obtaining and Installing IPSU

IPSU is available on the Cisco web site. Follow these steps to obtain and install IPSU:

Step 1 Use your Internet browser to access the Cisco Software Center at the following URL:

http://www.cisco.com/public/sw-center/sw-wireless.shtml

Step 2 Click Cisco Aironet Wireless LAN Client Adapters.

Step 3 Scroll down to the Windows Utility section.

Step 4 Click Cisco Aironet Client Utility (ACU) for Windows.

Step 5 Click the file IPSUvxxxxxx.exe. The vxxxxxx identifies the software package version number.

Step 6 Read and accept the terms and conditions of the Software License Agreement.

2-25

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 2 Configuring the WMIC for the First Time

Using the IP Setup Utility

Step 7 Download and save the file to a temporary directory on your hard drive and then exit the Internet browser.

Step 8 Double-click IPSUvxxxxxx.exe in the temporary directory to expand the file.

Step 9 Double-click Setup.exe and follow the steps provided by the installation wizard to install IPSU.

The IPSU icon appears on your computer desktop.

Using IPSU to Find the WMIC IP Address

If your WMIC receives an IP address from a DHCP server, you can use IPSU to find its IP address.

Because IPSU sends a reverse-ARP request based on the MAC address, you must run IPSU from a

computer on the same subnet as the WMIC. Follow these steps to find the IP address:

Step 1 Double-click the IPSU icon on your computer desktop to start the utility. The IPSU screen appears (see

Figure 2-4).

Figure 2-4 IPSU Get IP Address Screen

Step 2 When the utility window opens, make sure the Get IP addr radio button in the Function box is selected.

Step 3 Enter the WMIC MAC address in the Device MAC ID field. The WMIC MAC address should contain

six pairs of hexadecimal digits. The MAC address might look like the following example:

000164xxxxxx

Note The MAC address field is not case-sensitive.

Step 4 Click Get IP Address.

Step 5 When the IP address appears in the IP Address field, write it down.

If IPSU reports that the IP address is the default IP address, the WMIC did not receive a DHCP-assigned

IP address. To change the IP address by using IPSU, refer to the “Using IPSU to Set the IP Address and

SSID” section.

2-26

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 2 Configuring the WMIC for the First Time

Using the IP Setup Utility

Using IPSU to Set the IP Address and SSID

To change the IP address of the WMIC, use IPSU. You can also set the SSID.

Note IPSU can change the IP address and SSID only from the default settings. After the IP address and SSID

have been changed, IPSU cannot be used to change them again.

Note The computer you use to assign an IP address to the WMIC must have an IP address in the same subnet

as the WMIC.

Follow these steps to assign an IP address and an SSID to the WMIC:

Step 1 Double-click the IPSU icon on your computer desktop to start the utility.

Step 2 Click the Set Parameters radio button in the Function box (see Figure 2-5).

Figure 2-5 IPSU Set Parameters Screen

Step 3 Enter the WMIC MAC address in the Device MAC ID field. The MAC address should contain six pairs

of hexadecimal digits. Your MAC address might look like this example:

004096xxxxxx

Note The MAC address field is not case-sensitive.

Step 4 Enter the IP address you want to assign to the WMIC in the IP Address field.

Step 5 Enter the SSID you want to assign to the WMIC in the SSID field.

Note You cannot set the SSID without also setting the IP address. However, you can set the IP address

without setting the SSID.

2-27

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 2 Configuring the WMIC for the First Time

Using the IP Setup Utility

Step 6 Click Set Parameters to change the WMIC’s IP address and SSID settings.

Step 7 Click Exit to exit IPSU.

2-28

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 2 Configuring the WMIC for the First Time

Using the IP Setup Utility

CHAPTER

3-1

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Administering the WMIC

This chapter describes how to administer your WMIC. This chapter contains these sections:

•Configuring a System Name and Prompt

•Managing the System Time and Date

•Creating a Banner

•Protecting Access to Privileged EXEC Commands

•Protecting the Wireless LAN

•Controlling WMIC Access with RADIUS

•Controlling WMIC Access with TACACS+

•Configuring the WMIC for Local Authentication and Authorization

•Configuring the WMIC for Secure Shell

•Managing Aironet Extensions

3-2

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 3 Administering the WMIC

Configuring a System Name and Prompt

You configure the system name on the WMIC to identify it. A greater-than symbol (>) is appended. The

prompt is updated whenever the system name changes, unless you manually configure the prompt by

using the prompt global configuration command.

Note For complete syntax and usage information for the commands used in this section, refer to the Cisco IOS

Configuration Fundamentals Command Reference and the Cisco IOS IP and IP Routing Command

Reference for Release 12.1.

Configuring a System Name

Beginning in privileged EXEC mode, follow these steps to manually configure a system name:

When you set the system name, it is also used as the system prompt.

To return to the default host name, use the no hostname global configuration command.

Managing DNS

The DNS protocol controls the Domain Name System (DNS), a distributed database with which you can

map host names to IP addresses. When you configure DNS on your WMIC, you can substitute the host

name for the IP address with all IP commands, such as ping,telnet,connect, and related Telnet support

operations.

IP defines a hierarchical naming scheme that allows a device to be identified by its location or domain.

Domain names are pieced together with periods (.) as the delimiting characters. For example, Cisco

Systems is a commercial organization that IP identifies by a com domain name, so its domain name is

cisco.com. A specific device in this domain, such as the File Transfer Protocol (FTP) system, is

identified as ftp.cisco.com.

To keep track of domain names, IP has defined the concept of a domain name server, which holds a cache

(or database) of names mapped to IP addresses. To map domain names to IP addresses, you must first

identify the host names, specify the name server that is present on your network, and enable the DNS.

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 hostname name Manually configure a system name.

The default setting is bridge.

The name must follow the rules for ARPANET host names. They must start

with a letter, end with a letter or digit, and have as interior characters only

letters, digits, and hyphens. Names can be up to 63 characters.

Step 3 end Return to privileged EXEC mode.

Step 4 show running-config Verify your entries.

Step 5 copy running-config startup-config (Optional) Save your entries in the configuration file.

3-3

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 3 Administering the WMIC

Managing DNS

Default DNS Configuration

Table 3-1 shows the default DNS configuration.

Setting Up DNS

Beginning in privileged EXEC mode, follow these steps to set up your WMIC to use the DNS:

If you use the WMIC IP address as its host name, the IP address is used and no DNS query occurs. If

you configure a host name that contains no periods (.), a period followed by the default domain name is

appended to the host name before the DNS query is made to map the name to an IP address. The default

Table 3-1 Default DNS Configuration

Feature Default Setting

DNS enable state Disabled.

DNS default domain name None configured.

DNS servers No name server addresses are configured.

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 ip domain-name name Define a default domain name that the software uses to complete unqualified

host names (names without a dotted-decimal domain name).

Do not include the initial period that separates an unqualified name from the

domain name.

At boot time, no domain name is configured; however, if the configuration

comes from a BOOTP or Dynamic Host Configuration Protocol (DHCP) server,

then the default domain name might be set by the BOOTP or DHCP server (if

the servers were configured with this information).

Step 3 ip name-server server-address1

[server-address2 ...

server-address6]

Specify the address of one or more name servers to use for name and address

resolution.

You can specify up to six name servers. Separate each server address with a

space. The first server specified is the primary server. The WMIC sends DNS

queries to the primary server first. If that query fails, the backup servers are

queried.

Step 4 ip domain-lookup (Optional) Enable DNS-based host name-to-address translation on your WMIC.

This feature is enabled by default.

If your network devices require connectivity with devices in networks for which

you do not control name assignment, you can dynamically assign device names

that uniquely identify your devices by using the global Internet naming scheme

(DNS).

Step 5 end Return to privileged EXEC mode.

Step 6 show running-config Verify your entries.

Step 7 copy running-config

startup-config

(Optional) Save your entries in the configuration file.

3-4

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 3 Administering the WMIC

Creating a Banner

domain name is the value set by the ip domain-name global configuration command. If there is a

period (.) in the host name, the IOS software looks up the IP address without appending any default

domain name to the host name.

To remove a domain name, use the no ip domain-name name global configuration command. To remove

a name server address, use the no ip name-server server-address global configuration command. To

disable DNS on the WMIC, use the no ip domain-lookup global configuration command.

Displaying the DNS Configuration

To display the DNS configuration information, use the show running-config privileged EXEC

command.

Creating a Banner

You can configure a message-of-the-day (MOTD) and a login banner. The MOTD banner appears on all

connected terminals at login and is useful for sending messages that affect all network users (such as

impending system shutdowns).

The login banner also appears on all connected terminals. It appears after the MOTD banner and before

the login prompts.

Note For complete syntax and usage information for the commands used in this section, refer to the Cisco IOS

Configuration Fundamentals Command Reference for Release 12.2.

Default Banner Configuration

The MOTD and login banners are not configured.

Configuring a Message-of-the-Day Login Banner

You can create a single or multiline message banner that appears on the screen when someone logs into

the WMIC.

Beginning in privileged EXEC mode, follow these steps to configure a MOTD login banner:

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 banner motd c message c Specify the message of the day.

For c, enter the delimiting character of your choice, such as a pound sign

(#), and press the Return key. The delimiting character signifies the

beginning and end of the banner text. Characters after the ending

delimiter are discarded.

For message, enter a banner message up to 255 characters. You cannot

use the delimiting character in the message.

3-5

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 3 Administering the WMIC

Creating a Banner

To delete the MOTD banner, use the no banner motd global configuration command.

This example shows how to configure a MOTD banner for the WMIC using the pound sign (#) symbol

as the beginning and ending delimiter:

bridge(config)# banner motd #

This is a secure site. Only authorized users are allowed.

For access, contact technical support.

bridge(config)#

This example shows the banner displayed from the previous configuration:

Unix> telnet 172.2.5.4

Trying 172.2.5.4...

Connected to 172.2.5.4.

Escape character is '^]'.

This is a secure site. Only authorized users are allowed.

For access, contact technical support.

User Access Verification

Password:

Configuring a Login Banner

You can configure a login banner to appear on all connected terminals. This banner appears after the

MOTD banner and before the login prompt.

Beginning in privileged EXEC mode, follow these steps to configure a login banner:

To delete the login banner, use the no banner login global configuration command.

Step 3 end Return to privileged EXEC mode.

Step 4 show running-config Verify your entries.

Step 5 copy running-config startup-config (Optional) Save your entries in the configuration file.

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 banner login c message c Specify the login message.

For c, enter the delimiting character of your choice, such as a pound sign

(#), and press the Return key. The delimiting character signifies the

beginning and end of the banner text. Characters after the ending delimiter

are discarded.

For message, enter a login message up to 255 characters. You cannot use the

delimiting character in the message.

Step 3 end Return to privileged EXEC mode.

Step 4 show running-config Verify your entries.

Step 5 copy running-config startup-config (Optional) Save your entries in the configuration file.

3-6

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 3 Administering the WMIC

Managing the System Time and Date

This example shows how to configure a login banner for the WMIC using the dollar sign ($) symbol as

the beginning and ending delimiter:

bridge(config)# banner login $

Access for authorized users only. Please enter your username and password.

bridge(config)#

Managing the System Time and Date

You can manage the system time and date on your WMIC automatically, using the Network Time

Protocol (NTP), or manually, by setting the time and date on the WMIC.

Note For complete syntax and usage information for the commands used in this section, refer to the Cisco IOS

Configuration Fundamentals Command Reference for Release 12.2.

Understanding the System Clock

The heart of the time service is the system clock. This clock runs from the moment the system starts up

and keeps track of the date and time.

The system clock can then be set from these sources:

•Network Time Protocol

•Manual configuration

The system clock can provide time to these services:

•User show commands

•Logging and debugging messages

The system clock determines time internally based on Universal Time Coordinated (UTC), also known

as Greenwich Mean Time (GMT). You can configure information about the local time zone and summer

time (daylight saving time) so that the time is correctly displayed for the local time zone.

The system clock keeps track of whether the time is authoritative or not (that is, whether it has been set

by a time source considered to be authoritative). If it is not authoritative, the time is available only for

display purposes and is not redistributed. For configuration information, see the “Configuring Time and

Date Manually” section on page 3-17.

Understanding Network Time Protocol

The NTP is designed to time-synchronize a network of devices. NTP runs over User Datagram Protocol

(UDP), which runs over IP. NTP is documented in RFC 1305.

An NTP network usually gets its time from an authoritative time source, such as a radio clock or an

atomic clock attached to a time server. NTP then distributes this time across the network. NTP is

extremely efficient; no more than one packet per minute is necessary to synchronize two devices to

within a millisecond of one another.

NTP uses the concept of a stratum to describe how many NTP hops away a device is from an

authoritative time source. A stratum 1 time server has a radio or atomic clock directly attached, a

stratum 2 time server receives its time through NTP from a stratum 1 time server, and so on. A device

3-7

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 3 Administering the WMIC

Managing the System Time and Date

running NTP automatically chooses as its time source the device with the lowest stratum number with

which it communicates through NTP. This strategy effectively builds a self-organizing tree of NTP

speakers.

NTP avoids synchronizing to a device whose time might not be accurate by never synchronizing to a

device that is not synchronized. NTP also compares the time reported by several devices and does not

synchronize to a device whose time is significantly different than the others, even if its stratum is lower.

The communications between devices running NTP (known as associations) are usually statically

configured; each device is given the IP address of all devices with which it should form associations.

Accurate timekeeping is possible by exchanging NTP messages between each pair of devices with an

association. However, in a LAN environment, NTP can be configured to use IP broadcast messages

instead. This alternative reduces configuration complexity because each device can simply be configured

to send or receive broadcast messages. However, in that case, information flow is one-way only.

The time kept on a device is a critical resource; you should use the security features of NTP to avoid the

accidental or malicious setting of an incorrect time. Two mechanisms are available: an access-list-based

restriction scheme and an encrypted authentication mechanism.

Cisco’s implementation of NTP does not support stratum 1 service; it is not possible to connect to a radio

or atomic clock. We recommend that the time service for your network be derived from the public NTP

servers available on the IP Internet. Figure 3-1 shows a typical network example using NTP.

If the network is isolated from the Internet, Cisco’s implementation of NTP allows a device to act as

though it is synchronized through NTP, when in fact it has determined the time by using other means.

Other devices then synchronize to that device through NTP.

When multiple sources of time are available, NTP is always considered to be more authoritative. NTP

time overrides the time set by any other method.

Several manufacturers include NTP software for their host systems, and a publicly available version for

systems running UNIX and its various derivatives is also available. This software allows host systems to

be time-synchronized as well.

3-8

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 3 Administering the WMIC

Managing the System Time and Date

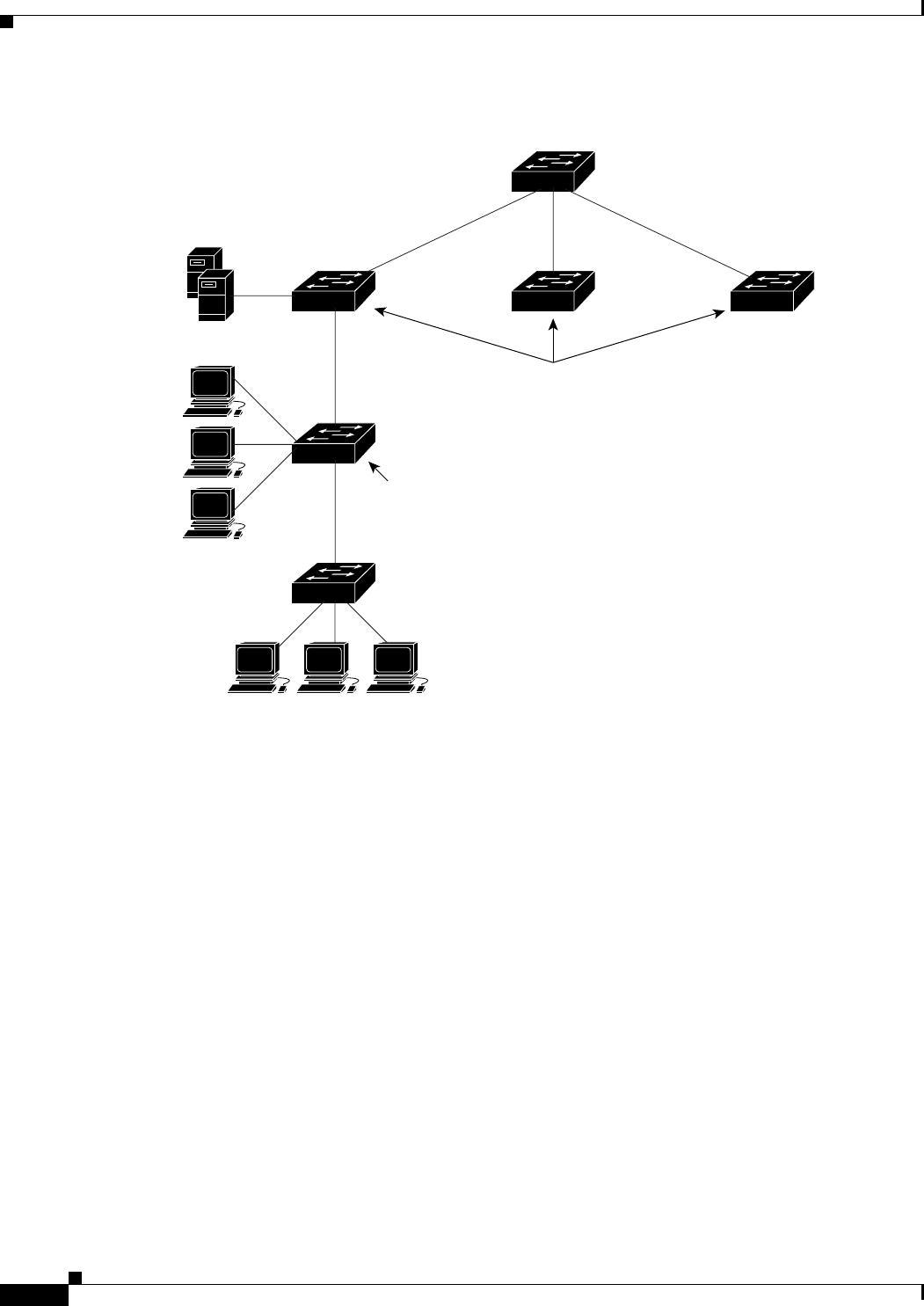

Figure 3-1 Typical NTP Network Configuration

Catalyst 3550

switch

Catalyst 3550

switch

Catalyst 3550

switch

Catalyst 3550

switch

These switches are configured in

NTP server mode (server association)

with the Catalyst 6500 series switch.

Catalyst 6500

series switch

(NTP master)

This switch is configured as an NTP

peer to the upstream and downstream

Catalyst 3550 switches.

Catalyst 3550

switch

Workstations

Local

workgroup

servers

43269

3-9

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 3 Administering the WMIC

Managing the System Time and Date

Configuring NTP

WMICs do not have a hardware-supported clock, and they cannot function as an NTP master clock to

which peers synchronize themselves when an external NTP source is not available. These bridges also

have no hardware support for a calendar. As a result, the ntp update-calendar and the ntp master global

configuration commands are not available.

Default NTP Configuration

Table 3-2 shows the default NTP configuration.

NTP is disabled by default.

Configuring NTP Authentication

This procedure must be coordinated with the administrator of the NTP server; the information you

configure in this procedure must be matched by the servers used by the WMIC to synchronize its time

to the NTP server.

Beginning in privileged EXEC mode, follow these steps to authenticate the associations (communications

between devices running NTP that provide for accurate timekeeping) with other devices for security

purposes:

Table 3-2 Default NTP Configuration

Feature Default Setting

NTP authentication Disabled. No authentication key is specified.

NTP peer or server associations None configured.

NTP broadcast service Disabled; no interface sends or receives NTP broadcast packets.

NTP access restrictions No access control is specified.

NTP packet source IP address The source address is determined by the outgoing interface.

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 ntp authenticate Enable the NTP authentication feature, which is disabled by

default.

Step 3 ntp authentication-key number md5 value Define the authentication keys. By default, none are defined.

•For number, specify a key number. The range is 1 to

4294967295.

•md5 specifies that message authentication support is provided

by using the message digest algorithm 5 (MD5).

•For value, enter an arbitrary string of up to eight characters for

the key.

The WMIC does not synchronize to a device unless both have one

of these authentication keys, and the key number is specified by the

ntp trusted-key key-number command.

3-10

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 3 Administering the WMIC

Managing the System Time and Date

To disable NTP authentication, use the no ntp authenticate global configuration command. To remove

an authentication key, use the no ntp authentication-key number global configuration command. To

disable authentication of the identity of a device, use the no ntp trusted-key key-number global

configuration command.

This example shows how to configure the WMIC to synchronize only to devices providing authentication

key 42 in the device’s NTP packets:

bridge(config)# ntp authenticate

bridge(config)# ntp authentication-key 42 md5 aNiceKey

bridge(config)# ntp trusted-key 42

Step 4 ntp trusted-key key-number Specify one or more key numbers (defined in Step 3) that a peer

NTP device must provide in its NTP packets for this WMIC to

synchronize to it.

By default, no trusted keys are defined.

For key-number, specify the key defined in Step 3.

This command provides protection against accidentally

synchronizing the WMIC to a device that is not trusted.

Step 5 end Return to privileged EXEC mode.

Step 6 show running-config Verify your entries.

Step 7 copy running-config startup-config (Optional) Save your entries in the configuration file.

Command Purpose

3-11

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 3 Administering the WMIC

Managing the System Time and Date

Configuring NTP Associations

An NTP association can be a peer association (this WMIC can either synchronize to the other device or

allow the other device to synchronize to it), or it can be a server association (meaning that only this

WMIC synchronizes to the other device, and not the other way around).

Beginning in privileged EXEC mode, follow these steps to form an NTP association with another device:

You need to configure only one end of an association; the other device can automatically establish the

association. If you are using the default NTP version (version 3) and NTP synchronization does not

occur, try using NTP version 2. Many NTP servers on the Internet run version 2.

To remove a peer or server association, use the no ntp peer ip-address or the no ntp server ip-address

global configuration command.

This example shows how to configure the WMIC to synchronize its system clock with the clock of the

peer at IP address 172.16.22.44 using NTP version 2:

bridge(config)# ntp server 172.16.22.44 version 2

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 ntp peer ip-address [version number]

[key keyid] [source interface] [prefer]

ntp server ip-address [version number]

[key keyid] [source interface] [prefer]

Configure the WMIC system clock to synchronize a peer or to be

synchronized by a peer (peer association).

Configure the WMIC system clock to be synchronized by a time server

(server association).

No peer or server associations are defined by default.

•For ip-address in a peer association, specify either the IP address of

the peer providing, or being provided, the clock synchronization. For

a server association, specify the IP address of the time server

providing the clock synchronization.

•(Optional) For number, specify the NTP version number. The range is

1 to 3. By default, version 3 is selected.

•(Optional) For keyid, enter the authentication key defined with the

ntp authentication-key global configuration command.

•(Optional) For interface, specify the interface from which to pick the

IP source address. By default, the source IP address is taken from the

outgoing interface.

•(Optional) Enter the prefer keyword to make this peer or server the

preferred one that provides synchronization. This keyword reduces

switching back and forth between peers and servers.

Step 3 end Return to privileged EXEC mode.

Step 4 show running-config Verify your entries.

Step 5 copy running-config startup-config (Optional) Save your entries in the configuration file.

3-12

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 3 Administering the WMIC

Managing the System Time and Date

Configuring NTP Broadcast Service

The communications between devices running NTP (known as associations) are usually statically

configured; each device is given the IP addresses of all devices with which it should form associations.

Accurate timekeeping is possible by exchanging NTP messages between each pair of devices with an

association. However, in a LAN environment, NTP can be configured to use IP broadcast messages

instead. This alternative reduces configuration complexity because each device can simply be configured

to send or receive broadcast messages. However, the information flow is one-way only.

The WMIC can send or receive NTP broadcast packets on an interface-by-interface basis if there is an NTP

broadcast server, such as a router, broadcasting time information on the network. The WMIC can send NTP

broadcast packets to a peer so that the peer can synchronize to it. The WMIC can also receive NTP broadcast

packets to synchronize its own clock. This section provides procedures for both sending and receiving NTP

broadcast packets.

Beginning in privileged EXEC mode, follow these steps to configure the WMIC to send NTP broadcast

packets to peers so that they can synchronize their clock to the WMIC:

To disable the interface from sending NTP broadcast packets, use the no ntp broadcast interface

configuration command.

This example shows how to configure an interface to send NTP version 2 packets:

bridge(config)# interface gigabitethernet0/1

bridge(config-if)# ntp broadcast version 2

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 interface interface-id Enter interface configuration mode, and specify the interface to send

NTP broadcast packets.

Step 3 ntp broadcast [version number] [key keyid]

[destination-address]

Enable the interface to send NTP broadcast packets to a peer.

By default, this feature is disabled on all interfaces.

•(Optional) For number, specify the NTP version number. The

range is 1 to 3. If you do not specify a version, version 3 is used.

•(Optional) For keyid, specify the authentication key to use when

sending packets to the peer.

•(Optional) For destination-address, specify the IP address of the

peer that is synchronizing its clock to this WMIC.

Step 4 end Return to privileged EXEC mode.

Step 5 show running-config Verify your entries.

Step 6 copy running-config startup-config (Optional) Save your entries in the configuration file.

Step 7 Configure the connected peers to receive NTP broadcast packets as

described in the next procedure.

3-13

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 3 Administering the WMIC

Managing the System Time and Date

Beginning in privileged EXEC mode, follow these steps to configure the WMIC to receive NTP

broadcast packets from connected peers:

To disable an interface from receiving NTP broadcast packets, use the no ntp broadcast client interface

configuration command. To change the estimated round-trip delay to the default, use the no ntp

broadcastdelay global configuration command.

This example shows how to configure an interface to receive NTP broadcast packets:

bridge(config)# interface gigabitethernet0/1

bridge(config-if)# ntp broadcast client

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 interface interface-id Enter interface configuration mode, and specify the interface to receive

NTP broadcast packets.

Step 3 ntp broadcast client Enable the interface to receive NTP broadcast packets.

By default, no interfaces receive NTP broadcast packets.

Step 4 exit Return to global configuration mode.

Step 5 ntp broadcastdelay microseconds (Optional) Change the estimated round-trip delay between the WMIC and

the NTP broadcast server.

The default is 3000 microseconds; the range is 1 to 999999.

Step 6 end Return to privileged EXEC mode.

Step 7 show running-config Verify your entries.

Step 8 copy running-config startup-config (Optional) Save your entries in the configuration file.

3-14

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 3 Administering the WMIC

Managing the System Time and Date

Configuring NTP Access Restrictions

You can control NTP access by using access lists.

Creating an Access Group and Assigning a Basic IP Access List

Beginning in privileged EXEC mode, follow these steps to control access to NTP services by using

access lists:

The access group keywords are scanned in this order, from least restrictive to most restrictive:

1. peer—Allows time requests and NTP control queries and allows the WMIC to synchronize itself to

a device whose address passes the access list criteria.

2. serve—Allows time requests and NTP control queries, but does not allow the WMIC to synchronize

itself to a device whose address passes the access list criteria.

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 ntp access-group {query-only |

serve-only | serve | peer}

access-list-number

Create an access group, and apply a basic IP access list.

The keywords have these meanings:

•query-only—Allows only NTP control queries.

•serve-only—Allows only time requests.

•serve—Allows time requests and NTP control queries, but does not

allow the WMIC to synchronize to the remote device.

•peer—Allows time requests and NTP control queries and allows the

WMIC to synchronize to the remote device.

For access-list-number, enter a standard IP access list number from 1

to 99.

Step 3 access-list access-list-number permit

source [source-wildcard]

Create the access list.

•For access-list-number, enter the number specified in Step 2.

•Enter the permit keyword to permit access if the conditions are

matched.

•For source, enter the IP address of the device that is permitted access

to the WMIC.

•(Optional) For source-wildcard, enter the wildcard bits to be applied

to the source.

Note When creating an access list, remember that, by default, the end

of the access list contains an implicit deny statement for

everything if it did not find a match before reaching the end.

Step 4 end Return to privileged EXEC mode.

Step 5 show running-config Verify your entries.

Step 6 copy running-config startup-config (Optional) Save your entries in the configuration file.

3-15

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 3 Administering the WMIC

Managing the System Time and Date

3. serve-only—Allows only time requests from a device whose address passes the access list criteria.

4. query-only—Allows only NTP control queries from a device whose address passes the access list

criteria.

If the source IP address matches the access lists for more than one access type, the first type is granted.

If no access groups are specified, all access types are granted to all devices. If any access groups are

specified, only the specified access types are granted.

To remove access control to the WMIC NTP services, use the no ntp access-group {query-only |

serve-only | serve | peer} global configuration command.

This example shows how to configure the WMIC to allow itself to synchronize to a peer from access

list 99. However, the WMIC restricts access to allow only time requests from access list 42:

bridge# configure terminal

bridge(config)# ntp access-group peer 99

bridge(config)# ntp access-group serve-only 42

bridge(config)# access-list 99 permit 172.20.130.5

bridge(config)# access list 42 permit 172.20.130.6

Disabling NTP Services on a Specific Interface

NTP services are enabled on all interfaces by default.

Beginning in privileged EXEC mode, follow these steps to disable NTP packets from being received on

an interface:

To re-enable receipt of NTP packets on an interface, use the no ntp disable interface configuration

command.

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 interface interface-id Enter interface configuration mode, and specify the interface to disable.

Step 3 ntp disable Disable NTP packets from being received on the interface.

By default, all interfaces receive NTP packets.

Step 4 end Return to privileged EXEC mode.

Step 5 show running-config Verify your entries.

Step 6 copy running-config startup-config (Optional) Save your entries in the configuration file.

3-16

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 3 Administering the WMIC

Managing the System Time and Date

Configuring the Source IP Address for NTP Packets

When the WMIC sends an NTP packet, the source IP address is normally set to the address of the

interface through which the NTP packet is sent. Use the ntp source global configuration command when

you want to use a particular source IP address for all NTP packets. The address is taken from the

specified interface. This command is useful if the address on an interface cannot be used as the

destination for reply packets.

Beginning in privileged EXEC mode, follow these steps to configure a specific interface from which the

IP source address is to be taken:

The specified interface is used for the source address for all packets sent to all destinations. If a source

address is to be used for a specific association, use the source keyword in the ntp peer or ntp server

global configuration command as described in the “Configuring NTP Associations” section on

page 3-11.

Displaying the NTP Configuration

You can use two privileged EXEC commands to display NTP information:

•show ntp associations [detail]

•show ntp status

For detailed information about the fields in these displays, refer to the Cisco IOS Configuration

Fundamentals Command Reference for Release 12.1.

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 ntp source type number Specify the interface type and number from which the IP source address

is taken.

By default, the source address is determined by the outgoing interface.

Step 3 end Return to privileged EXEC mode.

Step 4 show running-config Verify your entries.

Step 5 copy running-config startup-config (Optional) Save your entries in the configuration file.

3-17

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 3 Administering the WMIC

Managing the System Time and Date

Configuring Time and Date Manually

If no other source of time is available, you can manually configure the time and date after the system is

restarted. The time remains accurate until the next system restart. We recommend that you use manual

configuration only as a last resort. If you have an outside source to which the WMIC can synchronize,

you do not need to manually set the system clock.

Setting the System Clock

If you have an outside source on the network that provides time services, such as an NTP server, you do

not need to manually set the system clock.

Beginning in privileged EXEC mode, follow these steps to set the system clock:

This example shows how to manually set the system clock to 1:32 p.m. on July 23, 2001:

bridge# clock set 13:32:00 23 July 2001

Displaying the Time and Date Configuration

To display the time and date configuration, use the show clock [detail] privileged EXEC command.

The system clock keeps an authoritative flag that shows whether the time is authoritative (believed to be

accurate). If the system clock has been set by a timing source such as NTP, the flag is set. If the time is

not authoritative, it is used only for display purposes. Until the clock is authoritative and the

authoritative flag is set, the flag prevents peers from synchronizing to the clock when the peers’ time is

invalid.

The symbol that precedes the show clock display has this meaning:

•*—Time is not authoritative.

•(blank)—Time is authoritative.

•.—Time is authoritative, but NTP is not synchronized.

Command Purpose

Step 1 clock set hh:mm:ss day month year

clock set hh:mm:ss month day year

Manually set the system clock using one of these formats.

•For hh:mm:ss, specify the time in hours (24-hour format), minutes,

and seconds. The time specified is relative to the configured time

zone.

•For day, specify the day by date in the month.

•For month, specify the month by name.

•For year, specify the year (no abbreviation).

Step 2 show running-config Verify your entries.

Step 3 copy running-config startup-config (Optional) Save your entries in the configuration file.

3-18

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 3 Administering the WMIC

Managing the System Time and Date

Configuring the Time Zone

Beginning in privileged EXEC mode, follow these steps to manually configure the time zone:

The minutes-offset variable in the clock timezone global configuration command is available for those

cases where a local time zone is a percentage of an hour different from UTC. For example, the time zone

for some sections of Atlantic Canada (AST) is UTC-3.5, where the 3 means 3 hours and .5 means 50

percent. In this case, the necessary command is clock timezone AST -3 30.

To set the time to UTC, use the no clock timezone global configuration command.

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 clock timezone zone hours-offset

[minutes-offset]

Set the time zone.

The device keeps internal time in universal time coordinated (UTC), so

this command is used only for display purposes and when the time is

manually set.

•For zone, enter the name of the time zone to be displayed when

standard time is in effect. The default is UTC.

•For hours-offset, enter the hours offset from UTC.

•(Optional) For minutes-offset, enter the minutes offset from UTC.

Step 3 end Return to privileged EXEC mode.

Step 4 show running-config Verify your entries.

Step 5 copy running-config startup-config (Optional) Save your entries in the configuration file.

3-19

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 3 Administering the WMIC

Managing the System Time and Date

Configuring Summer Time (Daylight Saving Time)

Beginning in privileged EXEC mode, follow these steps to configure summer time (daylight saving time)

in areas where it starts and ends on a particular day of the week each year:

The first part of the clock summer-time global configuration command specifies when summer time

begins, and the second part specifies when it ends. All times are relative to the local time zone. The start

time is relative to standard time. The end time is relative to summer time. If the starting month is after

the ending month, the system assumes that you are in the southern hemisphere.

This example shows how to specify that summer time starts on the first Sunday in April at 02:00 and

ends on the last Sunday in October at 02:00:

bridge(config)# clock summer-time PDT recurring 1 Sunday April 2:00 last Sunday October

2:00

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 clock summer-time zone recurring

[week day month hh:mm week day month

hh:mm [offset]]

Configure summer time to start and end on the specified days every year.

Summer time is disabled by default. If you specify clock summer-time

zone recurring without parameters, the summer time rules default to the

United States rules.

•For zone, specify the name of the time zone (for example, PDT) to be

displayed when summer time is in effect.

•(Optional) For week, specify the week of the month (1 to 5 or last).

•(Optional) For day, specify the day of the week (Sunday, Monday...).

•(Optional) For month, specify the month (January, February...).

•(Optional) For hh:mm, specify the time (24-hour format) in hours and

minutes.

•(Optional) For offset, specify the number of minutes to add during

summer time. The default is 60.

Step 3 end Return to privileged EXEC mode.

Step 4 show running-config Verify your entries.

Step 5 copy running-config startup-config (Optional) Save your entries in the configuration file.

3-20

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 3 Administering the WMIC

Protecting Access to Privileged EXEC Commands

Beginning in privileged EXEC mode, follow these steps if summer time in your area does not follow a

recurring pattern (configure the exact date and time of the next summer time events):

The first part of the clock summer-time global configuration command specifies when summer time

begins, and the second part specifies when it ends. All times are relative to the local time zone. The start

time is relative to standard time. The end time is relative to summer time. If the starting month is after

the ending month, the system assumes that you are in the southern hemisphere.

To disable summer time, use the no clock summer-time global configuration command.

This example shows how to set summer time to start on October 12, 2000, at 02:00, and end on April 26,

2001, at 02:00:

bridge(config)# clock summer-time pdt date 12 October 2000 2:00 26 April 2001 2:00

Protecting Access to Privileged EXEC Commands

A simple way of providing terminal access control in your network is to use passwords and assign

privilege levels. Password protection restricts access to a network or network device. Privilege levels

define what commands users can issue after they have logged into a network device.

Note For complete syntax and usage information for the commands used in this section, refer to the Cisco IOS

Security Command Reference for Release 12.2.

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 clock summer-time zone date [month

date year hh:mm month date year hh:mm

[offset]]

clock summer-time zone date [date

month year hh:mm date month year

hh:mm [offset]]

Configure summer time to start on the first date and end on the second

date.

Summer time is disabled by default.

•For zone, specify the name of the time zone (for example, PDT) to be

displayed when summer time is in effect.

•(Optional) For week, specify the week of the month (1 to 5 or last).

•(Optional) For day, specify the day of the week (Sunday, Monday...).

•(Optional) For month, specify the month (January, February...).

•(Optional) For hh:mm, specify the time (24-hour format) in hours and

minutes.

•(Optional) For offset, specify the number of minutes to add during

summer time. The default is 60.

Step 3 end Return to privileged EXEC mode.

Step 4 show running-config Verify your entries.

Step 5 copy running-config startup-config (Optional) Save your entries in the configuration file.

3-21

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 3 Administering the WMIC

Protecting Access to Privileged EXEC Commands

This section describes how to control access to the configuration file and privileged EXEC commands.

Default Password and Privilege Level Configuration

Table 3-3 shows the default password and privilege level configuration.

Setting or Changing a Static Enable Password

The enable password controls access to the privileged EXEC mode.

Note The no enable password global configuration command removes the enable password, but you should

use extreme care when using this command. If you remove the enable password, you are locked out of

the EXEC mode.

Beginning in privileged EXEC mode, follow these steps to set or change a static enable password:

Table 3-3 Default Password and Privilege Levels

Feature Default Setting

Username and password Default username is Cisco and the default password is Cisco.

Enable password and privilege level Default password is Cisco. The default is level 15 (privileged EXEC

level). The password is encrypted in the configuration file.

Enable secret password and privilege level The default enable password is Cisco. The default is level 15 (privileged

EXEC level). The password is encrypted before it is written to the

configuration file.

Line password Default password is Cisco. The password is encrypted in the configuration

file.

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 enable password password Define a new password or change an existing password for access to

privileged EXEC mode.

The default password is Cisco.

For password, specify a string from 1 to 25 alphanumeric characters. The

string cannot start with a number, is case sensitive, and allows spaces but

ignores leading spaces. It can contain the question mark (?) character if

you precede the question mark with the key combination Crtl-V when you

create the password; for example, to create the password abc?123, do this:

1. Enter abc.

2. Enter Crtl-V.

3. Enter ?123.

When the system prompts you to enter the enable password, you need not

precede the question mark with the Ctrl-V; you can simply enter abc?123

at the password prompt.

Step 3 end Return to privileged EXEC mode.

3-22

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 3 Administering the WMIC

Protecting Access to Privileged EXEC Commands

This example shows how to change the enable password to l1u2c3k4y5. The password is not encrypted

and provides access to level 15 (traditional privileged EXEC mode access):

bridge(config)# enable password l1u2c3k4y5

Protecting Enable and Enable Secret Passwords with Encryption

To provide an additional layer of security, particularly for passwords that cross the network or that are

stored on a Trivial File Transfer Protocol (TFTP) server, you can use either the enable password or

enable secret global configuration commands. Both commands accomplish the same thing; that is, you

can establish an encrypted password that users must enter to access privileged EXEC mode (the default)

or any privilege level you specify.

We recommend that you use the enable secret command because it uses an improved encryption

algorithm.

If you configure the enable secret command, it takes precedence over the enable password command;

the two commands cannot be in effect simultaneously.

Step 4 show running-config Verify your entries.

Step 5 copy running-config startup-config (Optional) Save your entries in the configuration file.

The enable password is not encrypted and can be read in the WMIC

configuration file.

Command Purpose

3-23

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 3 Administering the WMIC

Protecting Access to Privileged EXEC Commands

Beginning in privileged EXEC mode, follow these steps to configure encryption for enable and enable

secret passwords:

If both the enable and enable secret passwords are defined, users must enter the enable secret password.

Use the level keyword to define a password for a specific privilege level. After you specify the level and

set a password, give the password only to users who need to have access at this level. Use the privilege

level global configuration command to specify commands accessible at various levels. For more

information, see the “Configuring Multiple Privilege Levels” section on page 3-25.

If you enable password encryption, it applies to all passwords including username passwords,

authentication key passwords, the privileged command password, and console and virtual terminal line

passwords.

To remove a password and level, use the no enable password [level level] or no enable secret [level

level] global configuration command. To disable password encryption, use the no service

password-encryption global configuration command.

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 enable password [level level] {password |

encryption-type encrypted-password}

enable secret [level level] {password |

encryption-type encrypted-password}

Define a new password or change an existing password for

access to privileged EXEC mode.

Define a secret password, which is saved using a

nonreversible encryption method.

•(Optional) For level, the range is from 0 to 15. Level 1 is

normal user EXEC mode privileges. The default level is

15 (privileged EXEC mode privileges).

•For password, specify a string from 1 to 25

alphanumeric characters. The string cannot start with a

number, is case sensitive, and allows spaces but ignores

leading spaces. By default, no password is defined.

•(Optional) For encryption-type, only type 5, a Cisco

proprietary encryption algorithm, is available. If you

specify an encryption type, you must provide an

encrypted password—an encrypted password you copy

from another WMIC configuration.

Note If you specify an encryption type and then enter a

clear text password, you can not re-enter privileged

EXEC mode. You cannot recover a lost encrypted

password by any method.

Step 3 service password-encryption (Optional) Encrypt the password when the password is

defined or when the configuration is written.

Encryption prevents the password from being readable in the

configuration file.

Step 4 end Return to privileged EXEC mode.

Step 5 copy running-config startup-config (Optional) Save your entries in the configuration file.

3-24

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 3 Administering the WMIC

Protecting Access to Privileged EXEC Commands

This example shows how to configure the encrypted password $1$FaD0$Xyti5Rkls3LoyxzS8 for

privilege level 2:

bridge(config)# enable secret level 2 5 $1$FaD0$Xyti5Rkls3LoyxzS8

Configuring Username and Password Pairs

You can configure username and password pairs, which are locally stored on the WMIC. These pairs are

assigned to lines or interfaces and authenticate each user before that user can access the WMIC. If you

have defined privilege levels, you can also assign a specific privilege level (with associated rights and

privileges) to each username and password pair.

Beginning in privileged EXEC mode, follow these steps to establish a username-based authentication

system that requests a login username and a password:

To disable username authentication for a specific user, use the no username name global configuration

command.

To disable password checking and allow connections without a password, use the no login line

configuration command.

Note You must have at least one username configured and you must have login local set to open a

Telnet session to the WMIC. If you enter no username for the only username, you can be locked

out of the WMIC.

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 username name [privilege level]

{password encryption-type password}

Enter the username, privilege level, and password for each user.

•For name, specify the user ID as one word. Spaces and quotation

marks are not allowed.

•(Optional) For level, specify the privilege level the user has after

gaining access. The range is 0 to 15. Level 15 gives privileged EXEC

mode access. Level 1 gives user EXEC mode access.

•For encryption-type, enter 0 to specify that an unencrypted password

will follow. Enter 7 to specify that a hidden password will follow.

•For password, specify the password the user must enter to gain access

to the WMIC. The password must be from 1 to 25 characters, can

contain embedded spaces, and must be the last option specified in the

username command.

Step 3 login local Enable local password checking at login time. Authentication is based on

the username specified in Step 2.

Step 4 end Return to privileged EXEC mode.

Step 5 show running-config Verify your entries.

Step 6 copy running-config startup-config (Optional) Save your entries in the configuration file.

3-25

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 3 Administering the WMIC

Protecting Access to Privileged EXEC Commands

Configuring Multiple Privilege Levels

By default, the IOS software has two modes of password security: user EXEC and privileged EXEC. You

can configure up to 16 hierarchical levels of commands for each mode. By configuring multiple

passwords, you can allow different sets of users to have access to specified commands.

For example, if you want many users to have access to the clear line command, you can assign it

level 2 security and distribute the level 2 password fairly widely. But if you want more restricted access

to the configure command, you can assign it level 3 security and distribute that password to a more

restricted group of users.

Setting the Privilege Level for a Command

Beginning in privileged EXEC mode, follow these steps to set the privilege level for a command mode:

When you set a command to a privilege level, all commands whose syntax is a subset of that command

are also set to that level. For example, if you set the show ip route command to level 15, the show

commands and show ip commands are automatically set to privilege level 15 unless you set them

individually to different levels.

To return to the default privilege for a given command, use the no privilege mode level level command

global configuration command.

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 privilege mode level level command Set the privilege level for a command.

•For mode, enter configure for global configuration mode, exec for

EXEC mode, interface for interface configuration mode, or line for

line configuration mode.

•For level, the range is from 0 to 15. Level 1 is for normal user EXEC

mode privileges. Level 15 is the level of access permitted by the

enable password.

•For command, specify the command to which you want to restrict

access.

Step 3 enable password level level password Specify the enable password for the privilege level.

•For level, the range is from 0 to 15. Level 1 is for normal user EXEC

mode privileges.

•For password, specify a string from 1 to 25 alphanumeric characters.

The string cannot start with a number, is case sensitive, and allows

spaces but ignores leading spaces. By default, no password is

defined.

Step 4 end Return to privileged EXEC mode.

Step 5 show running-config

show privilege

Verify your entries.

The first command displays the password and access level configuration.

The second command displays the privilege level configuration.

Step 6 copy running-config startup-config (Optional) Save your entries in the configuration file.

3-26

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 3 Administering the WMIC

Protecting the Wireless LAN

This example shows how to set the configure command to privilege level 14 and define SecretPswd14

as the password users must enter to use level 14 commands:

bridge(config)# privilege exec level 14 configure

bridge(config)# enable password level 14 SecretPswd14

Logging Into and Exiting a Privilege Level

Beginning in privileged EXEC mode, follow these steps to log in to a specified privilege level and to exit

to a specified privilege level:

Protecting the Wireless LAN

Configure security settings to prevent unauthorized access to your network. Because it is a radio device,

the WMIC can communicate beyond the physical boundaries of your building. Advanced security

features can be found in the following chapters:

•A unique SSID that are not broadcast in the beacon (see Chapter 5, “Configuring SSIDs”)

•WEP and WEP features (see Chapter 7, “Configuring WEP and WEP Features”)

•Dynamic WEP authentication (see Chapter 8, “Configuring Authentication Types”)

Using VLANs

Assign SSIDs to the VLANs on the wireless LAN. If you do not use VLANs on the wireless LAN, the

security options that can be assigned to SSIDs are limited, because encryption settings and

authentication types are linked. Without VLANs, encryption settings (WEP and ciphers) are applied to

an interface and no more than one encryption setting can be used on each interface.

For example, if an SSID with static WEP is created with VLANs disabled, an additional SSIDs with

WPA authentication cannot be created because of the different encryption settings. If a security setting

for an SSID conflicts with another SSID, delete one or more SSIDs to eliminate the conflict.

Command Purpose

Step 1 enable level Log in to a specified privilege level.

For level, the range is 0 to 15.

Step 2 disable level Exit to a specified privilege level.

For level, the range is 0 to 15.

3-27

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 3 Administering the WMIC

Protecting the Wireless LAN

Express Security Types

Table 3-4 describes the four security types that you can assign to an SSID.

Security Configuration Examples

This section contains these example configurations:

•No Security SSID Example

•Static WEP Security Example

•EAP Authentication Security Example

•WPA Security Example

No Security SSID Example

This example shows part of the configuration to create an SSID called no_security_ssid, including the

SSID in the beacon, assigning it to VLAN 10, and selecting VLAN 10 as the native VLAN (as it applies

to the 2.4-GHz (802.11b/g) WMIC):

interface Dot11Radio0

no ip address

no ip route-cache

Ta b l e 3 - 4 S e c u ri t y Ty p e s

Security Type Description Security Features Enabled

No Security This is the least secure option. Use this option only for

SSIDs used in a public space and assign it to a VLAN

that restricts access to your network.

None.

Static WEP Key This option is more secure than no security. However,

static WEP keys are vulnerable to attack. Consider

limiting association to the access point based on MAC

address or, if the network does not have a RADIUS

server, consider using an access point as a local

authentication server.

Mandatory WEP encryption, no key

management, and open authentication. In

root access point mode, client devices

cannot associate using this SSID without a

WEP key that matches the access point key.

EAP Authentication This option enables 802.1x authentication (such as

LEAP, PEAP, EAP-TLS, EAP-GTC, EAP-SIM, and

others) requires an IP address and shared secret for an

authentication server on the network (server

authentication port 1645). Because 802.1x

authentication provides dynamic encryption keys, a

WEP key is not required.

Mandatory 802.1x authentication, In root

access point mode, client devices that

associate using this SSID must perform

802.1x authentication.

WPA Wi-Fi Protected Access (WPA) permits wireless

access to users authenticated against a database

through the services of an authentication server, then

encrypts their IP traffic with stronger algorithms than

those used in WEP. As with EAP authentication, the IP

address and shared secret for an authentication server

on your network (server authentication port 1645) are

required.

Mandatory WPA authentication. In root

access point mode, client devices that

associate using this SSID must be

WPA-capable.

3-28

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 3 Administering the WMIC

Protecting the Wireless LAN

ssid no_security-ssid

vlan 10

authentication open

guest-mode

concatenation

speed basic-1.0 basic-2.0 basic-5.5 6.0 9.0 basic-11.0 12.0 18.0 24.0 36.0 48.0 54.0

rts threshold 4000

station-role root

infrastructure-client

bridge-group 1

interface Dot11Radio0.10

encapsulation dot1Q 10

no ip route-cache

bridge-group 10

bridge-group 10 spanning-disabled

interface FastEthernet0

no ip address

no ip route-cache

duplex auto

speed auto

bridge-group 1

interface FastEthernet0

no ip address

no ip route-cache

duplex auto

speed auto

bridge-group 1

As it applies to the 4.9-GHz (US Only, Public Safety) WMIC:

hostname root

username Cisco password 7 02250D480809

ip subnet-zero

no aaa new-model

bridge irb

interface Dot11Radio0

no ip address

no ip route-cache

ssid test

authentication open

infrastructure-ssid

spacing 5 channel 4942

speed basic-1.5 2.25 basic-3.0 4.5 basic-6.0 9.0 12.0 13.5

power local 10

station-role root

infrastructure-client

bridge-group 1

bridge-group 1 spanning-disabled

interface FastEthernet0

no ip address

no ip route-cache

duplex auto

speed auto

3-29

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 3 Administering the WMIC

Protecting the Wireless LAN

bridge-group 1

bridge-group 1 spanning-disabled

interface BVI1

ip address 192.1.1.2 255.255.255.0

no ip route-cache

ip http server

no ip http secure-server

ip http help-path http://www.cisco.com/warp/public/779/smbiz/prodconfig/help/eag

ip radius source-interface BVI1

logging snmp-trap emergencies

logging snmp-trap alerts

logging snmp-trap critical

logging snmp-trap errors

logging snmp-trap warnings

bridge 1 route ip

line con 0

exec-timeout 0 0

transport preferred all

transport output all

line vty 0 4

transport preferred all

transport input all

transport output all

line vty 5 15

transport preferred all

transport input all

transport output all

end

Static WEP Security Example

This example shows part of the configuration to create an SSID called static_wep_ssid, excluding the

SSID from the beacon, assigning the SSID to VLAN 20, selecting 3 as the key slot, and entering a 128-bit

key:

interface Dot11Radio0

no ip address

no ip route-cache

encryption vlan 20 key 3 size 128bit 7 4E78330C1A841439656A9323F25A transmit-key

encryption vlan 20 mode wep mandatory

ssid static_wep_ssid

vlan 20

authentication open

concatenation

speed basic-1.0 basic-2.0 basic-5.5 6.0 9.0 basic-11.0 12.0 18.0 24.0 36.0 48.0 54.0

rts threshold 4000

station-role root

infrastructure-client

bridge-group 1

interface Dot11Radio0.20

encapsulation dot1Q 20

3-30

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 3 Administering the WMIC

Protecting the Wireless LAN

no ip route-cache

bridge-group 20

bridge-group 20 spanning-disabled

interface FastEthernet0

no ip address

no ip route-cache

duplex auto

speed auto

bridge-group 1

interface FastEthernet0.20

encapsulation dot1Q 20

no ip route-cache

bridge-group 20

bridge-group 20 spanning-disabled

EAP Authentication Security Example

This example shows part of the configuration to create an SSID called eap_ssid, excluding the SSID

from the beacon, and assigning the SSID to VLAN 30:

interface Dot11Radio0

no ip address

no ip route-cache

encryption vlan 30 mode wep mandatory

ssid eap_ssid

vlan 30

authentication open eap eap_methods

authentication network-eap eap_methods

speed basic-1.0 basic-2.0 basic-5.5 basic-11.0

rts threshold 2312

station-role root

bridge-group 1

bridge-group 1 subscriber-loop-control

bridge-group 1 block-unknown-source

no bridge-group 1 source-learning

no bridge-group 1 unicast-flooding

bridge-group 1 spanning-disabled

interface Dot11Radio0.30

encapsulation dot1Q 30

no ip route-cache

bridge-group 30

bridge-group 30 subscriber-loop-control

bridge-group 30 block-unknown-source

no bridge-group 30 source-learning

no bridge-group 30 unicast-flooding

bridge-group 30 spanning-disabled

interface FastEthernet0

mtu 1500

no ip address

ip mtu 1564

no ip route-cache

duplex auto

speed auto

bridge-group 1

no bridge-group 1 source-learning

bridge-group 1 spanning-disabled

3-31

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 3 Administering the WMIC

Protecting the Wireless LAN

interface FastEthernet0.30

mtu 1500

encapsulation dot1Q 30

no ip route-cache

bridge-group 30

no bridge-group 30 source-learning

bridge-group 30 spanning-disabled

WPA Security Example

This example shows part of the configuration that creates an SSID called wpa_ssid, excluding the SSID

from the beacon, and assigning the SSID to VLAN 40:

aaa new-model

aaa group server radius rad_eap

server 10.91.104.92 auth-port 1645 acct-port 1646

aaa group server radius rad_mac

aaa group server radius rad_acct

aaa group server radius rad_admin

aaa group server tacacs+ tac_admin

aaa group server radius rad_pmip

aaa group server radius dummy

aaa authentication login eap_methods group rad_eap

aaa authentication login mac_methods local

aaa authorization exec default local

aaa authorization ipmobile default group rad_pmip

aaa accounting network acct_methods start-stop group rad_acct

aaa session-id common

bridge irb

interface Dot11Radio0

no ip address

no ip route-cache

encryption vlan 40 mode ciphers tkip

ssid wpa_ssid

vlan 40

authentication open eap eap_methods

authentication network-eap eap_methods

authentication key-management wpa

concatenation

speed basic-1.0 basic-2.0 basic-5.5 6.0 9.0 basic-11.0 12.0 18.0 24.0 36.0 48 54.0

rts threshold 4000

station-role root

infrastructure-client

bridge-group 1

interface Dot11Radio0.40

3-32

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 3 Administering the WMIC

Configuring and Enabling RADIUS

encapsulation dot1Q 40

no ip route-cache

bridge-group 40

interface FastEthernet0

no ip address

no ip route-cache

duplex auto

speed auto

bridge-group 1

interface FastEthernet0.40

encapsulation dot1Q 40

no ip route-cache

bridge-group 40

ip http server

ip http help-path http://www.cisco.com/warp/public/779/smbiz/prodconfig/help/eag

/122-15.JA/1100

ip radius source-interface BVI1

radius-server attribute 32 include-in-access-req format %h

radius-server host 10.91.104.92 auth-port 1645 acct-port 1646 key 7 135445415F59

radius-server authorization permit missing Service-Type

radius-server vsa send accounting

bridge 1 route ip

line con 0

line vty 5 15

end

Configuring and Enabling RADIUS

This section describes how to configure and enable Remote Authentication Dial-In User Service

(RADIUS).

Understanding RADIUS

RADIUS is a distributed client/server system that secures networks against unauthorized access.

RADIUS clients run on supported Cisco devices and send authentication requests to a central RADIUS

server, which contains all user authentication and network service access information. The RADIUS host

is normally a multiuser system running RADIUS server software from Cisco (Cisco Secure Access

Control Server version 3.0), Livingston, Merit, Microsoft, or another software provider. For more

information, refer to the RADIUS server documentation.

Use RADIUS in these network environments, which require access security:

•Networks with multiple-vendor access servers, each supporting RADIUS. For example, access

servers from several vendors use a single RADIUS server-based security database. In an IP-based

network with multiple vendors’ access servers, dial-in users are authenticated through a RADIUS

server that is customized to work with the Kerberos security system.

•Turnkey network security environments in which applications support the RADIUS protocol, such

as an access environment that uses a smart card access control system. In one case, RADIUS has

been used with Enigma’s security cards to validate users and to grant access to network resources.

3-33

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 3 Administering the WMIC

Configuring and Enabling RADIUS

•Networks already using RADIUS. You can add a Cisco bridge containing a RADIUS client to the

network.

•Networks that require resource accounting. You can use RADIUS accounting independently of

RADIUS authentication or authorization. The RADIUS accounting functions allow data to be sent

at the start and end of services, showing the amount of resources (such as time, packets, bytes, and

so forth) used during the session. An Internet service provider might use a freeware-based version

of RADIUS access control and accounting software to meet special security and billing needs.

RADIUS is not suitable in these network security situations:

•Multiprotocol access environments. RADIUS does not support AppleTalk Remote Access (ARA),

NetBIOS Frame Control Protocol (NBFCP), NetWare Asynchronous Services Interface (NASI), or

X.25 PAD connections.

•Switch-to-switch or router-to-router situations. RADIUS does not provide two-way authentication.

RADIUS can be used to authenticate from one device to a non-Cisco device if the non-Cisco device

requires authentication.

•Networks using a variety of services. RADIUS generally binds a user to one service model.

RADIUS Operation

When a non-root bridge attempts to authenticate to a bridge whose access is controlled by a RADIUS

server, authentication to the network occurs in the steps shown in Figure 3-2:

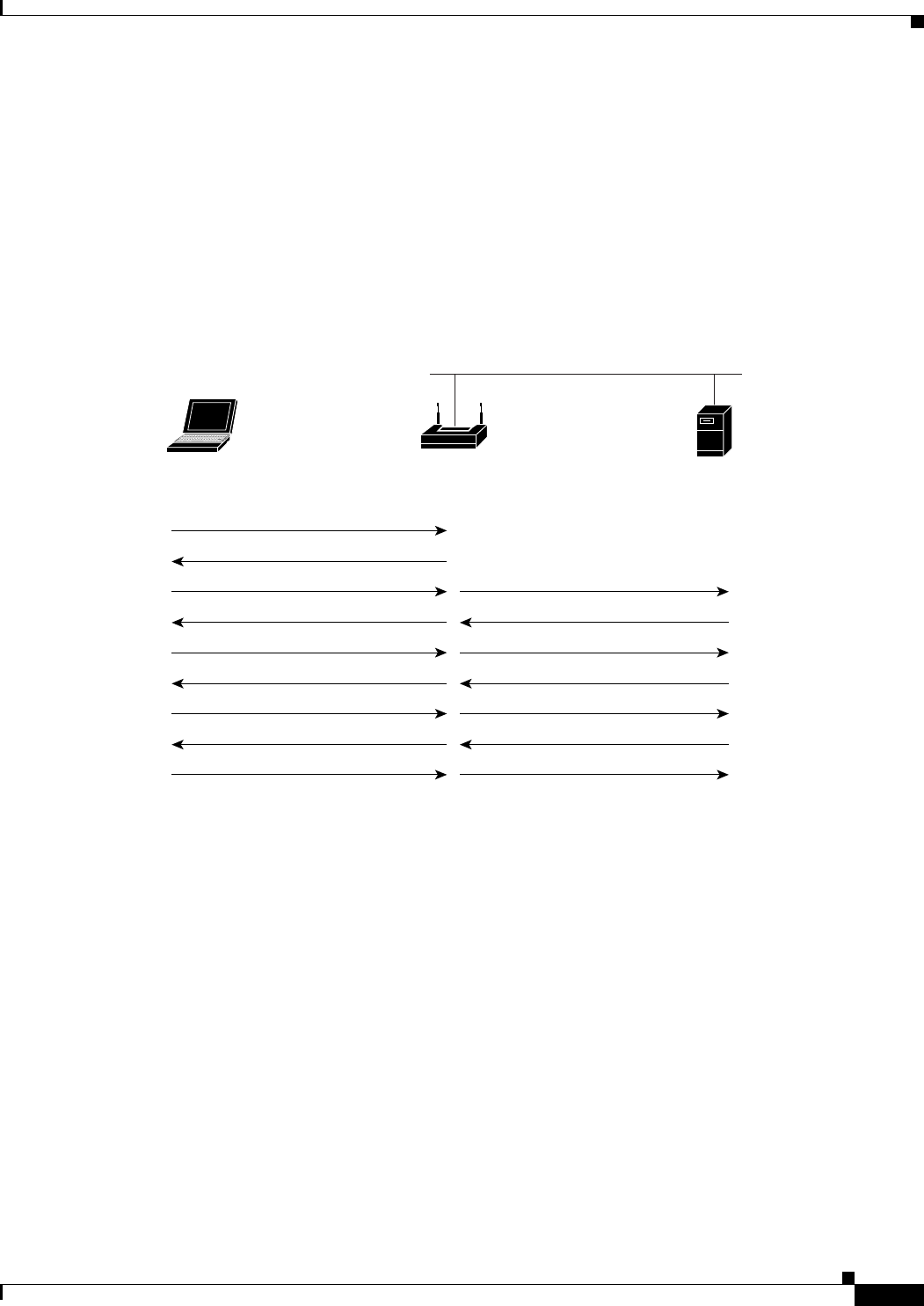

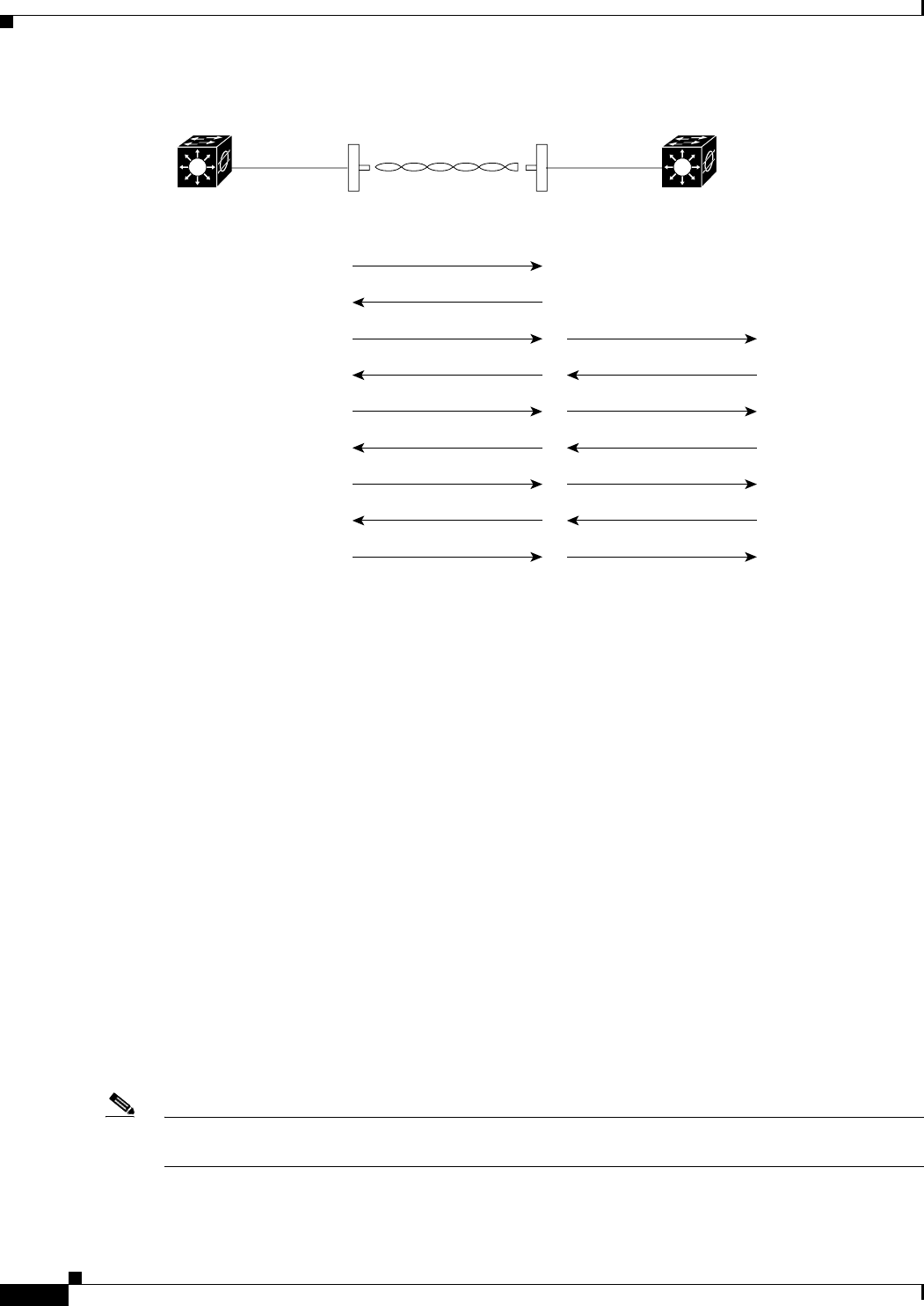

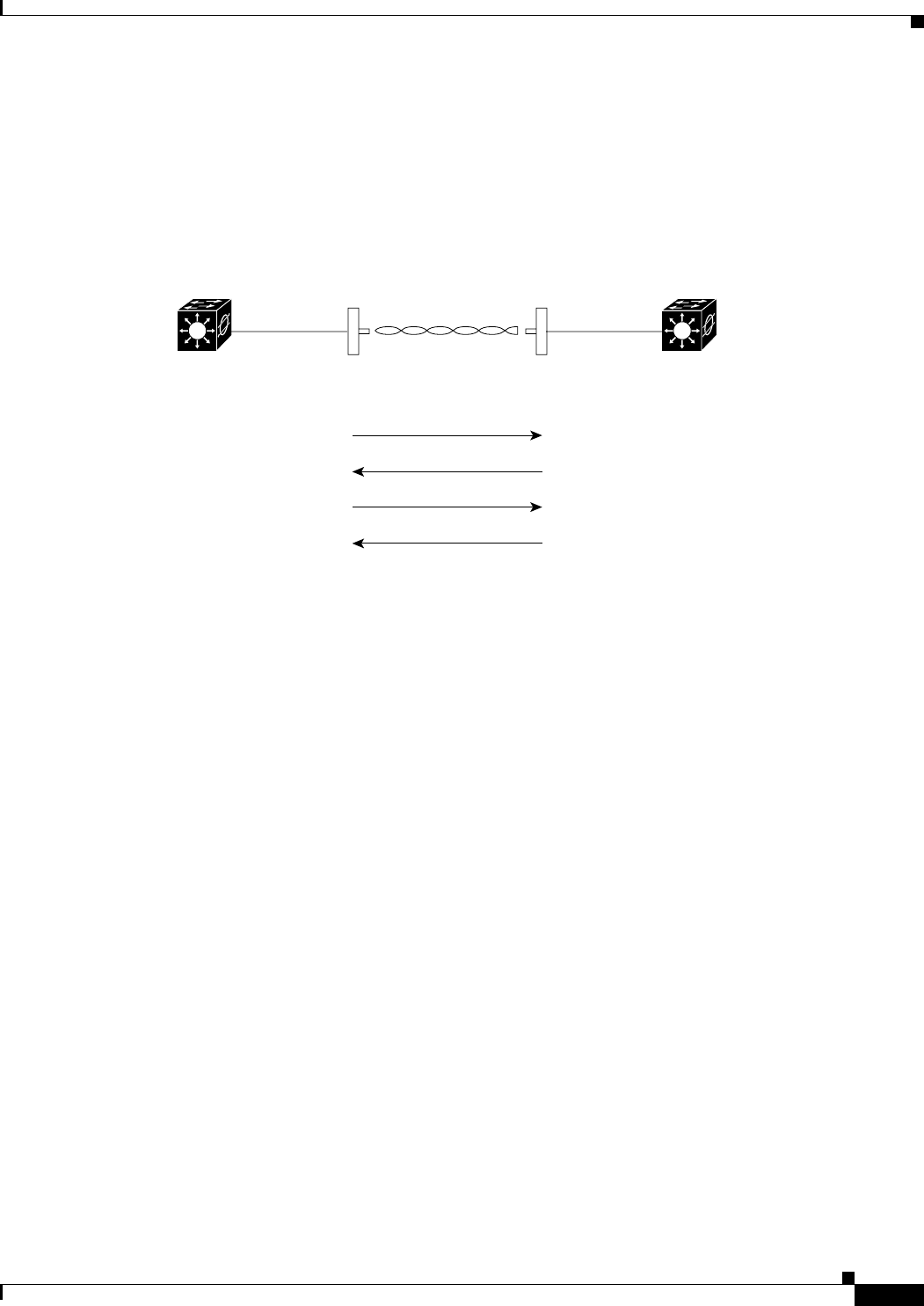

Figure 3-2 Sequence for EAP Authentication

In Steps 1 through 9 in Figure 3-2, a non-root bridge and a RADIUS server on the wired LAN use 802.1x

and EAP to perform a mutual authentication through the root bridge. The RADIUS server sends an

authentication challenge to the non-root bridge. The non-root bridge uses a one-way encryption of the

user-supplied password to generate a response to the challenge and sends that response to the RADIUS

88901

Switch on

LAN 1

1. Authentication request

Authentication

server

Non-Root

Bridge

Root Bridge

2. Identity request

3. Username

(Relay to non-root bridge)

5. Authentication response

(Relay to non-root bridge)

7. Authentication challenge

(Relay to non-root bridge)

9. Authentication success

(Relay to server)

4. Authentication challenge

(Relay to server)

6. Authentication success

(Relay to server)

8. Authentication response

(Relay to server)

3-34

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 3 Administering the WMIC

Configuring and Enabling RADIUS

server. Using information from its user database, the RADIUS server creates its own response and

compares that to the response from the non-root bridge. When the RADIUS server authenticates the

non-root bridge, the process repeats in reverse, and the non-root bridge authenticates the RADIUS

server.

When mutual authentication is complete, the RADIUS server and the non-root bridge determine a WEP

key that is unique to the non-root bridge and provides the non-root bridge with the appropriate level of

network access, thereby approximating the level of security in a wired switched segment to an individual

desktop. The non-root bridge loads this key and prepares to use it for the logon session.

During the logon session, the RADIUS server encrypts and sends the WEP key, called a session key, over

the wired LAN to the root bridge. The root bridge encrypts its broadcast key with the session key and

sends the encrypted broadcast key to the non-root bridge, which uses the session key to decrypt it. The

non-root bridge and the root bridge activate WEP and use the session and broadcast WEP keys for all

communications during the remainder of the session.

There is more than one type of EAP authentication, but the root bridge behaves the same way for each

type: it relays authentication messages from the non-root bridge to the RADIUS server and from the

RADIUS server to the non-root bridge. See the “Assigning Authentication Types to an SSID” section on

page 8-6 for instructions on setting up authentication using a RADIUS server.

Controlling WMIC Access with RADIUS

This section describes how to control administrator access to the WMIC using RADIUS.

RADIUS provides detailed accounting information and flexible administrative control over

authentication and authorization processes. RADIUS is facilitated through AAA and can be enabled only

through AAA commands. RADIUS and AAA are disabled by default.

At a minimum, the host or hosts that run the RADIUS server software must be identified and the method

lists for RADIUS authentication must be defined. Optionally, method lists for RADIUS authorization

and accounting can be defined.

A method list defines the sequence and methods to be used to authenticate, to authorize, or to keep

accounts on a non-root bridge. Method lists are used to designate one or more security protocols to be

used, thus ensuring a backup system if the initial method fails. The software uses the first method listed

to authenticate, to authorize, or to keep accounts on non-root bridges; if that method does not respond,

the software selects the next method in the list. This process continues until there is successful

communication with a listed method or the method list is exhausted.

You must have access to and should configure a RADIUS server before configuring RADIUS features.

These sections describe RADIUS configuration:

•Identifying the RADIUS Server Host

•Configuring RADIUS Login Authentication

•Defining AAA Server Groups

•Configuring RADIUS Authorization for User Privileged Access and Network Services

•Starting RADIUS Accounting

•Configuring Settings for All RADIUS Servers

•Configuring the Bridge to Use Vendor-Specific RADIUS Attributes

•Configuring the Bridge for Vendor-Proprietary RADIUS Server Communication

•Displaying the RADIUS Configuration

3-35

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 3 Administering the WMIC

Configuring and Enabling RADIUS

Note For complete syntax and usage information for the commands used in this section, refer to the Cisco IOS

Security Command Reference for Release 12.2.

Identifying the RADIUS Server Host

Access point-to-RADIUS-server communication involves several components:

•Host name or IP address

•Authentication destination port

•Accounting destination port

•Key string

•Timeout period

•Retransmission value

RADIUS security servers are identified by their host name or IP address, host name and specific UDP

port numbers, or IP address and specific UDP port numbers. The combination of the IP address and the

UDP port number creates a unique identifier allowing different ports to be individually defined as

RADIUS hosts providing a specific AAA service. This unique identifier enables RADIUS requests to be

sent to multiple UDP ports on a server at the same IP address.

If two different host entries on the same RADIUS server are configured for the same service—such as

accounting—the second host entry configured acts as a fail-over backup to the first one. Using this

example, if the first host entry fails to provide accounting services, the bridge tries the second host entry

configured on the same device for accounting services. (The RADIUS host entries are tried in the order

that they are configured.)

A RADIUS server and the bridge use a shared secret text string to encrypt passwords and exchange

responses. To configure RADIUS to use the AAA security commands, you must specify the host running

the RADIUS server daemon and a secret text (key) string that it shares with the bridge.

The timeout, retransmission, and encryption key values can be configured globally per server for all

RADIUS servers or in some combination of global and per-server settings. To apply these settings

globally to all RADIUS servers communicating with the bridge, use the three unique global

configuration commands: radius-server timeout, radius-server retransmit, and radius-server key. To

apply these values on a specific RADIUS server, use the radius-server host global configuration

command.

Note If you configure both global and per-server functions (timeout, retransmission, and key

commands) on the bridge, the per-server timer, retransmission, and key value commands

override global timer, retransmission, and key value commands. For information on

configuring these setting on all RADIUS servers, see the “Configuring Settings for All

RADIUS Servers” section on page 3-42.

You can configure the bridge to use AAA server groups to group existing server hosts for authentication.

For more information, see the “Defining AAA Server Groups” section on page 3-39.

Beginning in privileged EXEC mode, follow these steps to configure per-server RADIUS server

communication. This procedure is required.

3-36

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 3 Administering the WMIC

Configuring and Enabling RADIUS

To remove the specified RADIUS server, use the no radius-server host hostname | ip-address global

configuration command.

This example shows how to configure one RADIUS server to be used for authentication and another to

be used for accounting:

bridge(config)# radius-server host 172.29.36.49 auth-port 1612 key rad1

bridge(config)# radius-server host 172.20.36.50 acct-port 1618 key rad2

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 aaa new-model Enable AAA.

Step 3 radius-server host {hostname |

ip-address} [auth-port port-number]

[acct-port port-number] [timeout

seconds] [retransmit retries] [key

string]

Specify the IP address or host name of the remote RADIUS server host.

•(Optional) For auth-port port-number, specify the UDP destination

port for authentication requests.

•(Optional) For acct-port port-number, specify the UDP destination

port for accounting requests.

•(Optional) For timeout seconds, specify the time interval that the

bridge waits for the RADIUS server to reply before retransmitting.

The range is 1 to 1000. This setting overrides the radius-server

timeout global configuration command setting. If no timeout is set

with the radius-server host command, the setting of the

radius-server timeout command is used.

•(Optional) For retransmit retries, specify the number of times a

RADIUS request is resent to a server if that server is not responding

or responding slowly. The range is 1 to 1000. If no retransmit value is

set with the radius-server host command, the setting of the

radius-server retransmit global configuration command is used.

•(Optional) For key string, specify the authentication and encryption

key used between the bridge and the RADIUS daemon running on the

RADIUS server.

Note The key is a text string that must match the encryption key used

on the RADIUS server. Always configure the key as the last item

in the radius-server host command. Leading spaces are ignored,

but spaces within and at the end of the key are used. If you use

spaces in your key, do not enclose the key in quotation marks

unless the quotation marks are part of the key.

To configure the bridge to recognize more than one host entry associated

with a single IP address, enter this command as many times as necessary,

making sure that each UDP port number is different. The bridge software

searches for hosts in the order in which you specify them. Set the timeout,

retransmit, and encryption key values to use with the specific RADIUS

host.

Step 4 end Return to privileged EXEC mode.

Step 5 show running-config Verify your entries.

Step 6 copy running-config startup-config (Optional) Save your entries in the configuration file.

3-37

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 3 Administering the WMIC

Configuring and Enabling RADIUS

This example shows how to configure host1 as the RADIUS server and to use the default ports for both

authentication and accounting:

bridge(config)# radius-server host host1

Configuring RADIUS Login Authentication

To configure AAA authentication, define a named list of authentication methods and apply that list to

various interfaces. The method list defines the types of authentication to be performed and the sequence

in which they are performed; it must be applied to a specific interface before any of the defined

authentication methods are performed. The only exception is the default method list (which, by

coincidence, is named default). The default method list is automatically applied to all interfaces except

those that have a named method list explicitly defined.

A method list describes the sequence and authentication methods to be queried to authenticate a user (in

this case, a non-root bridge). Designate one or more security protocols to be used for authentication, thus

ensuring a backup system for authentication in case the initial method fails. The software uses the first

method listed to authenticate users; if that method fails to respond, the software selects the next

authentication method in the method list. This process continues until there is successful communication

with a listed authentication method or until all defined methods are exhausted. If authentication fails at

any point in this cycle—meaning that the security server or local username database responds by denying

the user access—the authentication process stops, and no other authentication methods are attempted.

Beginning in privileged EXEC mode, follow these steps to configure login authentication. This

procedure is required.

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 aaa new-model Enable AAA.

3-38

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 3 Administering the WMIC

Configuring and Enabling RADIUS

To disable AAA, use the no aaa new-model global configuration command. To disable AAA

authentication, use the no aaa authentication login {default | list-name}method1 [method2...] global

configuration command. To either disable RADIUS authentication for logins or to return to the default

value, use the no login authentication {default | list-name} line configuration command.

Step 3 aaa authentication login {default |

list-name}method1 [method2...]

Create a login authentication method list.

•To create a default list that is used when a named list is not specified

in the login authentication command, use the default keyword

followed by the methods that are to be used in default situations. The

default method list is automatically applied to all interfaces. For more

information on list names, click this link:

http://www.cisco.com/univercd/cc/td/doc/product/software/ios122/1

22cgcr/fsecur_c/fsaaa/scfathen.htm#xtocid2

•For method1..., specify the actual method the authentication

algorithm tries. The additional methods of authentication are used

only if the previous method returns an error, not if it fails.

Select one of these methods:

•line—Use the line password for authentication. You must define a

line password before you can use this authentication method. Use the

password password line configuration command.

•local—Use the local username database for authentication. You must

enter username information in the database. Use the username

password global configuration command.

•radius—Use RADIUS authentication. You must configure the

RADIUS server before you can use this authentication method. For

more information, see the “Identifying the RADIUS Server Host”

section.

Step 4 line [console | tty | vty]line-number

[ending-line-number]

Enter line configuration mode, and configure the lines to which you want

to apply the authentication list.

Step 5 login authentication {default |

list-name}

Apply the authentication list to a line or set of lines.

•If you specify default, use the default list created with the aaa

authentication login command.

•For list-name, specify the list created with the aaa authentication

Step 6 radius-server attribute 32

include-in-access-req format %h

Configure the device to send its system name in the NAS_ID attribute for

authentication.

Step 7 end Return to privileged EXEC mode.

Step 8 show running-config Verify your entries.

Step 9 copy running-config startup-config (Optional) Save your entries in the configuration file.

Command Purpose

3-39

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 3 Administering the WMIC

Configuring and Enabling RADIUS

Defining AAA Server Groups

Configure the bridge to use AAA server groups to group existing server hosts for authentication. Select

a subset of the configured server hosts and use them for a particular service. The server group is used

with a global server-host list, which lists the IP addresses of the selected server hosts.

Server groups also can include multiple host entries for the same server if each entry has a unique

identifier (the combination of the IP address and UDP port number), allowing different ports to be

individually defined as RADIUS hosts providing a specific AAA service. If you configure two different

host entries on the same RADIUS server for the same service (such as accounting), the second

configured host entry acts as a fail-over backup to the first one.

Use the server group server configuration command to associate a particular server with a defined group

server. Identify the server by its IP address or identify multiple host instances or entries by using the

optional auth-port and acct-port keywords.

Beginning in privileged EXEC mode, follow these steps to define the AAA server group and associate a

particular RADIUS server with it:

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 aaa new-model Enable AAA.

Step 3 radius-server host {hostname

|ip-address} [auth-port

port-number] [acct-port

port-number] [timeout

seconds] [retransmit retries]

[key string]

Specify the IP address or host name of the remote RADIUS server host.

•(Optional) For auth-port port-number, specify the UDP destination port for

authentication requests.

•(Optional) For acct-port port-number, specify the UDP destination port for

accounting requests.

•(Optional) For timeout seconds, specify the time interval that the bridge waits for

the RADIUS server to reply before retransmitting. The range is 1 to 1000. This

setting overrides the radius-server timeout global configuration command

setting. If no timeout is set with the radius-server host command, the setting of

the radius-server timeout command is used.

•(Optional) For retransmit retries, specify the number of times a RADIUS

request is resent to a server if that server is not responding or responding slowly.

The range is 1 to 1000. If no retransmit value is set with the radius-server host

command, the setting of the radius-server retransmit global configuration

command is used.

•(Optional) For key string, specify the authentication and encryption key used

between the bridge and the RADIUS daemon running on the RADIUS server.

Note The key is a text string that must match the encryption key used on the

RADIUS server. Always configure the key as the last item in the

radius-server host command. Leading spaces are ignored, but spaces within

and at the end of the key are used. If you use spaces in your key, do not enclose

the key in quotation marks unless the quotation marks are part of the key.

To configure the bridge to recognize more than one host entry associated with a single

IP address, enter this command as many times as necessary, making sure that each

UDP port number is different. The bridge software searches for hosts in the order in

which you specify them. Set the timeout, retransmit, and encryption key values to use

with the specific RADIUS host.

3-40

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 3 Administering the WMIC

Configuring and Enabling RADIUS

To remove the specified RADIUS server, use the no radius-server host hostname | ip-address global

configuration command. To remove a server group from the configuration list, use the no aaa group

server radius group-name global configuration command. To remove the IP address of a RADIUS

server, use the no server ip-address server group configuration command.

In this example, the bridge is configured to recognize two different RADIUS group servers (group1 and

group2). Group1 has two different host entries on the same RADIUS server configured for the same

services. The second host entry acts as a fail-over backup to the first entry.

bridge(config)# aaa new-model

bridge(config)# radius-server host 172.20.0.1 auth-port 1000 acct-port 1001

bridge(config)# radius-server host 172.10.0.1 auth-port 1645 acct-port 1646

bridge(config)# aaa group server radius group1

bridge(config-sg-radius)# server 172.20.0.1 auth-port 1000 acct-port 1001

bridge(config-sg-radius)# exit

bridge(config)# aaa group server radius group2

bridge(config-sg-radius)# server 172.20.0.1 auth-port 2000 acct-port 2001

bridge(config-sg-radius)# exit

Configuring RADIUS Authorization for User Privileged Access and Network Services

AAA authorization limits the services available to a user. When AAA authorization is enabled, the

bridge uses information retrieved from the user profile, which is in the local user database or on the

security server, to configure the user’s session. The user is granted access to a requested service only if

the information in the user profile allows it.

You can use the aaa authorization global configuration command with the radius keyword to set

parameters that restrict a user’s network access to privileged EXEC mode.

The aaa authorization exec radius local command sets these authorization parameters:

•Use RADIUS for privileged EXEC access authorization if authentication was performed by using

RADIUS.

•Use the local database if authentication was not performed by using RADIUS.

Note Authorization is bypassed for authenticated users who log in through the CLI even if authorization has

been configured.

Step 4 aaa group server radius

group-name

Define the AAA server-group with a group name.

This command puts the bridge in a server group configuration mode.

Step 5 server ip-address Associate a particular RADIUS server with the defined server group. Repeat this step

for each RADIUS server in the AAA server group.

Each server in the group must be previously defined in Step 2.

Step 6 end Return to privileged EXEC mode.

Step 7 show running-config Verify your entries.

Step 8 copy running-config

startup-config

(Optional) Save your entries in the configuration file.

Step 9 Enable RADIUS login authentication. See the “Configuring RADIUS Login

Authentication” section on page 3-37.

Command Purpose

3-41

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 3 Administering the WMIC

Configuring and Enabling RADIUS

Beginning in privileged EXEC mode, follow these steps to specify RADIUS authorization for privileged

EXEC access and network services:

To disable authorization, use the no aaa authorization {network | exec}method1 global configuration

command.

Starting RADIUS Accounting

The AAA accounting feature tracks the services that users are accessing and the amount of network

resources that they are consuming. When AAA accounting is enabled, the bridge reports user activity to

the RADIUS security server in the form of accounting records. Each accounting record contains

accounting attribute-value (AV) pairs and is stored on the security server. This data can then be analyzed

for network management, client billing, or auditing.

Beginning in privileged EXEC mode, follow these steps to enable RADIUS accounting for each Cisco

IOS privilege level and for network services:

To disable accounting, use the no aaa accounting {network | exec} {start-stop}method1... global

configuration command.

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 aaa authorization network radius Configure the bridge for user RADIUS authorization for all

network-related service requests.

Step 3 aaa authorization exec radius Configure the bridge for user RADIUS authorization to determine if the

user has privileged EXEC access.

The exec keyword might return user profile information (such as

autocommand information).

Step 4 end Return to privileged EXEC mode.

Step 5 show running-config Verify your entries.

Step 6 copy running-config startup-config (Optional) Save your entries in the configuration file.

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 aaa accounting network start-stop

radius

Enable RADIUS accounting for all network-related service requests.

Step 3 ip radius source-interface bvi1 Configure the bridge to send its BVI IP address in the

NAS_IP_ADDRESS attribute for accounting records.

Step 4 aaa accounting update periodic minutes Enter an accounting update interval in minutes.

Step 5 end Return to privileged EXEC mode.

Step 6 show running-config Verify your entries.

Step 7 copy running-config startup-config (Optional) Save your entries in the configuration file.

3-42

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 3 Administering the WMIC

Configuring and Enabling RADIUS

Configuring Settings for All RADIUS Servers

Beginning in privileged EXEC mode, follow these steps to configure global communication settings

between the bridge and all RADIUS servers:

To return to the default setting for the retransmit, timeout, and deadtime, use the no forms of these

commands.

Configuring the Bridge to Use Vendor-Specific RADIUS Attributes

The Internet Engineering Task Force (IETF) draft standard specifies a method for communicating

vendor-specific information between the bridge and the RADIUS server by using the vendor-specific

attribute (attribute 26). Vendor-specific attributes (VSAs) allow vendors to support their own extended

attributes not suitable for general use. The Cisco RADIUS implementation supports one vendor-specific

option by using the format recommended in the specification. Cisco’s vendor ID is 9, and the supported

option has vendor type 1, which is named cisco-avpair. The value is a string with this format:

protocol : attribute sep value *

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 radius-server key string Specify the shared secret text string used between the bridge and all

RADIUS servers.

Note The key is a text string that must match the encryption key used on

the RADIUS server. Leading spaces are ignored, but spaces within

and at the end of the key are used. If you use spaces in your key, do

not enclose the key in quotation marks unless the quotation marks

are part of the key.

Step 3 radius-server retransmit retries Specify the number of times the bridge sends each RADIUS request to the

server before giving up. The default is 3; the range 1 to 1000.

Step 4 radius-server timeout seconds Specify the number of seconds an bridge waits for a reply to a RADIUS

request before resending the request. The default is 5 seconds; the range is

1 to 1000.

Step 5 radius-server deadtime minutes Use this command to cause the Cisco IOS software to mark as “dead” any

RADIUS servers that fail to respond to authentication requests, thus

avoiding the wait for the request to time out before trying the next

configured server. A RADIUS server marked as dead is skipped by

additional requests for the duration of minutes that you specify, or unless

there are no servers not marked dead.

Note If you set up more than one RADIUS server, you must configure the

RADIUS server deadtime for optimal performance.

Step 6 radius-server attribute 32

include-in-access-req format %h

Configure the bridge to send its system name in the NAS_ID attribute for

authentication.

Step 7 end Return to privileged EXEC mode.

Step 8 show running-config Verify your settings.

Step 9 copy running-config startup-config (Optional) Save your entries in the configuration file.

3-43

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 3 Administering the WMIC

Configuring and Enabling RADIUS

Protocol is a value of the Cisco protocol attribute for a particular type of authorization. Attribute and

value are an appropriate AV pair defined in the Cisco TACACS+ specification, and sep is = for

mandatory attributes and the asterisk (*) for optional attributes. This allows the full set of features

available for TACACS+ authorization to also be used for RADIUS.

For example, the following AV pair activates Cisco’s multiple named ip address pools feature during IP

authorization (during PPP’s IPCP address assignment):

cisco-avpair= ”ip:addr-pool=first“

The following example shows how to provide a user logging in from an bridge with immediate access to

privileged EXEC commands:

cisco-avpair= ”shell:priv-lvl=15“

Other vendors have their own unique vendor IDs, options, and associated VSAs. For more information

about vendor IDs and VSAs, refer to RFC 2138, “Remote Authentication Dial-In User Service

(RADIUS).”

Beginning in privileged EXEC mode, follow these steps to configure the bridge to recognize and use

VSAs:

For a complete list of RADIUS attributes or more information about VSA 26, refer to the “RADIUS

Attributes” appendix in the Cisco IOS Security Configuration Guide for Release 12.2.

Configuring the Bridge for Vendor-Proprietary RADIUS Server Communication

Although an IETF draft standard for RADIUS specifies a method for communicating vendor-proprietary

information between the bridge and the RADIUS server, some vendors have extended the RADIUS

attribute set in a unique way. Cisco IOS software supports a subset of vendor-proprietary RADIUS

attributes.

As mentioned earlier, to configure RADIUS (whether vendor-proprietary or IETF draft-compliant), you

must specify the host running the RADIUS server daemon and the secret text string it shares with the

bridge. You specify the RADIUS host and secret text string by using the radius-server global

configuration commands.

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 radius-server vsa send [accounting |

authentication]

Enable the bridge to recognize and use VSAs as defined by RADIUS IETF

attribute 26.

•(Optional) Use the accounting keyword to limit the set of recognized

vendor-specific attributes to only accounting attributes.

•(Optional) Use the authentication keyword to limit the set of

recognized vendor-specific attributes to only authentication attributes.

If you enter this command without keywords, both accounting and

authentication vendor-specific attributes are used.

Step 3 end Return to privileged EXEC mode.

Step 4 show running-config Verify your settings.

Step 5 copy running-config startup-config (Optional) Save your entries in the configuration file.

3-44

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 3 Administering the WMIC

Controlling WMIC Access with TACACS+

Beginning in privileged EXEC mode, follow these steps to specify a vendor-proprietary RADIUS server

host and a shared secret text string:

To delete the vendor-proprietary RADIUS host, use the no radius-server host {hostname | ip-address}

non-standard global configuration command. To disable the key, use the no radius-server key global

configuration command.

This example shows how to specify a vendor-proprietary RADIUS host and to use a secret key of rad124

between the bridge and the server:

bridge(config)# radius-server host 172.20.30.15 nonstandard

bridge(config)# radius-server key rad124

Displaying the RADIUS Configuration

To display the RADIUS configuration, use the show running-config privileged EXEC command.

Controlling WMIC Access with TACACS+

This section describes how to control administrator access to the WMIC using Terminal Access

Controller Access Control System Plus (TACACS+).

TACACS+ provides detailed accounting information and flexible administrative control over

authentication and authorization processes. TACACS+ is facilitated through AAA and can be enabled

only through AAA commands.

Note For complete syntax and usage information for the commands used in this section, refer to the Cisco IOS

Security Command Reference for Release 12.2.

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 radius-server host {hostname | ip-address} non-standard Specify the IP address or host name of the remote

RADIUS server host and identify that it is using a

vendor-proprietary implementation of RADIUS.

Step 3 radius-server key string Specify the shared secret text string used between the

bridge and the vendor-proprietary RADIUS server.

The bridge and the RADIUS server use this text string

to encrypt passwords and exchange responses.

Note The key is a text string that must match the

encryption key used on the RADIUS server.

Leading spaces are ignored, but spaces within

and at the end of the key are used. If you use

spaces in your key, do not enclose the key in

quotation marks unless the quotation marks

are part of the key.

Step 4 end Return to privileged EXEC mode.

Step 5 show running-config Verify your settings.

Step 6 copy running-config startup-config (Optional) Save your entries in the configuration file.

3-45

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 3 Administering the WMIC

Controlling WMIC Access with TACACS+

Understanding TACACS+

TACACS+ is a security application that provides centralized validation of users attempting to gain access

to your bridge. Unlike RADIUS, TACACS+ does not authenticate non-root bridges associated to the root

bridge.

TACACS+ services are maintained in a database on a TACACS+ daemon typically running on a UNIX

or Windows NT workstation. You should have access to and should configure a TACACS+ server before

configuring TACACS+ features on your WMIC.

TACACS+ provides for separate and modular authentication, authorization, and accounting facilities.

TACACS+ allows for a single access control server (the TACACS+ daemon) to provide each

service—authentication, authorization, and accounting—independently. Each service can be tied into its

own database to take advantage of other services available on that server or on the network, depending

on the capabilities of the daemon.

TACACS+, administered through the AAA security services, can provide these services:

•Authentication—Provides complete control of authentication of administrators through login and

password dialog, challenge and response, and messaging support.

The authentication facility can conduct a dialog with the administrator (for example, after a

username and password are provided, to challenge a user with several questions, such as home

address, mother’s maiden name, service type, and social security number). The TACACS+

authentication service can also send messages to administrator screens. For example, a message

could notify administrators that their passwords must be changed because of the company’s

password aging policy.

•Authorization—Provides fine-grained control over administrator capabilities for the duration of the

administrator’s session, including but not limited to setting autocommands, access control, session

duration, or protocol support. You can also enforce restrictions on the commands that an

administrator can execute with the TACACS+ authorization feature.

•Accounting—Collects and sends information used for billing, auditing, and reporting to the

TACACS+ daemon. Network managers can use the accounting facility to track administrator activity

for a security audit or to provide information for user billing. Accounting records include

administrator identities, start and stop times, executed commands (such as PPP), number of packets,

and number of bytes.

The TACACS+ protocol provides authentication between the WMIC and the TACACS+ daemon, and it

ensures confidentiality because all protocol exchanges between the WMIC and the TACACS+ daemon

are encrypted.

You need a system running the TACACS+ daemon software to use TACACS+ on your WMIC.

TACACS+ Operation

When an administrator attempts a simple ASCII login by authenticating to a WMIC using TACACS+,

this process occurs:

1. When the connection is established, the WMIC contacts the TACACS+ daemon to obtain a username

prompt, which is then displayed to the administrator. The administrator enters a username, and the

WMIC then contacts the TACACS+ daemon to obtain a password prompt. The WMIC displays the

password prompt to the administrator, the administrator enters a password, and the password is then

sent to the TACACS+ daemon.

3-46

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 3 Administering the WMIC

Controlling WMIC Access with TACACS+

TACACS+ allows a conversation to be held between the daemon and the administrator until the

daemon receives enough information to authenticate the administrator. The daemon prompts for a

username and password combination, but can include other items, such as the user’s mother’s

maiden name.

2. The WMIC eventually receives one of these responses from the TACACS+ daemon:

–

ACCEPT—The administrator is authenticated and service can begin. If the WMIC is configured

to require authorization, authorization begins at this time.

–

REJECT—The administrator is not authenticated. The administrator can be denied access or is

prompted to retry the login sequence, depending on the TACACS+ daemon.

–

ERROR—An error occurred at some time during authentication with the daemon or in the

network connection between the daemon and the WMIC. If an ERROR response is received, the

WMIC typically tries to use an alternative method for authenticating the administrator.

–

CONTINUE—The administrator is prompted for additional authentication information.

After authentication, the administrator undergoes an additional authorization phase if authorization

has been enabled on the WMIC. Administrators must first successfully complete TACACS+

authentication before proceeding to TACACS+ authorization.

3. If TACACS+ authorization is required, the TACACS+ daemon is again contacted, and it returns an

ACCEPT or REJECT authorization response. If an ACCEPT response is returned, the response

contains data in the form of attributes that direct the EXEC or NETWORK session for that

administrator, determining the services that the administrator can access:

–

Telnet, rlogin, or privileged EXEC services

–

Connection parameters, including the host or client IP address, access list, and administrator

timeouts

Default TACACS+ Configuration

TACACS+ and AAA are disabled by default.

To prevent a lapse in security, you cannot configure TACACS+ through a network management

application.When enabled, TACACS+ can authenticate administrators accessing the WMIC through the

CLI.

Configuring TACACS+ Login Authentication

To configure AAA authentication, you define a named list of authentication methods and then apply that

list to various interfaces. The method list defines the types of authentication to be performed and the

sequence in which they are performed; it must be applied to a specific interface before any of the defined

authentication methods are performed. The only exception is the default method list (which, by

coincidence, is named default).

The default method list is automatically applied to all interfaces except those that have a named method

list explicitly defined. A defined method list overrides the default method list.

A method list describes the sequence and authentication methods to be queried to authenticate a user.

You can designate one or more security protocols to be used for authentication, thus ensuring a backup

system for authentication in case the initial method fails. The software uses the first method listed to

authenticate users; if that method fails, the software selects the next authentication method in the method

list. This process continues until there is successful communication with a listed authentication method

3-47

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 3 Administering the WMIC

Controlling WMIC Access with TACACS+

or until all defined methods are exhausted. If authentication fails at any point in this cycle—meaning that

the security server or local username database responds by denying the user access—the authentication

process stops, and no other authentication methods are attempted.

Identifying the TACACS+ Server Host and Setting the Authentication Key

You can configure the WMIC to use a single server or AAA server groups to group existing server hosts

for authentication. You can group servers to select a subset of the configured server hosts and use them

for a particular service. The server group is used with a global server-host list and contains the list of IP

addresses of the selected server hosts.

Beginning in privileged EXEC mode, follow these steps to identify the IP host or host maintaining

TACACS+ server and optionally set the encryption key:

To remove the specified TACACS+ server name or address, use the no tacacs-server host hostname

global configuration command. To remove a server group from the configuration list, use the no aaa

group server tacacs+ group-name global configuration command. To remove the IP address of a

TACACS+ server, use the no server ip-address server group subconfiguration command.

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 tacacs-server host hostname [port

integer] [timeout integer] [key string]

Identify the IP host or hosts maintaining a TACACS+ server. Enter this

command multiple times to create a list of preferred hosts. The software

searches for hosts in the order in which you specify them.

•For hostname, specify the name or IP address of the host.

•(Optional) For port integer, specify a server port number. The default

is port 49. The range is 1 to 65535.

•(Optional) For timeout integer, specify a time in seconds the WMIC

waits for a response from the daemon before it times out and declares

an error. The default is 5 seconds. The range is 1 to 1000 seconds.

•(Optional) For key string, specify the encryption key for encrypting

and decrypting all traffic between the WMIC and the TACACS+

daemon. You must configure the same key on the TACACS+ daemon

for encryption to be successful.

Step 3 aaa new-model Enable AAA.

Step 4 aaa group server tacacs+ group-name (Optional) Define the AAA server-group with a group name.

This command puts the WMIC in a server group subconfiguration mode.

Step 5 server ip-address (Optional) Associate a particular TACACS+ server with the defined server

group. Repeat this step for each TACACS+ server in the AAA server

group.

Each server in the group must be previously defined in Step 2.

Step 6 end Return to privileged EXEC mode.

Step 7 show tacacs Verify your entries.

Step 8 copy running-config startup-config (Optional) Save your entries in the configuration file.

3-48

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 3 Administering the WMIC

Controlling WMIC Access with TACACS+

Configuring TACACS+ Login Authentication

To configure AAA authentication, you define a named list of authentication methods and then apply that

list to various interfaces. The method list defines the types of authentication to be performed and the

sequence in which they are performed; it must be applied to a specific interface before any of the defined

authentication methods are performed. The only exception is the default method list (which, by

coincidence, is named default). The default method list is automatically applied to all interfaces except

those that have a named method list explicitly defined. A defined method list overrides the default

method list.

A method list describes the sequence and authentication methods to be queried to authenticate an

administrator. You can designate one or more security protocols to be used for authentication, thus

ensuring a backup system for authentication in case the initial method fails. The software uses the first

method listed to authenticate users; if that method fails to respond, the software selects the next

authentication method in the method list. This process continues until there is successful communication

with a listed authentication method or until all defined methods are exhausted. If authentication fails at

any point in this cycle—meaning that the security server or local username database responds by denying

the administrator access—the authentication process stops, and no other authentication methods are

attempted.

Beginning in privileged EXEC mode, follow these steps to configure login authentication. This

procedure is required.

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 aaa new-model Enable AAA.

Step 3 aaa authentication login {default |

list-name}method1 [method2...]

Create a login authentication method list.

•To create a default list that is used when a named list is not specified

in the login authentication command, use the default keyword

followed by the methods that are to be used in default situations. The

default method list is automatically applied to all interfaces.

•For list-name, specify a character string to name the list you are

creating.

•For method1..., specify the actual method the authentication

algorithm tries. The additional methods of authentication are used

only if the previous method returns an error, not if it fails.

Select one of these methods:

•local—Use the local username database for authentication. You must

enter username information into the database. Use the username

password global configuration command.

•tacacs+—Use TACACS+ authentication. You must configure the

TACACS+ server before you can use this authentication method.

Step 4 line [console | tty | vty]line-number

[ending-line-number]

Enter line configuration mode, and configure the lines to which you want

to apply the authentication list.

3-49

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 3 Administering the WMIC

Controlling WMIC Access with TACACS+

To disable AAA, use the no aaa new-model global configuration command. To disable AAA

authentication, use the no aaa authentication login {default | list-name}method1 [method2...] global

configuration command. To either disable TACACS+ authentication for logins or to return to the default

value, use the no login authentication {default | list-name} line configuration command.

Configuring TACACS+ Authorization for Privileged EXEC Access and Network

Services

AAA authorization limits the services available to a user. When AAA authorization is enabled, the

WMIC uses information retrieved from the user’s profile, which is located either in the local user

database or on the security server, to configure the user’s session. The user is granted access to a

requested service only if the information in the user profile allows it.

You can use the aaa authorization global configuration command with the tacacs+ keyword to set

parameters that restrict a user’s network access to privileged EXEC mode.

The aaa authorization exec tacacs+ local command sets these authorization parameters:

•Use TACACS+ for privileged EXEC access authorization if authentication was performed by using

TAC ACS+.

•Use the local database if authentication was not performed by using TACACS+.

Note Authorization is bypassed for authenticated users who log in through the CLI even if authorization has

been configured.

Beginning in privileged EXEC mode, follow these steps to specify TACACS+ authorization for

privileged EXEC access and network services:

Step 5 login authentication {default |

list-name}

Apply the authentication list to a line or set of lines.

•If you specify default, use the default list created with the aaa

authentication login command.

•For list-name, specify the list created with the aaa authentication

Step 6 end Return to privileged EXEC mode.

Step 7 show running-config Verify your entries.

Step 8 copy running-config startup-config (Optional) Save your entries in the configuration file.

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 aaa authorization network tacacs+ Configure the WMIC for user TACACS+ authorization for all

network-related service requests.

Step 3 aaa authorization exec tacacs+ Configure the WMIC for user TACACS+ authorization to determine if the

user has privileged EXEC access.

The exec keyword might return user profile information (such as

autocommand information).

3-50

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 3 Administering the WMIC

Controlling WMIC Access with TACACS+

To disable authorization, use the no aaa authorization {network | exec}method1 global configuration

command.

Starting TACACS+ Accounting

The AAA accounting feature tracks the services that administrators are accessing and the amount of

network resources that they are consuming. When AAA accounting is enabled, the WMIC reports

administrator activity to the TACACS+ security server in the form of accounting records. Each

accounting record contains accounting attribute-value (AV) pairs and is stored on the security server.

This data can then be analyzed for network management, client billing, or auditing.

Beginning in privileged EXEC mode, follow these steps to enable TACACS+ accounting for each Cisco

IOS privilege level and for network services:

To disable accounting, use the no aaa accounting {network | exec} {start-stop}method1... global

configuration command.

Displaying the TACACS+ Configuration

To display TACACS+ server statistics, use the show tacacs privileged EXEC command.

Step 4 end Return to privileged EXEC mode.

Step 5 show running-config Verify your entries.

Step 6 copy running-config startup-config (Optional) Save your entries in the configuration file.

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 aaa accounting network start-stop

tacacs+

Enable TACACS+ accounting for all network-related service requests.

Step 3 aaa accounting exec start-stop tacacs+ Enable TACACS+ accounting to send a start-record accounting notice at

the beginning of a privileged EXEC process and a stop-record at the end.

Step 4 end Return to privileged EXEC mode.

Step 5 show running-config Verify your entries.

Step 6 copy running-config startup-config (Optional) Save your entries in the configuration file.

3-51

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 3 Administering the WMIC

Configuring the WMIC for Local Authentication and Authorization

Configuring the WMIC for Local Authentication and

Authorization

You can configure AAA to operate without a server by setting the WMIC to implement AAA in local

mode. The WMIC then handles authentication and authorization. No accounting is available in this

configuration.

Beginning in privileged EXEC mode, follow these steps to configure the WMIC for local AAA:

To disable AAA, use the no aaa new-model global configuration command. To disable authorization,

use the no aaa authorization {network | exec}method1 global configuration command.

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 aaa new-model Enable AAA.

Step 3 aaa authentication login default local Set the login authentication to use the local username database. The

default keyword applies the local user database authentication to all

interfaces.

Step 4 aaa authorization exec local Configure user AAA authorization to determine if the user is allowed to

run an EXEC shell by checking the local database.

Step 5 aaa authorization network local Configure user AAA authorization for all network-related service

requests.

Step 6 username name [privilege level]

{password encryption-type password}

Enter the local database, and establish a username-based authentication

system.

Repeat this command for each user.

•For name, specify the user ID as one word. Spaces and quotation

marks are not allowed.

•(Optional) For level, specify the privilege level the user has after

gaining access. The range is 0 to 15. Level 15 gives privileged EXEC

mode access. Level 0 gives user EXEC mode access.

•For encryption-type, enter 0 to specify that an unencrypted password

follows. Enter 7 to specify that a hidden password follows.

•For password, specify the password the user must enter to gain access

to the WMIC. The password must be from 1 to 25 characters, can

contain embedded spaces, and must be the last option specified in the

username command.

Step 7 end Return to privileged EXEC mode.

Step 8 show running-config Verify your entries.

Step 9 copy running-config startup-config (Optional) Save your entries in the configuration file.

3-52

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 3 Administering the WMIC

Configuring the WMIC for Secure Shell

This section describes how to configure the Secure Shell (SSH) feature.

Note For complete syntax and usage information for the commands used in this section, refer to the “Secure

Shell Commands” section in the Cisco IOS Security Command Reference for Release 12.2.

Understanding SSH

SSH is a protocol that provides a secure, remote connection to a Layer 2 or a Layer 3 device. There are

two versions of SSH: SSH version 1 and SSH version 2. This software release supports only SSH

version 1.

SSH provides more security for remote connections than Telnet by providing strong encryption when a

device is authenticated. The SSH feature has an SSH server and an SSH integrated client. The client

supports these user authentication methods:

•RADIUS (for more information, see the “Controlling WMIC Access with RADIUS” section on

page 3-34)

•Local authentication and authorization (for more information, see the “Configuring the WMIC for

Local Authentication and Authorization” section on page 3-51)

For more information about SSH, refer to the “Configuring Secure Shell” section in the Cisco IOS

Security Configuration Guide for Release 12.2.

Note The SSH feature in this software release does not support IP Security (IPSec).

3-53

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 3 Administering the WMIC

Managing Aironet Extensions

Configuring SSH

Before configuring SSH, download the crypto software image from Cisco.com. For information about

configuring SSH and displaying SSH settings, refer to the “Configuring Secure Shell” section in the

Cisco IOS Security Configuration Guide for Release 12.2.

Managing Aironet Extensions

The WMIC uses Cisco Aironet 802.11 extensions to detect the capabilities of Cisco client devices and

to support features that require specific interaction between the WMIC and associated client devices.

The Aironet Extensions can only be deactivated in the Root Access Point mode. Since workgroup

bridge, root bridge, and non-root bridge are Cisco-specific modes, they always use the Aironet

extensions.

Aironet extensions must be enabled to support these features:

•Load balancing—The WMIC uses Aironet extensions to direct client devices to an access point that

provides the best connection to the network based on factors such as number of users, bit error rates,

and signal strength.

•Message Integrity Check (MIC)—MIC is an additional WEP security feature that prevents attacks

on encrypted packets called bit-flip attacks. The MIC, implemented on both the WMIC and all

associated client devices, adds a few bytes to each packet to make the packets tamper-proof.

•Temporal Key Integrity Protocol (TKIP)—TKIP, also known as WEP key hashing, is an additional

WEP security feature that defends against an attack on WEP in which the intruder uses an

unencrypted segment called the initialization vector (IV) in encrypted packets to calculate the WEP

key.

•Limiting the power level on associated client devices—When a client device associates to the

WMIC, the WMIC sends the maximum allowed power level setting to the client.

Beginning in privileged EXEC mode, follow these steps to disable the Aironet extensions:

If you change the radio to a role that requires Aironet extensions, the Aironet extensions are enabled

automatically:

wmic1(config)#int dot 0

wmic1(config-if)#station-role root

Selected role requires Cisco Aironet Extension enabled.

Enabled Cisco Aironet Extension.

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 interface dot11radio 0 Enter interface configuration mode for the radio interface.

Step 3 station-role root ap-only Enter the station role. Root enables the access point mode.

Step 4 no dot11 extension aironet Enter the extension aironet command to disable extensions.

Step 5 end Return to privileged EXEC mode.

Step 6 copy running-config startup-config (Optional) Save your entries in the configuration file.

3-54

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 3 Administering the WMIC

Managing Aironet Extensions

If you try to change the Aironet extensions without setting the radio to the proper role, an error message

displays:

wmic1(config-if)#

wmic1(config-if)#no dot11 extension aironet

Aironet Extension is always enabled in Bridge or WGB mode.

CHAPTER

4-1

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Configuring Radio Settings

This chapter describes how to configure radio settings for your WMIC. This chapter includes these

sections:

•Disabling and Enabling the Radio Interface

•Configuring the Role in Radio Network

•Configuring Radio Data Rates

•Configuring Radio Transmit Power

•Configuring Radio Channel Settings

•Enabling and Disabling World Mode (2.4-GHz Only)

•Disabling and Enabling Short Radio Preambles (2.4-GHz Only)

•Configuring Transmit and Receive Antennas

•Configuring the Ethernet Encapsulation Transformation Method

•Enabling and Disabling Concatenation (2.4-GHz Only)

•Configuring the Radio Distance Setting

•Enabling and Disabling Reliable Multicast to Workgroup Bridges

•Enabling and Disabling Public Secure Packet Forwarding

•Configuring the Beacon Period

•Configure RTS Threshold and Retries

•Configuring the Maximum Data Retries

•Configuring the Fragmentation Threshold

•Setting the Root Parent Timeout Value

•Configuring the Root Parent MAC

•Performing a Carrier Busy Test

4-2

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 4 Configuring Radio Settings

Disabling and Enabling the Radio Interface

The WMIC radio is enabled by default. Beginning in privileged EXEC mode, follow these steps to

disable the WMIC radio:

Use the no form of the shutdown command to enable the radio port.

Configuring the Role in Radio Network

You can configure your WMIC as a root bridge, non-root bridge, access point, or workgroup bridge.

(Chapter 1, “Overview” describes the various WMIC radio network roles.) Beginning in privileged

EXEC mode, follow these steps to set the WMIC radio network role:

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 interface dot11radio 0 Enter interface configuration mode for the radio interface.

Step 3 shutdown Disable the radio port.

Step 4 end Return to privileged EXEC mode.

Step 5 copy running-config startup-config (Optional) Save your entries in the configuration file.

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 interface dot11radio 0 Enter interface configuration mode for the radio interface.

Step 3 station-role {root [ap-only] |

non-root |workgroup-bridge |

install [automatic |root |non-root]}

Set the WMIC role.

•Bridge—root, non-root, or install modes. In root mode, the

access point function is automatically enabled allowing

client devices to associate.

•Access point—root ap-only mode

•Workgroup bridge—workgroup bridge mode

Step 4 mobile station (Optional) Use this command to configure a non-root bridge or

workgroup bridge as a mobile station. When this feature is

enabled the bridge scans for a new parent association when it

encounters a poor Received Signal Strength Indicator (RSSI),

excessive radio interference, or a high frame-loss percentage.

Using these criteria, the WMIC searches for a new root

association and roams to a new root bridge before it loses its

current association. When the mobile station setting is disabled

(the default setting) the WMIC does not search for a new

association until it loses its current association.

Step 5 end Return to privileged EXEC mode.

Step 6 copy running-config startup-config (Optional) Save your entries in the configuration file.

4-3

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 4 Configuring Radio Settings

Configuring the Role in Radio Network

Configuring the WMIC as an Access Point

The WMIC can be configured as a root access point. In this role, it accepts associations from wireless

clients.

Follow these steps to configure the WMIC as an access point:

Configuring the WMIC as a Workgroup Bridge

The WMIC can be configured as a workgroup bridge. In this role, the WMIC has the following

functionality:

•Associates to the following devices:

–

Root access points

–

Root bridges

•If the router contains a 2.4-GHz WMIC, it operates with 2.4-GHz (802.11b/g) IOS-based bridges.

If the router contains a 4.9-GHz WMIC, it operates with 4.9-GHz IOS-based bridges.

•Accepts only wired clients.

•Informs its root parent of all attached wired clients using IAPP messaging.

Follow these steps to configure the WMIC as a workgroup bridge.

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 interface dot11radio 0 Enter interface configuration mode for the radio interface.

Step 3 station-role root ap-only Specifies that the WMIC functions as a root access point.

Step 4 end Return to privileged EXEC mode.

Step 5 copy running-config startup-config (Optional) Save your entries in the configuration file.

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 interface dot11radio 0 Enter interface configuration mode for the radio interface.

Step 3 station-role workgroup-bridge Enables workgroup bridge mode.

Step 4 end Return to privileged EXEC mode.

Step 5 copy running-config startup-config (Optional) Save your entries in the configuration file.

4-4

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 4 Configuring Radio Settings

Configuring Radio Data Rates

Configuring the WMIC as a Bridge

The WMIC can be configured as a bridge. This is the only role that supports the distance command.

There are three install modes: automatic, root, and non-root:

Automatic activates the bridge install and alignment mode, and specifies that the unit automatically

determines the network role. If the unit is able to associate to another Cisco root bridge within 60

seconds, the unit assumes a non-root bridge role. If the unit is unable to associate with another Cisco

root bridge within 60 seconds, the unit assumes a root bridge role. The device can be configured into

root bridge or non-root bridge modes to avoid the 60-second automatic detection phase.

Root specifies that the device is operating as a root bridge and connects directly to the main Ethernet

LAN network. In this mode, the unit accepts associations from other Cisco bridges and wireless client

devices.

Non-root specifies that the device is operating as a non-root bridge, and that it connects to a remote LAN

network, and that it must associate with a Cisco root bridge by using the wireless interface.

Follow these steps to configure the WMIC to determine is role automatically:

Configuring Radio Data Rates

You use the data rate settings to choose the data rates the 4.9-GHz (US Only, Public Safety) WMIC uses

for data transmission. The rates are expressed in megabits per second. The WMIC always attempts to

transmit at the highest data rate set to Basic, also called Require on the browser-based interface. If there

are obstacles or interference, the WMIC steps down to the highest rate that allows data transmission. You

can set each data rate to one of three states:

•Basic (this is the default state for all data rates)—Allows transmission at this rate for all packets,

both unicast and multicast. At least one of the WMIC's data rates must be set to Basic.

•Enabled—The WMIC transmits only unicast packets at this rate; multicast packets are sent at one

of the data rates set to Basic.

•Disabled—The WMIC does not transmit data at this rate.

Note At least one data rate must be set to basic.

You can use the Data Rate settings to set up the WMIC to operate at specific data rates. For example, to

configure the WMIC to operate at 54 megabits per second (Mbps) service only, set the 54-Mbps rate to

Basic and set the other data rates to Enabled. To set up the WMIC to operate at 24, 48, and 54 Mbps,

set 24, 48, and 54 to Basic and set the rest of the data rates to Enabled.

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 interface dot11radio 0 Enter interface configuration mode for the radio interface.

Step 3 station-role install automatic Specifies that role of the WMIC is chosen based on the device

to which it is associated.

Step 4 end Return to privileged EXEC mode.

Step 5 copy running-config startup-config (Optional) Save your entries in the configuration file.

4-5

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 4 Configuring Radio Settings

Configuring Radio Data Rates

You can also configure the WMIC to set the data rates automatically to optimize either range or

throughput. When you enter range for the data rate setting, the WMIC sets the 6-Mbps rate to basic and

the other rates to enabled if you are configuring a 2.4-GHz WMIC or a 4.9-GHz WMIC.

If you are configuring a 4.9-GHz WMIC set to 5-MHz spacing, the WMIC sets the 1.5- Mbps rate to

basic and the other rates to enable. If you are configuring a 4.9-GHz WMIC set to 10-MHz spacing, the

WMIC sets the 3.0-Mbps rate to basic and the other rates to enable. If you enter throughput for the data

rate setting, the WMIC sets all data rates to basic. Enter default to set the data rates to factory defaults

Beginning in privileged EXEC mode, follow these steps to configure the radio data rates:

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 interface dot11radio 0 Enter interface configuration mode for the radio interface.

Step 3 speed

{[1.0] [2.0] [5.5] [6.0] [9.0] [11.0]

[12.0] [18.0] [24.0] [36.0] [48.0]

[54.0] [basic-1.0] [basic-2.0]

[basic-5.5] [basic-6.0] [basic-9.0]

[basic-11.0] [basic-12.0]

[basic-18.0] [basic-24.0]

[basic-36.0] [basic-48.0]

[basic-54.0] | range | throughput |

default }

Set each data rate to basic or enabled, or enter range to

optimize the range or throughput to optimize the throughput.

If you are entering the speed for a 2.4-GHz WMIC, enter

1.0,2.0,5.5,6.0,9.0,11.0,12.0,18.0,24.0,36.0,48.0, and

54.0 to set these data rates to enabled.

If you are entering the speed for a 4.9-GHz WMIC:

With 5-MHz spacing, enter a speed of 1.5, 2.25, 3.0, 4.5,

6.0, 9.0, 12.0, or 13.5. With 10-MHz spacing, enter a speed

of 3.0, 4.5, 6.0, 9.0, 12.0, 18.0, 24.0, or 27.0.

Enter basic-1.0,basic-2.0, basic-5.5, basic-6.0,basic-9.0,

basic-11.0,basic-12.0,basic-18.0,basic-24.0,basic-36.0,

basic-48.0, and basic-54.0 to set these data rates to basic.

Note The client must support the basic rate that you select or

it cannot associate to the WMIC. If you select 12 Mbps

or higher for the basic data rate on the 802.11g radio,

802.11b client devices cannot associate to the WMIC’s

802.11g radio.

•(Optional) Enter range or throughput to automatically

optimize radio range or throughput. When you enter

range, The WMIC sets the lowest data rate to basic and the

other rates to enabled. When you enter throughput, the

WMIC sets all data rates to basic.

(Optional) The default option sets data rates 1, 2, 5.5, 6,

11, 12, and 24 to basic, and data rates 9, 18, 36, 48, and 54

to enabled. These data rate settings allow both 802.11b and

802.11g client devices to associate to the WMIC’s 802.11g

radio.

Step 4 end Return to privileged EXEC mode.

Step 5 copy running-config startup-config (Optional) Save your entries in the configuration file.

4-6

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 4 Configuring Radio Settings

Configuring Radio Transmit Power

Use the no form of the speed command to disable data rates. When you use the no form of the command,

all data rates are disabled except the rates you name in the command. This example shows how to disable

data rate 6.0:

bridge# configure terminal

bridge(config)# interface dot11radio 0

bridge(config-if)# no speed basic-9.0 basic-12.0 basic-18.0 basic-24.0 basic-36.0

basic-48.0 basic-54.0

bridge(config-if)# end

Data rate 6 is disabled, and the rest of the rates are set to basic.

This example shows how to set up the WMIC for 54 Mbps service only:

bridge# configure terminal

bridge(config)# interface dot11radio 0

bridge(config-if)# speed basic-54.0

bridge(config-if)# end

Data rate 54 is set to basic, and the rest of the data rates are set to enabled.

Configuring Radio Transmit Power

Beginning in privileged EXEC mode, follow these steps to set the transmit power on your WMIC radio:

Use the no form of the power command to return the power setting to maximum, the default setting.

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 interface dot11radio 0 Enter interface configuration mode for the radio interface.

Step 3 power local

{1 | 5|10 |20 |30 |50 |100 |

maximum }

Set the transmit power for the radio to one of the power levels

allowed in your regulatory domain. All settings are in mW.

The settings allowed in your regulatory domain might differ

from the settings listed here.

The maximum power level for the 4.9-GHz (US Only, Public

Safety) radio is 40 mW.

The 2.4-GHz (802.11b/g) radio transmits at up to 100 mW for

the 1, 2, 5.5, and 11 Mbps data rates. However, for the 6, 9, 12,

18, 24, 36, 48, and 54 Mbps data rates, the maximum transmit

power for the 802.11g radio is 30 mW.

Step 4 power client

{1 | 5 | 10 | 20 | 30 | 50 | 100 |

maximum }

Set the maximum power level allowed on client devices that

associate to the WMIC in access point mode. All settings are in

mW.

Note The settings allowed in your regulatory domain might

differ from the settings listed here.

Step 5 end Return to privileged EXEC mode.

Step 6 copy running-config startup-config (Optional) Save your entries in the configuration file.

4-7

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 4 Configuring Radio Settings

Configuring Radio Channel Settings

Note Aironet extensions must be enabled to limit the power level on associated client devices. Aironet

extensions are enabled by default.

Configuring Radio Channel Settings

The default channel setting for the radio is least congested; at startup, the WMIC scans for and selects

the least-congested channel. For most consistent performance after a site survey, however, we

recommend that you assign a static channel setting to each bridge. The channel settings on your WMIC

correspond to the frequencies available in your regulatory domain. See Appendix B, “Channels and

Antenna Settings,” for the frequencies allowed in your domain.

IEEE 802.11g (2.4-GHz Band)

The radio operates on 11 channels from 2412-MHz to 2462-MHz. Each channel covers 5 MHz, and the

bandwidth for the channels overlaps slightly. For best performance, use channels that are not adjacent

(such as 2412 and 2417) for bridges that are close to each other.

Beginning in privileged EXEC mode, follow these steps to set the WMIC’s radio channel:

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 interface dot11radio 0 Enter interface configuration mode for the radio interface.

4-8

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 4 Configuring Radio Settings

Configuring Radio Channel Settings

4.9-GHz Band

This band is available only in the USA. The radio operates on 16 channels, either 5-MHz wide or

10-MHz wide between 4940-MHz and 4990-MHz for the public safety community. To reduce the

interference between two consecutive intersections, use two different channels in line-of-sight, cascaded

deployments.

The throughput is a minimum of 4 Mbps half-duplex at a range of one mile line-of-sight for a

5-MHz-wide channel, and 8 Mbps half-duplex at on mile line-of-sight range for a 10-MHz-wide

channel.

Step 3 channel frequency |

least-congested

Set the default channel for the WMIC radio. To search for the

least-congested channel on startup, enter least-congested.

These are the available frequencies (in MHz) for the 2.4-GHz

radio:

•channel 1—2412 (Americas, EMEA, Japan, and China)

•channel 2—2417 (Americas, EMEA, Japan, and China)

•channel 3—2422 (Americas, EMEA, Japan, Israel, and China)

•channel 4—2427 (Americas, EMEA, Japan, Israel, and China)

•channel 5—2432 (Americas, EMEA, Japan, Israel, and China)

•channel 6—2437 (Americas, EMEA, Japan, Israel, and China)

•channel 7—2442 (Americas, EMEA, Japan, Israel, and China)

•channel 8—2447 (Americas, EMEA, Japan, Israel, and China)

•channel 9—2452 (Americas, EMEA, Japan, Israel, and China)

•channel 10—2457 (Americas, EMEA, Japan, and China)

•channel 11—2462 (Americas, EMEA, Japan, and China)

•channel 12—2467 (EMEA and Japan)

•channel 13—2474 (EMEA and Japan)

•channel 14—2484 (Japan)

Note The frequencies allowed in your regulatory domain might

differ from the frequencies listed here.

Step 4 end Return to privileged EXEC mode.

Step 5 copy running-config

startup-config

(Optional) Save your entries in the configuration file.

Command Purpose

Table 4-1 Radio Frequency Data Rates

Data Rate (Mbps)

Modulation on sub-carriers

based on OFDM

RMS Transmit

Power (dBm)

Receiver

Sensitivity

(dBm)

Signal-to-noise

Ratio (dB)

10 MHz Channelization

3 BPSK 19 -94 4

4-9

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 4 Configuring Radio Settings

Configuring Radio Channel Settings

spacing channel User Interface Command

Use the spacing privileged EXEC command to define allowable channels and center frequencies for the

4.9-GHz WMIC. Use no form of this command to reset the channels and center frequencies to defaults.

Released in 12.3(JK).

spacing <baseband_no> [channel {centerFrequency | channel_number | least-congested}]

Note The channel command is not available when this command is entered in the configuration.

Syntax Description

4.5 BPSK 19 -93 4

6 QPSK 19 -92 6

9 QPSK 19 -91 6

12 16-QAM 19 -87 11

18 16-QAM 18 -84 11

24 64-QAM 16 -78 20

27 64-QAM 15 -75 20

5 MHz Channelization

1.5 BPSK 19 -97 4

2.25 BPSK 19 -96 4

3 QPSK 19 -95 6

4.5 QPSK 19 -94 6

6 16-QAM 19 -90 11

9 16-QAM 18 -87 11

12 64-QAM 16 -81 20

13.5 64-QAM 15 -78 20

Table 4-1 Radio Frequency Data Rates

baseband_no Specifies the channel spacing in megahertz on the desired channel band.

The frequency is either 5-MHz wide or 10-MHz wide.

centerFrequency Specifies the center frequency in megahertz of the desired channel band.

Supported frequencies are listed in Table 4-2.

channel_number Supported channel number. Supported channels are listed in Table 4-2.

least-congested Automatically scan for the best frequency.

4-10

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 4 Configuring Radio Settings

Configuring Radio Channel Settings

Defaults

Command Modes Configuration interface

ExamplesThis example shows how to set the channel spacing to 5-MHz spacing and channel number to 13 on a

root device.

WMIC(config-if)# spacing5channel 13

This example shows how to set the channel spacing to 10-MHz spacing and center frequency to

4982.5-MHz spacing on a root device. (Note that the command requires that the entry be 4982, as

opposed to 4982.5.)

WMIC(config-if)# spacing 10 channel 4982

This example shows how to set the channel spacing 5-MHz spacing on a non-root device.

WMIC(config-if)# spacing 5

Related Commands

Table 4-2 Channels, Center Frequencies, and Channel Widths

Channel Center Frequency Channel Width

1 4940.5 not supported

2 4941.5 not supported

3 4942.5 5-MHz

4 4943.5 not supported

5 4944.5 not supported

6 4947.5 5-MHz

7 4952.5 5-MHz or 10-MHz

8 4957.5 5-MHz

9 4962.5 5-MHz or 10-MHz

10 4967.5 5-MHz

11 4972.5 5-MHz or10-MHz

12 4977.5 5-MHz

13 4982.5 5-MHz or 10-MHz

14 4985.5 not supported

15 4986.5 5-MHz

16 4987.5 not supported

17 4988.5 not supported

18 4989.5 not supported

Command Description

show controllers dot11radio 0 Display the radio controller information and status.

4-11

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 4 Configuring Radio Settings

Enabling and Disabling World Mode (2.4-GHz Only)

You can configure the WMIC to support 802.11d world mode or Cisco legacy world mode. When you

enable world mode, the WMIC adds channel carrier set information to its beacon. Client devices with

world mode enabled receive the carrier set information and adjust their settings automatically. For

example, a client device used primarily in Japan could rely on world mode to adjust its channel and

power settings automatically when it travels to Italy and joins a network there. Cisco client devices

running firmware version 5.30.17 or later detect whether the WMIC is using 802.11d or Cisco legacy

world mode and automatically use world mode that matches the mode used by the WMIC. World mode

is disabled by default.

Beginning in privileged EXEC mode, follow these steps to enable world mode:

Use the no form of the command to disable world mode.

Aironet extensions must be enabled for world mode operation. Aironet extensions are enabled by default.

Disabling and Enabling Short Radio Preambles (2.4-GHz Only)

The radio preamble (sometimes called a header) is a section of data at the head of a packet that contains

information that the access point and client devices need when sending and receiving packets. You can

set the radio preamble to long or short:

•Short—A short preamble improves throughput performance. Cisco Wireless LAN Client Adapters

support short preambles. Early models of Cisco Aironet Wireless LAN Adapters (PC4800 and

PC4800A) require long preambles.

•Long—A long preamble ensures compatibility between the WMIC and all early models of Cisco

Wireless LAN Adapters. If these client devices do not associate to your WMIC, you should use short

preambles.

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 interface dot11radio 0 Enter interface configuration mode for the radio interface.

Step 3 world-mode

dot11d country_code code

{ both | indoor | outdoor }

| legacy

Enable world mode.

•Enter the dot11d option to enable 802.11d world mode.

–

When you enter the dot11d option, you must enter a

two-character ISO country code (for example, the ISO

country code for the United States is US). You can find

a list of ISO country codes at the ISO website.

–

After the country code, you must enter indoor,

outdoor, or both to indicate the placement of the

WMIC.

•Enter the legacy option to enable Cisco legacy world

mode.

Step 4 end Return to privileged EXEC mode.

Step 5 copy running-config startup-config (Optional) Save your entries in the configuration file.

4-12

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 4 Configuring Radio Settings

Configuring Transmit and Receive Antennas

You cannot configure short or long radio preambles on the 5-GHz radio.

Beginning in privileged EXEC mode, follow these steps to disable short radio preambles:

Short preambles are enabled by default. Use the preamble-short command to enable short preambles if

they are disabled.

Configuring Transmit and Receive Antennas

You can select the antenna the WMIC uses to receive and transmit data. There are three options for both

the receive and the transmit antenna:

•Diversity—This default setting tells the WMIC to use the antenna that receives the best signal.

•Right—If you install a high-gain antenna on the right connector and no antenna on the left

connector, you should use this setting for both receive and transmit.

•Left—If you install a high-gain antenna on the left connector and no antenna on the right connector,

use this setting for both receive and transmit.

Note The antenna commands are not available for bridges equipped with a captive (internal) antenna.

Beginning in privileged EXEC mode, follow these steps to select the antennas the access point uses to

receive and transmit data:

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 interface dot11radio 0 Enter interface configuration mode for the radio interface.

Step 3 no preamble-short Disable short preambles and enable long preambles.

Step 4 end Return to privileged EXEC mode.

Step 5 copy running-config startup-config (Optional) Save your entries in the configuration file.

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 interface dot11radio 0 Enter interface configuration mode for the radio interface.

Step 3 antenna receive

{diversity | left | right}

Set the receive antenna to diversity, left, or right.

Note For best performance, leave the receive antenna setting

at the default setting, diversity.

Step 4 antenna transmit

{diversity | left | right}

Set the transmit antenna to diversity, left, or right.

Note For best performance, leave the transmit antenna

setting at the default setting, diversity.

Step 5 end Return to privileged EXEC mode.

Step 6 copy running-config startup-config (Optional) Save your entries in the configuration file.

4-13

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 4 Configuring Radio Settings

Configuring the Ethernet Encapsulation Transformation Method

Note The Antenna Gain (dB) setting is disabled on the WMIC.

Configuring the Ethernet Encapsulation Transformation Method

When the WMIC receives data packets that are not 802.3 packets, the WMIC must format the packets to

802.3 using an encapsulation transformation method. These are the two transformation methods:

•802.1H—This method provides optimum performance for Cisco wireless products. This is the

default setting.

•RFC1042—Use this setting to ensure interoperability with non-Cisco wireless equipment. RFC1042

does not provide the interoperability advantages of 802.1H but is used by other manufacturers of

wireless equipment.

Beginning in privileged EXEC mode, follow these steps to configure the encapsulation transformation

method:

Note For best performance over your bridge links, adjust the CW-min and CW-max contention window

settings to to a value based on the number of non-root bridges associated to each root bridge. Refer to

the “CW-min and CW-max Settings for Point-to-Point and Point-to-Multipoint Bridge Links” section on

page 11-8 for instructions on adjusting these settings.

Enabling and Disabling Concatenation (2.4-GHz Only)

Use the concatenation command to enable packet concatenation on the WMIC radio. Using

concatenation, the WMIC combines multiple packets into one packet to reduce packet overhead and

overall latency, which increases transmission efficiency.

Beginning in privileged EXEC mode, follow these steps to enable concatenation and set the maximum

length of concatenation.

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 interface dot11radio 0 Enter interface configuration mode for the radio interface.

Step 3 payload-encapsulation RFC1042 |

dot1h

Set the encapsulation transformation method to RFC1042 or

802.1h (dot1h, the default setting).

Step 4 end Return to privileged EXEC mode.

Step 5 copy running-config startup-config (Optional) Save your entries in the configuration file.

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 interface dot11radio 0 Enter interface configuration mode for the radio interface.

4-14

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 4 Configuring Radio Settings

Configuring the Radio Distance Setting

Use the distance command to specify the distance from a root bridge to its clients (non-root bridges

and/or workgroup bridges). The distance setting adjusts the time out values to account for the time

required for radio signals for radio signals to travel from a root bridge to its clients (non-root bridges

and/or workgroup bridges). If more than one non-root bridge (or workgroup bridge) communicates with

the root bridge, enter the distance from the root bridge to the non-root bridge (or work-group bridge) that

is farthest away. Enter a value from 0 to 99 km for a 2.4-GHz WMIC or 0 to 3 km for a 4.9-GHz WMIC.

You do not need to adjust this setting on non-root bridges.

In installation mode, the default distance setting is 99 km. In other modes, the default distance setting is

0km.

Beginning in privileged EXEC mode, follow these steps to configure the distance setting:

Use the no form of the distance command to set the default distance.

Enabling and Disabling Reliable Multicast to Workgroup

Bridges

The Reliable multicast messages from the access point to workgroup bridges setting limits reliable

delivery of multicast messages to approximately 20 Cisco Workgroup Bridges that are associated to the

access point. The default setting, disabled, reduces the reliability of multicast delivery to allow more

workgroup bridges to associate to the access point.

Access points and bridges normally treat workgroup bridges not as client devices but as infrastructure

devices, like access points or bridges. Treating a workgroup bridge as an infrastructure device means that

the access point reliably delivers multicast packets, including Address Resolution Protocol (ARP)

packets, to the workgroup bridge.

The performance cost of reliable multicast delivery—duplication of each multicast packet sent to each

workgroup bridge—limits the number of infrastructure devices, including workgroup bridges, that can

associate to the access point. To increase beyond 20 the number of workgroup bridges that can maintain

Step 3 concatenation bytes (Optional) Bytes specifies a maximum size for concatenation

packets in bytes. Enter a value from 1600 to 4000.

Step 4 end Return to privileged EXEC mode.

Step 5 copy running-config startup-config (Optional) Save your entries in the configuration file.

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 interface dot11radio 0 Enter interface configuration mode for the radio interface.

Step 3 distance kilometers Enter a distance setting from 0 to 99 km for a 2.4-GHz WMIC

or 0 to 3 km for a 4.9-GHz WMIC.

Step 4 end Return to privileged EXEC mode.

Step 5 copy running-config startup-config (Optional) Save your entries in the configuration file.

4-15

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 4 Configuring Radio Settings

Enabling and Disabling Public Secure Packet Forwarding

a radio link to the access point, the access point must reduce the delivery reliability of multicast packets

to workgroup bridges. With reduced reliability, the access point cannot confirm whether multicast

packets reach the intended workgroup bridge, so workgroup bridges at the edge of the access point's

coverage area might lose IP connectivity. When you treat workgroup bridges as client devices, you

increase performance but reduce reliability.

Note This feature is best suited for use with stationary workgroup bridges. Mobile workgroup bridges might

encounter spots in the access point's coverage area where they do not receive multicast packets and lose

communication with the access point even though they are still associated to it.

A Cisco Workgroup Bridge provides a wireless LAN connection for up to eight Ethernet-enabled

devices.

Beginning in privileged EXEC mode, follow these steps to configure the encapsulation transformation

method:

Use the no form of the command to disable reliable multicast messages to workgroup bridges.

Enabling and Disabling Public Secure Packet Forwarding

Public Secure Packet Forwarding (PSPF) prevents client devices associated to an access point from

inadvertently sharing files or communicating with other client devices associated to the access point. It

provides Internet access to client devices without providing other capabilities of a LAN. This feature is

useful for public wireless networks like those installed in airports or on college campuses.

Note To prevent communication between clients associated to different access points, you must set up

protected ports on the switch to which your access points are connected. See the Configuring Protected

Ports, page 4-16 for instructions on setting up protected ports.

To enable and disable PSPF using CLI commands on your access point, you use bridge groups. You can

find a detailed explanation of bridge groups and instructions for implementing them in this document:

•Cisco IOS Bridging and IBM Networking Configuration Guide, Release 12.2. Click this link to

browse to the Configuring Transparent Bridging chapter:

http://www.cisco.com/univercd/cc/td/doc/product/software/ios122/122cgcr/fibm_c/bcfpart1/bcftb.

htm

You can also enable and disable PSPF using the web-browser interface. The PSPF setting is on the Radio

Settings pages.

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 interface dot11radio 0 Enter interface configuration mode for the radio interface.

Step 3 infrastructure-client Enable reliable multicast messages to workgroup bridges.

Step 4 end Return to privileged EXEC mode.

Step 5 copy running-config startup-config (Optional) Save your entries in the configuration file.

4-16

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 4 Configuring Radio Settings

Enabling and Disabling Public Secure Packet Forwarding

PSPF is disabled by default. Beginning in privileged EXEC mode, follow these steps to enable PSPF:

Use the no form of the command to disable PSPF.

Configuring Protected Ports

To prevent communication between client devices associated to different access points on your wireless

LAN, you must set up protected ports on the switch to which your access points are connected.

Beginning in privileged EXEC mode, follow these steps to define a port on your switch as a protected

port:

To disable protected port, use the no switchport protected interface configuration command.

For detailed information on protected ports and port blocking, refer to the “Configuring Port-Based

Traffic Control” chapter in the Catalyst 3550 Multilayer Switch Software Configuration Guide,

12.1(12c)EA1. Click this link to browse to that guide:

http://www.cisco.com/en/US/products/hw/switches/ps646/products_configuration_guide_book09186a

008011591c.html

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 interface dot11radio 0 Enter interface configuration mode for the radio interface.

Step 3 bridge-group group port-protected Enable PSPF.

Step 4 end Return to privileged EXEC mode.

Step 5 copy running-config startup-config (Optional) Save your entries in the configuration file.

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 interface interface-id Enter interface configuration mode, and enter the type and

number of the switchport interface to configure, such as

gigabitethernet0/1.

Step 3 switchport protected Configure the interface to be a protected port.

Step 4 end Return to privileged EXEC mode.

Step 5 show interfaces interface-id

switchport

Verify your entries.

Step 6 copy running-config startup-config (Optional) Save your entries in the configuration file.

4-17

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 4 Configuring Radio Settings

Configuring the Beacon Period

The beacon period is the amount of time between beacons in kilomicroseconds. One Kusec equals 1,024

microseconds. The default beacon period is 100. Beginning in privileged EXEC mode, follow these steps

to configure the beacon period:

Configure RTS Threshold and Retries

The RTS threshold determines the packet size at which the WMIC issues a request to send (RTS) before

sending the packet. A low RTS Threshold setting can be useful in areas where many client devices are

associating with the WMIC, or in areas where the clients are far apart and can detect only the WMIC and

not each other. You can enter a setting ranging from 0 to 2339 bytes.

Note When concatenation is enabled for a 2.4-GHz WMIC, the RTS and fragment thresholds are set to 4000.

Changing them to a lower value might degrade device performance. The 4.9-GHz WMIC does not

support concatenation.

Maximum RTS Retries is the maximum number of times the WMIC issues an RTS before stopping the

attempt to send the packet over the radio. Enter a value from 1 to 128.

The default RTS threshold is 2312, and the default value for RTS retries is 32. Beginning in privileged

EXEC mode, follow these steps to configure the RTS threshold and maximum RTS retries:

Use the no form of the command to reset the RTS settings to defaults.

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 interface dot11radio 0 Enter interface configuration mode for the radio interface.

Step 3 beacon period value Set the beacon period. Enter a value between 20 and

4000 Kusecs.

Step 4 end Return to privileged EXEC mode.

Step 5 copy running-config startup-config (Optional) Save your entries in the configuration file.

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 interface dot11radio 0 Enter interface configuration mode for the radio interface.

Step 3 rts threshold value Set the RTS threshold. Enter an RTS threshold from 0 to 2339

for a 2.4-GHz WMIC or 0 to 4000 for a 4.9-GHz WMIC.

Step 4 rts retries value Set the maximum RTS retries. Enter a setting from 1 to 128.

Step 5 end Return to privileged EXEC mode.

Step 6 copy running-config startup-config (Optional) Save your entries in the configuration file.

4-18

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 4 Configuring Radio Settings

Configuring the Maximum Data Retries

The maximum data retries setting determines the number of attempts the WMIC makes to send a packet

before giving up and dropping the packet.

The default setting is 32. Beginning in privileged EXEC mode, follow these steps to configure the

maximum data retries:

Use the no form of the command to reset the setting to defaults.

Configuring the Fragmentation Threshold

The fragmentation threshold determines the size at which packets are fragmented (sent as several pieces

instead of as one block). Use a low setting in areas where communication is poor or where there is a great

deal of radio interference.

Note When concatenation is enabled for the 2.4-GHz WMIC, the RTS and fragment thresholds are set to 4000.

Changing them to a lower value may degrade performance. The 4.9-GHz WMIC does not support

concatenation.

The default setting is 2338 bytes. Beginning in privileged EXEC mode, follow these steps to configure

the fragmentation threshold:

Use the no form of the command to reset the setting to defaults.

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 interface dot11radio 0 Enter interface configuration mode for the radio interface.

Step 3 packet retries value Set the maximum data retries. Enter a setting from 1 to 128.

Step 4 end Return to privileged EXEC mode.

Step 5 copy running-config startup-config (Optional) Save your entries in the configuration file.

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 interface dot11radio 0 Enter interface configuration mode for the radio interface.

Step 3 fragment-threshold value Set the fragmentation threshold. Enter a setting from 256 to

4000 bytes.

Step 4 end Return to privileged EXEC mode.

Step 5 copy running-config startup-config (Optional) Save your entries in the configuration file.

4-19

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 4 Configuring Radio Settings

Setting the Root Parent Timeout Value

Use the parent timeout command to define the amount of time that a non-root bridge or workgroup

bridge tries to associate with a parent access point. The command defines how long the bridge or

workgroup bridge attempts to associate with a parent in the parent list. If an association is not made

within the timeout value, another acceptable parent is used. You set up the parent list using the parent

command. With the timeout disabled, the parent must come from the parent list.

Beginning in privileged EXEC mode, follow these steps to configure the root parent timeout value:

Use the no form of the command to reset the setting to defaults.

Configuring the Root Parent MAC

Use the parent command to add a parent to a list of valid parent access points. The command adds a

parent to the list of valid parent access points. You can use this command multiple times to define up to

four valid parents.

Caution This command should not be used to configure a workgroup bridge or a non-root bridge a mobile

application, as this feature adversely effects roaming time. If the same devices are used for stationary

applications the parent command can be configured.

Beginning in privileged EXEC mode, follow these steps to configure up to four parent MAC addresses:

Use the no form of the command to reset the setting to defaults.

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 interface dot11radio 0 Enter interface configuration mode for the radio interface.

Step 3 parent timeout seconds The seconds value specifies the amount of time in seconds the

non-root bridge or workgroup bridge attempts to associate with

a specified parent. Enter a value between 0 and 65535 seconds.

Step 4 end Return to privileged EXEC mode.

Step 5 copy running-config startup-config (Optional) Save your entries in the configuration file.

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 interface dot11radio 0 Enter interface configuration mode for the radio interface.

Step 3 parent 1-4 mac-address The value 1-4 specifies the parent root access point number.

mac-address specifies the MAC address of a parent access

point (in xxxx.xxxx.xxxx format).

Step 4 end Return to privileged EXEC mode.

Step 5 copy running-config startup-config (Optional) Save your entries in the configuration file.

4-20

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 4 Configuring Radio Settings

Performing a Carrier Busy Test

You can perform a carrier busy test to check the radio activity on the channels. During the carrier busy

test, the WMIC drops all associations with wireless networking devices for around 4 seconds while it

conducts the carrier test and then displays the test results.

In privileged EXEC mode, enter this command to perform a carrier busy test:

dot 11 dot11Radio interface-number carrier busy

where, interface-number is the dot11radio interface.

Use the show dot11 carrier busy command to re-display the carrier busy test results.

CHAPTER

5-1

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Configuring SSIDs

This chapter describes how to configure a service set identifier (SSID) on the WMIC. This chapter

contains these sections:

•Understanding SSIDs, page 5-2

•Configuring the SSID, page 5-2

5-2

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 5 Configuring SSIDs

Understanding SSIDs

The SSID is a unique identifier that wireless networking devices use to establish and maintain wireless

connectivity. Multiple bridges on a network or sub-network can use the same SSID. SSIDs are case

sensitive and can contain up to 32 alphanumeric characters. Do not include spaces in your SSID. The

WMIC supports multiple SSIDs.

When you configure an SSID you assign these configuration settings to the SSID:

•VLAN

•RADIUS accounting for traffic using the SSID

•Authentication method

Note For detailed information on client authentication types, see Chapter 8, “Configuring

Authentication Types.”

If you want the WMIC to allow associations from bridges that do not specify an SSID in their

configurations, you can include the SSID in the beacon. The default SSID, autoinstall, is included in the

beacon. However, to keep your network secure, you should remove the SSID from the beacon.

You can assign an authentication username and password to the SSID to allow the WMIC to authenticate

to your network using LEAP authentication.

If your network uses VLANs, you should assign the WMIC SSID to your network’s native VLAN.

Configuring the SSID

These sections contain configuration information for the SSID:

•Default SSID Configuration, page 5-2

•Creating an SSID, page 5-3

Default SSID Configuration

Table 5-1 shows the default SSID configuration:

Table 5-1 Default SSID Configuration

Feature Default Setting

SSID autoinstall

Guest Mode SSID autoinstall (The WMIC broadcasts this SSID in its

beacon and allows bridges with no SSID to

associate.)

5-3

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 5 Configuring SSIDs

Configuring the SSID

Creating an SSID

Beginning in privileged EXEC mode, follow these steps to create an SSID:

Note You use the ssid command’s authentication options to configure an authentication type for the SSID. See

Chapter 8, “Configuring Authentication Types,”for instructions on configuring authentication types.

Use the no form of the command to disable the SSID or to disable SSID features.

This example shows how to:

•Name an SSID

•Configure the SSID for RADIUS accounting

•Assign the SSID to the native VLAN

•Designate the SSID as the infrastructure SSID

bridge# configure terminal

bridge(config)# interface dot11radio 0

bridge(config-if)# ssid bridgeman

bridge(config-ssid)# accounting accounting-method-list

bridge(config-ssid)# vlan 1

bridge(config-ssid)# infrastructure-ssid

bridge(config-ssid)# end

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 interface dot11radio 0 Enter interface configuration mode for the radio interface.

Step 3 ssid ssid-string Create an SSID and enter SSID configuration mode for the new

SSID. The SSID can consist of up to 32 alphanumeric

characters. SSIDs are case sensitive.

Note You can include spaces in an SSID, but be careful not

to add spaces to an SSID accidentally, especially at the

end of an SSID.

Step 4 authentication client

username username

password password

(Optional) Set an authentication username and password that

the WMIC uses to authenticate to the network.

Step 5 accounting list-name (Optional) Enable RADIUS accounting for this SSID. For

list-name, specify the accounting method list. Click this link

for more information on method lists:

http://www.cisco.com/univercd/cc/td/doc/product/software/ios

122/122cgcr/fsecur_c/fsaaa/scfacct.htm#xtocid2

Step 6 vlan vlan-id (Optional) Assign the SSID to a VLAN on your network. On

your WMIC, you should assign the SSID to the native VLAN.

Step 7 infrastructure-ssid Designate the SSID as the infrastructure SSID. It is used to

instruct a non-root bridge or workgroup bridge radio to

associate with this SSID.

Step 8 end Return to privileged EXEC mode.

Step 9 copy running-config startup-config (Optional) Save your entries in the configuration file.

5-4

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 5 Configuring SSIDs

Configuring the SSID

CHAPTER

6-1

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Configuring Spanning Tree Protocol

This chapter descibes how to configure Spanning Tree Protocol (STP) on your WMIC. This chapter

contains these sections:

•Understanding Spanning Tree Protocol, page 6-2

•Configuring STP Features, page 6-9

•Displaying Spanning-Tree Status, page 6-15

Note For complete syntax and usage information for the commands used in this chapter, refer to the Cisco IOS

Command Reference for Access Points and Bridges for this release.

6-2

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 6 Configuring Spanning Tree Protocol

Understanding Spanning Tree Protocol

This section describes how spanning-tree features work. It includes this information:

•STP Overview, page 6-2

•Bridge Protocol Data Units, page 6-3

•Election of the Spanning-Tree Root, page 6-4

•Spanning-Tree Timers, page 6-5

•Creating the Spanning-Tree Topology, page 6-5

•Spanning-Tree Interface States, page 6-6

STP Overview

STP is a Layer 2 link management protocol that provides path redundancy while preventing loops in the

network. For a Layer 2 Ethernet network to function properly, only one active path can exist between

any two stations. Spanning-tree operation is transparent to end stations, which cannot detect whether

they are connected to a single LAN segment or to a LAN of multiple segments.

When you create fault-tolerant internetworks, you must have a loop-free path between all nodes in a

network. The spanning-tree algorithm calculates the best loop-free path throughout a Layer 2 network.

Infrastructure devices such as wireless bridges and switches send and receive spanning-tree frames,

called bridge protocol data units (BPDUs), at regular intervals. The devices do not forward these frames

but use them to construct a loop-free path.

Multiple active paths among end stations cause loops in the network. If a loop exists in the network, end

stations might receive duplicate messages. Infrastructure devices might also learn end-station MAC

addresses on multiple Layer 2 interfaces. These conditions result in an unstable network.

STP defines a tree with a root bridge and a loop-free path from the root to all infrastructure devices in

the Layer 2 network.

Note STP discussions use the term root to describe two concepts: the bridge on the network that serves as a

central point in the spanning tree is called the root bridge, and the port on each device that provides the

most efficient path to the device is called the root port. These meanings are separate from the Role in

radio network setting that includes root and non-root options. A bridge whose Role in radio network

setting is Root Bridge does not necessarily become the root bridge in the spanning tree. In this chapter,

the root bridge in the spanning tree is called the spanning-tree root.

STP forces redundant data paths into a standby (blocked) state. If a network segment in the spanning tree

fails and a redundant path exists, the spanning-tree algorithm recalculates the spanning-tree topology

and activates the standby path.

When two interfaces are part of a loop, the spanning-tree port priority and path cost settings determine

which interface is put in the forwarding state and which is put in the blocking state. The port priority

value represents the location of an interface in the network topology and how well it is located to pass

traffic. The path cost value represents media speed.

The bridge supports both per-VLAN spanning tree (PVST) and a single 802.1q spanning tree without

VLANs. The bridge cannot run 802.1s MST or 802.1d Common Spanning Tree, which maps multiple

VLANs into a one-instance spanning tree.

6-3

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 6 Configuring Spanning Tree Protocol

Understanding Spanning Tree Protocol

The bridge maintains a separate spanning-tree instance for each active VLAN configured on it. A bridge

ID, consisting of the bridge priority and the MAC address, is associated with each instance. For each

VLAN, the bridge with the lowest bridge ID becomes the spanning-tree root for that VLAN.

Bridge Interoperability

Cisco bridges are interoperable when STP is enabled and no VLANs are configured. This configuration

is the only one available for the following reasons:

•When STP is disabled, the bridge acts as an access point and disallows association of non-root

bridge.

•The bridge has a single instance of STP in non-VLAN configurations and multiple instances of STP

in VLAN configurations.

•Incompatibilities between single and multiple instances of STP can cause inconsistent blocking of

traffic when VLANs are configured. When the native VLAN is blocked, you can experience bridge

flapping.

Therefore, the best configuration for STP interoperability is when the bridge STP feature is enabled and

VLANs are not configured.

Note When the Cisco bridges are configured as workgroup bridges, they can operate with STP disabled and

allow for associations with access points. However, this configuration is not technically a

bridge-to-bridge scenario.

Bridge Protocol Data Units

The stable, active spanning-tree topology of your network is determined by these elements:

•The unique bridge ID (wireless bridge priority and MAC address) associated with each VLAN on

each wireless bridge

•The spanning-tree path cost to the spanning-tree root

•The port identifier (port priority and MAC address) associated with each Layer 2 interface

When the bridges in a network are powered up, each bridge functions as the STP root. The bridges send

configuration BPDUs through the Ethernet and radio ports. The BPDUs communicate and compute the

spanning-tree topology. Each configuration BPDU contains this information:

•The unique bridge ID of the wireless bridge that the sending bridge identifies as the spanning-tree

root

•The spanning-tree path cost to the root

•The bridge ID of the sending bridge

•Message age

•The identifier of the sending interface

•Values for the hello, forward delay, and max-age protocol timers

When a bridge receives a configuration BPDU that contains superior information (lower bridge ID,

lower path cost, and so forth), it stores the information for that port. If this BPDU is received on the root

port of the bridge, the bridge also forwards it with an updated message to all attached LANs for which

it is the designated bridge.

6-4

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 6 Configuring Spanning Tree Protocol

Understanding Spanning Tree Protocol

If a bridge receives a configuration BPDU that contains inferior information to that currently stored for

that port, it discards the BPDU. If the bridge is a designated bridge for the LAN from which the inferior

BPDU was received, it sends that LAN a BPDU containing the up-to-date information stored for that

port. In this way, inferior information is discarded, and superior information is propagated on the

network.

A BPDU exchange results in these actions:

•One bridge is elected as the spanning-tree root.

•A root port is selected for each bridge (except the spanning-tree root). This port provides the best

path (lowest cost) when the bridge forwards packets to the spanning-tree root.

•The shortest distance to the spanning-tree root is calculated for each bridge based on the path cost.

•A designated bridge for each LAN segment is selected. The designated bridge incurs the lowest path

cost when forwarding packets from that LAN to the spanning-tree root. The port through which the

designated bridge is attached to the LAN is called the designated port.

•Interfaces included in the spanning-tree instance are selected. Root ports and designated ports are

put in the forwarding state.

•All interfaces not included in the spanning tree are blocked.

Election of the Spanning-Tree Root

All bridges in the Layer 2 network participating in STP gather information about other bridges in the

network through an exchange of BPDU data messages. This exchange of messages results in these

actions:

•The election of a unique spanning-tree root for each spanning-tree instance

•The election of a designated bridge for every LAN segment

•The removal of loops in the network by blocking Layer 2 interfaces connected to redundant links

For each VLAN, the bridge with the highest bridge priority (the lowest numerical priority value) is

elected as the spanning-tree root. If all bridges are configured with the default priority (32768), the

bridge with the lowest MAC address in the VLAN becomes the spanning-tree root. The bridge priority

value occupies the most significant bits of the bridge ID.

When you change the bridge priority value, you change the probability that the bridge will be elected as

the root bridge. Configuring a higher value decreases the probability; a lower value increases the

probability.

The spanning-tree root is the logical center of the spanning-tree topology. All paths that are not needed

to reach the spanning-tree root from anywhere in the network are placed in the spanning-tree blocking

mode.

BPDUs contain information about the sending bridge and its ports, including bridge and MAC addresses,

bridge priority, port priority, and path cost. STP uses this information to elect the spanning-tree root and

root port for the network and the root port and designated port for each LAN segment.

6-5

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 6 Configuring Spanning Tree Protocol

Understanding Spanning Tree Protocol

Spanning-Tree Timers

Table 6-1 describes the timers that affect the entire spanning-tree performance.

Creating the Spanning-Tree Topology

In Figure 6-1, bridge 4 is elected as the spanning-tree root because the priority of all the bridges is set

to the default (32768) and bridge 4 has the lowest MAC address. However, because of traffic patterns,

number of forwarding interfaces, or link types, bridge 4 might not be the ideal spanning-tree root. By

increasing the priority (lowering the numerical value) of the ideal bridge so that it becomes the

spanning-tree root, you force a spanning-tree recalculation to form a new topology with the ideal bridge

as the spanning-tree root.

Figure 6-1 Spanning-Tree Topology

Table 6-1 Spanning-Tree Timers

Variable Description

Hello timer Determines how often the bridge broadcasts hello messages to other bridges.

Forward-delay timer Determines how long each of the listening and learning states last before the

interface begins forwarding.

Maximum-age timer Determines the amount of time the bridge stores protocol information

received on an interface.

LAN segment A

LAN segment B

Bridge 1

Bridge 3

Bridge 2

Bridge 4

56612

6-6

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 6 Configuring Spanning Tree Protocol

Understanding Spanning Tree Protocol

Spanning-Tree Interface States

Propagation delays can occur when protocol information passes through a wireless LAN. As a result,

topology changes can take place at different times and at different places in the network. When an

interface transitions directly from nonparticipation in the spanning-tree topology to the forwarding state,

it can create temporary data loops. Interfaces must wait for new topology information to propagate

through the LAN before starting to forward frames. They must allow the frame lifetime to expire for

forwarded frames that have used the old topology.

Each interface on a bridge using spanning tree exists in one of these states:

•Blocking—The interface does not participate in frame forwarding.

•Listening—The first transitional state after the blocking state when the spanning tree determines

that the interface should participate in frame forwarding.

•Learning—The interface prepares to participate in frame forwarding.

•Forwarding—The interface forwards frames.

•Disabled—The interface is not participating in spanning tree because of a shutdown port, no link on

the port, or no spanning-tree instance running on the port.

An interface moves through these states:

•From initialization to blocking

•From blocking to listening or to disabled

•From listening to learning or to disabled

•From learning to forwarding or to disabled

•From forwarding to disabled

Figure 6-2 illustrates how an interface moves through the states.

Figure 6-2 Spanning-Tree Interface States

When you enable STP on the bridge, the Ethernet and radio interfaces go through the blocking state and

the transitory states of listening and learning. Spanning tree stabilizes each interface at the forwarding

or blocking state.

Power-on

initialization

Blocking

state

43569

Listening

state

Disabled

state

Learning

state

Forwarding

state

6-7

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 6 Configuring Spanning Tree Protocol

Understanding Spanning Tree Protocol

When the spanning-tree algorithm places a Layer 2 interface in the forwarding state, this process occurs:

1. The interface is in the listening state while spanning tree waits for protocol information to transition

the interface to the blocking state.

2. While spanning tree waits the forward-delay timer to expire, it moves the interface to the learning

state and resets the forward-delay timer.

3. In the learning state, the interface continues to block frame forwarding as the bridge learns

end-station location information for the forwarding database.

4. When the forward-delay timer expires, spanning tree moves the interface to the forwarding state,

where both learning and frame forwarding are enabled.

Blocking State

An interface in the blocking state does not participate in frame forwarding. After initialization, a BPDU

is sent to the bridge’s Ethernet and radio ports. A bridge initially functions as the spanning-tree root until

it exchanges BPDUs with other bridges. This exchange establishes which bridge in the network is the

spanning-tree root. If there is only one bridge in the network, no exchange occurs, the forward-delay

timer expires, and the interfaces move to the listening state. An interface always enters the blocking state

when you enable STP.

An interface in the blocking state performs as follows:

•Discards frames received on the port

•Does not learn addresses

•Receives BPDUs

Note If a port is blocked, some broadcast or multicast packets can reach a forwarding port on the bridge and

cause the bridging logic to switch the blocked port into listening state momentarily before the packets

are dropped at the blocked port.

Listening State

The listening state is the first state an interface enters after the blocking state. The interface enters this

state when STP determines that the interface should participate in frame forwarding.

An interface in the listening state performs as follows:

•Discards frames received on the port

•Does not learn addresses

•Receives BPDUs

6-8

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 6 Configuring Spanning Tree Protocol

Understanding Spanning Tree Protocol

Learning State

An interface in the learning state prepares to participate in frame forwarding. The interface enters the

learning state from the listening state.

An interface in the learning state performs as follows:

•Discards frames received on the port

•Learns addresses

•Receives BPDUs

Forwarding State

An interface in the forwarding state forwards frames. The interface enters the forwarding state from the

learning state.

An interface in the forwarding state performs as follows:

•Receives and forwards frames received on the port

•Learns addresses

•Receives BPDUs

Disabled State

An interface in the disabled state does not participate in frame forwarding or in the spanning tree. An

interface in the disabled state is nonoperational.

A disabled interface performs as follows:

•Discards frames received on the port

•Does not learn addresses

•Does not receive BPDUs

6-9

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 6 Configuring Spanning Tree Protocol

Configuring STP Features

You complete three major steps to configure STP on the WMIC:

1. If necessary, assign interfaces and sub-interfaces to bridge groups

2. Enable STP for each bridge group

3. Set the STP priority for each bridge group

These sections include spanning-tree configuration information:

•Default STP Configuration, page 6-9

•Configuring STP Settings, page 6-9

•STP Configuration Examples, page 6-10

Default STP Configuration

STP is disabled by default. Table 6-2 lists the default STP settings when you enable STP.

The radio and Ethernet interfaces and the native VLAN on the bridge are assigned to bridge group 1 by

default. When you enable STP and assign a priority on bridge group 1, STP is enabled on the radio and

Ethernet interfaces and on the primary VLAN, and those interfaces adopt the priority assigned to bridge

group 1. You can create bridge groups for sub-interfaces and assign different STP settings to those bridge

groups.

Configuring STP Settings

Beginning in privileged EXEC mode, follow these steps to configure STP on the WMIC:

Table 6-2 Default STP Values When STP is Enabled

Setting Default Value

bridge priority 32768

bridge max age 20

bridge hello time 2

bridge forward delay 15

Ethernet port path cost 19

Ethernet port priority 128

Radio port path cost 33

Radio port priority 128

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 interface { dot11radio number | fastethernet

number }

Enter interface configuration mode for radio or Ethernet

interfaces or sub-interfaces.

6-10

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 6 Configuring Spanning Tree Protocol

Configuring STP Features

STP Configuration Examples

These configuration examples show how to enable STP on root and non-root bridges with and without

VLANs:

•Root Bridge Without VLANs, page 6-10

•Non-Root Bridge Without VLANs, page 6-11

•Root Bridge with VLANs, page 6-12

•Non-Root Bridge with VLANs, page 6-13

Root Bridge Without VLANs

This example shows the configuration of a root bridge with no VLANs configured and with STP enabled:

hostname master-bridge-south

ip subnet-zero

bridge irb

interface Dot11Radio0

no ip address

no ip route-cache

ssid tsunami

authentication open

guest-mode

speed basic-6.0 9.0 12.0 18.0 24.0 36.0 48.0 54.0

rts threshold 2312

station-role root

no cdp enable

infrastructure-client

bridge-group 1

Step 3 bridge-group number Assign the interface to a bridge group. You can number your

bridge groups from 1 to 255.

Step 4 no bridge-group number spanning-disabled Counteract the command that automatically disables STP for a

bridge group. STP is enabled on the interface when you enter

the bridge n protocol ieee command.

Step 5 exit Return to global configuration mode.

Step 6 bridge number protocol ieee Enable STP for the bridge group. You must enable STP on each

bridge group that you create with bridge-group commands.

Step 7 bridge number priority priority (Optional) Assign a priority to a bridge group. The lower the

priority, the more likely it is that the bridge becomes the

spanning-tree root.

Step 8 end Return to privileged EXEC mode.

Step 9 show spanning-tree bridge Verify your entries.

Step 10 copy running-config startup-config (Optional) Save your entries in the configuration file.

Command Purpose

6-11

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 6 Configuring Spanning Tree Protocol

Configuring STP Features

interface FastEthernet0

no ip address

no ip route-cache

duplex auto

speed auto

bridge-group 1

interface BVI1

ip address 1.4.64.23 255.255.0.0

no ip route-cache

ip default-gateway 1.4.0.1

bridge 1 protocol ieee

bridge 1 route ip

bridge 1 priority 9000

line con 0

exec-timeout 0 0

line vty 0 4

line vty 5 15

end

Non-Root Bridge Without VLANs

This example shows the configuration of a non-root bridge with no VLANs configured with STP

enabled:

hostname client-bridge-north

ip subnet-zero

bridge irb

interface Dot11Radio0

no ip address

no ip route-cache

ssid tsunami

authentication open

guest-mode

speed basic-6.0 9.0 12.0 18.0 24.0 36.0 48.0 54.0

rts threshold 2312

station-role non-root

no cdp enable

bridge-group 1

interface FastEthernet0

no ip address

no ip route-cache

duplex auto

speed auto

bridge-group 1 path-cost 40

interface BVI1

ip address 1.4.64.24 255.255.0.0

no ip route-cache

6-12

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 6 Configuring Spanning Tree Protocol

Configuring STP Features

bridge 1 protocol ieee

bridge 1 route ip

bridge 1 priority 10000

line con 0

line vty 0 4

line vty 5 15

end

Root Bridge with VLANs

This example shows the configuration of a root bridge with VLANs configured with STP enabled:

hostname master-bridge-hq

ip subnet-zero

ip ssh time-out 120

ip ssh authentication-retries 3

bridge irb

interface Dot11Radio0

no ip address

no ip route-cache

ssid vlan1

vlan 1

infrastructure-ssid

authentication open

speed basic-6.0 9.0 12.0 18.0 24.0 36.0 48.0 54.0

rts threshold 2312

station-role root

no cdp enable

infrastructure-client

interface Dot11Radio0.1

encapsulation dot1Q 1 native

no ip route-cache

no cdp enable

bridge-group 1

interface Dot11Radio0.2

encapsulation dot1Q 2

no ip route-cache

no cdp enable

bridge-group 2

interface Dot11Radio0.3

encapsulation dot1Q 3

no ip route-cache

bridge-group 3

bridge-group 3 path-cost 500

interface FastEthernet0

no ip address

no ip route-cache

duplex auto

speed auto

6-13

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 6 Configuring Spanning Tree Protocol

Configuring STP Features

interface FastEthernet0.1

encapsulation dot1Q 1 native

no ip route-cache

bridge-group 1

interface FastEthernet0.2

encapsulation dot1Q 2

no ip route-cache

bridge-group 2

interface FastEthernet0.3

encapsulation dot1Q 3

no ip route-cache

bridge-group 3

interface BVI1

ip address 1.4.64.23 255.255.0.0

no ip route-cache

ip default-gateway 1.4.0.1

bridge 1 protocol ieee

bridge 1 route ip

bridge 1 priority 9000

bridge 2 protocol ieee

bridge 2 priority 10000

bridge 3 protocol ieee

bridge 3 priority 3100

line con 0

exec-timeout 0 0

line vty 5 15

end

Non-Root Bridge with VLANs

This example shows the configuration of a non-root bridge with VLANs configured with STP enabled:

hostname client-bridge-remote

ip subnet-zero

ip ssh time-out 120

ip ssh authentication-retries 3

bridge irb

interface Dot11Radio0

no ip address

no ip route-cache

ssid vlan1

vlan 1

authentication open

infrastructure-ssid

speed basic-6.0 9.0 12.0 18.0 24.0 36.0 48.0 54.0

rts threshold 2312

station-role non-root

no cdp enable

6-14

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 6 Configuring Spanning Tree Protocol

Configuring STP Features

interface Dot11Radio0.1

encapsulation dot1Q 1 native

no ip route-cache

no cdp enable

bridge-group 1

interface Dot11Radio0.2

encapsulation dot1Q 2

no ip route-cache

no cdp enable

bridge-group 2

interface Dot11Radio0.3

encapsulation dot1Q 3

no ip route-cache

no cdp enable

bridge-group 3

interface FastEthernet0

no ip address

no ip route-cache

duplex auto

speed auto

interface FastEthernet0.1

encapsulation dot1Q 1 native

no ip route-cache

bridge-group 1

interface FastEthernet0.2

encapsulation dot1Q 2

no ip route-cache

bridge-group 2

interface FastEthernet0.3

encapsulation dot1Q 3

no ip route-cache

bridge-group 3

bridge-group 3 path-cost 400

interface BVI1

ip address 1.4.64.24 255.255.0.0

no ip route-cache

bridge 1 protocol ieee

bridge 1 route ip

bridge 1 priority 10000

bridge 2 protocol ieee

bridge 2 priority 12000

bridge 3 protocol ieee

bridge 3 priority 2900

line con 0

line vty 5 15

end

6-15

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 6 Configuring Spanning Tree Protocol

Displaying Spanning-Tree Status

To display the spanning-tree status, use one or more of the privileged EXEC commands in Table 6-3:

For information about other keywords for the show spanning-tree privileged EXEC command, refer to

the Cisco IOS Command Reference for Cisco Access Points and Bridges.

Table 6-3 Commands for Displaying Spanning-Tree Statusbridge

Command Purpose

show spanning-tree Displays information on your network’s spanning tree.

show spanning-tree blocked-ports Displays a list of blocked ports on this device.

show spanning-tree bridge Displays status and configuration of this bridge.

show spanning-tree active Displays spanning-tree information on active interfaces only.

show spanning-tree root Displays a detailed summary of information on the spanning-tree root.

show spanning-tree interface interface-id Displays spanning-tree information for the specified interface.

show spanning-tree summary [totals] Displays a summary of port states or displays the total lines of the STP state

section.

6-16

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 6 Configuring Spanning Tree Protocol

Displaying Spanning-Tree Status

CHAPTER

7-1

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Configuring WEP and WEP Features

This chapter describes how to configure Wired Equivalent Privacy (WEP), Message Integrity Check

(MIC), and Temporal Key Integrity Protocol (TKIP). This chapter contains these sections:

•Understanding WEP, page 7-2

•Configuring Cipher Suites and WEP, page 7-3

7-2

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 7 Configuring WEP and WEP Features

Understanding WEP

Just as anyone within range of a radio station can tune to the station's frequency and listen to the signal,

any wireless networking device within range of a bridge can receive the bridge's radio transmissions.

Because WEP is the first line of defense against intruders, Cisco recommends that you use full

encryption on your wireless network.

WEP encryption scrambles the radio communication between bridges to keep the communication

private. Communicating bridges use the same WEP key to encrypt and unencrypt radio signals. WEP

keys encrypt both unicast and multicast messages. Unicast messages are addressed to just one device on

the network. Multicast messages are addressed to multiple devices on the network.

Extensible Authentication Protocol (EAP) authentication provides dynamic WEP keys to wireless

devices. Dynamic WEP keys are more secure than static, or unchanging, WEP keys. If an intruder

passively receives enough packets encrypted by the same WEP key, the intruder can perform a

calculation to learn the key and use it to join your network. Because they change frequently, dynamic

WEP keys prevent intruders from performing the calculation and learning the key. See Chapter 8,

“Configuring Authentication Types” for detailed information on EAP and other authentication types.

Cipher suites are sets of encryption and integrity algorithms designed to protect radio communication

on your wireless LAN. You must use a cipher suite to enable Wi-Fi Protected Access (WPA) or Cisco

Centralized Key Management (CCKM). Because cipher suites provide the protection of WEP while also

allowing use of authenticated key management, Cisco recommends that you enable WEP by using the

encryption mode cipher command in the CLI or by using the cipher drop-down menu in the

web-browser interface. Cipher suites that contain TKIP provide the best security for your wireless LAN,

and cipher suites that contain only WEP are the least secure.

These security features protect the data traffic on your wireless LAN:

•WEP (Wired Equivalent Privacy)—WEP is an 802.11 standard encryption algorithm originally

designed to provide your wireless LAN with the same level of privacy available on a wired LAN.

However, the basic WEP construction is flawed, and an attacker can compromise the privacy with

reasonable effort.

•TKIP (Temporal Key Integrity Protocol)—TKIP is a suite of algorithms surrounding WEP that is

designed to achieve the best possible security on legacy hardware built to run WEP. TKIP adds four

enhancements to WEP:

–

A per-packet key mixing function to defeat weak-key attacks

–

A new IV sequencing discipline to detect replay attacks

–

A cryptographic message integrity Check (MIC), called Michael, to detect forgeries such as bit

flipping and altering packet source and destination

–

An extension of IV space, to virtually eliminate the need for re-keying

•CKIP (Cisco Key Integrity Protocol)—The Cisco WEP key permutation technique based on an early

algorithm presented by the IEEE 802.11i security task group. (ckip and ckip-cmic are supported

only on the 2.4-GHz (802.11b/g) WMIC.)

•CMIC (Cisco Message Integrity Check)—Like TKIP, the Cisco message integrity check mechanism

is designed to detect forgery attacks.

Note If VLANs are enabled on your bridges, WEP, MIC, and TKIP are supported only on the native VLAN.

7-3

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 7 Configuring WEP and WEP Features

Configuring Cipher Suites and WEP

These sections describe how to configure cipher suites, WEP and additional WEP features such as MIC

and TKIP:

•Creating WEP Keys, page 7-3

•Enabling Cipher Suites and WEP, page 7-5

WEP, TKIP, and MIC are disabled by default.

Creating WEP Keys

Beginning in privileged EXEC mode, follow these steps to create a WEP key and set the key properties:

This example shows how to create a 128-bit WEP key in slot 2 for VLAN 1 and sets the key as the

transmit key:

bridge# configure terminal

bridge(config)# configure interface dot11radio 0

bridge(config-if)# encryption vlan 1 key 2 size 128 12345678901234567890123456

transmit-key

bridge(config-if)# end

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 interface dot11radio 0 Enter interface configuration mode for the radio interface.

Step 3 encryption [vlan vlan-id]

key 1-4

size {40 | 128 } encryption-key

[transmit-key]

Create a WEP key and set up its properties.

•(Optional) Select the VLAN for which you want to create

a key. WEP, MIC, and TKIP are supported only on the

native VLAN.

•Name the key slot in which this WEP key resides. You can

assign up to 4 WEP keys for each VLAN, but key slot 4 is

reserved for the session key.

•Enter the key and set the size of the key, either 40-bit or

128-bit. 40-bit keys contain 10 hexadecimal digits; 128-bit

keys contain 26 hexadecimal digits.

•(Optional) Set this key as the transmit key. The key in slot

2 is the transmit key by default. If you enable WEP with

MIC, use the same WEP key as the transmit key in the

same key slot on both root and non-root bridges.

Step 4 end Return to privileged EXEC mode.

Step 5 copy running-config startup-config (Optional) Save your entries in the configuration file.

7-4

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 7 Configuring WEP and WEP Features

Configuring Cipher Suites and WEP

WEP Key Restrictions

Table 7-1 lists WEP key restrictions based on your security configuration.

Example WEP Key Setup

Table 7-2 shows an example WEP key setup that would work for the root bridge and an associated

non-root bridge:

Because the root bridge’s WEP key 1 is selected as the transmit key, WEP key 1 on the non-root bridge

must have the same contents. WEP key 4 on the non-root bridge is set, but because it is not selected as

the transmit key, WEP key 4 on the root bridge does not need to be set at all.

Note If you enable MIC but you use static WEP (you do not enable any type of EAP authentication),

both the root bridge and any non-root bridges with which it communicates must use the same

WEP key for transmitting data. For example, if the MIC-enabled root bridge uses the key in slot

1 as the transmit key, a non-root bridge associated to the root bridge must use the same key in

its slot 1, and the key in the non-root bridge’s slot 1 must be selected as the transmit key.

Table 7-1 WEP Key Restrictions

Security Configuration WEP Key Restriction

CCKM or WPA authenticated key

management

Cannot configure a WEP key in key slot 1

LEAP or EAP authentication Cannot configure a WEP key in key slot 4

Cipher suite with 40-bit WEP Cannot configure a 128-bit key

Cipher suite with 128-bit WEP Cannot configure a 40-bit key

Cipher suite with TKIP Cannot configure any WEP keys

Cipher suite with TKIP and 40-bit WEP or

128-bit WEP

Cannot configure a WEP key in key slot 1 and 4

Static WEP with MIC or CMIC Root and non-root bridges must use the same WEP

key as the transmit key, and the key must be in the

same key slot on both root and non-root bridges

Table 7-2 WEP Key Setup Example

Key

Slot

Root Bridge Associated Non-Root Bridge

Transmit? Key Contents Transmit? Key Contents

1 x 12345678901234567890abcdef –12345678901234567890abcdef

2–09876543210987654321fedcba x 09876543210987654321fedcba

3–not set –not set

4–not set –FEDCBA09876543211234567890

7-5

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 7 Configuring WEP and WEP Features

Configuring Cipher Suites and WEP

Enabling Cipher Suites and WEP

Beginning in privileged EXEC mode, follow these steps to enable a cipher suite:

Use the no form of the encryption command to disable a cipher suite.

This example sets up a cipher suite for VLAN 1 that enables CKIP, CMIC, and 128-bit WEP.

bridge# configure terminal

bridge(config)# configure interface dot11radio 0

bridge(config-if)# encryption vlan 1 mode ciphers ckip-cmic wep128

bridge(config-if)# end

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 interface dot11radio 0 Enter interface configuration mode for the radio interface.

Step 3 encryption

[vlan vlan-id]

mode ciphers

{[aes-ccm | ckip | cmic | ckip-cmic |

tkip]}

{[wep128 | wep40]}

Enable a cipher suite containing the WEP protection you need.

Table 7-3 lists guidelines for selecting a cipher suite that

matches the type of authenticated key management you

configure.

•(Optional) Select the VLAN for which you want to enable

WEP and WEP features.

•Set the cipher options and WEP level. You can combine

TKIP with 128-bit or 40-bit WEP.

Note If you enable a cipher suite with two elements (such as

TKIP and 128-bit WEP), the second cipher becomes the

group cipher.

Note You can also use the encryption mode wep command

to set up static WEP. However, you should use

encryption mode wep only if none of the non-root

bridges that associate to the root bridge are capable of

key management. See the Cisco IOS Command

Reference for Cisco Access Points and Bridges for a

detailed description of the encryption mode wep

command.

Note When you configure TKIP-only cipher encryption (not

TKIP + WEP 128 or TKIP + WEP 40) on any radio

interface or VLAN, the SSID on that radio or VLAN

must be set to use WPA or CCKM key management. If

you configure TKIP on a radio or VLAN but you do not

configure key management on the SSID, non-root

bridge authentication fails on the SSID.

Note ckip and ckip-cmic are supported only on the 2.4-GHz

(802.11b/g) WMIC.

Step 4 end Return to privileged EXEC mode.

Step 5 copy running-config startup-config (Optional) Save your entries in the configuration file.

7-6

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 7 Configuring WEP and WEP Features

Configuring Cipher Suites and WEP

Matching Cipher Suites with WPA

If you configure your bridges to use WPA or CCKM authenticated key management, you must select a

cipher suite compatible with the authenticated key management type. Table 7-3 lists the cipher suites

that are compatible with WPA and CCKM.

Note When you configure TKIP-only cipher encryption (not TKIP + WEP 128 or TKIP + WEP 40) on any

radio interface or VLAN, the SSID on that radio or VLAN must be set to use WPA or CCKM key

management. If you configure TKIP on a radio or VLAN but you do not configure key management on

the SSID, non-root bridge authentication fails on the SSID.

For a complete description of WPA and CCKM and instructions for configuring authenticated key

management, see the “Using WPA Key Management” section on page 8-5 and the “Using CCKM for

Authenticated Bridges” section on page 8-5.

Table 7-3 Cipher Suites Compatible with WPA and CCKM

Authenticated Key Management Types Compatible Cipher Suites

CCKM •encryption mode ciphers wep128

•encryption mode ciphers wep40

•encryption mode ciphers ckip

•encryption mode ciphers cmic

•encryption mode ciphers ckip-cmic

•encryption mode ciphers tkip

•encryption mode ciphers tkip wep128

•encryption mode ciphers tkip wep40

WPA •encryption mode ciphers tkip

•encryption mode ciphers tkip wep128

•encryption mode ciphers tkip wep40

CHAPTER

8-1

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Configuring Authentication Types

This chapter describes how to configure authentication types on the WMIC. This chapter contains these

sections:

•Understanding Authentication Types, page 8-2

•Configuring Authentication Types, page 8-5

•Matching Authentication Types on Root and Non-Root Bridges, page 8-11

8-2

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 8 Configuring Authentication Types

Understanding Authentication Types

This section describes the authentication types that you can configure on the WMIC. The authentication

types are tied to the SSID that you configure on the WMIC.

Before wireless devices can communicate, they must authenticate to each other using open or shared-key

authentication. For maximum security, wireless devices should also authenticate to your network using

EAP authentication, an authentication type that relies on an authentication server on your network.

The WMIC uses four authentication mechanisms or types and can use more than one at the same time.

These sections explain each authentication type:

•Open Authentication to the WMIC, page 8-2

•Shared Key Authentication to the Bridge, page 8-2

•EAP Authentication to the Network, page 8-3

Open Authentication to the WMIC

Open authentication allows any wireless device to authenticate and then attempt to communicate with

another wireless device. Using open authentication, a non-root bridge can authenticate to a root bridge.

A bridge that is not using WEP does not attempt to authenticate with a bridge that is using WEP. Open

authentication does not rely on a RADIUS server on your network.

Figure 8-1 shows the authentication sequence between a non-root bridge trying to authenticate and a root

bridge using open authentication. In this example, the device’s WEP key does not match the bridge’s key,

so it can authenticate but it cannot pass data.

Figure 8-1 Sequence for Open Authentication

Shared Key Authentication to the Bridge

Cisco provides shared key authentication to comply with the IEEE 802.11b and IEEE 802.11g standards.

However, because of shared key’s security flaws, we recommend that you use another method of

authentication, such as EAP, in environments where security is an issue.

During shared key authentication, the root bridge sends an unencrypted challenge text string to other

bridges attempting to communicate with the root bridge. The bridge requesting authentication encrypts

the challenge text and sends it back to the root bridge. If the challenge text is encrypted correctly, the

root bridge allows the requesting device to authenticate.

88902

Switch on

LAN 1

1. Authentication request

Switch on

LAN 2

Non-Root Bridge

with

WEP key = 321

Root Bridge

with

WEP key = 123

2. Authentication response

8-3

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 8 Configuring Authentication Types

Understanding Authentication Types

Both the unencrypted challenge and the encrypted challenge can be monitored, however, which leaves

the root bridge open to attack from an intruder who calculates the WEP key by comparing the

unencrypted and encrypted text strings.

Figure 8-2 shows the authentication sequence between a device trying to authenticate and an bridge

using shared key authentication. In this example the device’s WEP key matches the bridge’s key, so it

can authenticate and communicate.

Figure 8-2 Sequence for Shared Key Authentication

EAP Authentication to the Network

This authentication type provides the highest level of security for your wireless network. By using the

Extensible Authentication Protocol (EAP) to interact with an EAP-compatible RADIUS server, the root

bridge helps another bridge and the RADIUS server to perform mutual authentication and derive a

dynamic unicast WEP key. The RADIUS server sends the WEP key to the root bridge, which uses it for

all unicast data signals that it sends to or receives from the non-root bridge. The root bridge also encrypts

its broadcast WEP key (entered in the bridge’s WEP key slot 1) with the non-root bridge’s unicast key

and sends it to the non-root bridge.

When you enable EAP on your bridges, authentication to the network occurs in the sequence shown in

Figure 8-3:

88903

Switch on

LAN 1

1. Authentication request

Switch on

LAN 2

Non-Root Bridge

with

WEP key = 123

Root Bridge

with

WEP key = 123

2. Unencrypted challenge

3. Encrypted challenge response

4. Authentication response

8-4

Cisco 3200 Series Wireless MIC Software Configuration Guide

OL-7734-02

Chapter 8 Configuring Authentication Types

Understanding Authentication Types

Figure 8-3 Sequence for EAP Authentication

In Steps 1 through 9 in Figure 8-3, a non-root bridge and a RADIUS server on the wired LAN use 802.1x
