Cjing Lighting CJ001 Wireless charger base User Manual 15 CJ TX5VA1 V0 UserMan r1

Cjing Lighting Co.,Ltd Wireless charger base 15 CJ TX5VA1 V0 UserMan r1

15_CJ-TX5VA1-V0 UserMan r1

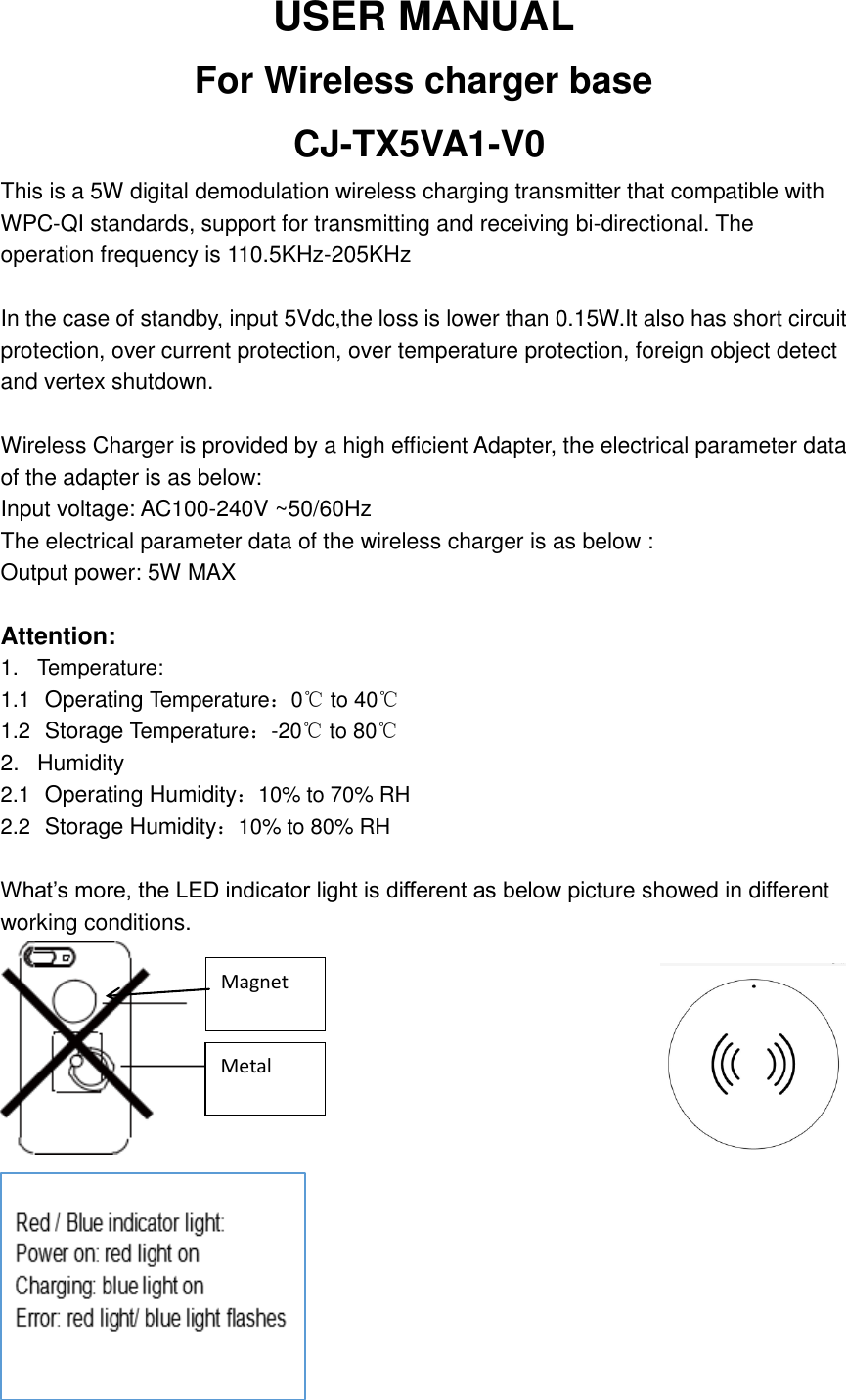

USER MANUAL   For Wireless charger base       CJ-TX5VA1-V0 This is a 5W digital demodulation wireless charging transmitter that compatible with WPC-QI standards, support for transmitting and receiving bi-directional. The operation frequency is 110.5KHz-205KHzIn the case of standby, input 5Vdc,the loss is lower than 0.15W.It also has short circuit protection, over current protection, over temperature protection, foreign object detect and vertex shutdown.  Wireless Charger is provided by a high efficient Adapter, the electrical parameter data of the adapter is as below: Input voltage: AC100-240V ~50/60Hz The electrical parameter data of the wireless charger is as below : Output power: 5W MAX  Attention: 1.  Temperature: 1.1  Operating Temperature:0℃ to 40℃ 1.2  Storage Temperature:-20℃ to 80℃ 2.  Humidity 2.1  Operating Humidity:10% to 70% RH 2.2  Storage Humidity:10% to 80% RH  What’s more, the LED indicator light is different as below picture showed in different working conditions.                                  Magnet Metal

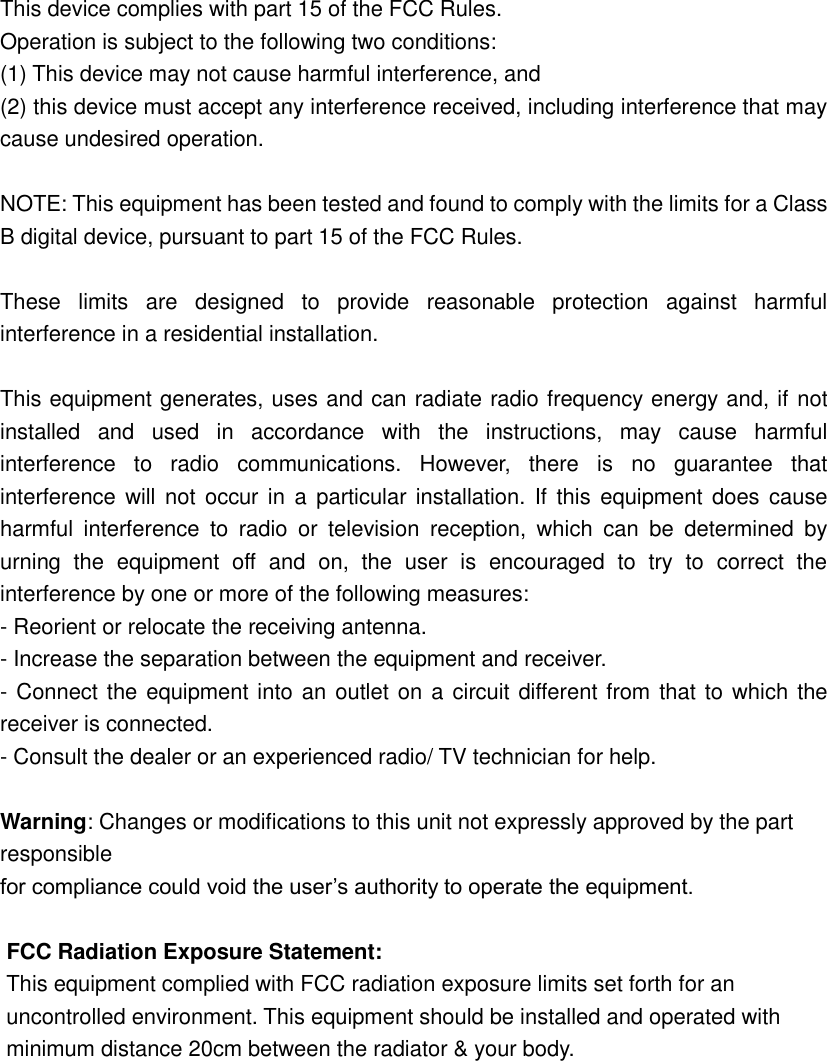

 This device complies with part 15 of the FCC Rules.   Operation is subject to the following two conditions:   (1) This device may not cause harmful interference, and   (2) this device must accept any interference received, including interference that may cause undesired operation.  NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.    These  limits  are  designed  to  provide  reasonable  protection  against  harmful interference in a residential installation.  This equipment generates, uses and can radiate radio frequency energy and, if not installed  and  used  in  accordance  with  the  instructions,  may  cause  harmful interference  to  radio  communications.  However,  there  is  no  guarantee  that interference will not  occur in  a  particular installation. If  this  equipment does cause harmful  interference  to  radio  or  television  reception,  which  can  be  determined  by urning  the  equipment  off  and  on,  the  user  is  encouraged  to  try  to  correct  the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/ TV technician for help.  Warning: Changes or modifications to this unit not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment.  FCC Radiation Exposure Statement: This equipment complied with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
