Clearsounds Communications QH2 Bluetooth phone hub system User Manual XL 9095BT

Clearsounds Communications Inc. Bluetooth phone hub system XL 9095BT

Uses Manual

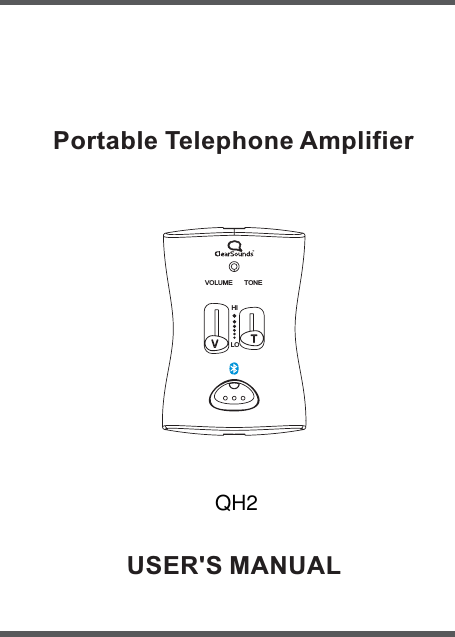

USER'S MANUALPortable Telephone AmplifierVOLUMEHILOTONEQH2

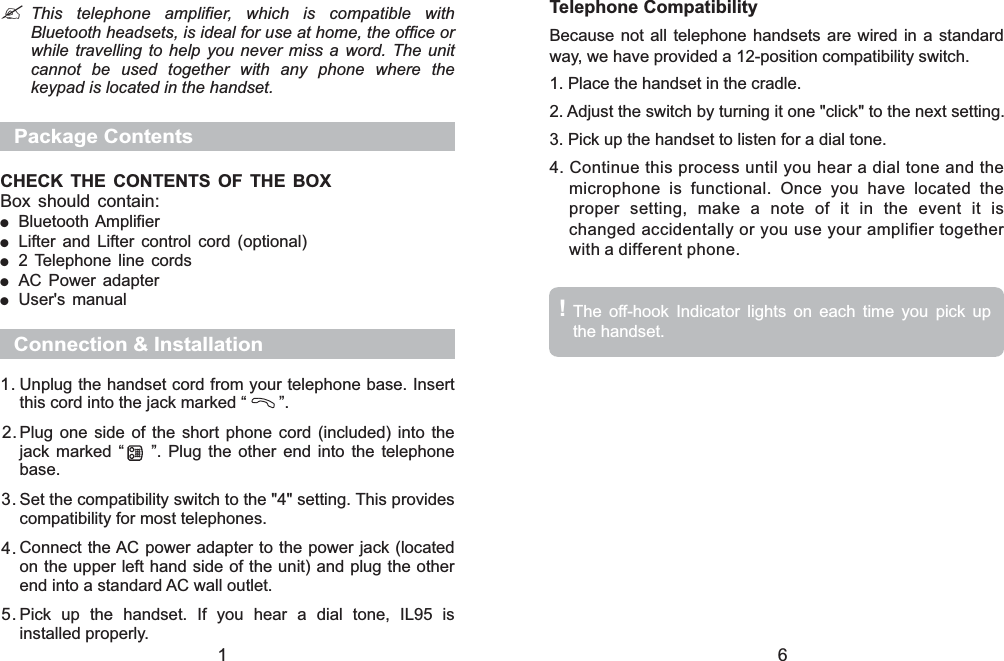

This telephone amplifier, which is compatible withBluetooth headsets, is ideal for use at home, the office orwhile travelling to help you never miss a word. The unitcannot be used together with any phone where thekeypad is located in the handset.Package ContentsCHECK THE CONTENTS OF THE BOXBox should contain:lllllBluetooth AmplifierLifter and Lifter control cord (optional)2 Telephone line cordsAC Power adapterUser's manual?Unplug the handset cord from your telephone base. Insertthis cord into the jack marked “”.Plug one side of the short phone cord (included) into thejack marked “ ”. Plug the other end into the telephonebase.Set the compatibility switch to the "4" setting. This providescompatibility for most telephones.Connect the AC power adapter to the power jack (locatedon the upper left hand side of the unit) and plug the otherend into a standard AC wall outlet.Pick up the handset. If you hear a dial tone, IL95 isinstalled properly.1.2.3.4.5.Connection & Installation1The off-hook Indicator lights on each time you pick upthe handset.Because not all telephone handsets are wired in a standardway, we have provided a 12-position compatibility switch.1. Place the handset in the cradle.2. Adjust the switch by turning it one "click" to the next setting.3. Pick up the handset to listen for a dial tone.4. Continue this process until you hear a dial tone and themicrophone is functional. Once you have located theproper setting, make a note of it in the event it ischanged accidentally or you use your amplifier togetherwith a different phone.Telephone Compatibility!6

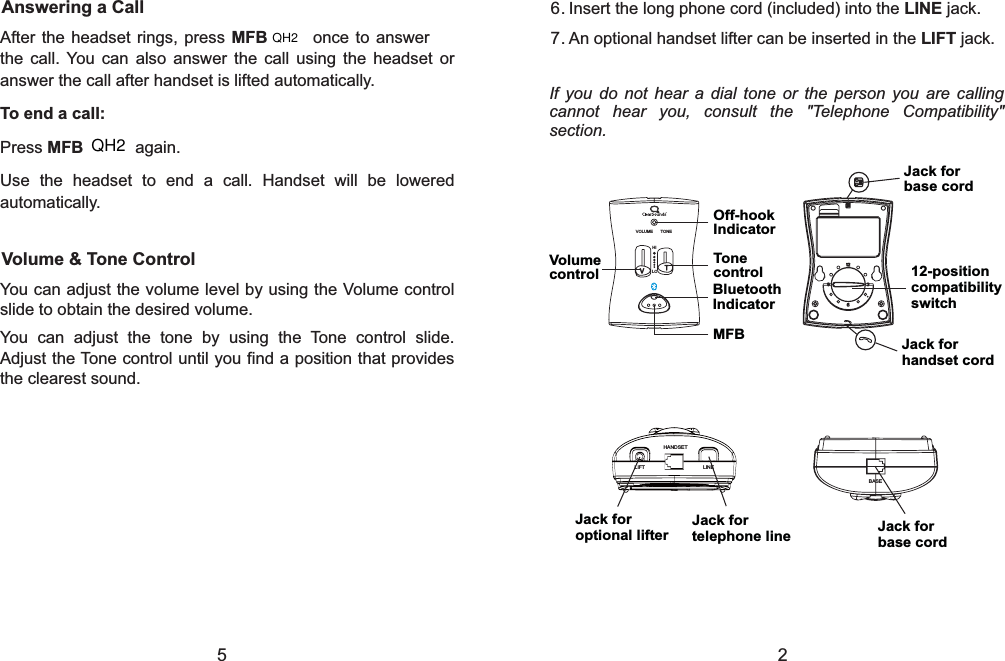

BASEHANDSETLINELIFT12-positioncompatibilityswitchVolumecontrolTonecontrolOff-hookIndicatorMFBJack forbase cordJack forhandset cordIf you do not hear a dial tone or the person you are callingcannot hear you, consult the "Telephone Compatibility"section.BluetoothIndicator2Insert the long phone cord (included) into the jack.An optional handset lifter can be inserted in the jack.LINELIFT6.7.Jack foroptional lifterJack fortelephone line Jack forbase cordVOLUMEHILOTONEAfter the headset rings, press once to answerthe call. You can also answer the call using the headset oranswer the call after handset is lifted automatically.Press again.Use the headset to end a call. Handset will be loweredautomatically.MFBTo end a call:MFBAnswering a Call5You can adjust the volume level by using the Volume controlslide to obtain the desired volume.You can adjust the tone by using the Tone control slide.Adjust the Tone control until you find a position that providesthe clearest sound.Volume & Tone ControlQH2QH2

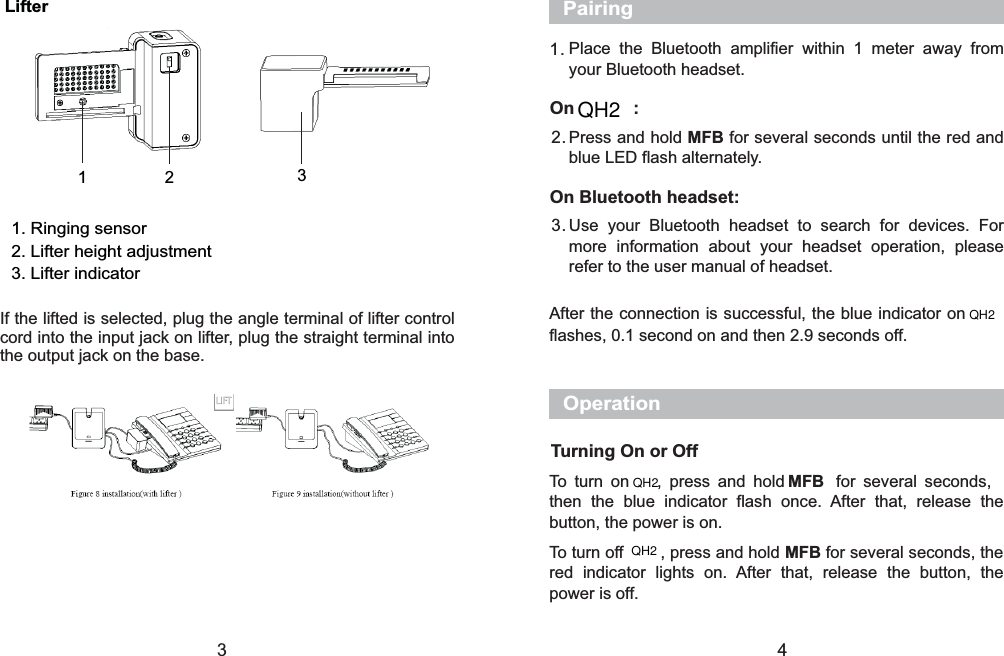

1. Ringing sensor2. Lifter height adjustment3. Lifter indicatorLifter12 3If the lifted is selected, plug the angle terminal of lifter controlcord into the input jack on lifter, plug the straight terminal intothe output jack on the base.3Place the Bluetooth amplifier within 1 meter away fromyour Bluetooth headset.Press and hold for several seconds until the red andblue LED flash alternately.MFBUse your Bluetooth headset to search for devices. Formore information about your headset operation, pleaserefer to the user manual of headset.1.2.3.PairingAfter the connection is successful, the blue indicator onflashes, 0.1 second on and then 2.9 seconds off.OnQ Q :On Bluetooth headset:To turn onQ , press and hold for several seconds,then the blue indicator flash once. After that, release thebutton, the power is on.To turn off , press and hold for several seconds, thered indicator lights on. After that, release the button, thepower is off.MFBMFBOperationTurning On or Off4QH2QH2QH2QH2

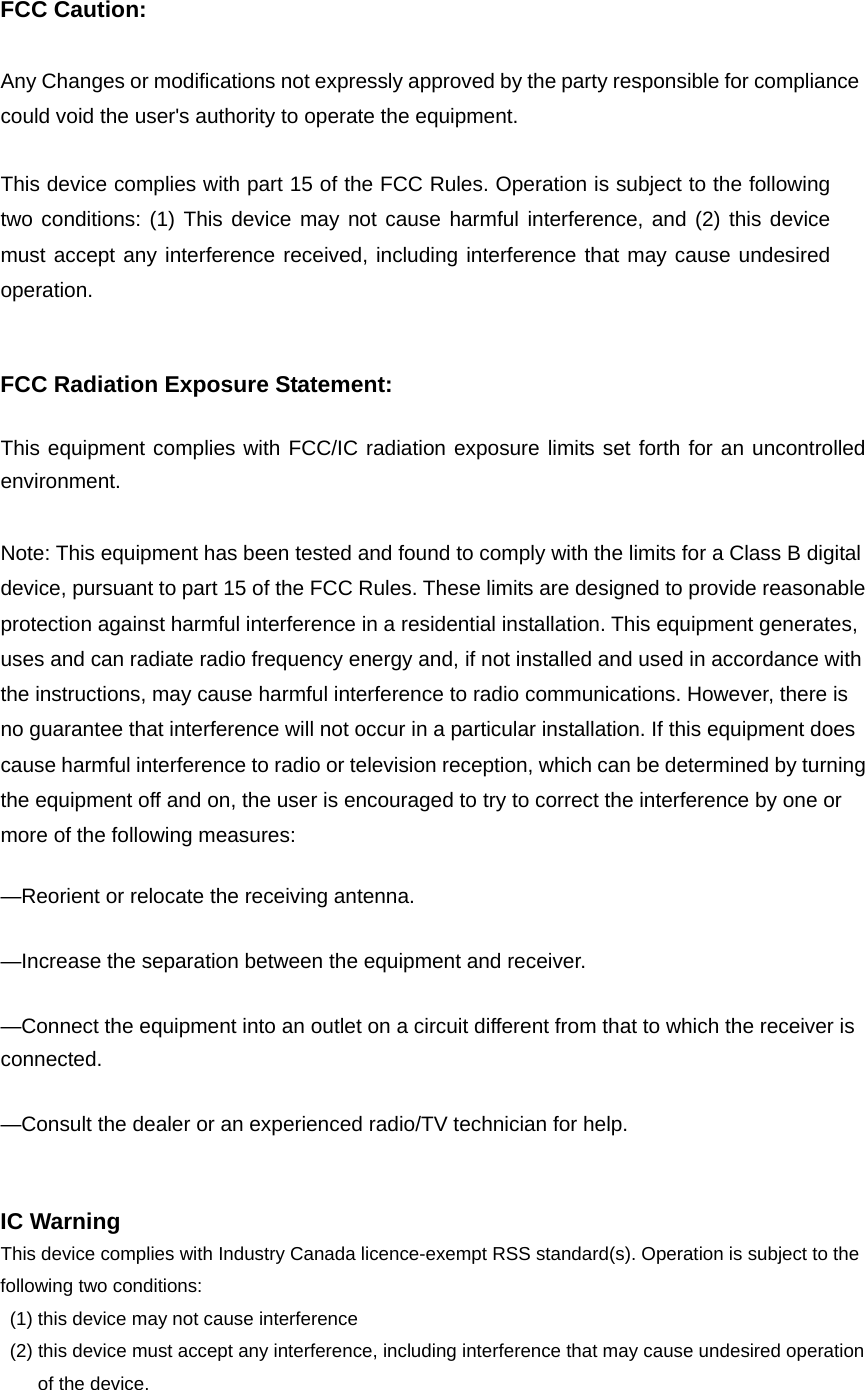

FCC Caution: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Radiation Exposure Statement: This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. IC Warning This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference (2) this device must accept any interference, including interference that may cause undesired operation of the device.

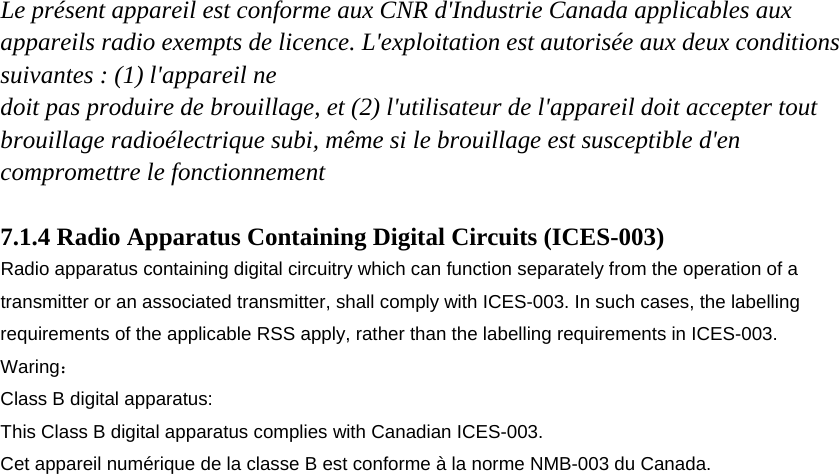

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement 7.1.4 Radio Apparatus Containing Digital Circuits (ICES-003) Radio apparatus containing digital circuitry which can function separately from the operation of a transmitter or an associated transmitter, shall comply with ICES-003. In such cases, the labelling requirements of the applicable RSS apply, rather than the labelling requirements in ICES-003. Waring： Class B digital apparatus: This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
