Clearsounds Communications QH2 Bluetooth phone hub system User Manual XL 9095BT
Clearsounds Communications Inc. Bluetooth phone hub system XL 9095BT
Uses Manual

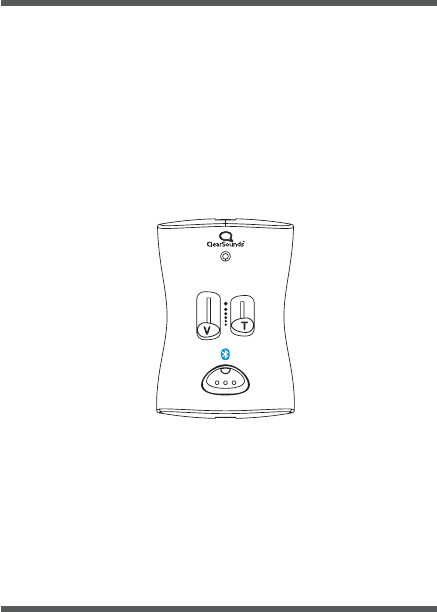

USER'S MANUAL
Portable Telephone Amplifier
VOLUME
HI
LO
TONE
QH2
This telephone amplifier, which is compatible with
Bluetooth headsets, is ideal for use at home, the office or
while travelling to help you never miss a word. The unit
cannot be used together with any phone where the
keypad is located in the handset.
Package Contents
CHECK THE CONTENTS OF THE BOX
Box should contain:
l
l
l
l
l
Bluetooth Amplifier
Lifter and Lifter control cord (optional)
2 Telephone line cords
AC Power adapter
User's manual
?
Unplug the handset cord from your telephone base. Insert
this cord into the jack marked “”.
Plug one side of the short phone cord (included) into the
jack marked “ ”. Plug the other end into the telephone
base.
Set the compatibility switch to the "4" setting. This provides
compatibility for most telephones.
Connect the AC power adapter to the power jack (located
on the upper left hand side of the unit) and plug the other
end into a standard AC wall outlet.
Pick up the handset. If you hear a dial tone, IL95 is
installed properly.
1.
2.
3.
4.
5.
Connection & Installation
1
The off-hook Indicator lights on each time you pick up
the handset.
Because not all telephone handsets are wired in a standard
way, we have provided a 12-position compatibility switch.
1. Place the handset in the cradle.
2. Adjust the switch by turning it one "click" to the next setting.
3. Pick up the handset to listen for a dial tone.
4. Continue this process until you hear a dial tone and the
microphone is functional. Once you have located the
proper setting, make a note of it in the event it is
changed accidentally or you use your amplifier together
with a different phone.
Telephone Compatibility
!
6

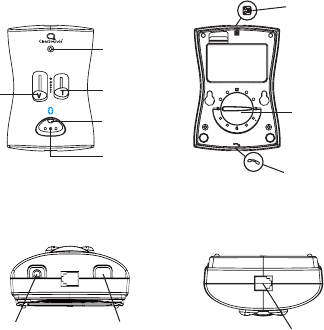

BASE
HANDSET
LINELIFT
12-position
compatibility
switch
Volume
control
Tone
control
Off-hook
Indicator
MFB
Jack for
base cord
Jack for
handset cord
If you do not hear a dial tone or the person you are calling
cannot hear you, consult the "Telephone Compatibility"
section.
Bluetooth
Indicator
2
Insert the long phone cord (included) into the jack.
An optional handset lifter can be inserted in the jack.
LINE
LIFT
6.
7.
Jack for
optional lifter
Jack for
telephone line Jack for
base cord
VOLUME
HI
LO
TONE
After the headset rings, press once to answer
the call. You can also answer the call using the headset or
answer the call after handset is lifted automatically.
Press again.
Use the headset to end a call. Handset will be lowered
automatically.
MFB
To end a call:
MFB
Answering a Call
5
You can adjust the volume level by using the Volume control
slide to obtain the desired volume.
You can adjust the tone by using the Tone control slide.
Adjust the Tone control until you find a position that provides
the clearest sound.
Volume & Tone Control
QH2
QH2

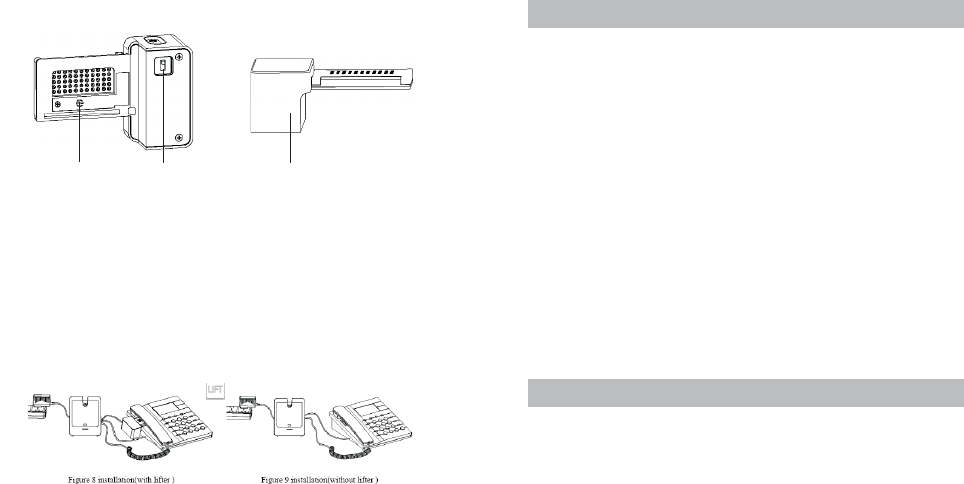

1. Ringing sensor
2. Lifter height adjustment
3. Lifter indicator
Lifter
12 3
If the lifted is selected, plug the angle terminal of lifter control
cord into the input jack on lifter, plug the straight terminal into
the output jack on the base.
3
Place the Bluetooth amplifier within 1 meter away from
your Bluetooth headset.
Press and hold for several seconds until the red and
blue LED flash alternately.
MFB
Use your Bluetooth headset to search for devices. For
more information about your headset operation, please
refer to the user manual of headset.
1.
2.
3.
Pairing
After the connection is successful, the blue indicator on
flashes, 0.1 second on and then 2.9 seconds off.
OnQ Q :
On Bluetooth headset:
To turn onQ , press and hold for several seconds,
then the blue indicator flash once. After that, release the
button, the power is on.
To turn off , press and hold for several seconds, the
red indicator lights on. After that, release the button, the
power is off.
MFB
MFB
Operation
Turning On or Off
4
QH2
QH2
QH2
QH2
FCC Caution:
Any Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
FCC Radiation Exposure Statement:
This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled
environment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
IC Warning
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the
following two conditions:
(1) this device may not cause interference
(2) this device must accept any interference, including interference that may cause undesired operation
of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions
suivantes : (1) l'appareil ne
doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout
brouillage radioélectrique subi, même si le brouillage est susceptible d'en
compromettre le fonctionnement
7.1.4 Radio Apparatus Containing Digital Circuits (ICES-003)
Radio apparatus containing digital circuitry which can function separately from the operation of a
transmitter or an associated transmitter, shall comply with ICES-003. In such cases, the labelling
requirements of the applicable RSS apply, rather than the labelling requirements in ICES-003.
Waring：
Class B digital apparatus:
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
