USERS MANUAL
ANYCOM FIPO
User Manual
FIPO User Manual
1
1. Introduction
2. Part Description
3. Connect the FIPO with iPod accessory
4. Connect the FIPO with mobile phone or
sound source device
5. Play music
6. Check the FIPO status from the LED
7. Troubleshooting
8. Standard and Specification
9. Precautions
2
3
4
4
6
7
7
8
8
[Table of Contents]
2
[Introduction]
The FIPO enables you to use wired speaker or car audio system in
a wireless way with Bluetooth technology.
High-quality sound streaming
The FIPO receives high quality streaming music from the
Bluetooth mobile phones or Bluetooth enabled iPod to play music
on iPod accessories like speakers.
Remote control function
The FIPO can control PLAY/STOP/FWD/RWD of the music on the
iPod or Mobile Phones by the control keys and buttons on the
iPod accessory devices.
Slim and Stylish design
The FIPO’s handy and modern design fits for iPod accessories.
BLUETOOTH 2.0 A2DP/ AVRCP
Usable with iPod
speaker accessory
FIPO User Manual
3
[Part description]
The FIPO enables you to use wired speaker or car audio system in
a wireless way with Bluetooth technology.
Size (Height x Length x Width): 27 x 40 x 7 mm
Weight: 7.5 g
Status LED
30pin iPod Dock Connector
4
[Connecting the FIPO with the iPod accessory]
Connect the FIPO instead of iPod to iPod accessory or car music
system through the 30 pin iPod Dock connector of iPod accessory.
The iPod accessory supplies power and turns on the FIPO. Some
iPod accessories that also can be operated on batteries must be
connected to main power to provide power to the FIPO.
[Connecting the FIPO with a mobile phone or a
sound source device]
Pairing
For initial use of the FIPO, you need to go through the proper
steps to pair it with Bluetooth devices capable of music streaming
such as Bluetooth mobile phones or Bluetooth enabled iPod with
Bluetooth dongle.
The FIPO is available to pair all the times unless it is connected to
the Bluetooth devices.
FIPO User Manual
5
Go to the Bluetooth menu on the Bluetooth device and search for
the stereo headset devices.
① Select the “FIPO” among the searched devices.
② Type “0000” at Pass/Pin code when required.
③ You will see the blue LED of the FIPO blinks twice quickly when
it is connected.
Auto re-connection
The FIPO will try to re-connect to the Bluetooth device which was
connected lastly under following conditions.
① When the FIPO turns on with the power supplied.
② when it was disconnected from the paired Bluetooth device
with an improper procedure.
Follow below paring procedure to disable the auto-reconnection
function.
① Go to the Bluetooth menu on the Bluetooth device and search
for the stereo headset devices.
② Select the “FIPO” among the searched devices.
③ Type “9999” at Pass/Pin code when required.
④ The initial pairing will fail.
⑤ Type “9999” at Pass/Pin code when required again.
⑥ You will see the blue LED of the FIPO blinks twice quickly when
it is connected and the auto- reconnection function is disabled.
6
[Play music]
The FIPO receives the streaming music from Bluetooth music
devices such as Bluetooth mobile phones or Bluetooth enabled
iPod and plays the music on iPod accessory speaker.
You can control music with Play/Pause/Stop/FF/RWD buttons on
Bluetooth devices or the iPod accessory devices or remote
controller of iPod accessory devices. In this case, the button
functions as follows.
① Press “Play/Pause” button shortly: play/pause the music.
② Press “Play/Pause” button for a couple of seconds: stop the
music.
③ Press “FF/RWD” button shortly: fast forward/rewind the music.
④ Press “FF/RWD” for a couple of seconds: search next song/
previous song.
Controls may function differently depends on iPod acces-
sory devices.
Several iPod speaker accessories with a display device
will indicate the “FIPO” as a music title, “Anycom” as an
author and “Bluetooth” as a genre on the LCD.
In case of the MOTOKRZR, auto connection by FIPO
could cause a malfunction depends on the software ver-
sion.
FIPO User Manual
7
[Check the status from the LED]
You can check the FIPO status from the LED.
[Troubleshooting]
Not connected to Bluetooth
devices (Pairing mode).
Connected to Bluetooth
devices.
At the time FIPO is connected
or disconnected to Bluetooth
devices.
Blue LED is on.
Blue LED goes on and off
twice quickly.
Blue LED goes off every 6
seconds.
FIPO status LED status
The FIPO does not turn on
(LED is off) after connecting
with iPod accessory devices.
Unable to connect to a Blue-
tooth device.
Check if Bluetooth devices
support the A2DP, AVRCP
profile.
Check if the iPod accessory
device supplies power to the
FIPO correctly, Battery pow-
ered devices.
Symptom Check list
8
[Standard and Specification]
[Precautions]
1. Do not drop the unit from high place.
2. Do not modify, repair, or take apart.
3. Do not expose directly to water, alcohol, benzene, etc. for
cleaning.
4. Do not expose directly to flammables.
5. Do not place or keep the unit near flammables.
6. Keep unit away from humidity & dust.
7. Do not place the heavy object on the units.
8. Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to
operate the equipment.
Bluetooth Specification V2.0
Supported Profiles A2DP, AVRCP
Frequency 2402 MHz ~ 2480 MHz(ISM band)
Transmitting Output Class 2
Cover range Within 10 m/33 ft
Operation Temperature -20°C ~ 55°C
Dimension/Weight 27(H) x 40(L) x7(W) mm/7.5 g
Name of product FIPO
FIPO User Manual
9
Following information is only for EU-member states:
The use of the symbol indicates that this product may not be
treated as household waste. By ensuring this product is disposed of
correctly, you will help prevent potential negative consequences for
the environment and human health, which could otherwise be
caused by inappropriate waste handling of this product. For more
detailed information about recycling of this product, please contact
your local city office, your household waste disposal service or the
shop where you purchased the product.
FCC compliance Information
This device complies with part 15 of FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received Including
interference that may cause undesired operation.
FCC WARNING:
This equipment may generate or use radio
frequency energy. Changes or modifications to this equipment may
cause harmful interference unless the modifications are expressly
approved in the instruction manual. The user could lose the author-
ity to operate this equipment if an unauthorized change or modifica-
tion is made.
DE 45273917
PT 000689 FCC ID : UXZFIPO
10

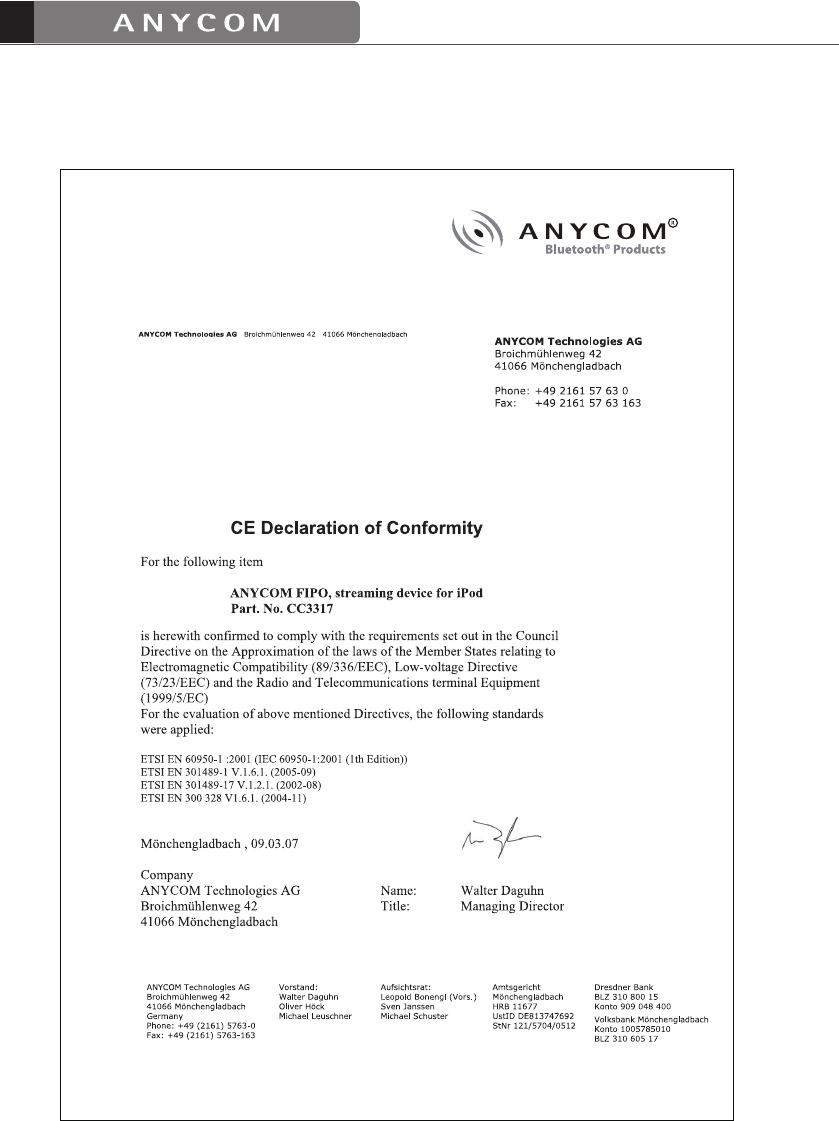

CE declaration
FIPO User Manual
11
Warranty Information
The use of the symbol indicates that this product may not be ANYCOM
Technologies AG or ANYCOM Technologies Inc. warrants to the original
purchaser, this hardware product against defects in material and work-
manship for a period of TWO (2) YEARS from the date of original retail
purchase. If defect is discovered, ANYCOM, will, at its option, repair or
replace this product at no charge, provided it is returned within the war-
ranty period, complete with all hardware, cables and software to
ANYCOM. For each product returned according to the terms of this
warranty, an ANYCOM RMA number (Return Merchandise Authorization)
is required along with your name, address, telephone number, and a
copy of the original purchase receipt as proof of the original date of pur-
chase. An ANYCOM RMA number can be obtained by calling the com-
pany direct for USA, Canada and Far East (001) (949) 553-9426 or for
Europe and EMEA (049) (2161) 57630. This warranty applies only to
hardware products manufactured by ANYCOM, identified by the
ANYCOM trademark or logo affixed to them. This warranty does not apply
if the product has been damaged by accident, abuse, misuse, unauthor-
ized service or misapplication. ANYCOM does not warrant any products
that are not ANYCOM products, including software bundled with
ANYCOM products and produced by other manufacturers. Software
applications produced by manufacturers other than ANYCOM and
bundled with ANYCOM products are warranted by separate written state-
ments provided by each manufacturer with their software products. The
warranties set forth above are non-transferable, exclusive and in lieu of all
other warranties, whether oral or written, expressed or implied, INCLUD-
ING, WHERE ALLOWED BY LAW, ANY IMPLIED WARRANTY OF MER-
CHANTABILITY. ANYCOM is not responsible for incidental or conse-
quential damages resulting from any breach of warranty, including but not
limited to lost profits, downtime, damage to or replacement of equipment
or property.
Disclaimer:
The information on this document is provided for informational pur-
poses only and is subject to change without notice. It is provided
"AS IS" and without any warranty. Any risk arising out of the use of
the information shall remain with the reader. In no event shall
ANYCOM be liable for any indirect, consequential, incidental, spe-
cial, punitive or other damages whatsoever (including, without limi-
tation, damages for loss of business profits, business interruption or
loss of business information), arising out of or in connection with the
availability, performance or use of the information contained, even if
ANYCOM has been advised of the possibilities of such damages.
Trademarks:
ANYCOM, the ANYCOM logo, and the ANYCOM products referred
to herein are either the trademarks or the registered trademarks of
ANYCOM. The absence of a product name or logo on this website
does not constitute a waiver of ANYCOM's trademark or other intel-
lectual property rights concerning that name or logo. All other trade-
marks are property of their respective owners.
12
FIPO User Manual
ANYCOM Technologies Inc.
19 Corporate Plaza Suite 200 Newport Beach, CA 92660, USA
Mail: us@anycom.com
• Support: 866-553-9426 • Fax: (949) 209-2611
ANYCOM Technologies AG
Broichmühlenweg 42, D-41066 Mönchengladbach, Germany
Mail: info@anycom.com
• Phone: +49 (2161) 5763-0 • Fax: +49 (2161) 5763-163
