Last number redialing *
Press and hold for 1 s; this will activate the last number
redial feature. Subject to different models of mobile phone, it will
show you the recently dialed call list; then, you can press and
hold for 1 s again to make a call.
[Ending a call]
To end a call, briefly press .
[Volume control]
Briefly press or located at the side of the hands-free
car kit in order to control the speaker volume. Eight (8) levels of
volume control are available.
How to use

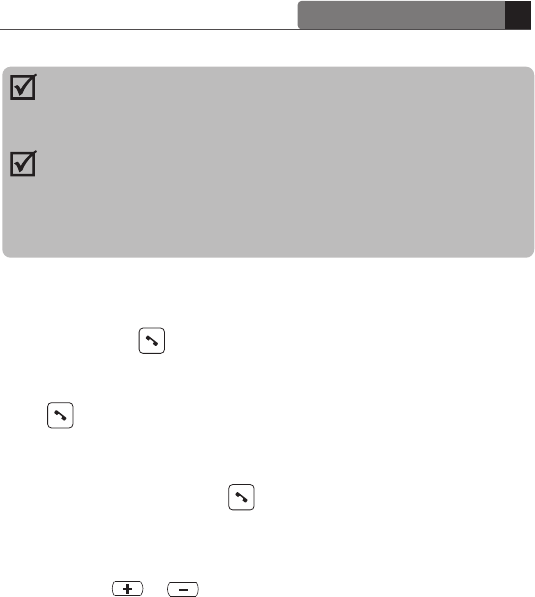

This function is only available if your mobile phone supports
the voice dialing function and the hands-free car kit is
paired as a hands-free device.
If your mobile phone does not support voice dialing, the
hands-free car kit will activate the last number redial feature.
The hands-free car kit may not activate any action; this
depends on the features of different models of mobile phones.
12
How to use
The *(star) mark indicates that these functions are only
available with the hands-free profile, and the connected
mobile phone should support this function. For additional
information regarding these functions, refer to the user
manual of your Bluetooth mobile phone.
[Functions during a call]
Transferring a call*
Briefly press to transfer a call from your mobile phone to
your hands-free car kit while on a call. (The hands-free car kit
and the mobile phone must be connected prior to this
process.) To transfer a call from your hands-free car kit to your
mobile phone, press and hold for 1 s.
Call waiting*
Answer the second incoming call without ending the first call by
pressing for 1 s. To return to the first call, simply press
again for 1 s.
MIC mute
To activate the mute function in a microphone, press briefly
for 1 s; this will mute your voice to the other party while on a
phone call. When the mute function is activated, you will hear a
periodic beeping sound. To release the mute function, press
and hold briefly for 1 s again.
13
How to use

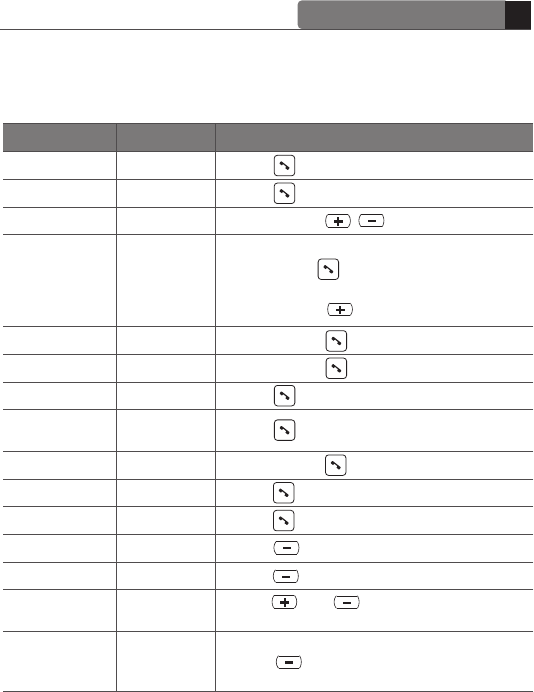

Function Action
Car kit status
Power on
Power off
Volume up/down
Transferring
a call
Call waiting
Ending a call
Answering a call
Voice dialing
Pairing
Ringing mute on/off
Call reject
Last number
redialing
Power off
Power on
Talking
Ringing
Ringing
Ringing
Power off
Power on
Talking
Talking
Talking
Idle
Idle
Press for 2 s
Press for 5 s
Briefly press /
Press for 1 s
Briefly press
[Summary of button functions]
Briefly press
Briefly press
Press for 1 s
Press for 5 s
Press for 1 s
Press for 1 s
- From the mobile phone to the car kit
Briefly press once
- From the car kit to the mobile phone
Press and hold for 1 s
Press for 5 s
MIC mute on/off
Talking Press for 1 s
Battery status
Solar power
charging
status on/off
Power on/Idle
Press and simultaneously and
then releasing them briefly
14
Power off
Power on
Pairing
Charging using car
charger
Charging completed
Battery power is low
When the car kit and
mobile phone are not
connected
When the car kit and
mobile phone are
connected
Shutdown tone
Booting tone
Beeps twice
No beep
No beep
No beep
Beeps once
Beeps periodi-
cally
The status LED flashes
blue 5 times rapidly
The status LED flashes
blue 5 times rapidly
The status LED glows
blue steadily
The status LED flashes
blue every 3 s
The battery status LED
glows red
The battery status LED is
off
The status LED flashes blue
and the battery status LED
flashes red simultaneously
The status LED flashes
blue every 5 s
Unintentional loss of
connection
(until the connection is
recovered)
Activate mute function
when a phone call is
received
Activate mute function
during a phone call
No beep
No beep
Beeps periodically
The status LED and
battery status LED flashes
simultaneously every 3 s
The status LED flashes
blue every 0.5 s
The status LED flashes
blue every 0.5 s
How to use
[LED indication and signal sound]
Function Status of LED
Signal Sound
15
Hands-free
car kit does
not turn on
Unable to
communicate
using the
hands-free
car kit
Extremely low
or loud speaker
volume
Unable to
pair the
hands-free
car kit with a
Bluetooth
mobile
phone
Charge the battery
Charge the battery if the
battery power is low
Check whether the
battery of the hands-free
car kit is charged
Check whether your
mobile phone supports
the “headset” and/or
“hands-free” profile(s)
In order to use the hands-free car kit,
it is essential that your mobile phone
should support the “headset” and/or
“hands-free” profile(s). (You might
need to search for options such as
headset, audio device, etc. in case
your mobile phone does not contain
the hands-free option; these options,
however, are subject to the model of
the mobile phone being used.)
Press either or to
control the volume accord-
ingly
With power off, press and
hold for at least 5 s to
place the hands-free car kit
in the pairing mode
Press for 2 s to turn on
the hands-free car kit
Check whether the
battery is fully charged
Check whether the
hands-free car kit is on
Check the speaker
volume
Check whether the
hands-free car kit is in
the pairing mode
[Troubleshooting]
In case the hands-free car kit does not function correctly,
please follow the corrective action given in the table below. If
the problem is not solved even after performing the corrective
actions, please contact the dealer from whom the hands-free
car kit was purchased.
Status Corrective action
To check
Supplement

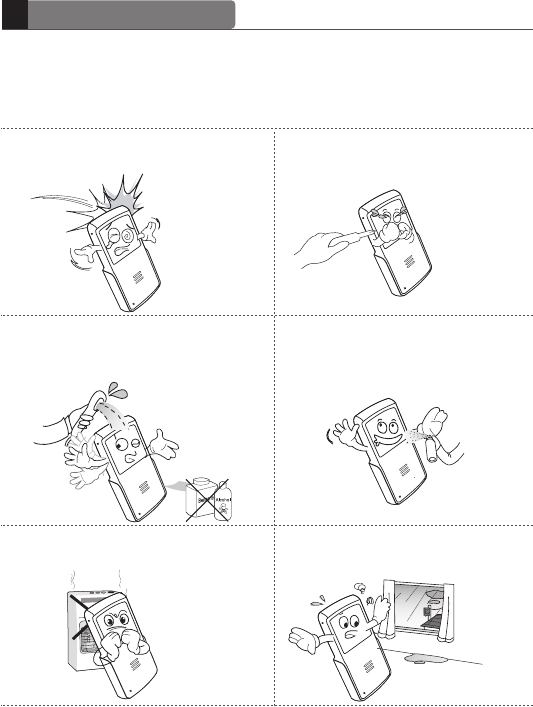

[Cautions]
1. Do not drop this unit from
a height.
3. Do not expose this unit
directly to water, alcohol,
benzene, etc. for cleaning.
5. Do not place this unit near
flammables.
6. Protect this unit from
humidity and dust.
4. Do not expose this unit
directly to flammables.
2. Do not modify, repair, or
take apart this unit.
16
Supplement
Changes or modifications not expressly approved by the
party responsible for compliance could void the user’s
authority to operate the equipment.
There is a risk of explosion if the battery is replaced by an
incorrect type.
7. Do not place a heavy object on
this unit.
In order to ensure the best performance and to prevent
any damage to or misuse of the hands-free car kit,
please read the complete information provided in this
user manual carefully prior to using it.
Any modifications or changes in this manual due to
typographical errors or inaccuracies in the stated
information shall only be made by Clipcomm Inc.
17
Supplement
18
[Additional information]
The cover range of wireless communication is within a
maximum of 10 m and the conditions vary according to obstacles.
The hands-free car kit can be connected only to those
mobile phones that support the Bluetooth headset or
hands-free profile(s). (Subject to different models of mobile
phone, it will show you different options such as audio device
etc.) This product is not compatible with the standard
cordless phones used in homes.
As it operates in the same frequency range, the hands-free
car kit can be affected by the devices that operate in the ISM
band (2.402 GHz ~ 2.480 GHz), for example, wireless LAN,
microwave devices, medical appliances, etc. Therefore, in
order to ensure proper operation, the hands-free car kit
should be away from these devices.
Please turn off your hands-free car kit in an area with a
potentially explosive atmosphere (oil warehouse, explosive
warehouse, etc.). In rare occurrences, this product could
generate sparks. This could lead to an explosion or fire, which
could result in bodily injury. Therefore, follow the warning
notices in those areas carefully.
If handled properly, a rechargeable battery can have a long
service life. A new battery or one that has not been used for a
long period of time could have reduced capacity the first few
times it is used.
Supplement
19
Supplement
[Standards and specifications]
The standard usage time of the battery can vary depending on
the usage condition of the mobile phone and hands-free car kit.
Using solar power charge, the operation time (the talk time and
the standby time) will be extended continuously without any
additional charge required by the car charger.
Bluetooth specification
Supported profiles
Frequency
Transmitting output
Cover range
Standby time
Talk time
Charging time
Operation temperature
Dimension/Weight
V 2.0
Headset and hands-free profiles
2.402 GHz ~ 2.480 GHz (ISM band)
Class 2
Within 10 m/33 ft
Up to 700 h (without using solar power)
Up to 12 h (without using solar power)
Using charger Approximately 2 h
Approximately 30 h
Using solar power
–20°C ~ 70°C
91.3 × 50.5 × 13.3 mm/Weight: 60 g
Name of product A wireless device for wireless data communi-
cation system (HCC-100)
20
Supplement
[Limited warranty]
Subject to the conditions of this limited warranty, Clipcomm Inc.
warrants this product as follows based upon the compensation
regulations for damage by users.
Should your product require warranty service, please contact the
dealer from whom the product was purchased.
[Free service]
If the product malfunctions in spite of proper usage, the warranty is
valid only within the limited warranty period of one (1) year from the
original purchase date. This warranty includes free repair or replace-
ment. Please present the purchase receipt to the dealer for verifica-
tion of the purchase date.
[Charged service]
After the limited warranty period has expired.
Any malfunction due to misuse, repair, or modification by the user.
Malfunction caused by improper power use.
Malfunction due to natural disasters such as fire, floods, lightning, etc.
Once the lifetimes of the expendable parts have ended.
Product Name Bluetooth car kit
HCC-100
Purchase Date
Serial No.
Model Name
Dealer
Purchase Price
Supplement
FCC NOTICE TO USERS:
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause
undesired operation.
Users are not permitted to make changes or modify the device in any way. Changes or
modifications not expressly approved by Clipcomm Inc. will void the user’s authority to
operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
Consult the dealer or an experienced radio/TV technical for help.
The user must place the base 8” (20 cm) or more from any personnel in order to comply
with FCC RF exposure requirements.
Bluetooth Hands-Free Car Kit HCC-100 User Manual

Navigation menu
