Cloudstore AF-1108 Portable Wireless WIFI Equipment User Manual 3G Router AF 1108

Cloudstore Limited Portable Wireless WIFI Equipment 3G Router AF 1108

User Manual

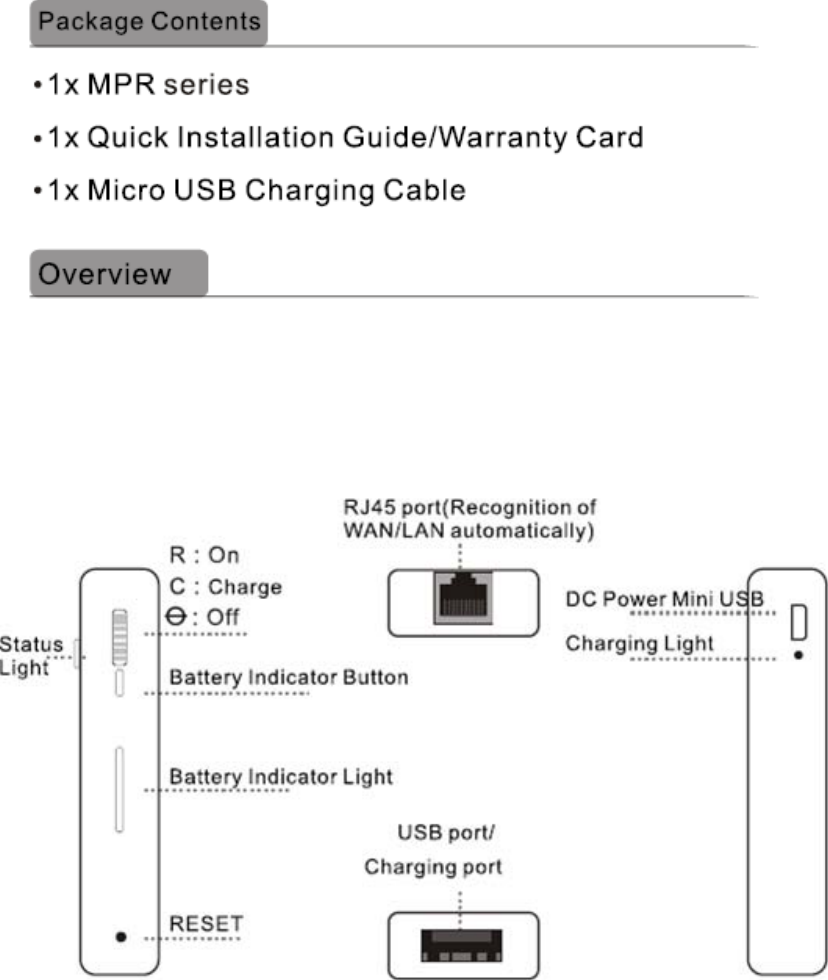

Portable Wireless WIFI Equipment AF-1108 Product Pictures:

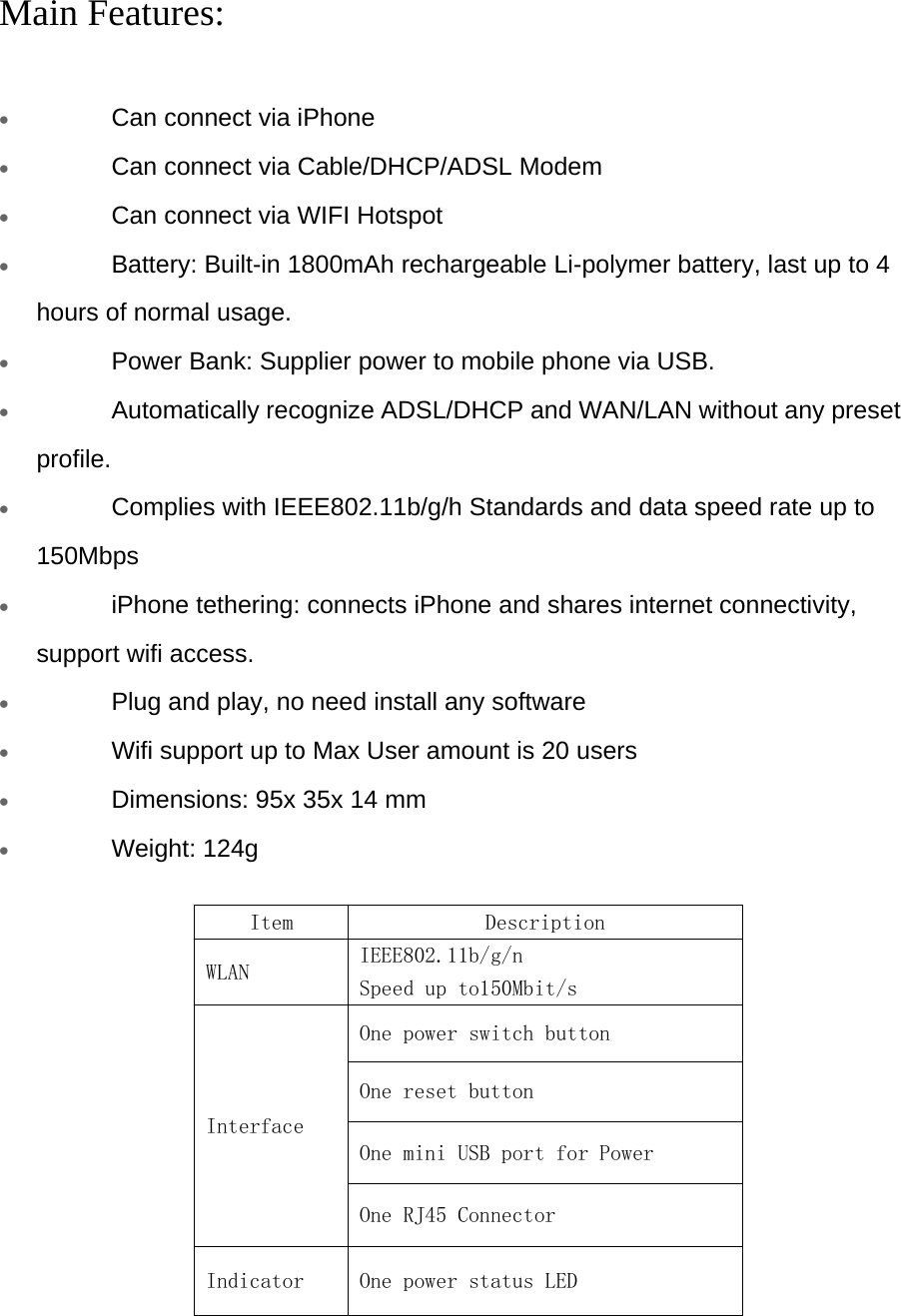

Main Features: • Can connect via iPhone • Can connect via Cable/DHCP/ADSL Modem • Can connect via WIFI Hotspot • Battery: Built-in 1800mAh rechargeable Li-polymer battery, last up to 4 hours of normal usage. • Power Bank: Supplier power to mobile phone via USB. • Automatically recognize ADSL/DHCP and WAN/LAN without any preset profile. • Complies with IEEE802.11b/g/h Standards and data speed rate up to 150Mbps • iPhone tethering: connects iPhone and shares internet connectivity, support wifi access. • Plug and play, no need install any software • Wifi support up to Max User amount is 20 users • Dimensions: 95x 35x 14 mm • Weight: 124g Item Description WLAN IEEE802.11b/g/n Speed up to150Mbit/s Interface One power switch button One reset button One mini USB port for Power One RJ45 Connector Indicator One power status LED

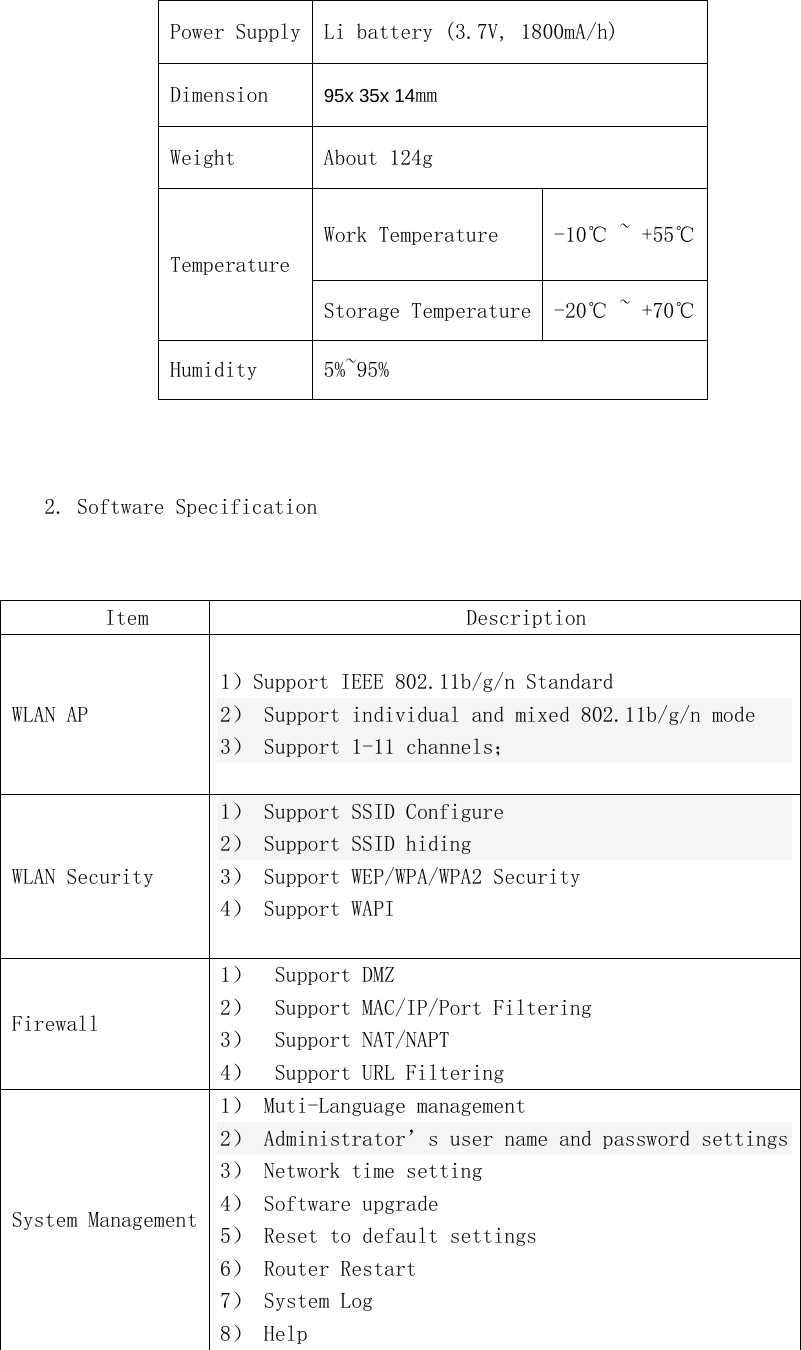

Power Supply Li battery (3.7V, 1800mA/h) Dimension 95x 35x 14mm Weight About 124g Temperature Work Temperature -10℃ ~ +55℃ Storage Temperature -20℃ ~ +70℃ Humidity 5%~95% 2. Software Specification Item Description WLAN AP 1）Support IEEE 802.11b/g/n Standard 2） Support individual and mixed 802.11b/g/n mode 3） Support 1-11 channels； WLAN Security 1） Support SSID Configure 2） Support SSID hiding 3） Support WEP/WPA/WPA2 Security 4） Support WAPI Firewall 1） Support DMZ 2） Support MAC/IP/Port Filtering 3） Support NAT/NAPT 4） Support URL Filtering System Management 1） Muti-Language management 2） Administrator’s user name and password settings 3） Network time setting 4） Software upgrade 5） Reset to default settings 6） Router Restart 7） System Log 8） Help

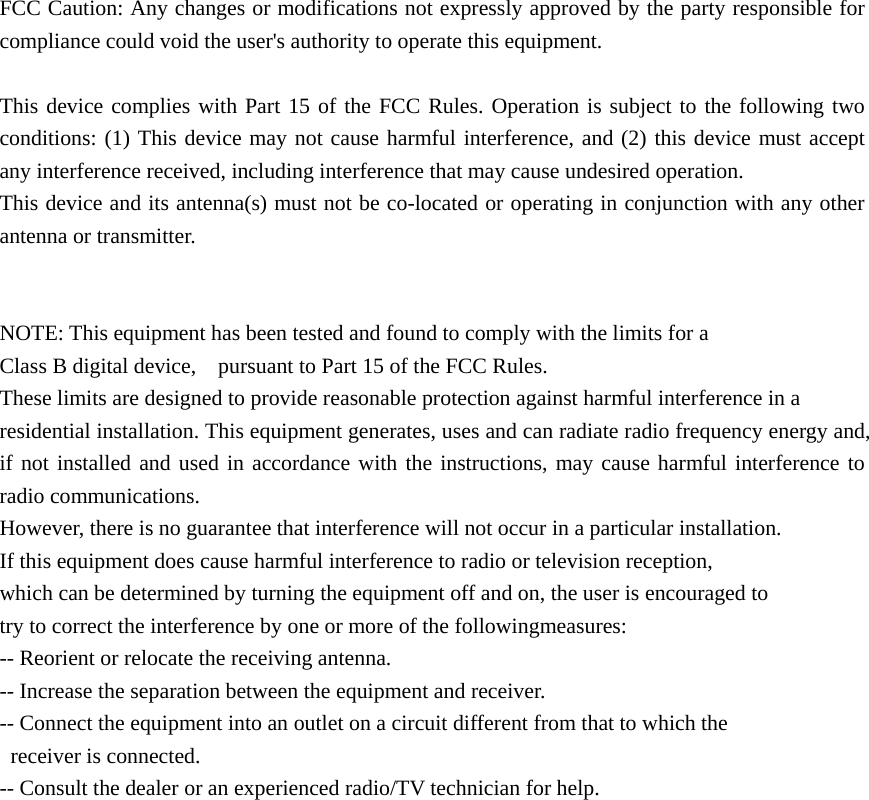

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the followingmeasures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.
