Cloudstore AF-1108 Portable Wireless WIFI Equipment User Manual 3G Router AF 1108
Cloudstore Limited Portable Wireless WIFI Equipment 3G Router AF 1108
User Manual
Portable Wireless WIFI Equipment AF-1108

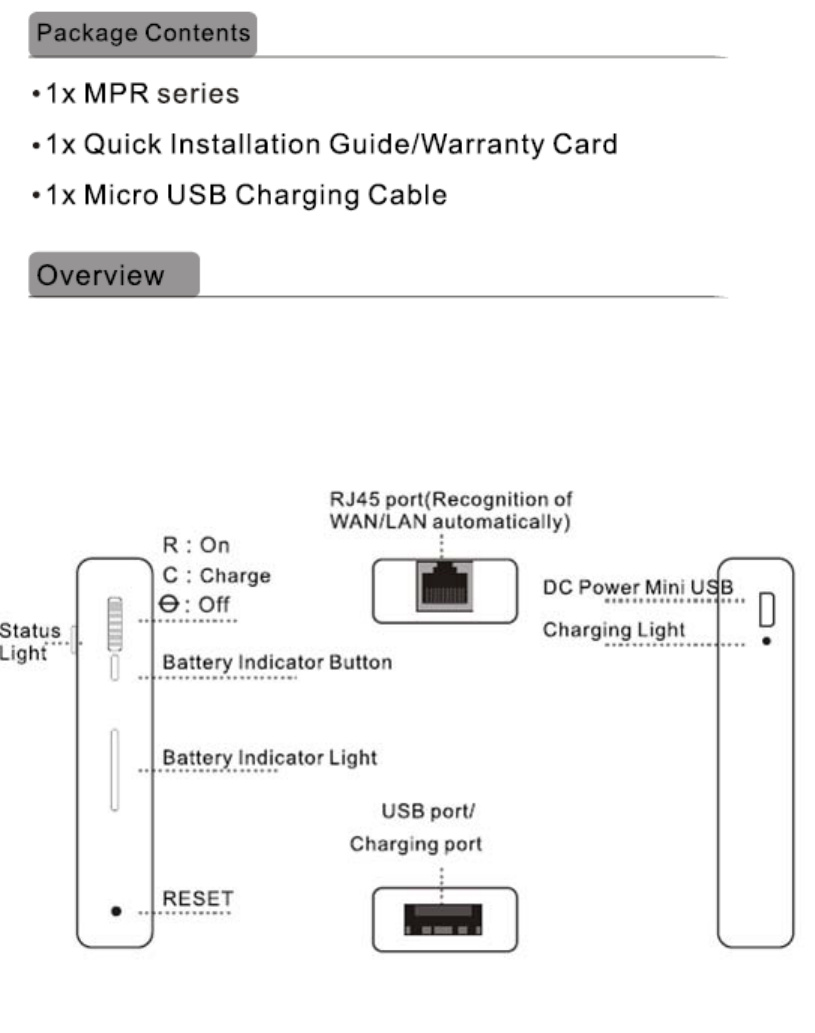

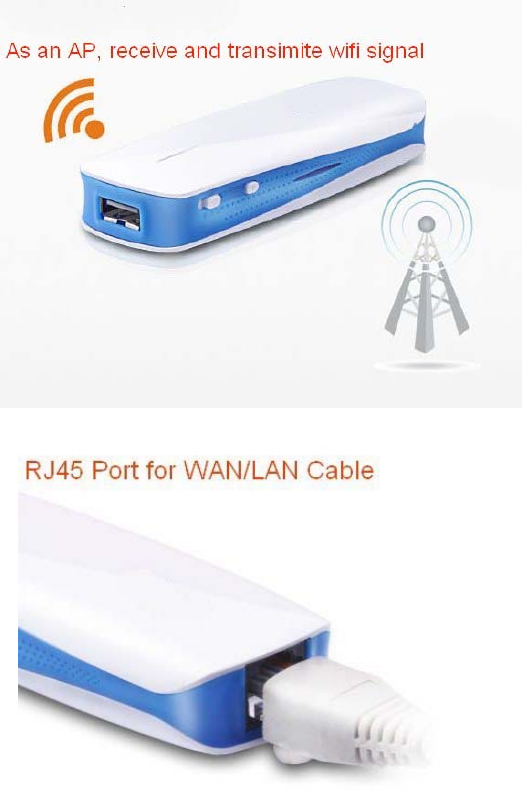

Product Pictures:
Main Features:
• Can connect via iPhone
• Can connect via Cable/DHCP/ADSL Modem
• Can connect via WIFI Hotspot
• Battery: Built-in 1800mAh rechargeable Li-polymer battery, last up to 4
hours of normal usage.

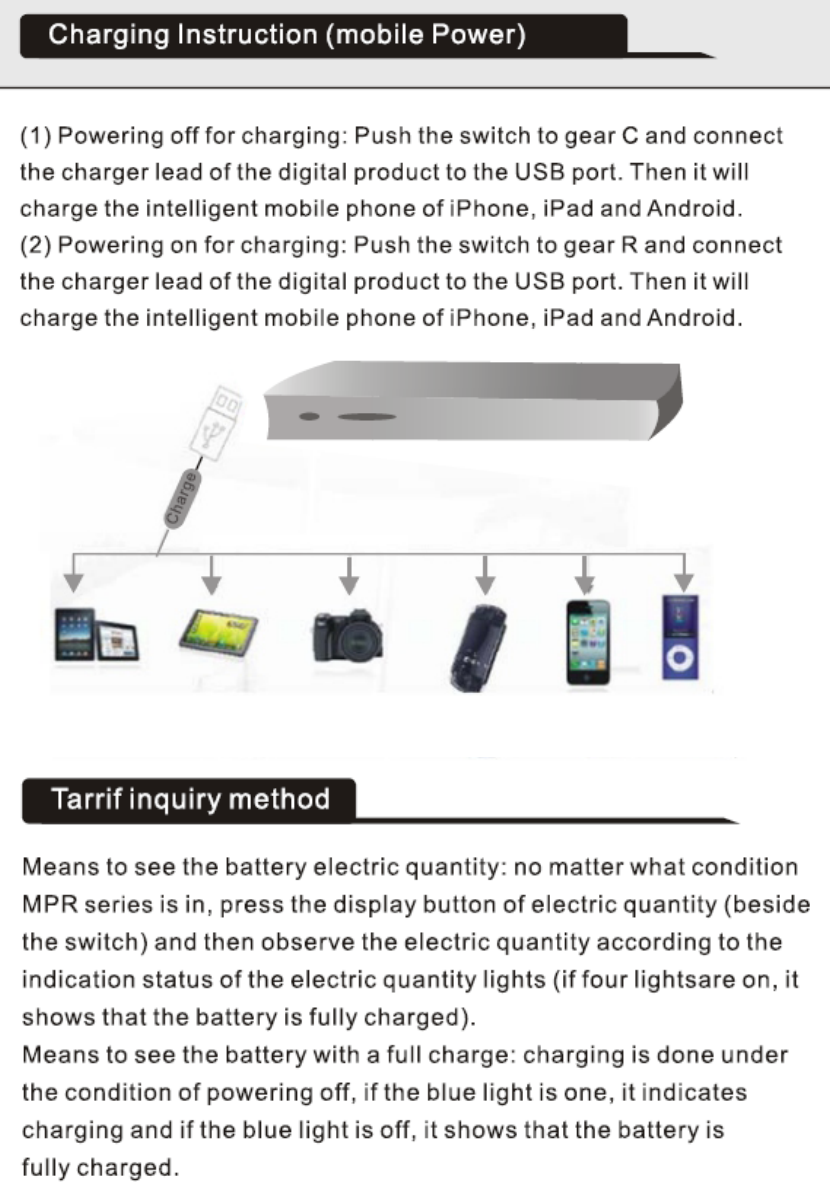

• Power Bank: Supplier power to mobile phone via USB.
• Automatically recognize ADSL/DHCP and WAN/LAN without any preset
profile.
• Complies with IEEE802.11b/g/h Standards and data speed rate up to
150Mbps
• iPhone tethering: connects iPhone and shares internet connectivity,
support wifi access.
• Plug and play, no need install any software
• Wifi support up to Max User amount is 20 users
• Dimensions: 95x 35x 14 mm
• Weight: 124g
Item Description
WLAN IEEE802.11b/g/n
Speed up to150Mbit/s
Interface
One power switch button
One reset button
One mini USB port for Power
One RJ45 Connector
Indicator One power status LED
Power Supply Li battery (3.7V, 1800mA/h)
Dimension 95x 35x 14mm
Weight About 124g
Temperature
Work Temperature -10℃ ~ +55℃
Storage Temperature -20℃ ~ +70℃
Humidity 5%~95%
2. Software Specification
Item Description
WLAN AP
1）Support IEEE 802.11b/g/n Standard
2） Support individual and mixed 802.11b/g/n mode
3） Support 1-11 channels；
WLAN Security
1） Support SSID Configure
2） Support SSID hiding
3） Support WEP/WPA/WPA2 Security
4） Support WAPI
Firewall
1） Support DMZ
2） Support MAC/IP/Port Filtering
3） Support NAT/NAPT
4） Support URL Filtering
System Management
1） Muti-Language management
2） Administrator’s user name and password settings
3） Network time setting
4） Software upgrade
5） Reset to default settings
6） Router Restart
7） System Log
8） Help
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
This device and its antenna(s) must not be co-located or operating in conjunction with any other
antenna or transmitter.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the followingmeasures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
