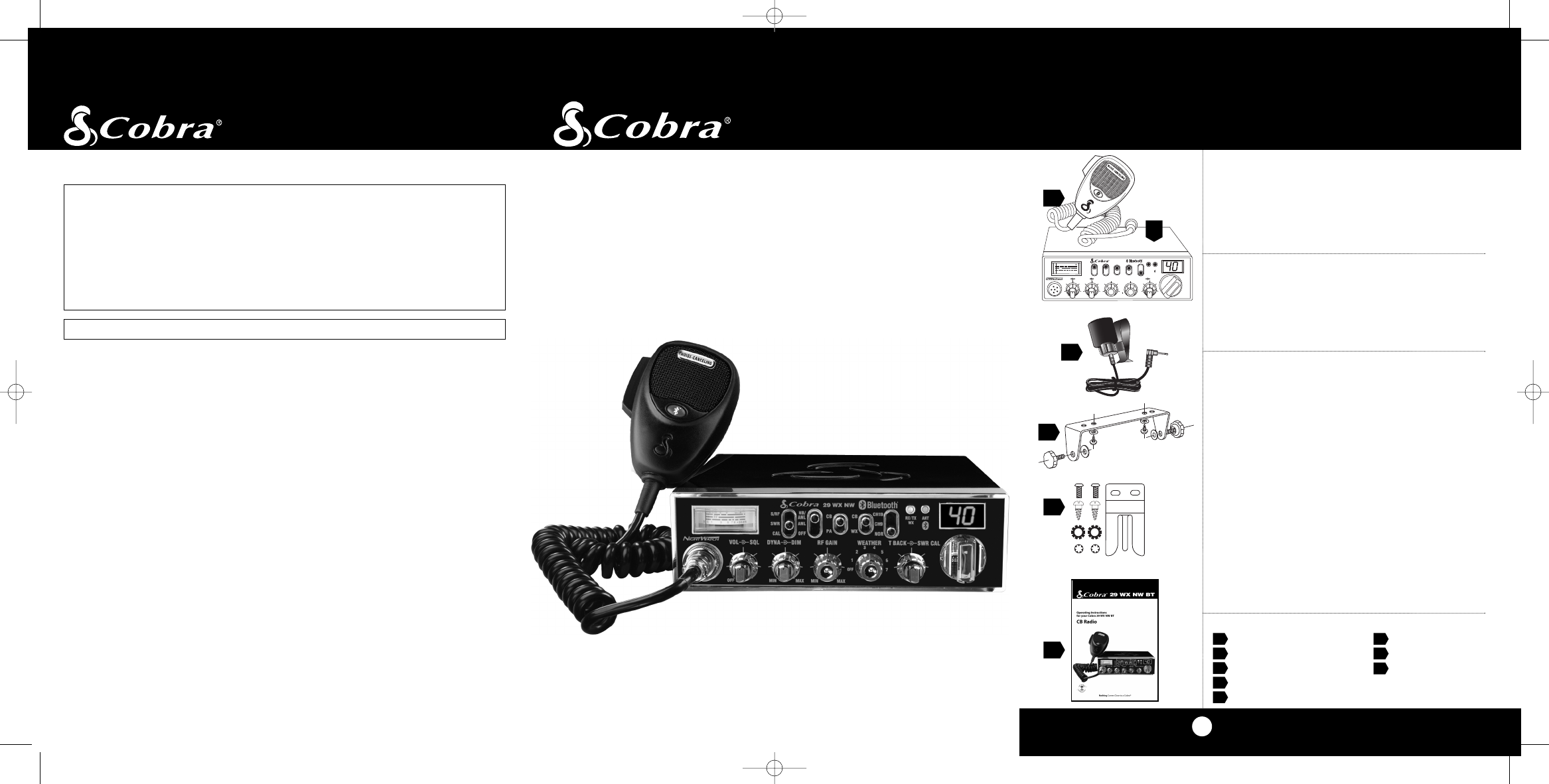

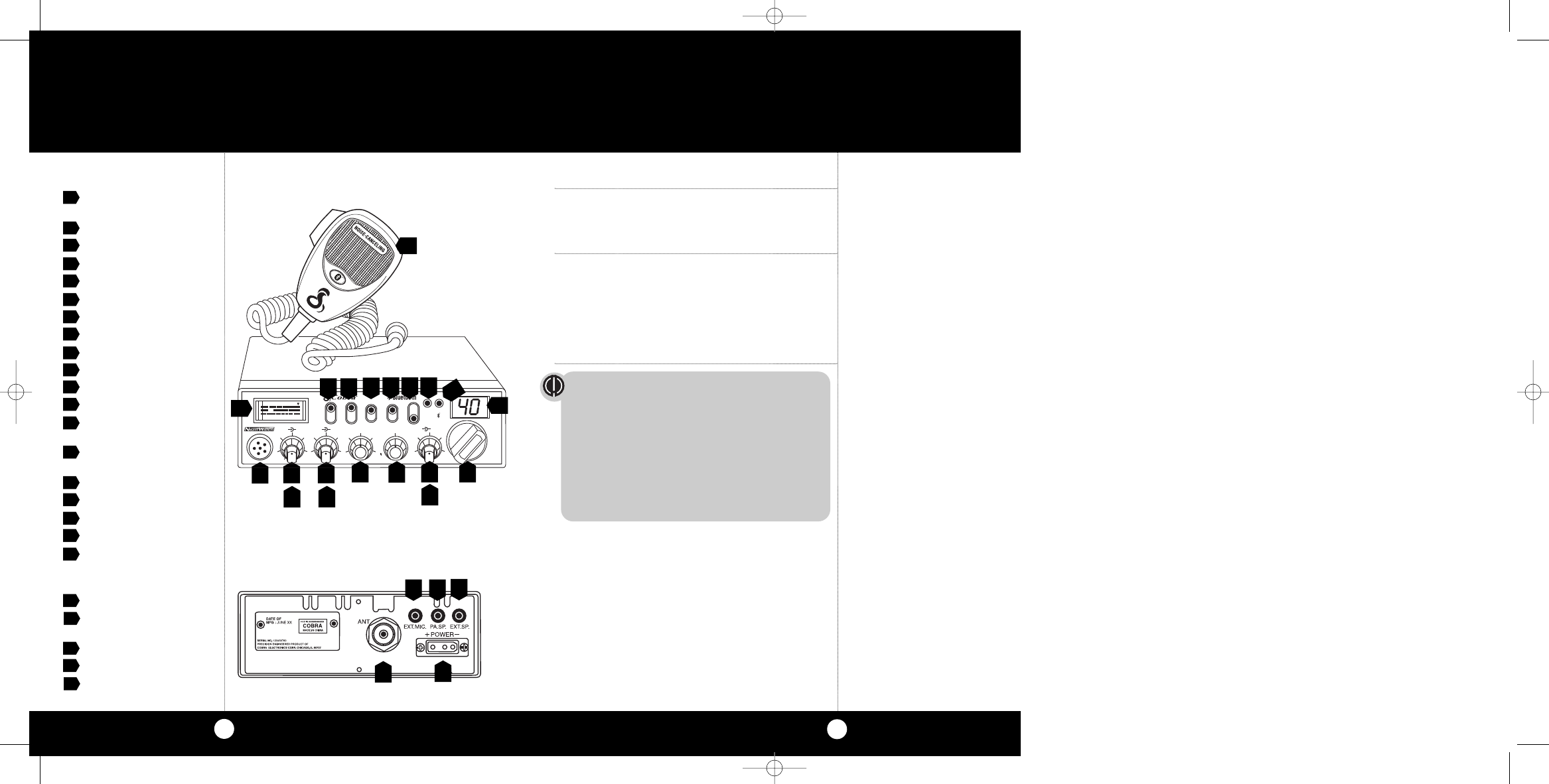

Features of This Product
• 7 Weather Channels
• Emergency Weather Alert
•Bluetooth® Connectivity
• 40 CB Radio Channels
• SoundTracker®System
• Heavy-Duty Dynamic
Microphone
• Full 4 Watts AM RF Power Output
• SWR Calibration Meter
• Instant Channel 19 and 9
• Front Panel 6-Pin Microphone
Connector
• Switchable Automatic Noise
Limiter & Noise Blanker
• Adjustable Dynamike Boost
• Tactile Controls
• 9 Ft Mic Cord
• Illuminated Front Panel
• Dimmer Control
• RF Gain
1
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK DO NOT REMOVE COVER (OR BACK)
NO USER SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
29WXNWBT_MANL.qx:29WXNWBT_MANL.qx 1/7/09 4:26 PM Page 1
Installation
Installation
Location
32
Mounting and
Connection
Mounting and Connection
Hold the radio with the mounting bracket in
the exact desired location. If there is no inter-
ference, remove the bracket and use it as a
template to mark the location for the mount-
ing screws.
Location
Plan location of transceiver and microphone
bracket before starting the installation.
Select a location that is convenient for operation,
yet does not interfere with the driver or passenger.
The transceiver is usually mounted to the under-
side of the dash with the microphone bracket
beside it.
Note
The transceiver is held in the
universal mounting bracket by
two thumbscrews which allow
for adjustment at a convenient
angle.
The bracket includes two self-
tapping screws and star wash-
ers. The mounting must be
mechanically strong, conve-
niently located.
continued

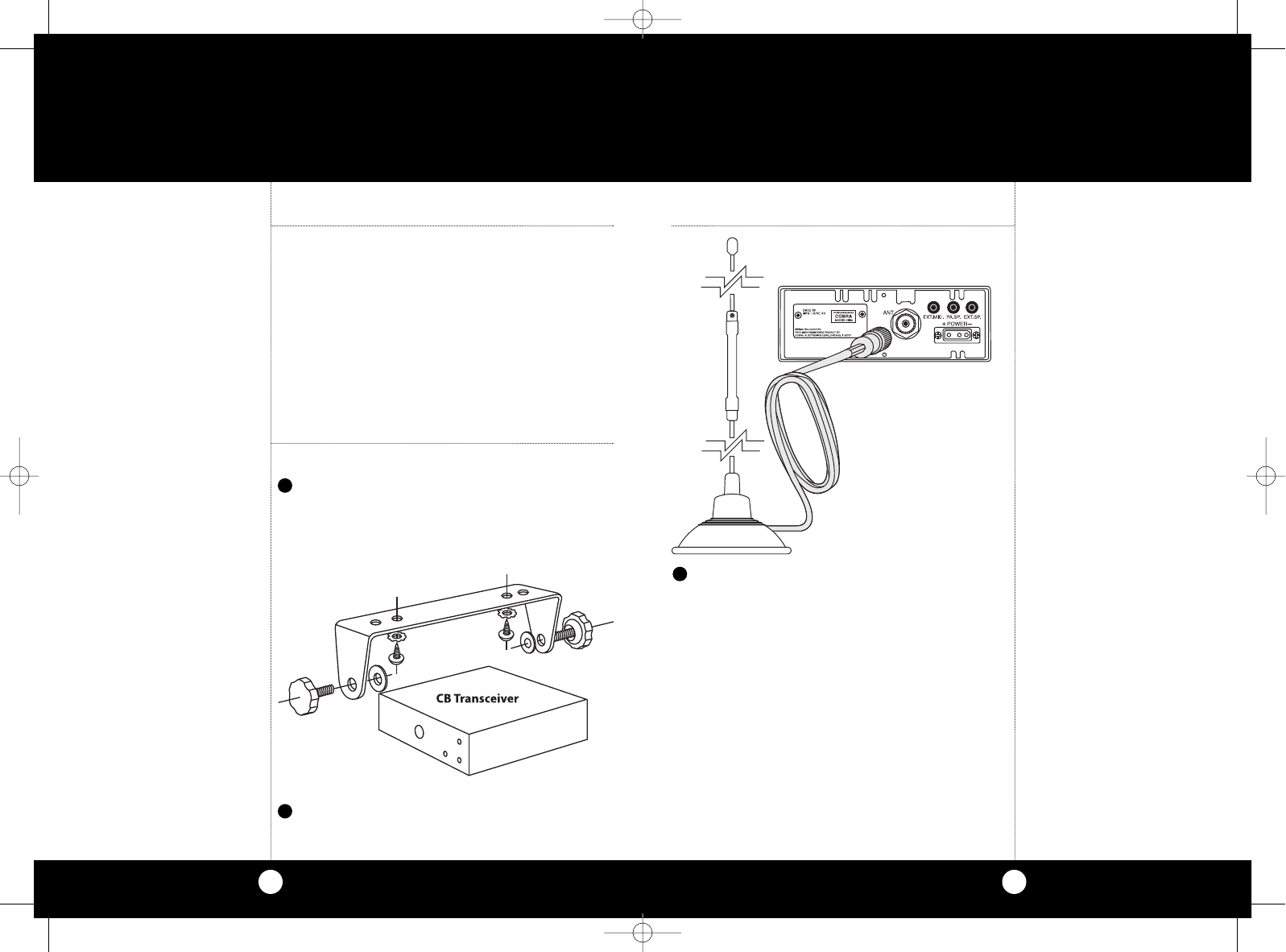

Drill the holes and secure the bracket.
2
1
Connect the antenna cable plug to the recep-
tacle marked “ANT” on the back of the unit.
3
29WXNWBT_MANL.qx:29WXNWBT_MANL.qx 1/7/09 4:26 PM Page 2
Installation
Installation
54
Note
Before installing the CB radio,
visually check the vehicle’s
battery connection to deter-
mine which terminal, positive
or negative, is grounded (pos-
itive is the larger of the two)
to the engine block (or chas-
sis). A negatively grounded
vehicle has its negative lead
grounded to the chassis.
Note
Connecting to an accessory fuse
prevents the unit from being left
on accidentally, and also per-
mits operating the unit without
running the engine.
Note
In positive ground vehicles the
red wire goes to the chassis and
the black wire is connected to
the ignition switch.
Note
When connected to an accesso-
ry fuse, unit will self test the
emergency weather alert auto-
matically when ignition is
turned on.Turns itself on & off.

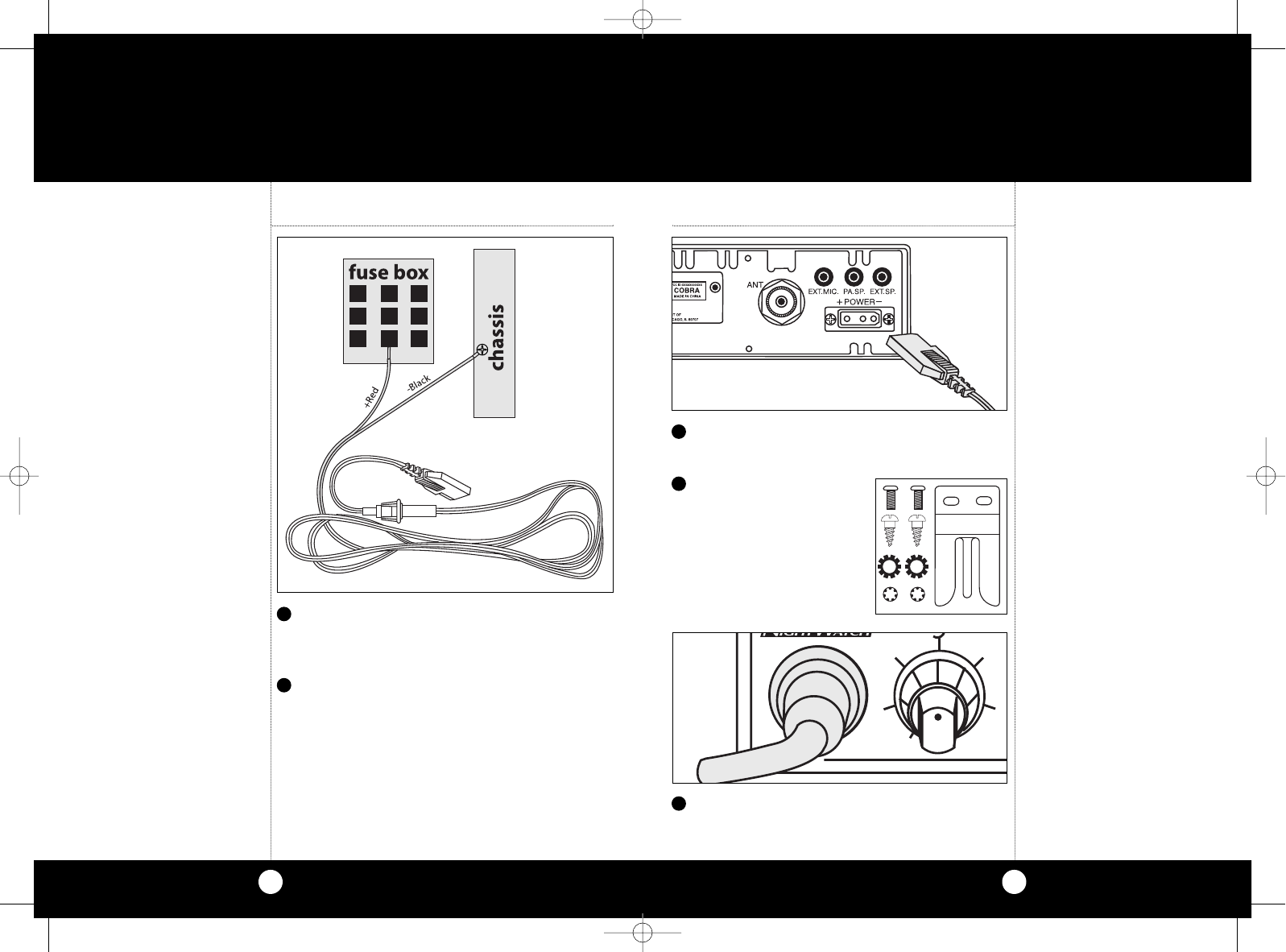

In a negative grounded vehicle, connect the
red lead of the DC power cord to an accessory
12 volt fuse.
Connect the black lead to the negative side of
the vehicle.This is usually the chassis. Any con-
venient location with a good electrical contact
(remove paint) may be used.
4
5
Plug power cable into back of unit marked
“Power”. Be sure to observe polarity markings.
Mount the microphone
bracket on either side of
the unit (driver’s left)
using two screws sup-
plied. Bracket should be
placed under the dash
so microphone is readily
accessible.
6
7
Attach the 6-pin microphone cable to recepta-
cle on front of unit and Install unit in bracket
securely.
8
VOL SQL R
OFF
29WXNWBT_MANL.qx:29WXNWBT_MANL.qx 1/7/09 4:26 PM Page 4
Ignition Noise Interference
Antennas
Use of a mobile receiver at low signal levels is
normally limited by the presence of electrical
noise. The primary source of noise in automobiles
is from the alternator and ignition system.
Typically, when signal level is adequate, the back-
ground noise does not present a serious problem.
Also, when extremely low level signals are being
received, the transceiver may be operated with
the vehicle’s engine turned off.The unit requires
very little current and therefore will not signifi-
cantly discharge the vehicle’s battery.
Even though the Cobra 29 WX NW BT has an
automatic noise limiter, in some installations igni-
tion interference may be high enough to make
good communications impossible. Many possibili-
ties exist and variations between vehicles require
different solutions. Consult your COBRA dealer or
a 2-way radio technician for help in locating the
source of a severe noise.
CB Antenna
Since the maximum allowable power output of
the transmitter is limited by the FCC, the antenna
is critical in affecting transmission distance. Only a
properly matched antenna system will allow maxi-
mum power output. Cobra loaded type antenna
models are highly recommended for most instal-
lations. For models with Weather Feature (WX), a
Dual Band (Center Load/Base Load) antenna is
recommended. Consult your Cobra dealer for fur-
ther details, or call 773.889.3087 and speak to a
Cobra representative.
Marine Installation
The transceiver will not operate at maximum
efficiency in a boat without a ground plate,
(unless it has a steel hull). Before attempting
installation , consult your dealer for information
regarding an adequate grounding system and
prevention of electrolysis between fittings in the
hull and water.
CB Antenna
7
Note
For optimum performance in
passenger cars the ideal anten-
na location is on the center of
the roof. Second choice is on the
center of the trunk.
Note
Because many newer trucks
feature fiberglass door skins, the
outside mirror must be ground-
ed to the chassis via a ground
strap, if the antenna is mounted
on the mirror bracket.
Note
3-way Combination Antennas
are also available which allow
operation of all three bands
(AM-FM & CB), using a single
antenna. However, this type of
antenna usually results in less
than normal transmit and
receive range when compared
to a standard-type “Single
Band” CB antenna. Call 773-
889-3087 for further informa-
tion.
6

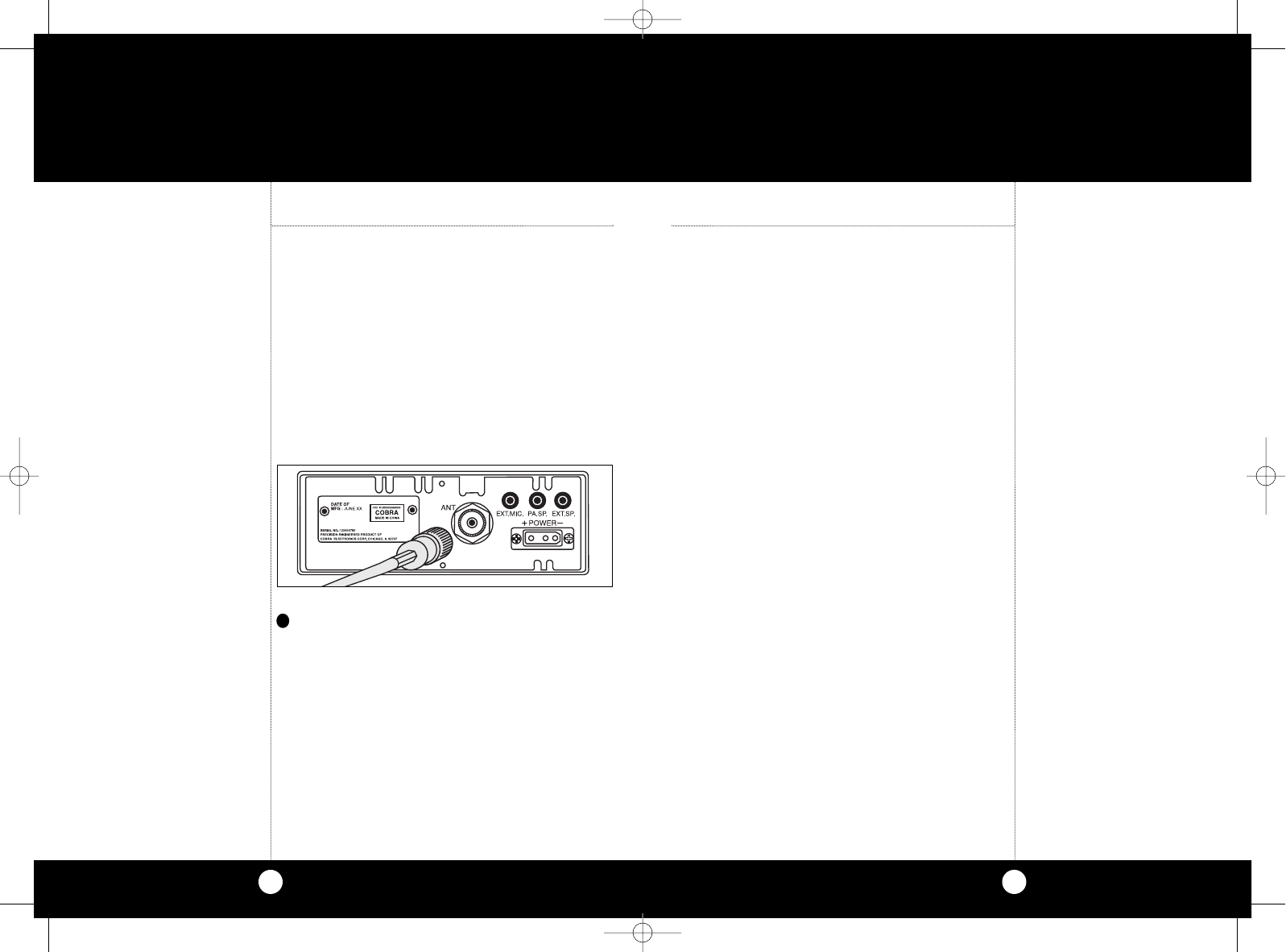

1A standard antenna connector is provided
on the transceiver for easy connection.
29WXNWBT_MANL.qx:29WXNWBT_MANL.qx 1/7/09 4:26 PM Page 6
The CB/PA button should be in the
CB position.
Operation
9
Operation
Turning On Setting Channel
Selector
8
Turning On
Make sure the power cord, antenna and micro-
phone are connected to their proper connectors
before starting.
Setting Channel Selector
2
SIG 1 3 5 7 9 +30dB
2 3 CAL
RF
SWR
RF
S/RF
SWR
CAL
NB/
ANL
ANL
OFF
CB
PA
MIN MAX MIN MAXOFF
VOL SQL
29 WX N
RF GAIN
DYNA DIM
1
Rotate the On/Off Volume knob clockwise to
a normal listening level.

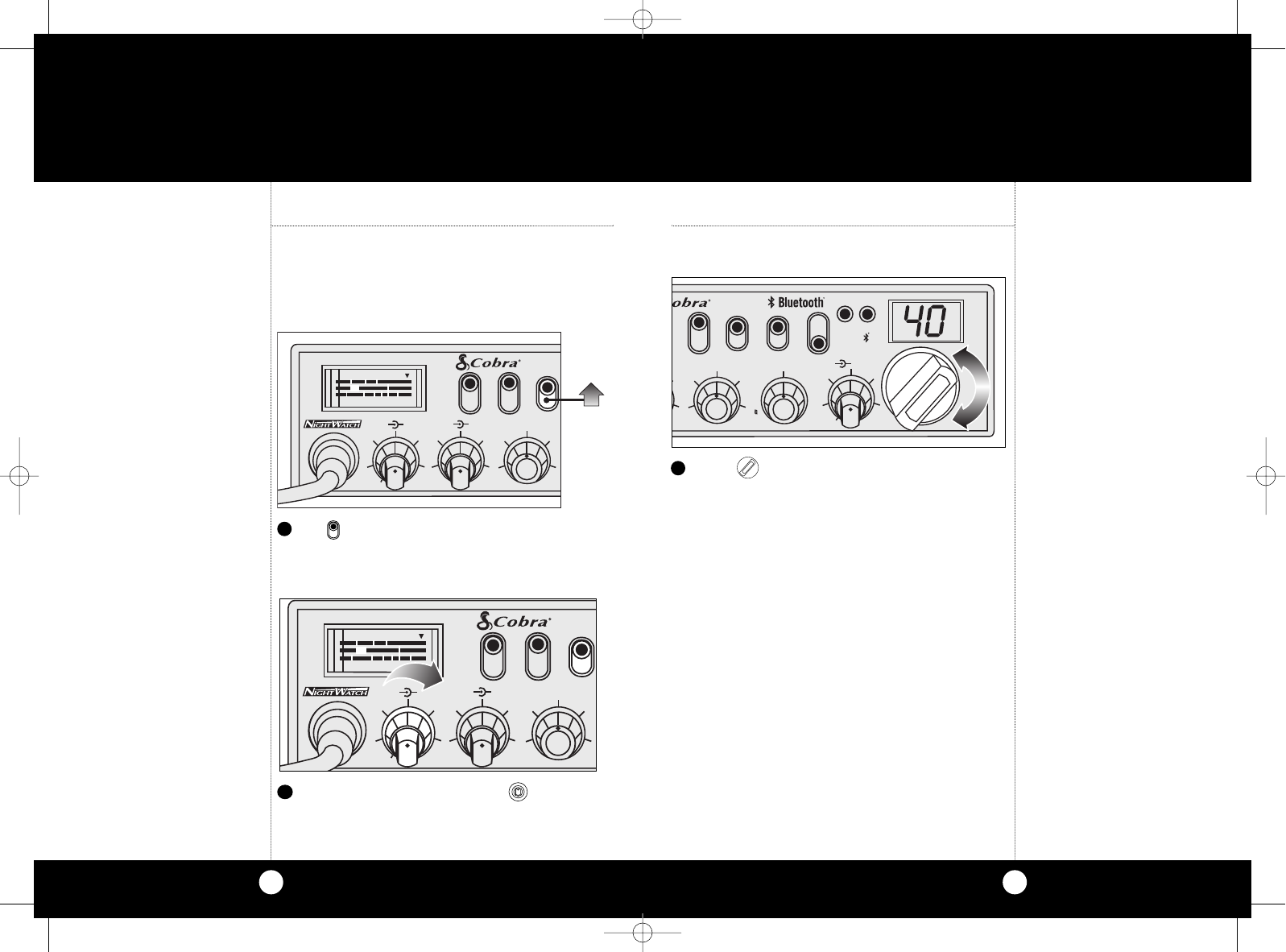

Select one of forty channels and adjust
volume. The selected channel is indicated by
the LED readout directly above the channel
selector knob
1
NB/
ANL
ANL
OFF
CB
PA
CH19
CH9
NOR
MAX MIN MAXO
CB
WX
29 WX NW
RX/TX
WX
WEATHERRF GAIN
M
7
16
25
34
ANT
T BACK SWR CAL
SIG 1 3 5 7 9 +30dB
2 3 CAL
RF
SWR
RF
S/RF
SWR
CAL
NB/
ANL
ANL
OFF
CB
PA
MIN MAX MIN MAXOFF
VOL SQL
29 WX N
RF GAIN
DYNA DIM
29WXNWBT_MANL.qx:29WXNWBT_MANL.qx 1/7/09 4:26 PM Page 8
NB/
ANL
ANL
OFF
CB
PA
CH19
CH9
NOR
AX MIN MAXO
CB
WX
29 WX NW
RX/TX
WX
WEATHERRF GAIN
M
7
16
25
34
ANT
T BACK SWR CAL
While holding mic
button adjust the
SWR CAL knob so the
meter needle swings
to the CAL ▼mark on
the meter (located on the right).
Operation
Operation

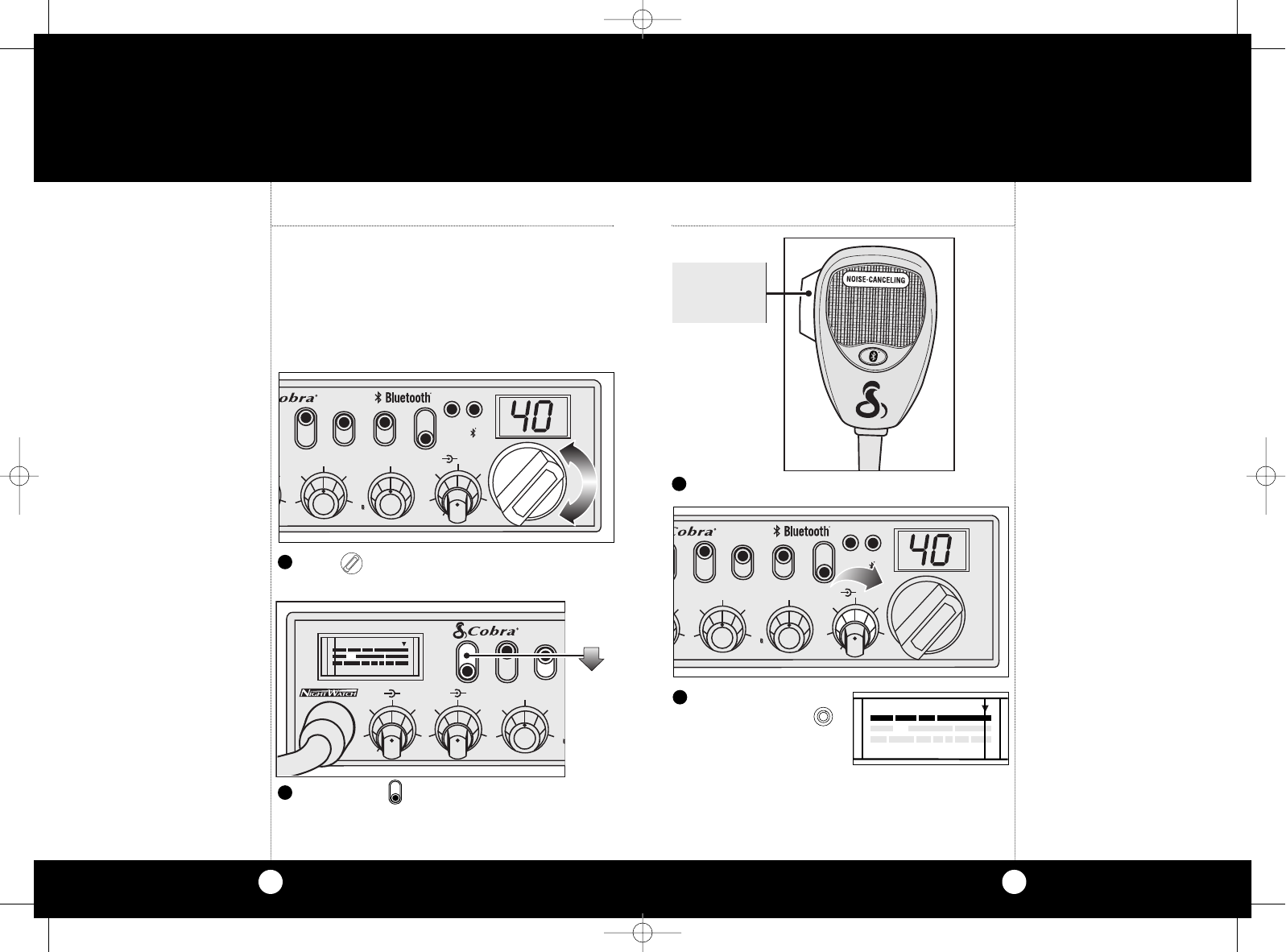

Calibrate For
SWR (Standing
Wave Ratio)
1110
continued
Note
Calibration must be made in an
open area (never in a garage).
Vehicle doors must be closed. No
one should be standing near the
antenna. (See your antenna
directions for more complete
information).
Note
The reading will be slightly high-
er on Channels 1 and 40 com-
pared to Channel 20.
Push and hold mic button.
Switch to the CAL position.
2
1
3
Calibrate for SWR (Standing Wave Ratio)
SWR calibration is done to properly adjust the
length of the antenna and to monitor the quality
of the coaxial cable and all RF connections.
This calibration is critical in order to achieve opti-
mum performance.
SIG 1 3 5 7 9 +30dB
2 3 CAL
RF
SWR
RF
S/RF
SWR
CAL
NB/
ANL
ANL
OFF
CB
PA
MIN MAX MIN MAXOFF
VOL SQL
W
29 WX NW
RF GAIN
DYNA DIM
1
Select channel 20.
4
NB/
ANL
ANL
OFF
CB
PA
CH19
CH9
NOR
MAX MIN MAXO
CB
WX
29 WX NW
RX/TX
WX
WEATHERRF GAIN
M
7
16
25
34
ANT
T BACK SWR CAL
SIG 1 3 5 7 9 +30dB
2 3 CAL
SWR
RF
29WXNWBT_MANL.qx:29WXNWBT_MANL.qx 1/7/09 4:26 PM Page 10
Rotate the On/Off Volume knob clockwise
the green RT/TX LED will be illuminated.
Repeat the same steps two through five on
Channel 1 and 40. This will check SWR for all
channels.
The S/RF-SWR-CAL switch must be in the
S/RF position to read the meter.
6
While still holding down the mic button, set
the S/RF SWR CAL switch to the SWR position,
to read the SWR reading.
5
Operation
13
Operation
12
1
Note
When switched to SWR posi-
tion the meter needle should
ideally be as far to the left as
possible. Anything over 3 is
not acceptable. A slight
antenna height adjustment
(higher or lower) may be
required. Repeat recalibration
steps.
S-Meter
S-Meter
Swings proportionately to strength of incoming
signal when receiving.
Switch to NOR to select desired channel.
1
Selecting A
Channel
Selecting A Channel
Note
Switch to 9 (Emergency) or 19
(Information) for instant access
to these channels.
NB/
ANL
ANL
OFF
CB
PA
CH19
CH9
NOR
MMAX MIN MAXO
CB
WX
29 WX NW
RX/TX
WX
WEATHERRF GAIN
M
7
16
25
34
ANT
T BACK SWR CAL
To Receive
1
To Receive
SIG 1 3 5 7 9 +30dB
23 CAL
RF
SWR
RF
S/RF
SWR
CAL
NB/
ANL
ANL
OFF
CB
PA
MIN MAX MIN MAXOFF
VOL SQL
29 WX N
RF GAIN
DYNA DIM
1
SIG 1 3 5 7 9 +30dB
2 3 CAL
RF
SWR
RF
S/RF
SWR
CAL
NB/
ANL
ANL
OFF
CB
PA
MIN MAX MIN MAXOFF
VOL SQL
29 WX N
RF GAIN
DYNA DIM
SIG 1 3 5 7 9 +30dB
2 3 CAL
RF
SWR
RF
S/RF
SWR
CAL
NB/
ANL
ANL
OFF
C
VOL SQL DYNA DI M
29WXNWBT_MANL.qx:29WXNWBT_MANL.qx 1/7/09 4:26 PM Page 12
Operation
Operation

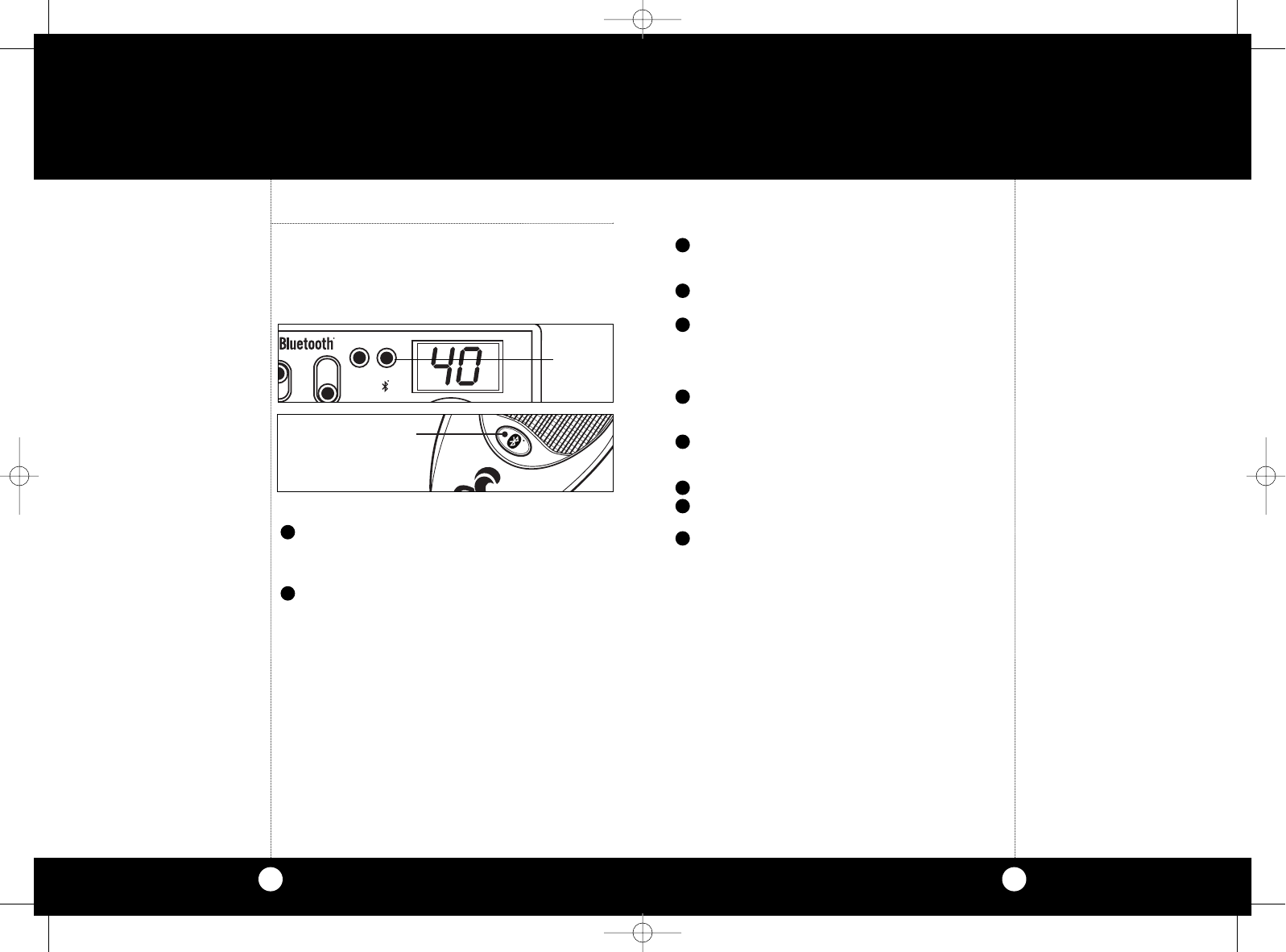

Bluetooth®
15
14
Bluetooth
Calls on a Bluetooth enabled cell phone can be
routed through the 29 WX NW BT speaker or
external speaker accessory.
CH19
CH9
NOR
RX/TX
WX
ANT
To Pair with a Cell Phone
With 29 WX NW BT power On, press and hold the BT Button
for six seconds to enter Standby mode. A tone will sound
and the BT LED will flash for one minute to confirm entry
to Standby.
From Standby, press and hold the BT Button for four
seconds to enter Pairing mode.
A. First time pairing with a cell phone:
I. A tone will sound and the BT LED will flash rapidly
to confirm Pairing mode.
II. Follow the cell phone manufacturer's instruction
to enable its Bluetooth function and enter the PIN
(Personal Identification Number) 0000.
III. Successful pairing will be indicated by a tone and
brief flashing of the BT LED to confirm entry to
Connected mode.A pair record will also be established
for subsequent connections.
B. Subsequent pairings with a cell phone:
I. Follow any cell phone manufacturer instructions,
if needed, to enable the Bluetooth function.
II. Successful pairing will be indicated by a tone
and brief flashing of the BT LED to confirm entry
to Connected mode.
1
2
To Answer Calls
Press and release the BT Button when the cell phone ring
is heard through the 29 WX NW BT speaker.The BT LED will
light steadily to indicate a call is in progress.
Speak into the 29 WX NW BT microphone.The CB function of
the unit and PTT Button will be disabled while a call is in
progress.
End the call by press and release of the BT Button.
A tone will sound and the BT LED will flash briefly.
To Initiate Calls
Dial a number according to the cell phone manufacturer’s
instructions. The key press and other tones will be heard
through the 29 WX NW BT speaker.
Press Send on the cell phone. The BT LED will light steadily
to indicate a call is in progress; and after a few seconds,
you will hear the ring tone for the number you dialed.
Once connected, speak into the 29 WX NW BT microphone.
End the call by press and release of the BT Button.
The BT LED will flash briefly.
Redial a number by press and hold of the BT Button for
two seconds. A tone will sound; and after a few seconds,
you will hear the ring tone for the number you dialed.
Note
If no further pairing steps are
taken, the unit will time-out
and return to Standby after
five minutes. During the pair-
ing process, press and
release the BT Button to can-
cel the pairing process.
1
2
3
1
2
3
4
5
To Enable or Disable Voice Dialing
If the paired cell phone supports voice dialing, press and
release the BT Button twice to toggle between enabling
and disabling this feature.
To Turn Off The Bluetooth Function
Press and hold the BT Button for six seconds to turn off
the Bluetooth function. Two short tones will sound and
the BT LED will turn Off and remain Off.
To Re-pair The 29 WX NW BT To The Cell Phone
If pairing is lost while the 29 WX NW BT power is On, press and hold
the BT Button for four seconds to re-pair with the cell phone.
If the 29 WX NW BT is turned Off, it will retain the Bluetooth address
and automatically re-pair with the last cell phone used when
it is turned back On.
BT LED
Indicator
BT Button
Note
For best audio quality while
using the Bluetooth feature,
place your cell phone at least
12 inches away from the
29 WX NW BT.
Note
When cell phone calls are in
progress using the Bluetooth
feature, the CB functions of
the unit are disabled.
Note
The external microphone can
be plugged into the rear of
the unit and clipped to a
pocket or lapel for hands-free
speech during calls.
When the external
microphone is plugged in,
the main microphone will not
pick up speech during calls
but will be fully functional
for CB operation.
29WXNWBT_MANL.qx:29WXNWBT_MANL.qx 1/7/09 4:26 PM Page 14

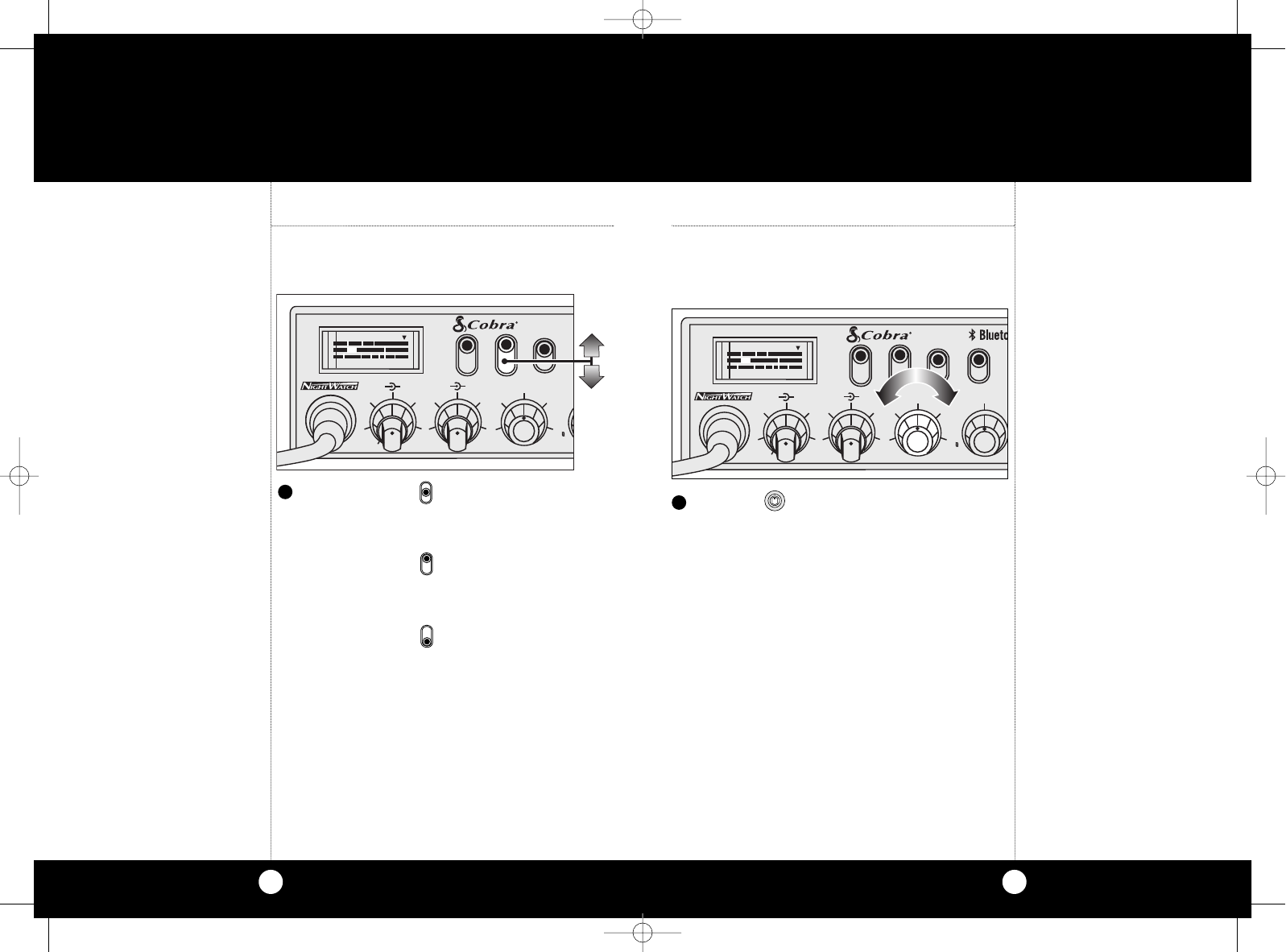

When switched to ANL the Automatic Noise
Limiter is activated. This helps reduce noise
created by the vehicle’s electronics.
When switched to NB/ANL position the RF
Noise Blanker is also activated, providing
increased noise filtration.
When switched to OFF position all noise
filtration will be turned off.
Operation
Operation
1716
NB-ANL/ANL/
OFF (Noise
Blanker/
Automatic
Noise Limiter)
Switch
RF Gain Control
RF Gain Control
The RF Gain is used to optimize reception in
strong or weak signal areas.
Note
The RF Gain is used to optimize
reception in weak signal areas. .
Note
The RF noise blanker is very
effective in reducing repetitive
noises such as ignition interfer-
ence.
SIG 1 3 5 7 9 +30dB
23 CAL
RF
SWR
RF
S/RF
SWR
CAL
NB/
ANL
ANL
OFF
CB
PA
MIN MAX MIN MAXOFF
VOL SQL
CB
WX
29 WX NW
WRF GAIN
DYNA DIM
1
2
Rotate the RF Gain knob counterclockwise
to reduce gain in strong signal areas. In weak
signal areas turn clockwise to increase gain.
SIG 1 3 5 7 9 +30dB
2 3 CAL
RF
SWR
RF
S/RF
SWR
CAL
NB/
ANL
ANL
OFF
CB
PA
CH19
CH9
NOR
MIN MAX MIN MAXOFF
VOL SQL
CB
WX
29 WX NW
WEATHERRF GAIN
DYNA DI M
1
25
34
1
NB-ANL/ANL/OFF (Noise
Blanker/Automatic Noise Limiter) Switch
1
29WXNWBT_MANL.qx:29WXNWBT_MANL.qx 1/7/09 4:26 PM Page 16
Full clockwise rotation closes the gate
allowing only very strong signals to enter.
Full counterclockwise rotation opens the
“gate” allowing all signals in.
To achieve the Desired Squelch Setting (DSS),
turn the Squelch control counterclockwise
until you hear noise. Now turn the control
clockwise just until the noise stops. This is the
DSS setting.

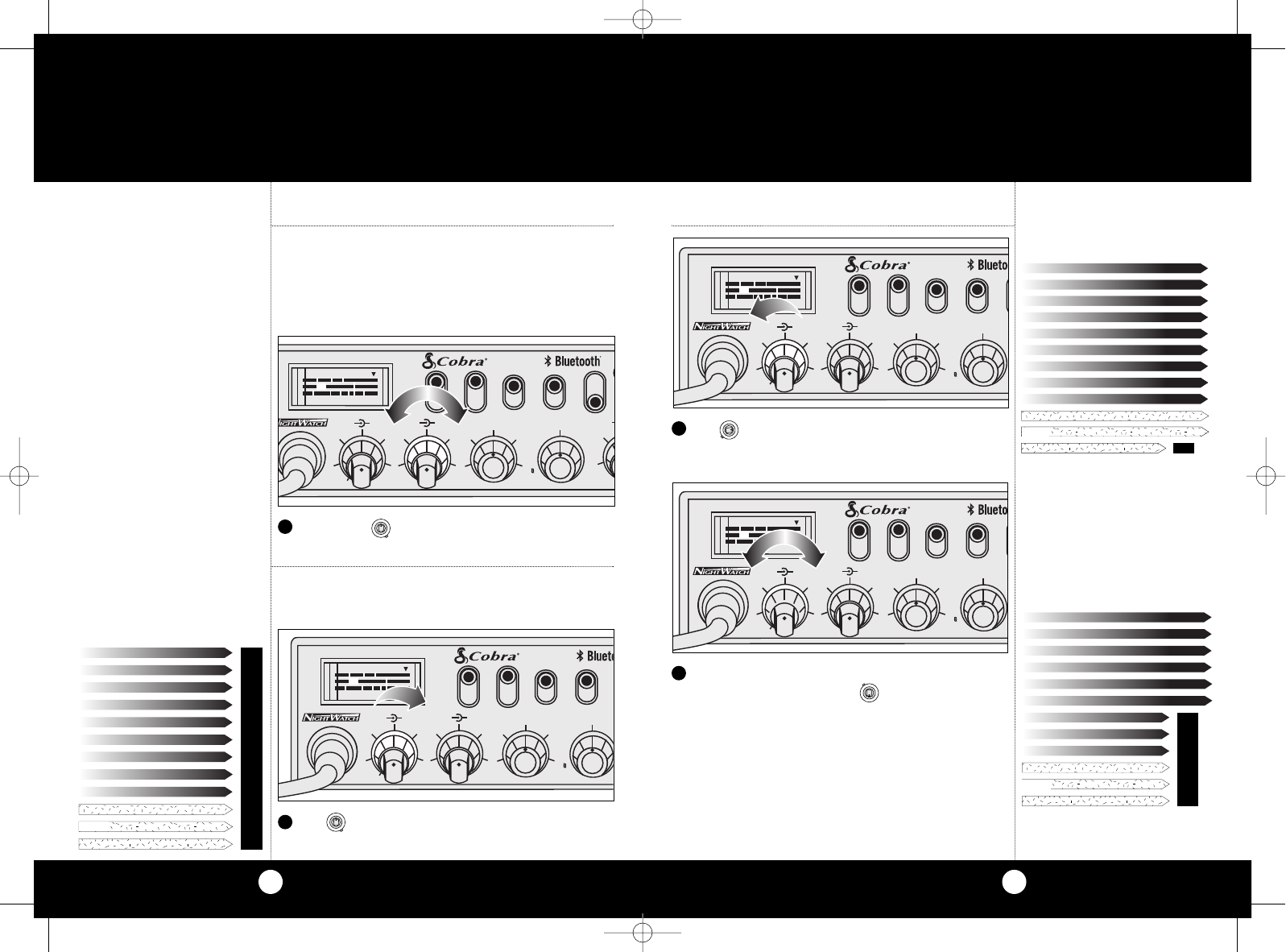

Dimmer Switch
Setting Squelch
Squelch is the “control gate” for incoming signals.
19
Dimmer Switch
18
Operation Operation
1
2
1
3
Rotate the Dimmer knob clockwise for maxi-
mum brightness;counter-clockwise for minimum
SIG 1 3 5 7 9 +30dB
2 3 CAL
RF
SWR
RF
S/RF
SWR
CAL
NB/
ANL
ANL
OFF
CB
PA
CH19
CH9
NOR
MIN MAX MIN MAXOFF
VOL SQL
CB
WX
29 WX NW
R
WEATHERRF GAIN
DYNA DIM
7
16
25
34
T BACK
NOISE
WEAK SIGNALS
MEDIUM SIGNALS
STRONG SIGNALS
GATE CLOSED
NOISE
WEAK SIGNALS
MEDIUM SIGNALS
STRONG SIGNALS
NOISE
WEAK SIGNALS
MEDIUM SIGNALS
STRONG SIGNALS
GATE 
OPEN
NOISE
WEAK SIGNALS
MEDIUM SIGNALS
STRONG SIGNALS
NOISE
WEAK SIGNALS
MEDIUM SIGNALS
STRONG SIGNALS
GATE
Gate open
Gate set to Desired
Squelch Setting (DSS)
Gate closed
SIG 1 3 5 7 9 +30dB
23 CAL
RF
SWR
RF
S/RF
SWR
CAL
NB/
ANL
ANL
OFF
CB
PA
CH19
CH9
NOR
MIN MAX MIN MAXOFF
VOL SQL
CB
WX
29 WX NW
RX/TX
WX
WEATHERRF GAIN
DYNA DI M
7
16
25
34
ANT
T BACK SWR CAL
SIG 1 3 5 7 9 +30dB
2 3 CAL
RF
SWR
RF
S/RF
SWR
CAL
NB/
ANL
ANL
OFF
CB
PA
CH19
CH9
NOR
MIN MAX MIN MAXOFF
VOL SQL
CB
WX
29 WX NW
RX/TX
WX
WEATHERRF GAIN
DYNA DI M
7
16
25
34
ANT
T BACK SWR CAL
Setting Squelch
SIG 1 3 5 7 9 +30dB
2 3 CAL
RF
SWR
RF
S/RF
SWR
CAL
NB/
ANL
ANL
OFF
CB
PA
CH19
CH9
NOR
MIN MAX MIN MAXOFF
VOL SQL
CB
WX
29 WX NW
RX/TX
WX
WEATHERRF GAIN
DYNA DI M
7
16
25
34
ANT
T BACK SWR CAL
Note
The Dimmer controls the
brightness of the front panel,
signal strength meter and
channel display.
29WXNWBT_MANL.qx:29WXNWBT_MANL.qx 1/7/09 4:26 PM Page 18

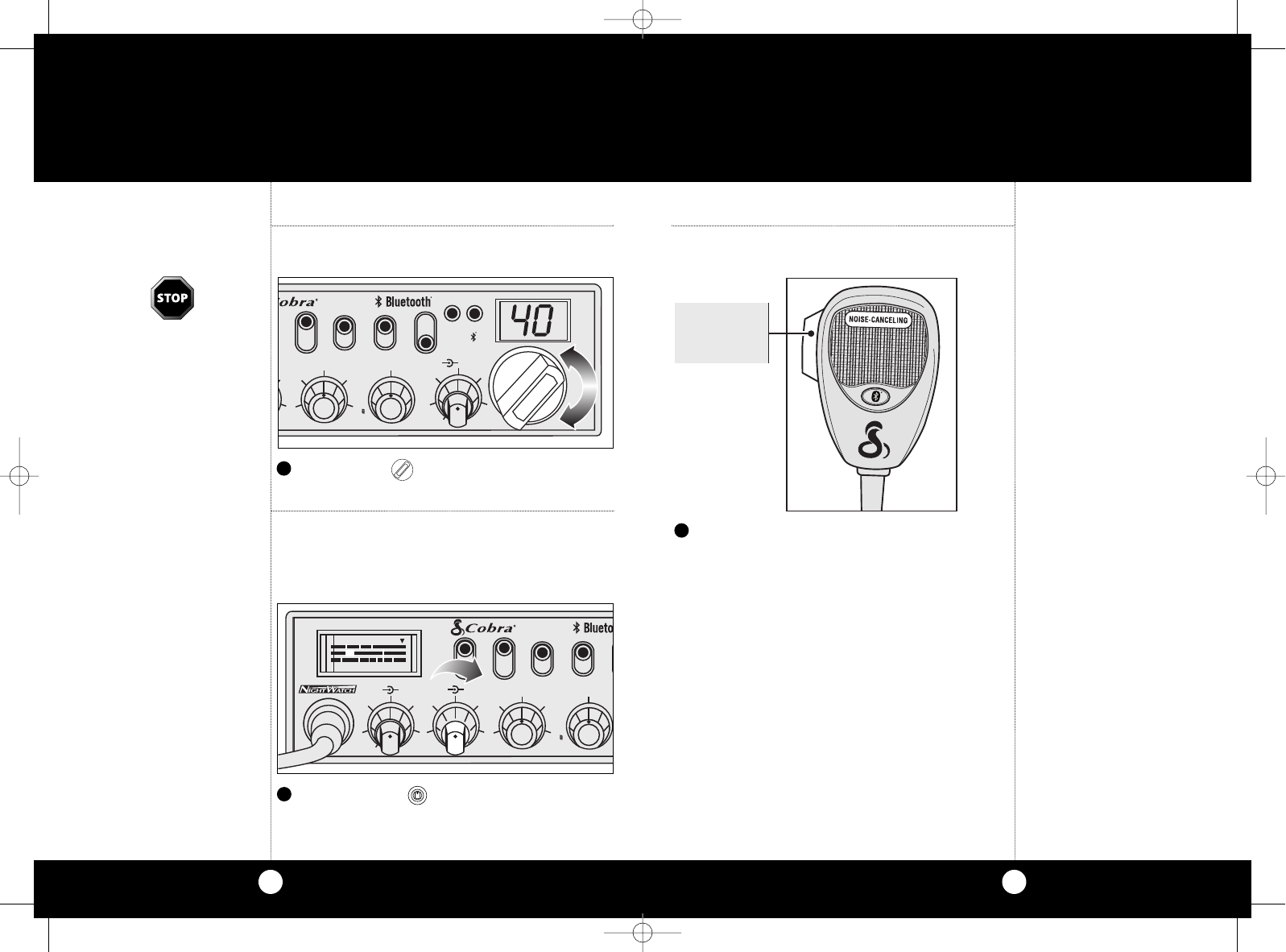

Setting Dynamike®
This controls the microphone sensitivity
(outgoing audio level).
To Transmit
21
To Transmit Transmit
20
Setting
Dynamike®
Caution!
Be sure the antenna is properly
connected to the radio before
transmitting. Prolonged trans-
mitting without an antenna, or
a poorly matched antenna,
could cause damage to the
transmitter.
Be sure to read the F.C.C. Rules
and Regulations included with
this unit before transmitting.
Operation Operation
1
Select desired channel.
1
SIG 1 3 5 7 9 +30dB
23 CAL
RF
SWR
RF
S/RF
SWR
CAL
NB/
ANL
ANL
OFF
CB
PA
CH19
CH9
NOR
MIN MAX MIN MAXOFF
VOL SQL
CB
WX
29 WX NW
RX/TX
WX
WEATHERRF GAIN
DYNA DI M
7
16
25
34
ANT
T BACK SWR CAL
Initially, set fully clockwise so that maxi-
mum voice volume is available. Dynamike
may have to be reduced in some conditions.
SIG 1 3 5 7 9 +30dB
2 3 CAL
RF
SWR
RF
S/RF
SWR
CAL
NB/
ANL
ANL
OFF
CB
PA
CH19
CH9
NOR
MIN MAX MIN MAXOFF
VOL SQL
CB
WX
29 WX NW
RX/TX
WX
WEATHERRF GAIN
DYNA DI M
7
16
25
34
ANT
T BACK SWR CAL
Transmit
Push and hold mic button to transmit.
Transmitter is now activated. When transmit-
ting, hold the microphone two inches from
your mouth and speak in a clear, normal voice.
Release to receive.
1
29WXNWBT_MANL.qx:29WXNWBT_MANL.qx 1/7/09 4:26 PM Page 20
Operation
Operation
RF Meter
23
22

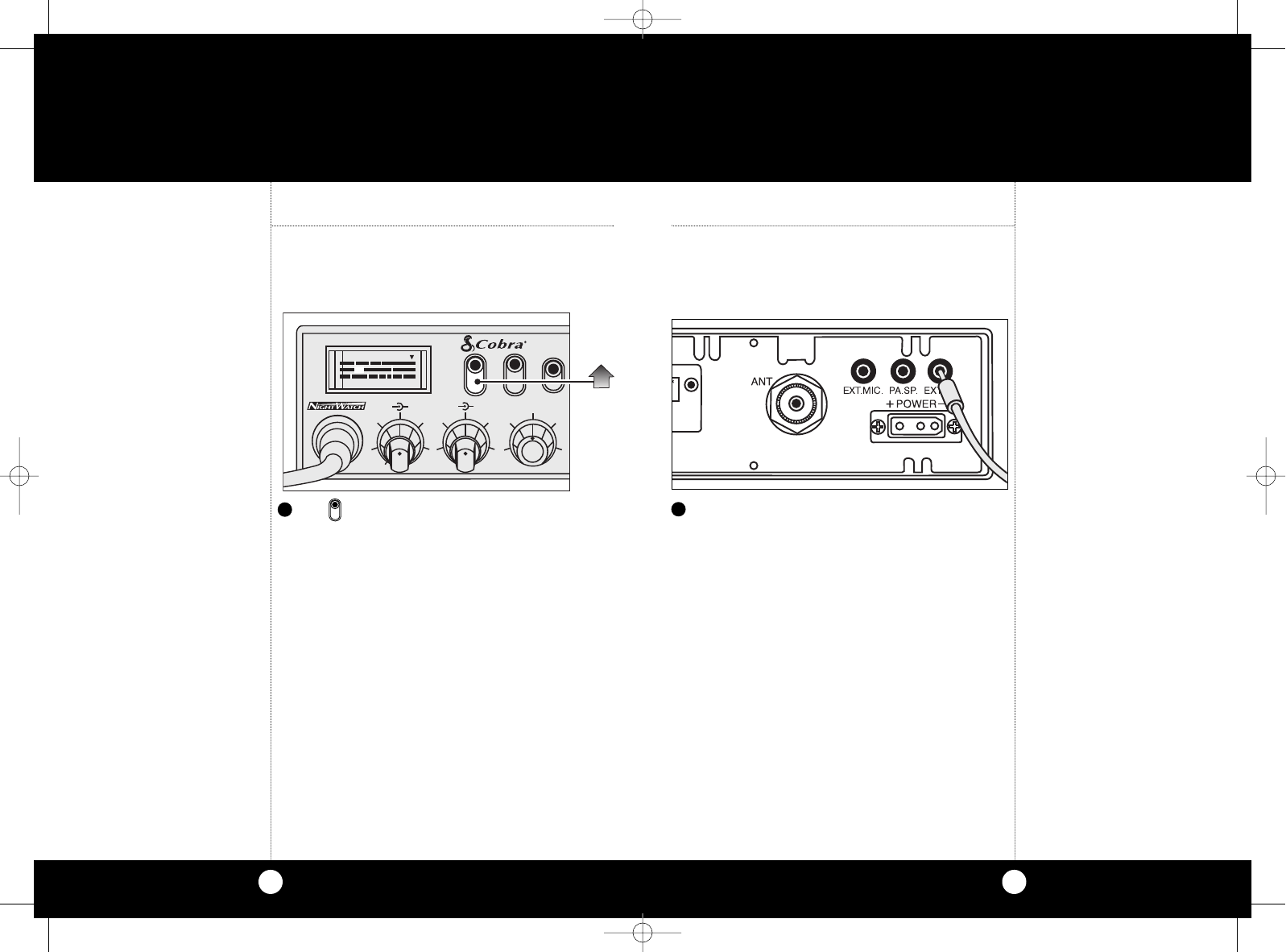

External Speaker
RF Meter
This meter swings proportionately to the RF
output (outgoing signal) while transmitting.
External Speaker
The external speaker jack is used for remote
receiver monitoring.
The S/RF-SWR-CAL switch must be in the
S/RF position.
1
Note
The external speaker should
have 8-ohm impedance and be
rated to handle at least 4.0
watts. When the external speak-
er is plugged in, the internal
speaker is automatically discon-
nected. See accessory page 37.
Note
Cobra external speakers are
rated at 10 watts.

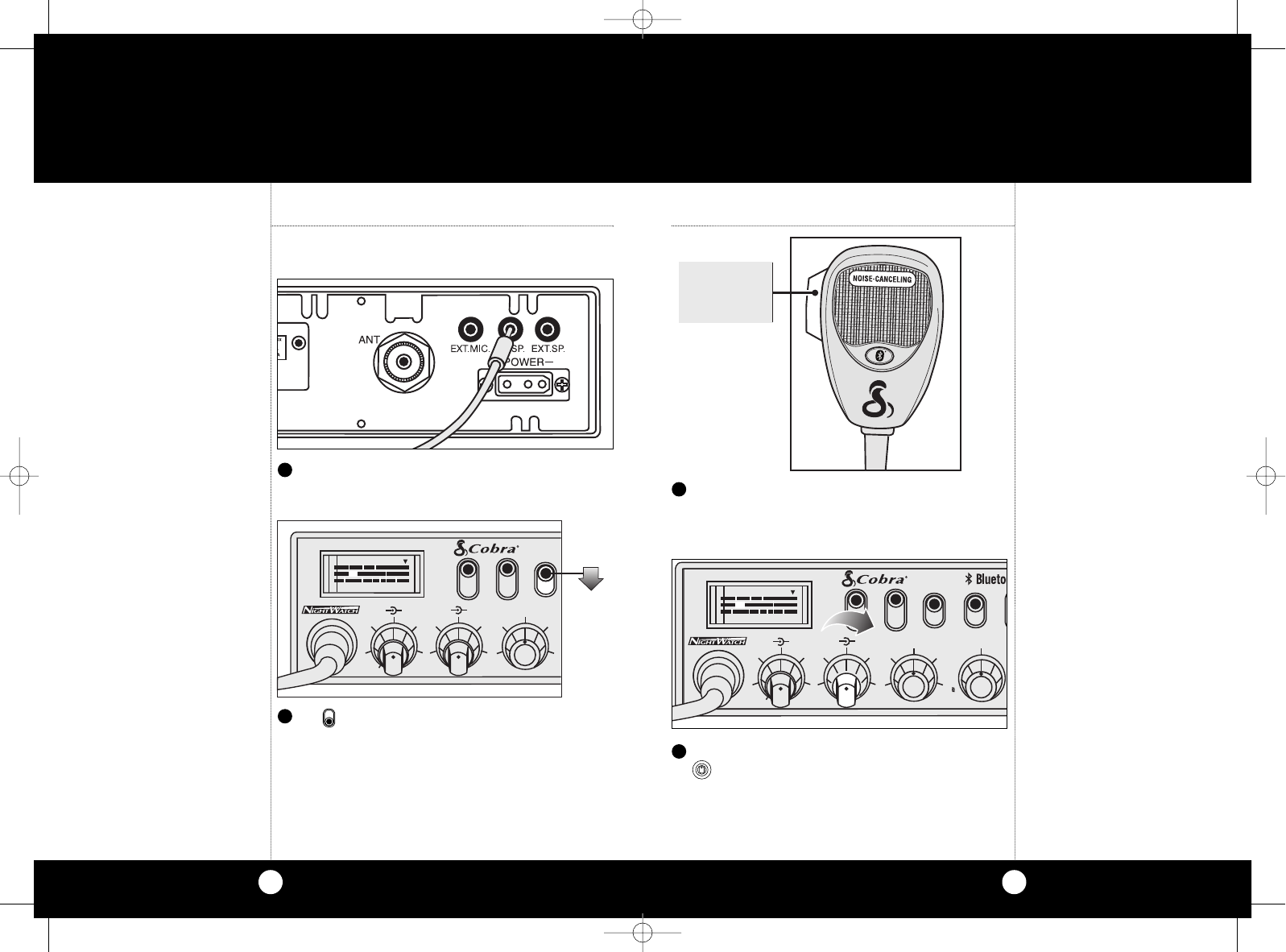

Connect an external speaker to the external
speaker jack on the rear panel.
1
SIG 1 3 5 7 9 +30dB
23 CAL
RF
SWR
RF
S/RF
SWR
CAL
NB/
ANL
ANL
OFF
CB
PA
MIN MAX MIN MAXOFF
VOL SQL
29 WX NW
RF GAIN
DYNA DI M
1
29WXNWBT_MANL.qx:29WXNWBT_MANL.qx 1/7/09 4:26 PM Page 22
Operation
Operation
PA (Public
Address)
2524
PA (Public Address)
Connect an external PA speaker to the PA jack
on the rear panel.
Set CB/PA switch to PA position.
Push and hold microphone button and speak
in a normal voice. Your voice will now transmit
on the PA speaker.
Adjust PA speaker volume with the
Dynamike control.
Note
Speaker should have 8-ohm
impedance and be rated to
handle at least 4.0 watts.
Note
The speaker should be directed
away from the microphone to
prevent acoustic feedback.
Note
Activity on the CB channel will
be heard through the PA speak-
er. Adjust Volume Control to a
normal listening level.
1
2
3
4
CH19
CH9
NOR
HI
WEATHER
1
2
34
OFF
SIG 1 3 5 7 9 +30dB
2 3 CAL
RF
SWR
RF
S/RF
SWR
CAL
NB/
ANL
ANL
OFF
CB
PA
CH19
CH9
NOR
MIN MAX MIN MAXOFF
VOL SQL
CB
WX
29 WX NW
WEATHERRF GAIN
DYNA DI M
1
2
34
SIG 1 3 5 7 9 +30dB
2 3 CAL
RF
SWR
RF
S/RF
SWR
CAL
NB/
ANL
ANL
OFF
CB
PA
CH19
CH9
NOR
MIN MAX MIN MAXOFF
VOL SQL
CB
WX
29 WX NW
RX/TX
WX
WEATHERRF GAIN
DYNA DI M
7
16
25
34
ANT
T BACK SWR CAL
29WXNWBT_MANL.qx:29WXNWBT_MANL.qx 1/7/09 4:26 PM Page 24
Operation
Operation
27
26

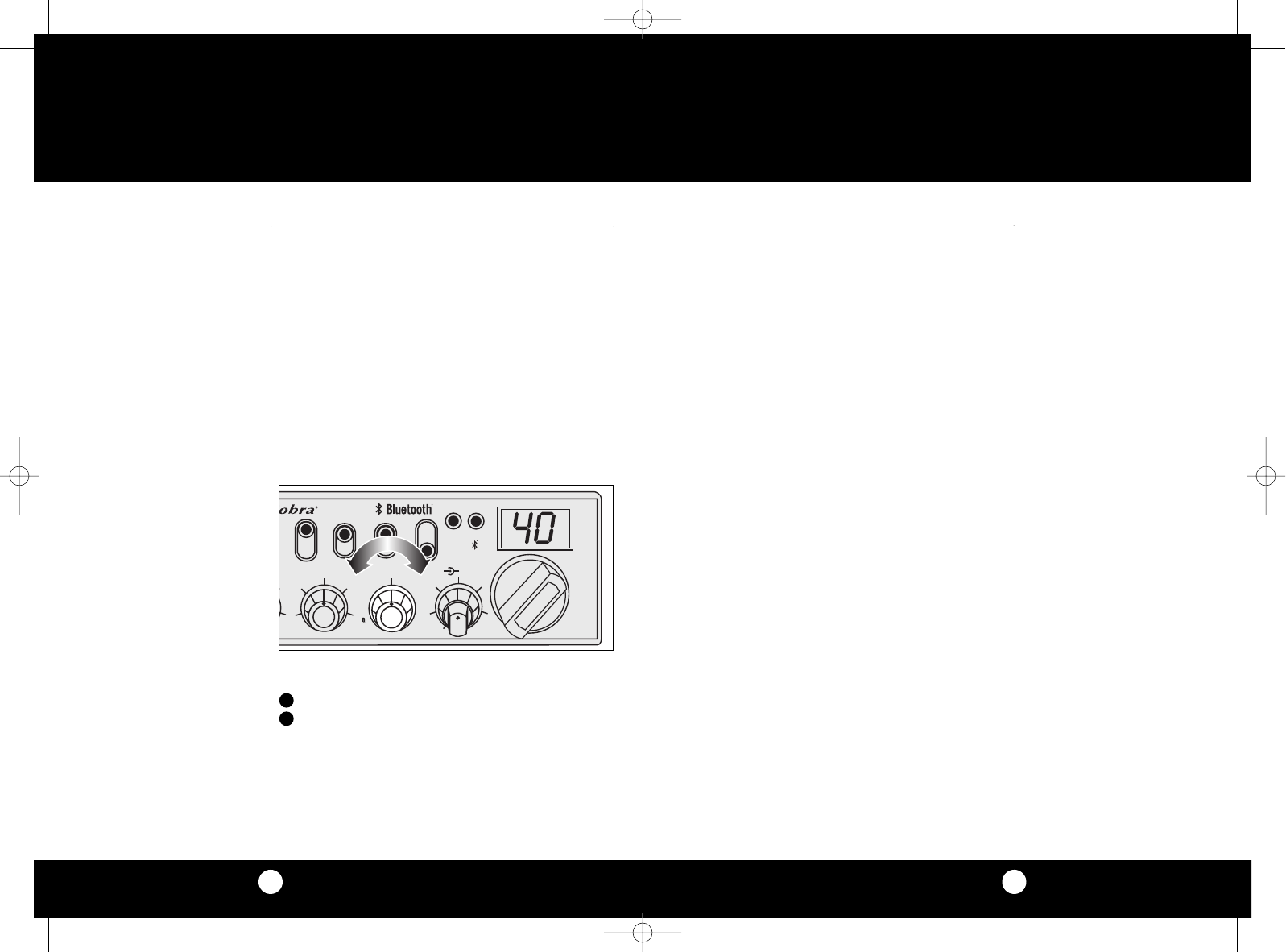

Weather
Information
When CB/WX is on WX position Weather Receiver
is activated.

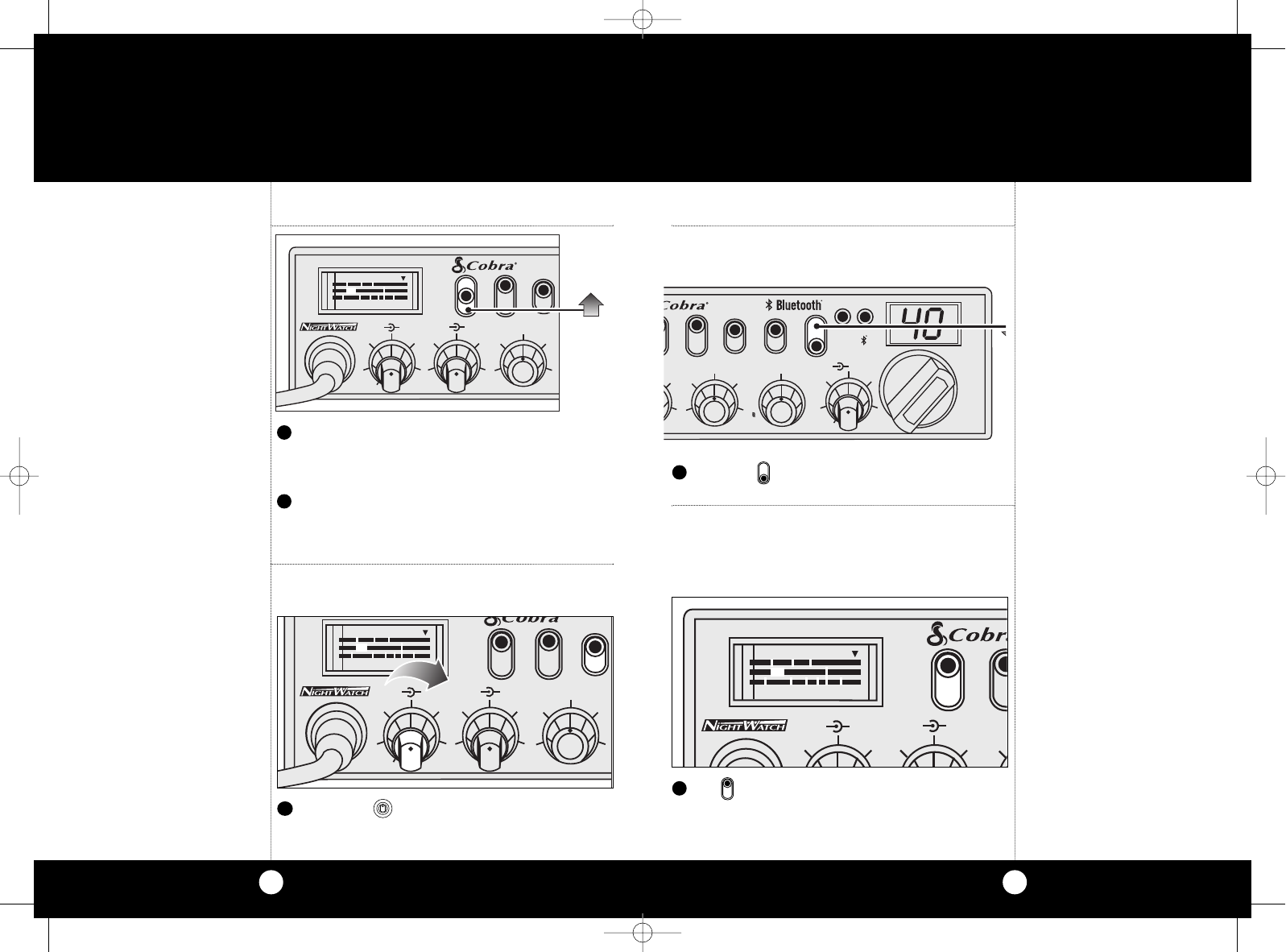

Place CB/WX Switch in the WX position.
Turn the Weather Channel Selector (1-7) until
you find the Weather Channel with the clear-
est reception. Sometimes more than one
channel can be received, however, the closest
broadcast to you will be the one with the
clearest signal.
Operating Weather Channel Selector
SIG 1 3 5 7 9 +30dB
2 3 CAL
RF
SWR
RF
S/RF
SWR
CAL
NB/
ANL
ANL
OFF
CB
PA
CH19
CH9
NOR
MIN MAX MIN MAXOFF
VOL SQL
CB
WX
29 WX NW
RX/TX
WX
WEATHERRF GAIN
DYNA DI M
7
16
25
34
ANT
T BACK SWR CAL
Note
For a list of weather frequencies
see specification in the
Frequency Ranges section on
page 34.
If you wish to receive a listing of
NOAA ‘Weather Radio
Transmitter locations, contact
your nearest National Weather.
Service Office, or write to:
National Weather Service
(Attn: W/OM11) NOAA
Silver Springs, MD 20910.
For ideal weather reception use
a dual band antenna (center
load/baseload).
What You Should Know About Weather
If threatening weather is nearby, the National
Weather Service may broadcast a 10 second alert
tone. This tone will be heard through the CB, even
if the CB/WX Switch is in the CB mode or the unit
is turned off.
This enables you to monitor CB frequencies and
still be warned by the National Weather Service
Emergency Alert. When you hear the alert, place
the CB/WX switch in the WX position. You will
then be able to hear the Weather Warning
Broadcast.
You can completely disable the Emergency
Weather Alert feature by turning the Weather
Channel Selector to the position.
Your 29 WX NW BT has a special auto squelch cir-
cuit for weather transmission which disables your
squelch control.
If you are using the CB mode, remember to
change the CB/WX Switch from CB to WX every so
often to make sure you are continually tuned to
the clearest/closest weather band channel in case
an alert is broadcast.
Weather Radio
Weather
Channels
What is Weather Radio
NOAA Weather Radio (NWR) is a service of the
National Oceanic and Atmospheric Administration
(NOAA), of the U.S. Department of Commerce. 380
NWR stations are in operation by the U.S.
Government in addition to several NWR stations
that are maintained by private interest groups. The
capability is to supplement warnings by sirens and
by commercial radio and television.
The 7 National
Weather Channels provide full coverage to keep
you informed of weather conditions, 24 hours a
day, 7 days a week.
1
2
ø
29WXNWBT_MANL.qx:29WXNWBT_MANL.qx 1/7/09 4:26 PM Page 26
Temporary Mobile Set-Up
29
Base Station
Operation
(From 120V AC
House Current)
Temporary
Mobile Set-Up
Temporary Mobile Operation
For temporary mobile operation you may want to
purchase an optional cigarette lighter adapter
from your COBRA dealer. This adapter and a mag-
netic mount antenna allow you to quickly “install”
your transceiver for temporary use.
Base Station Operation
(From 120V AC House Current)
To operate your transceiver from home or office
you will need a 13.2 volt DC Power Pack rated at a
minimum of 2 amps, and a properly installed base
station antenna.

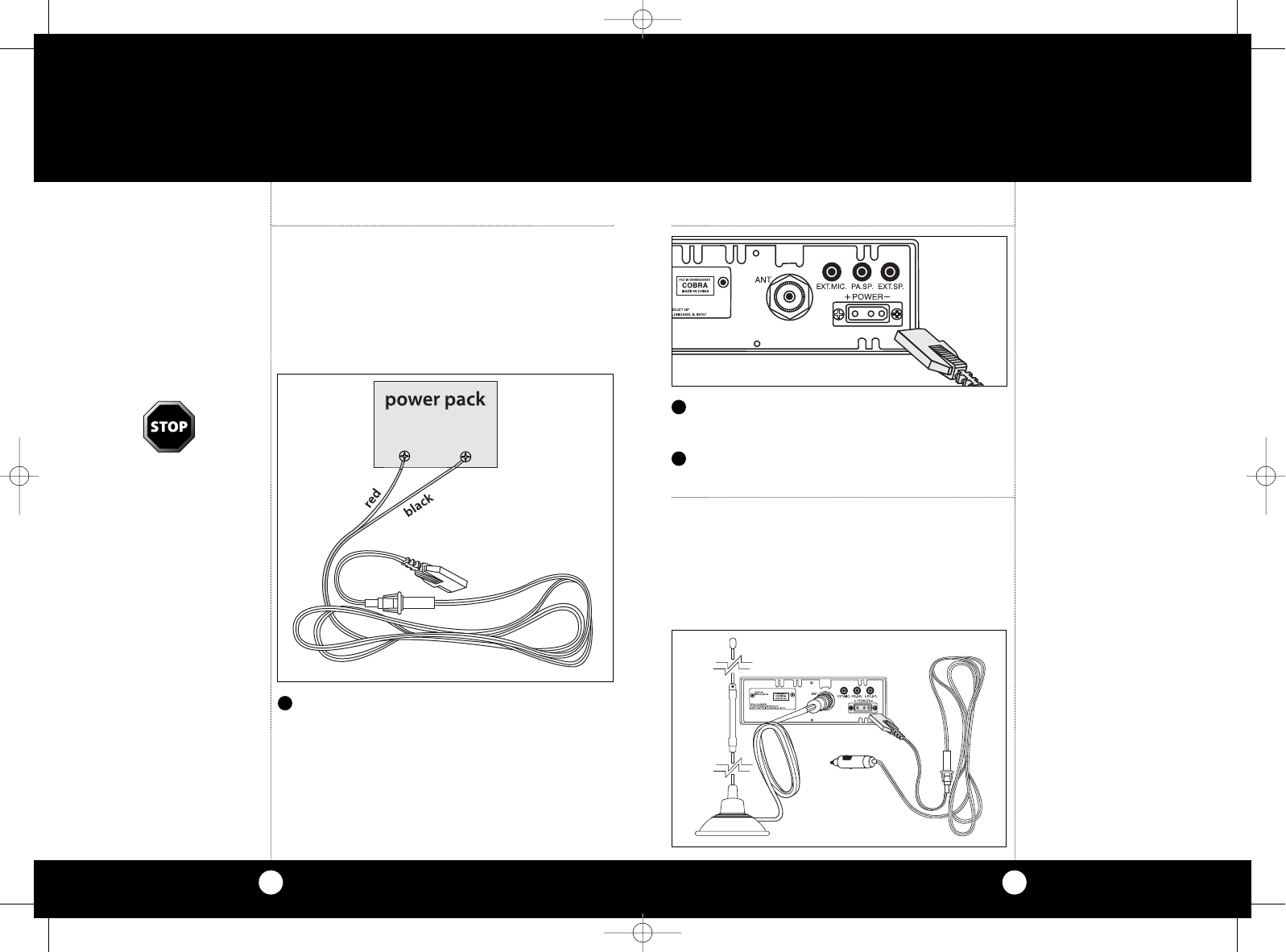

Home And Office Set-Up
28
Warning!
Do not attempt to operate this
transceiver by connecting it
directly to 120V AC.
Note
For further information call
Cobra Customer Service
1.773.889.3087.
1
Connect properly installed and matched base
station antenna.
Simply connect the red (+) and black (-)
leads of the transceiver to the corresponding
terminals of the power pack.
Plug power cable into back of unit marked
“Power”. Be sure to observe polarity markings.
2
3
+—
29WXNWBT_MANL.qx:29WXNWBT_MANL.qx 1/7/09 4:26 PM Page 28
How Your CB Can Serve You
How Your CB Can Serve You
3130
The FCC gives these examples of permitted and
prohibited messages for channel 9. These are
only guidelines and not all-inclusive:
Permitted Example Message
Yes “Tornado sighted six miles north
of town.”
No “Post number 10.
No tornado sighted.”
Yes “Out of gas on I-95 at mile
marker 211.”
No “Out of gas in my driveway.”
Yes “Four car accident on I-94 at
Exit 11. Send police and
ambulance.”
No “Traffic moving smoothly on I-94.”
Yes “Weather Bureau has issued
thunderstorm warning.
Bring sailboat into port.”
No “Attention motorists.
Weather Bureau advises snow
tomorrow will accumulate
4 to 6 inches.”
Yes “Fire in building at 539 Main,
Evanston.”
No “Halloween patrol number 3.
All quiet.”
1. Set to channel 9 for emergencies
Be sure antenna is properly connected.
2. CB Distress Data
When transmitting an emergency, you should
request a “REACT BASE” and provide the CB
distress data (called CLIP):
Call Sign Identify yourself.
Location Be exact.
Injuries Number. Type. Trapped?
Problem Give details and help needed.
Transmit CLIP repeatedly so any monitor can assist.
Channel 9
Emergency
Messages
Note
If no response on channel 9,
try channels 19 or 14.
• Warn of traffic problems
• Provide weather and road data
• Provide help in event of an emergency
• Provide direct contact with home or office
• Assist police by reporting erratic drivers
• Get “local information” to find destination
• Communicate with family and friends
• Suggest spots to eat and sleep
• Keep you alert while traveling
A Few Rules You Should Know
A. Conversations cannot last more than 5 minutes
with another station. A one minute break is
required to let others use the channel.
B. You cannot blast others off the air by use of
illegally amplified transmitters or illegally
high antennas.
C. You cannot use CB to promote illegal activities.
D. Profanity is not allowed.
E. You may not transmit music with a CB.
F. Selling of merchandise and/or services is
prohibited.
A Few Rules
You Should
Know
29WXNWBT_MANL.qx:29WXNWBT_MANL.qx 1/7/09 4:26 PM Page 30
How Your CB Can Serve You
How Your CB Can Serve You
3332
Code Meaning
10-29 Time is up for contact
10-30 Does not conform to FCC rules
10-33 Emergency traffic
10-34 Trouble at this station
10-35 Confidential information
10-36 Correct time is
10-37 Wrecker needed at
10-38 Ambulance needed
10-39 Message delivered
10-41 Turn to channel
10-42 Traffic accident at
10-43 Traffic tie up at
10-44 Have a message for
10-45 All units within range please report
10-50 Break channel
10-60 What is next message number?
10-62 Unable to copy. Use phone
10-63 Net directed to
10-64 Net clear
10-65 Awaiting your next message/assignment
10-67 All units comply
10-70 Fire at
10-71 Proceed, transmission in sequence
10-77 Negative contact
10-81 Reserve hotel room for
10-82 Reserve room for
10-85 My address is
10-91 Talk closer to mic
10-93 Check my frequency on this channel
10-94 Give me a long count
10-99 Mission completed, all units secure
10-200 Police needed at
CB 10-Codes
Citizen Bands have adopted the “10-CODES” for
standard questions and answers. These codes
provide quick and easy communication, especially
in noisy areas. Following are some of the more
common codes and meanings:
Code Meaning
10-1 Receiving poorly
10-2 Receiving well
10-3 Stop transmitting
10-4 OK, message received
10-5 Relay message
10-6 Busy, stand by
10-7 Out of service, leaving
10-8 In service, subject to call
10-9 Repeat message
10-10 Transmission completed standing by
10-11 Talking too rapidly
10-12 Visitors present
10-13 Advise weather/roads
10-16 Make pick up at
10-17 Urgent business
10-18 Anything for us?
10-19 Return to base
10-20 My location is
10-21 Call by phone
10-22 Report in person to
10-23 Stand by
10-24 Completed last assignment
10-25 Can you contact
10-26 Disregard last info
10-27 Moving to channel
10-28 Identify your station
CB 10-Codes
29WXNWBT_MANL.qx:29WXNWBT_MANL.qx 1/7/09 4:26 PM Page 32
29 WX NW BT Specifications
Frequency Ranges
3534
GENERAL
CHANNELS . . . . . . . . . . . . . . . . . . . . . . . . CB - 40 CH
FREQUENCY RANGE CB - 26.965 TO 27.405 MHZ
WX - 162.400 TO 162.550 MHZ
FREQUENCY TOLERANCE . . . . . . . . . . . 0.005 %
FREQUENCY CONTROL . . . . . . . . . . . . PLL (PHASE LOCK LOOP) SYNTHESIZER
OPERATING TEMPERATURE
RANGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . -30° C TO + 50° C
MICROPHONE . . . . . . . . . . . . . . . . . . . . . PLUG-IN DYNAMIC
INPUT VOLTAGE . . . . . . . . . . . . . . . . . . . 13.2VDC nom. (positive or negative ground)
CURRENT DRAIN TRANSMIT: AM FULL MOD., 1.5A (MAXIMUM)
RECEIVE: SQUELCHED, 0.3A;
FULL AUDIO OUTPUT, 1.2A (NOMINAL)
SIZE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-5/8” D X 7-9/32” W X 2-13/63” H
WEIGHT . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 LBS.
ANTENNA CONNECTOR . . . . . . . . . . . .UHF; SO-239
METER . . . . . . . . . . . . . . . . . . . . . . . . . . . . .ILLUMINATED; INDICATES RELATIVE
POWER OUTPUT RECEIVED
SIGNAL STRENGTH, AND VSWR
Bluetooth Range 33' (10 meters)
TRANSMITTER
POWER OUTPUT . . . . . . . . . . . . . . . . . . .4 WATTS
MODULATION . . . . . . . . . . . . . . . . . . . . .AM (AMPLITUDE MODULATION)
FREQUENCY RESPONSE . . . . . . . . . . . .300 TO 3000 HZ
OUTPUT IMPEDANCE . . . . . . . . . . . . . . .50 OHMS, UNBALANCED
RECEIVER
SENSITIVITY . . . . . . . . . . . . . . . . . . . . . . . .LESS THAN 1 µV FOR 10 dB (S+N) /N
SELECTIVITY . . . . . . . . . . . . . . . . . . . . . . .6 dB @ 7 KHZ, 60 dB @ 10KHZ
IMAGE REJECTION . . . . . . . . . . . . . . . . . .80 dB, TYPICAL
ADJACENT-CHANNEL REJECTION . . .60 dB, TYPICAL
IF FREQUENCIES . . . . . . . . . . . . . . . . . . .DOUBLE CONVERSION: 1ST: 10.695 MHZ
2ND: 455 KHZ
AUTOMATIC GAIN CONTROL (AGC) .LESS THAN 10 dB CHANGE IN AUDIO
OUTPUT FOR INPUTS FROM 10 TO 50,000
MICROVOLTS
RF GAIN RANGE . . . . . . . . . . . . . . . . . . . .40 dB
NOISE BLANKER . . . . . . . . . . . . . . . . . . . .RF TYPE
SQUELCH . . . . . . . . . . . . . . . . . . . . . . . . . .ADJUSTABLE; THRESHOLD LESS THAN 1µV
AUDIO OUTPUT POWER . . . . . . . . . . . .4 WATTS
FREQUENCY RESPONSE . . . . . . . . . . . .300 TO 3000 HZ
DISTORTION . . . . . . . . . . . . . . . . . . . . . . .LESS THAN 7% @3 WATTS @ 1000 HZ
BUILT-IN SPEAKER . . . . . . . . . . . . . . . . . .8 OHMS, 5W
EXTERNAL SPEAKER (NOT SUPPLIED) .8 OHMS; DISABLES INTERNAL SPEAKER
WHEN CONNECTED
PA SYSTEM
POWER OUTPUT . . . . . . . . . . . . . . . . . . .4 WATTS INTO EXTERNAL SPEAKER
EXTERNAL SPEAKER FOR PA . . . . . . . .8 OHMS 4 WATTS MIN.
(NOT SUPPLIED) . . . . . . . . . . . . . . . . . . . .THE PA SPEAKER ALSO MONITORS THE
RECEIVER; SEPARATE JACK PROVIDED
(SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE)
The COBRA 29 WX NW BT transceiver represents
one of the most ad vanced AM two-way radios used
as a Class D station in the Citizens Radio Service.
This unit features advanced Phase Lock Loop (PLL)
circuitry providing complete cov er age of all 40 CB
chan nels.
1 26.965 21 27.215 1 162.400
2 26.975 22 27.225 2 162.425
3 26.985 23 27.255 3 162.450
4 27.005 24 27.235 4 162.475
5 27.015 25 27.245 5 162.500
6 162.525
6 27.025 26 27.265 7 162.550
7 27.035 27 27.275
8 27.055 28 27.285
9 27.065 29 27.295
10 27.075 30 27.305
11 27.085 31 27.315
12 27.105 32 27.325
13 27.115 33 27.335
14 27.125 34 27.345
15 27.135 35 27.355
16 27.155 36 27.365
17 27.165 37 27.375
18 27.175 38 27.385
19 27.185 39 27.395
20 27.205 40 27.405
Channel Channel
CB Freq. CB Freq. WX Freq.
Channel In MHz Channel In MHz Channel In MHz
29WXNWBT_MANL.qx:29WXNWBT_MANL.qx 1/7/09 4:26 PM Page 34

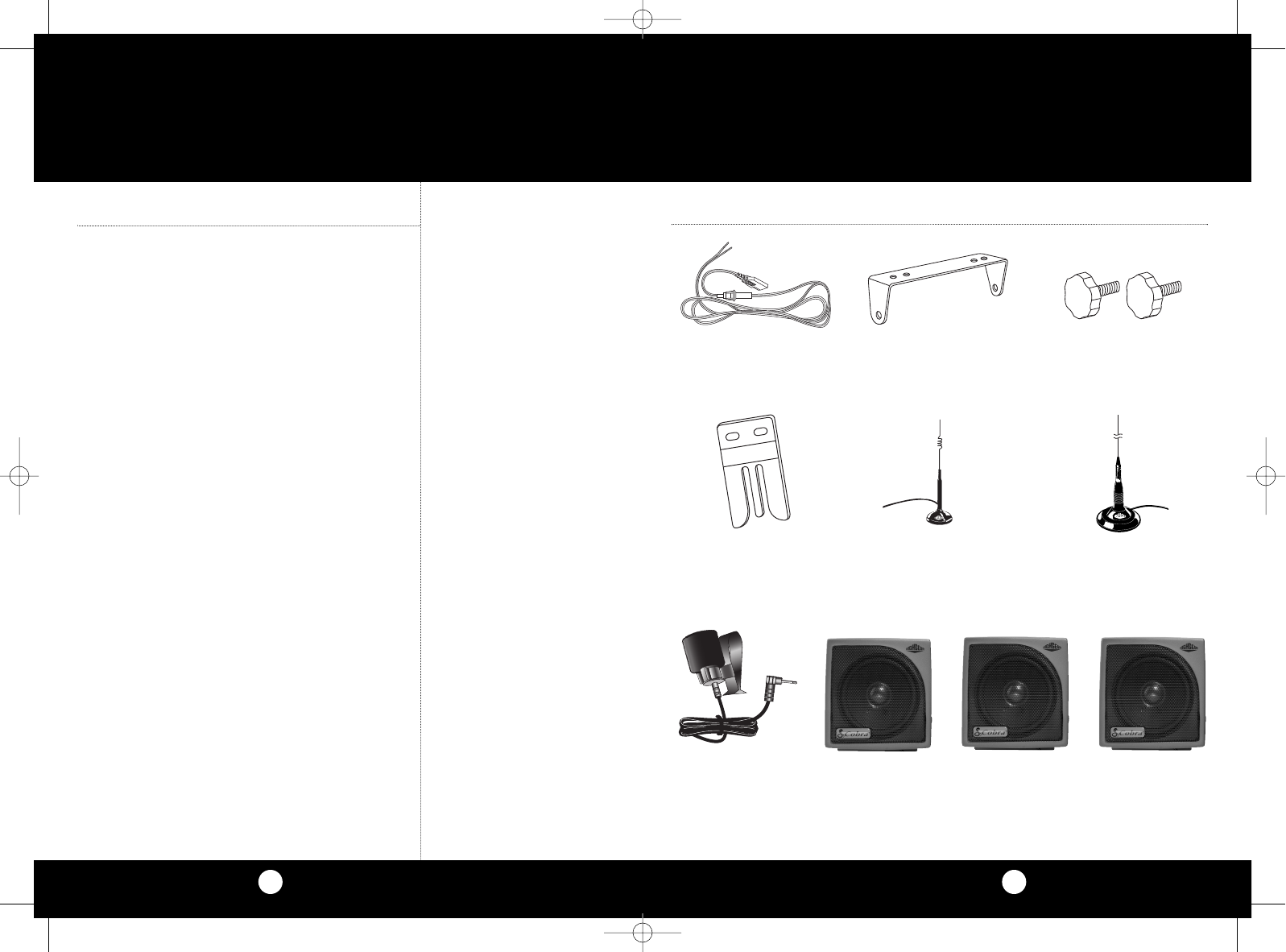

Optional Accessories
3736
COBRA ELECTRONICS CORPORATION warrants that its
COBRA CB Radios, and the com po nent parts thereof, will
be free of defects in workmanship and materials for period
of two (2) years from the date of first consumer purchase.
This war ran ty may be enforced by the first consumer
pur chas er, pro vid ed that the product is utilized within
the U.S.A.
COBRA will, without charge, repair or replace, at its option,
de fec tive CB radios, products or com po nent parts upon
de liv ery to the COBRA factory Service Department, ac com -
pa nied by proof of the date of first consumer pur chase,
such as a du pli cat ed copy of a sales receipt.
You must pay any initial shipping charges required to ship
the product for warranty service, but the return charges
will be at Cobra's expense, if the product is repaired or
replaced under warranty.
Exclusions: This limited warranty does not apply; 1) to any
product dam aged by accident; 2) in the event of misuse or
abuse of the product or as a result of un au tho rized alter-
ations or repairs; 3) if the serial number has been altered,
defaced or re moved; 4) if the owner of the product resides
outside the U.S.A.
All implied warranties, including war ran ties of
mer chant abil i ty and fitness for a par tic u lar purpose
are limited in duration to the length of this warranty.
COBRA shall not be liable for any incidental, con se -
quen tial or oth er dam ag es; including, without lim i ta -
tion, damages re sult ing from loss of use or cost of in stal -
la tion.
Some states do not allow limitations on how long an
implied warranty lasts and/or do not allow the ex clu -
sion or limitation of incidental or con se quen tial dam -
ag es, so the above lim i ta tions may not apply to you.
Cobra Electronics
Corporation
6500 West Cortland Street
Chicago, Illinois 60707
www,cobra.com
Limited Two Year Warranty
Replacement DC Power Cord
For in vehicle use
426-002-N-001
Replacement Mounting
Bracket
For in vehicle use
251-353-9-001
Replacement Thumb Screws
For in vehicle use
634-081-9-001
Replacement Microphone
Bracket
For in vehicle use
741-080-9-001
21” Base Loaded Magnet
Mount Antenna
HG A1000
38” Base Loaded Magnet
Mount Antenna
HG A1500
Replacement External
Bluetooth Microphone
MNA MIC
Dynamic External
Speaker
HG S100
Noise Canceling
External Speaker
HG S300
Noise Canceling
With Talk Back
External Speaker
HG S500
You can find quality Cobra products and accessories at your local Cobra dealer, or in the
U.S.A., you can order directly from Cobra. See ordering info on page 38.
29WXNWBT_MANL.qx:29WXNWBT_MANL.qx 1/7/09 4:26 PM Page 36
3938
Optional Accessories
Ordering From U.S.A.
Call 773-889-3087 for pricing or visit www.cobra.com.
For Credit Card Orders
Call 773-889-3087 [Press one from the main menu] 8:00 a.m.
to 5:30 p.m. Central Time, Monday through Friday.
Make Check or Money Order Payable To
Cobra Electronics, Attn: Accessories Dept.,
6500 West Cortland Street, Chicago, IL 60707 U.S.A.
To Order Online
Please visit our website: www.cobra.com
Notes
29WXNWBT_MANL.qx:29WXNWBT_MANL.qx 1/7/09 4:26 PM Page 38
SIG 1 3 5 7 9 +30dB
23 CAL
RF
SWR
RF
S/RF
SWR
CAL
NB/
ANL
ANL
OFF
CB
PA
CH19
CH9
NOR
MIN MAX MIN MAXOFF
VOL SQL
CB
WX
29 WX NW
RX/TX
WX
WEATHERRF GAIN
DYNA DI M
7
16
25
34
ANT
T BACK SWR CAL
The Citizens Band lies between the shortwave
broadcast and 10-meter Amateur radio bands,
and was established by law in 1949. The Class D
two-way communications service was opened in
1959. (CB also includes a Class A citizens band
and Class C remote control frequencies.)
FCC Regulations
FCC regulations permit only “transmissions”
(one party to another) rather than “broadcasts”
(to a wide audience). Thus, advertising is not
allowed on CB Channels because that is “broad-
casting.”
FCC Warnings
All transmitter adjustments other than those
supplied by the manufacturer as front panel
operating controls, must be made by, or under
the supervision of, the holder of an FCC-issued
General Radio-Telephone Operator’s License.
Replacement or substitution of transistors, regular
diodes or other parts of a unique nature, with
parts other than those recommended by Cobra,
may cause violation of the technical regulations
of Part 95 of the FCC Rules, or violation of Type
Acceptance requirements of Part 2 of the Rules.
You should read and understand Part 95 (included
with this unit) of the FCC Rules and Regulations,
before operating your Cobra radio, even though
the FCC no longer requires you to obtain an oper-
ator’s license.
What’s Included with Your 29 WX NW BT
1. CB transceiver 6. Operating Manual
2. Microphone 7. DC power cord
3. External Bluetooth®Mic 8. FCC rules
4. Transceiver bracket (not shown)
5. Microphone bracket
29 WX NW BT
©2008 Cobra Electronics Corporation
Printed in China
Part No. 480-532-P-001 Version A
CB Radio
Nothing Comes Close to a Cobra®
Operating Instructions
for your Cobra 29 WX NW BT
The CB Story
A1
For technical assistance, please call our Automated Help Desk which can assist
you by answering the most frequently asked questions about Cobra products.
(773) 889-3087
24 hours a day, 7 days a week.
A Consumer Service Representative can be reached through this same number
8:00 am - 5:30 pm, Monday through Friday, Central Time.
Technical assistance is also available on-line in the Frequently Asked Questions (FAQ) section at
www.cobraelec.com or by e-mail to productinfo@cobra.com
If you think you need service call 1.773.889.3087
“If your product should require factory service please call Cobra first before sending your unit in.
This will ensure the fastest turn-around time on your repair.”
You may be asked to send your unit to the Cobra factory. It will be necessary to furnish the follow-
ing in order to have the product serviced and returned.
1. For Warranty Repair include some form of proof-of-purchase, such as a mechanical reproduction
or carbon or a sales receipt. If you send the original receipt it cannot be returned.
2. Send the entire product.
3. Enclose a description of what is happening with the unit. Include a typed or clearly print name
and address of where the unit is to be returned.
4. Pack unit securely to prevent damage in transit. If possible, use the original packing material.
5. Ship prepaid and insured by way of a traceable carrier such as United Parcel Service (UPS) or First
Class Mail: to avoid loss in transit to: Cobra Factory Service, Cobra Electronics Corporation, 6500
W. Cortland St., Chicago, IL 60707.
6. If the unit is in warranty, upon receipt of your unit it will either be repaired or exchanged
depending on the model. Please allow approximately 3 to 4 weeks before contacting us for
status. If the unit is out of warranty a letter will automatically be sent informing you of the
repair charge or replacement charge. If you have any questions, please call 1.773.889.3087 for
assistance.
Trademark Info
Cobra®, Dynamike®, Nothing Comes Close to a Cobra® and the snake design are registered
trademarks of Cobra Electronics Corporation, USA.
Cobra Electronics Corporation™ is a trademark of Cobra Electronics Corporation, USA.
The Bluetooth® word mark and logo are registered trademarks owned by Bluetooth SIG, Inc.
If You Think You Need Service
3
2
5
6
1
cb tranceiver
4
29WXNWBT_MANL.qx:29WXNWBT_MANL.qx 1/7/09 4:26 PM Page 40
Thank you for purchasing the Cobra 29 WX NW BT
CB Radio. Properly used, this Cobra product will
give you many years of reliable service.
Customer Support
Should you encounter any problems with the
product or not understand its many features,
please refer to this owner’s manual. If , after
referring to the manual, you still need help,
call Cobra Customer Service at 773.889.3087.
Controls and Indicators
Cobra Customer Service
Live operators are available
M-F 8:00 am - 5:30 pm Central
Time at: 773-889-3087
Automated Technical Assistance
available 24 hours a day, seven
days a week. E-mail questions
to: productinfo@cobra.com
Cobra on the World Wide Web:
Frequently Asked Questions
(FAQ) can be found on-line at:
www.cobra.com
Our Thanks to You
A3
A2
1. 6-Pin Microphone
Connector
2. Power On/Off, Volume
3. Squelch
4. Dynamike
5. Dimmer
6. RF Gain
7. Weather Channel Selector
8. Talk Back Selector
9. SWR Calibration
10. Channel Selector
11. LED Channel Display
12. ANT/Bluetooth®Indicator
13. RX (Receive)/TX (Transmit),
WX (Weather) LED Indicator
14. Channel 19/Channel 9/
Normal Switch
15. CB/WX Weather Switch
16. CB/PA Switch
17. NB/ANL ANL Off Switch
18. S/RF SWR CAL Switch
19. Signal Strength Meter
Microphone
Back Side
20. External Mic Jack
21. Public Address Speaker
Jack
22. External Speaker Jack
23. Antenna Connector
24. Power Jack
12 4
5
3
SIG 1 3 5 7 9 +30dB
2 3 CAL
RF
SWR
RF
S/RF
SWR
CAL
NB/
ANL
ANL
OFF
CB
PA
CH19
CH9
NOR
MIN MAX MIN MAXOFF
VOL SQL
CB
WX
29 WX NW
RX/TX
WX
WEATHERRF GAIN
DYNA DIM
7
16
25
34
ANT
T BACK SWR CAL
678
23 24
19 11
12
13
20 21
14
15
16
17
18
19
Intro Operation Customer
Assistance
Warranty
Notice
Main Icons
Secondary Icons
Caution Warning
Installation Customer
Assistance
NOTE
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two (2) conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received,
including interference that may cause undesired operation.
The manufacturer is not responsible for any radio or tv inter-
ference caused by unauthorized modifications to this equip-
ment. Such modifications could void the user’s authority to
operate the equipment.
9
22
10
29WXNWBT_MANL.qx:29WXNWBT_MANL.qx 1/7/09 4:26 PM Page 43

Navigation menu
