Code Gears CGVID24 Bluetooth Sensor for KINDOO Smart System User Manual Manuel Kindoo EN
Code Gears LTD Bluetooth Sensor for KINDOO Smart System Manuel Kindoo EN
user manual

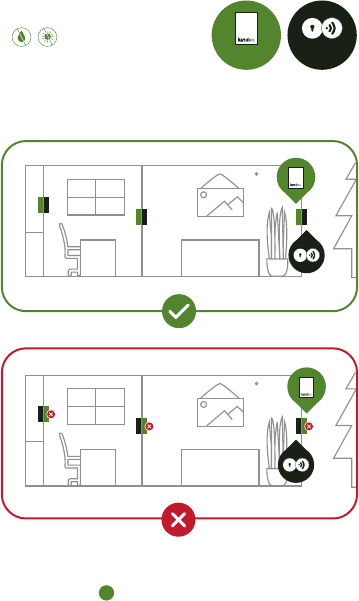

INSTALLATION
www.kindoo.tech/installation
?
RECEPTIONOFFICESAFE OUTSIDE
RECEPTIONOFFICESAFE OUTSIDE
THE KIN THE PIN

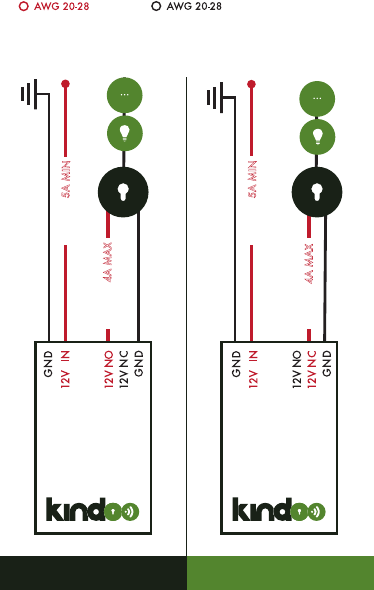

WIRING DIAGRAM
OR OTHER 12V DC CIRCUIT
FAIL SAFEFAIL SECURE
12V DC - 4A MAX
12V DC - 4A MAX
OR OTHER 12V DC CIRCUIT
12V DC - 5A MIN
12V DC - 5A MIN
IMPORTANT: Wiring should be done carefully. A wrong polarity in
the input will irreversibly damage the KIN !
Single Core Single Core

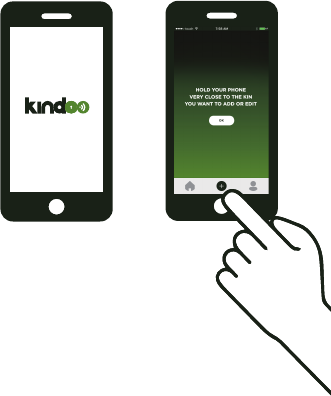

SETUP
For details, you can consult our website
www.kindoo.tech or send us an email
to support@kindoo.tech
ENG
WARNING
This product shall only be connected to an external
power supply rated at 12V DC with a minimum current of
5A for input, and has an output voltage of 12V DC with
a maximum current 4A. Any external power supply used
with the KIN shall comply with relevant regulations and
standards applicable in the country of intended use.
The connection of incompatible devices to the KIN may
affect compliance or result in damage to the unit and
invalidate the warranty.
When commanding a lock with KINDOO, make sure
you place your KIN in an environment that is physically
unreachable by ill intended individuals. (Check the
installation graphics)
Use single core wires in order to avoid shorts when
attaching to the connection terminals of the KIN.
This Limited Warranty applies to KINs, and only for the
KINs purchased from your local reseller.
The Warranty Period for KINs is 1 year from date of
purchase.
A replacement KIN has a warranty period of 1 year
from date of replacement.
To obtain warranty service, please contact your local
reseller.
This Limited Warranty does not cover any problem
that is caused by: Conditions, malfunctions or damage
not resulting from defects in material or workmanship.
WARRANTY DISCLAIMER
IMPORTANT: Wiring should be done carefully. A wrong
polarity in the input will irreversibly damage the KIN !
ENG
KINDOO is a product of Code Gears LTD
Palm Grove House Wickhams Cay Road Town
Tortola British Virgin Islands.
INSTRUCTIONS FOR SAFE USE
To avoid malfunction or damage to your KIN please
observe the following:
Do not expose it to water or moisture.
Do not expose it to heat from any source: the KIN is
designed for reliable operation at normal ambient
room temperatures.
Take care whilst handling to avoid mechanical or
electrical damage to the circuit board and
connectors.
NC stands for Normally Closed Circuit
NO stands for Normally Open Circuit
When using KINDOO and any related Hardware or
Software you fully agree to all the terms of KINDOO
GENERAL TERMS AND CONDITIONS defined on
our website :
www.kindoo.tech/generaltermsandconditions.
If you do not agree with any of the terms please return
the package and the devices unused and unworn.
END USER
ACKNOWLEDGMENT
CE Compliance Statement
This device is in compliancewith the essential requierments
and other relevant provisions of the Radio Equipment Directive 2014/53/EU
FCC Compliance Statement
This device complies with part 15 of the FCC rules.
Operation is subjectto the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference
that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help
