Users Manual

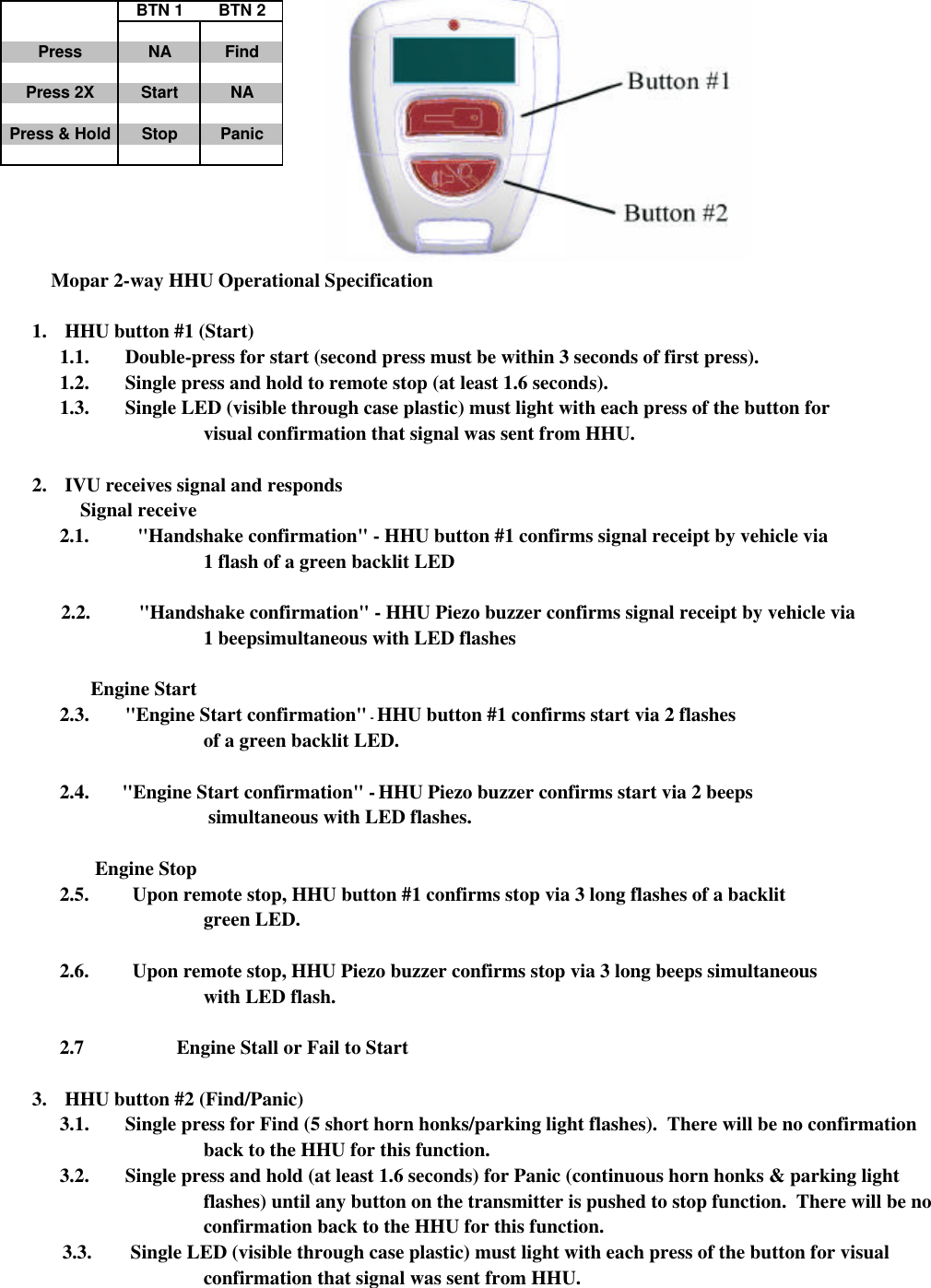

BTN 1 BTN 2Press NA FindPress 2X Start NAPress & Hold Stop PanicMopar 2-way HHU Operational Specification1. HHU button #1 (Start)1.1. Double-press for start (second press must be within 3 seconds of first press).1.2. Single press and hold to remote stop (at least 1.6 seconds).1.3. Single LED (visible through case plastic) must light with each press of the button forvisual confirmation that signal was sent from HHU. 2. IVU receives signal and responds2.1. "Handshake confirmation" - HHU button #1 confirms signal receipt by vehicle via 2.2. "Handshake confirmation" - HHU Piezo buzzer confirms signal receipt by vehicle via 1 beepsimultaneous with LED flashes2.3. "Engine Start confirmation" - HHU button #1 confirms start via 2 flashesof a green backlit LED.2.4. "Engine Start confirmation" - HHU Piezo buzzer confirms start via 2 beeps simultaneous with LED flashes.2.5. Upon remote stop, HHU button #1 confirms stop via 3 long flashes of a backlit green LED.2.6. Upon remote stop, HHU Piezo buzzer confirms stop via 3 long beeps simultaneouswith LED flash.2.7 Engine Stall or Fail to Start3. HHU button #2 (Find/Panic)3.1. Single press for Find (5 short horn honks/parking light flashes). There will be no confirmationback to the HHU for this function.3.2. Single press and hold (at least 1.6 seconds) for Panic (continuous horn honks & parking lightflashes) until any button on the transmitter is pushed to stop function. There will be noconfirmation back to the HHU for this function.confirmation that signal was sent from HHU. 3.3. Single LED (visible through case plastic) must light with each press of the button for visual Engine StopSignal receiveEngine Start1 flash of a green backlit LED
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions.1) This device may not cause harmful interference, and2) This device must accept any interference received, including interference that may cause undesiredoperation.Per FCC 15.21, you are cautioned that changes or modifications not expressly approved by the part responsiblefor compliance could void the user’s authority to operate the equipment.
