Owner's Manual
Remote Vehicle Control System
IMPORTANT NOTE: The operation of the Power Elite as described in this
manual is applicable to most vehicles. However, due to the engine type
and configuration of some vehicles (i.e. diesel engines), some functions
AND/OR SAFETY PRECAUTIONS may not apply. Please see your
installing dealer for more information.
PC 4100
TM
Vehicle Security System
100415-7
2
Table of Contents
Features and Benefits of the Power Elite PC 4100TM ...................... 3
Using Your Remote Transmitter .............................................. 4
Arming the Security System
Pre-arm Mode
Disarming the Security System
Attempted Intrusion Identification
Disabling the IT-sTM Interior Theft Sensor ............................... 5
Two-Stage Door Unlock
Activating the Trunk Release Feature
Personal Protection Alarm (Panic)
Using Valet Mode
When Your Security System is Triggered ............................... 6
Automatic Convenience Options ............................................ 6
The Interior Status Indicator .................................................... 6
System Maintenance ................................................................ 7
Changing the Remote Control Battery
Adding Remote Controls to Your System
Deleting Lost or Stolen Remote Controls from Your System
Basic Troubleshooting .............................................................. 8
Emergency Disarm Procedure ............................................ 9
Emergency Disarm Button Location
Installer Programmed Options
Your Code-Alarm, Inc. Limited Lifetime Warranty ............... 10
Code Alarm Theft Protection Plan ............................................11
3
Features and Benefits of the Power Elite PC 4100
TM
Two Easy-to-Use Weather-Resistant Remote Controls
The remote controls included with the Power Elite PC 4100TM utilize
durable, moisture resistant cases and sealed rubber buttons for
reliability and long life. Rolling code technology prevents the
transmitter signals from being duplicated. The button functions are
clearly labeled to make the Power Elite PC 4100TM simple to operate.
All Entrances Protected
Opening any door or entrance protected by the security system
triggers the vehicle horn and flashes the vehicle parking lights.
Starter Disable
The Power Elite PC 4100TM protects your vehicle from theft by
disabling the starter when the system is armed.
IT-s
TM
Interior Theft Sensor
This patented sensor uses infra-red technology to reliably detect
vehicle impact associated with attempted intrusion. The IT-sTM
sensor guards against vehicle body damage, and theft of vehicle’s
equipment (such as airbags) and personal belongings.
Remote Keyless Entry
The Power Elite PC 4100TM conveniently locks and unlocks vehicle
doors and opens the trunk or hatch by remote control.*
Personal Protection Features
Remote Panic Alarm is among an array of features that enhance
personal safety.**
Interior Status Indicator
The bright-red warning light is an effective visual deterrent to a
would-be thief.
* If vehicle is equipped with power door locks and they are connected to the alarm system by your installer.
** May require additional connections, components, and/or charges. See your installer for details.
4
* Throughout this manual, ‘press’ refers to pressing for less than 1 second; ‘press and hold’ refers to
pressing for more than 1 second.
†If you have chosen the Silent Arming Option, the siren will not sound when arming or disarming until the
appropriate button is pressed a second time.
Press for Car Finder
Press and Hold for
Panic Alarm
Arming the Security System
To arm the system, exit the vehicle, close all doors, then press* the
ARM button. The horn** will “honk” twice† and the parking lights will
flash twice, indicating the system is armed. The doors will also lock at
this time (if equipped and connected). The status indicator (red
warning light on the dash) will blink steadily, once per second.
Pre-arm Mode
If the horn “honks” and the parking lights flash only once, this
indicates that the vehicle courtesy light is on, or that an entrance is
not closed securely. Check to see that doors, hood, and trunk are
properly closed. Once all entrances are secured (and the courtesy
light is off), the system will “honk” / flash again. The system is now fully
armed. (If the entrance is not secured within 4 minutes, the system will
arm and ignore the unsecured entrance until it is closed.)
Disarming the Security System
To disarm the system, press the DISARM button. The horn will “honk”
and the parking lights will flash once, and the doors will unlock.
The courtesy light will turn on for 1 minute, or until the vehicle is started.
Attempted Intrusion Identification
If the horn “honks” four times when disarming, this indicates that the
system was triggered in your absence. The status indicator will also
flash rapidly. Perform the following
operation to determine the protected
zone that triggered the system:
After disarming, press the
emergency override button.
The horn will “honk” to indicate
the cause of the alarm trigger:
1 chirp IT-s Interior Theft Sensor
2 chirps Door
3 chirps Hood
4 chirps Trunk/Optional Sensors
5 chirps Ignition was turned on

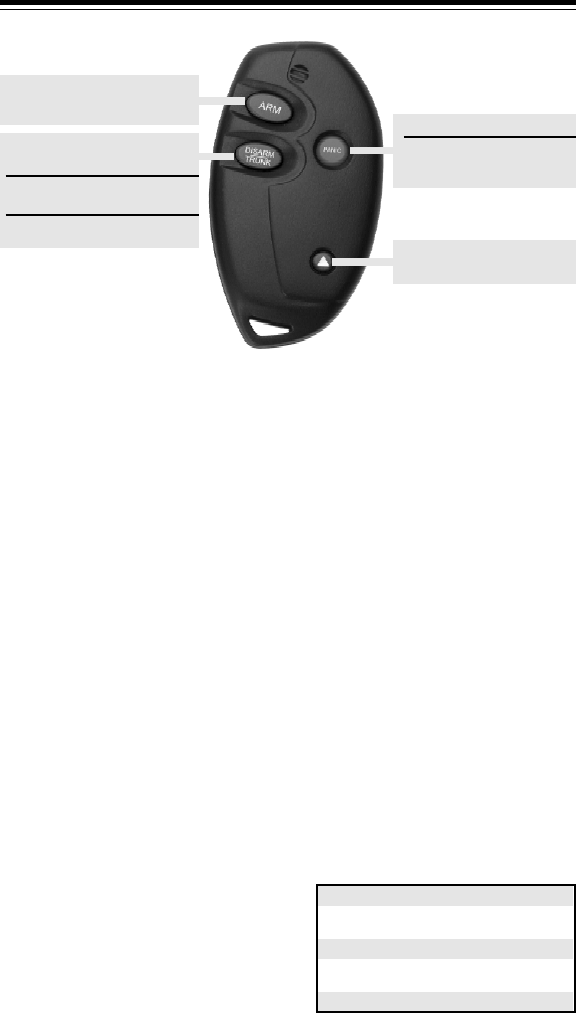

Using Your Remote Transmitter
Press for two-car
operation (SHIFT)
Press to ARM the Security
System and Lock Doors
Press to DISARM Security
System and Unlock Doors
Press TWICE for Two-Stage
Door Unlock*
Press and Hold to Open Trunk
5
Using Your Remote Transmitter
(cont.)
Disabling the IT-s
TM
Interior Theft Sensor
It may be necessary at times to disable the IT-sTM Interior Theft Sensor,
especially when parking in areas (like parking garages) where extreme
vibration may cause false alarms. Press the ARM button and then press
the FIND/PANIC button within two seconds of pressing ARM to disable
the interior theft sensor. The siren will chirp three times to indicate that
the sensor is disabled. The sensor will become enabled again the
next time the system is armed normally.
Two-Stage Door Unlock
If this feature is enabled on your system, pressing DISARM one time
will unlock only the driver’s door. Press DISARM again within 1 minute
to unlock all doors.
Activating the Trunk Release Feature
Press and hold TRUNK to open the vehicle trunk or hatch (if equipped
and connected). If this button is used to operate another accessory,
the accessory will stay active for as long as the button is held.
Personal Protection Alarm (Panic)
Press and hold the PANIC button to activate the vehicle horn and
parking lights for 30 seconds. Press any remote control button to turn
off the Panic alarm.
Using Second Car Mode
If this feature is enabled, one transmitter will control two vehicles equipped
with a Power EliteTM system. To operate the second vehicle, press the shift
button, then within two seconds, press the desired function button.
Using Valet Mode
If the Passive Arming feature is enabled on your system, Valet mode
temporarily prevents the alarm system from arming automatically.
This is useful when fueling or servicing your vehicle.
To enter Valet Mode:
With the vehicle ignition on, press the ARM button. The red dashboard
warning light (status indicator) will turn on for one second, then turn
off. This indicates that the system is in Valet mode. Once the ignition is
turned off, the status indicator will emit a quick double-flash pattern.
Note: In Valet mode, all keyless entry, convenience and remote start
features operate normally.
To exit Valet Mode:
With the vehicle ignition on, press the DISARM button. The red
dashboard warning light (status indicator) will turn on for one second,
then turn off. This indicates that the system has exited Valet mode.
Hint: To prevent your security system from automatically arming while
unloading or refueling your vehicle, without placing the system in
Valet mode, simply press the disarm button on your remote control
transmitter after turning the ignition key off. Doing so places your
system into a temporary or onetime Valet mode. Next time you exit
your vehicle the system will arm in the normal manner.
6
Automatic Convenience Options
The Power Elite PC 4100TM performs a variety of automatic functions
to enhance security and comfort. Some of these features are programmable
at the time of installation. Please see your installer for further details.
Automatic Arming
The Power Elite PC 4100TM will arm automatically 1 minute after the
key is removed from the ignition. This feature can be temporarily
disabled by placing the system into Valet mode.
Ignition Lock
If all doors are closed and the vehicle is started with the key, the doors
will automatically lock.
Ignition Unlock
When removing the key from the ignition, the doors will automatically
unlock.
When Your Security System is Triggered
The Power Elite PC 4100TM will trigger if one of the following events
occurs while the system is armed:
• Any protected entrance is opened
• The vehicle ignition is turned on
• The vehicle is jolted hard enough to signal the impact detector
Once the alarm is triggered, the horn sounds and the vehicle
parking lights flash for 30 seconds. The system will then re-arm,
awaiting the next intrusion attempt. To stop the horn while
keeping the alarm armed and doors locked: press the ARM
button while the system is triggered.
The Interior Status Indicator
The Status Indicator is a high-intensity red light mounted in a visible
location on the vehicle dashboard. This red light gives a visual
indication of the alarm system’s state of operation. Note the chart
below:
If the Status Indicator is... ....then the Security System
Off is disarmed
Flashing Slowly is armed
Flashing Very Quickly was triggered in your absence
(see Attempted Intrusion ID - page 4)
Flashing Intermittently is in Valet mode
(2 flashes, off, 2 flashes)
On (not flashing) is in Pre-arm mode
7
System Maintenance
Changing the Remote Control Battery
The two 3-v lithium batteries (CR2016) supplied in your remote control
should last approximately one year, depending on usage. When the
battery begins to weaken, you will notice a decrease in range, or the
distance from your vehicle that your remote transmitter will operate.
Follow the instructions below to change the remote transmitter battery.
1. Insert the edge of a coin into the slot at the top of the remote
control. Twist the coin to pry the remote control halves apart.
2. Remove the old batteries and replace with new ones. Be sure to
observe the (+) and (-) signs in the battery compartment.
3. Carefully snap the case halves back together, then test the
remote control.
Adding Remote Controls to Your System
The Power Elite PC 4100TM has the ability to operate from up to two
(2) remote controls. Follow these instructions to add a remote control
to your system.
1. Make sure the security system is disarmed and the ignition is off.
2. Open the driver’s door.
3. Turn vehicle ignition on.
4. Press and hold emergency override button.
After 15 seconds, the horn will sound three (3) times. This indicates
that the unit has entered the remote control programming mode.
5. Release the button.
6. Press the ARM button (button 1) on the remote control to be
programmed.
The horn will sound once, indicating that the
system has “learned” that remote control.
7. Repeat step 6 for any additional remote controls.
8. Turn the vehicle ignition off to exit the programming mode.
Test all remote controls to ensure that they work properly.
Deleting Lost or Stolen Remote Controls from Your System
If one of your remote controls is lost or stolen, follow these instructions
IMMEDIATELY to remove the control code from your system.
1. Have all remaining remote controls available.
2. Enter the control programming mode by following steps 1 - 5
of
Adding Remote Controls to Your System
.
3a. If you have only one remaining remote control, press the
ARM button on that remote control two (2) times, pausing at
least 1 second between each press. Make sure that the horn
“honks” each time you press the ARM button.
3b. If you have two remaining remote controls, press the ARM
button on each remote control once, pausing at least 1 second
between each press. Make sure that the horn “honks” each
time you press the ARM button.
4. Turn the vehicle ignition off to exit the programming mode.
When you are finished, the lost or stolen remote control will
no longer operate your system.
8
Basic Troubleshooting
This section outlines some of the basic issues you may experience
while becoming used to the Power Elite PC 4100TM. If you have a
problem that is not covered by this section, please consult your installer.
motpmySmotpmySmotpmySmotpmySmotpmyS melborPmelborPmelborPmelborPmelborP noituloSnoituloSnoituloSnoituloSnoituloS
seodlortnocetomeRkrowton
yrettabdaedrokaeW
tonlortnocetomeR demmargorp
yrettabegnahC
etomermargorP )7egap(lortnoc
mratonlliwmetsyS
rehtororooD neposiecnartne
nosithgilysetruoC
telaVnisimetsyS
edom
ecnartneesolC
ffothgilysetruocnruT
edomtelaVffonruT)5egap(
9
Emergency Disarm Procedure
If your remote control is lost or fails to function, use this procedure to
disarm the Power Elite PC 4100TM and start your vehicle.
1.Use the keys to enter the vehicle.
The alarm will sound once the door is opened.
2.Insert the key into the ignition and turn to the ON position.
3.Locate and press the emergency override button.
The alarm will turn off and then you will be able to
start your vehicle.
Your Emergency Disarm Button is located:
Installer Programmed Options
Ignition On Door Lock ON OFF
Ignition Off Door Unlock ON OFF
Siren/Horn Chirps ON OFF
Passive Arming ON OFF
10 CODE-ALARM, INC. LIMITED LIFETIME WARRANTY
A CODE-ALARM, INC. (“CODE”) vehicle security system sold to a retail consumer
purchaser by an authorized dealer of CODE and installed by an authorized dealer of CODE
is warranted by CODE to the original retail consumer purchaser to be free from defects in
workmanship and materials for the lifetime of the vehicle in which the security system was
originally installed.
A CODE vehicle security system sold to a retail consumer purchaser by an authorized
dealer of CODE and installed by a party other than an authorized dealer of CODE is warranted
by CODE to the original retail consumer purchaser to be free from defects in workmanship
and materials for a period of ninety (90) days. Defects caused by or related to the
improper installation of the security system are not covered by this or any other warranty.
The duration of this warranty described above applies to all components of the security system
except for: switches, indicator lights, transmitter(s) and accessories purchased separately.
Transmitters, exclusive of the transmitter case, are warranted by CODE to the original
retail consumer purchaser to be free from defects in workmanship and materials for the
lifetime of the of the vehicle in which the security system was originally installed.
Switches, indicator lights, and transmitter cases are warranted to the original consumer
purchaser for a period of one (1) year from the date of purchase when the system is
installed by an authorized CODE dealer.
Switches, indicator lights, and transmitter cases are warranted to the original consumer
purchaser for a period of ninety (90) days from the date of purchase when the system is
installed by a party other than an authorized CODE dealer.
Security system accessories are covered by the warranty supplied with the accessory.
Wiring harnesses altered by installation and transmitter batteries are not covered by this
or any other warranty.
This warranty is non-transferable, non-assignable and is completely voided when the
security system is removed from the car in which it was originally installed. If the vehicle
in which the security system was originally installed in is transferred to another party, this
warranty no longer applies.
This warranty does not apply to any product damaged by accident, physical or electrical
abuse, improper installation, alteration, any use contrary to its intended function,
unauthorized service (i.e. service by anyone other than CODE or its authorized service
personnel), fire, flood, lightning or other acts of God.
Should a product be found to be defective during the warranty duration, CODE will repair
or replace the product or any part of the product that CODE agrees is defective without
charge to the retail consumer purchaser of the product during the first year of the
warranty period. After the first year of the warranty period has expired CODE will repair or
replace the product or any part of the product that CODE agrees is defective for a fee of
$10.00 to cover shipping and handling charges.
In order for a product to be repaired or replaced under the terms of this warranty, the
defective product must be returned to an authorized CODE dealer and accompanied by a
copy of the original retail sales receipt. The date of purchase and year, make and model
of the vehicle in which the security system was originally installed in must be clearly
indicated on the sales receipt.
CODE shall not be held responsible for any removal and/or reinstallation charges of a
defective product, damage to or theft of the vehicle or its contents, or any incidental or
consequential damages caused by any failure of the product to function properly. Under no
circumstances should this warranty, or product covered by it, be construed as an insurance
policy against loss. CODE neither assumes nor authorizes any person or organization to make
ANY WARRANTIES or assume any liability in connection with the sale, installation, or use of
this product. This is the complete CODE warranty and no other warranty exists.
The warranty identified in this form is exclusive and CODE makes no other warranties
expressed or implied for any goods or services provided by CODE. CODE specifically and
expressly excludes any other warranties including the fitness for a particular purpose and
all warranties of merchantability. The customers sole and exclusive remedy for any and all
claims against CODE arising out to the customers use of any CODE vehicle security
system or component shall be as delineated in the warranty set forth above. CODE shall
not be liable to any customer or any other person or entity for any direct or indirect,
consequential, special or exemplary damages arising out of or in connection with the
customers use of, or inability to use, or misuse of any CODE provided product.
Some states do not allow the exclusion or limitation of incidental or consequential
damages, so the above limitation may not apply to you. This warranty gives you specific
legal rights, and you may also have other rights which vary from state to state.
11
CODE-ALARM, INC. Theft Protection Plan
The Theft Protection Program is designed to provide the retail pur-
chaser of a security system provided by CODE-ALARM, INC. (“CODE”)
an additional benefit, at no additional cost to the purchaser, should
their vehicle be stolen while protected by a CODE-ALARM security
system. While CODE has created this program as a way of showing
appreciation to its customers, CODE RESERVES THE RIGHT TO
UNILATERALLY CHANGE, ALTER, MODIFY, OR DISCONTINUE ALL
OR PART OF THIS THEFT PROTECTION PROGRAM WITHOUT
PRIOR NOTICE. THIS THEFT PROTECTION PROGRAM IS NOT AN
INSURANCE POLICY AND SHOULD NOT REPLACE AN AUTOMO-
BILE OR HOMEOWNERS INSURANCE POLICY. THIS THEFT PRO-
TECTION PROGRAM DOES NOT COVER LOSSES ARISING FROM
THE THEFT OF ITEMS WITHIN THE AUTOMOBILE OR ANY DAM-
AGES ARISING FROM, RELEATED TO, AND/OR INCIDENTAL OR A
CONSEQUENCE OF A VEHICLE THEFT EXCEPT AS SPECIFICALLY
DELINEATED BELOW.
Plan duration: 1Year from the date of installation.
Plan amount: Power Elite PC 4100 .............$1000.00
Conditions of the Theft Protection Program:
1. The Theft Protection Program is non-transferable and non-assignable.
2. The system must be installed by an authorized CODE dealer.
3. Vehicle must be less than three (3) model years old at the time of
installation.
4. The security system must have been fully armed at the time of the vehicle
theft.
5. The vehicle in which the system is installed must be insured for theft by a
licensed insurance underwriter in the state in which the vehicle is
registered.
Terms of payment:
1. The vehicle must first be considered a total loss due to theft by your
insurance company.
2. Your insurance company has settled all claims arising from this theft and
there are no other pending legal actions as a result of this theft.
How to file a request for payment:
If the above conditions are met, make your request for payment by submitting
the following to CODE. The request for payment must be received by CODE no
later than sixty (60) days after the vehicle is reported stolen.
1. Copy of the retail sales receipt for the purchase of the security system,
clearing showing the model of system purchased and the year, make and
model of the vehicle in which the system was installed.
2. A copy of the police report for the stolen vehicle.
3. A copy of the paid insurance claim and reimbursement check from the
insurance company.
Send the above items to CODE by certified mail at the following address:
CODE-ALARM, INC.
Consumer Affairs Department
950 E. Whitcomb
Madison Heights, MI. 48071
1-800-421-3209
12
FCC COMPLIANCE
This device complies with Part 15 of the FCC rules and with RSS-210 of Industry
Canada. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may
cause undesired operation.
Warning!
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Notes:
13
Notes:
14
Notes:
15
Notes:
16
