Overview - Cogent Systems, Inc. Proprietary Information
1
•
•
•
•
•
•
Chapter 1
• • • • • •• • • • • •• • • • • •
Overview
MobileID
™ is an easy-to-use, wireless, automated, client/server fingerprint
identification system for law enforcement officers and other personnel.
Running on a commercially-available Personal Digital Assistant (PDA)
device such as Pocket PC®, Cogent’s
MobileID
software delivers the
power of an Automated Fingerprint Identification System (AFIS) in a
portable handheld format. When combined with
BlueCheck
™, Cogent’s
latest portable capture device,
MobileID
allows users to quickly and easily
perform in-the-field fingerprint identifications.
You can simply have a subject place his/her finger onto a fingerprint capture
device for fast and easy identification. The software provides you with an
assortment of tools for viewing, identifying, and saving records, allowing a
one-to-one comparison of existing fingerprint records to verify identity.
MobileID
is not stand alone software; it works together with the
LAFIS
™
(LACRIS Automated Fingerprint Identification System) database,
accessible from a PDA in the field.
MobileID System Features
MobileID
system features include:
• capturing fingerprint images;
• performing searches against the CAFIS tenprint database;
• identifying a subject; and
• viewing and entering associated demographic information.
2
Overview - Cogent Systems, Inc. Proprietary Information
•
•
•
•
•
•
System Hardware Overview: The Cogent BlueCheck™ Fingerprint
Capture Device and Pocket PC Personal Digital Assistant Device
Utilizing
Bluetooth
technology,
BlueCheck
captures high-quality, 500 dpi
images. These images can be wirelessly transferred to the
MobileID
Pocket
PC
PDA for NIST packaging and submission to LAFIS over a wireless
network. Submissions and responses are sent and received via standard
wireless technology.

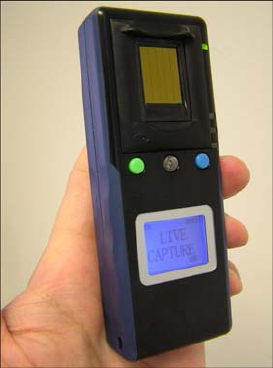

Figure 1-1 BlueCheck Capture Device
The specifications for the
BlueCheck
capture device are:
•Dimensions:
• Height: 4.45”
• Width: 1.69”
• Depth: 0.87”
•Weight: 3 oz.
•Resolution: 500 dpi
•Power Supply: Li-Ion 3.7V 900mAh
•Range: 5-10 meters, depending on operating environment
•
•
•
•
•
•
BlueCheck Capture Device Features
Overview - Cogent Systems, Inc. Proprietary Information
3
BlueCheck Capture Device Features
Figure 1-2
describes the features of the
BlueCheck
capture device.

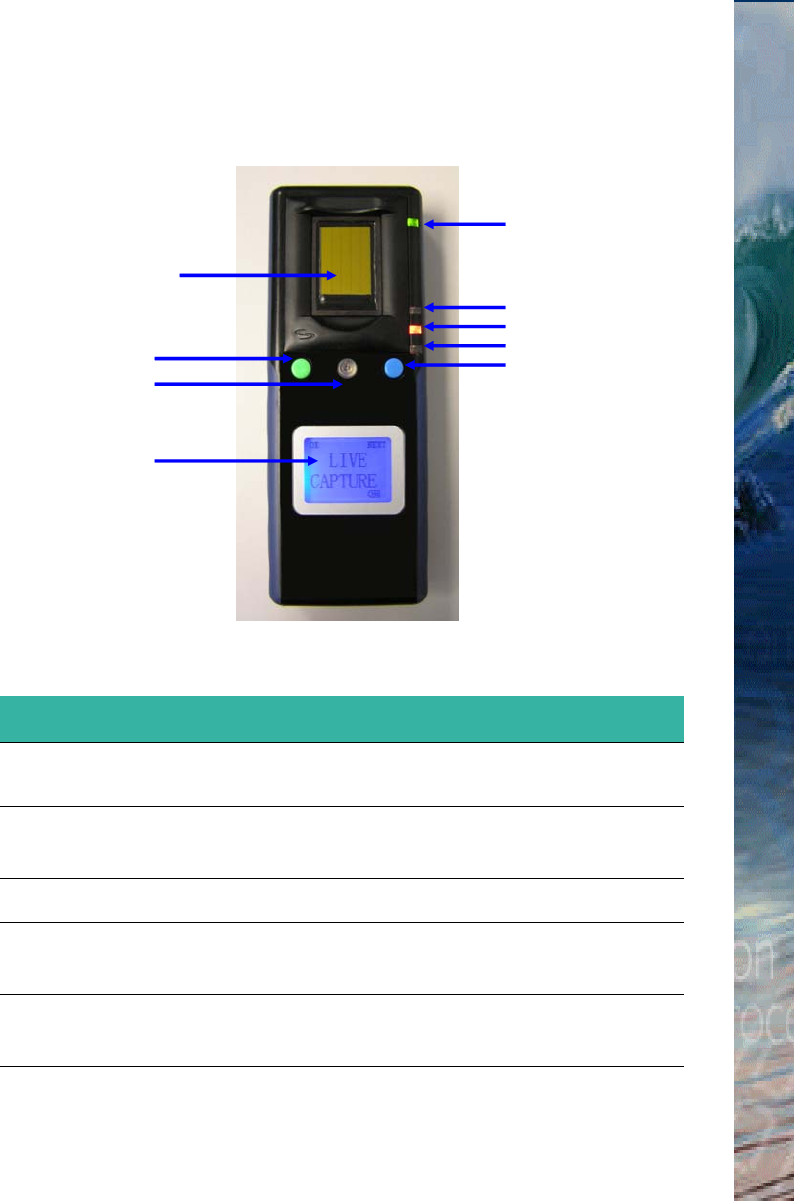

Figure 1-2 BlueCheck Capture Device Features
Feature Description
Fingerprint
Sensor
Captures the subject’s fingerprint
Green Button
Used to begin the fingerprint capture process
and to indicate missing/bandaged fingers
On/Off Button
Used to turn the
BlueCheck
device on and off
Blue Button
Used to cancel the fingerprint capture process
and to calibrate the capture device
Display Panel
Displays messages related to the fingerprint
capture process
Fingerprint Sensor
Green Button
On/Off Button
Display Panel
Bluetooth Connection Indicator
Power Indicator
Sensor Indicator
Blue Button
Battery Indicator
4
Overview - Cogent Systems, Inc. Proprietary Information
•
•
•
•
•
•
Battery
Indicator
The
Battery Indicator
will display one of the
following:
•When the
Battery Indicator
is solid
green, the battery is over 50% charged.
•When the
Battery Indicator
is flashing
green, the battery is 50% charged or less.
•When the
Battery Indicator
is flashing
red, the battery’s charge is almost
completely depleted. Immediate re-charg-
ing is required.
Bluetooth
Connection
Indicator
The
Bluetooth
Connection Indicator
will
display one of the following:
•When the
Bluetooth
Connection
Indicator
is solid blue, the device is con-
nected to
MobileID
.
•When the
Bluetooth
Connection
Indicator
is flashing blue, the device is
not connected to
MobileID
.
Power Indicator
When the
Power Indicator
is red, the power is
on.
Sensor
Indicator
When the
Sensor Indicator
is flashing amber,
the
Fingerprint Sensor
is ready for fingerprint
capture.
Feature Description
•
•
•
•
•
•
BlueCheck Menu Options
Overview - Cogent Systems, Inc. Proprietary Information
5
BlueCheck Menu Options
The
Green
and
Blue
buttons are used to select menu options from the
Display Panel
. The following table provides descriptions of menu options
that can be selected.
Option Description
OK
Press the
Green
button when the
LIVE
CAPTURE
message is displayed to select
OK
and begin the fingerprint capture process.
NEXT •Press the Blue button when the LIVE
CAPTURE message is displayed to
select NEXT and calibrate the device.
For more instructions on calibrating
the device, please refer to “Calibrat-
ing the BlueCheck Capture Device”
on page 19.
•Press the Blue button when the CALI-
BRATE message is displayed to select
NEXT and exit out of the calibration
procedure.
MIS
Press the
Green
button when the
R Thumb
Please
or
L Thumb Please
message is
displayed to select
MIS
and designate a finger
as missing.
ESC
Press the
Blue
button when the
R Thumb
Please
or
L Thumb Please
message is
displayed to select
ESC
and exit out of the
fingerprint capture procedure.
6
Overview - Cogent Systems, Inc. Proprietary Information
•
•
•
•
•
•
System Hardware Overview: Pocket PC Personal Digital Assistant
MobileID
runs on the Audiovox XV6700 Pocket PC PDA. Images are
wirelessly transferred to the
MobileID
Pocket PC
PDA from the
BlueCheck
capture device for NIST packaging and submission to LAFIS
over a wireless network.

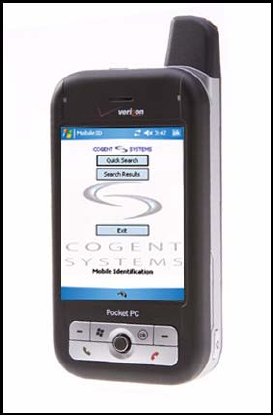

Figure 1-3 Pocket PC PDA
The specifications for the
Pocket PC
PDA are:
•Processor: 416 Mhz Intel PXA270
•Memory: 64 MB RAM, 128 MB Flash ROM
•Operating System: Microsoft Windows Mobile Pocket PC
•Dimensions: 4.25” (H) x 2.35” (W) x 0.94” (D)
•Weight: 6.5 oz.
•Display: 2.8”, 64,000 color TFT LCD, touch-sensitive screen,
240x320 pixels, back-light LEDs
•Removable Memory Slot: MiniSD Card
•Camera: 1.3 Mpixels with 8x digital zoom and flash
•Keyboard: Sliding QWERTY keyboard
•Power Supply: Li-Ion 3.7 V 900 mAh
Chapter 2 - Cogent Systems, Inc. Proprietary Information
7
•
•
•
•
•
•
Chapter 2
• • • • • •• • • • • •• • • • • •
Key Terms
The following table provides definitions of some key terms that are used
throughout this
Guide
.
Term Description
AFIS
Automated Fingerprint Identification System
Bluetooth
Wireless technology that enables the
BlueCheck
device to connect to the
MobileID
application
Hit
A determination that a print stored in the
CAFIS
database may match the print input for a search.
CAFIS
matches prints by comparing the attribute maps of each
of the prints stored in the database with the attribute
map of the search print, and assigns them a score that
ranks the degree of similarity between the search print
and the file prints.
LACRIS
Los Angeles County Regional Identification System
LAFIS
LACRIS Automated Fingerprint Identification System
Match
A print in the
CAFIS
database that is known to match a
print input into
CAFIS
for a search. Before the
examiner confirms the match, the print is considered a
candidate or potential hit (See
Hit
).
PDA
Personal Digital Assistant - handheld computer device
TOT
Type of Transaction
8
Key Terms - Cogent Systems, Inc. Proprietary Information
•
•
•
•
•
•
Notes
Performing the Initial Setup of MobileID (for Administrators only) - Cogent Systems, Inc. Proprietary Information
9
•
•
•
•
•
•
Chapter 3
Performing the Initial Setup of MobileID
• • • • • •• • • • • •• • • • • •
(for Administrators only)
In order for the two Bluetooth-enabled devices to communicate with each
other, you must perform Bluetooth pairing. When this is accomplished, the
two devices join what is called a trusted pair relationship. When one device
recognizes another device in an established trusted pair, each device
automatically accepts communication, bypassing the discovery and
authentication process that normally happen during Bluetooth interactions.
Pairing the Bluetooth Enabled Devices
The devices are paired after the
Pocket PC
PDA locates the
BlueCheck
capture device.
To pair the Pocket PC PDA with the BlueCheck capture device, follow
these steps:
1Use the stylus to tap on the Start button, located on the top-left corner
of the Pocket PC PDA screen. A drop-down menu will be displayed.
2Select Settings from the drop-down menu. The Settings window will be
displayed, an example of which is shown in Figure 3-1.
10
Performing the Initial Setup of MobileID (for Administrators only) - Cogent Systems, Inc. Proprietary
•
•
•
•
•
•
Figure 3-1 Settings Window
3Tap the Connections tab. The Connections subwindow will be
displayed, an example of which is shown in Figure 3-2.
Figure 3-2 Connections Subwindow
4Double-tap on the Bluetooth icon. The Bluetooth subwindow will be
displayed, an example of which is shown in Figure 3-3.
•
•
•
•
•
•
Pairing the Bluetooth Enabled Devices
Performing the Initial Setup of MobileID (for Administrators only) - Cogent Systems, Inc. Proprietary Information
11

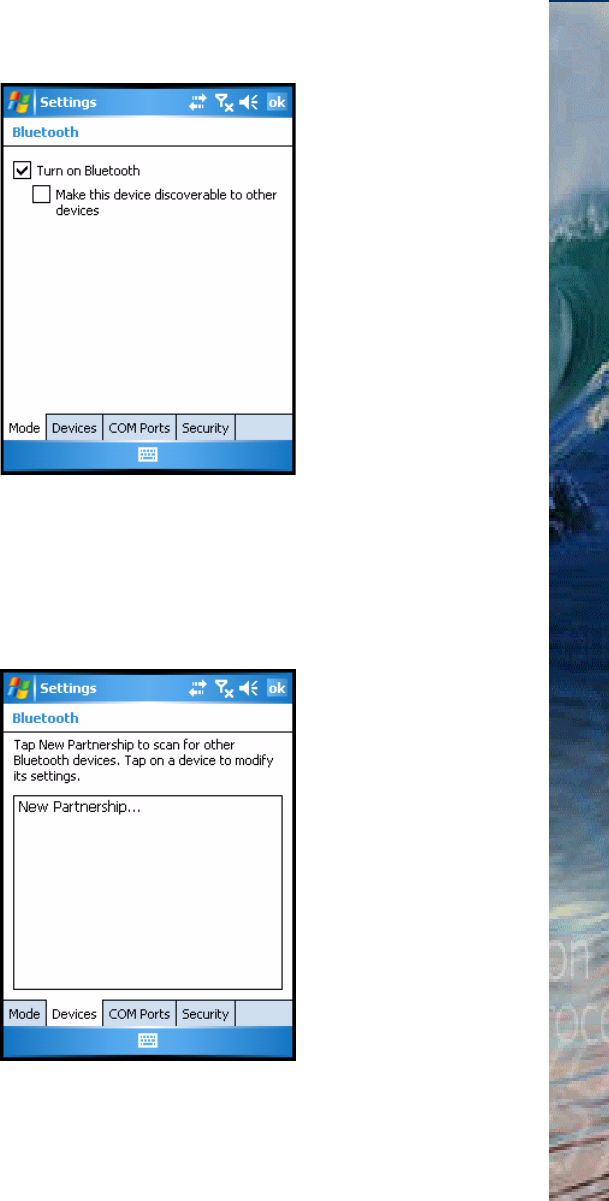

Figure 3-3 Bluetooth Subwindow
5Ensure that the Turn on Bluetooth checkbox is selected.
6Tap the Devices tab. The (Bluetooth) Devices subwindow will be
displayed, an example of which is shown in Figure 3-4.

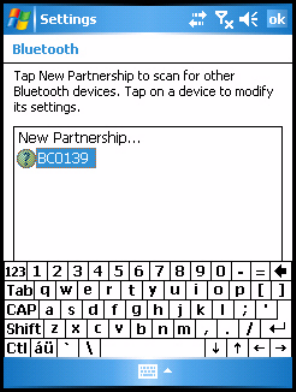

Figure 3-4 (Bluetooth) Devices Subwindow
12
Performing the Initial Setup of MobileID (for Administrators only) - Cogent Systems, Inc. Proprietary
•
•
•
•
•
•
7Turn on the BlueCheck capture device by holding down the On/Off
button until the BlueCheck device turns on. The Power Indicator will
display a blinking red light and the LIVE CAPTURE message will be
displayed on the Display Panel.
8Press the Blue button (located above NEXT on the Display Panel) two
times. The DEVICE PAIR message will be displayed on the Display
Panel.
9Press the Green button (located above OK on the Display Panel). The
Bluetooth Connection indicator will display a blinking blue light, the
Power Indicator will display a blinking red light and the PAIRING
message will be displayed on the Display Panel.
10 Tap New Partnership... to scan for other Bluetooth devices. After the
Pocket PC PDA has detected all of the Bluetooth enabled devices in the
immediate area (including the BlueCheck capture device), the Select a
Bluetooth Device subwindow will be displayed. An example is shown
in Figure 3-5.

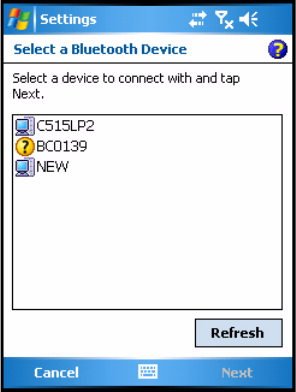

Figure 3-5 Select a Bluetooth Device Subwindow
11 Select the BlueCheck device containing the prefix BC.

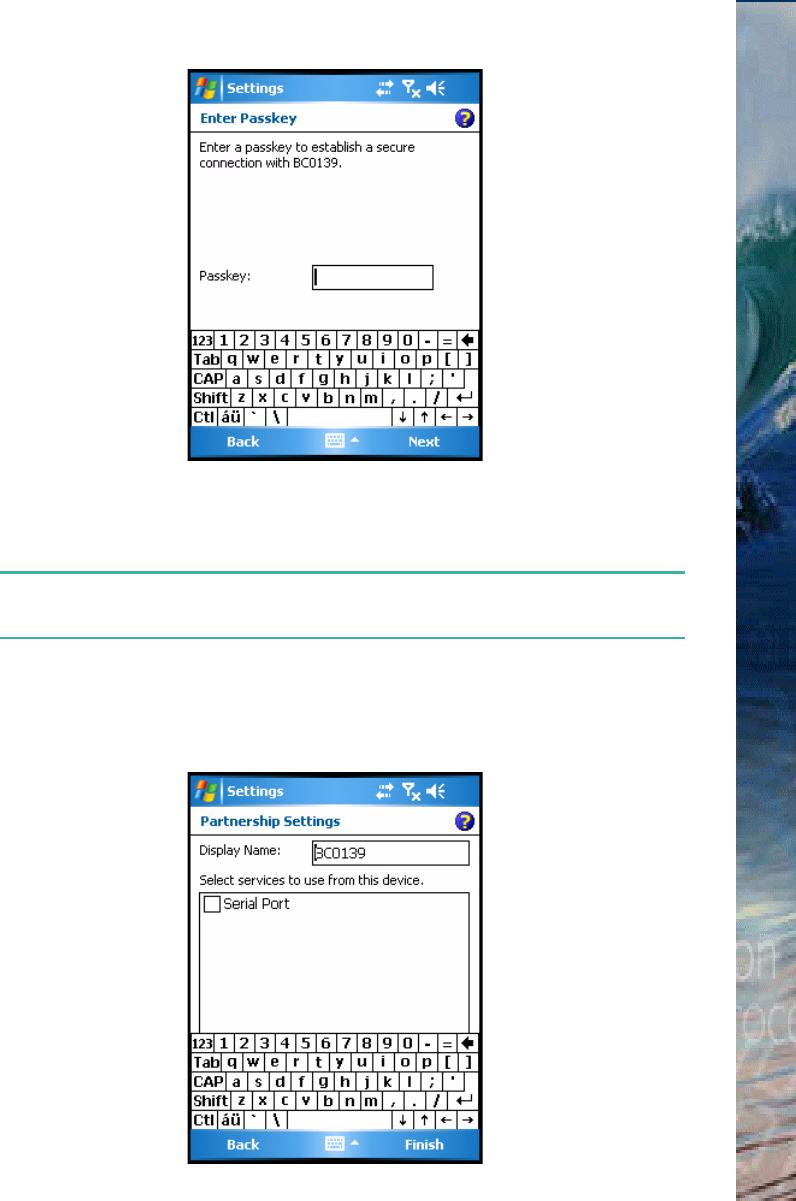

12 Tap Next. The Enter Passkey subwindow will be displayed, an example
of which is shown in Figure 3-6.
•
•
•
•
•
•
Pairing the Bluetooth Enabled Devices
Performing the Initial Setup of MobileID (for Administrators only) - Cogent Systems, Inc. Proprietary Information
13
Figure 3-6 Enter Passkey Subwindow
13 Enter the passkey in the Passkey field.
Note:
The default passkey is
1234
.
14 Tap Next. The Partnership Settings subwindow will be displayed, an
example of which is shown in Figure 3-7.
Figure 3-7 Partnership Settings Subwindow
14
Performing the Initial Setup of MobileID (for Administrators only) - Cogent Systems, Inc. Proprietary
•
•
•
•
•
•
15 Ensure that the Serial Port checkbox is selected.
16 Tap Finish. The (Bluetooth) Devices subwindow will be displayed, an
example of which is shown in Figure 3-8.
Figure 3-8 (Bluetooth) Devices Subwindow
17 Tap the Keyboard icon, located on the bottom portion of the window.
The keyboard is no longer displayed.

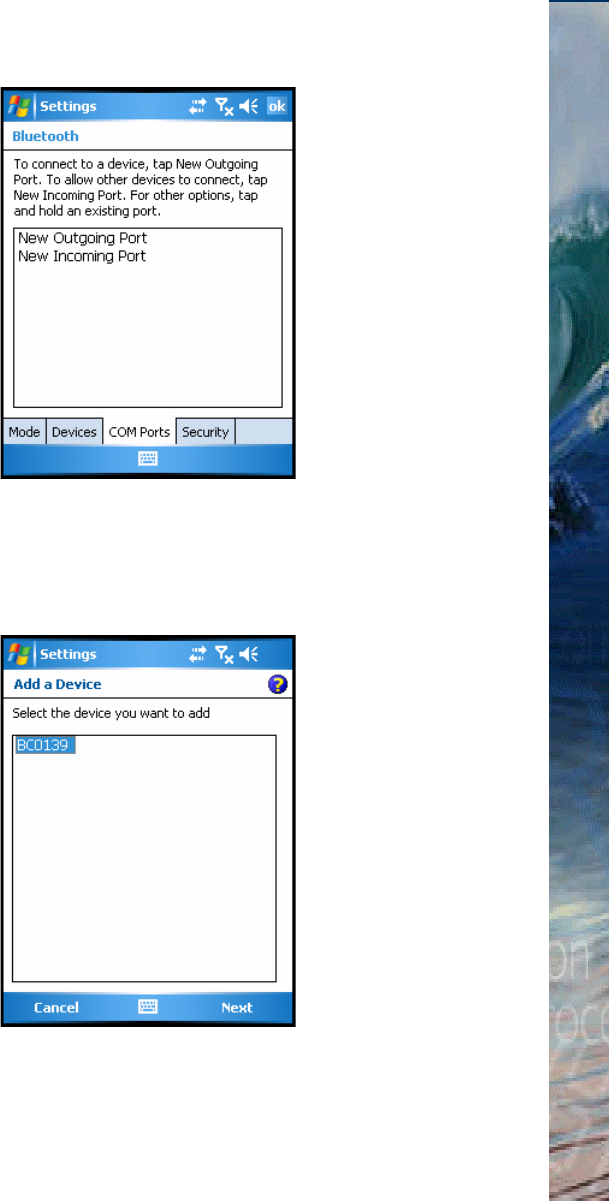

18 Tap the COM Ports tab. The (Bluetooth) COM Ports subwindow will be
displayed, an example of which is shown in Figure 3-9.
•
•
•
•
•
•
Pairing the Bluetooth Enabled Devices
Performing the Initial Setup of MobileID (for Administrators only) - Cogent Systems, Inc. Proprietary Information
15
Figure 3-9 (Bluetooth) COM Ports Subwindow
19 Tap New Outgoing Port. The Add a Device subwindow will be
displayed, an example of which is shown in Figure 3-10.
Figure 3-10 Add a Device Subwindow
20 Ensure that the BlueCheck device is selected.

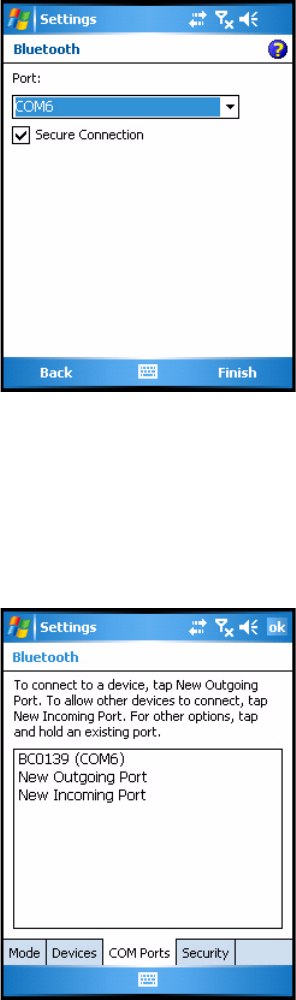

21 Tap Next. The (Bluetooth) Port subwindow will be displayed, an
example of which is shown in Figure 3-11.
16
Performing the Initial Setup of MobileID (for Administrators only) - Cogent Systems, Inc. Proprietary
•
•
•
•
•
•
Figure 3-11 (Bluetooth) Port Subwindow
22 Select COM6 from the Port drop-down menu.
23 Tap Finish. The BlueCheck capture device has now been paired to the
Pocket PC PDA. The (Bluetooth) COM Ports subwindow will be
displayed, an example of which is shown in Figure 3-12.
Figure 3-12 (Bluetooth) COM Ports Subwindow
24 Tap ok, located in the top-right corner of the window.
25 Tap the X button, located in the top-right corner of the window.
Getting Started - Cogent Systems, Inc. Proprietary Information
17
•
•
•
•
•
•
Chapter 4
• • • • • •• • • • • •• • • • • •
Getting Started
Logging In
To log into
MobileID
, follow these steps:
1Use the stylus to tap on the Start button, located on the top-left corner
of the Pocket PC PDA screen. A drop-down menu will be displayed.
2Select MobileIDHost from the drop-down menu. The Login window will
be displayed, an example of which is shown in Figure 4-1.

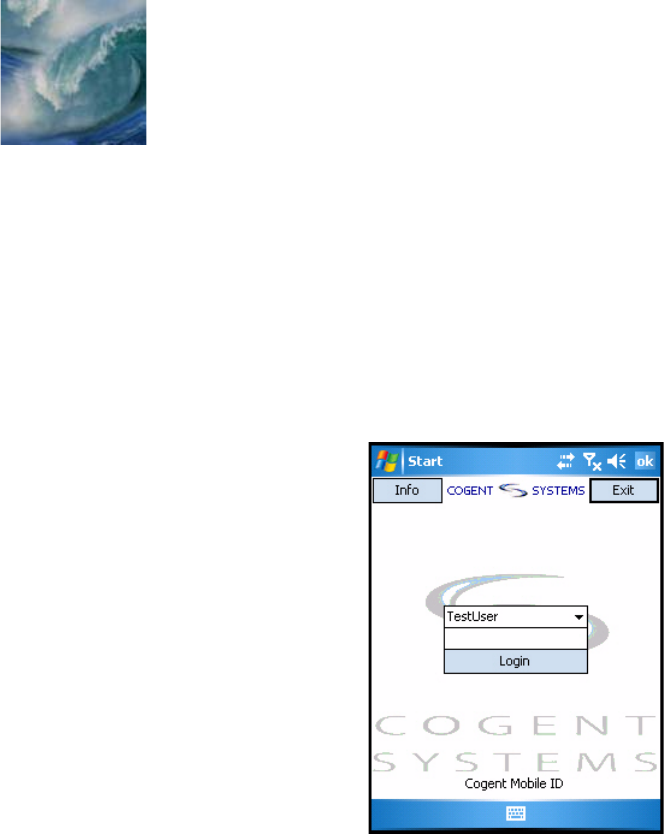

Figure 4-1 Login Window
3Tap on the arrow in the top field.
18
Getting Started - Cogent Systems, Inc. Proprietary Information
•
•
•
•
•
•
4Select your user name from the list of approved users in the drop-down
menu.
5Enter your password in the Password field.
6Tap Login. The MobileID Main Menu window will be displayed, an
example of which is shown in Figure 4-2.

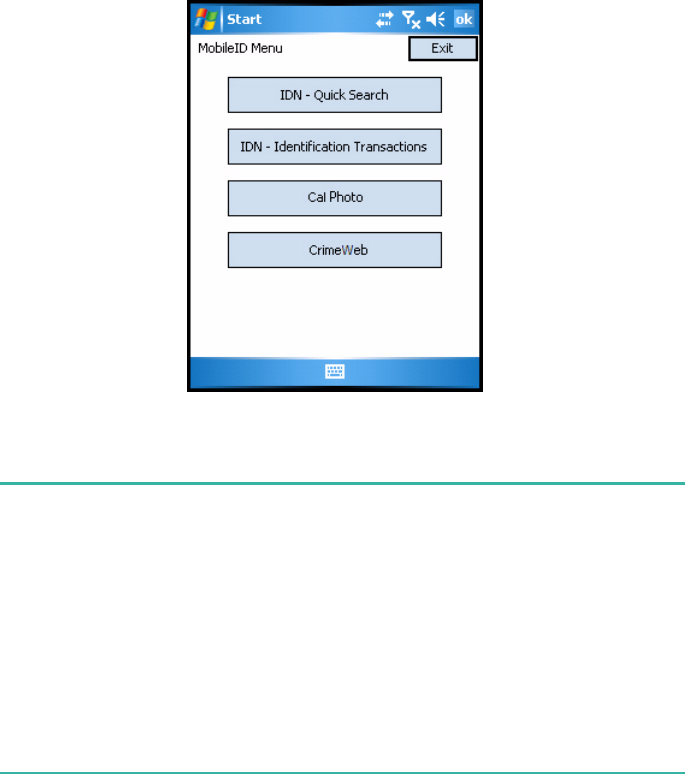

Figure 4-2 MobileID Main Menu Window
Note:
From the
MobileID Main Menu
window, you can choose whether to
perform a quick search identification (
IDN - Quick Search
) or a standard
identification search (
IDN - Identification Transactions
).
The procedures for performing a quick search identification are described
in
Chapter 5
.
The procedures for performing a standard identification search are
described in
Chapter 6
.
•
•
•
•
•
•
Turning on the BlueCheck Capture Device
Getting Started - Cogent Systems, Inc. Proprietary Information
19
Turning on the BlueCheck Capture Device
To turn on the
BlueCheck
capture device, hold down the
On/Off
button
until the
BlueCheck
device turns on. The
Power Indicator
will turn red,
and the
LIVE CAPTURE
message will be displayed on the
Display Panel
.
In addition, the
Bluetooth
Connection Indicator
will turn solid blue
when the device has connected to
MobileID
. You will not be able to send
any captured fingerprint images to
MobileID
until the
Bluetooth
Connection Indicator
has turned solid blue. For more information about
connecting your device to
MobileID
via
Bluetooth
, contact your System
Administrator.
Note:
If the
BlueCheck
device is turned on before launching the
MobileID
application, it may take up to 20 seconds to establish a
Bluetooth
connection after the application is started.
Calibrating the BlueCheck Capture Device
If the
BlueCheck
capture device requires calibration (e.g., it is being
used for the first time), follow these steps:
1Ensure that the BlueCheck capture device is turned on. For instructions
on turning on the BlueCheck capture device, please refer the previous
section.
2Press the Blue button (located above NEXT on the Display Panel). The
message CALIBRATE will be displayed on the Display Panel.
Note:
If desired, you may exit from the calibration procedure at this point by
pressing the
Blue
button (located above
NEXT
on the
Display Panel
).
3Press the Green button (located above OK on the Display Panel). The
message Calibrating... will be displayed on the Display Panel. After
approximately 5-10 seconds, the Success message will be displayed
momentarily on the Display Panel. The CALIBRATE message will be
redisplayed on the Display Panel, and the calibration procedure will be
complete.
20
Getting Started - Cogent Systems, Inc. Proprietary Information
•
•
•
•
•
•
Notes
Performing a Quick Search Identification - Cogent Systems, Inc. Proprietary Information
21
•
•
•
•
•
•
Chapter 5
• • • • • •• • • • • •• • • • • •
Performing a Quick Search Identification
This chapter describes the procedure for performing a quick search
identification using a Cogent
BlueCheck
capture device and the
Pocket PC
PDA.
Note:
Your
MobileID
system may be configured to capture thumbprints or
a different pair of fingers. In the following description, the procedure for
capturing a subject’s thumbprints is used as an example.
To perform a quick search identification, follow these steps:
1From the Pocket PC PDA, tap the IDN - Quick Search button (located
in the MobileID Main Menu window). The Transaction Queue window
will be displayed, an example of which is shown in Figure 5-1.
22
Performing a Quick Search Identification - Cogent Systems, Inc. Proprietary Information
•
•
•
•
•
•

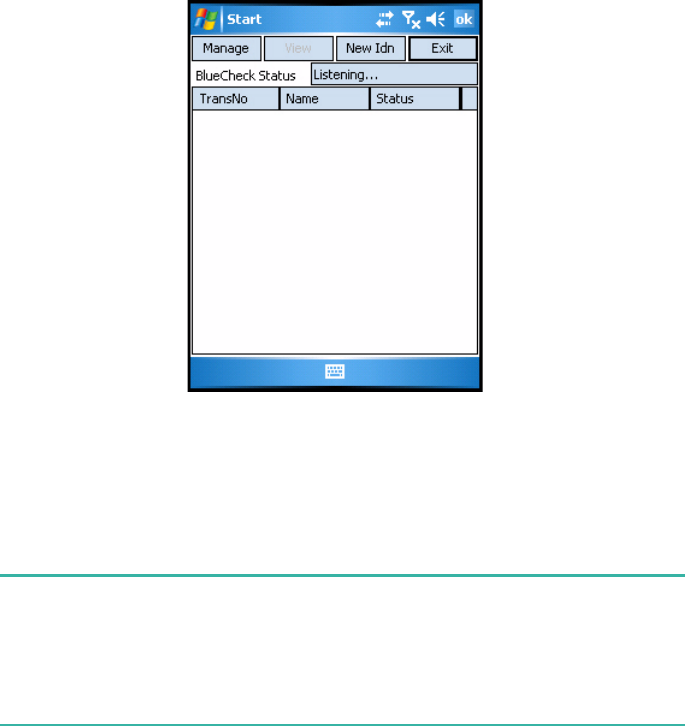

Figure 5-1 Transaction Queue Window
2Ensure that the BlueCheck capture device is turned on. For instructions
on turning on the BlueCheck capture device, please refer to “Turning on
the BlueCheck Capture Device” on page 19.
Note:
The
Green
and
Blue
buttons are used to select menu options from the
Display Panel
during the fingerprint capture procedure. For more
information about
BlueCheck
menu options, please refer to “BlueCheck
Menu Options” on page 5.
3Wait until the BlueCheck capture device is connected to the Pocket PC
PDA. When the BlueCheck capture device is connected, the status
displayed in the BlueCheck Status field of the Pocket PC PDA will
change from Listening to Connected.
4From the Pocket PC PDA, tap the New Idn button (located on the top
of the Transaction Queue window).
•
•
•
•
•
•
Performing a Quick Search Identification
Performing a Quick Search Identification - Cogent Systems, Inc. Proprietary Information
23
5From the BlueCheck capture device, press the Green button (located
above OK on the Display Panel). The message R Thumb Please will
be displayed on the Display Panel.
Note:
You may exit from the fingerprint capture process at any time by
pressing the
Blue
button.
6Depending on whether the subject’s right thumb is missing/damaged,
take one of the following actions:
• If the right thumb is missing/damaged, press the Green button
(located above MIS on the Display Panel).
• If the right thumb is not missing/damaged, have the subject place
his/her right thumb on the fingerprint sensor. The subject’s right
thumbprint will be captured, and the message Finger Captured
will be displayed on the Display Panel of the BlueCheck capture
device. After a few seconds, the message L Thumb Please will be
displayed on the Display Panel of the BlueCheck capture device.
The right thumb print will be displayed on the Pocket PC PDA, an
example of which is shown in Figure 5-2.
Figure 5-2 Captured Right Thumb Print Image
24
Performing a Quick Search Identification - Cogent Systems, Inc. Proprietary Information
•
•
•
•
•
•
Note:
If you are not in the
BlueCheck
device’s
Bluetooth
range, its attempt
to communicate with
MobileID
will time out, and the message:
NO CONN
RESEND?
will be displayed on the
Display Panel
. If this message is
displayed, try moving the
BlueCheck
device closer to the
Pocket PC
PDA
on which
MobileID
is installed.
7Depending on whether the subject’s left thumb is missing/damaged,
take one of the following actions:
• If the left thumb is missing/damaged, press the Green button
(located above MIS on the Display Panel).
• If the left thumb is not missing/damaged, have the subject place
his/her left thumb on the fingerprint sensor. The subject’s left
thumbprint will be captured, and the message Finger Captured
will be displayed on the Display Panel. The prints are sent to LAFIS
and the quick search identification transaction will be displayed in
the Transaction Queue window of the Pocket PC PDA, an exam-
ple of which is shown in Figure 5-3.

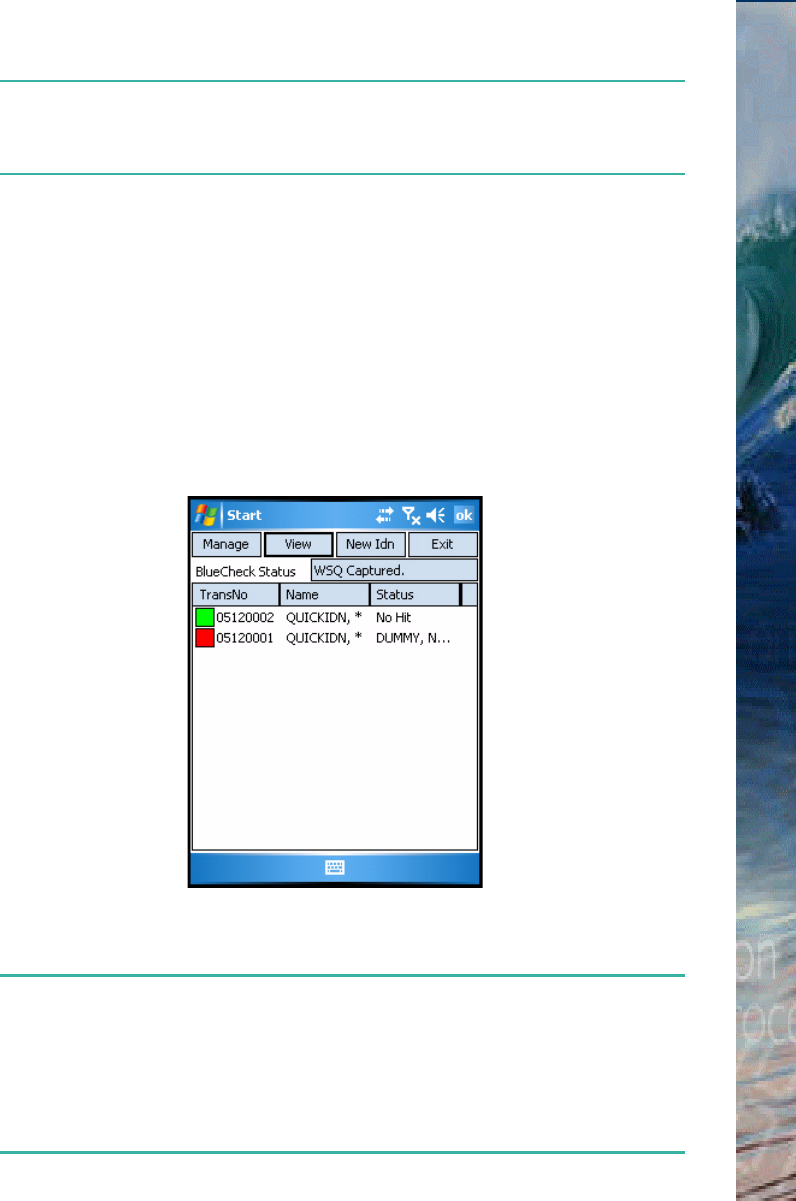

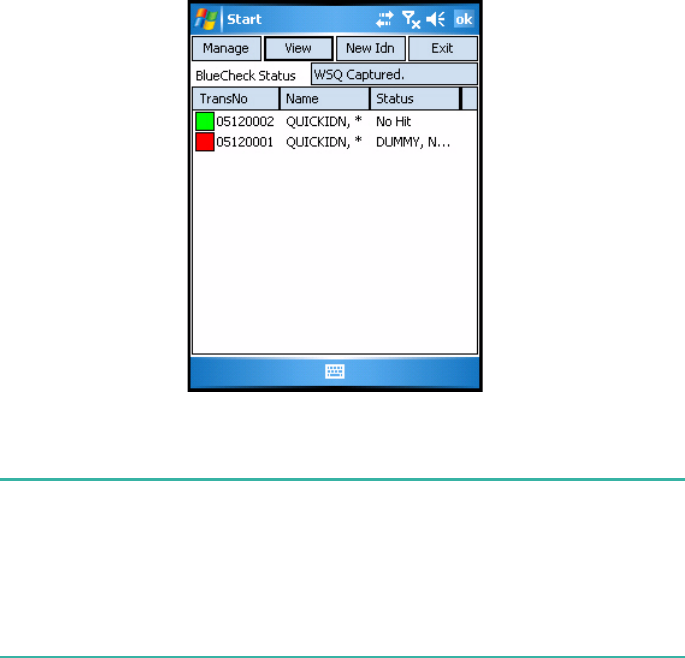

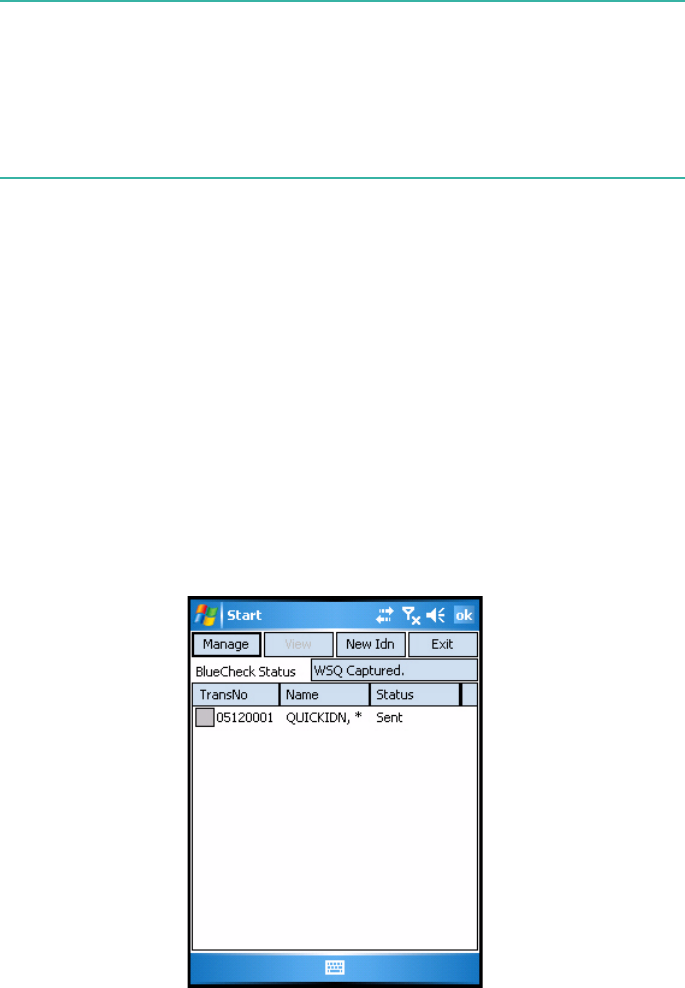

Figure 5-3 The New Quick Search Identification Transaction Is Displayed in the Queue
•
•
•
•
•
•
Performing a Quick Search Identification
Performing a Quick Search Identification - Cogent Systems, Inc. Proprietary Information
25
Note:
For a quick search identification,
MobileID
is configured to
automatically send the transaction to
LAFIS
.
8If a possible hit against the tenprint database is found on LAFIS, the
BlueCheck device will beep, and the message Possible hit! will be
displayed on the Display Panel of the BlueCheck capture device. If no
candidates are found or only candidates with scores below the
designated threshold are found on LAFIS, the message No hit will be
displayed on the Display Panel of the BlueCheck capture device. The
results of the LAFIS search are displayed on the MobileID application
of the Pocket PC PDA. An example of the results returned from LAFIS
is displayed in Figure 5-4.
Figure 5-4 Results of the Quick Search Identification
Note:
A Hit will be indicated by a red square to the left of the transaction
number. In addition, the subject’s name will be displayed in the
Status
column. A Non-Hit will be indicated by a green square to the left of the
transaction number. In addition,
No Hit
will be displayed in the
Status
column.
26
Performing a Quick Search Identification - Cogent Systems, Inc. Proprietary Information
•
•
•
•
•
•
9To return to the MobileID Main Menu window, tap Exit. A dialog box will
be displayed.
10 Tap Yes. The MobileID Main Menu window will be displayed.
Performing an Identification Search - Cogent Systems, Inc. Proprietary Information
27
•
•
•
•
•
•
Chapter 6
• • • • • •• • • • • •• • • • • •
Performing an Identification Search
This chapter describes the procedure for performing a standard
identification search using a Cogent
BlueCheck
capture device and the
Pocket PC
PDA.
Note:
Your
MobileID
system may be configured to capture thumbprints or
a different pair of fingers. In the following description, the procedure for
capturing a subject’s thumbprints is used as an example.
To perform an identification search, follow these steps:
1From the Pocket PC PDA, tap the IDN - Identification Transactions
button (located in the MobileID Main Menu window). The Transaction
Queue window will be displayed, an example of which is shown in
Figure 6-1.
28
Performing an Identification Search - Cogent Systems, Inc. Proprietary Information
•
•
•
•
•
•
Figure 6-1 Transaction Queue Window
2Ensure that the BlueCheck capture device is turned on. For instructions
on turning on the BlueCheck capture device, please refer to “Turning on
the BlueCheck Capture Device” on page 19.
Note:
The
Green
and
Blue
buttons are used to select menu options from the
Display Panel
during the fingerprint capture procedure. For more
information about
BlueCheck
menu options, please refer to “BlueCheck
Menu Options” on page 5.
3Wait until the BlueCheck capture device is connected to the Pocket PC
PDA. When the BlueCheck capture device is connected, the status
displayed in the BlueCheck Status field of the Pocket PC PDA will
change from Listening to Connected.
4From the Pocket PC PDA, tap the New Idn button (located on the top
of the Transaction Queue window).
•
•
•
•
•
•
Performing an Identification Search
Performing an Identification Search - Cogent Systems, Inc. Proprietary Information
29
5From the BlueCheck capture device, press the Green button (located
above OK on the Display Panel). The message R Thumb Please will
be displayed on the Display Panel.
Note:
You may exit from the fingerprint capture process at any time by
pressing the
Blue
button.
6Depending on whether the subject’s right thumb is missing/damaged,
take one of the following actions:
• If the right thumb is missing/damaged, press the Green button
(located above MIS on the Display Panel).
• If the right thumb is not missing/damaged, have the subject place
his/her right thumb on the fingerprint sensor. The subject’s right
thumbprint will be captured, and the message Finger Captured
will be displayed on the Display Panel of the BlueCheck capture
device. After a few seconds, the message L Thumb Please will be
displayed on the Display Panel of the BlueCheck capture device.
The right thumb print will be displayed on the Pocket PC PDA, an
example of which is shown in Figure 6-2.

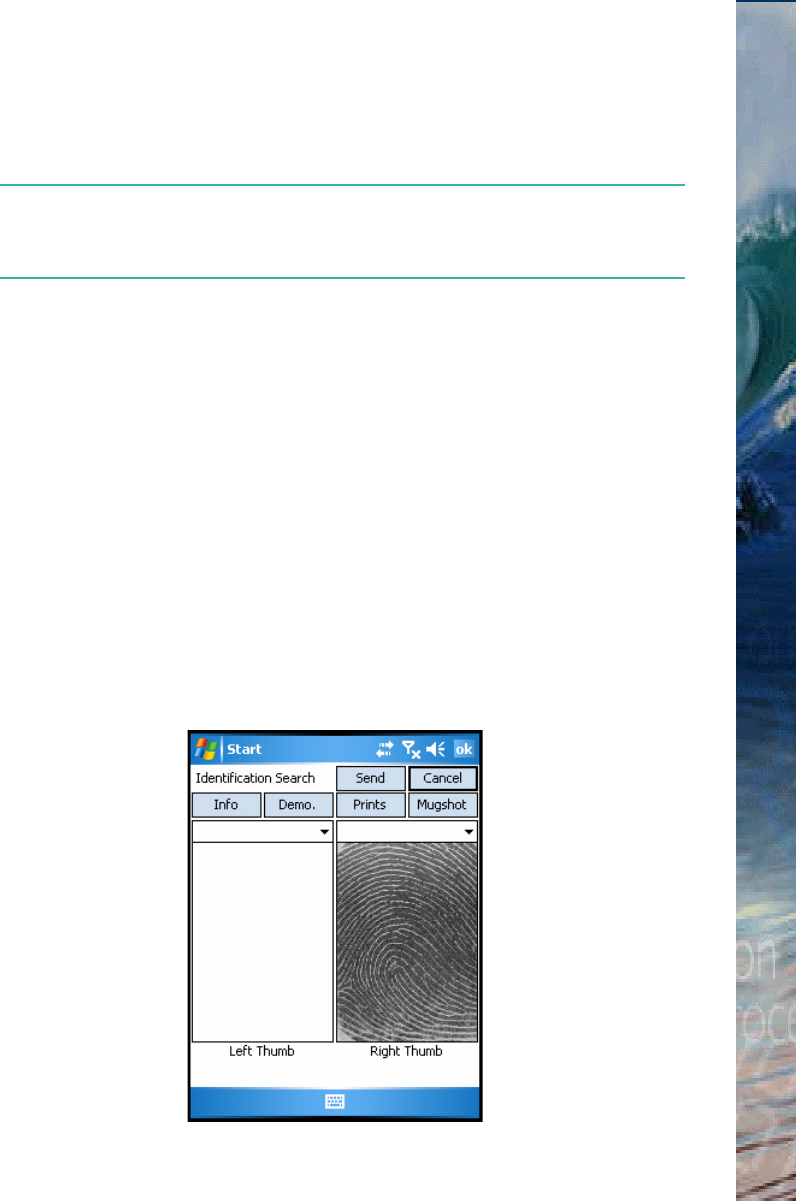

Figure 6-2 Captured Right Thumb Print Image
30
Performing an Identification Search - Cogent Systems, Inc. Proprietary Information
•
•
•
•
•
•
Note:
If you are not in the
BlueCheck
device’s
Bluetooth
range, its attempt
to communicate with
MobileID
will time out, and the message:
NO CONN
RESEND?
will be displayed on the
Display Panel
. If this message is
displayed, try moving the
BlueCheck
device closer to the
Pocket PC
PDA
on which
MobileID
is installed.
7Depending on whether the subject’s left thumb is missing/damaged,
take one of the following actions:
• If the left thumb is missing/damaged, press the Green button
(located above MIS on the Display Panel).
• If the left thumb is not missing/damaged, have the subject place
his/her left thumb on the fingerprint sensor. The subject’s left
thumbprint will be captured, and the message Finger Captured
will be displayed on the Display Panel. The left thumb print will be
displayed on the Pocket PC PDA.
8From the Pocket PC PDA, tap the Info button (located on the top of the
Transaction Queue window). The Info data entry subwindow will be

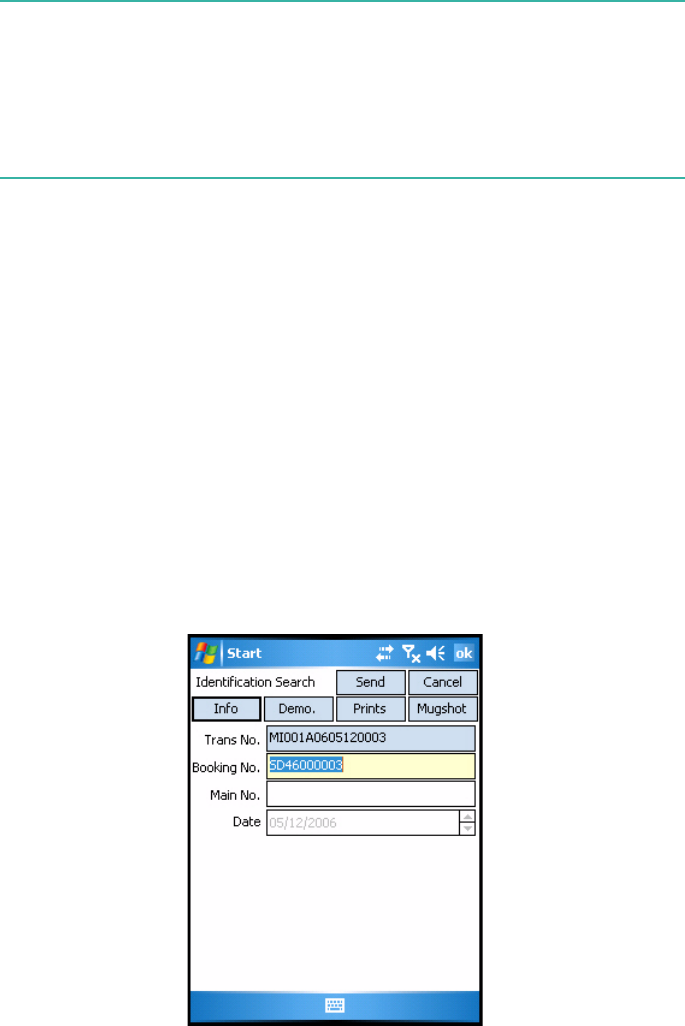

displayed, an example of which is shown in Figure 6-3.
Figure 6-3 Info Data Entry Subwindow
•
•
•
•
•
•
Performing an Identification Search
Performing an Identification Search - Cogent Systems, Inc. Proprietary Information
31
9Tap the Keyboard icon, located on the bottom portion of the window.
The keyboard is displayed.
10 Enter the general information about the identification search transaction
in the fields of the Info subwindow.
Note:
In the data entry subwindows, the
required
fields for your agency are
indicated in yellow.
11 Tap the Demo. button (located on the top of the Transaction Queue
window). The Demographics data entry subwindow will be displayed,

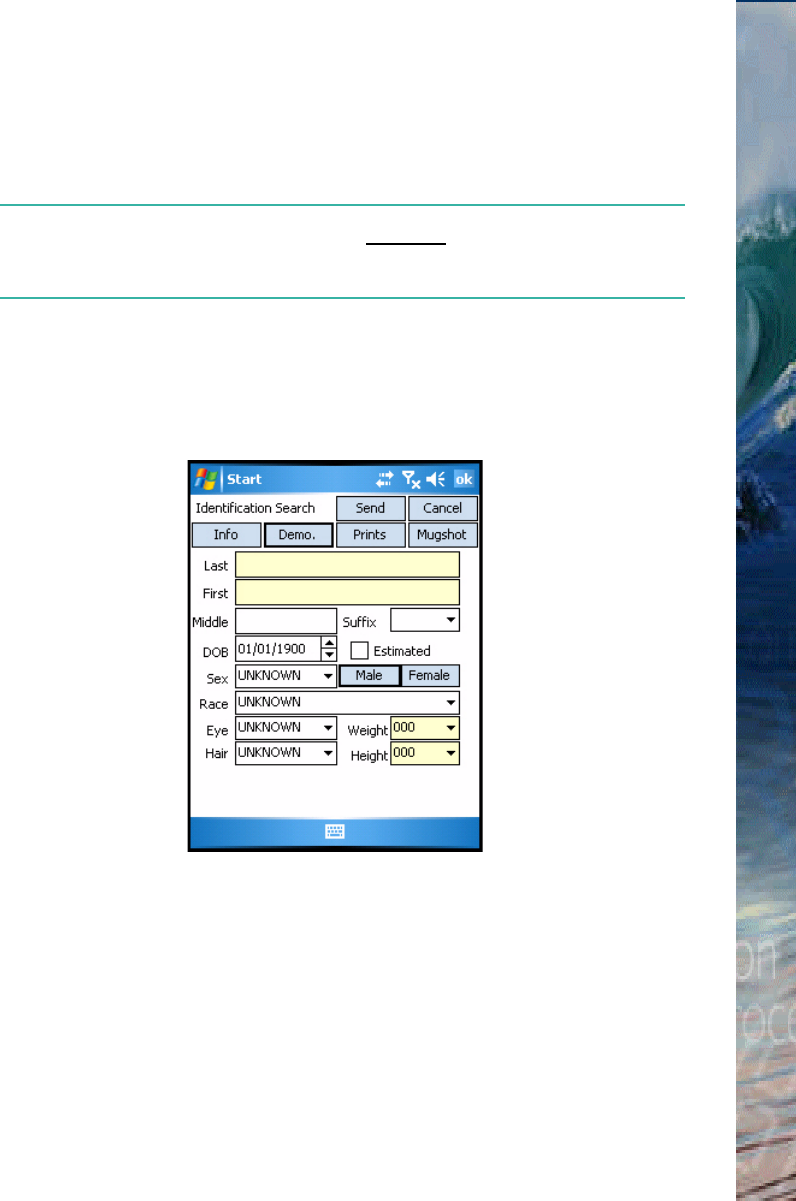

an example of which is shown in Figure 6-4.
Figure 6-4 Demographics Data Entry Subwindow
12 Enter the subject’s demographic information in the fields of the
Demographics subwindow.
13 Tap the Mugshot button (located on the top of the Transaction Queue
window). The Mugshot capture subwindow will be displayed, an

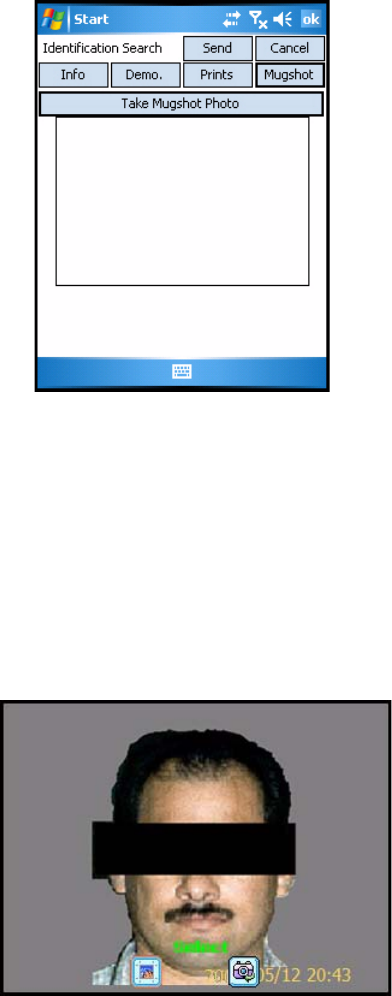

example of which is shown in Figure 6-5.
32
Performing an Identification Search - Cogent Systems, Inc. Proprietary Information
•
•
•
•
•
•
Figure 6-5 Mugshot Capture Subwindow
14 Tap the Take Mugshot Photo button. The mugshot capture window will
become active.
15 Rotate the Pocket PC PDA to the left and position the PDA camera so
that the subject’s face is centered in the mugshot capture window.
16 Press the camera button on the top edge of the Pocket PC PDA device
to capture the subject’s mugshot photo. An example is shown in Figure
6-6.

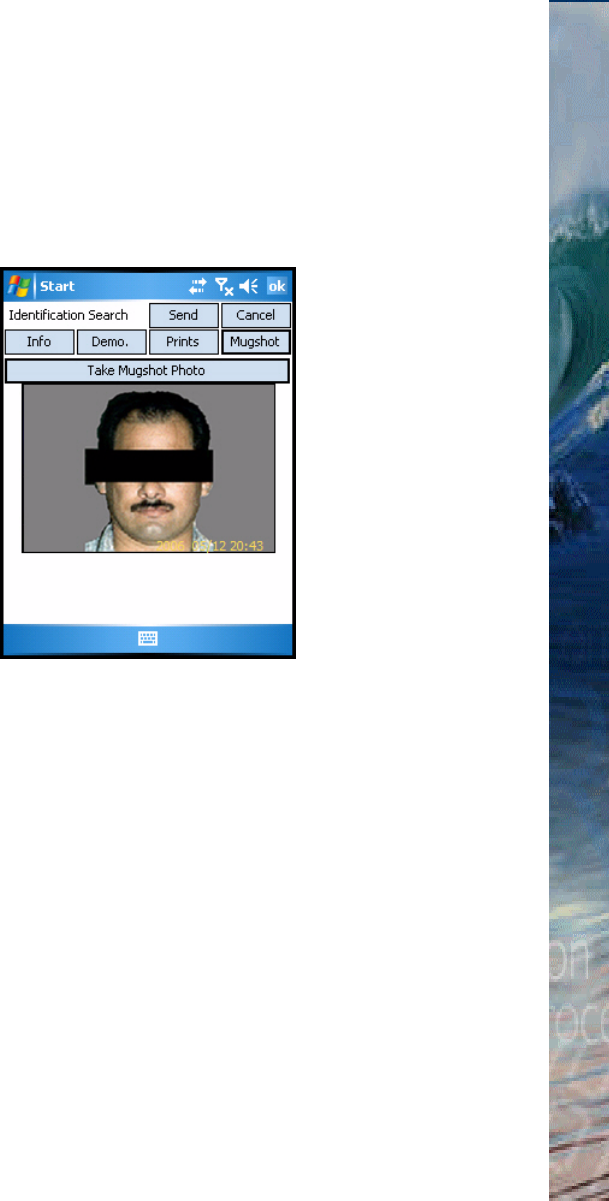

Figure 6-6 Preview of Subject’s Mugshot
•
•
•
•
•
•
Performing an Identification Search
Performing an Identification Search - Cogent Systems, Inc. Proprietary Information
33
17 If necessary, tap the camera icon on the bottom-right of the window
(below the word Select) to retake the photo.
18 Tap the icon on the bottom-left of the window (below the word Select)
to accept the subject’s mugshot photo. The subject’s mugshot photo will
be displayed in the Mugshot capture subwindow. An example is shown
in Figure 6-7.
Figure 6-7 Subject’s Mugshot Photo
19 After you have finished capturing the mugshot photo, you may send the
transaction to LAFIS.
20 If a possible hit against the tenprint database is found on LAFIS, the
BlueCheck device will beep, and the message Possible hit! will be
displayed on the Display Panel of the BlueCheck capture device. If no
candidates are found or only candidates with scores below the
designated threshold are found on LAFIS, the message No hit will be
displayed on the Display Panel of the BlueCheck capture device. The
results of the LAFIS search are displayed on the MobileID application
of the Pocket PC PDA. An example of the results returned from LAFIS
is displayed in Figure 6-8.
34
Performing an Identification Search - Cogent Systems, Inc. Proprietary Information
•
•
•
•
•
•
Figure 6-8 Results of the Quick Search Identification
Note:
A Hit will be indicated by a red square to the left of the transaction
number. In addition, the subject’s name will be displayed in the
Status
column. A Non-Hit will be indicated by a green square to the left of the
transaction number. In addition,
No Hit
will be displayed in the
Status
column.
21 To return to the MobileID Main Menu window, tap Exit. A dialog box will
be displayed.
22 Tap Yes. The MobileID Main Menu window will be displayed.
Viewing Transaction Information - Cogent Systems, Inc. Proprietary Information
35
•
•
•
•
•
•
Chapter 7
• • • • • •• • • • • •• • • • • •
Viewing Transaction Information
You can view the fingerprint images and demographic information for any
transaction in the
Transaction Queue
window by simply highlighting the
transaction in the queue and tapping the
View
button. When you do so, the
Transaction View
window will be displayed for that transaction, an
example of which is shown in
Figure 7-1
.
Figure 7-1 Sample Transaction View Window
From the
Transaction View
window, you can view the subject’s fingerprint
images and demographic information.
36
Viewing Transaction Information - Cogent Systems, Inc. Proprietary Information
•
•
•
•
•
•
Viewing the Identification Information Returned by
LAFIS
From the
Transaction View
window, tap the
Details
button. Information
regarding the subject’s Hit/No Hit status and identity (if available) will be
displayed. An example is shown in
Figure 7-2
.

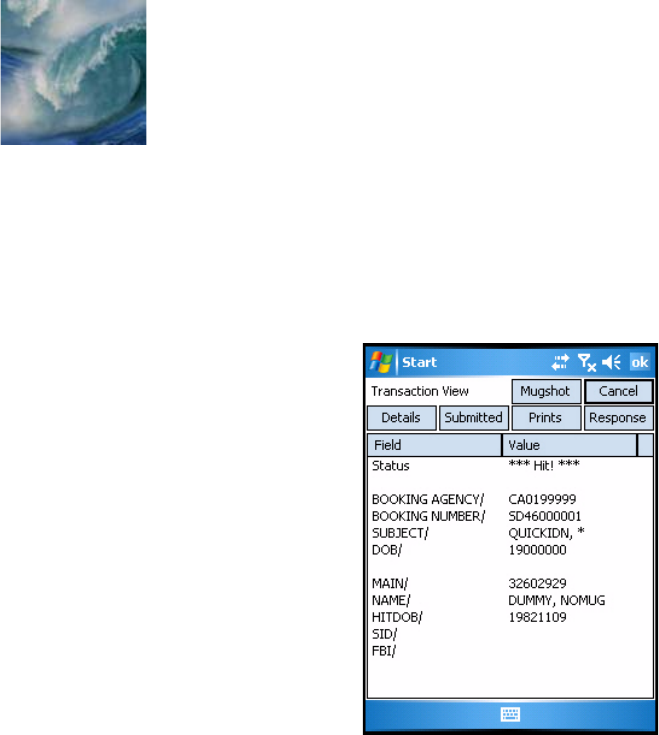

Figure 7-2 View the Identification Information Returned by LAFIS
Viewing the Demographic Information Submitted to
LAFIS
From the
Transaction View
window, tap the
Submitted
button. The
demographic information submitted (or waiting to be submitted) to
LAFIS
will be displayed. An example is shown in
Figure 7-3
.
•
•
•
•
•
•
Viewing Transaction Information
Viewing Transaction Information - Cogent Systems, Inc. Proprietary Information
37

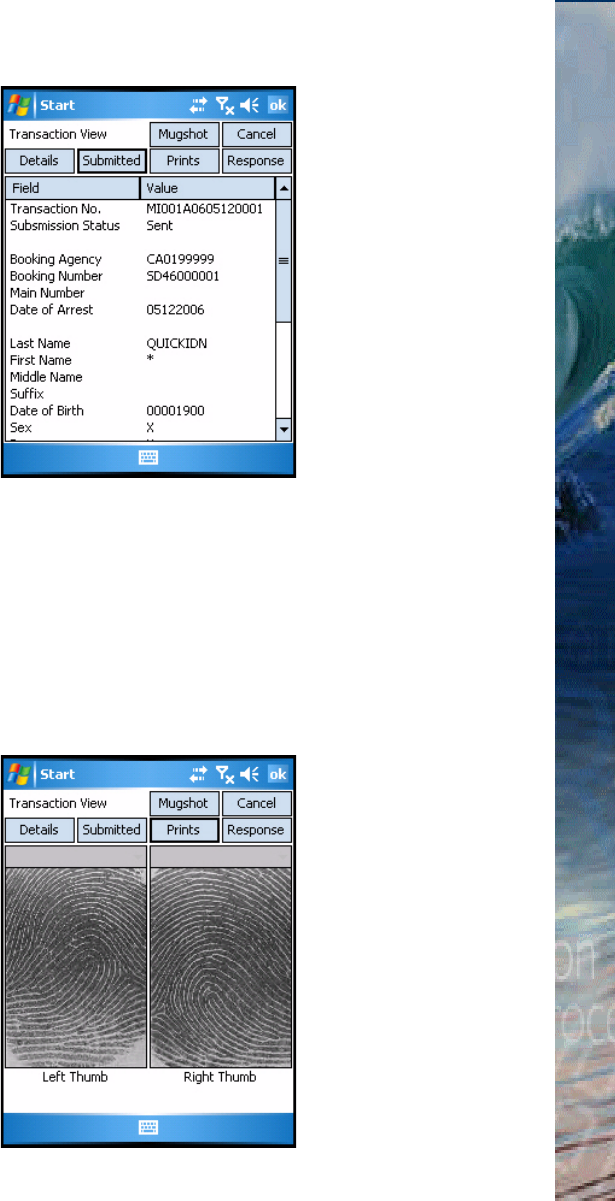

Figure 7-3 View the Demographic Information Submitted to LAFIS
Viewing the Prints Submitted to LAFIS
From the
Transaction View
window, tap the
Prints
button. The
fingerprints submitted (or waiting to be submitted) to
LAFIS
will be
displayed. An example is shown in
Figure 7-4
.
Figure 7-4 View the Fingerprints Submitted to LAFIS
38
Viewing Transaction Information - Cogent Systems, Inc. Proprietary Information
•
•
•
•
•
•
Viewing LAFIS’s Response to the Identification
Request
From the
Transaction View
window, tap the
Response
button.
LAFIS
’s

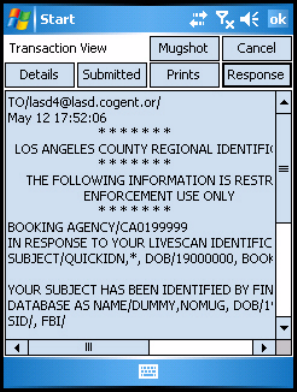

response to the identification request will be displayed. An example is
shown in
Figure 7-5
.
Figure 7-5 View LAFIS’s Response to the Identification Request
Viewing the Mugshot Photo Submitted to LAFIS
From the
Transaction View
window, tap the
Mugshot
button. The
mugshot photo submitted (or waiting to be submitted) to
LAFIS
will be
displayed. An example is shown in
Figure 7-6
.
•
•
•
•
•
•
Viewing Transaction Information
Viewing Transaction Information - Cogent Systems, Inc. Proprietary Information
39

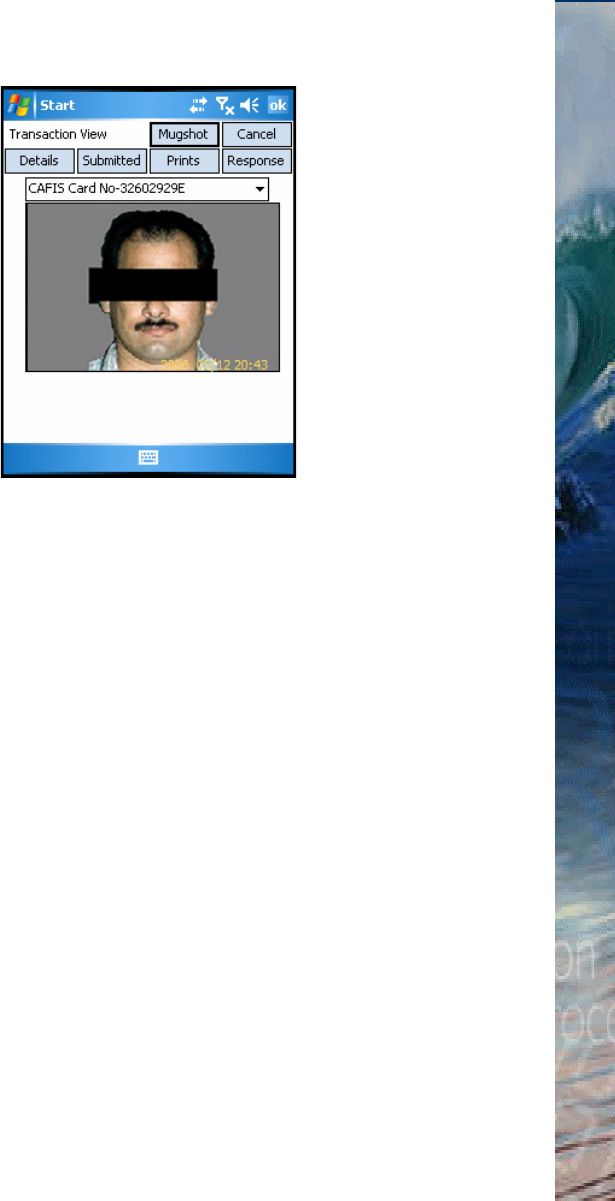

Figure 7-6 View the Mugshot Photo Submitted to LAFIS
Returning to the Transaction Queue Window
To return to the
Transaction Queue
window, tap the
ok
button.
40
Viewing Transaction Information - Cogent Systems, Inc. Proprietary Information
•
•
•
•
•
•
Notes
Logging Out - Cogent Systems, Inc. Proprietary Information
41
•
•
•
•
•
•
Chapter 8
• • • • • •• • • • • •• • • • • •
Logging Out
To log out of
MobileID
, follow these steps:
1Tap the Exit button. A dialog box will be displayed.
2Tap the Yes button. The MobileID Main Menu window will be displayed.
3Tap the Exit button. A dialog box will be displayed.
4Tap the Yes button. The Login window will be displayed.
5Tap the Exit button. You will be logged out of MobileID.
42
Logging Out - Cogent Systems, Inc. Proprietary Information
•
•
•
•
•
•
Notes
Configuring MobileID (for Administrators only) - Cogent Systems, Inc. Proprietary Information
43
•
•
•
•
•
•
Appendix A
Configuring MobileID
• • • • • •• • • • • •• • • • • •
(for Administrators only)
To configure MobileID, follow these steps:
1Use the stylus to tap on the Start button, located on the top-left corner
of the Pocket PC PDA screen. A drop-down menu will be displayed.
2Select MIDConfigure from the drop-down menu. The MobileID Host

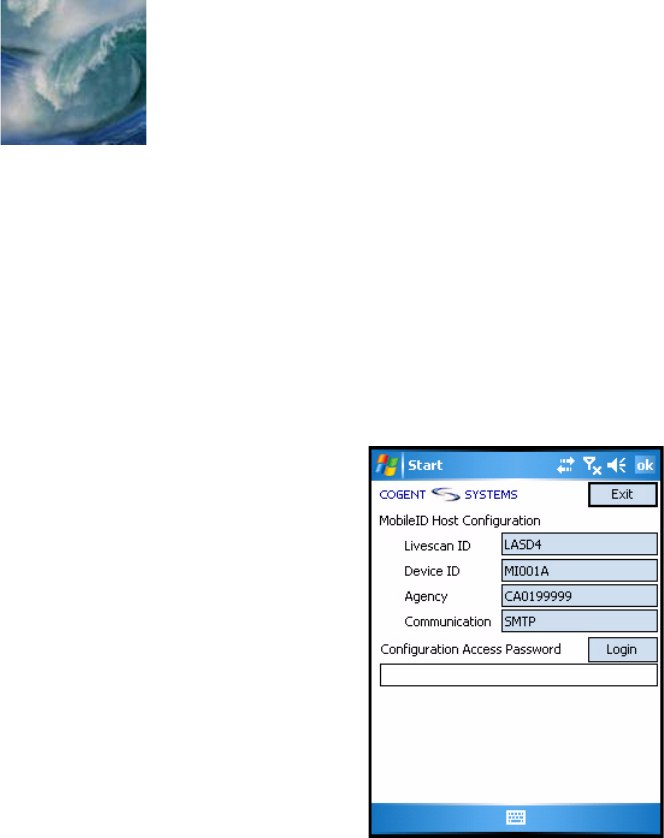

Configuration window will be displayed, an example of which is shown
in Figure A-1.

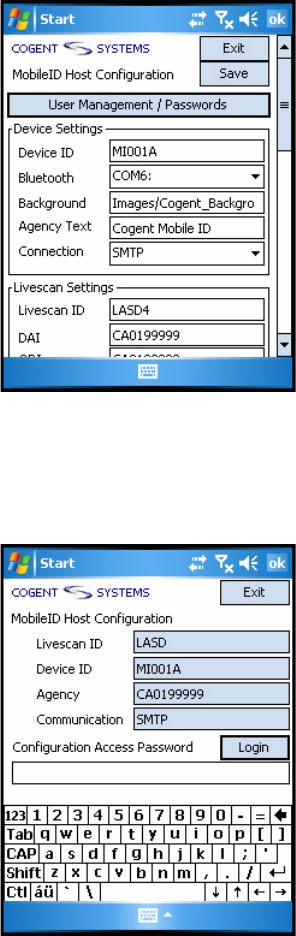

Figure A-1 MobileID Host Configuration Window
3Enter the configuration access password in the Configuration Access
Password field.
44
Configuring MobileID (for Administrators only) - Cogent Systems, Inc. Proprietary Information
•
•
•
•
•
•
Note:
The default configuration access password is
qwerty
.
4Tap Login. The configuration information for MobileID will be displayed.

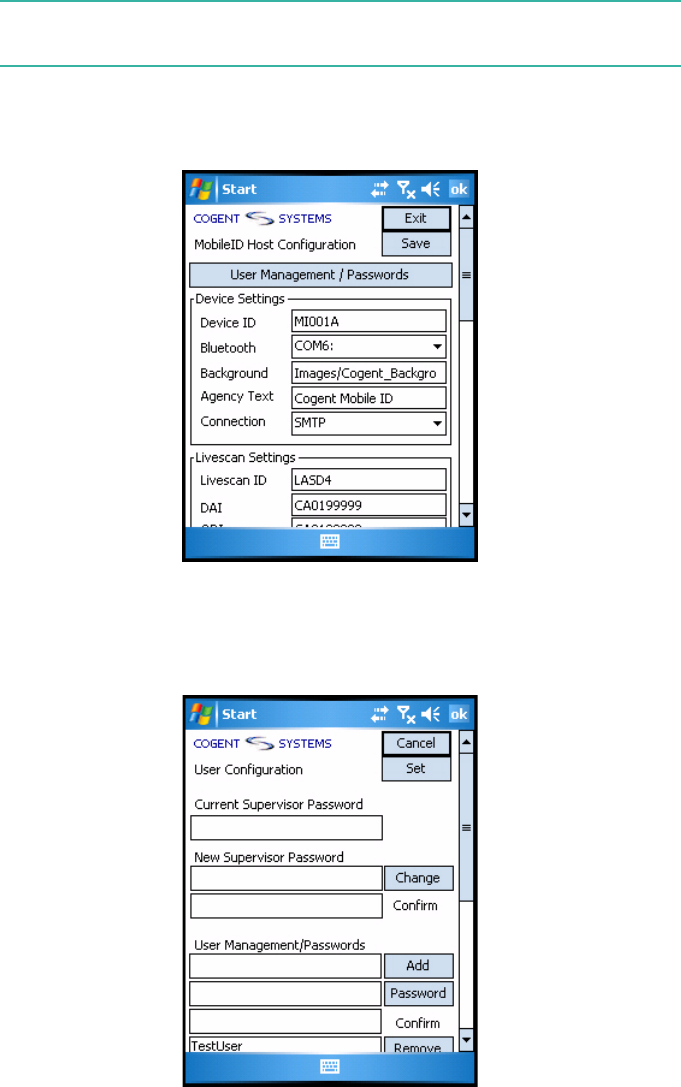

An example is shown in Figure A-2.
Figure A-2 MobileID Host Configuration
5Tap User Management / Passwords. The User Configuration window
will be displayed. An example is shown in Figure A-3.
Figure A-3 User Configuration Window
•
•
•
•
•
•
Configuring MobileID (for Administrators only)
Configuring MobileID (for Administrators only) - Cogent Systems, Inc. Proprietary Information
45
6To add a new MobileID user account, follow these steps:
6a Enter the new user name in the first field below the User
Management/Passwords portion of the window.
6b Enter the new user password in the second field below the User
Management/Passwords portion of the window.
6c Enter the new user password again in the third field below the
User Management/Passwords portion of the window. An

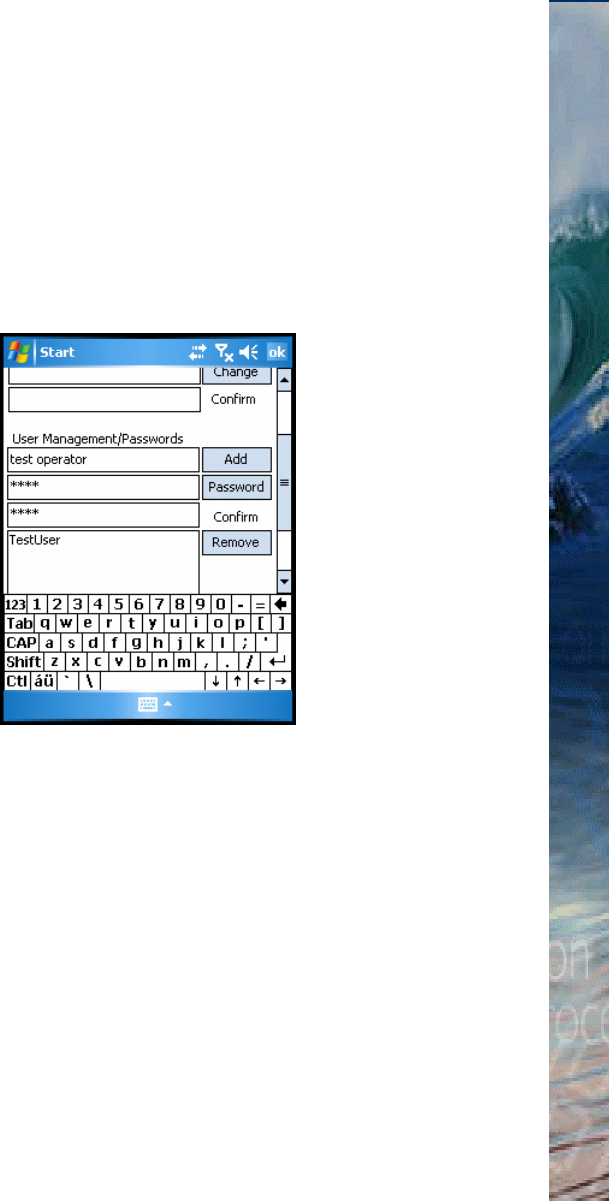

example is shown in Figure A-4.
Figure A-4 Creating a New User Account
6d Tap the Add button. A dialog box is displayed.
6e Tap the Close button. The dialog box is no longer displayed.
6f Tap the Set button. The configuration information for MobileID will
be displayed. An example is shown in Figure A-5.
46
Configuring MobileID (for Administrators only) - Cogent Systems, Inc. Proprietary Information
•
•
•
•
•
•
Figure A-5 MobileID Host Configuration
6g Tap the Save button. The MobileID Host Configuration window
is displayed, an example of which is shown in Figure A-6.
Figure A-6 MobileID Host Configuration Window
6h Tap the Exit button. You will be exited from the MobileID
configuration application.
