Connect Frame to Tent

–Insert one end of main tent pole end

onto pin of ring and pin system, at tent

corner. (illus. 4)

–Go to opposite end of pole and

gradually apply pressure to the pole

forming an arch until you are able to

insert the pin into the pole

–Repeat for second pole

SUNDOME™7’x7’

1Layout & Positioning

of Tent, Pole

Assembly

–Layout and position tent with door

facing desired direction. (illus. 1)

–Unzip door

–Stake down tent corners only, using the

rings at the end of the stake loops.

Keep the floor taut.

–Assemble Frame Poles by

interlocking shock-corded poles.

This will make two long poles.

–Insert the poles diagonally into Pole

Sleeves.The center of the poles should

cross forming an “X” in the middle of

tent. (illus. 1)

–Fasten Frame Tie on top of tent over

both poles. (illus. 1), (illus. 3)

2

When You Are Ready To Set Up

Your Tent

–Select a level campsite clear of rocks,

branches and other hard or sharp objects.

–Do not set up your tent under trees. ™

–For best results in windy conditions,

position the end of tent into the wind.

–See owners manual for more tips.

Rainfly Pole

Part No. 9260M704

Main Tent

Poles

POLE ASSEMBLY PARTS

Assembled

poles

inserted

through

pole

sleeves

Frame Tie

Instructions apply to Part Number 9260N707

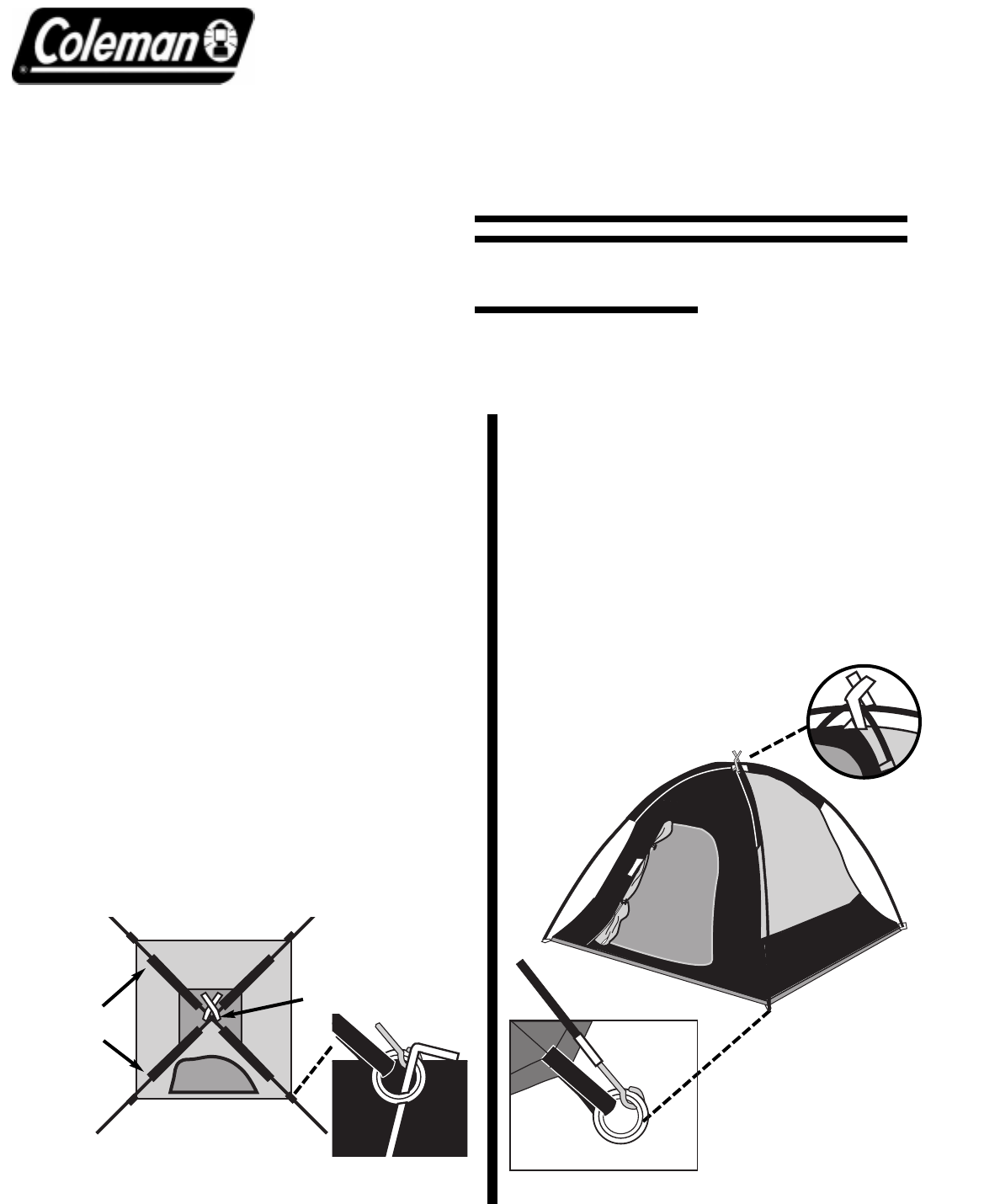

illus. 1

illus. 2 Tent stake

through ring

illus.4

Insert pole end onto

pin & ring

illus. 5

Tent frame

set-up

illus. 3

Frame Tie

Part No. 9260A702

Part No. 9260-703

Rainfly

Attach Tent to Frame

Using Frame Clips

–Attach Frame Clips along

the edges of tent to frame poles

(illus. 5), (illus. 6)

–Make any adjustments to the tent

corner stakes that are needed.

3

4Attach Rainfly

–Assemble Rainfly Pole by

interlocking shock-corded pole

–Insert Rainfly Pole into reinforced

pockets located at the center edges

of the underside of Rainfly

(illus. 7), (illus. 8)

–Tie underside of Rainfly to the Rainfly

Pole with Frame Ties (illus. 8)

–Drape Rainfly over tent frame, pole

side down. Rainfly Pole should

point out over door and rear window.

–Connect the four elastic loops with

“S” hooks, (found at the Rainfly

corners) to the four rings

located at the end of the Stake

Loops at the corners of the tent.

–Secure Rainfly with Frame Ties

located on underside of fly (illus. 9)

–Stake out the tent with 2 side

guylines (illus. 9)

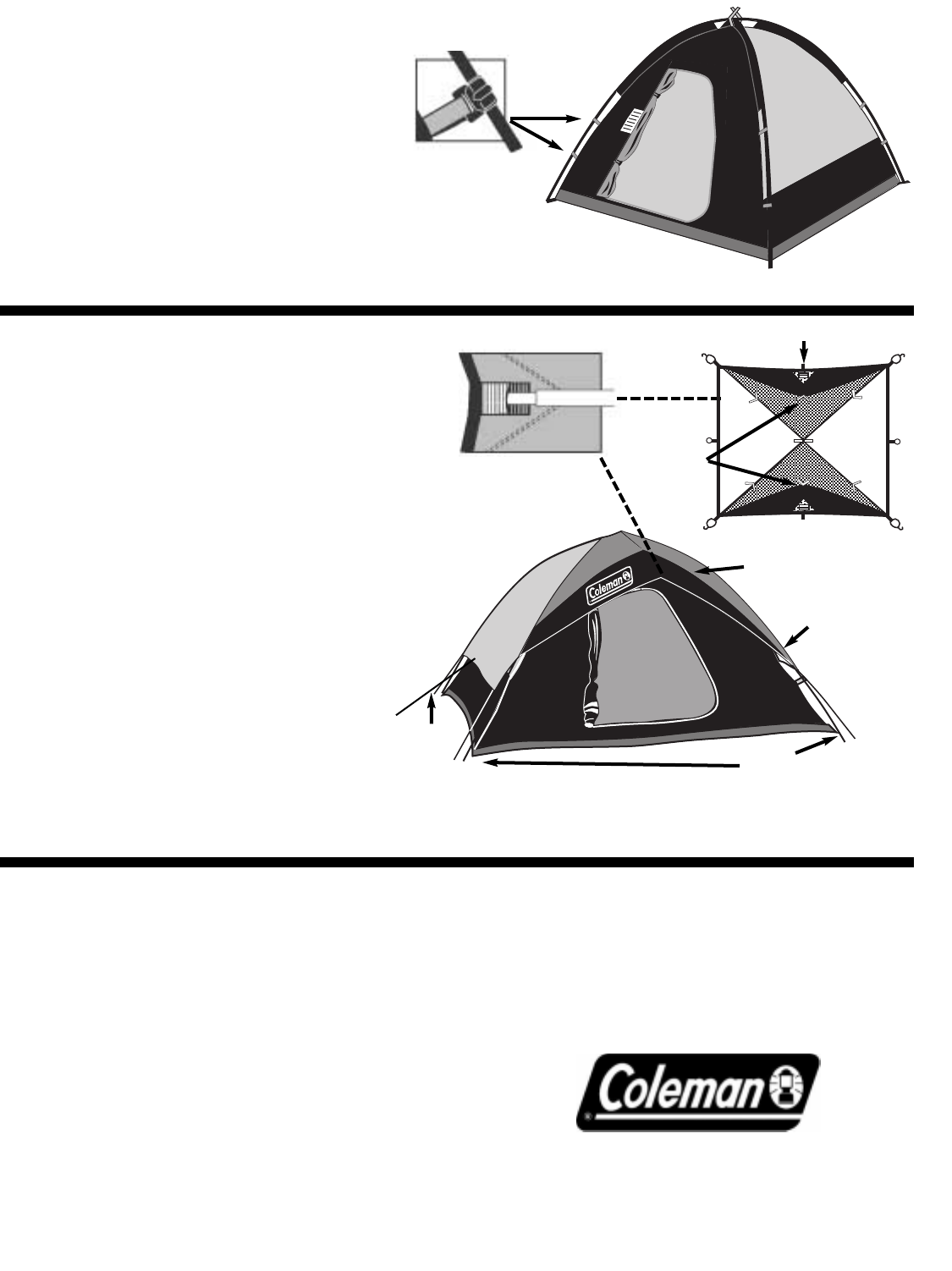

illus. 6

Assembled tent without

Rainfly. Note the Frame Clips

located on edge of tent.

illus. 5

Frame Clips

illus. 7 Insert Rainfly

Pole piece into

pocket on underside

of Rainfly

illus. 9 Completed tent with Rainfly.

Note where Rainfly Pole pockets ,

rings, and under ties are located.

illus. 8

Underside of

Rainfly

attaches to

frame poles

Side

Guyline “S” Hooks attach

Rings at the corners

Rainfly

pockets

Rainfly Pocket

Frame

Ties

THE COLEMAN CO., INC.

3600 N. Hydraulic • Wichita, Kansas 67219

1-800-835-3278 • www.coleman.com

MADE IN KOREA, ASSEMBLED IN CHINA

PRINTED IN CHINA Rev. 6/01

Things You Should Know

• Under certain conditions (cold weather, high humidity, etc.)

condensation will form on the inside surfaces of your tent. Condensation is

caused by water vapor from your breath, perspiration, or any wet clothing

inside your tent. It is NOT LEAKAGE through the tent fabric. It can be mini-

mized by removing wet clothing from your tent and by providing good ventila-

tion through the tent.

• Never store tent, even for a short period of time, without drying it thorough-

ly and brushing off caked dirt. Do not pack stakes or poles inside your tent.

Use separate storage bag.

• STAKES SHOULD BE REMOVED BY PULLING ON THE STAKE ITSELF.

NEVER PULL ON THE TENT FABRIC OR TENT STAKE LOOP TO

REMOVE STAKE.

• TENT POLES SHOULD NOT BE LEFT TELESCOPED

TOGETHER DURING STORAGE.

• Seam sealer has not been provided with your tent. It is necessary

and we recommend seam sealing your tent prior to camping. Seam sealer

may be purchased through your local retailer or at your local sporting goods

store.

• Do not leave your tent set-up for weeks at a time, be aware that expo-

sure to the ultraviolet rays of the sun can seriously damage nylon material

and/or cause it to become discolored.

• See owners manual for more tips.

WARNING: KEEP ALL FLAME AND HEAT SOURCES

AWAY FROM THIS TENT FABRIC. This tent meets the flammability

requirements of CPAI-84. The fabric may burn left in continuous contact

with any flame source. The application of any foreign substance to the

tent fabric may render the flame-resistant properties ineffective.
