User manual
1. General information:
a. Product name: Comarch beacon
b. Model: CB001
c. Product web page: www.beacon.comarch.com
d. Manufacturer:
Comarch SA
al. Jana Pawla II 39A, 31-864 Krakow, Poland
e. Licensor:
Comarch Technologies Sp. z o.o.
al. Jana Pawla II 39A, 31-864 Krakow, Poland
f. Copyright © 2015 Comarch Technologies Sp. z o.o.
g. The device is not a dual-use item.
h. Patent pending
2. Notes:
a. Package content:
I. Comarch beacon device, 1 or 3 pcs.
II. User manual
III. Tape mounting pads Micro-suction , 1 or 3 pcs. (optional)
ATTENTION:Electronicversionoftechnicalspecication
and additional documents regarding Comarch beacon device
can be downloaded from web page:
www.beacon.comarch.com/ON
WARNING: The package and its content is not a toy
and can not be made available to children.
Keep it out of children.
COMARCH beacon User manual 54
b. Product incorporates:
I. Proprietary technology developed
by Comarch Technologies.
II. Strict standards to ensure high quality
of mobile communication.
III. Security module eliminating threat of signal
eavesdropping or impersonation.
IV. The possibility of wireless
software updates.
V. Solutions for collaboration with a wide
range of Comarch products.
VI. Lithium battery.
VII. Temperature and accelerometer sensors.
3. Instruction icons
WARNING – situations that could cause user’s
injury.
CAUTION – situations that could cause damage
of the device.
ATTENTION – tips and additional information.
4. Copyright
Copyright © 2015 Comarch Technologies Sp. z o. o.
This manual is protected under international
copyright law. No part of the manual may be
reproduced, distributed, or transmitted in any
form or by any means without written permission
of the Comarch Technologies Sp. z o. o.
5. Trademarks
a. Comarch is registered trademark of Comarch SA.
b. Comarch beacon and Comarch beacon logo are registered
trademarks of Comarch Technologies Sp. z o. o.
c. Comarch Technologies and Comarch Technologies logo
are registered trademarks of Comarch Technologies Sp. z o. o.
d. Bluetooth®, Bluetooth® logo and Bluetooth Smart® are
registered trademarks of Bluetooth SIG, Inc.
e. Wi-Fi® and Wi-Fi® logo are registered trademarks of
Wi-Fi Alliance.
f. iBeacon® and iBeacon® logo are registered trademarks
of Apple, Inc., registered in U.S.
g. Android, Google , Google Play , Android logo, Google,
Google Play are registered trademarks of Google, Inc.
h. All other trademarks and copyrights are the property
of their respective owners.
COMARCH beacon User manual 76

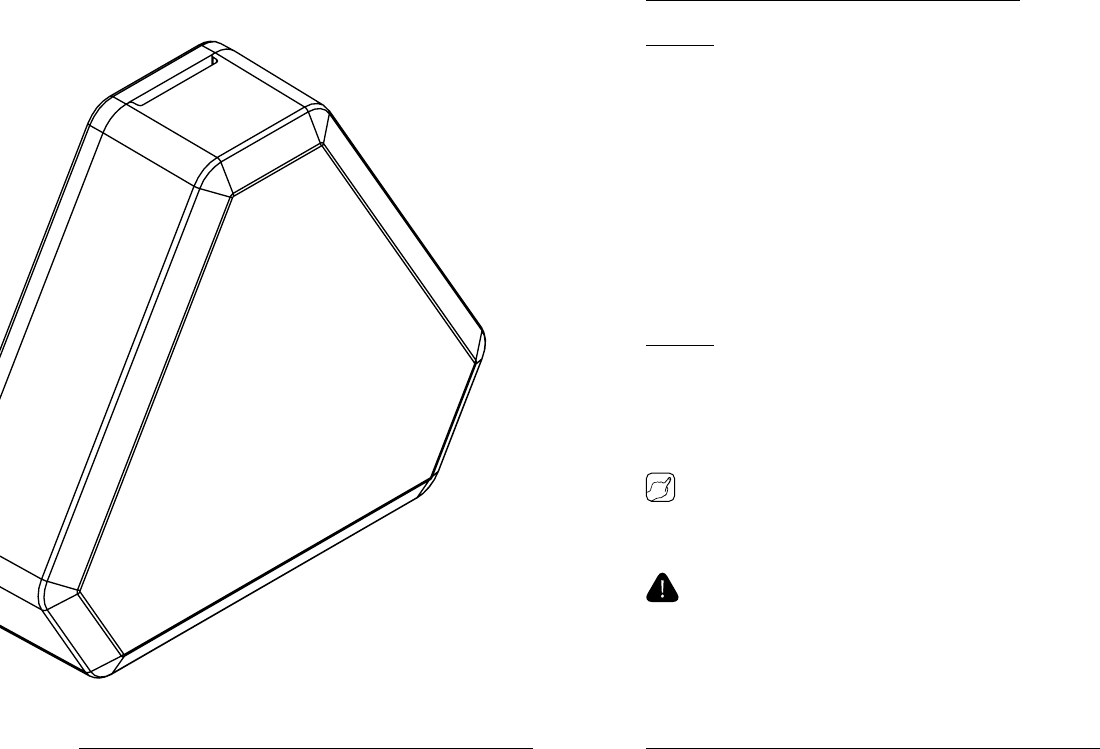

6. Introduction

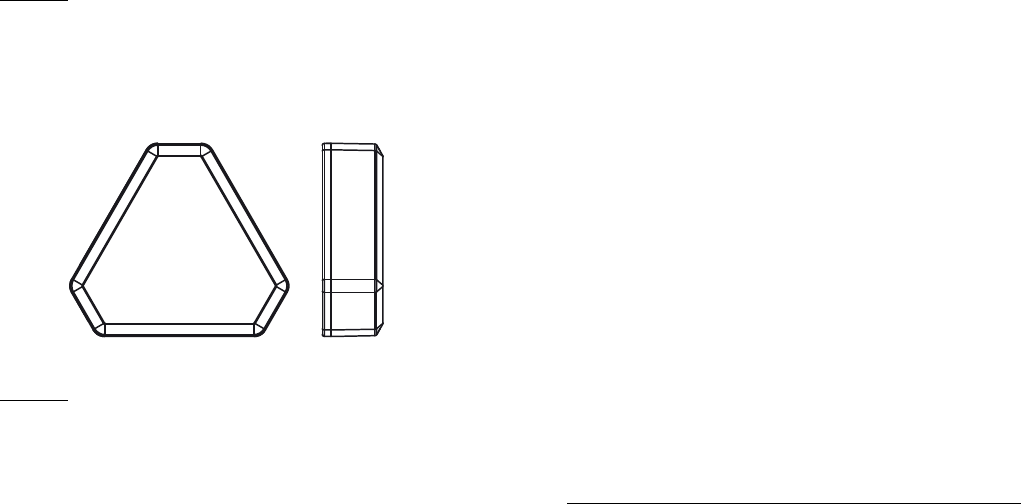

a. Dimensions: equilateral triangle with a 5 cm long side
withcut-otops,height1.4cm
b. Weight: 20g
c. Mounting types
Recomended types of mounting: UVA tape, Micro-Suction
tape pads or screws (accessories are optional).
CAUTION: Be cautious when opening beacon casing.
Electronics is shock sensitive.
ATTENTION: For holes drilling use a drill of
appropriate type and thickness. Recommended screws:
1. Screw A: length 30mm, thread diameter: 3.5mm,
head diameter: 7mm, head type: conical.
2. Screw B: length 30mm, thread diameter: 3.5mm,
head diameter: 7mm, head type: cylindrical.
ATTENTION: Do not overtighten the screws since it may
cause the plastic casing cracking.
7. First time usage
a. Ifthedeviceisturnedo(seedescriptiononthepackage):
I. Open the beacon caseing.
WARNING:Donotopencasingusingyourngers,since
this could injure your nails.
II. Removethebatteryisolatorlm.
III. Close the beacon casing.
Beacon is active now.
b. If the device is turned on (see description on the package),
beacon is already active.

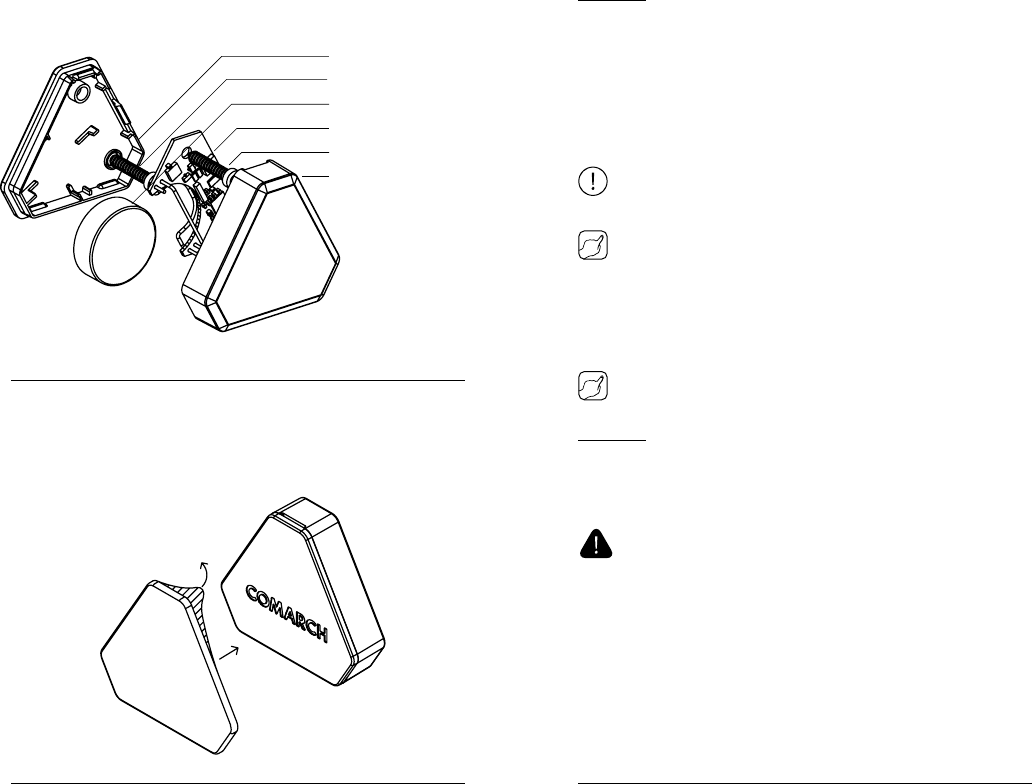

Mounting using screws
Mounting using Micro-Suction tap
1. Case bottom part
2. Screw type A
3. Battery
4. Electronic
3. Screw type B
4. Case top part
COMARCH beacon User manual 98
8. Compatible smartphone OS
a. Android version 4.3 (API level 18) and up
b. Apple iOS version 7 and up
ATTENTION: Devices with Bluetooth 4.0
working on iOS and Android can work
with Comarch beacon.
9. Maintenance
a. Battery replacement
I. Open the beacon casing.
WARNING:Donotopencasingusingyourngers,
since this could injure your nails.
CAUTION: Be cautionus when opening casing.
Electronics is shock sensitive.
II. Carefully remove the electronics and battery.
III. Put a new battery in place.
ATTENTION: Do not dispose the battery with the household
waiste. Dispose the battery in accordance with section 10 b.
CAUTION: Be careful when inserting the battery!
Make sure the battery contacts are clean. Sometimes,
evenaninvisiblelmfromyouroilyngertips,may
prevent proper contact.
Never hold any cells in the center but at the sides only.
Youmayuseeitheracleanclothtocleanoalightlayerof
oxidation or a pencil eraser to remove heavier deposits from
the cells polarity surfaces.
Make sure you also clean the contact points (battery clip wires)
on the beacon. It is recommended to use cotton gloves for
battery installation.
IV. Insert the electronics into casing and close beacon cover.
10. Regulations
a. CE
Thisproductmeetstherequirementsspeciedby
the following standards:
- R&TTE 99/CE/05 (ETSI EN 300 328 V1.8.1)
- ETSI EN 301 489-1 V1.9.2
- ETSI EN 301 489-17 V2.2.1 (2012-09)
- EN 60950-1:2006+A11:2009+A1:2010+A12:2011
A2:2013
b. Disposal of waste electrical and electronic
equipment (for the countries which apply the waste
segregation system).
At the end of use, this product can not be disposed
with the household waste. For more information,
please contact the local community waste collection
point or contact the dealer or supplier.
c. RoHS
This product meets the requirements of the directive:
Restriction of Hazardous Substances (2002/95/EC).
11.Technicalspecication
a. Battery
Lithium battery CR2477 3V (nominally),
Manufacturer: Renata,
Capacity: 950mAh.
Battery is replacable.
b.Radiospecication
- Bluetooth 4.1 Low Energy
- device class 1
- range up to 100m (open space)
- maximum transmitter power: 8 dBm
(default setting: -1.3 dBm)
COMARCH beacon User manual 1110
- receiver sensitivity: -92.5 dBm
- frequency range: 2.4 GHz to 2.4835 GHz
- peak antenna gain: 0.5 dBi
- average antenna gain: -0.5 dBi
c. Recommended operating conditions
Operating condition Minimum Maximum Unit
Temperature 0 85 °C
Humidity 20 90 %
Battery voltage 1.8 3.6 V
d. Absolute maximum ratings
Rating Minimum Maximum Unit
Storage
temperature -40 85 °C
Battery voltage - 3.6 V
12. Disclaimer
a. The manufacturer is not liable for any damage
resulting from the incorrect use of the device,
contrary to its intended purpose or the information
contained in the user manual.
b. The manufacturer is not responsible for products
provided by third parties and delivers them in the form
of as-is and does not explicitly guarantee that they will be
useable.
Warranty
The manufacturer gives the buyer of Comarch beacon device
a warranty that device is free from defects in workmanship and
material, while not guarantee uninterrupted and free from any fault
working of the beacon device. The warranty is granted for a period
of 12 months from the date of purchase of the device from the
manufacturer or an authorized distributor. The warranty is given
one time and cannot be extended.
Warranty does not cover devices which:
a) havebeenmodiedoraltered,or
b) have not been used or stored in accordance
with user manual, or
c) have not been used in accordance with the law, or
d) shows signs other than those arising from daily use.
Using the beacon may also be subject to restrictions
under the provisions of the law.
To the extent permitted by the law applicable to the area where
the beacon device was obtained from authorized distributor
or manufacturer:
a) above guarantee is only valid warranty
and in lieu of all other express or implied,
warranties or conditions of satisfactory quality,
merchantability and usefullness for a particular purpose,
b) manufacturer is not responsible under the warranty
for physical and legal defects,
c) manufacturer liability does not cover liability
for loss of data,
User manual 13
Federal Communications Commission (FCC)
Statement (USA)
FCC PART 15 STATEMENTS FOR USER’S MANUAL
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS.
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,
INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED
OPERATION.
Warning:Changesormodicationsnotexpresslyapproved
by the party responsible for compliance could void the user’s
authority to operate this equipment.
Note: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is
no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turningtheequipmentoandon,theuserisencouragedto
try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
d) manufacturer liability for any damages during usage
of the beacon device is limited to the damage
caused due to intentional fault,
e) the amount of compensation is limited only to
actuallossesanddoesnotincludelostprots
orbenets.
If the buyer is a consumer, the above provisions
do not exclude or restrict liability warranty, except
in cases where such exclusion or limitation is
permitted under the provisions of applicable law..
Document version
User manual: version 1.0
www.beacon.comarch.com
www.technologies.comarch.com
COMARCH beacon14
ThisdevicemeetstheFCCandICrequirementsforRFexposure
in public or uncontrolled environments.
Canada: Industry Canada (IC) Statement
IC Notice to Users English/French in accordance with RSS GEN
Issue 3:
ThisdevicecomplieswithIndustryCanadalicenseexemptRSS
standard(s).
Operation is subject to the following two conditions:
1. this device may not cause interference, and
2. this device must accept any interference, including
interference that may cause undesired operation of the device.
Cet appareil est conforme avec Industrie Canada RSS standard
exemptsdelicence(s).SonutilisationestsoumiseàLesdeux
conditions suivantes:
PRELIMINARY
1. cet appareil ne peut pas provoquer d’interférences et
2. cet appareil doit accepter Toute interférence, y compris les
interférences qui peuvent causer un mauvais fonctionnement
du dispositive
This Class B digital apparatus complies with Canadian ICES-003
CetappareilnumériquedelaclasseBestconformeàlanorme
NMB-003 du Canada.
