Comba Telecom HRU01-6800 ComFlex Series Distributed Antenna System User Manual

Comba Telecom Ltd. ComFlex Series Distributed Antenna System

User Manual

ComFlex-6800
D
DI
IS
ST
TR
RI
IB
BU
UT
TE
ED
D
A
AN
NT
TE
EN
NN
NA
A
S
SY
YS
ST
TE
EM
M
USER MANUAL
ComFlex-6800 QE 1-0-0
编 制：__ 张宇文 __
审 核： __ 邓海龙 __
会 签： ___ 赵文莉__ _
标准化：___ 高晓林____
批 准： ____张 晖__ _
京信通信系统（中国）有限公司
文件历史记录
文件编号
ComFlex-6800 QE
文件标题
COMFLEX
-
6800 SERIES DISTRIBUTED ANTENNA
SYSTEM MANUAL
文件履历
版本
编制
日期
更改内容（条款）
A
张宇文
2017-2-20
首次发行
D
DI
IS
ST
TR
RI
IB
BU
UT
TE
ED
D
A
AN
NT
TE
EN
NN
NA
A
S
SY
YS
ST
TE
EM
M
USER MANUAL
ComFlex-6800 QE: 1-0-0
Comba Telecom Ltd.
The information contained herein is the responsibility of and is approved by the
following, to whom all enquiries should be directed in the first instance:
This is an unpublished work the copyright in which vests in Comba International
("Comba"). All rights reserved.
The information contained herein is confidential and the property of Comba and
is supplied without liability for errors or omissions. No part may be reproduced,
disclosed or used except as authorised by contract or other written permission.
The copyright and the foregoing restriction on reproduction and use extend to all
media in which the information may be embodied.
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 3
0.1 CONTENTS
Section
Page
0.1 CONTENTS ....................................................................................................................................................... 3
0.2 INDEX TO FIGURES AND TABLES ...................................................................................................................... 5
0.3 HISTORY ........................................................................................................................................................... 7
0.4 GLOSSARY OF TERMS ....................................................................................................................................... 8
0.5 SAFETY NOTICES AND ADMONISHMENTS ..................................................................................................... 9
1 GENERAL INFORMATION ............................................................................................................................ 10
2 EQUIPMENT DESCRIPTION .......................................................................................................................... 12
2.1 SYSTEM DIAGRAM ...................................................................................................................................... 12
2.2 TYPICAL APPLICATION ................................................................................................................................ 12
2.3 EQUIPMENT CONSTITUTION ....................................................................................................................... 13
2.4 KIT OF PART ................................................................................................................................................ 14
3 INSTALLATION ............................................................................................................................................ 16
3.1 WARNINGS AND ALERTS ............................................................................................................................. 16
3.2 SITE PLANNING CONSIDERATIONS .............................................................................................................. 17
3.2.1 SITE PLANNING ...................................................................................................................................... 17
3.2.2 SYSTEM INSTALLATION CHECKLIST ......................................................................................................... 18
3.3 INSTALLATION PROCEDURES ...................................................................................................................... 18
3.3.1 GOODS INWARDS INSPECTION............................................................................................................... 18
3.3.2 TOOLS .................................................................................................................................................... 18
3.3.3 PREPARATION ........................................................................................................................................ 18
3.3.4 MU ASSEMBLING ................................................................................................................................... 19
3.3.5 MU IN 19” RACK MOUNTING ................................................................................................................. 20
3.3.6 RU WALL MOUNTING ............................................................................................................................. 23
3.3.7 POLE MOUNT INSTALLATION ................................................................................................................. 25
3.1 EQUIPMENT CONNECTORS ........................................................................................................................... 28
3.2 EQUIPMENT CONNECTION ............................................................................................................................. 31
4 COMMISSIONING ....................................................................................................................................... 38
4.1 PRE-COMMISSIONING TASKS ........................................................................................................................ 38
4.2 LED INDICATORS ............................................................................................................................................ 38
4.3 DIGITAL DISPLAY INDICATORS ....................................................................................................................... 39
4.3.1 DIGITAL DISPLAY ON RFU .......................................................................................................................... 39
4.3.2 DIGITAL DISPLAY ON FOU.......................................................................................................................... 39
5 WEB GUI ..................................................................................................................................................... 41
5.1 WEB GUI CONNECTION ............................................................................................................................... 41
5.2 WEB GUI INTRODUCTION ........................................................................................................................... 42
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 4
5.2.1 [DEVICES] ............................................................................................................................................... 42
5.2.2 [COMMISSIONING] ................................................................................................................................ 47
5.2.3 [FIRMWARE] .......................................................................................................................................... 47
5.2.4 [MANAGEMENT] .................................................................................................................................... 50
5.3 COMMISSIONING PROCEDURE ................................................................................................................... 60
6 ALARMS AND TROUBLESHOOTING ............................................................................................................. 67
6.1 ALARMS ...................................................................................................................................................... 67
6.2 TROUBLESHOOTING ................................................................................................................................... 68
7 APPENDICES ............................................................................................................................................... 70
7.1 APPENDIX A: TOOLS FOR INSTALLATION AND MAINTENANCE .................................................................... 70

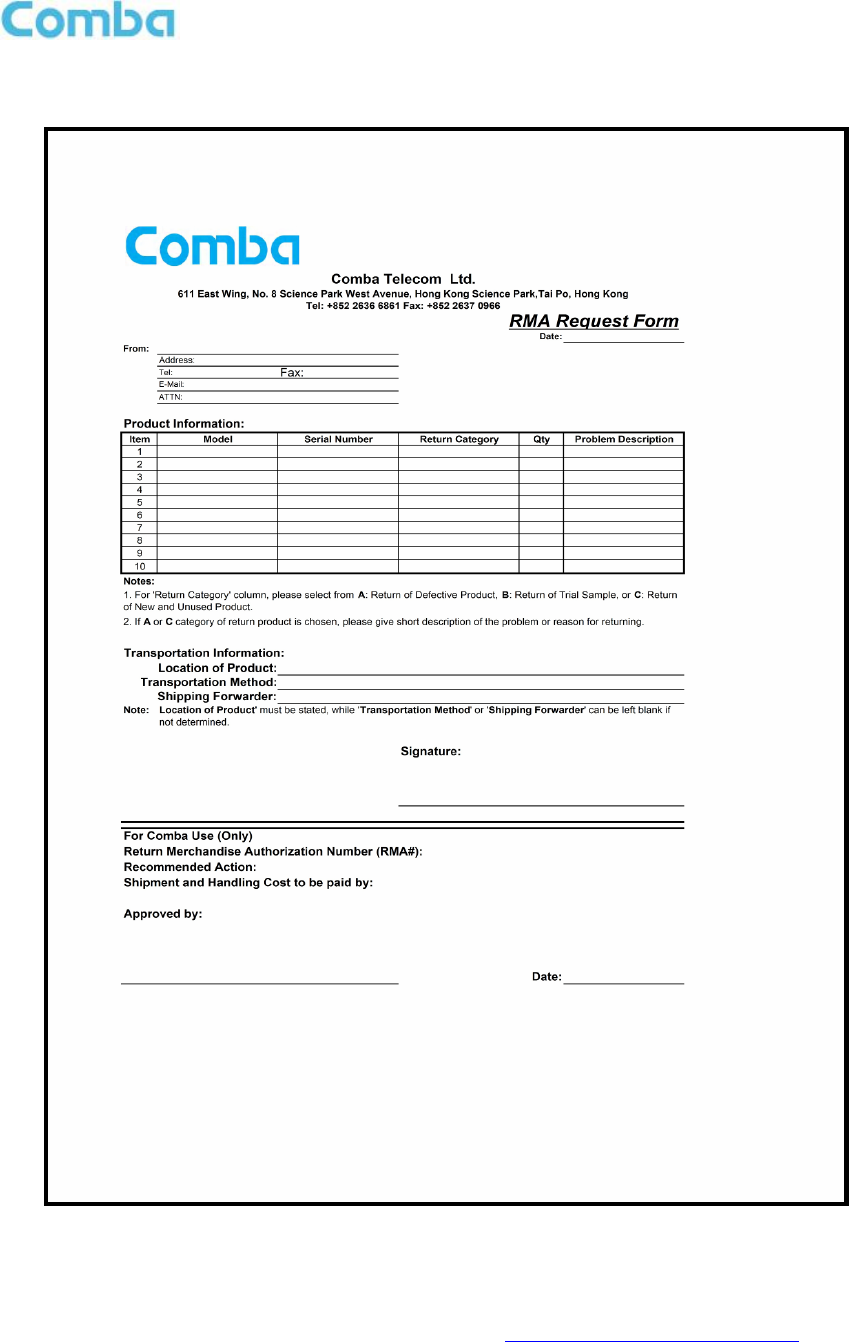

7.2 APPENDIX B: RMA (RETURN MATERIAL AUTHORIZATION) ......................................................................... 71
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 5
0.2 INDEX TO FIGURES AND TABLES
Figure 1: Master Unit (MU) ...................................................................................................................................... 10

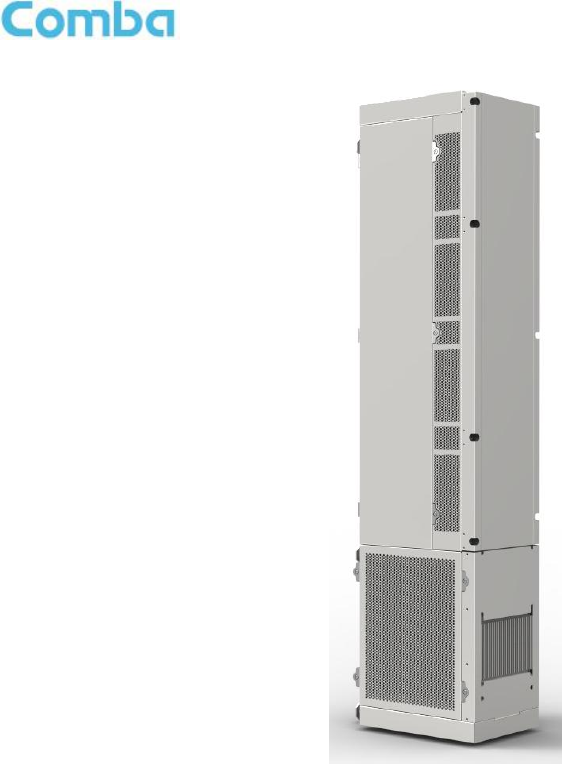

Figure 2: Remote Unit (RU) ..................................................................................................................................... 11

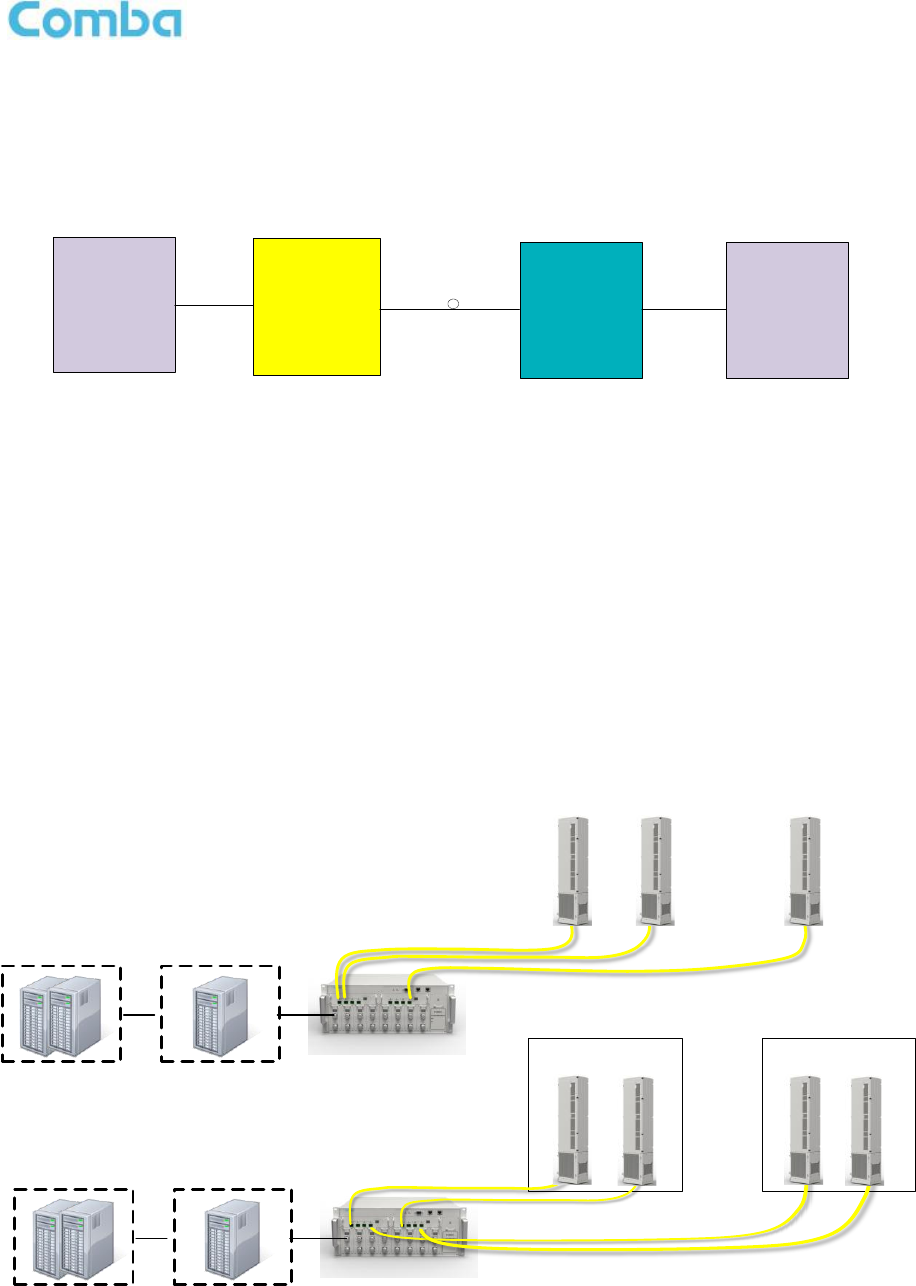

Figure 3: System Diagramc ..................................................................................................................................... 12
Figure 4: Typical Application ................................................................................................................................... 12

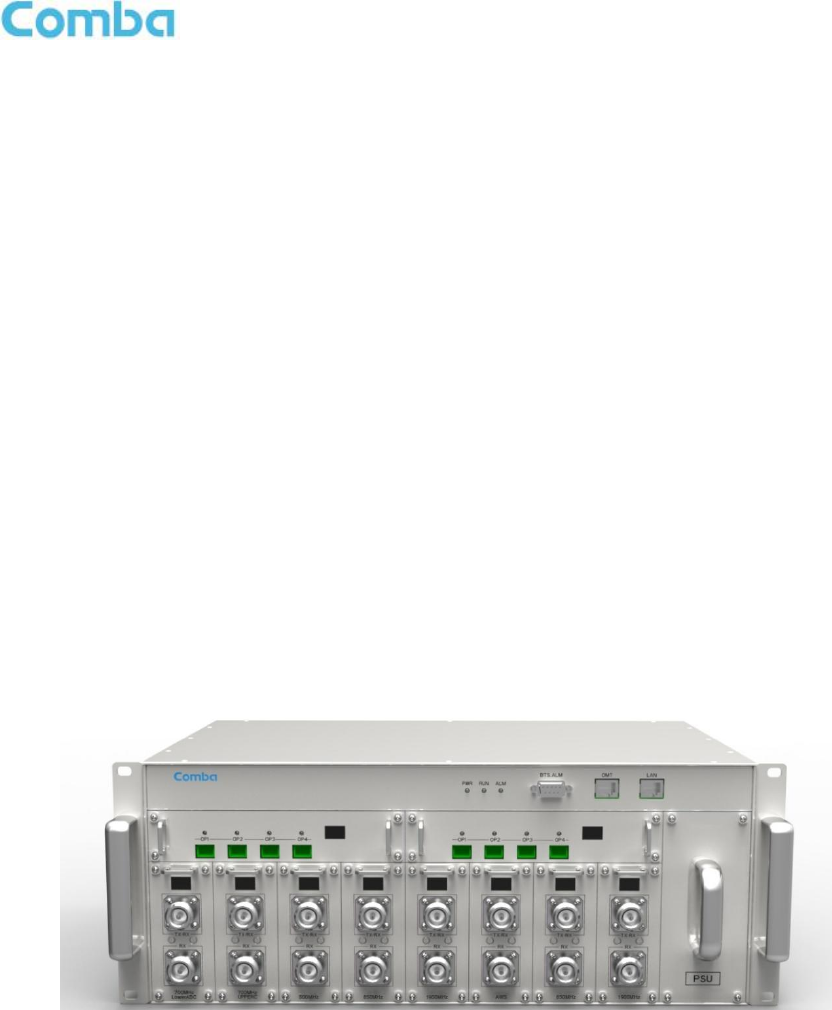

Figure 5: ComFlex Master Unit ............................................................................................................................... 19

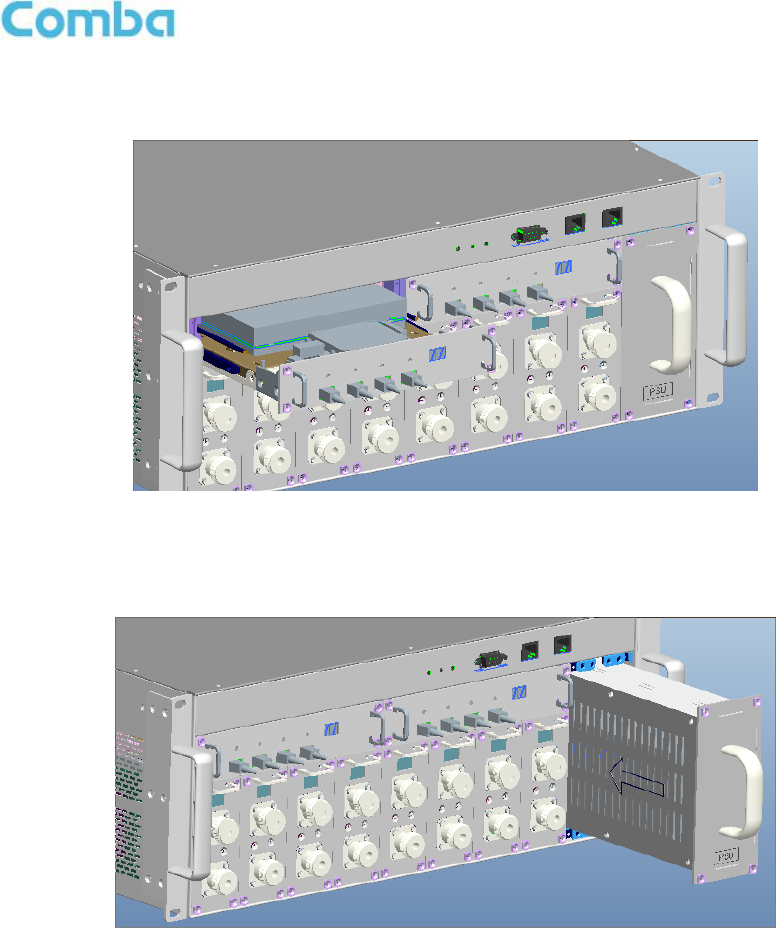

Figure 6: RF Unit Installation ................................................................................................................................... 19
Figure 7: FOU Installation ........................................................................................................................................ 20
Figure 8: PSU Installation ........................................................................................................................................ 20

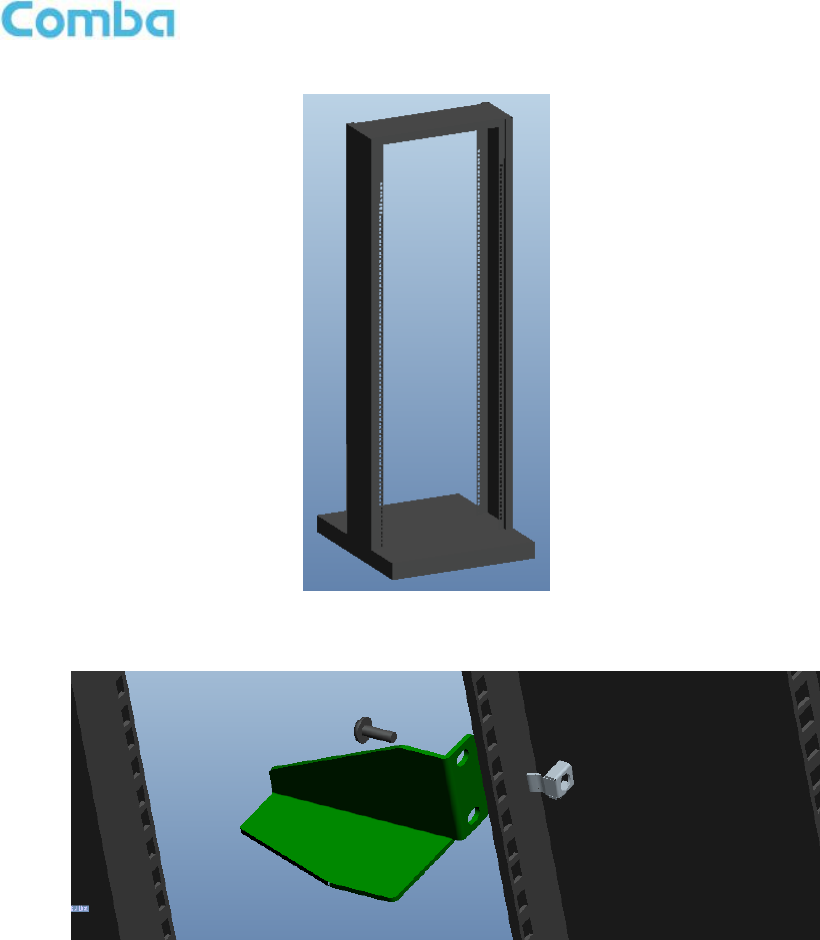

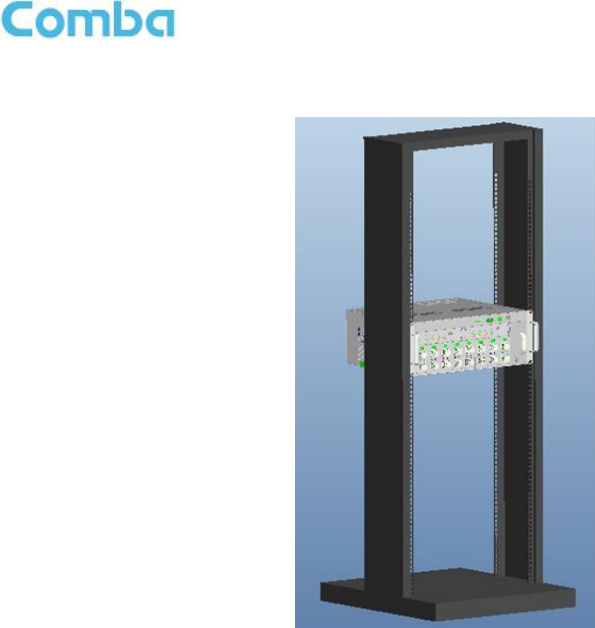

Figure 9: Mounting Rack .......................................................................................................................................... 21
Figure 10: Angle Iron Installation ............................................................................................................................ 21

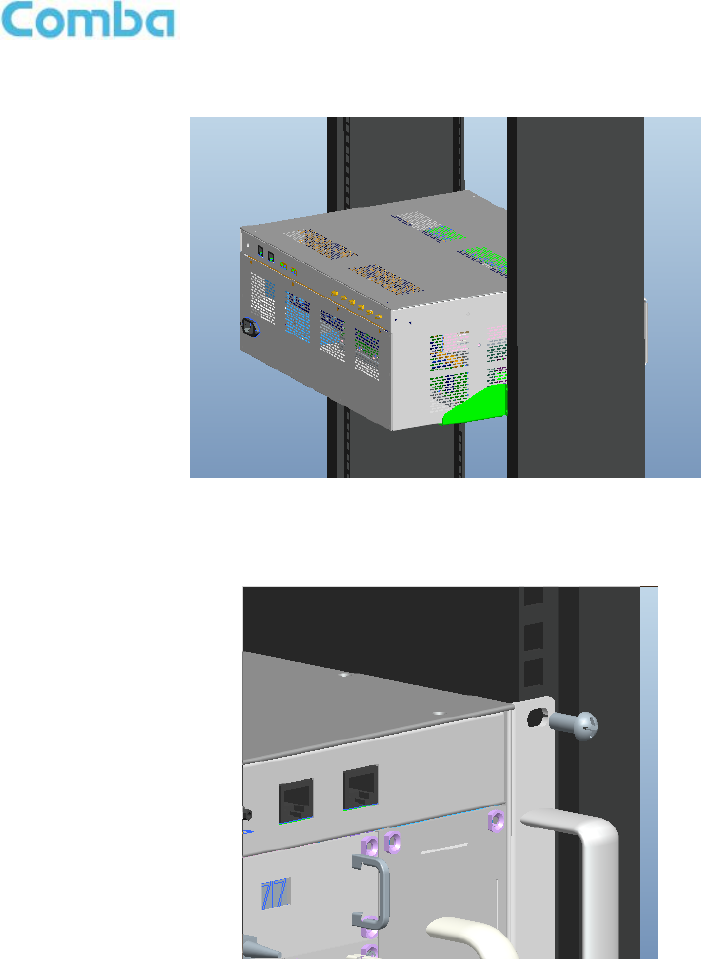

Figure 11: MU Installation ........................................................................................................................................ 22
Figure 12: Secure the Enclosure ............................................................................................................................ 22
Figure 13: Finish Installaiton ................................................................................................................................... 23

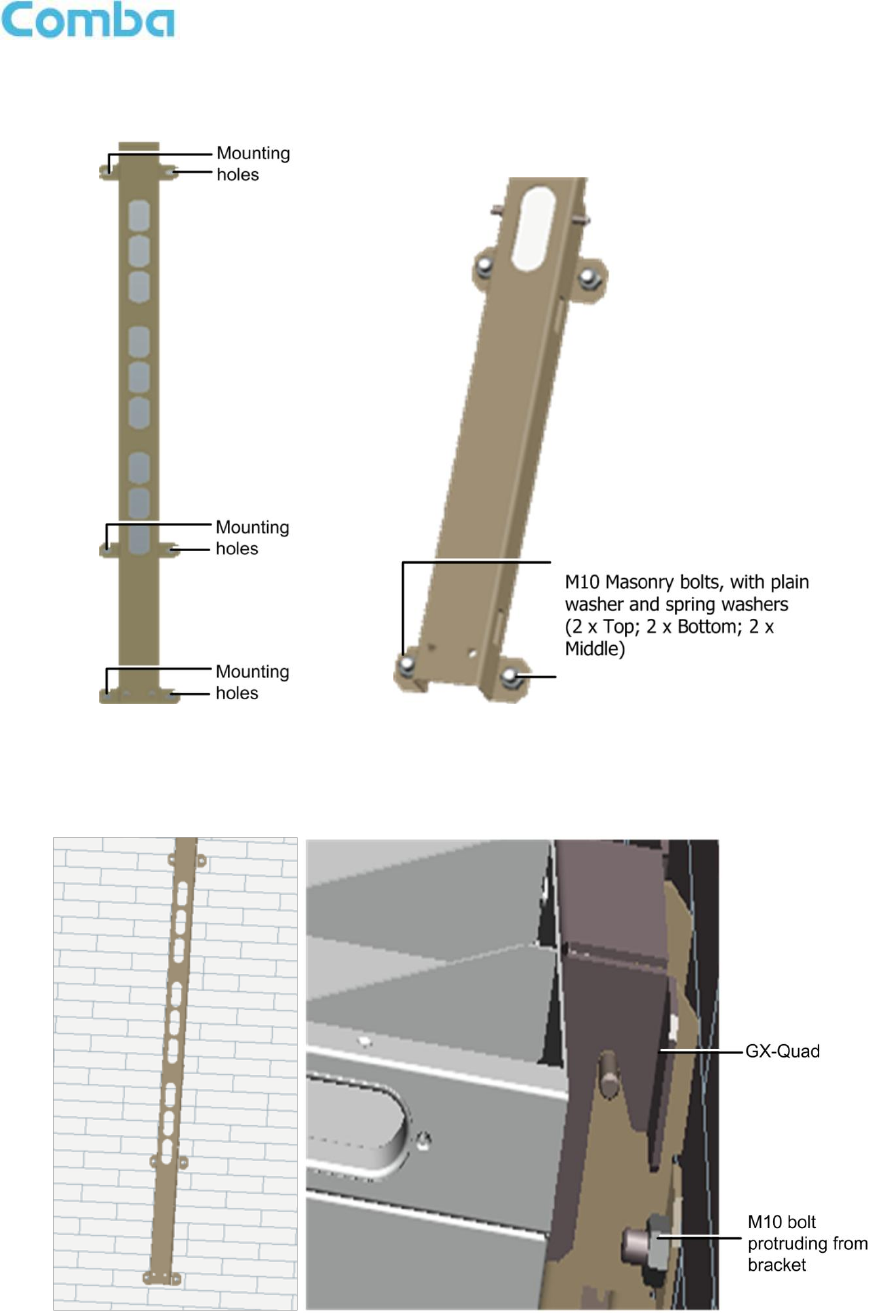

Figure 14: Install Mounting Rack on the Wall ...................................................................................................... 24
Figure 15: Hang RU onto the Mounting Rack ....................................................................................................... 24
Figure 16: Tighten the Screws at the Bottom of RU ............................................................................................ 25

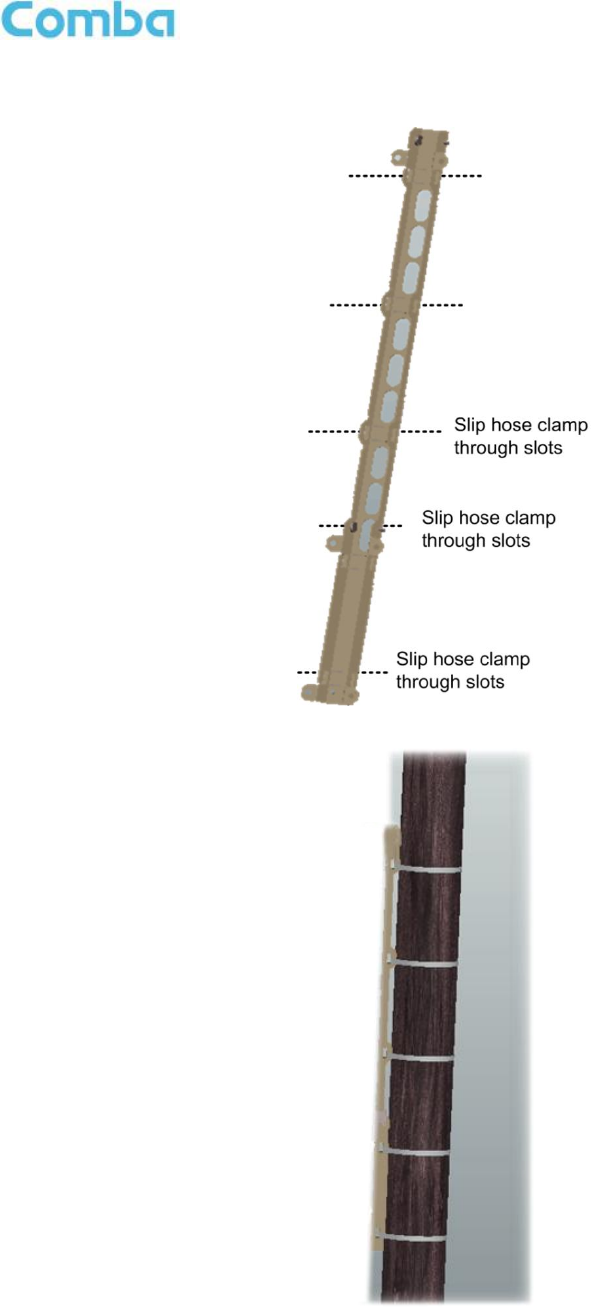

Figure 17: Mounting Rack of Pole Installation ...................................................................................................... 26
Figure 18: Tighten the Mounting Rack................................................................................................................... 26

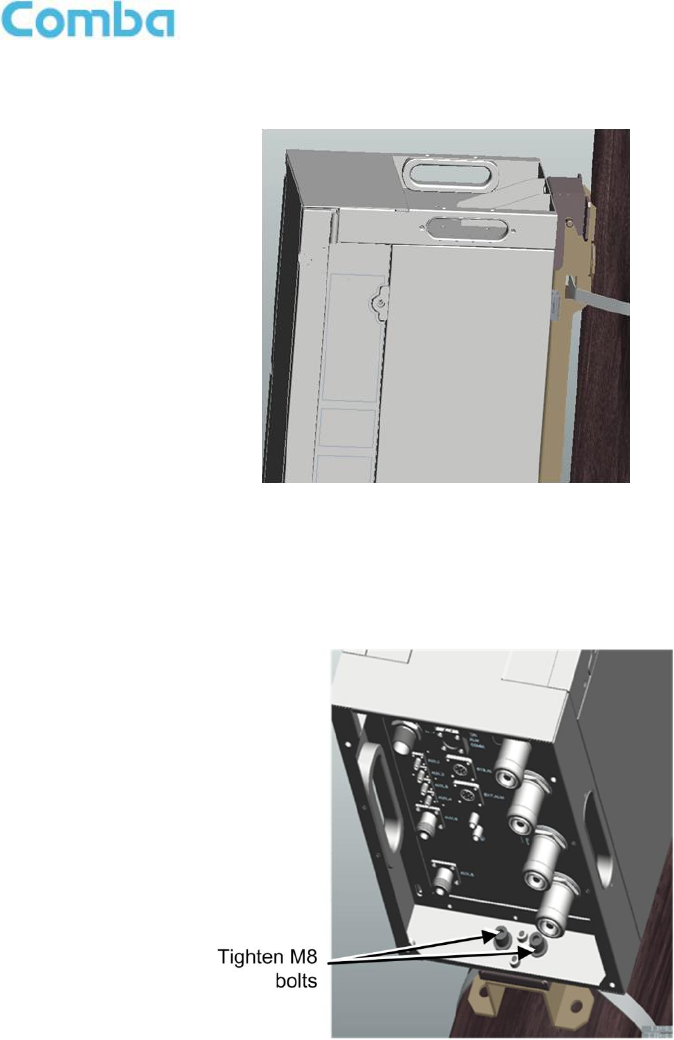

Figure 19: Hang on RU ............................................................................................................................................ 27

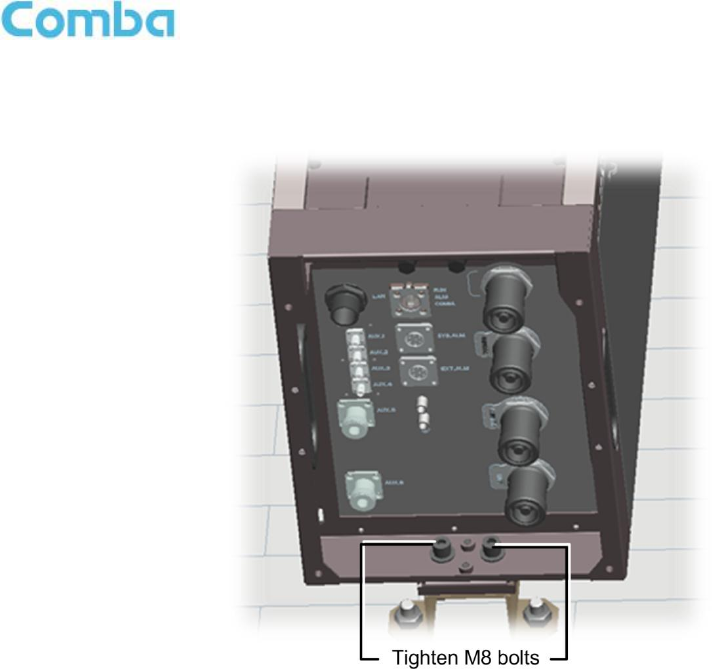

Figure 20: Tighten the Screws at the Bottom of RU ............................................................................................ 27

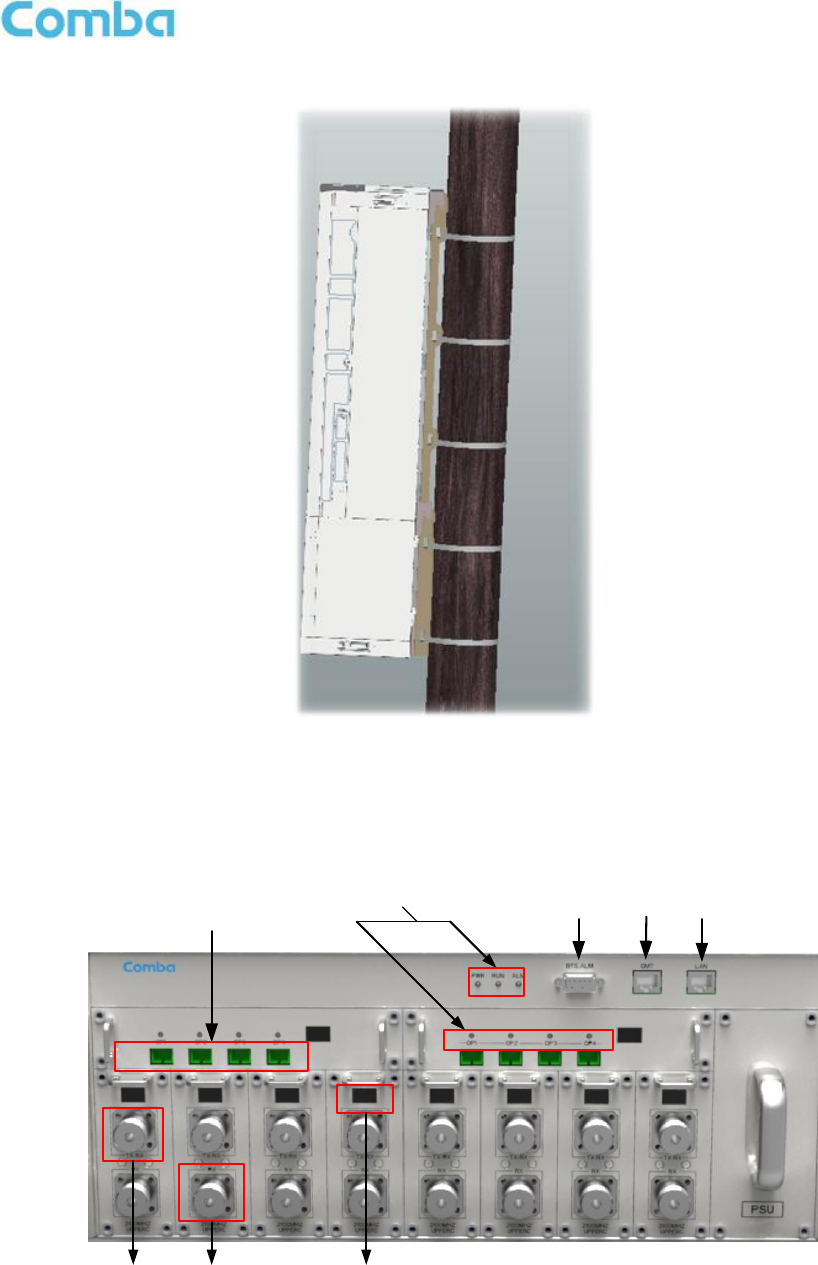

Figure 21: Finish Installation ................................................................................................................................... 28

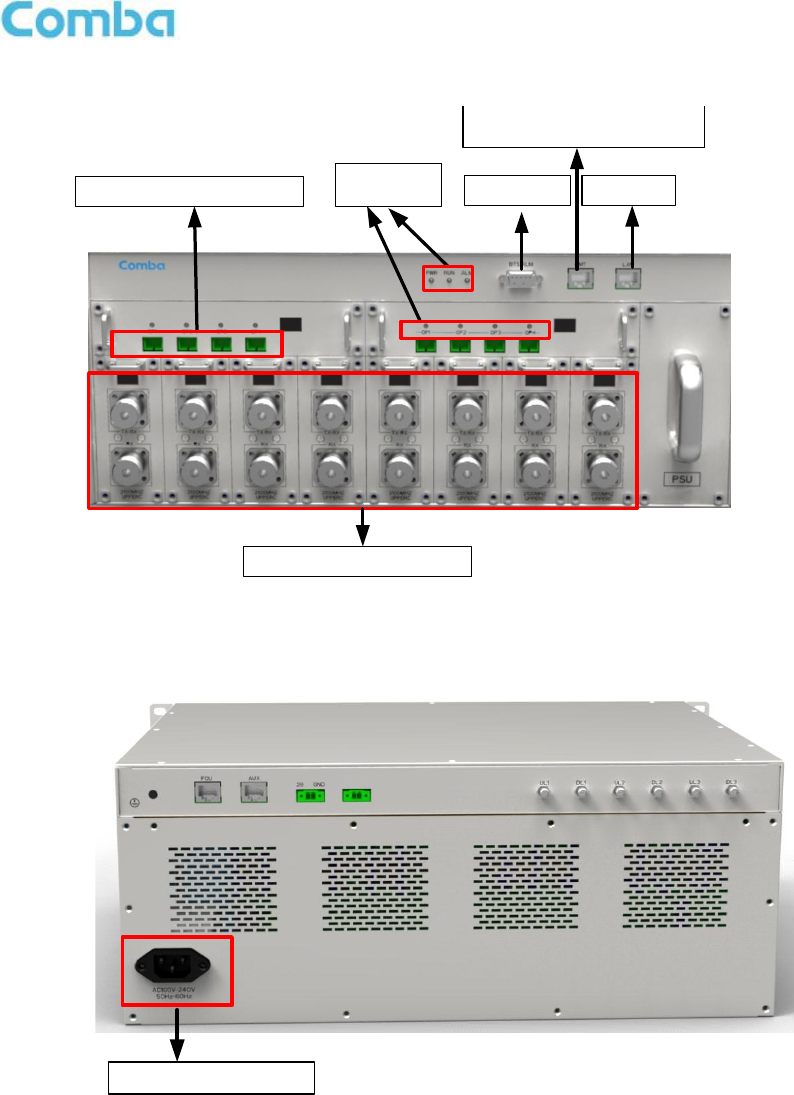

Figure 22: MU Front Panel Connectors ................................................................................................................. 28

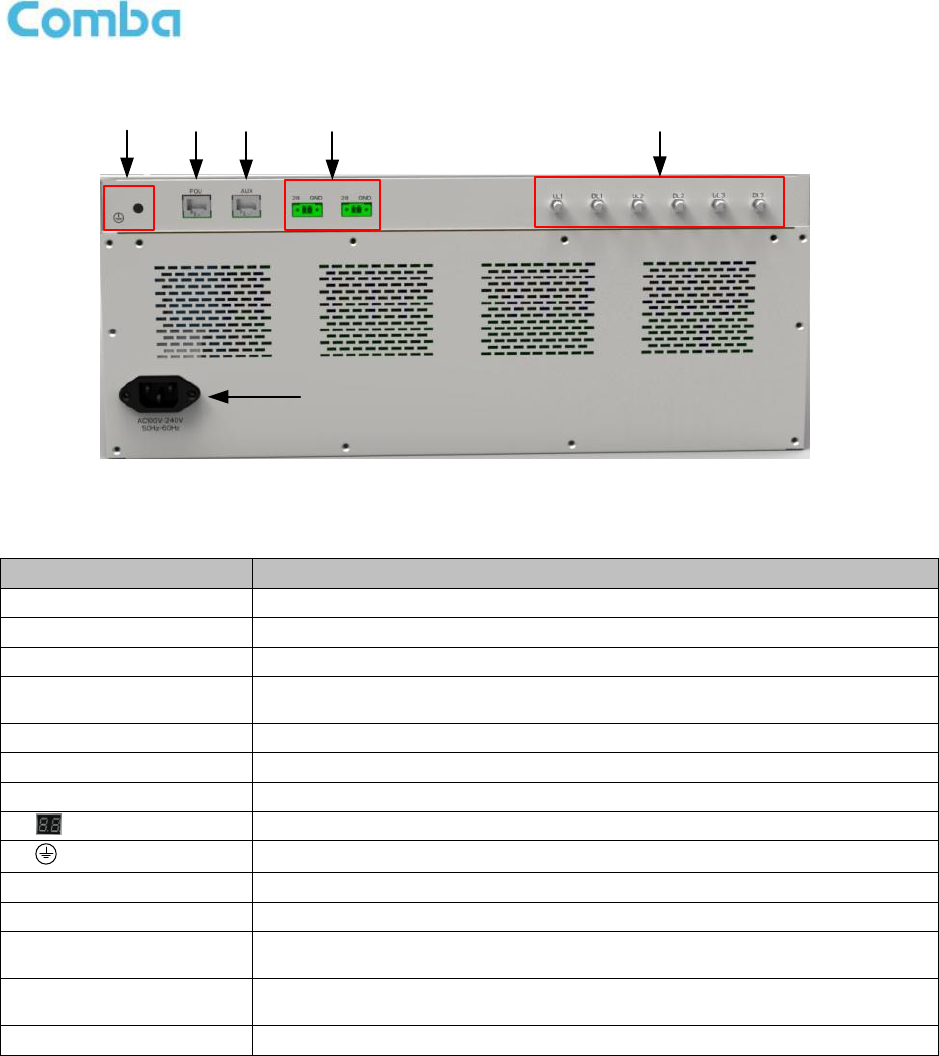

Figure 23: MU Rear Panel Connectors ................................................................................................................. 29

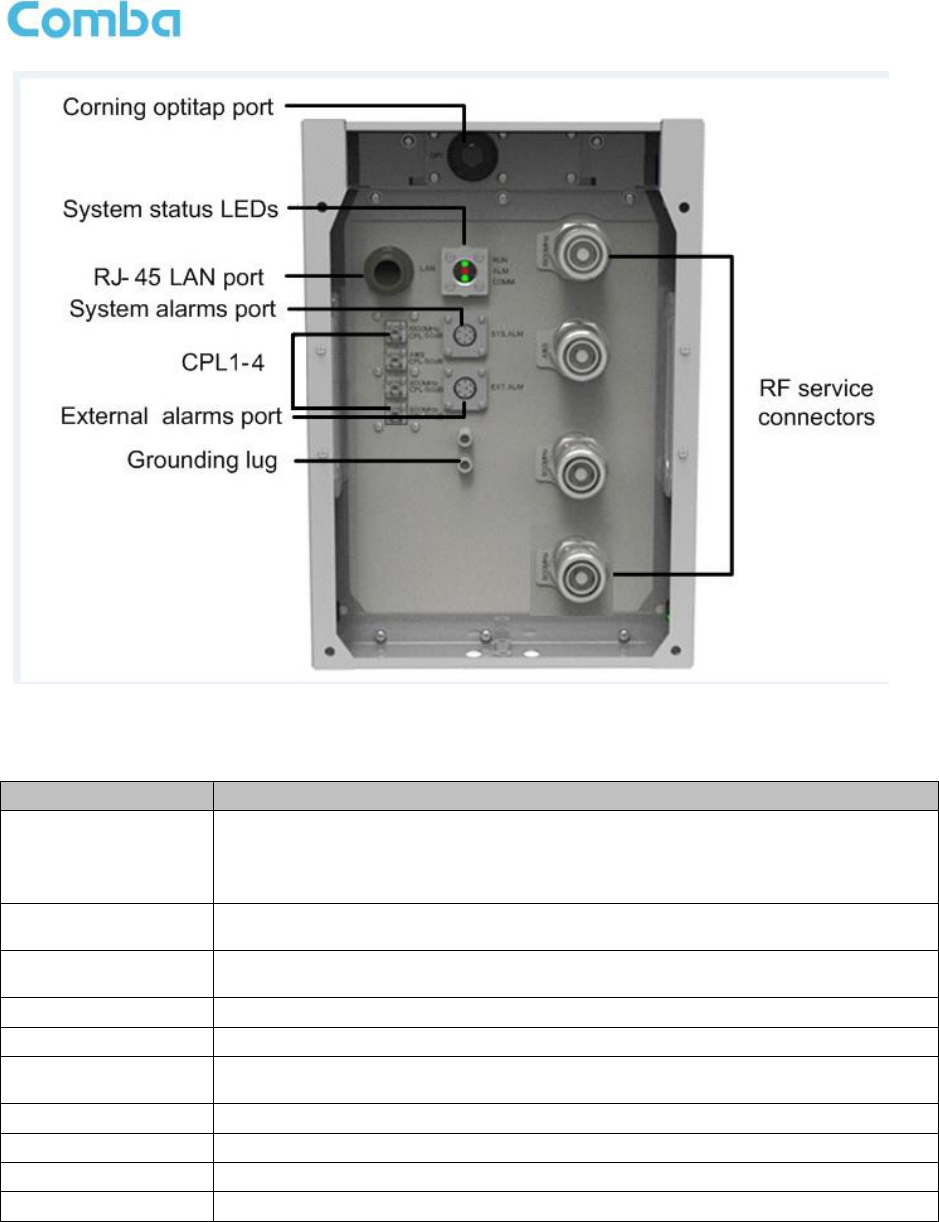

Figure 24: RU Connectors ....................................................................................................................................... 30

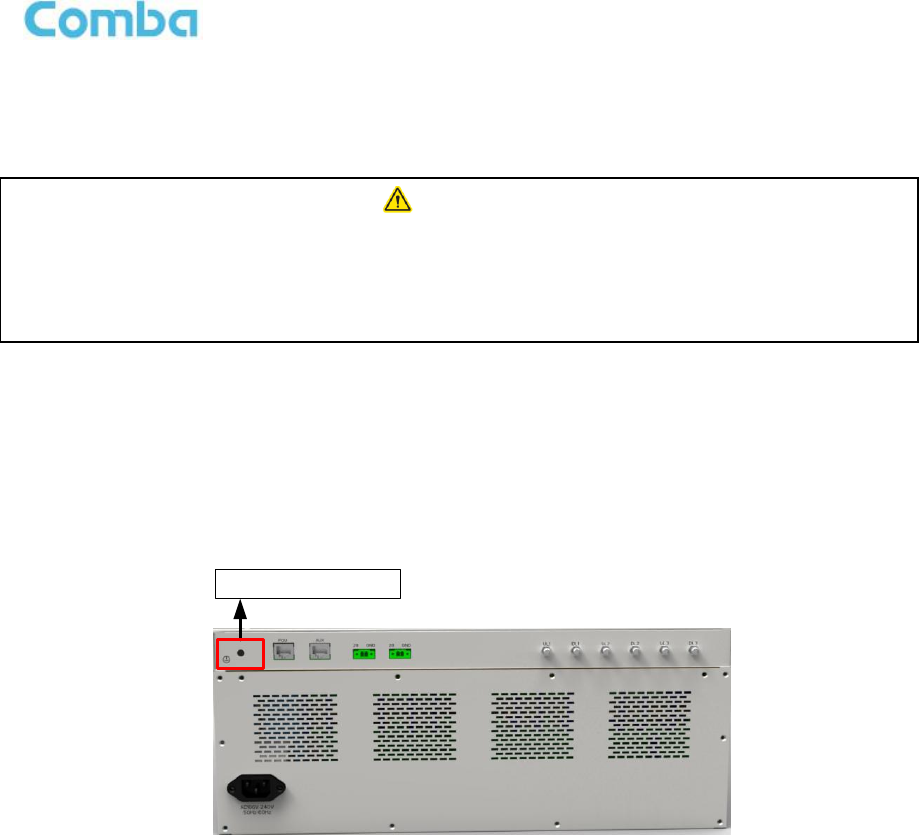

Figure 25: MU Grounding (MU Rear Panel) ......................................................................................................... 31

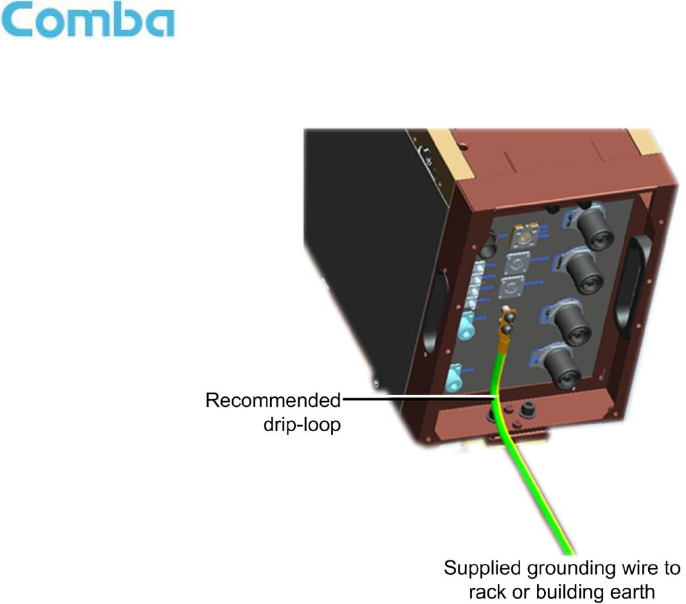

Figure 26: RU Grounding ......................................................................................................................................... 32
Figure 27: Fiber Optical and RF Port Connection ................................................................................................ 33
Figure 28: MU Power Connection (Rear Panel) ................................................................................................... 33
Figure 29: MU Power Connection (Rear Panel) ................................................................................................... 34

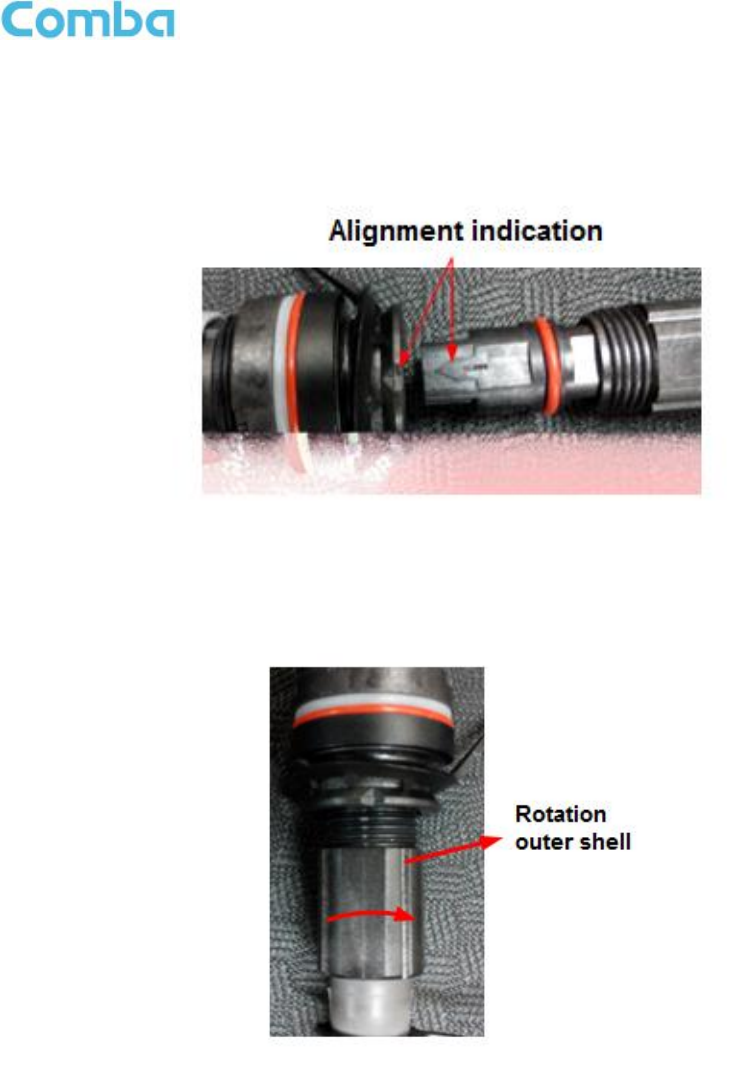

Figure 30: Tighten Optical Fiber Connection ........................................................................................................ 34
Figure 31: Power Supply Connection .................................................................................................................... 35
Figure 32: RU Fiber Optical and RF Port Connection ........................................................................................ 35

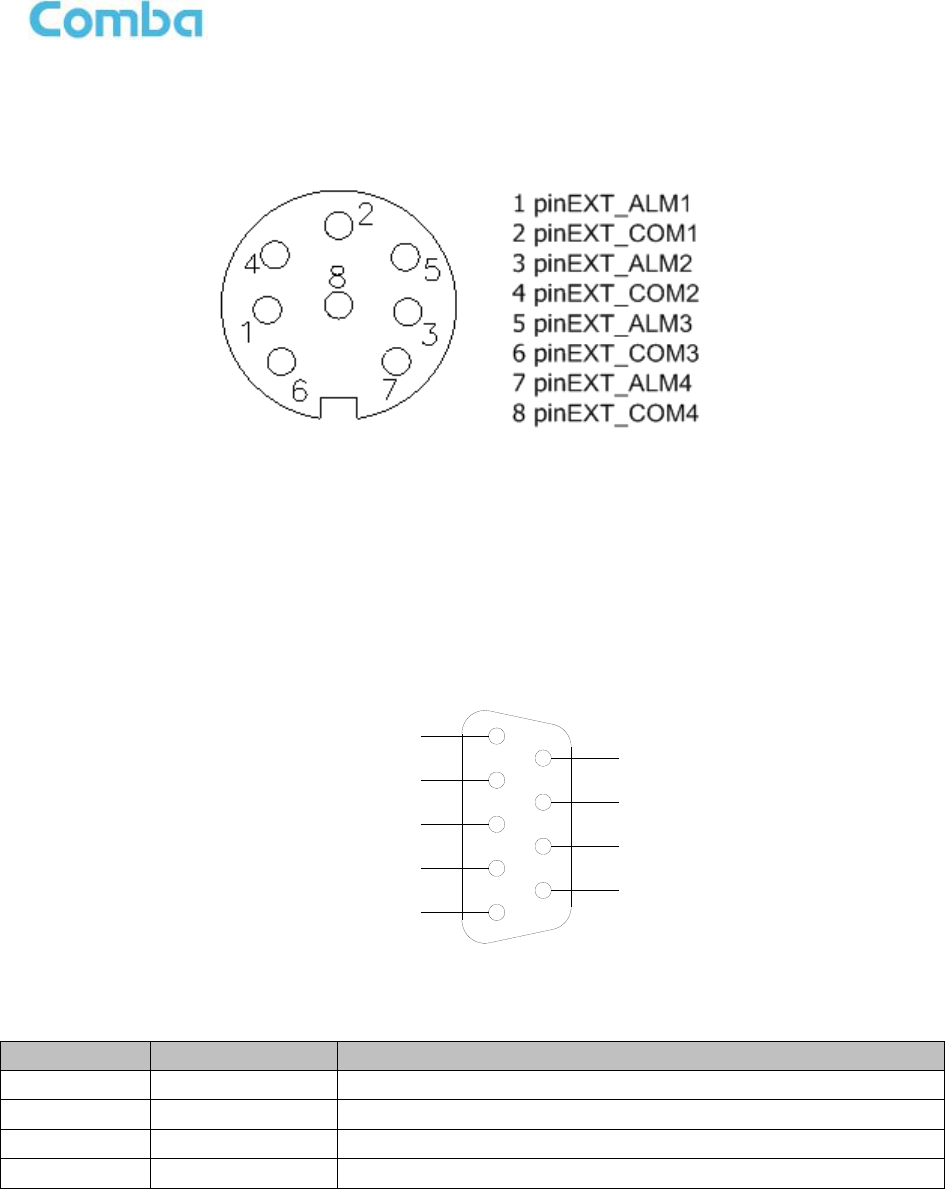

Figure 33: Pins Allocation for “EXT_ALM” Port of RU ........................................................................................ 36
Figure 34: Pins Allocation for “BTS_ALM” Port .................................................................................................... 36

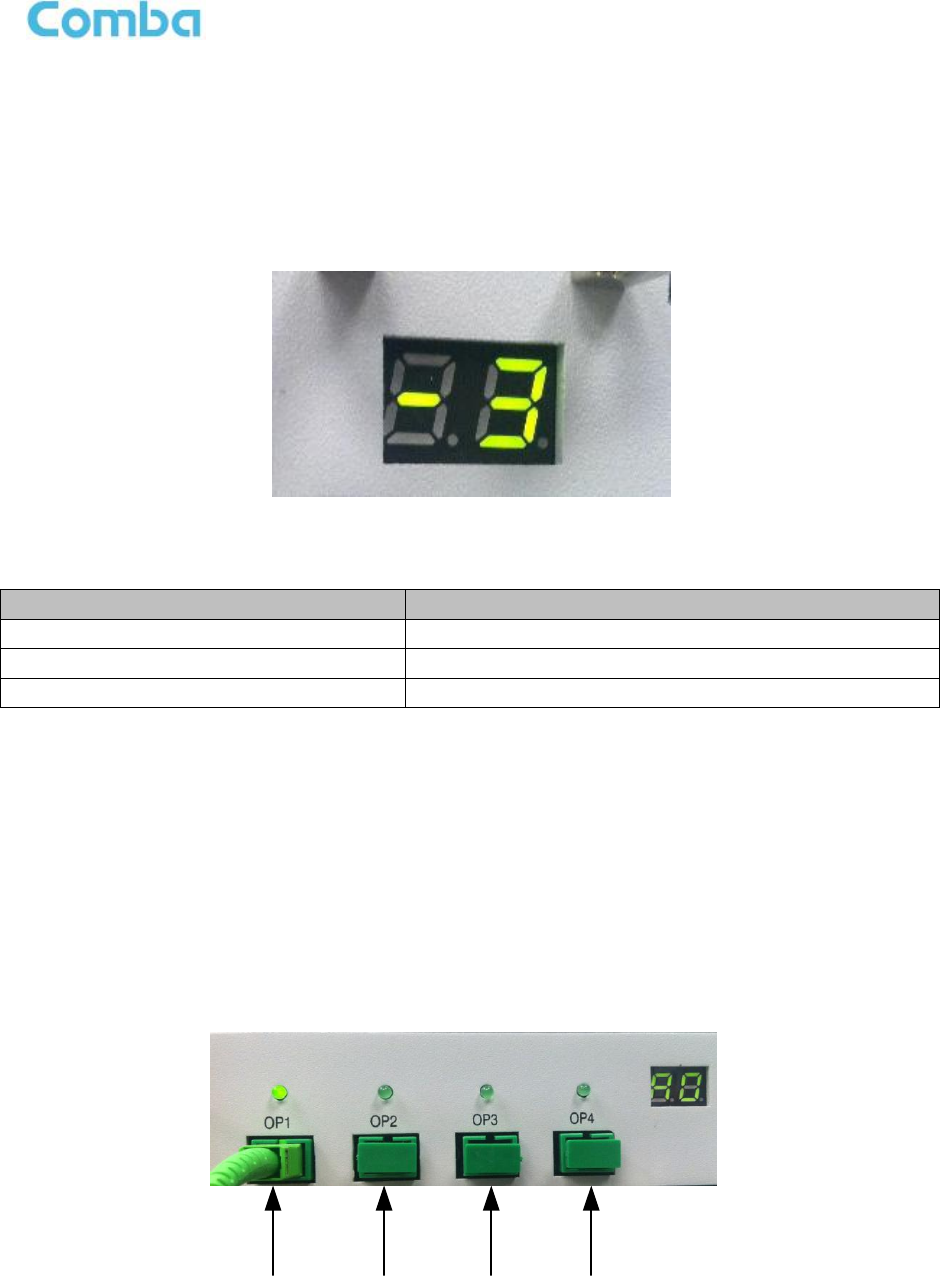

Figure 35: RFU Digital Display ................................................................................................................................ 39
Figure 36: Optical Port No. and Digital Display .................................................................................................... 39

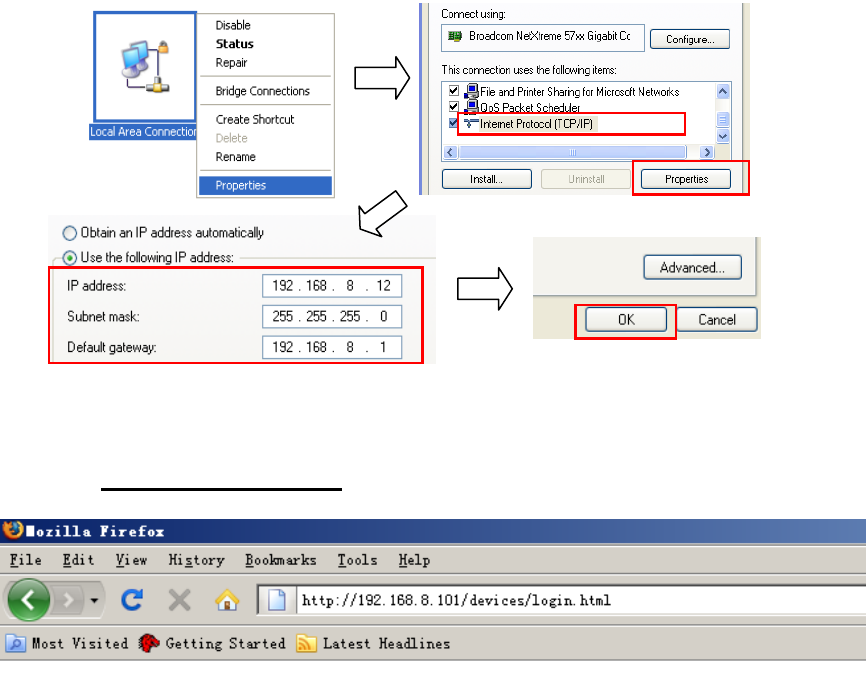

Figure 37: PC IP Address Setting........................................................................................................................... 41
Figure 38: Input IP Address ..................................................................................................................................... 41

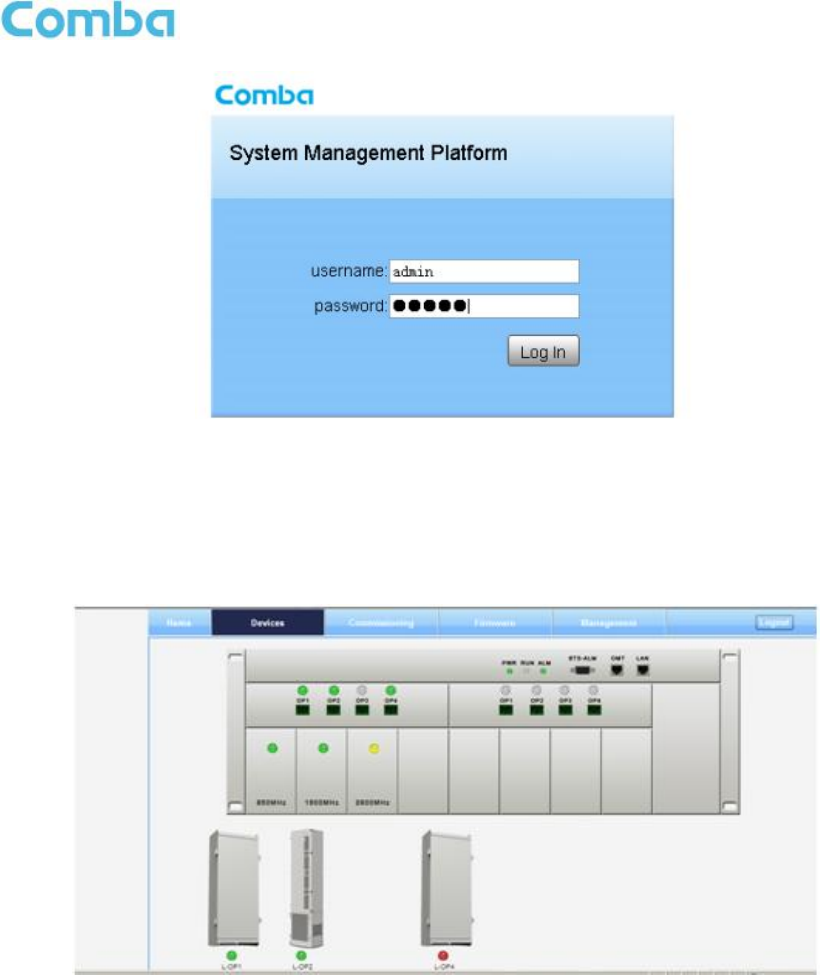

Figure 39: Input User Name and Password .......................................................................................................... 42
Figure 40: Web GUI Main Screen .......................................................................................................................... 42

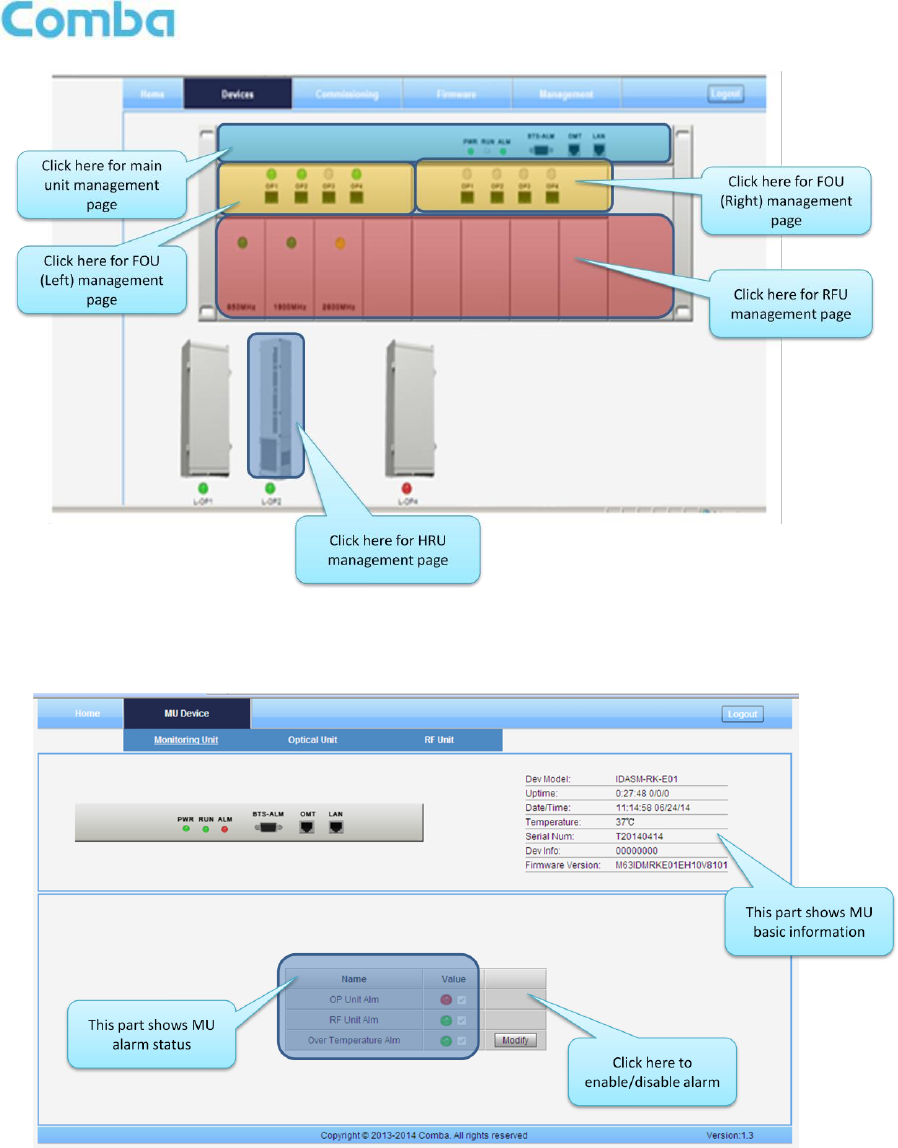

Figure 41: [Devices] Sceen ..................................................................................................................................... 43
Figure 40: MU Device - Monitoring Unit ................................................................................................................ 43

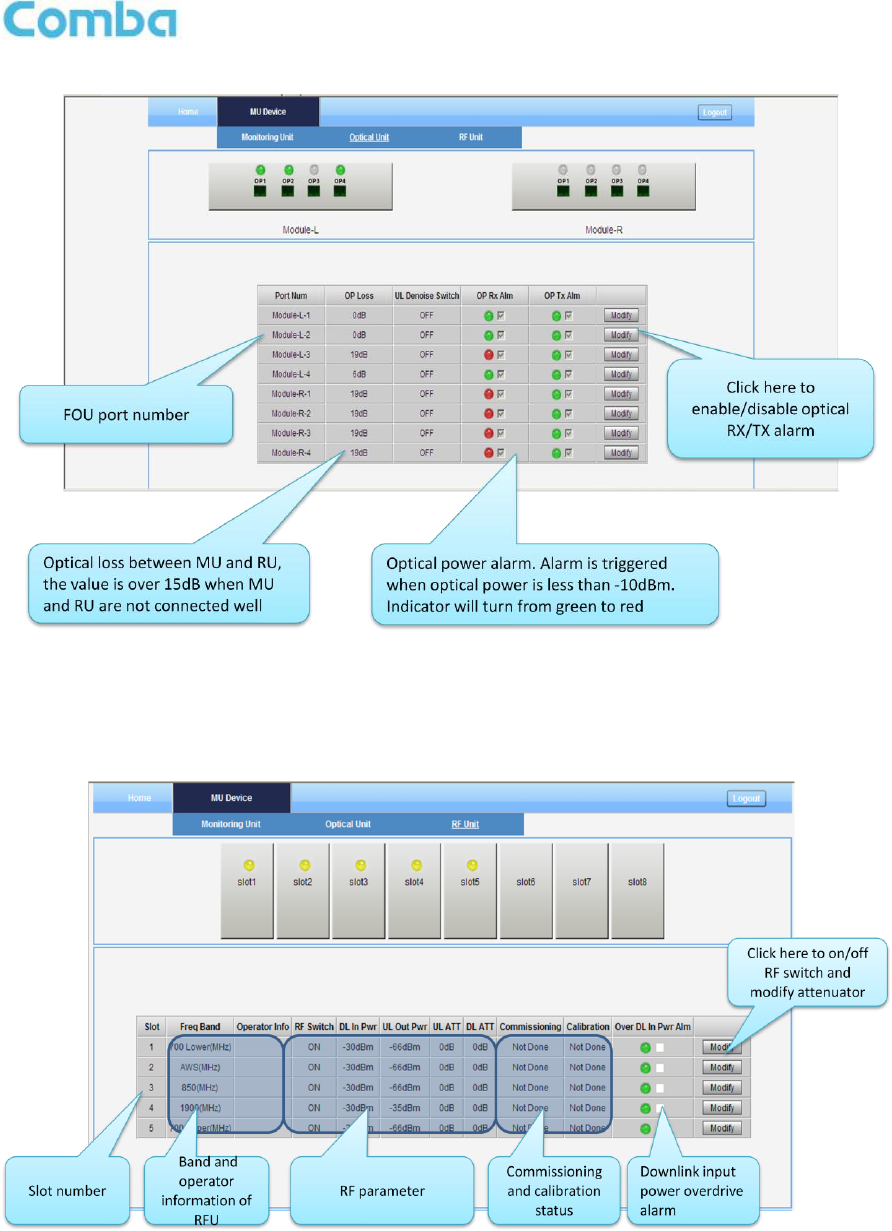

Figure 41: MU Device - Optical Unit ....................................................................................................................... 44
Figure 42: MU Device - RF Unit .............................................................................................................................. 44

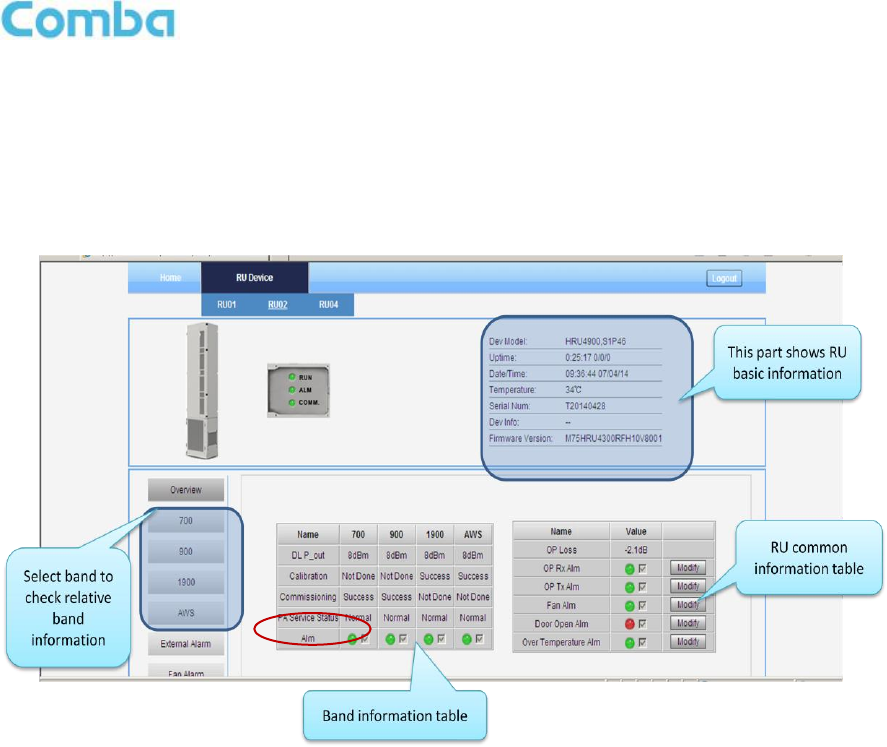

Figure 43: RU Device ............................................................................................................................................... 45
Figure 44: RU Device – 700 .................................................................................................................................... 46
Figure 45: RU Device – External Alarm ................................................................................................................. 46

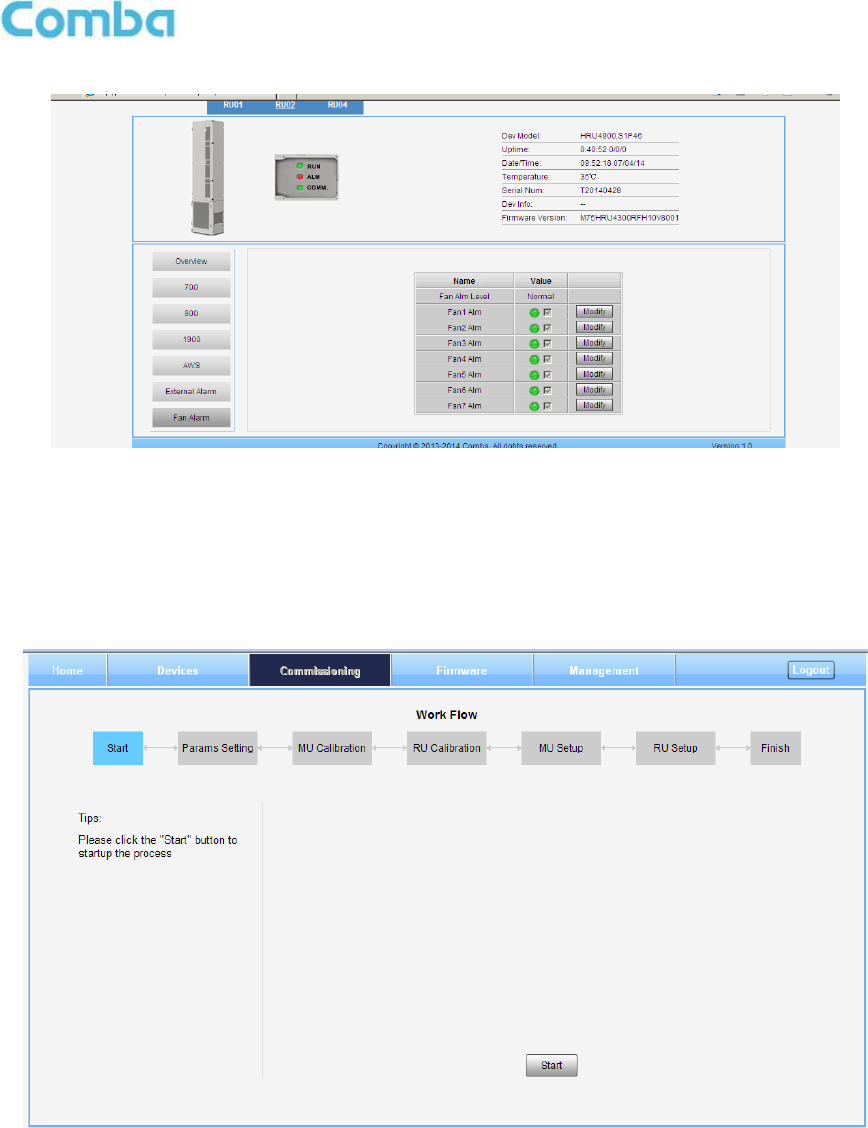

Figure 50: RU Device – Fan Alarm ........................................................................................................................ 47
Figure 46: [Commissioning] Screen ....................................................................................................................... 47

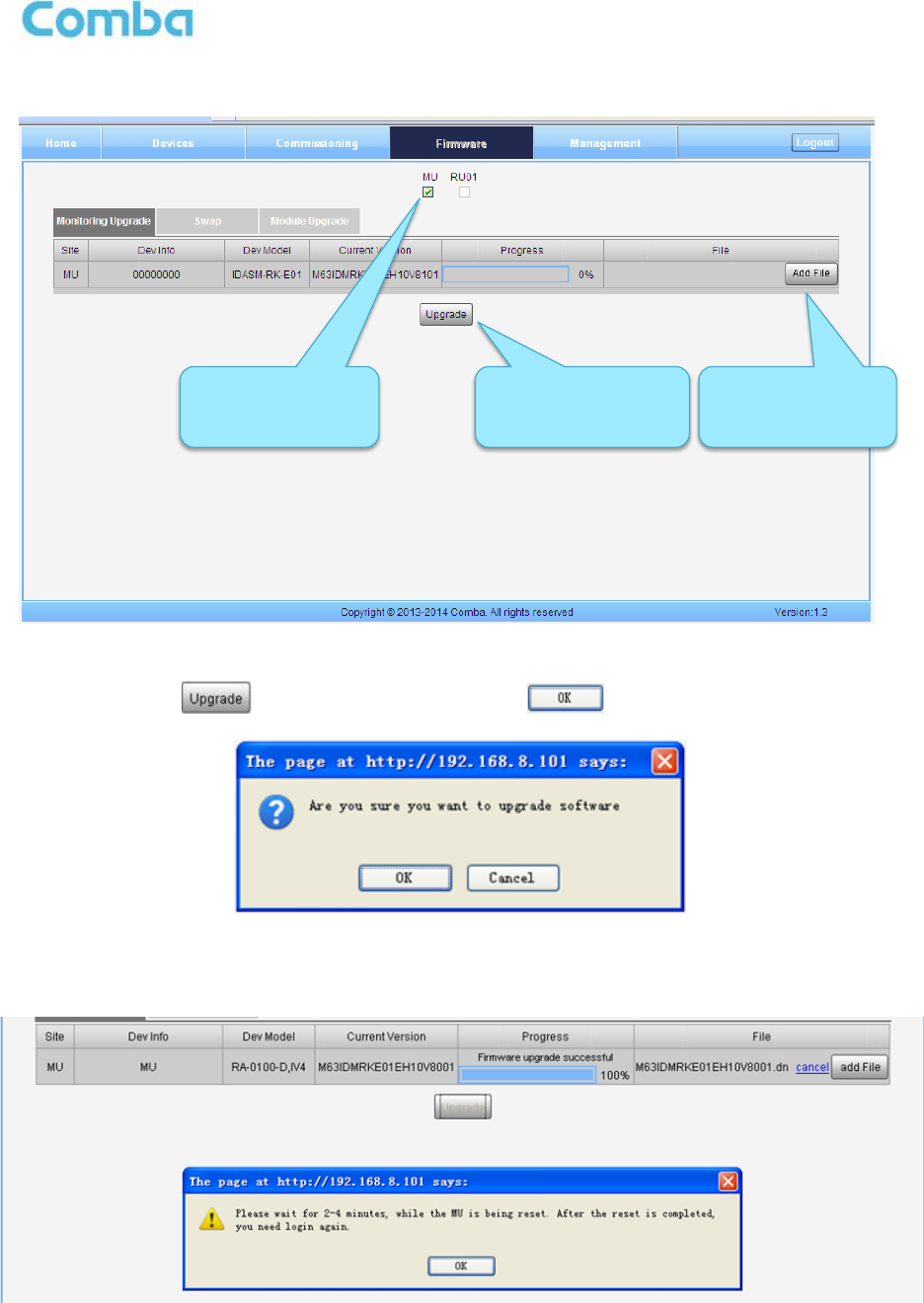

Figure 47: [Firmware] Screen – Modnitoring Upgade ......................................................................................... 48
Figure 48: [Firmware] Screen – Pop-up Window 1 .............................................................................................. 48
Figure 49: [Firmware] Screen – Pop-up Window 2 .............................................................................................. 48

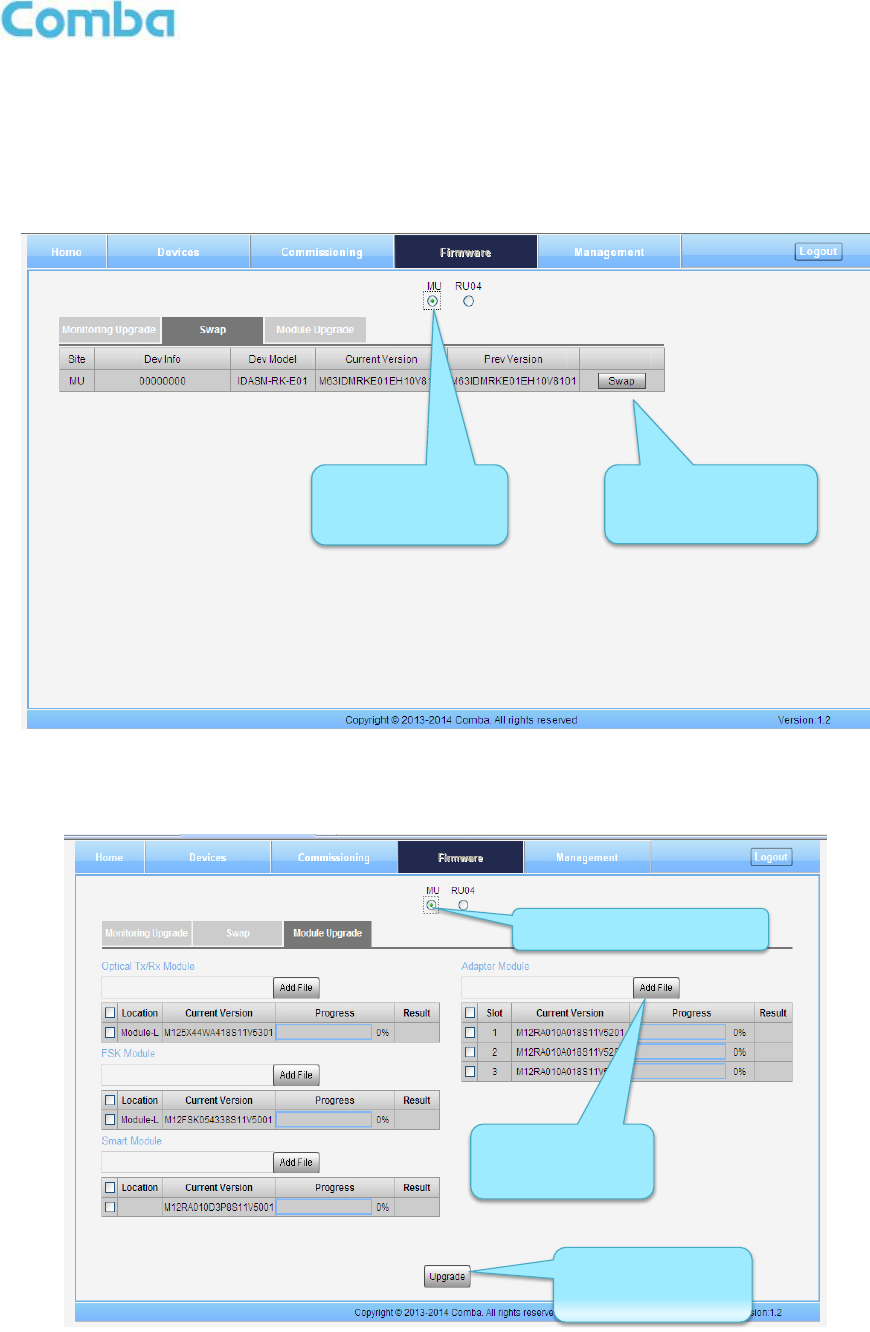

Figure 50: [Firmware] Screen - Swap .................................................................................................................... 49
Figure 51: [Firmware] Screen – Module Upgrade ................................................................................................ 49
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 6

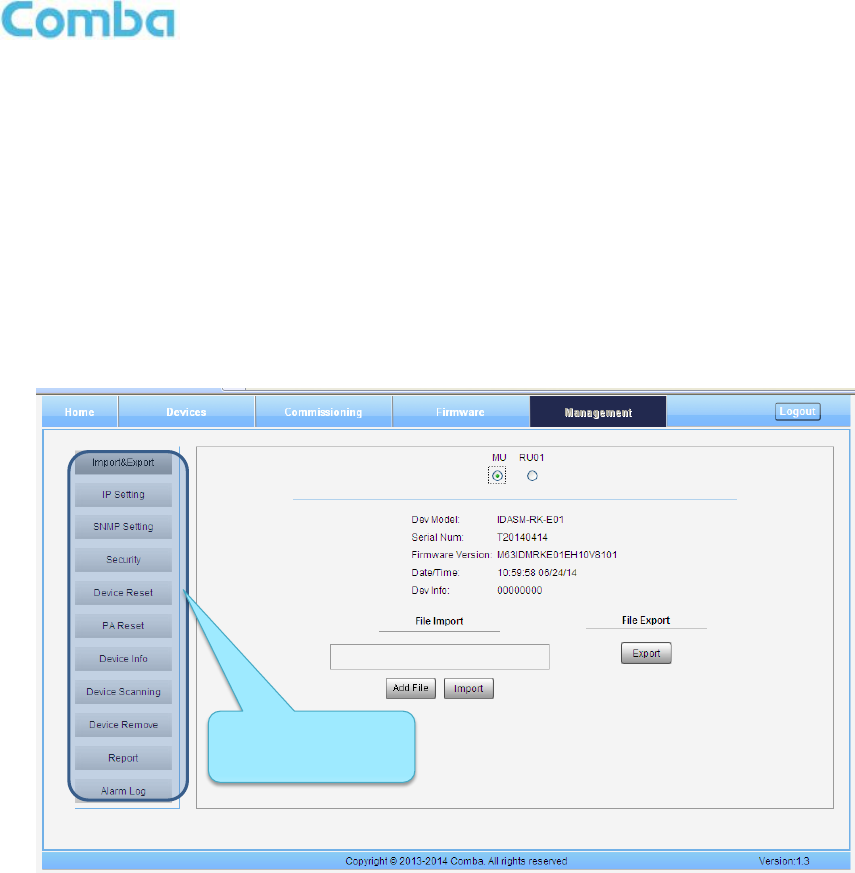

Figure 52: [Management] Sceen ............................................................................................................................ 50

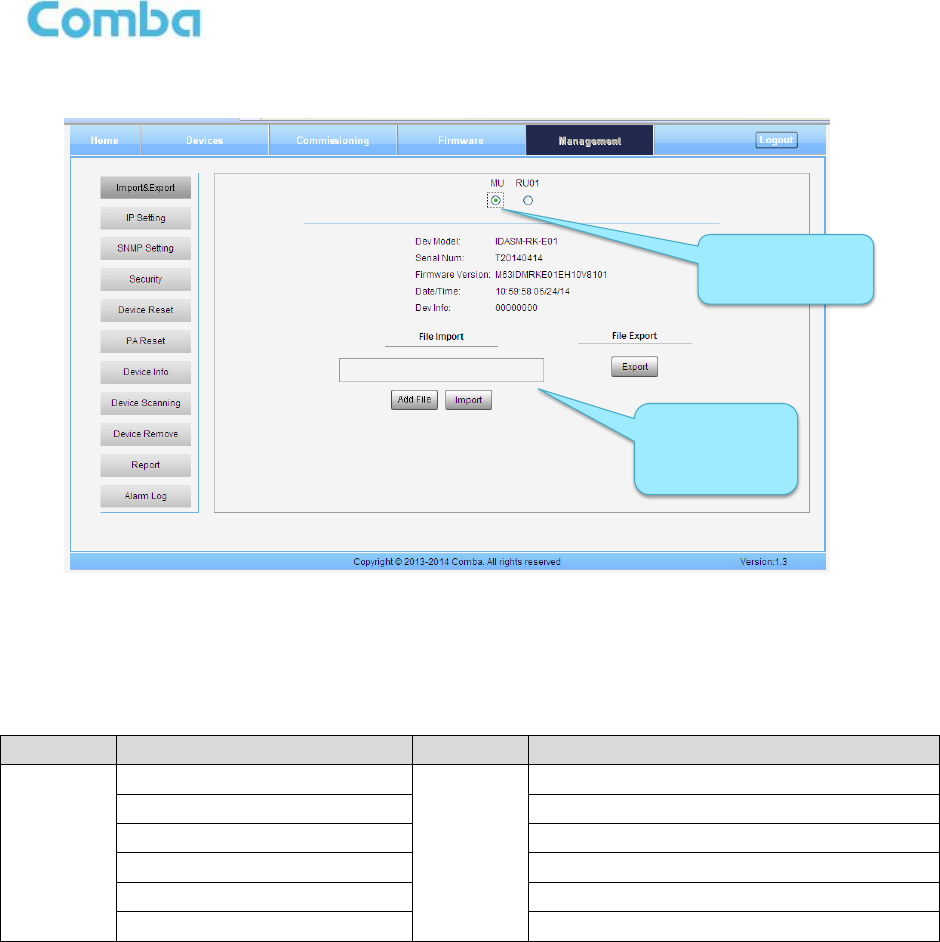

Figure 53: Management – Import&Export ............................................................................................................. 51

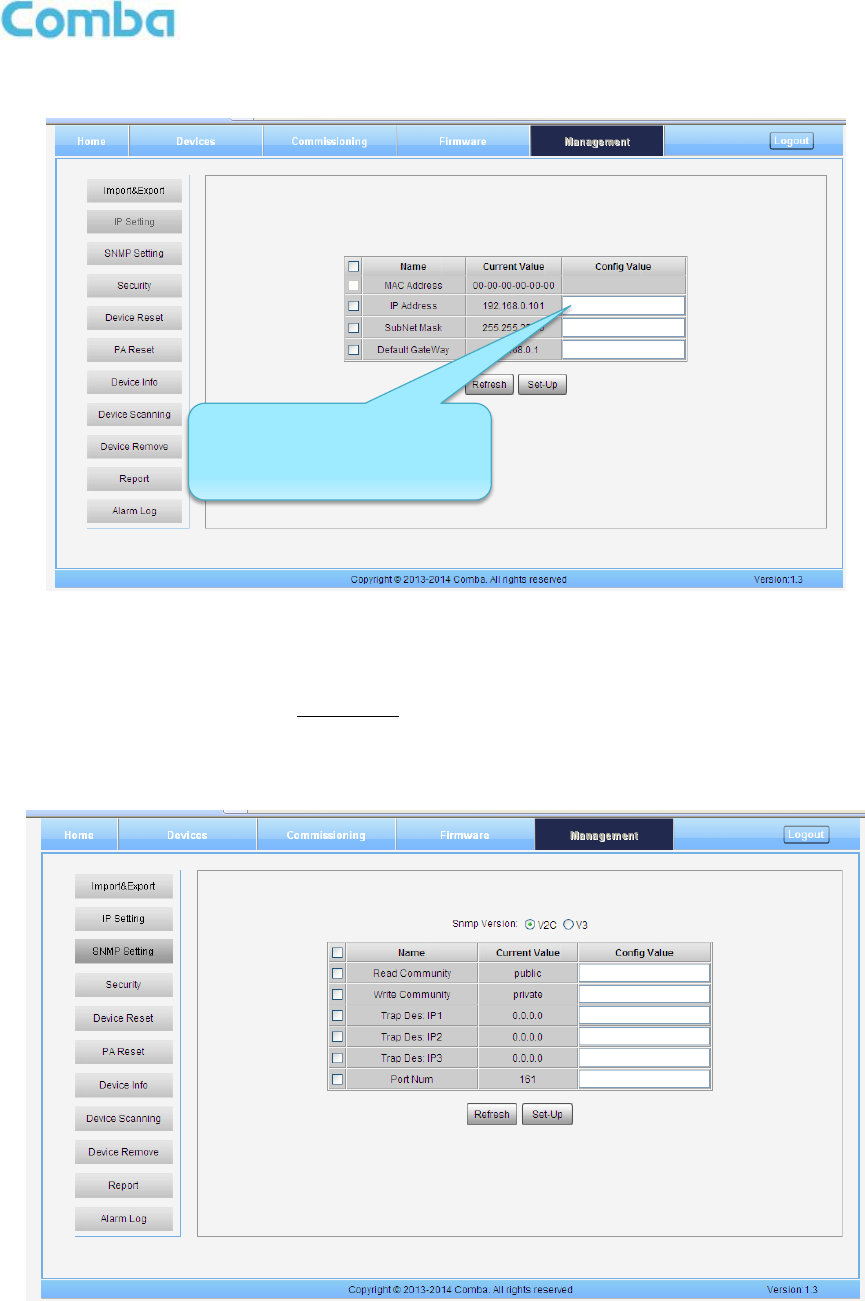

Figure 54: Management – IP Setting ..................................................................................................................... 52
Figure 55: Management – SNMP Setting.............................................................................................................. 52

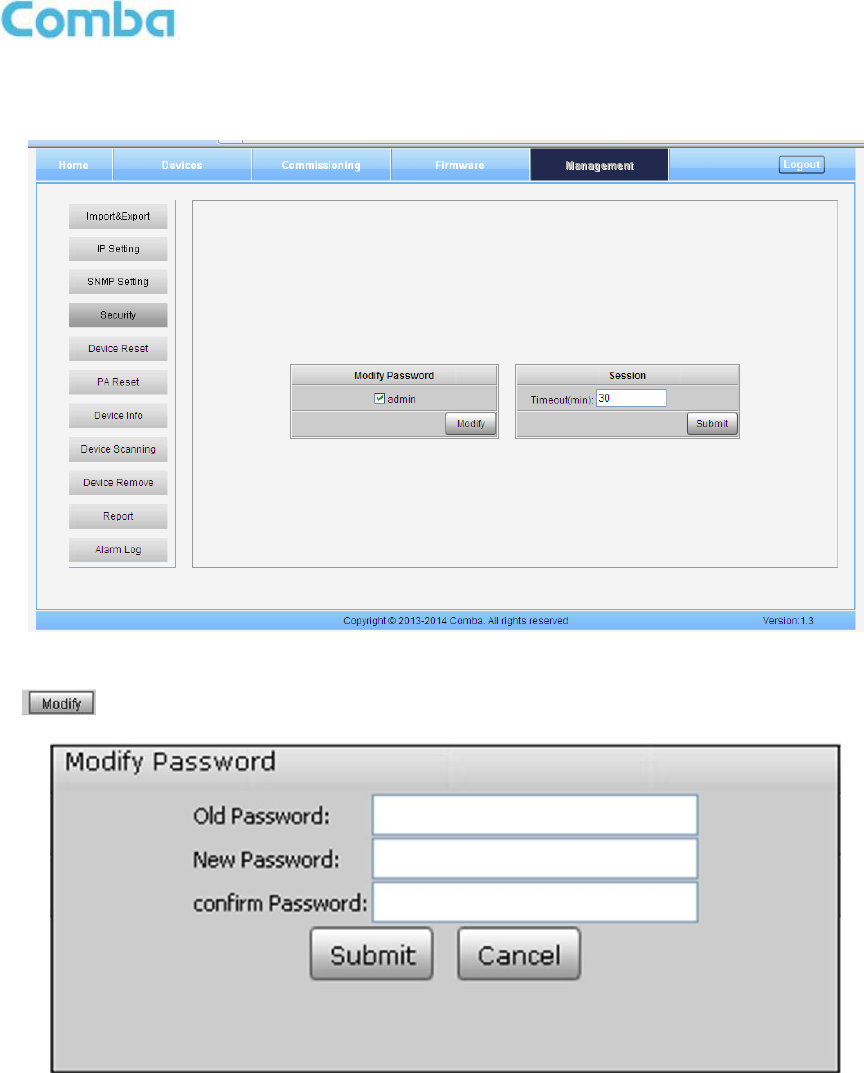

Figure 56: Management – Security ........................................................................................................................ 53
Figure 57: Modify Password .................................................................................................................................... 53
Figure 58: Management – Device Reset ............................................................................................................... 54
Figure 59: Management – PA Reset ...................................................................................................................... 54

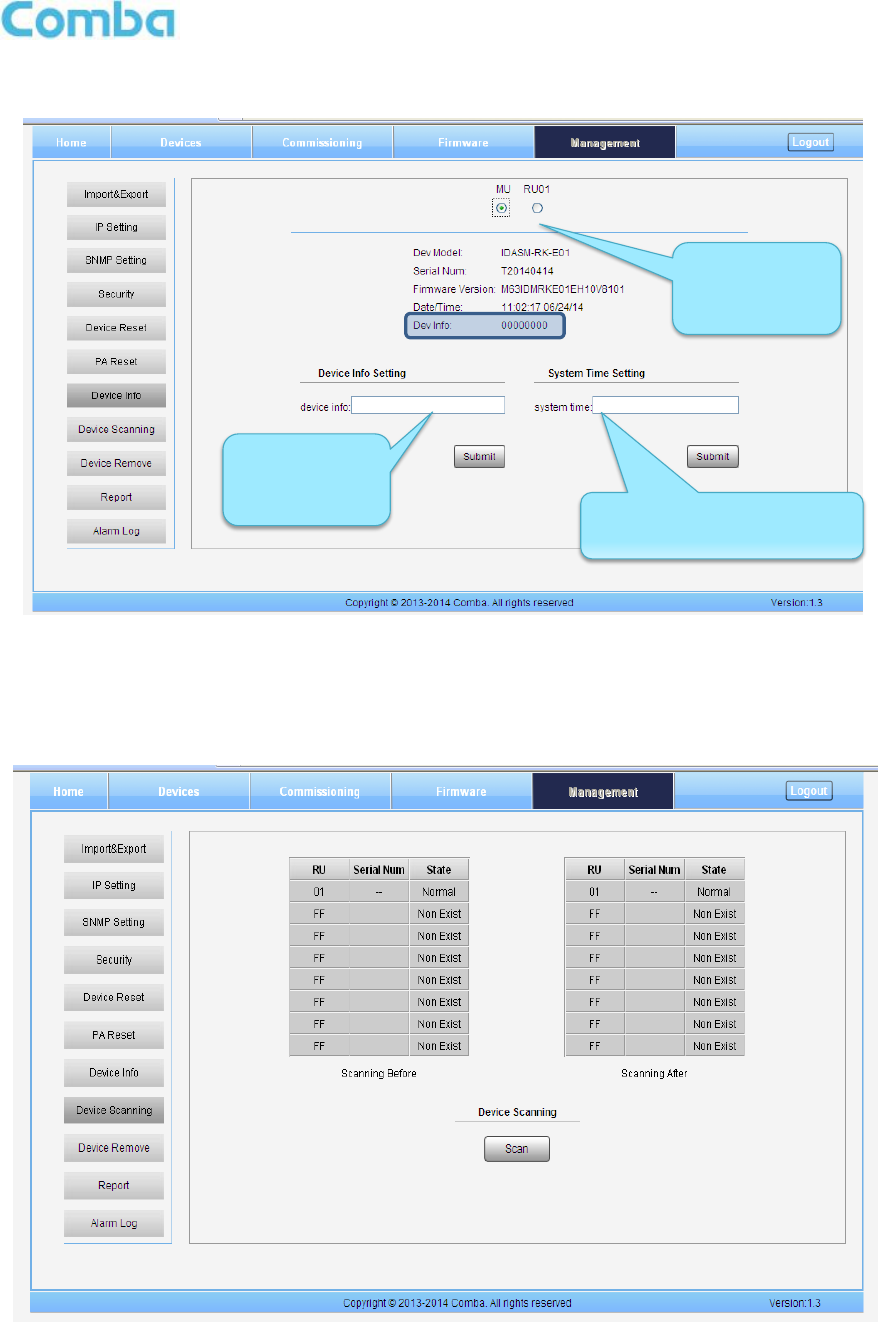

Figure 60: Management – Device Info ................................................................................................................... 55
Figure 61: Management – Device Scanning ......................................................................................................... 55

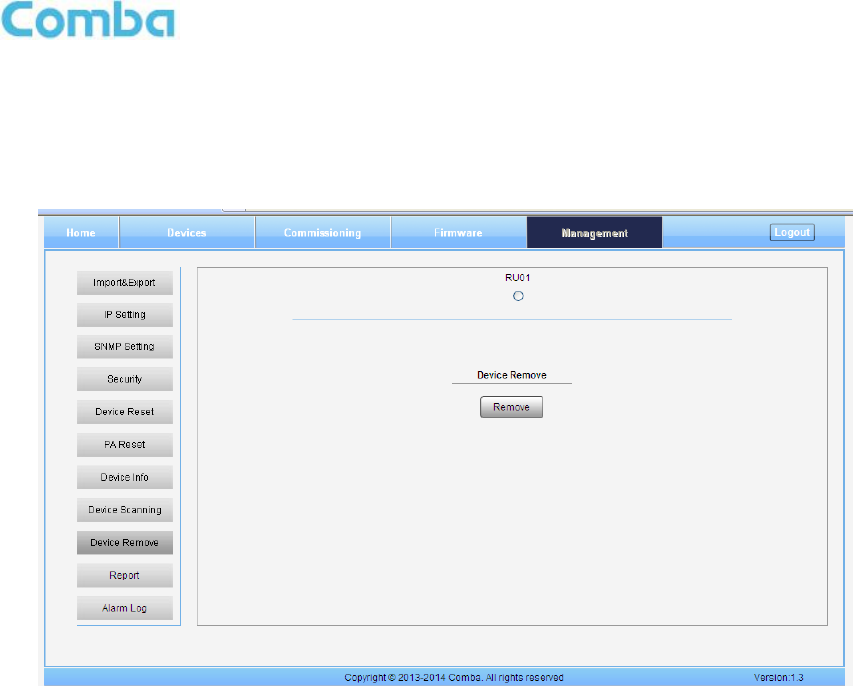

Figure 62: Management – Device Remove .......................................................................................................... 56

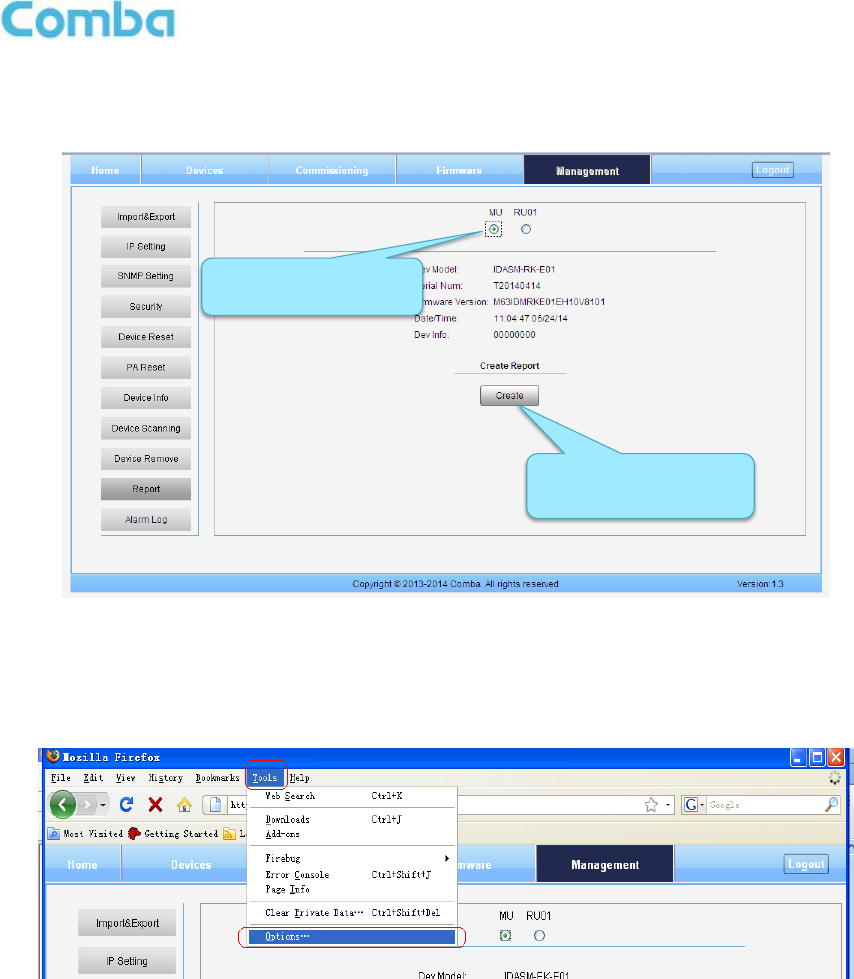

Figure 63: Management – Report........................................................................................................................... 57
Figure 67: Firefox setting (1) ................................................................................................................................... 57

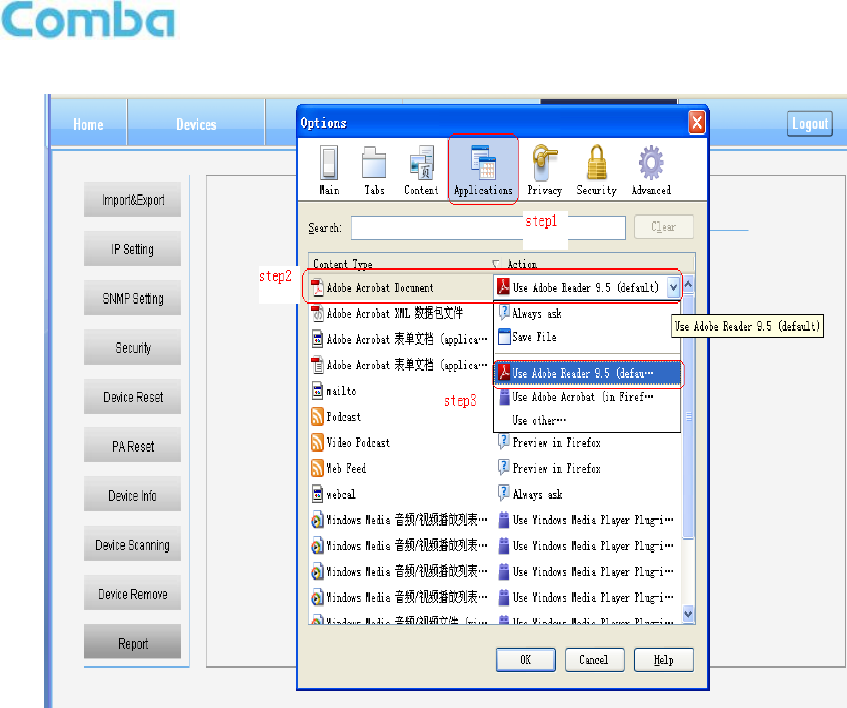

Figure 65: Firefox setting (2) ................................................................................................................................... 58
Figure 66: Management – Alarm Log .................................................................................................................... 59

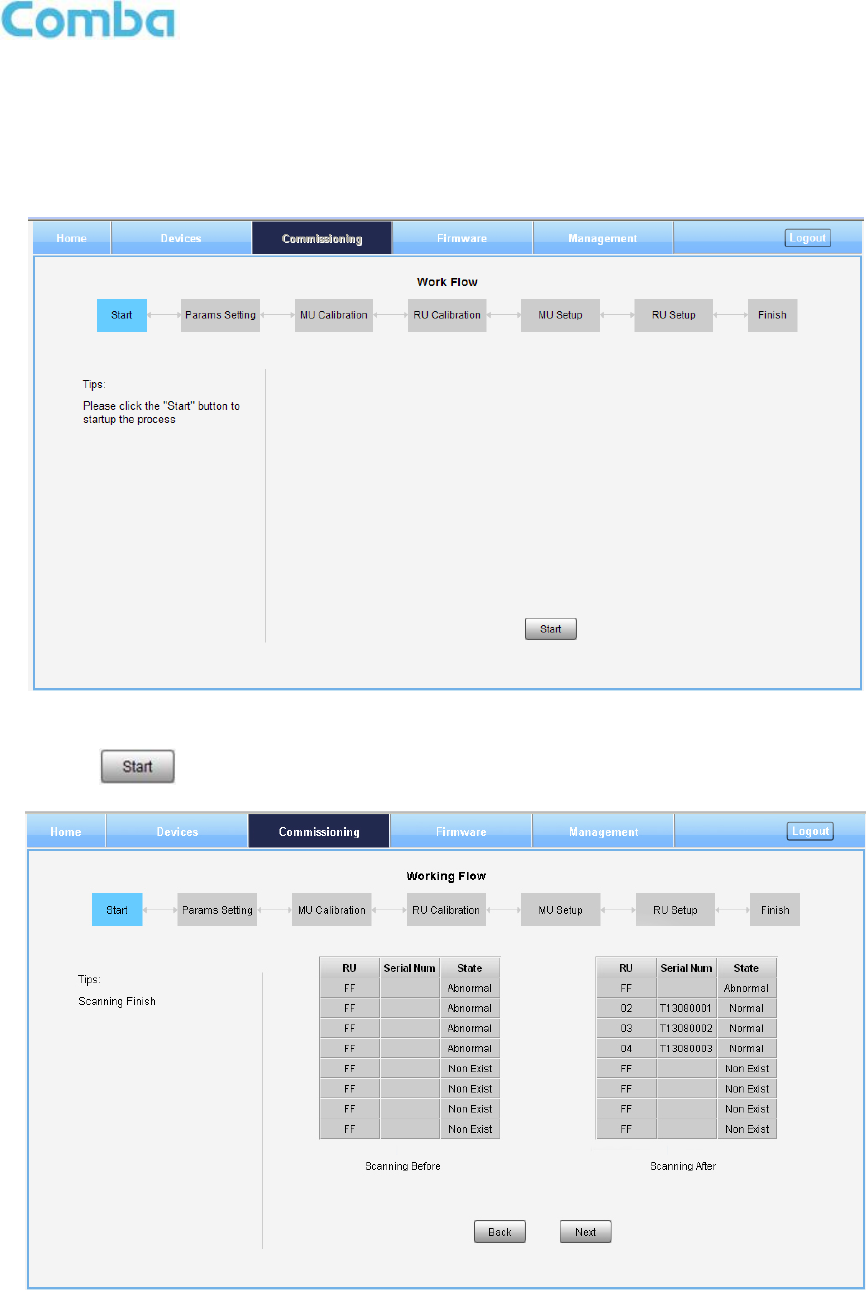

Figure 67: Commissioning Procedure - Start........................................................................................................ 60
Figure 68: Commissioning Procedure – Device Scan ......................................................................................... 60

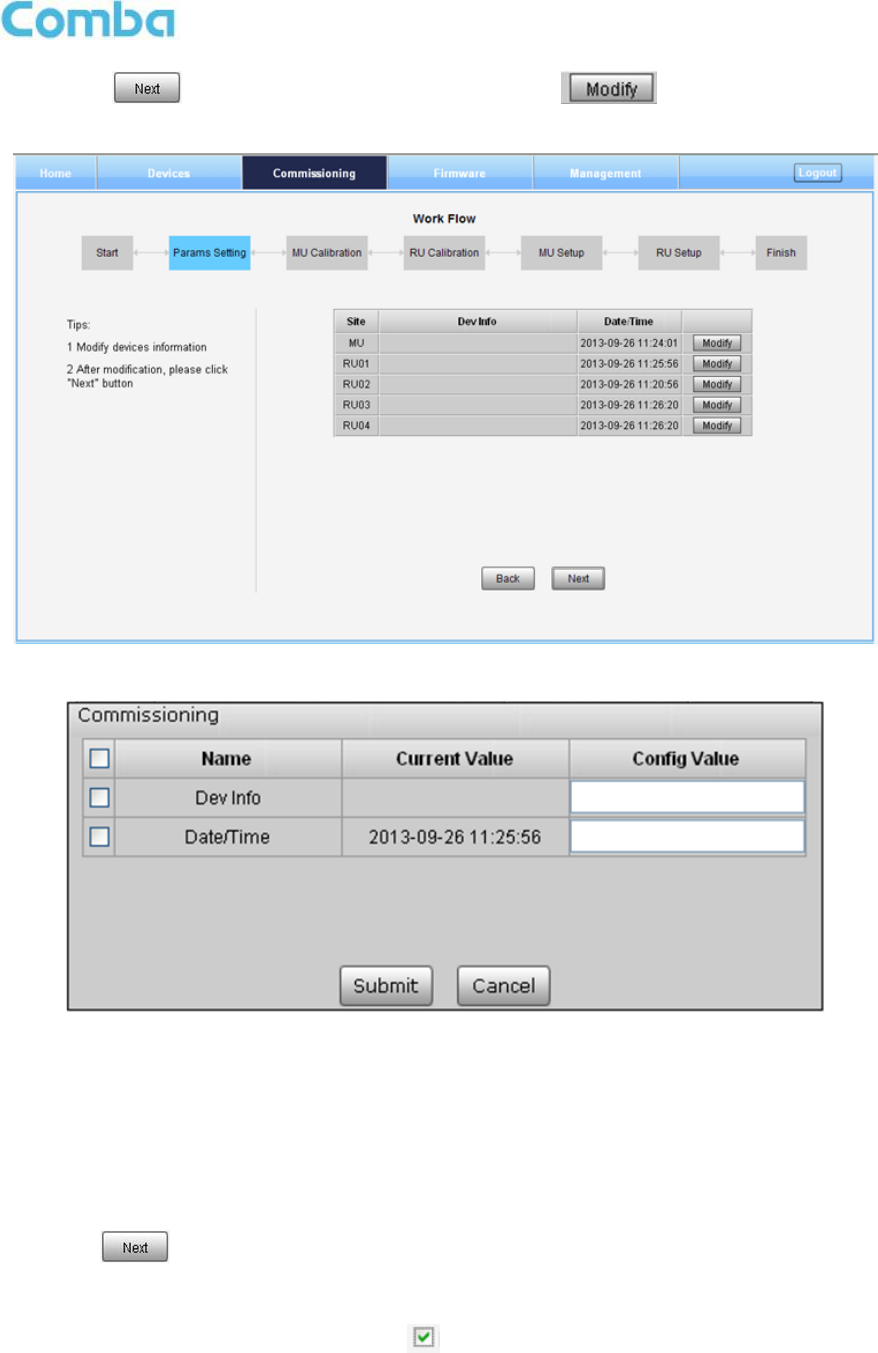

Figure 69: Commissioning Procedure – Params Setting .................................................................................... 61
Figure 70: Dev Info & Date/Time ............................................................................................................................ 61
Figure 71: Commissioning Procedure – MU Calibration ..................................................................................... 62
Figure 72: Commissioning Procedure – MU Calibration Finish ......................................................................... 62

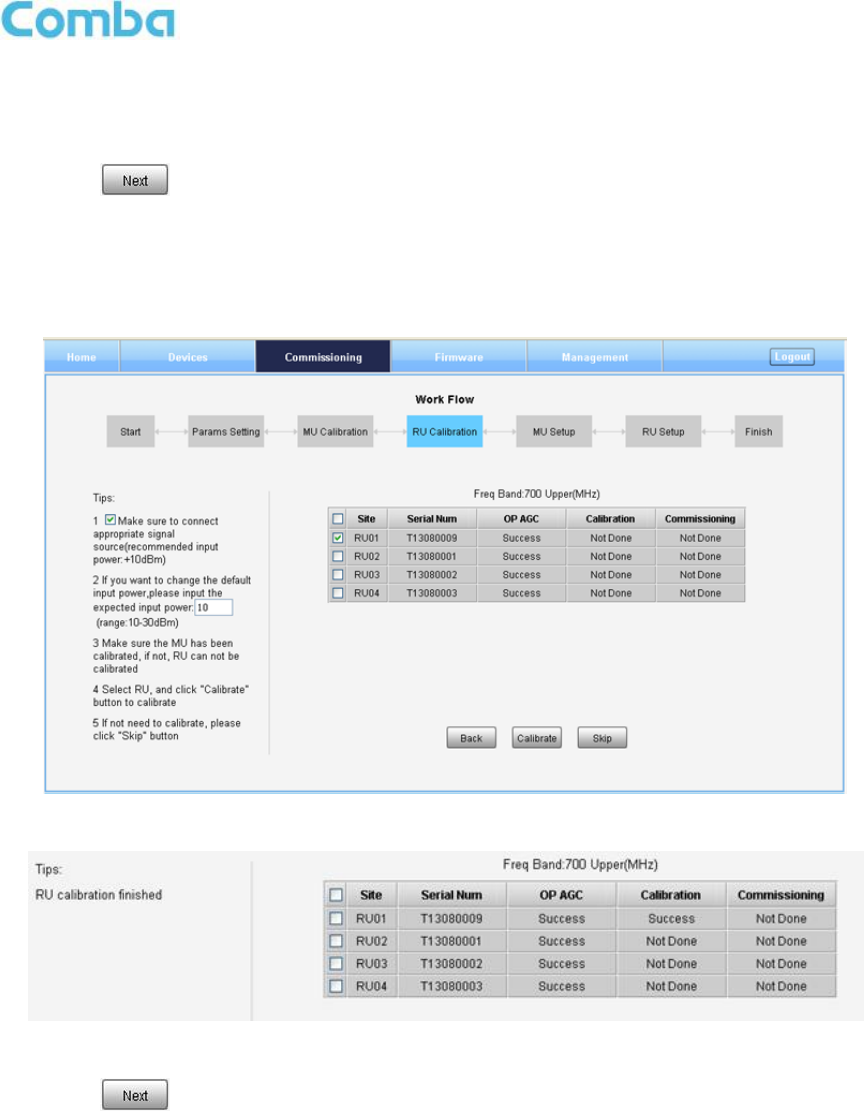

Figure 73: Commissioning Procedure – RU Calibration ..................................................................................... 63
Figure 74: Commissioning Procedure – RU Calibration Finish .......................................................................... 63

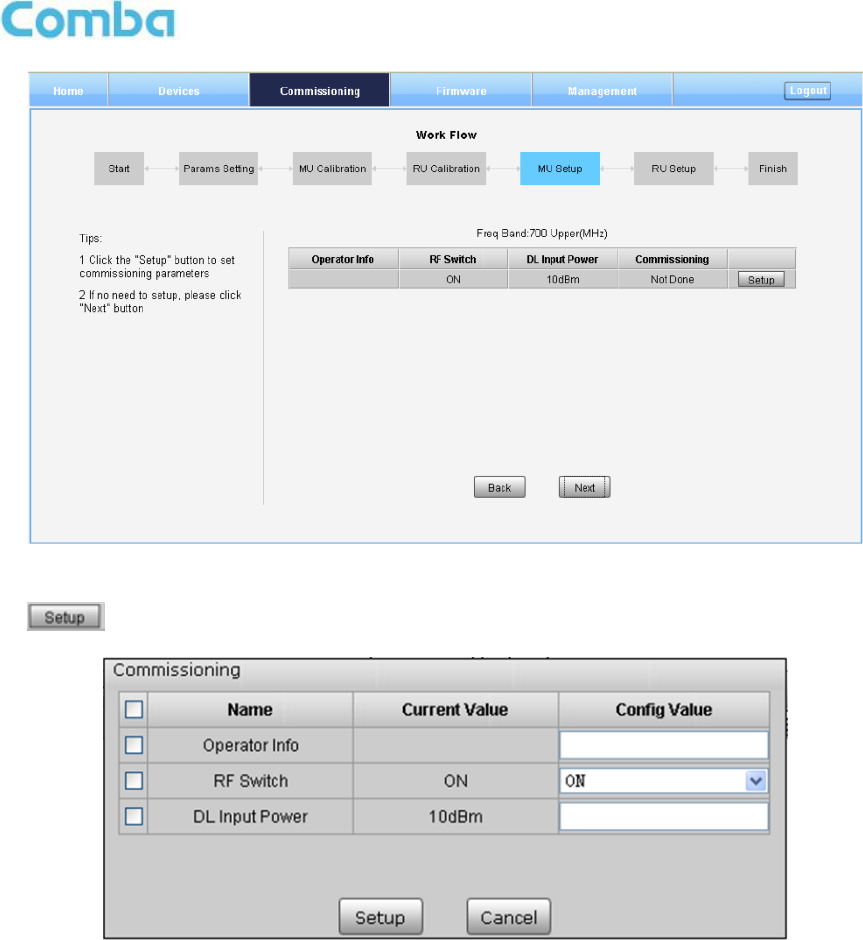

Figure 75: Commissioning Procedure – MU Setup ............................................................................................. 64
Figure 76: MU Frequency Band Table ................................................................................................................... 64

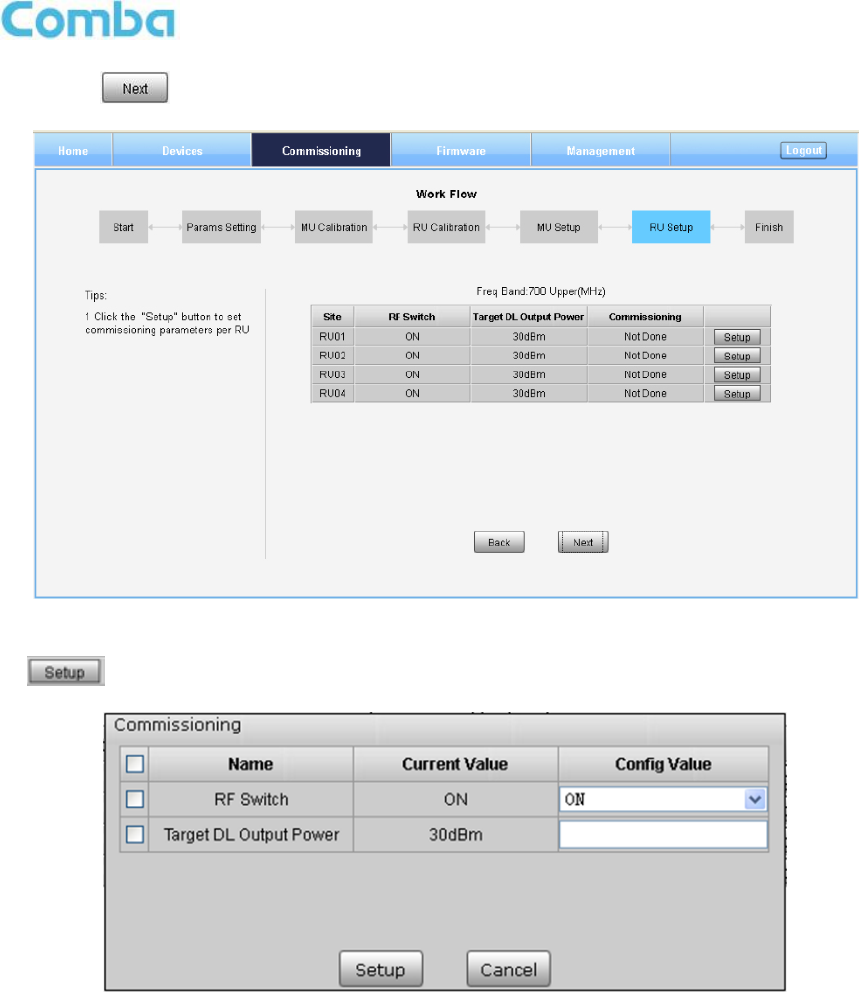

Figure 77: Commissioning Procedure – RU Setup .............................................................................................. 65
Figure 78: RU Frequency Band Table ................................................................................................................... 65

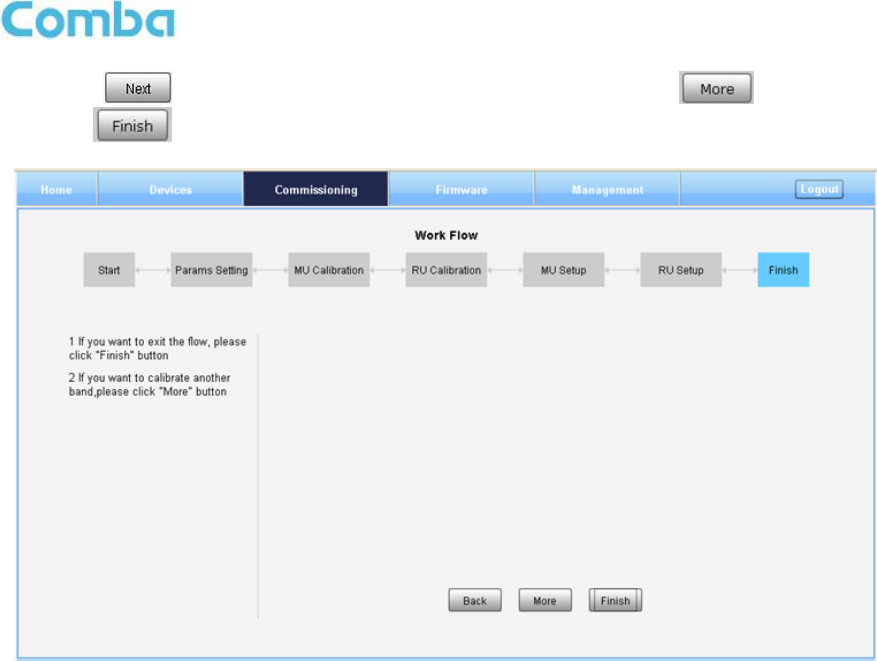

Figure 79: Commissioning Procedure – Finish .................................................................................................... 66
Table 1: MU Components ........................................................................................................................................ 13
Table 2: RU Components ........................................................................................................................................ 13

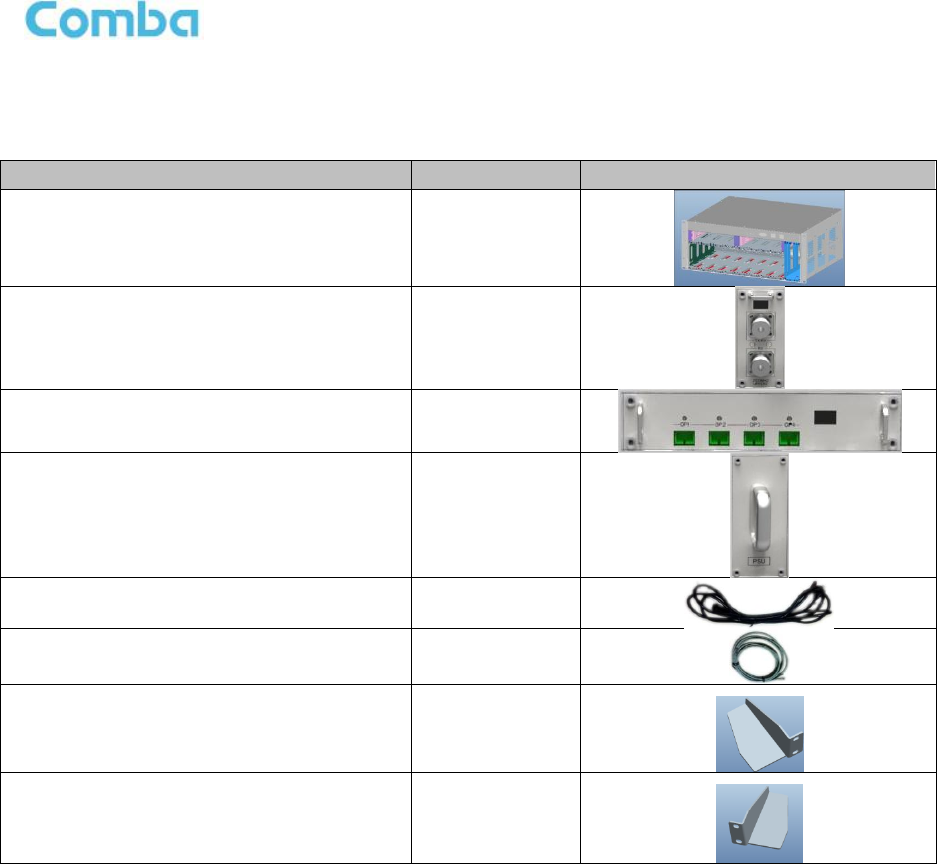

Table 3: Master Unit (MU) KOP .............................................................................................................................. 14

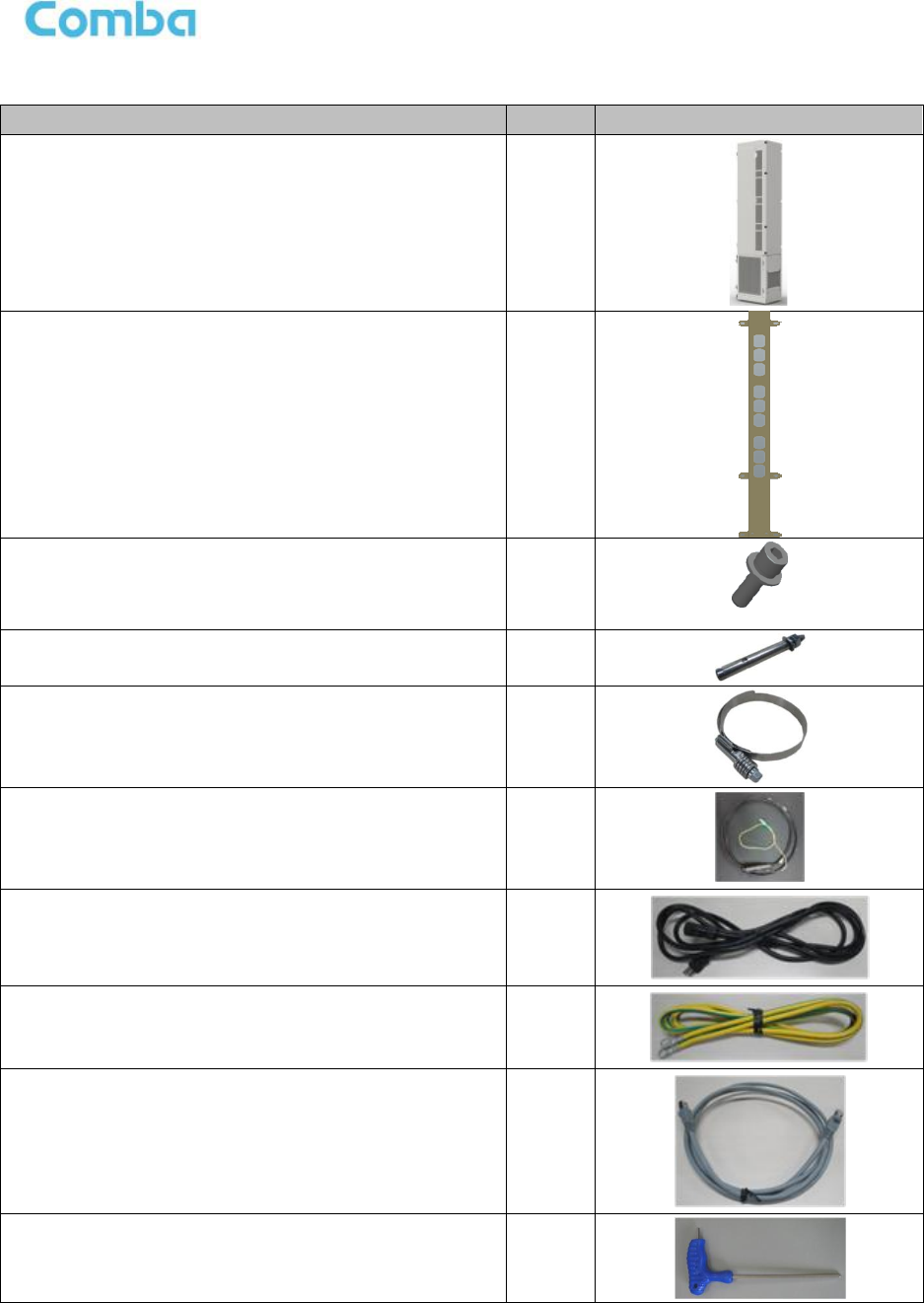

Table 4: Remote Unit (RU) KOP ............................................................................................................................ 15
Table 5: MU Connections ........................................................................................................................................ 29
Table 6: RU Connections ......................................................................................................................................... 30
Table 8: Pin Definition of “BTS_ALM” Port............................................................................................................ 36
Table 9: MU LED Indications .................................................................................................................................. 38
Table 10: RU LED Indications ................................................................................................................................. 38
Table 11: RFU Digital Display ................................................................................................................................. 39
Table 12: FOU Digital Display ................................................................................................................................. 40
Table 13: Import/Export Parameters ...................................................................................................................... 51
Table 14: MU Alarm List .......................................................................................................................................... 67
Table 15: RU Alarm List ........................................................................................................................................... 67
Table 16: MU Alarms Diagnosis ............................................................................................................................. 68
Table 17: RU Alarms Diagnosis .............................................................................................................................. 68
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 7
0.3 HISTORY
Change No.
ENU
Details Of Change
1
1-0-0
This user manual first created in February 2017.
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 8
0.4 GLOSSARY OF TERMS
ALC
Automatic Level Control
ATT
Attenuation
BDA
Bi-direction Amplifier
BS
Base Station
BTS
Base Transceiver Station
DL
Downlink
DT
Donor Terminal
FOU
Fiber Optical Unit
GUI
Graphic User Interface
ID
Identification
LNA
Low Noise Amplifier
MCU
Main Control Unit
MT
Mobile Terminal
MTBF
Mean Time Between Failures
MU
Master Unit
NC
Normally Closed
NF
Noise Figure
NO
Normally Open
OMC
Operation & Maintenance Center
OMT
Operation & Maintenance Terminal
OP
Optical Fiber
OPEX
OperatingExpense
PA
Power Amplifier
PIM
Passive Inter Modulation
PLL
Phase Locked Loop
POI
Point of Interconnects
PSU
Power Supply Unit
RF
Radio Frequency
RFU
Radio Frequency Unit
RU
Remote Unit
SMA
Sub-Miniature “A” Connector
TX/RX
Transmit/Receive
UL
Uplink
VAC
Volts Alternating Current
VSWR
Voltage Standing Wave Ratio
WCDMA
Wideband Code Division Multiple Access
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 9
0.5 SAFETY NOTICES AND ADMONISHMENTS
This document contains safety notices in accordance with appropriate standards. In the interests of
conformity with the territory standards for the country concerned, the equivalent territorial admonishments
are also shown.
Any installation, adjustment, maintenance and repair of the equipment must only be carried out by trained,
authorized personnel. At all times, personnel must comply with any safety notices and instructions.
Specific hazards are indicated by symbol labels on or near the affected parts of the equipment. The labels
conform to international standards, are triangular in shape, and are coloured black on a yellow
background. An informative text label may accompany the symbol label.
Hazard labeling is supplemented by safety notices in the appropriate equipment manual. These notices
contain additional information on the nature of the hazard and may also specify precautions.
CAUTION: Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the product.
NOTE: Note: The grantee is not responsible for any changes or modifications not expressly approved by
the party responsible for compliance. Such modifications could void the user’s authority to operate the
equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation
WARNING! This is NOT a CONSUMER device. It is designed for installation by FCC LICENSEES and
QUALIFIED INSTALLERS. You MUST have and FCC LICENSE or express consent of an FCC License
to operate this device. Unauthorized use may result in signification forfeiture penalties, including penalties
in excess of $100,000 for each continuing violation.
To comply with FCC RF exposure compliance requirements, each individual antenna used for this
transmitter must be installed to provide a separation distance greater than 159 cm or more from all
persons during normal operation and must not be co-located with any other antenna for meeting RF
exposure requirements.
The design of the antenna installation needs to be implemented in such a way so as to ensure RF
radiation safety levels and non-environmental pollution during operation.
Antenna gain should not exceed 12.5 dBi.
NOTE: A readily accessible disconnect device shall be incorporated external to the equipment.
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 10
1 GENERAL INFORMATION
The ComFlex-6800 Distributed Antenna System (hereinafter called “ComFlex”) consists of Master Unit
(MU) and Remote Unit (RU). The MU includes the MU Chassis, Power Supply Unit (PSU), Fiber Optical
Unit (FOU) and RF Unit (RFU). With a modular design, it can support up to 8 independent RF inputs and
8 Remote Units. The Remote Unit is a module design which supports 4 independent bands, 700MHz
(lower ABC)/700MHz (upper C), 800MHz (ESMR) / 850MHz (CELL), 1900MHz and EAWS band.
The low signal transmission loss of optical fiber is applicable for long distance transmission. ComFlex can
support the optical transmission of up to 6.5dBo optical loss, equivalent to 8 miles fiber length.
Main feature:
Modularized Master Unit supports flexible field upgrade and maintenance.
Independent gain control for each RF source.
High MTBF and low noise design with modular PSU and convection cooling.
RF module supports both simplex and duplex.
Supports multi-operator and mix mode application.
Optical link auto gain control.
Web based GUI for intelligent commissioning and configuration.
The figures below show the ComFlex Master and Remote unit enclosure.
Figure 1: Master Unit (MU)
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 11
Figure 2: Remote Unit (RU)
End of Section
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 12
2 EQUIPMENT DESCRIPTION
2.1 SYSTEM DIAGRAM
Optical Fiber
MU Antenna
RU
BTS or BDA
Figure 3: System Diagramc
On the DL, signals from the BTSs or BDA are converted into optical signals after amplification in the
MU.Then the optical signals are transmitted to the RU via optical fiber. The Optical TX/RX Module of RU
converts the DL optical signals into RF signals. After amplification, the signals are transmitted from RU
ANT port to the service antenna using 50Ohm coaxial cable.
On the UL, the signals transmitted by the mobile are converted into optical signals, and then via the UL
optical fiber, the signals are transmitted to MU, which then converts the optical signals back to RF signals
and send to BTS or BDA via 50Ohm coaxial cable.
2.2 TYPICAL APPLICATION
Shown below are the typical SISO and MIMO applications of MU and RUs.
…
BTS
(optional)
DAS Tray
SISO System
HRU 1 HRU 2 HRU 8
BTS
(optional)
DAS Tray
MIMO System
…
HRU 1A HRU 1B HRU 4A HRU 4B
Figure 4: Typical Application
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 13
2.3 EQUIPMENT CONSTITUTION
MU consists of the following parts:
Table 1: MU Components
Module
Description
MU01-RACK
Master Unit Chassis includes eight slots for RF Unit, two slots for Fiber Optical Unit,
and one slot for Power Supply Unit.
MU01-PSU
iDAS Master Unit Power Supply Unit (PSU) converts the input voltage into stable
DC to supply power for other modules of Master Unit.
MU01-FOU
Master Unit Fiber Optical Unit (FOU) completes optical signal and RF signal
conversion. One FOU has four optical ports, which means each FOU can support
up to four RUs.
MU01-RFU
Master Unit RF Unit completes separation and combination of uplink and downlink
signal with independent gain control, supports either simplex or duplex.
RU consists of the following parts: Table 2: RU Components
Module
Description
HRU01-4300
Remote Unit; A module design which supports 4 bands, including 700MHz,
800&850MHz, 1900MHz and EAWS band.
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 14
2.4 KIT OF PART
Table 3: Master Unit (MU) KOP
Item
Qty
MU Chassis
1
RF Unit (RFU)
1~8
Fiber Optical Unit (FOU)
1~2
Power Supply Unit (PSU)
1
Power Supply Cable
(13 Feet 1 inch)
1
Communication Cable
1
Right Angle Bracket
(for MU 19“rack mounting)
1
Left Angle Bracket
(for MU 19“ rack mounting)
1
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 15
Table 4: Remote Unit (RU) KOP
Item
Qty
Remote Unit
1
Mounting Bracket (used for both pole and wall
installations)
1
Nuts M8, Spring Washers Φ8, Plain Washers Φ8 (used
for securing Remote Unit when hanged on bracket
protrusions)
2
pieces
each
Masonry Bolt (set) M10x110 – used for wall mount
installations
6
Hose Clamp (Φ30-Φ125) - used for pole mount
installations (2 per bracket)
5
OptiTap Optical Fiber
1
Power Supply Cable (AC)
1
Copper Grounding Wire (2m)
1
RJ45 Ethernet Communication Cable
1
Key – used for opening unit panels for access to
internal components.
1
End of Section
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 16
3 INSTALLATION
3.1 WARNINGS AND ALERTS
Laser
Laser light can cause damage to eyes. Laser light is not visible. Viewing it directly does not cause pain.
The iris of the eye will not close when viewing a bright light. Consequently, serious damage to the retina
of the eye is possible. NEVER LOOK INTO THE END OF A FIBER WHICH MAY HAVE A LASER
COUPLED TO IT.
Radio Frequency Energies
There may be situations, particularly for workplace environments near high-powered RF sources, where
recommended limits for safe exposure of human beings to RF energy could be exceeded. In such cases,
restrictive measures or actions may be necessary to ensure the safe use of RF energy.
High Voltage
The equipment has been designed and constructed to prevent practicable danger, as far as reasonably
possible. Any work activity on or near equipment involving installation, operation or maintenance must be
free from danger, as far as reasonably possible.
Where there is a risk of damage to electrical systems involving adverse weather, extreme temperatures,
wet, corrosive or dirty conditions, flammable or explosive atmospheres, the system must be suitably
installed to prevent danger.
Protective Earthing
Equipment provided for the purpose of protecting individuals from electrical risk must be suitable for the
purpose and properly maintained and used.
Handling Precautions
This covers a range of activities including lifting, lowering, pushing, pulling, carrying, moving, holding or
restraining an object or person. It also covers activities that require the use of force or effort, such as
pulling a lever, or operating power tools.
Electrostatic Discharge (ESD)
Observe standard precautions for handling ESD-sensitive devices. Assume that all solid-state electronic
devices are ESD-sensitive. Ensure the use of a grounded wrist strap or equivalent while working with
ESD-sensitive devices. Transport, store, and handle ESD-sensitive devices in static-safe environments.
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 17
3.2 SITE PLANNING CONSIDERATIONS
3.2.1 SITE PLANNING
Site Considerations
The MU is designed to be located indoors to facilitate coupling of BTS signals and power supply
connections. The input range of MU RF unit is 10~30 dBm.
The site consideration for RU is listed below:
The distance between the service antenna of RU and coverage area should satisfy line of sight
requirements for maximum coverage area.
The maximum fiber length is 8 miles, with a maximum path loss of 6.5dBo.
The system delay of the optical system must be taken into consideration when there are neighboring
BTS sites overlapping in coverage.
Installation Location
Mounting surface shall be capable of supporting the weight of the equipment.
In order to avoid electromagnetic interference, a proper mounting location must be selected to minimize
interference from electromagnetic sources such as large electrical equipment.
Environmental
Humidity has an adverse effect on the reliability of the equipment. It is recommended to install the
equipment in locations having stable temperature and unrestricted air-flow.
The installation location for the system should be well ventilated. The equipment has been designed to
operate at the temperature range and humidity level as stated in the product specifications.
Powering
The power supply unit (PSU) provides power to all modules within the equipment. Depending on the
product variant, it is recommended that the PSU operates on a dedicated AC circuit breaker or fused
circuit.
Grounding Requirement
Verify that the equipment has been well grounded. This includes antennas and all cables connected to
the system. Ensure lightning protection for the antennas is properly grounded.
Cable Routing
Depending on equipment configuration, a variety of types of cables are connected to the MU and RU:
coaxial cables, optical fibers, power cable, communication cable, and commissioning cable. Where
applicable, ensure cables are properly routed and secured so that they are not damaged.
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 18
Manual Handling
During transportation and installation, take necessary handling precautions to avoid potential physical
injury to the installation personnel and the equipment.
3.2.2 SYSTEM INSTALLATION CHECKLIST
Working space available for installation and maintenance for each mounting arrangement. Ensure
unrestricted airflow.
Ensure earthing point is within reach of the ground wire. (2m; 6 ft. 10 in.).
Ensure a power source is within reach of the power cord and the power source has sufficient
capacity.
Where appropriate, ensure unused RF connectors are terminated.
Where appropriate, ensure unused optical fiber connectors are protected.
Do not locate the equipment near large transformers or motors that may cause electromagnetic
interference.
Reduce signal loss in feeder cable by minimizing the length and number of RF connections.
Ensure the equipment will be operated within the stated environment (refer to datasheet).
Where needed, couple BTS RF signal with a coupler to prevent damaging the equipment.
Where appropriate, confirm available of suitably terminated grade of RF and optical fiber.
Observe handling of all cables to prevent damage.
3.3 INSTALLATION PROCEDURES
3.3.1 GOODS INWARDS INSPECTION
ComFlex was factory tested, inspected, packed, and delivered to the carrier with utmost care. Do not
accept shipment from carrier which shows damage or shortage until the carrier’s agent endorses a
statement of the irregularity on the face of the carrier’s receipt. Without documentary evidence, a claim
cannot be processed.
Open and check each package against the packing list. For any shortage, contact Comba Telecom
Systems. Do not remove items from packing materials until installation.
3.3.2 TOOLS
See Appendix A for a full list of tools required for installation and maintenance.
3.3.3 PREPARATION
Optical Fiber:
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 19
Fiber optic cables require proper handling. Do not stretch, puncture, or crush the fiber cable(s) with
staples, heavy equipment, doors, etc.
Always maintain the minimum bending radius specified by the cable manufacturer. The minimum
bend radius is usually 10 times the cable’s outer diameter. In the case of single optical fiber that is
not in a cable, the minimum bending radius to be observed is 3cm. (1.2”) .
3.3.4 MU ASSEMBLING
ComFlex Master Unit consists of 4 parts: Chassis, RFU, FOU and PSU. All the units are packed
separately. Follow the steps below to assemble.
Figure 5: ComFlex Master Unit
Step1: RF Unit installation: Remove RFU slot cover plate on Chassis, insert RFU and fasten the screws.
(Each Unit can be installed in any one of eight RFU slots)
Figure 6: RF Unit Installation
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 20
Step2: FOU installation: Remove FOU slot cover plate on Chassis, insert FOU and fasten the screws.
(Each Unit can be installed in either one of two FOU slots)
Figure 7: FOU Installation
Step3: PSU installation: Remove PSU slot cover plate on the right side of Chassis, insert PSU and fasten
the screws.
Figure 8: PSU Installation
3.3.5 MU IN 19” RACK MOUNTING
MU is an indoor type device; the installation procedures are shown as below:
Step 1: Install right angle bracket and left angle bracket on back of the mounting rack. (Rack nuts and
screws are not provided.) Use rack nuts and screws as recommended by rack manufacturer.
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 21
Figure 9: Mounting Rack
Figure 10: Angle Iron Installation
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 22
Step2: Slide the MU on to the angle brackets and confirm it is level.
Figure 11: MU Installation
Step 3: Attach the MU onto the rack with the recommended rack screws.
Figure 12: Secure the Enclosure
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 23
Step 4: Finish installation.
Figure 13: Finish Installaiton
3.3.6 RU WALL MOUNTING
RU wall mounting steps are shown below.
Step 1: Select the wall mount location according to the following criteria:
General surroundings
Ventilated and easy-to-reach area (for maintenance and on-site inspection)
Proximity to DAS antenna in order to minimize cable loss
Step 2: Using the mounting bracket top and bottom mounting holes as a guide
Measure and mark the location for drilling the (supplied) M10 Masonry bolts (Φ12) in the
wall (6 per bracket and drill the holes).
Using an electric drill with a Φ12 head, drill the holes for the Masonry Bolts.
NOTE: The ComFlex remote unit is mounted vertically with the connectors facing downwards.
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 24
Step 3: Using 6 (M10x110) Masonry bolts per bracket – secure the Mounting Brackets to the wall with the
protruding M8 nuts facing towards you. The remote unit will be hung on these.
Figure 14: Install Mounting Rack on the Wall
Step 4: Connectors facing down carefully fit and hang the GX unit on to the M10 bolts protruding from the
top, middle and bottom parts of the mounting bracket.
Figure 15: Hang RU onto the Mounting Rack
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 25
Step 5: Using a spanner or wrench, tighten the two (2) M8 nuts on the top and bottom of the mounting
bracket as shown below.
Figure 16: Tighten the Screws at the Bottom of RU
Step 6: Check enclosure position and verify that unit is mounted securely to the wall.
.
3.3.7 Pole Mount Installation
Step 1: Select the appropriate location according to the following criteria:
Accessibility
Antenna location and distance
Proximity to the antenna in order to minimize cable loss
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 26
Step 2: Secure the mounting bracket by slipping the 5 hose clamps (provided) through the mounting
bracket and tighten securely.
Figure 17: Mounting Rack of Pole Installation
Figure 18: Tighten the Mounting Rack
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 27
Step 3: Connectors facing downwards, hook the GX-Quad on to the top part of the bracket and then to
the bottom.
Figure 19: Hang on RU
Step 4: Using a spanner or wrench, tighten the two (2) M8 nuts on the top and bottom of the mounting
bracket as shown below.
Figure 20: Tighten the Screws at the Bottom of RU
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 28
Figure 21: Finish Installation
3.1 EQUIPMENT CONNECTORS
The figures below present the connectors of ComFlex MU.
12345
6 7 8
Figure 22: MU Front Panel Connectors
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 29
9 10 11 12 13
14
Figure 23: MU Rear Panel Connectors
Table 5: MU Connections
Identifier
Functional Description
1. OP1~OP4
SC/APC optical fiber access port
2. LED indicator
LED indicator. See Chapter 4 for the description of each indicator.
3. BTS_ALM
DB9-F connector for BTS alarm.
4. OMT
RJ45 connector connects PC with equipment for local and remote
monitoring.
5. LAN
Reserved RJ45 port for remote monitoring.
6. TX/RX
RF access port, Mini Din connector.
7. RX
RF access port, Mini Din connector.
8.
Digital display tube. See chapter 4 for the detailed description.
9.
Grounding connector.
10. FOU
Communication port with extension optical unit.
11. AUX
Reserved interface for source calibration unit.
12. 28 GND
Provide 28V power supply for extension units (FOU and source calibration
unit).
13. UL1,DL1; UL2,DL2;
UL3,DL3
Reserved for RF interface of extended FOU and single soure calibration
unit.
14. AC100~240V
AC power supply connector.
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 30
Figure 24: RU Connectors
Table 6: RU Connections
Identifier
Functional Description
Service Connectors
(e.g. 700MHz,
CELL/ESMR,
1900MHz, EAWS)
DIN female connectors to antennas
OP
Corning OptiTap™ Fiber-optic waterproof connector to MU for either SM or MM
fibers.
Power Connector
(side panel)
Remote Power (AC) Power feed options: 100-240V 47-63 Hz
Max Power Consumption: 1400W
LAN
RJ45 connector for local connection (i.e. debugging, troubleshooting)
EXT_ALM
External Alarm pin-out connectors supporting four external alarm connections
SYS_ALM
Pin-out connector supporting up to 3 relay alarms used for connecting the RU
to a network or modem and relaying the status of the RU alarms
CPL_1
Coupler port - 1900MHz 50dB coupling
CPL_2
Coupler port - EAWS 50dB coupling
CPL_3
Coupler port – CELL/ESMR 50dB coupling
CPL_4
Coupler port - 700MHz 50dB coupling
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 31
3.2 EQUIPMENT CONNECTION
3.2.1 GROUNDING CONNECTION
3.2.2 MU GROUNDING CONNECTION
Step 1: Connect the GND cable to the GND connector and the building EARTH. Recommended GND
cable size is # 12 AWG.
Step 2: Ensure the GND cable is connected to building GND.
Grounding Connector
Figure 25: MU Grounding (MU Rear Panel)
3.2.3 RU GROUNDING CONNECTION
Step 1: Connect one side of the supplied copper wire GND cable to right side of RU with two M6×10
hexagon Screws (screws are provided). Connect the other side of the supplied copper wire GND cable to
the building EARTH with two M6 screws (screws are not provided).
Step 2: Connect one side of the supplied copper wire GND cable to RU with two M6×10 hexagon Screws
(screws are provided). Connect the other side of the supplied copper wire GND cable to the building
EARTH with two M6 screws (screws are not provided).
Step 3: Ensure all GND cables are well grounded to building GND.
WARNING!
This unit must always be grounded. Consult an appropriate electrical
inspection authority or an electrician if you are uncertain that suitable
grounding is available.
Do not connect power before grounding.
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 32
Figure 26: RU Grounding
3.2.4 MU CONNECTIONS
Step1: Connect the MU OP (optical) port to one of the RU OP port. (NOTE: requires Single Mode fiber
with SC/APC connectors; MAXIMUM OPTICAL LOSS = 6.5dBo)
Step 2: For duplex application, connect the MU RFU TX/RX port to the RF Source (BTS or BDA). For
simplex application, connect the MU RFU TX/RX port to the RF Source downlink, and then connect MU
RFU RX port with RF Source uplink. (NOTE: RF cable must be mini-DIN Male on the MU side)
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 33
Local commissioning &
Remote monitoring port
BTS Alarm Reserved
Fiber optic port
RF port, to BTS
LED
indicator
Figure 27: Fiber Optical and RF Port Connection
Step 3: Connect the power cable to the power supply port (100-240VAC, 1Amp maximum).
Power Connection
Figure 28: MU Power Connection (Rear Panel)
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 34
3.2.5 RU CONNECTION
Step 1: Connect the OptiTap optical fiber to RU OP (optic) port and one of the OP port located on MU
FOU front panel.
Figure 29: MU Power Connection (Rear Panel)
Step 2: Rotation outer shell to tighten the fiber conncetion.
Figure 30: Tighten Optical Fiber Connection
Step 3: Connect ANT port to a broadband antenna using 50Ohm coaxial cabel.
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 35
Step 4: Connect power cable on PSU with the public power grid (110~220VAC, 14Amp maximum).
Figure 31: Power Supply Connection
Figure 32: RU Fiber Optical and RF Port Connection
MU Port
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 36
3.2.6 RU EXTERNAL ALARM CONNECTION
For RU external alarm, there is an 8-pin waterproof connector. The following figure and table show the pin
allocation and definition. Pin numbering are shown looking-into the connector on the enclosure.
Figure 33: Pins Allocation for “EXT_ALM” Port of RU
3.2.7 MU BTS ALARM CONNECTION
The equipment alarms can be signaled to the BTS via voltage-free relay contacts. The voltage-free relay
connections are connected to the DB-9 port “BTS_ALAM” located on the MU. The following figure and
table show the pin allocation and definition.
1
2
4
3
5
6
7
9
8
BTS_OPEN
BTS_CLOSE
BTS_ COM
Figure 34: Pins Allocation for “BTS_ALM” Port
Table 7: Pin Definition of “BTS_ALM” Port
Pin Number
Definition
Description
1
BTS_OPEN
Connects to the open terminal of the voltage free relay.
2
BTS_COM
Connects to the common terminal of the voltage free relay.
3
BTS_CLOSE
Connects to the close terminal of the voltage free relay.
4 ~ 9
NC
Reserved.
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 37
3.2.8 CONNECT TO PC
The local commissioning and management for MU and RU is achieved through connecting to the WEB
base GUI.
Connect MU to PC
Connect MU “OMT” port (RJ45) to the RJ45 port of PC with supplied Ethernet cable to achieve local
monitoring and management.
End of Section
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 38
4 COMMISSIONING
4.1 PRE-COMMISSIONING TASKS
After equipment installation, perform the following steps before equipment powering and commissioning,
check that the expected voltage, current, and power levels do not violate any ratings. Double check all
connections including ground before applying power. Do not manipulate circuits or make changes when
power is applied:
Visually inspect the power connection within the equipment. Ensure that all cables are correctly and
securely connected, including power cables, grounding wires, RF cables and optical cables.
Check grounding connection and verify that the ground resistance is less than 5Ω.
Connect the equipment to the PC.
Power on MU and RU.
Monitor the initialization of the MU and RU though the LEDs on the panel. Refer to detailed LEDs
information in the next section.
4.2 LED INDICATORS
Diagnostic LEDs are located on the MU front panel and RU bottorm panel; each indicates the status of a
particular function:
Table 8: MU LED Indications
LED Indicator
Normal Status
Indication
PWR
Steady green
Power indicator. If LED is off, it indicates the system has
no power.
RUN
Flashing green
(1 time/sec)
MU operation indicator. After initialization (1~2 minutes),
the LED should flash at once per sec. (When upgrade
firmware, LED will flash rapidly)
ALM
OFF
Alarm indicator. If LED is RED, there is an alarm.
OP
Steady green
Located on Fiber Optical Unit (FOU), it is an indicator for
receive optical power. If LED is off, it indicates the
receiving optical power is less than -10dBm.
Table 9: RU LED Indications
LED Indicator
Normal Status
Indication
COMM.
Blinking green
(1 time/sec)
BLINKING GREEN - Flashes (rate of flash per second)
for the duration of 1 minute upon communication
initialization
RAPID/NO FLASH - Indicates communication fault
RUN
Off
OFF – Normal operation
RED - Fault
ALM
Off
Alarm indicator. If LED is RED, there is an alarm.
LED Indicator
Normal Status
Indication
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 39
4.3 DIGITAL DISPLAY INDICATORS
4.3.1 DIGITAL DISPLAY ON RFU
The digital display tube on RFU shows the DL input power. The range of DL input power shown on the
display tube is from -19 to 33 (dBm), when DL input power is lower than -19dBm, it will show L, when DL
input power is higher than 33, it will display H.
Figure 35: RFU Digital Display
Table 10: RFU Digital Display
Figure
DL Input Power Level
L
< -19dBm
-19~33
-19~33dBm
H
> 33dBm
4.3.2 DIGITAL DISPLAY ON FOU
The digital display tube on optical module has two digits.
The first digit will display A, b, C and d which presents the No. of optical port. Refer to below figure for the
relationship.
The second digit will display the optical loss of each port. See the following table for the relationship of
figure and optical loss.
Ab C d
Figure 36: Optical Port No. and Digital Display
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 40
Table 11: FOU Digital Display
Figure
Optical Loss
0~9
0~9dBo
H
> 9dBo
End of Section
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 41
Page 4141
5 WEB GUI
ComFlex can be monitored and controlled by WEB GUI, follow below contents to achive system
parameter setting and commissioning.
5.1 WEB GUI CONNECTION
Step 1: Connect MU OMT port to PC RJ45 port with the supplied Ethernet cable to set up a physical
connection.
Step 2: Go to laptop Control Panel\Network and Internet\Local Area Connection. Right click it and click
Properties. Then follow the steps shown in figure below.
Figure 37: PC IP Address Setting
Step 3: Open browser (browser IE7.0, IE8.0, Chrome or Firefox, suggest disply resolution is 1024×768),
input Web GUI IP address: 192.168.8.101, click [Enter].
Figure 38: Input IP Address
Step 2: Input User Name: admin; Password (default password: admin). Click [Log in].
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 42
Figure 39: Input User Name and Password
5.2 WEB GUI INTRODUCTION
After login, the Web GUI main screen will appear.
Figure 40: Web GUI Main Screen
On Comba Web GUI Home page, there are four Menu bars:
[Devices], Commissioning], [Firmware] and [Management].
5.2.1 [DEVICES]
The [Devices] page shows the actual connection diagram of MU and RU.
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 43
Figure 41: [Devices] Sceen
MU Main Management Screen
Figure 42: MU Device - Monitoring Unit
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 44
Optical Unit Management Screen
Figure 43: MU Device - Optical Unit
Note: MU transmit optical power is -4~-2dBm.
RF Unit Management Screen
Figure 44: MU Device - RF Unit
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 45
Remote Unit Management Screen
Click RU photo, users can visit RU directly. Make sure two steps are done before visit RU:
RU and MU are connected by optical fiber.
RU device scanning is done. Note: Go to [Commissioning] page or [Management] page for device
scanning.
Figure 45: RU Device
NOTE: There are three statuses for PA Service: Normal, Recovery and Shutdown. If PA output power
or reflected power exceeds the threshold (48dBm), software will trigger Recovery:
It will reset PA and then re-detect the PA output power and reflected power, if they are normal, the
PA Service Status will turn to Normal, if PA output power or reflected power is still over the threshold,
PA Service Status will turn to Recovery again.
If PA output power or reflected power is still over the threshold after six times of PA Recovery, PA
Service status will be Shutdown which will need to be reset manually. Reset at Management > PA
Reset.
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 46
Click on a specific band on the left side of RU Device page, the corresponding band information will show.
Figure 46: RU Device – 700
Figure 47: RU Device – External Alarm
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 47
Figure 48: RU Device – Fan Alarm
5.2.2 [COMMISSIONING]
A work flow of the commissioning process is shown on [Commissioning] page. Click the [Start] button, the
software will guide you through the commissioning step by step. For details, please refer to chapter 5.3.
Figure 49: [Commissioning] Screen
5.2.3 [FIRMWARE]
There are three functions on the [Firmware] bar: [Monitoring Upgrade], [Swap] and [Module Upgrade].
[Monitoring Upgrade] is used to upgrade MCU software, [Swap] is to replace current MCU firmware
version to the previous one, [Module Upgrade] is to upgrade software of each module.
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 48
Follow steps shown in below figure to upgrade MCU firmware.
Figure 50: [Firmware] Screen – Modnitoring Upgade
Step 4: After clicking , a window will pop up and click .
Figure 51: [Firmware] Screen – Pop-up Window 1
Step 5: Wait for 2~4 minutes while MU/RU is being reset.
Figure 52: [Firmware] Screen – Pop-up Window 2
Step1：select
device
Step2：Click to
select software that
to be updated
Step3：Click to
upgrade software
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 49
Step 6: Clear browsing history and cookies from browser.
NOTE: For MU software upgrade, users need to re-login Web GUI after reset is done.
Follow steps shown in below figure to Swap MCU firmware.
Figure 53: [Firmware] Screen - Swap
Follow steps shown in below figure to upgrade module firmware.
Figure 54: [Firmware] Screen – Module Upgrade
Step1：select
device
Step2：Click to swap
firmware to previous
version
Step1：select device
Step2：Click to
select software that
to be updated
Step3：Click to
upgrade software
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 50
Note 1: There are two loctiaons for Optical module – Module-L which is on the left and Module-R which is
on the right side of MU.
Note 2: FSK module is in side Optical modul.
Noet 3: Adapter Module means RF module, [Slot] in the Adapter Module software upgrade table refers to
the 8 slost on the MU Rack and the series number is from left to right.
5.2.4 [MANAGEMENT]
Other parameters can be configured on [Management] page.
Figure 55: [Management] Sceen
There are nine function bar lised in the left side of the [Mangement] page. Below figures are the
introduction of each function bar.
Clink here to enter the
corresponding page
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 51
Inport&Export
Figure 56: Management – Import&Export
Blow table list the parameters that can be import/export:
Table 12: Import/Export Parameters
Device
Paremeter
Device
Parameter
MU
Alarm Enable
RU
Alarm Enable
ATT value
ATT value
RF Switch
RF Switch
SNMP parameter
Over temperature alarm threshold
DL over output power threshold
External Alarm level
Import and Export can help users quickly configure MU and RU parameters. For example, if one MU/RU
finished configuration, users can export its parameters and save as a file in PC, and then import this file to
other MU/RU to fast finish the MU/RU parameter setting.
Select a device, the
device information
will show.
Parameter
configurations can
be input and
output in this page
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 52
IP Setting
Figure 57: Management – IP Setting
Note: For remote monitoring, the IP Address must be set correctly according to the location IP of remote
connection. If more than one equipment is connected to the public network through the same router, the
router’s local IP CANNOT be set as 192.168.8.*.
SNMP Setting
Figure 58: Management – SNMP Setting
Configure MU IP address for
remote monitoring of MU
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 53
Security
Figure 59: Management – Security
Click , [Modify Password] window will pop-up.
Figure 60: Modify Password
Note: Username cannot be modified.
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 54
Device Reset
Figure 61: Management – Device Reset
Note: Device Reset process will last about 2~4 minutes. For MU monitor reset, users need to re-login
WEB GUI.
PA Reset
Figure 62: Management – PA Reset
Note: PA will be turned off by software when PA output power or (VSWR) reflected power is exceed the
threshold. Users need to reset PA after debugging.
Reset all parameter and
alarm settings to factory
default.
Select a device, the
device information
will show.
Clear all history alarms
Only RU has PA
reset function
Each band can
be set separately
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 55
Device Info
Figure 63: Management – Device Info
Note: Users can input maximum 30 bytes characters in Device Info.
Device Scanning
Figure 64: Management – Device Scanning
Select a device
Input Device
information here,
click Submit. Click here to get the computer
time, then click Submit.
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 56
Note: This Step is the same as step1 of [Commissioning]. Running scanning, software will allocate an ID
to RU so that MU can identify and visit it.
Device Remove
Figure 65: Management – Device Remove
Note: If the RU has been scanned and identified by MU, to remove the RU from the system,users must
remove this RU on this [Device Remove] page, otherwise, RU will still be shown on the Home page and
will trigger optical alarm.
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 57
Report
Users can check the current running status of MU/RU by [Report] function.
Figure 66: Management – Report
Note: Users can use Chrome and Firefox to review the report. When using Chrome, once you click
[Create], the report will be pop-up in a new window. When using Firefox as the browser, users need to set
browser applications settings first, then follow the steps shown on the figure above to create the report.
Figure 67: Firefox setting (1)
Step 1: Select a device
Step 2: Click [Create] to
review the Report
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 58
Figure 68: Firefox setting (2)
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 59
Alarm Log
In [Alarm Log] page, users can query and export MU and RU history alarms, for facilitating trobuble
shouting and monitoring MU/RU alarms.
Figure 69: Management – Alarm Log
Step 1: Select a device Step 2: Click to select a
begin date and End date
Step 3: Click [Query] to review the log and click
[ Export] to load the log on your computer
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 60
5.3 COMMISSIONING PROCEDURE
To complete the installation and commissioning, users need to follow the steps below.
Step 1: Click Menu bar [Commissioning] on home page, a work flow will show up.
Figure 70: Commissioning Procedure - Start
Step 2: Click to start RU device scan, this step will take about 1 minute.
Figure 71: Commissioning Procedure – Device Scan
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 61
Step 3: Click to enter to Params Setting page. Click , users can set the device
information and system time.
Figure 72: Commissioning Procedure – Params Setting
Figure 73: Dev Info & Date/Time
Dev Info mainly used to record device location and Date/Time provid a time reference. Mouse click the
Config Value of Date/Time to auto receive the computer time.
NOTE: Make sure all the ANT ports of RUs are connected with dummy load or antenna system
before proceeding to step 4.
Step 4: Click to enter to MU Calibratiion page after finishing Parems Setting.
Select a frequency band that need to calibrate from the table in the middle of the page.
Read Tip1 on the left side and click of Tip 1
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 62
Input signal to a RF port of RFU which you want to calibrate.
Read Tip2 on the left side and enther the input power in the box (Suggested input power 10-
30dBm). Input power has to be >10dBm for successful calibration.
Click .
Tip of MU calibration finish will show up on the left of the page, and calibration results will
show in the table.
NOTE: Each RFU needs to be calibrated; click “More” at last step of process to calibrate next
RFU.
Figure 74: Commissioning Procedure – MU Calibration
Figure 75: Commissioning Procedure – MU Calibration Finish
NOTE1: Calibration is to adjust MU and RU gain to assure system gain is 38dB, if the band have been
calibrated, users can click to skip the process; if the band never been calibrated, users click
in the step of MU Calibration and RU Calibration, software can still procede to the next step of
MU and RU setup, but the system gain will be a little deviation with 38dB, so the final output power will be
not same with the target DL output power.
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 63
NOTE2: If there are more than one same band access to MU, then each access need to be calibrated in
MU Calibration step, while in RU Cablibration step, users only need to calibrate the band one time,
because all the same band shares the same PA.
Step 5: Click to enter to RU Calibratiion page, refer to step 4 to finish RU calibration.
NOTE1: Make sure the ANT port of RU is connected with dummy load or antennas before Calibration.
Several RU can be calibrated simultaneously.
NOTE2: You can calibrate one RU or calibrate all the RUs at one time. Click “site” in RU table to select all
RUs.
Figure 76: Commissioning Procedure – RU Calibration
Figure 77: Commissioning Procedure – RU Calibration Finish
Step 6: Click to enter to MU Setup page after finishing RU calibration.
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 64
Figure 78: Commissioning Procedure – MU Setup
Click to set band related information.
Figure 79: MU Frequency Band Table
Three parameters need to be set in this step.
Operator Info: record the operator information of this RU unit.
RF Switch: Set the RF switch status of this RF unit.
DL Input Power: Input Power of the BTS signal access to this RF unit. Note: ComFlex system
reaches its rated output power (46dBm) when input power is +10dBm, if DL Input Power is over
10dBm, software will autoadjust the internal attenuator to make RU output power reach rated Power.
(Input power range: 10-30dBm).
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 65
Step 7: Click to enter to RU Setup page after finishing MU setup.
Figure 80: Commissioning Procedure – RU Setup
Click to set band related information of RU.
Figure 81: RU Frequency Band Table
Two parameters need to be set in this step.
RF Switch: Set the RF switch status of Remote Unit.
Target DL Output Power: Expected DL output power setting. Note: Rated output power of ComFlex
system is 46dBm, when Target DL Output Power is set less than 46dBm, software will auto adjust
RU gain to make the RU output power reach the expected Power.
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 66
Step 8: Click to enter to [Finish] page after finishing RU setup. Click to calibrate other
bands. Click if all bands’ clibration is done.
Figure 82: Commissioning Procedure – Finish
Note:
As the system calibration process is calibrated for single channel, so if there is more than one same band
input, because of the power superposition, the band total output power will higer than target DL output
power after the calibration is complete.
The calibration work is mainly to set device to reach it’s theoretical gain, so when there are two or more
same bands access into and they have the same input power level, each channel will reach it’s rated
power, so the total output power will be (input A+gain) + (inputB+gain)+…+(inputN+gain). For example, if
there are two 1900MHz bands acess to MU, each has 10dBm input power, the total output power of RU
1900MHz will be 46dBm+46dBm=49dBm.
For Multi-channel same band access, 800+850 (which share the same PA) access and 700 Uper C +
LowerABC (also shared PA), they all will have power superposition. In this situation, users need to adjust
system gain manually; otherwise, the output power will be higher than 48dBm which will trigger alarms
(See Chapter 6 for details).
Refer to the method below for the gain adjustment:
Suppose a band with N independent inputs, each input signal power are all X dBm. Apparently, there
exists the following relationship between input and output after finished auto communication on WEB GUI:
X dBm + Gain = 46dBm, then the total output power for N channels access is X dBm + Gain + 10*Log(N)
= 46 + 10*Log(N), so Users need to set 10*Log(N) RFU ATT on WEB GUI for each channel.
End of Section
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 67
6 ALARMS AND TROUBLESHOOTING
6.1 ALARMS
Table 13: MU Alarm List
Alarm List
Alarm Condition
Over-Temperature
Alarm
Alarm when equipment temperature is higher than the threshold, otherwise
normal;
Alarm judgment period: 3 minutes by default;
Alarm threshold : 80℃ by default.
Optical Tx Alarm
Alarm when Optical Transmiting power is lower than the threshold,
otherwise normal;
Alarm judgment period: 3 minutes by default;
Alarm threshold: -7dBm by default.
Optical Rx Alarm
Alarm when Optical received power is lower than the threshold, otherwise
normal;
Alarm judgment period: 3 minutes by default;
Alarm threshold: -10dBm by default.
DL Input Power
Overload Alarm
Alarm when DL input power is higher than the threshold, otherwise normal;
Alarm judgment period: 3 minutes by default;
Alarm threshold: 32dBm by default.
Table 14: RU Alarm List
Alarm List
Alarm Condition
External Alarm
Alarm status when the external terminals have the same H/L level with alarm
level, otherwise normal;
Alarm period: 10s by default.
Over-Temperature
Alarm
Alarm when equipment temperature is higher than the threshold, otherwise
normal;
Alarm judgment period: 3 minutes by default;
Alarm threshold : 80℃ by default.
Optical Tx Alarm
Alarm When optical transmiting power is lower than the threshold, otherwise
normal;
Alarm judgment period: 3 minutes by default;
Alarm threshold: 0dBm by default.
Optical Rx Alarm
Alarm When optical receiving power is lower than the threshold, otherwise
normal;
Alarm judgment period: 3 minutes by default;
Alarm threshold: -14dBm by default.
PA Alarm
Alarm when any one of the PA Current Alarm,PA Over-temperature Alarm,
PA DL output power overload Alarm, Reflection Power Alarm happens,
otherwise normal;
Alarm judgment period: 3 minutes by default.
DL Output
Overload Alarm
Alarm when the DL output power is higher than the threshold, otherwise
normal;
Alarm judgment period: 3 minutes by default;
Alarm threshold: 48dBm.
Shutdown Alarm
Alarm when the PA status is off, otherwise normal;
Alarm judgment period: 10s by default.
LNA Alarm
Alarm when LNA have problems, otherwise normal;
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 68
Alarm judgment period: 3 minutes by default.
6.2 TROUBLESHOOTING
Following installation and commissioning, occasional operation tasks to handle alarms may be required:
Table 15: MU Alarms Diagnosis
Alarm condition
Diagnosis
Over-
Temperature
alarm
Check device temperature on WEB GUI
If device temperature is over threshold, make sure environment temperature
is within the envireonment temperature range that MU supported (0~40℃).
Apply climatic protection to the system under severe environment.
Optical TX Alarm
Test MU transmit optical power
Replace FOU if transmit optical power is less than -7dBm
Optical RX Alarm
Use Optical Power Meter to test received optical power
If received optical power is lower than -10dBm, test whether RU transmit
optical power is normal (3~5dBm)
Check if optical loss of fiber link is higher than 6.5dBo
Clean fiber connector with absolute ethanol
DL Input Power
Overload Alarm
Test DL input power of MU, if it is higher than +33dBm, choose proper coupler to
ensure the input power to MU is lower than +33dBm.
Table 16: RU Alarms Diagnosis
Alarm condition
Diagnosis
External Alarm
Check to make sure if the external device connected is working normally
Over-
Temperature
alarm
Check device temperature on WEB GUI
If device temperature e is over threshold, make sure environment temperature
is within the envireonment temperature range that RU supported (-
40~70℃).Apply climatic protection to the system under severe environment.
Optical TX Alarm
Test RU transmit optical power
Replace FOU if transit optical power is less than 0dBm
Optical RX Alarm
Use Optical Power Meter to test received optical power
If received optical power is lower than -14dBm, test whether MU transmit
optical power is normal (-4~-2dBm)
Check if optical loss of fiber link is higher than 6.5dBo
Clean fiber connector with absolute ethanol
DL PA alarms
Check PA Service Status on WEB GUI RU page,
If it is [Recovery], reset PA on WEB GUI Management page, then read RU
output power: If output power is exceed threshold, need to reduce gain or
input power; if output power is normall, check whether antenna port VSWR is
too high.
If it is [Shutdown], Refer to PA Shutdown Alram
DL Output Power
Overload Alarm
Check if output power is exceed the threshold (48dBm)
Decrease the gain to reduce the output power
PA Shutdown
Alarm
Make Sure the environment temperature is -40~70℃
Reset PA, if PA service status turns to [Recovery], and then refer to DL PA
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 69
Alarms. If PA still shutdown, the PA module maybe damaged, please contact
with Comba to replace the RU.
LNA Alarm
Uplink LNA modual damaged, please contact with Comba to replace the RU.
End of Section
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 70
7 APPENDICES
7.1 APPENDIX A: TOOLS FOR INSTALLATION AND MAINTENANCE
The following tools (not included in package) are required for installation or routine maintenance:
Power Drill (for wall mount)
Adjustable Wrench (0.31 inch~0.79 inch)
Philips Screwdriver
Allen wrench (M6)
Signal generator support output power 10dB.
Site Master
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 71
7.2 APPENDIX B: RMA (RETURN MATERIAL AUTHORIZATION)
End of Section
End of Document
FOR NAM OFFICE EMAIL, PLEASE INSERT: support.us@comba-telecom.com
USER MANUAL FOR COMFLEX-6800
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 72
