Comeup Industries Inc. Wireless Remote Control Users Manual
Comeup >
User Manual
- 1 -
Intelligent Control Box
Model: ICB
INDEX：
I. Introduction
II. Contents
III. Installation
IV. ICB Information Panel
V. Operating Instructions
VI. Warning
I. Introduction：
• The Intelligent Control Box (ICB) is COMEUP latest product, designed to
allow adjustment of a winch’s maximum pulling power.
• A built-in, adjustable current limiter detects the motor amp draw and will
interrupt the power if the current exceeds the current limit point (CLP).
The CLP can be adjusted using the Current Regulator (sold separately).
Regarding CLP setup process, please refer to Current Regulator user
manual.
• An embedded information panel provides vehicle battery, winch cable
in/out operation, winch over heating and overload information.
II. Contents：
• Intelligent Control Box
• Handheld Remote
- 2 -

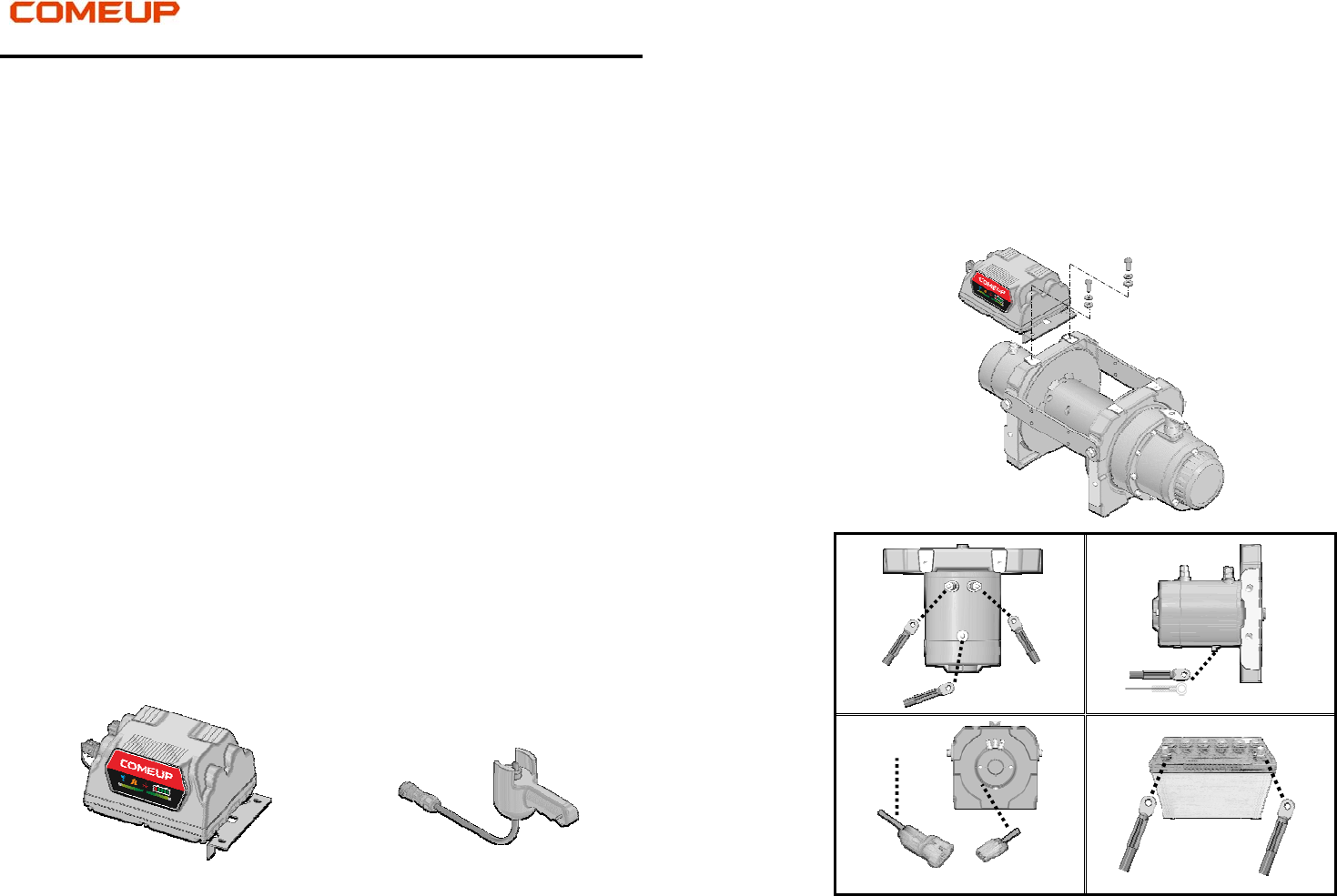

III. Installations：
• Connect power cables F1, F2, and A to the motor terminal studs, guided
by the color markings.
• Connect power cable B(-) and ground cable to the stud located on the
bottom of the motor.
• Connect the thermal sensor cable to both the control box and the motor.
• Mount ICB unit on the motor support rack bracket.
• Connect power cables A(+) and B(-) to battery terminals.
(THERMAL SENSOR)
(ICB)
(BATTERY)
○
+
○
-
BLACK(-)
RED(+)
BLACK(-)
(
GROUND CABLE
)
(-)
(YELLOW) (BLUE)
(WHITE)
F1 F2
A
- 3 -

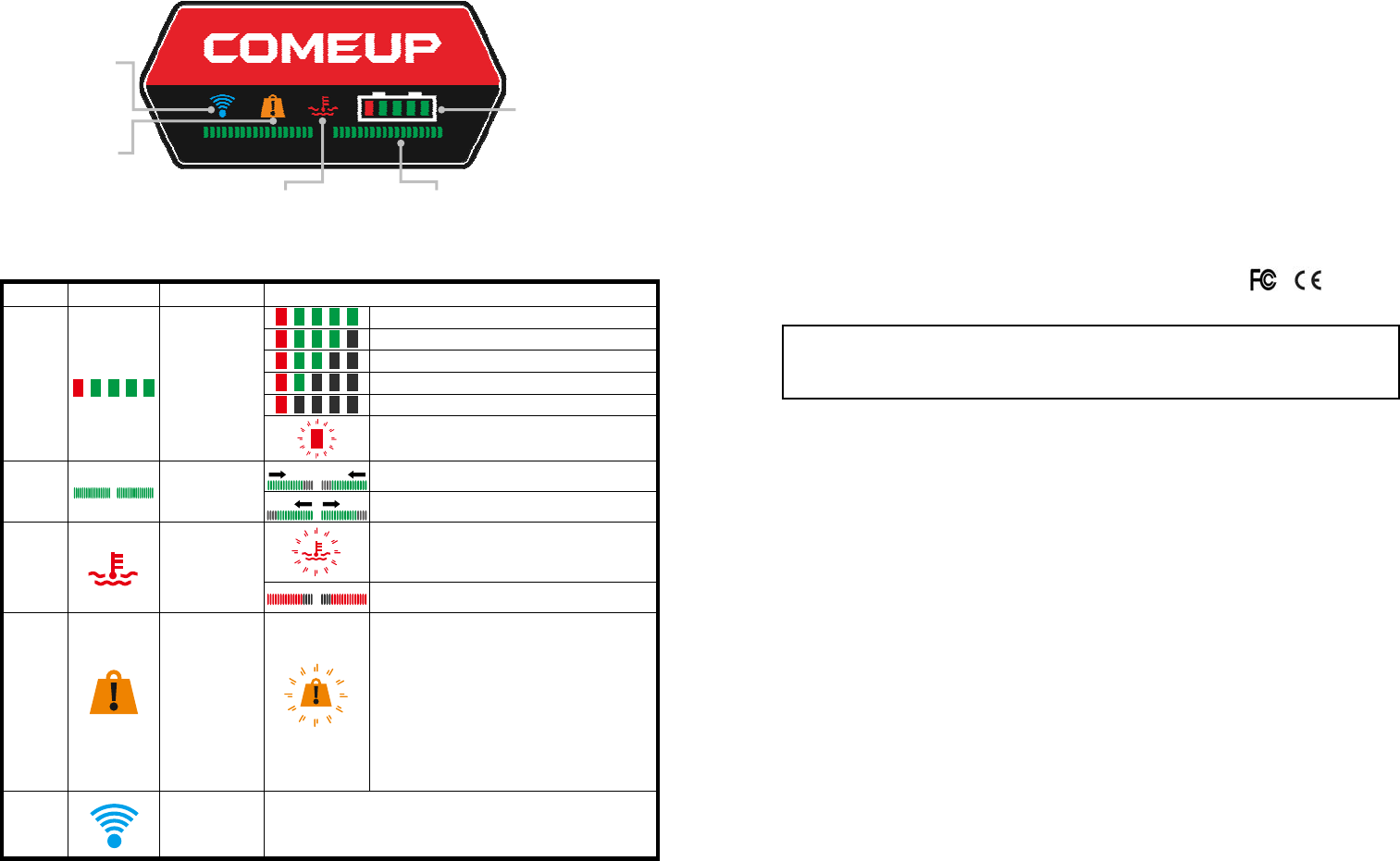

IV. ICB Information Panel：
• Information Panel：
V. Operating Instructions：
Item Icom Features Instructions
1
Vehicle
Battery
Monitor
Battery voltage above 12V.
Battery voltage between 11V and 12V.
Battery voltage between 10V and 11V.
Battery voltage between 9V and 10V.
Battery voltage between 8V and 9V.
When battery voltage is lower than 8V, the
red light begins blinking and the buzzer
alarms.
2
Winch
Operation
Indicator
During winch cable-in operation, the winch
operation indicator bar scrolls outside-in.
During winch cable-out operation, the winch
operation indicator bar scrolls inside-out.
3
Overheat
Indicator
When the thermal sensor detects winch
motor overheating (over 100 degrees
Celsius), Overheat indicator blinks with
buzzer alarm.
The winch operation indicator turns red
when the winch is operated.
4
Overload
Indicator
When the ICB detects winch overload,
Overload protection mode is automatically
activated, the Overload Indicator blinks for
30 seconds, the buzzer alarm sounds for the
first 5 and last 5 seconds.
During Overload protection mode, Cable-in
operation is disabled, Cable-out operation
remains functional.
After 30 seconds of automatic Overload
protection mode, the Overload icon will turn
off and the winch will return to normal
operation mode.
5
Wireless
Connection
Indicator
The Indicator blinks for 10 secends.
Pairing within 10 seconds.
5
4
1
3 2
- 4 -
VI. Warning：
• Unplug the wired remote control after use to prevent battery power
consumption and accidental damage to the remote or winch.
• To use the wireless transmitter, the wired remote control must be
connected.
• To prevent electrical component damage, disconnect the control box from
the power source during internal inspection or repair.
• To prevent damage, do not connect other USB devices to USB port on
ICB unit.
• To prevent damage, do not connect the Current Regulator to any USB
devices other than the ICB unit.
Wireless Receiver & Transmitter Operation
This wireless remote control device complies with CE mark, FCC and Industry Canada (IC) rules.
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/ TV technician for help.
CAUTION:
Any changes or modifications not expressly approved by the grantee of this device could void the user's
authority to operate the equipment.
RF exposure warning
This equipment must be installed and operated in accordance with provided instructions and the antenna(s)
used for this transmitter must be installed to provide a separation distance of at least 20 cm from all
persons and must not be co-located or operating in conjunction with any other antenna or transmitter.
End-users and installers must be provide with antenna installation instructions and transmitter operating
conditions for satisfying RF exposure compliance.
CE Mark Warning
• This is a Class B product, in a domestic environment, this product may cause radio
interference, In which case the user may be required to take adequate measures.
