Comigo COMIGOBOX1 IP Set Top Box User Manual Comigo data sheet V1 b 20121111

Comigo Ltd. IP Set Top Box Comigo data sheet V1 b 20121111

UserManual.wiki >

Comigo >

COMIGOBOX1 User Manual HTML Version

User manual

For more information contact: info@comigo.com Date: 11-Nov-2012

The information contained within this document is subject to change without notice.

All trademarks and copyrights contained in this document are owned by their respective trademark and copyright holders.

Datasheet

Comigo’s comprehensive, feature rich, most advanced Smart TV platform considerably enhances the TV

experience by uniquely extending viewing across all types of handheld devices, thereby opening up

revolutionary personalization and interactive socialization capabilities.

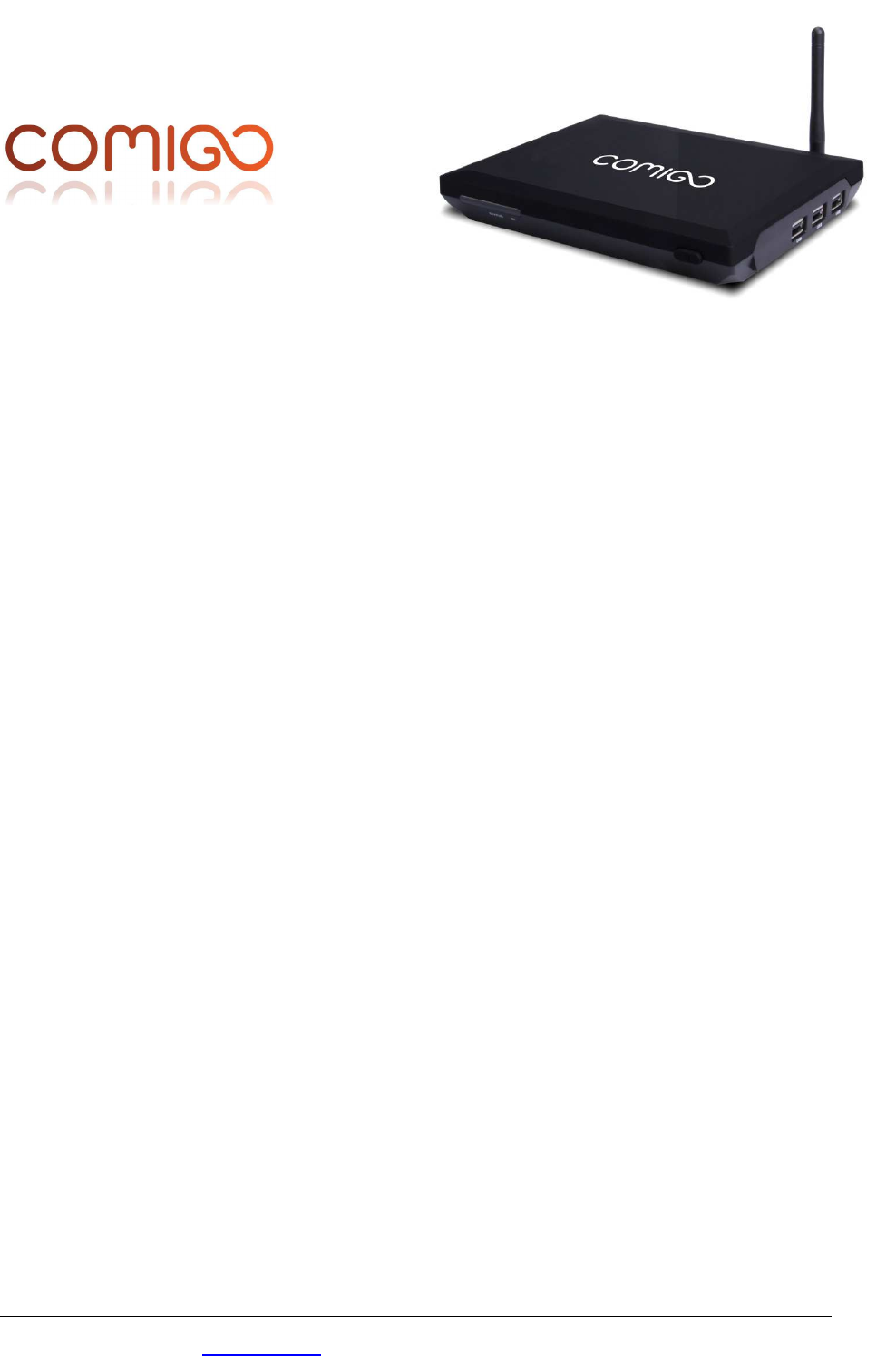

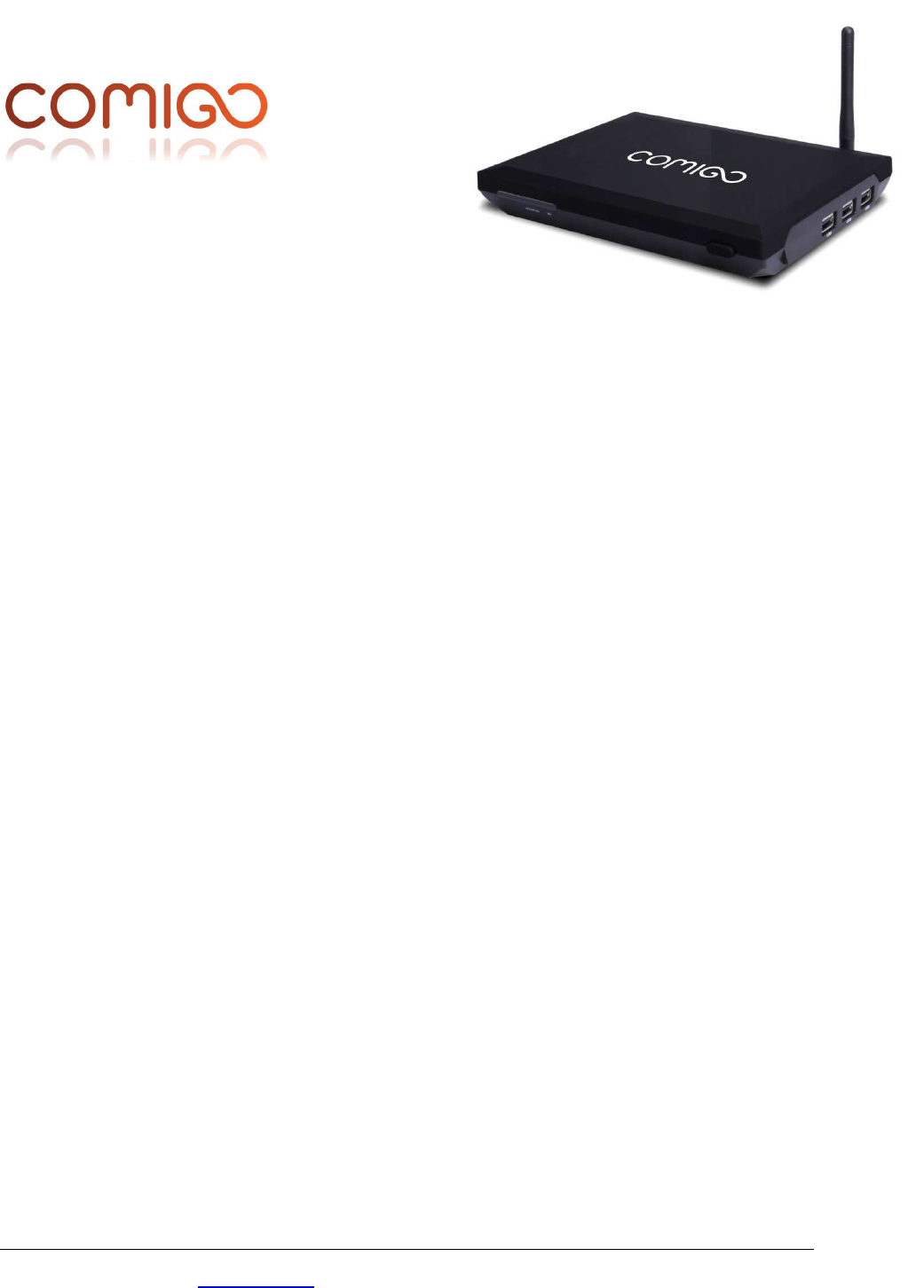

The Comigo Box version 1.b is an Android based platform designed to turn any TV into a Smart and

Social TV. The smart Set-Top-Box (STB) can stream video and audio content from IPTV channels, OTT

video distribution, VOD stores, external USB hard drives and content stored on a home network. The

STB can be operated with a simple remote control or via a Smartphone or Tablet using iOS and Android

applications.

HARDWARE

CPU: ARM Cortex A9 @ 800MHz

DRAM: 512MByte DDR2

Embedded eMMC Flash: 8GByte

Internal Flash: up to 32GByte using a full-

size SD card (not user accessible)

Front indicators: Power and Status LEDs

Rear indicators: Network Link and Status

LEDs for both wired and wireless

connections

SOFTWARE

OS: Android 2.3.4 (Gingerbread)

UI: Comigo Smart TV Platform

DLNA

Middleware: optional, based on specific

requests

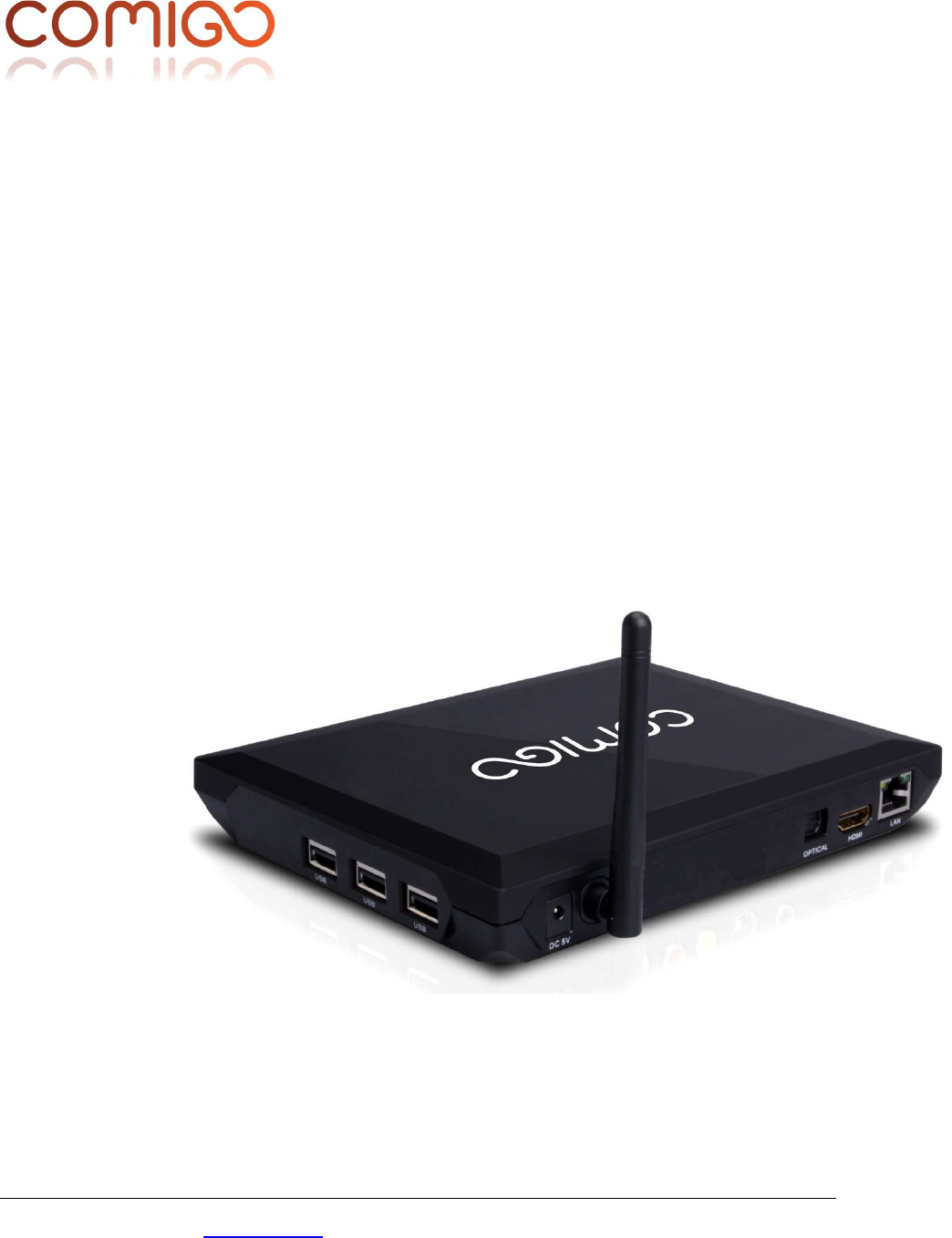

CONNECTIVITY

LAN: RJ-45 with 10/100Base-T connection

WLAN: 802.11b/g/n with external antenna

USB 2.0 Host:

• 3 x User accessible external ports for

external HDD, DiskOnKey/Thumb

drives and other peripherals

• 1 x Internal port for optional RC RF

receiver

Video output: HDMI 1.3 with CEC and

HDCP support

Audio output: Optical SPDIF

AUDIO and VIDEO FORMATS

Resolution: up to 1920x1080p

Video: MPEG-1 MP/HL, MPEG-2 MP/HL,

MPEG-4 Part 2 ASP, WMV/VC-1 SP/MP/AP,

H.264 HP@L4.1, RealVideo 8/9/10, M-JPEG

and JPEG

For more information contact: info@comigo.com Date: 11-Nov-2012

The information contained within this document is subject to change without notice.

All trademarks and copyrights contained in this document are owned by their respective trademark and copyright holders.

Video containers: MPEG, MPE, MPG, M2V,

ISO, TS, VOB, DAT, AVI, MKV, MP4, MOV,

3GP, 3GPP, FLC, WMV, TS, FLV, RM

Subtitles: SRT, SUB, IDX, PGS

Audio CODECs: AAC, AC-3 (Dolby Digital

5.1), ADPCM, AMR-NB, MIDI, MP2, MP3,

MSADPCM, PCM, RV40, Vorbis, WMA, AAC+

(HEAAC v1), eAAC+(HE-AAC v2)

Supported file formats: mkv, wmv, mpg,

mpeg, dat, avi, mov, iso, mp4, rm and jpg,

mp3, 3gp, TS

SECURITY and DRM

Optional: based on customer specific

requirements

POWER

External supply: 5V@2A (100-240V,

50/60Hz, wall wart with region appropriate

plug)

Power consumption: 5.5W (max)

(without external HDD)

REMOTE CONTROL

Multiple options supported:

• Simple Infrared (IR) with TV RC learning

capability

• Combo RF (2.4GHz) and IR RC with

QWERTY keyboard, gyro-mouse and TV

RC learning capability

• Android and iOS applications for

Smartphones and Tablets

DIMENSIONS and WEIGHT

LxWxH: 190x160x30 mm (with Wi-Fi

antenna in folded position)

Weight:

• STB (w/o accessories): 330g

• External power supply: 110g

CERTIFICATIONS

RoHS, CE, FCC, EN 55022, 55024 & 61000

(Region specific certifications available

upon request)



For more information contact: info@comigo.com Date: 11-Nov-2012

The information contained within this document is subject to change without notice.

All trademarks and copyrights contained in this document are owned by their respective trademark and copyright holders.



FCCWarningStatement

Changesormodificationsnotexpresslyapprovedbythepartyresponsiblefor

compliancecouldvoidtheuser’sauthoritytooperatetheequipment.



ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigital

device,pursuanttoPart15oftheFCCRules.Theselimitsaredesignedtoprovide

reasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.This

equipmentgeneratesusesandcanradiateradiofrequencyenergyand,ifnotinstalled

andusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradio

communications.However,thereisnoguaranteethatinterferencewillnotoccurina

particularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioor

televisionreception,whichcanbedeterminedbyturningtheequipmentoffandon,the

userisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowing

measures:

‐‐Reorientorrelocatethereceivingantenna.

‐‐Increasetheseparationbetweentheequipmentandreceiver.

‐‐Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthe

receiverisconnected.

‐‐Consultthedealeroranexperiencedradio/TVtechnicianforhelp.



FCCRadiationExposureStatement

Theantennasusedforthistransmittermustbeinstalledtoprovideaseparation

distanceofatleast20cmfromallpersonsandmustbeco‐locatedforoperatingin

conjunctionwithanyotherantennaortransmitter.
