User’s Guide 13–1
13
Troubleshooting
Use the following suggestions to troubleshoot problems with the
Pocket PC.
Common Problems
Problem Solution
I cannot see
anything on the
screen.
■Be sure the Pocket PC is powered on.
■Be sure the Pocket PC is connected to the AC Adapter
and the Desktop Cradle.
■Reset the device by using the stylus to lightly press the
Reset button.
■Remove and replace the battery.
I cannot keep
my battery
charged.
■Always keep the Pocket PC connected to the AC
Adapter when you are not using it.
■Tap Start > Settings > System tab > Power >
backlight settings. In backlight settings, adjust the bar
to a lower level to conserve more battery power.
■Tap Start > Settings > System tab > Power >
Advanced tab. In battery power settings, set the battery
power To turn off device if not used for 2 minutes.
■Turn off the Phone, Bluetooth and all wireless
connections when not in use.
User’s Guide 13–2
Troubleshooting
(Continued)
The backlight
keeps turning
off.
■In Backlight Settings, increase the amount of time the
backlight stays on if not in use.
■Select the option to turn on the backlight when you
touch the screen or push a button.
I want to ship
my Pocket PC to
a repair facility.
1. Back up your information.
2. Disconnect all external devices.
3. Pack your Pocket PC and any external devices
requested by Customer Support in protective
packaging. Include any additional documentation or
items as instructed by Customer Support.
Problem Solution
Troubleshooting
User’s Guide 13–3
(Continued)
I cannot connect
to a network.
■Be sure you have added the necessary server
information.
■Be sure the network you are attempting to connect to is
not busy.
■Check the signal strength.
■Be sure your user name and password are correct.
■Tap Start > Settings > Connections tab >
Connections and check your connection settings. Tap
OK when you are finished to save your changes.
■Be sure the WEP key is correct.
■Be sure the IP Address is correct.
■Reset the device by using the stylus to lightly press the
Reset button.
■Check with your service provider for current connection
problems.
■Run the self-test diagnostics.
When I try to
open the Inbox,
I receive an
error or the
application
hangs.
Limit the number of e-mail services you create.
I get an error
when I try to
record a note
in Calendar or
in Tasks.
Try using a more compressed recording format in Calendar
or Tasks (8,000 Hz, Mono [8 KB/s] is the most compressed
format available). To switch to a more compressed
recording format, from the Today screen, tap Start >
Settings > Input > Options tab.
I want to see the
current date.
1. From the Today screen, tap Start > Calendar.
2. Tap the Go-to-Today icon to see today’s date.
I cannot
see all my
appointments.
Be sure the appointment you created is in the selected
category.
Problem Solution
User’s Guide 13–4
Troubleshooting
(Continued)
I cannot find
the document
or workbook
Isaved.
Pocket Word and Excel recognize and display documents in
only one folder below My Documents. For example, if you
created another folder in the Personal folder in My
Documents, the documents in that folder will not be shown.
To find your document or workbook, tap Start > Programs >
File Explorer. Open the folder you created, then tap the file
you’re looking for.
My device is
always asking
me for a
password.
Tap Start > Settings > Personal tab > Password to be
sure the password settings are configured as you wish.
I cannot find
files sent to me
by another
device.
Check My Documents, which is the default save location
used to receive files.
Screen freezes,
responds
slowly, or no
response.
Try resetting your Pocket PC. Refer to the information on
Resetting the Unit in Chapter 8, “Getting to Know Your HP
iPAQ Pocket PC.”
Stylus taps have
inappropriate or
slow response.
Realign the screen. From the Start menu, tap Settings >
System tab > Screen > Align Screen, and follow the
instructions.
Unit will not turn
on.
1. Remove the battery.
2. Connect the unit to the AC adapter connected to an
electrical outlet.
3. Go through the setup process after the unit powers on.
4. Reinstall the battery after completing the setup process.
Problem Solution
Troubleshooting
User’s Guide 13–5
My device
keeps running
out of memory.
■Move programs or data to a memory storage card such
as an SDIO or MMC expansion card.
■Set some programs (such as Notes or Pocket Word) to
automatically save new files on the expansion card.
■Move e-mail attachments to the expansion card.
■Delete old or unncesssary files by tapping Start >
Programs > File Explorer. Tap and hold the file, then
from the Pop-up menu, tap Delete.
■Remove programs you do not use by tapping Start >
Settings > System tab > Remove Programs. Tap the
program to be removed and then tap Remove.
■Clear program memory by tapping Start > Settings >
System tab > Memory > Running Programs tab. Tap
the programs to be cleared and then tap Stop.
Problem Solution
User’s Guide 13–6
Troubleshooting
ActiveSync
For more information on Microsoft ActiveSync, refer to
Chapter 9, “Using ActiveSync.”
Problem Solution
I cannot connect
to my computer
using the
Desktop Cradle.
■Be sure you have installed Microsoft ActiveSync 3.7 or
a later version on your host computer before connecting
your iPAQ Pocket PC to it.
■Be sure your Pocket PC is connected to the Desktop
Cradle, and that the cradle is connected to your
computer.
■Be sure your Pocket PC is securely seated in the cradle
and is making contact with the cradle connector.
■Be sure you are running Microsoft Windows 98SE, Me,
2000, or XP and that you have installed Microsoft
ActiveSync 3.7 or a later version on your computer.
Also be sure you are connecting directly to a USB port
on your computer and not through a USB hub.
■Uninstall and reinstall ActiveSync.
■If you are running personal firewall software, try
disabling it. If you are then able to synchronize, contact
the software vendor to information on configuring the
required exclusions to eliminate this problem.
I connected my
Pocket PC
before installing
Microsoft
ActiveSync.
1. Disconnect the Pocket PC from your computer.
2. In Windows 98 or 2000, click Start > Settings >
Control Panel > System. The Device Manager opens
automatically. Locate and select the “unknown” USB
device record and click Remove (Uninstall in
Windows 2000).
3. Restart your computer and allow it to detect the USB
device.
4. Install Microsoft ActiveSync 3.7 or higher.
5. Reconnect the Pocket PC to the computer.
Troubleshooting
User’s Guide 13–7
(Continued)
Microsoft
ActiveSync
cannot locate
my Pocket PC
when
I synchronize.
■Be sure the device is on.
■Be sure all cables are securely connected.
■Remove your Pocket PC from the Universal Desktop
Cradle or disconnect it from the Autosync Cable, power
on the unit by pressing the Power button, then put it
back in the synchronization cradle or connect it to the
cable.
■Reset the device by using the stylus to lightly press the
Reset button.
■Check Connection Settings in ActiveSync on your
computer to ensure the communications port you are
using is active.
I cannot open
e-mail in the
Inbox after I
restore using
Microsoft
ActiveSync.
Use Microsoft ActiveSync to synchronize your Pocket PC
with your computer. For more information, refer to the
“Synchronizing with Your Computer” section in Chapter 9,
“Using ActiveSync.”
I tried to
synchronize
a workbook
and the file
is unresolved
in Microsoft
ActiveSync.
Pocket Excel does not support all Excel formatting;
therefore, Microsoft ActiveSync cannot synchronize the file.
Problem Solution
User’s Guide 13–8
Troubleshooting
Phone
For more information on using the Phone, refer to Chapter 2,
“Using the Phone.”
Problem Solution
Phone will not turn
on.
■Check to see if your SIM card is inserted in the
Pocket PC.
■Be sure the battery in your Pocket PC is charged.
■If the Pocket PC is powering on and the phone still
does not turn on, contact your mobile phone
service provider for help.
I am unable to dial
out or receive
incoming phone
calls.
■Check to see if your SIM card is inserted.
■Make sure your wireless connection to your
mobile service provider is turned on and your unit
displays the appropriate signal strength.
■Is the signal strength icon ( ) displaying a
diminished number of vertical bars in the icon? If
so, you may be in an area outside of the phone
network.
■If you still cannot dial out or receive phone calls,
contact your mobile service provider for help.
Phone cuts off in the
middle of phone
conversations.
Be sure the battery on your Pocket PC is fully charged.
Troubleshooting
User’s Guide 13–9
Phone runs out of
memory.
Pocket PC automatically manages the allocation of
memory between storage and program memory. When
memory is low, try the following:
■Move data to a storage card.
■Move e-mail attachments to a storage card.
■Delete e-mail or files no longer needed.
■In Internet Explorer options, delete all files and
clear history.
■Delete old or unncesssary files by tapping Start >
Programs > File Explorer. Tap and hold the file,
then from the Pop-up menu, tap Delete.
■Remove programs no longer used by tapping
Start > Settings > System tab > Remove
Programs. Tap the program to be removed and
then tap Remove.
■Clear program memory by tapping Start >
Settings > System tab > Memory > Running
Programs tab. Tap the programs to be cleared
and then tap Stop.
Problem Solution
User’s Guide 13–10
Troubleshooting
Expansion Cards
For more information on expansion cards, refer to Chapter 7,
“Expansion Cards.”
Problem Solution
My Pocket PC
does not
recognize the
expansion card.
■Be sure you have firmly pushed the expansion card into
the Pocket PC.
■Be sure you have inserted the appropriate card into the
appropriate slot.
■Be sure any third party drivers are installed.
■Reset the device by using the stylus to lightly press the
Reset button on the left side of the iPAQ Pocket PC.
I cannot insert
my card.
■Be sure the label is facing the front of the unit.
■Be sure you are not inserting the card at an angle.
■Be sure you insert the connection area first.
I cannot remove
my SD card.
Push the SD card in to release the locking mechanism. The
card will pop out slightly and can then be easily removed.
Troubleshooting
User’s Guide 13–11
Bluetooth
For more information on Bluetooth, refer to Chapter 4, “Using
Bluetooth.”
Problem Solution
I cannot
discover
another device.
■Be sure Bluetooth is turned on.
■Move closer to the device.
■Be sure you have not limited your ability to see devices.
■Be sure the device you are attempting to connect to is
on and allows access to being discovered by other
devices.
I can see other
devices, but I
cannot connect
or exchange
data with them.
■Be sure Bluetooth is turned on.
■Move closer to the device.
■Be sure the other device has not restricted your access.
■Try initiating pairing from the other device. Some
Bluetooth-enabled device can only initiate pairing and
cannot respond to pairing requests from other devices.
Other devices
cannot find or
connect to my
device.
■Be sure Bluetooth is turned on.
■Move closer to the device.
■Be sure you have not restricted other devices from
finding yours.
■Check your Bluetooth settings to ensure you have
allowed your device to be discovered and others to
connect.
(Continued)
User’s Guide 13–12
Troubleshooting
Other devices
do not receive
my correct
business card
information.
■Be sure you have correctly set up your business card
information in Bluetooth Settings.
■Check Bluetooth Settings to be sure you have not
restricted this function.
The Pocket PC
cannot find my
Bluetooth-
enabled Mobile
phone.
■Be sure your mobile phone is in discoverable mode.
■Contact your mobile phone manufacturer and ask if
there is a firmware upgrade.
Problem Solution
Troubleshooting
User’s Guide 13–13
Wireless LAN
For more information on Wireless LAN, refer to Chapter 3,
“Using Wireless LAN.”
Problem Solution
I cannot connect
to an access
point.
■Be sure the WLAN is on.
■Be sure the device identified the network you want to
connect to.
■Be sure you provided any necessary authentication
keys if prompted by the system.
■Be sure your Pocket PC is within range of an access
point.
I am connected
to an access
point, but I
cannot browse
the Internet.
If the wireless network you are connected to connects to
Work, the network may require a proxy. To set up the proxy:
1. Ask your network administrator for the proxy settings.
2. Tap the Connections icon > Add Proxy Server.
3. Refer to “Setting Up Proxy Server Settings” in Chapter
12 for more information.
I do not see my
wireless
network on my
Pocket PC.
Your wireless network could be a non-broadcasting
network.
1. Tap the Connections icon > Settings.
2. Tap the Advanced tab > Network Cards > Add New
Settings.
3. Follow the instructions on the screen.
User’s Guide 13–14
Troubleshooting
(Continued)
I cannot turn
the Wireless
LAN on.
■Be sure you have enough battery charge. If the battery
is low, your Pocket PC will not turn on the WLAN in
order to conserve power.
■Reset the device by using the stylus to lightly press the
Reset button.
I cannot connect
to an available
network with no
name.
1. Tap Start > Settings > Connections tab >
Connections > Advanced tab > Network Card.
2. Select Add New Settings.
3. Enter the network name (SSID).
4. Select the appropriate values in the Connects to: box.
5. If WEP settings are required, tap the Authentication
tab and enter them.
Problem Solution
Troubleshooting
User’s Guide 13–15
Traveling with your Pocket PC
Use the following guidelines when traveling with your Pocket
PC:
■Back up your information.
■Take a copy of your backup with you on an SD memory card.
■Disconnect all external devices.
■Take the AC Adapter and Charger Adapter with you.
■Keep your Pocket PC in a protective case and keep it in your
carry-on luggage.
■For air travel, be sure to turn off the Phone, Bluetooth, and
Wireless LAN. To turn off all wireless features, from the
Today screen, tap Start > iPAQ Wireless. Then tap the
orange icon to the left of All wireless features OFF.
■If you are traveling internationally, be sure you have the plug
adapter appropriate for the country you are visiting.
User’s Guide 13–16
Troubleshooting
User’s Guide A–1
A
Regulatory Notices
Federal Communications Commission
Notice
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of
the following measures:
■Reorient or relocate the receiving antenna
■Increase the separation between the equipment and receiver
■Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected
■Consult the dealer or an experienced radio or television
technician for help
This device contains 900/1800 MHz GSM functions that are not 
operational in U.S. territories. This filing is only applicable for GSM 
850 MHz and PCS 1900 MHz operations.
User’s Guide A–2
Regulatory Notices
Modifications
The FCC requires the user to be notified that any changes or
modifications made to this device that are not expressly approved
by Hewlett-Packard Company may void the authority to operate
the equipment.
Cables
Connections to this device must be made with shielded cables
with metallic RFI/EMI connector hoods in order to maintain
compliance with FCC Rules and Regulations.
Declaration of Conformity for
products marked with the FCC logo—
United States only
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
For questions regarding your product, contact:
Hewlett-Packard Company
P. O. Box 692000, Mail Stop 530113
Houston, Texas 77269-2000
Or, call 1-800-652-6672
For questions regarding this FCC declaration, contact:
Hewlett-Packard Company
P. O. Box 692000, Mail Stop 510101
Houston, Texas 77269-2000
Or, call (281) 514-3333
To identify this product, refer to the Part, Series, or Model
number found on the product.
Regulatory Notice
User’s Guide
RF exposure FCC
Tests for SAR are conducted using standard operating positions specified by
the FCC with the phone transmitting at its highest certified power level in all
tested frequency bands. Although the SAR is determined at the highest
certified power level, the actual SAR level of the phone while operation can be
well below the maximum value. This is because the phone is designed to
operate at multiple power levels so as to use only the power required to reach
the network. In general, the closer you are to a wireless base station antenna,
the lower the power output.
Before a phone model is available for sale to the public, it must be tested and
certified to the FCC that it does not exceed the limit established by the
government-adopted requirement for safe exposure. The tests are performed
in positions and locations (e.g., at the ear and worn on the body) as required by
the FCC for each model. (Body-worn measurements may differ among phone
models, depending upon available accessories and FCC requirements). While
there may be differences between the SAR levels of various phones and at
various positions, they all meet the government requirement for safe exposure.
For body worn operation, to maintain compliance with FCC RF exposure
guidelines, use only accessories that contain no metallic components and
provide a separation distance of 15mm (0.6 inches) to the body. Use of other
accessories may violate FCC RF exposure guidelines and should be avoided.
Health and Safety Information FCC
Regulatory Notice
User’s Guide
Exposure to Radio Frequency (RF) Signals your wireless phone is a radio
transmitter and receiver. It is designed and manufactured not to exceed the
emission limits for exposure to radio frequency (RF) energy set by the Federal
Communications Commission of the U.S. Government. These limits are part
of comprehensive guidelines and establish permitted levels of RF energy for
the general population. The guidelines are based on the safety standards
previously set by both U.S. and international standards bodies:
This EUT has been shown to be capable of compliance for localized specific
absorption rate (SAR) for uncontrolled environment/general population
exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested
in accordance with the measurement procedures specified in FCC/OET
Bulletin 65 Supplement C (2001) and IEEE Std. 1528-200X (Draft 6.5,
January 2002). Ministry of Health (Canada), Safety Code 6. The standards
include a substantial safety margin designed to assure the safety of all persons,
regardless of age and health. The exposure standard for wireless mobile
phones employs a unit of measurement known as the Specific Absorption Rate,
or SAR. The SAR limit set by the FCC is 1.6W/kg *.
* In the U.S. and Canada, the SAR limit for mobile phones used by the public
is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard
incorporates a substantial margin of safety to give additional protection for the
public and to account for any variations in.
Regulatory Notices
User’s Guide A–3
Canadian Notice
This Class B digital apparatus meets all requirements of the
Canadian Interference-Causing Equipment Regulations.
Avis Canadien
Cet appareil numérique de la classe B respecte toutes les
exigences du Règlement sur le matériel brouilleur du Canada.

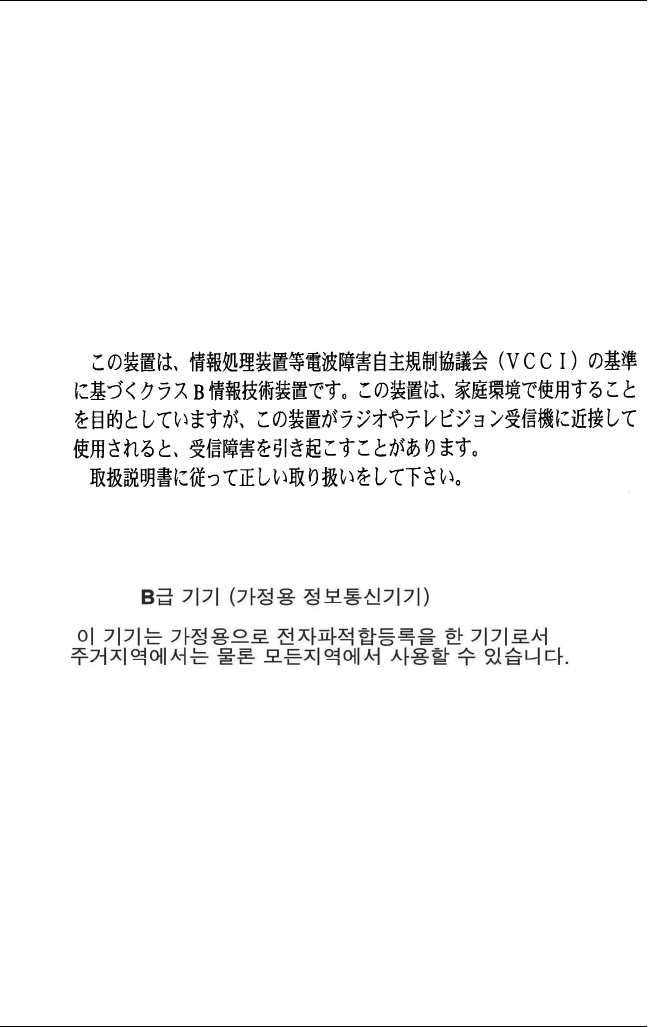

Japanese Notice
Korean Notice
User’s Guide A–4
Regulatory Notices
European Union Notice
0681
Products bearing the CE marking comply with the R&TTE
Directive (1999/5/EC), EMC Directive (89/336/EEC), and the
Low Voltage Directive (73/23/EEC) issued by the Commission of
the European Community. CE compliance of this computer is
valid only if powered with an HP-provided CE marked AC
Adapter.
Compliance with these directives implies conformity to the
following European Norms (in parentheses are the equivalent
international standards and regulations):
■EN 55022 (CISPR 22)—Electromagnetic Interference
■EN 55024 (IEC61000-4-2, 3, 4, 5, 6, 8, 11)—
Electromagnetic Immunity
■EN61000-3-2 (IEC61000-3-2)—Power Line Harmonics
■EN61000-3-3 (IEC61000-3-3)—Power Line Flicker
■EN 60950 (IEC 60950)—Product Safety
■ETS 300 328-2—Technical requirements for 2.4 GHz radio
equipment
■EN 301 489-1, -17—General EMC requirements for radio
equipment
The IEEE 802.11b wireless LAN and Bluetooth functionality of
this product may be used in the following EU, EU candidate, and
EFTA countries: Austria, Belgium, Denmark, Estonia, Finland,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Liechtenstein,
Lithuania, Luxemborg, Malta, Netherlands, Norway, Portugal,
Slovenia, Spain, Sweden, Switzerland, and United Kingdom.
Regulatory Notices
User’s Guide A–5
For IEEE 802.11b wireless LAN operation of this product, only a
limited band is available in France (Channels 10, 11, 12, and 13
only). l'Autorité de régulation des télécommunications (ART) has
special regulations for hotspots allowing other channels, too.
Please check with ART (http://www.art-telecom.fr) on this for local
rulings and for authorization.
Battery Warning
ÅWARNING: This iPAQ Pocket PC contains a LITHIUM-ION
rechargeable battery. To reduce the risk of fire or burns, do not
disassemble, crush, puncture, short external contacts, or dispose
of in fire or water.
ÄCAUTION: Risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions.
Because of the type of battery used in your iPAQ Pocket PC, follow
local regulations regarding the safe disposal of the battery. Your
vendor can advise you on local regulations, and/or the existence
of any battery disposal programs in operation.
Equipment Warning
ÅWARNING: To reduce the risk of personal injury, electrical shock, fire
or damage to the equipment:
■Plug the AC Adapter into an electrical outlet that is easily
accessible at all times.
■Disconnect power from the equipment by unplugging the
AC Adapter from the electrical outlet.
■Do not pull on power cables. When unplugging from the electrical
outlet, grasp the AC Adapter and pull out from the electrical outlet.
■Do not place anything on the power cables. Arrange them so that
no one may accidentally step on or trip over them.
User’s Guide A–6
Regulatory Notices
Airline Travel Notice
Use of electronic equipment aboard commercial aircraft is at the
discretion of the airline.
Wireless Notices
In some environments, the use of wireless devices may be
restricted. Such restrictions may apply aboard airplanes, in
hospitals, near explosives, in hazardous locations, etc. If you are
uncertain of the policy that applies to the use of this device,
please ask for authorization to use it prior to turning it on.
U.S. Regulatory Wireless Notice
ÅWARNING: Exposure to Radio Frequency Radiation
The radiated output power of this device is below the FCC radio
frequency exposure limits. Nevertheless, the device should be used in
such a manner that the potential for human contact during normal
operation is minimized. To avoid the possibility of exceeding the FCC
radio frequency exposure limits, human proximity to the antenna should
be minimized. The long-term characteristics or possible physiological
effects of Radio Frequency electromagnetic fields have not been
investigated by UL.
Canadian Regulatory Wireless Notice
Operation is subject to the following two conditions: (1) this
device may not cause interference, and (2) this device must
accept any interference, including interference that may cause
undesired operation of the device.
Regulatory Notices
User’s Guide A–7
Australian Wireless Notice
ÅWARNING: Switch off this device whenever in an area with a
potentially explosive atmosphere (i.e., service stations, chemical plants,
etc.).

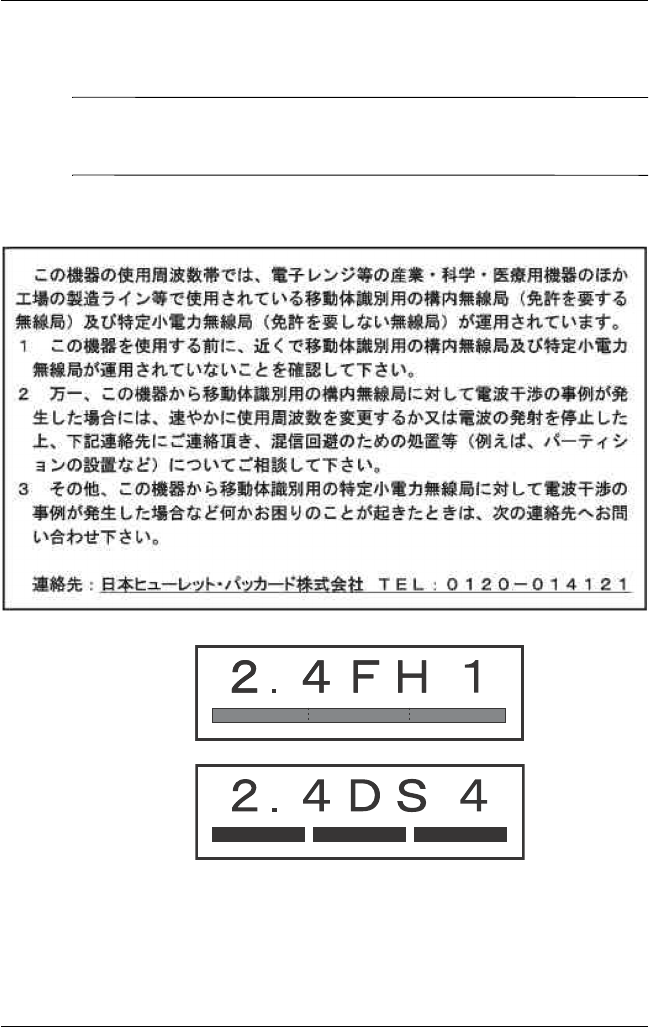

Japanese Regulatory Wireless Notice
User’s Guide A–8
Regulatory Notices
Brazilian Regulatory Wireless Notice
Este equipamento opera em caráter secundário, isto é, não tem
direito a proteção contra interferência prejudicial, mesmo de
estações do mesmo tipo, e não pode causar interferência a
sistemas operando em caráter primário.
Singaporean Wireless Notice
■Switch off your cellular telephone when in an aircraft. The
use of cellular telephones in an aircraft may be dangerous to
the operation of the aircraft, disrupt the cellular network, and
is illegal. Failure to observe this instruction may lead to
suspension or denial of cellular services to the offender, or
legal action or both.
■Users are advised not to use the equipment when at a
refueling point.
■Users are reminded of the need to observe restrictions on the
use of radio equipment in fuel depots, chemical plants or
where blasting operations are in progress.
■The use of the Alert device to operate a vehicle’s lights or
horn on public roads is not permitted.
■It is advised that a handheld microphone or telephone handset
should not be used by the driver while the vehicle is moving,
except in an emergency. Speak only into a fixed, neck slung
or clipped-on microphone when it would not distract your
attention from the road.
■As with other mobile radio transmitting equipment, users are
advised that for satisfactory operation of the equipment and
for the safety of personnel, it is recommended that no part of
the human body be allowed to come too close to the antenna
during operation of the equipment.
Regulatory Notices
User’s Guide A–9
Taiwanese Wireless Notice
User’s Guide A–10
Regulatory Notices
User’s Guide B–1
B
Specifications
System Specifications
System
Feature Description
Processor TI OMAP 1510
Operating
System
Microsoft Windows Mobile™ 2003 Software for Pocket
PC- Phone Edition
SDRAM 64-MB SDRAM (55 MB user accessible)
ROM 64-MB
iPAQ File Store
(nonvolatile
memory)
Up to 20-MB Storage (not available in Korean, Japanese,
Traditional Chinese, and Simplified Chinese versions)
External Power 10 watt maximum output AC Adapter
Display 3.5 inch transflective color TFT, 240 x 320 pixels,
64K-color support.
LED Backlight Multi-level brightness adjustment
SD I/O slot Supports SDIO and SD/MMC type standard
Audio Microphone, speaker (speakerphone + MP3 stereo),
Handsfree: earphone + microphone jack, Stereo
headphone jack,
Ear Bud Headset Wired Ear Bud
Removable
Keyboard
Micro Keyboard with Function and Shortcut Keys (not
included with all models)
User’s Guide B–2
Specifications
(Continued)
Infrared (IrDA) IrDA, data transfer up to 115.2 Kb per second
Bluetooth Class II device; typical 10 meters (30 feet) range
802.11b Wireless Local Area Network
GPRS data
features
Class B GPRS Multi slot Class 10, Quadband
Coding Schemes: CS1 to CS4
GSM voice
features
Full Rate, Enhanced Full Rate, Adaptive Multi-Rate
(FR/EFR/AMR)
Echo cancelation and noise reduction
Full duplex hands-free
GSM Data Circuit Switched Data - GSM Transparent and
non-transparent (NT) data
V.42bix data compression for GSM NT data
SIM Card SIM standards
LED Indicators:
Phone
(Left LED)
■Blinking Green indicates active GSM/GPRS
connection.
■Blinking Amber indicates inactive GSM/GPRS
connection.
■LED off indicates connection to GSM/GPRS is
powered Off.
Bluetooth
(Middle LED)
■Blinking Blue indicates Bluetooth is powered On.
■LED off indicates Bluetooth is powered Off.
WLAN
(Right LED)
■Blinking Green indicates active connection to WLAN.
■Blinking Amber indicates inactive connection to
WLAN.
■LED off indicates connection to WLAN is powered
Off.
System
Feature Description
Specifications
User’s Guide B–3
(Continued)
Power Button
LED
■Blinking Green indicates Notification, tone, pop-up
message.
■Blinking Amber indicates unit is charging.
■Solid Amber indicates unit is fully charged.
■LED off indicates power to unit is off.
Battery Removable/rechargeable 1800 mAh, 3.7 Volt, Lithium
Polymer battery with internal backup battery to maintain
data during main battery replacement.
System
Feature Description
User’s Guide B–4
Specifications
Physical Specifications
Operating Environment
HP iPAQ h6300 Series
US Metric
Length 4.68 in 119.0 mm
Width 2.95 in 75.0 mm
Depth 0.73 in 18.7 mm
Weight 6.7 oz 190 g
Environment
US Metric
Temperature Operating 32° to 104° F 0° to 40° C
Nonoperating -4° to 140° F -20° to 60° C
Relative Humidity Operating up to 80% up to 80%
Nonoperating up to 80% up to 80%
Maximum Altitude Operating 15,000 ft 0-4572 m
Nonoperating 40,000 ft 0-4572 m

Navigation menu
