Compal Electronics VC-1 Dual-Mode AMPS/CDMA Cellular Phone User Manual Manual

Compal Electronics Inc Dual-Mode AMPS/CDMA Cellular Phone Manual

Users Manual

1
OPERATING MANUAL
(VC-1)
Revision : 1.0
COMPAL ELECTRONICS, INC
FCC RF EXPOSURE INFORMATION
In August 1996 the Federal Communications Commission (FCC) of the United States
with its action in Report and Order FCC 96-326 adopted an updated safety standard
for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC
regulated transmitters. Those guidelines are consistent with the safety standard
previously set by both U.S. and international standards bodies. The design of this
phone complies with the FCC guidelines and these international standards.
Use only the supplied or an approved antenna. Unauthorized antennas, modifications,
or attachments could impair call quality, damage the phone, or result in violation of
FCC regulations.
Do not use the phone with a damaged antenna. If a damaged antenna comes into
contact with the skin, a minor burn may result. Please contact your local dealer for
replacement antenna.
Body-worn Operation
This device was tested for typical body-worn operations. To comply with FCC RF
exposure requirements, a minimum separation distance of 0.4 inches (1.0 cm) must be
maintained between the user’s body and the handset, including the antenna whether
extended or retracted. Third-party belt-clips, holsters, and similar accessories used by
this device should not contain any metallic components. Body-worn accessories that
do not meet these requirements may not comply with FCC RF exposure requirements
and should be avoided.
For more information about RF exposure, please visit the FCC website at www.fcc.gov
Read this information before using your handset
2
CONTENTS
IMPORTANT SAFETY INFORMATION
GETTING TO KNOW YOUR PHONE
DISPLAY INDICATOR
BATTERY INFORMATION
BASIC FUNCTIONS
Making a Call
Ending a Call
Answering a Call
Correcting dialing Mistakes
Storing Phone Numbers
Adjusting Microphone Volume During a Call
Adjusting Voice Volume
Last Number Redial
Speed Dialing
Using Caller ID
MENUS
I. SEARCH MENU
Last Call Numbers
Last Call Numbers You Received
Group Menu
ABC Sequence Menu
Name Search Menu
Location Search Menu
Search by Phone Number
II. PHONE SETTING MENU
Greeting Type
Text Edit (Banner)
Icon Changes
3
Menu Type
Languages
Back Light
Auto Answer
Auto Redial
Current Time
III. SOUND MENU
Incoming Ring
Ring Type
Volume
Alert Setting
IV. SECURITY FUNCTION
Auto Lock
Changing Password
Call Limiting Options
Phone Initialize
NAM Select
Memory Clear
Network Change
System Change
V. PHONE BOOK
Schedule Manager
Alarm
Storing a Number, e-Mail Address and Name
Calculator
Memo View
World Time
VI. MY PHONE NUMBER
MESSAGE SERVICES
I. TEXT MESSAGE SERVICES (SMS)
Read Text Messages
Sending Text Messages
Deleting Messages
II. VOICE MAIL SERVICE
Listening Voice Mails
Deleting Messages
4
III. MESSAGE ALERTS
USING MENU During a Call
Sending My Phone Number
Writing a Memo
Storing a Phone Number
Muting the Microphone
To See My Phone Number
Microphone Volume Control
ENTERING LETTERS & NUMBERS
5
IMPORTANT SAFETY INFORMATON
Some of the following information may not apply to your particular product. However, as with
any electronic product, you should observe safety precautions when you use this product.
Save this manual : it contains important safety information and operating instructions.
Before using this product, please follow and adhere to all warnings, safety and operating
instructions located on the product and in this Users Manual.
Do Not expose the product to water or moisture.
Do Not expose the product to extreme hot or cold temperatures.
Do Not expose the product to open flames.
Do Not allow objects to fall on, or liquids to spill on the product.
Use only Original Accessories. Damage from use of non-approved accessories will void
your phone warranty.
Connect the approved charger only to designed power sources as marked on the product.
To reduce the risk of damage, remove the electrical cord from an outlet by pulling the
charger rather than the cord.
Make sure the electric cord is located so that it will not be subjected to damage.
To reduce the risk of electric shock, unplug the product from the power source before
attempting any cleaning. Once unplugged, use a soft cloth dampened with water.
DANGER : Never alter the cord or plug. If the plug will not fit into the outlet, have a proper
outlet installed by a qualified electrician. Improper connection can result in electric shock.
Do Not attempt to disassemble the product doing so will void the warranty. This product
does not contain consumer-serviceable components. Service should be performed only by
Authorized Service Centers.
Do Not remove the antenna. A detached antenna may be a choking hazard for children.
Do Not allow battery to be placed in the mouth. Electrolytes could release and may be toxic
if swallowed.
6

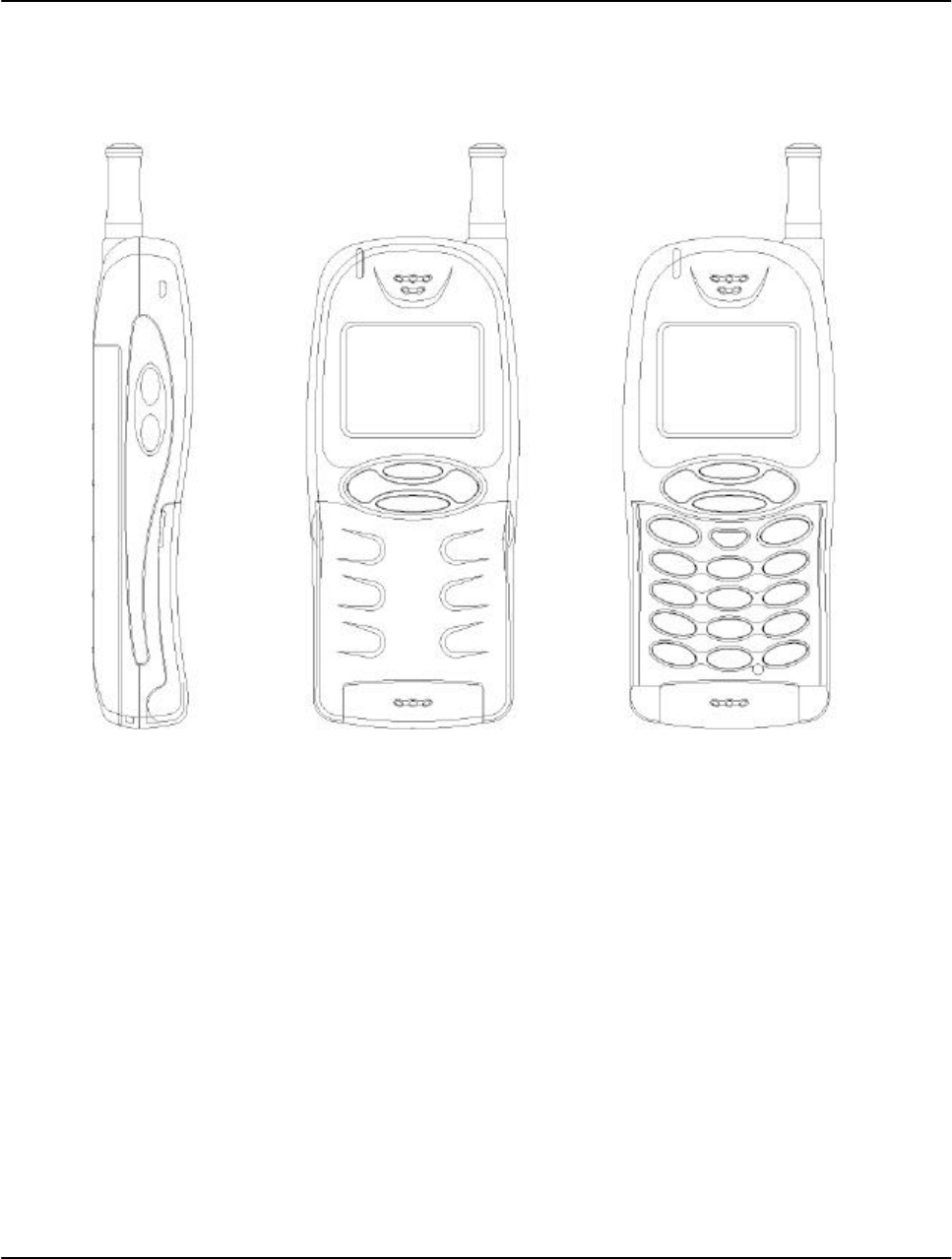

GETTING TO KNOW YOUR PHONE
7
Active Flip
: Just open the flip to answer an incoming call, and close the
flip to hang up. You can also set the flip to turn the backlight
on and off.
LED Indicator
: Flashes to indicate an incoming call or message. Also lights
up (flashes) when you turn on the phone.
Volume/Scroll Keys
: This keys are used to set volume levels, a etiquette mode and
help you navigate through Menus and the phone book.
Press the volume keys to :
- Go to Etiquette mode to press key while flip closed.
- Adjust voice volume during conversation.
- Adjust key tone volume in Standby mode.
- Answer the incoming call.
- Scroll through menu options.
- Scroll through your Internal Phone Book.
Backlit LCD Screen
: The LCD screen contains two areas;
- The bottom line displays indications about your phones
operating mode.
- The upper area displays in-use information such as the
other partys number of the other party (if available),
Mute, Call Waiting, etc. Your menus also display in the
upper area.
Nemu Key
: This key performs several useful functions.
- During incoming calls, press it to answer the incoming
call.
- From Standby mode, press it briefly to access Main Menu
and Select menus.
- When navigating a menu, press it to select the highlighted
selection.
SMS Key
: When in Standby mode, press this key to access Message
Menu items.
- During incoming calls, press it to answer the incoming
call.
- From Standby mode, press it briefly to access Message
Services.
- When navigating a menu, press it to go back to previous
menu.
Navigation Keys
: This key is similar to the volume key. Press key to scroll
up, and press key to scroll down. And use it to scan
8
menu options, Last 10 numbers dialed, Call Stack or to move
the cursor when editing. As shown in the illustration, there are
several keys that can be used to scroll.
Microphone
: Your typical voice microphone for conversation and you can
also mute the microphone during conversation by pressing
MENU 4.
Accessory Connector
: The location where you connect your charging device.
CLR Key
: This key is used to erase numbers or characters you may have
entered incorrectly, or to return to a previous screen.
- To erase one character from the display screen, briefly
press it once.
- To erase all of them, hold it for one second.
- To back up one menu level, press it once.
- To return to Standby mode, hold it for one second.
END/ Key
: Press this key to disconnect a call or to return to Standby
mode from any menu. Press and hold this key to turn the
phone On or Off.
SEND Key
: This key performs several useful functions.
- Dial a number and press it to connect.
- Press it once to redial the last outgoing number.
Antenna
: Makes the call sound clearest when its fully Extended.
9
DISPLAY INDICATORS
Display indicators appear across the bottom of your phones LCD screen. These display
indicators (or icons) will vary based your phones operating mode.
Signal strength : This icon shows your current signal strength. More lines
indicate more signal strength. Four lines indicate maximum strength, and one
line indicates least strength.
No service indicator : This icon indicates your phone cannot find a signal
because youre outside a service area. When this is displayed, you cannot make
or receive calls. Wait a little while for a signal or move into an open area.
Roaming : This icon indicates you are roaming on to other carriers service
area. But you must resister the roaming service.
Message indicator : This icon indicates you have message(s) waiting.
Press SMS Menu button to see the message menu, or press and hold to be
connected to voicemail.
Digital mode : This icon indicates your phone is operating in digital mode. If
you are in analog service area, D will be disappeared.
Ring mode : This icon means that an incoming call will ring the phone along
with LED lightening.
LED lightening mode : This icon means that an incoming call will light the LED
on top of the front cabinet rather than ring it.
Vibrator on : This icon means that an incoming call will vibrate the phone rather
than ring it or before/after the phone ring. (Vibration+LED, Vibration after Bell,
Bell after Vibration)
Etiquette mode on : This icon means that an incoming call will vibrate the phone
rather than ring it. This feature is good for quiet situations where you dont want
your ringer to disturb anyone.
Alarm on : This icon means that you set the alarm On.
Battery strength : This icon shows the level of your battery charge. The more
black bars you see the greater the charge. When the battery becomes very low,
an empty box appears and the phone flashes an alert.
10
BATTERY INFORMATION
Your phone comes with a partially charged, rechargeable Lithium Ion (LiIon) Battery so that
you can use the phone immediately after it is activated.
Installing the Battery.
To attach the battery to your phone :
1. Hold the battery so that metal contacts on the base of the battery line up with the metal
contacts on the base of the phone.
2. Place the battery on the back of the phone with the top of the battery about a quarter of an
inch from the latch.
3. Gently slide the battery toward the top of the phone until it snaps into place.
Charging the Battery.
You can tell whether or not your battery needs to be recharged by checking the lower-right
corner of your phones display.
When the battery charge level gets low, the battery sensor will let you know by blinking the
battery icon and sounding a warning tone. If the battery level gets too low, the phone will turn
off automatically. Unfortunately, if this happens youll lose whatever you were just doing,
including dropping your call. Watch the battery strength icon and make sure your battery is
adequately charged.
Charging with the Single-Slot Desktop Charger.
Use only Vacom approved chargers and adapters with your phone. Use of any unauthorized
accessories may be dangerous and will invalidate the phone warranty if said accessories cause
damage or a defect to the phone.
To charge the battery using the Single-Slot Desktop Charger :
- Plug the power cord of the charger into a wall outlet.
- Insert the entire phone with battery attached or a single battery into the cradle of the
charger.
11
If you charge the battery while it is attached to your phone, a green LED on the charger denotes
that the battery has completed its charge cycle.
A completely discharged standard battery recharges fully in approximately tbd hours. The
extended battery recharges in approximately tbd hours. Leaving your phone powered on during
charging, or charging batteries simultaneously, increases charging time. Leaving the battery in
the charger once it is fully charged does not harm the battery.
Turning your phone on and off.
When youre ready to turn your phone on, fully extend the antenna for best reception. Press and
hold END/ until the LED comes on and the phone sounds. When the phone has found a
signal, the “ ” icon appears. Once the phone is on, it enters Standby mode, which is the
phones idle state. You can make and receive calls now.
To turn your phone off, press and hold END/ until the LED comes on and the phone sounds,
then the display will goes blank. When the phone is turned off, nothing is displayed on the
screen.
Note : If END/ is pressed for less than one second, the phone will not turn off. This helps
your phone from being turned off accidentally.
Standby mode.
Standby is the most basic state of your phone. The phone goes into standby mode soon after you
turn it on, or whenever you briefly press END/ . When your phone is in Standby mode, you
will typically see the banner (thats the message displayed when you turn on your phone). If you
enter a phone number, you can press SEND to dial it, or press SMS key ()to save it in the
internal phone book.
Power Save mode.
Your phone comes with a Power Save feature that will automatically be activated if your phone
is unable to find a signal after 15 minutes of searching. While this feature is active, the phones
battery charge is conserved.
The phone will automatically recheck for a signal periodically. To manually force the phone to
12
recheck for a signal, press any key. A message on the display will let you know when the phone
is operating in Power Save mode.
Conversation Mode.
You can place and answer calls only when your phone is powered on. During a call, the phone is
in Conversation mode.
13
BASIC FUNCTIONS
Making a Call.
To place a call :
Press and hold END/ to power on your phone. If you see indicators on the display that
means the phone is on.
Enter the phone number (up to 32 digits) by pressing the digit keys. The phone number displays
from left to right.
Press SEND. The phone places the call to the entered phone number (if service is available).
You can also make calls ;
From your Phone Book (see V. Phone Book. on page )
From your Call Stack list (see Using Caller ID on page )
By using One-, Two-, or Three-Touch Dialing (see Speed Dialing on page ).
Ending a Call.
To end a call, close the flip or press END/ . The call time (length of the call) displays, along
with the name and number of the called party (if available). The phone returns to Standby mode
automatically.
Answering a Call.
To answer an incoming call, open the flip or also press any key. If your phone is registered in
Caller ID, a callers phone number is displayed on the display. If a callers number is stored in
Phone Book, the callers name is displayed.
Correcting Dialing Mistakes.
To correct a misdialed digit, press CLR to erase one digit at a time. You can erase all the
digits at once by pressing CLR and holding it down for at least one second.
Storing Phone Numbers
Phone numbers for frequently used services are pre-programmed into your phone. To store a
number,
14
- After dialing a number, press SMS () key. Then you can see New or Append?
on the display.
- Select NEW or select APPEND if you want to edit.
- Once you see Choose Type, select among HOME, MOBILE and OFFICE.
- If you chose APPEND, you can see numbers and names you stored already. Select
one to edit.
- Once you select among HOME, MOBILE and OFFICE, you see
Location ??? and location numbers.
- Press OK button. Then select NAME, E-MAIL and NUMBER EDIT to
store a name, e-mail address and a number if you want to edit.
- Press STO () and choose a group type (BUSINESS, FRIENDS, FAMILY, ETC)
by press OK () key.
- Then you can see a total number of used and empty locations and a message that the
number you wanted to store was stored successfully. And it goes to stand-by mode.
- For more information, see Phone Book on page .
Adjusting Microphone volume during a call
To adjust Microphone volume during a call,
- During a call, press MENU () key.
- Select Increase Mic or Decrease Mic.
- Press to increase Mic or press to decrease Mic volume.
- Or simply press * or # to increase and decrease Mic volume after pressing
MENU () key.
- Once you hang up a phone, the Mic volume goes back to factory setting level.
Adjusting Voice Volume.
You can adjust the earpiece volume during a call using the volume keys on the side of the phone.
Briefly pressing the volume key once displays your earpiece volume. Repeatedly press the
volume key to adjust.
Last Number Redial
You can redial up to 10 last numbers. If you want to redial the last call you made, simply press
SEND once. Or if you want to redial the last 10 calls you made,
- Press on standby mode. Then you can see last 10 numbers on logs.
15
- Press VIEW () key to see the time you called and the number.
- Simply press SEND key to redial the number you select.
Speed Dialing
Once you stored phone numbers in your phone by using Phone Book, you can make a call by
pressing One-, Two- or Three-Touch Dialing.
Press a location number you stored, then your phone automatically connect you to the phone
number you want to call.
Note : There are three phone numbers you can store in one location number, Home, Office,
Mobile. Once you press a location number to call, your phone will connect the number, which
you stored first. For example, if you store a number under Home, Office and Mobile
orderly, your phone will connect to Home number.
Using Caller ID.
This feature tells you who is calling you by displaying the callers number when the phone rings.
If a callers name and number are stored in your Phone Book, the corresponding name is also
displayed. If you call someone who has this feature, your phone number will be displayed on
their phone.
To see the last call numbers you received,
- press . Then you see the last 10 number you received.
- Select one of them to see the time you received and a name if possible.
- To redial, press SEND.
16
MENUS
I. SEARCH MENU
Last call numbers
- Press MENU (), 1. Search and select “1. Outgoing. Then you can see the last 10
numbers you dialed. It is the same function as Last 10 number redial on page .
- Select one of the numbers to see the time you dialed and the name.
- Press SEND key to redial.
Last call numbers you received
- Press MENU (), 1. Search and select “2. Incoming. Then you can see the last 10
numbers you received. It is the same function as Using Caller ID on page .
- Select one of the numbers to see the time you received and the name if possible.
- Press SEND key to redial.
Group Menu
You can find a number you stored in Phone Book.
- Press MENU (), 1. Search and select “3. Group. Then you can see Choose
Group on the display.
- Scroll or on the front cabinet or volume keys to select BUSINESS,
FRIEND, FAMILY or ETC.
- Once you select BUSINESS, FRIEND, FAMILY or ETC, you can see the
numbers you stored and defined only as BUSINESS, FRIEND, FAMILY or
FAMILY .
- Place the cursor on the number you want to dial by scrolling and and press
SEND to dial.
- Or press VIEW () to delete or edit.
- How to use Phone Book, see V. Phone Book on page .
ABC Sequence Menu
You can find a number you stored in Phone Book by using ABC sequence.
17
- Press MENU (), 1. Search and select “4. ABC sequence. Then you can see the
numbers you stored alphabetically.
- Scroll or on the front cabinet or volume keys to choose a number.
- Place the cursor on the number you want and press SEND to dial.
- Or press VIEW () to delete or edit.
Name Search Menu
You can find a number you stored in Phone Book by entering a name.
- Press MENU (), 1. Search and select “5. Name.
- Enter the name you want to call.
- If you dont remember the full name, just enter the first letter of the name, then your
phone will show you all similar names.
- Press SEND to dial.
- Or press VIEW () to delete or edit.
Location Search Menu
You can find a number you stored in Phone Book by locations.
- Press MENU (), 1. Search and select “6. Location.
- Enter the location number you want to find.
- Press SEND to dial.
- Or press VIEW () to delete or edit.
- If a number is not stored in the location, Empty Location is shown on the display.
Search by Phone number
You can find a numbers information you stored in Phone Book by entering a phone number.
- Press MENU (), 1. Search and select “7. Number.
- Enter the number you want to see. Then you will see the name and location.
- Press SEND to dial.
- Or press VIEW () to delete or edit.
- If the number is not stored in the location, a warning tone is sounded and No Number
Matches is shown on the display.
18
II. PHONE SETTING MENU
Greeting Type
You can have the phone display various welcome greeting on stand-by mode. To edit the
greeting on stand-by mode:
- Press Menu (), 2. Phone Setting and 2. Greeting Type.
- Then you can choose 7 kinds of different greeting types as below;
Greeting & Time Analog Clock Digital Clock Background Pic 1
Background Pic 2 Background Pic 3 Background Pic 4
- Select one of them, then you can see it on stand-by mode.
Text Edit (Banner)
You can edit the banner on the display on Stand-by mode (if you choose Greeting & Time,
VACOM WIRELESS is displayed on top of the display).
To edit the banner;
- Press Menu (), 2. Phone Setting, 1. Greeting Edit and 1. Text Edit.
- Press EDIT () key and enter or edit the text that you want to display on stand-by
mode.
- Once you enter or edit the text, press STO () and choose a banner position and
press OK () to store.
Icon Changes
You can change icons that are displayed on the display with Analog Clock and Digital
Clock of the greeting types.
To change icons;
- Press Menu (), 2. Phone Setting, 1. Greeting Edit and 2. Icon Change.
- Select a icon by scrolling or . There are 40 icon types.
- Once you select an icon, you can see it on stand-by mode.
19
Menu Type
You can change a display type of Menu as text or graphics. To change menu types,
- Press Menu (), 2. Phone Setting and 3. Menu Type.
- Select Text or Graphic.
- Then you can see on the display once you press Menu ().
Language
You can choose between three different languages (English, Spanish and Portuguese) for text
shown in the display. To change languages,
- Press Menu (), 2. Phone Setting and 4. Language Set.
- Select English, Spanish or Portuguese.
- Press OK () to set.
Back Light
You can set backlighting of LCD display and the keypad to stay on continuously or
automatically turn off in 5 and 10 seconds. To set back light;
- Press Menu (), 2. Phone Setting and 5. Backlight.
- Select 10 seconds, 5 seconds, always on or always off.
- Press OK () to set.
Auto Answer
The Auto Answer function lets you select to answer calls automatically after 5, 10, and 15
seconds from the first ring. It helps you to answer a call while you are driving. To set Auto
Answer;
- Press Menu (), 2. Phone Setting and 6. Auto Answer.
- Select After 5 secs, After 10 secs, After 15 secs or off.
- Press OK () to set.
Auto Redial
The Auto Redial function makes a call be redialed after 5 second automatically if a call is not
connected. To set Auto Redial;
- Press Menu (), 2. Phone Setting and 7. Auto Redial.
20
- Select Setup for On or Release for Off.
- Press OK () to set.
Current Time
If you are in service area, your phone shows you current time receiving from Base Station.
While you are out of service area, you can set the time as below;
- Press Menu (), 2. Phone Setting and 8. Current Time.
- Enter the month, day, year, time, minute and AM/PM orderly.
- Press OK () to set.
21
III. SOUND MENU
Incoming Ring
You can set incoming rings in 5 different types (Bell+Lamp, Vibration+Lamp, BellàVibration,
VibrationàBell, Lamp).
- Press Menu (), 3. Sound and 1. Incoming Ring.
- Select Bell+Lamp, Vibration+Lamp, BellàVibration, VibrationàBell or
Lamp.
- Press OK () to set.
Ring Type
This option enables you to set a ring type for incoming calls in 11 different bells and 15
different melodies.
- Press Menu (), 3. Sound and 2. Ring Type.
- Scroll and to select bell types. While you scroll, you can hear bells and
melodies.
- Press OK () to set.
Volume
Volume option allows you to set the level of the ring volume, the key volume and the call
volume.
- Press Menu (), 3. Sound and 3. Volume.
- Select Ring Volume, Key Volume or Call Volume.
- Scroll and to increase or decrease the volume level.
- Press SEL () to set.
Alert Setting
1. Connect Beep
Connect Beep option allows you to hear a torn when a call is connected.
- Press Menu (), 3. Sound, 4. Alert Setting and 1. Connect Beep.
- Select CALL CONNECT SOUND? on or off.
- Press OK () to set.
2. Call Drop
22
Call Drop option allows you to hear a warning torn when a call is disconnected
occasionally or when the caller hangs up the phone.
- Press Menu (), 3. Sound, 4. Alert Setting and 2. Call Drop.
- Select CALL DROP ALERT on or off.
- Press OK () to set.
3. 1 Min. Alert
1 Min. Alert option allows you to hear a torn every 1 minute while you are calling.
- Press Menu (), 3. Sound, 4. Alert Setting and 3. 1 Min. Alert.
- Select MINUTE ALERT on or off.
- Press OK () to set.
4. Roaming
Roaming Alert option allows you to hear a warning torn when you moves to other
carriers service area, which you registered for roaming service.
- Press Menu (), 3. Sound, 4. Alert Setting and 4. Roaming.
- Select ROAMING ALERT? on or off.
- Press OK () to set.
23
IV. SECURITY FUNCTION
Your phone provides many security options, including a user-programmable lock code and call
restriction features. To access the Security menu in Standby mode, press Menu () and 4.
Security. And enter the four-digit password.
Note : The password is 0000 if you dont have your phone number yet. Or the last 4 digits of
your number if you already have you phone number. If you want to change the password, see
New Password on page .
Auto Lock
Locking the phone limits all outgoing calls except calls to the three hard-coded emergency
numbers (911).
You can lock the phone manually during use, or set the phone to lock automatically when it is
turned on. When the phone is in Lock mode, you can answer incoming calls, but you must
unlock the phone to place outgoing calls (except to emergency).
- Press Menu () and “4. Security and enter the password.
- Press 1. Auto Lock.
- Select SET AUTO LOCK as never, always or on power up.
- Press OK () to set.
Notes 1) always you must unlock the phone to place outgoing calls.
on power up the phone is locked automatically when it is turned on.
never the phone is unlocked.
Note 2) Or you can simply lock your phone by pressing and holding # on standby mode. It is
same as always option.
New Password
If you want to change the password,
- Press Menu () and “4. Security and enter the password.
- Press 2. New Password and enter the new 4-digit password.
- Press OK (), then you can see CONFIRM NEW PASSWORD.
- Enter the new password again and press OK () to set.
Restrict
24
Your phone provides a wide variety of call limiting options in the Security menu. These options
give you powerful tools to manage your phone.
1. Send Call : You can set your phone to make all outgoing calls or to restrict outgoing
calls.
- Press Menu () and “4. Security and enter the password.
- Press 3. Restrict and 1. Send Call.
- Choose OUTGOING CALL RESTRICT RELEASE or OUTGOING CALL
RESTRICT SETUP.
- Press OK () to set.
2. Receive Call : You can set your phone to receive all incoming calls or to not receive
incoming calls.
- Press Menu () and “4. Security and enter the password.
- Press 3. Restrict and 2. Receive Call.
- Choose INCOMING CALL RESTRICT RELEASE or INCOMING CALL
RESTRICT SETUP.
- Press OK () to set.
3. Privacy : You can set your phone to make an international call or to not make an
international call.
- Press Menu () and “4. Security and enter the password.
- Press 3. Restrict and 3. Privacy.
- Choose PRIVACY VIEW RESTRICT RELEASE or PRIVACY VIEW
RESTRICT SETUP.
- Press OK () to set.
Phone Initialize
Phone Initialize let you initialize your phone. If you want to initialize your phone,
- Press Menu () and “4. Security and enter the password.
- Press 4. Initialize.
- Chose PHONE INITIALIZE YES.
- Press OK (), then your phone display Initializing .
- And your phone will turn off and turn on automatically.
Note : Once you initialize your phone, you may loose a number and memo you stored.
NAM Select (Numeric Assignment Module)
25
1. Manual NAM Change
- Press Menu () and “4. Security and enter the password.
- Press 5. NAM Select and 1. Set NAM.
- Scroll and to chose NAM #.
- Press OK () to set.
2. Automatic NAM Change
- Press Menu () and “4. Security and enter the password.
- Press 5. NAM Select and 2. Auto NAM.
- Choose AUTO NAM on or off.
- Press OK () to set.
Note : Once you use this function, your phone would not work properly. Leave your phone as
initially set.
Memory Clear
Memory Clear option allows you to clear call lists, which you called, received and stored,
schedules or all information in memory.
- Press Menu () and “4. Security and enter the password.
- Press 6. Memory Clear and choose Outgoing, Incoming, Stored #, Schedule
or Clear All.
- Press OK () to erase the memory.
Network
You can choose the network between CDMA and Analog.
- Press Menu () and “4. Security and enter the password.
- Press 7. Network.
- Scroll and to chose AUTOMATIC, ONLY CDMA, ONLY ANALOG
or TEMP ANALOG.
- Press OK () to set.
Note : Once you use this function, your phone would not work properly. Leave your phone as
initially set.
System Change
26
You can choose the systems.
- Press Menu () and “4. Security and enter the password.
- Press 8. System Select.
- Scroll and to chose standard, A only, B only or home only.
- Press OK () to set.
Note : Once you use this function, your phone would not work properly. Leave your phone as
initially set.
27
V. PHONE BOOK
Your phone support you various additional functions, such as Schedule Management,
Alarm, Number Storing, Calculator, Memo, World Time and Call Time.
Schedule Manager
Schedule Manager option supports you to manage your schedule with your phone. To set or edit
a schedule,
- Press Menu () and select 5. Phone Book and 1. Sched. Manager.
1. Schedule Input :
- Select 1. Schedule Input. Then you can see the calendar of this month on the display.
- Scroll and to choose the date and press OK (). Or you can move the
month by scrolling  keys on left side of the phone (volume keys).
- Enter the time (hour, minute and AM/PM) and a memo.
- Press STO () then the display show you a memo and time. Press STO () to store.
- Choose Alarm Set or Alarm Reset
- Then the display shows you an animation and Add Other Schedule? orderly. If you
want to add more, press OK (). Or if you want to finish, press PRE () or
END.
- Now you have a schedule stored in your phone. And your phone will alert you at the
time you set.
2. Today Schedule : You can see and edit todays schedules.
- Select 2. Today Sched. Then you can see todays schedules you stored.
- Scroll and to choose a schedule and press OK (). Then the display shows
you a memo.
- Press EDIT () and edit memos. Press STO () to store.
- Then the display shows you the time and date. Press EDIT () and edit time and
date. Press STO ().
- Press STO () to store again and set alarm.
- Press STO () to set. Then the display shows you an animation and Add Other
Schedule? orderly. If you want to add more, press OK (). Or if you want to finish,
press PRE () or END.
- Now you have a schedule edited in your phone. And your phone will alert you at the
time you stored.
3. Schedule List : You can see the schedule list you stored.
28
- Select 3. Schedule List. Then you can see the schedule list orderly.
- And you can edit the schedule by scrolling and and pressing OK (). Then
you can edit a schedule as the same way as Today Schedule above.
- Or you can delete a schedule by simply pressing DEL (). Once you press DEL
(), you can hear a warning tone and the display shows you Erase ?. Press OK
() to erase.
4. Schedule Delete : You can delete all schedules.
- Select 4. Schedule Del.
- Select Schedule Delete? No or Yes by scrolling or .
- Press SEL () to erase. Then your phone shows you All Schedule Erase ?”.
- Press OK () to erase all.
- If there is no schedule stored and you select 4. Schedule Del, you can hear a warning
tone and you can see Memory Empty on the display.
Note ) If you want to delete schedules selectively, see Schedule List.
Alarm
You can set the 24-hour alarm to sound an alert at the set time, when your phone is on. If the
phone is off at the alarm set time, the alarm will not sound. To set the alarm;
- Press Menu () and 5. Phone Book.
- Select 2. Alarm Setting.
1. Daily Alarm : Once you set the alarm using Daily Alarm option, your phone will
sound an alert at the set time everyday.
- Once you select 2. Alarm Setting, press 1. Daily Alarm. Then DAILY ALARM
will be shown on the display.
- Select SETUP by using  & OK () keys.
- Enter the time and AM/PM.
- Press SEL () to set.
Note ) If you dont want your phone alert you on weekend, see Weekend? below. And if
you want to release the alarm setting, press Menu(), “5, “2”, “1”, , OK ().
2. Alarm Setting : Once you set the alarm using Alarm Setting option, your phone will
sound an alert at the set time once.
- Once you select 2. Alarm Setting, press 2. Alarm Setting. Then ONCE ALARM
29
will be shown on the display.
- Select SETUP by using  & OK () keys.
- Enter the time and AM/PM.
- Press SEL () to set.
Note ) If you want to release the alarm setting, press Menu(), “5, “2”, “2”, ,
OK ().
3. Weekend? : Once you set this option, your phone wont sound an alert on weekend.
- Once you select 2. Alarm Setting, press 3. Weekend?. Then WEEKEND SELECT
INCLUDE will be shown on the display.
- Select NO by using  & OK () keys.
Note ) If you want your phone alert you on weekend, select WEEKEND SELECT
INCLUDE YES.
Storing a Number, e-Mail Address and Name
You can store phone numbers, e-Mail addresses and associated names in your phones memory
up to 150 numbers to use for Speed Dialing. Each number and e-Mail address you store can be
up to 32 digits in length, and names you store can be up to 16 characters in length.
A number, e-Mail address and a name you want to store is stored in specific memory location
together. And you can use Speed Dialing to press and hold the location number.
To store phone numbers, e-Mail addresses and a name ;
- Press Menu (), 5. Phone Book and 3. Number Store. Then you can see New or
Append? on the display.
- Once you choose NEW by using  & OK (), you can see Location ???
auto =*** on the display.
- Choose the location number by scrolling  or enter the location number you want
to store in. And press OK ().
1. NAME :
- After you choose a location number, select NAME on the display and press SEL
().
- Enter the name and press OK () to store.
2. E-MAIL
- After you choose a location number, select E-MAIL on the display and press SEL
30
().
- Enter the e-Mail address and press OK () to store.
3. NUMBER EDIT
- After you choose a location number, select NUMBER EDIT on the display and
press SEL ().
- Select HOME, OFFICE or MOBILE and press SEL ().
- Enter the phone number and press OK () to store.
Note ) Once you use Speed Dialing to press and hold the location number, the phone
number, which is stored firstly in HOME, OFFICE and MOBILE, is dialed.
- Once you edit a number, e-mail address and a name, press key twice. Then
Choose Group is displayed on the display.
- Choose BUSINESS, “FRIENDS”, FAMILY or ETC by using  and press
OK () to select.
- Then your phone will show you the result of storing and the total number of stored
locations and empty locations.
Calculator
You can use your phone as a calculator.
- Press Menu (), 5. Phone Book and 4. Calculator.
- Now you can use your phone as a calculator. Use OPER () to scroll +, , ×, ÷
and press SEL () to select. And use = () to enter.
Memo View
Memo View option allow you to see a memo you stored while you were calling. How to write a
memo during a call, see Writing a Memo on page .
To see a memo;
- Press Menu (), 5. Phone Book and 5. Memo View.
- Then Memo List with the time you stored appears on the display. If a memo is not
stored, your phone will sound an alert.
- Select one to see a memo.
- If you want to delete, press DEL () to delete.
World Time
31
Your phone shows you world 77 cities current time. To access the world time view;
- Press Menu (), 5. Phone Book and 5. World Time.
- Use  or * and # keys to scroll cities.
Call Time
The Call Time function shows the approximate duration of last call and total time in hours and
minutes that the phone has been in used and the total number of calls made under the current
phone number in the display.
- Last Call : Press Menu (), 5. Phone Book, 7. Call Time and 1. Last Call.
Then your phone indicates the approximate duration of last call you made in minutes
and seconds.
- Home Calls : Press Menu (), 5. Phone Book, 7. Call Time and 2. Home Calls.
Then your phone indicates the approximate total time in hours and minutes that the
phone has been used in your providers service area.
- Roam Calls : Press Menu (), 5. Phone Book, 7. Call Time and 3. Roam Calls.
Then your phone indicates the approximate total time in hours and minutes that the
phone has been used in roaming area.
- All Calls : Press Menu (), 5. Phone Book, 7. Call Time and 4. All Calls.
Then your phone indicates the approximate total time in hours and minutes that the
phone has been used in home and roam area.
VI. MY PHONE NUMBER
This option allows you to see your phone number on the display. To see your phone number,
press Memu () and 6. My Number. Then your phone number will appear on the display.
32
MESSAGE SERVICES
Your phone can receive two types of message service text messages and voice mail and
you can send a text message (SMS : Short Messaging Service) if these services are available
from your service provider. If you subscribe to either or both services, callers can leave you text
messages or voice mail. Your service provider then transmits the text messages and voice mail
notifications to your phone.
I. Text Message Services (SMS : Short Messaging Service)
The actual tagging of the text message is dependent on the system used by your service provider.
Your service provider transmits messages to your phone. If your phone is on, it receives the
messages as described below. If your phone is not turned on, your service provider retains the
messages and transmits them again later.
When a new text message is received, your phone sounds an alert or vibrates and is shown
on the display. Once you read a new message, disappears on the display.
Note ) Your phone holds up to TBD messages or a maximum of TBD KB of message text.
Read Text Messages
If your phone is turned ON when it receives a text message, your phone sounds an alert or
vibrates and is shown on the display. You have a choice of reading the message
immediately by pressing SMS () key or reading it later. To read a new message;
- Press SMS () and 1. View MSG.
- Select 1 Page/Msg and press SEL () to see. Then the time you received, a
sender, senders phone number and a new text message appear on the display.
- You can read the text message by scrolling  keys.
- If you want to see a message which you already read, press SMS (), 1. View
MSG and select 1 Old Msg. Then you can see the message list on the display.
Select a message what you want to see again and press SEL ().
- If you want to call to a sender back, simply press SEND while you are reading a
message.
Sending a Text Message (SMS : Short Messaging Service)
You can send a text message through your phone. To edit and send a text message;
33
- Press SMS () and 2. Send MSG. Then old message lists appear on the display
below New Send MSG.
- Select New Send MSG or old messages. And write a new message or edit old
messages.
- Once you finish to write a message, press OK ().
- Select New Send NUM for a new number or the other phone numbers you have
sent before.
- If you choose New Send NUM, enter the dial number and press OK ().
- Enter the receive number, which you wish a receiver to call to, and press OK ().
(There is your phone number displayed for the receive number)
- Then your phone displays that a message is being sent.
Deleting Messages
You can delete a message one by one or delete all messages at once. To delete a message;
- Press DEL () key while you are reading a message or on the message list display.
- Or press SMS () and 4. Erase All. Then Erase ? appears on the display. Press
OK () to erase all messages.
Note ) If you use Erase All option, it also erases voice mails.
II. Voice Mail Service
Your phone can receive voice mail notification when it is turned ON. If your service provider
transmits the notification and your phone is turned OFF, you will receive notification the next
time you turn your phone ON.
If your phone is turned when it receives a voice mail notice, your phone sounds an alert or
vibrates and is shown on the display. Once you listen a new voice message, disappears
on the display.
Listening Voice Mails
If your phone is turned ON when it receives a voice message, your phone sounds an alert or
vibrates and is shown on the display. You have a choice of listening the message
immediately by pressing SMS () key or listening it later. To listen a new voice message;
- Press SMS () and 1. View MSG.
- Select 1 Voice and press SEL (). Then the time you received, a sender and
34
senders phone number appear on the display.
- If you want to listen a voice message, dial *89. Then you can listen the voice
messages.
- If you want to see messages again, press SMS (), 1. View MSG and select 1
Voice. Then you can see the voice mail list on the display. Select a message and press
SEL ().
- If you want delete a message, press DEL () key while you are reading a voice mail
list.
- If you want to call to a sender back, simply press SEND while you are reading or
listening a voice mail.
Deleting Messages
You can delete a message one by one or delete all messages at once. To delete a message;
- Press DEL () key while you are reading a message or on the message list display.
- Or press SMS () and 4. Erase All. Then Erase ? appears on the display. Press
OK () to erase all messages.
Note ) If you use Erase All option, it also erases text messages.
III. Message Alerts
You can set message alerts in 5 different types (Bell, Lamp, Vibrator+Lamp, Bell+Vibrator,
Bell+Lamp, Vibrator).
- Press SMS () and 3. Message Alert.
- Select Bell, Lamp, Vibrator+Lamp, Bell+Vibrator, Bell+Lamp or Vibrator.
- Press OK () to set.
35
USING MEMU During a Call
Sending My Phone Number
You can send your phone number during a call. To send your phone number;
- Press Menu () and 1. Send My Phone.
- Then your phone will dial your phone number automatically and you can hear the dial
tone.
Writing a Memo
You can write and store a memo on your phone during a call. To write and store a memo;
- Press Menu () and 2. Memo.
- Then write a memo and press OK () to store.
Note ) How to read a memo, see Memo View in Phone Book on page .
Storing a Phone Number
You can store a phone number, e-mail address and a name during a call. To store a phone
number;
- Press Menu () and 3. Phone # Memo.
Note ) How to store a phone number, e-mail address and a name, see Number Store in
Phone Book on page .
Muting the Microphone
To mute the microphone, press Menu () and 4. Tx Voice Mute. And to release muting the
microphone, press Menu () and 4. Tx Voice Mute again.
To See My Phone Number
To see my phone number, press Menu () and 5. My Phone# View. And press PRE ()
to go back to previous display.
Microphone Volume Control
36
To increase the microphone volume, press Menu () and *. Increase Mic or simply press
*.
To decrease the microphone volume, press Menu () and #. Decrease Mic or simply press
#.
Sending a number
You can send a number during a call. To send a number;
- Enter numbers. And if you want to send Pause and Hyphen between numbers,
- press Menu () and 1. HARDPAUSE, 2. Pause Insert or 3. Hyphen Insert”
while entering numbers.
Eg) If you want to send 123-4567 (Hyphen) during a call, press 1, 2, 3, “Menu (),
“3”, 4, 5, 6, 7” orderly.
- also you can use 4. Send My Phone, 5. Tx Voice Mute, *. Increase Mic and #.
Decrease Mic options.
- How to use 4. Send My Phone, 5. Tx Voice Mute, *. Increase Mic and #.
Decrease Mic options, see page 35.
37
ENTERING LETTERS & NUMBERS
You can enter letters, as well as numbers, when storing information into your phone, writing a
memo or sending a text message (SMS : Short Messaging Service) by using your phones
keypad. To enter letters, press the key associated with the letter you wish to enter until it appears
on the screen (numbers also appear).
ABC Mode
When you need to enter letters into your phone, it automatically switches to ABC mode.
Once you enter letters, you enter a capital letter.
- To enter a small letter, press (). Then changes to . Now you
can enter a small letter.
- To enter a number, press (). Then changes to . Now you can
enter a number.
123 Mode
When storing names to the phone book or sending a text message, you can enter a number
within a name at any time. Press () and enter a number you desire.
Inserting Punctuation Symbols & Special Characters
When in ABC mode, you can press 0 (OPR) key and the following special characters appear.
You can use these characters when storing names in your phone book or sending a text message.
- . & ( ) _ ! ? * # % : + < > =

Navigation menu
