Compex Systems 06-WLM54GP26 Wireless-G 26dBm Network Mini PCI Adapter User Manual
Compex Systems Pte Ltd Wireless-G 26dBm Network Mini PCI Adapter
User Manual
Caution
Changes or modifications not expressly approved by the party
responsible for the compliance could void the user’s authority to operate
the equipment.
FCC Statements
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference received, including interference that may cause
undesired operation.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference that may cause undesired operation.
This device is intended only for OEM integrators under the following conditions:
1) The antenna must be installed such that 20cm is maintained between the antenna and
users. For laptop installations, the antenna must be installed to ensure that the proper
spacing is maintained in the event the users places the upper portion of the LCD panel
only to ensure 20cm will be maintained if the user places the device in their lap for use),
and
2) The transmitter module may not be co-located with any other transmitter or antenna. As
long as the 2 condition above are met, further transmitter test will not be required.
However, the OEM integrator is still responsible for testing their end-product for any
additional compliance requirements required with this module installed (for example,
digital device emissions, PC peripheral requirements, etc.).
IMPORTANT NOTE:
In the event that these conditions can not be met (for example certain laptop
configurations or co-location with another transmitter), then the FCC authorization is no longer
considered valid and the FCC ID can not be used on the final product . In these circumstances, the
OEM integrator will be responsible for re-evaluating the end product ( including the transmitter)
and obtaining a separate FCC authorization.
End Product Labeling:
This transmitter module is authorized only for use in device where the antenna may be
installed such that 20cm may be maintained between the antenna and users(for example access
points, routers, wireless ADSL modems, certain laptop configurations, and similar equipment).
The final end product must be labeled in a visible area with the following:
Contains FCC ID:TK4-06-WLM54GP26
Manual information for End users
The end user must not have manual instructions to remove or install the device. The user
manual for end user must include the following information in a prominent location.
IMPORTANT NOTE:
To comply with FCC RF exposure compliance requirements, the antenna used for this
transmitter must be installed to provide a separation distance of at least 20cm from all
persons and must not be co-located or operating in conjunction with any other antenna or
transmitter

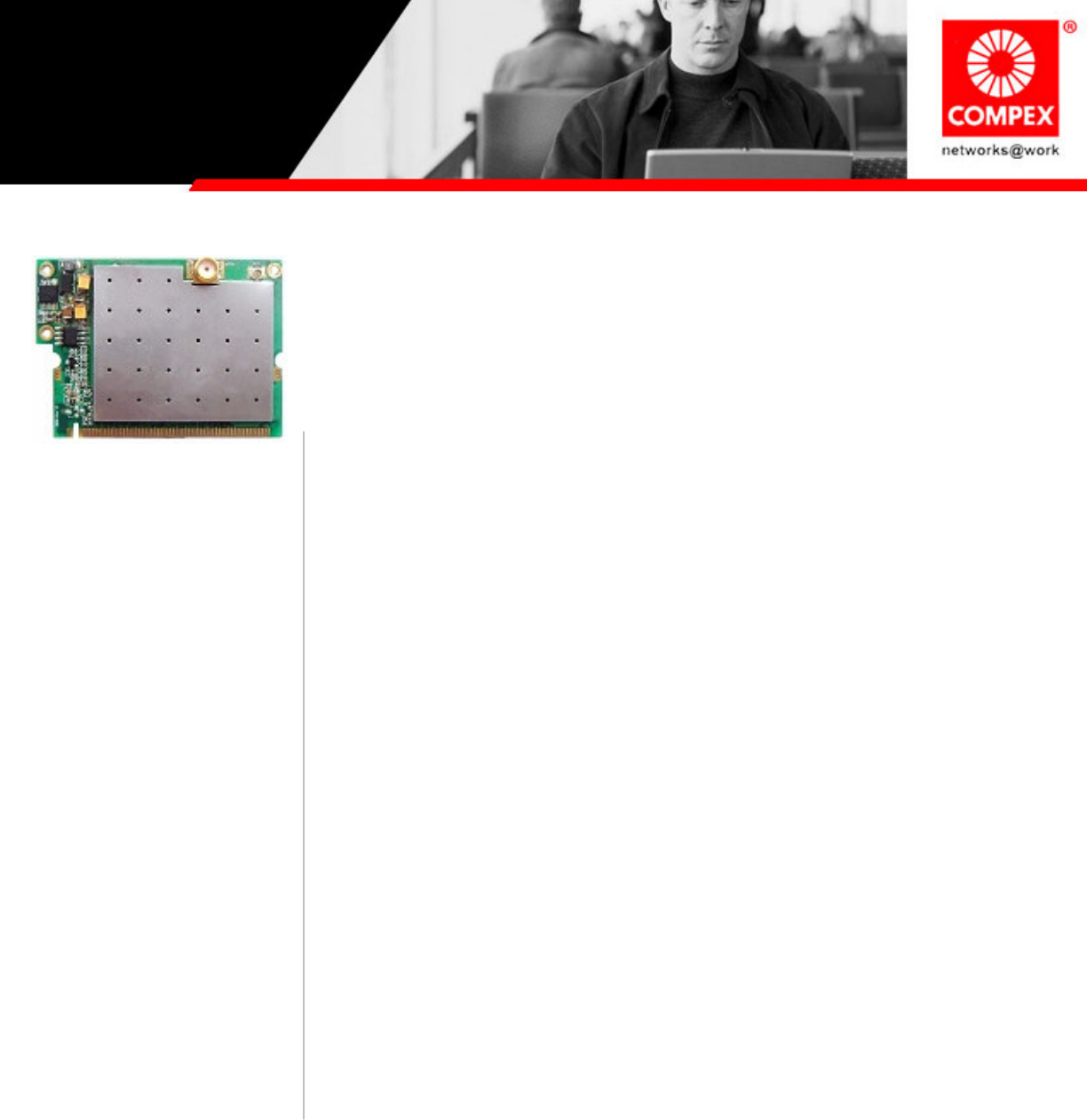

WLM MINIPCI SERIES
WLM54G (G) – 26dBm (400mW)
WLM54G (SUPER-G) – 26dBm (400mW)
product datasheet
Copyright © 2006 Compex Systems. All rights reserved. COMPEX and the COMPEX logo, are registered trademarks of COMPEX Inc. While every effort is
made to ensure the information is accurate, Compex does not accept liability for any errors or mistakes that may arise. All specification is subject to change
without notice. Datasheet version: V1.1
High
Output Power
of up to 26dBm on
both B and G band
Available in G and
Super-G modes
Affordable and
ideal for a variety
of applications
Compex WLM54G-26dBm miniPCI network adapter offers high output power of 400mW,
extending the range of embedded devices much further. Combined with excellent
receiver sensitivity, Compex WLM54G-26dBm is the miniPCI of choice for long distance
links, or those where signal levels are reduced due to minor obstructions such as trees
or buildings.
Built on Atheros chipset, Compex WLM54G-26dBm miniPCI network adapter can be
used for all IEEE802.11b/g compatible WLAN. It is ideal for integration in a wide range
of OEM devices.
Compex WLM54G-26dBm is also available in Super-G mode, which delivers better
performance at higher throughput for your network connectivity.
Features
2.4GHz IEEE 802.11 b/g standard
Up to 108Mbps high-speed data rate (Super-G model)
High Output Power of up to 26dBm at b/g Band
Dynamic Frequency Selection (DFS)
Wi-Fi Protected Access Client Support (WPA)
Transmission Power Control (TPC)
Multi-country Roaming Support (IEEE802.11d)
Suitable for Embedded System or OEM project
Available in Wireless-G, Super-G modes
Applications
• Infrastructure Networking
• Embedded system or OEM device
Copyright © 2006 Compex Systems. All rights reserved. COMPEX and the COMPEX logo, are registered trademarks of COMPEX Inc. While every effort is
made to ensure the information is accurate, Compex does not accept liability for any errors or mistakes that may arise. All specification is subject to change
without notice. Datasheet Version: V1.2
Compex Systems Pte Ltd
135 Joo Seng Road,
#08-01
PM Industrial Building
Singapore 368363
tel: (65) 6288 8220
fax: (65) 6280-9947
www.compex.com.sg
Compex Inc, USA.
840 Columbia Street,
Suite B Brea. CA 92821
tel: (714) 482 0333
fax: (714) 482-0332
www.cpx.
com
WLM MINI PCI TECHNICAL SPECIFICATIONS
MODEL WLM54G-26dBm (G)
(High Power)
WLM54G-26dBm (Super-G)
(High Power)
CHIPSET
Atheros AR2413 Atheros AR2414
SPEED (max) 54Mbps 108Mbps
OUTPUT POWER
802.11b
1-11Mbps 26dBm 26dBm
802.11g
6-24Mbps
36Mbps
48Mbps
54Mbps
26dBm
25dBm
24dBm
22dBm
26dBm
25dBm
24dBm
22dBm
POWER CONSUMPTION
5W 5W
STANDARDS
IEEE 802.11b: 11Mbps, 5.5Mbps, 2Mbps, 1Mbps
IEEE 802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps, 6Mbps, automatically fallback to
5.5Mbps, 2Mbps, 1Mbps
Super-G: 108Mbps, 96Mbps, 72Mbps, 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 6Mbps
FREQUENCY RANGE
IEEE 802.11b/g
2.412GHz ~ 2.462GHz (US & Canada)
2.412GHz ~ 2.472GHz (Europe)
2.412GHz ~ 2.484GHz (Japan)
NETWORK INTERFACE
PCI interface v2.3 (Type III-B Mini PCI form factor)
MODULATION TECHNIQUES
OFDM and DSSS
OFDM: BPSK, QPSK, 16 QAM, 64QAM
DSSS: DBPSK, DQPSK, CCK
RECEIVER SENSITIVITY
802.11b -92 dBm @ 1Mbps, -87 dBm @ 11Mbps
802.11g -90 dBm @ 6Mbps, -70 dBm @ 54Mbps
OPERATING CHANNELS
US and Canada 11 Channels
Europe 13 Channels
Japan 14 Channels
SECURITY
64/128 Bit WEP, WPA/WPA2 , IEE802.1X Authentication
ENVIRONMENTAL SPECIFICATIONS
Temperature Operating -20°C to 70°C
Storage -65°C to 100°C
Humidity Operating 5% to 95% (non-condensing)
DIMENSIONS & WEIGHT
Dimensions 59.75mm*44.60mm (L x B)
Weight 55 grams
