Compex Systems 09-MMNX WIRELESS-N NETWORK MINIPCI ADAPTER User Manual wlm200nx
Compex Systems Pte Ltd WIRELESS-N NETWORK MINIPCI ADAPTER wlm200nx
Users Manual
WLM200NX MiniPCI network adapter provides leading 802.11a/b/
g
/n
performance
, supporting up to 300Mbps physical data rates and 200Mbps
of actual user throughput on both the uplink and downlink. With the dual-
band desi
g
n you will en
j
oy universal connectivity to any 802.11 device
through your wireless AP or wireless Router.
Built on Atheros chipset, it can be used with all draft IEEE 802.11n
compatible WLANs, and is ideally suited to be inte
g
rated into a wide
range of OEM devices.
Features
• 2.4/5GHz IEEE 802.11a/b/g/n standard
• Output Power of up to 20dBm @ a/b/g/n Band
• Support for up to 2x2 MIMO with spatial multiplexing
• Four times the throughput of 802.11b/g and 802.11a
• Wireless Encryption and Authentication Supported
• Transmission Power Control (TPC)
• Enhanced performance with Atheros XSPAN technology Optimized for higher throughput
at long range
• High Performance (up to 300Mbps physical data rates and 200Mbps of actual throughput)
with Low Power Consumption
• Multi-Country Roaming Support (IEEE802.11d)
• 2 X U.FL Antenna Connector
• Suitable for Embedded System or OEM Project
• Affordable and Ideal for a Variety of Applications
•

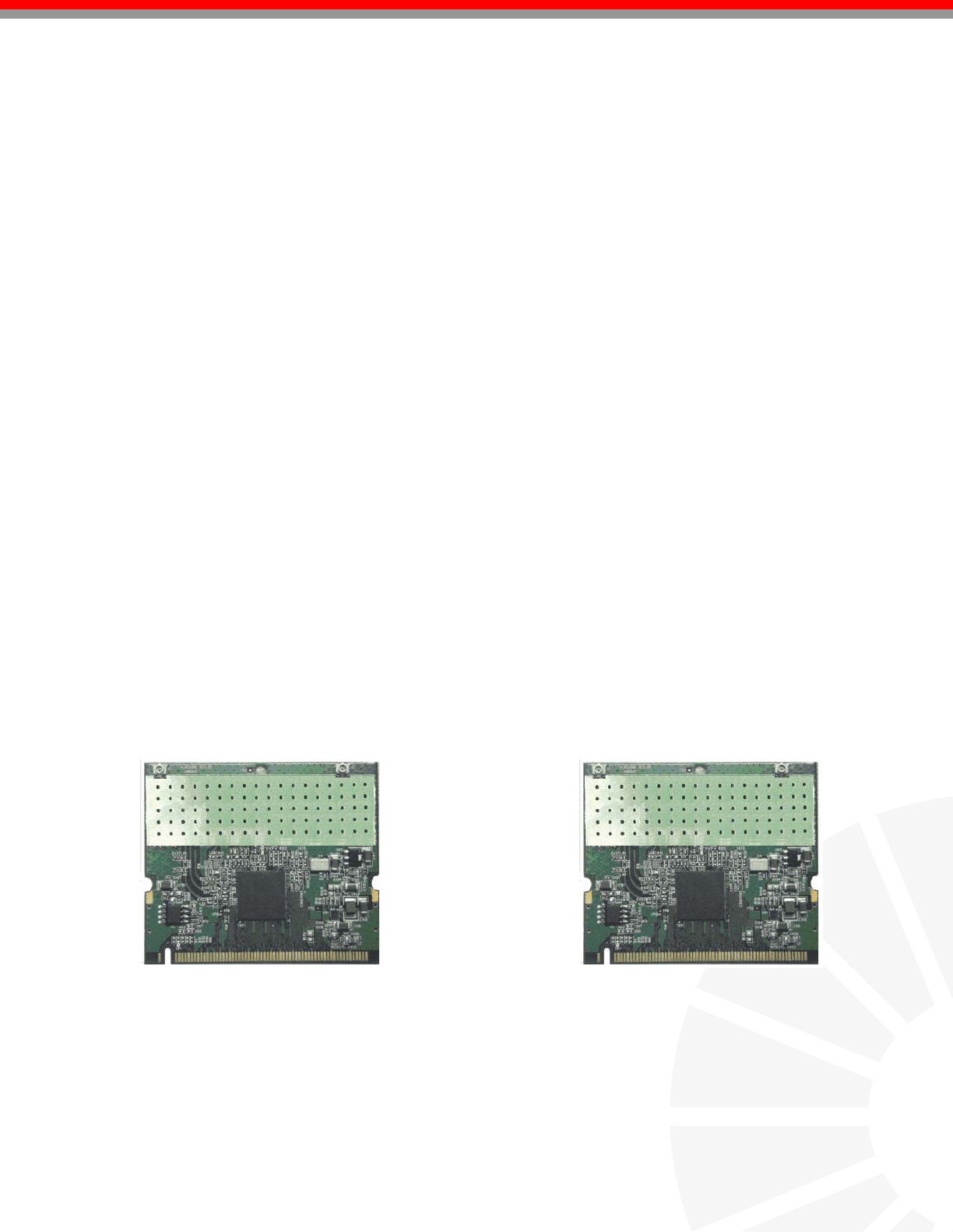

WLM200NX MINIPCI
2 x 2 802.11N MIMO mini-PCI Modules
Technical Specifications
Chipset AR9220
Host Interface PCI Interface v2.3 (Type III-B Mini PCI form factor)
Operating
Voltage 3.3 VDC
Power
Consumption 2.4W
Antenna
Connector 2 x U.FL Antenna Connector
IEEE 802.11a : 54Mbps 48Mbps 36Mbps 24Mbps 18Mbps 12Mbps 9Mbps 6Mbps
IEEE 802.11b : 11Mbps 5.5Mbps 2Mbps 1Mbps
54Mbps 48Mbps 36Mbps 24Mbps 18Mbps 12Mbps 9Mbps 6Mbps
automatically
IEEE 802.11g : Fallback to 5.5Mbps, 2Mbps, 1Mbps
1Nss: 65Mbps @ 800GI, 72.2Mbps @ 400GI (Max.) 20MHZ 2Nss: 130Mbps @ 800GI, 144.4Mbps @ 400GI (Max.)
1Nss: 135Mbps @ 800GI, 150Mbps @ 400GI (Max.)
Data Rate
IEEE 802.11n : 40MHz 2Nss: 270Mbps @ 800GI, 300Mbps @ 400GI (Max.)
Modulation
Techniques OFMD: BPSK, QPSK, 16 QAM, 64QAM
DSSS: DBPSK, DQPSK, CCK
Security 64/128-bit WEP, TKIP, AES, IEEE802.1x authentication
Certificate FCC, CE
ROHS
Compliance Yes
Environment
Specifications Operating: -20ºC to 70ºC
Storage: -65ºC to 100º
Humidity 5% to 95% (non-condensing)
Dimension 59.6 x 51 x 3 mm
WLM200NX MIMO MINIPCI CARD RADIO
TX SPECIFICATIONS TX SPECIFICATIONS
DataRate TX Power Tolerance DataRate TX Power Tolerance
6-24Mbps 18dBm ±2dB 1Mbps 20dBm ±2dB
36Mbps 18dBm ±2dB 2Mbps 20dBm ±2dB
48Mbps 17dBm ±2dB 5.5Mbps 20dBm ±2dB
802.11a
54Mbps 16dBm ±2dB 802.11b
11Mbps 20dBm ±2dB
6-24Mbps 20dBm ±2dB HT20 @800GI(400GI): +16 ~ +20dBm
36Mbps 19.5dBm ±2dB 2.4GHz HT40 @800GI(400GI): +14 ~ +18dBm
48Mbps 18.5dBm ±2dB 5GHz HT20 @800GI(400GI): +10 ~ +18dBm
802.11g
54Mbps 17dBm ±2dB 802.11n
RX SPECIFICATIONS（802.11b）
Data Rate Sensitivity (Typical/Maximum 2Rx) Tolerance
1M -96/-92Bm ±2dB
5.5M -94/-90dBm ±2dB
802.11b 11M -91/-87dBm ±2dB
RX SPECIFICATIONS(802.11a) RX SPECIFICATIONS（802.11g）
Data Rate Sensitivity
(Typical/Maximum 2Rx) Tolerance Data Rate Sensitivity
(Typical/Maximum 2Rx) Tolerance
6M -95/-91dBm ±2dB 6M -96/-92dBm ±2dB
9M -95/-91dBm ±2dB 9M -96/-92dBm ±2dB
12M -95/-91dBm ±2dB 12M -96/-92dBm ±2dB
18M -94/-90dBm ±2dB 18M -95/-91dBm ±2dB
24M -90/-86dBm ±2dB 24M -92/-88dBm ±2dB
36M -87/-83dBm ±2dB 36M -89/-85dBm ±2dB
48M -83/-79dBm ±2dB 48M -85/-81dBm ±2dB
802.11a
54M -82/-78dBm ±2dB
802.11g
54M -83/-79dBm ±2dB
MCS0 -95/-91dBm ±2dB MCS0 -96/-92dBm ±2dB
MCS1 -94/-90dBm ±2dB MCS1 -95/-91dBm ±2dB
MCS2 -92/-88dBm ±2dB MCS2 -93/-89dBm ±2dB
MCS3 -88/-84dBm ±2dB MCS3 -90/-86dBm ±2dB
MCS4 -85/-81dBm ±2dB MCS4 -87/-81dBm ±2dB
MCS5 -81/-77dBm ±2dB MCS5 -83/-76dBm ±2dB
MCS6 -80/-76dBm ±2dB MCS6 -81/-76dBm ±2dB
MCS7 -77/-73dBm ±2dB MCS7 -79/-73dBm ±2dB
MCS8 -94/-90dBm ±2dB MCS8 -95/-91dBm ±2dB
MCS9 -92/-87dBm ±2dB MCS9 -93/-89dBm ±2dB
MCS10 -89/-85dBm ±2dB MCS10 -90/-86dBm ±2dB
MCS11 -86/-82dBm ±2dB MCS11 -87/-83dBm ±2dB
MCS12 -83/-79dBm ±2dB MCS12 -84/-80dBm ±2dB
MCS13 -78/-74dBm ±2dB MCS13 -79/-75dBm ±2dB
MCS14 -77/-73dBm ±2dB MCS14 -77/-73dBm ±2dB
802.11
a/n
HT20
MCS15 -74/-69dBm ±2dB
802.11
b/g/n
HT20
MCS15 -75/-71dBm ±2dB
MCS0 -91/-87dBm ±2dB MCS0 -90/-86dBm ±2dB
MCS1 -90/-86dBm ±2dB MCS1 -90/-86dBm ±2dB
MCS2 -88/-84dBm ±2dB MCS2 -89/-85dBm ±2dB
MCS3 -85/-81dBm ±2dB MCS3 -87/-82dBm ±2dB
MCS4 -82/-78dBm ±2dB MCS4 -84/-79dBm ±2dB
MCS5 -78/-74dBm ±2dB MCS5 -79/-75dBm ±2dB
MCS6 -77/-73dBm ±2dB MCS6 -78/-74dBm ±2dB
MCS7 -74/-70dBm ±2dB MCS7 -75/-71dBm ±2dB
MCS8 -91/-87dBm ±2dB MCS8 -90/-86dBm ±2dB
MCS9 -88/-84dBm ±2dB MCS9 -89/-85dBm ±2dB
MCS10 -86/-82dBm ±2dB MCS10 -87/-83dBm ±2dB
MCS11 -83/-79dBm ±2dB MCS11 -84/-80dBm ±2dB
MCS12 -80/-76dBm ±2dB MCS12 -81/-77dBm ±2dB
MCS13 -75/-71dBm ±2dB MCS13 -76/-72dBm ±2dB
MCS14 -73/-69dBm ±2dB MCS14 -74/-68dBm ±2dB
802.11
a/n
HT40
MCS15 -70/-66dBm ±2dB
802.11
b/g/n
HT40
MCS15 -71/-67dBm ±2dB
DRIVER INFORMATION
Driver Linux Madwifi, WindowsXP , Windows 2000,Windwos Vista
ORDERING CONFIGURATIONS①
CODES SPEED Carton Dimension
WLM200NX 6AA1100 Up to 300 Mbps
physical data rates
WLM200NX 6AA1300 Up to 300 Mbps
physical data rates
For 50pcs (pcs/ctn), 0.40m * 0.22m * 0.085m / 0.006 = 1.5KG
For 250pc (pcs/ctn), 0.45m * 0.45m * 0.24m / 0.006 = 8.1KG
c Configurations are subjected to change without notice
COMPLIANCE INFORMATION
FCC NOTICE:
This device has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This device generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this device does cause
harmful interference to radio or television reception, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Connect the computer into an outlet on a circuit different from that to which the receiver is connected.
• Increase the separation between the computer and receiver.
• Consult the dealer or an experienced radio/TV technician for help.
This module is intended for OEM integrator. The OEM integrator is still responsible for
the FCC compliance requirement of the end product which integrates this
module.
30cm minimum distance has to be able to be maintained between the antenna and
the users for the host this module is integrated into. Under such configuration, the
FCC radiation exposure limits set forth for an population/uncontrolled environment
can be satisfied.
Any changes or modifications not expressly approved by the manufacturer
could void the user's authority to operate this equipment.
USERS MANUAL OF THE END PRODUCT:
In the users manual of the end product, the end user has to be informed to keep
at least 30cm separation with the antenna while this end product is installed and
operated. The end user has to be informed that the FCC radio-frequency
exposure guidelines for an uncontrolled environment can be satisfied. The end
user has to also be informed that any changes or modifications not expressly
approved by the manufacturer could void the user's authority to operate this
equipment. If the size of the end product is smaller than 8x10cm, then additional
FCC part 15.19 statement is required to be available in the users manual: This
device complies with Part 15 of FCC rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference and (2) this device must accept
any interference received, including interference that may cause undesired operation.
LABEL OF THE END PRODUCT:
The final end product must be labeled in a visible area with the following
" Contains TX FCC ID: TK4-09-MMNX ". If the size of the end product is larger than
8x10cm, then the following FCC part 15.19 statement has to also
be available on the label: This device complies with Part 15 of FCC rules. Operation
is subject to the following two conditions: (1) this device may not cause harmful
interference and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC15.19
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate this equipment.
RF exposure warning
The equipment complies with FCC RF exposure limits set forth for an uncontrolled
environment.
The equipment must not be co-located or operating in conjunction with any other antenna or
transmitter.
IMPORTANT NOTE REGARDING ANTENNA USE
Antenna Use
2x2 Operation 1x1 Operation
Chain1 Chain2 Chain1

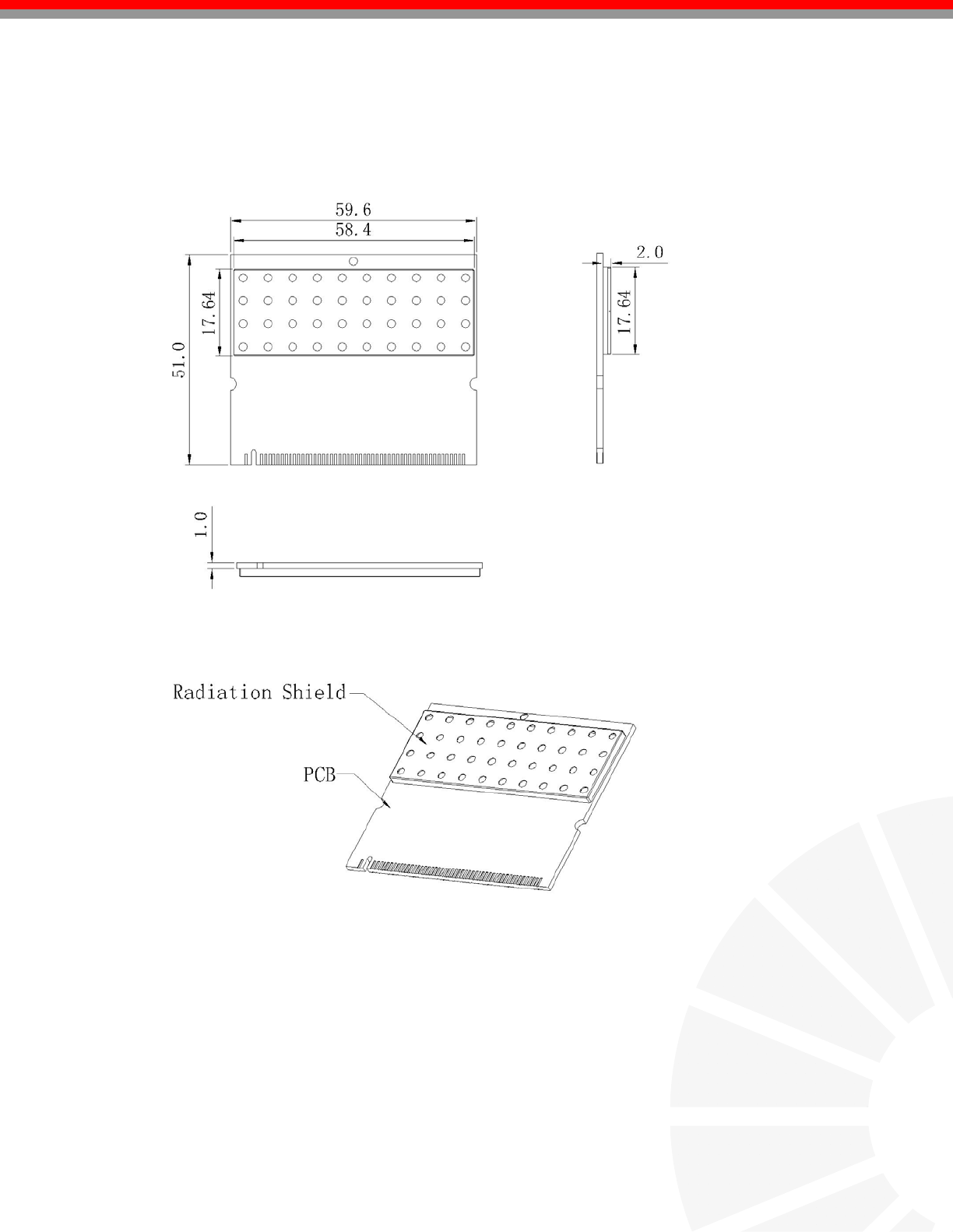

DIMENSIONS DRAWING
WLM FAMILY SERIES OF MINIPCI b / g (2.4GHz) a / b / g (2.4/5GHz)
MODEL WLM 54G-20dBM WLM 54G-23dBm WLM 54G-26dBm WLM 54G – 28dBm WLM200N2 WLM 54AG – 20dBm WLM 54 AG – 23dBm WLM 54A – 26dBm
CHIPSET AR 2413/2414
(AR5005G/GS) AR 2413/2414
(AR5005G/GS) AR 2413/2414
(AR5005G/GS) AR 2413/2414
(AR5005G/GS) AR9223 AR 5413/5414
(AR5006X/XS) AR 5413/5414
(AR5006X/XS) AR5414(AR5006XS)
SPEED UP TO 54/108Mbps UP TO 54/108Mbps UP TO 54/108Mbps UP TO 54/108Mbps UP TO 300Mbps
physical data rates UP TO 54/108Mbps UP TO 54/108Mbps UP TO 108Mbps
OUTPUT POWER (Average)
- 23dBm@6-24Mbps 26dBm@6-24Mbps
17dBm@36Mbps 21dBm@36Mbps 24dBm@36Mbps
16dBm@48Mbps 19dBm@48Mbps 22Bm@48Mbps
802.11a - - - - -
13dBm@54Mbps 17dBm@54Mbps 20dBm@54Mbps
802.11b 20dBm@1-11Mbps 23dBm@1-11Mbps 26dBm@1-11Mbps 28dBm@1-11Mbps 20dBm@1-11Mbps 20dBm@1-11Mbps 23dBm@1-11Mbps
20dBm@6-24Mbps 23dBm@6-24Mbps 26dBm@6-24Mbps 28dBm@6-24Mbps 20dBm@6-24Mbps 20dBm@6-24Mbps 23dBm@6-24Mbps
19dBm@36Mbps 22dBm@36Mbps 25dBm@36Mbps 26dBm@36Mbps 19.5dBm@36Mbps 18dBm@36Mbps 21dBm@36Mbps
17dBm@48Mbps 19dBm@48Mbps 24dBm@48Mbps 25dBm@48Mbps 18.5dBm@48Mbps 17dBm@48Mbps 19dBm@48Mbps
802.11g
16dBm@54Mbps 17dBm@54Mbps 22dBm@54Mbps 23dBm@54Mbps 17dBm@54Mbps 15dBm@54Mbps 17dBm@54Mbps
Modulation
Techniques OFDM and DSSS OFDM: BPSK, QPSK, 16QAM, 64QAM
DSSS: DBPSK, DQPSK, CCK
Interface PCI Interface v2.3 (Type III-B Mini PCI Form Factor)
Receiver
Sensitivity 802.11g < -90dBm @ 6Mbps 802.11b < -92dBm@ 6Mbps 802.11a < -90dBm @ 6Mbps
< -70dBm @ 54Mbps < -87dBm @11Mbps < -70dBm @ 54Mbps
Operating
Channels IEEE 802.11g:
11 Channel (US & Canada)
13 Channel (Europe)
14 Channel (Japan)
IEEE 802.11a:
13 Channel (US & Canada)
19 Channel (Europe)
10 Channel (Japan)
Power 3.3VDC
Operating
Temperature -20ºC to 70ºC
Dimensions 6.0cm x 4.5cm
High Power Cards (26dBm/30dBm) has bigger dimensions.
Compex Systems Pte Ltd Compex (CHANGSHU) CO. Ltd Compex (Suzhou) CO. Ltd
135 Joo Seng Road, PM Industrial
Building #08-01,Singapore 368363
Tel: (65) 6288 8220
Fax: (65) 6280-9947
Block 8, Haicheng Industrial Square
Changshu Economic Development Zone,
Jiangsu Province, China 215513
Tel: (86)-512-52297891
Fax: (86)-512-52698858
No. 12, ChuangTou Industrial Square,
LouFeng North, Suzhou Industrial Park,
Suzhou City, Jiangsu Province, China
Tel: (86)-512-62950031
Fax: (86)-512-62950032
Copyright © 2008 Compex Systems. All rights reserved. COMPEX and the COMPEX logo, are registered trademarks of COMPEX Inc. While every effort
is made to ensure the information is accurate, Compex does not accept liability for any errors or mistakes that may arise. All specification is subject to
change without notice. Datasheet Version: V 2.0.6
