User Manual

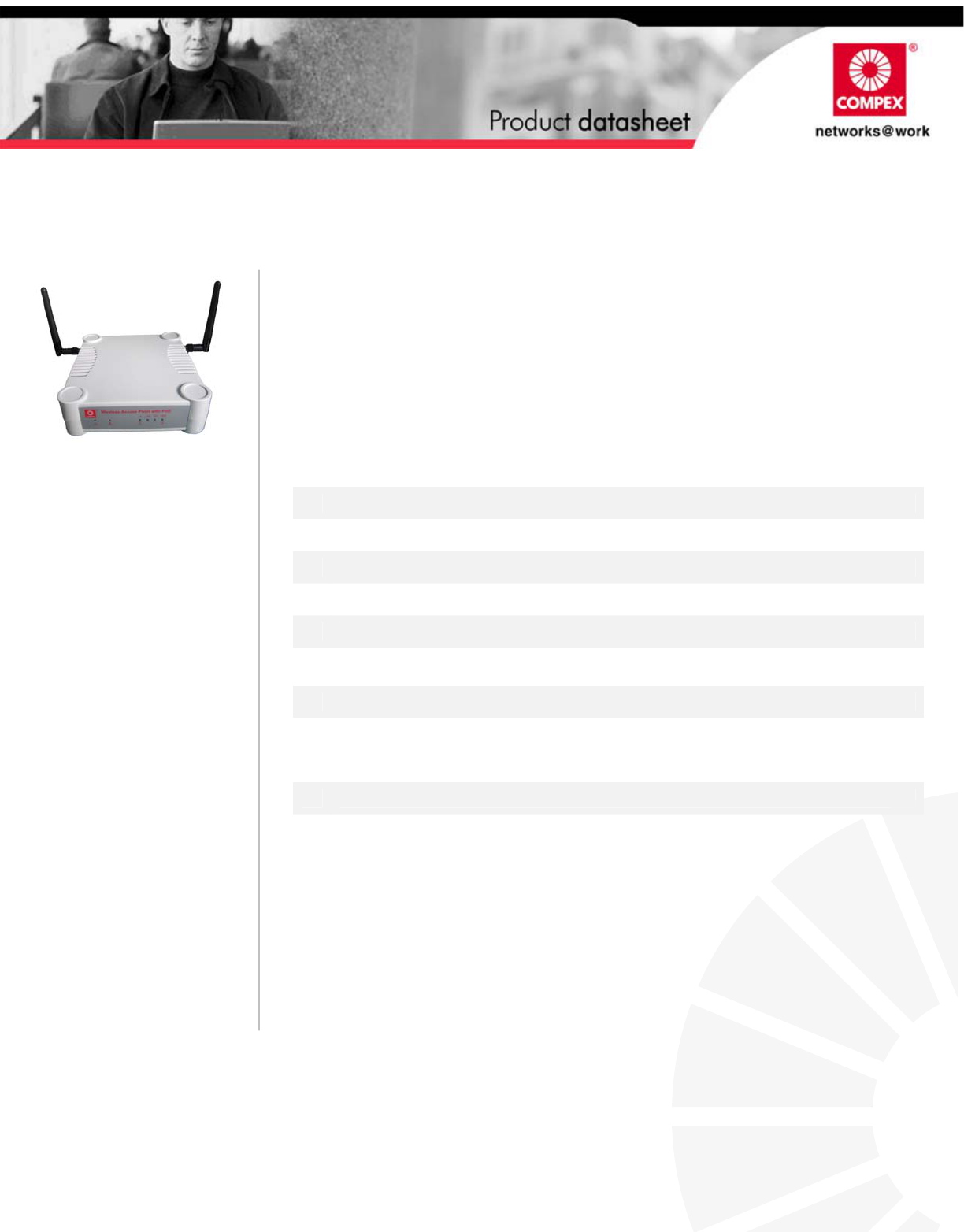

product datasheet
Features
• Atheros XR™ eXtended Range technology
• MIPS 24K-family 680MHz network processor
• IEEE 802.11n compliant and backward compatible with 802.11b/g
• Dual-band MIMO 2 x 2 spatial multiplexing technique
• Supports up to 300Mbps physical data rates
• Delivers 10 times the throughput and nearly twice the range of legacy 802.11g
network
• Flexible, integrated single or dual radio options
• Supports IEEE802.11i , IEEE802.1x authentication
• Supports 802.3af and Passive Power-over-Ethernet (PoE)
• 2 x RP-SMA Connector and Antenna
• Surge arrestor support
Wireless Indoor Access Point
MMC543AHVN2-26
MMC2N28AHV TECHNICAL SPECIFICATIONS
0B0BHARDWARE INFORMATION
Processor Atheros AR7161 (680MHz) Network Processor
System Memory 32MB (max 64MB optional) DDR SDRAM
NOR Flash 8MB (max 16MB optional)
LAN Interface 1 x 10/100 BASE-T Ethernet Port
Antenna 2 x 2dBi detachable SMA antenna
Power Consumption 7.5Watts
Radio Option② MIMO MINIPCI CARD RADIO
802.11b 802.11g
1Mbps 29dBm
6Mbps 29dBm 29dBm
54Mbps 24dBm
802.11n/g
HT20 HT40
MS0 26dBm 25dBm
MS3 26dBm 25dBm
Tx
Specifications
MS7 23dBm 23dBm
802.11b 802.11g
1Mbps -94dBm
6Mbps -94dBm -94dBm
54Mbps -74dBm
802.11n/g
HT20 HT40
MS0 -92dBm -90dBm
MS3 -86dBm -82dBm
Rx
Specifications
MS7 -73dBm -71dBm
Power Supply 24V to 48V DC, power adapter and injector included
Power method Passive PoE(range 24V-48V DC), 802.3af PoE(48V-56V) or DC Jack
RoHS Compliant Yes
Weight 260 grams
Humidity Operating: 5% to 95% (non-condensing)
Storage: Max.90% (non-condensing)
Temperature
Range Operating:-20ºC to 70ºC
Storage: -40ºC to 90ºC
Dimension 145mm x 132mm x 41mm (H x W x D)
FIRMWARE SPECIFICATIONS
Multiple SSID
• Supports up to 4 virtual access points (VAP) per radio, with unique BSSID. Each VAP can configure their own
security and differentiated services.
Long Range Support
• Suitable for long range wireless deployment with Proprietary Long Distance Algorithm of ACK and CTS
timeout adjustment support.
• Provides recommended values for the parameters as well as allow for manual fine-tuning for optimal
performance.
Signal Strength Indicators
• LEDs are adjustable to display 4 different level signal strength
Variable Spectrum Bandwidth Support
• Options to select operation over 5MHz,20MHz and 40MHz spectrum bandwidth
FIRMWARE INFORMATION
Operating Modes
• Access Points
• Station
• Station WDS
• Repeater WDS
• Wireless Adapter
• Station + Router
• Access Point + Router
WAN Type • Static IP
• Dynamic IP
• PPPoE
Device Management • HTTP / HTTPs Web Server
• SNMP V2c
• Telnet / Secure Shell (SSH)
Data Capture & Notification • Event Login (Syslog)
• Detailed Statistics per Client
Virtual Access Point (VAP) • Up to 4 SSIDs with unique MAC Addresses (BSSID)
Advanced Features
• Built-in DHCP server
• Transmission Power Control (One dB per step)
• Closed System (Suppress SSID)
• Transmission Rate Control
• Spanning Tree Protocol
OTHER PROMINENT FEATURES DESCRIPTION
Long Range Parameter Settings Distance adjustment for long range transmission
CPE Point-to-Point (PtP) Ideal as CPE device connecting PtP with a central AP
Power with PoE Device power from PoE through ethernet cable provides flexible
installation.
SNMP Trap SNMP Traps enable an agent to notify the management station of
significant events by way of an unsolicited event.
Signal Strength LEDs Indicators 4 Step Progressive Bars. Each bar represents a progressive increase
in signal strength, with 4 bars representing maximum signal
DHCP Relay (Only in Gateway or Wireless
Routing Client Mode) Allows DHCP Clients on different subnets to get IP address from
central DHCP server.
Remote Upgrade of Firmware Allows user to upgrade their firmware through Telnet/SSH
RIP 1 / 2 (Only in Gateway or Wireless
Routing Client Mode) Routing Information Protocol Version 1 / 2
Tag and Untag VLAN/VLAN Pass-through a. Tag VLAN Pass-through mode in AP/Transparent Client link
b. Wireless untag Vlan to Ethernet Tag Vlan mode
c. Wireless tag Vlan to Ethernet Tag Vlan mode
d.
Customizable Optionse
CUSTOMIZABLE FEATURES DESCRIPTION
Web Page Customization Customize webpage for OEM customers.
Ordering Configurations②
Item Code Version Radio Output Carton Dimension
MMC543AHV 6D07GFCUN2-26 COMPEX US version 28dBm
MMC543AHV 6D07GFCEN2-26 COMPEX EU version 28dBm
MMC543AHV 6D07GFOUN2-26 OEM US version 28dBm
MMC543AHV 6D07GFOEN2-26 OEM EU version 28dBm
MMC543AHV 6D07GFWUN2-26 Open-WRT US version 28dBm
MMC543AHV 6D07GFWEN2-26 Open-WRT EU version 28dBm
For 10 pcs/carton,
0.78m*0.38m*0.25m
/0.006=12.35KG
c For OEM customization options, please contact sales person.
② Configurations are subject to change without notice
Please contact Compex sales representatives for other available configurations
Compliance Information
FCC Compliance Statement:
This device complies with Part 15 of the FCC Rules . Operation is subject to the
following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including
interference that may cause undesired operation. This device must accept
any interference received, including interference that may cause
undesired operation. Product that is a radio transmitter is labeled with FCC ID.
FCC Caution:
(1) Exposure to Radio Frequency Radiation. This equipment must be
installed and operated in accordance with provided instructions and the
antenna(s) used for this transmitter must be installed to provide a
separation distance of at least 20 cm from all persons and must not be
collocated or operating in conjunction with any other antenna or transmitter.
End-users and installers must be provided with antenna installation
instructions and transmitter operating conditions for satisfying RF exposure
compliance.
(2) Any changes or modifications not expressly approved by the grantee
of this device could void the user's authority to operate the equipment.
(3) This Transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
(4) Changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user authority to operate
the equipment.
(5) Outdoor Operations in the 5.15~5.25GHz band is prohibited.
IMPORTANT NOTE: In the event that these conditions can not be met (for
example certain laptop configurations or co-location with another
transmitter), then the FCC authorization is no longer considered valid and
the FCC ID can not be used on the final product. In these circumstances,
the OEM integrator will be responsible for re-evaluating the end product
(including the transmitter) and obtaining a separate FCC authorization.
WARNING: This AP does not support ad-hoc mode Function
FCC ID: TK4MMC2N28
Compex Systems Pte Ltd Compex (Suzhou) Co Ltd
135 Joo Seng Road, PM Industrial Building #08-01,
Singapore 368363
Tel: (65) 6286 2086
Fax: (65) 6280-9947
Email: sales@compex.com.sg
NO.12, ChuangTou Industrial Square,
LouFeng North, Suzhou Industrial Park,
Suzhou, Jiangsu Province, China 215122
Tel: (86)-512-62950050
Fax: (86)-512-62950026
Copyright © 2011 Compex Systems. All rights reserved. COMPEX and the COMPEX logo, are registered trademarks of COMPEX Inc.
Atheros and other trademarks are properties of their respective owners.
While every effort is made to ensure the information accurate, Compex does not accept liability for any errors or mistakes that may
arise. All specification is subject to change without notice. DS V 1.0.7 Wiky 111216
