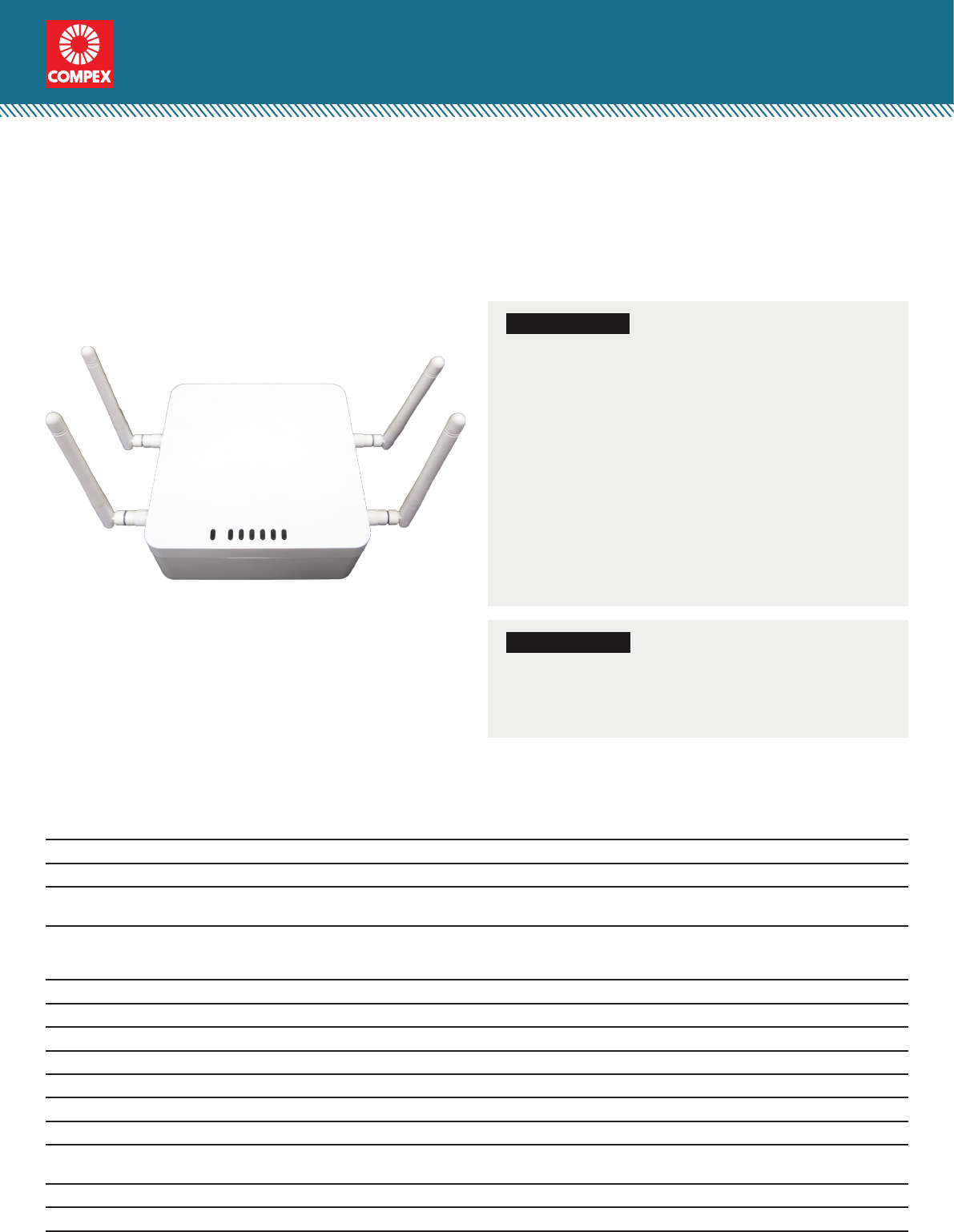

Compex Systems MMN344VX Wireless Access Point User Manual MMN344LV A rev3
Compex Systems Pte Ltd Wireless Access Point MMN344LV A rev3
MMN344LV-A_User Manual rev3
indoor access point
Last Updated: 30/03/16
Specications
Chipset Board CPU: Qualcomm Atheros AR9344 560MHz (2.4GHz)
Radio Card: Qualcomm Atheros QCA9882 (5GHz)
System Memory 128MB DDR2
NOR Flash 16MB
Antenna 2.4GHz: 2x External 2dBi Rubber Duck Omni antenna
5GHz: 2x External 2dBi Rubber Duck Omni antenna
Interface 2x Gigabit Ethernet Port (Auto MDI-X)
1x JTAG 14 Pin Connector1
1x Serial Port 4 Pin Connector1
Reset Button Yes
LED Indicators: Power LED, LAN Activity, 4x Signal Indicator
DC Power
Power Consumption 10.5W (Max)
Operating System Compex OS
RoHS Compliance Yes
Environmental Temperature: Operating: -20ºC to 70ºC, Storage: -40ºC to 90ºC
Humidity (non-condensing): Operating: 5% to 95%, Storage: Max. 90%
Dimensions 129 x 129 x 51 mm
Other Features Surge Suppressor, Watchdog Timer
1. These features can only be accessed on the Embedded Board.
KEY FEATURES
• Qualcomm Atheros 560MHz Processor AR9344
• IEEE 802.11ac/a/b/g/n compliant
• 2.4GHz and 5GHz concurrent radios
• 2.4GHz 24dBm and 5GHz 24dBm aggregate power
• Data rates of up to 867Mbps in 802.11ac 80MHz channels
• Enhanced sensitivity performance
• 2x External 2dBi 2.4GHz Rubber Duck Omni Antennas
• 2x External 2dBi 5GHz Rubber Duck Omni Antennas
• Antenna Alignment LEDs
Support wall mounting
APPLICATIONS
• Dual Band concurrent 802.11ac + 802.11b/g/n Access Point
• Single Band 802.11ac/a or 802.11b/g/n Access Point
•
Dual Band 2x2 MIMO 802.11ac/a/b/g/n Versatile Indoor Access Point
560MHz CPU / 2.4GHz 300Mbps / 5GHz 867Mbps
MIMO New Series
1x DC Jack Connector: 12-24V (LV version)
•
Model: MMN344LV-A
indoor access point
2
Compex Systems Pte Ltd | www.compex.com.sg | (+65) 6286 2086 | sales@compex.com.sg | Last Updated: 30/03/16 WH SY HB
Copyright © Compex Systems. All rights reserved. COMPEX and the COMPEX logo, are registered trademarks of Compex Inc.
Atheros and other trademarks are properties of their respective owners. While every effort is made to ensure the information is accurate,
Compex does not accept liability for any errors or mistakes that may arise. All specifications are subject to change without notice.
RF Performance Table
On-board Radio (WPJ344)
Data Rate TX Power Tolerance
2.4GHz
802.11b
1Mbps 20dBm ±2dB
2Mbps 20dBm ±2dB
5.5Mbps 20dBm ±2dB
11Mbps 20dBm ±2dB
2.4GHz
802.11g
6Mbps 13dBm ±2dB
9Mbps 13dBm ±2dB
12Mbps 13dBm ±2dB
18Mbps 13dBm ±2dB
24Mbps 13dBm ±2dB
36Mbps 12dBm ±2dB
48Mbps 10dBm ±2dB
54Mbps 9dBm ±2dB
2.4GHz
802.11n
HT20
MCS 0 13dBm ±2dB
MCS 1 13dBm ±2dB
MCS 2 12dBm ±2dB
MCS 3 12dBm ±2dB
MCS 4 11dBm ±2dB
MCS 5 10dBm ±2dB
MCS 6 10dBm ±2dB
MCS 7 09dBm ±2dB
2.4GHz
802.11n
HT40
MCS 0 13dBm ±2dB
MCS 1 13dBm ±2dB
MCS 2 12dBm ±2dB
MCS 3 12dBm ±2dB
MCS 4 11dBm ±2dB
MCS 5 10dBm ±2dB
MCS 6 10dBm ±2dB
MCS 7 10dBm ±2dB
Data Rate RX Specifications
Sensitivity Tolerance
2.4GHz
802.11b
1Mbps -95dBm ±2dB
2Mbps -94dBm ±2dB
5.5Mbps -92dBm ±2dB
11Mbps -90dBm ±2dB
2.4GHz
802.11g
6Mbps -94dBm ±2dB
9Mbps -93dBm ±2dB
12Mbps -93dBm ±2dB
18Mbps -90dBm ±2dB
24Mbps -90dBm ±2dB
36Mbps -85dBm ±2dB
48Mbps -81dBm ±2dB
54Mbps -79dBm ±2dB
2.4GHz
802.11n
HT20
MCS 0 -93dBm ±2dB
MCS 1 -91dBm ±2dB
MCS 2 -89dBm ±2dB
MCS 3 -84dBm ±2dB
MCS 4 -82dBm ±2dB
MCS 5 -79dBm ±2dB
MCS 6 -79dBm ±2dB
MCS 7 -75dBm ±2dB
2.4GHz
802.11n
HT40
MCS 0 -90dBm ±2dB
MCS 1 -87dBm ±2dB
MCS 2 -84dBm ±2dB
MCS 3 -83dBm ±2dB
MCS 4 -81dBm ±2dB
MCS 5 -79dBm ±2dB
MCS 6 -78dBm ±2dB
MCS 7 -74dBm ±2dB
indoor access point
3
Compex Systems Pte Ltd | www.compex.com.sg | (+65) 6286 2086 | sales@compex.com.sg | Last Updated: 30/03/16 WH SY HB
Copyright © Compex Systems. All rights reserved. COMPEX and the COMPEX logo, are registered trademarks of Compex Inc.
Atheros and other trademarks are properties of their respective owners. While every effort is made to ensure the information is accurate,
Compex does not accept liability for any errors or mistakes that may arise. All specifications are subject to change without notice.
RF Performance Table
Wireless Module (WLE600VX)
Data Rate TX Power Tolerance
5GHz
802.11a
6-24Mbps 19dBm ±2dB
36Mbps 19dBm ±2dB
48Mbps 18dBm ±2dB
54Mbps ±2dB
5GHz
802.11n/ac
HT20
MCS 0 ±2dB
MCS 1 ±2dB
MCS 2 ±2dB
MCS 3 ±2dB
MCS 4 ±2dB
MCS 5 17dBm ±2dB
MCS 6 16dBm ±2dB
MCS 7 ±2dB
MCS 8 ±2dB
5GHz
802.11n/ac
HT40
MCS 0 ±2dB
MCS 1 ±2dB
MCS 2 ±2dB
MCS 3 ±2dB
MCS 4 ±2dB
MCS 5 16dBm ±2dB
MCS 6 15dBm ±2dB
MCS 7 ±2dB
MCS 8 ±2dB
MCS 9 ±2dB
5GHz
802.11ac
HT80
MCS 0 ±2dB
MCS 1 ±2dB
MCS 2 ±2dB
MCS 3 ±2dB
MCS 4 ±2dB
MCS 5 16dBm ±2dB
MCS 6 15dBm ±2dB
MCS 7 ±2dB
MCS 8 ±2dB
MCS 9 ±2dB
Data Rate RX Specifications
Sensitivity Tolerance
5GHz
802.11a
6Mbps -94dBm ±2dB
36Mbps -86dBm ±2dB
48Mbps -82dBm ±2dB
54Mbps -80dBm ±2dB
5GHz
802.11n/ac
HT20
MCS 0 -93dBm ±2dB
MCS 1 -91dBm ±2dB
MCS 2 -90dBm ±2dB
MCS 3 -85dBm ±2dB
MCS 4 -82dBm ±2dB
MCS 5 -78dBm ±2dB
MCS 6 -77dBm ±2dB
MCS 7 -75dBm ±2dB
MCS 8 -73dBm ±2dB
5GHz
802.11n/ac
HT40
MCS 0 -93dBm ±2dB
MCS 1 -91dBm ±2dB
MCS 2 -90dBm ±2dB
MCS 3 -85dBm ±2dB
MCS 4 -82dBm ±2dB
MCS 5 -78dBm ±2dB
MCS 6 -77dBm ±2dB
MCS 7 -75dBm ±2dB
MCS 8 -73dBm ±2dB
MCS 9 -71dBm ±2dB
5GHz
802.11ac
HT80
MCS 0 -89dBm ±2dB
MCS 1 -88dBm ±2dB
MCS 2 -85dBm ±2dB
MCS 3 -81dBm ±2dB
MCS 4 -79dBm ±2dB
MCS 5 -75dBm ±2dB
MCS 6 -74dBm ±2dB
MCS 7 -72dBm ±2dB
MCS 8 -70dBm ±2dB
MCS 9 -68dBm ±2dB
16dBm
19dBm
18dBm
18dBm
14dBm
13dBm
18dBm
17dBm
17dBm
14dBm
13dBm
13dBm
18dBm
18dBm
18dBm
17dBm
17dBm
14dBm
13dBm
13dBm
22dBm
22dBm
21dBm
21dBm
indoor access point
4
Compex Systems Pte Ltd | www.compex.com.sg | (+65) 6286 2086 | sales@compex.com.sg | Last Updated: 30/03/16 WH SY HB
Copyright © Compex Systems. All rights reserved. COMPEX and the COMPEX logo, are registered trademarks of Compex Inc.
Atheros and other trademarks are properties of their respective owners. While every effort is made to ensure the information is accurate,
Compex does not accept liability for any errors or mistakes that may arise. All specifications are subject to change without notice.
RF Performance Information
Scan Surface Direct Far Field
No. of Theta 361
No. of Phi: 2
Theta (2-way) 360 degree
PSI (1/2 way) 180 degree
Frequency 2.400 - 5.500 GHz
Polarization Linear
AUT Probe Separation 70.87
Reference Power -51.56 dB
Far Field Patterns for 2.400 GHz Frequency
Far Field Patterns for 5.500 GHz Frequency
indoor access point
5
Compex Systems Pte Ltd | www.compex.com.sg | (+65) 6286 2086 | sales@compex.com.sg | Last Updated: 30/03/16 WH SY HB
Copyright © Compex Systems. All rights reserved. COMPEX and the COMPEX logo, are registered trademarks of Compex Inc.
Atheros and other trademarks are properties of their respective owners. While every effort is made to ensure the information is accurate,
Compex does not accept liability for any errors or mistakes that may arise. All specifications are subject to change without notice.

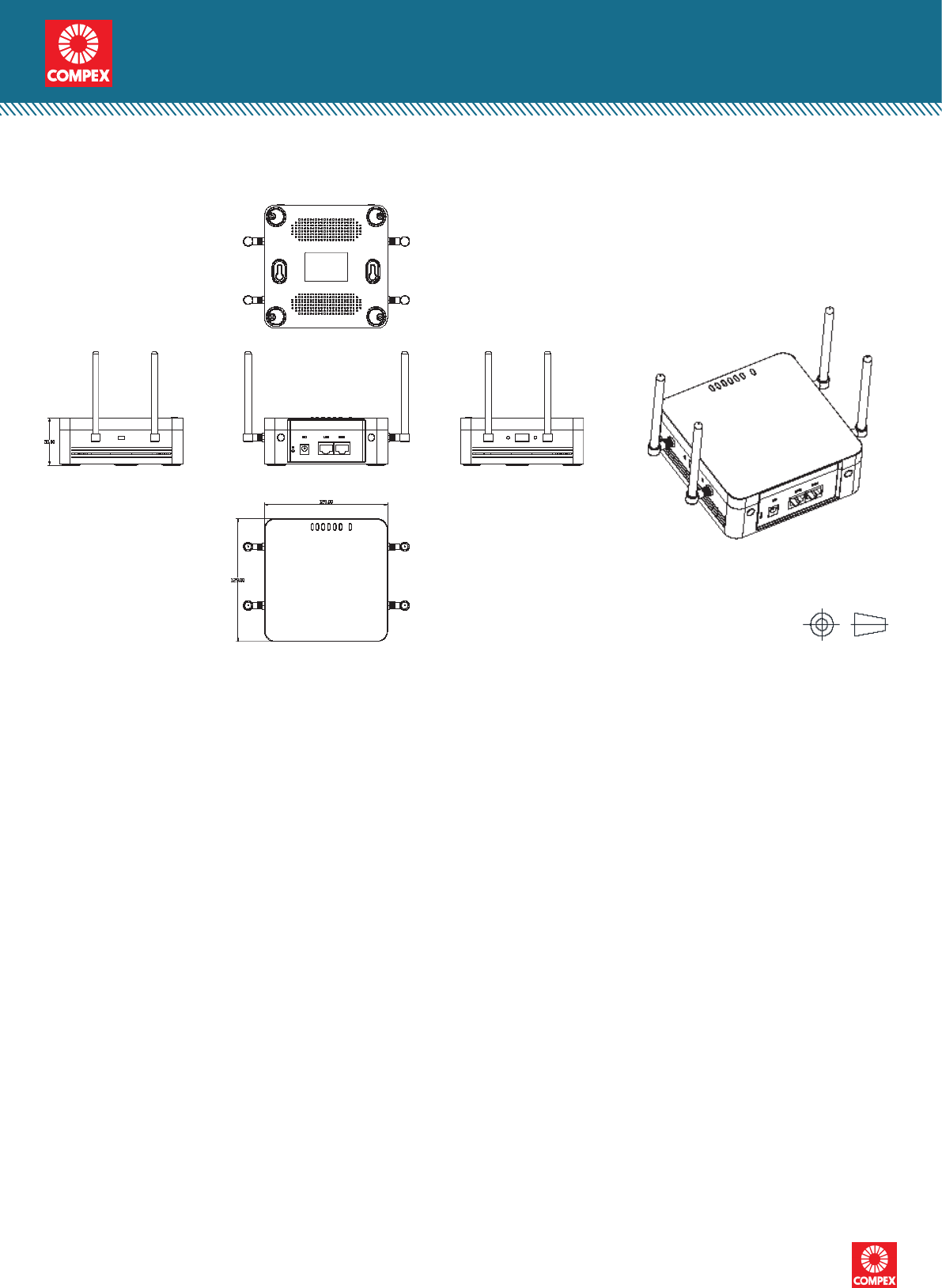

Dimensional Drawing
Federal Communications Commission (FCC) Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generate, uses and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate this equipment.
RF exposure warning
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used
for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must
not be collocated or operating in conjunction with any other antenna or transmitter.
