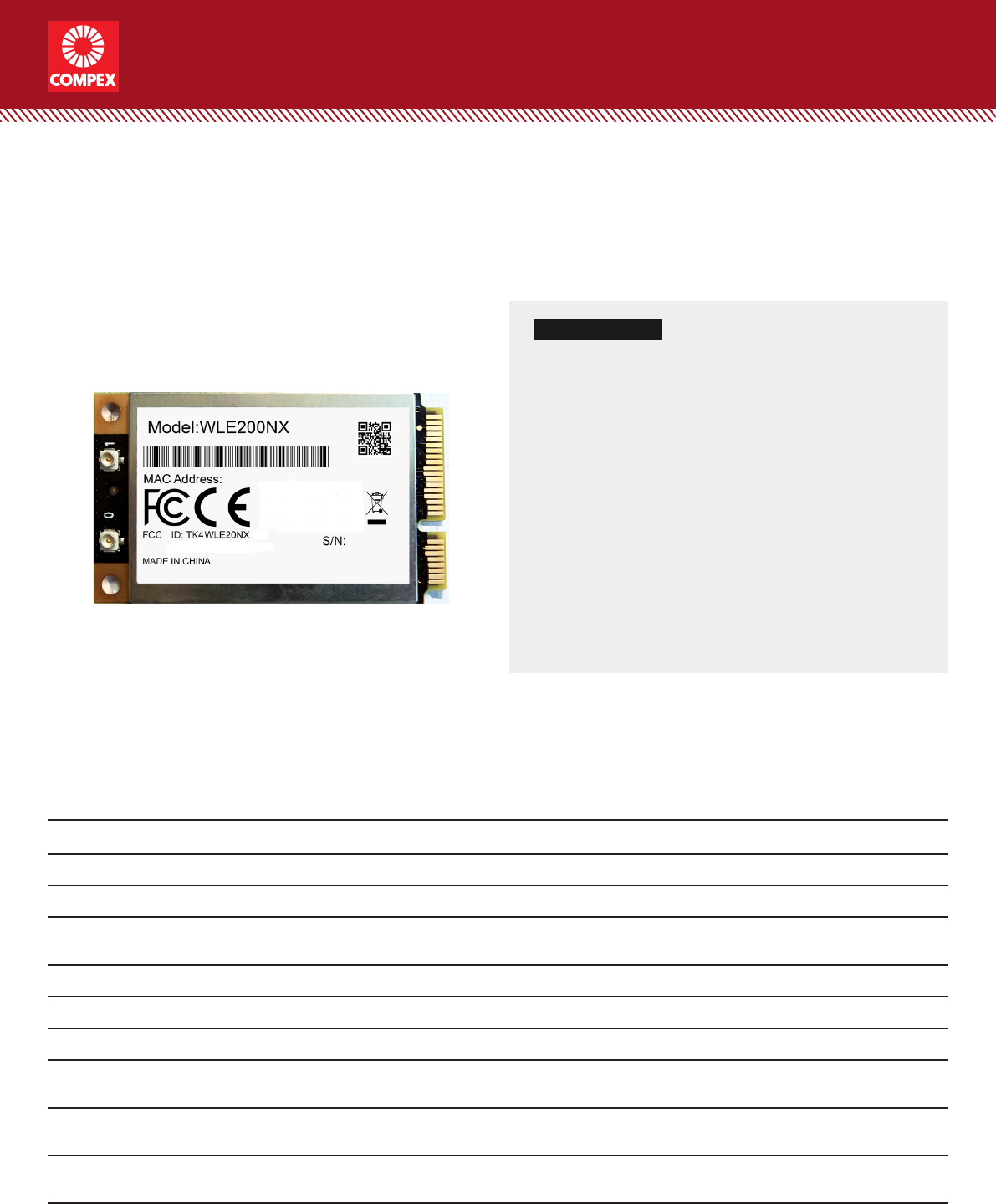

Compex Systems WLE200NX WIRELESS-ABGN 2X2 NETWORK MINIPCIE ADAPTER User Manual WLE200NX

Compex Systems Pte Ltd WIRELESS-ABGN 2X2 NETWORK MINIPCIE ADAPTER WLE200NX

WLE200NX-User Manual

wireless modules
Last Updated: 21/06/16
KEY FEATURES
• Qualcomm Atheros AR9280
• Atheros XB92 Reference Design
• Dual-band 2x2 MIMO spatial multiplexing technique
• 2.4GHz max 18dBm & 5GHz max 17dBm output power
(per chain)
• IEEE 802.11n compliant & backward compatible with
802.11b/g
• 2x2 MIMO Technology, up to 300Mbps
• Mini PCI Express 1.1 interface
• Supports WPA2 encryption (IEEE 802.11i) and 802.1X
authentication
• Supports Transmit Power Control (IEEE 802.11h)
• Dynamic Frequency Selection (DFS)
• Supports additional regulatory domains (IEEE802.11d)
Dual Band 2x2 MIMO 802.11n Mini PCIe Module
Designed for Dual Band Wireless Access Points
Specications
Chipset AR9280
Host Interface Mini PCI-Express 1.1 Standard
Operating Voltage 3.3V DC
Antenna Connector 2x U.FL
Frequency Range 2.4GHz: 2.412 ~ 2.484 GHz
5GHz: 5.150 ~ 5.875 GHz
Certification FCC & CE Certified, RoHS Compliant
Power Consumption 3.7W (Max)
Modulation Techniques OFDM: BPSK, QPSK, 16-QAM, 64-QAM
Temperature Range
(for WLE200NX)
Operating: -20ºC to 70ºC
Storage: -40ºC to 90ºC
Industrial Grade Temperature Range
(for WLE200NX-I)
Operating: -40ºC to 70ºC
Storage: -40ºC to 90ºC
Humidity Operating: 5% to 95% (non-condensing)
Storage: Max. 90% (non-condensing)
Dimensions (H x W x D) 50.95 x 30 x 3.2 mm
Model: WLE200NX / WLE200NX-I
wireless modules
2
Compex Systems Pte Ltd | www.compex.com.sg | (+65) 6286 2086 | sales@compex.com.sg | Last Updated: 21/06/16 WH SY HB
Copyright © Compex Systems. All rights reserved. COMPEX and the COMPEX logo, are registered trademarks of Compex Inc.
Atheros and other trademarks are properties of their respective owners. While every effort is made to ensure the information is accurate,
Compex does not accept liability for any errors or mistakes that may arise. All specifications are subject to change without notice.
RF Performance Table
Data Rate TX Power
(per chain)
TX Power
(2 chains) Tolerance
2.4GHz
802.11b
1Mbps 18dBm 21dBm ±2dB
2Mbps 18dBm 21dBm ±2dB
5.5Mbps 18dBm 21dBm ±2dB
11Mbps 18dBm 21dBm ±2dB
2.4GHz
802.11g
6Mbps 17dBm 20dBm ±2dB
9Mbps 17dBm 20dBm ±2dB
12Mbps 17dBm 20dBm ±2dB
18Mbps 17dBm 20dBm ±2dB
24Mbps 17dBm 20dBm ±2dB
36Mbps 17dBm 20dBm ±2dB
48Mbps 16dBm 19dBm ±2dB
54Mbps 15dBm 18dBm ±2dB
2.4GHz
802.11n
HT20
MCS 0 17dBm 20dBm ±2dB
MCS 1 17dBm 20dBm ±2dB
MCS 2 17dBm 20dBm ±2dB
MCS 3 17dBm 20dBm ±2dB
MCS 4 17dBm 20dBm ±2dB
MCS 5 17dBm 20dBm ±2dB
MCS 6 14dBm 17dBm ±2dB
MCS 7 10dBm 13dBm ±2dB
2.4GHz
802.11n
HT40
MCS 0 17dBm 20dBm ±2dB
MCS 1 17dBm 20dBm ±2dB
MCS 2 17dBm 20dBm ±2dB
MCS 3 17dBm 20dBm ±2dB
MCS 4 17dBm 20dBm ±2dB
MCS 5 17dBm 20dBm ±2dB
MCS 6 14dBm 17dBm ±2dB
MCS 7 9dBm 12dBm ±2dB
5GHz
802.11a
6Mbps 17dBm 20dBm ±2dB
9Mbps 17dBm 20dBm ±2dB
12Mbps 17dBm 20dBm ±2dB
18Mbps 17dBm 20dBm ±2dB
24Mbps 17dBm 20dBm ±2dB
36Mbps 15dBm 18dBm ±2dB
48Mbps 13dBm 16dBm ±2dB
54Mbps 12dBm 15dBm ±2dB
5GHz
802.11n
HT20
MCS 0 17dBm 20dBm ±2dB
MCS 1 17dBm 20dBm ±2dB
MCS 2 17dBm 20dBm ±2dB
MCS 3 17dBm 20dBm ±2dB
MCS 4 17dBm 20dBm ±2dB
MCS 5 16dBm 19dBm ±2dB
MCS 6 13dBm 16dBm ±2dB
MCS 7 9dBm 12dBm ±2dB
5GHz
802.11n
HT40
MCS 0 17dBm 20dBm ±2dB
MCS 1 17dBm 20dBm ±2dB
MCS 2 17dBm 20dBm ±2dB
MCS 3 17dBm 20dBm ±2dB
MCS 4 17dBm 20dBm ±2dB
MCS 5 16dBm 19dBm ±2dB
MCS 6 13dBm 16dBm ±2dB
MCS 7 9dBm 12dBm ±2dB
Data Rate RX Specifications
Sensitivity Tolerance
2.4GHz
802.11b
1Mbps -94dBm ±2dB
2Mbps -94dBm ±2dB
5.5Mbps -94dBm ±2dB
11Mbps -92dBm ±2dB
2.4GHz
802.11g
6Mbps -94dBm ±2dB
9Mbps -94dBm ±2dB
12Mbps -93dBm ±2dB
18Mbps -91dBm ±2dB
24Mbps -87dBm ±2dB
36Mbps -83dBm ±2dB
48Mbps -81dBm ±2dB
54Mbps -79dBm ±2dB
2.4GHz
802.11n
HT20
MCS 0 -94dBm ±2dB
MCS 1 -93dBm ±2dB
MCS 2 -91dBm ±2dB
MCS 3 -86dBm ±2dB
MCS 4 -84dBm ±2dB
MCS 5 -81dBm ±2dB
MCS 6 -78dBm ±2dB
MCS 7 -73dBm ±2dB
2.4GHz
802.11n
HT40
MCS 0 -90dBm ±2dB
MCS 1 -88dBm ±2dB
MCS 2 -86dBm ±2dB
MCS 3 -83dBm ±2dB
MCS 4 -80dBm ±2dB
MCS 5 -76dBm ±2dB
MCS 6 -74dBm ±2dB
MCS 7 -72dBm ±2dB
5GHz
802.11a
6Mbps -94dBm ±2dB
9Mbps -94dBm ±2dB
12Mbps -93dBm ±2dB
18Mbps -91dBm ±2dB
24Mbps -88dBm ±2dB
36Mbps -85dBm ±2dB
48Mbps -82dBm ±2dB
54Mbps -77dBm ±2dB
5GHz
802.11n
HT20
MCS 0 -93dBm ±2dB
MCS 1 -91dBm ±2dB
MCS 2 -87dBm ±2dB
MCS 3 -85dBm ±2dB
MCS 4 -82dBm ±2dB
MCS 5 -79dBm ±2dB
MCS 6 -76dBm ±2dB
MCS 7 -74dBm ±2dB
5GHz
802.11n
HT40
MCS 0 -90dBm ±2dB
MCS 1 -88dBm ±2dB
MCS 2 -85dBm ±2dB
MCS 3 -82dBm ±2dB
MCS 4 -79dBm ±2dB
MCS 5 -76dBm ±2dB
MCS 6 -75dBm ±2dB
MCS 7 -73dBm ±2dB
wireless modules
3
Compex Systems Pte Ltd | www.compex.com.sg | (+65) 6286 2086 | sales@compex.com.sg | Last Updated: 21/06/16 WH SY HB
Copyright © Compex Systems. All rights reserved. COMPEX and the COMPEX logo, are registered trademarks of Compex Inc.
Atheros and other trademarks are properties of their respective owners. While every effort is made to ensure the information is accurate,
Compex does not accept liability for any errors or mistakes that may arise. All specifications are subject to change without notice.

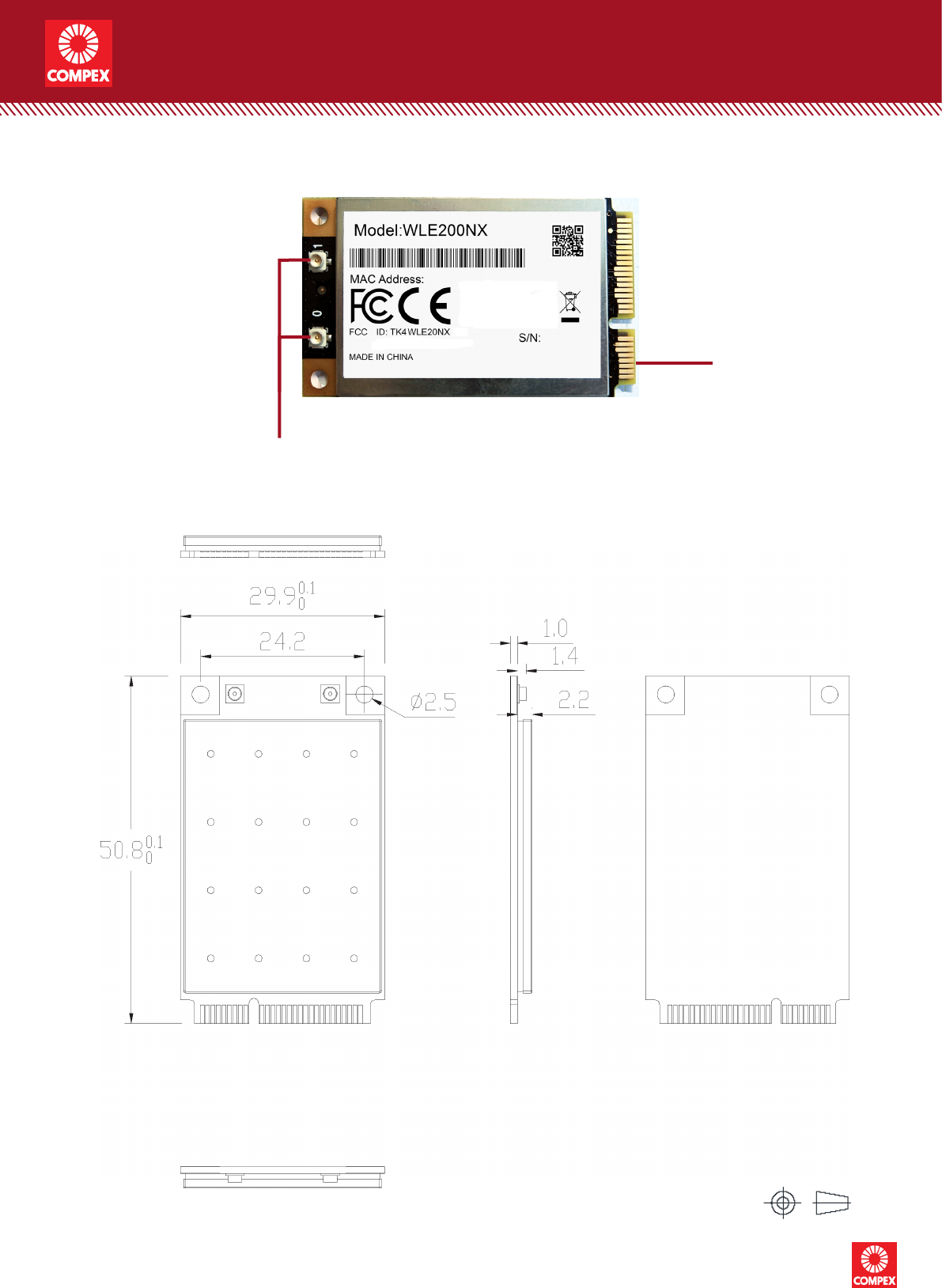

Mechanical Dimensions
Connector Map
U.FL connectors
CH0, CH1
Mini PCIe 1.1
Connector
wireless modules
4
Compex Systems Pte Ltd | www.compex.com.sg | (+65) 6286 2086 | sales@compex.com.sg | Last Updated: 21/06/16 WH SY HB
Copyright © Compex Systems. All rights reserved. COMPEX and the COMPEX logo, are registered trademarks of Compex Inc.
Atheros and other trademarks are properties of their respective owners. While every effort is made to ensure the information is accurate,
Compex does not accept liability for any errors or mistakes that may arise. All specifications are subject to change without notice.
Ordering Conguration
Item Code Model PA Form factor Card Information
WLE200NX 7A0000 WLE200NX SE5516A Full size card 802.11 a/b/g/n Mini PCIe card
WLE200NX 7A0000 WLE200NX-I SE5516A Full size card
802.11 a/b/g/n Mini PCIe card
Packaging Content
Item Quantity
WLE200NX Wireless Module 1
Packaging Information
Packaging Type Dimensions Weight Dimensional Weight
Carton Box (250 units) 422 x 410 x 240 mm 4.65 kg 8.46 kg
COMPLIANCE INFORMATION
FCC NOTICE
This device has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This device generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this device does cause
harmful interference to radio or television reception, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Connect the computer into an outlet on a circuit different from that to which the receiver is connected.
• Increase the separation between the computer and receiver.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications not expressly approved by the grantee of this device
could void the user's authority to operate the equipment.
FCC Compliance Statement: This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired
operation.
This device must accept any interference received, including interference that may cause
undesired operation.
IEEE 802.11b or 802.11g operation of this product in the U.S.A. is firmware-limited to
channels 1 through 11.
RF exposure warning
The equipment complies with FCC RF exposure limits set forth for an uncontrolled
environment.
The equipment must not be co-located or operating in conjunction with any other antenna or
transmitter.
FCC ID: TK4WLM200NX
IMPORTANT NOTE: EQUIPMENT MANUFACTURERS
COMPEX FOR DISPLAYING WLM200NX MODULAR FCC
ID ON FINAL INTEGRATED
FCC ID: TK4WLM200NX
IMPORTANT NOTE: EQUIPMENT MANUFACTURERS
COMPEX FOR DISPLAYING WLM200NX MODULAR FCC
ID ON FINAL INTEGRATED
OEM integration instructions:
This device is intended only for OEM integrators under the following conditions：
The module is only limited to installation in mobile applications. The antenna must be installed
such that 20 cm is maintained between the antenna and users, and the transmitter module may
not be co-located with any other transmit or antenna. The module shall be only used with the
integral antenna(s) that has been originally tested and certified with this module.
As long as 3 conditions above are met，further transmitter test will not be required.
However, the OEM integrator is still responsible for testing their end-product for any additional
compliance requirement with this module installed (for example，digital device emission，PC
peripheral requirements，etc.)
End product labeling:
This transmitter module is authorization only for use in device where the antenna may be
installed such that 20cm may be maintained between the antenna and users. The final end
product must be labeled in a visible area with the following: “Contains Transmitter Module FCC ID:
TK4WLE200NX or Contains FCC ID: TK4WLE200NX ”.
