2 x 2 802.11N MIMO mini-PCI Modules
WIRELESS-A/N 26DBM NETWORK MINI PCI ADAPTER WITH ESD
WLM200N5-26 ESD
5GHz Single-Band 802.11n MIMO 2 x 2 miniPCI
Features
• Atheros XSPAN family chipset
• IEEE 802.11n compliant and backward compatible with 802.11a
• Enhanced sensitivity
• Optimized isolation path
• Superior thermal performance
• Maximum output power 26dBm@802.11a / 28dBm MIMO aggregate
• Built-in ESD Protection with ESD/EMP Immunity Threshold: 15KeV ①
• Multi-Country Roaming Supported (IEEE802.11d Global Harmonization Standard)
• 2 x MMCX connectors allowing for improved mechanical stability and low loss
WLM200N5-26 ESD MIMO MINIPCI CARD RADIO
TX SPECIFICATIONS
DataRate TX Power
(per chai
n
)
TX Power
(2 chains
)
Tolerance
6-24Mbps 26dBm 28dBm ±2dB
36Mbps 25dBm 28dBm ±2dB
48Mbps 24dBm 27dBm ±2dB
802.11a
54Mbps 23dBm 26dBm ±2dB
DataRate TX Power
(per chain) TX Power
(2 chains) Tolerance DataRate TX Power
(per chain) TX Power
(2 chains) Tolerance
MCS 0/8 25dBm 28dBm ±2dB MCS 0/8 24dBm 27dBm ±2dB
MCS 1/9 25dBm 28dBm ±2dB MCS 1/9 24dBm 27dBm ±2dB
MCS 2/10 23.5dBm 26.5dBm ±2dB MCS 2/10 22.5dBm 25.5dBm ±2dB
MCS 3/11 23.5dBm 26.5dBm ±2dB MCS 3/11 22.5dBm 25.5dBm ±2dB
MCS 4/12 22.5dBm 25.5dBm ±2dB MCS 4/12 22dBm 25dBm ±2dB
MCS 5/13 22dBm 25dBm ±2dB MCS 5/13 20.5dBm 23.5dBm ±2dB
MCS 6/14 21dBm 24dBm ±2dB MCS 6/14 20.5dBm 23.5dBm ±2dB
5GHz
11n
HT 20
MCS 7/15 20dBm 23dBm ±2dB
5GHz
11n
HT 40
MCS 7/15 17dBm 20dBm ±2dB
RX SPECIFICATIONS
DataRate Sensitivity
(2 chains) Tolerance DataRate Sensitivity
(2 chains) Tolerance
6M -96dBm ±2dB 24M -89dBm ±2dB
9M -96dBm ±2dB 36M -86dBm ±2dB
12M -95dBm ±2dB 48M -82dBm ±2dB
802.11a
18M -93dBm ±2dB
8
02.11a
54M -79dBm ±2dB
MCS0 -95dBm ±2dB MCS0 -92dBm ±2dB
MCS1 -93dBm ±2dB MCS1 -90dBm ±2dB
MCS2 -90dBm ±2dB MCS2 -87dBm ±2dB
MCS3 -89dBm ±2dB MCS3 -84dBm ±2dB
MCS4 -85dBm ±2dB MCS4 -81dBm ±2dB
MCS5 -81dBm ±2dB MCS5 -77dBm ±2dB
MCS6 -79dBm ±2dB MCS6 -76dBm ±2dB
5GHz
11n
HT 20
MCS7 -75dBm ±2dB
5GHz
11n
HT 40
MCS7 -74dBm ±2dB
Technical Specifications
Chipset Atheros AR9220
Host Interface 32-bit mini-PCI Type IIIA+ (6.55mm longer than IIIA type)
Operating
Voltage 3.3 VDC
11a Cont. Tx @6M 4.9W
11na Cont. Tx@HT20 MCS0 4.3W
11na Cont. Tx@HT40 MCS0 4.8W
11a Cont. Rx 2.5W
Power
Consumption
Standby 0.8W
Antenna
Connector 2 x MMCX connector
IEEE 802.11a : 54Mbps 48Mbps 36Mbps 24Mbps 18Mbps 12Mbps 9Mbps 6Mbps
1Nss: 65Mbps @ 800GI, 72.2Mbps @ 400GI (Max.)
20MHz 2Nss: 130Mbps @ 800GI, 144.4Mbps @ 400GI (Max.)
1Nss: 135Mbps @ 800GI, 150Mbps @ 400GI (Max.)
Data Rate IEEE 802.11n : 40MHz 2Nss: 270Mbps @ 800GI, 300Mbps @ 400GI (Max.)
5.725 ~ 5.850 GHz (US & Canada)
5.725 ~ 5.875 GHz (Europe)
Frequency
Range IEEE 802.11a/n:
Modulation
Techniques OFDM: BPSK, QPSK, 16-QAM, 64-QAM
RoHS
Compliance Yes
Temperature
Range Operating: -20ºC to 70ºC
Storage: -40ºC to 90ºC
Humidity Operating:5% to 95% (non-condensing)
Storage: Max.90% (non-condensing)
Dimension 59.6mm x 57.5mm x 7.5mm
ESD CABLE SPECIFICATION
Cable Dimensions 26cm length
Terminal Material Copper
Attachment Procedure End of ESD Cable tied to Earth Ground
Ordering Information②
CODES Connectors type Carton Dimension
WLM200N5-26ESD 7B0000 MMCX For 50pcs (pcs/ctn), 0.40m * 0.22m * 0.085m / 0.006 = 1.5KG
For 250pc (pcs/ctn), 0.45m * 0.45m * 0.24m / 0.006 = 8.1KG
c Module grounding cable included
d Configurations are subject to change without notice
Please contact Compex sales representatives for other available configurations

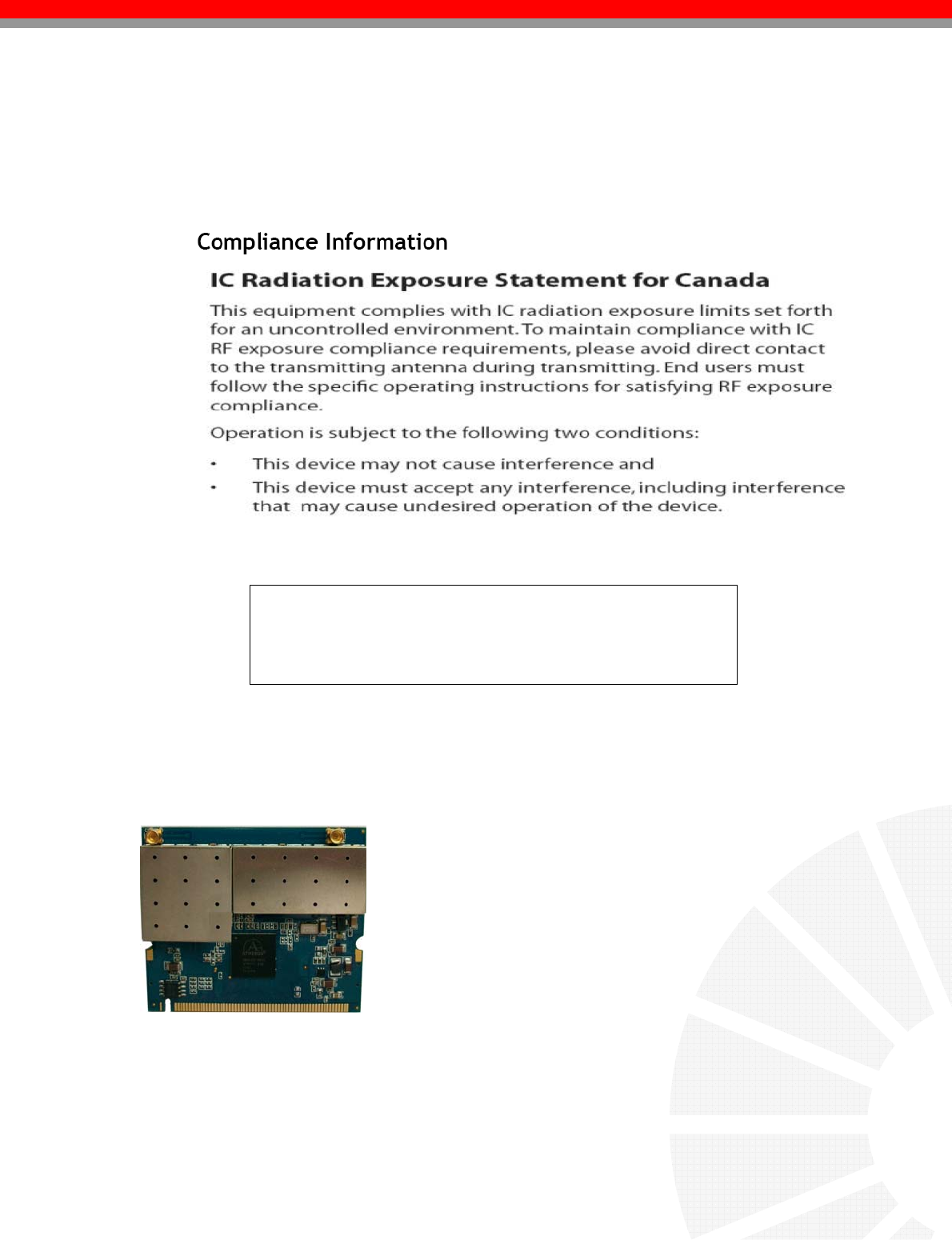

COMPLIANCE INFORMATION
FCC NOTICE
This device has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This device generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this device does cause
harmful interference to radio or television reception, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Connect the computer into an outlet on a circuit different from that to which the receiver is
connected.
• Increase the separation between the computer and receiver.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications not expressly approved by the grantee of this device
could void the user's authority to operate the equipment.
FCC Compliance Statement: This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired
operation.
This device must accept any interference received, including interference that may cause
undesired operation.
IEEE 802.11a or 802.11n operation of this product in the U.S.A. is firmware-limited to
channels 1 through 24.
RF exposure warning
The equipment complies with FCC RF exposure limits set forth for an uncontrolled
environment.
The equipment must be installed to provide a separation distance of at least 20cm from
all persons and must not be co-located or operating in conjunction with any other
antenna or transmitter.
IMPORTANT NOTE REGARDING ANTENNA USE
Antenna Use (Point to Multipoint)
2x2 Operation
Chain1 Chain2
FCC ID: TK4WLM200N5-26ESD
IC : 7849A-N5-26ESD
Dimensions Drawing
