2 x 2 802.11N MIMO mini-PCI Modules

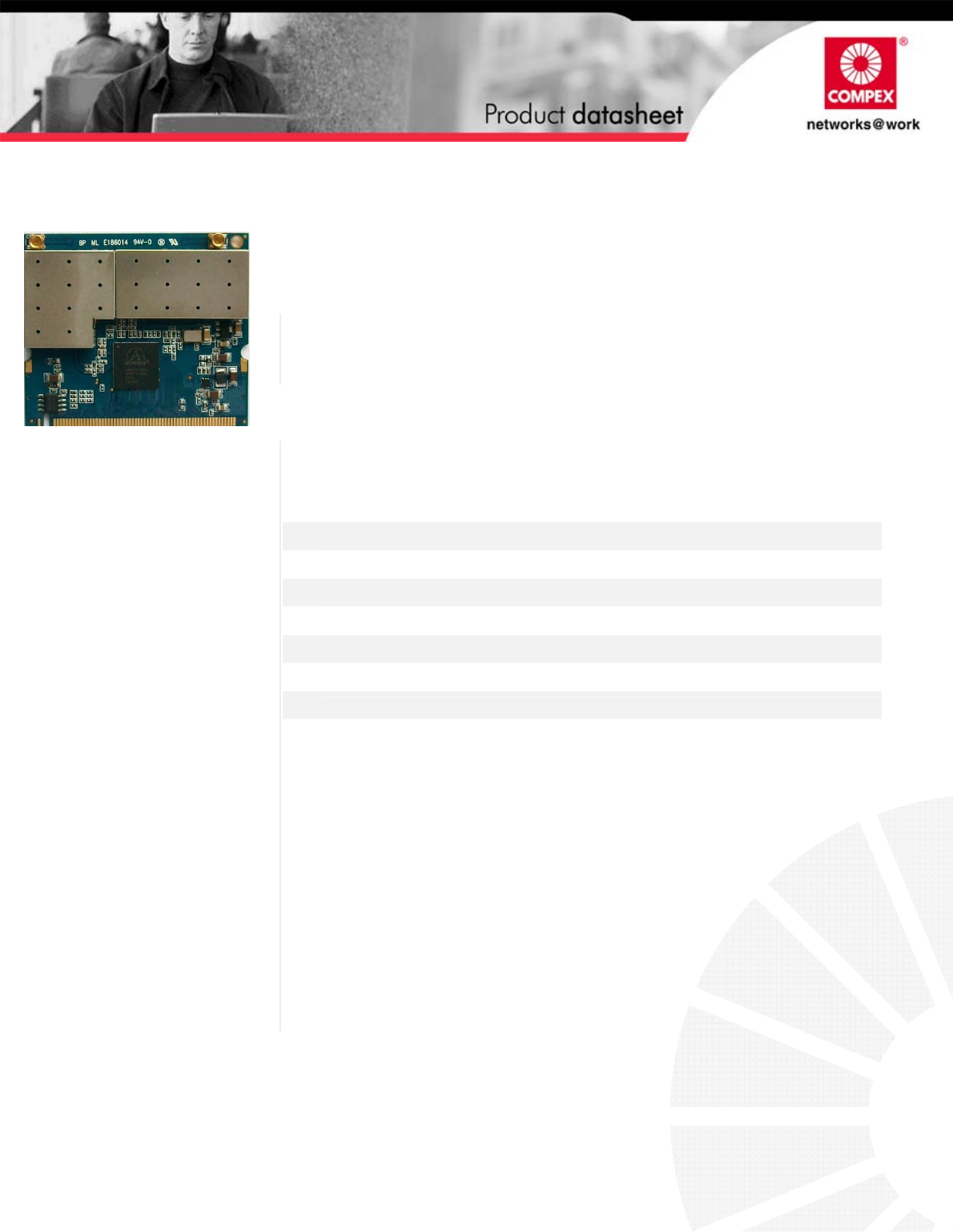

Radio module
WLM200N5-23ESD-4.9
WIRELESS-N 4.9GHz 23DBM NETWORK MINI PCI ADAPTER WITH
ESD
Features
• Atheros XSPAN family chipset
• 4.9GHz IEEE 802.11n compliant and backward compatible with 802.11a
• 4.9GHz Single-band MIMO 2x2 spatial multiplexing technique
• Maximum 20dBm output (per chain)/23dBm aggregate
• Built-in ESD Protection with ESD/EMP Immunity Threshold: 15KeV ①
• Supports up to 300Mbps physical data rates
• Delivers 10 times the throughput and nearly twice the range of legacy 802.11a network
• Multi-Country Roaming Supported (IEEE802.11d Global Harmonization Standard)
• 2 x MMCX or 2 x U.FL Antenna Connectors②
WLM200N5-23 ESD MIMO MINIPCI CARD RADIO
TX SPECIFICATIONS
DataRate TX Power Tolerance
6-24Mbps 21dBm ±2dB
36Mbps 20dBm ±2dB
48Mbps 19dBm ±2dB
802.11a
54Mbps 18dBm ±2dB
DataRate TX Power
(per chain) Tolerance
MCS 0/8 20dBm ±2dB
MCS 1/9 20dBm ±2dB
MCS 2/10 19dBm ±2dB
MCS 3/11 19dBm ±2dB
MCS 4/12 17dBm ±2dB
MCS 5/13 16.5dBm ±2dB
MCS 6/14 16dBm ±2dB
5GHz 11n
HT 20
MCS 7/15 16dBm ±2dB
RX SPECIFICATIONS
Data Rate Sensitivity
(2 chains) Tolerance
6M -97dBm ±2dB
9M -97dBm ±2dB
12M -96dBm ±2dB
802.11a
18M -94dBm ±2dB
MCS0 -97dBm ±2dB
MCS1 -94dBm ±2dB
MCS2 -92dBm ±2dB
MCS3 -87dBm ±2dB
MCS4 -84dBm ±2dB
MCS5 -80dBm ±2dB
MCS6 -79dBm ±2dB
5GHz 11n
HT 20
MCS7 -77dBm ±2dB
Technical Specifications
Chipset Atheros AR9220
Host Interface PCI Interface v2.3 (Type III-A Mini PCI form factor)
Operating
Voltage 3.3 VDC
11a Cont. Tx @6M 3.5W
11na Cont. Tx@HT20 MCS0 3W
11na Cont. Tx@HT40 MCS0 3W
11a Cont. Rx 0.9W
Power
Consumption
Standby 0.7W
Antenna
Connector 2 x MMCX or 2 x U.FL ②
IEEE 802.11a : 54Mbps 48Mbps 36Mbps 24Mbps 18Mbps 12Mbps 9Mbps 6Mbps
1Nss: 65Mbps @ 800GI, 72.2Mbps @ 400GI (Max.)
20MHz 2Nss: 130Mbps @ 800GI, 144.4Mbps @ 400GI (Max.)
Data Rate IEEE 802.11n :
Frequency
Range IEEE 802.11a/n: 4.900-4.98 GHz
Modulation
Techniques OFDM: BPSK, QPSK, 16QAM, 64QAM
Radio & EMC
Certification FCC
RoHS
Compliance Yes
Temperature
Range Operating: -20ºC to 70ºC
Storage: -40ºC to 90ºC
Humidity Operating:5% to 95% (non-condensing)
Storage: Max.90% (non-condensing)
Dimension 59.6mm x 51.5mm x 6mm
ESD CABLE SPECIFICATION
Cable Dimensions 26cm length
Terminal Material Copper
Attachment Procedure End of ESD Cable tied to Earth Ground
Ordering Information③
CODES Antenna Connectors type Carton Dimension
WLM200N5-23 6AA1300ESD4.9 U.FL For 50pcs (pcs/ctn), 0.40m * 0.22m * 0.085m / 0.006 = 1.5KG
For 250pc (pcs/ctn), 0.45m * 0.45m * 0.24m / 0.006 = 8.1KG
WLM200N5-23 6AB1300ESD4.9 MMCX For 50pcs (pcs/ctn), 0.40m * 0.22m * 0.085m / 0.006 = 1.5KG
For 250pc (pcs/ctn), 0.45m * 0.45m * 0.24m / 0.006 = 8.1KG
Module grounding cable included
Depends on your order configuration
Configurations are subject to change without notice
Please contact Compex sales representatives for other available configurations
Compliance Information
FCC Compliance Statement:
This device complies with Part 15 of the FCC Rules . Operation is subject to the
following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including
interference that may cause undesired operation. This device must accept
any interference received, including interference that may cause
undesired operation. Product that is a radio transmitter is labeled with FCC ID.
FCC Caution:
(1) Exposure to Radio Frequency Radiation. This equipment must be
installed and operated in accordance with provided instructions and the
antenna(s) used for this transmitter must be installed to provide a
separation distance of at least 20 cm from all persons and must not be
collocated or operating in conjunction with any other antenna or transmitter.
End-users and installers must be provided with antenna installation
instructions and transmitter operating conditions for satisfying RF exposure
compliance.
(2) Any changes or modifications not expressly approved by the grantee
of this device could void the user's authority to operate the equipment.
(3) This Transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
(4) Changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user authority to operate
the equipment.
IMPORTANT NOTE: In the event that these conditions can not be met (for
example certain laptop configurations or co-location with another
transmitter), then the FCC authorization is no longer considered valid and
the FCC ID can not be used on the final product. In these circumstances,
the OEM integrator will be responsible for re-evaluating the end product
(including the transmitter) and obtaining a separate FCC authorization.
WARNING: The antenna gain which being use must less than 17 dBi.
(1) the modules FCC ID is not visible when installed in the host, or
(2) if the host is marketed so that end users do not have straight forward
commonly used methods for access to remove the module so that the FCC ID
of the module is visible; then an additional permanent label referring to the
enclosed module:
Contains Transmitter Module FCC ID: TK4WLM200N523-49 or Contains FCC ID:
TK4WLM200N523-49 must be used.

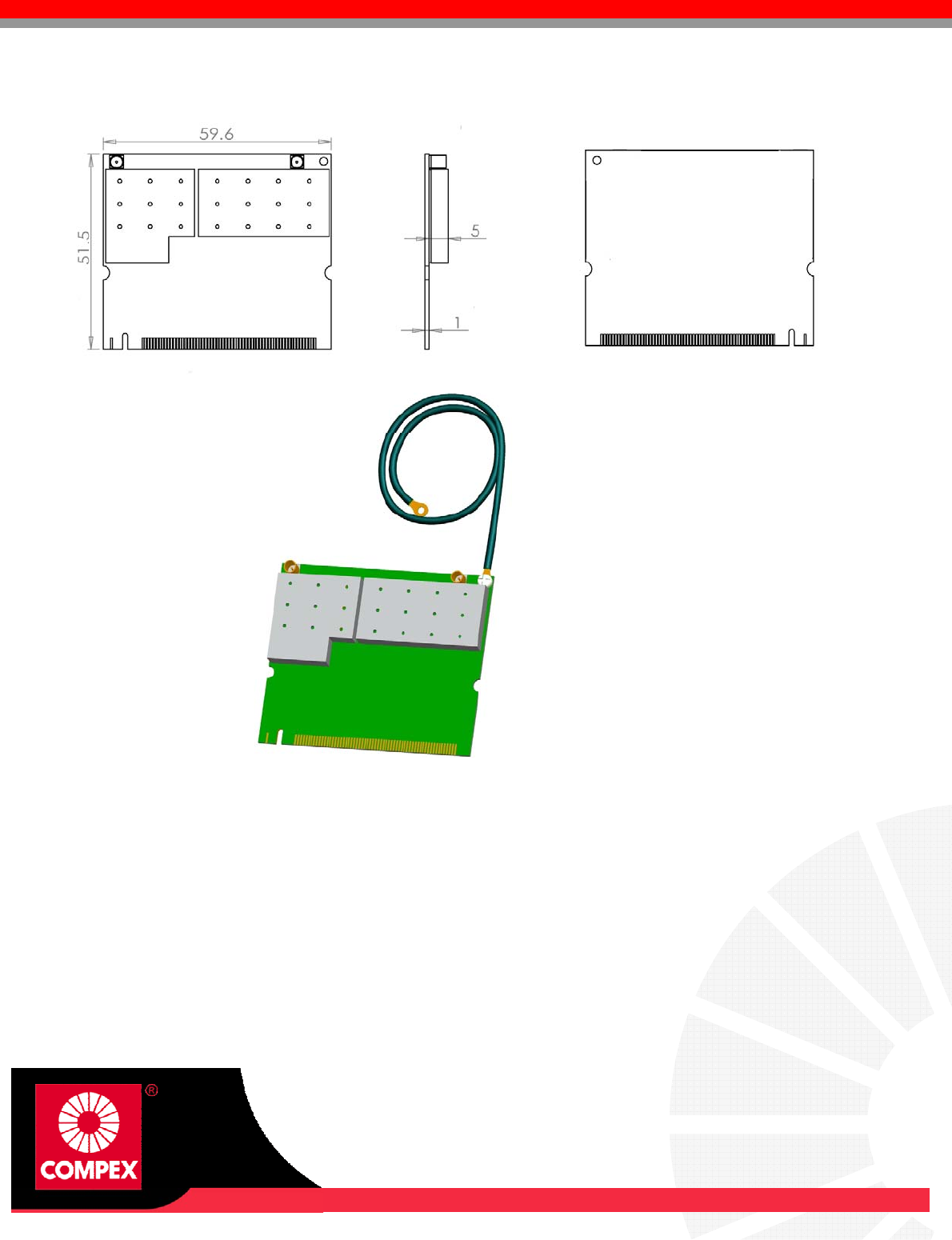

Dimensions Drawing
Compex Systems Pte Ltd Compex (Suzhou) Co Ltd
135 Joo Seng Road, PM Industrial Building #08-01,
Singapore 368363
Tel: (65) 6286 2086
Fax: (65) 6280-9947
Email: sales@compex.com.sg
NO.12, ChuangTou Industrial Square,
LouFeng North, Suzhou Industrial Park,
Suzhou, Jiangsu Province, China 215122
Tel: (86)-512-62950050
Fax: (86)-512-62950026
Copyright © 2010 Compex Systems. All rights reserved. COMPEX and the COMPEX logo, are registered trademarks of COMPEX Inc.
Atheros and other trademarks are properties of their respective owners.
While every effort is made to ensure the information accurate, Compex does not accept liability for any errors or mistakes that may arise.
Specification is subject to change without notice. DS V: 2.2.1 Rocky100526
