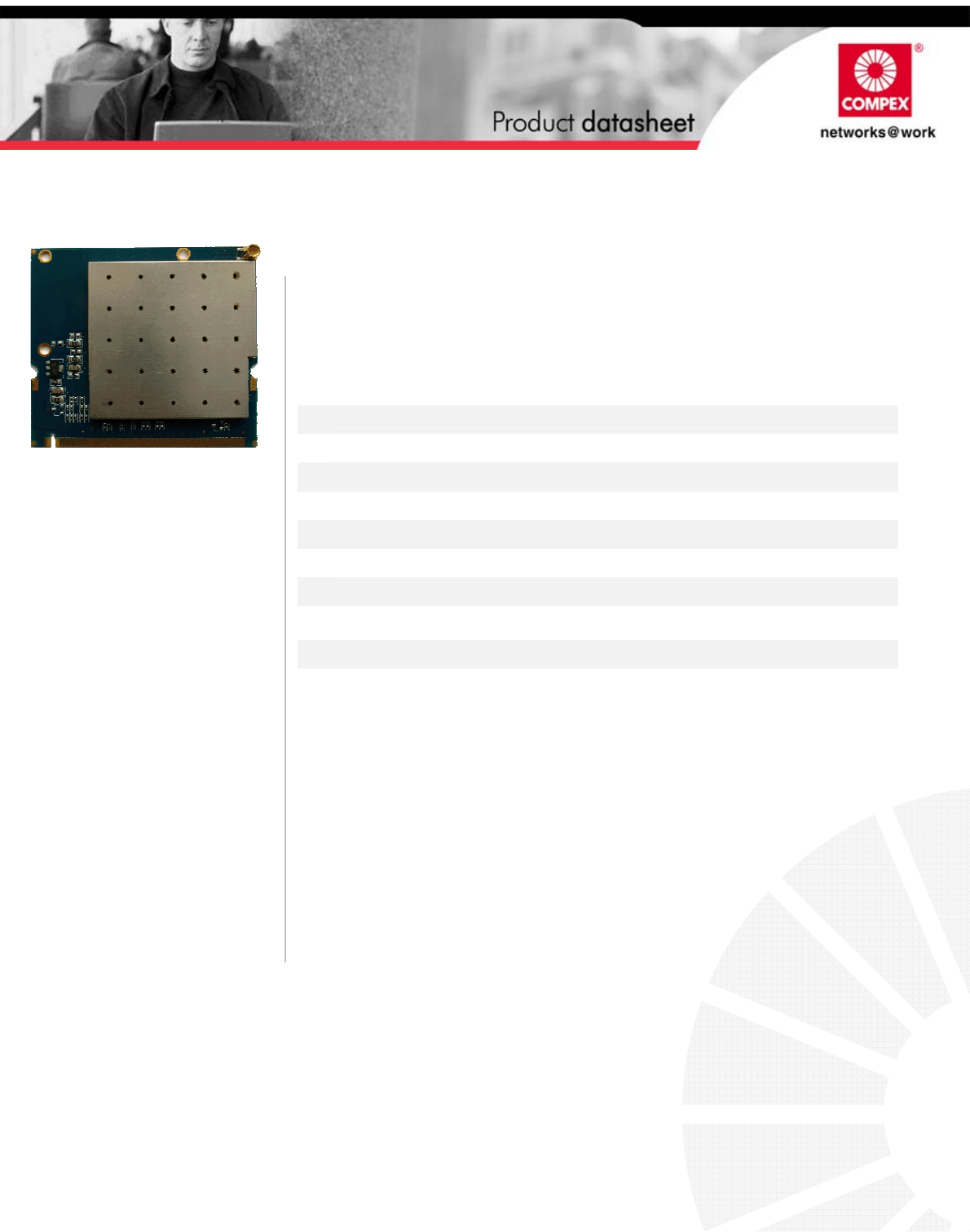

Compex Systems WLM54A26ESD WIRELESS-A 26dBm NETWORK MINI PCI ADAPTER WITH ESD User Manual WLM54A26ESD um updated 100915
Compex Systems Pte Ltd WIRELESS-A 26dBm NETWORK MINI PCI ADAPTER WITH ESD WLM54A26ESD um updated 100915
user manual
Features
• Compliant with IEEE 802.11a standard
• Up to 26dBm output power with Built-in ESD Protection
• RF ESD/EMP Immunity Threshold: 15KeV ①
• Supports Atheros Proprietary "Super Mode" delivering up to 108 Mbps data link rate
• High efficiency dual-PA design
• High Performance combined with Low Power Consumption
• Multi-Country Roaming Supported (IEEE802.11d Global Harmonization Standard)
• Single MMCX/U.FL Antenna Connector; External Antenna with Model name:C0053-
ANG0003 /Gain:max.2dBi
• Suitable for Embeded System or OEM Project
• Affordable and Ideal for a Variety of Applications
WIRELESS-A 26dBm NETWORK MINI PCI
A
DAPTER WITH ESD
WLM54A26ESD
Technical Specifications
Chipset Atheros AR5414
Host Interface 32-bit mini-PCI Type IIIA+ (1.85mm longer than IIIA type)
Operating
Voltage 3.3 VDC
11a Cont. Tx @6M 3.5W
11a Cont. Rx 1.9W
Power
Consumption Standby 1.4W
Antenna
Connector 1 x MMCX
IEEE 802.11a: 54Mbps 48Mbps 36Mbps 24Mbps 18Mbps 12Mbps 9Mbps 6Mbps Standards
Conformance Super-A: 108Mbps 96Mbps 72Mbps 54Mbps 48Mbps 36Mbps 24Mbps 18Mbps 12Mbps 6Mbps
5.150 ~ 5.350 GHz,5.470 ~ 5.725GHz, 5.725 ~ 5.850 GHz (US & Canada)
5.150 ~ 5.350 GHz,5.470 ~ 5.725GHz, 5.725 ~ 5.875 GHz (Europe)
Frequency
Range IEEE
802.11a 5.150 ~ 5.250 GHz,5.250 ~ 5.350GHz, 5.470 ~ 5.725GHz(Japan)
Modulation
Techniques OFMD: BPSK, QPSK, 16-QAM, 64-QAM
Certification FCC, CE
ROHS
Compliance Yes
Temperature
Range Operating: -20ºC to 70ºC
Storage: -40ºC to 90º
Humidity Operating: 5% to 95% (non-condensing)
Storage: Max.90% (non-condensing)
Dimension 59.6 x52.8x 5.5 mm
Weight 20 grams
WLM54A-26-ESD MINIPCI CARD RADIO
TX SPECIFICATIONS RX SPECIFICATIONS
5GHz 5180MHz 5320MHz 5600MHz 5700MHz 5785MHz 5825MHz Tolerance DataRate Sensitivity Tolerance
6Mbps 26dBm 26dBm 26dBm 26dBm 26dBm 26dBm +1.0/-1.5 dB 6Mbps -96dBm ±2dB
9Mbps 26dBm 26dBm 26dBm 26dBm 26dBm 26dBm +1.0/-1.5 dB 9Mbps -96dBm ±2dB
12Mbps 26dBm 26dBm 26dBm 26dBm 26dBm 26dBm +1.0/-1.5 dB 12Mbps -95dBm ±2dB
18Mbps 26dBm 26dBm 26dBm 26dBm 26dBm 26dBm +1.0/-1.5 dB 18Mbps -88dBm ±2dB
26dBm 26dBm 26dBm 26dBm 26dBm 26dBm +1.0/-1.5 dB24Mbps 24Mbps -86dBm ±2dB
36Mbps 24dBm 24dBm 24dBm 24dBm 24dBm 24dBm +1.0/-1.5 dB 36Mbps -83dBm ±2dB
48Mbps 23dBm 23dBm 23dBm 23dBm 23dBm 23dBm +1.0/-1.5 dB 48Mbps -79dBm ±2dB
54Mbps 22dBm 22dBm 22dBm 22dBm 22dBm 22dBm +1.0/-1.5 dB
5GHz
54Mbps -76dBm ±2dB
ADJUSTABLE CHANNEL SIZE SUPPORT
5MHz 10MHz 20MHz 40MHz
ESD CABLE SPECIFICATIONS
Cable Dimensions 26cm length
Terminal Material Copper
Attachment Procedure End of ESD Cable tied to Earth Ground
ORDERING INFORMATION②
CODES Version CARTON DIMENSIONS
WLM54A26ESD 8BS ESD For 50 pcs / carton,
0.45m*0.45m*0.24m/0.006=8.1KG
Module grounding cable included
② Configurations are subjected to change without notice
Please contact Compex sales representatives for other available configurations
Compliance Information
FCC Compliance Statement:
This device complies with Part 15 of the FCC Rules . Operation is subject to the
following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including
interference that may cause undesired operation. This device must accept any
interference received, including interference that may cause
undesired operation. Product that is a radio transmitter is labeled with FCC ID.
FCC Caution:
(1) Exposure to Radio Frequency Radiation. This equipment must be
installed and operated in accordance with provided instructions and the
antenna(s) used for this transmitter must be installed to provide a
separation distance of at least 20 cm from all persons and must not be collocated or
operating in conjunction with any other antenna or transmitter.
End-users and installers must be provided with antenna installation
instructions and transmitter operating conditions for satisfying RF exposure
compliance.
(2) Any changes or modifications not expressly approved by the grantee
of this device could void the user's authority to operate the equipment.
(3) This Transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
(4) Changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user authority to operate
the equipment.
IMPORTANT NOTE: In the event that these conditions can not be met (for
example certain laptop configurations or co-location with another
transmitter), then the FCC authorization is no longer considered valid and
the FCC ID can not be used on the final product. In these circumstances,
the OEM integrator will be responsible for re-evaluating the end product
(including the transmitter) and obtaining a separate FCC authorization.
WARNING: This Wireless Mini PCI Adapter does not support ad-hoc mode
Function
FCC ID: TK4-WLM54A26ESD
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for
help.

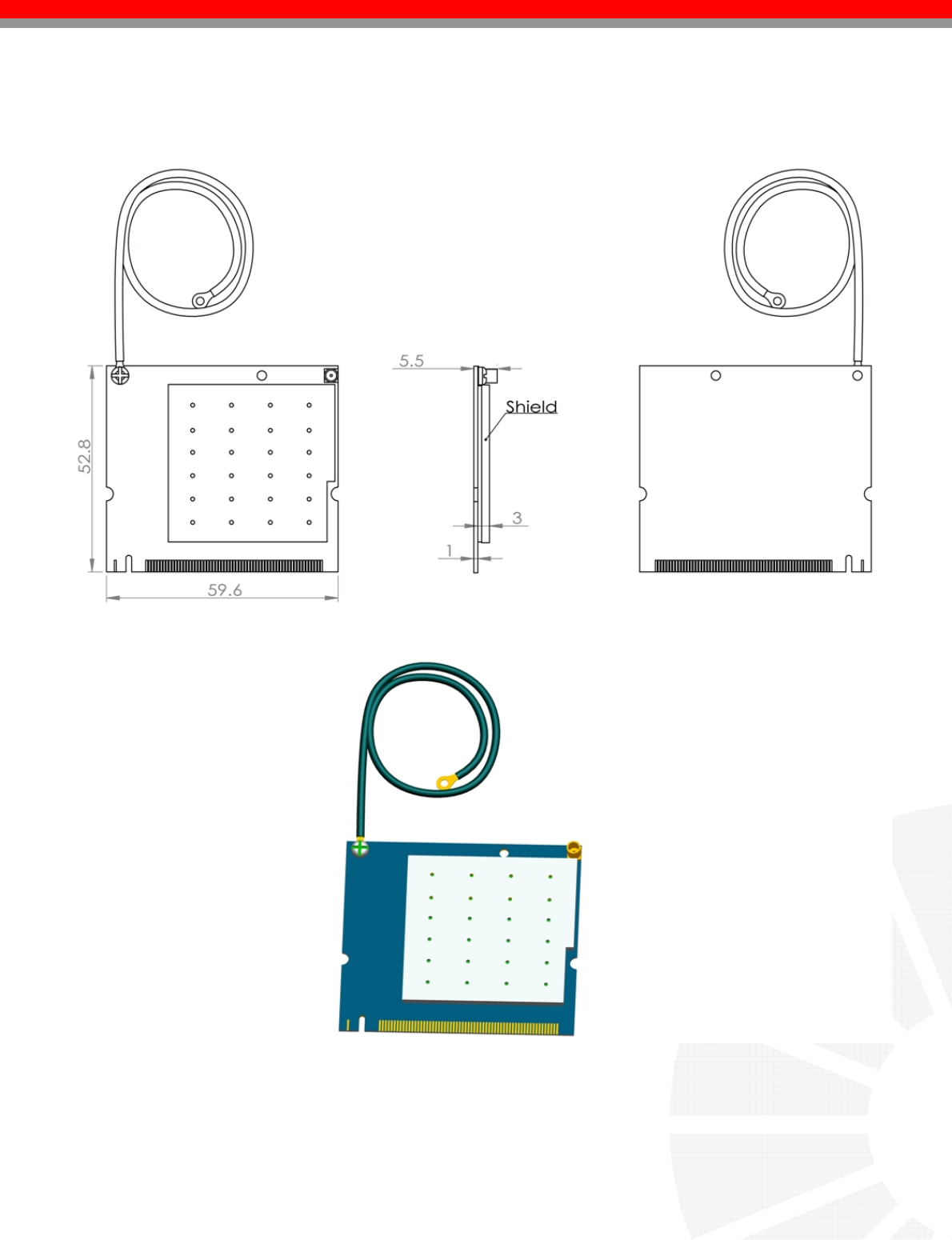

DIMENSIONS DRAWING
Compex Systems Pte., Ltd. Compex (Suzhou) Co., Ltd.
135 Joo Seng Road, PM Industrial Building #08-01,
Singapore 368363
Tel: (65) 6286 2086
Fax: (65) 6280-9947
Email: sales@compex.com.sg
NO.12, ChuangTou Industrial Square,
LouFeng North, Suzhou Industrial Park,
Suzhou, Jiangsu Province, China 215122
Tel: (86)-512-62950050
Fax: (86)-512-62950026
Copyright © 2010 Compex Systems. All rights reserved. COMPEX and the COMPEX logo, are registered trademarks of COMPEX Inc. While every effort
is made to ensure the information is accurate, Compex does not accept liability for any errors or mistakes that may arise. All specification is subject to
change without notice. Datasheet Version: V 1.1.1 Rocky100528
