Compex Systems WLM54GP23ESD WIRELESS-G 23DBM NETWORK MINIPCI ADAPTER WITH ESD User Manual

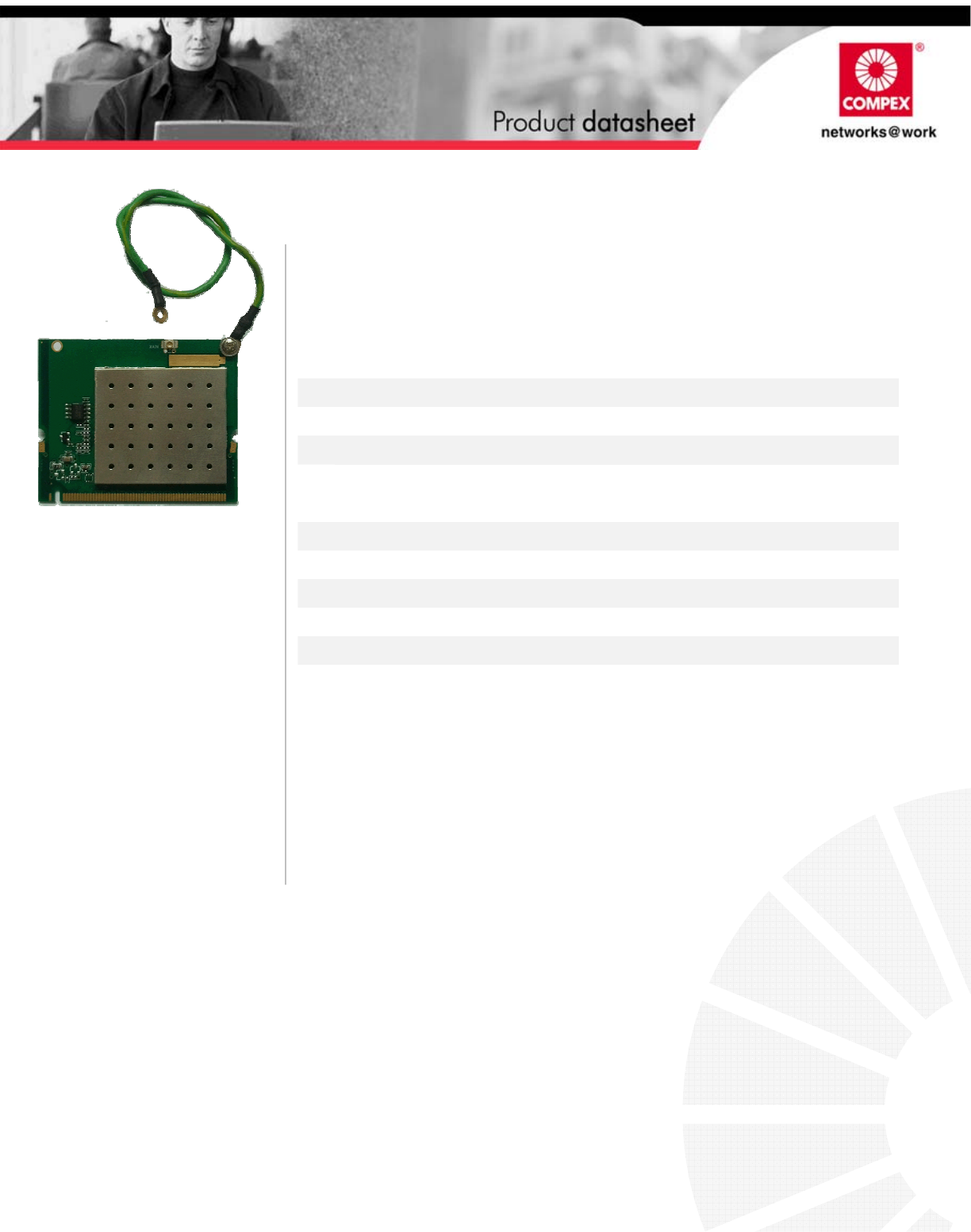

Compex Systems Pte Ltd WIRELESS-G 23DBM NETWORK MINIPCI ADAPTER WITH ESD
user manual
Features
• 2.4GHz IEEE 802.11 b/g standard
• Output Power of up to 23dBm @ b/g Band Built in ESD Protection
• RF ESD/EMP Immunity Threshold: 15KeV ①
• ②
• Extended Distances and High Speeds Due to Better Output Signal Power
•
High Performance with Low Power Consumption
•
Multi-Country Roaming Support (IEEE802.11d)
•
1 x U.FL /MMCX Antenna Connector
•
Suitable for Embedded System or OEM Project
•
Affordable and Ideal for a Variety of Applications
WLM54G -23dBm ESD
WLM54G(Super-G)-23dBm ESD
IWAVEPORT WLM54GP23ESD
WIRELESS-G 23DBM NETWORK MINIPCI ADAPTER WITH ESD
Technical Specifications WLM54G-23d ESD WLM54G (Super-G) – 23 ESD
Chipset Atheros AR2413a Atheros AR2414
Host Interface PCI Interface v2.3 (Type III-B Mini PCI form factor)
Operating
Voltage 3.3 VDC
Power
Consumption 2.5W
Antenna
Connector 1 x U.FL/MMCX Antenna Connector
IEEE 802.11b: 11Mbps 5.5Mbps 2Mbps 1Mbps
54Mbps 48Mbps 36Mbps 24Mbps 18Mbps 12Mbps 9Mbps 6Mbps
IEEE 802.11g: Automatically fallback to 5.5Mbps, 2Mbps, 1Mbps
Standards
Super–G: 108Mbps 96Mbps 72Mbps 54Mbps 48Mbps 36Mbps 24Mbps 18Mbps 12Mbps 6Mbps
2.412GHz ~ 2.462GHz (US & Canada)
2.412GHz ~ 2.472GHz (Europe)
Frequency
Range IEEE 802.11b/g:
2.412GHz ~ 2.484GHz (Japan)
Modulation
Techniques OFDM: BPSK, QPSK, 16 QAM, 64QAM
DSSS: DBPSK, DQPSK, CCK M
Certificate FCC,CE
ROHS
Compliance Yes
Environment
Specifications Operating: -20ºC to 70ºC
Storage: -40ºC to 90ºC
Humidity 5% to 95% (non-condensing)
Dimension 59.6 x 46 x 3.8 (mm)
Weight 15 grams
WLM54G 23 MINIPCI CARD RADIO OPERATING FREQUENCY 2.412~2.484GHz
TX SPECIFICATIONS RX SPECIFICATIONS
DataRate TX Power Tolerance
DataRate Sensitivity Tolerance
1Mbps 23dBm +1.0/-1.5 dB 1Mbps -93dBm ±2dB
2Mbps 23dBm +1.0/-1.5 dB
5.5Mbps 23dBm +1.0/-1.5 dB
802.11b
11Mbps 23dBm +1.0/-1.5 dB
802.11b 11Mbps -90dBm ±2dB
6Mbps 23dBm +1.0/-1.5 dB
9Mbps 23dBm +1.0/-1.5 dB
12Mbps 23dBm +1.0/-1.5 dB 6Mbps -93dBm ±2dB
18Mbps 23dBm +1.0/-1.5 dB
24Mbps 23dBm +1.0/-1.5 dB
36Mbps 22dBm +1.0/-1.5 dB
48Mbps 19dBm +1.0/-1.5 dB
802.11g
54Mbps 17dBm +1.0/-1.5 dB
802.11g
54Mbps <-72dBm ±2dB
ESD CABLE SPECIFICATION
Cable Dimensions 26cm length
Terminal Material Copper
Attachment Procedure End of ESD Cable tied to Earth Ground
ORDERING CONFIGURATIONS①
CODES SPEED CARTON DIMENSIONS
WLM54G 6A1300P23ESD Up to 54 Mbps For 50 pcs / carton, 0.45m*0.45m*0.24m/0.006=8.1KG
WLM54G 6B1300P23ESD Up to 54 Mbps For 50 pcs / carton, 0.45m*0.45m*0.24m/0.006=8.1KG
Must use included grounding cable
② Depends on Order Configuration
③ Configurations are subjected to change without notice
COMPLIANCE INFORMATION
FCC NOTE:
This module is intended for OEM integrator. The OEM integrator is still responsible for
the FCC compliance requirement of the end product which integrates this module.
20cm minimum distance has to be able to be maintained between the antenna and
the users for the host this module is integrated into. Under such configuration, the
FCC radiation exposure limits set forth for an population/uncontrolled environment
can be satisfied.
Any changes or modifications not expressly approved by the manufacturer
could void the user's authority to operate this equipment.
USERS MANUAL OF THE END PRODUCT:
In the users manual of the end product, the end user has to be informed to keep
at least 20cm separation with the antenna while this end product is installed and
operated. The end user has to be informed that the FCC radio-frequency
exposure guidelines for an uncontrolled environment can be satisfied. The end
user has to also be informed that any changes or modifications not expressly
approved by the manufacturer could void the user's authority to operate this
equipment. If the size of the end product is smaller than 8x10cm, then additional
LABEL OF THE END PRODUCT:
The final end product must be labeled in a visible area with the following
" Contains TX FCC ID: TK4-WLM54GP23ESD ". If the size of the end product is larger than
8x10cm, then the following FCC part 15.19 statement has to also
be available on the label: This device complies with Part 15 of FCC rules. Operation
is subject to the following two conditions: (1) this device may not cause harmful
interference and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC15.19
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate this equipment.
Caution: Exposure to Radio Frequency Radiation.
To comply with the FCC RF exposure compliance requirements, the following antenna
installation and device operating configurations must be satisfied:
For configurations using an approved external antenna, the separation distance between the
antenna and any person’s body (including hands, wrists, feet and ankles) must be at least 20cm (8
inch).
The transmitter shall not be collocated with other transmitters or antennas.
The equipment complies with FCC RF exposure limits set forth for an uncontrolled
environment.
IEEE 802.11b or 802.11g operation of this product in the U.S.A. is firmware-limited to
channels 1 through 11.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
IMPORTANT NOTE REGARDING ANTENNA USE
Antenna Use (Point to Multipoint)
1x1 Operation
Chain1
DIMENSIONS DRAWING
Compex Systems Pte Ltd Compex (CHANGSHU) CO. Ltd Compex (Suzhou) CO. Ltd
135 Joo Seng Road, PM Industrial
Building #08-01,Singapore 368363
Tel: (65) 6288 8220
Fax: (65) 6280-9947
Email:sales@compex.com.sg
Block 8, Haicheng Industrial Square
Changshu Economic Development Zone,
Jiangsu Province, China 215513
Tel: (86)-512-52297891
Fax: (86)-512-52698858
No. 12, ChuangTou Industrial Square,
LouFeng North, Suzhou Industrial Park,
Suzhou City, Jiangsu Province, China
Tel: (86)-512-62950031
Fax: (86)-512-62950032
Copyright © 2008 Compex Systems. All rights reserved. COMPEX and the COMPEX logo, are registered trademarks of COMPEX Inc. While every effort
is made to ensure the information is accurate, Compex does not accept liability for any errors or mistakes that may arise. All specification is subject to
change without notice. Datasheet Version: V 1.0.0 GH 091204
For more information, visit www.compex.com.sg
