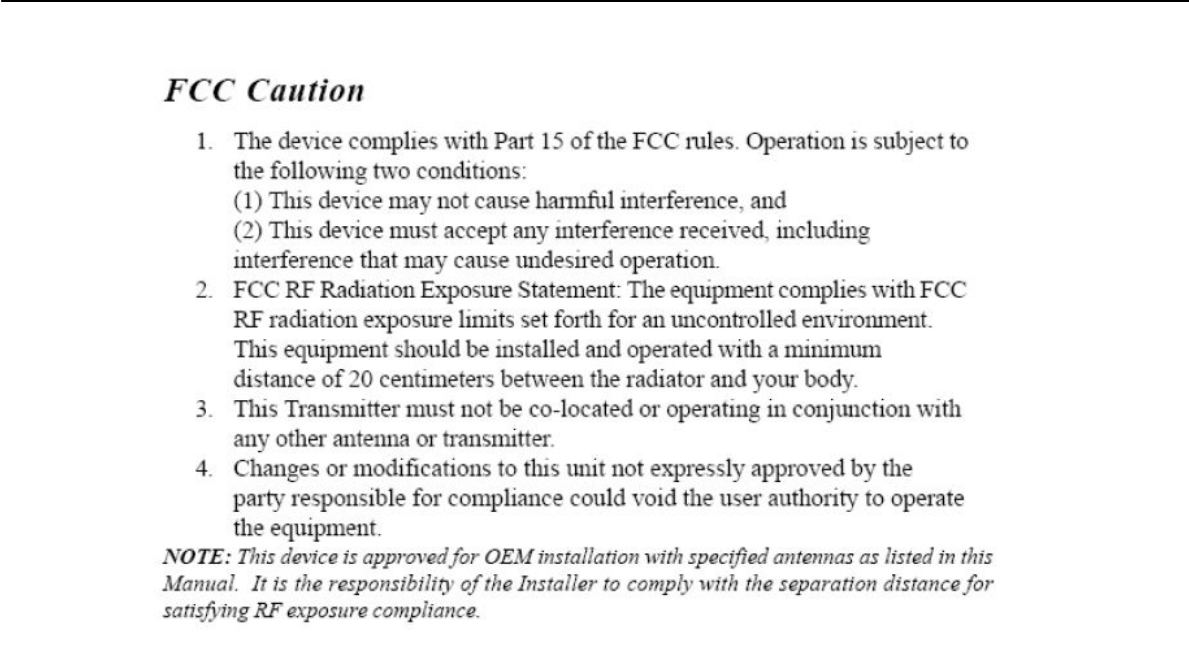

Caution: Exposure to Radio Frequency Radiation.
This equipment must be installed and operated in accordance with provided
instructions and the antenna(s) used for this transmitter must be installed to provide
a separation distance of at least 20 cm from all persons and must not be co-located
or operating in conjunction with any other antenna or transmitter. End-users and
installers must be provide with antenna installation instructions and transmitter
operating conditions for satisfying RF exposure compliance.
End Product Labeling
The fi nal en d p roduct must be labeled i n a visible ar ea w ith the
following: “Contains FCC ID: TK4-WLM54GP30ESD”
ICES 003 Statement
This Class B digital apparatus complies with Canadian ICES-003.
Declaration of Conformity
Compex, Inc. declares the following:
Product Name: Compex Wireless Mini-PCI Network Adapter
Model N o.: Co mpex iW avePort WLM54GP30-ESD c onforms to the foll owing
Product Standards:
Radiated Emission Standards:
ETSI EN 300 328-2 : July 2000; FCC: 47 CFR Part 15, Subpart B, ANSI C63.4-1992; 47
CFR Part 15, Subpart C (Section 15.247), ANSI C63.4-1992.
Conducted Emission Standards:
ETS 300 826: Nov. 1997.
Immunity Standards:
IEC 801-2; IEC 801-3; IEC 801-4
Low Voltage Directive:
EN 60 950:1992+A1: 1993+A2: 1993+A3; 1995+A4; 1996+A11: 1997
Therefore, this product is in conformity with the following regional standards:
FCC Class B ⎯ f ollowing the pro visions of FCC P art 1 5 directive; CE Mark ⎯
following the provisions of the EC directive.
This Class B digital apparatus complies with Canadian ICES-003.
Technical Support Information
The w arranty i nformation an d regis tration f orm ar e found i n th e Quic k I nstall
Guide.
For t echnical supp ort, you may con tact Compex o r its su bsidiaries. Fo r you r
convenience, you may also seek technical assistance from the local distributor,
or f rom the autho rized d ealer/reseller that you have p urchased this p roduct
from. For technical support by email, write to support@compex.com.sg.
Refer to the table below for the nearest Technical Support Centers:
Technical Support Centers
Contact the technical support center that services your location.
U.S.A., Canada, Latin America and South America
Write
Compex, Inc.
840 Columbia Street, Suite B,
Brea, CA92821, USA
Call
Fax
Tel:
Tel:
Fax:
+1 (714) 482-0333 (8 a.m.-5 p.m. Pacific time)
+1 (800) 279-8891 (Ext.122 Technical Support)
+1 (714) 482-0332
Asia, Australia, New Zealand, Middle East and the rest of the World
Write
Compex Systems Pte Ltd
135, Joo Seng Road #08-01, PM Industrial Building
Singapore 368363
Call
Fax
Tel:
Tel:
Fax:
(65) 6286-1805 (8 a.m.-5 p.m. local time)
(65) 6286-2086 (Ext.199 Technical Support)
(65) 6283-8337
Internet
access/
E-mail:
FTPsite:
support@compex.com.sg
Ftp.compex.com.sg
Website: http://www.cpx.com or http://www.compex.com.sg
Product Overview
·Introduction
Thank y ou f or p urchasing t his Wireless Network Adapter. Data security is
facilitated with WPA, IE EE 802.1x Authe ntication and 64-bit, 128-bit and 152-b it
WEP (W ired Eq uivalent Priva cy). The y s upport e asy Plug an d Play installa tion
and combine simplicity, data privacy, and reliability for your wireless network.
Chapter 1 Basic Setup
This chapter outlines the basic requirement for the installation and configuration
of the network adapter.
This network adapter is a plug-and-play device. You can plug it into the PCI slot
of your PC for auto-detection.
1.1 H ardware Installation
1. Turn off your PC and switch off the pow er from th e m ain pow er
supply.
2. R emove the back cover of the PC.

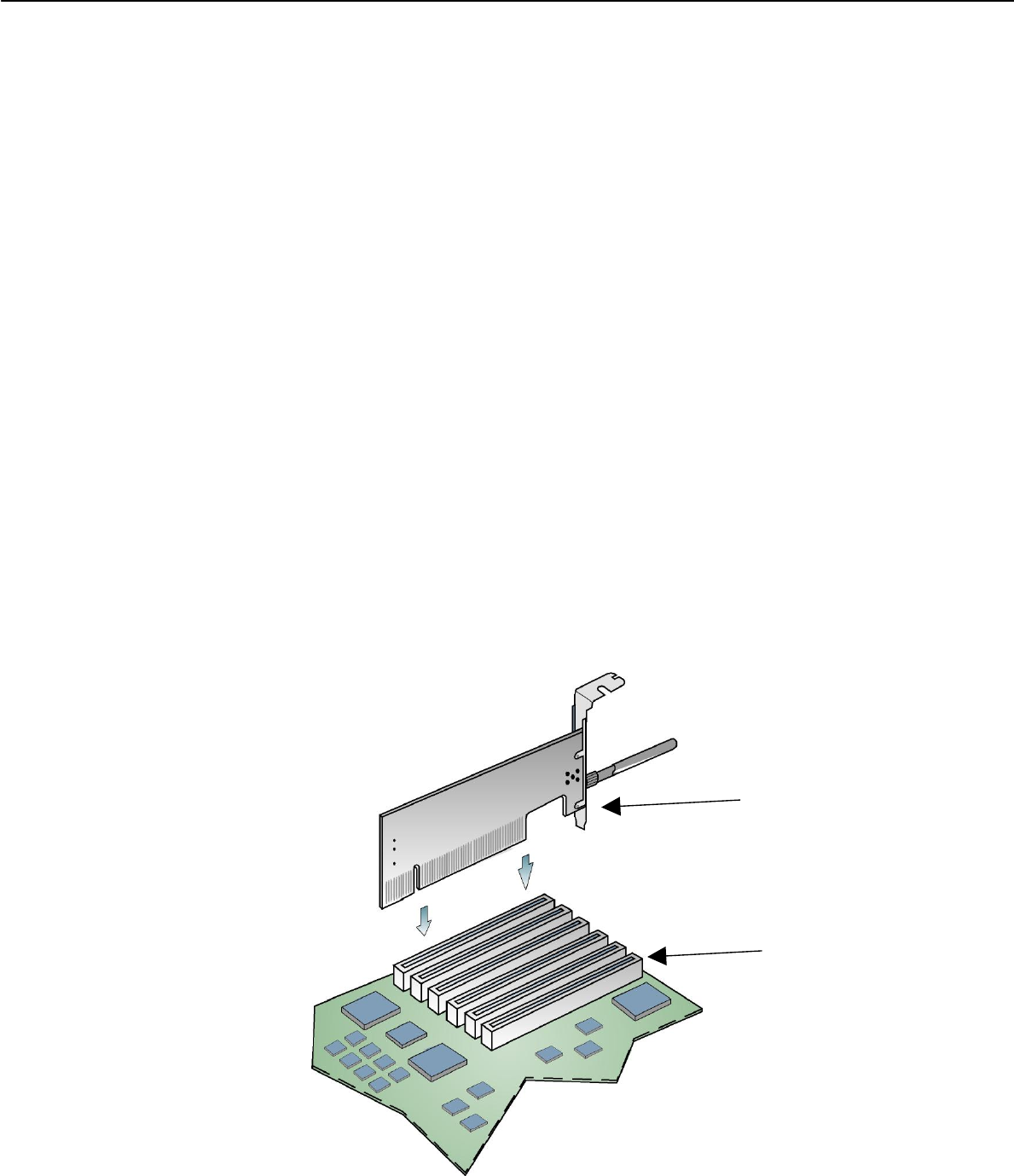

3. Then insert the network adapter into your PCI s lot as shown be low.
Ensure that the network adapter is properly seated into the slot.
4. Replace the back cover.
5. Power on your PC.
WLM54AG
PCI slot
1.2 D river & Utility Installation
1. Insert the Product CD into your computer CD-ROM drive.
2. Click on Driver & Utility section and the system will run the setup.exe
automatically.

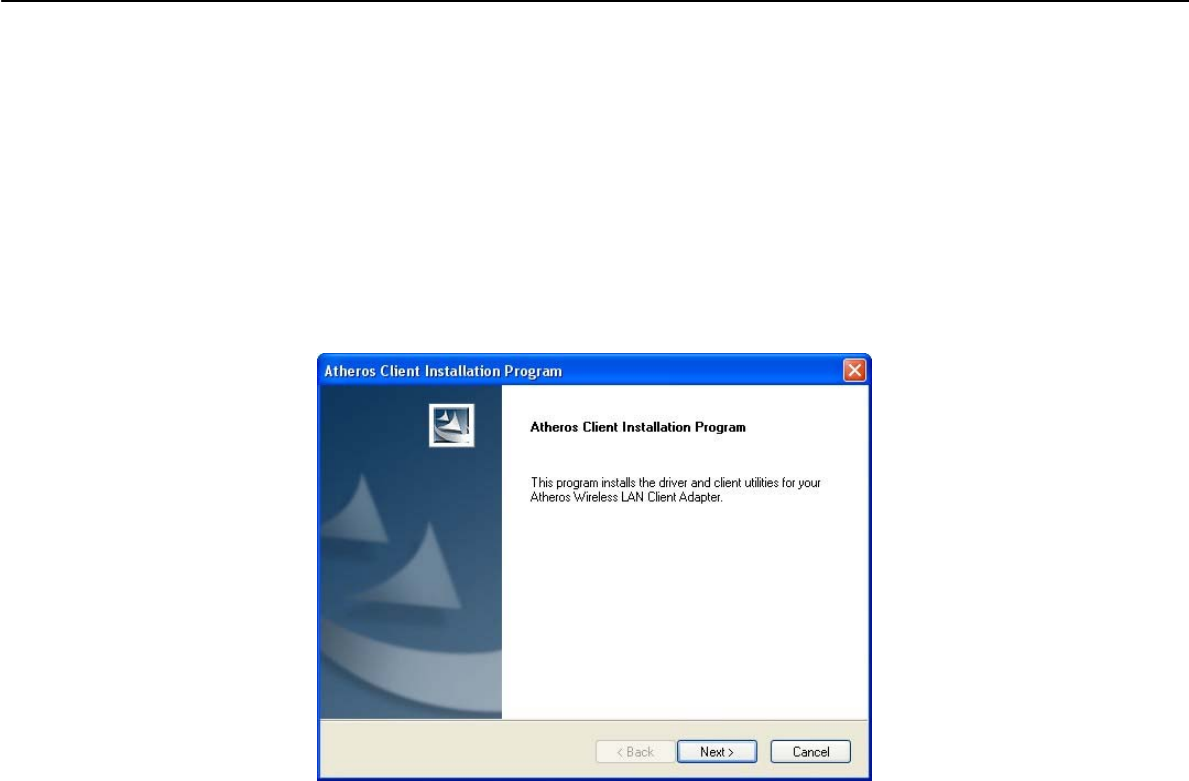

3. N ext, the Atheros Client Installation Program screen appea rs. Cl ick
on the Next> button to proceed.
4. When the License Agreement screen appears, you are r equired to
read an d accept th e agreement to c ontinue. Clic k o n th e Next>
button to proceed.

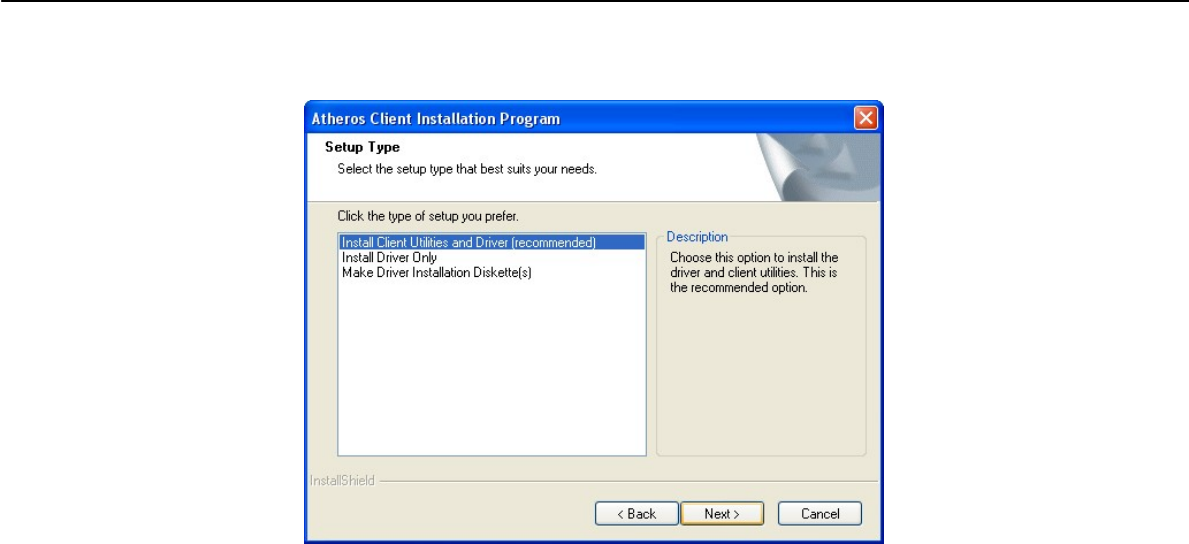

5. Select your preferred setup:
Install Client Utilities and Driver (Recommended) option
You a re r ecommended to sel ect this setup ty pe. This op tion wi ll
install both the driver and utility that support your PCI adapter.
Install Driver Only option (For Windows XP user only)
Select th is op tion if y ou are going to u se the W ireless Zero
Configuration U tility to configure yo ur PCI a dapter. Note t hat only
Windows XP comes with the Wireless Zero Configuration Utility.
Make Driver Installation Diskette(s)
Select this option if you wish to make a duplicate copy of the driver
and store to the diskette/s.
6. Click on the Next> button and f ollow the instr uctions stated on the
screen.
For Windows XP users

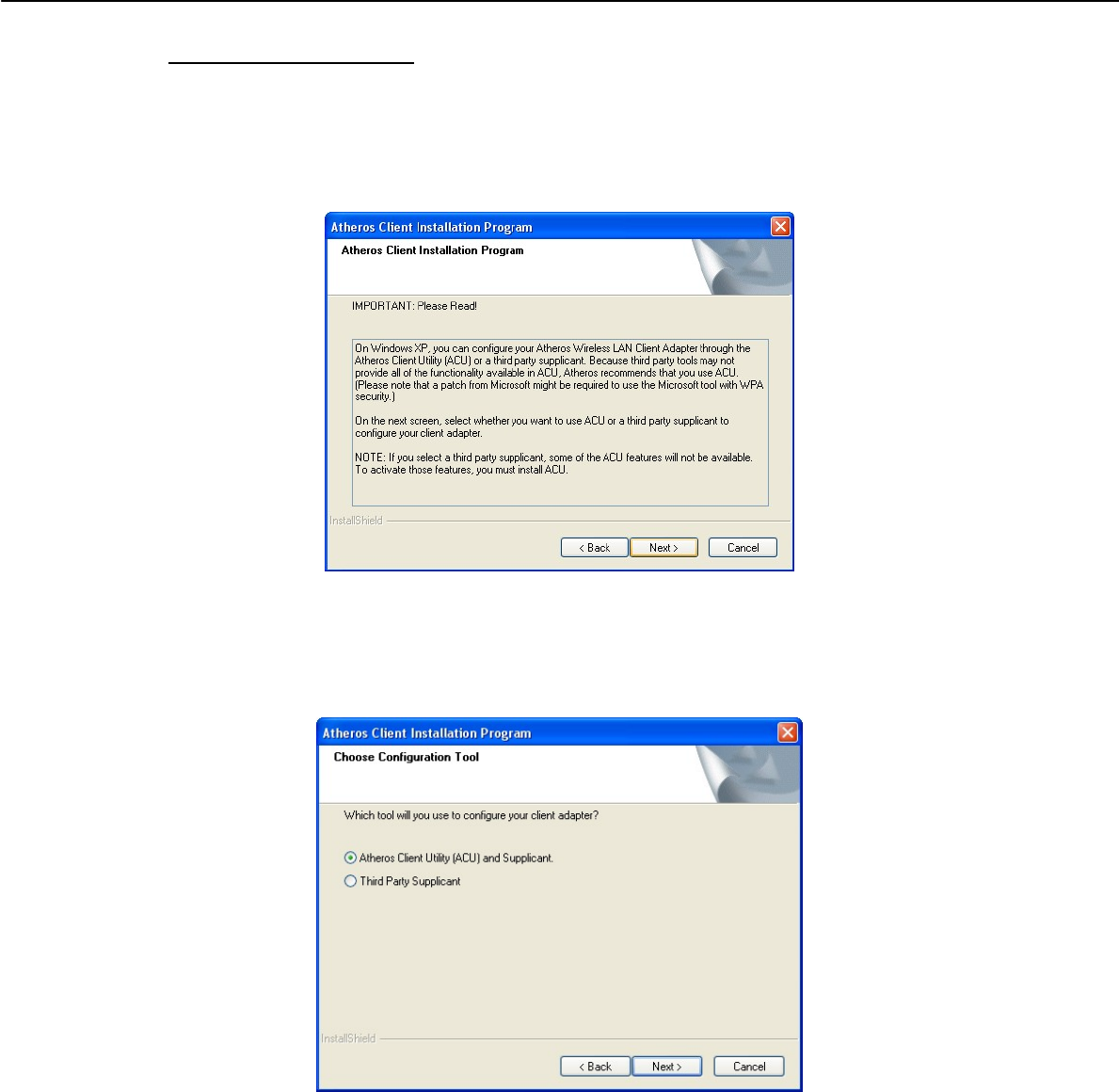

7. If y ou a re us ing W indows XP as op erating sy stem, t he f ollowing
screen will appear. Read the notice carefully and click on the Next>
button to proceed.
8. Select your ch oice of tool to assist you i n configuring your adapter.
Click on the Next> button to proceed.
Atheros Client Utility (ACU) and Supplicant option
Select this option to install your network adapter. (Recommended)
Third Party Supplicant option
Select this option if you decide to u se Wireless Zero Configuration
Utility to configure your wire less device. I nstalling th is t ool w ill o nly
allow you to view the status of the connec ted wire less device/ s
through the utility; configuration using the utility will not be allowed.
If y ou ha ve se lected Third Party Supplicant configuration tool, a
screen similar to tha t be low will ap pear, p rompting y ou to
enable/disable the system tray icon.
9. Click on th e c heckbox bes ides
Enable Atheros System Tray Utility
and cl ick on the Next> b utton to
proceed.
10. The s creen below appears to i nform y ou th at th e driver w ill b e
automatically install ed if you have already inse rted y our cl ient
adapter into the PCI slot of your computer.
Cancel the Found New Hardware Wizard if it appears and click on
the OK button to begin the installation.

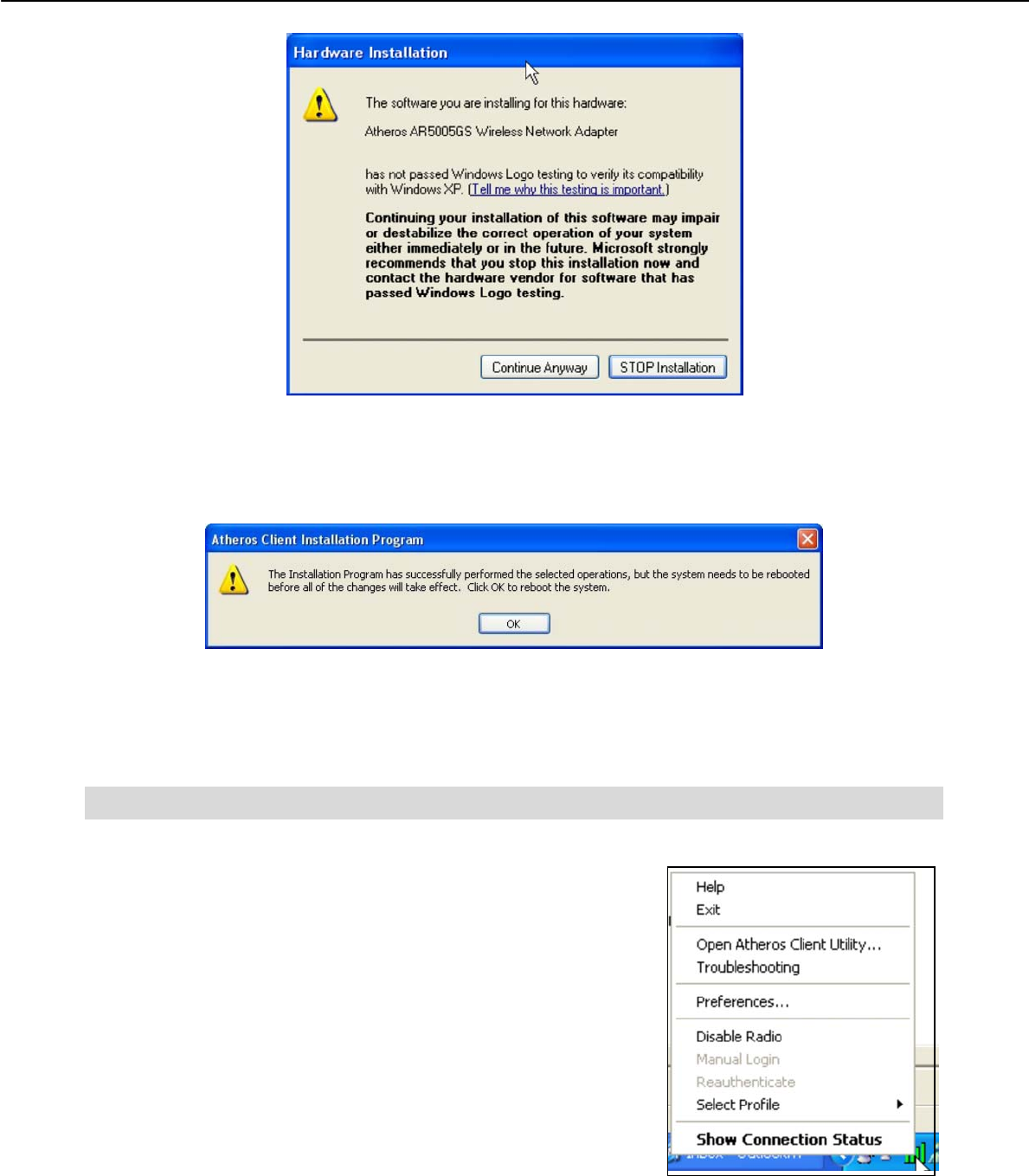

11. If a similar screen similar to the one shown b elow appears, cl ick on
the Continue Anyway button to continue the installation.
12. Click on the OK button to reboot your system and this w ill complete
the installation.
Chapter 2 Using the System Tray Utility
This ch apter w ill elaborate on the Atheros sy stem
tray utility found at th e right b ottom corner of you r
screen. Right click on the utility icon and the menu
will appear.
The following explains the different options available on the menu:
Help
Open the online help.
Exit
Exit the Atheros Client Utility application. Once you exit, the icon will disappear
from the system tray.
Open Atheros Client Utility…
Launch the Client Utility.
Wireless-G Excellent Signal Strength Example
Wireless-AG No Link Example

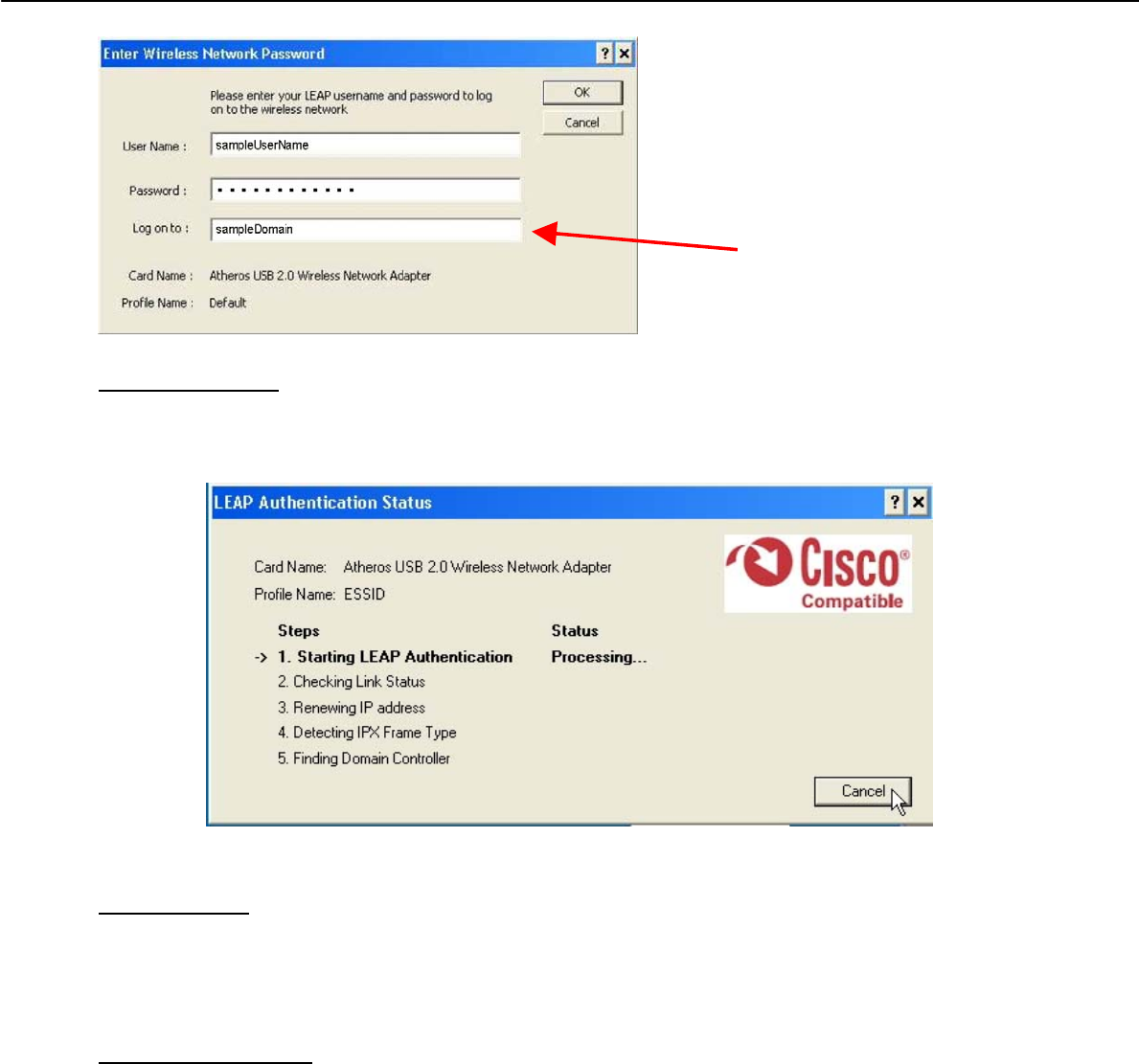

Manual LEAP Login
If you select this option, you will have to manually start the LEAP authentication
process to login to the n etwork instea d of b eing prompted f or y our LE AP
username and password during your windows logon.
Different signal strength indications
Reauthenticate
Reauthenticate to a L EAP-configured a ccess point each tim e you l ogin to a
LEAP network.
Select Profile

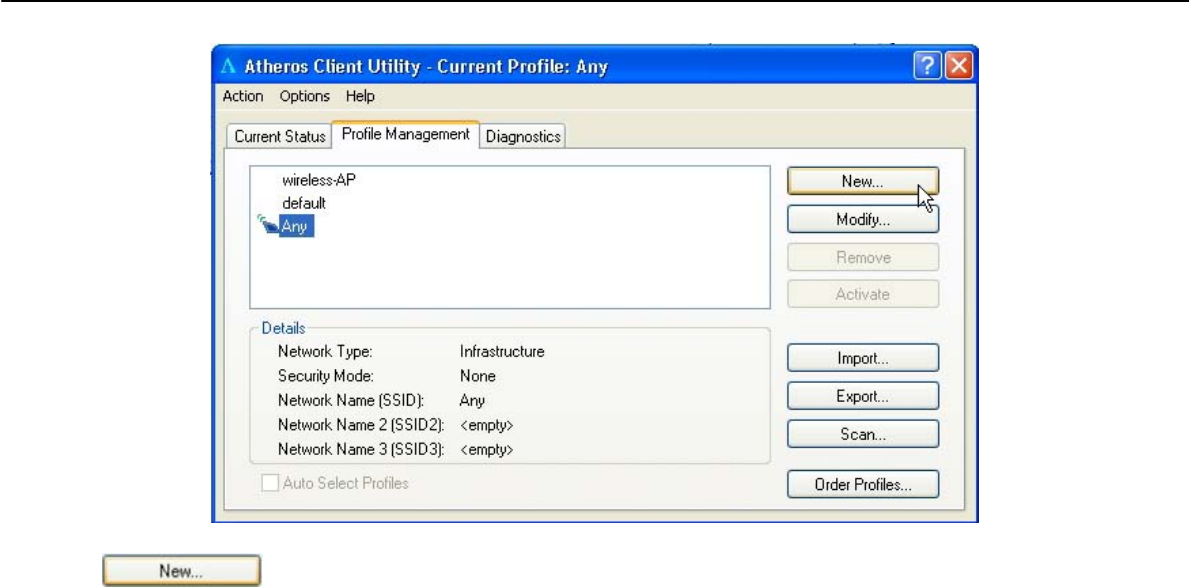

Click on a co nfiguration profile name to switch to a particular wireless network.
If no configuration profile exists, you will need to add a profile first.

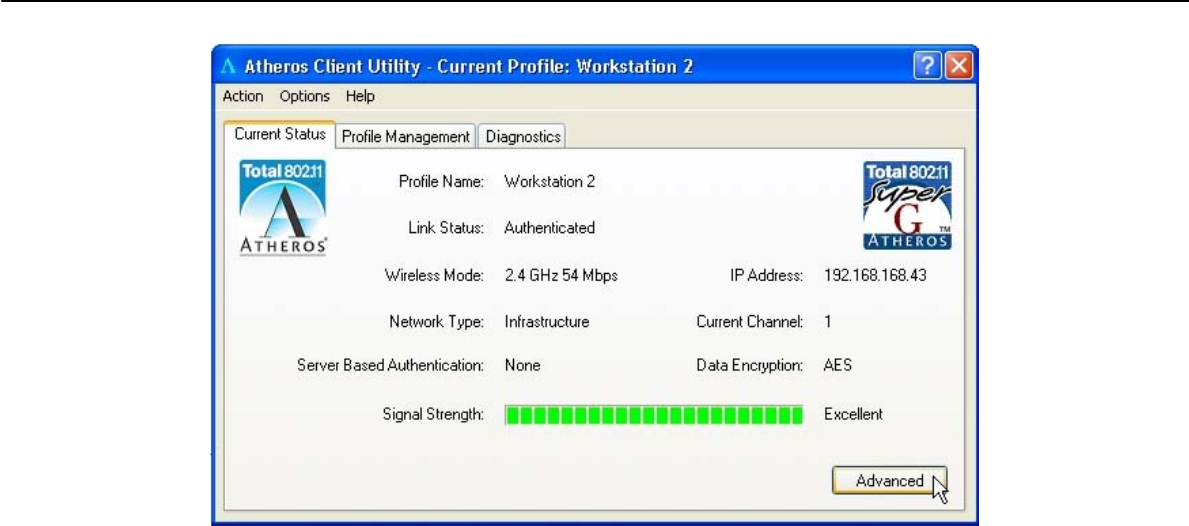

Connection Status
To view the connection status of your wireless PCI adapter.
Alternatively, you may also double click on the utility icon in the system tray.
Active Profile Displays the name of the active configuration profile.

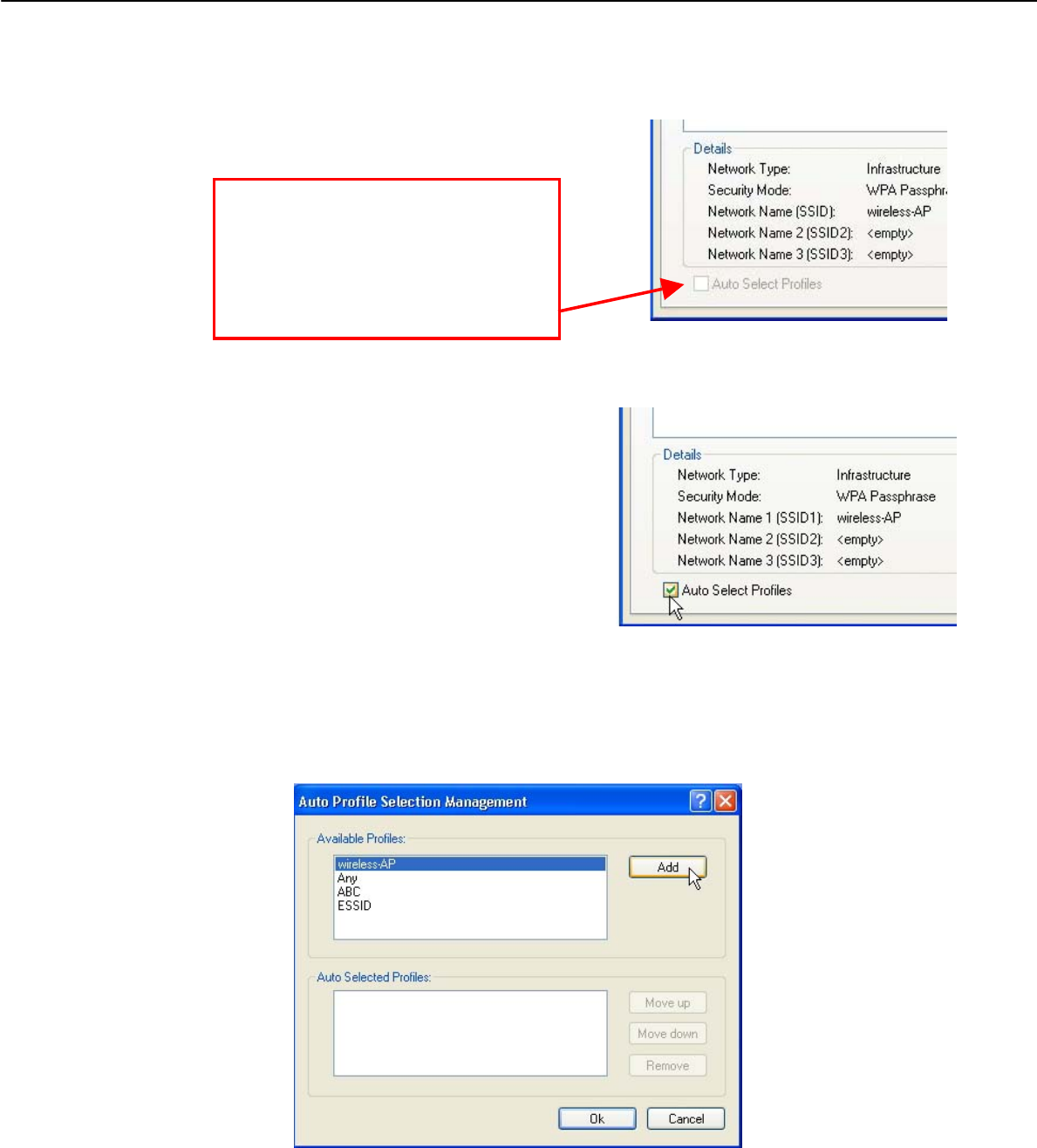

Auto Profile Selection Shows whether auto profile selection is enabled.
Connection Status Displays whether the adapter is connected to a
wireless network.
Link Quality States the quality of the link connection.
SSID Displays the SSID of the network to which the
network adapter is associated.
Access Point Name Shows the name of the access point the wireless
adapter is connected to (if any).
Access Point IP Address Shows the IP address of the access point the wireless
adapter is connected to (if any).
Current Receive Rate Displays the data rate at which the wireless adapter
is currently receiving from the wireless network.
Current Transmit Rate Displays the data rate at which the wireless adapter
is currently transmitting to the wireless network.
Link Speed States the speed of the link connection.
Client Adapter IP Address Displays the IP address of the wireless adapter.
Chapter 3 Utility Features
This chapter shows you how to make use of the utility to view the status of your
wireless c onnection, to change y our set tings and al so to monitor y our wireless
performance via the network statistics.
3.1 Current Status Tab
Displays the performance of the network adapter in the wireless network.

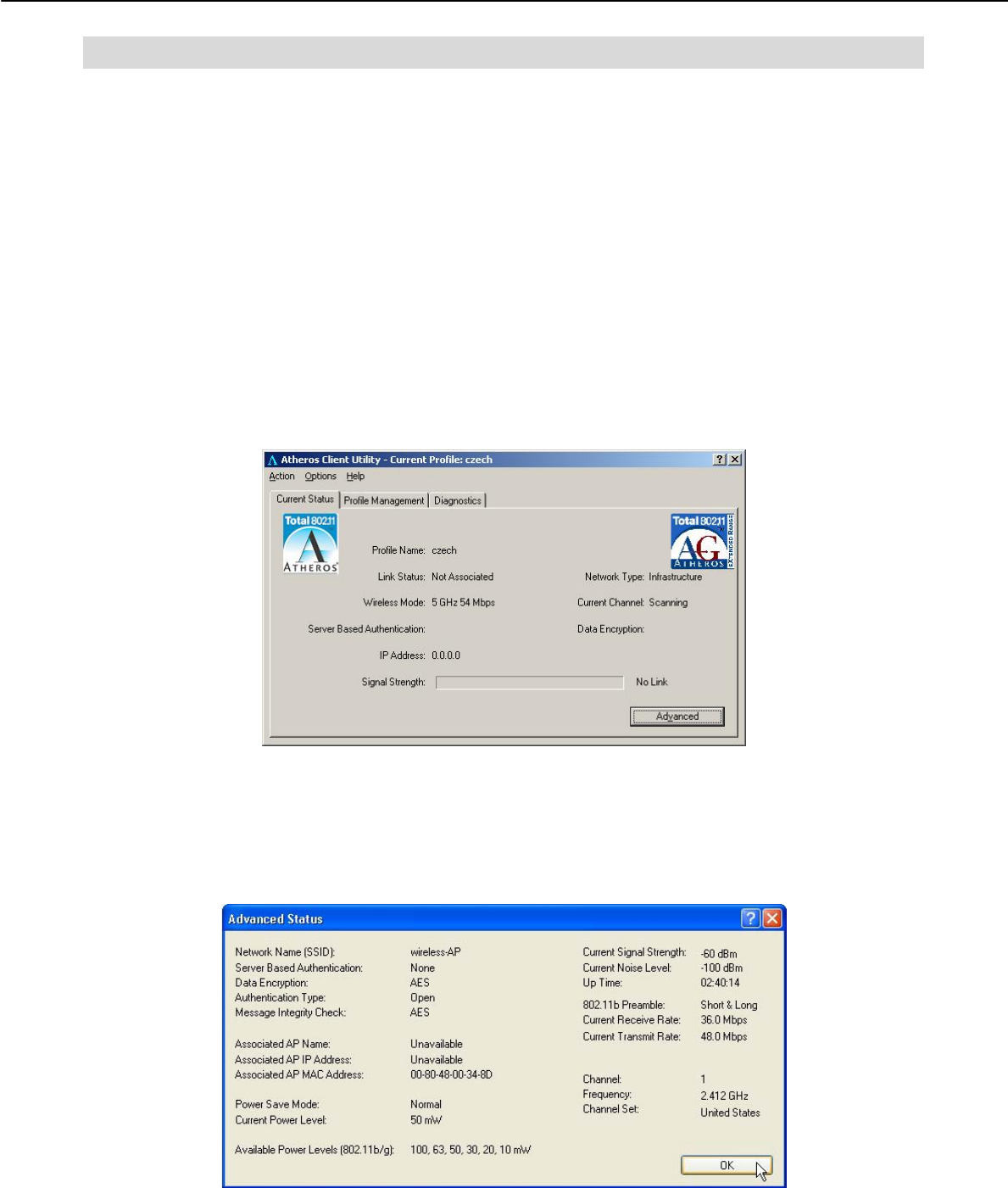

Wireless-AG Current Status
Upon cl icking on the Advanced b utton, y ou wil l b e able to vie w all
information on th e r espective pro file, e. g. th e types of en cryption an d
authentication, th e signal strength, th e MAC address of the con nected
AP (if you are in Infrastructure mode), etc.
3.2 Prof ile Management Tab
Selecting this tab displays the profiles and the details.
You onl y need to cr eate a profile if you ha ve mor e tha n one wi reless
connection.
3.3 Diagnostics Tab
The Diagnostics tab lists the following receive and transmit diagnostics for
packets received by or transmitted to the network adapter.
• Multicast packets transmitted and received
• Broadcast packets transmitted and received
• Unicast packets transmitted and received
• Total bytes transmitted and received
This button shows more deta iled statistical information on frames that are
either received by or transmitted by the network adapter.
This button allows you to run the diagn ostic test, save the test report and
view the test results on the wireless adapter configuration and association.
Chapter 4 Utility Configuration
This chapter will elaborate on the Cl ient Manager configuration of the network
adapter using some simple examples.
the wireless clients communica te through router, which are devices that
act as base station for all wireless communication. Data packets from the
wireless clients a re tra nsferred t o the wi reless route r be fore be ing
transmitted to other h osts on the netw ork. The number of wireless clients
supported depends on the router.
4.1 Co nfiguration Mode

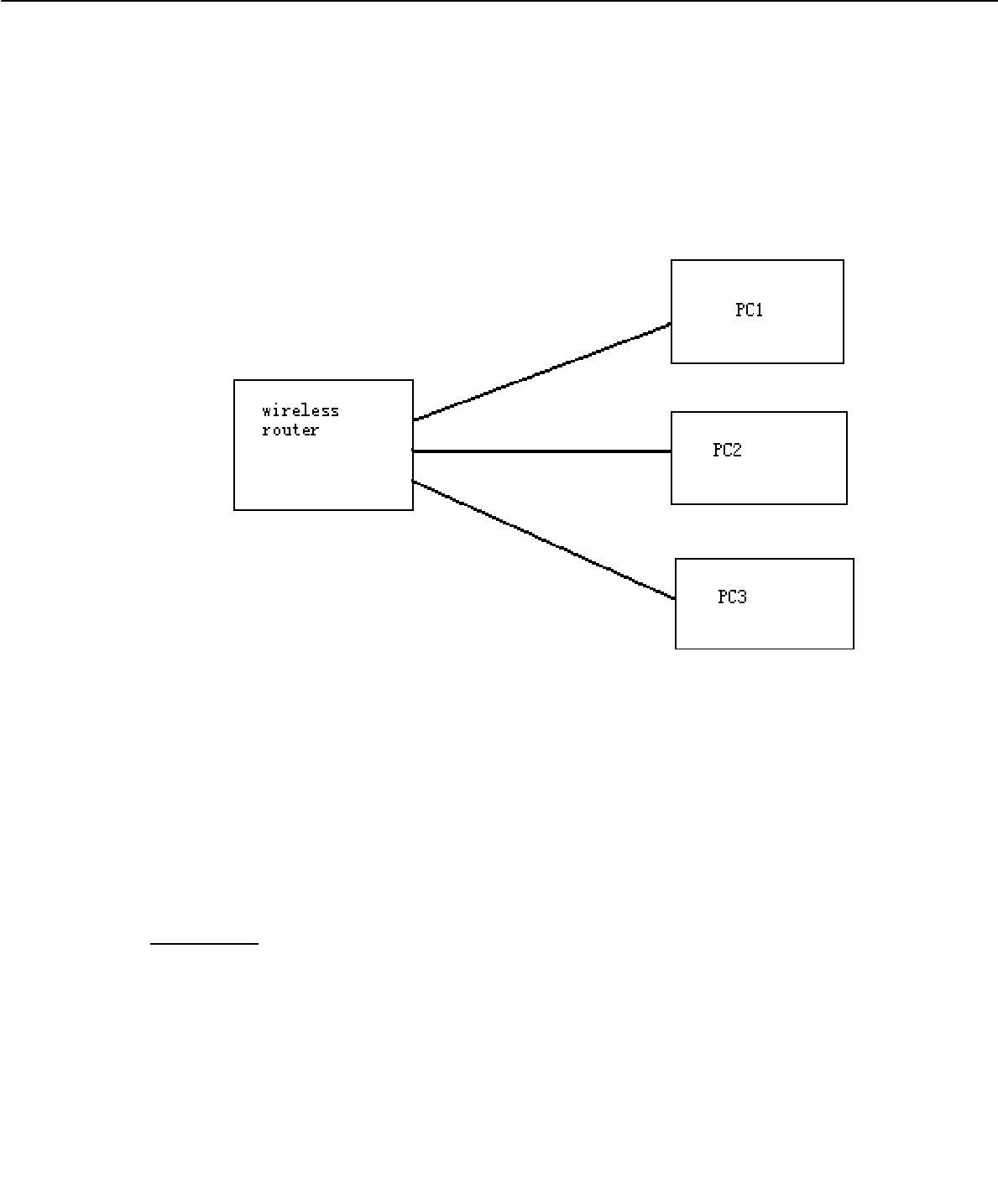

In this example, three work station act as wireless clients to communicate
with the w ireless router. Once all con figuration ha s been done, wire less
clients w ith the sam e SSI D as the AP will be abl e to acc ess wirelessl y to
PC1 via the wireless router
For Router
Ensure that yo u have en abled the DHCP server in your router an d that
your wireless clients are set to receive their IP address dynamically so that
the wireless router can assign an IP address to them. Note th e w ireless
configuration settings of your router as shown in the figure above.
For PC 1
1. Activate your utility.

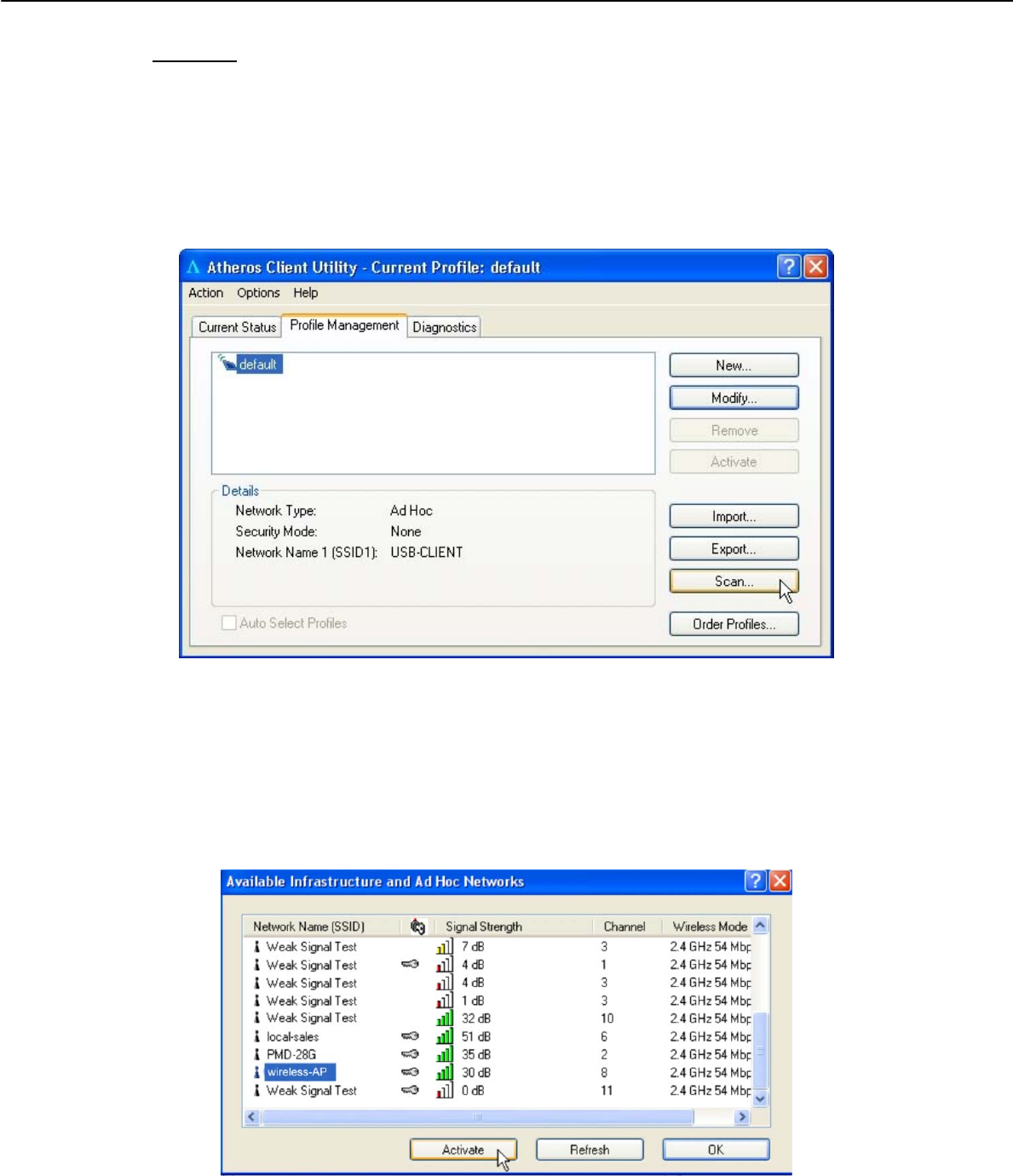

2. Go to the Profile Management tab, click on the Scan button to look
for the wireless AP.
3. Click on the Refresh butto n if you r syst em is un able t o de tect yo ur
wireless AP . Once found, se lect the Network Name (SSID) used by
the router: wireless-router and click on th e Activate button to add i t
to your profile list.
Notice that the SSID has already been pre-configured in this profile.
The SSI D of both the wireless router and the wirele ss cl ient must b e t he
same for them to communicate with one another.
4. E nter the Profile Name, e.g. Workstation 2 for easy identification.
5. Next, proceed to the Security tab . The wire less cl ient must us e t he
same se curity m ode as the ro uter. In our example , s elect WPA
Passphrase and click on the Configure… button.
6. Enter the enc ryption key in the field provided. Please note that this
key must be the sa me as the one that you had configured for your
wireless router.
7. Click on the OK button to update the changes.
Proceed t o you r Current Status tab to mon itor the connection b etween
the router and the wireless client (PC2).
Alternatively, you can a lso check the con nection from the MS-DOS
Prompt. From PC2 , simpl y proceed to the Start Me nu, Run… and type in
cmd. Click on the OK button.
In the MS-DOS Prompt window, type ping 192.168.168.1 –t, whereby this IP
address belongs to your access point.
When the screen appears:
Pinging 192.168.168.1: bytes=32 time=2ms TTL=128
Pinging 192.168.168.1: bytes=32 time=2ms TTL=128
Pinging 192.168.168.1: bytes=32 time=2ms TTL=128
…….
This indicates that the con nection betw een the ac cess p oint an d the
wireless client has been established successfully!
4.2 Prof ile Management
This option allows you to manage your profile(s), set your security options,
and scan for other wireless networks.

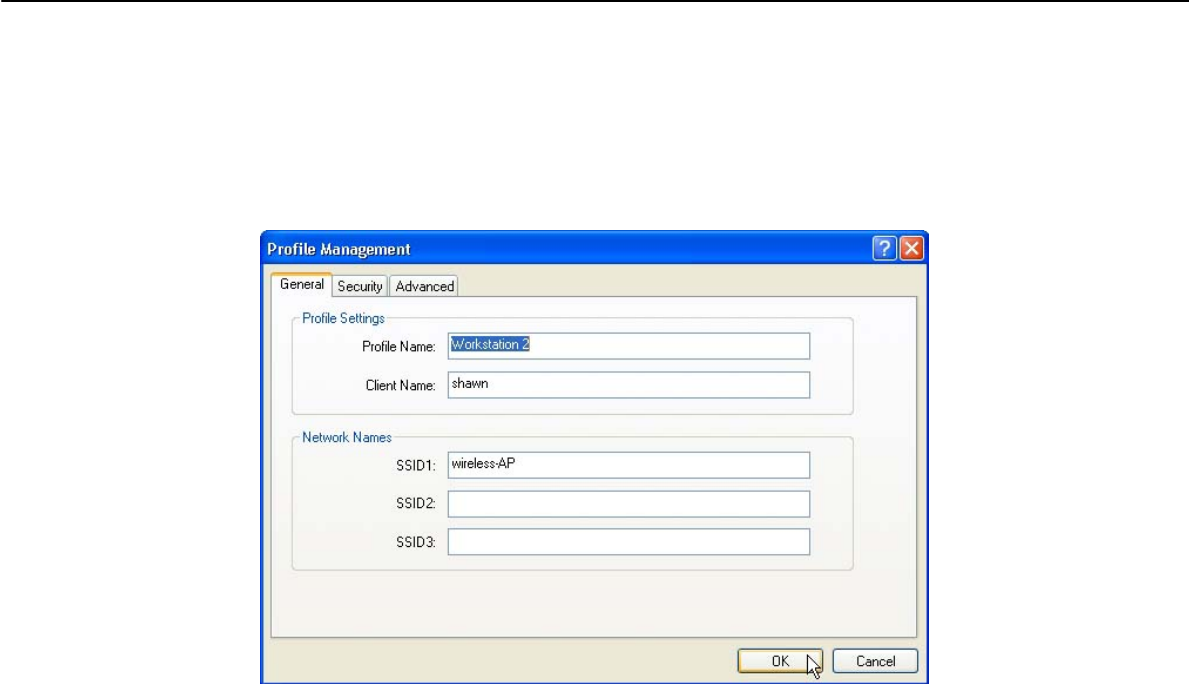

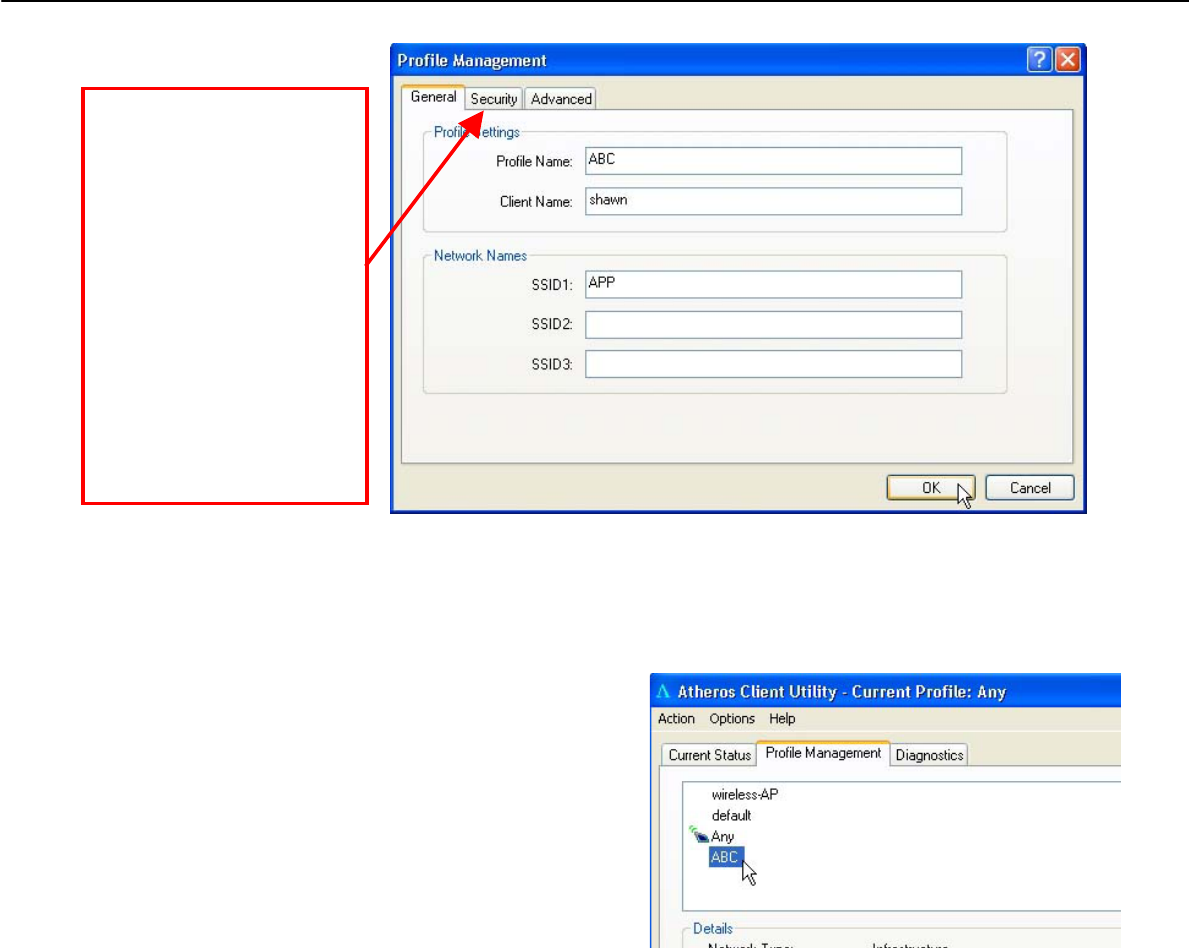

Click on New b utton to cr eate a new profil e. Enter the profile name ( a
unique name to identify th is p rofile), a cl ient n ame and the SSI D of th e
wireless netw ork to conne ct to. Note that the Client name refers t o th e
name that is registered to your PC. You can enter up to 3 different SSIDs in
order of pref erence, p er profile. We are usin g ABC as th e prof ile n ame
and APP as the SSID1
Click on the OK button to update the changes.
Notice that ABC has been add ed
to the profile list.
For d etails o n h ow
to set the dif ferent
authentication and
encryption types
available u nde
r
the Security Ta b,
kindly re fer to
Chapter 7 “Types
of Authentic ation
and Encryption
mode”

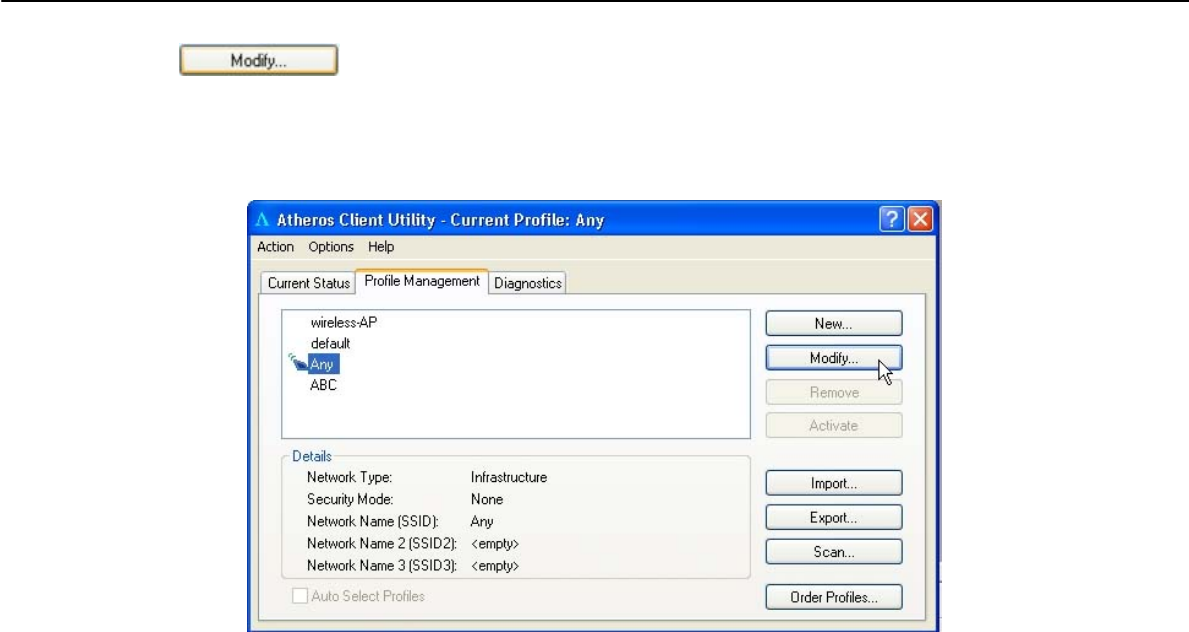

To mod ify a n e xisting profile, select the profile that you wish to m odify
and click on this button. We are using profile: Any as an example.

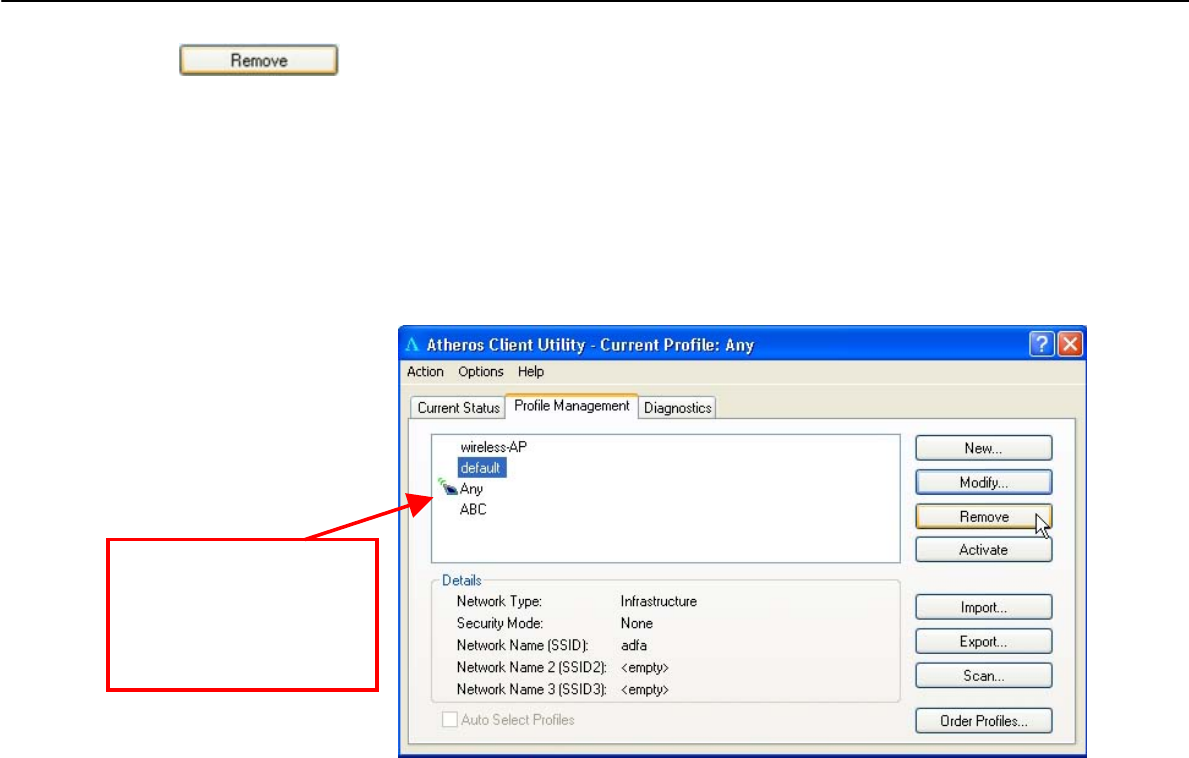

To delete an existing profile, select the particular profile that you wish to
delete a nd cl ick on this b utton. We are usin g p rofile: default as an
example.
Note th at th e ac tive prof ile ( the pr ofile th at you a re c urrently u sing)
cannot be deleted!
Active profile
indicated by this
icon cannot be
deleted!

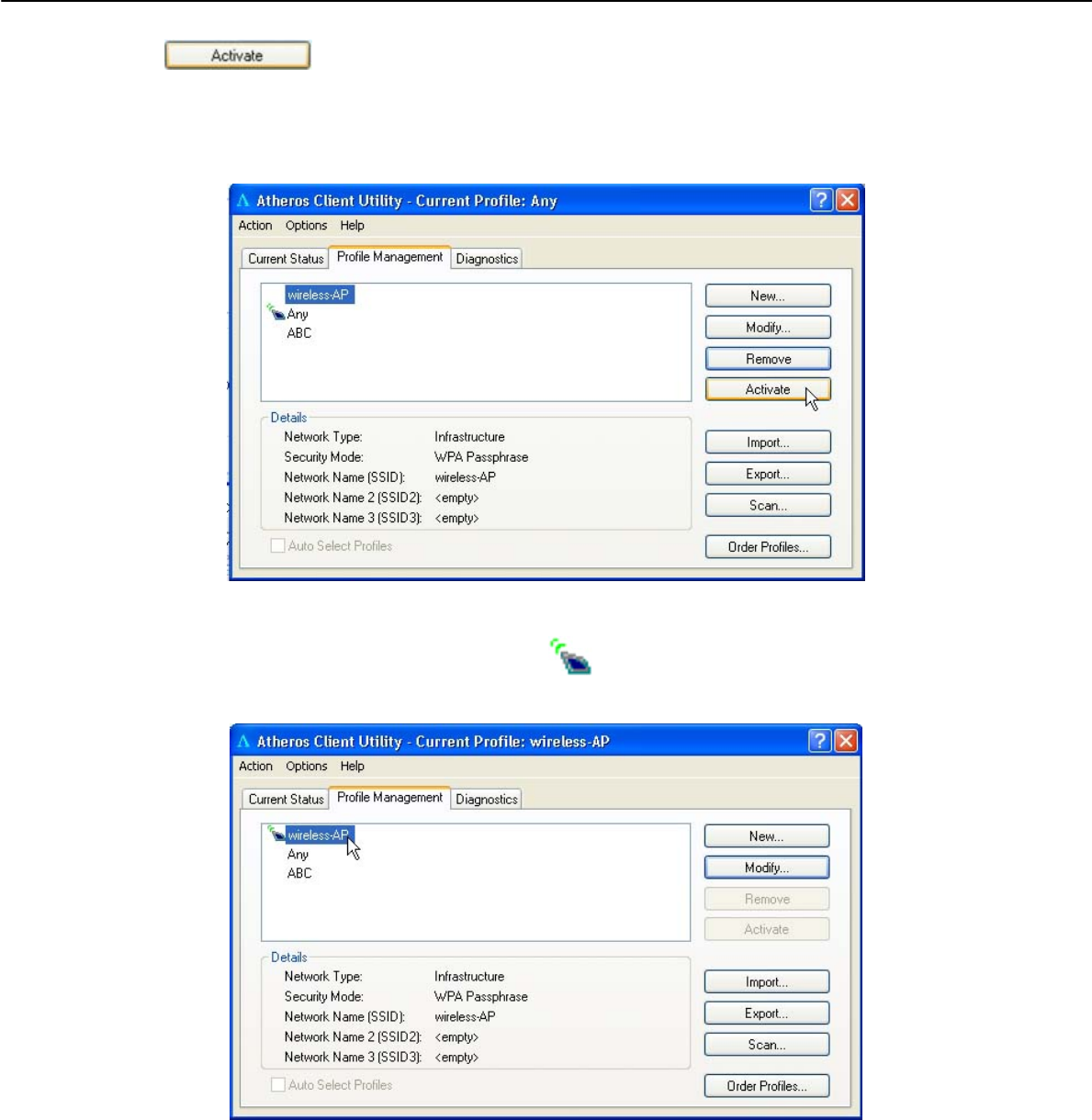

To activ ate a profile, selec t the p rofile and c lick on th is button . W e are
using profile: wireless-AP as an example.
Once a profile is activated, this icon w ill appear next to t he profile
name: wireless-AP.
This fu nction allows y ou to save th e s ettings of y our p rofile on to disk.
Select the profile that you wish to sa ve and click on this button. We are
using profile: ESSID as an example.
Choose th e f older to s ave to, en ter the name u nder w hich to save th e
profile and click on the Save button.
Now, your profile is saved to your selected folder.

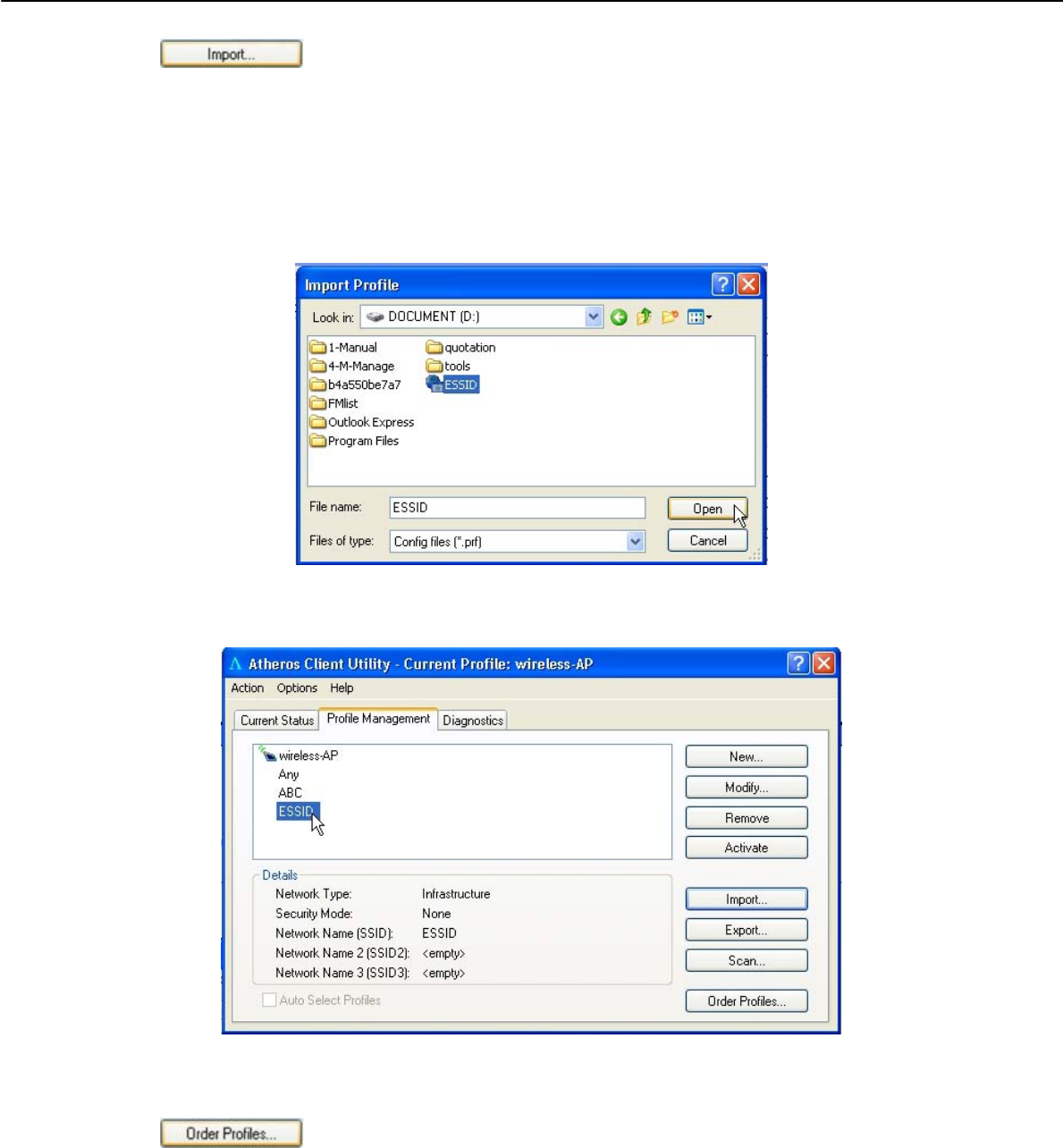

This function allows you to retrieve a saved profile from disk. We are using
profile: ESSID as an example.
Go to th e folder where you have saved your profile, select ESSID.prf and
click on the Open button.
Notice that the profile: ESSID has been imported to the list of profiles.
If you ha ve crea ted se veral profil es, th is function allow s y ou to establ ish
the priority order in which the network adapter should try to connect to a
WLAN. If the netw ork adapter is unabl e to connect to a w ireless network
through the 1st profile, it w ill then try to conn ect using the 2 nd profile and
so on.
When auto pr ofile se lection is en abled,
the network adapter scans for available
wireless networks and will connect to the
highest p riority profile that matches the
networks detected.
To do so, simply click on t he Add button
from the Available Profiles list. Refer to
the screen shown below.
Please note tha t y ou need AT LE AST TWO p rofiles to a ctivate the Auto
Select Profiles function; and that each of your profile must connect to at
least one Network Name (SSID).
Notice that when a selected profile has been added, it will be transferred
to the Auto Selected Profiles list.
Notice that if this function is
disabled, this means tha t
you have not a dded any
profile in the Auto Selected
Profiles list.
Select and click on the Add button to transfer another profile.
You need to transfer at least two profiles to the Auto Selected Profiles list
to activate the Auto Select Profile function.
Transmit Power Level
Specifies the wire less tra nsmit p ower to be used. Reducin g the power
level lowers the risk of interference with other nearby wireless devices and
conserves battery power but decreases radio range.
Power Save Mode (Only applicable to Infrastructure mode)
This feature reduces power consumption by the PCI adapter. There are 3
options for this mode:
• Off
The p ower ma nagement i s disabled and the ca rd consume s full
power from the computer.
• Normal
The d river turns of f the po wer to the adapter for br ief pe riods over
briefly spaced time intervals.
• Maximum
The dri ver tu rns o ff po wer to the adapter fo r l onger perio ds ove r
more widely spaced time intervals.
The g uideline for choosin g be tween the Normal and Maximum
options:
The P CI ad apter wakes u p more often an d res ponds sooner to
network requests in Normal mode than in Maximum mode; and the
Maximum mode consumes less power than Normal mode.
Network Type
Select ei ther Infrastructure if y ou are conn ecting to the W LAN u sing an
access point
802.11b Preamble
The preamble is part of the IEEE 802.11b physical layer specification. It is
mandatory for all 802.11b devices to support the long preamble format,
but they may op tionally s upport th e s hort pr eamble. T his P CI ad apter
supports both the short and long preambles.
• Short & Long
This option allow s communication with o ther 802. 11b devices tha t
support short preamble to boost the throughput.
• Long Only
If your device is having trouble to communicate with other 802 .11b
devices, you may try to select the Long Only option.
802.11 Authentication Mode (Only appli cable to Infras tructure mode, after you
have enabled the encryption mode)
Select w hich m ode t he w ireless a dapter uses to auth enticate to an
access point:
• Auto
Causes the P CI a dapter to atte mpt au thentication using share d
authentication. It then sw itches to op en a uthentication if shared
authentication fails.
• Open
Enables the PCI adapter to attempt authentication regardless of its
WEP se ttings. It will only associa te w ith the acc ess p oint if i ts W EP
settings match those of the access point.
• Shared
Allows the ad apter to au thenticate and associate only if it has the
same WEP settings as the access point
Appendix
1.Technical Specifications
Network Protocol, Standards and Electrical Emissions
Industry Standards • IEEE 802.11g
• IEEE 802.11b
Performance
Operating Frequency • 2412~2462MHz
Modulation • Binary Phase Shift Keying (BPSK)
• Quadrature Phase Shift Keying (QPSK)
• Complementary Code Keying (CCK)
• 16 QAM
• 64 QAM
• DBPSK
• DQPSK
Antenna Type External 2dBi antenna and an SMA-type
connector
Network Interface PCI 2.3 compatible
Physical and Environment
Environmental Requirements
Operating temperature:
Storage temperature:
Operating humidity:
Non-operating humidity:
0°C to 50°C
-20°C to 70°C
10% to 70% RH
5% to 90% RH
Power Consumption 3.3V DC, 2A
Physical Dimension 60mm x 46 mm x 14 mm (LxWxD)
