Compex Systems WPJ342 WIRELESS ACCESS POINT User Manual Ethernet
Compex Systems Pte Ltd WIRELESS ACCESS POINT Ethernet
User Manual
Ethernet
2 FE ports with Auto-MDI/X
Extras
Serial Port2, JTAG3, Reset Button, Surge Arrestor, Watchdog Timer
Power Solutions
High voltage
DC Jack Input:12-24V, Passive PoE: 36-48V, IEEE 802.3af PoE
Low voltage
DC Jack Input: 12-24V, Passive PoE: 12-24V
PoE Injector Compatibility
IEEE 802.3af/at injectors(both end span and mid span)
Passive injectors
Power consumption (board only)
4W
ROHS Compliance
Yes
Humidity
Operating: 5% to 95% (non-condensing)
Storage: Max.90% (non-condensing)
Temperature Range
Operating: -20ºC to 70ºC
Storage: -40ºC to 90ºC
Dimension
95 X 105 x 18 (mm)
SYSTEM INFORMATION
Processor
Qualcomm-Atheros AR9342
System Memory
64MB DDR2
NOR Flash
8MB (max 16MB optional)1
PCIe Slot
9.2mm height miniPCIe slot
Antenna Connector
2 x U.FL
5GHz
On-board Radio
Transmit
Power
Data Rate
Aggregate Power
HT20 MCS0
25dBm
HT20 MCS7
19dBm
HT40 MCS0
24dBm
HT40 MCS7
19dBm
Receiver
Sensitivity
Data Rate
5GHz
HT20 MCS0
-94dBm
HT20 MCS7
-77dBm
HT40 MCS0
-93dBm
HT40 MCS7
-75dBm

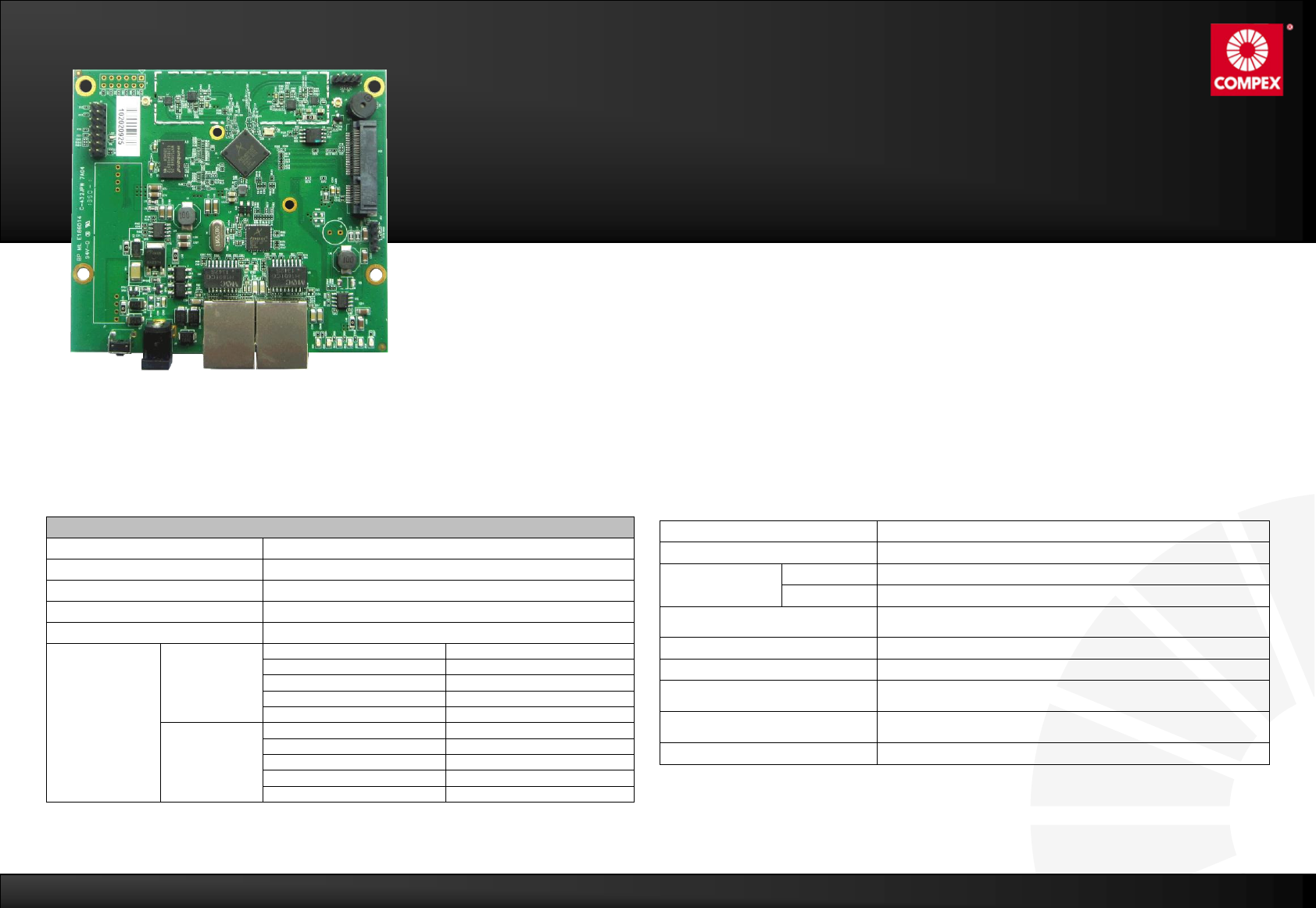

Dual Radio Embedded Board
Model: WPJ342
FEATURES
CompexWRT and OpenWRT firmware supported
Qualcomm-Atheros 560MHz Networking Processor
Dual Radio Solution (one 2x2 11n 5Ghz on-board radio and one
miniPCIe slot that supports all Compex 802.11n WLE series)
Integrated Passive PoE (alternative 802.3af PoE available)
Support 2 x FE Port
APPLICATIONS
Dual Band, Dual Concurrent AP
802.11a/n+802.11b/g/n AP
Point to Point / Point to MultiPoint
Base Station
CPE
TECHNICAL SPECIFICATION
ORDERING INFORMATION
Item Code
Version
Processor
L/H voltage
Power Solutions
NOR
Flash
Memory
Socket
Height
WPJ342HV 7A05PCW864AR
Compex-WRT
AR9342
High Voltage (48V)
8MB
64MB
9.2mm
WPJ342LV 7A05PCW864AR
AR9342
Low Voltage (24V)
1 Depends on Order Configurations
2 Serial Port is a 4-pin header (TTL) + Serial Converter is available to change the TTL signals on board to
RS232 signals for debugging. Configurations are subjec to change without notification.
3 JTAG Port is a 14-pin header + JTAG kit is for writing your own developed loader and firmware directly
RELATED PRODUCTS
802.11 b/g/n
2.4GHz
miniPCIe
WLE350NX
WLE200NX
WLE200N2-23
Passive
injector PoE
Plus
POE Plus
- Output Voltage: 24VDC
- Max Output Watts: 12W
PoE2405
- Output Voltage: 24VDC
- Max Output Watts: 12W
For 5150-5250MHz frequency band, the model WPJ342 just use the antenna which antenna gain is less than 15dBi. For 5725-5850MHz frequency band, the model WPJ342 just use the antenna which antenna gain
is less than 25dBi. Before of use, the product and antennas should be installed by the Professional installers.
Visit www.compex.com.sg
Like us on www.facebook.com/compexsystems
Copyright 2013 Compex Systems. All rights reserved. COMPEX and the COMPEX logo are registered
trademarks of COMPEX Inc. While every effort is made to ensure the information is accurate, Compex does not
accept liability for any errors or mistakes that may arise. All specifications are subject to change without notice.
DIMENSION DRAWING
Compex Systems Pte Ltd
135 Joo Seng Road #08-01
Singapore 368363
Tel: +65 6286 2086
Fax: +65 6280 9947
Email: sales@compex.com.sg
Compex (Suzhou) Co Ltd
No.12 ChuangTou Industrial Square
LouFeng North, Suzhou Industrial Park
Suzhou, Jiangsu Province
China 215122
Tel: +86 512 62950050
Fax: +86 512 62950026
Federal Communications Commission (FCC) Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generate, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired
operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this
equipment.
RF exposure warning
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a
separation distance of at least 96.47 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter.
