Compupal Group B06XSFPDFX AmazonBasics 150M Wi-Fi Adapter User Manual
Compupal Group Corporation AmazonBasics 150M Wi-Fi Adapter Users Manual
Users Manual
created by: Impala Services Ltd.Page size: 85 x 95 mm
Quick Start Guide
Guide de Démarrage Rapide
Kurzanleitung
Guida Rapida
Guía de Inicio Rápido
クイックスタートガイド
快速使用指南
XXXXXXXXXXX
Wi-Fi 11N USB Nano Adapter, 150 Mbps, Black
Wi-Fi 11N USB Nano Adapter, 150 Mbps, Black
Wi-Fi 11N USB Nano Adapter, 150 Mbps, Black
Wi-Fi 11N USB Nano Adapter, 150 Mbps, Black
Wi-Fi 11N USB Nano Adapter, 150 Mbps, Black
Wi-Fi 11N USB Nano Adapter, 150 Mbps, Black
5/7/2017 18:28
AmazonBasics 150M Wi-Fi Adapter
B06XSFPDFX
2
Welcome Guide • English
Contents:
Before getting started, ensure the package contains the following
components:
• One 150Mbps 802.11b/g/n USB Wireless Adapter.
• Adapter installation disc.
FCC STATEMENT
1. This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference
that may cause undesired operation.
2. Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
5/7/2017 18:28
AmazonBasics 150M Wi-Fi Adapter
3
are designed to provide reasonable protection against harmful interference in a
residential installation.
This equipment generates uses and can radiate radio frequency energy and, if
not installed and
used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Note:
For this device, the highest reported SAR value for usage for usage near the
body is 0.179 W/kg. While there may be differences between the SAR levels
of various phones and at various positions, they all meet the government
requirements. SAR compliance for body-worn operation is based on a
separation distance of 5 mm between the unit and the human body. Carry
this device at least 5 mm away from your body to ensure RF exposure level
5/7/2017 18:28
compliant or lower to the reported level.
4
RF exposure compliance with any body-worn accessory, which contains metal,
was not tested and certified, and use such body-worn accessory should be
avoided.
IC NOTICE TO CANADIAN USERS
This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) This device may not
cause interference, and (2) This device must accept any interference, including
interference that may cause undesired operation of the device. This device
complies
with RSS-247 of Industry Canada. Operation is subject to the condition that
this device does not cause harmful interference. This Class B digital apparatus
complies with Canadian ICES-003 (Cet appareil numérique de la Classe B
conforme à la norme NMB-003 du Canada).
The SAR limit of CANADA (IC) is 1.6 W/kg averaged over one gram of tissue.
Device types AmazonBasics 150M Wi-Fi Adapter (IC:10828A-B06XSFPDFX)
has also been tested against this SAR limit. The highest SAR value reported
under this standard during product certification when properly worn on head
is 0.217/kg.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables
aux appareils radio exempts de licence. L’exploitation est autorisée aux deux
conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2)
5/7/2017 18:28
WIFI(2412-2462MHz):17.8 dBm
5
l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d’en compromettre le fonctionnement.
La limite SAR du CANADA (IC) est de 1,6 W / kg en moyenne sur un gramme
de tissu. Types de périphériques L’adaptateur Wi-Fi 150M de AmazonBasics
(IC: 10828A-B06XSFPDFX) a également été testé en fonction de cette limite
SAR. La valeur SAR la plus élevée rapportée selon cette norme lors de la
certification du produit lorsqu’il est correctement porté sur la tête est
de 0,217 / kg.
NOTICE TO EU USERS
Max RF power level:
The SAR limit of Europe is 2.0 W/kg. Device types mobile phone has also
been tested against this SAR limit. The highest SAR value reported under this
standard during product certification for use when properly worn on the body
is 0.123 W/kg. This device was tested for typical body-worn operations with
the back of the handset kept 5mm from the body. To maintain compliance with
RF exposure requirements, use accessories that maintain a 1.5cm separation
distance between the user’s body and the back of the handset. The use of belt
clips, holsters and similar accessories should not contain metallic components
in its assembly. The use of accessories that do not satisfy these requirements
may not comply with RF exposure requirements, and should be avoided.
5/7/2017 18:28
6
Low Voltage Directive (2014/35/EU)
• EN 60950-1:2006/A11:2009/A1:2010/A12:2011/ A2:2013
The Radio Equipment Directive (2014/53/EU):
• ETSI EN 300 328 V2.1.1(2016-11)
• ETSI EN 301 489-1 V2.2.0(2017-03)/ETSI EN 301 489-17 V3.2.0(2017-03)
SI EN301 908-13 V11.1.1(2016-07)
Hereby, Compupal (Group) Corporation declares that the radio equipment type
(AmazonBasics 150M Wi-Fi Adapter, B06XSFPDFX,WA01) is in compliance
with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following
internet address:
http://szsangfei.cn.gongchang.com/
Notice: Observe the national local regulations in the location where the device
is to be used.
5/7/2017 18:28
7
Disposal
Electronic devices are recyclable waste and must not be disposed of
in the household waste.
Dispose of this equipment using a designated collection point for the
recycling of electrical and electronic equipment
Safety
• Read this instruction manual carefully before using the product. It contains
important information for your safety as well as operating and maintenance
advice.
• Keep this instruction manual for future use. Should this product be passed
on to a third party, then this instruction manual must be included.
• No liability will be accepted for damage resulting from improper use or non-
compliance with these instructions.
• This product contains no user serviceable parts and requires little
maintenance. Leave any servicing or repairs to qualified personnel only.
• The appliance is not suitable for commercial use. This appliance is only
suitable for household use.
• This appliance is intended for indoor use only.
• Keep this product and its accessories away from small children. This
product is not a toy and may be hazardous to small children. A choking
hazard may exist for small, detachable parts.
5/7/2017 18:28
8
Install the Driver and Utility
Note 1: This printed manual is a shortened quick start guide to explain how
to connect your device to a network via the WLAN adapter. A detailed manual
you can find as pdf file on the supplied installation CD. You can also download
the software and the manuals online from: www.amazon.com
Note 2: The following installation was operated under Windows 10.
A. Insert the Installation CD to your CD-ROM Drive. Double click on the file
starting “IS_Setup_ICS…” to start the installation.
B. Confirm the permission to the app to make changes on the device.
C. To accept the license agreement, select “I accept the terms of the license
agreement” and click “Next”.
Notice: If you want to change the installation setup, please click “Back” to
return to previous page to set it up again. If you want to quit the installation,
please click “Cancel”.
D. You can choose the installation type for the actual needs. “Install driver
and Mediatek WLAN Utility” is our recommended choice. Click “Next” to
proceed.
E. A window will pop up to prompt that the system is ready for the installation.
Click “Install”.
F. The system will show the installation processing bar. After the installation,
another interface will show up.
5/7/2017 18:28
9
G. When the installation process is done, the system will remind a information.
Click “Finish” to accomplish the installation. The installation wizard will shut
down automatically.
Check Device Status
• After the installation is completed, a Wireless Configuration Utility is
visible on the desktop of your computer automatically. You can find an icon
on the task bar.
• Plug in the product into the USB 2.0 port.
• After plugging in, the blue LED indicator on the adapter lights up. At the
same time, the grey cross on the icon changes to a red cross to
inform you that the device is available but without any WLAN connection.
• You can check its condition in the Device Manager. Double click device
name
“802.11n USB Wireless LAN Card” to check further details.
Device Connection

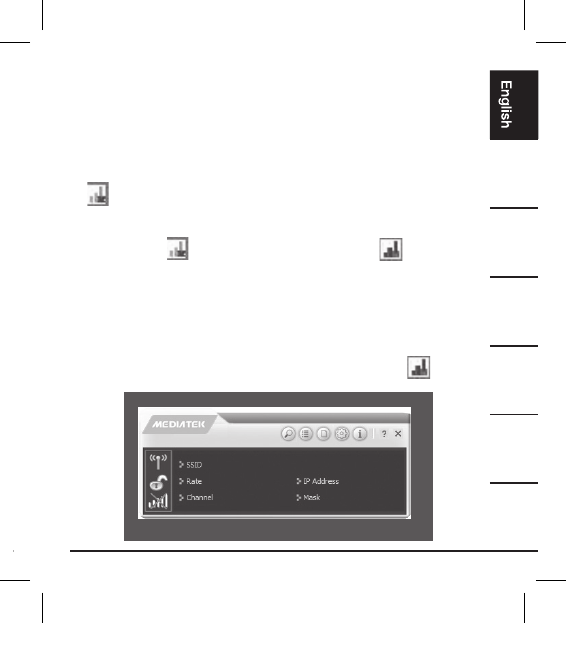

A. When device is working properly, double click or right click on icon and
choose “Launch Config Utility”. The following window appears:
5/7/2017 18:28
10

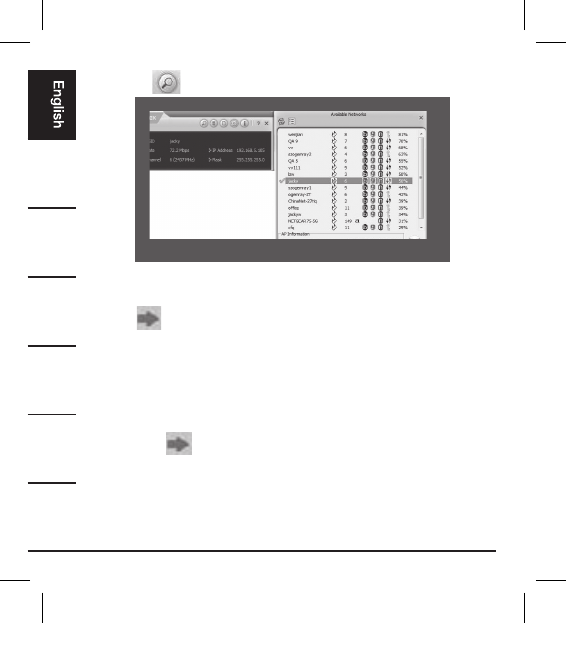

B. Click the icon to show all available wireless networks:
C. Choose the desired wireless network name. The access point information
of that network will be shown on the bottom for reference. Click the right
arrow to start the connection.
• If the encryption pattern is NONE, the system will auto-connect
and the basic information of that network will be shown in the main
window.

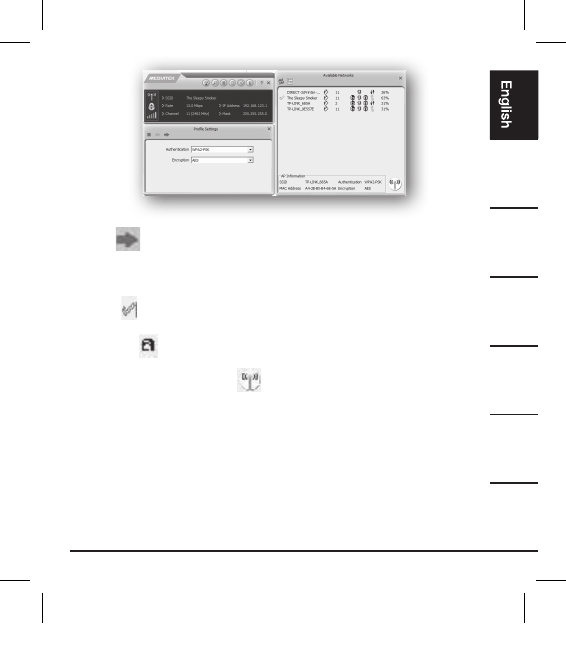

• If the encryption pattern is not NONE, the window “Profile Settings”
will pop up when click to connect this wireless network. Choose the
authentication and encryption type.
Click to go to next step to input the WPA preshared key.
5/7/2017 18:28
11
D. Click to confirm the entered key. It the key is correct the connection
will be build up automatically.
• On the right part,the connected network is marked with a green tick
.
• Networks which are using the 5G band are marked with a yellow
“a” .
E. Click on the antenna symbol to disconnect the network connection.
For detailed information about more functions and options please read the
manual in the pdf format stored on the supplied installation CD.
XXXXX-Amazonbasics-150 Mbps USB Nano Adapter-Quick-V02.indb 11 5/7/2017 18:28
12
Specication
Main Chipset MT 7601U
Host interface USB 2.0 Type A
LED Link/ Activity
Antennas Built-in onboard PCB antenna
Operation Frequency ISM band, 2412~2483.5MHz (Depends on
country region)
Typical Transmit Power
802.11b (CCK) 11Mbps: 18+/-1dBm
802.11g (OFDM) 54Mbps: 15+/-1dBm
802.11n (HT20@MCS7), 14+/-1dBm, (HT40@
MCS15),14+/-1dBm
Receive Sensitivity
802.11b: -88+/-1dBm: 802.11g: -73+/-1dBm
802.11n (HT20), -71+/-1dBm: 802.11n (HT40),
-68+/-1dBm
Operation System Windows XP/Vista/7/10; Linux 2.6.X; Mac OS X
Security WEP 64/128, WPS;WPA/WPA2 (TKIP,AES);
WAPI
Voltage Range/Current DC 5.0V ± 5% / <150mA @802.11 g
Physical Specification
Dimensions 26.4 x 16 x 7.3 mm
Weight 2.5 g
XXXXX-Amazonbasics-150 Mbps USB Nano Adapter-Quick-V02.indb 12 5/7/2017 18:28
13
Disclaimers
THESE MATERIALS AND INFORMATION ARE PROVIDED “AS IS” WITHOUT
WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING
BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT.
We uses reasonable efforts to include accurate and up-to-date information
on this document; it does not, however, make any representations as to its
accuracy or completeness of the information, text, graphics, links or other
items contained within these materials. Your use of this Document is at your
own risk. Its suppliers, and other parties involved in creating and delivering this
Document’s contents shall not be liable for any special, indirect, incidental,
or consequential damages, including without limitation, lost revenues or lost
profits.
Warranty Information
To obtain a copy of the warranty for this product:
Visit amazon.com/AmazonBasics/Warranty
— or —
Contact Customer Service at 1-866-216-1072
XXXXX-Amazonbasics-150 Mbps USB Nano Adapter-Quick-V02.indb 13 5/7/2017 18:28
14
Feedback
Love it? Hate it?
Let us know with a customer review.
AmazonBasics is committed to delivering customer-driven products that live
up to your high standards. We encourage you to write a review sharing your
experiences with the product.
Please visit: amazon.com/review/review-your-purchases#
For further services:
Visit amazon.com/gp/help/customer/contact-us
— or —
Contact Customer Service at 1-866-216-1072
XXXXX-Amazonbasics-150 Mbps USB Nano Adapter-Quick-V02.indb 14 5/7/2017 18:28
MADE IN CHINA
amazon.com/AmazonBasics
XXXXX-Amazonbasics-150 Mbps USB Nano Adapter-Quick-V02.indb 15 5/7/2017 18:28
