USER GUIDE
MD-SPBT01
Bluetooth Speaker
Before using your new product, please read these instructions
MD-SPBT01_13-0842_MAN_V1_ENG.fm Page 1 Sunday, September 22, 2013 8:21 AM
2MD-SPBT01
Modal MD-SPBT01 Bluetooth
Speaker
Contents
Introduction ...................................................................... 2
Features .............................................................................. 3
Setting up your speaker................................................ 7
Using your speaker ......................................................... 7
Troubleshooting .............................................................. 9
Specifications.................................................................... 9
Legal notices ...................................................................10
One-Year Limited Warranty........................................11
Introduction
Congratulations on your purchase of a high-quality Modal product.
Your MD-SPBT01 represents the state of the art in Bluetooth speaker
design and is designed for reliable and trouble-free performance.
MD-SPBT01_13-0842_MAN_V1_ENG.fm Page 2 Sunday, September 22, 2013 8:21 AM
3MD-SPBT01
Features
• Compatible with most MP3 players, computers, mobile phones, and
tablets.
• Pairs and plays in seconds using a Bluetooth wireless connection. Up to
33' range offers flexible use.
• Built-in rechargeable lithium-ion battery, providing up to 5 hours of
battery life.
• Battery level monitor that shows the battery level on your Apple/ iOS
devices (currently this feature is not available on Android devices).
• Lightweight design offering easy portability.
• 3.5 mm line input providing a simple input connection.
Package contents
• Bluetooth speaker
• USB charging cable
•Quick Setup Guide
MD-SPBT01_13-0842_MAN_V1_ENG.fm Page 3 Sunday, September 22, 2013 8:21 AM
4MD-SPBT01

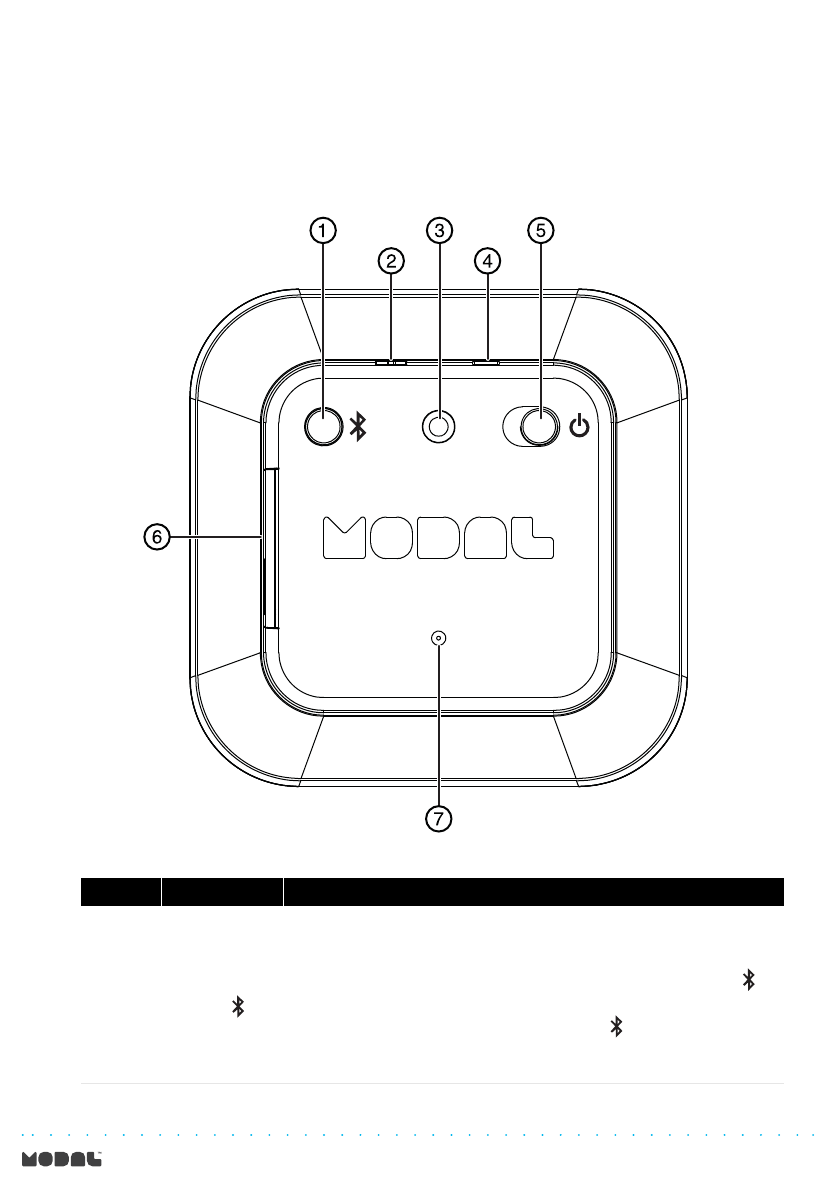

Top view
Number Component Function
1Multi-function
button ( )
In power-on state, press and hold the button for more than two
seconds to enter into pairing mode. The LED alternates blinking
red and white.
• When the phone rings, quickly press the multi-function ( )
button to answer the phone call.
• To end a call, press the multi-function ( ) button twice.
Note: For Android users: make sure that the “Phone Audio” function is active in the
Bluetooth settings. For more information see “Pairing your speaker with a Bluetooth
device” on page 7.
MD-SPBT01_13-0842_MAN_V1_ENG.fm Page 4 Sunday, September 22, 2013 8:21 AM
5MD-SPBT01
2Volume Up
3AUX IN jack
Plug an external audio device into this jack. The default source for
this speaker is Bluetooth. If a cable is inserted into this AUX IN jack,
the source is automatically switched to AUX IN. Unplug the cable
and the source automatically switches back to Bluetooth.
4Volume Down
5 (power)
button
•Slide the switch to the right to power on the speaker –
LED ON (red/white LED blinking to enter auto pairing mode).
•Slide the switch to the left to turn the speaker o – LED
OFF.
When power is on, the unit automatically connects to the last
paired Bluetooth device within six seconds. If the last paired
Bluetooth device is not in range, the unit automatically searches
for another device to pair to.
6USB port Plug the USB cable into this port.
7Status
indicator LED
Power
•LED is white when the speaker is turned on. LED is o when
the speaker is turned o.
Charging
•When the speaker is o, the LED is red while charging. After
charging is complete, the LED turns o.
•When the speaker is on, the LED is solid red while charging.
After charging is complete, the red LED turns o and the white
LED turns on.
Other
•No Bluetooth connection, the white LED ashes slowly.
•Bluetooth is in pairing mode, the white and red LEDs alternate
blinking.
•Successful Bluetooth connection, solid white LED.
•The white LED blinks quickly when increasing/decreasing the
volume. When the minimum/maximum volume is reached,
the LED is solid white.
•The LED quickly blinks red when the battery is low. The
speaker remains on for approximately 10 more minutes.
Number Component Function
MD-SPBT01_13-0842_MAN_V1_ENG.fm Page 5 Sunday, September 22, 2013 8:21 AM
+
-
6MD-SPBT01

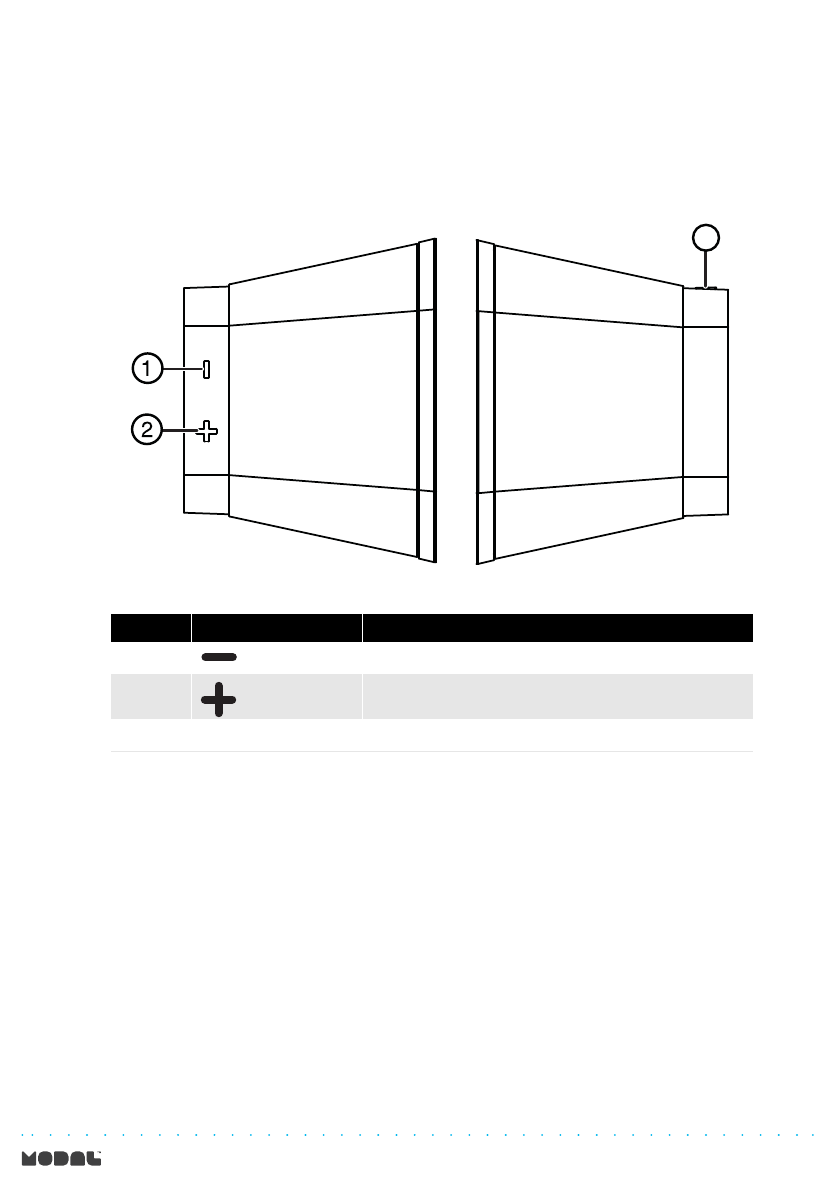

Side views
Number Component Function
1 (volume down) Press to decrease the volume.
2 (volume up)
Micro-USB port.
Press to increase the volume.
3Plug the USB cable to charge battery
3
MD-SPBT01_13-0842_MAN_V1_ENG.fm Page 6 Sunday, September 22, 2013 8:21 AM
7MD-SPBT01
Setting up your speaker

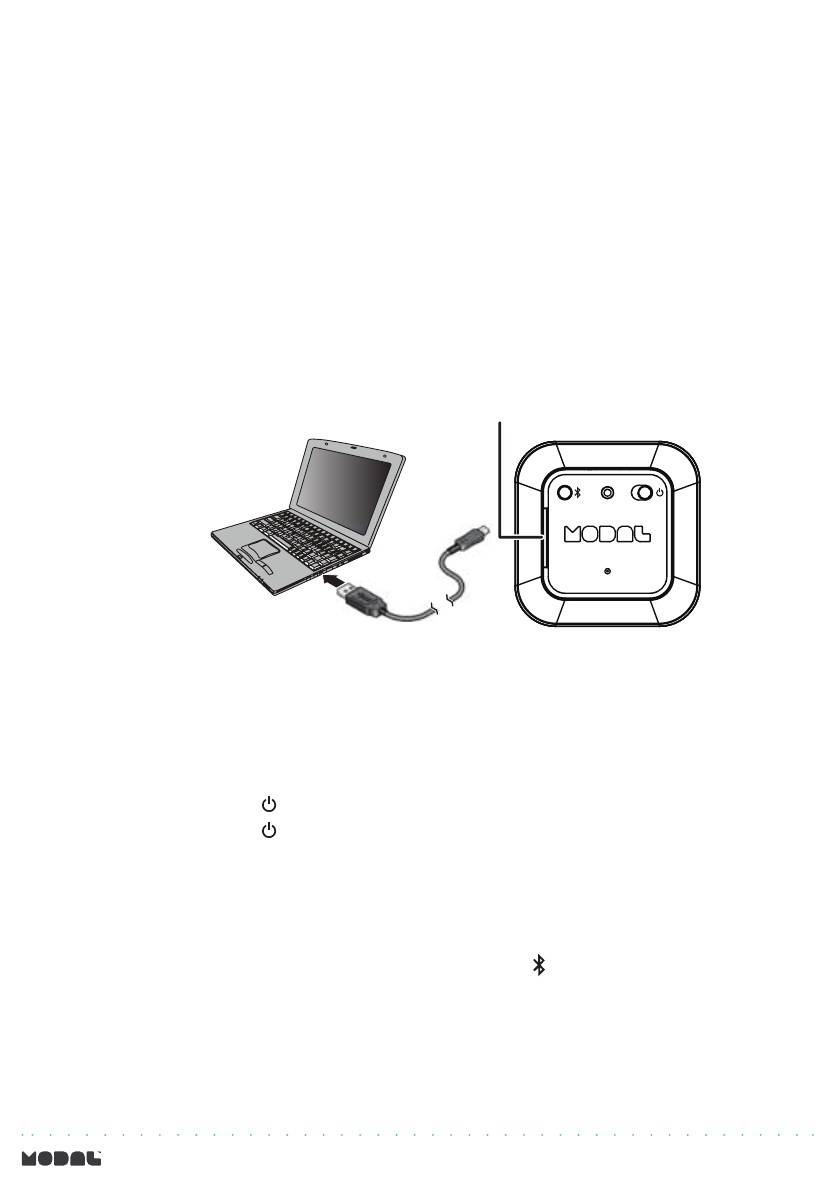

Charging your speaker
When your speaker’s battery is low, the red LED blinks.
To charge your speaker:
•Connect the charging cable to your Bluetooth speaker and to an
available USB port on your computer or a USB charging station.
Using your speaker
Turning your speaker on and o
To turn your speaker on and o:
1Slide the (power) switch to the right to turn your speaker on.
2Slide the (power) switch to the left to turn your speaker o.
Pairing your speaker with a Bluetooth device
Note: Bluetooth range is 33 feet (10 meters).
To pair your speaker with a Bluetooth device:
1Press and hold the multi-function button ( ) on your Bluetooth speaker
until the white and red LED indicators blink.
2Enter pairing mode on your Bluetooth device, then select “Modal
MD-SPBT01” from the list to pair.
Note: For more information on entering pairing mode, see the instructions that came
with your Bluetooth device.
Micro USB charging port
(under the ap cover)
MD-SPBT01_13-0842_MAN_V1_ENG.fm Page 7 Sunday, September 22, 2013 8:21 AM
8MD-SPBT01
3To unpair, turn o Bluetooth on your Bluetooth device.
To pair your speaker with an Android Bluetooth device:
1Open Settings, then open Wireless and Network.
2Open Bluetooth Settings and turn on Bluetooth.
3Press and hold the multi-function button ( ) on your Bluetooth speaker
until the white and red LED indicators blink.
4Search for devices and select Modal device or MD-SPBT01 from the list
to pair and connect with.
5Once paired and connected with the MD-SPBT01, touch and hold the
paired device name (MD-SPBT01) until the sub-menu screen appears.
Select Options.
6When the Options menu opens, select Phone Audio. Make sure that the
Media Audio option is also selected. Audio from your phone will now be
routed through your Bluetooth speaker.
7To unpair, turn o Bluetooth on your Android Bluetooth device.
Connecting other devices
To listen to audio from a non-Bluetooth device:
•Connect a 3.5 mm audio cable (not included) from your speaker to your
audio device.
Controlling volume and playback
To control volume and playback:
1Use the controls on your audio device to play, pause, and select tracks.
2Press Volume + or Volume – to raise or lower the volume (make sure
that the volume level on your Bluetooth device is at least 50%).

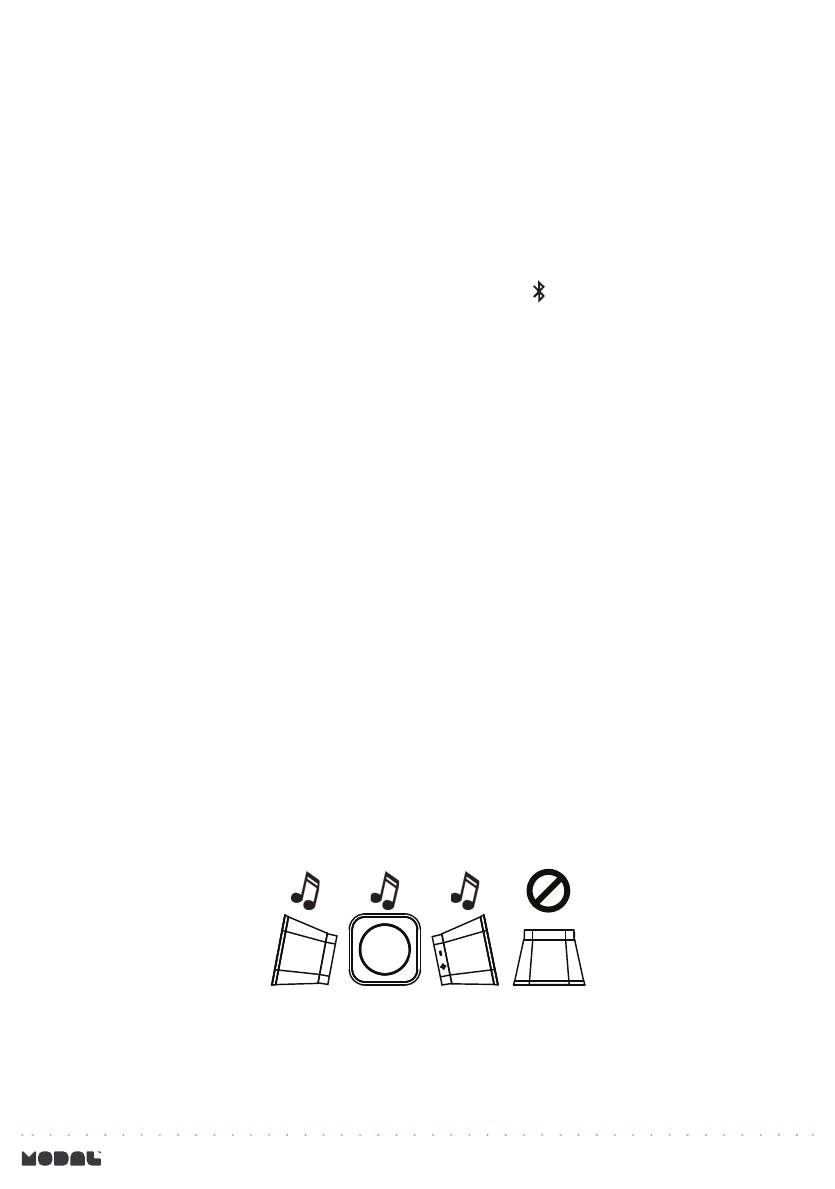

3Turn your Bluetooth speaker face down to mute the sound.
MD-SPBT01_13-0842_MAN_V1_ENG.fm Page 8 Sunday, September 22, 2013 8:21 AM
9MD-SPBT01
Using the speakerphone
To use the speakerphone when your Bluetooth speaker is paired to
your phone:
1Press the multi-function button ( ) on your Bluetooth speaker once.
2Press Volume + or Volume – to raise or lower the speakerphone volume.
3Turn your speaker face down to end the call.
4To end a call, press the multi-function button ( ) on your Bluetooth
speaker twice or a volume button (+ or –) twice.
Storing your cables
To store your cables:
•Insert the end of the charging cable into the USB storage slot, then
wrap the charging cable around the base of the speaker.
Specications
Dimensions (LxWxH) 3.7 x 3.7 x 2.9 in.
(94.21 x 94.21 x 73 mm)
Frequency 100Hz - 20KHz
3W of power with 1% THD
Weight 7.65 oz. (217 g)
Bluetooth range 33 ft. (10 m)
Supported Bluetooth proles A2DP, HFP
MD-SPBT01_13-0842_MAN_V1_ENG.fm Page 9 Sunday, September 22, 2013 8:21 AM
10MD-SPBT01
Legal notices
FCC Statement
This device complies with Part 15 of the FCC Rules and Industry Canada licence-exempt RSS
standard(s). Operation is subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment o and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit dierent from that to which the receiver
is connected.
•Consult the dealer or an experienced radio/TV technician for help.
Warning: Changes or modications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Interference Notice
Bluetooth products are a radio device that might cause interference with other non-Bluetooth
devices (for instance, devices using wireless LAN). 802.11b technology might cause
degradation on the performance of Bluetooth devices.
Caution:
•To comply with FCC RF exposure compliance requirements, a separation distance of at least
20 cm must be maintained between the antenna of this device and all persons.
•This Transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
Department of Communications-Canada
Canadian Compliance Statement
This equipment complies with IC radiation exposure limits set forth for an uncontrolled
environment.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement."
Cet équipement est conforme à l'exposition aux rayonnements Industry Canada limites établies
pour un environnement non contrôlé."
MD-SPBT01_13-0842_MAN_V1_ENG.fm Page 10 Sunday, September 22, 2013 8:21 AM
11MD-SPBT01
One-Year Limited Warranty
Modal Products (“Modal”) warrants to you, the original purchaser of this new MD-SPBT01
(“Product”), that the Product shall be free of defects in the original manufacture of the material
or workmanship for one (1) year from the purchase of the Product (“Warranty Period”). This
Product must be purchased from an authorized dealer of Modal brand products and packaged
with this warranty statement. This warranty does not cover refurbished Product. If you notify
Modal during the Warranty Period of a defect covered by this warranty that requires service,
terms of this warranty apply.
How long does the coverage last?
The Warranty Period lasts for one year (365 days), beginning on the date you purchased the
Product. The purchase date is printed on the receipt you received with the product.
What does this warranty cover?
During the Warranty Period, if the original manufacture of the material or workmanship of the
Product is determined to be defective by an authorized Modal repair center or store personnel,
Modal will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the
Product at no charge with new or rebuilt comparable products or parts. Products and parts
replaced under this warranty become the property of Modal and are not returned to you. If
service of Products and parts are required after the Warranty Period expires, you must pay all
labor and parts charges. This warranty lasts as long as you own your Modal Product during the
Warranty Period. Warranty coverage terminates if you sell or otherwise transfer the Product.
How to obtain warranty service?
If you purchased the Product at a retail store location, take your original receipt and the Product
to the store you purchased it from. Make sure that you place the Product in its original
packaging or packaging that provides the same amount of protection as the original
packaging. If you purchased the Product from an online web site, mail your original receipt and
the Product to the address listed on the web site. Make sure that you put the Product in its
original packaging or packaging that provides the same amount of protection as the original
packaging.
Where is the warranty valid?
This warranty is valid only to the original purchaser of the Product in the United States, Canada,
and Mexico.
What does the warranty not cover?
This warranty does not cover:
•Customer instruction
•Installation
•Set up adjustments
•Cosmetic damage
•Damage due to acts of God, such as lightning strikes
•Accident
MD-SPBT01_13-0842_MAN_V1_ENG.fm Page 11 Sunday, September 22, 2013 8:21 AM
12MD-SPBT01
•Misuse
•Abuse
•Negligence
•Commercial use
•Modication of any part of the Product, including the antenna
This warranty also does not cover:
•Damage due to incorrect operation or maintenance
•Connection to an incorrect voltage supply
•Attempted repair by anyone other than a facility authorized by Modal to service the
Product
•Products sold as is or with all faults
•Consumables, such as fuses or batteries
•Products where the factory applied serial number has been altered or removed
REPAIR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS YOUR EXCLUSIVE REMEDY.
MODAL SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR THE
BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT, INCLUDING, BUT NOT
LIMITED TO, LOST DATA, LOSS OF USE OF YOUR PRODUCT, LOST BUSINESS OR LOST PROFITS.
MODAL PRODUCTS MAKES NO OTHER EXPRESS WARRANTIES WITH RESPECT TO THE PRODUCT,
ALL EXPRESS AND IMPLIED WARRANTIES FOR THE PRODUCT, INCLUDING, BUT NOT LIMITED TO,
ANY IMPLIED WARRANTIES OF AND CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH
ABOVE AND NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY AFTER THE
WARRANTY PERIOD. SOME STATES, PROVINCES AND JURISDICTIONS DO NOT ALLOW
LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY
NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO
HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE.
Contact Modal:
www.modalproducts.com
Distributed by Best Buy Purchasing, LLC
7601 Penn Avenue South, Richeld, Minnesota, U.S.A. 55423-3645
© 2013 Best Buy Enterprise Services, Inc.
All rights reserved. MODAL is a trademark of Best Buy Enterprise Services, Inc. Registered in
some countries. All other products and brand names are trademarks of their respective owners.
MD-SPBT01_13-0842_MAN_V1_ENG.fm Page 12 Sunday, September 22, 2013 8:21 AM
V1 ENGLISH 13-0842
www.modalproducts.com
Distributed by Best Buy Purchasing, LLC
7601 Penn Avenue South, Richeld, MN 55423-3645 USA
© 2013 Best Buy Enterprise Services, Inc.
All rights reserved. MODAL is a trademark of Best Buy Enterprise Services, Inc.
All other products and brand names are trademarks of their respective owners.
MD-SPBT01_13-0842_MAN_V1_ENG.fm Page 13 Sunday, September 22, 2013 8:21 AM
