Users Manual
RCB
Basic On/Off Remote Control
INSTALLATION AND OPERATING INSTRUCTIONS
This basic on/off remote control system provides a safe, reliable,
and user-friendly remote control for millivolt valve gas appliances.
The system can be manually turned on and off with the transmit-
ter. Always check with the home owner’s manual of the appliance
for additional information, warnings regarding accessory installa-
tion before connecting this remote control system.
Carefully inspect the contents for shipping damage. If any parts
are missing or damaged, immediately contact the dealer from
whom you purchased the kit. Do not attempt to install any part of
the kit unless all parts are in good condition. Please keep this
manual for future reference.
CONTENTS OF KIT
Description Qty
Transmitter 1
Battery Alkaline AAA ( for Transmitter) 3
Receiver (Assembly) consists of : 1
Receiver Box
Slide Button-Black (On/RS/Off)
Battery Alkaline AA (for Receiver) 4
Wall Cover Plate-Black 1
Wall Cover Plate-White 1
Slide Button-White (On/RS/Off) 1
Screws (for Wall Cover Plate) 2
Plug-In Wiring Assembly – 18" Inches 1
Installation Instructions 1
Velcro (Loop and Hook) 1
Screws (for fireplace system control covers) 2
FEATURES/SPECIFICATIONS
• Battery Powered Transmitter and Receiver
• Easy Access Front Battery Door
• Pre-Programmed for Quick Installation
• 16 Security Codes
• Quick Disconnect Wiring Assembly
WARNING
Important Safety Information
• Read this manual thoroughly prior to installing, programming
or operating any remote control.
• This remote control system is designed for use with a milli
volt gas valve system. Do not use this remote control system
on applications with voltages above 30 Volts AC.
• This remote control system requires three (3) "AAA" and four
(4) "AA" alkaline batteries to power the transmitter and
receiver. Wiring must conform to appliance requirement and
building codes/ordinances as required by local and national
code authorities having jurisdiction.
• Do not short (or jumper) across the gas valve terminals to test
the remote control installation. This could damage the unit
and void the warranty.
• This remote control system should only be used as described
in this manual. Any other use is not recommended and will
void the warranty.
Turn appliance OFF and allow to cool before
installing or servicing. DO NOT connect
110-120 VAC wiring to the milli-volt gas control
valve. The remote operator must be installed
exactly as outlined in these instructions. Read all
instructions completely before attempting
installation. Follow instructions carefully during
installation. Any modification of components will
void the warranty and may cause a fire hazard.
INSTALLATIONS
Remote Receiver:
The remote receiver may be wall mounted or installed in the
appliance per the appliance homeowner’s manual. Refer to the
Homeowner’s Manual for special installation instructions. If
wall mounted, the remote receiver must be installed in a junction
box with cover plate provided. Failure to follow the installation
instructions found in the appropriate Homeowner’s Manual will
void the warranty and may cause a fire hazard.
Installing Batteries:
The remote receiver uses four (4) "AA"- size batteries. To install
batteries,
1.Open the battery door by
pressing the two tabs located on
the door.
2.Install the batteries as indicated
in the receiver cover.
3.Close the battery door until the
door tab snaps in place.
4.To install the receiver into a
wall junction box, install the
receiver with the screws
provided .
5.Gently, install the slide switch
back to the receiver stem.
6.The batteries should be replaced
at least once every 6 months or
when the battery indicator
flashes.
Installing Wire:
This system comes with an 18 inch pre-assembled wire assembly.
Insert the white terminal to the back of the receiver. The terminal
wire block can only be installed one way. Do not force the termi-
nal plug onto the receiver.
Follow the homeowner’s manual for connecting the two (2) 1/4"
female spade terminals to the millivolt valve.
For applications longer than 18 inches, use 18 gauge wire, 105ºC
rated, with no splices. Connect to the two (2) 1/4" female spade
wiring terminals. Wire can be no longer than 20 feet.
Make sure that the wires do not contact the
appliances any place other than at the terminals.
Exposure to temperatures higher than 105C
(250ºF) may cause the receiver to malfunction or
fire hazard.
Remote Transmitter:
Installing Batteries:
The remote transmitter uses three (3)
"AAA"- size batteries. To install
batteries,
1.Press down the battery door tab
and lift up and remove the battery
door.
2.Install the batteries as indicated on
the receiver cover.
3.Close the battery door by snap-
ping in place.
4. The batteries should be replaced
at least once every 6 months or
when the battery indicator flashes.

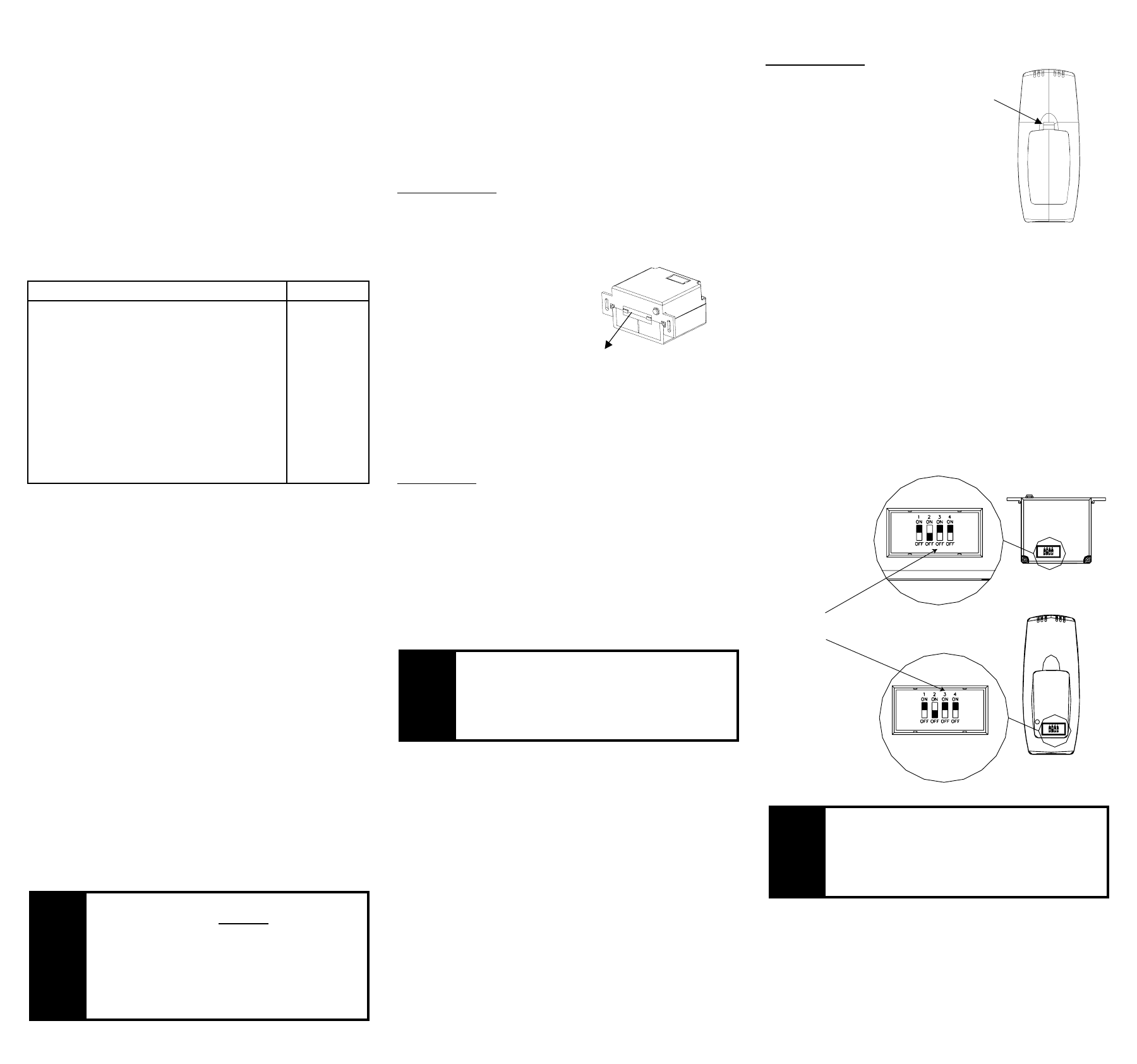

Setting Privacy (DIP) Switch on Receiver and Transmitter:
The remote receiver and transmitter privacy (DIP) switches are
preset at the factory. The receiver and transmitter privacy (DIP)
switches are preset at the factory. In the event of activation or
interference from other nearby transmissions, reset the code using
the following procedure:
1.Slide the code switches on the transmitter or receiver to your
choice of ON or OFF position. Switches #1, #3 and #4 are pre-
set to "ON", and #2 is preset to "OFF" for both the transmitter
and receiver.
2.The switches on the transmitter and receiver must match in
order for the system to work.
3.The system is now ready to operate.
Do not use two (2) or more remote control systems
in the same area with the same dip switch settings,
as they will communicate with each other. This
may cause the appliances to malfunction.
WARNING
Battery Door
WARNING
WARNING
Back of the Transmitter
Battery
Door
Tab
Dip Switch (Default)
Receiver
Transmitter
OPERATIONS:

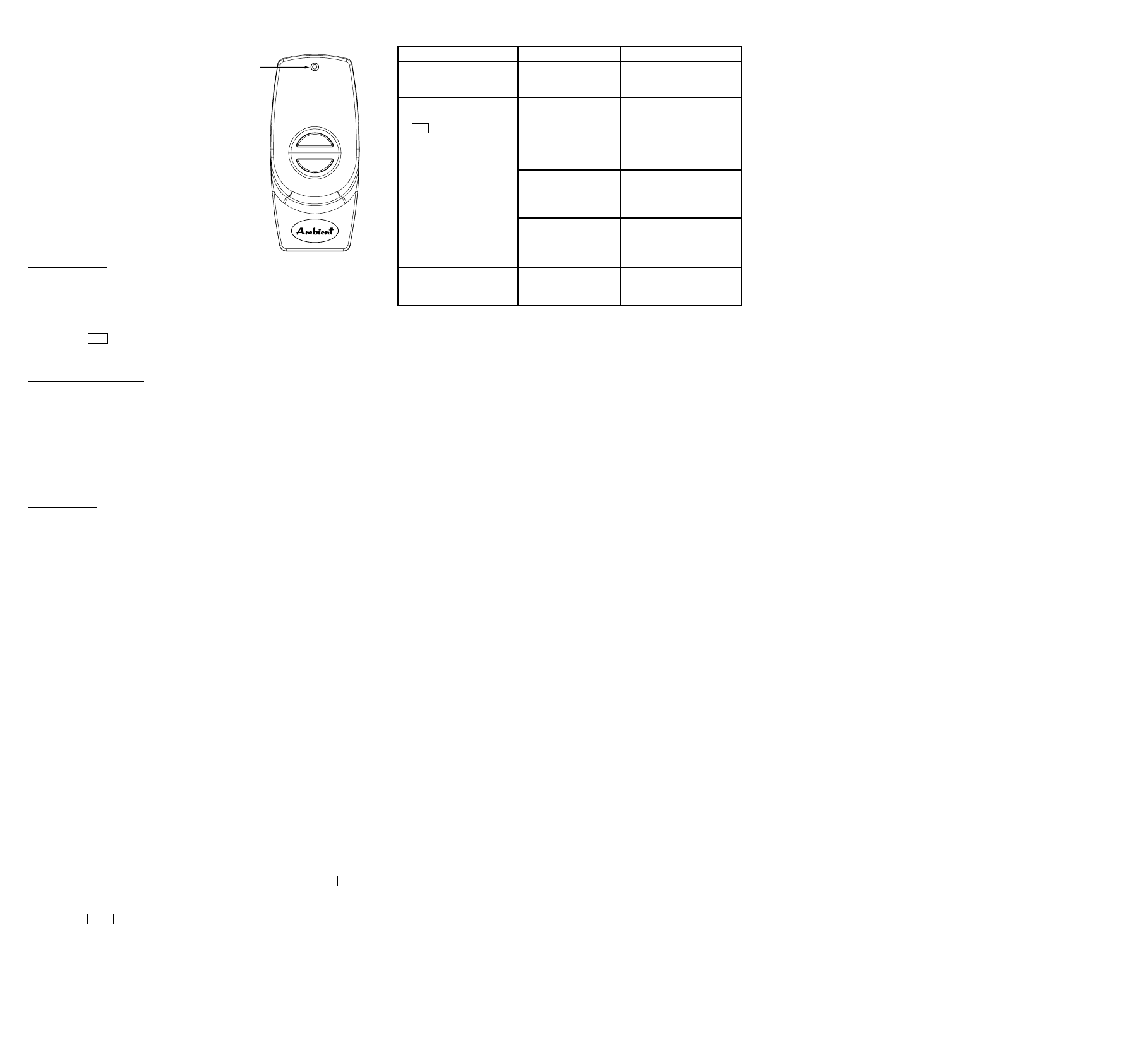

Transmitter:
General:
The RCB is an On/Off remote control.
The transmitter will operate the remote
receiver from 1foot to a maximum of 30
feet. The operational range is reduced
when batteries are low or when the
receiver is inside a metal enclosure.
Initial start up:
1. After initial power up, the transmitter is ready for use.
Manual Mode:
1.Press the ON button once to turn on the appliance. Press the
OFF button to turn it off.
Low-battery detection:
1.When the battery voltage drops to a certain level, the LED on
the transmitter will blink until the battery expires. Change the
battery before the battery is too weak for normal operation.
TURN THE UNIT OFF BEFORE REPLACING
BATTERIES.
Receiver:
Slide Switch:
1.ON position: the system will remain on until the slide switch is
placed in the OFF or RS position.
2.RS position: the system will only operate if the remote receiver
receives a signal from the transmitter.
3.OFF position: the system is off. The slide switch should be
placed in the OFF position if you will be away for an extended
period of time. If the remote receiver is mounted out of
children’s reach, the OFF position also functions as a safety
device by both turning the system off and rendering the receiver
inoperable.
TESTING YOUR NEW REMOTE CONTROL
SYSTEM
1.Connect the wiring terminal to the appliance. Refer to the
appropriate Homeowner’s Manual for proper wiring connections
to the appliance.
2.Light your gas appliance following the appliance lighting
instructions that came with the appliance. Confirm that the pilot
light is on; it must be in operation for the remote control to
operate the main gas valve. Appliance control knob must be in
the ON position. Appliance ON/OFF switch must be in OFF
position.
3.Slide the 3 position button on the remote receiver to the ON
position. The main gas flame should ignite.
4.Slide the button to OFF. The flame should extinguish (the pilot
light will remain on).
5.Slide the button to RS (the center position), then press the ON
button on the transmitter to turn the system to ON. The main
gas flame should ignite.
6.Press the OFF button on the transmitter to turn the system to
OFF. The flame should extinguish (the pilot light will remain
on).
TROUBLESHOOTING
WARNING: Changes or modifications to this unit not expressly
approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable pro-
tection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with instruc-
tions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful inter-
ference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following meas-
ures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for
help.
WARRANTY
This warranty gives you specific legal rights and you may also
have other rights that vary from state to state or province to
province. Answers to any questions regarding our limited warran-
ty may be obtained by writing our corporate offices.
Ambient Technologies warrants each new Ambient Technologies
remote control against any defects that are due to faulty material
or workmanship to the original owner, for a period of five years
after the original date of purchase. This warranty and our liability
does not apply to batteries, nor does it include damage to mer-
chandise or the remote control resulting from accident, alteration,
neglect, misuse, improper installation or any other failure to fol-
low Ambient Technologies installation and operating instructions.
Ambient Technologies agrees to repair or replace at its option any
Ambient Technologies remote control under warranty provided it
is returned postage prepaid to our warranty facility in a padded
carton within the warranty period, with proof of the original date
of purchase and a brief description of the malfunction. This limit-
ed warranty does not include the cost of removal or re-installation.
Ambient Technologies
149 Cleveland Drive
Paris KY 40361
FOR TECHNICAL SUPPORT
CALL 800-398-6195
50D0035 Rev 2 July 2002
Symptom
1. LED light on receiver
blinking or battery icon
on LCD on transmitter.
4. Appliance does not
come on after pressing
ON on transmitter
5. Receiver cannot receive
signal.
Causes
1. Low Battery
1. Wiring / Electrical
Connections
2. Privacy (DIP) switch
setting on transmitter
does not match
receiver
3. Distance between the
transmitter and
receiver is more than
30 feet
1. Receiver is installed
in an enclosure
Action
1. Replace batteries. Change
batteries every 6 months.
1. Slide the switch to ON, if
appliance comes ON,
wiring is not the causes.
2. If appliance does not
come on, check wiring
connections.
1. Make sure the transmitter
and receiver has the same
DIP switch settings.
1. Make sure the operating
distance is less than 30
feet
1. Make sure the receiver is
not located inside an
enclosure.
ON
OFF
L
ED
