Contract No. DAAB15-99-D-0014 MTS Users Manual Revision: 1.9.1a
Page 14-1
14. Appendix
14.1 A-Kits – Vehicle Interior
14.1.1 FMTV

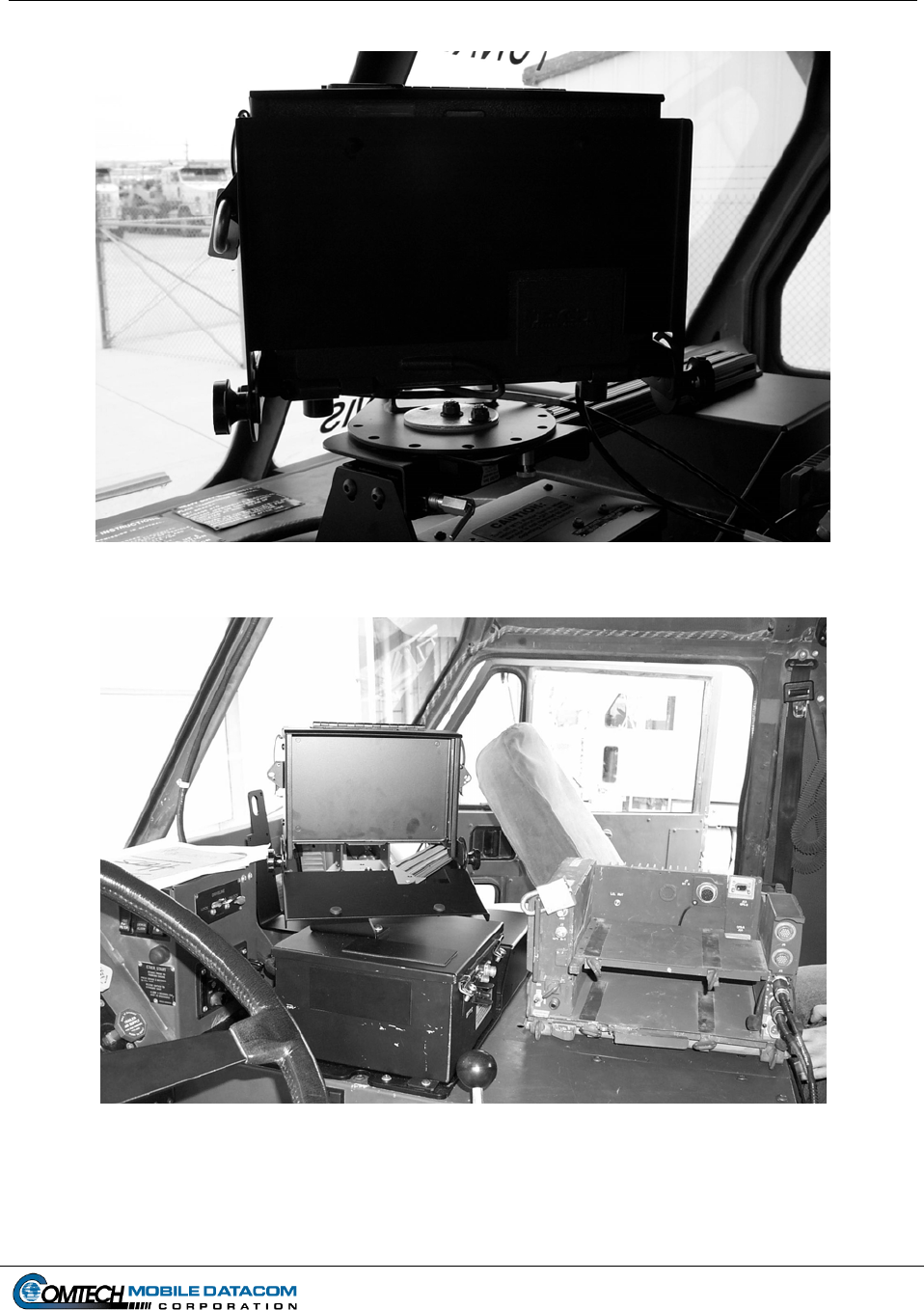

Figure 14-1 V2 computer mount (with V2 Computer installed) inside FMTV cab
14.1.2 FMTV Control Panel
Figure 14-2 V2 Control Box mounted inside FMTV cab
Contract No. DAAB15-99-D-0014 MTS Users Manual Revision: 1.9.1a
Page 14-2
14.1.3 HEMTT
Figure 14-3 V2 computer mount (without V2 Computer) inside HEMTT cab
14.1.4 HET
Figure 14-4 V2 computer mount (without V2 Computer installed) inside HET cab
Contract No. DAAB15-99-D-0014 MTS Users Manual Revision: 1.9.1a
Page 14-3
14.1.5 HMMWV

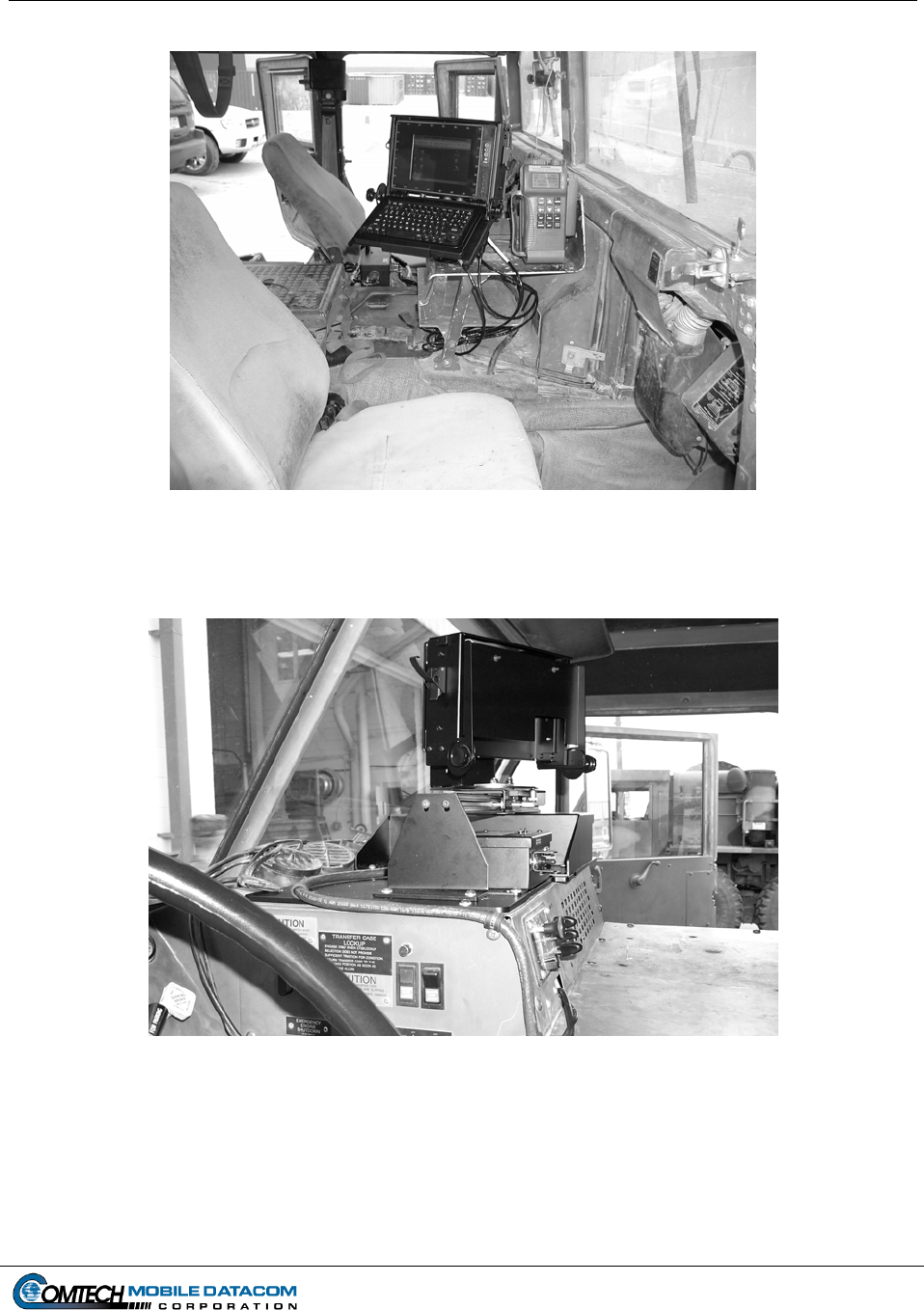

Figure 14-5 V2 Computer Mount inside HMMWV
Notice the Control Box in the center of the cab and the PLGR mounted next to the V2 computer.
14.1.6 PLS
Figure 14-6 V2 Computer Mount (without V2 Computer installed) inside PLS
Notice the control panel under the sliding computer mount.
